Volkswagen Passat / Passat Variant (2011 year). Manual - part 10

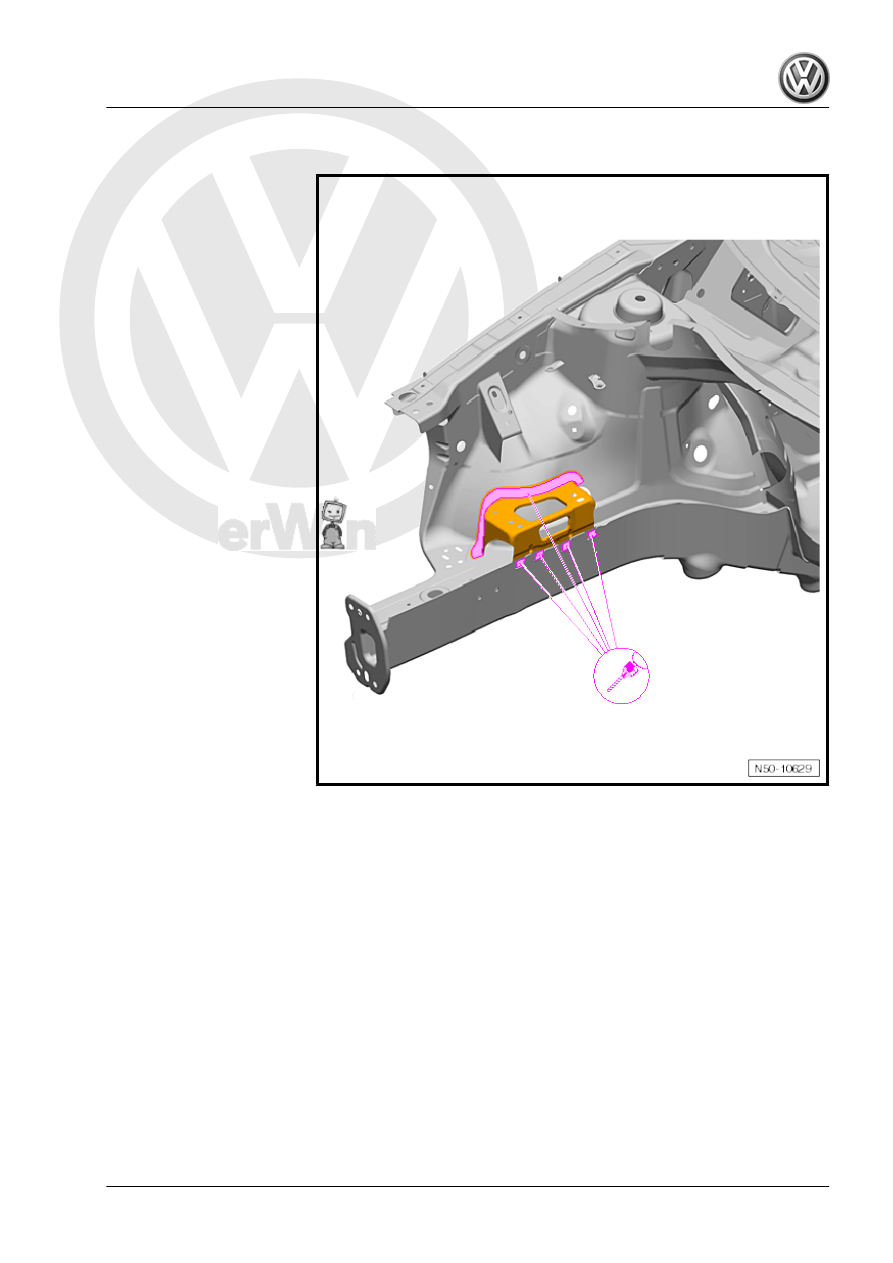

Removing

– Separate original joint.

Passat 2011 ➤ , Passat Variant 2011 ➤

2. Renewing right console

37

2.3

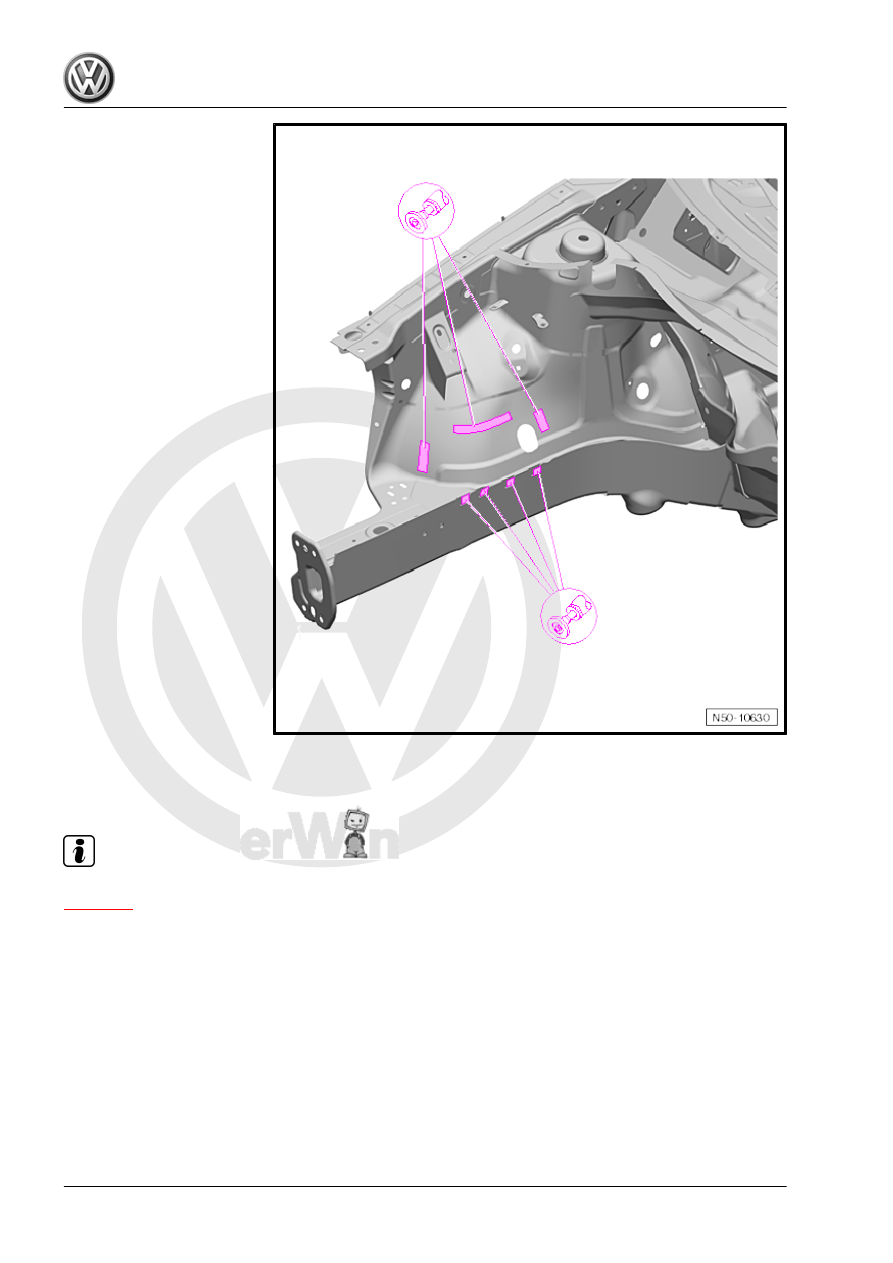

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 36

 .

2.3.1

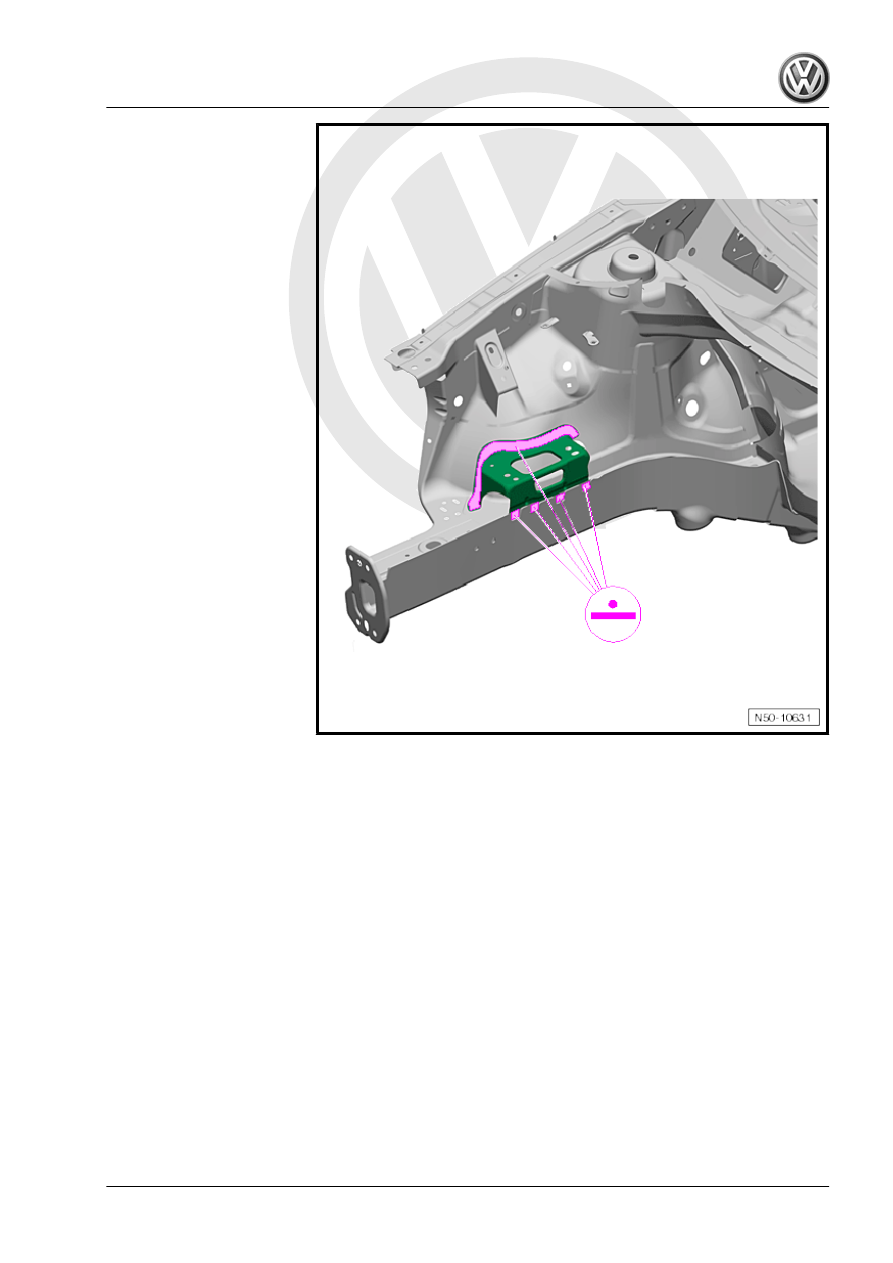

Welding in

New part
♦ Right engine bracket
– Adapt new part with vehicle positioned on alignment bracket

set and fix in place.

Passat 2011 ➤ , Passat Variant 2011 ➤

38

Passat 2011 ➤ , Passat Variant 2011 ➤

2. Renewing right console

39

3

Renewing retaining bracket for sub‐

frame

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

Note

The description of the procedure for renewing the front left sub‐

frame retaining bracket uses this vehicle as an example. The

procedure, as appropriate, should be used for the other 3 retain‐

ing brackets.

3.1

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

Passat 2011 ➤ , Passat Variant 2011 ➤

40
