Floor group - centre

Note

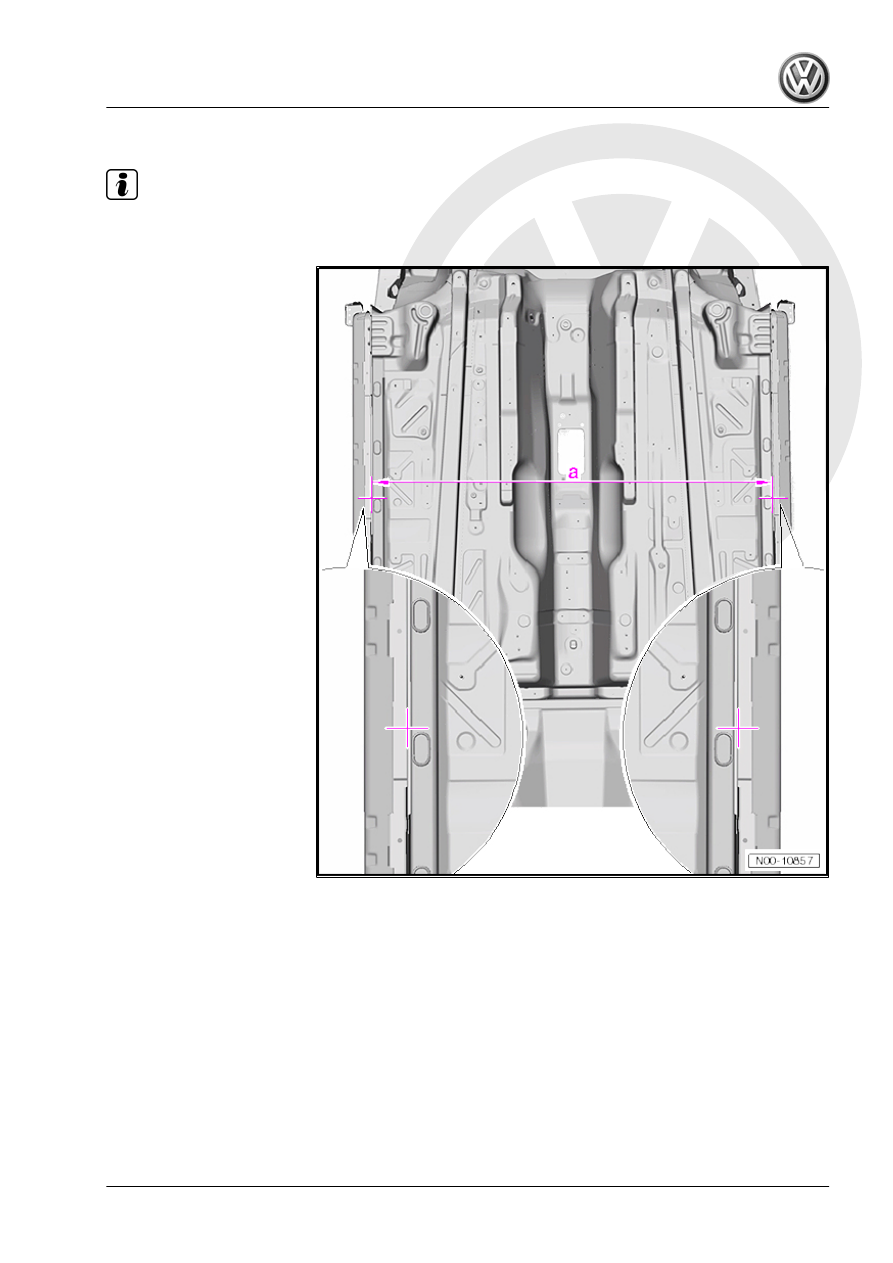

Dimension -a- is measured on floor at the left and right B-pillar.

a - 1,486 mm ± 2.0 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

7. Body dimensions

25

Floor group - rear

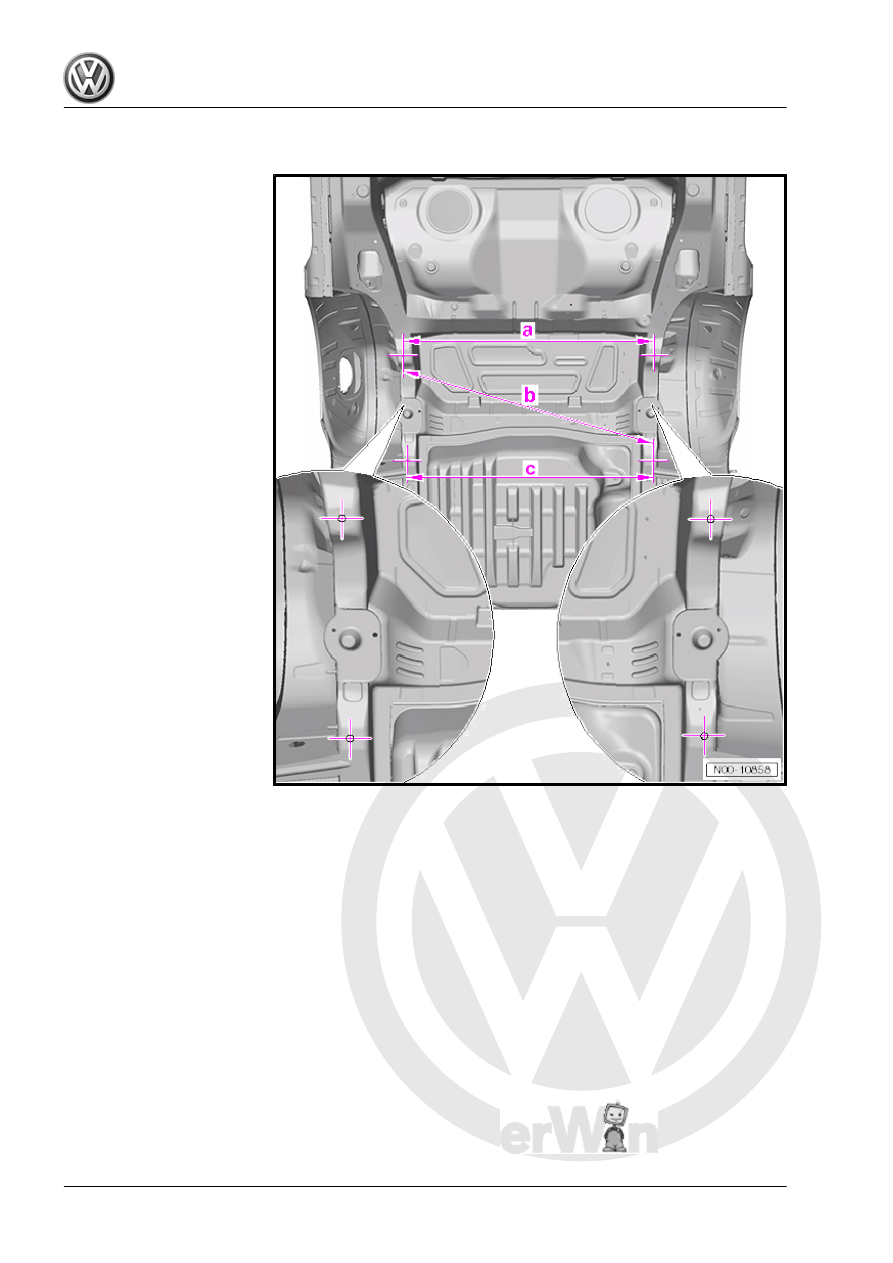

a - 1,000 mm ± 2.0 mm
b - 1,085 mm ± 2.0 mm
c - 987 mm ± 2.0 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

26

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

Passat 2011 ➤ , Passat Variant 2011 ➤

8. Tools

27

Alignment bracket set

Note

Alignment tasks may only be performed using Volkswagen AG

approved alignment bracket sets or measurement and alignment

systems .

9.1

Overview

Special tools and workshop equipment required

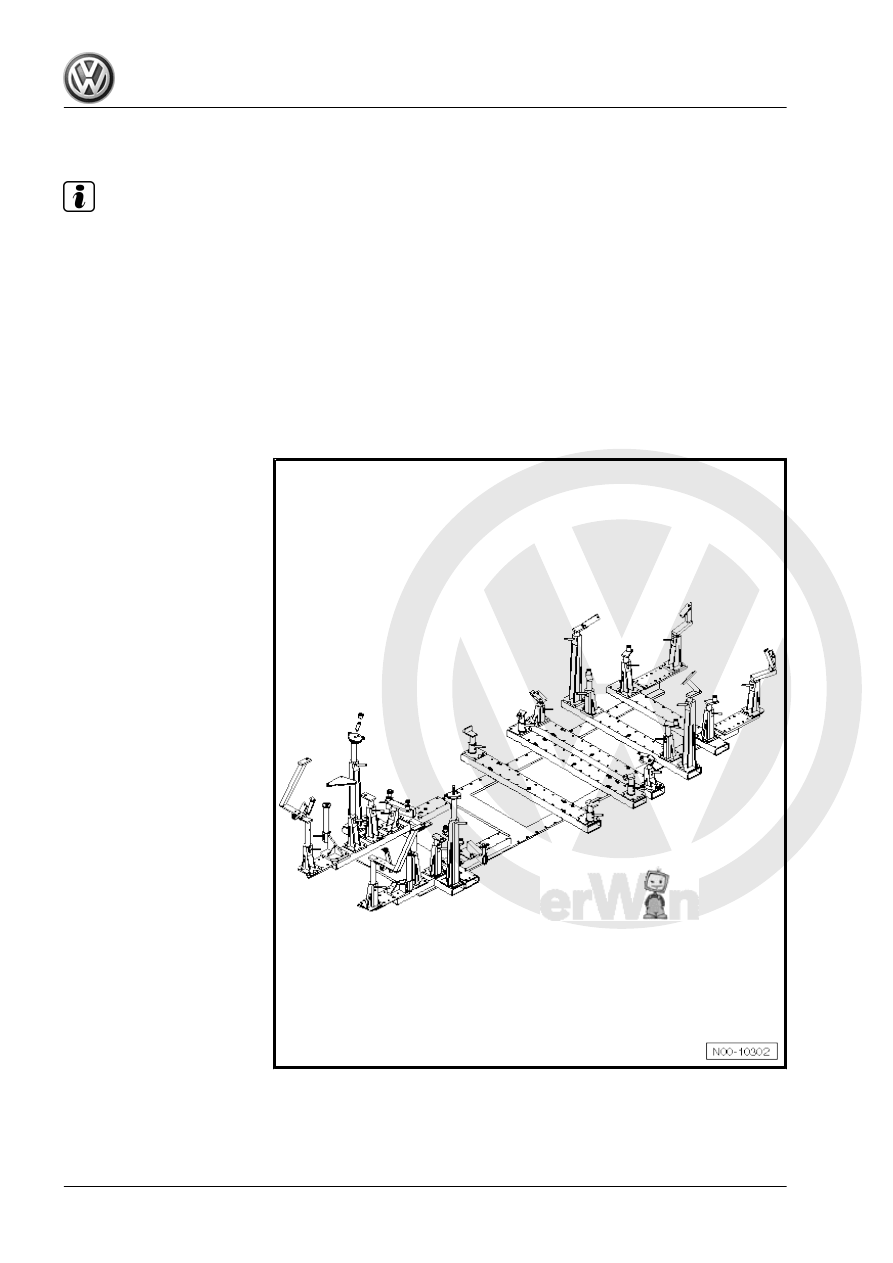

♦ Alignment bracket set Passat 2011 -VAS6325/3-
♦ Basic alignment bracket set -V.A.G 1610/-
Set up of complete alignment bracket set for Passat 2011 -

VAS6325/3- .

Detailed information on setting up the alignment bracket set can

be found with the equipment.

Passat 2011 ➤ , Passat Variant 2011 ➤

28
