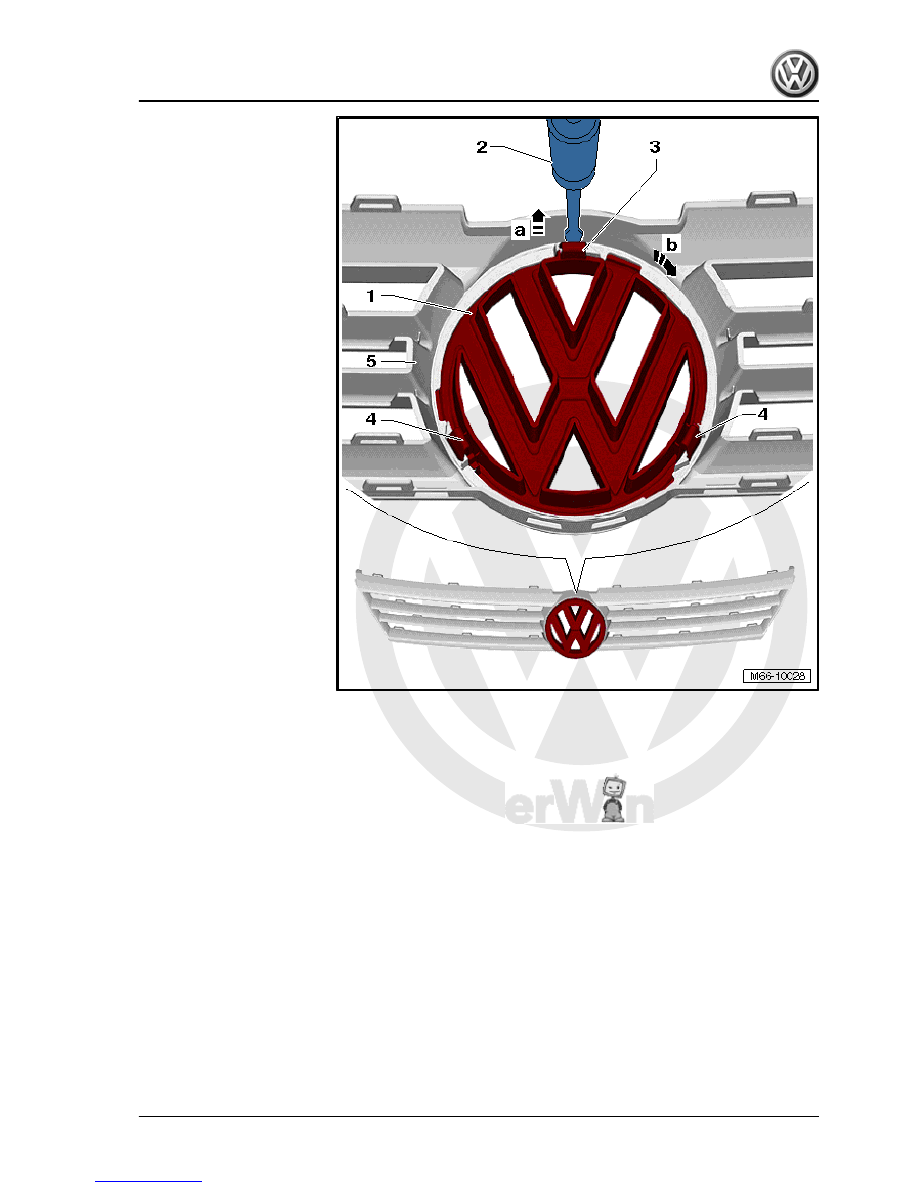

– Disengage other locking hooks -4- in the same way and turn

VW emblem -1- in -direction of b-.

– Remove VW emblem with locking hooks -3- and -4- through

the recesses in the trim cover -5-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

3. Radiator grille

265



Carry out following work:

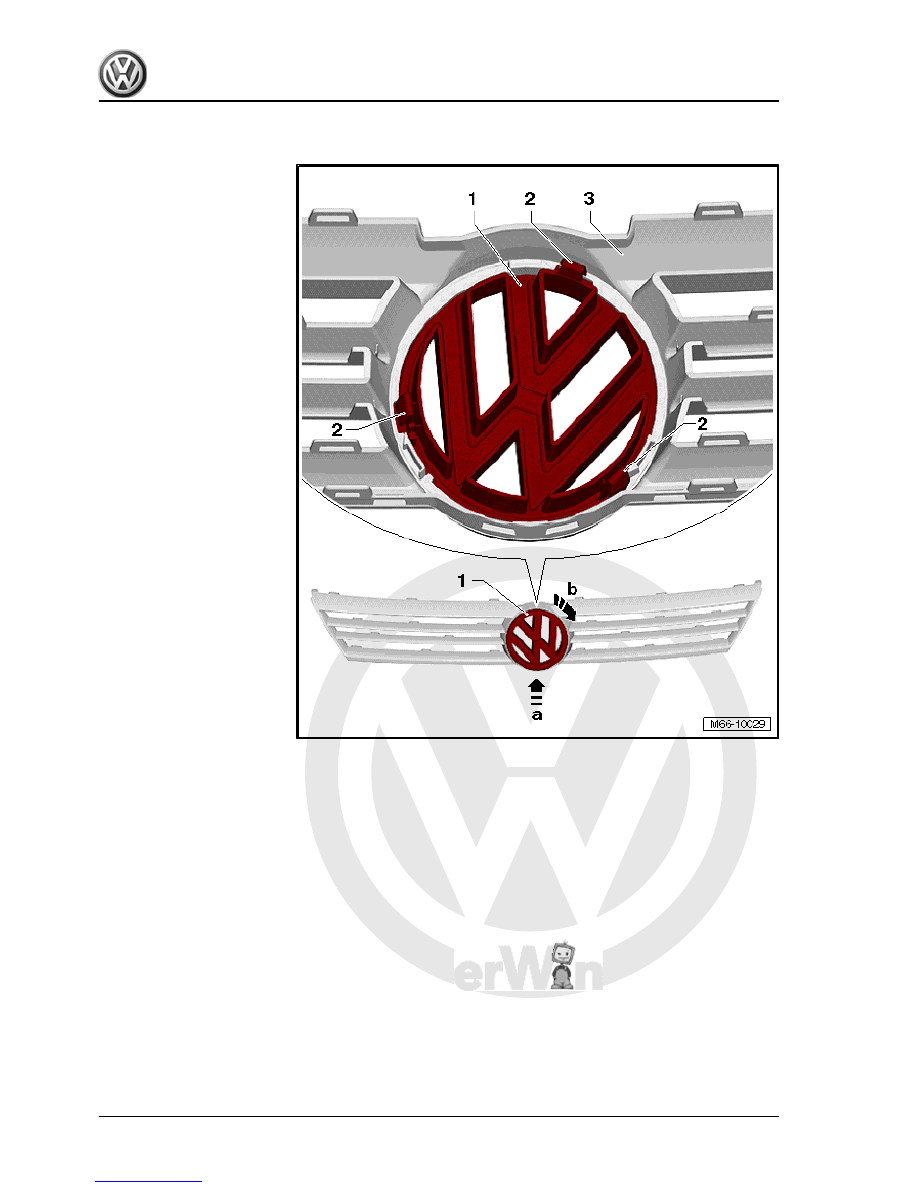

– Push VW emblem -1- with locking hooks -2- into recesses in

trim cover -3- -arrow a-.

– Turn VW emblem -1- in -direction of arrow b- until the locking

hooks -2- engage with the trim cover -3-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

266

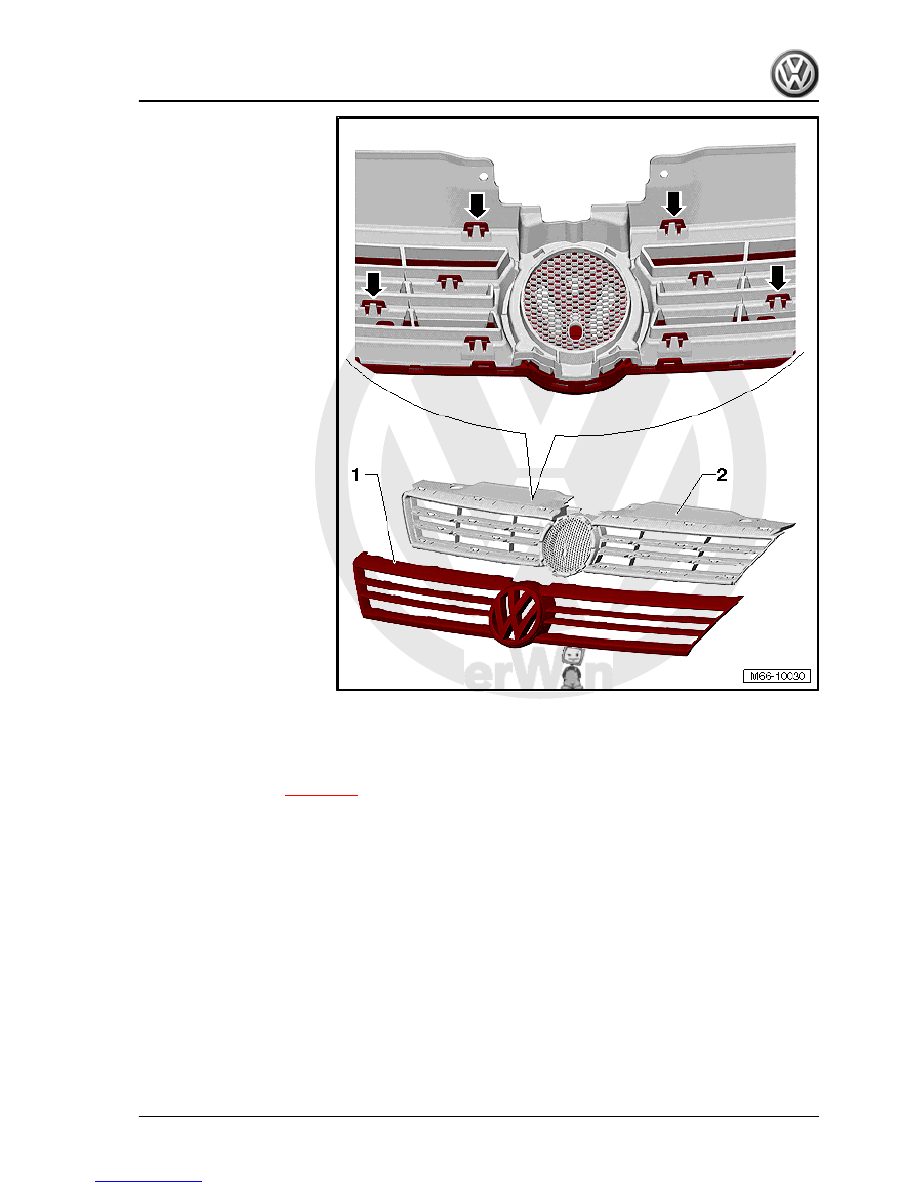

– Install radiator grille

⇒ page 261

 .

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

3. Radiator grille

267



4.1

Removing and installing rear spoiler

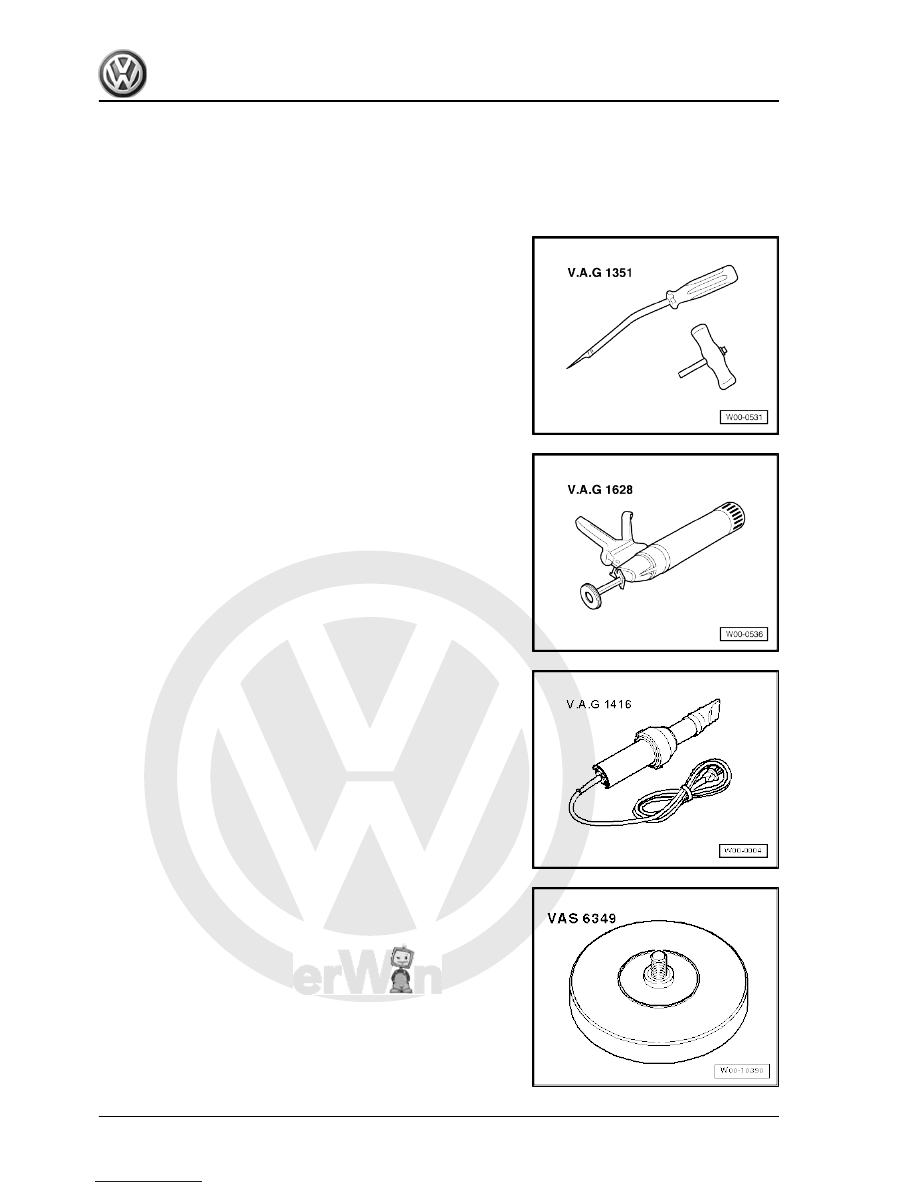

Special tools and workshop equipment required
♦ Pull handle -V.A.G 1351/1-

♦ Cartridge gun -V.A.G 1628-

♦ Hot air blower -V.A.G 1416-

♦ Adhesive strip remover -VAS 6349-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

268
