Volkswagen Jetta / Jetta Hybrid. Manual - part 65

Carry out following work:
– Removing front door trim ⇒  General body repairs, interior;

Rep. gr.  70 ; Door trim .

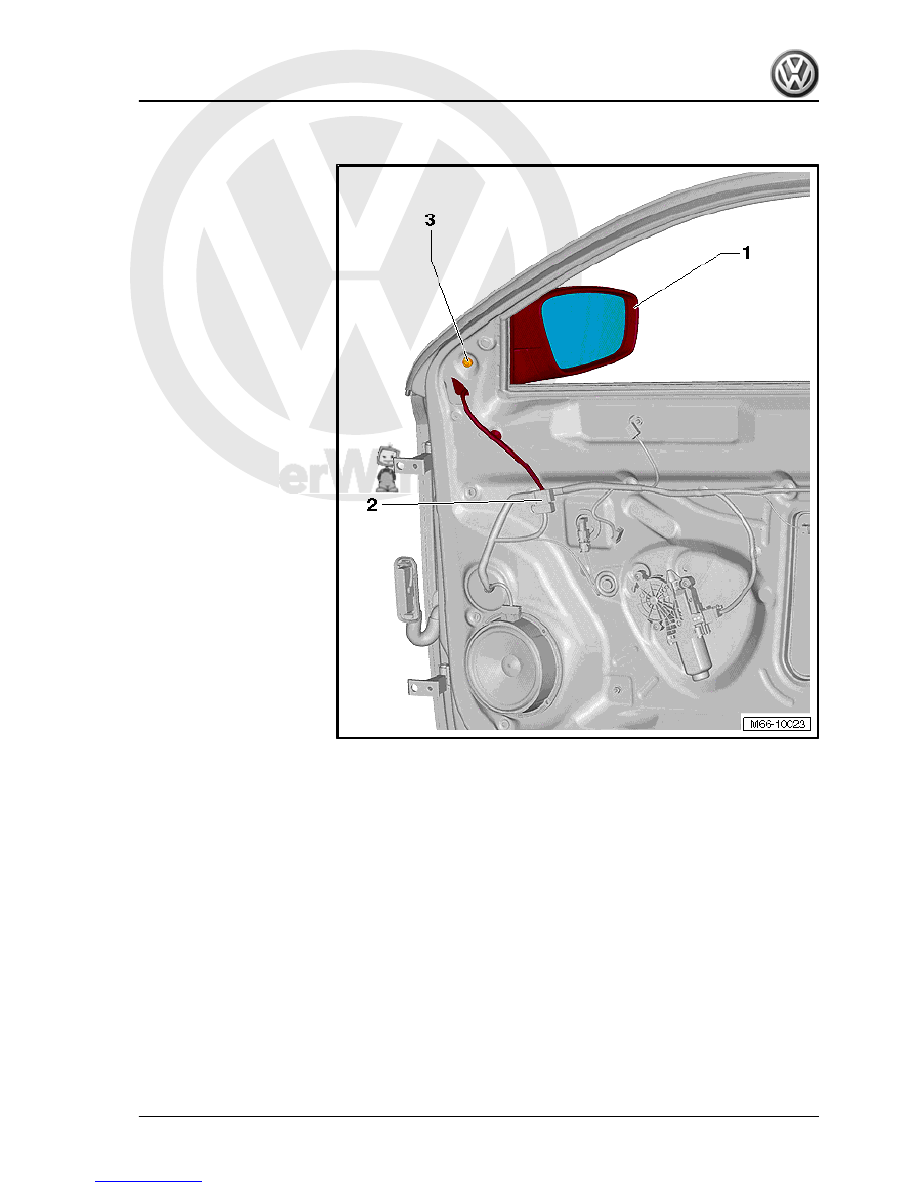

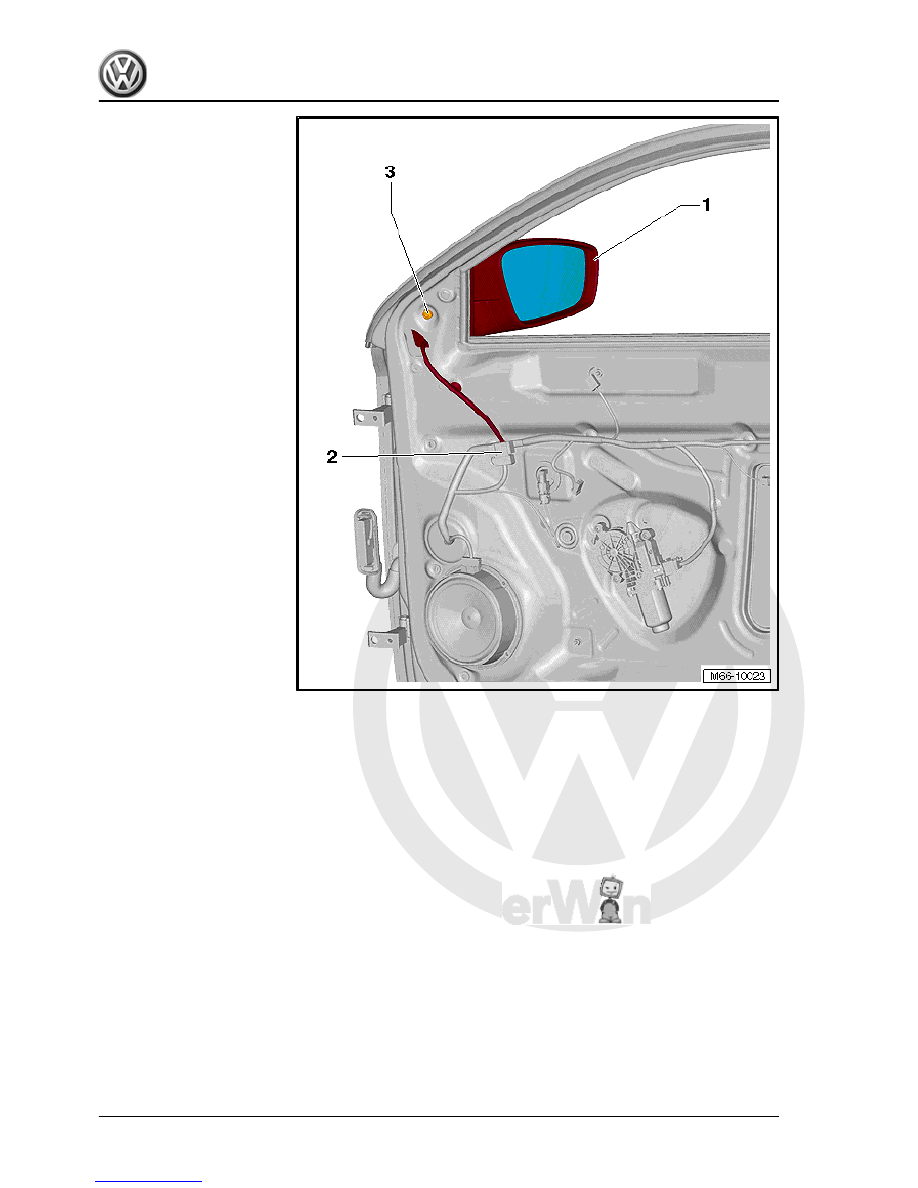

– Detach connector -2- for exterior mirror -1-.
– Undo bolt -3- for exterior mirror -1-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Exterior mirror

257



-2- -arrow b-.

– Thread electric cable through hole in door and remove exterior

mirror -1-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

258



Carry out following work:

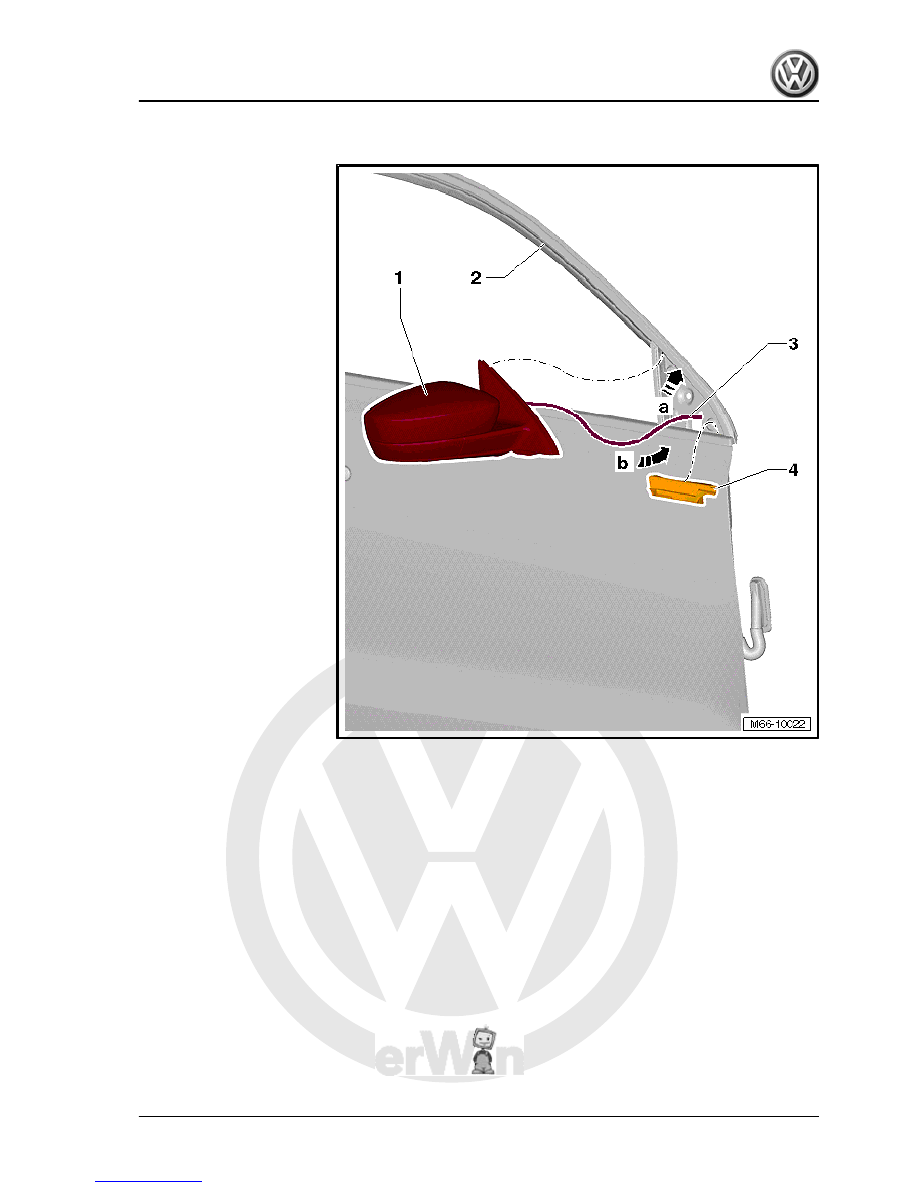

– Check that the foam part -4- is correctly installed in the door.
– Thread electric cable for exterior mirror -3- through opening in

door.

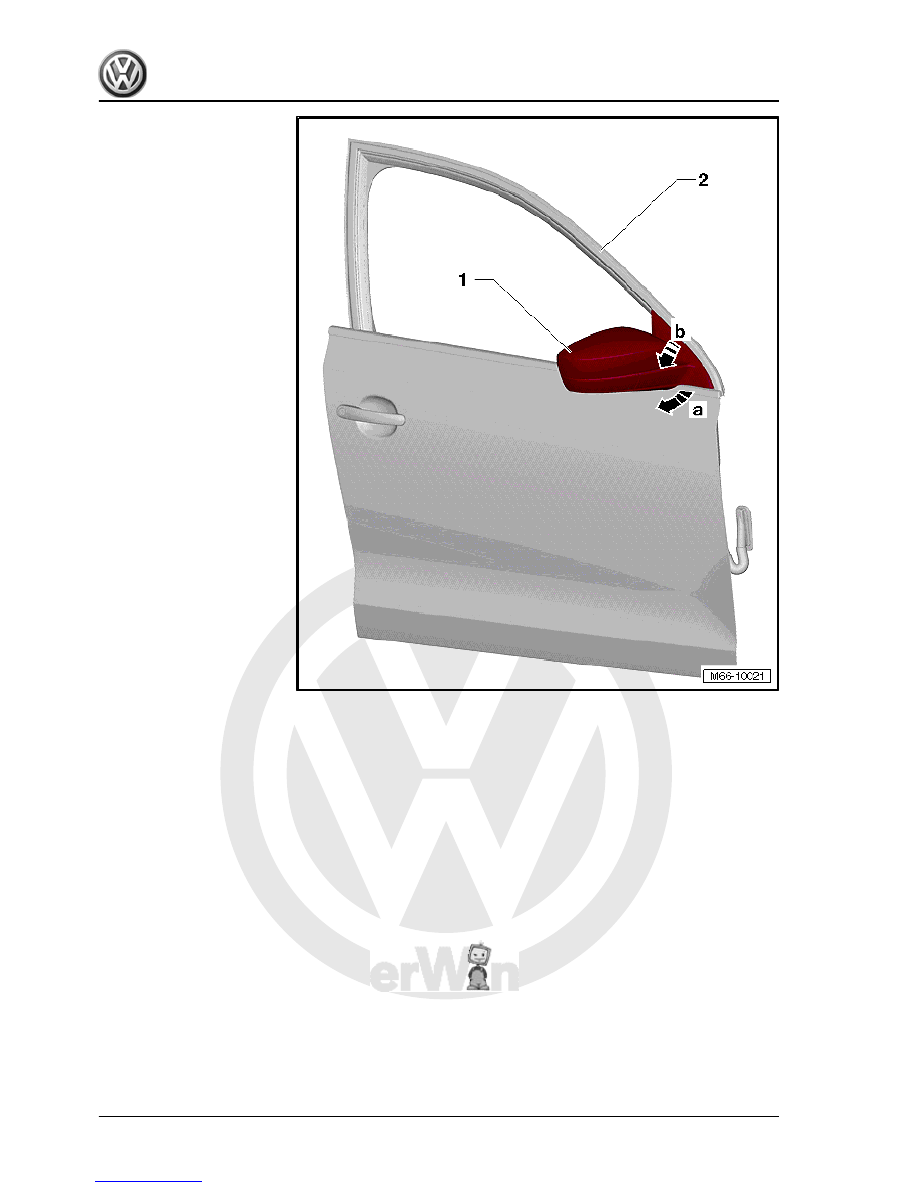

– Push exterior mirror -1- into window channel -2- from below

-arrow a- and press the lower part onto the door -arrow b-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Exterior mirror

259



Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

260
