Carry out following work:
– Remove mirror glass

⇒ page 245

 .

– Remove trim

⇒ page 247

 .

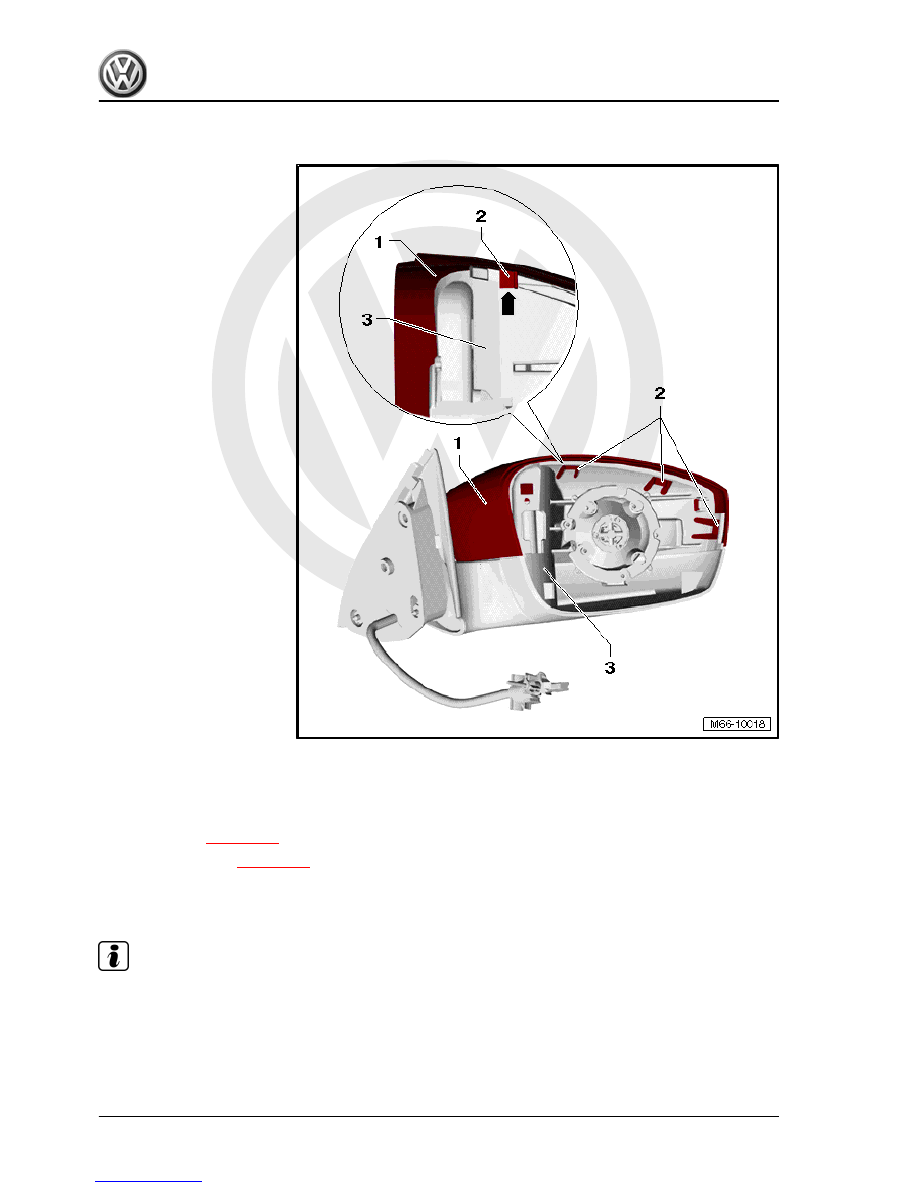

– Disengage locking hooks -2- at mirror housing -1- -arrow-.
– Remove mirror housing -1- from mirror mounting -3-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Exterior mirror

249



Carry out following work:

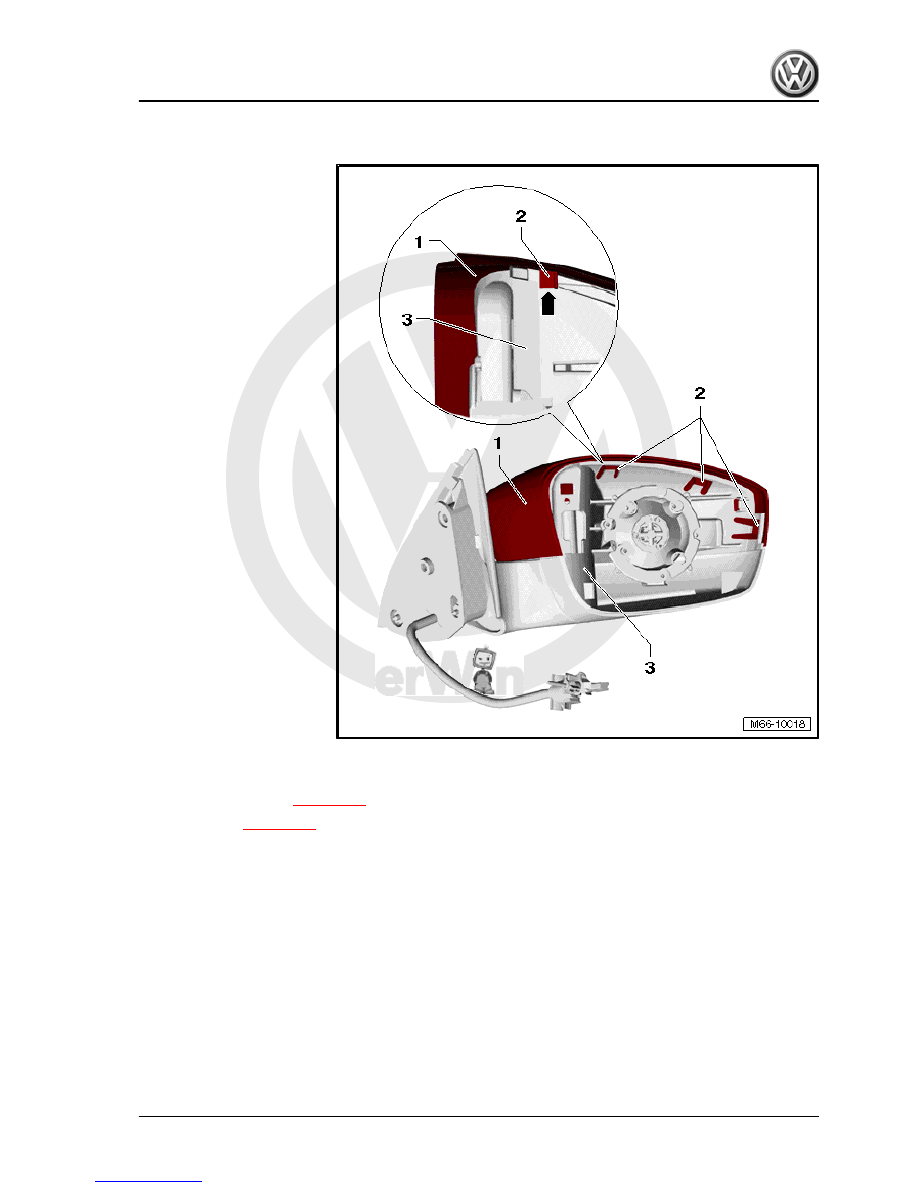

– Press mirror housing -1- onto mirror mounting -3- until locking

hooks -2- engage audibly.

– Installing trim

⇒ page 247

 .

– Install mirror glass

⇒ page 245

 .

2.7

Removing and installing adjustment unit

with motor for exterior mirror

Note

The removal and installation sequence is only for the right ad‐

justment unit with motor. Removal and installation of the left

adjustment unit with motor are analogous.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

250



Carry out following work:
– Remove mirror glass

⇒ page 245

 .

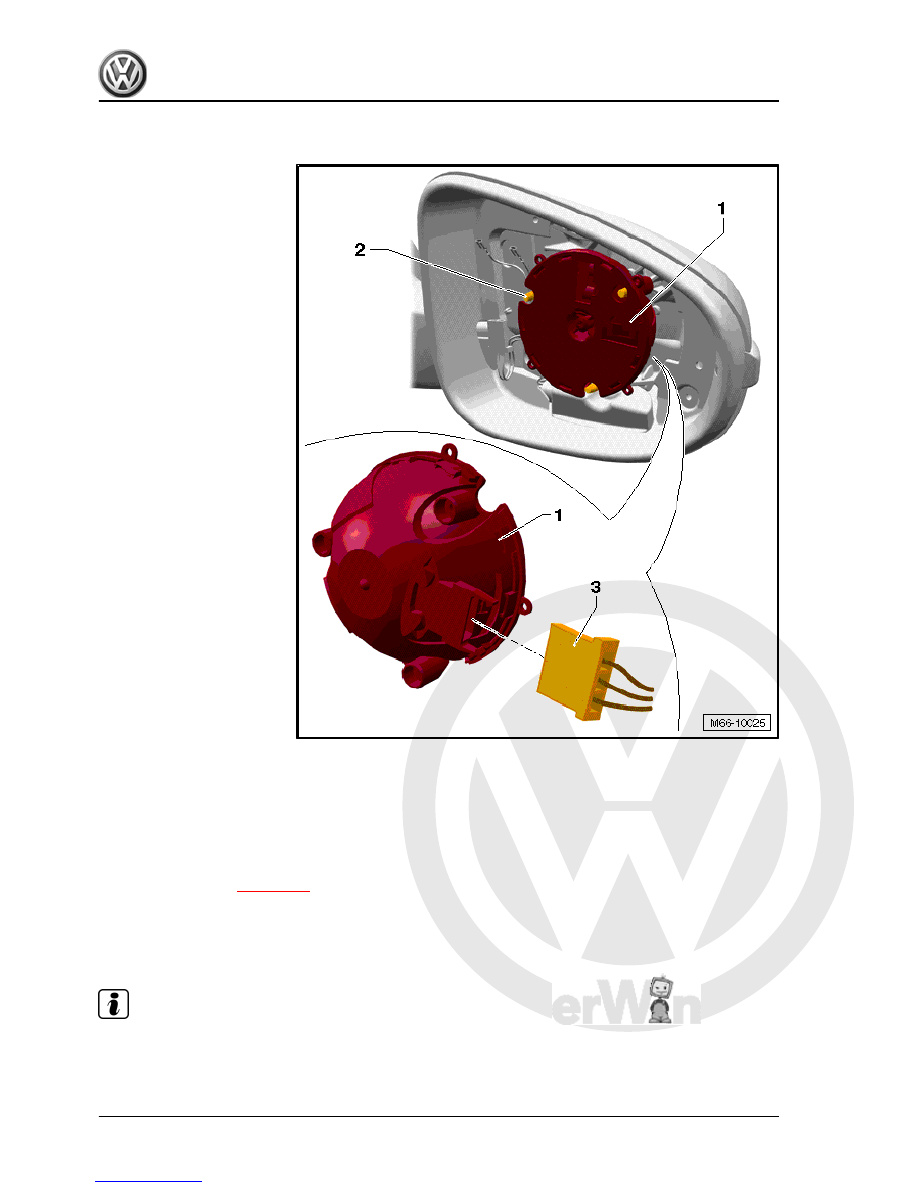

– Undo bolts -2- (3 bolts) and remove adjustment unit together

with motor -1- from mirror mounting.

– Swivel adjustment unit together with motor -1- to the side and

pull off connector -3-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Exterior mirror

251



Carry out following work:

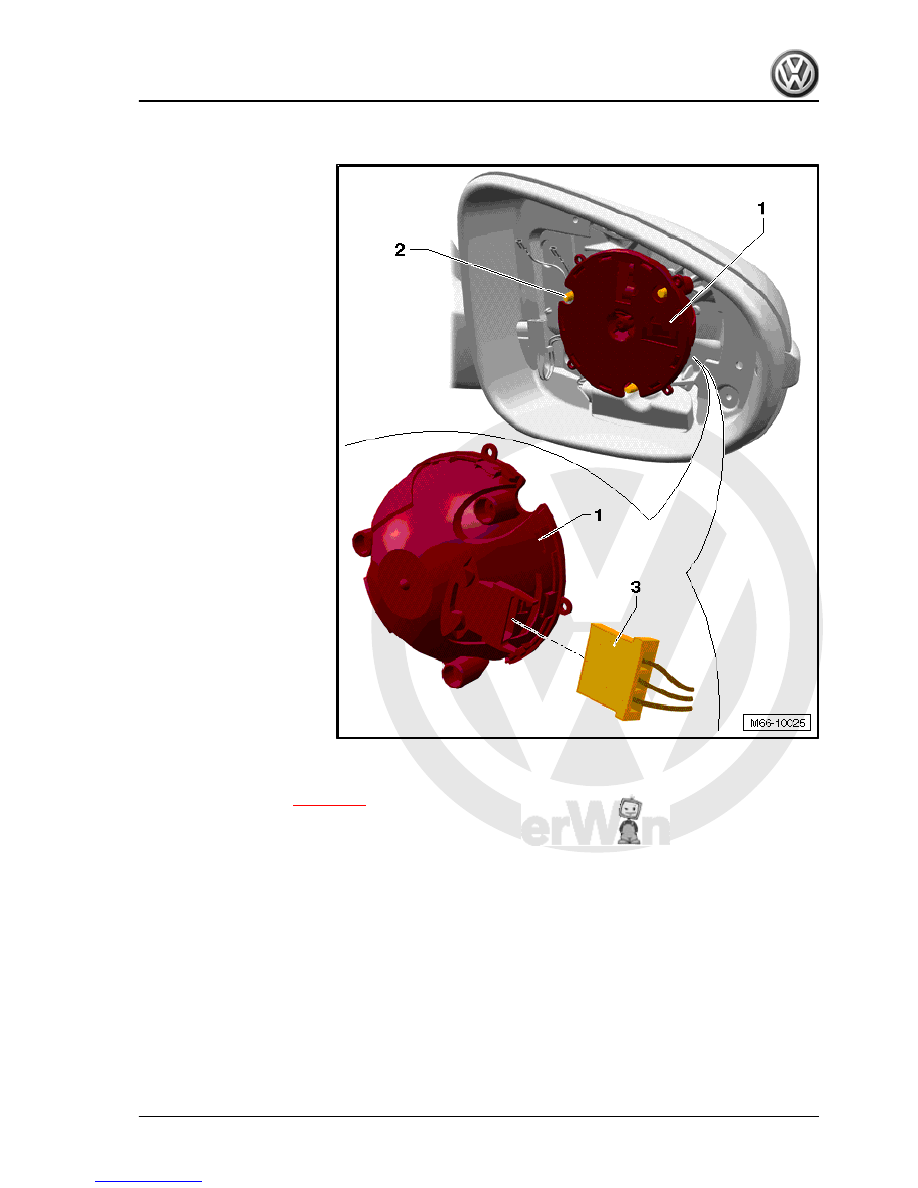

– Connect connector -3- to adjustment unit with motor -1-.
– Place adjustment unit with motor -1- on mirror mounting and

fix in place by tightening screws -2- (qty. 3).

Specified torque for bolts -2-: 2 Nm.
– Install mirror glass

⇒ page 245

 .

• Perform functional check.

2.8

Removing and installing exterior mirror

(manual operation)

Note

The removal and installation sequence is only for the right exterior

mirror. Removal and installation of the left exterior mirror are sim‐

ilar.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

252
