– Pull door handle -2- off door in direction of -arrow a-.
– Pull cover cap -1- out of bearing bracket -arrow b- at a right

angle.

2.7.3

Installing

Carry out following work:
– Pull door handle -2- off door in direction of -arrow a-.
– Push cover cap -1- into bearing bracket -arrow b- at a right

angle.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

137



– Fit door outer seal -5- in area of hole for locking hook

⇒ page 152

 .

2.8

Removing and installing door handle

Note

Removal and installation are described only for the right door

handle. The removal and installation of the left door handle are

similar.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

138



Carry out following work:
– Remove cover cap

⇒ page 135

 .

– Pull door handle -1- towards rear slightly -arrow a- until it

comes out of mounting of bearing bracket.

– Swivel door handle in direction of -arrow b-.
– Remove door handle from bearing bracket at a right angle

-arrow c-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

139



Carry out following work:

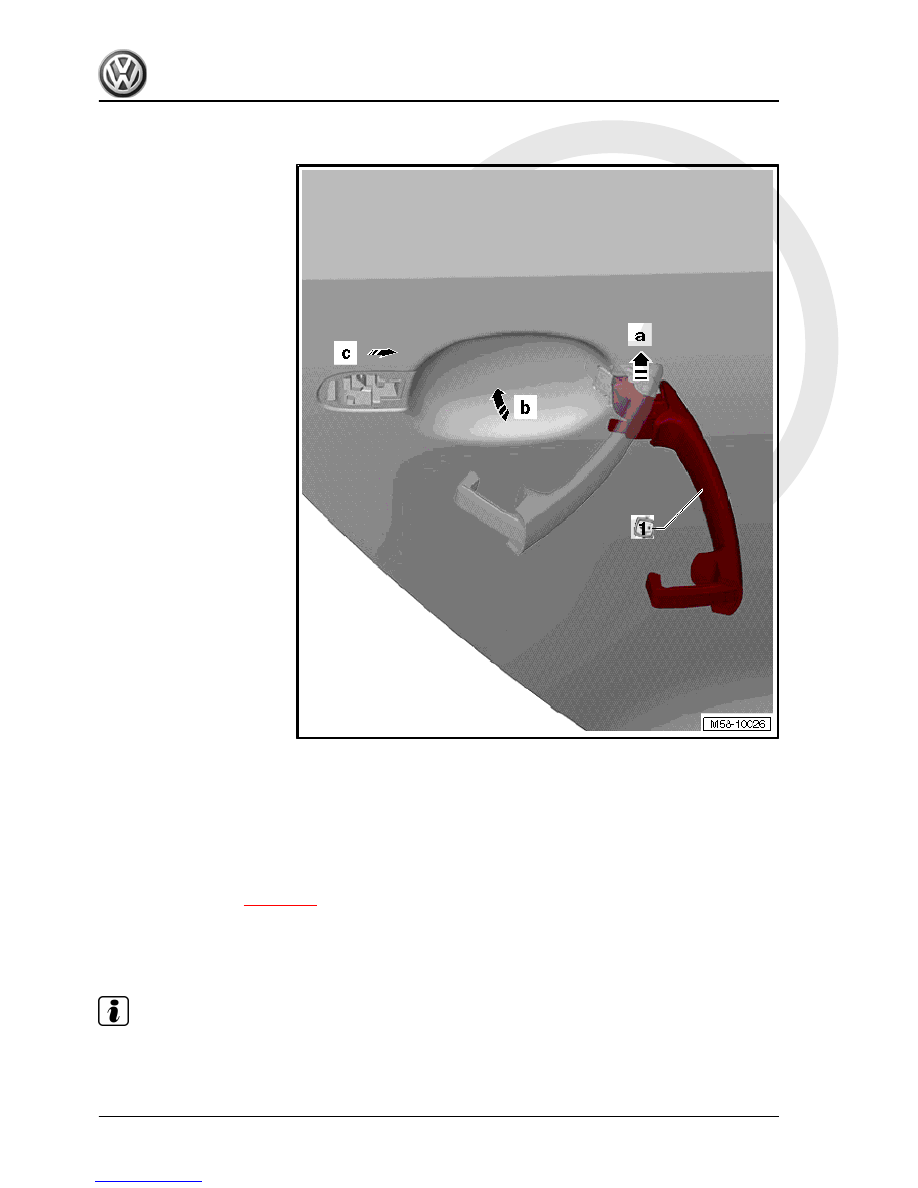

– Seat door handle -1- in bearing bracket, whereby handle must

be at right angles to door -arrow a-.

– Swing door handle -1- into door - arrow b-.
– Slide door handle forcibly forwards -arrow c- into mounting of

bearing bracket.

– Installing cover cap

⇒ page 135

• It is essential that a functional check is then performed with

the door open.

2.9

Removing and installing door lock

Note

Removal and installation are described only for the right door lock.

The removal and installation of the left door lock is similar.
