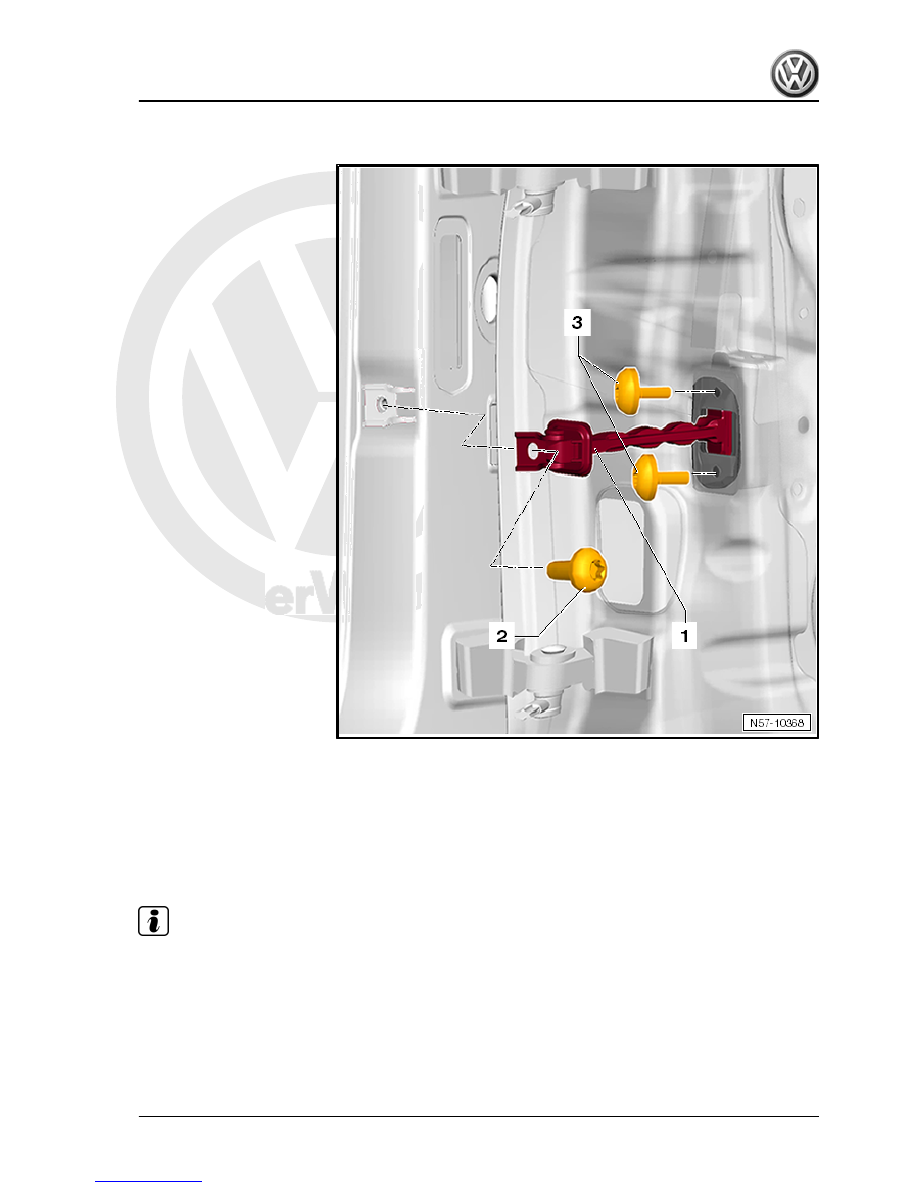

Carry out following work:
Install in reverse order of removal.
Specified torque for bolt -2-: 30 Nm.
Specified torque for bolts -3-: 9 Nm.

2.5

Removing and installing striker pin

Note

Removal and installation are described only for the right door

striker pin. Removal and installation of the left striker pin are sim‐

ilar.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

133



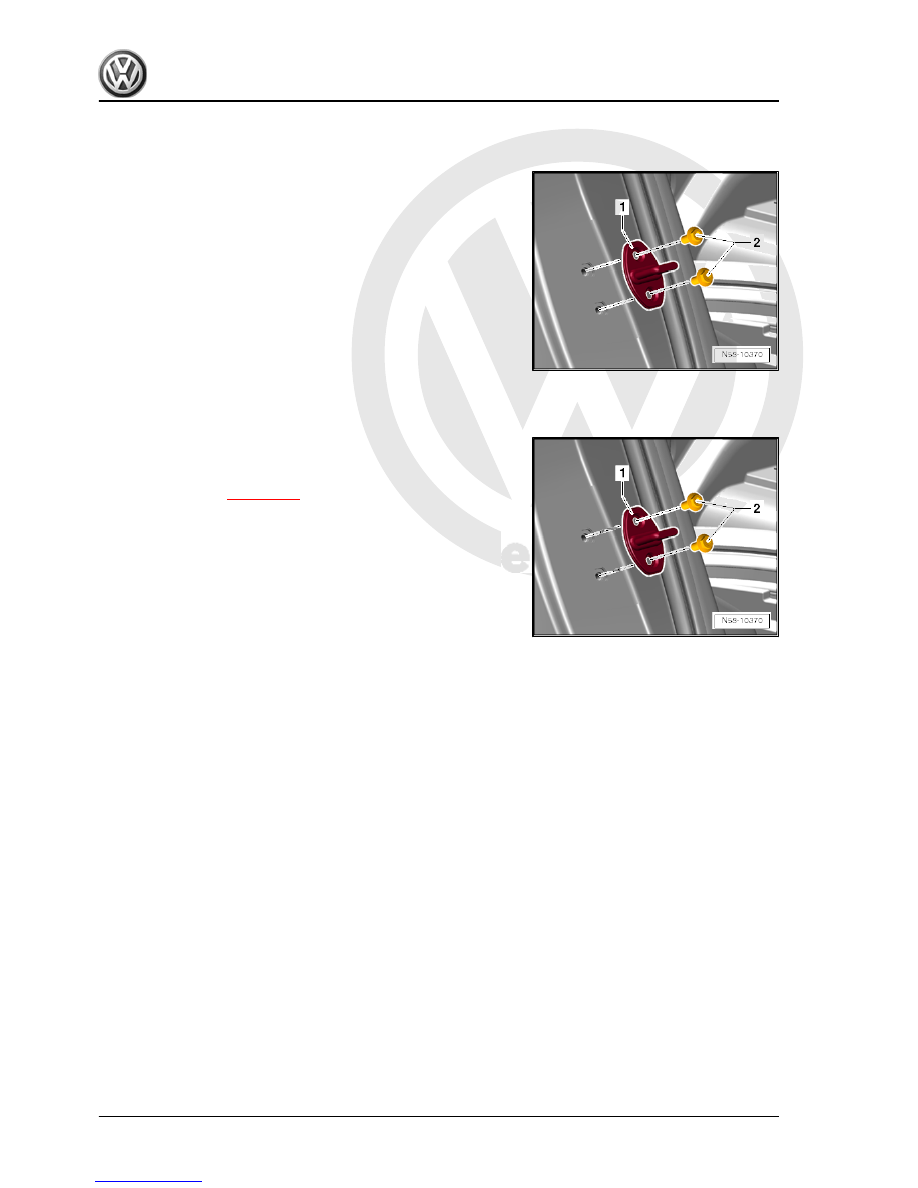

Carry out following work:
– Unscrew bolt -2- and remove striker pin -1-.

2.5.2

Installing

Carry out following work:
– Place striker pin -1- on C-pillar and tighten bolts -2-.
Specified torque for bolts -2-: 20 Nm.
– Adjust striker pin

⇒ page 127

 .

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

134



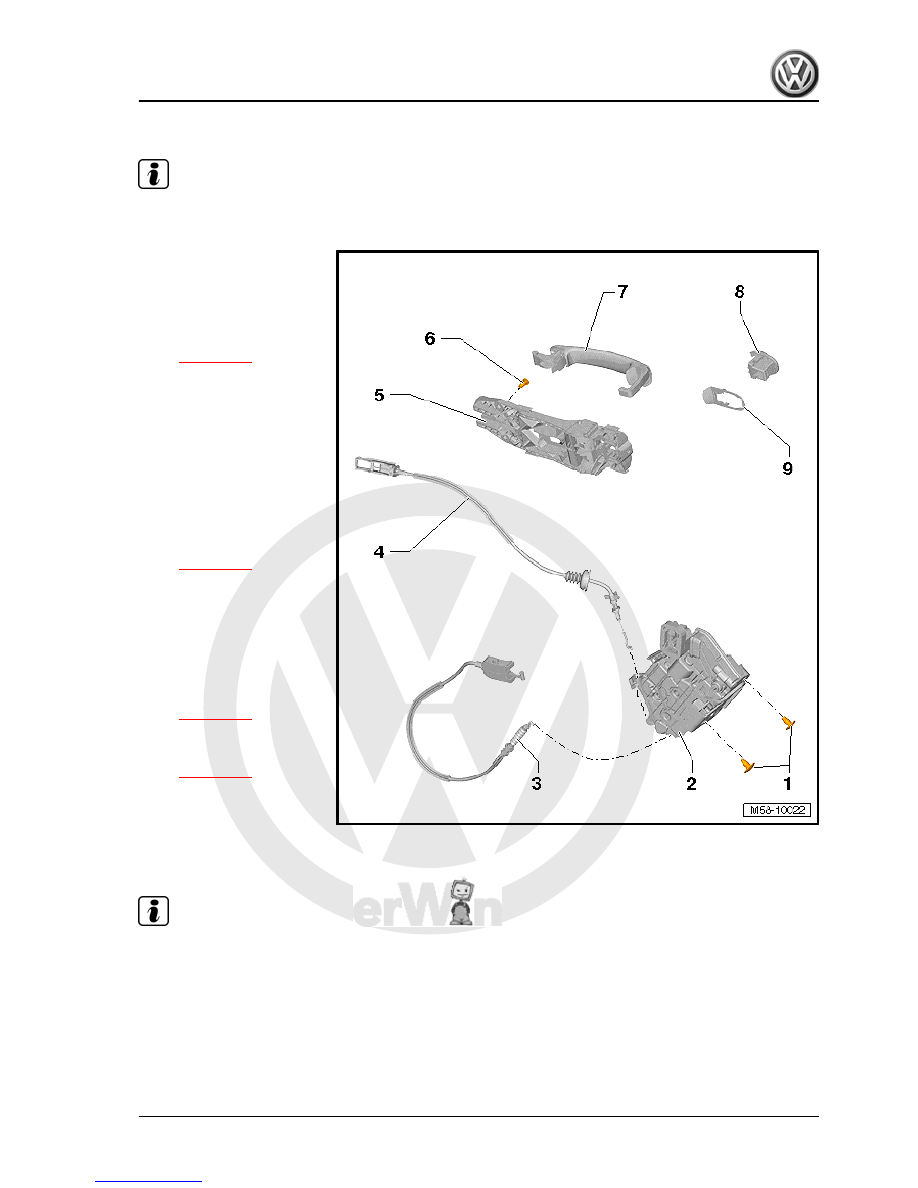

Note

The right side is shown. The left side is similar.

1 - Bolt

❑ Qty. 2.
❑ Specified torque: 18 Nm

2 - Door lock

❑ Removing and installing

⇒ page 140

3 - Cable

❑ From door lock -2- to

bearing bracket -5-

4 - Cable

❑ From inner door handle

to door lock -2-

❑ With grommet to pas‐

sage on cover.

5 - Bearing bracket

❑ Removing and installing

⇒ page 143

6 - Bolt

❑ Specified torque: 1 Nm
❑ Bearing bracket is loos‐

ened from door when

this bolt is loosened.

7 - Door handle

❑ Removing and installing

⇒ page 138

8 - Cover

❑ Removing and installing

⇒ page 135

9 - Base

2.7

Removing and installing cover cap

Note

The removal and installation sequence is only for the right cover

cap. The removal and installation of the left cover cap is analo‐

gous.

2.7.1

Tools

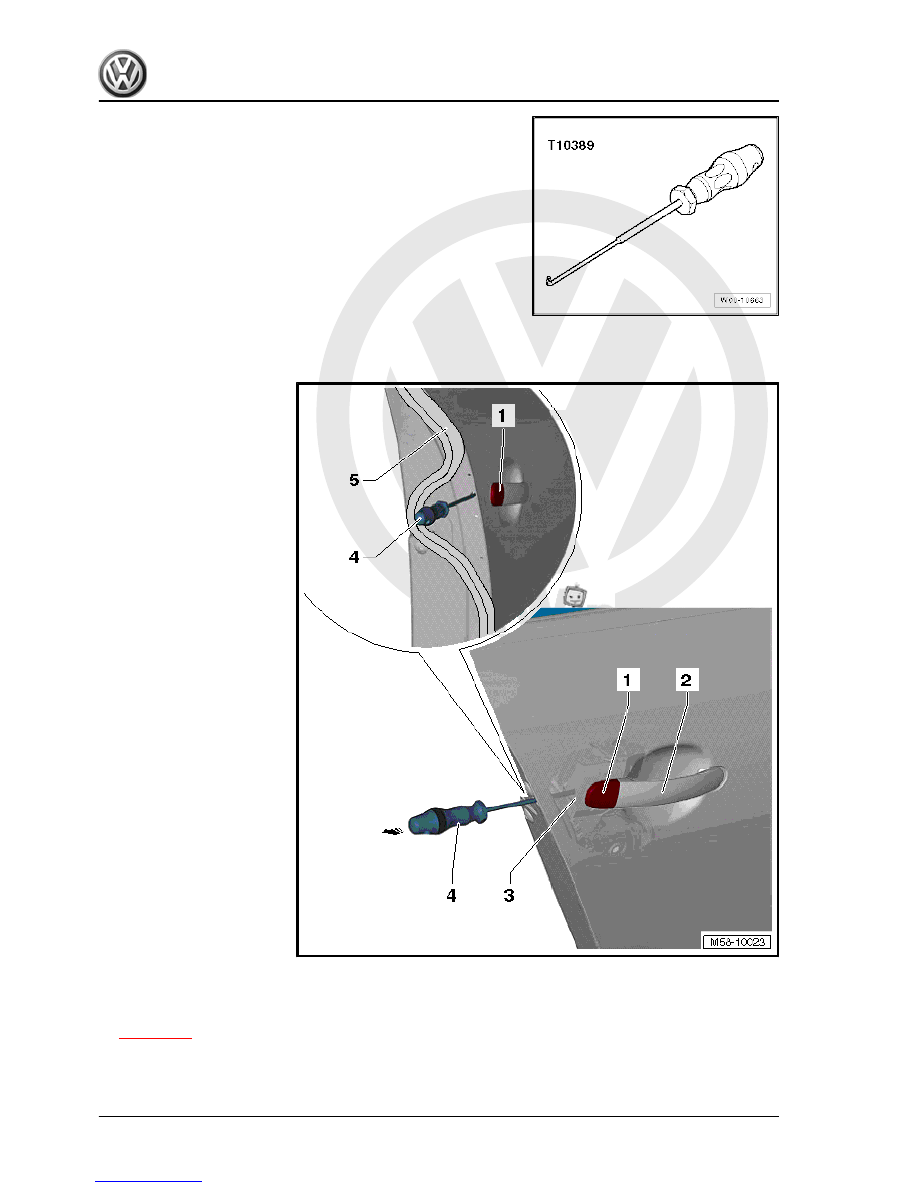

Special tools and workshop equipment required

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

135



Removing

Carry out following work:
– Remove door outer seal -5- in area of hole for locking hook

⇒ page 152

 .

– Insert assembly tool -T10389- into opening behind locking

hook -3- for cover cap -1-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
