Volkswagen Jetta / Jetta Hybrid. Manual - part 33

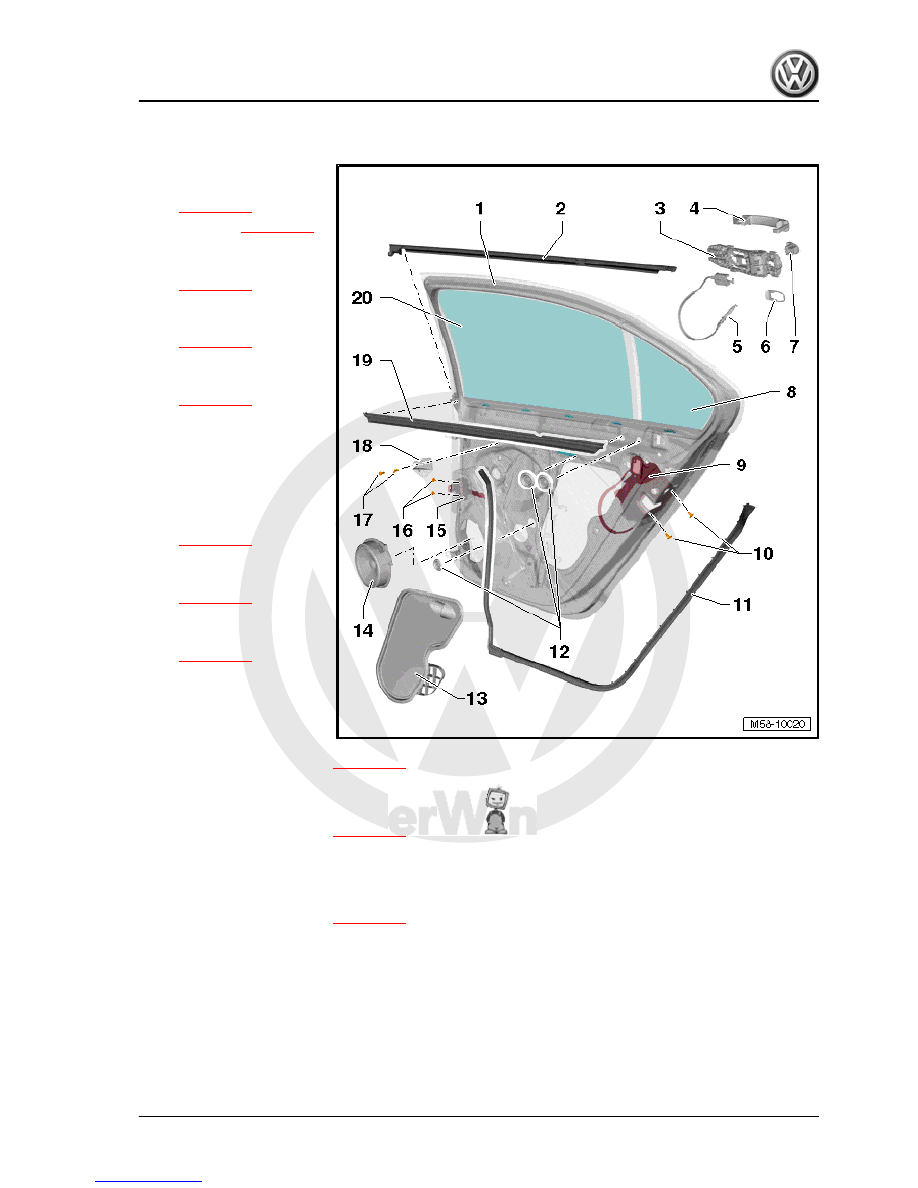

1 - Door

❑ Removing and installing

⇒ page 123

❑ Adjusting

⇒ page 126

2 - Window slot outer seal

❑ Removing and installing

⇒ page 148

3 - Bearing bracket

❑ Removing and installing

⇒ page 143

4 - Door handle

❑ Removing and installing

⇒ page 138

5 - Cable

❑ From bearing bracket

-3- to door lock -9-

6 - Base
7 - Cover

❑ Removing and installing

⇒ page 135

8 - Fixed door window

❑ Removing and installing

⇒ page 232

9 - Door lock

❑ Removing and installing

⇒ page 140

10 - Bolt

❑ Qty. 2.
❑ Specified torque: 18 Nm

11 - Door joint seal

❑ Removing and installing

⇒ page 152

12 - Cover
13 - Cover

❑ Removing and installing

⇒ page 130

14 - Loudspeaker

❑ Riveted into door.

15 - Door retaining strap

❑ Removing and installing

⇒ page 132

16 - Bolt

❑ Qty. 2.
❑ Specified torque: 9 Nm

17 - Bolt

❑ Qty. 2.
❑ Specified torque: 4 Nm

18 - Retaining bracket

❑ For door trim panel threaded connections.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

129



⇒ page 145

20 - Door window

❑ Removing and installing

⇒ page 221

2.3

Removing and installing cover

Note

The removal and installation sequence is only for the right cover.

Removal and installation of the left door cover is analogous.

2.3.1

Removing

gr.  70 ; Door trim .

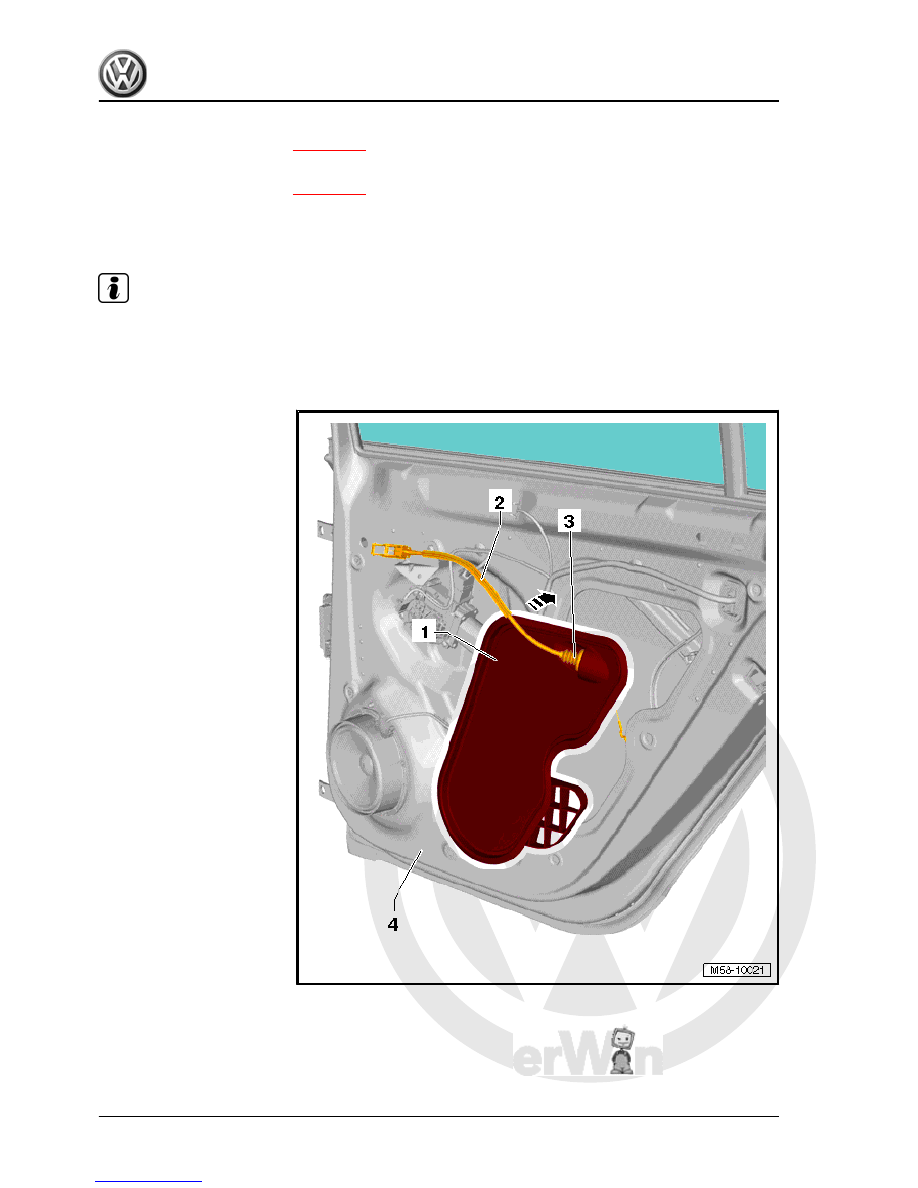

– Lift upper end of cover -1-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

130



If required for subsequent work, pull cable -2- with grommet -3- out of cover -1-.

2.3.2

Installing

Carry out following work:

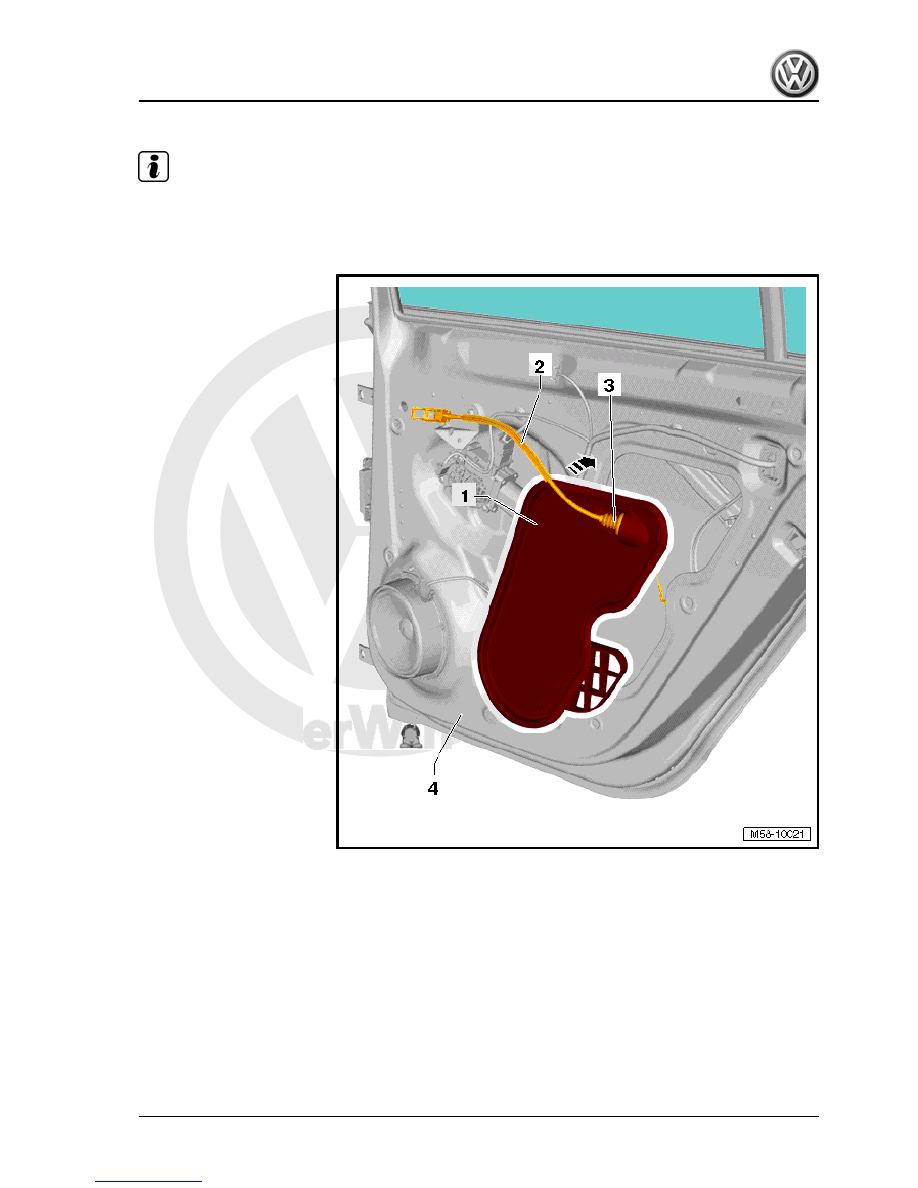

– Pull cable -2- through cover -1- and secure grommet -3-.
– Insert cover -1- into door -4- from below.
– Press cover -1- into door -4- from above -arrow-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

131



strap

Note

Removal and installation are described only for the right door re‐

taining strap. The removal and installation of the left door retaining

strap is similar.

2.4.1

Removing

gr.  70 ; Door trim .

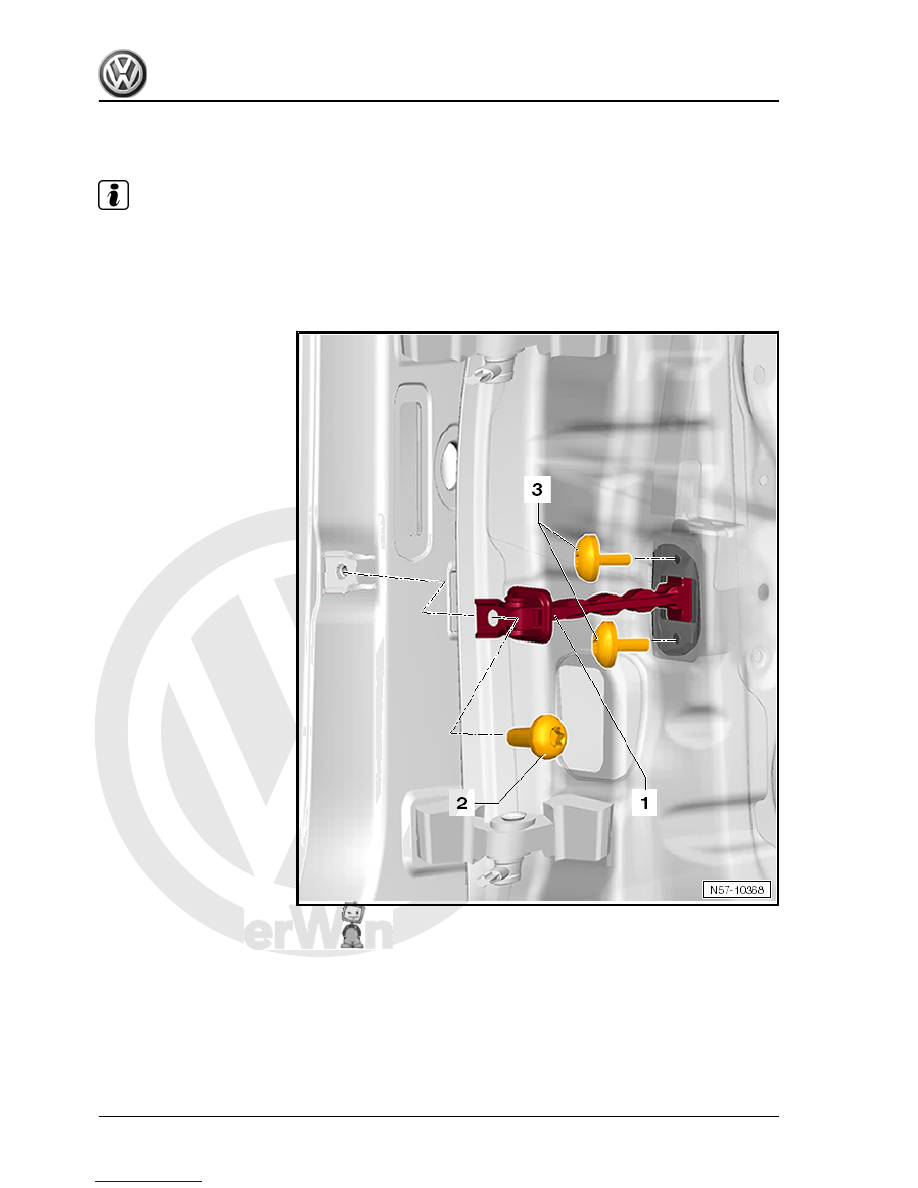

– Remove riveted loudspeaker.
– Unscrew bolt -2- on B-pillar.
– Unscrew bolts -3- and then remove door retaining strap -1-

through the opening of the loudspeaker.
