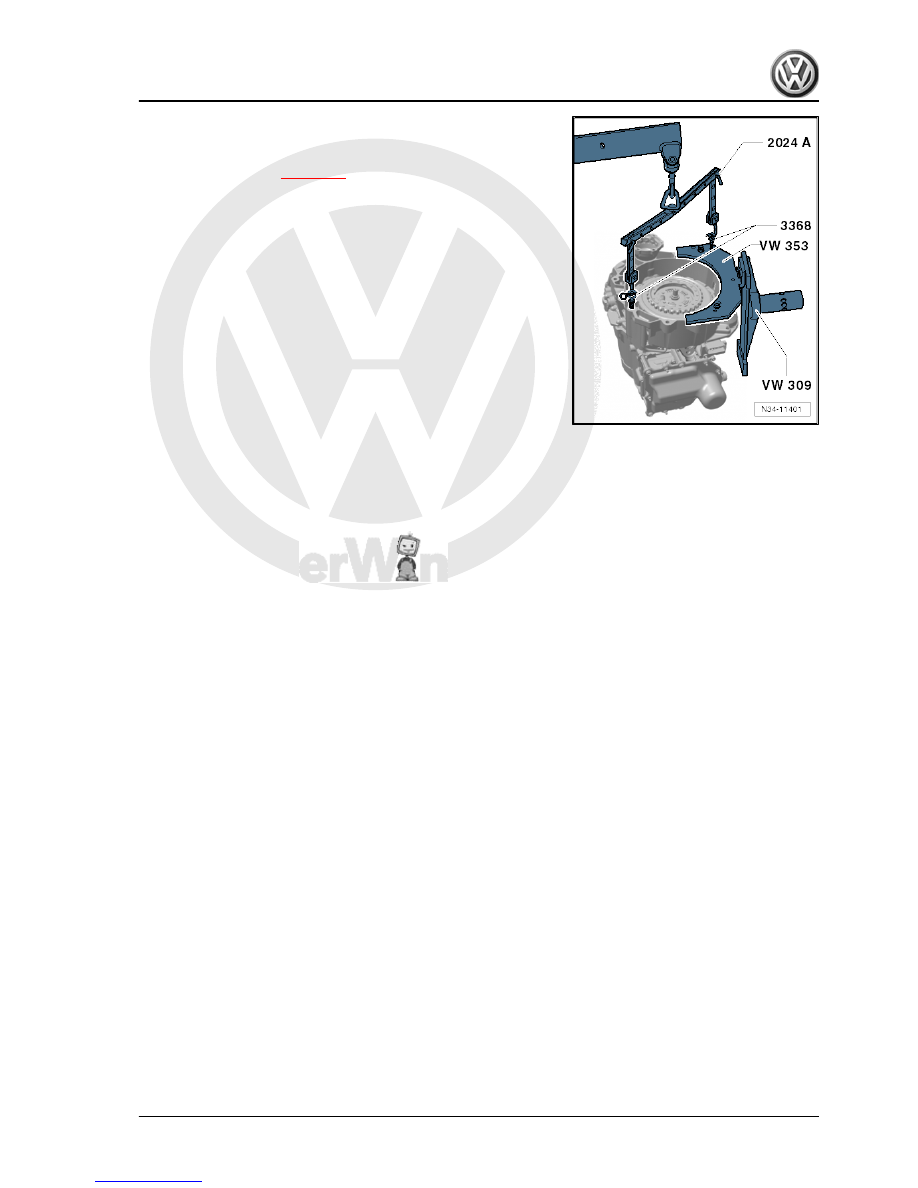

The gearbox and gearbox support -VAS 6100- are lifted into en‐

gine and gearbox support -VAS 6095- using workshop hoist -VW

353- .

Jetta Hybrid 2013 ➤

4. Installing to engine and gearbox support

77



⇒ “5.1 Assembly overview - assembly mountings”, page 78

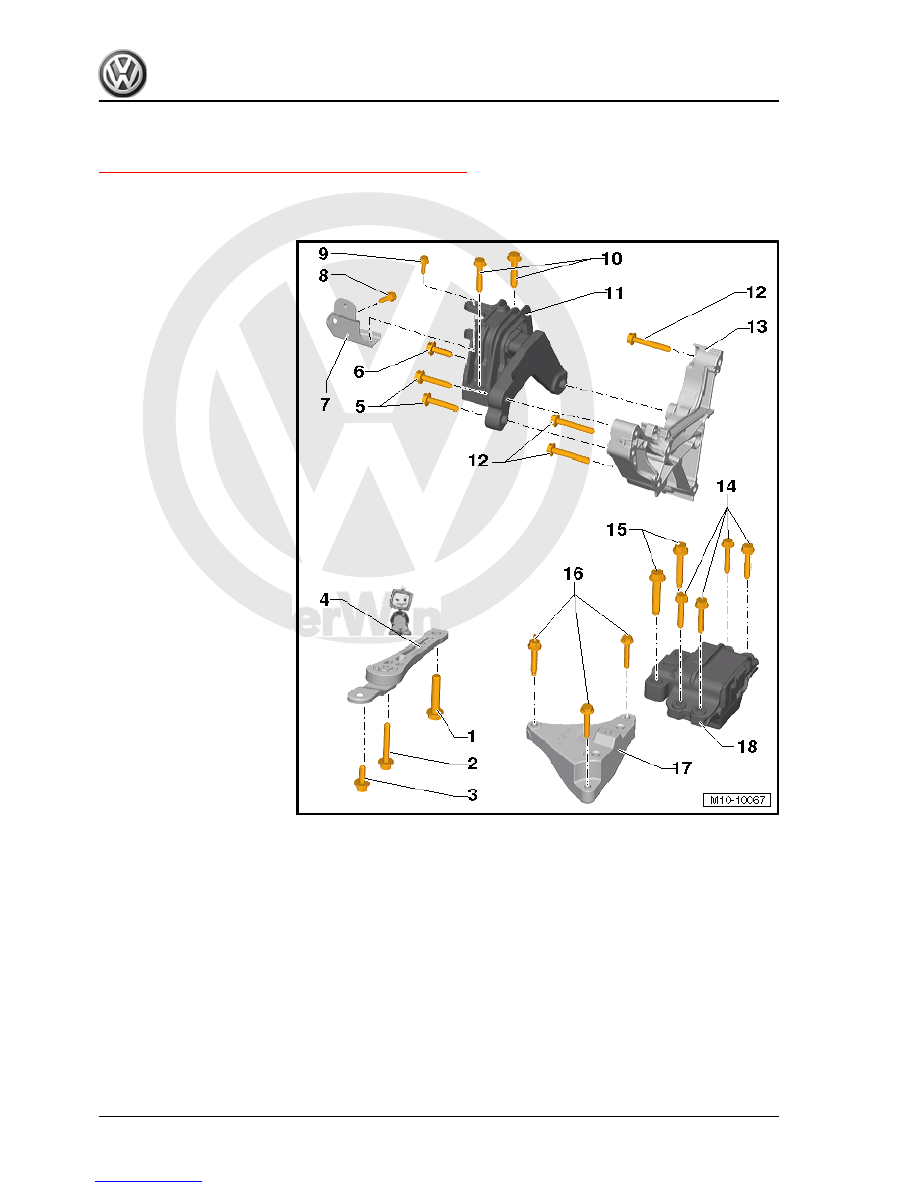

5.1

Assembly overview - assembly mountings

1 - Bolt

gr.  10 ; Assembly

mountings; Assembly

overview - assembly

mountings

2 - Bolt

gr.  10 ; Assembly

mountings; Assembly

overview - assembly

mountings

3 - Bolt

gr.  10 ; Assembly

mountings; Assembly

overview - assembly

mountings

4 - Pendulum support

❑ Removing and installing

bly mountings; Assem‐

bly overview - assembly

mountings

5 - Bolt

gr.  10 ; Assembly

mountings; Assembly

overview - assembly

mountings

6 - Bolt

gr.  10 ; Assembly

mountings; Assembly

overview - assembly

mountings

7 - Bracket
8 - Bolt

9 - Bolt

10 - Bolt

11 - Engine mounting

12 - Bolt

Jetta Hybrid 2013 ➤

78



14 - Bolt

15 - Bolt

❑ Renew after each removal.
❑ 60 Nm +90°

16 - Bolt

❑ Renew after each removal.
❑ 40 Nm +90°

17 - Gearbox bracket

❑ Removing and installing

⇒ page 79

 .

18 - Gearbox mounting

5.1.1

Removing and installing gearbox brack‐

et

Gearbox is installed.

Jetta Hybrid 2013 ➤

5. Assembly mountings

79

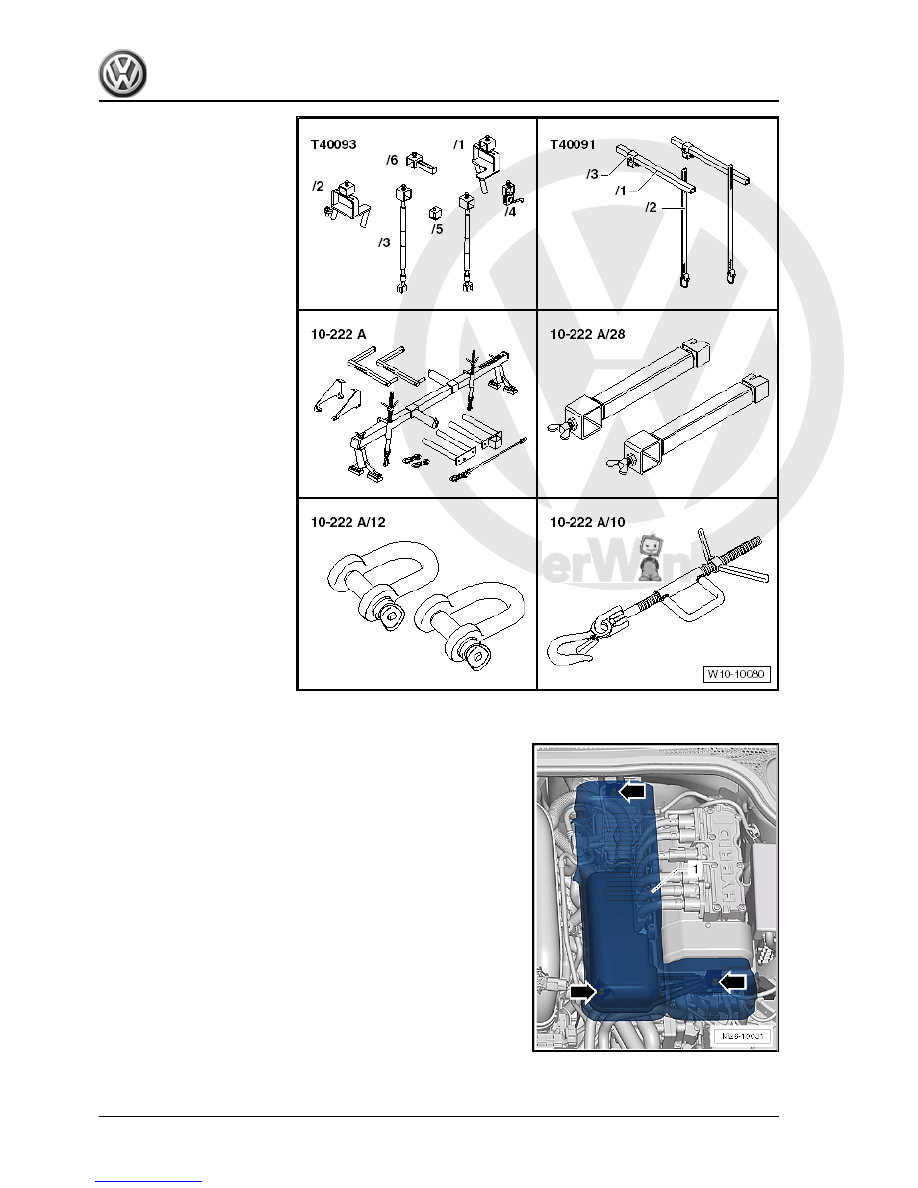

A-

♦ 2 x spindle -10 - 222 A /11-
♦ 2 x adapters -10 - 222 A /

28-

♦ 2 x adapters -10 - 222 A /

28-2-

♦ Adapter -10 - 222 A /31-
♦ Hook rail -T40091/2- from

engine support basic set -

T40091-

♦ Mounting -T40093/5- from

engine support supplemen‐

tary set -T40093-

♦ 2 x square section tubes -

T40091/1- from engine

support basic set -T40091-

♦ 2 x rotary joint -T40091/3-

from engine support basic

set -T40091-

♦ 2 x rotary joint -T40093/4-

from engine support sup‐

plementary set -T40093-

Removing gearbox bracket
Vehicles with secondary air system
– Unclip cover for air damper -1- upwards from mountings

-arrows- and remove it.
