Special tools and workshop equipment required

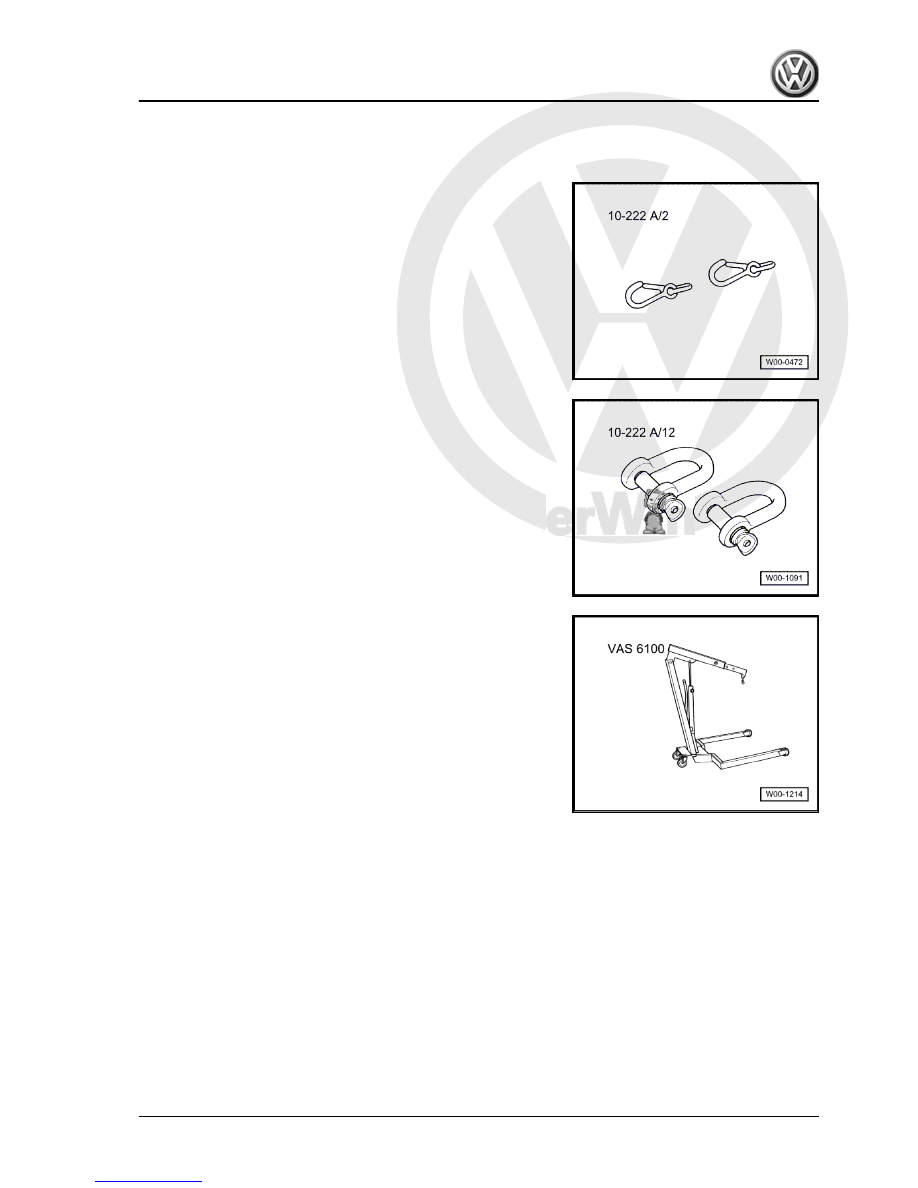

♦ Hook -10 - 222 A /2-

♦ Shackle -10 - 222 A /12-

♦ Workshop hoist -VAS 6100-

Jetta Hybrid 2013 ➤

3. Transporting gearbox

73



Risk of damage to gearbox.

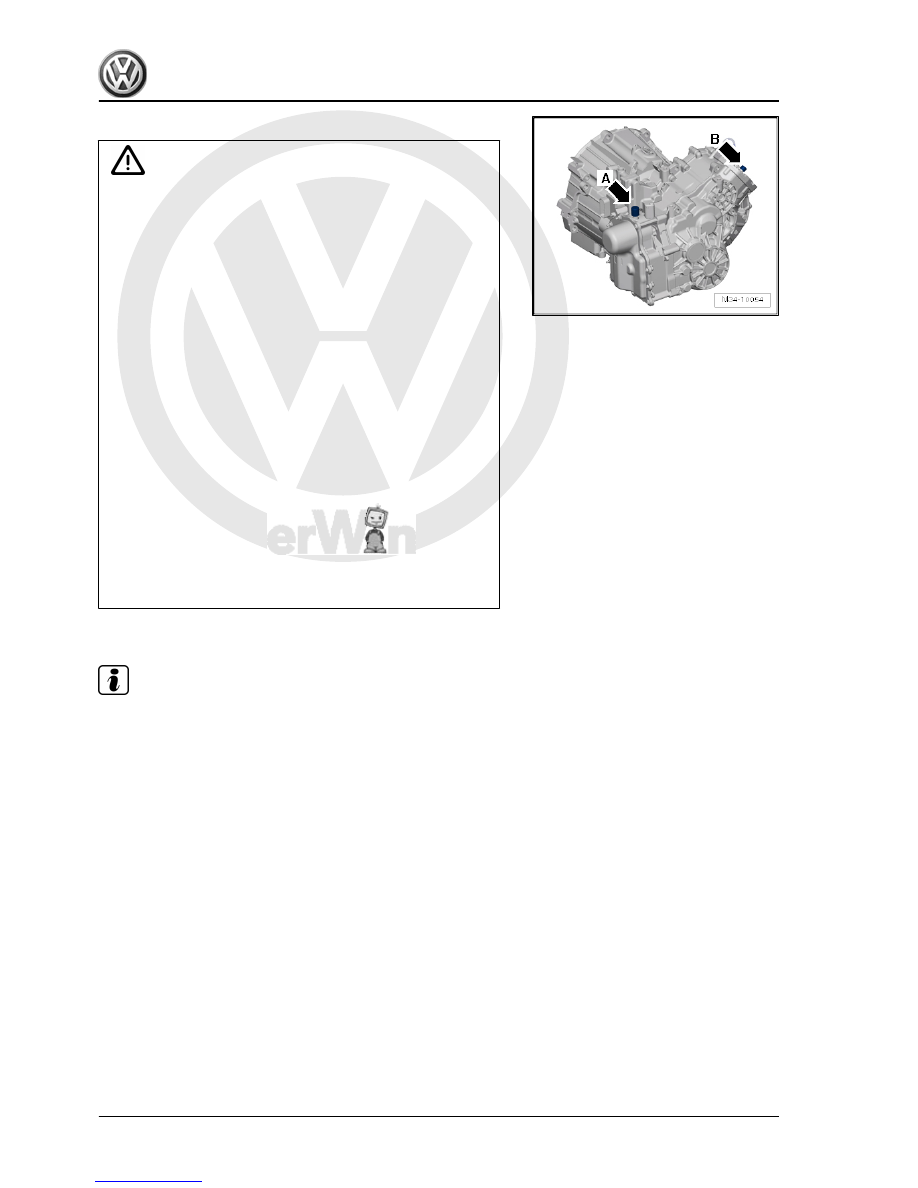

Before repairs, the breather of the mechatronic unit for dual

clutch gearbox -J743- (-arrow A-) and the gearbox breather

(-arrow B-) must be sealed so that no oil can escape.

♦ It is not possible to check the fill level of the hydraulic fluid

section of the mechatronic unit for dual clutch gearbox -

J743- . Before repairs, the breather of the mechatronic unit

for dual clutch gearbox -J743- must be sealed so that no

oil can escape.

♦ If any oil escapes from the hydraulic fluid section of the

mechatronic unit for dual clutch gearbox -J743- , the oil

must not be filled back into the mechatronic unit!

♦ If hydraulic fluid has escaped, it must be replenished

through the breather connection of the mechatronic unit ,

if necessary. For allocation of the sealing plugs, hydraulic

fluid and filling equipment refer to ⇒  Electronic parts cata‐

logue “ETKA” . If possible, replenish the hydraulic fluid

after the gearbox has been installed. After the hydraulic

fluid has been replenished, dispose of the remaining hy‐

draulic fluid and the sealing plugs.

♦ If oil escapes from the gearbox oil section, it can only be

rectified by changing the gearbox oil. It is not possible to

check the fill level.

♦ If the level of oil/fluid is too high or too low in either of the

parts, the function of the gearbox will be impaired.

– Pull off both breather caps -arrow A- and -arrow B-.

Note

♦

The breather cap -arrow A- on the mechatronic unit is de‐

stroyed during removal and must be renewed.

♦

As an alternative to the engine bung set -VAS 6122- the seal‐

ing cap -02M 409 120- can be used to seal the gearbox. The

mechatronic unit can be sealed using sealing cap -0AM 325

120 A- as an alternative. Order sealing plugs via the ⇒  Elec‐

tronic parts catalogue “ETKA” .

– Seal gearbox breather and breather of mechatronic unit for

dual clutch gearbox -J743- with clean sealing plugs so that no

oil can escape.

Jetta Hybrid 2013 ➤

74



gearbox has been installed ⇒  Electronic parts catalogue “ET‐

KA” .

Note

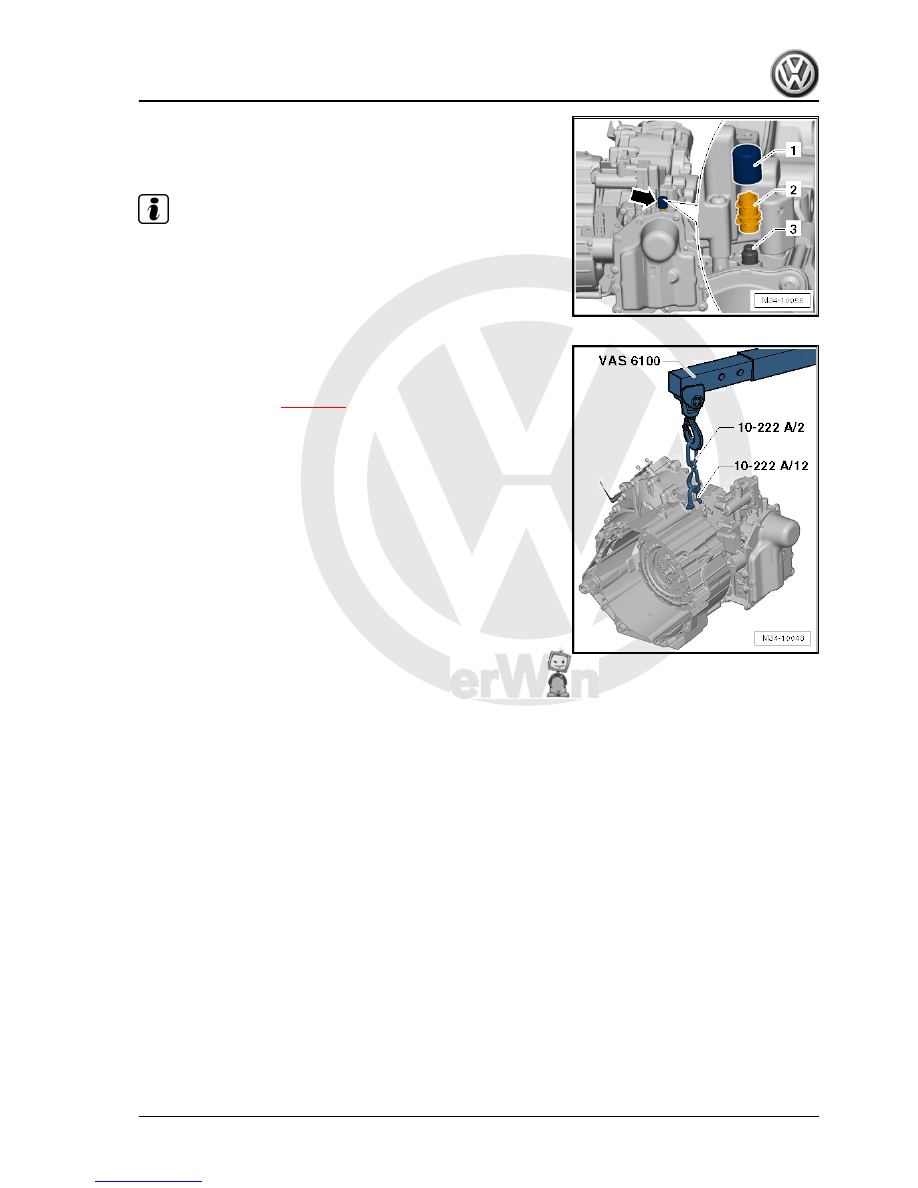

Breather -2- and breather cap -1- form one replacement part and

are fitted together onto breather connection -3-.

• Once the gearbox has been installed in the vehicle, the sealing

plugs must be removed and the breather caps reinstalled, or

new ones must be fitted if necessary.

Transporting gearbox
Requirement:
• Gearbox is oil-tight

⇒ page 74

 .

Jetta Hybrid 2013 ➤

3. Transporting gearbox

75



Special tools and workshop

equipment required

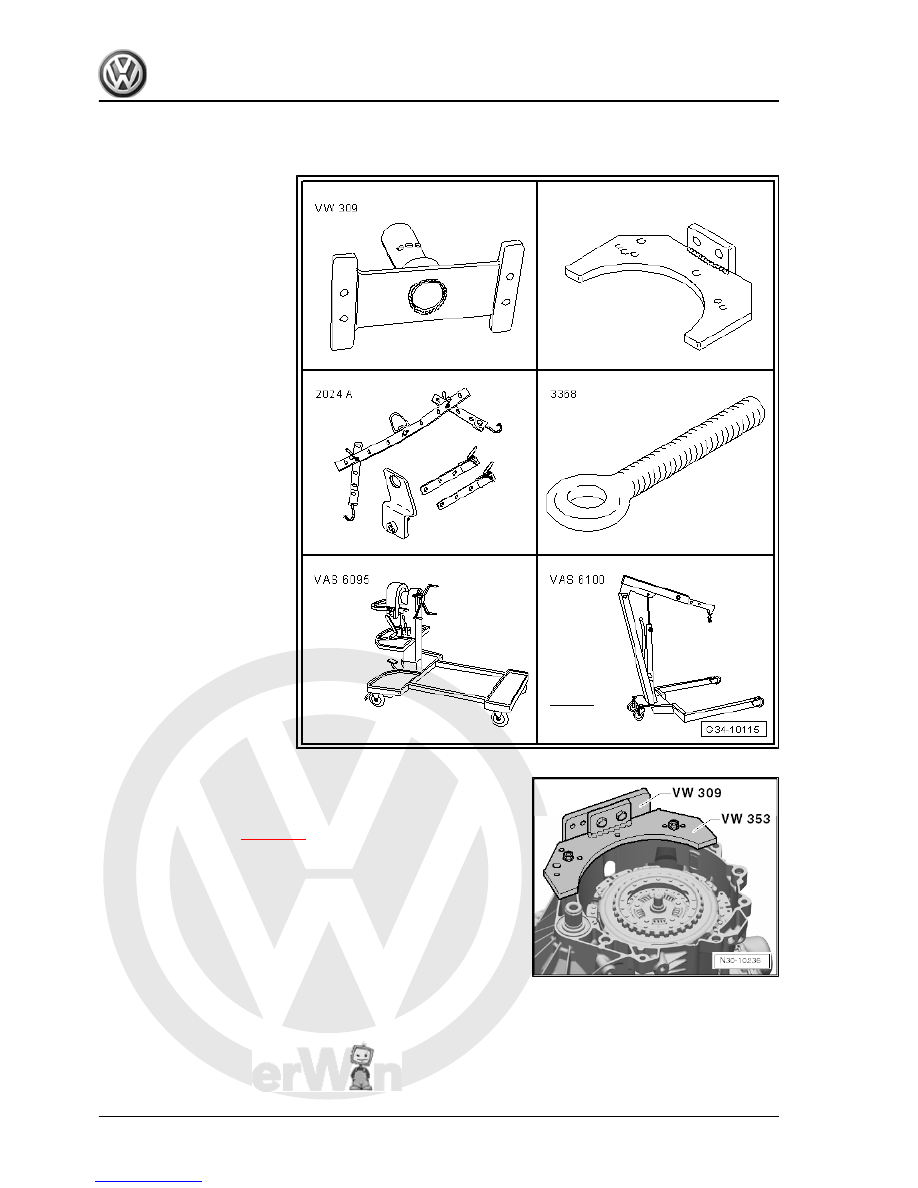

♦ Support plate -VW 309-
♦ Gearbox support -VW 353-
♦ Lifting tackle -2024 A-
♦ Eye bolt -3368-
♦ Engine and gearbox sup‐

port -VAS 6095-

♦ Workshop hoist -VAS

6100-

Secure gearbox on gearbox support -VW 353- .
Requirement:
• Gearbox is oil-tight

⇒ page 74

 .

Jetta Hybrid 2013 ➤

76
