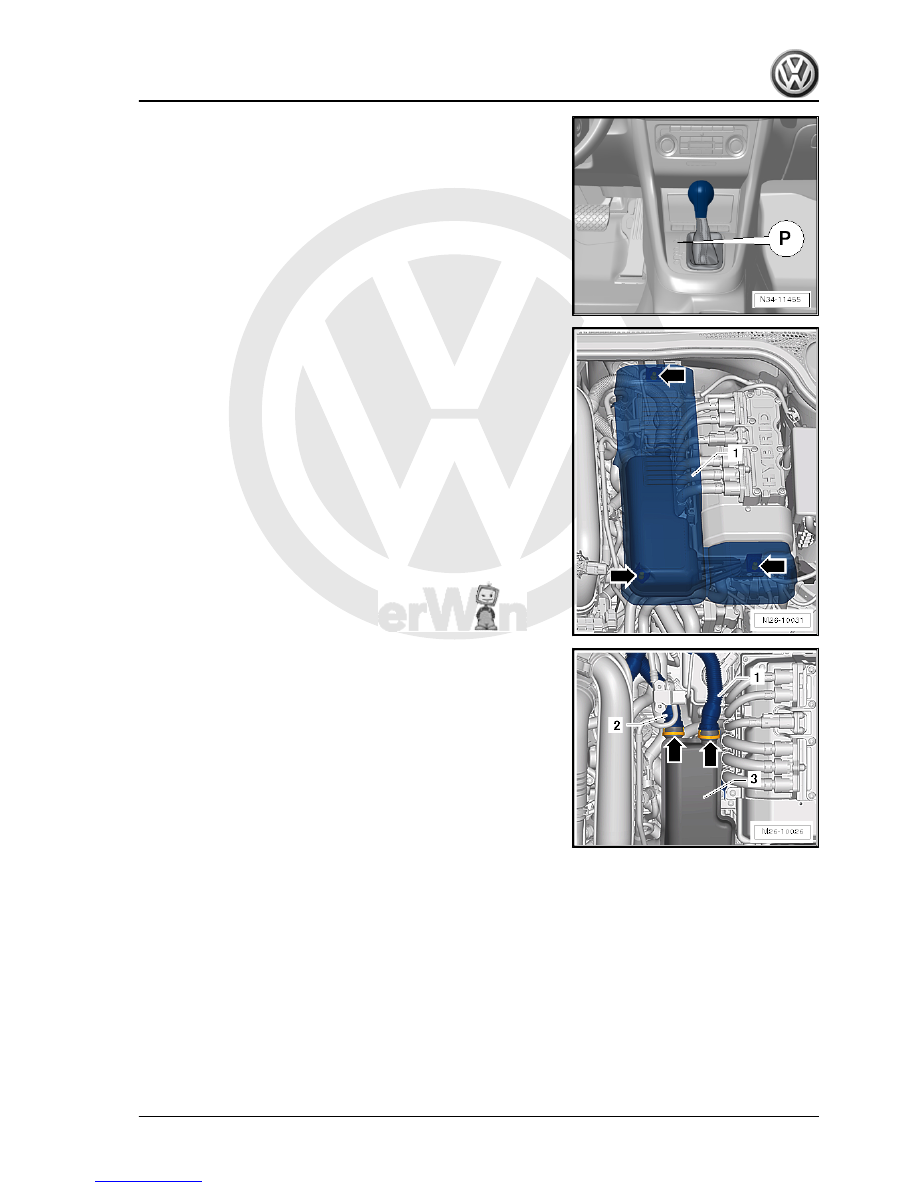

-arrows- and remove it.

– Disconnect air hoses -1- and -2- from air damper -3-. To do

this, press retaining ring -arrow- together on both sides and

pull hoses off.

Jetta Hybrid 2013 ➤

1. Selector mechanism

61



You can suffer an electric shock.
An electric shock can be fatal.
Observe  general  warning  instructions  for  work  on  the  high-

93 ; General warning instructions for work on the high-voltage

system .

♦ The system must first be de-energised by a high-voltage

technician before any work is done on the high-voltage

system and before any repair work is done on the body.

♦ All work on vehicles with a high-voltage system must only

be carried out by electrically instructed persons. The work

must be supervised by a high-voltage technician.

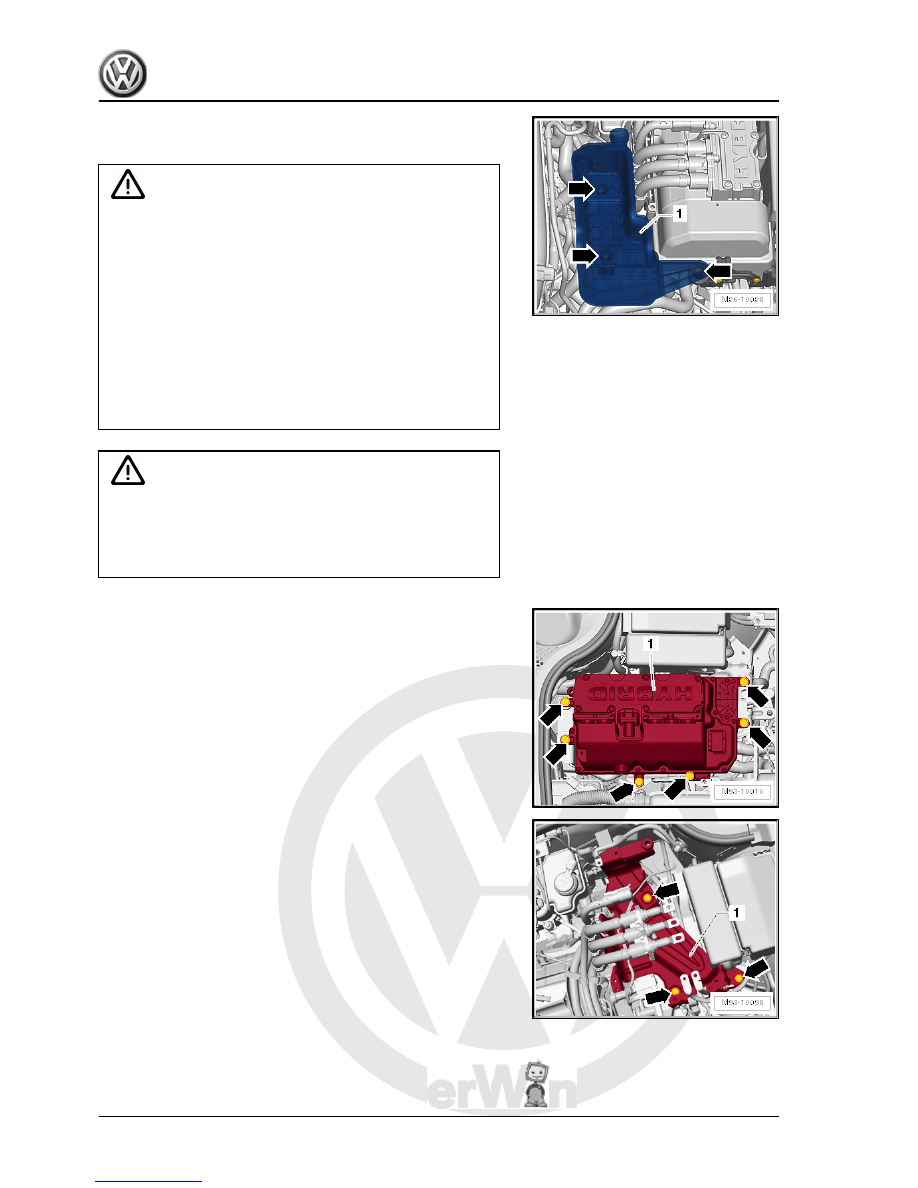

WARNING

High voltage on high-voltage system of hybrid vehicle. Danger

of electric shock! Following procedure also requires work on

high-voltage system. De-energise high-voltage system now ⇒

high-voltage system .

– Remove power and control electronics for electric drive -JX1-

control electronics for electric drive -JX1- .

– Remove bracket for power and control electronics for electric

High-voltage cables; Removing and installing high-voltage

wiring harness for hybrid battery -PX1- .

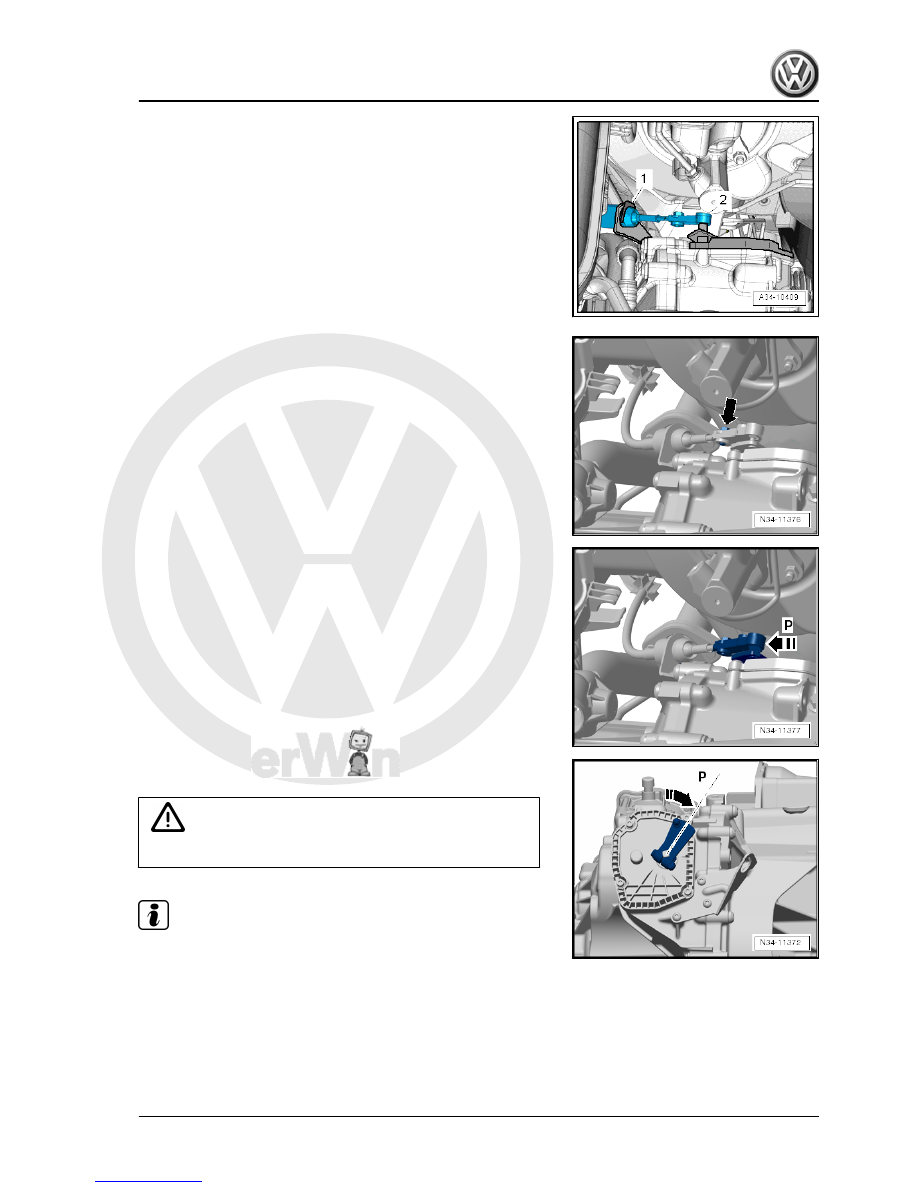

Checking selector lever cable

Jetta Hybrid 2013 ➤

62



– If necessary, pull off securing clip -1- for selector lever cable.
Securing clips for selector lever cable must always be renewed.
– Move selector lever repeatedly from »P« to »S« and back to

»P«.

• Selector mechanism and selector lever cable glide easily

when changing gear.

• Selector lever cable not damaged.
Adjusting selector lever cable

– Loosen adjustment screw -arrow- for selector lever cable.
– Shift gearbox selector lever to position “P”.

The gearbox selector lever must be pressed »completely to right

side of vehicle« in the direction of cable support bracket for se‐

lector lever cable.

This figure shows you the view of gearbox from »behind«. -P- in

direction of cable support bracket.

WARNING

The parking lock must be engaged.

Note

Raise vehicle, to be sure that the gearbox is in “P” (parking lock

engaged). It should not be possible to turn both front wheels to‐

gether in the same direction.

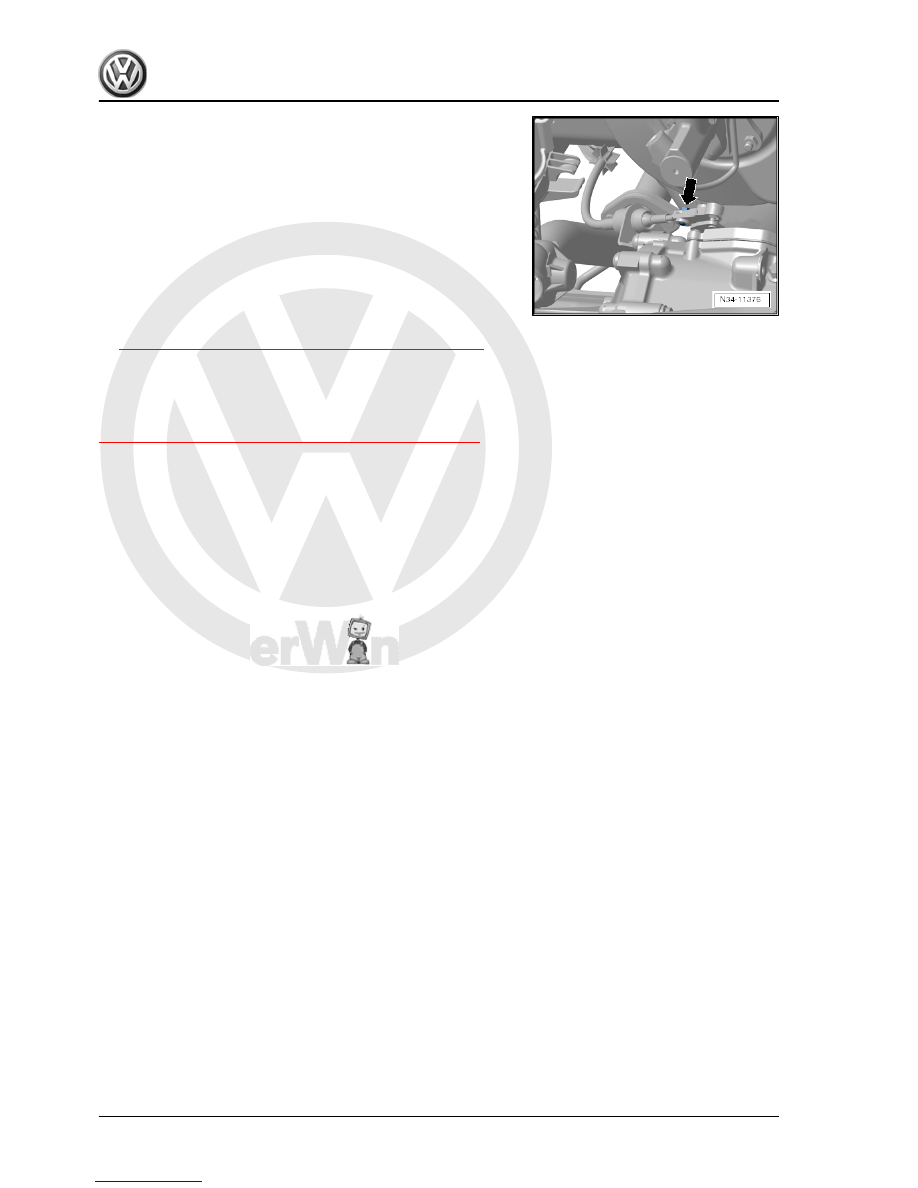

– To release tension from selector lever cable move selector

lever slightly forwards and backwards, but do not shift it to an‐

other selector lever position.

Jetta Hybrid 2013 ➤

1. Selector mechanism

63



This completes the adjustment.
– Continue installation in reverse order of removal. Install power

and control electronics for electric drive -JX1- ⇒  Electrical

tronics for electric drive -JX1- .

– Re-energise high-voltage system and carry out documenta‐

tion ⇒  Electrical system, hybrid vehicles; Rep. gr.  93 ; Re-

energising high-voltage system .

Specified torques
♦ Adjustment screw for selector lever cable

⇒ “1.1 Assembly overview - selector mechanism”, page 45

1.8

Renewing oil seal for selector shaft

Currently the oil seal for the selector shaft can only be renewed

together with the parking lock cover

⇒ “1.1 Removing and installing parking lock cover”, page 110

 .
