Key number plate



Vehicles with a smart key sys-
tem

Electronic keys

• Operating the smart key system

(

P.120)

• Operating the wireless remote

control function (



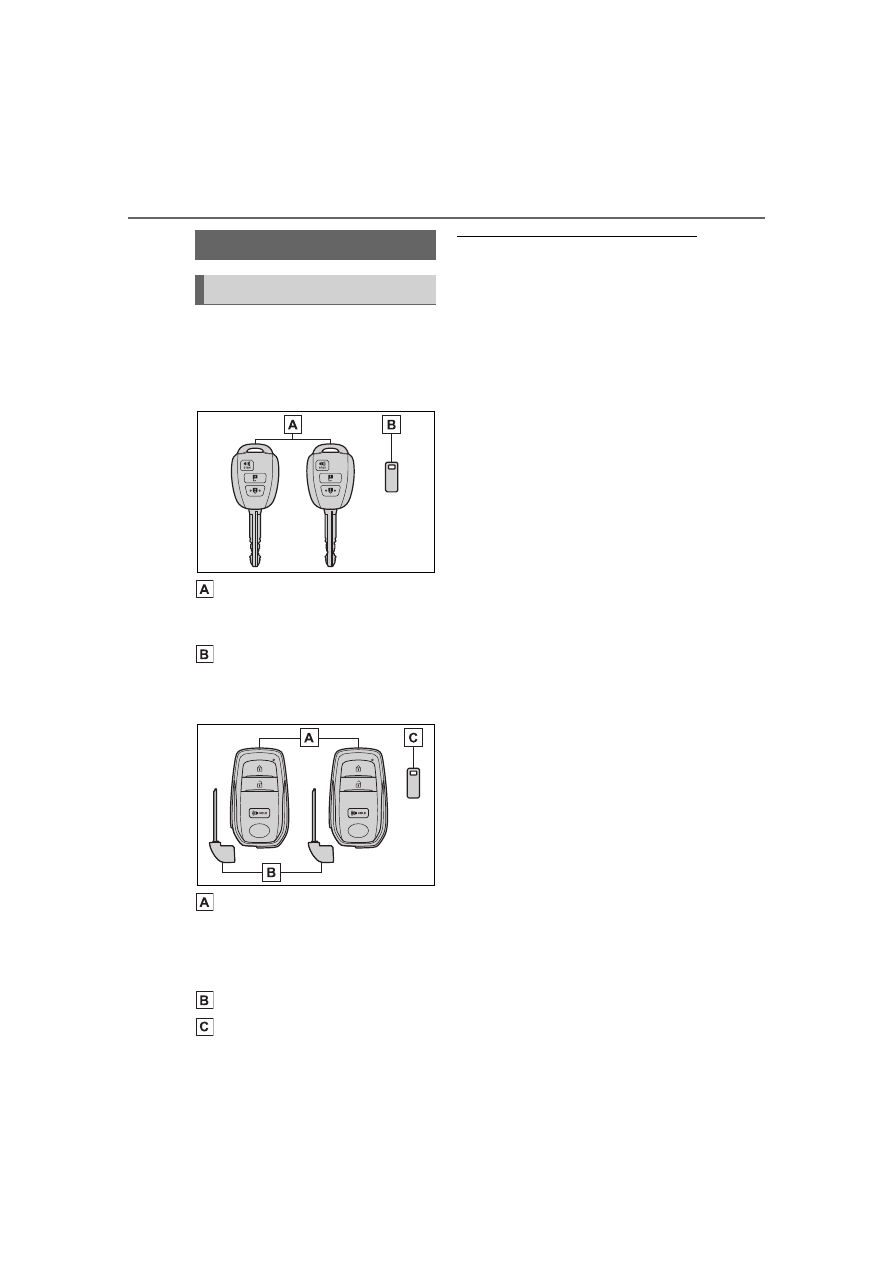

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing a key or an elec-
tronic key onto an aircraft, make
sure you do not press any buttons
on the key or the electronic key
while inside the aircraft cabin. If you
are carrying a key or an electronic
key in your bag, etc., ensure that the
buttons are not likely to be pressed
accidentally. Pressing a button may
cause the key or the electronic key
to emit radio waves that could inter-
fere with the operation of the air-
craft.

■

Key battery depletion



Vehicles without a smart key sys-
tem

●

The standard battery life is 1 to 2
years.

●

The battery will become depleted
even if the key is not used. The
following symptoms indicate that
the key battery may be depleted.
Replace the battery when neces-
sary. (

• The wireless remote control does

not operate.

• The detection area becomes

smaller.



Vehicles with a smart key system

●

The standard battery life is 1 to 2
years.

●

If the battery becomes low, an
alarm will sound in the cabin and a
message will be shown on the
multi-information display when the
engine is stopped.

●

To reduce key battery depletion
when the electronic key is to not
be used for long periods of time,
set the electronic key to the bat-
tery-saving mode. (



P.121)

●

As the electronic key always
receives radio waves, the battery
will become depleted even if the
electronic key is not used. The fol-
lowing symptoms indicate that the
electronic key battery may be
depleted. Replace the battery

Keys

The keys

101

3-1. Key information

Before driving

when necessary. (



• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

operated, the key battery may

become depleted faster than nor-

mal.

■

Replacing the battery

P.377

■

Confirmation of the registered

key number

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is shown on the

multi-information display (vehi-

cles with a smart key system)

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer

etc.

●

Vehicles with a smart key sys-

tem: Do not attach metallic or

magnetic materials to the keys

or place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

key.

●

Vehicles with a smart key sys-

tem: Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Vehicles with a smart key sys-

tem: Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

102

3-1. Key information

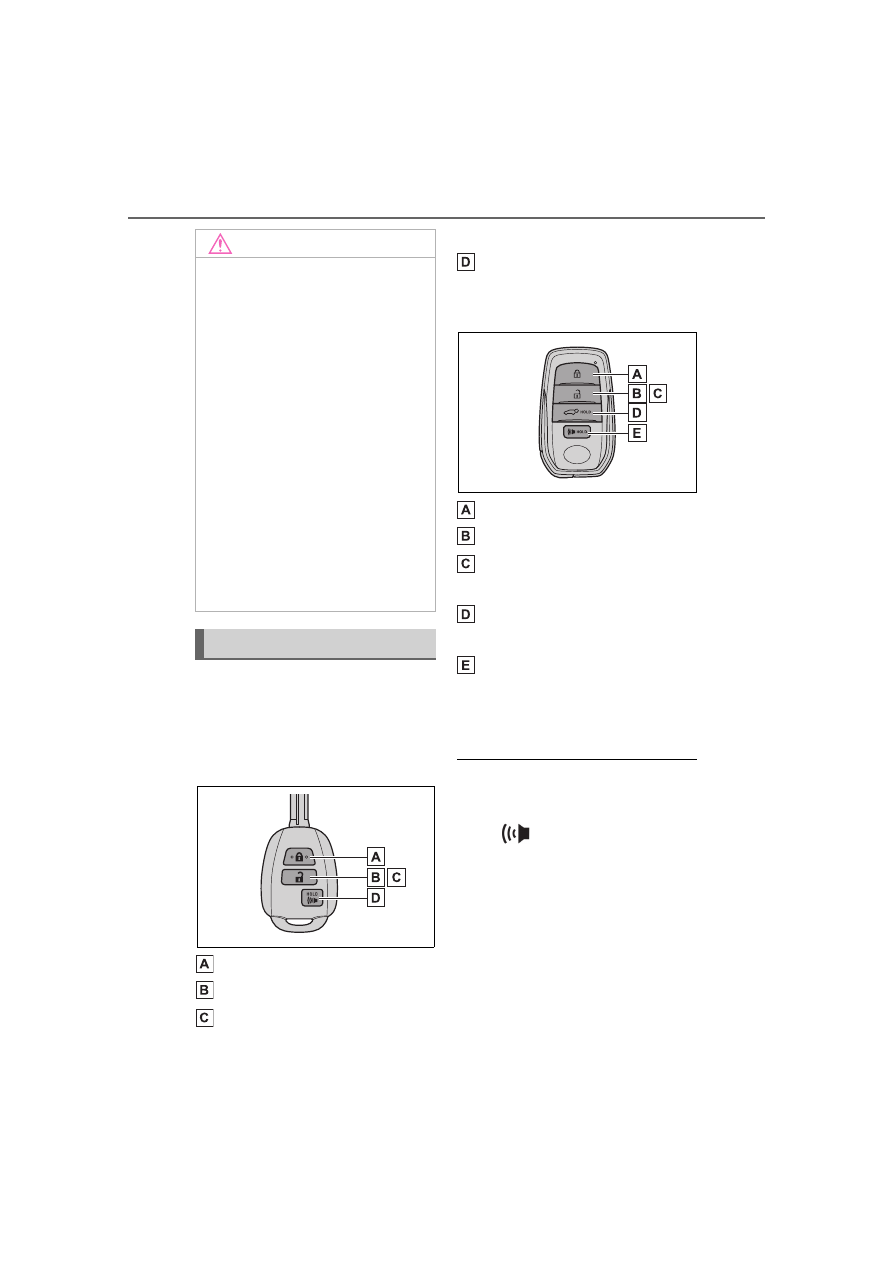

The keys are equipped with the

following wireless remote con-

trol:



Vehicles without a smart key

system

Locks the doors (

Unlocks the doors (



Opens the windows

(

Sounds the alarm (





Vehicles with a smart key sys-

tem

Locks the doors (



Unlocks the doors (

Opens the windows

and

moon roof

*1, 2

(



Opens and closes the power
back door

(

P.114)

Sounds the alarm (



:This setting must be customized

at your Toyota dealer.

:If equipped

■

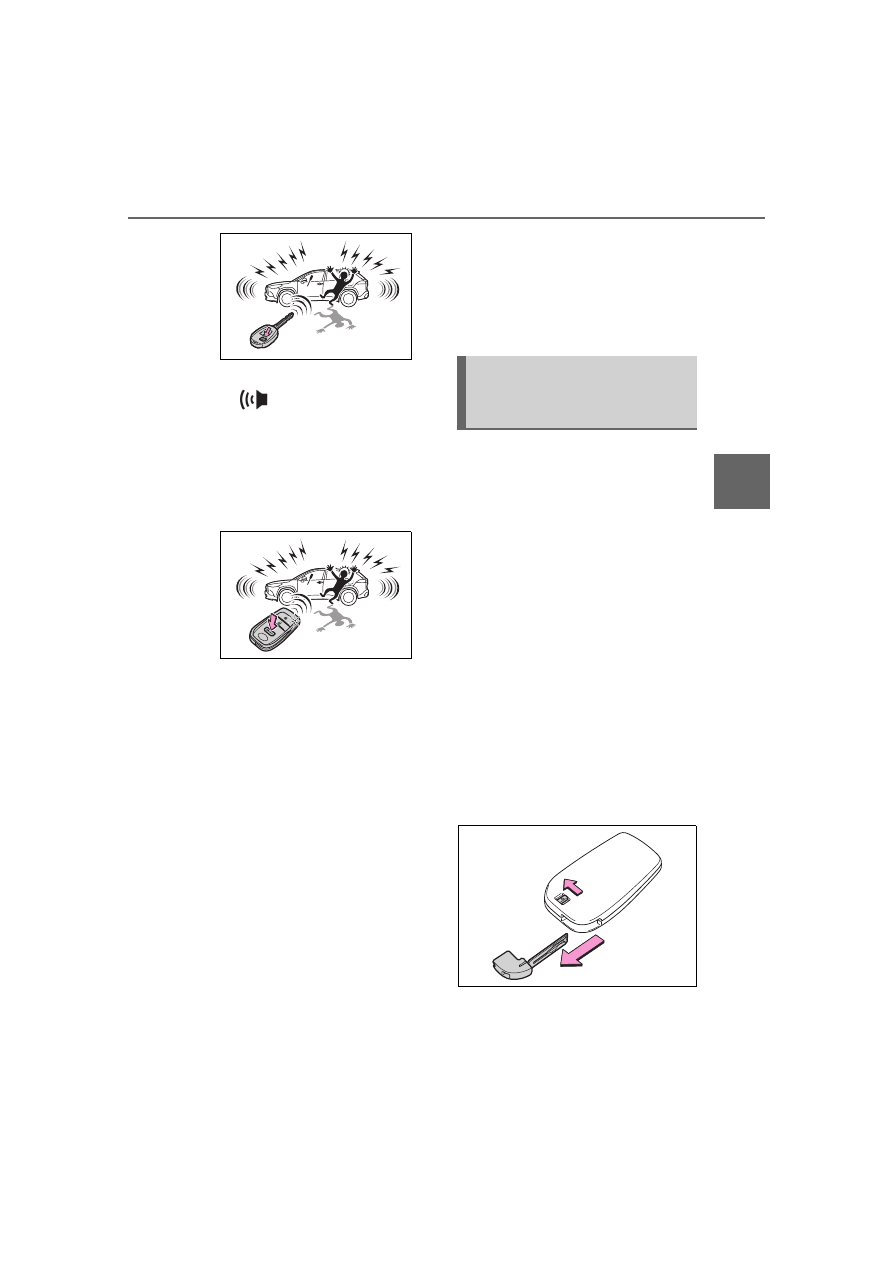

Panic mode



Vehicles without a smart key sys-

tem

When

is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the wireless remote control.

NOTICE

■

Carrying the electronic key

on your person (vehicles with

a smart key system)

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other

key-related problems (vehi-

cles with a smart key system)



P.426

■

When an electronic key is lost

(vehicles with a smart key

system)



P.426

Wireless remote control

103

3-1. Key information

Before driving



Vehicles with a smart key system

When

is pressed for longer

than about one second, an alarm
will sound intermittently and the
vehicle lights will flash to deter any
person from trying to break into or
damage your vehicle.

To stop the alarm, press any button
on the electronic key.

■

Conditions affecting the opera-
tion of the smart key system or
wireless remote control



Vehicles without a smart key sys-
tem

The wireless remote control function
may not operate normally in the fol-
lowing situations:

●

When the wireless key battery is
depleted

●

Near a TV tower, electric power
plant, gas station, radio station,
large display, airport or other facil-
ity that generates strong radio
waves or electrical noise

●

When carrying a portable radio,
cellular phone or other wireless
communication devices

●

When the wireless key is in con-
tact with, or is covered by a metal-
lic object

●

When a wireless key (that emits

radio waves) is being used nearby

●

If window tint with a metallic con-
tent or metallic objects are
attached to the rear window



Vehicles with a smart key system



P.121

To take out the mechanical key,
slide the release button and take
the key out.

The mechanical key can only be
inserted in one direction, as the
key only has grooves on one
side. If the key cannot be
inserted in a lock cylinder, turn it
over and re-attempt to insert it.

After using the mechanical key,
store it in the electronic key.
Carry the mechanical key
together with the electronic key.
If the electronic key battery is
depleted or the entry function
does not operate properly, you
will need the mechanical key.
(



P.426)

Using the mechanical key
(vehicles with a smart key
system)

105

3-2. Opening, closing and locking the doors

Before driving

3-2.Opening, closing and locking the doors

■

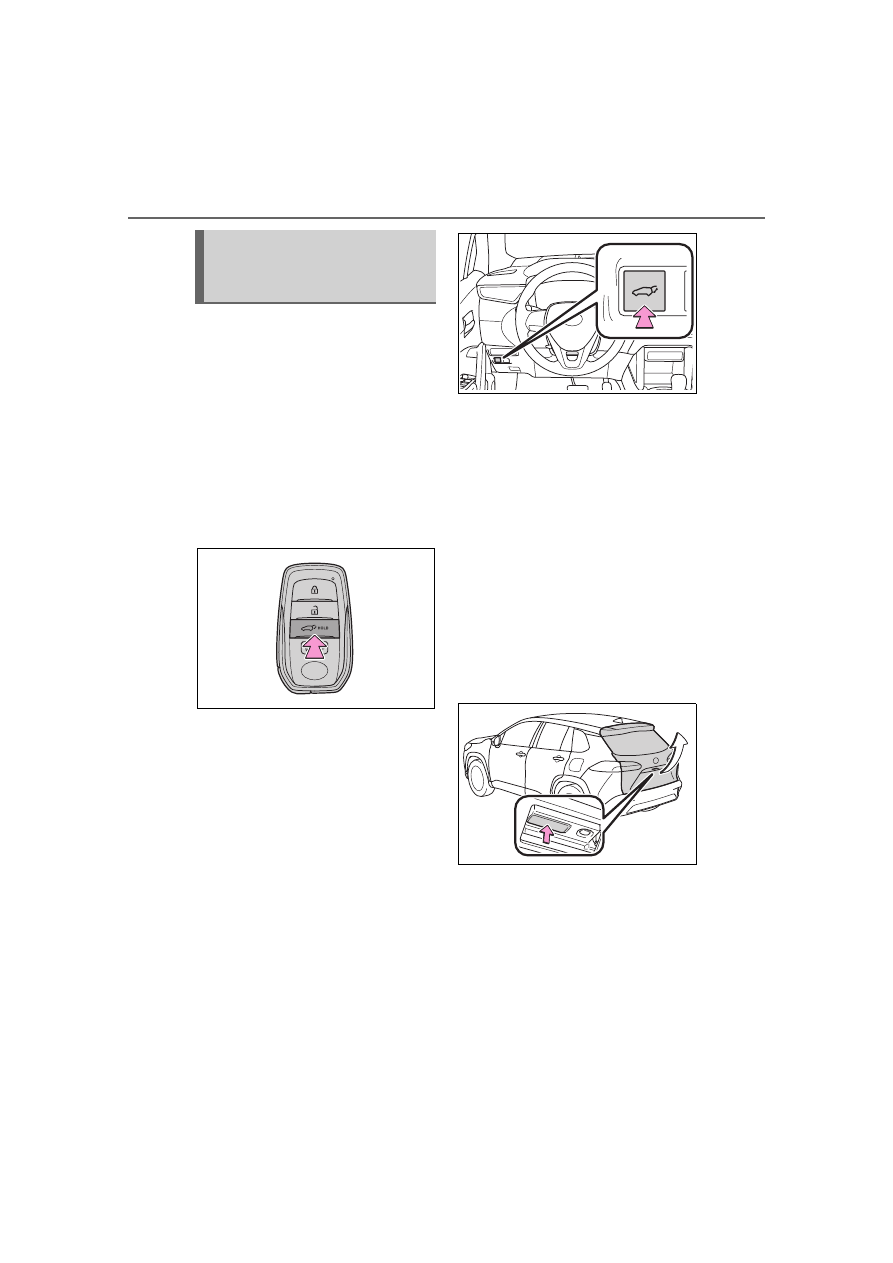

Smart key system (if
equipped)

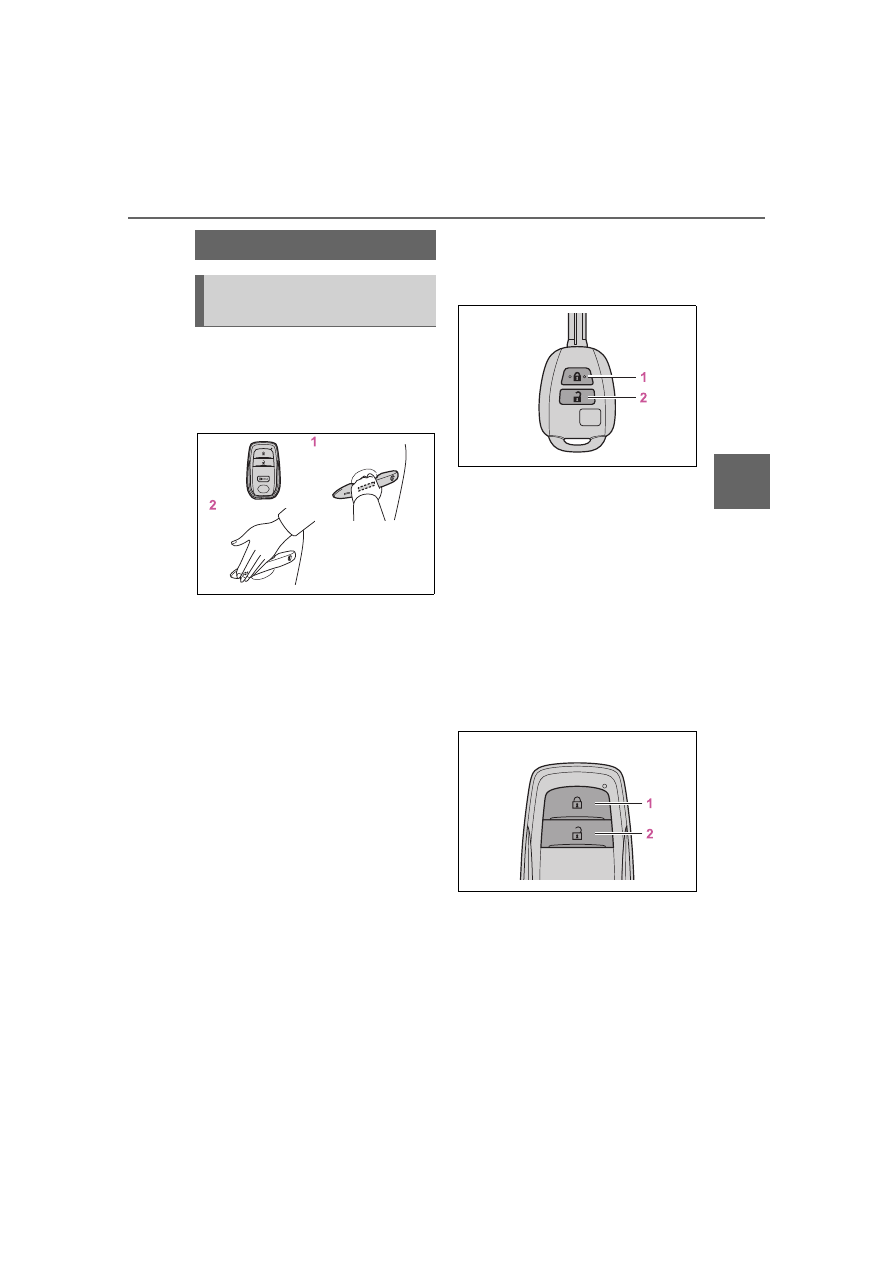

Carry the electronic key to
enable this function.

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors. Grip
the front passenger’s door
handle to unlock all the

doors.

Make sure to touch the sensor on
the back of the handle.

The doors cannot be unlocked for 3
seconds after the doors are locked.

: The door unlock settings can be

changed. (



P.106, 459)

Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.

Check that the door is securely
locked.

■

Wireless remote control



Vehicles without a smart key
system

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.

Press and hold to open the win-

dows



Vehicles with a smart key sys-
tem

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the

Side doors

Unlocking and locking the
doors from the outside

106

3-2. Opening, closing and locking the doors

other doors.

Press and hold to open the win-

dows

and moon roof

*1, 2

: This setting must be customized

at your Toyota dealer.

: If equipped

■

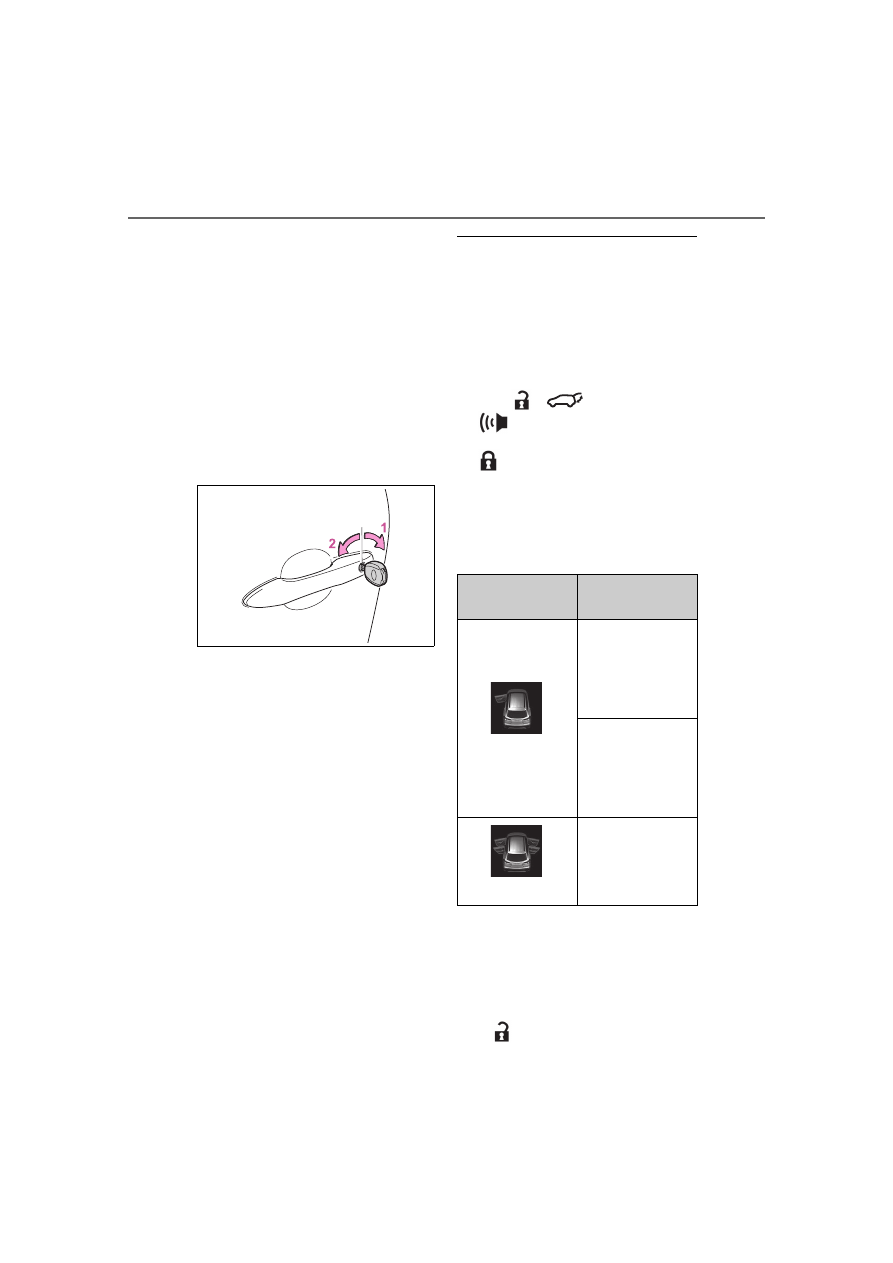

Key

Turning the key operates the
doors as follows:



Vehicles without a smart key
system

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again unlocks
the other doors.

Turn and hold to open the win-

dows

Locks all the doors

Turn and hold to close the win-

dows

: This setting must be customized

at your Toyota dealer.



Vehicles with a smart key sys-
tem

The doors can also be locked
and unlocked with the mechani-
cal key. (

■

Switching the door unlock func-
tion (vehicles with a smart key
system)

It is possible to set which doors the
entry function unlocks using the
wireless remote control.

Turn the engine switch off.

When the indicator light on the
key surface is not on, press and

hold

(if equipped) or

for approximately 5 sec-

onds while pressing and holding

The setting changes each time an
operation is performed, as shown
below. (When changing the setting
continuously, release the buttons,
wait for at least 5 seconds, and
repeat step

For vehicles with an alarm: To pre-
vent unintended triggering of the
alarm, unlock the doors using the
wireless remote control and open
and close a door once after the set-
tings have been changed. (If a door
is not opened within 60 seconds

after

is pressed, the doors will

Multi-informa-

tion display/Beep

Unlocking func-

tion

Beeps 3 times

Holding the
driver’s door
handle unlocks
only the driver’s
door.

Holding the front
passenger’s
door handle
unlocks all the
doors.

Beeps twice

Holding either
front door handle
unlocks all the
doors.

107

3-2. Opening, closing and locking the doors

Before driving

be locked again and the alarm will
automatically be set.)
In case that the alarm is triggered,
immediately stop the alarm. (



P.71)

■

Impact detection door lock
release system

In the event that the vehicle is sub-
ject to a strong impact, all the doors
are unlocked. Depending on the
force of the impact or the type of
accident, however, the system may
not operate.

■

Operation signals

A buzzer sounds and the emer-
gency flashers flash to indicate that
the doors have been
locked/unlocked using the entry
function

or wireless remote control.

(Locked: Once; Unlocked: Twice)

A buzzer sounds to indicate that the
windows and moon roof

are operat-

ing.

: If equipped

■

Security feature

If a door is not opened within
approximately 60 seconds after the
vehicle is unlocked using the entry
function

or wireless remote control,

the security feature automatically
locks the vehicle again.

: If equipped

■

When the door cannot be
locked by the lock sensor on
the surface of the front door
handle (vehicles with a smart
key system)

If the doors cannot be locked by
touching the lock sensor with a fin-
ger, touch the lock sensor with the
palm of your hand.

If you are wearing gloves, remove
them.

■

Door lock buzzer



Vehicles without a smart key sys-
tem

If an attempt to lock the doors using
the wireless remote control is made
when a door is not fully closed, a
buzzer will sound continuously for
10 seconds. Fully close the door to
stop the buzzer, and lock the doors
again.



Vehicles with a smart key system

If an attempt to lock the doors using
the entry function or wireless remote
control is made when a door is not
fully closed, a buzzer will sound
continuously for 5 seconds. Fully
close the door to stop the buzzer,
and lock the doors again.

■

Alarm (if equipped)

Locking the doors will set the alarm
system. (



P.71)

■

Conditions affecting the opera-
tion of the smart key system (if
equipped) or wireless remote
control



Vehicles without a smart key sys-
tem



P.103



Vehicles with a smart key system



P.121

■

If the smart key system (if
equipped) or the wireless
remote control does not oper-
ate properly



Vehicles without a smart key sys-
tem

Replace the key battery with a new
one if it is depleted. (

108

3-2. Opening, closing and locking the doors



Vehicles with a smart key system

Use the mechanical key to lock and

unlock the doors. (



Replace the key battery with a new

one if it is depleted. (



■

If the battery is discharged

(vehicles with a smart key sys-

tem)

The doors cannot be locked and

unlocked using the smart key sys-

tem or wireless remote control. Lock

or unlock the doors using the

mechanical key. (



■

Rear seat reminder function

In order to remind you not to forget

luggage, etc. in the rear seat, when

the engine switch is turned off after

any of the following conditions are

met, a buzzer will sound and a mes-

sage will be displayed on the

multi-information display for approx-

imately 6 seconds.

●

The engine is started within

approximately 10 minutes after

opening and closing a rear door.

●

A rear door has been opened and

closed after the engine was

started.

However, if a rear door is opened

and then closed within approxi-

mately 2 seconds, the rear seat

reminder function may not operate.
The rear seat reminder function

determines that luggage, etc. has

been placed in a rear seat based on

opening and closing of a rear door.

Therefore, depending on the situa-

tion, the rear seat reminder function

may not operate and you may still

forget luggage, etc. in the rear seat,

or it may operate unnecessarily.

■

Customization

Some functions can be customized.

(

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

being thrown out of the vehicle,

resulting in death or serious injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside door han-

dle while driving.

Be especially careful of the front

doors, as the doors may be

opened even if the inside lock

buttons are in the locked posi-

tion.

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

■

When using the wireless

remote control or the key and

operating the power win-

dows or moon roof (if

equipped)

Operate the power windows or

moon roof after checking to make

sure that there is no possibility of

any passenger having any of their

body parts caught in the windows

or moon roof. Also, do not allow

children to operate the wireless

remote control or the key. It is

possible for children and other

passengers to get caught in the

power windows or moon roof.

109

3-2. Opening, closing and locking the doors

Before driving

■

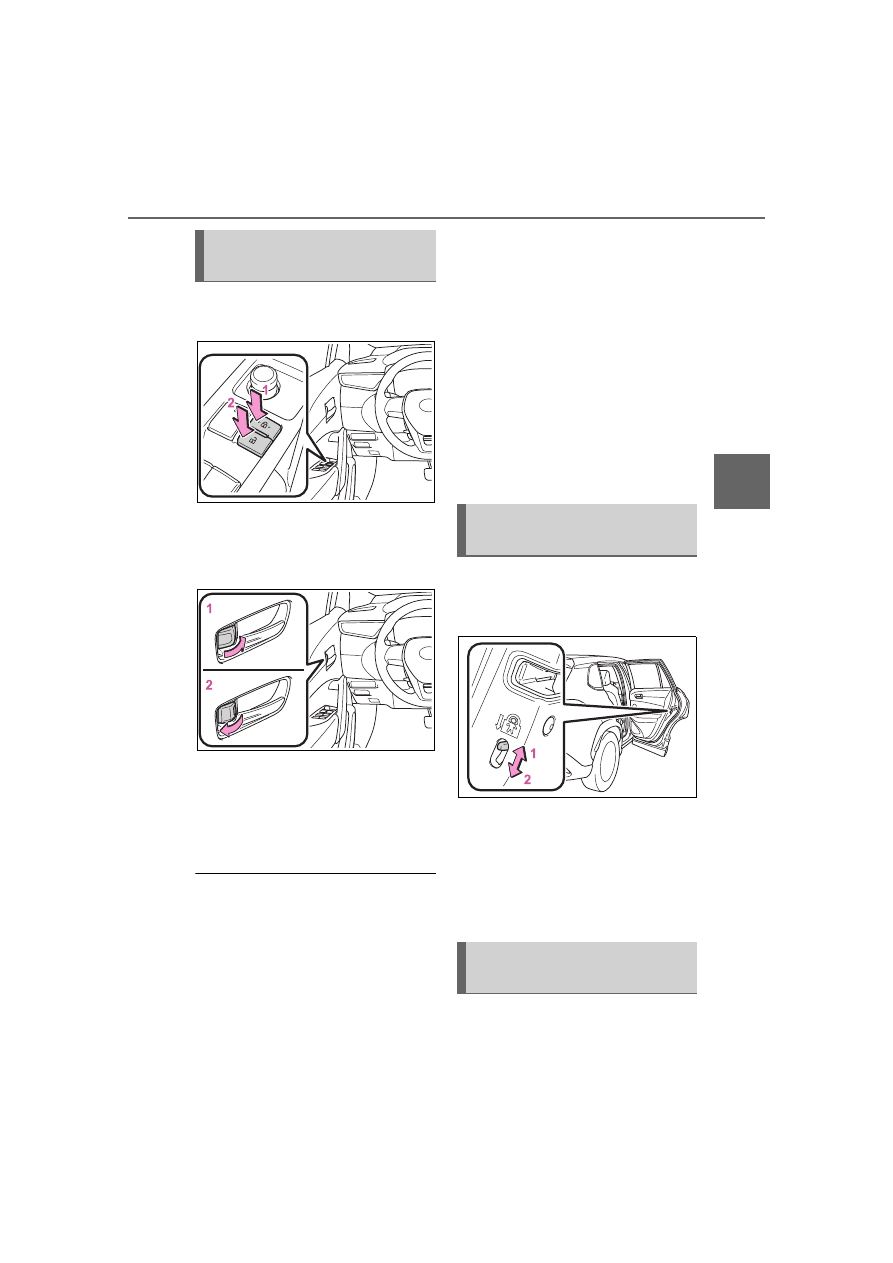

Door lock switches (to
lock/unlock)

Locks all the doors

Unlocks all the doors

■

Inside lock buttons

Locks the door

Unlocks the door

The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.

■

Locking the front doors from
the outside without a key

Move the inside lock button to
the lock position.

Close the door.



Vehicles without a smart key sys-
tem

The door cannot be locked if the key
is in the engine switch.



Vehicles with a smart key system

The door cannot be locked if the
engine switch is in ACC or ON, or
the electronic key is left inside the
vehicle.

The key may not be detected cor-
rectly and the door may be locked.

■

Open door warning buzzer

If a door or the hood is not fully
closed, a buzzer will sound when
the vehicle speed reaches 3 mph (5
km/h).

The open door(s) or hood is indi-
cated on the multi-information dis-
play.

The door cannot be opened
from inside the vehicle when
lock is set.

Unlock

Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

The following functions can be
set or canceled:

Unlocking and locking the
doors from the inside

Rear door child-protector
lock

Automatic door locking
and unlocking systems

110

3-2. Opening, closing and locking the doors

For instructions on customizing,

refer to P.459.

Function

Operation

Speed linked

door locking

function

All doors are auto-

matically locked

when vehicle

speed is approxi-

mately 12 mph (20

km/h) or higher.

Shift position

linked door

locking func-

tion

All doors are auto-

matically locked

when shifting the

shift lever out of P.

Shift position

linked door

unlocking

function

All doors are auto-

matically unlocked

when shifting the

shift lever to P.

Driver’s door

linked door

unlocking

function

All doors are auto-

matically unlocked

when driver’s door

is opened.

Back door

The back door can be

locked/unlocked and

opened/closed by the fol-

lowing procedures.

WARNING

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

■

Before driving the vehicle

Before driving the vehicle, make

sure that the back door is fully

closed. If the back door is not fully

closed, it may open unexpectedly

while driving, causing an acci-

dent.

■

Caution while driving

●

Keep the back door closed

while driving.

If the back door is left open, it may

hit near-by objects while driving or

luggage may be unexpectedly

thrown out, causing an accident.
In addition, exhaust gases may

enter the vehicle, causing death

or a serious health hazard. Make

sure to close the back door before

driving.

●

Never let anyone sit in the lug-

gage compartment. In the event

of sudden braking, sudden

swerving or a collision, they are

susceptible to death or serious

injury.

■

When children are in the vehi-

cle

●

Do not allow children to play in

the luggage compartment.

If a child is accidentally locked in

the luggage compartment, they

could have heat exhaustion or

other injuries.

111

3-2. Opening, closing and locking the doors

Before driving

WARNING

●

Do not allow a child to open or

close the back door.

Doing so may cause the back

door to move unexpectedly, or

cause the child’s hands, arms,

head, or neck to be caught by the

closing back door.

■

Operating the back door

Observe the following precau-

tions. Failure to do so may cause

parts of the body to be caught,

resulting in death or serious injury.

●

Remove any heavy loads, such

as snow and ice, from the back

door before opening it. Failure

to do so may cause the back

door to suddenly shut again

after it is opened.

●

When opening or closing the

back door, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

Use caution when opening or

closing the back door in windy

weather as it may move

abruptly in strong wind.

●

Vehicles with a power back

door: The power back door may

suddenly shut if it is not opened

fully. It is more difficult to open

or close the back door on an

incline than on a level surface,

so beware of the back door

unexpectedly opening or closing

by itself. Make sure that the

back door is fully open and

secure before using the luggage

compartment.

Vehicles without a power back

door: The back door may sud-

denly shut if it is not opened fully.

It is more difficult to open or close

the back door on an incline than

on a level surface, so beware of

the back door unexpectedly open-

ing or closing by itself. Make sure

that the back door is fully open

and secure before using the lug-

gage compartment.

●

Vehicles with a power back

door: The back door may sud-

denly shut if it is not opened

fully while on a steep incline.

Make sure that the back door is

secured before using the lug-

gage compartment.

●

When closing the back door,

take extra care to prevent your

fingers, etc., from being caught.

112

3-2. Opening, closing and locking the doors

■

Smart key system (if

equipped)

Carry the electronic key to

enable this function.

Unlocks all the doors

The doors cannot be unlocked for 3

seconds after the doors are locked.

Locks all the doors

Check that the door is securely

locked.

■

Wireless remote control

P.105

■

Key

P.106

■

Luggage compartment light

●

The luggage compartment light

turns on when the back door is

opened.

●

If the luggage compartment light is

left on when the engine switch is

turned off, the light will go off auto-

matically after 20 minutes.

■

Operation signals



P.107

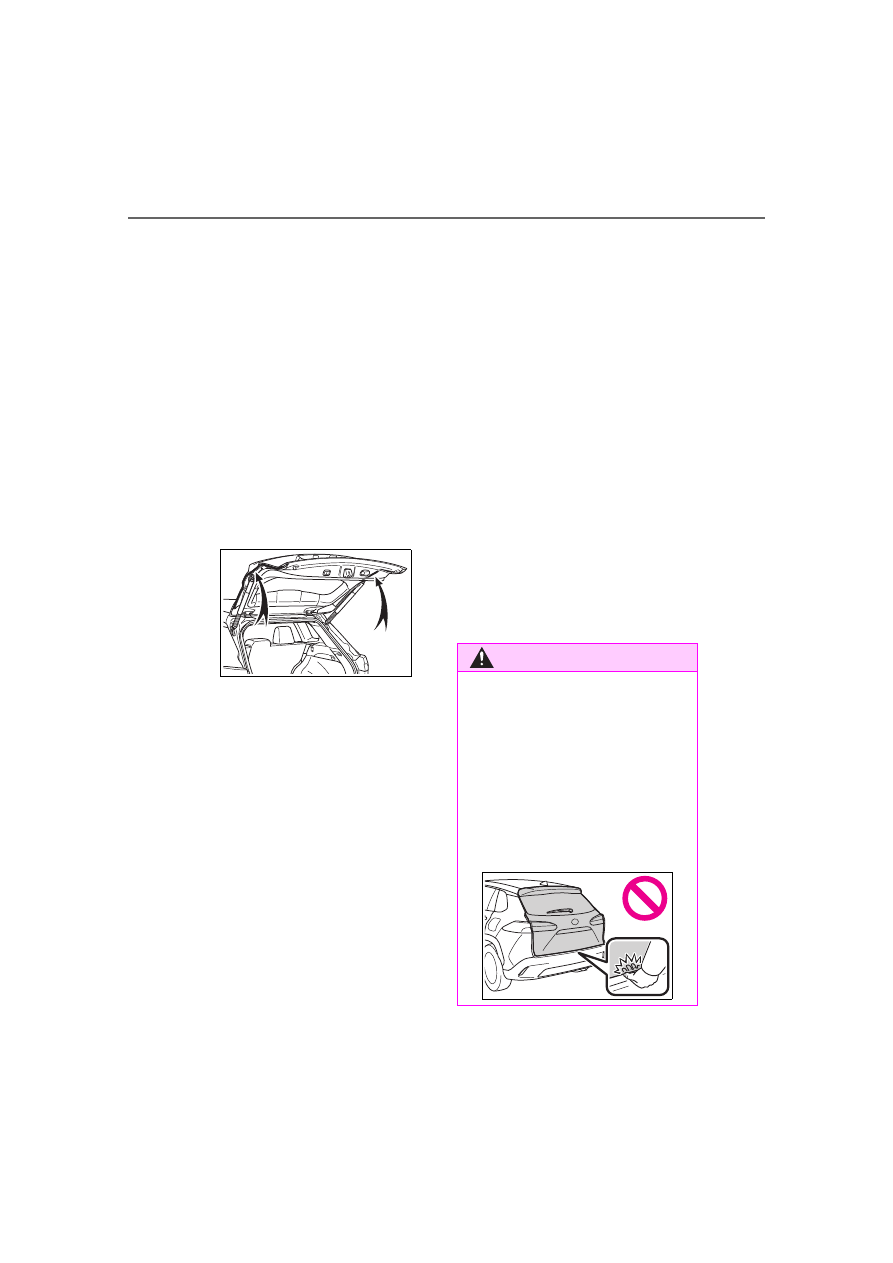

WARNING

●

When closing the back door,

make sure to press it lightly on

its outer surface. If the back

door handle is used to fully

close the back door, it may

result in hands or arms being

caught.

●

Do not pull on the back door

damper stay (vehicles without a

power back door) (

P.113) or

back door spindle (vehicles with

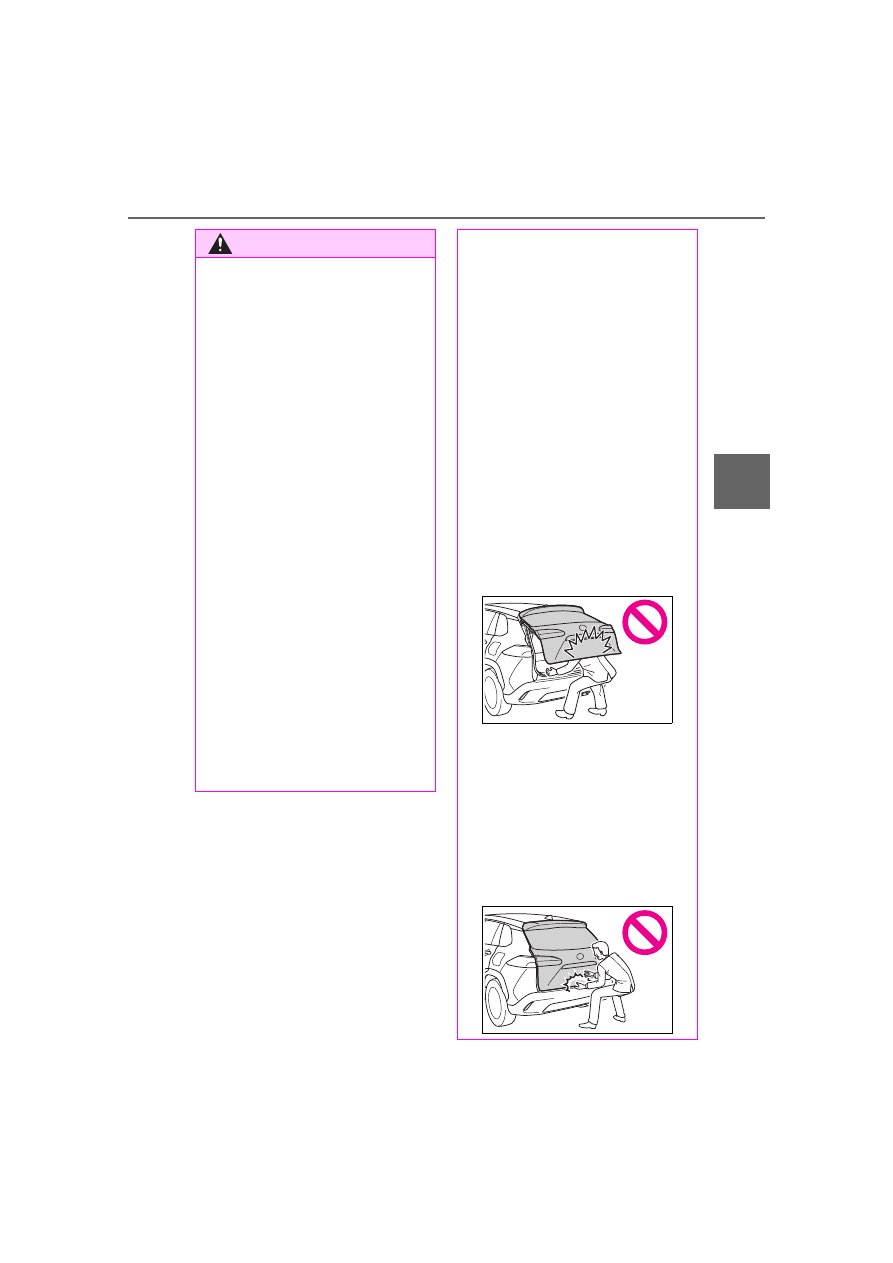

a power back door) (



P.118) to

close the back door, and do not

hang on the back door damper

stay (vehicles without a power

back door) or back door spindle

(vehicles with a power back

door).

Doing so may cause hands to be

caught or the back door damper

stay (vehicles without a power

back door) or back door spindle

(vehicles with a power back door)

to break, causing an accident.

●

Do not pull on the back door

damper stay (



P.113) to close

the back door, and do not hang

on the back door damper stay.

Doing so may cause hands to be

caught or the back door damper

stay to break, causing an acci-

dent.

●

If a heavy object is attached to

the back door, it may suddenly

shut again after being opened,

causing someone’s hands,

arms, head or neck to be caught

and injured. Do not attach any

accessories other than genuine

Toyota parts to the back door.

Unlocking and locking the

back door from the out-

side

113

3-2. Opening, closing and locking the doors

Before driving

■

Door lock switches



P.109

■

Opening the back door

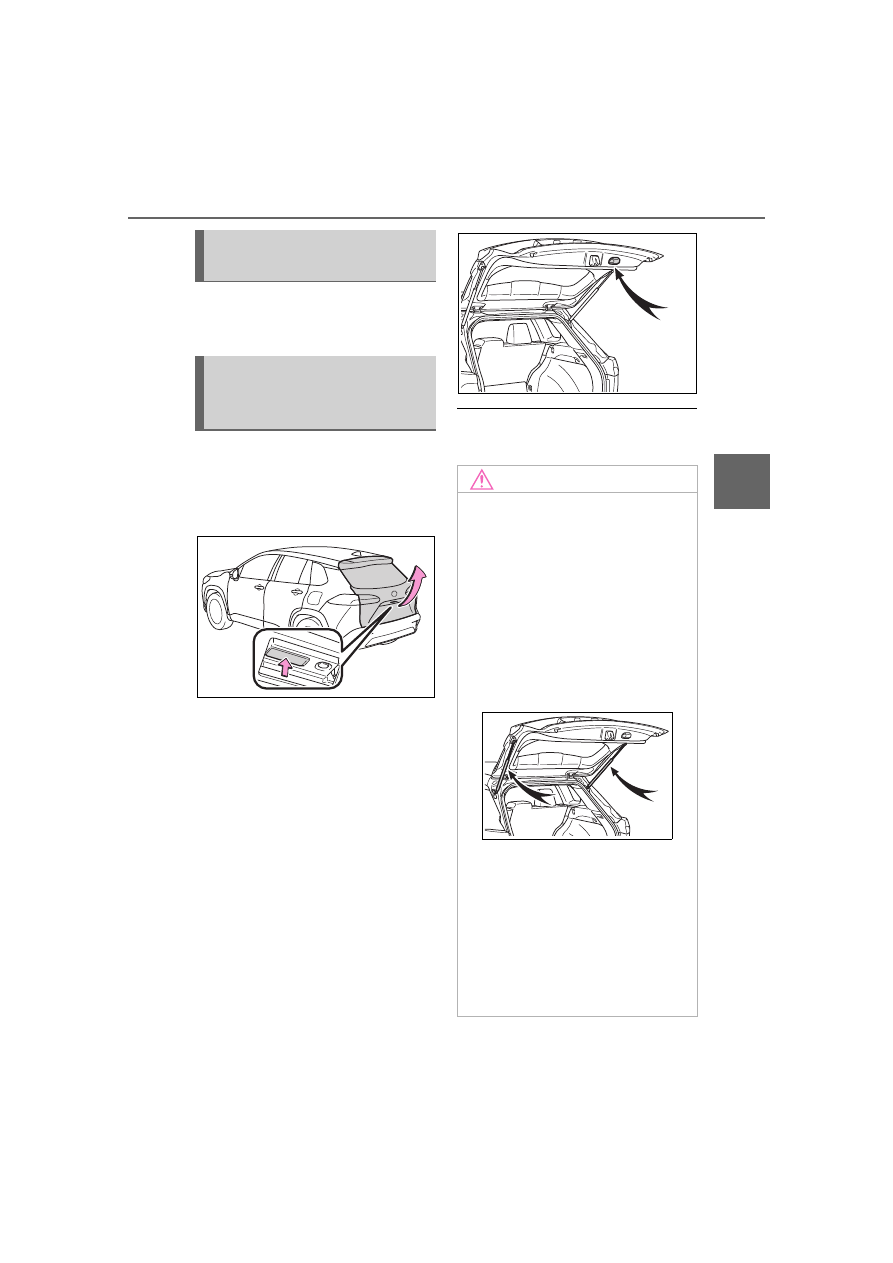

Raise the back door while push-

ing up the back door opener

switch.

■

Closing the back door

Lower the back door using a

back door handle, and then

push the back door from the out-

side to close it.
Be careful not to pull the back

door sideways when using a

handle.

■

Open door warning buzzer



P.109

Unlocking and locking the

back door from the inside

Opening/closing the back

door (vehicles without a

power back door)

NOTICE

■

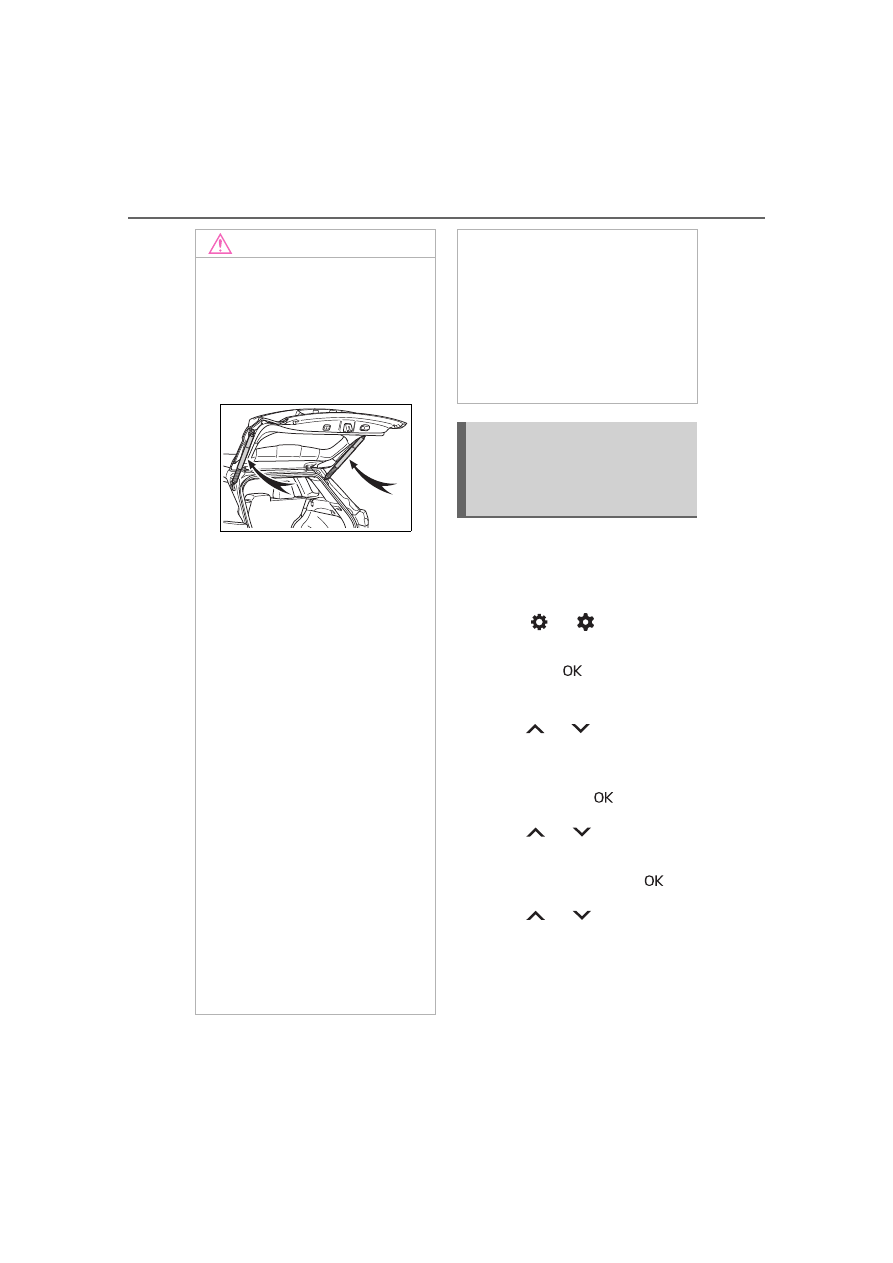

Back door damper stays

The back door is equipped with

damper stays that hold the back

door in place.
Observe the following precau-

tions. Failure to do so may cause

damage to the back door damper

stay, resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

damper stay rod.

●

Do not touch the damper stay

rod with gloves or other fabric

items.

●

Do not attach any accessories

other than genuine Toyota parts

to the back door.

●

Do not place your hand on the

damper stay or apply lateral

forces to it.

114

3-2. Opening, closing and locking the doors

■

Opening/closing the back
door using the wireless
remote control

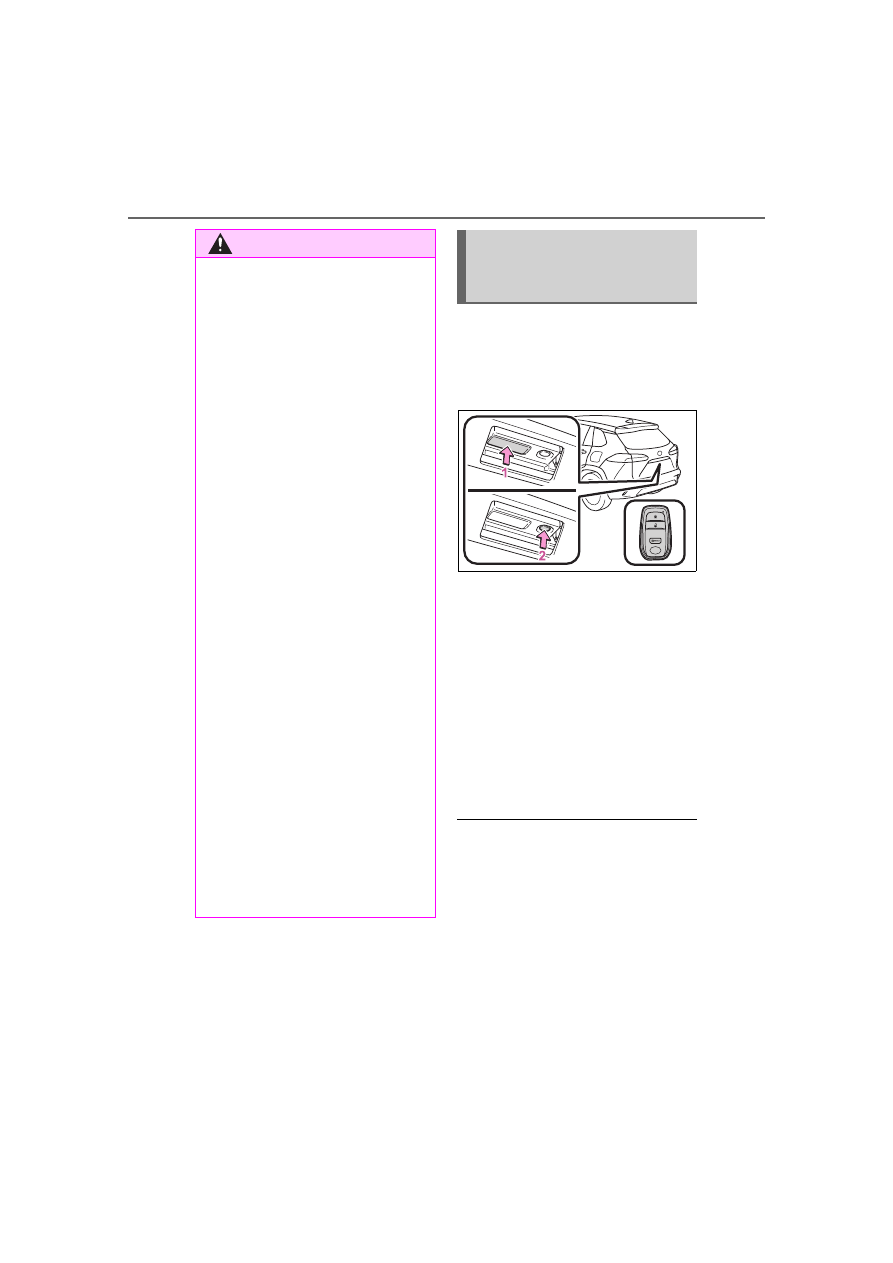

Press and hold the switch.

Unlock the back door before oper-
ating.

Pressing the switch while the back
door is opening/closing will stop the
operation. Pressing and holding the
switch again will operate the back
door in the opposite direction.

■

Opening/closing the back
door using the power back
door switch on the instru-
ment panel

Press and hold the switch.

Unlock the back door before oper-
ating.

Pressing the switch while the back
door is opening/closing will stop the
operation. Pressing and holding the
switch again will operate the back
door in the opposite direction.

■

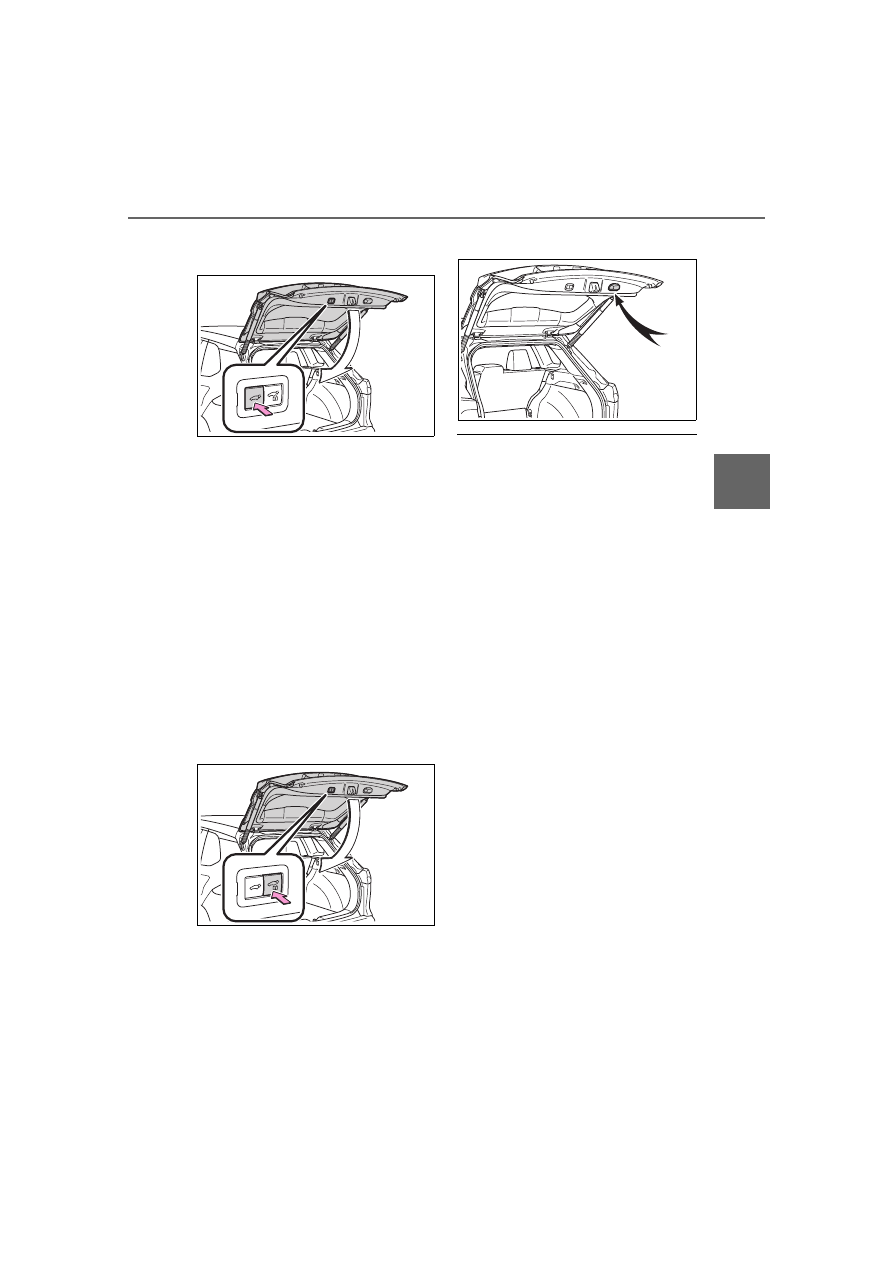

Opening the back door
using the back door opener
switch

When the back door is
unlocked: Press the back door
opener switch.

When the back door is locked:
While carrying the electronic key
on your person, press the back
door opener switch.

Pressing the switch while the back
door is opening/closing will stop the
operation. Pressing the switch
again will open the back door.

■

Opening/closing the back
door using the power back
door switch on the back
door

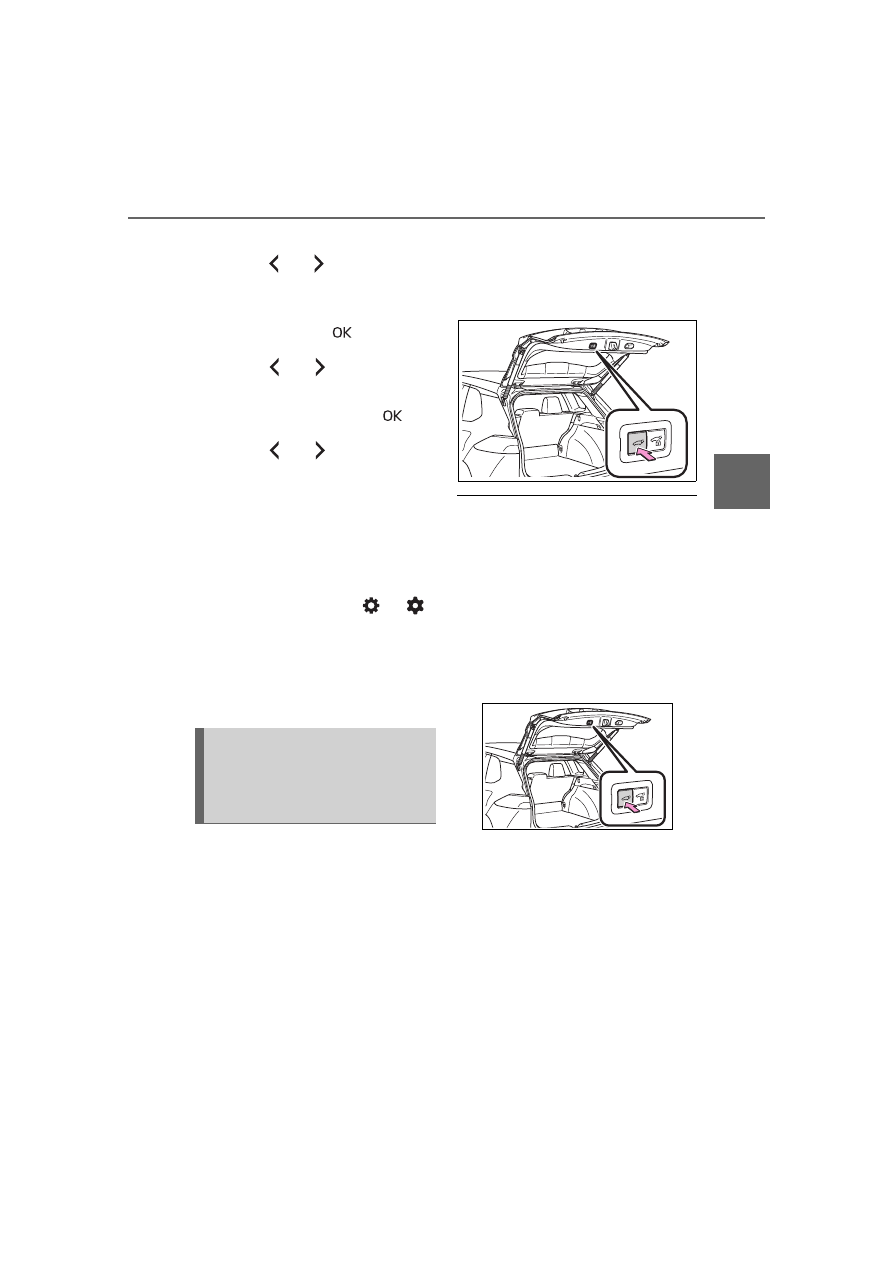

Press the switch.

Pressing the switch while the back
door is opening/closing will stop the
operation. Pressing the switch

Opening/closing the back
door (vehicles with a
power back door)

115

3-2. Opening, closing and locking the doors

Before driving

again will operate the back door in
the opposite direction.

■

Closing the back door and
locking all of the doors
using the lock switch on the
back door

Press the switch.

A different buzzer than the one for
a normal power back door closing
operation will sound and the back
door will begin closing automati-
cally. When the back door is closed,
all of the doors will lock simultane-
ously and operation signals will
indicate that all of the doors have
been locked. If the switch is
pressed while the power back door
is closing, the operation will stop.

■

Closing the back door
using the back door handle

Lower the back door using the
back door handle, then a buzzer
sounds and the back door auto-

matically closes.

■

Back door closer

In the event that the back door is left
slightly open, the back door closer
will automatically close it to the fully
closed position.

●

The back door closer can function
when the engine switch is in any
mode.

●

The back door can be opened
using the back door opener switch
even if the back door closer is
operating.

■

Power back door operating con-
ditions

If the following conditions are met,
the power back door can be opened
and closed automatically.

●

When the power back door sys-
tem is enabled. (

●

When the engine switch is in ON,
one of the following conditions
must be met in addition to the
above conditions:

• The parking brake is engaged.
• The brake pedal is depressed.
• The shift lever is in P.

■

Operation of the power back
door

●

When the power back door begins
to operate, the emergency flash-
ers will flash twice and a buzzer
will sound.

●

A buzzer sounds to indicate that
the back door is operating.

●

When the power back door is dis-

116

3-2. Opening, closing and locking the doors

abled, the power back door will

not operate but can be opened

and closed manually.

●

When the power back door is

opening/closing, if the power back

door becomes obstructed, opera-

tion will stop.

■

Jam protection function

Sensors are installed on the right

and left sides of the power back

door. When the door is automati-

cally closing and the sensors are

pushed due to an object being

clamped, etc., the jam protection

function operates.
From that position the door auto-

matically moves a little in the oppo-

site direction and then the function

stops.

■

Back door reserve lock function

This function reserves the locking of

the power back door when the

power back door is open. If the fol-

lowing operations are performed, all

of the doors except the power back

door will lock and then the power

back door will lock when it is com-

pletely closed.

Close all of the doors, except the

back door.

Perform an automatic closing

operation of the power back door

and lock the doors using the

wireless remote control

(



P.105) or smart key system

(



P.105) while the power back

door is closing.

A buzzer sounds and the emer-

gency flashers flash to indicate that

all the doors have been closed and

locked.

●

If the electronic key is placed

inside the vehicle after starting a

close operation via the door

reserve lock function, the elec-

tronic key may become locked

inside the vehicle.

●

If the back door does not fully

close due to the operation of the

jam protection function, etc., while

the back door is automatically

closing after a door reserve lock

operation is performed, the door

reserve lock function is canceled

and all the doors will unlock.

●

Before leaving the vehicle, make

sure that all the doors are closed

and locked.

■

When reconnecting the battery

To enable the power back door to

operate properly, close the back

door manually.

■

Customization

Some functions can be customized.

(



WARNING

■

Back door closer

●

In the event that the back door

is left slightly open, the back

door closer will automatically

close it to the fully closed posi-

tion. It takes several seconds

before the back door closer

begins to operate. Be careful

not to get fingers caught or any-

thing else in the back door, as

this may cause bone fractures

or other serious injuries.

117

3-2. Opening, closing and locking the doors

Before driving

WARNING

●

Use caution when using the

back door closer as it still oper-

ates when the power back door

system is disabled.

■

Power back door

Observe the following precautions

when operating the power back

door. Failure to do so may cause

death or serious injury.

●

Check the safety of the sur-

rounding area to make sure

there are no obstacles or any-

thing that could cause any of

your belongings to get caught.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

If the power back door system is

disabled while the power back

door is operating, the back door

will stop operating. The back

door must then be operated

manually. Take extra care in this

situation, as the back door may

open or close suddenly.

●

If the operating conditions of the

power back door (

P.115) are

no longer met, a buzzer may

sound and the back door may

stop opening or closing. The

back door must then be oper-

ated manually. Take extra care

on an incline in this situation, as

the back door may move sud-

denly.

●

On an incline, the back door

may suddenly shut after it

opens. Make sure the back door

is fully open and secure.

●

In the following situations, the

power back door may detect an

abnormality and automatic

operation may be stopped. In

this case, the back door must

then be operated manually.

Take extra care in this situation,

as the stopped back door may

suddenly open or close, causing

an accident.

• When the back door contacts an

obstacle

• When the battery voltage sud-

denly drops, such as when the

engine switch is turned to ON or

the engine is started during

automatic operation

●

If a heavy object is attached to

the back door, the back door

may not operate, causing a mal-

function, or the back door may

suddenly shut again after being

opened, causing someone’s

hands, arms, head or neck to be

caught and injured. Do not

attach any accessories other

than genuine Toyota parts to the

back door.

■

Jam protection function

Observe the following precau-

tions. Failure to do so may cause

death or serious injury.

●

Never use any part of your body

to intentionally activate the jam

protection function.

●

The jam protection function may

not work if something gets

caught just before the back door

fully closes. Be careful not to

get fingers caught or anything

else.

●

The jam protection function may

not work depending on the

shape of the object that is

caught. Be careful not to catch

fingers or anything else.

118

3-2. Opening, closing and locking the doors

The power back door system

can be enabled/disabled on the

multi-information display.

(



Select

of the

multi-information display and
then press



4.2-inch display meter

Press

of meter con-

trol switches, select the

“Vehicle Settings” and then
press and hold

Press

of the meter

control switches, select
“PBD” and then press

Press

of the meter

control switches, and then

select “System Settings”.

ON and OFF will be switched

when is pressed.

NOTICE

■

Back door spindles

The back door is equipped with

spindles that hold the back door in

place.
Observe the following precau-

tions. Failure to do so may cause

damage to the back door spindle,

resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

spindle rod.

●

Do not attach any accessories

other than genuine Toyota parts

to the back door.

●

Do not place your hand on the

spindle or apply lateral forces to

it.

■

To prevent back door closer

malfunction

Do not apply excessive force to

the back door while the back door

closer is operating. Applying

excessive force may cause the

back door closer to malfunction.

■

To prevent malfunction of the

power back door

●

Make sure that there is no ice

between the back door and

frame that would prevent move-

ment of the back door. Operat-

ing the power back door when

excessive load is present on the

back door may cause a mal-

function.

●

Do not apply excessive force to

the power back door while the

back door is operating.

●

Take care not to damage the

sensors (installed on the right

and left edges of the power

back door) with a knife or other

sharp object. If a sensor is dis-

connected, the power back door

will not close automatically.

Enabling/disabling the

power back door system

(vehicles with a power

back door)

119

3-2. Opening, closing and locking the doors

Before driving



7-inch display meter

Press

of meter con-

trol switches, select the
“Vehicle Settings” and then

press and hold

Press

of the meter

control switches, select

“PBD” and then press

Press

of the meter

control switches, and then
select “System Settings”.

ON and OFF will be switched
when is pressed.

When OFF is selected and the
operations of the power back door

is made to stop from the

of multi-information display, unless
it is set to ON, the operation of the
power back door will not return. (No
return in the engine switch opera-
tion)

The open position of the power
back door can be adjusted.

Stop the power back door at
the desired position.
(



P.114)

Press and hold the power
back door switch on the back
door for approximately 2 sec-
onds.

• When setting is complete, a

buzzer will sound 4 times.

• The next time the power back

door is opened, it will stop at
that position.

■

Returning the power back door
opening position to the default
setting

Press and hold the power back door
switch on the back door for approxi-
mately 7 seconds.

A buzzer will sound 4 times, pause,
and then sound 2 more times. The
next time the power back door is
opened, it will stop at the default
position.

■

When setting the open position
of the back door by the
multi-information display

The open position of the power back
door can be adjusted using the
multi-information display. (



When opened, the power back door
will open to the last position set
using the power back door switch on
the back door or on the multi-infor-
mation display.

Adjusting the open posi-
tion of the back door
(vehicles with a power
back door)

120

3-2. Opening, closing and locking the doors

: If equipped

■

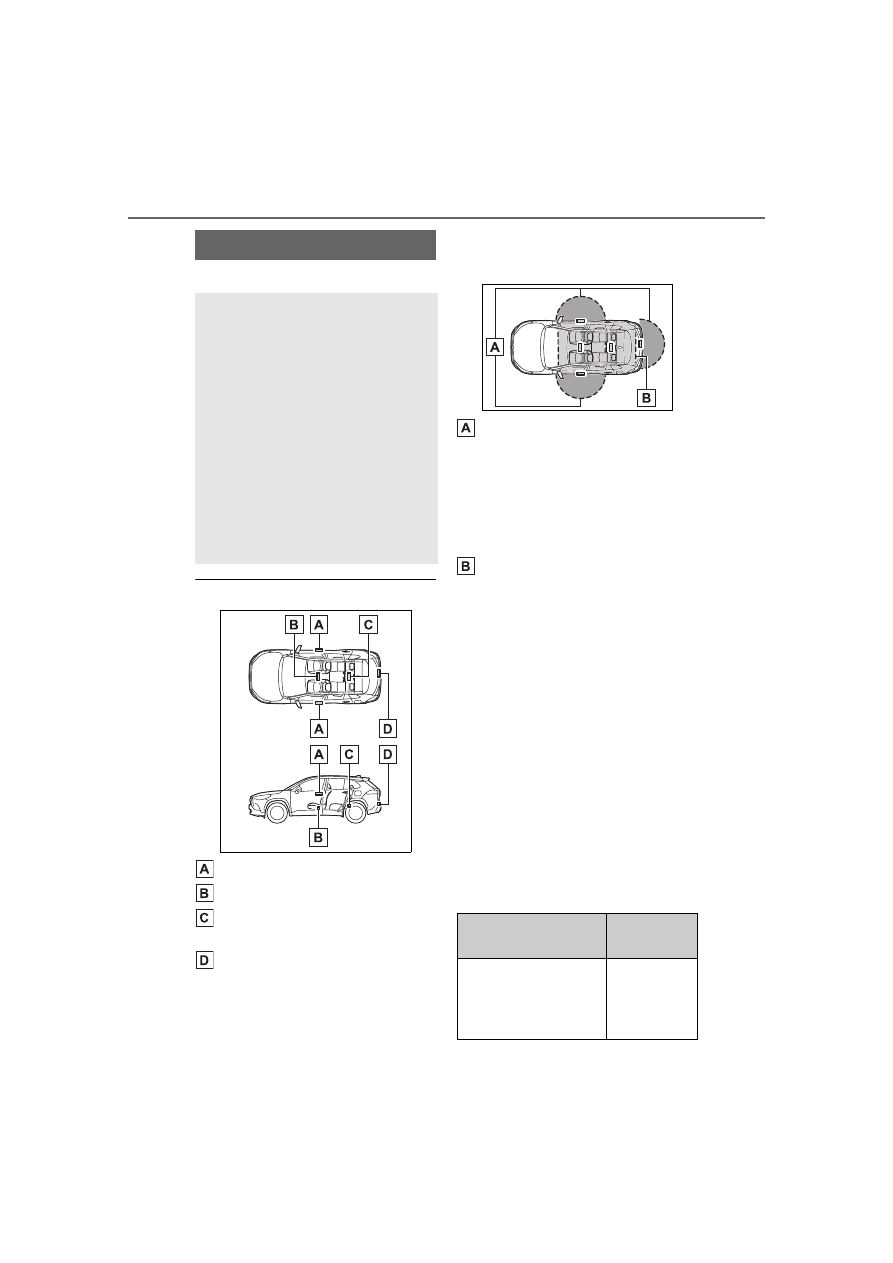

Antenna location

Antennas outside the cabin

Antennas inside the cabin

Antenna inside the luggage
compartment

Antenna outside the luggage
compartment

■

Effective range (areas within
which the electronic key is
detected)

When locking or unlocking the
doors

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of outside front door han-
dle and back door. (Only the doors
detecting the key can be operated.)

When starting the engine or
changing engine switch modes

The system can be operated when
the electronic key is inside the vehi-
cle.

■

Alarms and warning messages

A combination of exterior and inte-
rior buzzers as well as warning mes-
sages shown on the
multi-information display are used to
prevent theft of the vehicle and acci-
dents resulting from erroneous
operation. Take appropriate mea-
sures based on the displayed mes-
sage. (



P.409)

When only an alarm sounds, cir-
cumstances and correction proce-
dures are as follows.

●

Exterior buzzer sounds once for 5
seconds

Smart key system

The following operations
can be performed simply by
carrying the electronic key
on your person, for example
in your pocket. The driver
should always carry the
electronic key.



Locks and unlocks the
doors (





Locks and unlocks the back
door (



P.110)



Starts the engine (

P.165)

Situation

Correction

procedure

An attempt was
made to lock the
vehicle while a door
was open.

Close all of
the doors
and lock the
doors again.

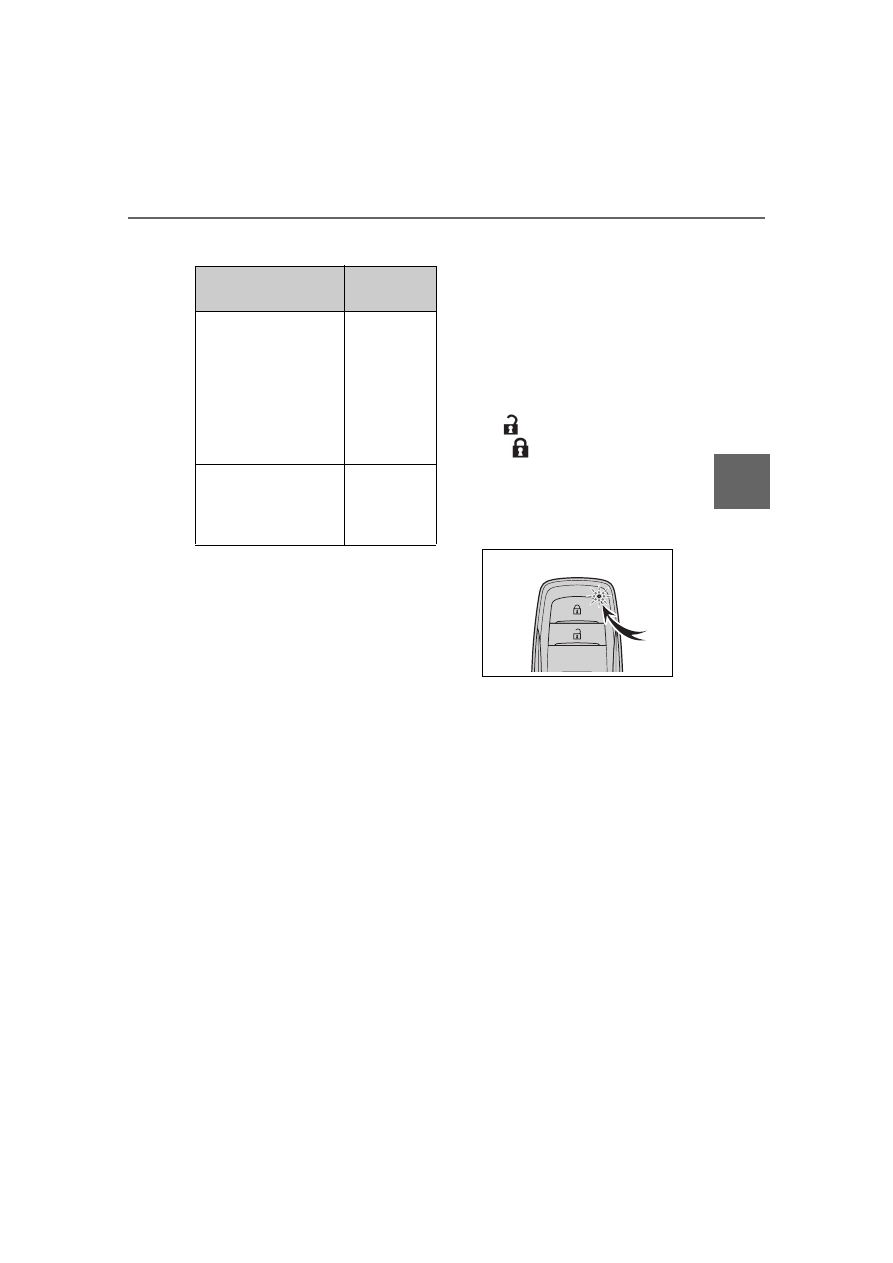

121

3-2. Opening, closing and locking the doors

Before driving

●

Interior buzzer sounds continu-
ously

■

If “Key Detected in Vehicle” is
shown on the multi-information
display

An attempt was made to lock the
doors using the smart key system
while the electronic key was still
inside the vehicle. Retrieve the elec-
tronic key from the vehicle and lock
the doors again.

■

Battery-saving function

The battery-saving function will be
activated in order to prevent the
electronic key battery and the vehi-
cle battery from being discharged
while the vehicle is not operated for
a long time.

●

In the following situations, the
smart key system may take some
time to unlock the doors. Also the
illuminated entry system may not
operate properly.

• The electronic key has been left in

an area of approximately 11 ft.
(3.5 m) of the outside of the vehi-
cle for 40 seconds or longer.

• The smart key system has not

been used for 5 days or longer.

●

If the smart key system has not
been used for 14 days or longer,
the doors cannot be unlocked

from any door except the driver’s
door. In this case, hold the driver’s
door handle, or use the wireless
remote control or mechanical key
to unlock the doors.

■

Electronic key battery-saving
function

When battery-saving mode is set,
battery depletion is minimized by
stopping the electronic key from
receiving radio waves.

Press

twice while pressing and

holding

. Confirm that the elec-

tronic key indicator flashes 4 times.

While the battery-saving mode is
set, the smart key system cannot be
used. To cancel the function, press
any of the electronic key buttons.

■

When electronic key function
stops

If the position of the electronic key
has not changed for a certain
amount of time such as when the
electronic key is left some where,the
function of the electronic key stops
to reduce depletion of the battery.

■

Conditions affecting operation

The smart key system uses weak
radio waves. In the following situa-
tions, the communication between
the electronic key and the vehicle
may be affected, preventing the
smart key system, wireless remote
control and engine immobilizer sys-
tem from operating properly.

●

When the electronic key battery is
depleted

●

Near a TV tower, electric power
plant, gas station, radio station,
large display, airport or other facil-

Situation

Correction

procedure

The engine switch
was turned to ACC
while the driver’s
door was open (or
the driver’s door was
opened while the
engine switch was in
ACC).

Turn the
engine
switch off
and close
the driver’s
door.

The engine switch
was turned to off
while the driver’s
door was open.

Close the
driver’s
door.

122

3-2. Opening, closing and locking the doors

ity that generates strong radio
waves or electrical noise

●

When carrying a portable radio,
cellular phone, cordless phone or
other wireless communication
device

●

When the electronic key is in con-
tact with, or is covered by the fol-
lowing metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that
emit radio waves) are being used
nearby

●

When carrying the electronic key
together with the following devices
that emit radio waves

• Another vehicle’s electronic key or

a wireless key that emits radio
waves

• Personal computers or personal

digital assistants (PDAs)

• Digital audio players
• Portable game systems

●

If window tint with a metallic con-
tent or metallic objects are
attached to the rear window

●

When the electronic key is placed
near a battery charger or elec-
tronic devices

●

When the vehicle is parked in a
pay parking spot where radio
waves are emitted

If the doors cannot be
locked/unlocked using the smart key
system, lock/unlock the doors by
performing any of the following:

●

Bring the electronic key close to
either front door handle and oper-
ate the entry function.

●

Operate the wireless remote con-
trol.

If the doors cannot be
locked/unlocked using the above

methods, use the mechanical key.
(



If the engine cannot be started using
the smart key system, refer to
P.427.

■

Note for the entry function

●

Even when the electronic key is
within the effective range (detec-
tion areas), the system may not
operate properly in the following
cases:

• The electronic key is too close to

the window or outside door han-
dle, near the ground, or in a high
place when the doors are locked
or unlocked.

• The electronic key is on the instru-

ment panel, luggage compartment
or floor, or in the door pockets or
glove box when the engine is
started or engine switch modes
are changed.

●

Do not leave the electronic key on
top of the instrument panel or near
the door pockets when exiting the
vehicle. Depending on the radio
wave reception conditions, it may
be detected by the antenna out-
side the cabin and the door will
become lockable from the outside,
possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is
within the effective range, the
doors may be locked or unlocked
by anyone. However, only the
doors detecting the electronic key
can be used to unlock the vehicle.

●

Even if the electronic key is not
inside the vehicle, it may be possi-
ble to start the engine if the elec-
tronic key is near the window.

●

The doors may unlock or lock if a
large amount of water splashes on
the door handle, such as in the
rain or in a car wash when the
electronic key is within the effec-
tive range. (The doors will auto-
matically be locked after
approximately 60 seconds if the
doors are not opened and closed.)

123

3-2. Opening, closing and locking the doors

Before driving

●

If the wireless remote control is
used to lock the doors when the
electronic key is near the vehicle,
there is a possibility that the door
may not be unlocked by the entry
function. (Use the wireless remote
control to unlock the doors.)

●

If the doors have been locked
from outside of the vehicle and are
then not unlocked using the wire-
less remote control or smart key
system, the engine cannot be
started using the smart key sys-
tem. (However, if the doors have
been locked from inside the vehi-
cle, the engine can be started
using the smart key system.)
If it is necessary to start the
engine, it can be started using the
procedure in “If the electronic key
dose not operate properly”
(

P.427).

●

Touching the door lock or unlock
sensor while wearing gloves may
prevent lock or unlock operation.

●

When the lock operation is per-
formed using the lock sensor, rec-
ognition signals will be shown up
to two consecutive times. After
this, no recognition signals will be
given.

●

If the door handle becomes wet
while the electronic key is within
the effective range, the door may
lock and unlock repeatedly. In that
case, follow the following correc-
tion procedures to wash the vehi-
cle:

• Place the electronic key in a loca-

tion 6 ft. (2 m) or more away from
the vehicle. (Take care to ensure
that the key is not stolen.)

• Set the electronic key to bat-

tery-saving mode to disable the
smart key system. (



P.121)

●

If the electronic key is inside the
vehicle and a door handle
becomes wet during a car wash, a
message may be shown on the
multi-information display and a
buzzer will sound outside the vehi-
cle. To turn off the alarm, lock all

the doors.

●

The lock sensor may not work
properly if it comes into contact
with ice, snow, mud, etc. Clean
the lock sensor and attempt to
operate it again.

●

A sudden handle operation or a
handle operation immediately
after entering the effective range
may prevent the doors from being
unlocked. Touch the door unlock
sensor and check that the doors
are unlocked before pulling the
door handle again.

●

If there is another electronic key in
the detection area, it may take
slightly longer to unlock the doors
after the door handle is gripped.

●

Fingernails may scrape against
the door during operation of the
door handle. Be careful not to
injure fingernails or damage the
surface of the door.

■

When the vehicle is not driven
for extended periods

●

To prevent theft of the vehicle, do
not leave the electronic key within
6 ft. (2 m) of the vehicle.

●

The smart key system can be
deactivated in advance. (

●

Setting the electronic key to bat-
tery-saving mode helps to reduce
key battery depletion. (

P.121)

■

To operate the system properly

Make sure to carry the electronic
key when operating the system. Do
not get the electronic key too close
to the vehicle when operating the
system from the outside of the vehi-
cle.

Depending on the position and hold-
ing condition of the electronic key,
the key may not be detected cor-
rectly and the system may not oper-
ate properly. (The alarm may go off
accidentally, or the door lock pre-
vention function may not operate.)

124

3-2. Opening, closing and locking the doors

■

If the smart key system does

not operate properly

●

Locking and unlocking the doors:

P.427

●

Starting the engine:

P.427

■

Customization

Some functions can be customized.

(

■

If the smart key system has

been deactivated in a custom-

ized setting

●

Locking and unlocking the doors:

Use the wireless remote control or

mechanical key. (



P.105, 427)

●

Starting the engine and changing

engine switch modes:

P.427

●

Stopping the engine:



P.167

WARNING

■

Caution regarding interfer-

ence with electronic devices

●

People with implantable car-

diac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

keep away from the smart key

system antennas. (



P.120)

The radio waves may affect the

operation of such devices. If

necessary, the entry function

can be disabled. Ask your Toy-

ota dealer for details, such as

the frequency of radio waves

and timing of the emitted radio

waves. Then, consult your doc-

tor to see if you should disable

the entry function.

●

Users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Ask your Toyota dealer for details

on disabling the entry function.

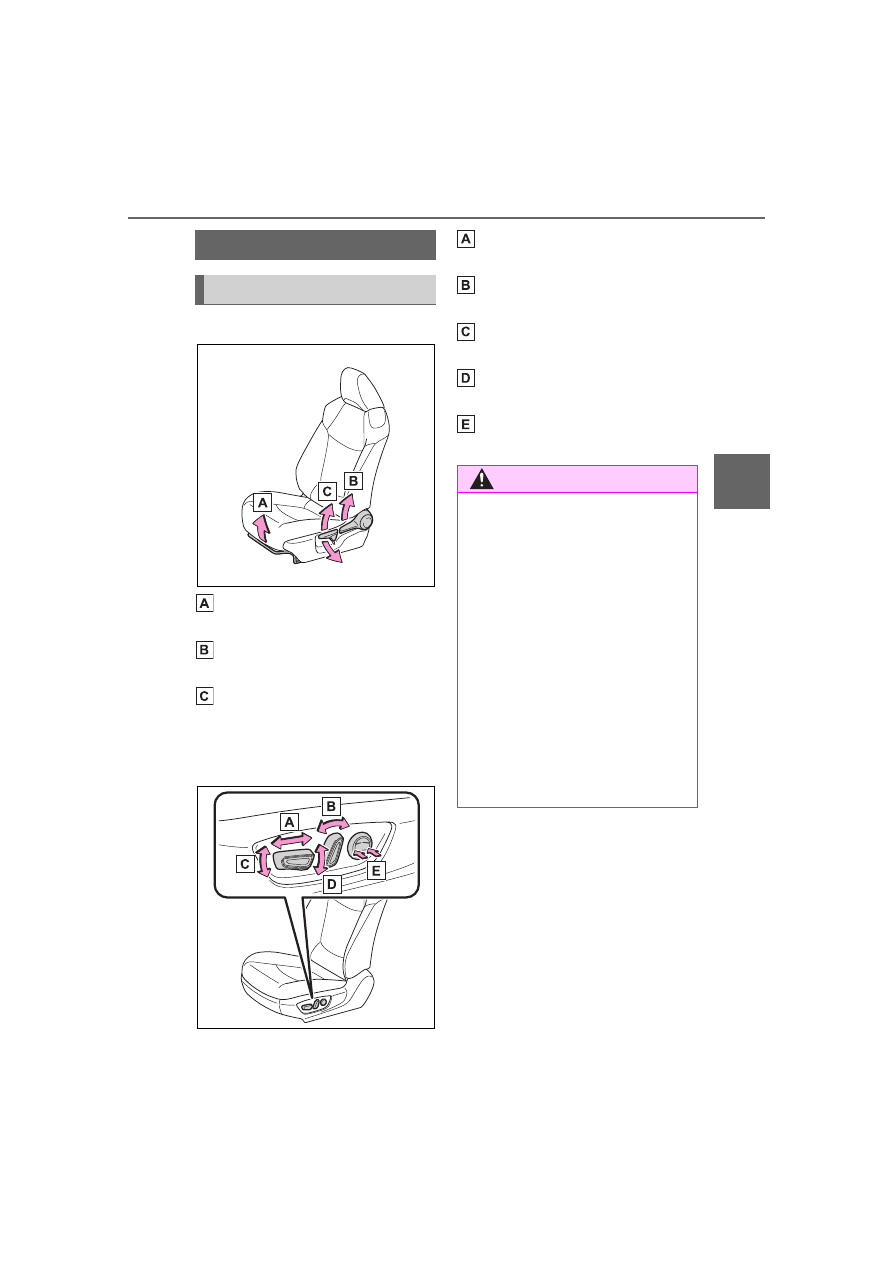

125

3-3. Adjusting the seats

Before driving

3-3.Adjusting the seats



Manual seat

Seat position adjustment

lever
Seatback angle adjustment

lever
Vertical height adjustment

lever (driver’s side only)



Power seat (driver’s side

only)

Seat position adjustment

switch
Seatback angle adjustment

switch
Seat cushion (front) angle

adjustment switch
Vertical height adjustment

switch
Lumbar support adjustment

switch

Front seats

Adjustment procedure

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough

space around the feet so they

do not get stuck.

■

Seat adjustment

●

Be careful that the seat does

not hit passengers or luggage.

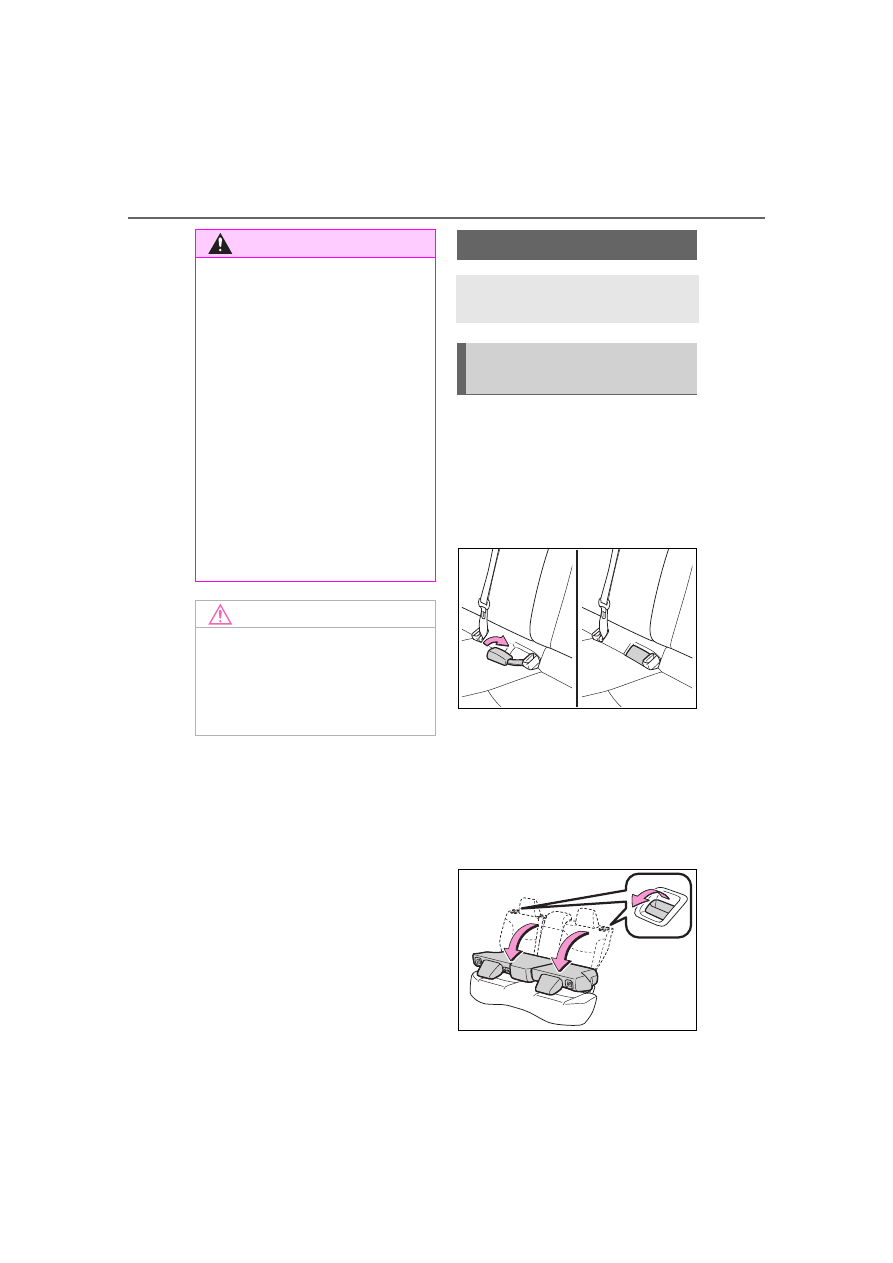

126

3-3. Adjusting the seats

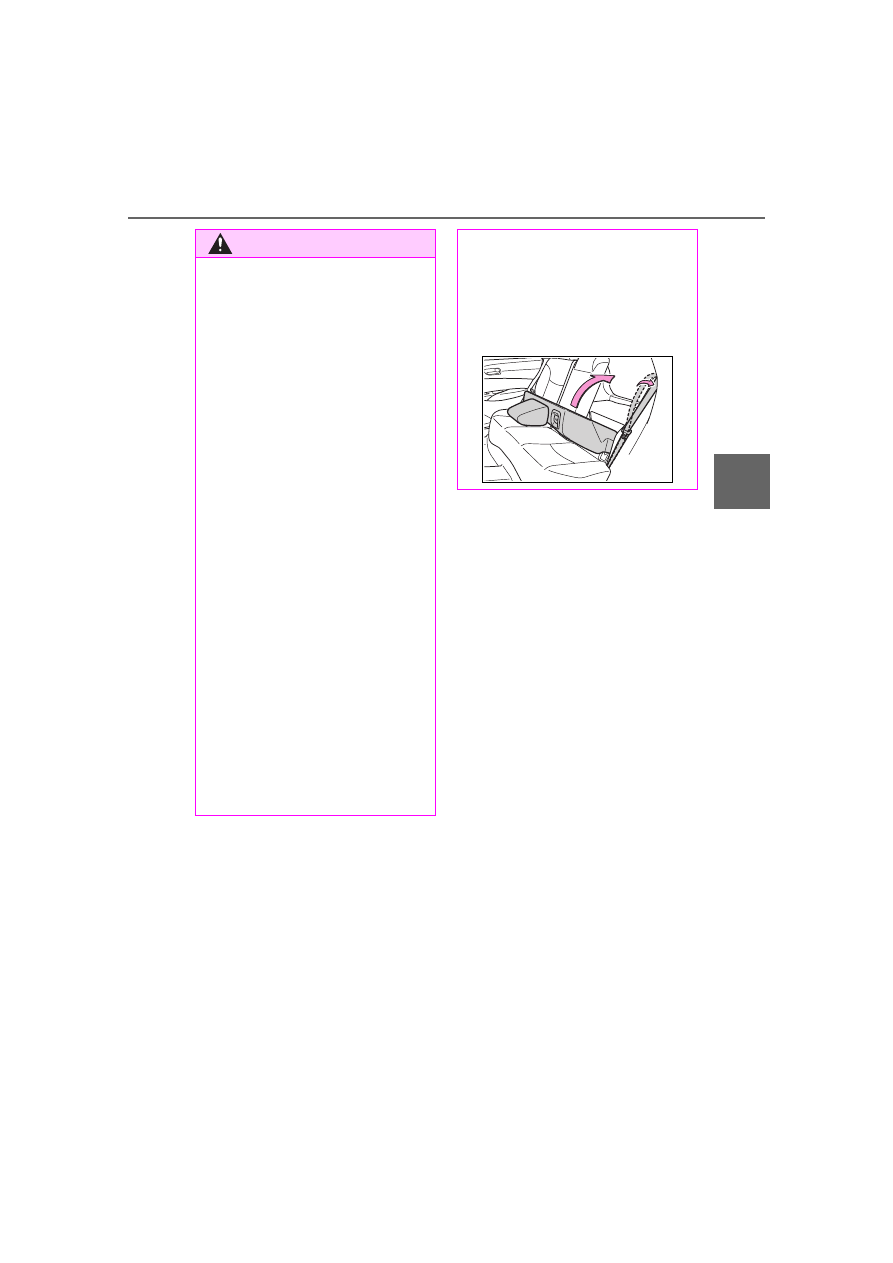

Move the front seats forward.

(
