33

1-1. For safe use

1

For safety and secu

rity

SRS airbags for the front passen-
ger’s seat may deploy, even if the
seat is unoccupied, if luggage is
put on the seat.

●

In the event of an especially
severe frontal collision, the left
and right SRS curtain shield air-
bags may also deploy.

■

The SRS airbags deploy in a
side impact when

●

The following SRS airbags will
deploy in the event of an impact
that exceeds the set threshold
level (level of force corresponding
to the impact force produced by
an approximately 3300 lb. [1500
kg] vehicle colliding with the pas-
senger compartment at a perpen-
dicular angle at an approximate
speed of 12 - 18 mph [20 - 30
km/h]):

• SRS side airbags
• SRS curtain shield airbags

●

If the vehicle is involved in a roll-
over, the following SRS airbags
will deploy:

• Both left and right SRS curtain

shield airbags

■

The SRS airbags deploy in an
underside impact when

●

The following airbags may deploy
if the underside of the vehicle col-
lides with a hard object:

• SRS front airbags
• SRS knee airbag
• SRS side airbags
• SRS curtain shield airbags

●

The following airbags may deploy
if the vehicle becomes signifi-
cantly tilted or is strongly impacted
by skidding into a curb, etc.:

• SRS curtain shield airbags

■

The SRS side airbags will not
deploy when

●

The following SRS airbags will not
normally deploy in side or rear col-
lisions, vehicle rollovers, or low
speed frontal collisions. However,
if such a collision causes sufficient
sudden deceleration, the SRS air-
bags may deploy.

• SRS front airbags
• SRS knee airbag

●

The following SRS airbags may
not deploy if the vehicle is collided
with at a certain angle or in a side
collision where an area of the
vehicle other than the passenger
compartment is collided with:

• SRS side airbags
• SRS curtain shield airbags

●

The following SRS airbags will not
normally deploy in front or rear
collisions, vehicle rollovers, or low
speed side collisions:

• SRS side airbags

34

1-1. For safe use

●

The following SRS airbags will not

normally deploy in rear collisions,

end over end vehicle rollovers, or

low speed front or side collisions:

• SRS curtain shield airbags

■

When to contact your Toyota

dealer

In the following situations, the vehi-

cle will require inspection and/or

repair. Contact your Toyota dealer

as soon as possible.

●

When any of the SRS airbags

have been deployed

●

When the front of the vehicle is

damaged or deformed, or was

involved in a collision that was not

severe enough to cause any of

the following SRS airbags to

deploy:

• SRS front airbags

• SRS knee airbag

●

When a door or its surrounding

area is damaged, deformed or has

had a hole made in it, or was

involved in a collision that was not

severe enough to cause any of

the following SRS airbags to

deploy:

• SRS side airbags

• SRS curtain shield airbags

●

When the pad section of the steer-

ing wheel, the dashboard near the

front passenger SRS airbag or the

lower side of the instrument panel

is scratched, cracked, or other-

wise damaged.

●

When the surface of a seat with

an SRS side airbag is scratched,

cracked, or otherwise damaged.

●

When the part of a front pillar, rear

pillar or roof side rail garnish (pad-

ding) which covers a SRS curtain

shield airbag is scratched,

cracked, or otherwise damaged.

WARNING

■

SRS airbag precautions

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

The driver and all passengers

must wear their seat belts cor-

rectly.

The SRS airbags are supple-

mental devices to be used with

the seat belts.

35

1-1. For safe use

1

For safety and secu

rity

WARNING

●

The SRS driver airbag deploys

with considerable force, and

can cause death or serious

injury, especially if the driver is

very close to the airbag. The

National Highway Traffic Safety

Administration (NHTSA)

advises:

Since the risk zone for the driver’s

airbag is the first 2 - 3 in. (50 - 75

mm) of inflation, placing yourself

10 in. (250 mm) from your driver

airbag provides you with a clear

margin of safety. This distance is

measured from the center of the

steering wheel to your breast-

bone. If your current driving posi-

tion places you less than 10 in.

(250 mm) away from the driver

airbag, you can change your driv-

ing position in several ways:
• Move your seat to the rear as

far as possible while still being

able to reach the pedals com-

fortably.

• Slightly recline the seatback.

Although vehicle designs vary,

many drivers can achieve the

10 in. (251 mm) distance, even

with the driver seat all the way

forward, simply by reclining the

seatback somewhat. If reclining

the seatback makes it hard to

see the road, raise yourself by

using a firm, non-slippery cush-

ion, or raise the seat if your

vehicle has that feature.

• If your steering wheel is adjust-

able, tilt it downward. This

points the airbag toward your

chest instead of your head and

neck. The seat should be

adjusted as recommended by

the NHTSA, while still being

able to control the vehicle with

the pedals and steering wheel,

and maintaining your view of the

instrument panel controls.

●

If a seat belt extender has been

connected to a front seat belt

buckle but the latch plate of the

seat belt has not been fastened

to the seat belt extender, the

SRS airbag system will judge

that the occupant is wearing the

seat belt even though the seat

belt has not been fastened. In

this case, the SRS front airbags

may not deploy correctly in a

collision, resulting in death or

serious injury. Be sure to wear

the seat belt correctly when

using a seat belt extender.

●

The SRS front passenger air-

bag deploys with considerable

force, and can cause death or

serious injury, especially if the

front passenger is very close to

the airbag. The front passenger

seat should be positioned as far

possible from the airbag with

the seatback adjusted so that

the passenger is sat upright.

36

1-1. For safe use

WARNING

●

Improperly seated and/or

restrained infants and children

can be killed or seriously injured

by a deploying airbag. An infant

or child who is too small to use

a seat belt should be properly

secured using a child restraint

system. Toyota strongly recom-

mends that all infants and chil-

dren be placed in the rear seats

of the vehicle and properly

restrained. The rear seats are

safer for infants and children

than the front passenger seat.

(



P.45)

●

Do not sit on the edge of the

seat or lean against the dash-

board.

●

Do not allow a child to stand in

front of the SRS front passenger

airbag or sit on the lap of a front

passenger.

●

Front seat occupants should

never hold items on their lap.

●

Do not lean against the door,

roof side rail, or front, side, or

rear pillar.

●

Do not allow anyone to kneel on

a seat toward the door or put

their head or hands outside the

vehicle.

●

Do not attach anything to or

lean anything against areas

such as the dashboard, steering

wheel pad and lower portion of

the instrument panel.

37

1-1. For safe use

1

For safety and secu

rity

WARNING

●

Vehicles without a smart key

system: Do not attach any

heavy, sharp or hard objects to

the key.

●

Do not hang coat hangers or

other hard objects on the coat

hooks. These items could

become projectiles if the SRS

curtain shield airbags deploy,

possibly leading to death or

serious injury.

●

If a vinyl cover is attached to the

area where the SRS knee air-

bag deploys, be sure to remove

it.

●

Do not use seat accessories

which cover the parts from

which the SRS airbags deploy,

as they may interfere with infla-

tion of the SRS airbags. Such

accessories may prevent the

SRS airbags from deploying

correctly, may disable the sys-

tem or cause the SRS airbags

to inflate unintentionally, possi-

bly resulting in death or serious

injury.

●

Do not strike or apply significant

force to the SRS airbag system

components, front doors or their

surrounding area.

Doing so may cause the SRS

airbags to malfunction.

●

Do not touch any components

of the SRS airbags immediately

after the SRS airbags have

deployed (inflated) as they may

be hot.

●

If breathing becomes difficult

after the SRS airbags have

deployed, open a door or win-

dow to allow fresh air in, or

leave the vehicle if it is safe to

do so. Wash off any residue as

soon as possible to prevent skin

irritation.

●

If a part where an SRS airbag is

stored is damaged or cracked,

have it replaced by your Toyota

dealer.

●

Do not place anything, such as

a cushion, on the front passen-

ger's seat. Doing so will

disperse the passenger’s

weight, which prevents the sen-

sor from detecting the passen-

ger’s weight properly. As a

result, the SRS front airbags for

the front passenger’s seat may

not deploy in the event of a colli-

sion.

■

Modification and disposal of

SRS airbag system compo-

nents

Do not dispose of your vehicle or

perform any of the following modi-

fications without consulting your

Toyota dealer. The SRS airbags

may malfunction or deploy unin-

tentionally, possibly leading to

death or serious injury.

●

Removal, installation, disas-

sembly or repair of the SRS air-

bags

●

Repair, removal or modification

of the following parts or their

surrounding

• Steering wheel
• Instrument panel
• Dashboard
• Seats
• Seat upholstery

38

1-1. For safe use

WARNING

• Front pillars
• Side pillars
• Rear pillars
• Roof side rails
• Front door panels
• Front door trim
• Front door speakers

●

Modifications to the front door

panels (such as making holes in

them)

●

Repair or modification of the fol-

lowing parts or their surrounding

• Front fender
• Front bumper
• Sides of the vehicle interior

●

Installation of the following parts

or accessories

• Bull bars or kangaroo bars
• Snow plows
• Winches
• Roof lugguage carriers (if

equipped)

●

Modifications to the vehicle’s

suspension

●

Installation of electronic devices

such as mobile two-way radios

(RF-transmitter) and CD players

●

Modifications to your vehicle for

a persons with a physical dis-

ability

39

1-1. For safe use

1

For safety and secu

rity

SRS warning light

Front passenger seat belt reminder light

“AIR BAG OFF” indicator light

“AIR BAG ON” indicator light

Front passenger occupant classification system

Your vehicle is equipped with a front passenger occupant
classification system.This system detects the conditions of
the front passenger seat and activates or deactivates the fol-
lowing SRS airbags.



SRS front passenger airbag

SRS front passenger airbag

40

1-1. For safe use

■

Adult

*1

■

Child

*4

■

Child restraint system with infant

*5

■

Unoccupied

Front passenger occupant classification system condi-
tions and operation

Indicators/warning

lights

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG ON”

SRS warning light

Off

Front passenger’s seat belt

reminder light

Off

*2

 or flashing

*3

Devices

Front passenger airbag

Activated

Indicators/warning

lights

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG OFF” or

“AIR BAG ON”

*4

SRS warning light

Off

Front passenger’s seat belt

reminder light

Off

*2

 or flashing

*3

Devices

Front passenger airbag

Deactivated or

activated

*4

Indicators/warning

lights

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG OFF”

*6

SRS warning light

Off

Front passenger’s seat belt

reminder light

Off

*2

 or flashing

*3

Devices

Front passenger airbag

Deactivated

Indicators/warning

lights

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG OFF”

SRS warning light

Off

Front passenger’s seat belt

reminder light

Devices

Front passenger airbag

Deactivated

41

1-1. For safe use

1

For safety and secu

rity

■

System malfunction

*1

:The system judges a person of adult size as an adult. When a smaller

adult sits in the front passenger seat, the system may not recognize them

as an adult depending on their physique and posture.

*2

:In the event the front passenger is wearing a seat belt.

*3

:In the event the front passenger does not wear a seat belt.

*4

:For some children, child in seat, child in booster seat or child in convert-

ible seat, the system may not recognize them as a child. Factors which

may affect this can be the physique or posture.

*5

:Never install a rear-facing child restraint system on the front passenger

seat. A forward-facing child restraint system should only be installed on

the front passenger seat when it is unavoidable. (



P.45)

*6

:In case the indicator light is not illuminated, consult this manual on how

to install the child restraint system properly. (



P.45)

Indicators/warning

lights

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG OFF”

SRS warning light

On

Front passenger’s seat belt

reminder light

Devices

Front passenger airbag

Deactivated

WARNING

■

Front passenger occupant

classification system precau-

tions

Observe the following precautions

regarding the front passenger

occupant classification system.

Failure to do so may cause death

or serious injury.

●

Wear the seat belt properly.

●

Make sure the front passenger’s

seat belt latch plate has not

been left inserted into the

buckle before someone sits in

the front passenger seat.

●

Make sure the “AIR BAG OFF”

indicator light is not illuminated

when using the seat belt

extender for the front passenger

seat. If the “AIR BAG OFF” indi-

cator light is illuminated, discon-

nect the extender tongue from

the seat belt buckle, and recon-

nect the seat belt. Reconnect

the seat belt extender after

making sure the “AIR BAG ON”

indicator light is illuminated. If

you use the seat belt extender

while the “AIR BAG OFF” indi-

cator light is illuminated, the

SRS airbags for the front pas-

senger will not activate, which

could cause death or serious

injury in the event of a collision.

●

Do not apply a heavy load to the

front passenger seat or equip-

ment (e.g. seatback pocket).

42

1-1. For safe use

WARNING

●

Do not put weight on the front

passenger seat by putting your

hands or feet on the front pas-

senger seat seatback from the

rear passenger seat.

●

Do not let a rear passenger lift

the front passenger seat with

their feet or press on the seat-

back with their legs.

●

Do not put objects under the

front passenger seat.

●

Do not recline the front passen-

ger seatback so far that it

touches a rear seat. This may

cause the “AIR BAG OFF” indi-

cator light to be illuminated,

which indicates that the SRS

airbags for the front passenger

will not activate in the event of a

severe accident. If the seatback

touches the rear seat, return the

seatback to a position where it

does not touch the rear seat.

Keep the front passenger seat-

back as upright as possible

when the vehicle is moving.

Reclining the seatback exces-

sively may lessen the effective-

ness of the seat belt system.

●

If an adult sits in the front pas-

senger seat, the “AIR BAG ON”

indicator light is illuminated. If

the “AIR BAG OFF” indicator is

illuminated, ask the passenger

to sit up straight, well back in

the seat, feet on the floor, and

with the seat belt worn correctly.

If the “AIR BAG OFF” indicator

still remains illuminated, either

ask the passenger to move to

the rear seat, or if that is not

possible, move the front pas-

senger seat fully rearward.

●

When it is unavoidable to install

a forward-facing child restraint

system on the front passenger

seat, install the child restraint

system on the front passenger

seat in the proper order.

(



P.47)

●

Do not modify or remove the

front seats.

●

Do not kick the front passenger

seat or subject it to severe

impact. Otherwise, the SRS

warning light may come on to

indicate a malfunction of the

front passenger occupant clas-

sification system. In this case,

contact your Toyota dealer

immediately.

●

Child restraint systems installed

on the rear seat should not con-

tact the front seatbacks.

●

Do not use a seat accessory,

such as a cushion and seat

cover, that covers the seat

cushion surface.

●

Do not modify or replace the

upholstery of the front seat.

43

1-1. For safe use

1

For safety and secu

rity

Exhaust gas precau-

tions

Harmful substance to the

human body is included in

exhaust gases if inhaled.

WARNING

Exhaust gases include harmful

carbon monoxide (CO), which is

colorless and odorless. Observe

the following precautions.

Failure to do so may cause

exhaust gases enter the vehicle

and may lead to an accident

caused by light-headedness, or

may lead to death or a serious

health hazard.

■

Important points while driving

●

Keep the back door closed.

●

If you smell exhaust gases in

the vehicle even when the back

door is closed, open the win-

dows and have the vehicle

inspected at your Toyota dealer

as soon as possible.

■

When parking

●

If the vehicle is in a poorly venti-

lated area or a closed area,

such as a garage, stop the

engine.

●

Do not leave the vehicle with

the engine on for a long time.

If such a situation cannot be

avoided, park the vehicle in an

open space and ensure that

exhaust fumes do not enter the

vehicle interior.

●

Do not leave the engine running

in an area with snow build-up,

or where it is snowing. If snow-

banks build up around the vehi-

cle while the engine is running,

exhaust gases may collect and

enter the vehicle.

■

Exhaust pipe

The exhaust system needs to be

checked periodically. If there is a

hole or crack caused by corro-

sion, damage to a joint or abnor-

mal exhaust noise, be sure to

have the vehicle inspected and

repaired by your Toyota dealer.

44

1-2. Child safety

1-2.Child safety

Riding with children

Observe the following pre-

cautions when children are

in the vehicle.

Use a child restraint system

appropriate for the child,

until the child becomes

large enough to properly

wear the vehicle’s seat belt.



It is recommended that chil-

dren sit in the rear seats to

avoid accidental contact

with the shift lever, wiper

switch, etc.



Use the rear door child-pro-

tector lock or the window

lock switch to avoid children

opening the door while driv-

ing or operating the power

window accidentally.

(



P.109, 136)



Do not let small children

operate equipment which

may catch or pinch body

parts, such as the power

window, hood, back door,

seats, etc.

WARNING

■

When children are in the vehi-

cle

Never leave children unattended

in the vehicle, and never allow

children to have or use the key.
Children may be able to start the

vehicle or shift the vehicle into

neutral. There is also a danger

that children may injure them-

selves by playing with the win-

dows, the moon roof (if equipped)

or other features of the vehicle. In

addition, heat build-up or

extremely cold temperatures

inside the vehicle can be fatal to

children.

45

1-2. Child safety

1

For safety and secu

rity

Points to remember: P.45
Child restraint system: P.47
When using a child restraint sys-

tem: P.47
Child restraint system compati-

bility for each seating position

(for Puerto Rico): P.49
Child restraint system installa-

tion method

• Fixed with a seat belt: P.54

• Fixed with a child restraint

LATCH anchor (except for

Puerto Rico): P.58

• Fixed with an ISOFIX lower

anchorage (for Puerto Rico):

P.60

• Using an anchor bracket (for

top tether strap) (except for

Puerto Rico): P.63

• Using a top tether anchorage

(for Puerto Rico): P.64

The laws of all 50 states of the

U.S.A. as well as Canada now

require the use of child restraint

systems.



Prioritize and observe the

warnings, as well as the laws

and regulations for child

restraint systems.



Use a child restraint system

until the child becomes large

enough to properly wear the

vehicle’s seat belt.



Choose a child restraint sys-

tem that suits your vehicle

and is appropriate to the age

and size of the child.

Child restraint sys-

tems

Before installing a child

restraint system in the vehi-

cle, there are precautions

that need to be observed,

different types of child

restraint systems, as well as

installation methods, etc.,

written in this manual.

Use a child restraint system

when riding with a small child

that cannot properly use a

seat belt. For the child’s

safety, install the child

restraint system to a rear seat.

Be sure to follow the installa-

tion method that is in the oper-

ation manual enclosed with

the restraint system.

Table of contents

Points to remember

WARNING

■

When a child is riding

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

46

1-2. Child safety

WARNING

●

For effective protection in auto-

mobile accidents and sudden

stops, a child must be properly

restrained, using a seat belt or

child restraint system which is

correctly installed. For installa-

tion details, refer to the opera-

tion manual enclosed with the

child restraint system. General

installation instruction is pro-

vided in this manual.

●

Toyota strongly urges the use of

a proper child restraint system

that conforms to the weight and

size of the child, installed on the

rear seat. According to accident

statistics, the child is safer when

properly restrained in the rear

seat than in the front seat.

●

Holding a child in your or some-

one else’s arms is not a substi-

tute for a child restraint system.

In an accident, the child can be

crushed against the windshield

or between the holder and the

interior of the vehicle.

■

Handling the child restraint

system

If the child restraint system is not

properly fixed in place, the child or

other passengers may be seri-

ously injured or even killed in the

event of sudden braking, sudden

swerving, or an accident.

●

If the vehicle were to receive a

strong impact from an accident,

etc., it is possible that the child

restraint system has damage

that is not readily visible. In

such cases, do not reuse the

restraint system.

●

For Puerto Rico: Depending on

the child restraint system, instal-

lation may be difficult or impos-

sible. In those cases, check

whether the child restraint sys-

tem is suitable for installment in

the vehicle. (



P.49) Be sure to

install and observe the usage

rules after carefully reading the

child restraint system fixing

method in this manual, as well

as the operation manual

enclosed with the child restraint

system.

●

Except for Puerto Rico: Make

sure you have complied with all

installation instructions provided

with the child restraint system

manufacturer and that the sys-

tem is properly secured.

●

Keep the child restraint system

properly secured on the seat

even if it is not in use. Do not

store the child restraint system

unsecured in the passenger

compartment.

●

If it is necessary to detach the

child restraint system, remove it

from the vehicle or store it

securely in the luggage com-

partment.

47

1-2. Child safety

1

For safety and secu

rity

■

Types of child restraint system installation methods

Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.

■

When installing a child
restraint system to a front
passenger seat

For the safety of a child, install a
child restraint system to a rear
seat. When installing a child
restraint system to a front pas-
senger seat is unavoidable,
adjust the seat as follows and

Child restraint system

Installation method

Page

Seat belt attachment

P.54

Except for Puerto Rico:

Child restraint LATCH

anchors attachment

For Puerto Rico:

ISOFIX lower anchor-

age attachment

P.58, 60

Except for Puerto Rico:

Anchor brackets (for

top tether strap) attach-

ment

For Puerto Rico:

Top tether anchorage

attachment

P.63, 64

When using a child
restraint system

48

1-2. Child safety

install the child restraint system:



Move the front seat fully rear-

ward.



If the passenger seat height

can be adjusted, Adjust the

seat height to the upper most

position.



Adjust the seatback angle to

the most upright position.

If there is a gap between the child

seat and the seatback, adjust the

seatback angle until good contact is

achieved.



If the head restraint interferes

with your child restraint sys-

tem, and the head restraint

can be removed, remove the

head restraint.

Otherwise, put the head restraint in

the upper most position.

WARNING

■

When using a child restraint

system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Never use a rear-facing child

restraint system on the front

passenger seat. The force of

the rapid inflation of the front

passenger airbag can cause

death or serious injury to chil-

dren in the event of an accident.

●

A forward-facing child restraint

system may be installed on the

front passenger seat only when

it is unavoidable. A child

restraint system that requires a

top tether strap or top strap

should not be used in the front

passenger seat since there is

no top tether strap anchor for

the front passenger seat.

●

A forward-facing child restraint

system may be installed on the

front passenger seat only when

it is unavoidable. When install-

ing a forward-facing child

restraint system on the front

passenger seat, adjust the seat-

back angle to the most upright

position, move the seat to the

rearmost position, and raise the

seat to the upper most position,

even if the “AIR BAG OFF” indi-

cator light is illuminated. If the

head restraint interferes with

your child restraint system, and

the head restraint can be

removed, remove the head

restraint.

49

1-2. Child safety

1

For safety and secu

rity

■

Child restraint system com-

patibility for each seating

position

Compatibility of each seating

position with child restraint sys-

tems (



P.51) displays the type

of child restraint systems that

can be used and possible seat-

ing positions for installation

using symbols.
Also, the recommended child

restraint system that is suitable

for your child can be selected.

Otherwise, check [Recom-

mended child restraint systems

and Compatibility table] for rec-

ommended child restraint sys-

tems. (



P.53)

WARNING

●

Do not allow the child to lean

his/her head or any part of

his/her body against the door or

the area of the seat, front or rear

pillars, or roof side rails from

which the SRS side airbags or

SRS curtain shield airbags

deploy even if the child is

seated in the child restraint sys-

tem. It is dangerous if the SRS

side and curtain shield airbags

inflate, and the impact could

cause death or serious injury to

the child.

●

When a booster seat is

installed, always ensure that the

shoulder belt is positioned

across the center of the child’s

shoulder. The belt should be

kept away from the child’s neck,

but not so that it could fall off the

child’s shoulder.

●

Use child restraint system suit-

able to the age and size of the

child and install it to the rear

seat.

●

If the driver’s seat interferes

with the child restraint system

and prevents it from being

attached correctly, attach the

child restraint system to the

right-hand rear seat.

●

Adjust the front passenger seat

so that it does not interfere with

the child restraint system.

Child restraint system

compatibility for each

seating position (for

Puerto Rico)

50

1-2. Child safety

Check the selected child
restraint system together with
the following [Before confirming
the compatibility of each seating
position with child restraint sys-
tems].

■

Before confirming the com-
patibility of each seating
position with child restraint
systems

1

Checking the child restraint
system standards.
Use a child restraint system
that conforms to UN(ECE)

R44

*1

 or UN(ECE) R129

*1, 2

.

The following approval mark
is displayed on child restraint
systems which are con-
formed.
Check for an approval mark
attached to the child restraint
system.

Example of the displayed regulation
number

UN(ECE) R44 approval

mark

*3

The weight range of the child
who is applicable for an
UN(ECE) R44 approval mark
is indicated.

UN(ECE) R129 approval

mark

*3

The height range of the child
who is applicable as well as
available weights for an
UN(ECE) R129 approval
mark is indicated.

2

Checking the category of the
child restraint system.
Check the approval mark of
the child restraint system for
which of the following catego-
ries the child restraint system
is suitable.
Also, if there are any uncer-
tainties, check the user’s
guide included with the child
restraint system or contact
the retailer of the child
restraint system.

• “universal”
• “semi-universal”
• “restricted”
• “vehicle specific”

*1

: UN(ECE) R44 and UN(ECE)

R129 are U.N. regulations for
child restraint systems.

51

1-2. Child safety

1

For safety and secu

rity

*2

: The child restraint systems men-

tioned in the table may not be
available outside of the EU area.

*3

: The displayed mark may differ

depending on the product.

■

Compatibility of each seat-
ing position with child
restraint systems

*1

: Move the front seat fully rear-

ward. If the passenger seat
height can be adjusted, move it
to the upper most position.

*2

: Adjust the seatback angle to the

most upright position. When
installing a forward-facing child
seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.

*3

: If the head restraint interferes

with your child restraint system,
and the head restraint can be
removed, remove the head
restraint.
Otherwise, put the head restraint
in the upper most position.

*4

: Not suitable for child restraint

systems with support leg.

*1, 2, 3, 4

*2, 3

*2, 3, 4

*2, 3

Suitable for “universal” cate-
gory child restraint system
fixed with the seat belt.
Suitable for child restraint
systems given on recom-
mended child restraint sys-
tems and compatibility table.
(



P.53)

Suitable for i-Size and ISO-
FIX child restraint system.

Includes a top tether anchor-
age point.

52

1-2. Child safety

■

Detail information for child restraint systems installation

ISOFIX child restraint systems are divided into different “fixture”. The
child restraint system can be used in the seating positions for “fix-
ture” mentioned in the table above. For kind of “fixture” relation, con-
firm the following table.

If your child restraint system has no kind of “fixture” (or if you cannot
find information in the table below), please refer to the child restraint
system “vehicle list” for compatibility information or ask the retailer of
your child seat.

Seating position

Seat position number

Vehicle with front pas-

senger occupant

detection system

Passenger airbag indi-

cator light

ON

OFF

Seating position suitable for

universal belted (Yes/No)

Yes

Forward-fac-

ing only

Yes

Yes

Yes

Yes

i-Size seating position

(Yes/No)

No

No

Yes

No

Yes

Seating position suitable for

lateral fixture (L1/L2/No)

No

No

No

No

No

Suitable rearward facing fix-

ture (R1/R2X/R2/R3/No)

No

No

R1,

R2X,

R2

No

R1,

R2X,

R2

Suitable forward facing fix-

ture (F2X/F2/F3/No)

No

No

F2X,

F2, F3

No

F2X,

F2, F3

Suitable junior seat fixture

(B2/B3/No)

No

No

B2, B3

No

B2, B3

Fixture

Description

F3

Full-height, forward-facing child restraint systems

F2

Reduced-height forward-facing child restraint systems

53

1-2. Child safety

1

For safety and secu

rity

■

Recommended child restraint systems and Compatibility
table

When securing some types of
child restraint systems in rear
seat, it may not be possible to
properly use the seat belts in
positions next to the child
restraint without interfering with
it or affecting seat belt effective-
ness. Be sure your seat belt fits
snugly across your shoulder and
low on your hips. If it does not,

or if it interferes with the child
restraint, move to a different
position. Failure to do so may
result in death or serious injury.



When installing a child
restraint in the rear seats,
adjust the front seat so that it
does not interfere with the
child or child restraint system.



When installing a child seat

F2X

Reduced-height forward-facing child restraint systems

R3

Full-size, rearward-facing child restraint systems

R2

Reduced-size, rearward-facing child restraint systems

R2X

Reduced-size, rearward-facing child restraint systems

R1

Rearward-facing infant seat

L1

Left lateral-facing (carrycot) infant seat

L2

Right lateral-facing (carrycot) infant seat

B2

Junior seat

B3

Junior seat

Recom-

mended

Child

Restraint

System

Seating position

Vehicle with front pas-

senger occupant

detection system

Passenger airbag indi-

cator light

ON

OFF

i-Size child
Restraint
systems

i-Size MIDI
(Yes/No)

No

No

Yes

No

Yes

Fixture

Description

54

1-2. Child safety

with support base, if the child
seat interferes with the seat-
back when latching it into the
support base, adjust the seat-
back rearward until there is no
interference.



If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the seat
cushion forward.



When installing a junior seat,
if the child in your child
restraint system is in a very
upright position, adjust the
seatback angle to the most
comfortable position. And if
the seat belt shoulder anchor
is ahead of the child seat belt
guide, move the seat cushion
forward.

A child restraint system for a
small child or baby must itself be
properly restrained on the seat
with the lap portion of the
lap/shoulder belt.

■

Installing child restraint
system using a seat belt
(child restraint lock func-
tion belt)

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.

For Puerto Rico: If the child
restraint system on hand is not
within the “universal” category
(or the necessary information is
not in the table), refer to the
“Vehicle List” provided by the
child restraint system maker for
various possible installation
positions, or check the compati-
bility after asking the retailer of
the child seat. (



P.50, 51)

■

Rear-facing



 Infant

seat/convertible seat

1

Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.

2

Run the seat belt through the
child restraint system and
insert the plate into the

Child restraint system
fixed with a seat belt

55

1-2. Child safety

1

For safety and secu

rity

buckle. Make sure that the
belt is not twisted.

3

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.

4

While pushing the child
restraint system down into
the rear seat, allow the shoul-
der belt to retract until the
child restraint system is
securely in place.

After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to

check that it cannot be extended.

5

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.58)

■

Forward-facing



 Convert-

ible seat

1

If installing the child restraint
system to the front passen-
ger seat is unavoidable, refer
to P.47for the front passenger
seat adjustment.

2

If the head restraint interferes
with your child restraint sys-
tem, and the head restraint
can be removed, remove the
head restraint.
Otherwise, put the head
restraint in the upper most
position. (



P.128)

56

1-2. Child safety

3

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.

4

Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

5

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.

6

While pushing the child
restraint system into the rear

seat, allow the shoulder belt
to retract until the child
restraint system is securely in
place.

After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.

7

If the child restraint has a top
tether strap, follow the child
restraint manufacturer’s
operation manual regarding
the installation, using the top
tether strap to latch onto the
top tether strap anchor.
(



P.63)

8

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.58)

■

Booster seat

1

If installing the child restraint
system to the front passen-
ger seat is unavoidable, refer
to P.47for the front passenger
seat adjustment.

2

High back type: If the head
restraint interferes with your
child restraint system, and
the head restraint can be
removed, remove the head

57

1-2. Child safety

1

For safety and secu

rity

restraint.

Otherwise, put the head

restraint in the upper most

position. (



P.128)

3

Place the child restraint sys-

tem on the seat facing the

front of the vehicle.



Booster type



High back type

4

Sit the child in the child

restraint system. Fit the seat

belt to the child restraint sys-

tem according to the manu-

facturer’s instructions and

insert the plate into the

buckle. Make sure that the

belt is not twisted.

Check that the shoulder belt is cor-

rectly positioned over the child’s

shoulder and that the lap belt is as

low as possible. (



P.27)

■

Removing a child restraint

system installed with a seat

belt

Press the buckle release button

and fully retract the seat belt.

When releasing the buckle, the

child restraint system may spring

up due to the rebound of the seat

cushion. Release the buckle while

holding down the child restraint

system.
Since the seat belt automatically

reels itself, slowly return it to the

stowing position.

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

58

1-2. Child safety

■

Child restraint LATCH

anchors

LATCH anchors are provided for

the outboard rear seat. (Marks

displaying the location of the

anchors are attached to the

seats.)

WARNING

●

Do not allow children to play

with the seat belt. If the seat belt

becomes twisted around a

child’s neck, it may lead to

choking or other serious injuries

that could result in death.

If this occurs and the buckle

cannot be unfastened, scissors

should be used to cut the belt.

●

Ensure that the belt and plate

are securely locked and the

seat belt is not twisted.

●

Shake the child restraint system

left and right, and forward and

backward to ensure that it has

been securely installed.

●

After securing a child restraint

system, never adjust the seat.

●

When a booster seat is

installed, always ensure that the

shoulder belt is positioned

across the center of the child’s

shoulder. The belt should be

kept away from the child’s neck,

but not so that it could fall off the

child’s shoulder.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

When securing some types of

child restraint systems in rear

seats, it may not be possible to

properly use the seat belts in

positions next to the child

restraint without interfering with

it or affecting seat belt effective-

ness. Be sure your seat belt fits

snugly across your shoulder

and low on your hips. If it does

not, or if it interferes with the

child restraint, move to a differ-

ent position. Failure to do so

may result in death or serious

injury.

■

When installing a booster

seat

To prevent the belt from going into

ALR lock mode, do not fully

extend the shoulder belt. ALR

mode causes the belt to tighten

only. This could cause injury or

discomfort to the child. (



P.29)

■

Do not use a seat belt

extender

If a seat belt extender is used

when installing a child restraint

system, the seat belt will not

securely hold the child restraint

system, which could cause death

or serious injury to the child or

other passengers in the event of

sudden braking, sudden swerv-

ing or an accident.

Child restraint system

fixed with a child restraint

LATCH anchor (except for

Puerto Rico)

59

1-2. Child safety

1

For safety and secu

rity

■

When installing in the rear
outboard seats

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.

1

If the head restraint interferes
with your child restraint sys-
tem, and the head restraint
can be removed, remove the
head restraint.
Otherwise, put the head
restraint in the upper most
position. (



P.128)



With flexible lower attach-
ments

2

Remove the anchor covers,
and install the child restraint
system to the seat.

The bars are installed behind the
anchor covers.

For owners in Canada:
The symbol on a child restraint sys-
tem indicates

 the presence of a

lower connector system.

Canada only



With rigid lower attachments

2

Remove the anchor covers,
and install the child restraint
system to the seat.

The bars are installed behind the
anchor covers.

For owners in Canada:
The symbol on a child restraint sys-
tem indicates

 the presence of a

lower connector system.

Canada only

3

If the child restraint has a top
tether strap, follow the child
restraint manufacturer’s
operation manual regarding
the installation, using the top
tether strap to latch onto the
top tether strap anchor.
(



P.63)

4

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.58)

■

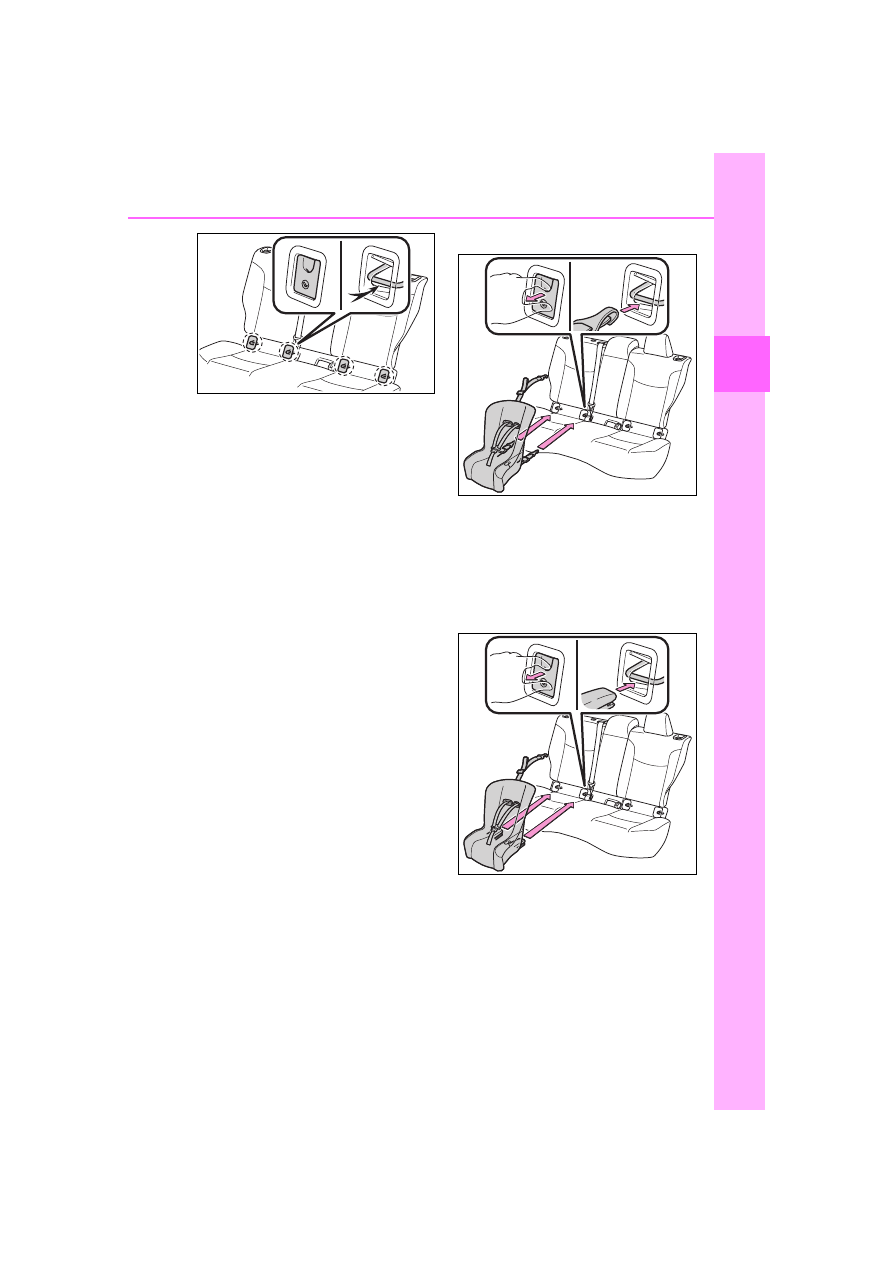

When installing in the rear
center seat

There are no LATCH anchors
behind the rear center seat.

60

1-2. Child safety

However, the inboard LATCH

anchors of the outboard seats,

which are 16.1 in. (410 mm)

apart, can be used if the child

restraint system manufacturer’s

instructions permit use of those

anchors with the anchor spacing

stated.
Child restraint systems with rigid

lower attachments cannot be

installed in the center seat. This

type of child restraint system

can only be installed in the out-

board seat.

■

Laws and regulations pertain-

ing to anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming

to FMVSS213 or CMVSS213 speci-

fications can be used.

This vehicle is designed to conform

to SAE J1819.

■

ISOFIX lower anchorages

(ISOFIX child restraint sys-

tem)

Lower anchorages are provided

for the outboard rear seats.

(Marks displaying the location of

the anchorages are attached to

the seats.)

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

When using the LATCH

anchors, be sure that there are

no foreign objects around the

anchors and that the seat belt is

not caught behind the child

restraint system.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Never attach two child restraint

system attachments to the

same anchor. In a collision, one

anchor may not be strong

enough to hold two child

restraint system attachments

and may break. If the LATCH

anchors are already in use, use

the seat belt to install a child

restraint system in the center

seat.

●

When securing some types of

child restraint systems in rear

seats, it may not be possible to

properly use the seat belts in

positions next to the child

restraint without interfering with

it or affecting seat belt effective-

ness. Be sure your seat belt fits

snugly across your shoulder

and low on your hips. If it does

not, or if it interferes with the

child restraint, move to a differ-

ent position. Failure to do so

may result in death or serious

injury.

●

If the seat is adjusted, reconfirm

the security of the child restraint

system.

Child restraint system

fixed with an ISOFIX lower

anchorage (for Puerto

Rico)

61

1-2. Child safety

1

For safety and secu

rity

■

When installing in the rear
outboard seats

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.
If the child restraint system on
hand is not within the “universal”
category (or the necessary infor-
mation is not in the table), refer
to the “Vehicle List” provided by
the child restraint system maker
for various possible installation
positions, or check the compati-
bility after asking the retailer of
the child seat. (



P.50, 51)

1

If the head restraint interferes
with your child restraint sys-
tem, and the head restraint
can be removed, remove the
head restraint.
Otherwise, put the head
restraint in the upper most
position. (



P.128)



With flexible lower attach-
ments

2

Remove the anchorage cov-
ers, and install the child
restraint system to the seat.

The bars are installed behind the

anchorage covers.



With rigid lower attachments

2

Remove the anchorage cov-
ers, and install the child
restraint system to the seat.

The bars are installed behind the
anchorage covers.

3

If the child restraint has a top
strap, follow the child
restraint manufacturer’s
operation manual regarding
the installation, using the top
strap to latch onto the top
tether anchorage. (



P.64)

62

1-2. Child safety

4

After installing the child

restraint system, rock it back

and forth to ensure that it is

installed securely. (



P.58)

■

When installing in the rear

center seat

There are no lower anchorages

behind the rear center seat.

However, the inboard lower

anchorages of the outboard

seats, which are 16.1 in. (410

mm) apart, can be used if the

child restraint system manufac-

turer’s instructions permit use of

those anchorages with the

anchorage spacing stated.
Child restraint systems with rigid

lower attachments cannot be

installed in the center seat. This

type of child restraint system

can only be installed in the out-

board seat.

■

When using an “i-Size MIDI”

Adjust the support leg and ISOFIX

connectors as follows:

1

Lock the ISOFIX connectors

where number 1 can be seen.

2

Lock the support leg where 6

holes can be seen.

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

When using the lower anchor-

ages, be sure that there are no

foreign objects around the

anchorages and that the seat

belt is not caught behind the

child restraint system.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Never attach two child restraint

system attachments to the

same anchorage. In a collision,

one anchorage may not be

strong enough to hold two child

restraint system attachments

and may break. If the lower

anchorages are already in use,

use the seat belt to install a

child restraint system in the cen-

ter seat.

●

When securing some types of

child restraint systems in rear

seats, it may not be possible to

properly use the seat belts in

positions next to the child

restraint without interfering with

it or affecting seat belt effective-

ness. Be sure your seat belt fits

snugly across your shoulder

and low on your hips. If it does

not, or if it interferes with the

child restraint, move to a differ-

ent position. Failure to do so

may result in death or serious

injury.

●

If the seat is adjusted, reconfirm

the security of the child restraint

system.

63

1-2. Child safety

1

For safety and secu

rity

■

Anchor brackets (for top
tether strap)

Anchor brackets are provided
for each rear seat.

Use anchor brackets when fix-
ing the top tether strap.

Anchor brackets

Top tether strap

■

Fixing the top tether strap
to the anchor bracket

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.



Rear outboard seats

1

Adjust the head restraint to
the upmost position.

If the head restraint interferes with
your child restraint system, and the
head restraint can be removed,
remove the head restraint.
(



P.128)

2

Latch the hook onto the
anchor bracket and tighten
the top tether strap.

Make sure the top tether strap is
securely latched.  (



P.57)

When installing the child restraint
system with the head restraint
being raised, be sure to have the
top tether strap pass underneath
the head restraint.

Hook

Top tether strap



Rear center seat

Latch the hook onto the anchor
bracket and tighten the top
tether strap.

Make sure the top tether strap is
securely latched.  (



P.57)

Hook

Top tether strap

■

Laws and regulations pertain-
ing to anchors

The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming
to FMVSS213 or CMVSS213 speci-

Using an anchor bracket
(for top tether strap)
(except for Puerto Rico)

64

1-2. Child safety

fications can be used.

This vehicle is designed to conform

to SAE J1819.

■

Top tether anchorages

Top tether anchorages are pro-

vided for each rear seat.
Use top tether anchorages

when fixing the top strap.

Top tether anchorages
Top strap

■

Fixing the top strap to the

top tether anchorages

Install the child restraint system

in accordance to the operation

manual enclosed with the child

restraint system.



Rear outboard seats

1

Adjust the head restraint to

the upmost position.

If the head restraint interferes with

your child restraint system, and the

head restraint can be removed,

remove the head restraint.

(



P.128)

2

Latch the hook onto the top

tether anchorage and tighten

the top strap.

Make sure the top strap is securely

latched.  (



P.57)

When installing the child restraint

system with the head restraint

being raised, be sure to have the

top strap pass underneath the head

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Firmly attach the top tether

strap and make sure that the

belt is not twisted.

●

Do not attach the top tether

strap to anything other than the

anchor bracket.

●

After securing a child restraint

system, never adjust the seat.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Outboard rear seats: When

installing the child restraint sys-

tem with the head restraint

being raised, after the head

restraint has been raised and

then the anchor bracket has

been fixed, do not lower the

head restraint.

Using a top tether anchor-

age (for Puerto Rico)
