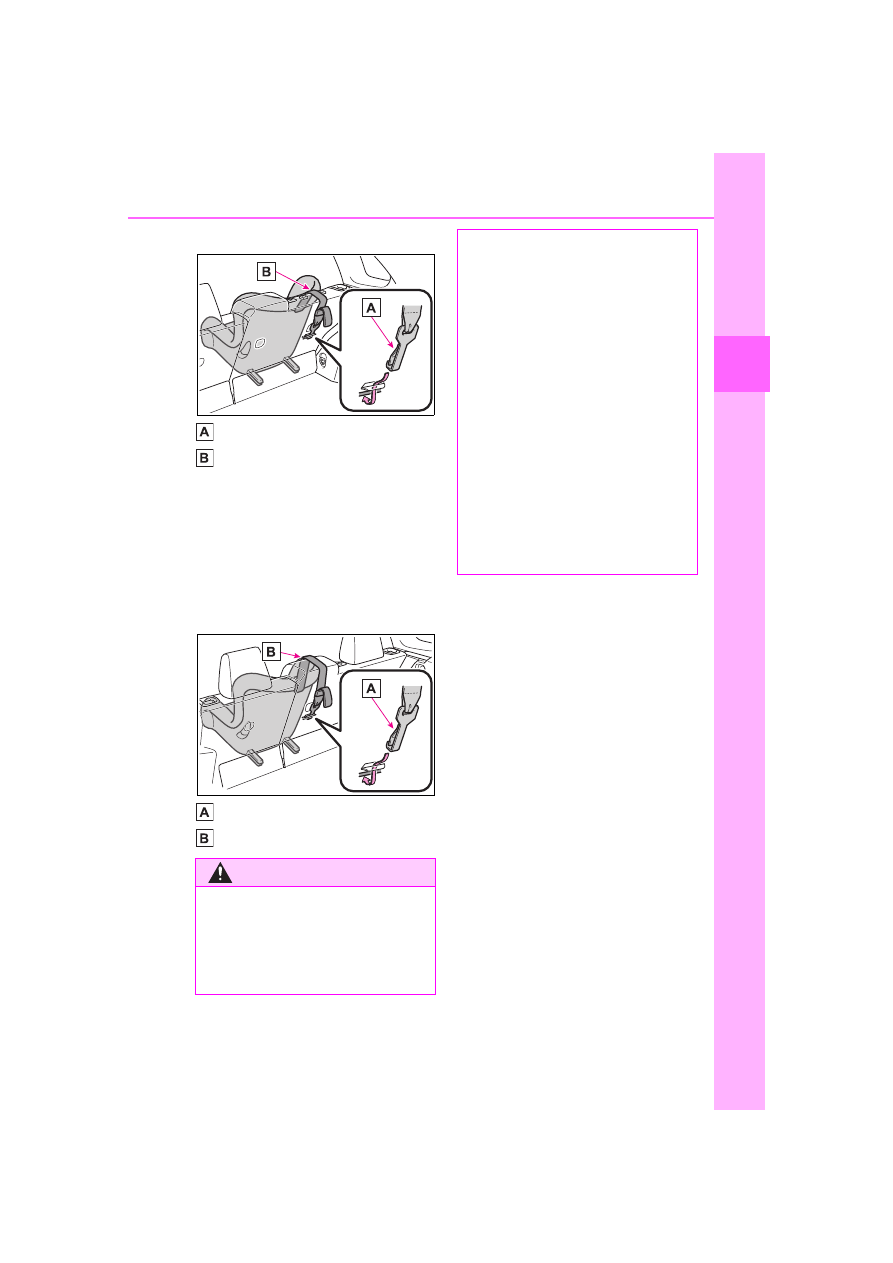

P.57)

Hook
Top strap

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Firmly attach the top strap and

make sure that the belt is not

twisted.

●

Do not attach the top strap to

anything other than the top

tether anchorages.

●

After securing a child restraint

system, never adjust the seat.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Outboard rear seats: When

installing the child restraint sys-

tem with the head restraint

being raised, after the head

restraint has been raised and

then the top tether anchorage

has been fixed, do not lower the

head restraint.

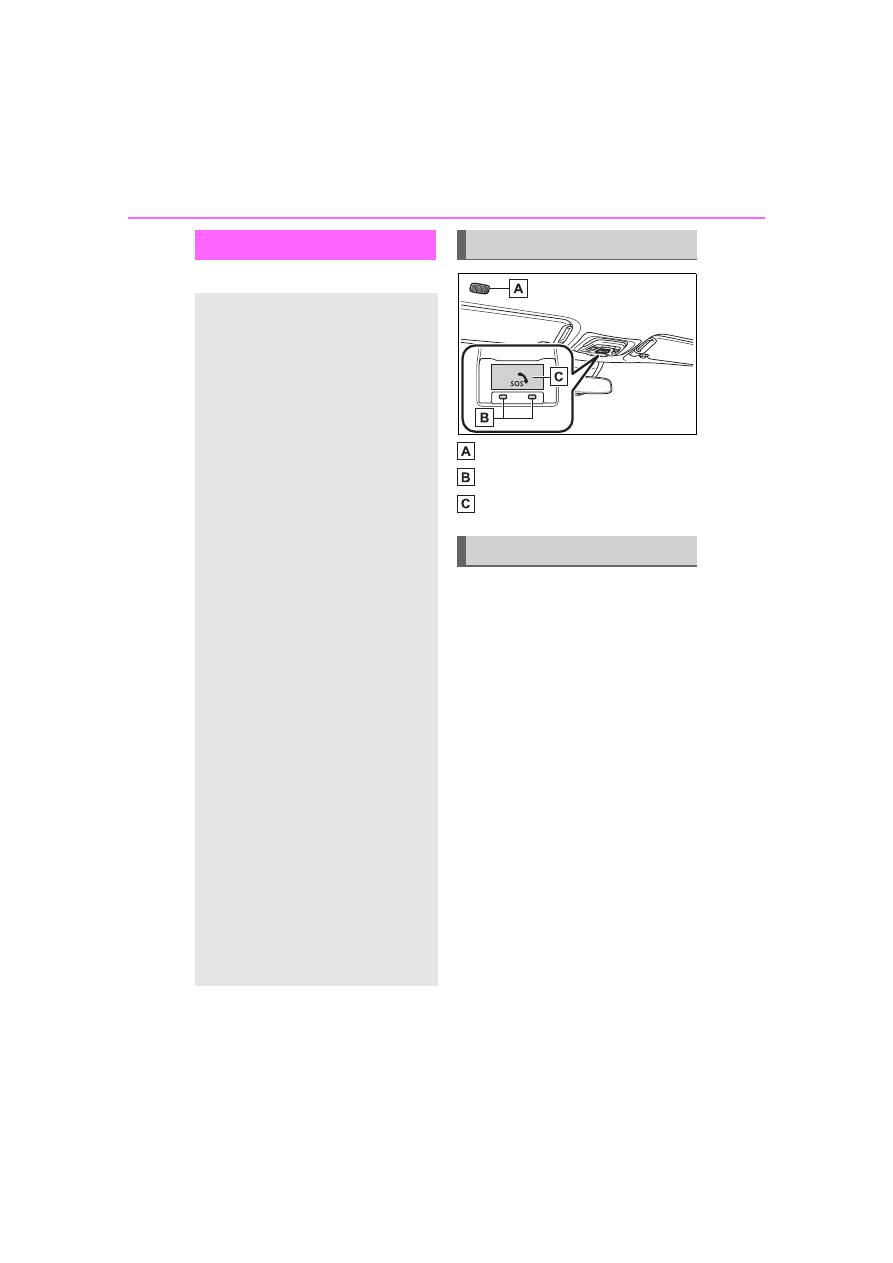

1-3. Emergency assistance

1-3.Emergency assistance

: If equipped

Microphone

LED light indicators

“SOS” button

Subscribers have the following
Safety Connect services avail-
able:



Automatic Collision Notifica-

tion

Helps drivers receive necessary
response from emergency service
providers. (



P.68)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle
theft. (

P.68)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-cen-
ter support. (



P.68)



Enhanced Roadside Assis-
tance

Provides drivers various on-road
assistance. (



P.69)

Safety Connect

Safety Connect is a sub-
scription-based telematics
service that uses Global
Positioning System (GPS)
data and embedded cellular
technology to provide
safety and security features
to subscribers. Safety Con-
nect is supported by Toy-
ota’s designated response
center, which operates 24
hours per day, 7 days per
week.

Safety Connect service is
available by subscription on
select, telematics hard-
ware-equipped vehicles.

By using the Safety Connect
service, you are agreeing to
be bound by the Telematics
Subscription Service Agree-
ment and its Terms and
Conditions, as in effect and
amended from time to time,
a current copy of which is
available at Toyota.com in
the United States, Toy-
otapr.com in Puerto Rico
and Toyota.ca in Canada. All
use of the Safety Connect
service is subject to such
then-applicable Terms and
Conditions.

System components

Services

1-3. Emergency assistance

For safety and secu

rity

After you have signed the
Telematics Subscription Service
Agreement and are enrolled,
you can begin receiving ser-
vices.
A variety of subscription terms
are available for purchase. Con-
tact your Toyota dealer, call the
following appropriate Customer
Experience Center or push the
“SOS” button in your vehicle for
further subscription details.
• The United States

1-800-331-4331

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

■

Safety Connect Services Infor-
mation

●

Phone calls using the vehicle’s
Bluetooth

technology will not be

possible when Safety Connect is
active and in use.

●

Safety Connect is available begin-
ning Fall 2009 on select Toyota
models (in the contiguous United
States only). Contact with the
Safety Connect response center
is dependent upon the telematics
device being in operative condi-
tion, cellular connection availabil-
ity, and GPS satellite signal
reception, which can limit the abil-
ity to reach the response center or
receive emergency service sup-
port. Enrollment and Telematics
Subscription Service Agreement
are required. A variety of subscrip-
tion terms are available; charges
vary by subscription term selected
and location.

●

Automatic Collision Notification,
Emergency Assistance and Stolen
Vehicle Location are available in
the United States, including
Hawaii and Alaska, Puerto Rico
and Canada, and Enhanced
Roadside Assistance are avail-
able in the United States, Puerto
Rico and Canada.

●

Automatic Collision Notification,
Emergency Assistance, Stolen
Vehicle and Enhanced Road
Assistance are not available in the
U.S. Virgin Islands.
For vehicles first sold in the U.S.
Virgin Islands, no Safety Connect
services will function in or outside
the U.S. Virgin Islands.

●

Safety Connect services are not
subject to section 255 of the Tele-
communications Act and the
device is not TTY compatible.

■

Languages

The Safety Connect response cen-
ter will offer support in multiple lan-
guages.
The Safety Connect system will
offer voice prompts in English,
Spanish, and French. Please indi-
cate your language of choice when
enrolling.

■

When contacting the response
center

You may be unable to contact the
response center if the network is
busy.

When the engine switch is
turned to ON, the red indicator
light comes on for 2 seconds
then turns off. Afterward, the
green indicator light comes on,
indicating that the service is
active.

Subscription

Safety Connect LED light
Indicators

1-3. Emergency assistance

The following indicator light pat-
terns indicate specific system
usage conditions:



Green indicator light on =
Active service



Green indicator light flashing
= Safety Connect call in pro-
cess



Red indicator light (except at
vehicle start-up) = System
malfunction (contact your Toy-
ota dealer)



No indicator light (off) =
Safety Connect service not
active

■

Automatic Collision Notifi-
cation

In case of either airbag deploy-
ment or severe rear-end colli-
sion, the system is designed to
automatically call the response
center. The responding agent
receives the vehicle’s location
and attempts to speak with the
vehicle occupants to assess the
level of emergency. If the occu-
pants are unable to communi-
cate, the agent automatically
treats the call as an emergency,
contacts the nearest emer-
gency services provider to
describe the situation, and
requests that assistance be sent
to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety
Connect can work with local
authorities to assist them in
locating and recovering the
vehicle. After filing a police
report, call the Customer Experi-
ence Center at 1-800-331-4331
in the United States,
1-877-855-8377 in Puerto Rico
or 1- 888-869-6828 in Canada,
and follow the prompts for
Safety Connect to initiate this
service.
In addition to assisting law
enforcement with recovery of a
stolen vehicle, Safety-Con-
nect-equipped vehicle location
data may, under certain circum-
stances, be shared with third
parties to locate your vehicle.
Further information is available
at Toyota.com in the United
States, Toyotapr.com in Puerto
Rico and Toyota.ca in Canada.

■

Emergency Assistance But-
ton (“SOS”)

In the event of an emergency on
the road, push the “SOS” button
to reach the Safety Connect
response center. The answer-
ing agent will determine your
vehicle’s location, assess the
emergency, and dispatch the
necessary assistance required.

If you accidentally press the “SOS”
button, tell the response-center
agent that you are not experiencing
an emergency.

Safety Connect services

1-3. Emergency assistance

For safety and secu

rity

■

Enhanced Roadside Assis-
tance

Enhanced Roadside Assistance
adds GPS data to the already
included warranty-based Toyota
roadside service.

Subscribers can press the
“SOS” button to reach a Safety
Connect response-center agent,
who can help with a wide range
of needs, such as: towing, flat
tire, fuel delivery, etc. For a
description of the Enhanced
Roadside Assistance services
and their limitations, please see
the Safety Connect Terms and
Conditions, which are available
at Toyota.com in the United
States, Toyotapr.com in Puerto
Rico and Toyota.ca in Canada.

Important! Read this informa-
tion before using Safety Con-
nect.

■

Exposure to radio fre-
quency signals

The Safety Connect system
installed in your vehicle is a
low-power radio transmitter and
receiver. It receives and also
sends out radio frequency (RF)
signals.

In August 1996, the Federal
Communications Commission
(FCC) adopted RF exposure
guidelines with safety levels for

mobile wireless phones. Those
guidelines are consistent with
the safety standards previously
set by the following U.S. and
international standards bodies.



ANSI (American National
Standards Institute) C95.1
[1992]



NCRP (National Council on
Radiation Protection and
Measurement) Report 86
[1986]



ICNIRP (International Com-
mission on Non-Ionizing Radi-
ation Protection) [1996]

Those standards were based on
comprehensive and periodic
evaluations of the relevant sci-
entific literature. Over 120 scien-
tists, engineers, and physicians
from universities, and govern-
ment health agencies and
industries reviewed the avail-
able body of research to
develop the ANSI Standard
(C95.1).

The design of Safety Connect
complies with the FCC guide-
lines in addition to those stan-
dards.

■

Free/Open Source Software
Information

This product contains Free/Open
Source Software (FOSS).

The license information and/or the
source code of such FOSS can be
found at the following URL.

https://opensource.lge.com/osSch/
list?types=ALL&search=TL21BNU

Safety information for
Safety Connect

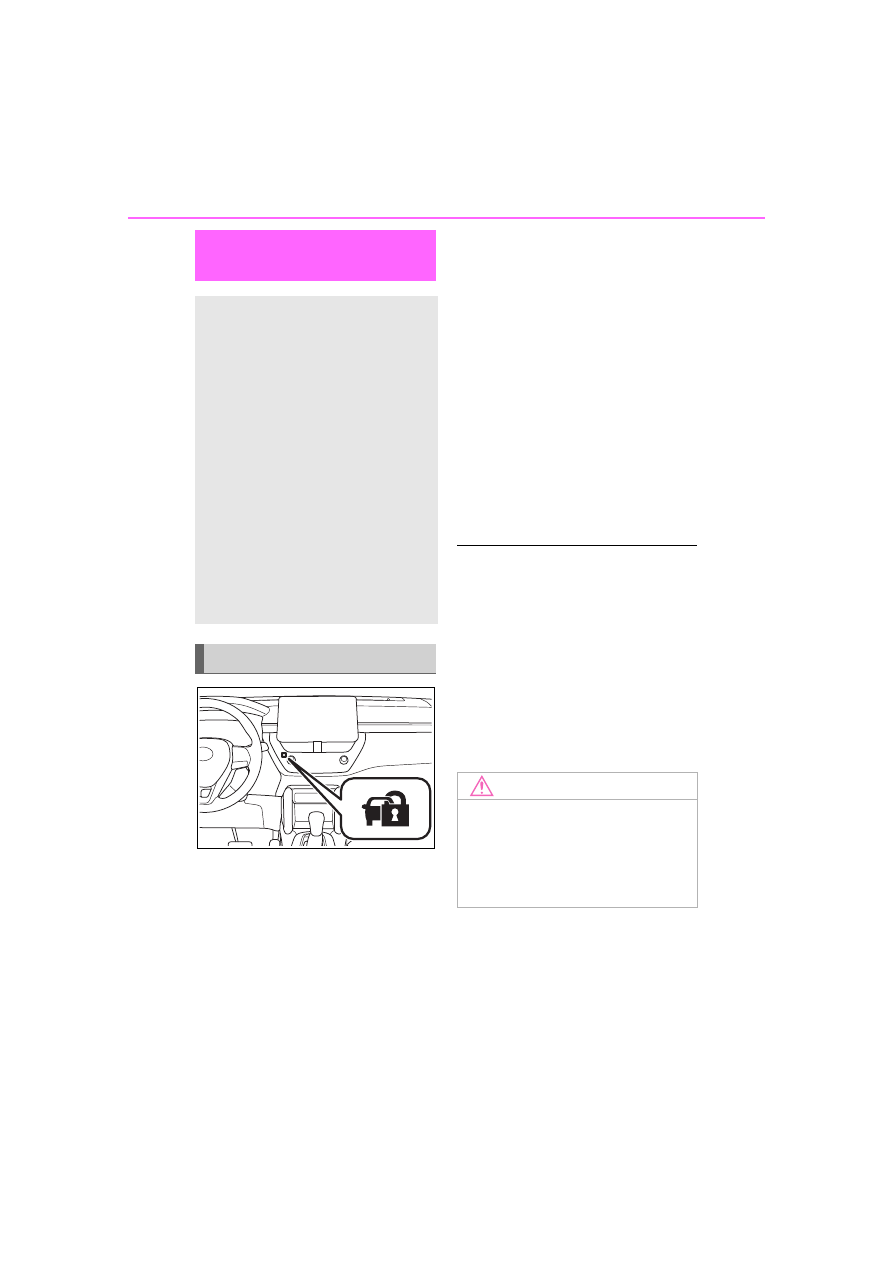

1-4. Theft deterrent system

1-4.Theft deterrent system



Vehicles without a smart key

system

The indicator light flashes after

the key has been removed from

the engine switch to indicate

that the system is operating.
The indicator light stops flashing

after the registered key has

been inserted into the engine

switch to indicate that the sys-

tem has been canceled.



Vehicles with a smart key sys-

tem

The indicator light flashes after

the engine switch has been

turned off to indicate that the

system is operating.
The indicator light stops flashing

after the engine switch has been

turned to ACC or ON to indicate

that the system has been can-

celed.

■

System maintenance

The vehicle has a mainte-

nance-free type engine immobilizer

system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

Engine immobilizer

system

The vehicle’s keys have

built-in transponder chips

that prevent the engine from

starting if a key has not

been previously registered

in the vehicle’s on-board

computer.
Never leave the keys inside

the vehicle when you leave

the vehicle.
This system is designed to

help prevent vehicle theft

but does not guarantee

absolute security against all

vehicle thefts.

Operating the system

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

1-4. Theft deterrent system

For safety and secu

rity

: If equipped

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The windows and moon roof
(if equipped) are closed
before the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors and hood, and
lock all the doors. The system
will set automatically after 30
seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

If all doors are closed with back
door or hood open, alarm system
can be set.

■

Deactivating or stopping

Do one of the following to deac-
tivate or stop the alarms:



Unlock the doors.



Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)

■

System maintenance

The vehicle has a mainte-
nance-free type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the
following situations:
(Stopping the alarm deactivates the
alarm system.)

●

The doors are unlocked using the
mechanical key.

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



A locked door is unlocked or
opened in any way other
than using the entry func-
tion or wireless remote con-
trol. (The doors will lock
again automatically.)



The hood is opened.

Setting/deactivating/stop-
ping the alarm system

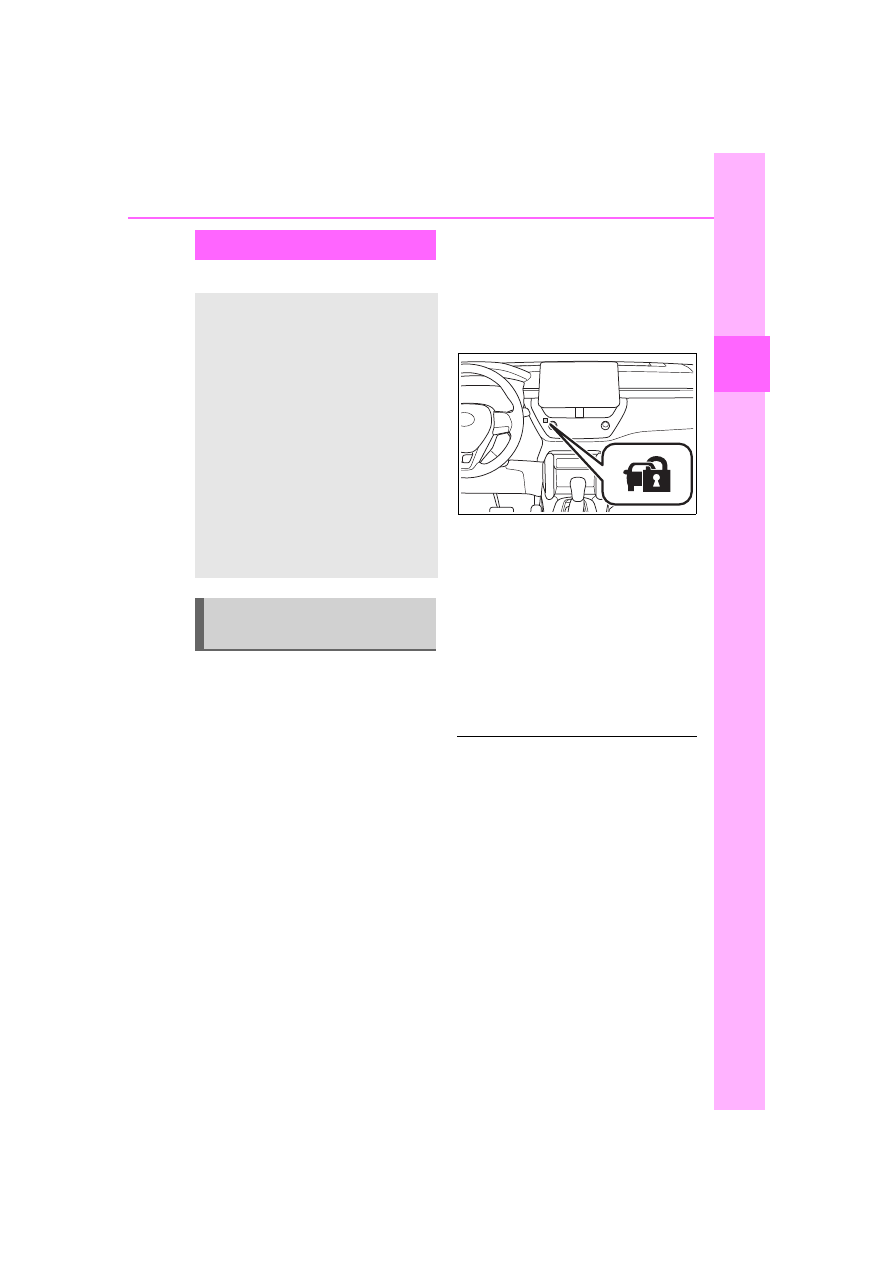

1-4. Theft deterrent system

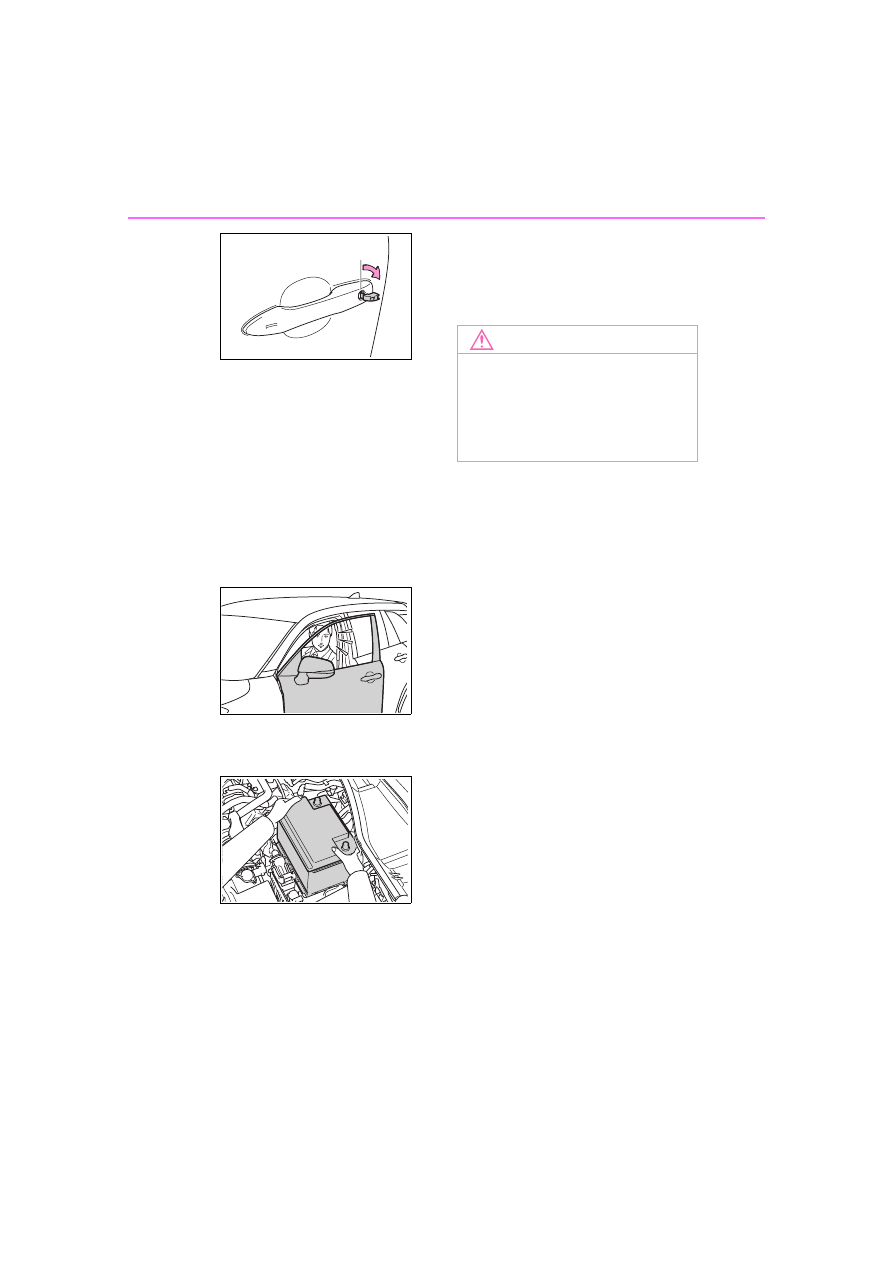

If a door is unlocked using the

mechanical key while the alarm is

set, a warning will sound intermit-

tently for approximately 10 seconds.

If the alarm is not canceled or

stopped during this time, the warn-

ing pattern changes and the warning

sounds for a certain period of time.

●

A person inside the vehicle opens

a door or hood, or unlocks the

vehicle using a door lock switch or

inside lock button.

●

The battery is recharged or

replaced when the vehicle is

locked. (



P.430)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

battery

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

Vehicle

statu

information an

dicator

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

Gauges and meters

(4.2-inch display)..........

Gauges and meters (7-inch

display).........................

Multi-information display

(4.2-inch display)..........

Multi-information display

(7-inch display).............

Fuel consumption informa-

tion ...............................

2-1. Instrument cluster

Vehicle

statu

information an

dicator

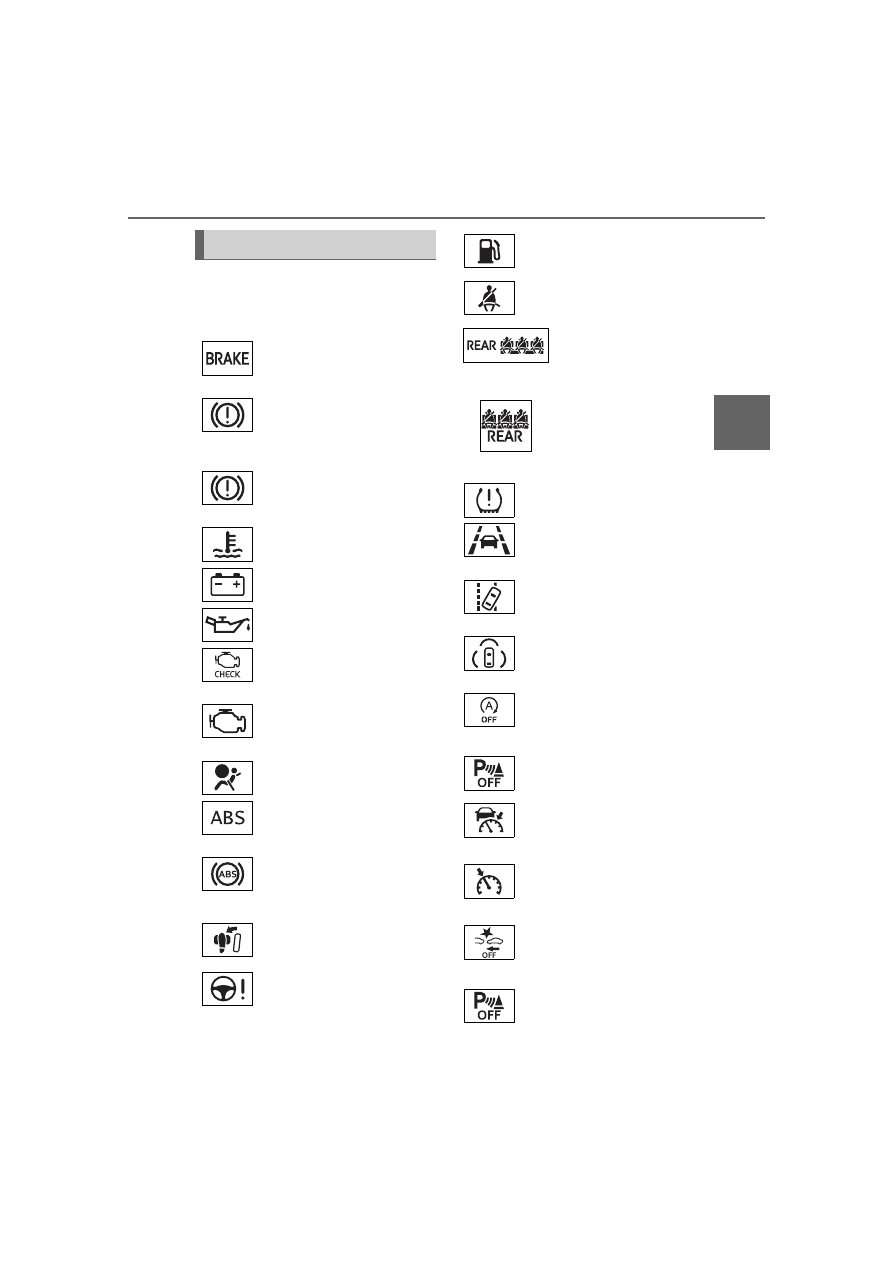

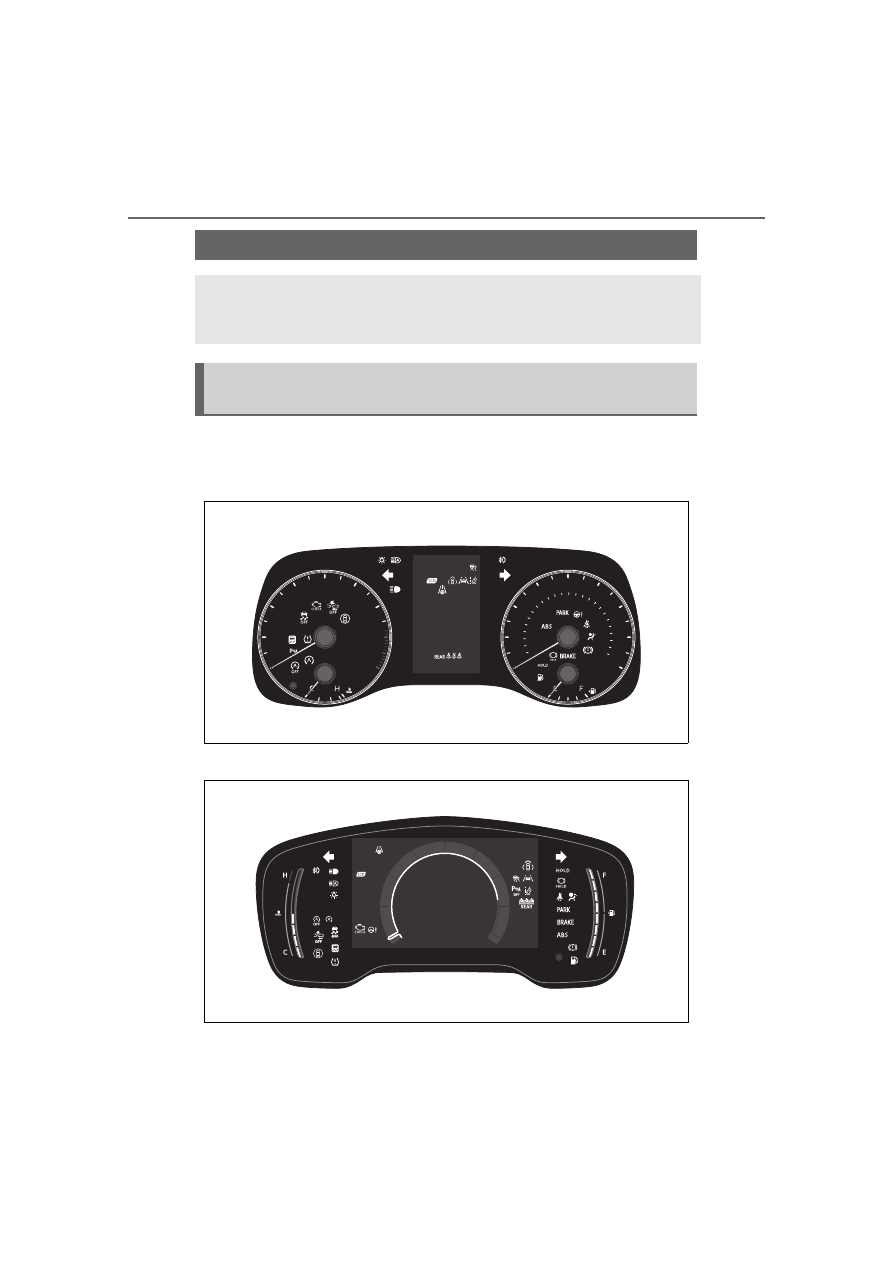

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warning

light

(



(Red)

(Canada)

Brake system warning

light

(



(Yellow)

Brake system warning

light

(



High coolant temperature

warning light

(

Charging system warning

light

(



Low engine oil pressure

warning light

(

(U.S.A.)

Malfunction indicator

lamp

(



(Canada)

Malfunction indicator

lamp

(



SRS warning light

(



(U.S.A.)

ABS warning light

(



(Canada)

ABS warning light

(



Inappropriate pedal opera-

tion warning light

(



(Red/yel-

low)

Electric power steering

system warning light

(



Low fuel level warning
light (



P.402)

Driver’s and front passen-
ger’s seat belt reminder
light (



P.402)

Rear passengers’
seat belt reminder
lights (



P.403)

Tire pressure warning

light

(

P.403)

(Yellow)

LTA indicator (

P.403)

(Yellow)

LDA indicator (

(Yellow)

PDA indicator (



(Flashes)

Stop & Start cancel indica-

tor

(

Intuitive parking assist
OFF indicator (if
equipped) (



(Yellow)

Dynamic radar cruise con-
trol indicator (



(Yellow)

Cruise control indicator
(



(Yellow)

PCS warning light

(



Intuitive parking assist
OFF indicator (if
equipped) (



P.268)

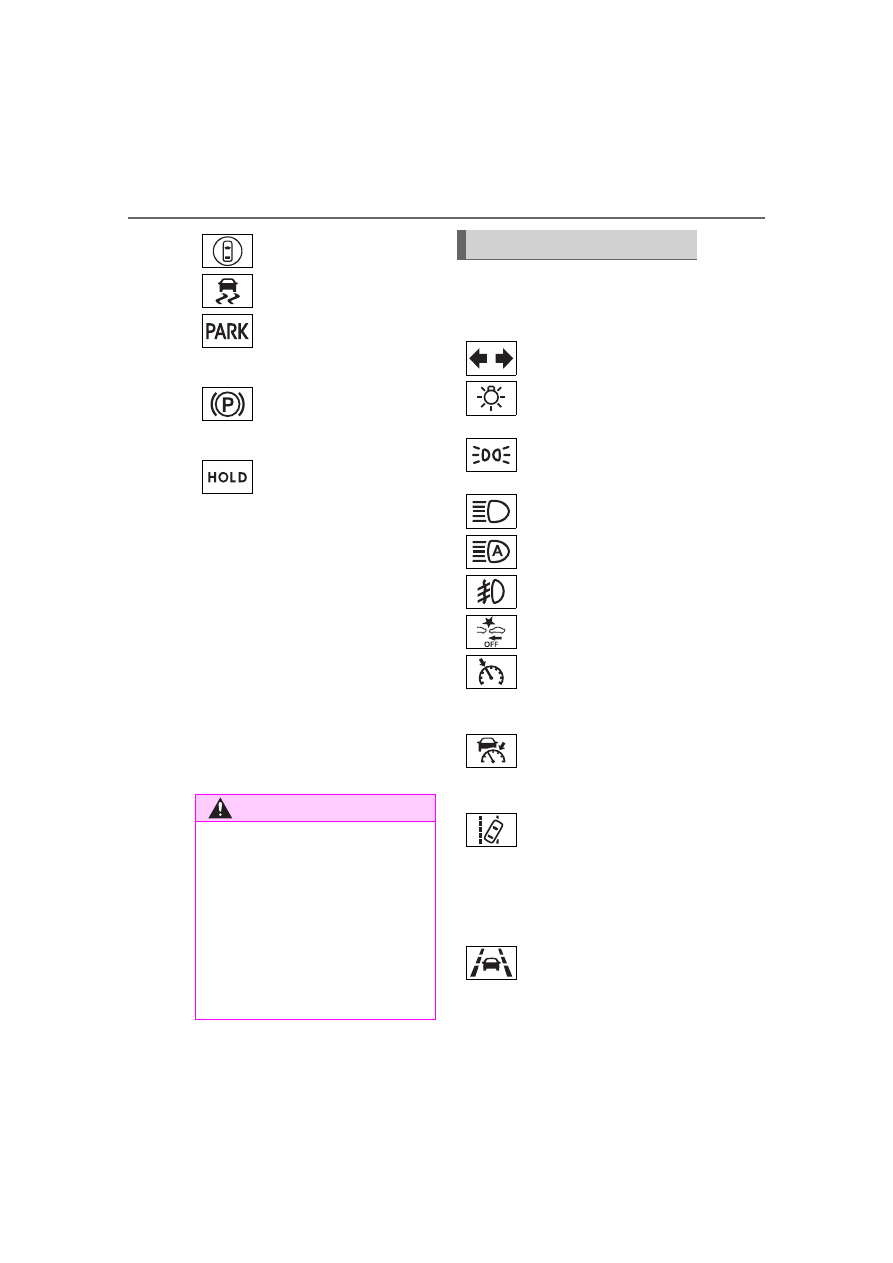

2-1. Instrument cluster

:These lights come on when the

engine switch is turned to ON to

indicate that a system check is

being performed. They will turn

off after the engine is started, or

after a few seconds. There may

be a malfunction in a system if

the lights do not come on, or turn

off. Have the vehicle inspected

by your Toyota dealer.

:This light illuminates on the

multi-information display.

:4.2-inch display.

:7-inch display.

The indicators inform the driver

of the operating state of the

vehicle’s various systems.

Driving assist information
indicator

(



Slip indicator

(



(Flashes)

(U.S.A.)

Parking brake indicator

(



(Flashes)

(Canada)

Parking brake indicator

(



(Flashes)

Brake hold operated indi-

cator (



WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

engine, this could mean that

these systems are not available to

help protect you in an accident,

which could result in death or seri-

ous injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

Indicators

Turn signal indicator

(

P.173)

(U.S.A.)

Headlight indicator

(

P.180)

(Canada)

Tail light indicator

(

P.180)

Headlight high beam indi-

cator (



P.182)

Automatic High Beam

indicator (



P.183)

Fog light indicator (if

equipped) (



P.186)

PCS warning light

*1, 2

(

P.200)

(Green/

White)

Cruise control indicator

(

P.240)

(Green/

White)

Dynamic radar cruise con-

trol indicator (



P.232)

(Green/

White/Or

ange

[Flashes]

)

LDA indicator (

P.215)

(Green/W

hite/Orang

[Flashes])

LTA indicator (



P.210)

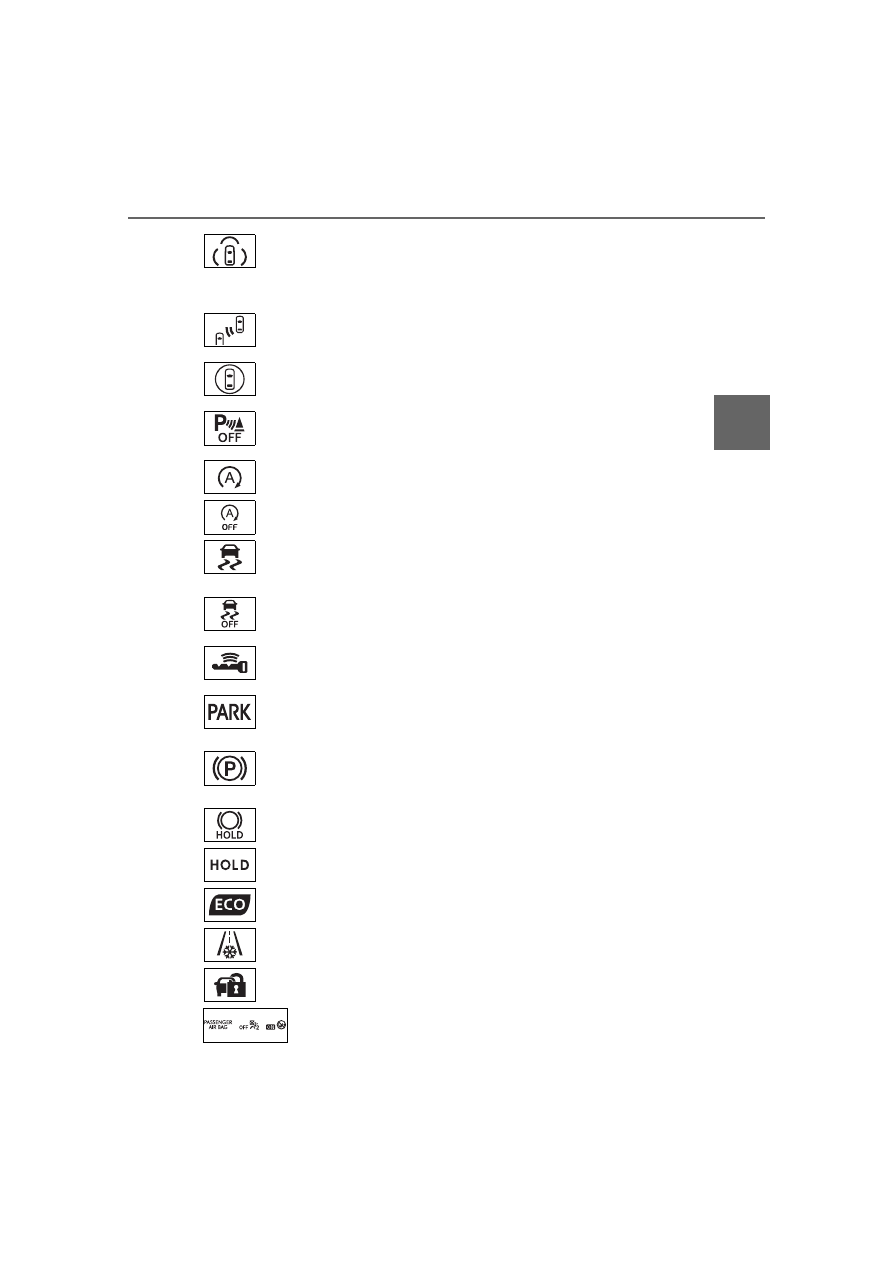

2-1. Instrument cluster

Vehicle

statu

information an

dicator

: These lights come on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the lights do not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

: This light comes on when the

system is turned off.

: This light illuminates on the out-

side rear view mirrors.

: This light illuminates on the

multi-information display.

: When the outside temperature is

approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.

: This light illuminates on the air

conditioning operation panel.

: This light illuminates on the front

interior/personal lights.

(Green/W

hite)

PDA indicator (



P.221)

BSM outside rear view

mirror indicators

*1, 3

(if

equipped) (



P.253)

Driving assist information

indicator

*1, 2

(

Intuitive parking assist

OFF indicator

(if

equipped) (



P.268)

Stop & Start indicator
(



P.246)

Stop & Start cancel indica-

tor

*1, 2

(



P.247)

(Flashes)

Slip indicator

(



P.284)

VSC OFF indicator

*1, 2

(



P.284)

Smart key system indica-

tor

(if equipped)

(



P.165)

(U.S.A.)

Parking brake indicator
(



P.174)

(Canada)

Parking brake indicator
(



P.174)

Brake hold standby indi-
cator (

P.177)

Brake hold operated indi-
cator (

P.177)

Eco Driving Indicator

Light

(



P.86)

Low outside temperature

indicator

(



P.78, 81)

Security indicator

(



P.70, 71)

“AIR BAG ON/OFF”

indicator

*1, 7

(



P.39)

2-1. Instrument cluster

■

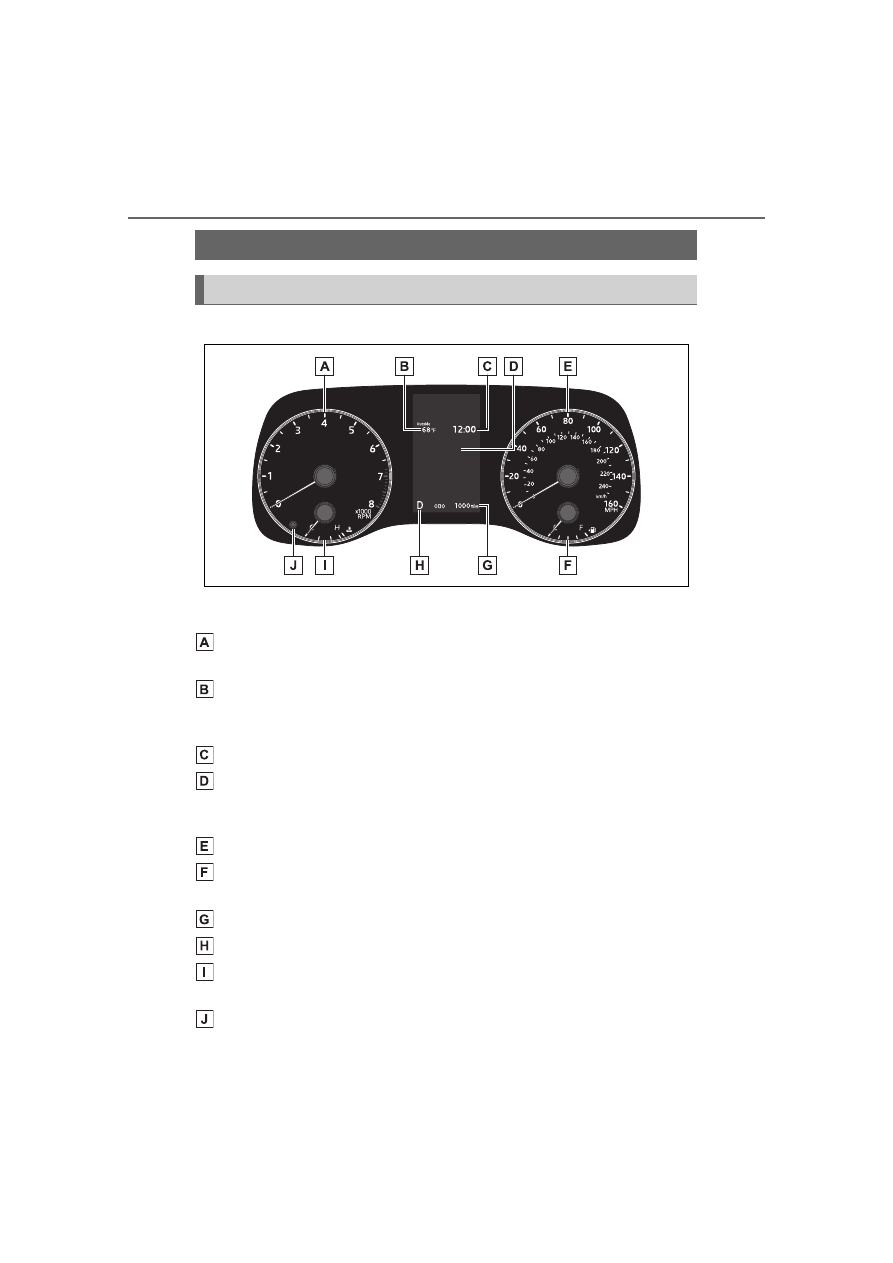

Locations of gauges and meters

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Clock (

P.80)

Multi-information display

Presents the driver with a variety of vehicle data (



P.84)

Displays warning messages if a malfunction occurs (



Speedometer

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter display (



P.79)

Shift position indicator (

P.170)

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (

P.79)

Gauges and meters (4.2-inch display)

Meter display

2-1. Instrument cluster

Vehicle

statu
s information

dicator

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

P.84

■

Customization

The gauges and meters can be cus-
tomized in

of the multi-informa-

tion display. (



P.459)

■

Changing the display

Press the display change button

until the desired item is dis-

played.

■

Display items



Odometer

Displays the total distance the vehi-

cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle

has been driven since the meter

was last reset. Trip meters A and B

can be used to record and display

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.432)

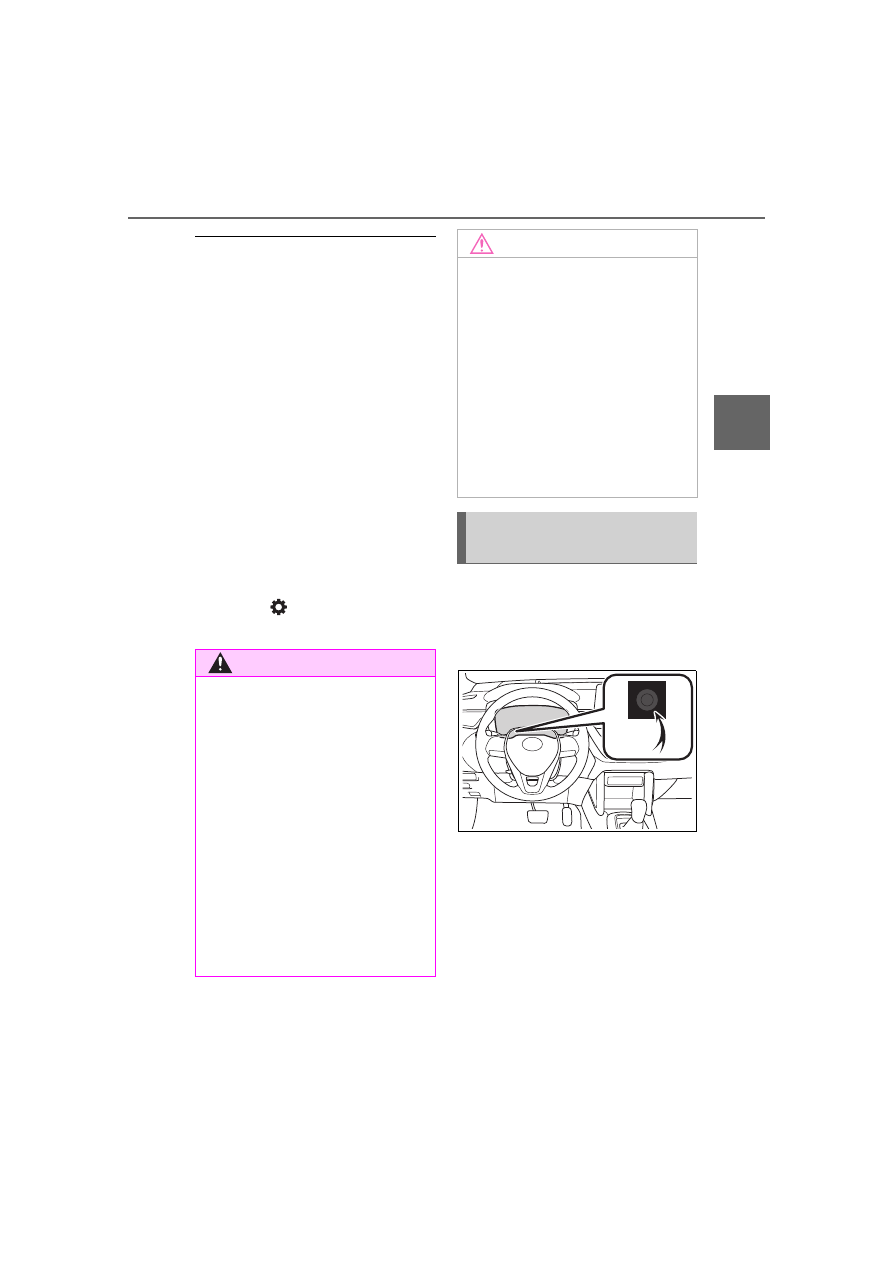

Odometer and trip meter

display

2-1. Instrument cluster

different distances independently.

To reset, display the desired trip
meter and press and hold the dis-
play change button.



Distance until next engine oil
change

Displays the distance the vehicle
can be driven until an oil change is
necessary.

■

Pop-up display

Distance until the next engine oil
change will be displayed when a
warning message indicating that
oil maintenance should be per-
formed soon or is required is
displayed.

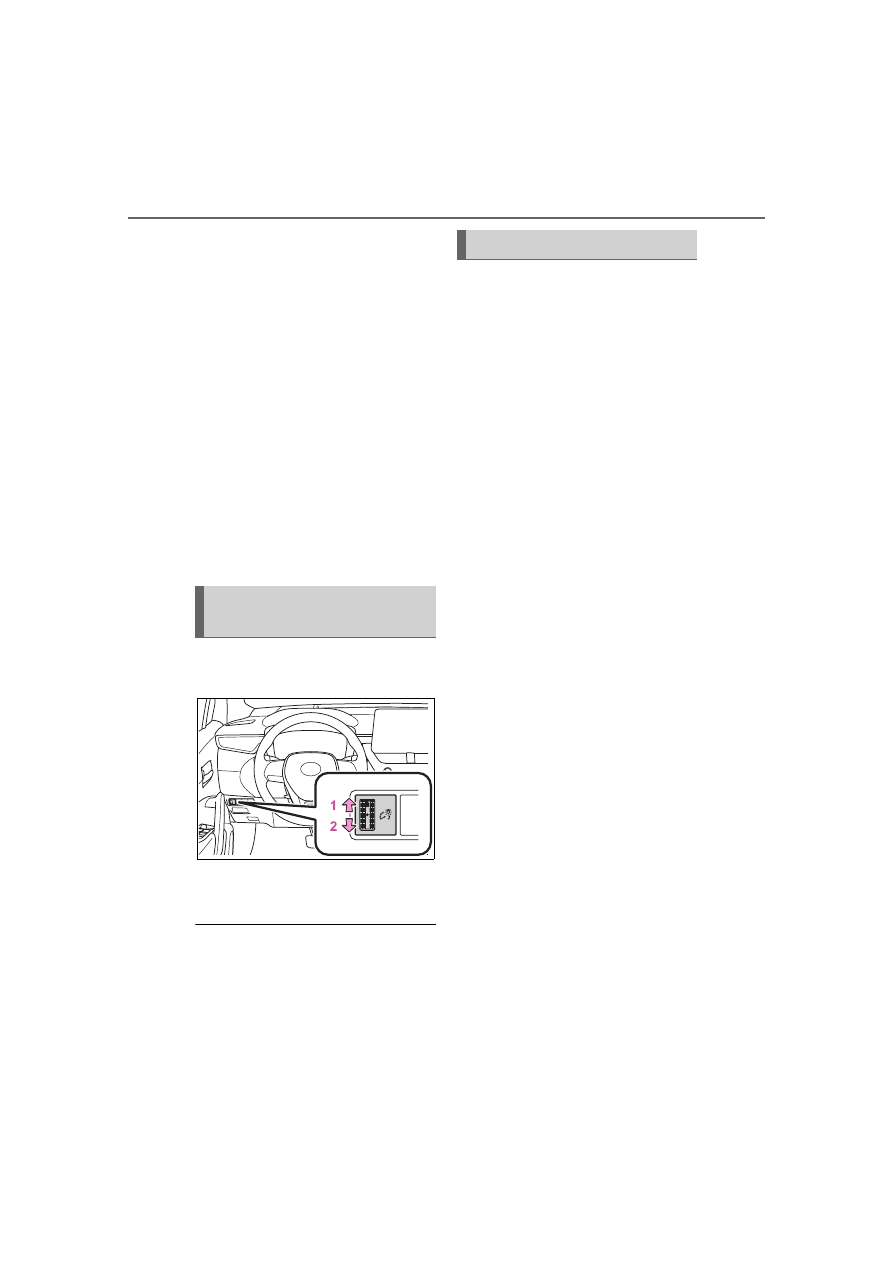

The brightness of the instrument
panel lights can be adjusted.

Brighter

Darker

■

Instrument panel light bright-
ness adjustment

The brightness of the instrument
panel lights can be adjusted sepa-
rately for when the tail lights are on
and off.

■

The clocks can be adjusted
on the audio system
screen.

Refer to “MULTIMEDIA
OWNER’S MANUAL”.

Changing the instrument
panel light brightness

Adjusting the clock

2-1. Instrument cluster

Vehicle

statu

information an

dicator

■

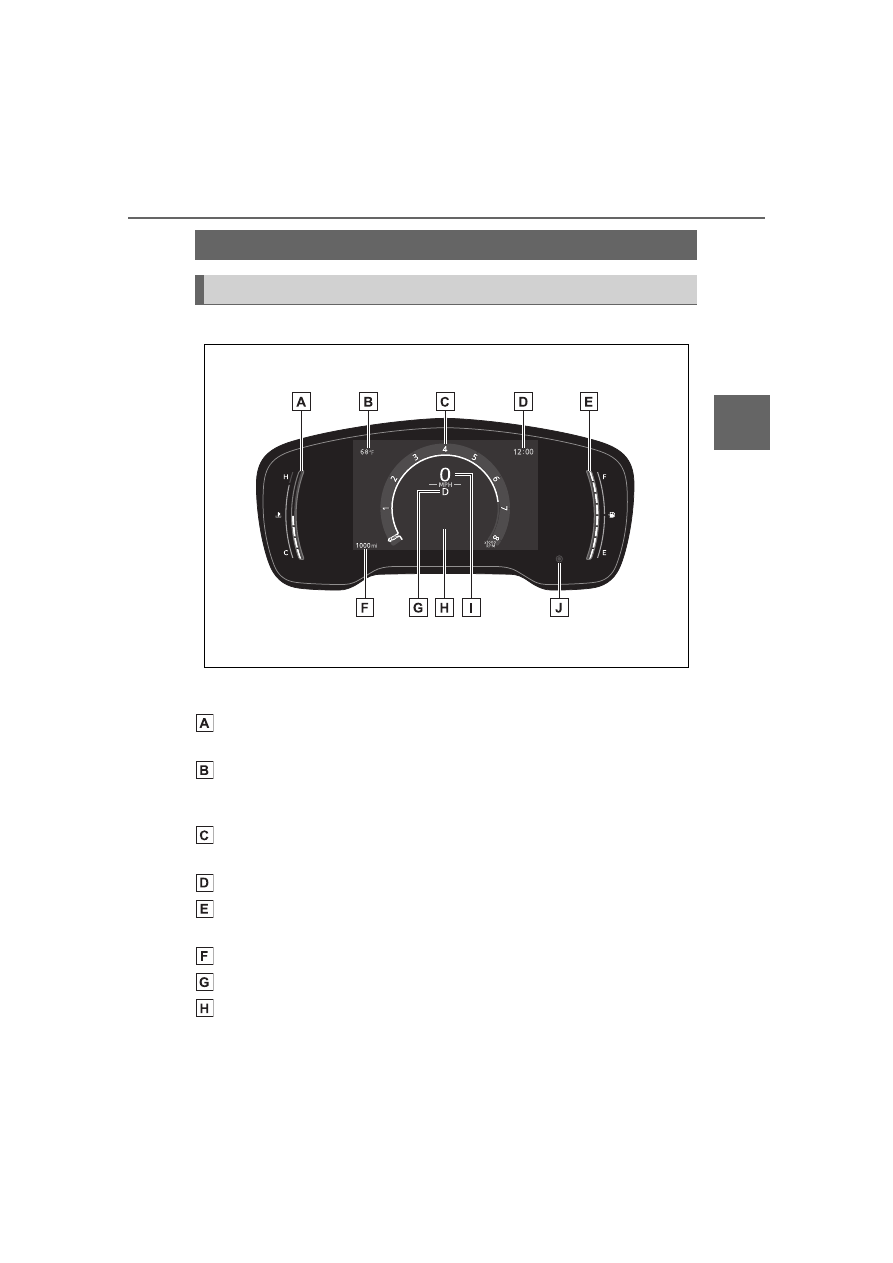

Locations of gauges and meters

The units of measure may differ depending on the intended destination of
the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Analog speedometer/Tachometer

This setting can be changed on the setting screen. (

Clock (

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter display (



P.82)

Shift position indicator (

P.170)

Multi-information display

Presents the driver with a variety of vehicle data (



P.84)

Gauges and meters (7-inch display)

Meter display

2-1. Instrument cluster

Displays warning messages if a malfunction occurs (



Digital speedometer
Display change button (

P.82)

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

P.84

■

Customization

The gauges and meters can be cus-
tomized in

of the multi-informa-

tion display. (



■

Changing the display

Press the display change button

until the desired item is dis-

played.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.432)

Odometer and trip meter

display

2-1. Instrument cluster

Vehicle

statu

information an

dicator

■

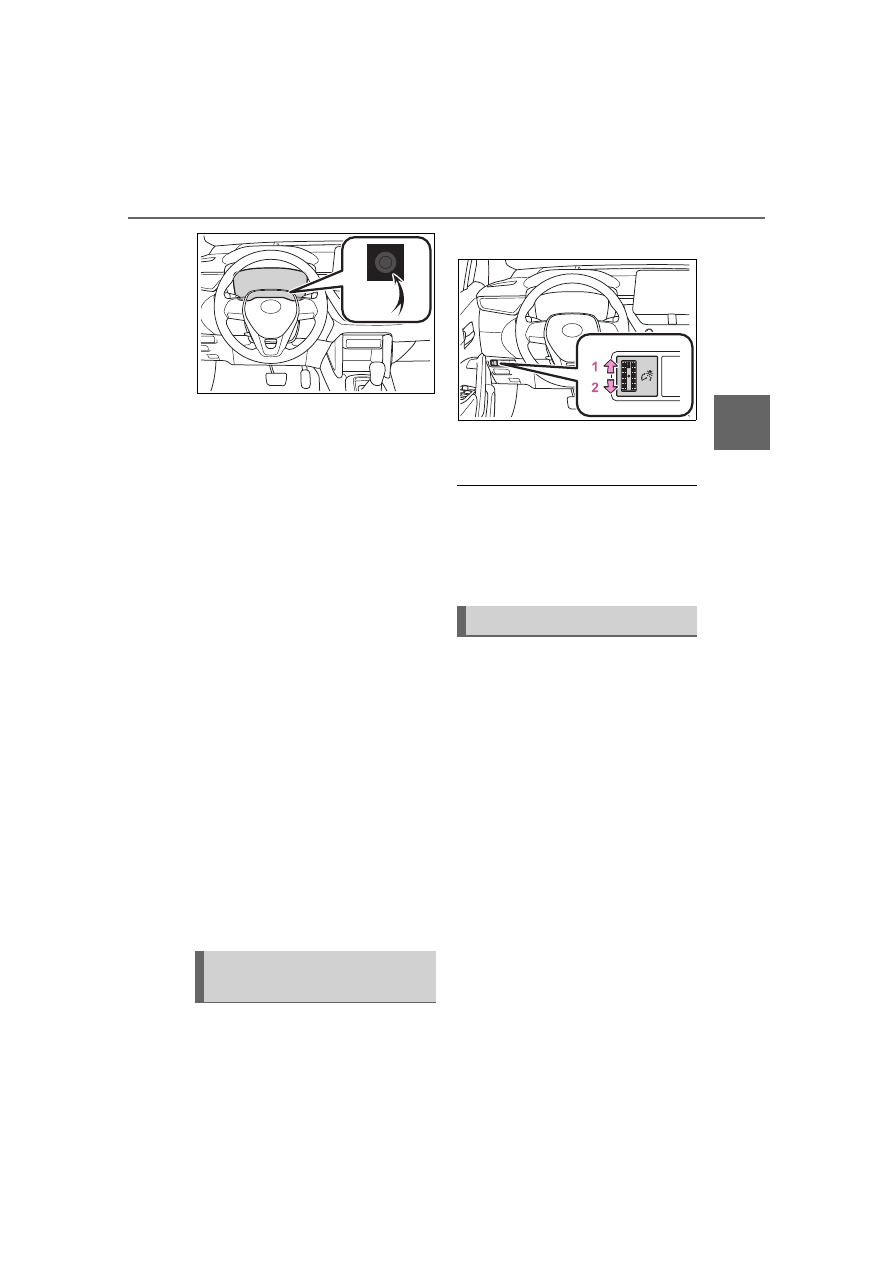

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.

To reset, display the desired trip
meter and press and hold the dis-
play change button.



Distance until next engine oil
change

Displays the distance the vehicle
can be driven until an oil change is
necessary.

■

Pop-up display

Distance until the next engine oil
change will be displayed when a
warning message indicating that
oil maintenance should be per-
formed soon or is required is
displayed.

The brightness of the instrument

panel lights can be adjusted.

Brighter

Darker

■

Instrument panel light bright-
ness adjustment

The brightness of the instrument
panel lights can be adjusted sepa-
rately for when the tail lights are on
and off.

■

The clocks can be adjusted
on the audio system
screen.

Refer to “MULTIMEDIA
OWNER’S MANUAL”.

Changing the instrument
panel light brightness

Adjusting the clock

2-1. Instrument cluster

■

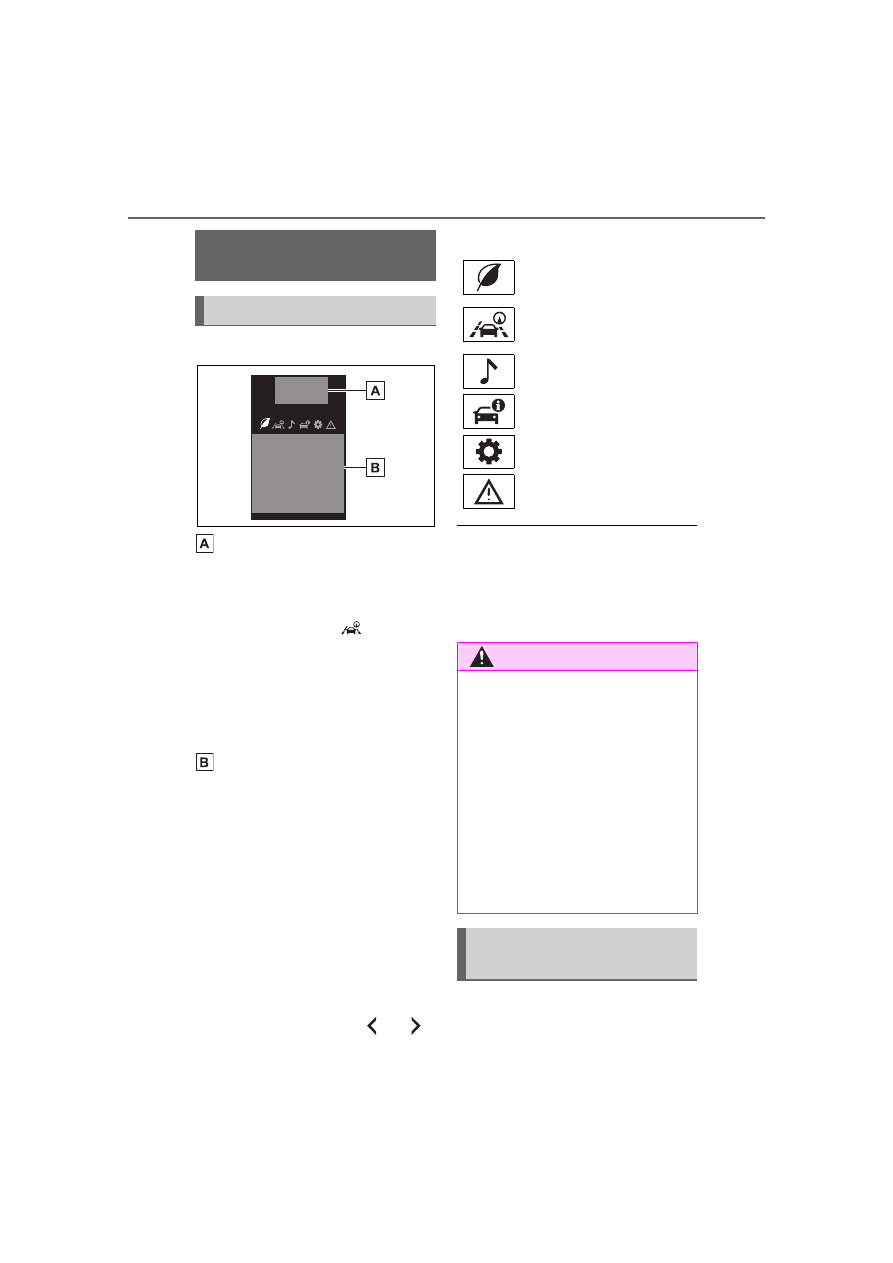

Display

Driving support system status

display area

Displays an image when the follow-

ing systems are operating and a
menu icon other than

selected:

• LTA (Lane Tracing Assist)

• LDA (Lane Departure Alert)

• Dynamic radar cruise control

• RSA (Road Sign Assist) (if

equipped) (



P.227)

Content display area

By selecting menu icons on the

multi-information display, a variety

of driving-related information can

be displayed. The multi-information

display can also be used to change

display settings and other vehicle

settings.
Warning or advice pop-up displays

are also displayed in certain situa-

tions.

■

Menu icons

The menu icons will be dis-
played by pressing the

meter control switch.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is

operated using the meter control

Multi-information dis-

play (4.2-inch display)

Display and menu icons

Driving information display

(



P.85)

Driving support system

information display

(



P.87)

Audio system-linked dis-

play (

P.87)

Vehicle information dis-

play (

P.87)

Settings display (



Warning message display

(



WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures

P.79, 82

Changing the meter dis-

play

2-1. Instrument cluster

Vehicle

statu

information an

dicator

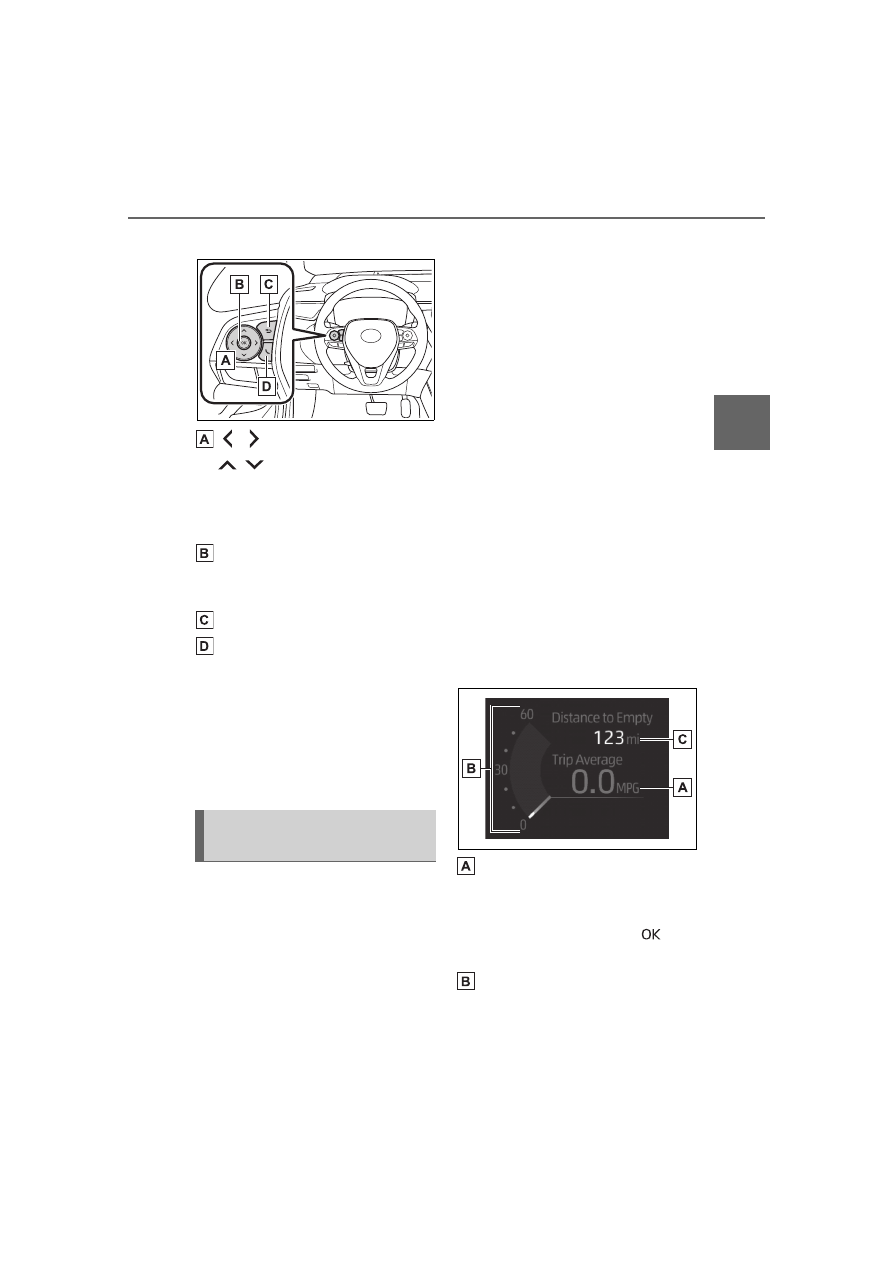

switches.

: Select menu icons

: Change displayed

content, scroll up/down the
screen and move the cursor
up/down

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

■

Display items



Speedometer display/Driving
range



Fuel economy



Eco Driving Indicator/Driving
range

■

Speedometer display/Driv-
ing range



Speedometer display



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Fuel economy

Use the displayed values as a ref-
erence only.

Average fuel economy (after
reset)

To reset the average fuel economy

display, press and hold the

meter control switch.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Content of driving infor-
mation

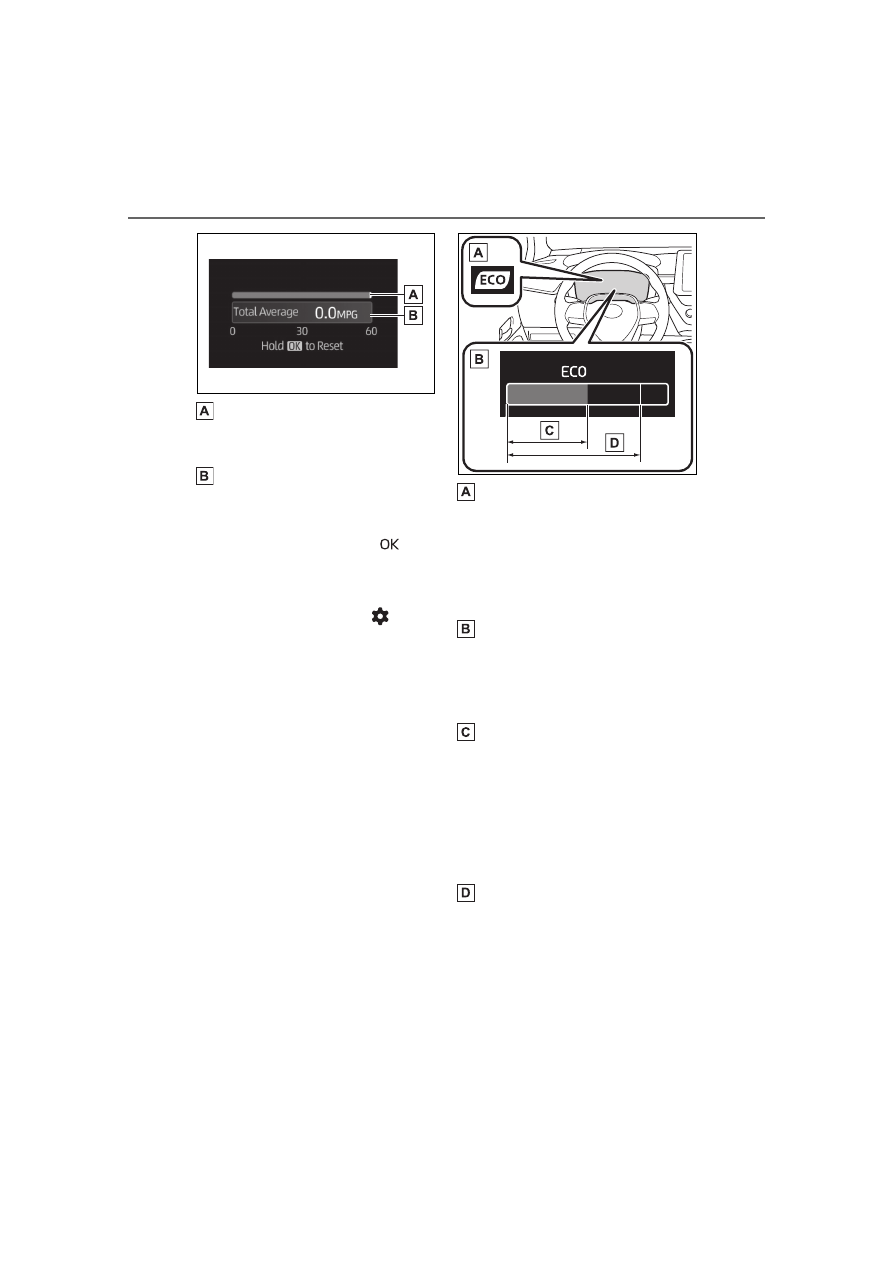

2-1. Instrument cluster

Driving range

Displays driving range with remain-
ing fuel.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.

The average fuel economy dis-

play can be changed in

(



Average fuel economy (after
start)

Displays the average fuel con-
sumption since engine start.



Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

To reset the average fuel economy

display, press and hold the

meter control switch.

■

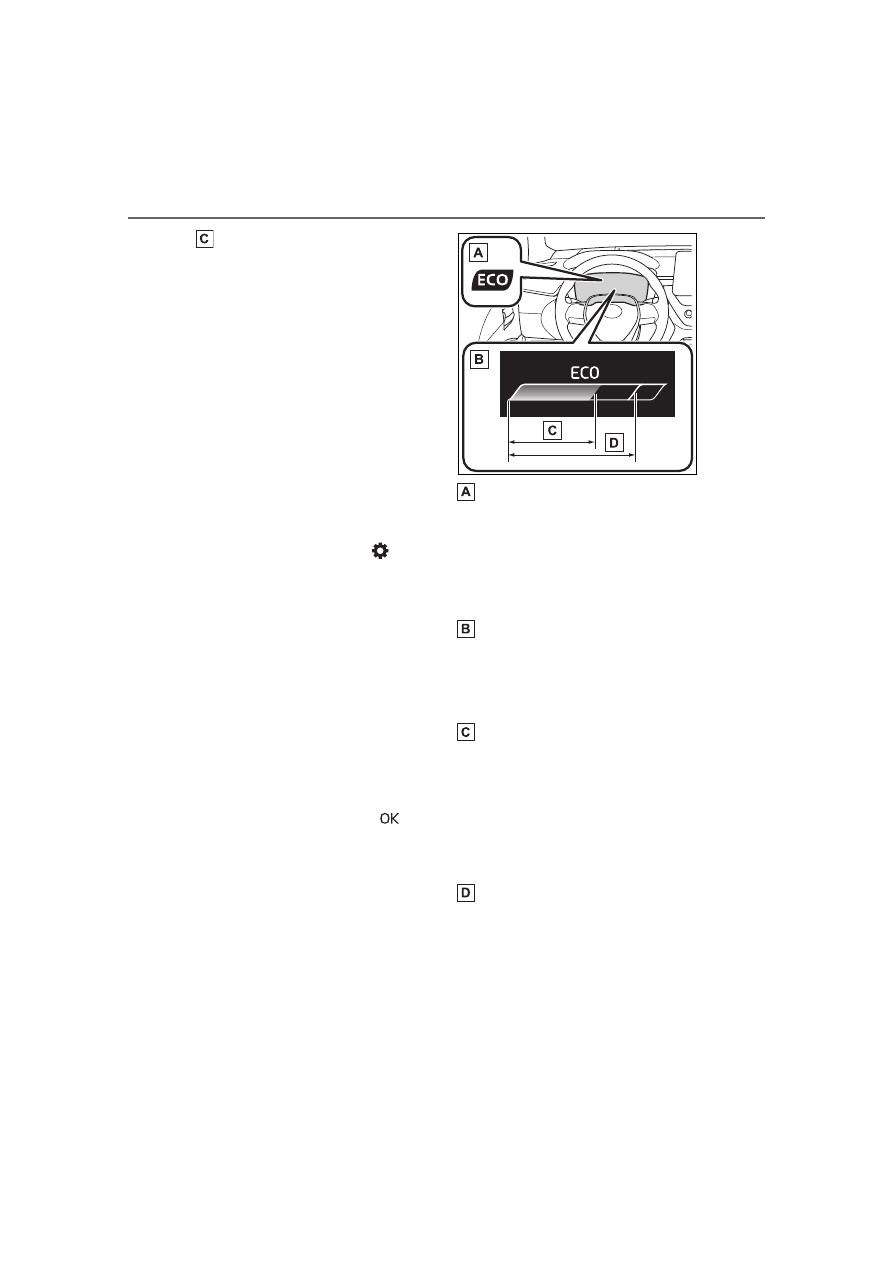

Eco Driving Indicator/Driv-
ing range



Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration
(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.

At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.

2-1. Instrument cluster

Vehicle

statu

information an

dicator

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-
ate under the following conditions:

●

The shift lever is in any position
other than D.

●

The vehicle speed is approxi-
mately 80 mph (130 km/h) or
higher.

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(

P.210)



LDA (Lane Departure Alert)
(

P.215)



PCS (Pre-Collision System)
(

P.200)



Dynamic radar cruise control
(

P.229)



RSA (Road Sign Assist) (if
equipped) (

P.227)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (head-
ing-up display)

The operating conditions of the
audio system can be displayed
on the multi-information display.

■

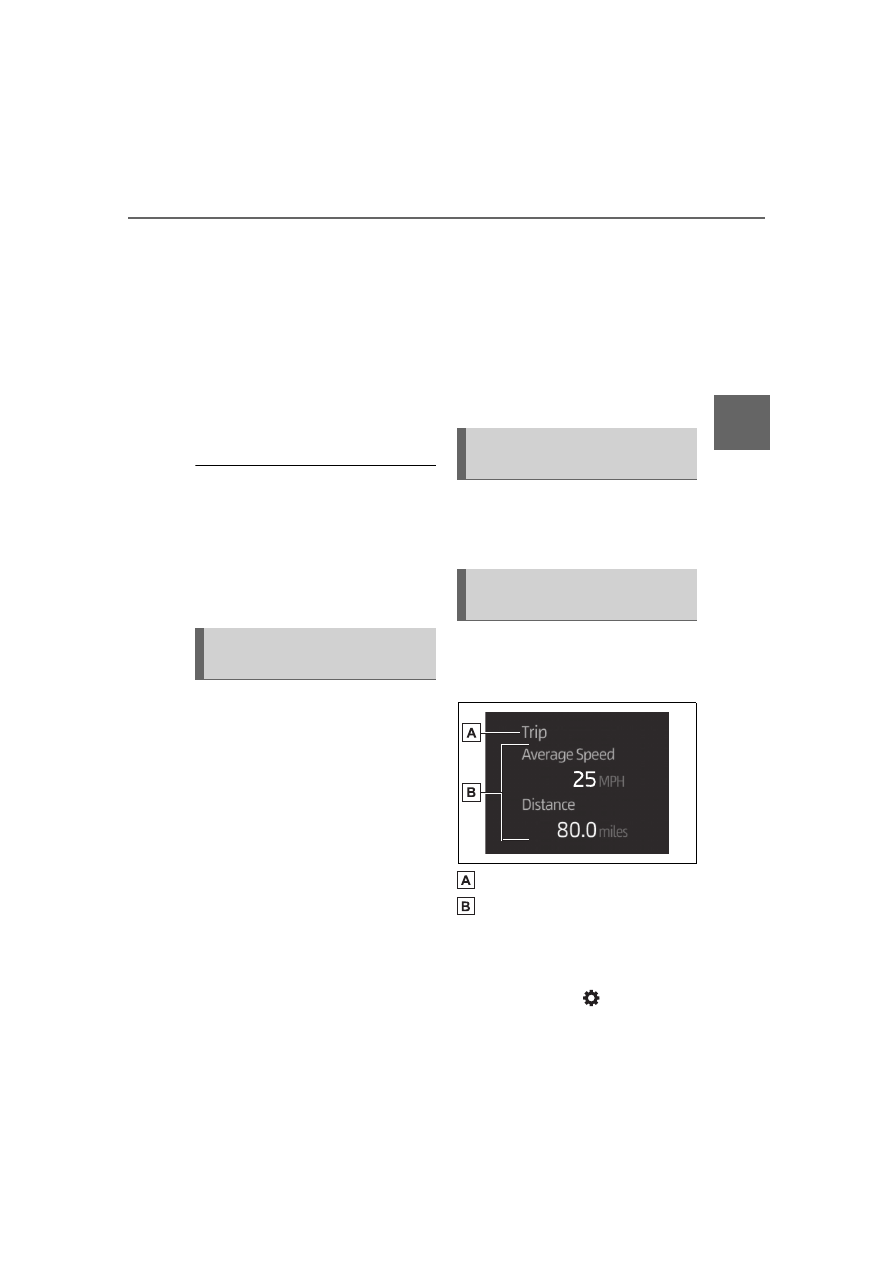

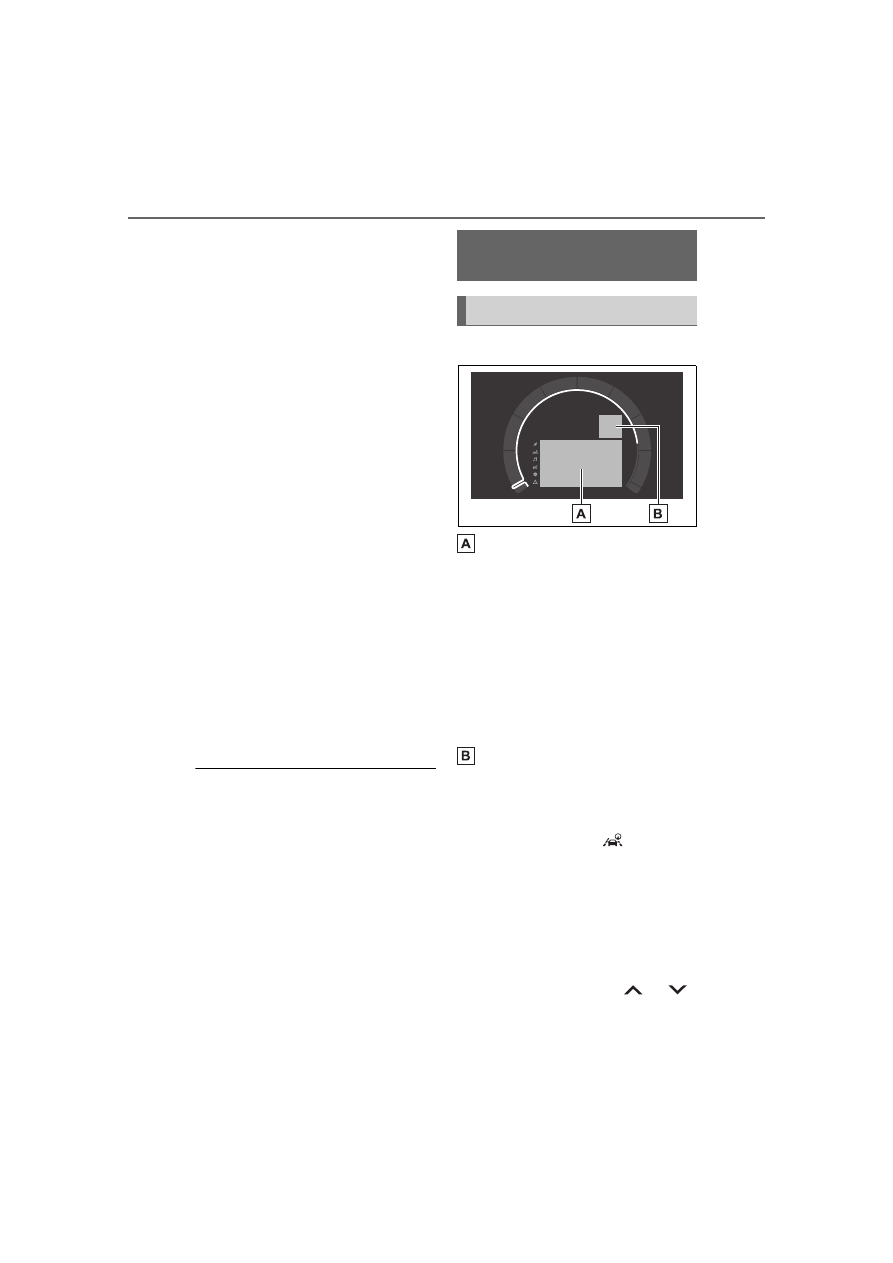

Drive information

Displays drive information such as
the following:

Drive information type

Drive information items

Displays the following depend-
ing on which drive information
type and drive information items

were selected in

. (



After start

Driving support system
information display

Audio system-linked dis-
play (if equipped)

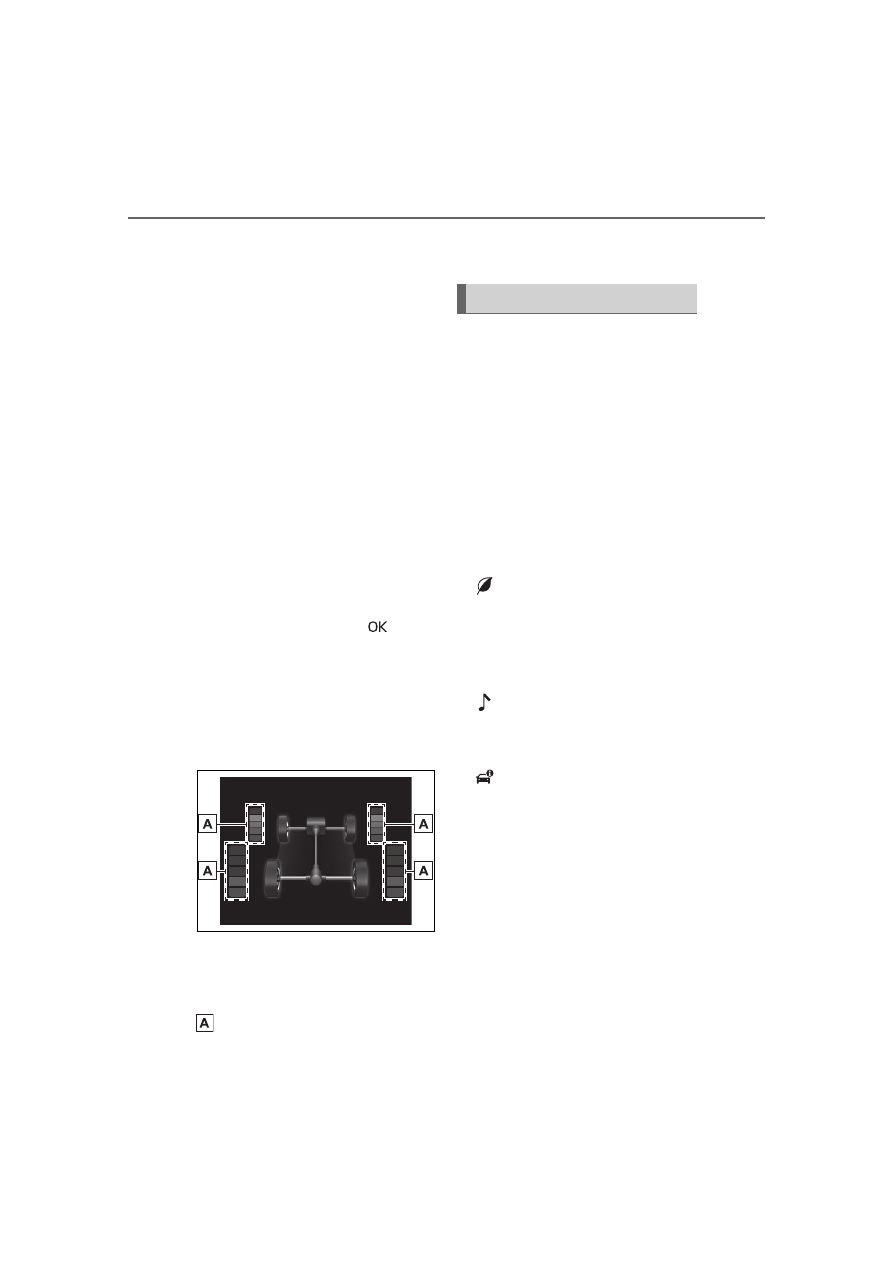

Vehicle information dis-
play

2-1. Instrument cluster

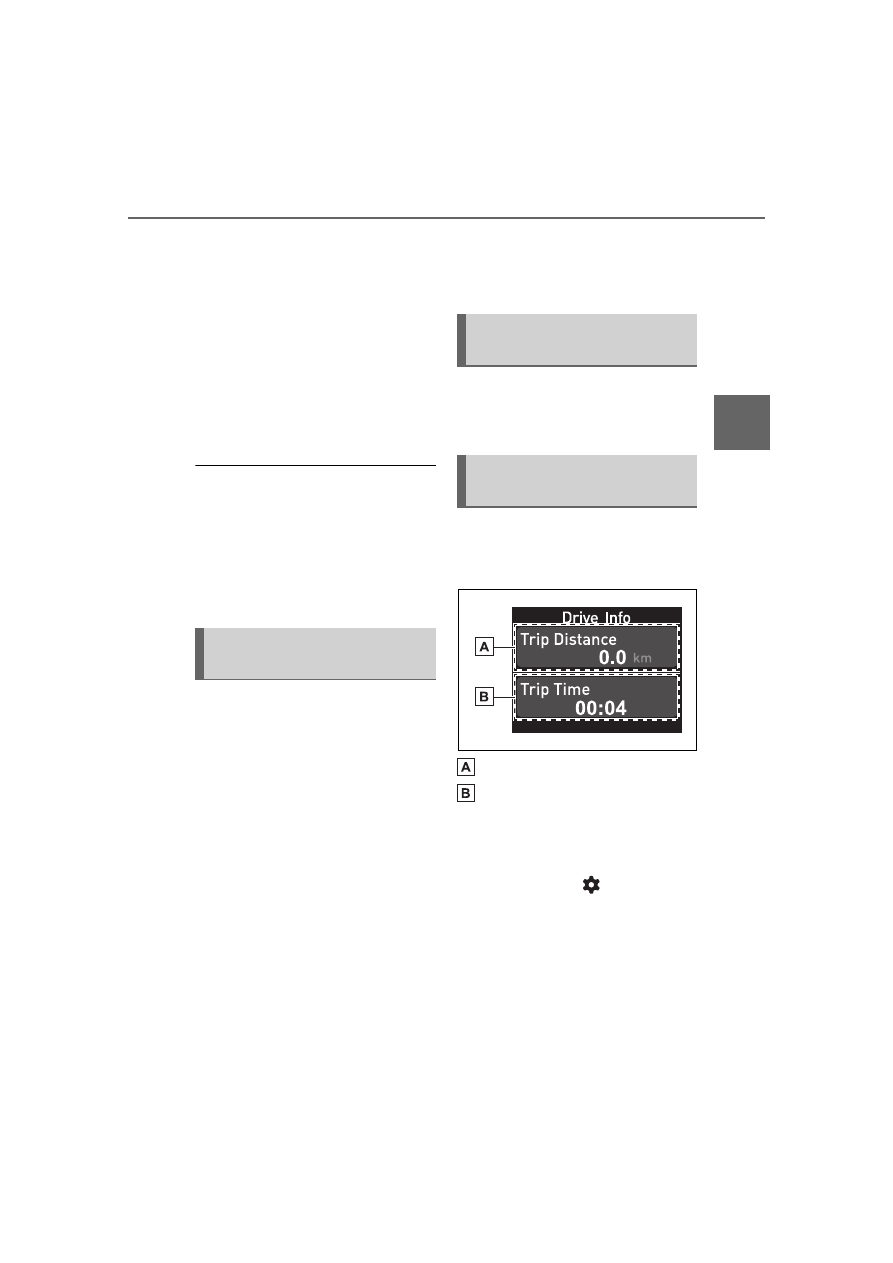

• Distance: Displays the distance

driven since engine start

• Elapsed time: Displays the

elapsed time since engine start

• Average vehicle speed: Displays

the average vehicle speed since
engine start



After reset

• Distance: Displays the distance

driven since the display was

reset

• Elapsed time: Displays the

elapsed time since the display

was reset

• Average vehicle speed: Displays

the average vehicle speed since

the display was reset

: To reset, display the desired item

and press and hold the

meter control switch.

■

Tire pressure



P.362

■

AWD operation status dis-
play (if equipped)

The illustration used is intended as
an example, and may differ from the
image that is actually displayed on
the multi-information display.

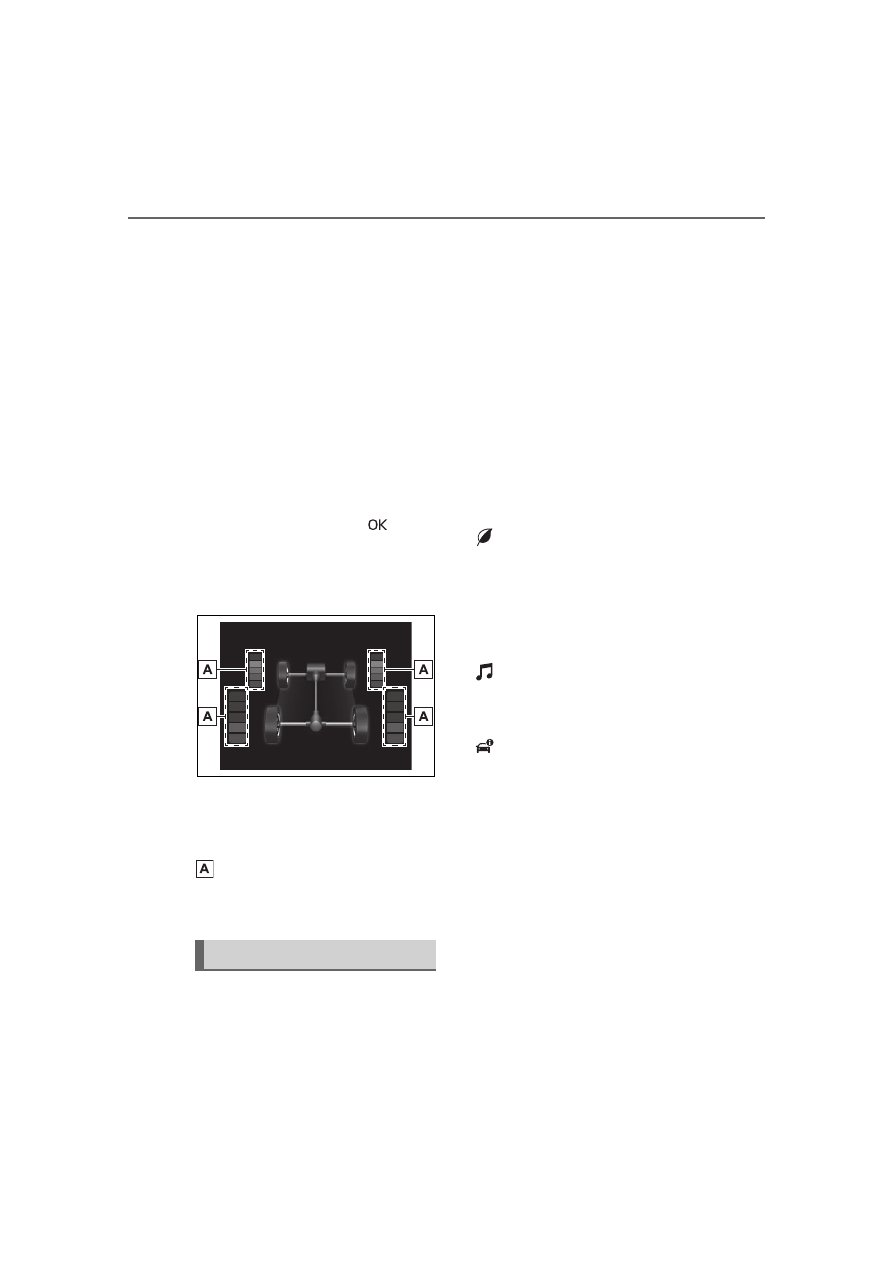

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Eco Driving Indicator Light

Select to enable/disable the Eco
Driving Indicator Light.



Fuel economy display

Select to change the average fuel
consumption display between after
start/after reset. (



P.85)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:

• Drive information type

Select to change the drive informa-
tion type display between after
start/after reset.

• Drive information items

Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.

Settings display

2-1. Instrument cluster

Vehicle

statu
s information

dicator



Pop-up display

Select to enable/disable pop-up

displays for each relevant system.



Multi-information display off

Select to turn the multi-information

display off.
To turn the multi-information display

on again, press any of the following

meter control switches



Default setting

Select to reset the meter display

settings to the default setting.

■

Vehicle functions and set-

tings that can be changed



P.459

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.



Stop & Start system opera-

tion status notification

Displays the status of the Stop &

Start system with a pop-up display.

(



P.250)



Stop & Start system settings

The length of time of the Stop &

Start system will operate when the

“A/C” switch of the air conditioning

system is on can be set to 2 differ-
ent levels in

of the multi-infor-

mation display. (



P.250)

Displays suggestions to the

driver in the following situations.

To select a response to a dis-

played suggestion, use the

meter control switches.

■

Suggestion to enable the

power back door (if

equipped)

If the power back door system is
disabled (setting on

set to

off) and the power back door

switch on the instrument panel

is operated, a suggestion mes-

WARNING

■

Cautions during setting up

the display

If the engine is running when

changing the display settings,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

Stop & Start system infor-

mation

Suggestion function (if

equipped)

2-1. Instrument cluster

sage will be displayed asking if
you wish to enable the power
back door system.

To enable the power back door
system, select “Yes”.

After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
engine switch has been turned
off, if the headlight switch is in
the “AUTO” position, a sugges-
tion message will be displayed
asking if you wish to turn the
headlights off.

To turn the headlights off, select
“Yes”.

If the driver's door is opened after
the engine switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Some functions can be customized.
(

P.459)

■

Display

Content display area

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.

Warning or advice pop-up displays
are also displayed in certain situa-
tions.

Driving support system status
display area

Displays an image when the follow-
ing systems are operating and a

menu icon other than

selected:
• LTA (Lane Tracing Assist)
• LDA (Lane Departure Alert)
• Dynamic radar cruise control

■

Menu icons

The menu icons will be dis-

played by pressing the

meter control switch.

Multi-information dis-

play (7-inch display)

Display and menu icons

2-1. Instrument cluster

Vehicle

statu
s information

dicator

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

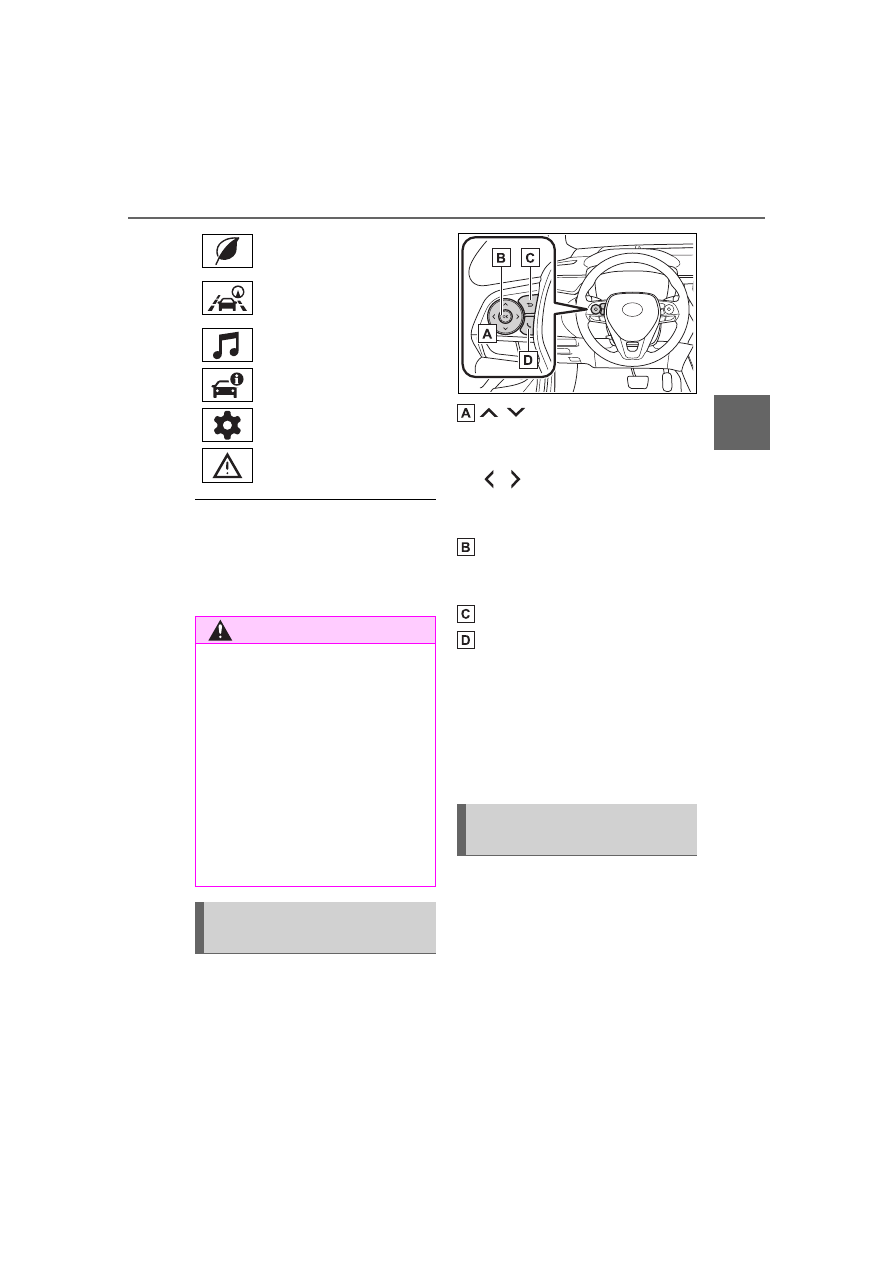

The multi-information display is

operated using the meter control

switches.

: Select menu icons,

scroll the screen and move

the cursor

: Change displayed

content, scroll the screen and

move the cursor
Press: Enter/Set

Press and hold: Reset/Dis-

play customizable items
Return to the previous screen
Call sending/receiving and

history display

Linked with the hands-free system,

sending or receiving call is dis-

played. For details regarding the

hands-free system, refer to the

“MULTIMEDIA OWNER’S MAN-

UAL”.

■

Display items



Fuel economy



Eco Driving Indicator/Driving

range

■

Fuel economy

Use the displayed values as a ref-

erence only.

Driving information display

(

Driving support system

information display

(

Audio system-linked dis-

play (if equipped) (

Vehicle information dis-

play (



Settings display (

Warning message display

(

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.79, 82

Changing the meter dis-

play

Content of driving infor-

mation

2-1. Instrument cluster

Current fuel consumption

Displays instantaneous current fuel
consumption.

Average fuel economy (after
start)

To reset the average fuel economy

display, press and hold the

meter control switch.

The average fuel economy dis-

play can be changed in

(

P.94)



Average fuel economy (after
start)

Displays the average fuel con-
sumption since engine start.



Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

Eco Driving Indicator/Driv-
ing range



Eco Driving Indicator

Eco Driving Indicator Light

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.

At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.

2-1. Instrument cluster

Vehicle

statu

information an

dicator

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-
ate under the following conditions:

●

The shift lever is in any position
other than D.

●

The vehicle speed is approxi-
mately 80 mph (130 km/h) or
higher.

■

Driving support system
information

Select to display the operational
status of the following systems:



Dynamic radar cruise control
(

P.229)



LTA (Lane Tracing Assist)
(

P.210)



LDA (Lane Departure Alert)
(

P.215)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (head-
ing-up display)

The operating conditions of the
audio system can be displayed
on the multi-information display.

■

Drive information

Displays drive information such as
the following:

Drive information 1

Drive information 2

Displays the following depend-
ing on which drive information
type and drive information items

were selected in

. (

P.94)



After start

• Distance: Displays the distance

driven since engine start

• Elapsed time: Displays the

elapsed time since engine start

• Average vehicle speed: Displays

Driving support system
information display

Audio system-linked dis-
play (if equipped)

Vehicle information dis-
play

2-1. Instrument cluster

the average vehicle speed since
engine start



After reset

• Distance: Displays the distance

driven since the display was

reset

• Elapsed time: Displays the

elapsed time since the display

was reset

• Average vehicle speed: Displays

the average vehicle speed since

the display was reset

: To reset, display the desired item

and press and hold the

meter control switch.

■

AWD operation status dis-
play (if equipped)

The illustration used is intended as
an example, and may differ from the
image that is actually displayed on
the multi-information display.

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Meter Type

Select to change the meter type.



Dial Type

Select to change the display of the
speedometer or tachometer.



Eco Driving Indicator Light

Select to enable/disable the Eco
Driving Indicator Light.



Fuel economy display

Select to change the average fuel
consumption display to any of the
following: trip average/total aver-
age/tank average. (


