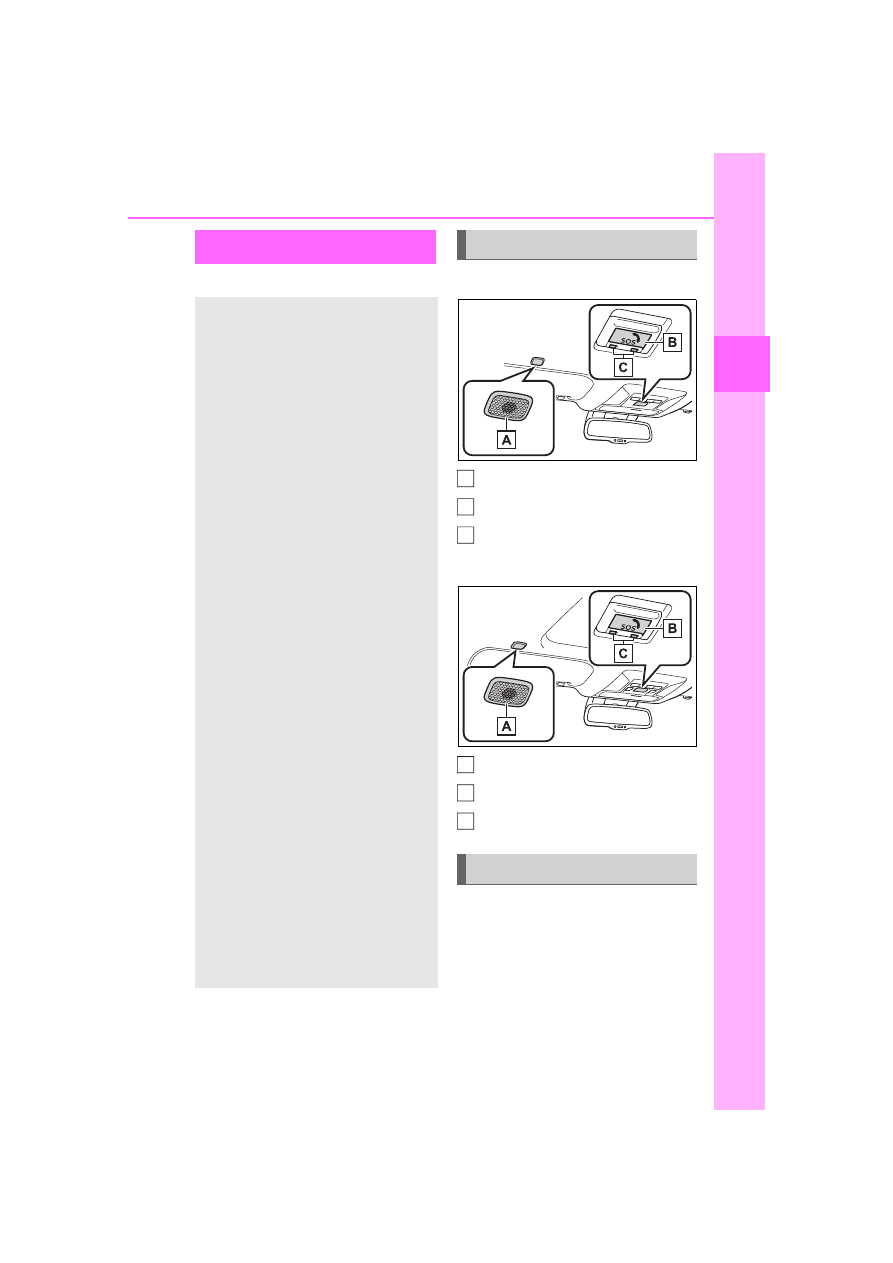

P.67

)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle
theft. (



P.67

)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-cen-
ter support. (

P.68

)



Enhanced Roadside Assis-
tance

Provides drivers various on-road
assistance. (

P.68

)

After you have signed the
Telematics Subscription Ser-
vice Agreement and are
enrolled, you can begin receiv-
ing services.

A variety of subscription terms
are available for purchase. Con-
tact your Toyota dealer, call the
following appropriate Customer
Experience Center or push the
“SOS” button in your vehicle for
further subscription details.



The United States

1-800-331-4331



Canada

1-888-869-6828



Puerto Rico

1-877-855-8377

■

Safety Connect Services Infor-
mation

●

Phone calls using the vehicle’s
Bluetooth

technology will not be

possible when Safety Connect is
active and in use.
Bluetooth

is a registered trade-

mark of Bluetooth SIG, Inc.

●

Safety Connect is available begin-
ning Fall 2009 on select Toyota
models (in the contiguous United
States only). Contact with the
Safety Connect response center
is dependent upon the telematics
device being in operative condi-
tion, cellular connection availabil-
ity, and GPS satellite signal
reception, which can limit the abil-
ity to reach the response center or
receive emergency service sup-
port. Enrollment and Telematics
Subscription Service Agreement
are required. A variety of subscrip-
tion terms are available; charges
vary by subscription term selected
and location.

●

Automatic Collision Notification,
Emergency Assistance and Stolen
Vehicle Location are available in
the United States, including
Hawaii and Alaska, Puerto Rico
and Canada, and Enhanced
Roadside Assistance are avail-
able in the United States, Puerto
Rico and Canada.

●

Automatic Collision Notification,
Emergency Assistance, Stolen
Vehicle and Enhanced Road
Assistance are not available in the
U.S. Virgin Islands.
For vehicles first sold in the U.S.
Virgin Islands, no Safety Connect
services will function in or outside
the U.S. Virgin Islands.

●

Safety Connect services are not
subject to section 255 of the Tele-
communications Act and the
device is not TTY compatible.

■

Languages

The Safety Connect response cen-

Subscription

1-3. Emergency assistance

For

safety and secu

rity

ter will offer support in multiple lan-
guages. The Safety Connect system
will offer voice prompts in English,
Spanish, and French. Please indi-
cate your language of choice when
enrolling.

■

When contacting the response
center

You may be unable to contact the
response center if the network is
busy.

When the engine switch is
turned to ON, the red indicator
light comes on for 2 seconds
then turns off. Afterward, the
green indicator light comes on,
indicating that the service is
active.

The following indicator light pat-
terns indicate specific system
usage conditions:



Green indicator light on =
Active service



Green indicator light flashing
= Safety Connect call in pro-
cess



Red indicator light (except at
vehicle start-up) = System
malfunction (contact your
Toyota dealer)



No indicator light (off) =
Safety Connect service not
active

■

Automatic Collision Notifi-
cation

In case of either airbag deploy-
ment or severe rear-end colli-
sion, the system is designed to
automatically call the response
center. The responding agent
receives the vehicle’s location
and attempts to speak with the
vehicle occupants to assess the
level of emergency. If the occu-
pants are unable to communi-
cate, the agent automatically
treats the call as an emergency,
contacts the nearest emer-
gency services provider to
describe the situation, and
requests that assistance be sent
to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety
Connect can work with local
authorities to assist them in
locating and recovering the
vehicle. After filing a police
report, call the Customer Experi-
ence Center at 1-800-331-4331
in the United States, 1-877-855-
8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow
the prompts for Safety Connect
to initiate this service.

In addition to assisting law
enforcement with recovery of a
stolen vehicle, Safety-Connect-
equipped vehicle location data
may, under certain circum-

Safety Connect LED light
Indicators

Safety Connect services

1-3. Emergency assistance

stances, be shared with third
parties to locate your vehicle.
Further information is available
at Toyota.com in the United
States, Toyotapr.com in Puerto
Rico and Toyota.ca in Canada.

■

Emergency Assistance But-
ton (“SOS”)

In the event of an emergency on
the road, push the “SOS” button
to reach the Safety Connect
response center. The answering
agent will determine your vehi-
cle’s location, assess the emer-
gency, and dispatch the
necessary assistance required.

If you accidentally press the “SOS”
button, tell the response-center
agent that you are not experiencing
an emergency.

■

Enhanced Roadside Assis-
tance

Enhanced Roadside Assistance
adds GPS data to the already
included warranty-based Toyota
roadside service.

Subscribers can press the
“SOS” button to reach a Safety
Connect response-center agent,
who can help with a wide range
of needs, such as: towing, flat
tire, fuel delivery, etc. For a
description of the Enhanced
Roadside Assistance services
and their limitations, please see
the Safety Connect Terms and
Conditions, which are available
at Toyota.com in the United
States, Toyotapr.com in Puerto

Rico and Toyota.ca in Canada.

Important! Read this informa-
tion before using Safety Con-
nect.

■

Exposure to radio fre-
quency signals

The Safety Connect system
installed in your vehicle is a low-
power radio transmitter and
receiver. It receives and also
sends out radio frequency (RF)
signals.

In August 1996, the Federal
Communications Commission
(FCC) adopted RF exposure
guidelines with safety levels for
mobile wireless phones. Those
guidelines are consistent with
the safety standards previously
set by the following U.S. and
international standards bodies.



ANSI (American National
Standards Institute) C95.1
[1992]



NCRP (National Council on
Radiation Protection and
Measurement) Report 86
[1986]



ICNIRP (International Com-
mission on Non-Ionizing Radi-
ation Protection) [1996]

Those standards were based on
comprehensive and periodic
evaluations of the relevant sci-

Safety information for
Safety Connect

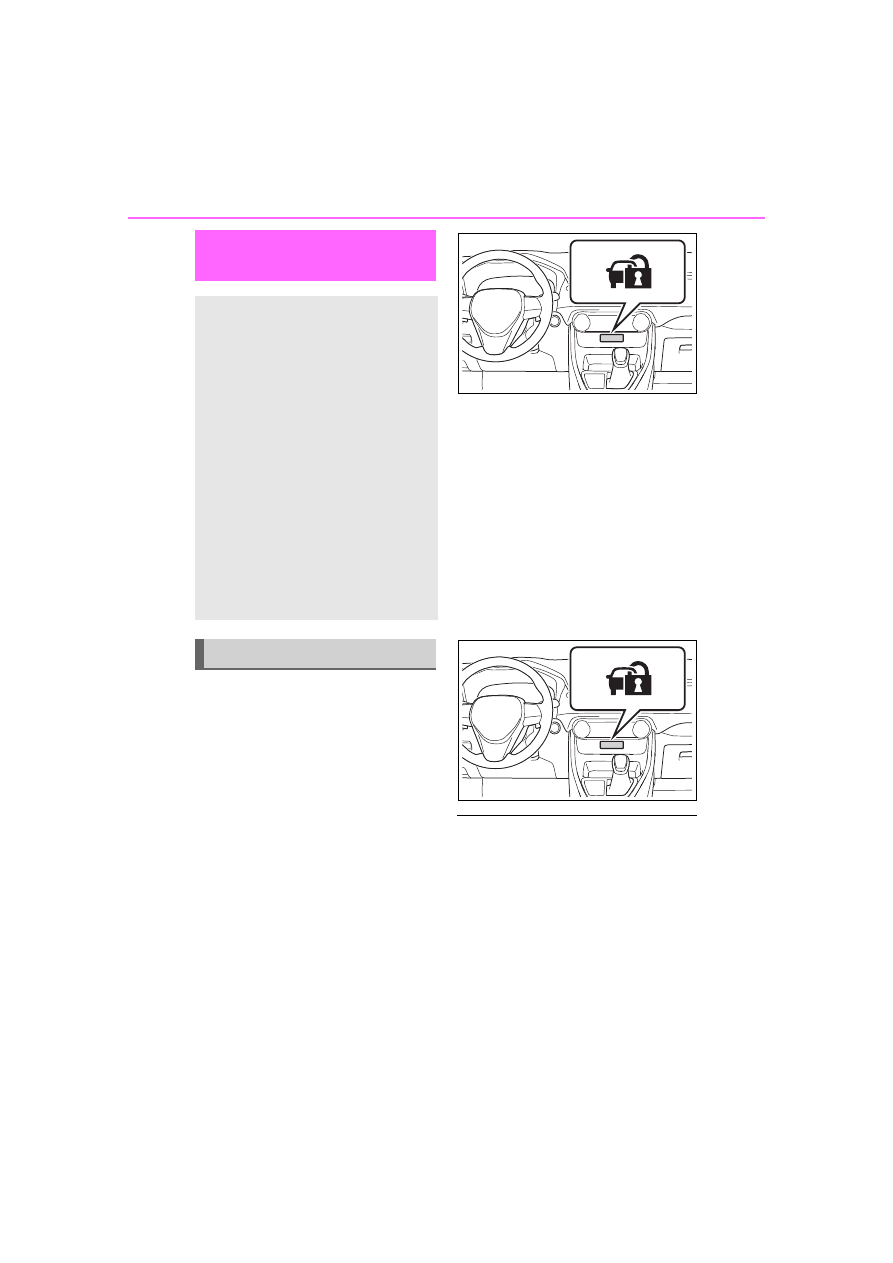

1-4. Theft deterrent system

1-4.Theft deterrent system



Vehicles without smart key
system

The indicator light flashes after
the key has been removed from
the engine switch to indicate
that the system is operating.
The indicator light goes off after
the registered key has been
inserted into the engine switch
to indicate that the system has
been canceled.



Vehicles with smart key sys-
tem

The indicator light flashes after
the engine switch has been
turned to OFF to indicate that
the system is operating.
The indicator light goes off after
the engine switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a maintenance-free
type engine immobilizer system.

■

Conditions that may cause the
system to malfunction

●

If the grip portion of the key is in
contact with a metallic object

●

If the key is in close proximity to or
touching a key to the security sys-
tem (key with a built-in transpon-
der chip) of another vehicle

Engine immobilizer

system

The vehicle’s keys have
built-in transponder chips
that prevent the engine from
starting if a key has not
been previously registered
in the vehicle’s on-board
computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft but
does not guarantee absolute
security against all vehicle
thefts.

Operating the system

1-4. Theft deterrent system

For
safety and secu

rity

: If equipped

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

Alarm

The alarm uses light and

sound to give an alert when

an intrusion is detected.
The alarm is triggered in the

following situations when

the alarm is set:



Vehicles without smart key

system: A locked door is

unlocked or opened in any

way other than using the

wireless remote control or

key. (The doors will lock

again automatically.)



Vehicles with smart key

system: A locked door is

unlocked or opened in any

way other than using the

entry function, wireless

remote control or mechani-

cal key. (The doors will lock

again automatically.)



For Canada: A locked door

is unlocked or opened in

any way other than using

the entry function (if

equipped) or wireless

remote control. (The doors

will lock again automati-

cally.)



The hood is opened.

1-4. Theft deterrent system

■

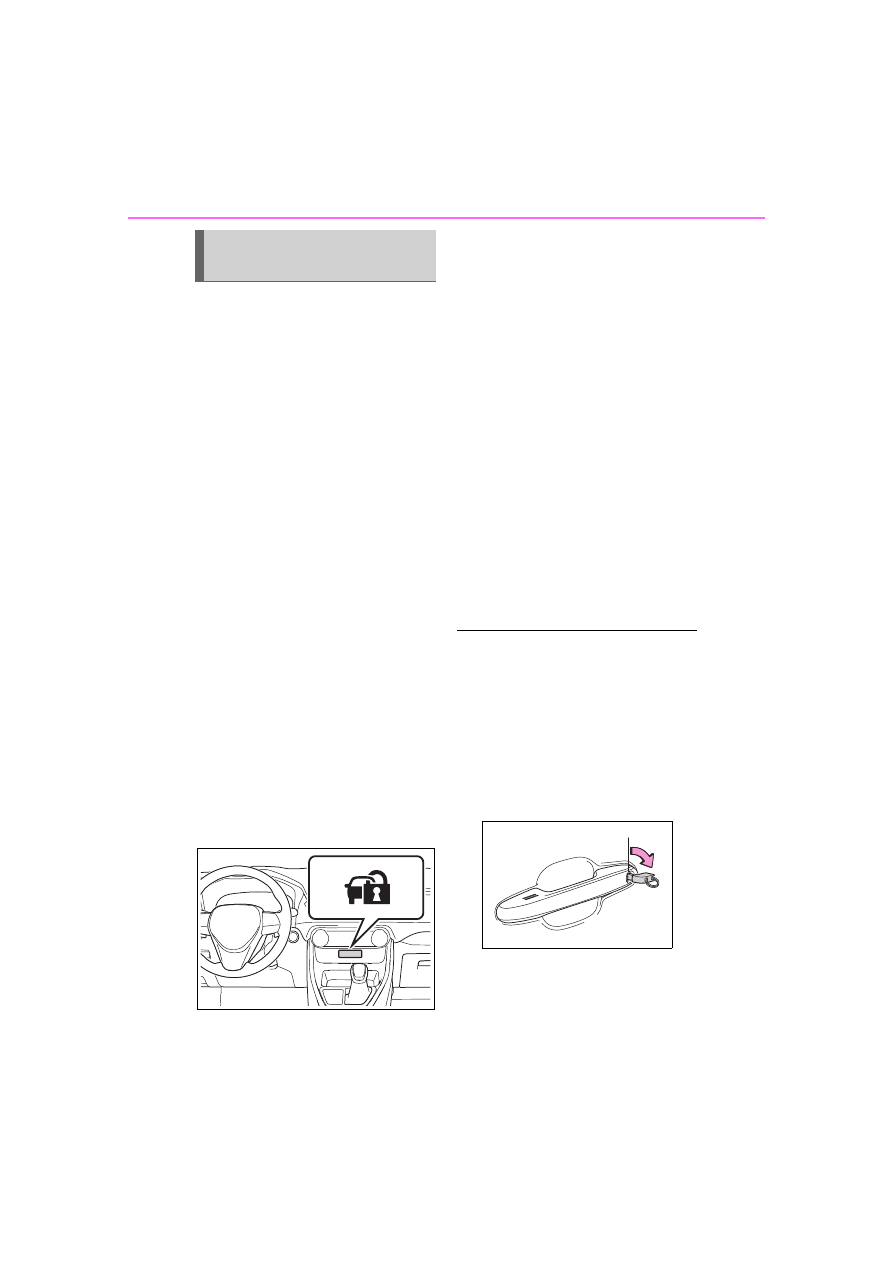

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The side windows and moon
roof (if equipped) or pan-
oramic moon roof (if
equipped) are closed before
the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors and hood, and
lock all the doors. The system
will be set automatically after 30
seconds.

Except for Canada, the alarm
can also be set using the
mechanical key.

The security indicator changes from
being on to flashing when the sys-
tem is set.

■

Canceling or stopping

Do one of the following to deac-
tivate or stop the alarm:



Except for Canada



Unlock the doors.



Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)



For Canada



Unlock the doors using the
entry function (if equipped) or
wireless remote control.



Start the engine. (The alarm
will be deactivated or stopped
after a few seconds.)

■

System maintenance

The vehicle has a maintenance-free
type alarm system.

■

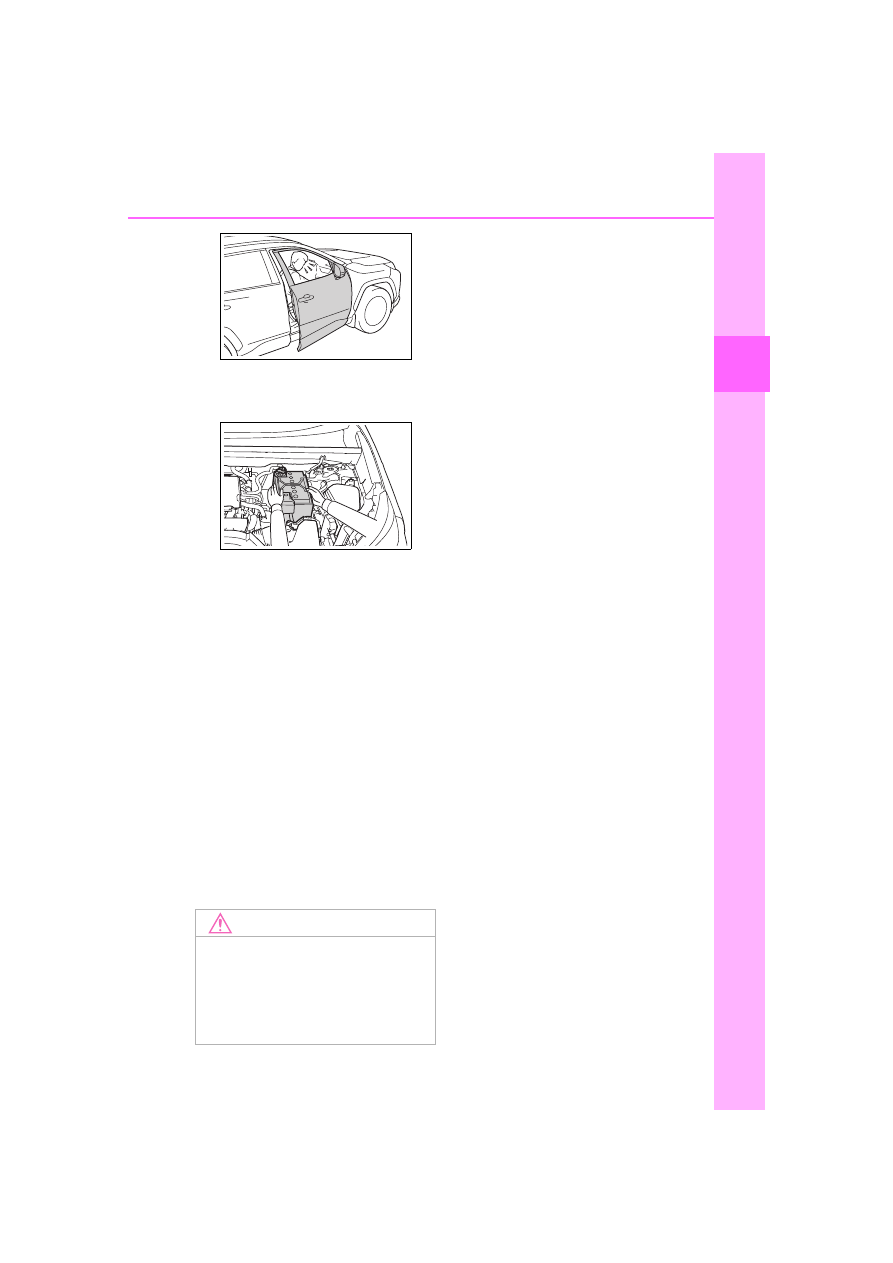

Triggering of the alarm

The alarm may be triggered in the
following situations:
(Stopping the alarm deactivates the
alarm system.)

●

For Canada: The doors are
unlocked using the key.

●

A person inside the vehicle opens
a door or hood, or unlocks the
vehicle using an inside lock but-
ton.

Setting/canceling/stop-
ping the alarm system

1-4. Theft deterrent system

For
safety and secu

rity

●

The battery is recharged or

replaced when the vehicle is

locked. (



P.474)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

battery.

■

Customization (for Canada)

The alarm can be set to deactivate

when the key (vehicles without

smart key system) or mechanical

key (vehicles with smart key sys-

tem) is used to unlock. (Customiz-

able features:

P.509)

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

Vehicle

statu

information an

dicator

Vehicle status informa-

tion and indicators

2-1. Instrument cluster

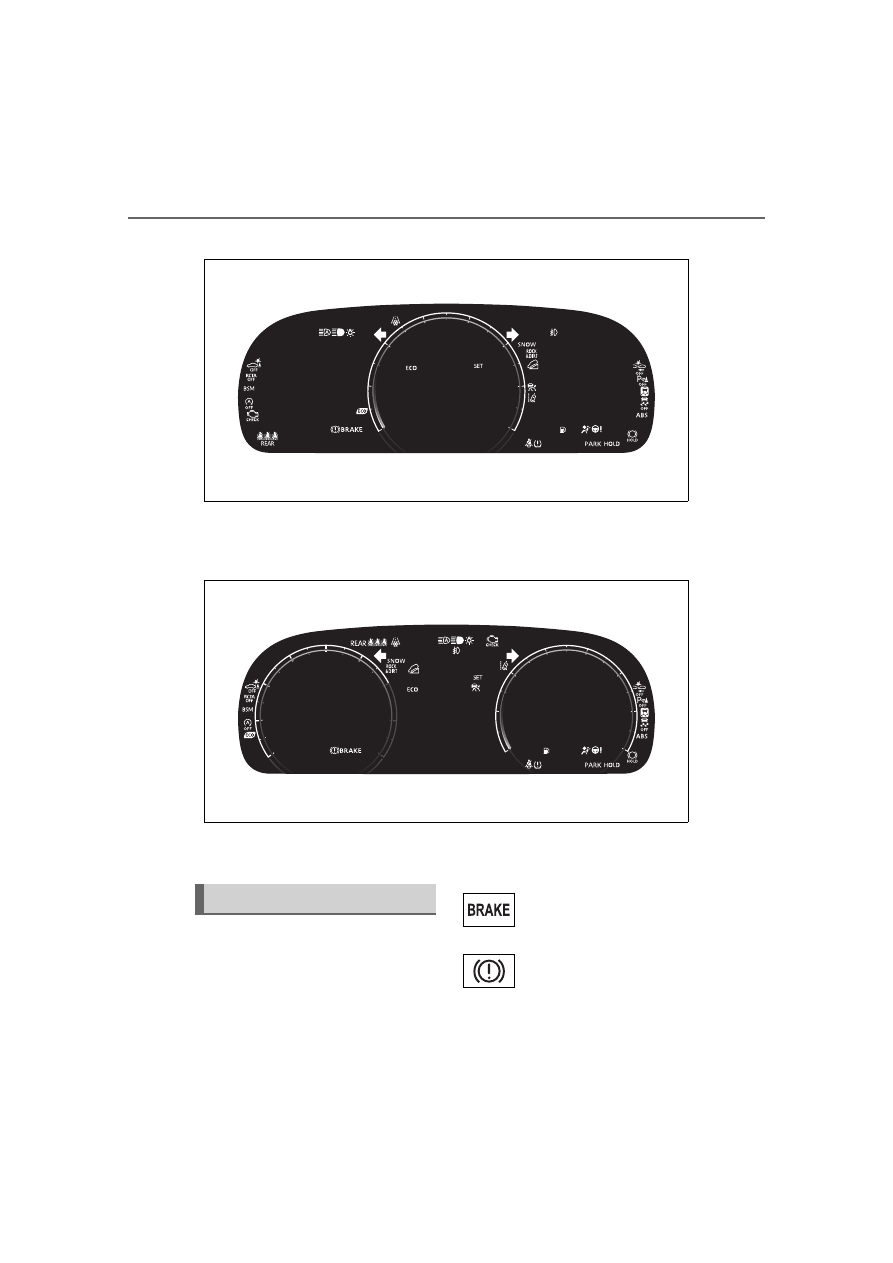

Warning lights and indica-

tors ...............................

Gauges and meters (with 7-

inch multi-information dis-
play) .............................

Gauges and meters (with

12.3-inch multi-informa-
tion display) ..................

Multi-information display

(with 7-inch multi-informa-
tion display) ..................

Multi-information display

(with 12.3-inch multi-infor-
mation display) ..........

102

Fuel consumption informa-

tion ............................

111

2-1. Instrument cluster

Vehicle

statu

information an

dicator

(Yellow)

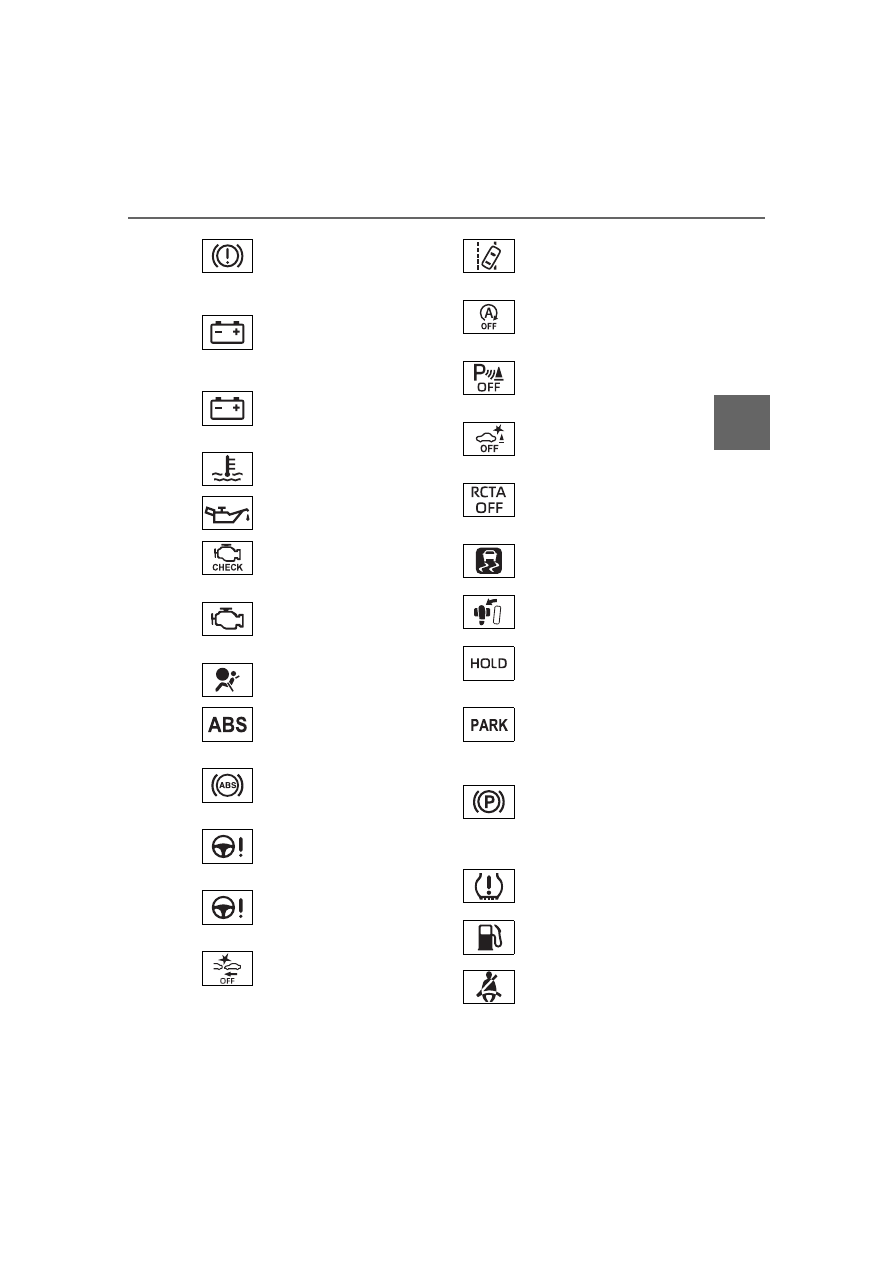

Brake system warning

light

(

P.447)

Charging system warning
light (vehicles without
12.3-inch multi-information

display)

(

P.447)

Charging system warning
light (vehicles with 12.3-
inch multi-information dis-

play)

(

P.447)

High coolant temperature

warning light

(



Low engine oil pressure

warning light

(



(U.S.A.)

Malfunction indicator

lamp

(

(Canada)

Malfunction indicator

lamp

(

SRS warning light

(

(U.S.A.)

ABS warning light

(

(Canada)

ABS warning light

(

(Red)

Electric power steering

system warning light

(

(Yellow)

Electric power steering

system warning light

(

(Flashes

or illumi-

nates)

PCS warning light

(

(Orange)

LTA indicator (

P.450)

(Flashes)

Stop & Start cancel indica-

tor

(if equipped)

(



P.450)

(Flashes)

Intuitive parking assist

OFF indicator

(if

equipped) (

P.450)

(Flashes)

PKSB OFF indicator

(if

equipped) (

P.451)

(Flashes)

RCTA OFF indicator

(if

equipped) (

P.451)

Slip indicator light

(



P.451)

Inappropriate pedal opera-

tion warning light

(



(Flashes)

Brake hold operated indi-

cator

(

(U.S.A.)

(Flashes)

Parking brake indicator
(



(Canada)
(Flashes)

Parking brake indicator
(



Tire pressure warning

light

(if equipped)

(



P.453)

Low fuel level warning
light (

P.453)

Driver’s and front passen-
ger’s seat belt reminder
light (

P.453)

2-1. Instrument cluster

:These lights turn on when the

engine switch is turned to ON to

indicate that a system check is

being performed. They will turn

off after the engine is started, or

after a few seconds. There may

be a malfunction in a system if

the light does not come on, or

turn off. Have the vehicle

inspected by your Toyota dealer.

:This light illuminates on the

multi-information display with a

message.

:Intuitive parking assist OFF indi-

cator turns on when the engine

switch is turned to ON while the

Intuitive parking assist function is

on. It will turn off after a few sec-

onds.

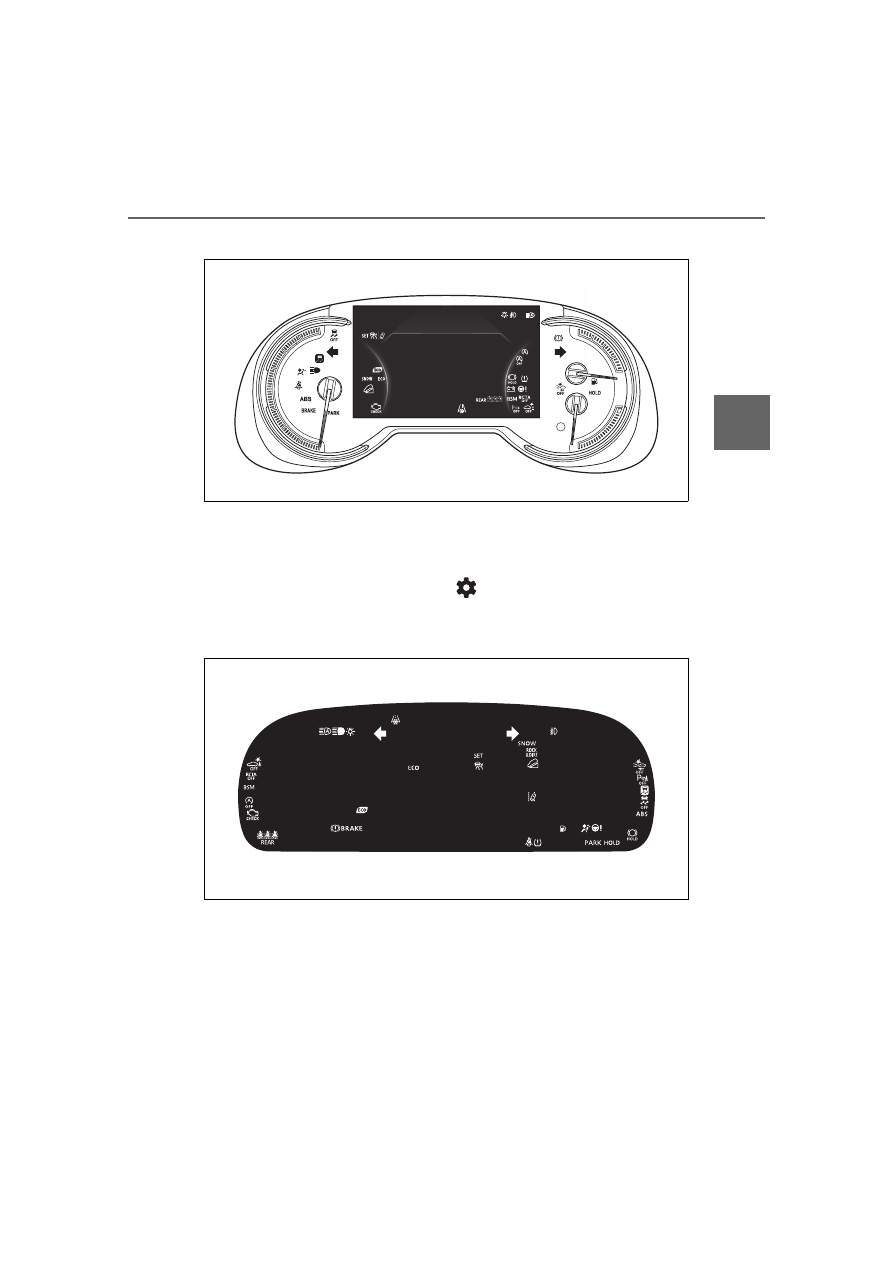

:Vehicles with 12.3-inch multi-

information display

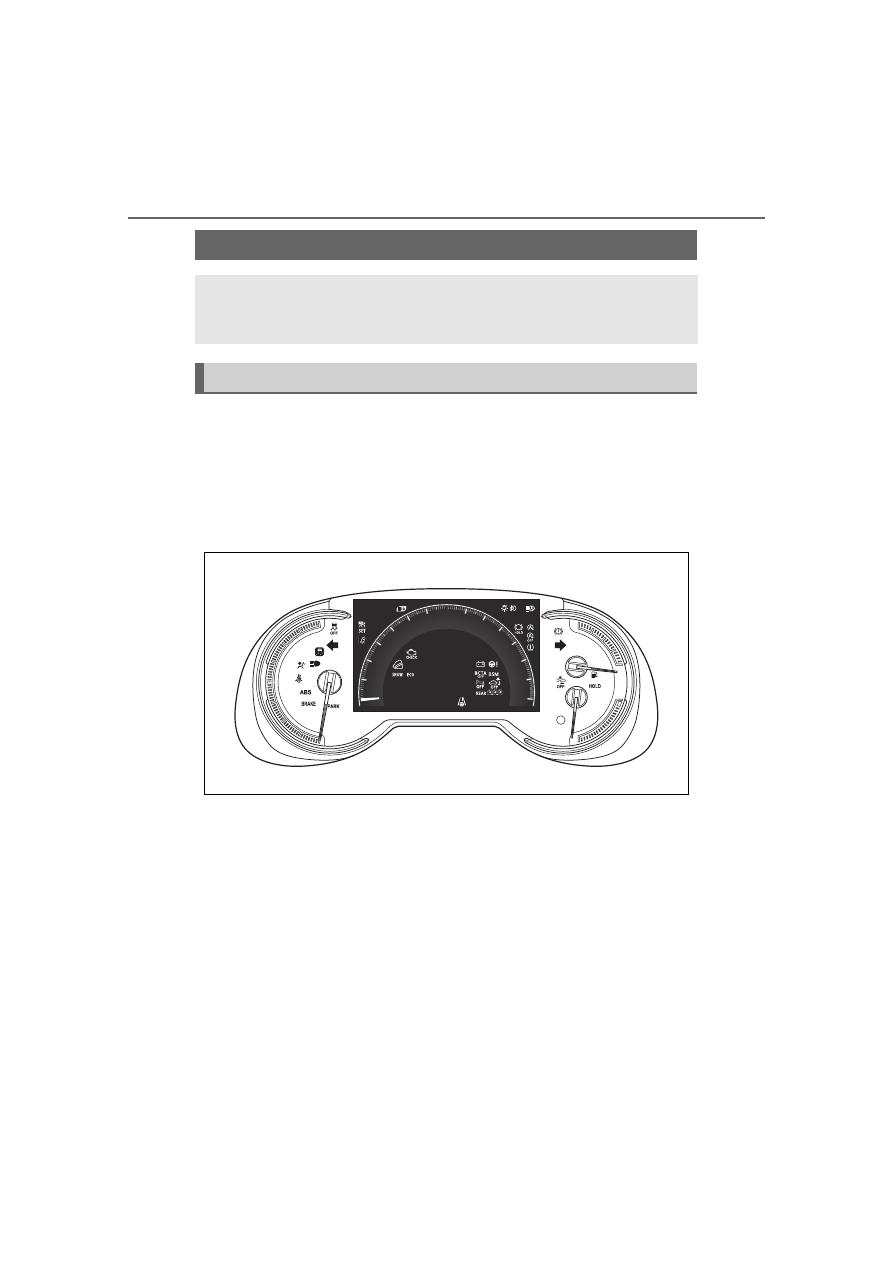

The indicators inform the driver

of the operating state of the

vehicle’s various systems.

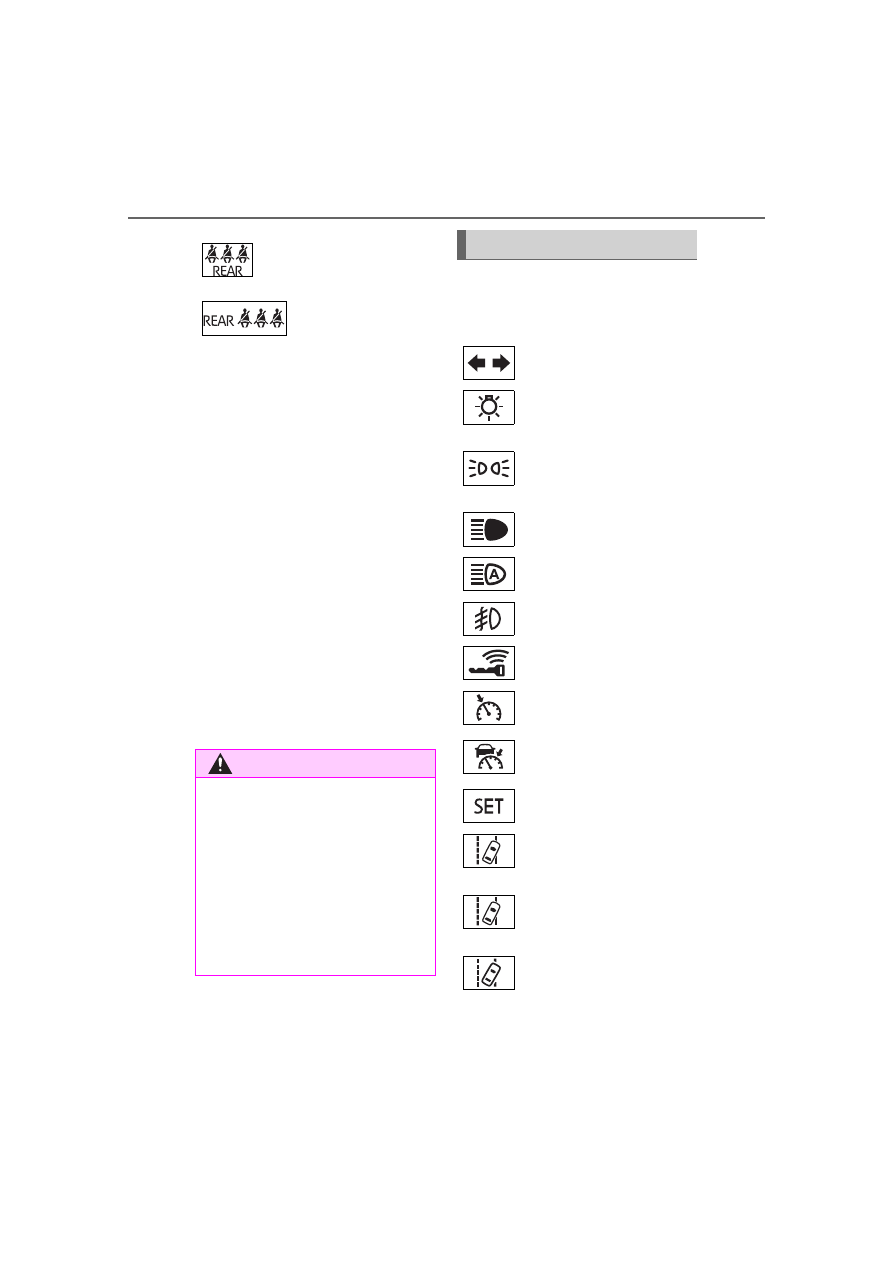

Rear passengers’ seat
belt reminder lights

(

P.454)

Rear passengers’

seat belt reminder

lights (

P.454)

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

engine, this could mean that

these systems are not available to

help protect you in an accident,

which could result in death or seri-

ous injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

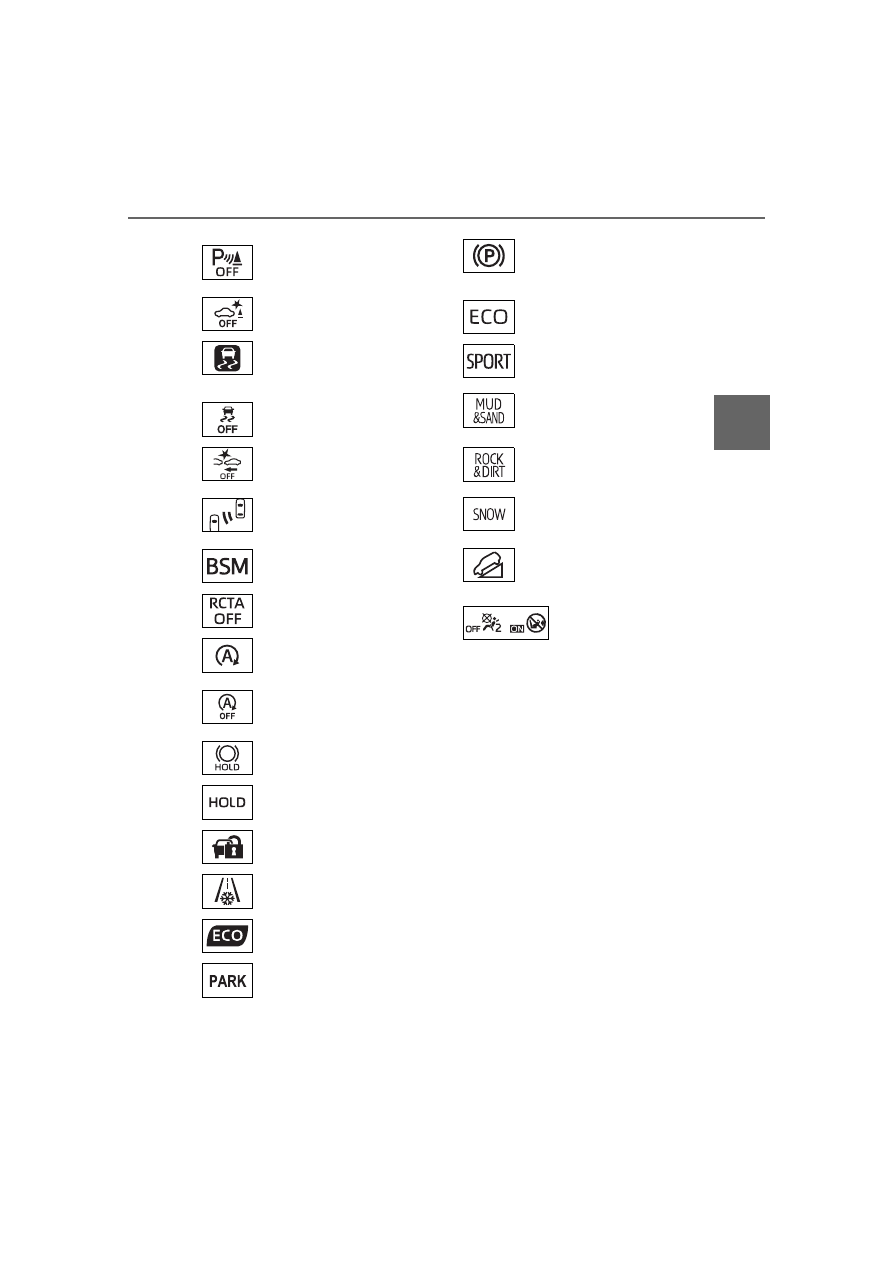

Indicators

Turn signal indicator

(



P.212)

(U.S.A.)

Headlight indicator

(



P.219)

(Canada)

Tail light indicator

(



P.219)

Headlight high beam indi-

cator (



P.222)

Automatic High Beam

indicator (

P.222)

Fog light indicator (if

equipped) (

P.226)

Smart key system indica-
tor

(



P.204)

Cruise control indicator

(



Dynamic radar cruise

control indicator

(



Cruise control “SET” indi-

cator (



(white)

LTA indicator

(

P.255)

(Green)

LTA indicator

(



P.239,

255)

(Orange)

(Flashes)

LTA indicator

(

P.255)

2-1. Instrument cluster

Vehicle

statu

information an

dicator

: This light illuminates on the

multi-information display with a
message.

: Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

: The light comes on when the

system is turned off.

: Intuitive parking assist OFF indi-

cator turns on when the engine
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

: These lights turn on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or

Intuitive parking assist

OFF indicator

*3, 4

(if

equipped) (



P.282)

PKSB OFF indicator

*3, 5

(if equipped) (



P.295)

(Flashes)

Slip indicator light

(

P.320)

VSC OFF indicator

*3, 5

(

P.320)

PCS warning light

*3, 5

(

P.242)

BSM outside rear view

mirror indicators

*5, 6

(if

equipped) (



P.276)

BSM indicator (if
equipped) (



P.275)

RCTA OFF indicator

*3, 5

(if equipped) (



P.288)

Stop & Start indicator

(if

equipped) (



P.304)

Stop & Start cancel indi-

cator

*3, 5

(if equipped)

(

P.305)

Brake hold standby indi-

cator

(



P.217)

Brake hold operated indi-

cator

(



P.217)

Security indicator

(

P.70, 72)

Low outside temperature

indicator

(

P.91, 86)

Eco Driving Indicator

Light

(

P.96)

(U.S.A.)

Parking brake indicator
(

P.213)

(Canada)

Parking brake indicator
(



P.213)

Eco drive mode indicator
(



Sport mode indicator
(



Mud & sand mode indica-
tor (if equipped)
(



P.313)

Rock & dirt mode indica-
tor (if equipped)
(



P.313)

Snow mode indicator (if
equipped) (

P.315)

Downhill assist control

system indicator

(if

equipped) (

P.316)

“AIR BAG ON/OFF”

indicator

*5, 8

(



P.43)

2-1. Instrument cluster

after a few seconds. There may
be a malfunction in a system if
the lights do not turn on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

: This light illuminates on the out-

side rear view mirrors.

: When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

: This light illuminates on the cen-

ter panel.

■

BSM (Blind Spot Monitor) out-
side rear view mirror indicators
(if equipped)

In order to confirm operation, the
BSM outside rear view mirror indica-
tors illuminate in the following situa-
tions:

●

When the engine switch is turned
to ON while the BSM function is

enabled on the

screen of the

multi-information display.

●

When the BSM function is

enabled on the

screen of the

multi-information display while the
engine switch is in ON.

If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.

If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction
in the system. If this occurs, have
the vehicle inspected by your
Toyota dealer.

2-1. Instrument cluster

Vehicle

statu

information an

dicator

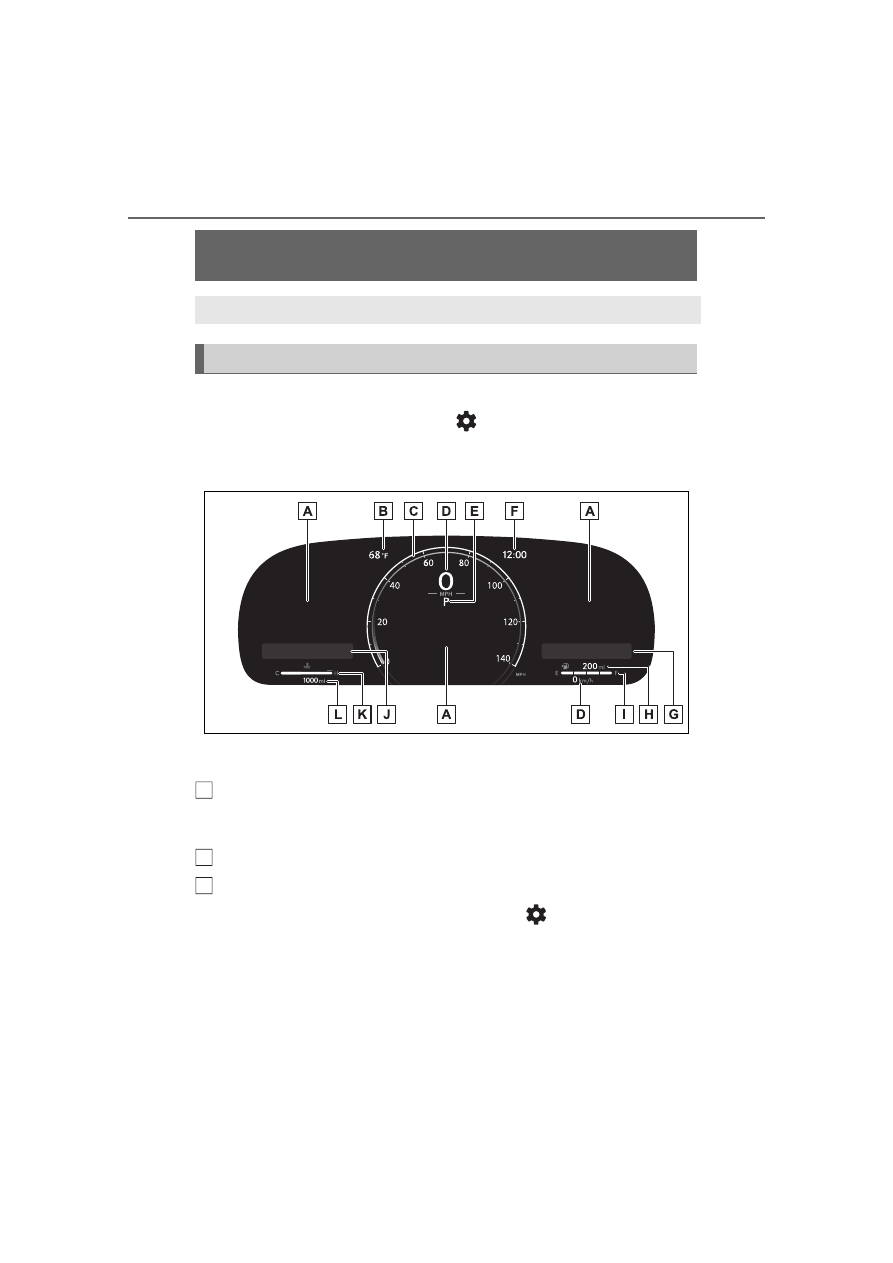

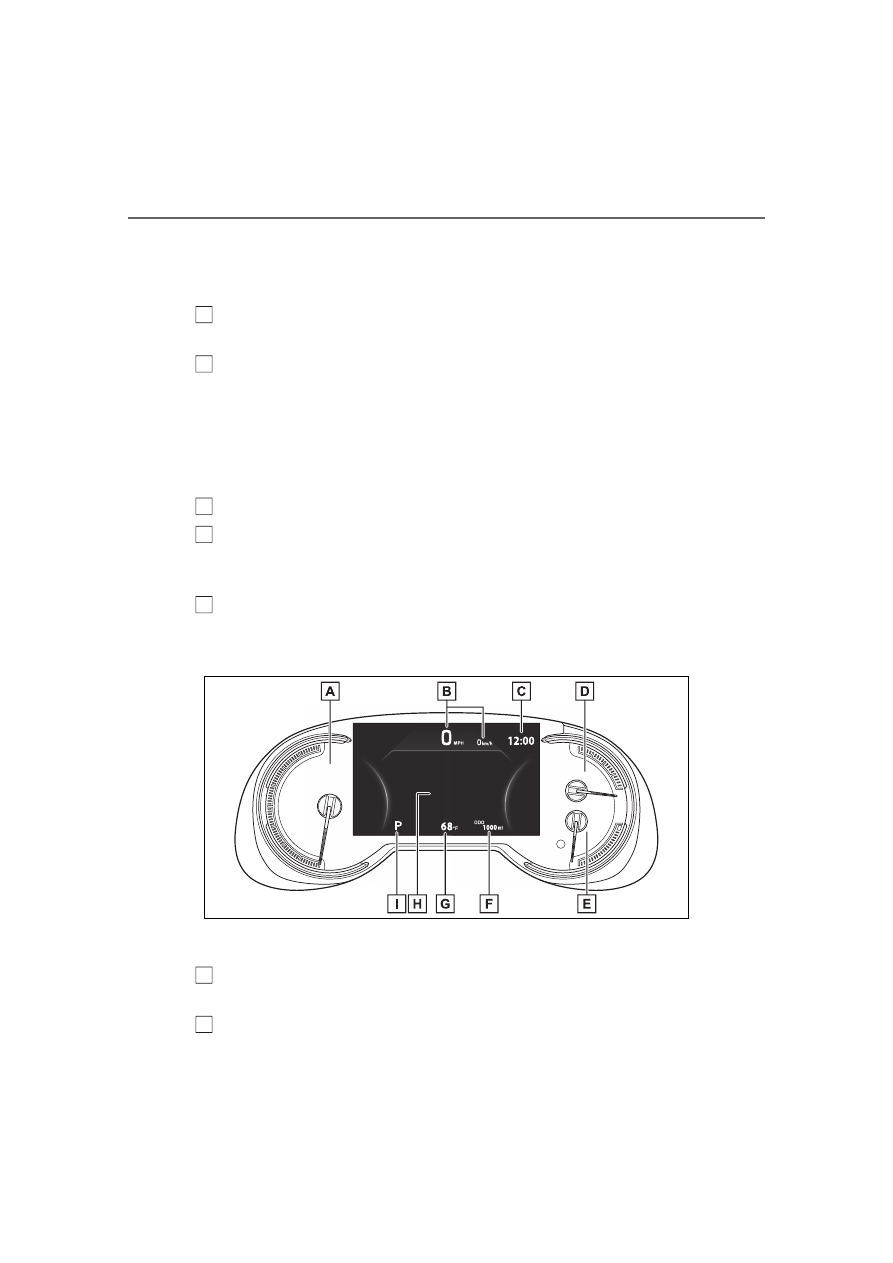

The display of the speedometer can be selected from two types,
analog or digital. (





Analog speedometer

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).

For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Gauges and meters (with 7-inch multi-information

display)

The meters display various drive information.

Meter display

2-1. Instrument cluster

• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven

Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (

P.86)

Multi-information display

Presents the driver with a variety of driving-related data (

P.93)

Displays warning messages if a malfunction occurs (



Shift position and shift range indicator

Displays the selected shift position or selected shift range (



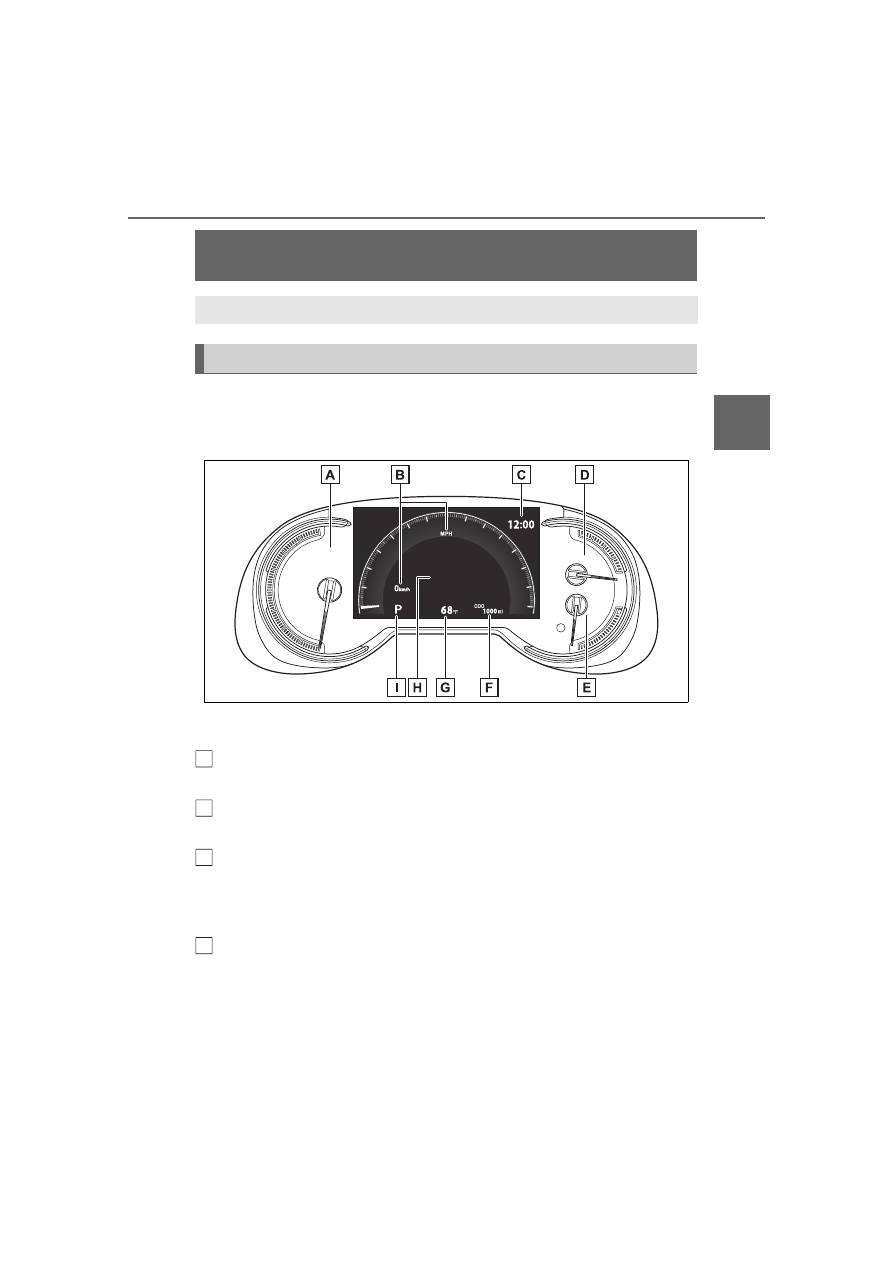

Digital speedometer

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

2-1. Instrument cluster

Vehicle

statu

information an

dicator

Displays the vehicle speed

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).

For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

In the following situations, the actual quantity of fuel remaining in the tank
may not be displayed correctly. Refer to P.85 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven

Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (

P.86)

Multi-information display

Presents the driver with a variety of driving-related data (

P.93)

Displays warning messages if a malfunction occurs (



Shift position and shift range indicator

Displays the selected shift position or selected shift range (

■

The meters and display illumi-
nate when

The engine switch is in ON.

■

When changing driving mode

●

Speedometer color is changed fol-
lowing the selected driving mode.
(

●

AWD models: Speedometer color
is changed following the selected

driving mode or Multi-terrain
Select mode. (

P.310, 312)

■

Manually updating the fuel
gauge and possible driving
range

The fuel gauge and the possible
driving range are linked. If the dis-
plays of the fuel gauge and possible
driving range do not update after
adding a small amount of fuel, the
displays can be updated by per-

2-1. Instrument cluster

forming the following procedure.

Stop the vehicle on a level sur-

face.

Press the “ODO TRIP” switch to

change the odometer and trip

meter display to odometer.

Turn the engine switch off.

While pressing and holding the

“ODO TRIP” switch, turn the

engine switch to ON.

Continue to hold the “ODO TRIP”

switch for approximately 5 sec-

onds, and then release it once

the odometer begins flashing.

Updating is complete once the

odometer flashes for approximately

5 seconds and then the display

returns to normal.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

will flash

for approximately 10 seconds,

then stay on.

■

Liquid crystal display

P.94

■

Customization

Settings (e. g. meter display) can be

changed on the

screen of the

multi-information display. (



Switches the items of the odom-

eter, trip meter A and trip meter

B by pressing the “ODO TRIP”

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(“H”). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.478)

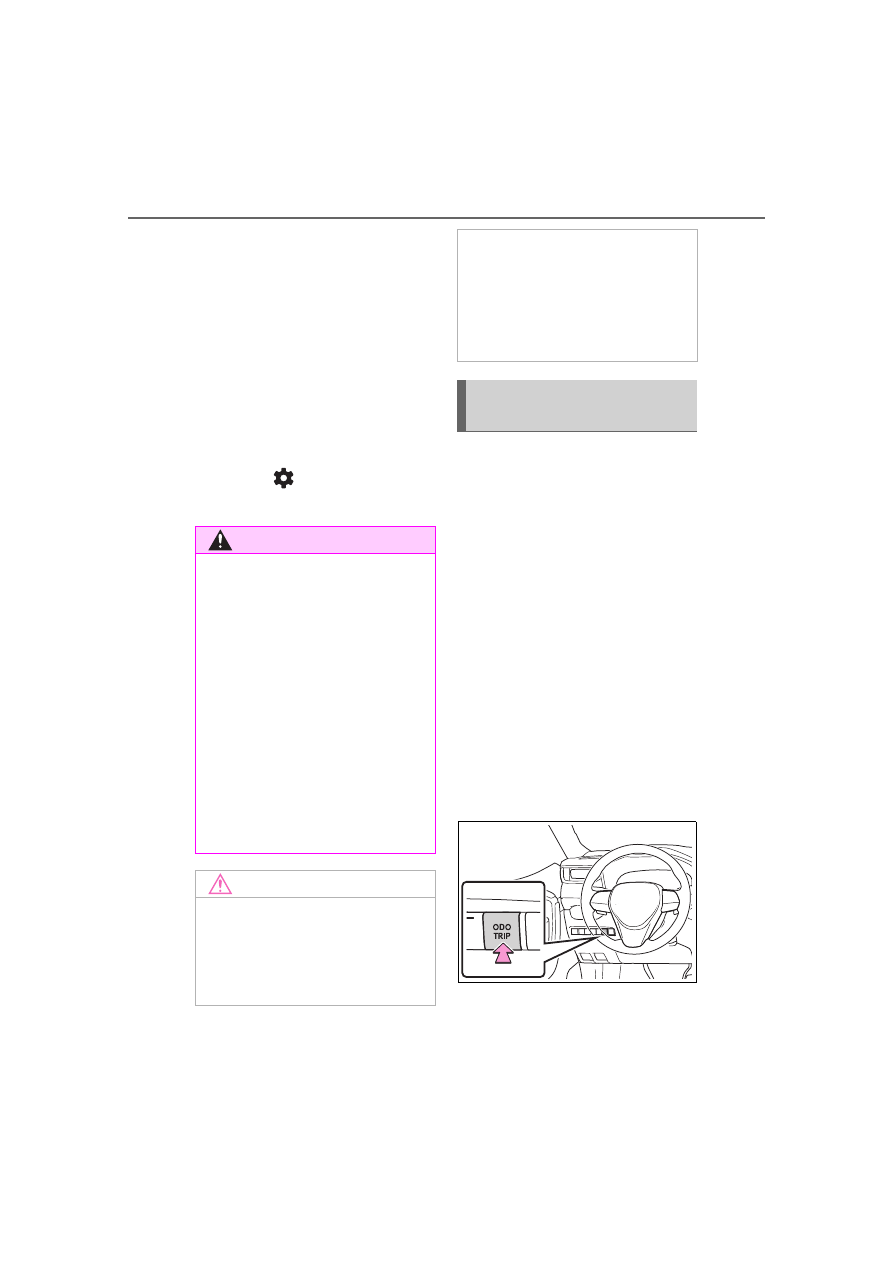

Using the “ODO TRIP”

switch

2-1. Instrument cluster

■

Locations of gauges and meters

The meter type can be changed on

of the multi-information dis-

play. (



P.107)



Type 1/Type 2

The units of measure may differ depending on the intended destination of
the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.102)

Displays warning messages if a malfunction occurs (



Outside temperature (

P.91)

Analog meter (Type 2 only)

The dial type of analog meter can be changed on

of the multi-informa-

tion display. (



P.111)

Tachometer:

Displays the engine speed in revolutions per minute.

Analog speedometer:

Displays the vehicle speed.

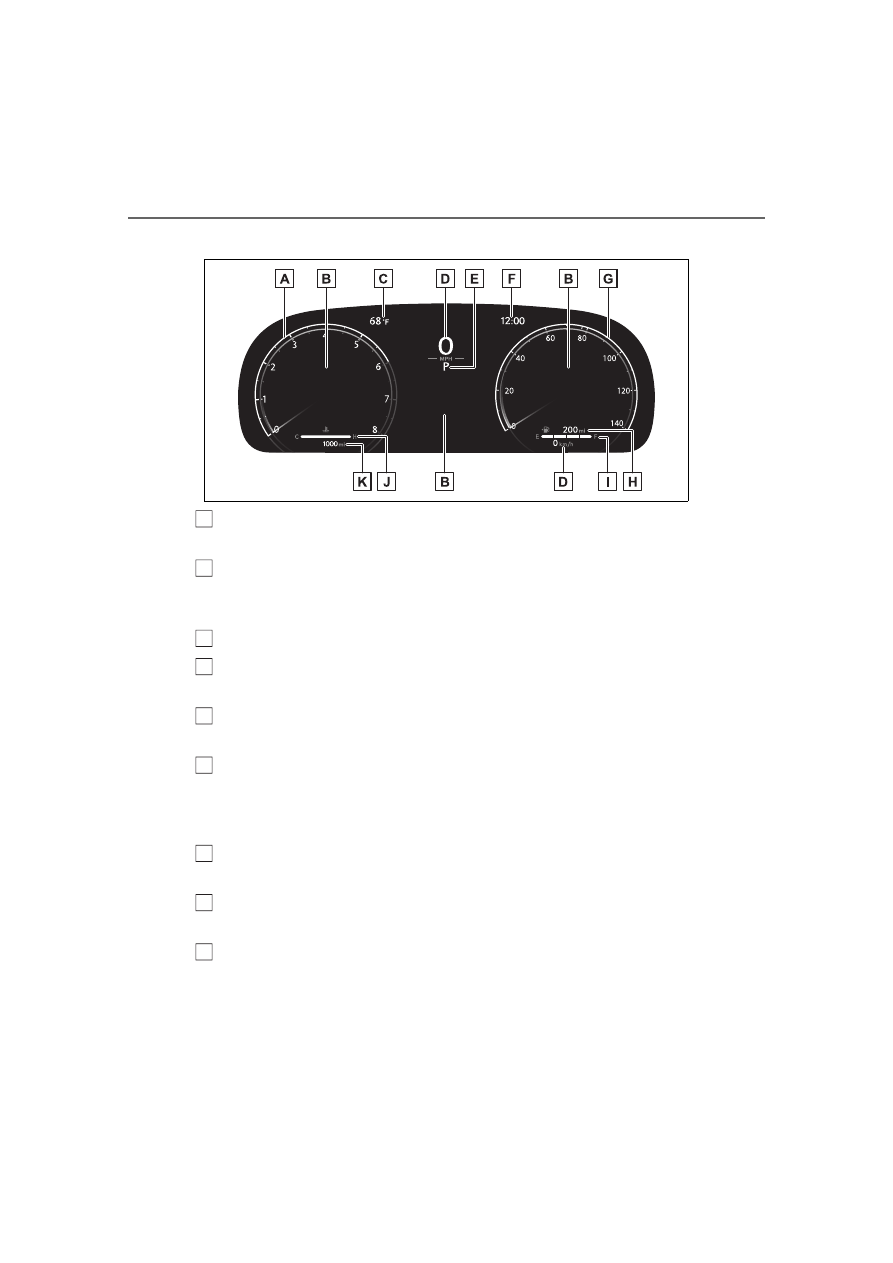

Gauges and meters (with 12.3-inch multi-informa-

tion display)

The meters display various drive information.

Meter display

2-1. Instrument cluster

Vehicle

statu

information an

dicator

Digital speedometer

Displays the vehicle speed

Shift position and shift range

Displays the selected shift position or selected shift range (

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).

For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Widget (Audio system-linked display)

Displays selection of an audio source or track on the meter. (



P.106)

If contents list is displayed on the multi-information display, widget will not
be displayed. (



P.104)

Distance to empty

Displays driving range with remaining fuel. (

P.91)

Fuel gauge

Displays the quantity of fuel remaining in the tank.

In the following situations, the actual quantity of fuel remaining in the tank
may not be displayed correctly. Refer to P.91 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Widget (Fuel Economy)

Displays fuel economy information. (



P.105)

If contents list is displayed on the multi-information display, widget will not
be displayed. (



P.104)

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.92)

2-1. Instrument cluster



Type 3

Tachometer

Displays the engine speed in revolutions per minute.

Multi-information display

Presents the driver with a variety of vehicle data (



P.102)

Displays warning messages if a malfunction occurs (



Outside temperature (

P.91)

Digital speedometer

Displays the vehicle speed.

Shift position and shift range

Displays the selected shift position or selected shift range (

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).

For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Analog speedometer

Displays the vehicle speed.

Distance to empty

Displays driving range with remaining fuel. (

Fuel gauge

Displays the quantity of fuel remaining in the tank.

2-1. Instrument cluster

Vehicle

statu

information an

dicator

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.92)

■

The meters and display illumi-
nate when

The engine switch is in ON.

■

Distance to empty

●

This distance is computed based
on your average fuel consump-
tion. As a result, the actual dis-
tance that can be driven may
differ from that displayed.

●

When only a small amount of fuel
is added to the tank, the display
may not be updated. When refuel-
ing, turn the engine switch off. If
the vehicle is refueled without
turning the engine switch off, the
display may not be updated.

●

When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven
with the remaining fuel cannot be
calculated. Refuel immediately.

■

Manually updating the fuel
gauge and possible driving
range

Stop the vehicle on a level sur-
face.

Press the “ODO TRIP” switch to
change the odometer and trip
meter display to odometer.

Turn the engine switch off.

While pressing and holding the
“ODO TRIP” switch, turn the
engine switch to ON.

Continue to hold the “ODO TRIP”
switch for approximately 5 sec-
onds, and then release it once
the odometer begins flashing.

Updating is complete once the
odometer flashes for approximately
5 seconds and then the display
returns to normal.

■

Outside temperature display

●

Displays the outside temperature
within the range of -40°F (-40°C)
to 122°F (50°C).

●

When the outside temperature is
approximately 37°F (3°C) or

lower, the indicator

will flash

for approximately 10 seconds,
then stay on.

●

In the following situations, the cor-
rect outside temperature may not
be displayed, or the display may
take longer than normal to
change:

• When stopped, or driving at low

speeds (less than 12 mph [20
km/h])

• When the outside temperature

has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)

●

When “--” or “E” is displayed, the
system may be malfunctioning.
Take your vehicle to your Toyota
dealer.

2-1. Instrument cluster

■

Free/Open Source Software

Information

This product contains Free/Open

Source Software (FOSS). The

license information and/or the

source code of such FOSS can be

found at the following URL.
https://www.denso.com/global/en/

opensource/meter/toyota/

■

Liquid crystal display

P.103

■

Customization

The gauges and meters can be cus-
tomized on

of the multi-informa-

tion display. (



P.508)

■

Display items



Odometer

Displays the total distance the vehi-

cle has been driven.



Trip meter A/trip meter B

Displays the distance the vehicle

has been driven since the meter

was last reset. Trip meters A and B

can be used to record and display

different distances independently.

■

Changing the display

Each time the “ODO TRIP”

switch is pressed, the displayed

item will be changed.
When the trip meter is dis-

played, pressing and holding the

switch will reset the trip meter.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.478)

Odometer and trip meter

display

2-1. Instrument cluster

Vehicle

statu

information an

dicator

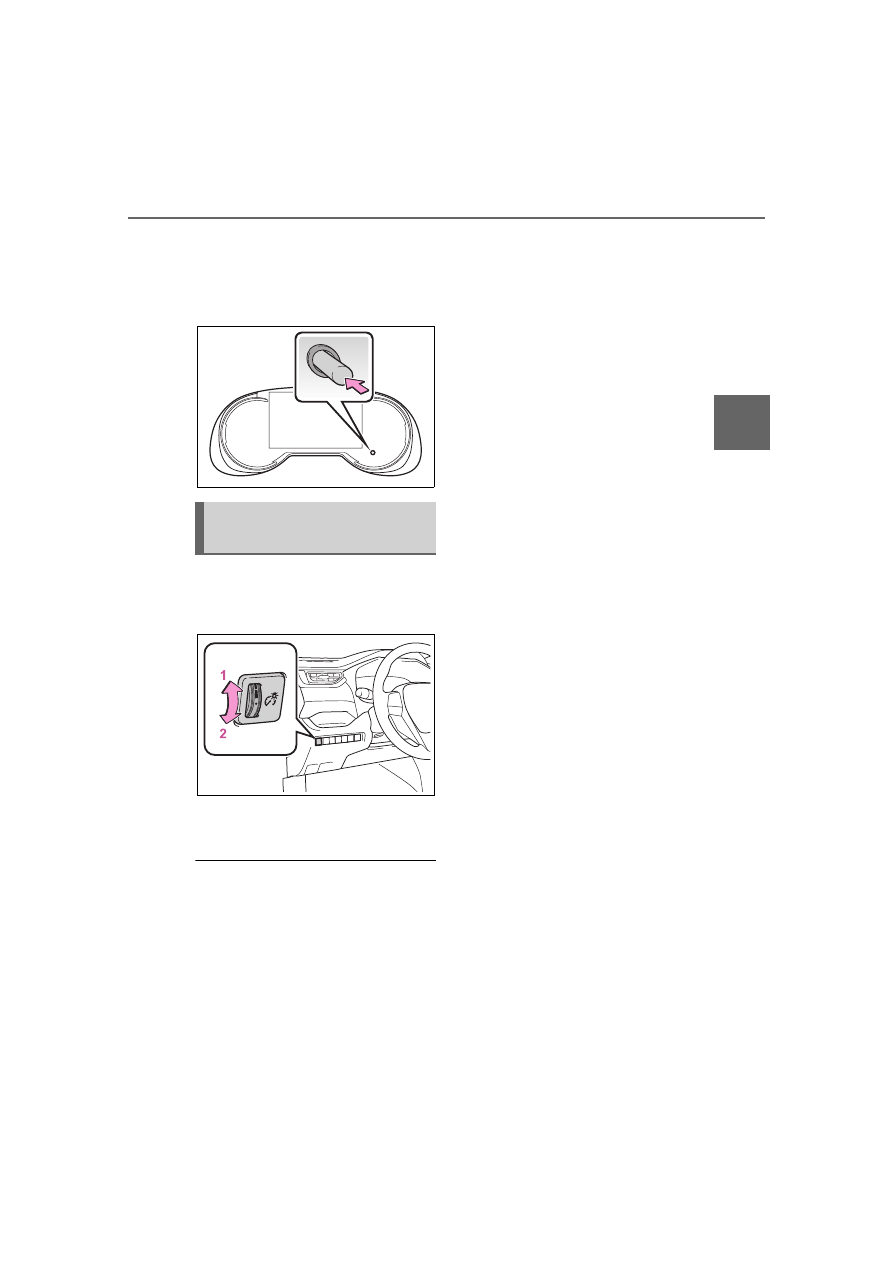

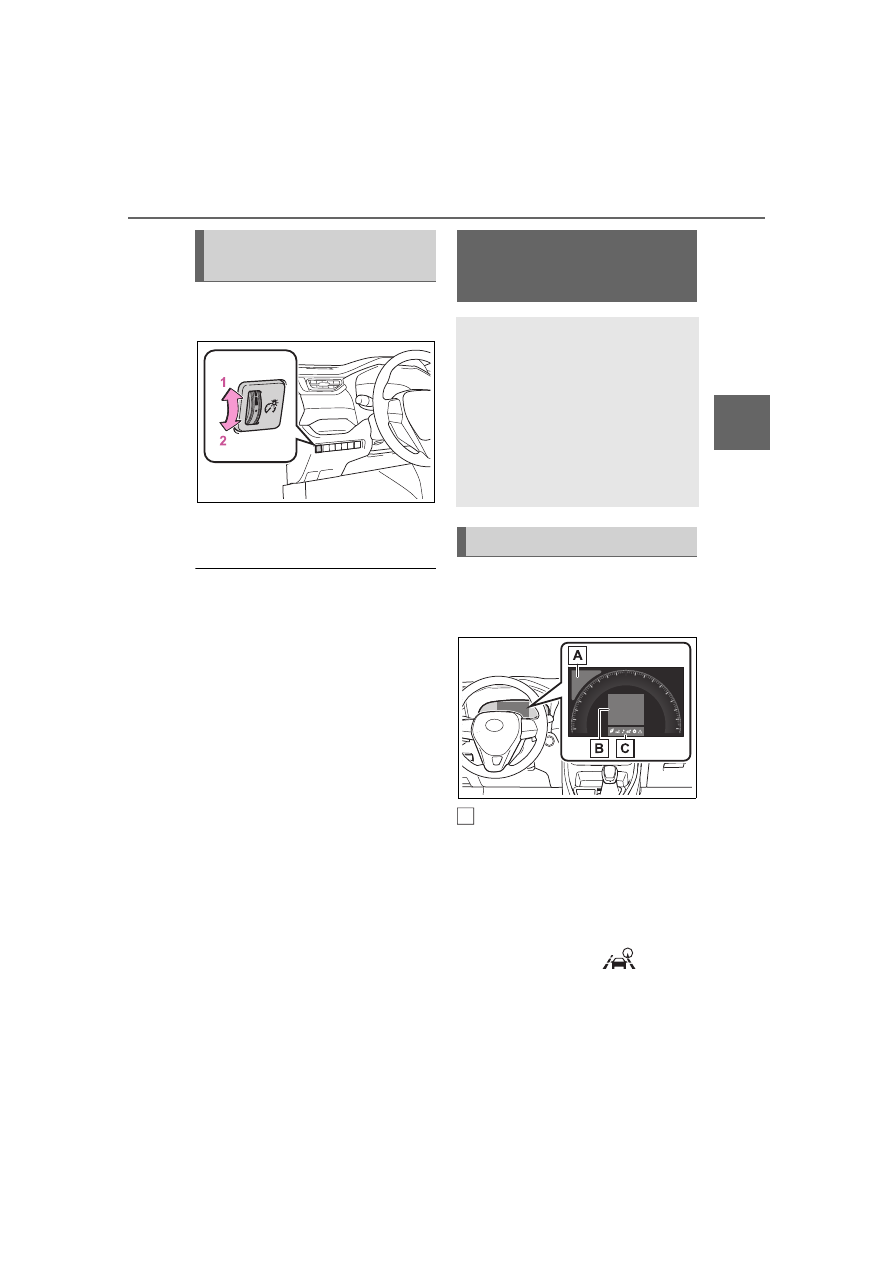

The brightness of the instrument
panel lights can be adjusted.

Brighter

Darker

■

Brightness of the meter lights
(day mode and night mode)

The brightness of the meter lights
can be adjusted individually.

In the following situations, the
meters changes between day mode
and night mode.

●

Day mode: When the tail lights are
off or when the tail lights are on
but the surrounding area is bright

●

Night mode: When the tail lights
are on and the surrounding area is
dark

Following information is dis-
played on the multi-information
display.

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (

P.261)

Displays an image when the follow-
ing systems are operating and a

menu icon other than

selected:
• LTA (Lane Tracing Assist)

(



P.250)

• Dynamic radar cruise control with

Changing the instrument
panel light brightness

Multi-information dis-

play (with 7-inch multi-

information display)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

2-1. Instrument cluster

full-speed range (



Information display area

A variety of information can be dis-

played by selecting a menu icon.
Additionally, warning or sugges-

tion/advice pop-up displays will be

displayed in some situations.

Menu icons (

P.95)

■

The multi-information display is

displayed when

The engine switch is in ON.

■

When changing driving mode

●

Background color of the multi-

information display is changed fol-

lowing the selected driving mode.

(

●

AWD models: Background color of

the multi-information display is

changed following the selected

driving mode or Multi-terrain

Select mode. (



P.310, 312)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

The multi-information display is

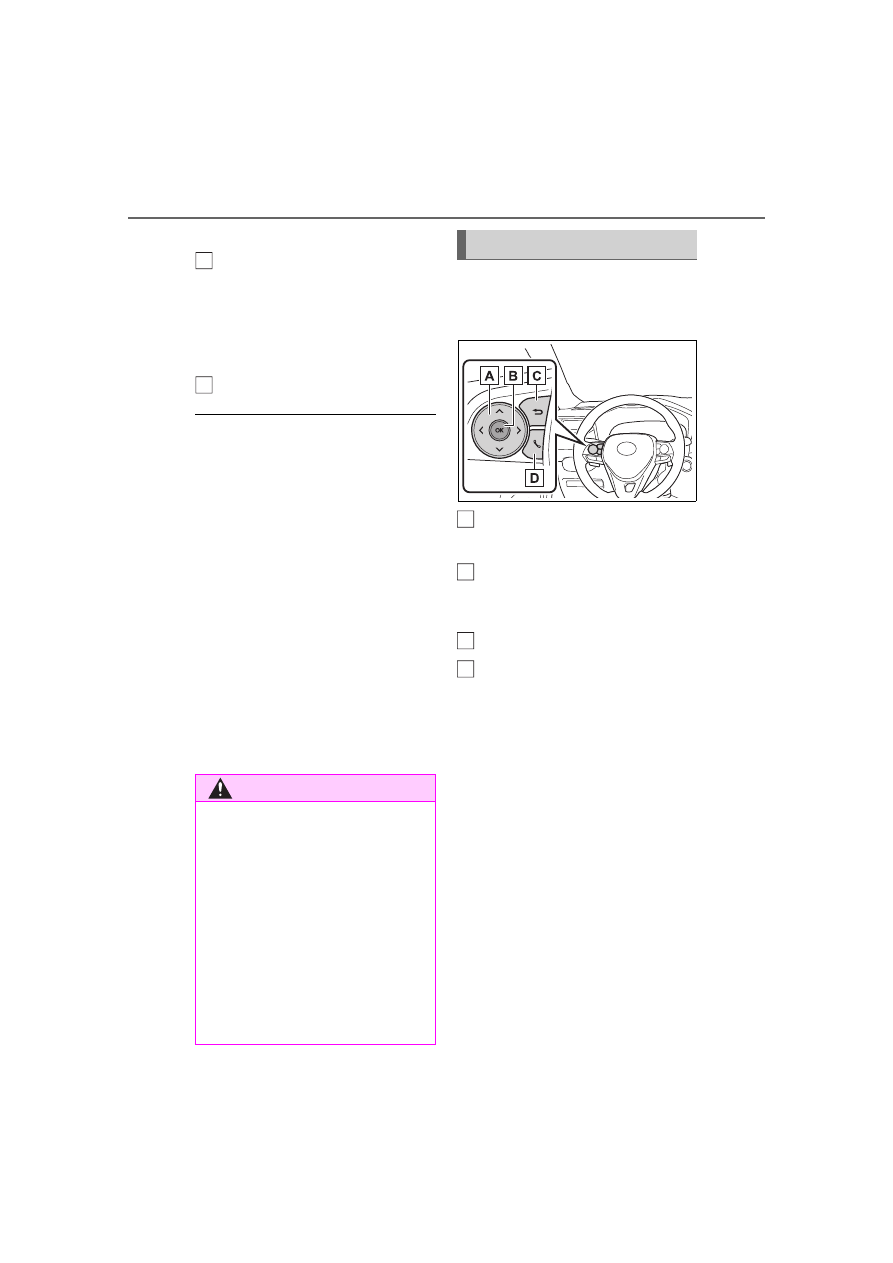

operated using the meter control

switches.

Scroll the screen

/switch the

display

/move the cursor

Press: Enter/Set

Press and hold: Reset/Dis-

play customizable items
Return to the previous screen
Call sending/receiving and

history display (if equipped)

Linked with the hands-free

system, sending or receiving

call is displayed. For details

regarding the hands-free sys-

tem, refer to “MULTIMEDIA

OWNER’S MANUAL”.

: On screens where the screen can

be scrolled and the display can

be switched, a scroll bar or a

round icon that shows the num-

ber of registered screens is dis-

played.

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.86

Changing the display

2-1. Instrument cluster

Vehicle

statu
s information

dicator

Information related to each icon

can be displayed by selecting

the icon with the meter control

switches.

Some of the information may be

displayed automatically depending

on the situation.

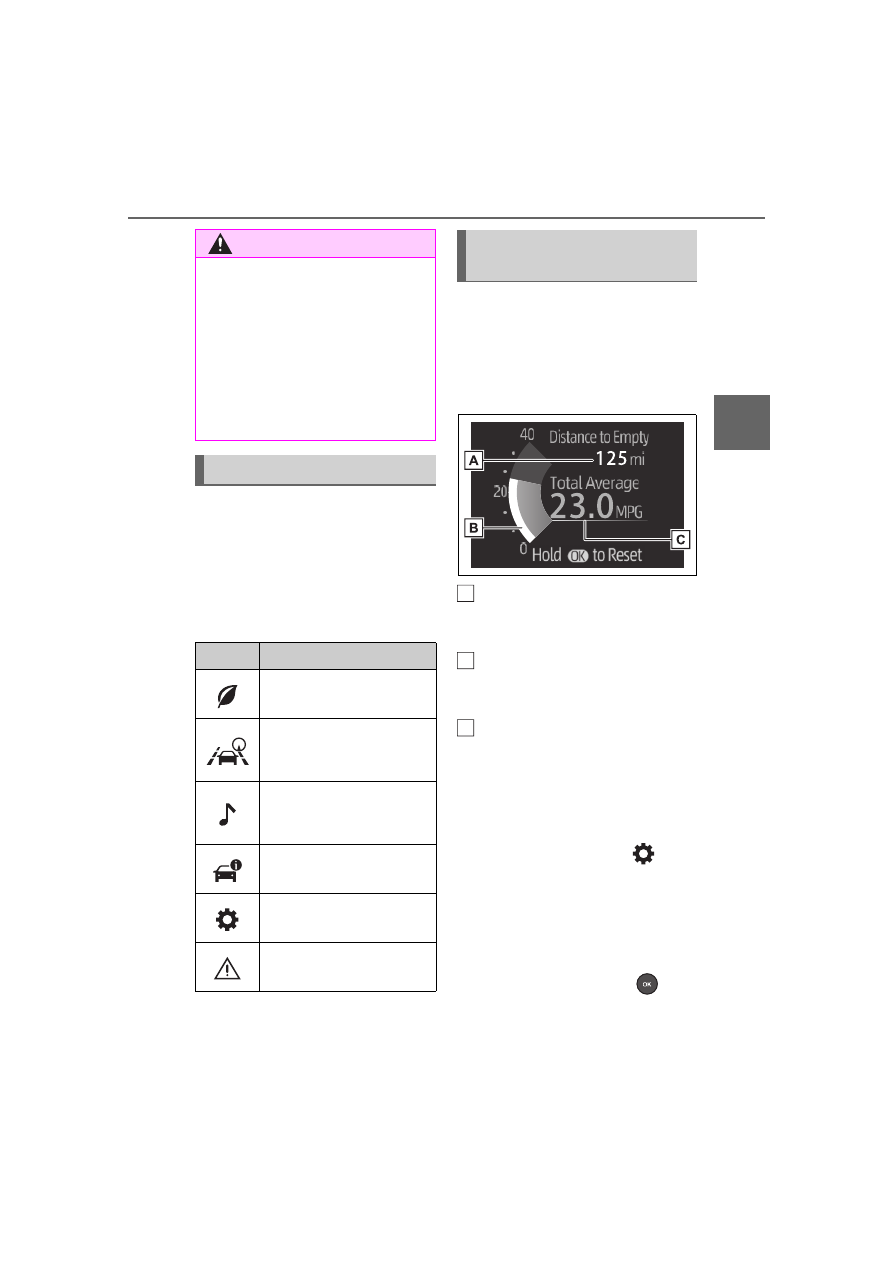

Select to display fuel consump-

tion data in various forms.

■

Fuel Economy

Following information is dis-

played.

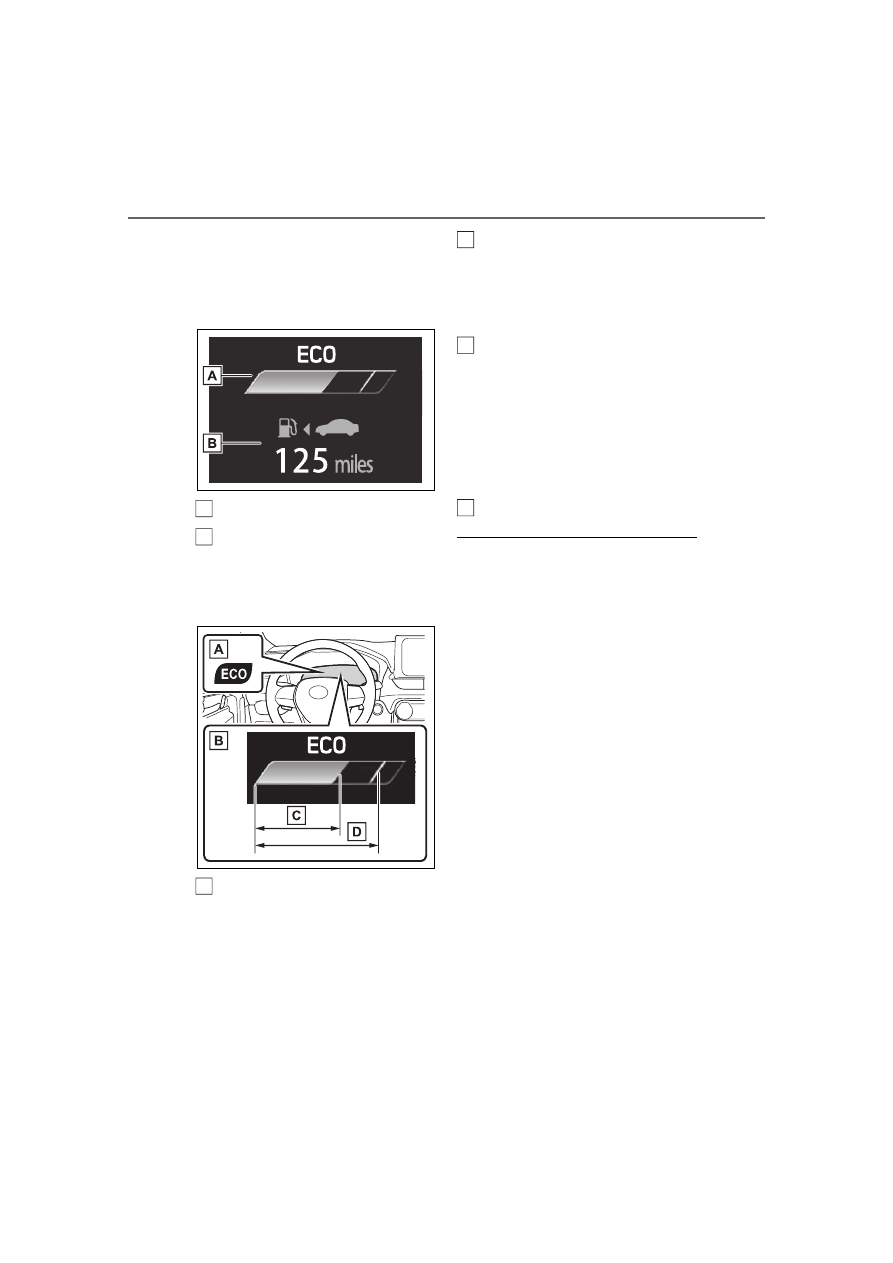

Distance to empty

Displays the driving range with

remaining fuel. (

P.96)

Current fuel economy

Displays the instantaneous current

fuel Economy.

Average fuel economy

Displays the average fuel economy

since the function was reset or the

average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed. (



:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

:Average fuel economy after

starting is reset each time the

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

Icon

Display

Driving information dis-

play (



P.95)

Driving support system

information display

(

P.97)

Audio system-linked dis-

play (if equipped)

(

P.97)

Vehicle information dis-

play (



P.97)

Settings display (
