P.250)



Dynamic radar cruise control
with full-speed range
(

P.264)



RSA (Road Sign Assist) (if
equipped) (

P.261)

Select to display the following
navigation system-linked infor-
mation.



Route guidance



Compass display

Select to enable selection of an
audio source or track on the dis-
play.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and

total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (

P.98)

Use the displayed information as a
reference only.

Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since

engine start

• “Distance”: Displays the distance

driven since engine start

• “Total Time”: Displays the

elapsed time since engine start

: These items are reset each time

the engine stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the

display was reset

• “Distance”: Displays the distance

driven since the display was

reset

• “Total Time”: Displays the

elapsed time since the display

was reset

: To reset, display the desired item

and press and hold

Driving support system
information display

Navigation system-linked
display (if equipped)

Audio system-linked dis-
play (if equipped)

Vehicle information dis-
play

2-1. Instrument cluster

■

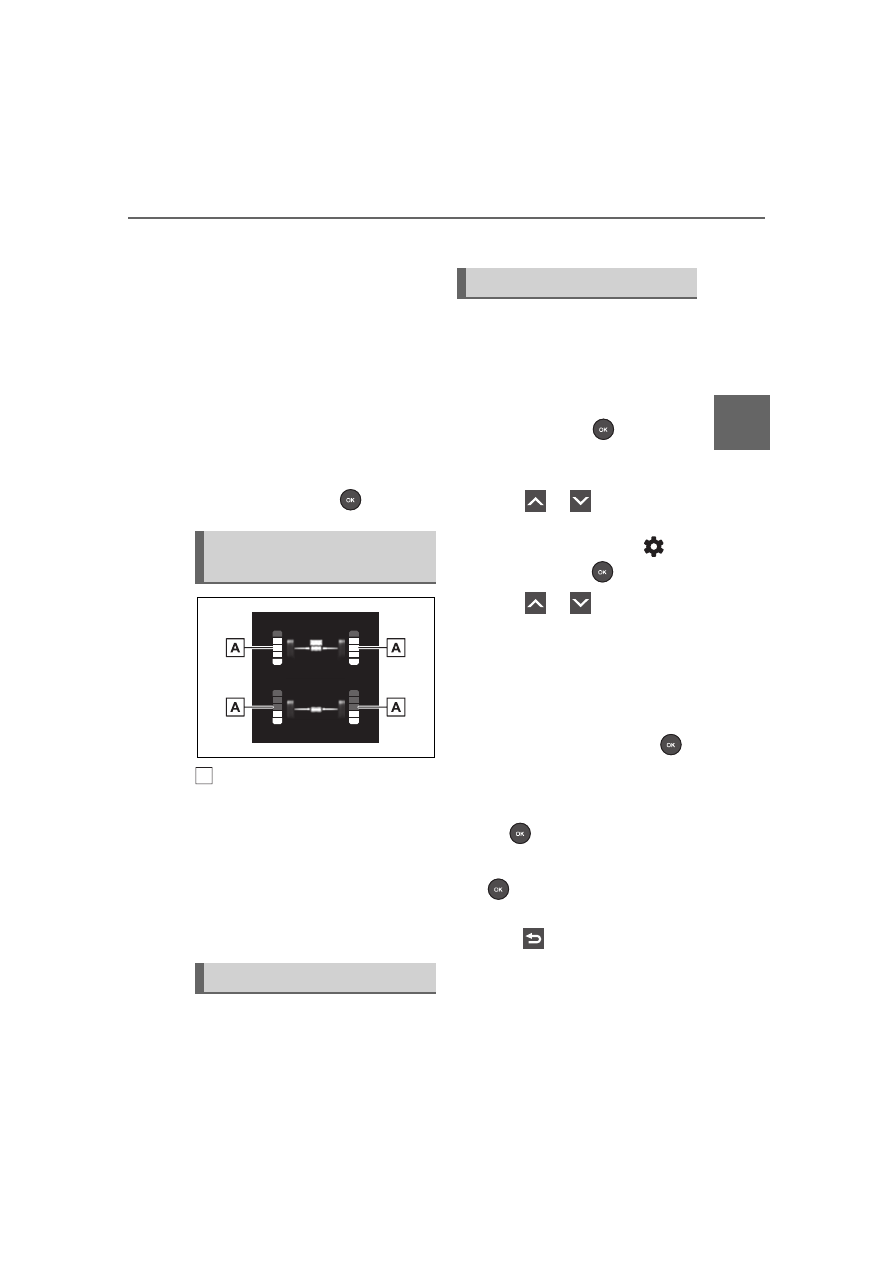

AWD system display (AWD
models)

Torque distribution display

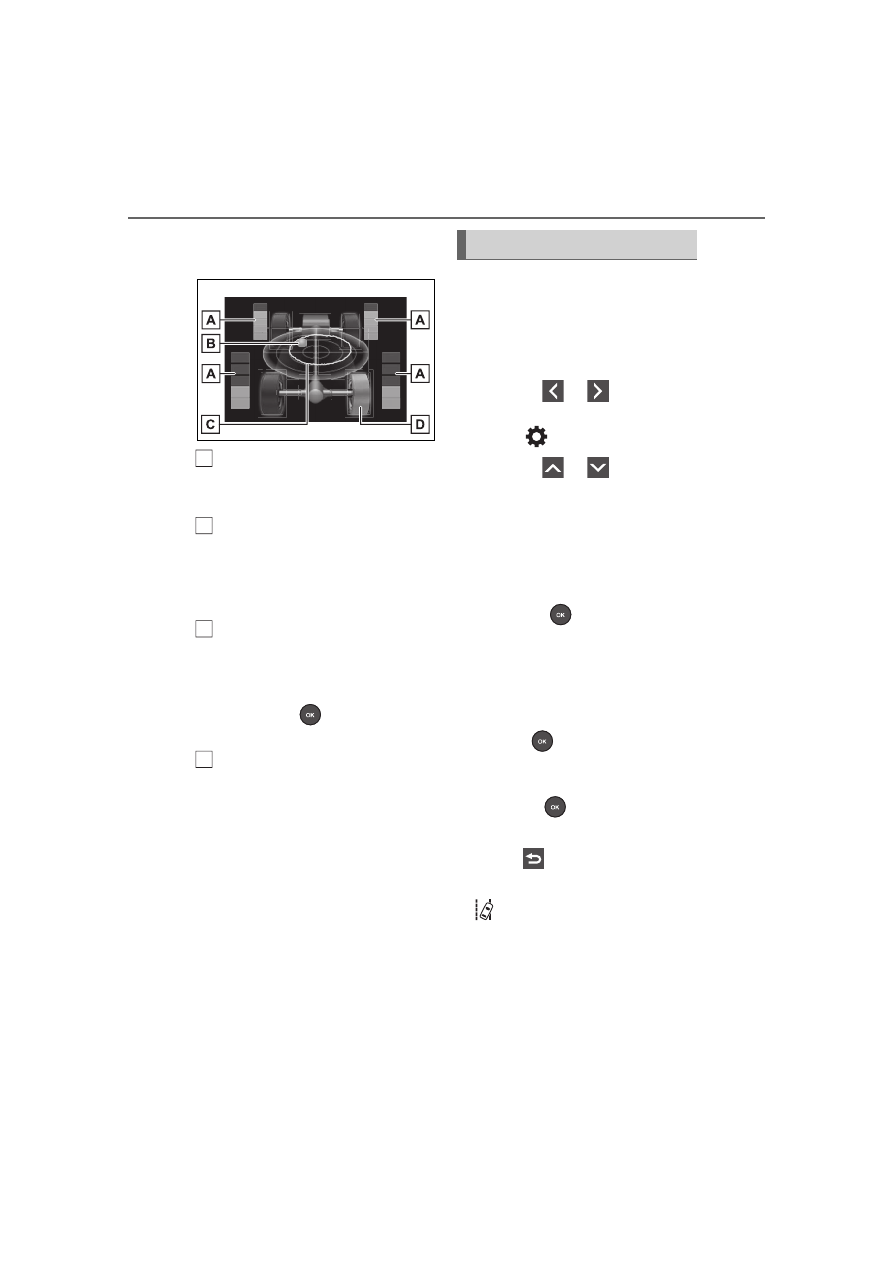

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.

Press and hold

to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

The illustration used is intended
as an example, and may differ
from the image that is actually
displayed on the multi-informa-
tion display.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

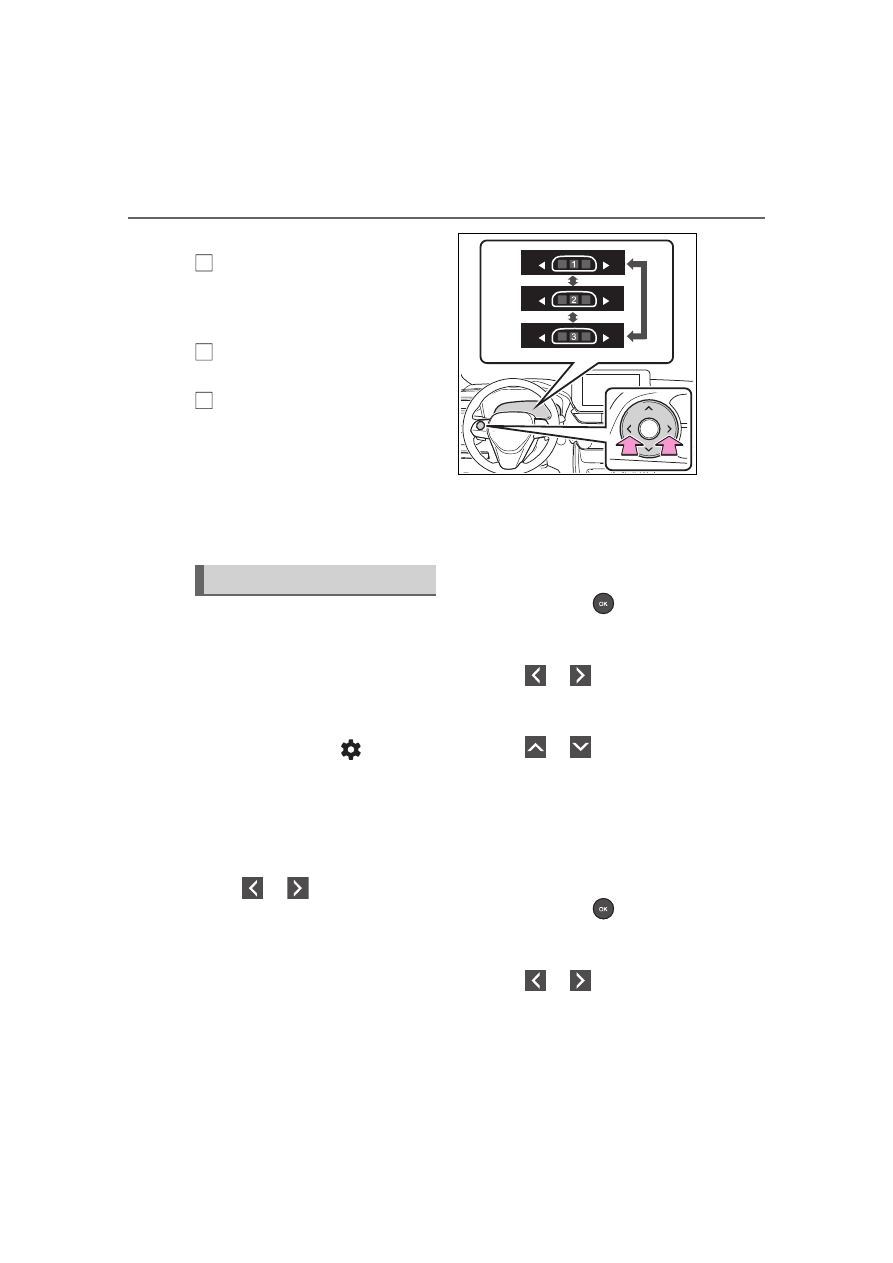

Setting procedure

Operate

of the

meter control switches and

select .

Operate

of the

meter control switches and
select the desired item.

• If the function is turned on and

off or the volume, etc. is
changed on the setting
screen, the setting is changed

each time

is pressed.

• For functions that allow oper-

ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and

holding

. When the setting

screen is displayed, select the
setting or desired value (time,

etc.) with

After changing the settings,

press

of the meter control

switches.

■

LTA (Lane Tracing

Assist) (

P.250)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane

Settings display

2-1. Instrument cluster

Vehicle

statu

information an

dicator

centering function.



“Sensitivity”

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

PCS (Pre-Collision Sys-

tem) (



P.239)

Select to set up the following
items.



PCS on/off

Select to enable/disable the pre-
collision system.



“Warning timing”

Select to change the pre-collision
warning timing.

■

BSM (Blind Spot Moni-

tor) (if equipped) (



P.275)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM
system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.276)



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

(Intuitive parking

assist) (if equipped)
(



P.280)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (if equipped)
(



P.288)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (

P.294)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign

Assist) (if equipped)
(



P.261)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.

100

2-1. Instrument cluster



“Notification method”

Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and Do Not Enter
sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle Settings



PBD (Power Back Door)

(if equipped) (

P.129)

Select to set up the following items.

• System settings

Select to enable/disable the power
back door system.

• “Hands Free”

Select to enable/disable the Hands
Free Power Back Door.

• “Opening Adjustment”

Select the open position when
power back door is fully open.

• “Volume”

Select to set the volume of the
buzzer which sounds when the
power back door system operates.

: Vehicles with Hands Free Power

Back Door



(Stop & Start system) (if

equipped) (

P.304)

Select to set the length of time the
Stop & Start system will operate
when the “A/C” switch of the air
conditioning system is on.



“TPWS” (Tire Pressure Warn-

ing System) (if equipped)
(



P.406)

• “Set Pressure”

Select to initialize the tire pressure
warning system.

• “Change Wheel”

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.



“Rear Seat Reminder”
(



P.122)

Select to enable/disable the rear
seat reminder function.



“Scheduled Maintenance”
(



P.386)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.

■

Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



“Meter Type”

Select to change the speedometer
display.



(Eco Driving Indicator

Light) (



P.96)

Select to activate/deactivate the
Eco Driving Indicator Light.



(Driving information dis-

101

2-1. Instrument cluster

Vehicle

statu
s information

dicator

play settings)

Select to change the display on

Fuel Economy (

P.95).



(Audio settings) (if

equipped)

Select to enable/disable

screen.



(Vehicle information dis-

play settings)

• “Display Contents”
Select to enable/disable the AWD

system display (



P.98). (AWD

models)
• “Drive Info Type”
Select to change the drive informa-

tion type display between trip and

total. (



P.97).

• “Drive Info Items”
Select to set the items on the upper

and lower side of the drive informa-

tion screen from three items, aver-

age speed, distance and total time.



“Pop-Up Display”

Select to enable/disable the follow-

ing pop-up displays, which may

appear in some situations.
• Intersection guidance display of

the navigation system-linked sys-

tem (if equipped)

• Incoming call display of the

hands-free phone system (if

equipped)

• Audio operation (if equipped)
• Volume operation (if equipped)
• Voice control (if equipped)
• Stop & Start system duration (if

equipped)

• Stop & Start system status (if

equipped)



“MID OFF”

A blank screen is displayed



“Default Settings”

Select to reset the meter display

settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

WARNING

■

Cautions during setting up

the display

As the engine needs to be run-

ning during setting up the display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

102

2-1. Instrument cluster

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.457)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
engine switch has been turned
off, a suggestion message will
be displayed.

When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the engine switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Convenience Services (Suggestion
function) can be turned on/off. (Cus-
tomizable features:

P.510)

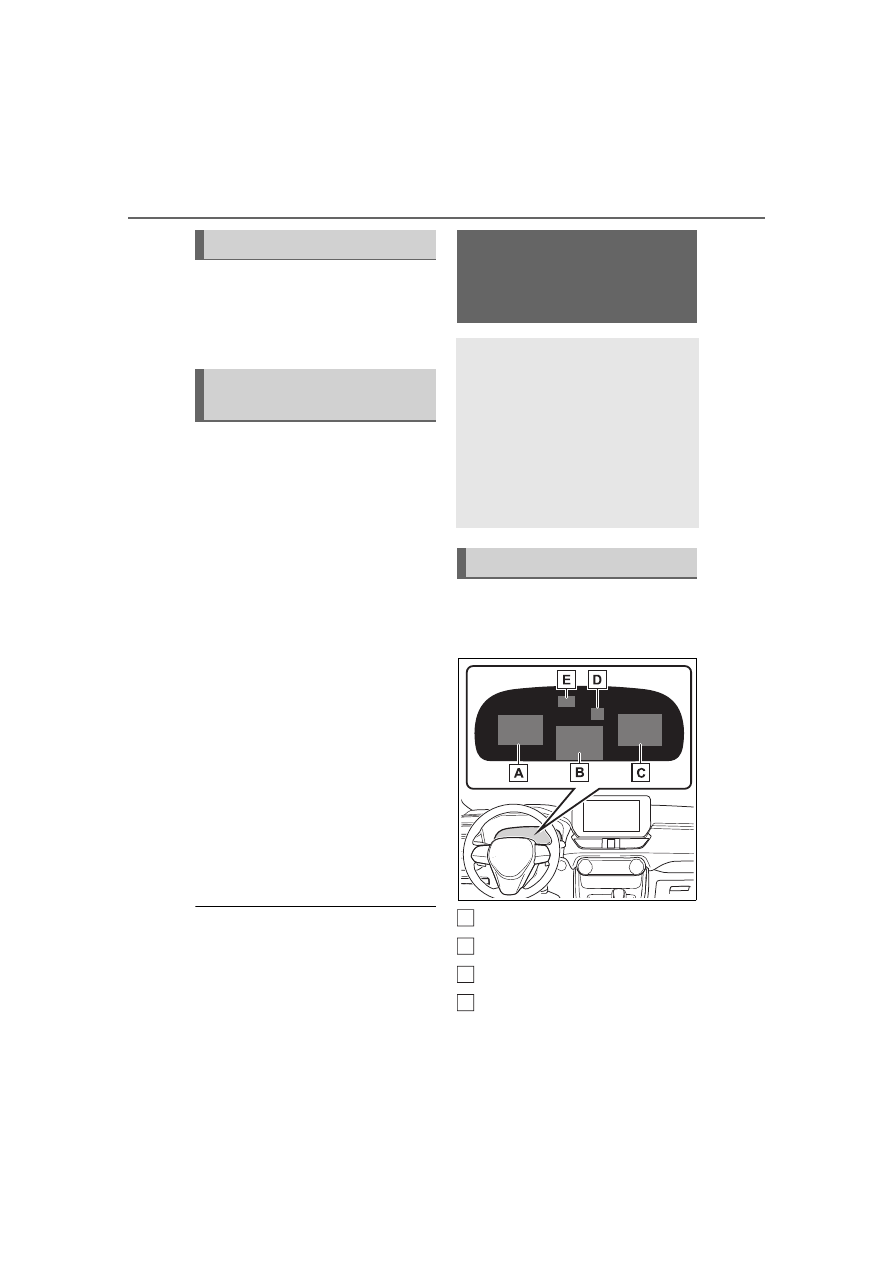

Following information is dis-
played on the multi-information
display.

Content display area (left)

Content display area (center)

Content display area (right)

Driving support system infor-
mation display area

Warning message display

Convenience Services
(Suggestion function)

Multi-information dis-

play (with 12.3-inch

multi-information dis-

play)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

103

2-1. Instrument cluster

Vehicle

statu
s information

dicator

When driving information support

system is displayed on the content

display area, the system operating

state will not be displayed in this

area.

RSA (Road Sign Assist) dis-

play area (if equipped)

(



P.261)

■

Content display area (cen-

ter)



Driving support system infor-

mation display (



Settings display (



Warning message display



Blank (No items) (



■

Content display area

(left/right)



Fuel Economy (

P.105)



Eco Driving Indicator

(

P.105)



Driving support system infor-

mation display (



Navigation system-linked

information display (if

equipped) (



Audio system-linked display

(



Drive information (



AWD operation status display

(if equipped) (



Blank (No items) (



■

The multi-information display is

displayed when

The engine switch is in ON.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode.

(



P.310)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

/ : Change the screen

and move the cursor

/ : Change displayed

content and scroll up/down

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures

P.92

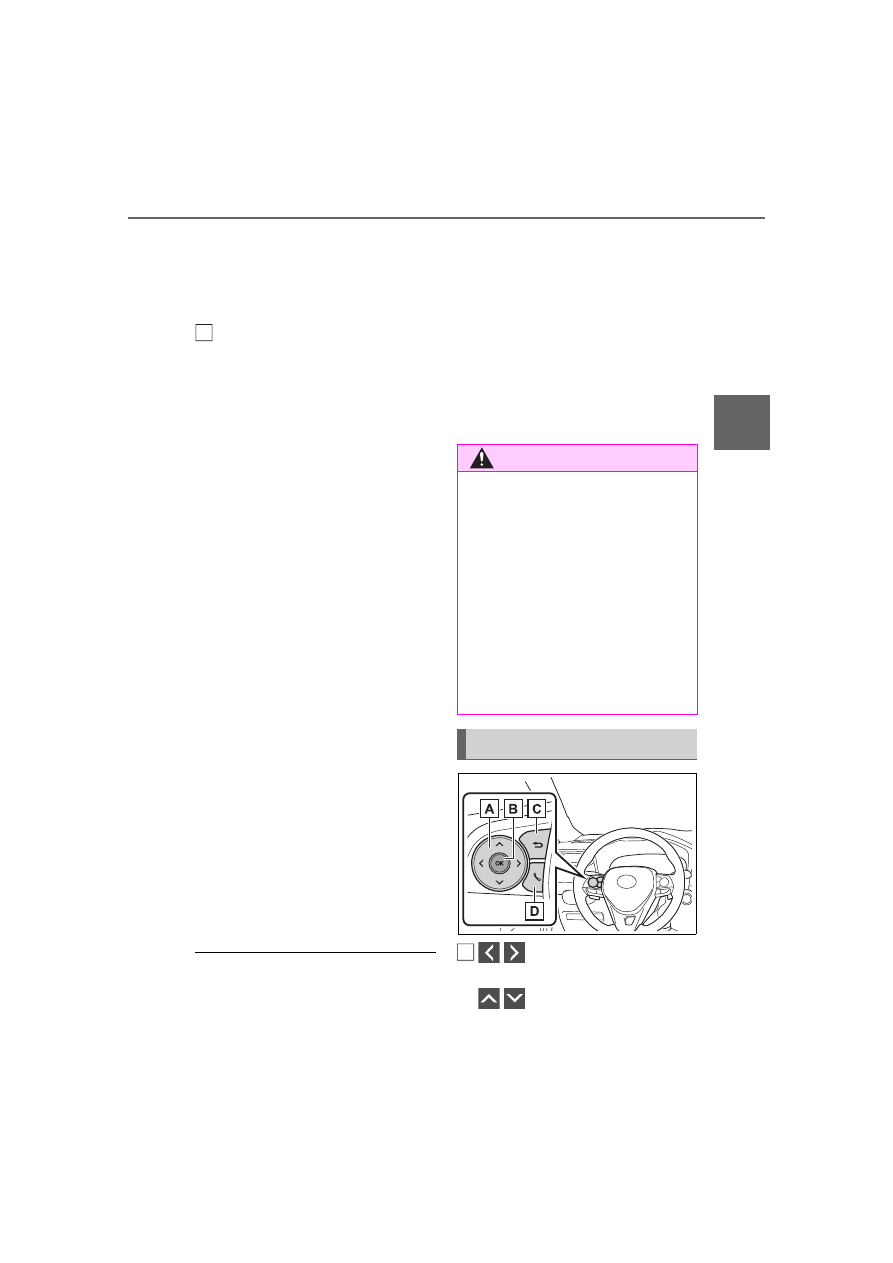

Meter control switches

104

2-1. Instrument cluster

the screen

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items/Dis-
play the cursor

Move the main meter and
return to the previous screen

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

The multi-information display is
operated using the meter control
switches.

■

Changing the meter display
type setting

The meter display type setting

can be changed on

(

■

Changing the screen

Select items from the combina-
tion of 3 screens to display on
each 3 content display areas.

Press

of the meter

control switches to scroll the
screen.

■

Changing the display con-
tents

Switches items displayed on
each contents display area
(left/center/right).

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

to move the

cursor and select the content
display area.

Press

to select the

items.

■

Items displayed in the con-
tent display area

Select to enable/disable items
on the content display area
(left/right).

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

to move the

cursor and select the content
display area.

Changing the display

105

2-1. Instrument cluster

Vehicle

statu
s information

dicator

Contents display area (left):
Press to display contents

list.

Contents display area (right):
Press to display contents

list.

Press or to select the

items.

Press to select

enable/disable items.

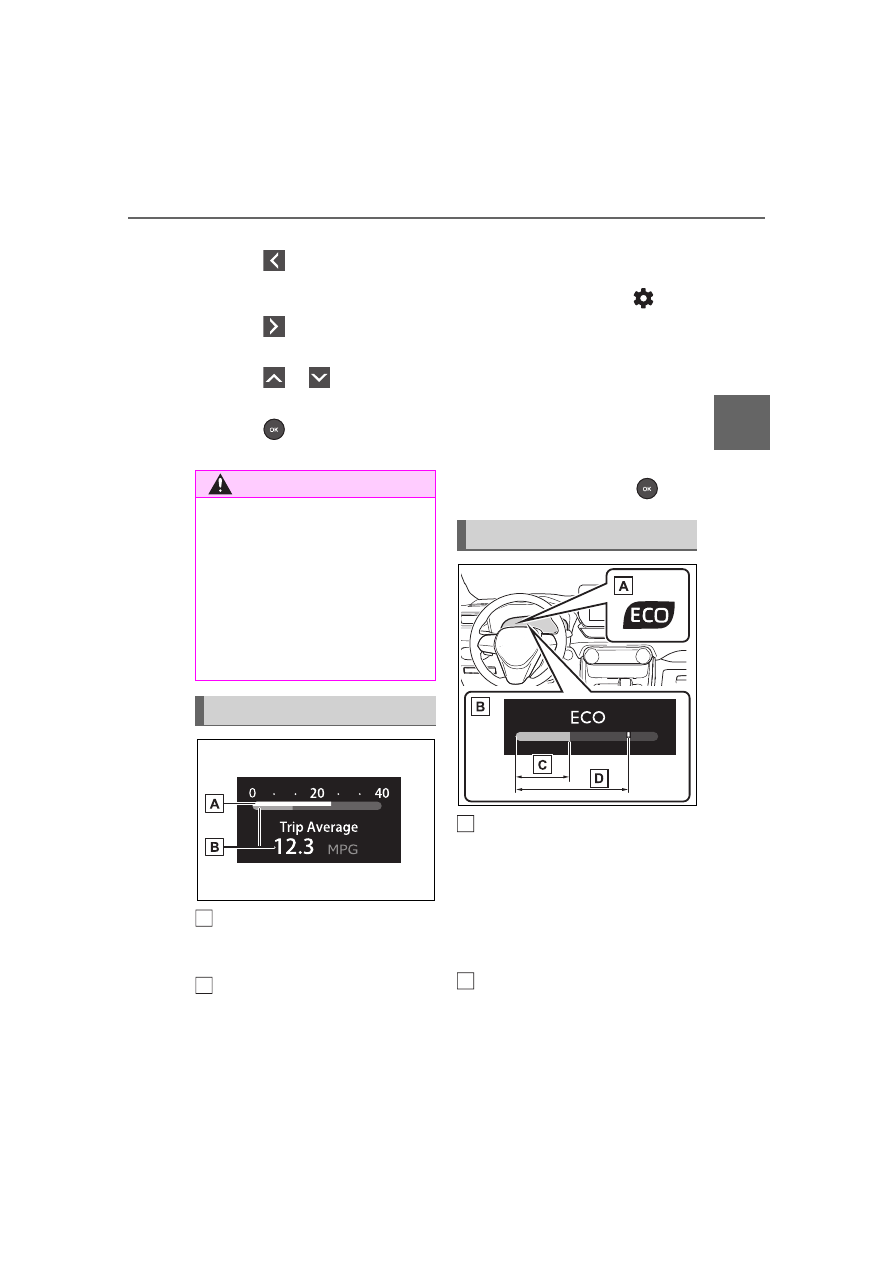

Current fuel economy

Displays the driving range with

remaining fuel.

Average fuel economy

Displays the average fuel economy

since the function was reset or the

average fuel economy after start-
ing.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed.

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy after

starting is reset each time the

engine stops.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

Eco Driving Indicator Light

During Eco-friendly acceleration

operation (Eco driving), the Eco

Driving Indicator Light will turn on.

When the acceleration exceeds

Zone of Eco driving, or when the

vehicle is stopped, the light turns

off.

Eco Driving Indicator Zone

Display

Suggests the Zone of Eco driving

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Fuel Economy

Eco Driving Indicator

106

2-1. Instrument cluster

with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display will
illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving

■

The ECO Driving indicator will
not operate when

Eco Driving Indicator will not oper-
ate in the following conditions:

●

The shift lever is in any position
other than D.

●

Neither normal mode nor Eco
drive mode is selected.

●

The vehicle speed is approxi-
mately 80 mph (130 km/h) or
higher.

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(

P.250)



Dynamic radar cruise control
with full-speed range
(

P.264)

Select to display the following
navigation system-linked infor-
mation.



Route guidance to destination



Street name



Compass

The operating conditions of the
audio system can be displayed
on the multi-information display.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed and distance)
can be displayed vertically.

Use the displayed information as a
reference only.

• “Average Speed”: Displays

the average vehicle speed

since engine start

• “Distance”: Displays the dis-

tance driven since engine

start

• “Total Time”: Displays

elapsed time since engine

start

: These items are reset each time

the engine stops.

■

Trip information

2 items that are selected using
the “TRIP A Items” or “TRIP B
Items” setting (average speed
and distance) can be displayed
vertically.

Driving support system
information display

Navigation system-linked
display (if equipped)

Audio system-linked dis-
play

Driving information dis-
play

107

2-1. Instrument cluster

Vehicle

statu

information an

dicator

Use the displayed information as a
reference only.

• “Average Speed”: Displays

the average vehicle speed

since the display was reset

• “Distance”: Displays the dis-

tance driven since the display

was reset

• “Total Time”: Displays

elapsed time since the display

was reset

: To reset, display the desired item

and press and hold

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

The illustration used is intended
as an example, and may differ
from the image that is actually
displayed on the multi-informa-
tion display.

Displays no drive information
contents on the multi-informa-

tion display.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

with the cur-

sor on the content display

area (center) to select

and then press

Press

of the meter

control switches and move
the cursor to select the item
for changing settings.

If the function is turned on and off
or the volume, etc. is changed on
the setting screen, the setting is

changed each time is pressed

For functions that allow operation
contents, display contents, etc., of
function to be selected, the setting
screen is displayed by pressing and

holding

. When the setting

screen is displayed, select the set-
ting or desired value (time, etc.)

with .

After changing the settings,

press

of the meter control

switches.

AWD system display
(AWD models)

Blank (No items)

Settings display

108

2-1. Instrument cluster

■

LTA (Lane Tracing

Assist) (



P.250)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Sensitivity”

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

BSM (Blind Spot Moni-

tor) (if equipped) (



P.275)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off
Select to enable/disable the
BSM system.



“Sensitivity”
Select to change the alert tim-
ing for an approaching vehi-
cle.



“Brightness”
Select to switch the bright-
ness of the outside rear view
mirror indicators. (



P.276)

■

PCS (Pre-Collision Sys-

tem) (



P.239)

Select to set up the following

items.



PCS on/off
Select to enable/disable the
pre-collision system.



“Sensitivity”
Select to change the pre-colli-
sion warning timing.

■

(Intuitive parking

assist) (if equipped)
(



P.280)

Select to set up the following
items.



Intuitive parking assist on/off
Select to enable/disable the
Intuitive parking assist.



“Volume”
Select to set the volume of the
buzzer which sounds when
the Intuitive parking assist is
operated.

■

RCTA (Rear Cross Traffic

Alert) (if equipped)
(



P.288)

Select to set up the following
items.



RCTA (Rear Cross Traffic
Alert) on/off
Select to enable/disable the
RCTA system.



“Volume”
Select to set the volume of the
buzzer which sounds when
the RCTA system is operated.

109

2-1. Instrument cluster

Vehicle

statu

information an

dicator

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.294)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign Assist)

(if equipped) (



P.261)

Select to set up the following
items.



Road Sign Assist on/off
Select to enable/disable the
RSA system.



“Notification Method”
Select to change each notifi-
cation method used to notify
the driver when the system
recognizes excess speed and
Do Not Enter sign.



“Notification Level”
Select to change each notifi-
cation level used to notify the
driver when the system recog-
nizes a speed limit sign.

■

Vehicle Settings



PBD (Power Back Door)

(if equipped) (

P.138)

Select to set up the following items.

• System settings

Select to enable/disable the
power back door system.

• “Hands Free”

Select to enable/disable the
Hands Free Power Back Door.

• “Opening Adjustment”

Select the open position when
power back door is fully open.

• “Volume”

Select to set the volume of the
buzzer which sounds when the
power back door system oper-
ates.

: Vehicles with Hands Free Power

Back Door



Stop & Start system (if

equipped) (



P.304)

Select to set the length of time the
Stop & Start system will operate
when the “A/C” switch of the air
conditioning system is on.



“Scheduled Maintenance”
(



P.386)

Select to reset the scheduled
maintenance information
(message indicating mainte-
nance is required and dis-
tance until the next
maintenance) after all mainte-
nance is performed.



Rear Seat Reminder
(



P.386)

Select to enable/disable the
rear seat reminder function.



“TPWS” (Tire Pressure Warn-
ing System) (

P.408)

• “Set Pressure”

Select to initialize the tire pres-
sure warning system.

• “Change Wheel”

Select to change the tire pressure
warning system sensor ID code
set. To enable this function, a
second set of tire pressure warn-
ing system sensor ID codes must
be registered by a Toyota dealer.
For information regarding chang-
ing the registered ID code set,

110

2-1. Instrument cluster

contact your Toyota dealer.

■

Settings



“Language”

Select to change the lan-

guage on the multi-informa-

tion display.



“Units”

Select to change the unit of

measure for fuel consump-

tion.



Meter Type

Select to change the meter

type setting.



Meter Style

Select to change the meter

style.



Dial Type

Select to change dial type.

(

P.88)



(Eco Driving Indicator

Light) (

P.96)

Select to activate/deactivate the

Eco Driving Indicator Light.



Fuel Economy

Select to change the display

on Fuel Economy. (



P.105)



Drive Info

Select to change displayed

items on drive information dis-

play. (





Pop-Up Display

Select to enable/disable the

pop-up displays, which may

appear in some situations.



Default Settings

Select to reset the meter dis-

play settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

Select to display warning mes-

sages and measures to be

taken if a malfunction is

detected. (

P.457)

WARNING

■

Cautions during setting up

the display

As the engine needs to be run-

ning during setting up the display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

Warning message display

111

2-1. Instrument cluster

Vehicle

statu

information an

dicator

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
engine switch has been turned
off, a suggestion message will
be displayed.

When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the engine switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Convenience Services (Suggestion
function) can be turned on/off. (Cus-
tomizable features:

P.508)

Press

on the main menu,

then press “Trip information” on
the sub menu.

For detail regarding the Multimedia
Display, refer to “MULTIMEDIA
OWNER’S MANUAL”.

■

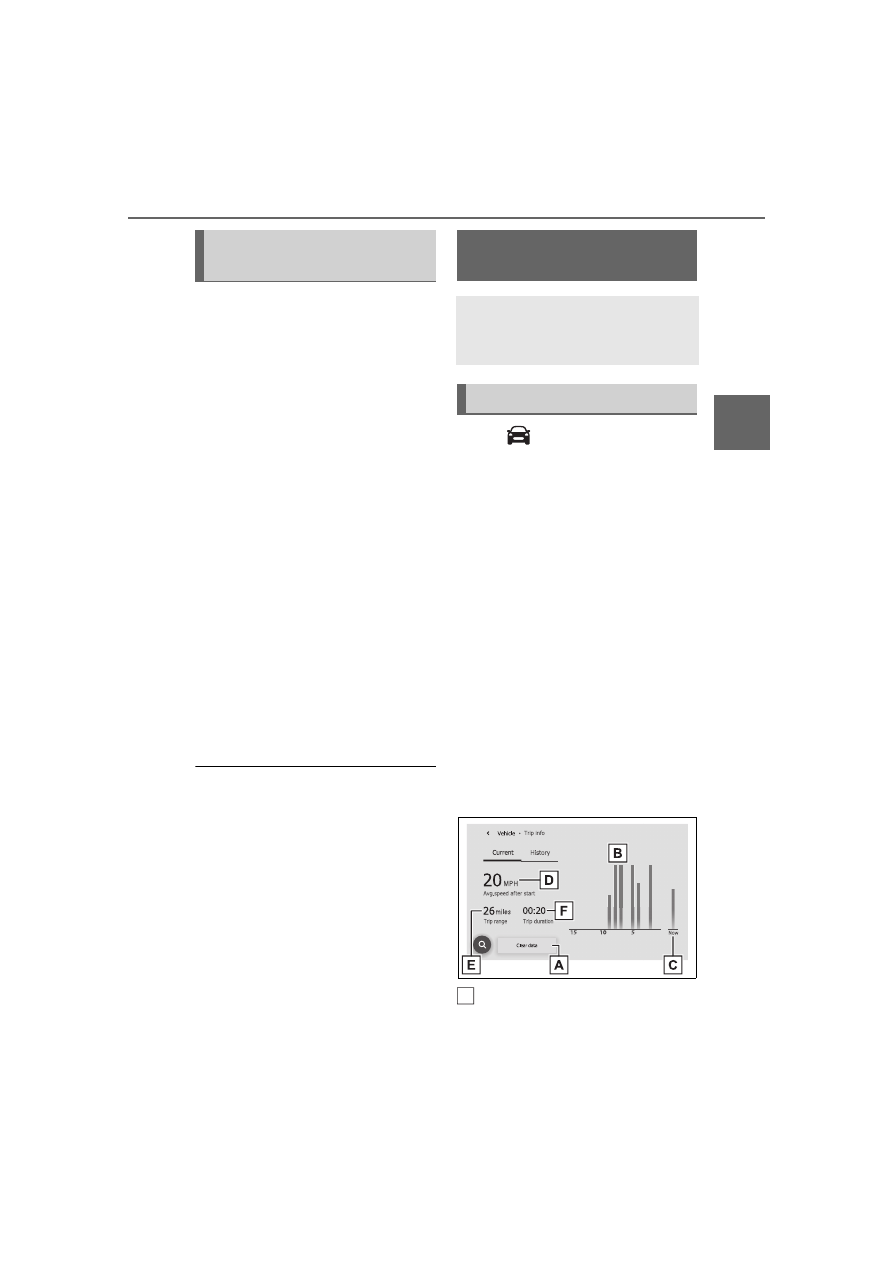

Current fuel consumption
screen

If a screen other than current
fuel consumption screen is dis-
played, press “Current”.

Use the displayed average fuel
consumption as a reference.

Some screens may vary depending
on the type of multi-media display.

The image is an example only, and
may vary slightly from actual condi-
tions.

Resetting the consumption
data

Convenience Services
(Suggestion function)

Fuel consumption

information

The fuel consumption infor-
mation can be displayed on
the Multimedia Display.

Display procedure

112

2-1. Instrument cluster

Fuel consumption in the past
15 minutes

Current fuel consumption

Average vehicle speed since
the engine was started.

Trip range

Elapsed time since the
engine was started.

■

History screen

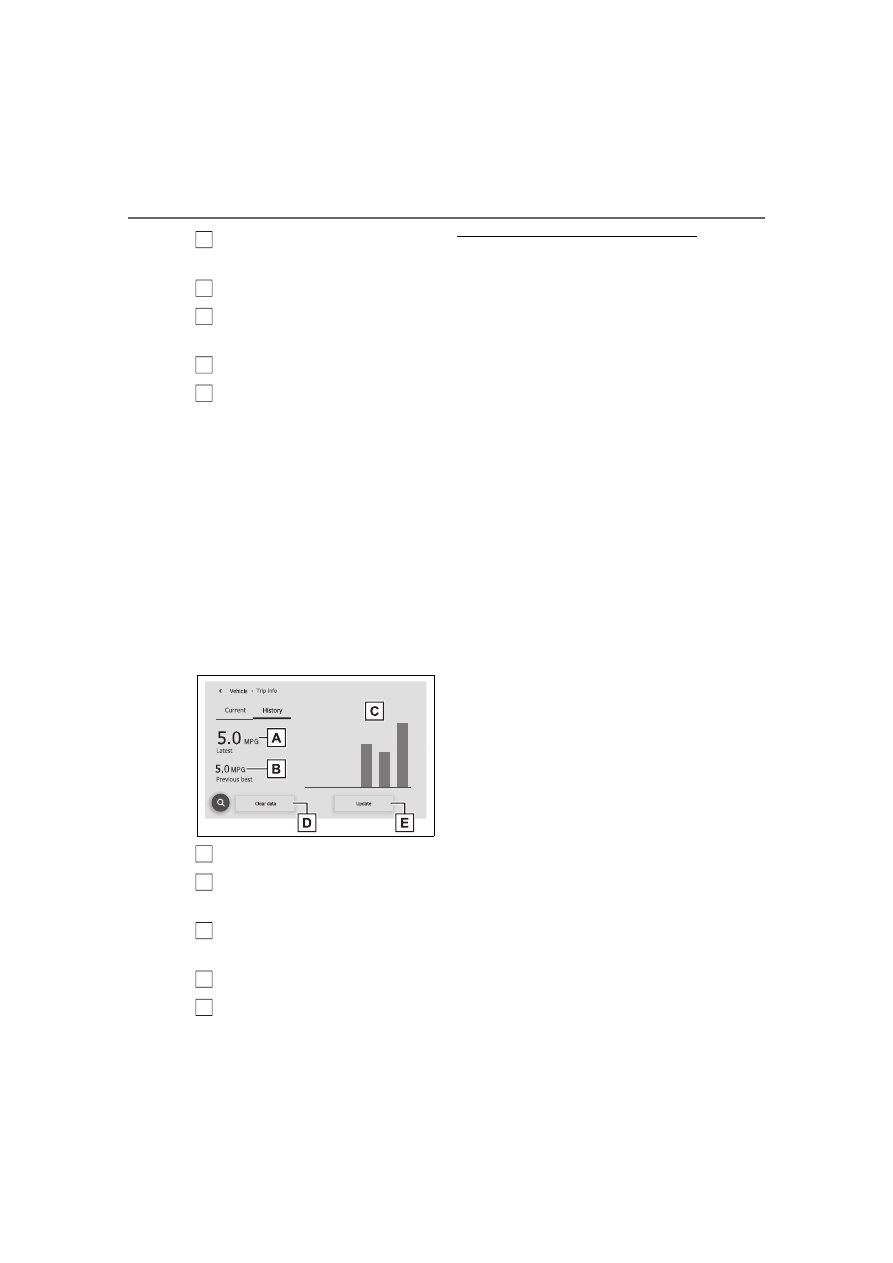

If a screen other than history
screen is displayed, press “His-
tory”.

Use the displayed average fuel
consumption as a reference.

Some screens may vary depending
on the type of multi-media display.

The image is an example only, and
may vary slightly from actual condi-
tions.

Latest fuel consumption

Best recorded fuel consump-
tion

Previous fuel consumption
record

Resetting the history data

Updating the latest fuel con-
sumption data

■

Updating the history data

Update the latest fuel consumption
by pressing “Update” to measure
the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be
deleted by pressing “Clear data”.

■

Trip range

Displays the estimated maximum
distance that can be driven with the
quantity of fuel remaining.

This distance is computed based on
your average fuel consumption. As
a result, the actual distance that can
be driven may differ from that dis-
played.

113

Before driving

Before driving

3-1. Key information

Keys ............................

114

3-2. Opening, closing and

locking the doors

Side doors ...................

119

Back door ....................

125

Smart key system .......

139

3-3. Adjusting the seats

Front seats ..................

144

Rear seats...................

145

Driving position memory

..................................

147

Head restraints............

150

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

153

Inside rear view mirror

154

Digital Rear-view Mirror

..................................

156

Outside rear view mirrors

..................................

165

3-5. Opening, closing the win-

dows and moon roof

Power windows ...........

167

Moon roof ....................

170

Panoramic moon roof..

173

114

3-1. Key information

3-1.Key information

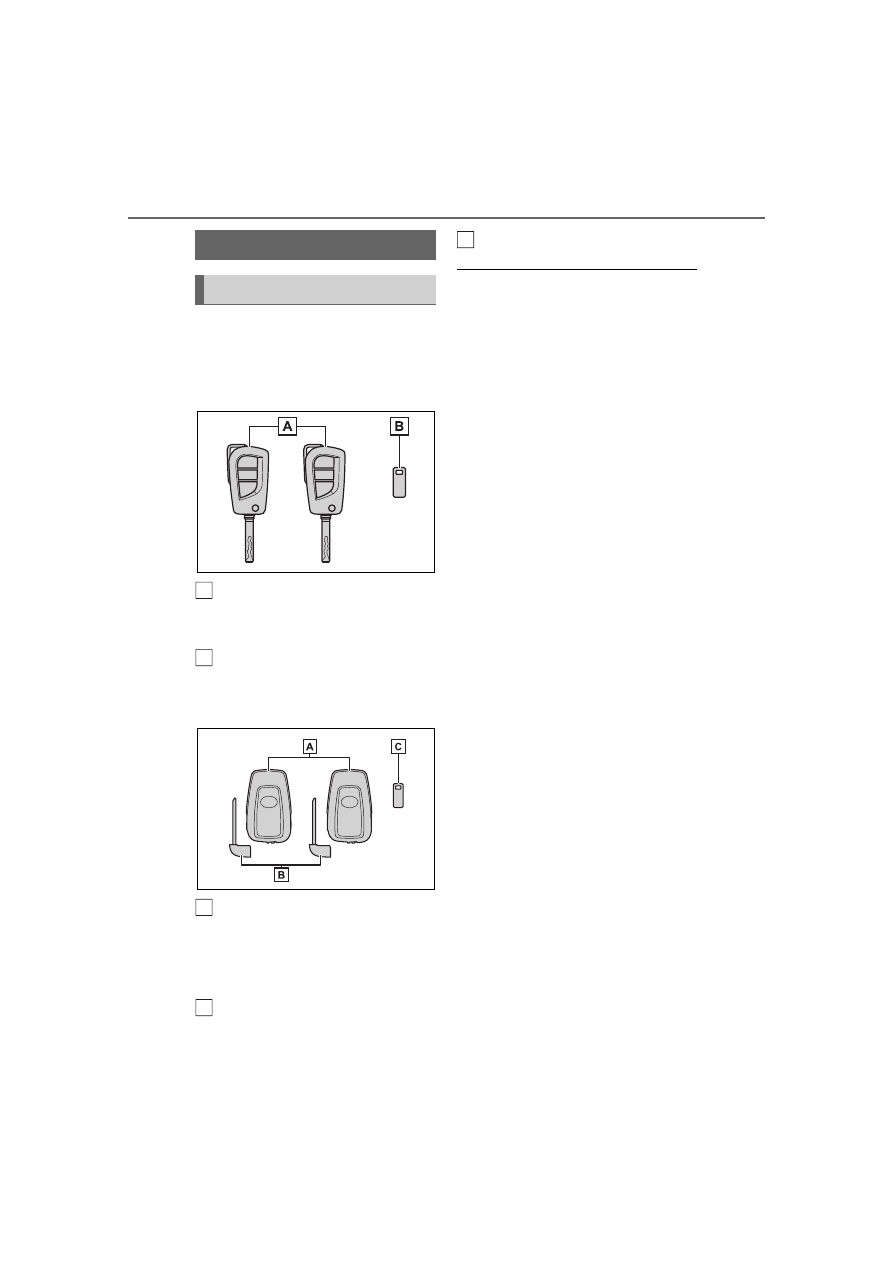

The following keys are provided
with the vehicle.



Vehicles without smart key
system

Master keys

Operating the wireless remote con-
trol function (



P.116)

Key number plate



Vehicles with smart key sys-
tem

Electronic keys

• Operating the smart key system

(

P.139)

• Operating the wireless remote

control function (



P.116)

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing a key with wireless
remote control function onto an air-
craft, make sure you do not press
any buttons on the key while inside
the aircraft cabin. If you are carrying
the key in your bag etc., ensure that
the buttons are not likely to be
pressed accidentally. Pressing a
button may cause the key to emit
radio waves that could interfere with
the operation of the aircraft.

■

Key battery depletion



Vehicles without smart key system

●

The standard battery life is 1 to 2
years.

●

The battery will become depleted
even if the wireless key is not
used. The following symptoms
indicate that the wireless key bat-
tery may be depleted. Replace the
battery when necessary.
(



P.424)

• The wireless remote control does

not operate.

• The detection area becomes

smaller.



Vehicles with smart key system

●

The standard battery life is 1 to 2
years.

●

If the battery becomes low, an
alarm will sound in the cabin and a
message will be displayed on the
multi-information display when the
engine stops.

●

To reduce key battery depletion
when the electronic key is to not
be used for long periods of time,
set the electronic key to the bat-
tery-saving mode. (



P.141)

●

As the electronic key always
receives radio waves, the battery
will become depleted even if the
electronic key is not used. The fol-
lowing symptoms indicate that the
electronic key battery may be
depleted. Replace the battery

Keys

Key types

115

3-1. Key information

Before

driving

when necessary.

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

You can replace the battery by your-

self (



P.424). However, as there is

a danger that the electronic key may

be damaged, it is recommended

that replacement is carried out by

your Toyota dealer.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Table lamps

• Induction cookers

■

If a message regarding the state

of the electronic key or engine

switch mode, etc. is shown

(vehicles with smart key sys-

tem)

To prevent trapping the electronic

key inside the vehicle, leaving the

vehicle carrying the electronic key

on your person without turning the

engine switch to OFF or other pas-

sengers from unintentionally taking

the key out of the vehicle, etc., a

message that prompts the user to

confirm the state of the electronic

key or engine switch mode may be

shown on the multi-information dis-

play. In those cases, follow the

instructions on the display immedi-

ately.

■

If “Key Battery Low Replace

Key Battery” is displayed on

the multi-information display

(vehicles with smart key sys-

tem)

The electronic key has a low bat-

tery. Replace the electronic key bat-

tery. (

P.424)

■

Replacing the battery



P.424

■

Confirmation of the registered

key number

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is displayed on the

multi-information display (vehi-

cles with smart key system)

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer

to check if an unknown electronic

key (other than those in your pos-

session) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer,

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

116

3-1. Key information

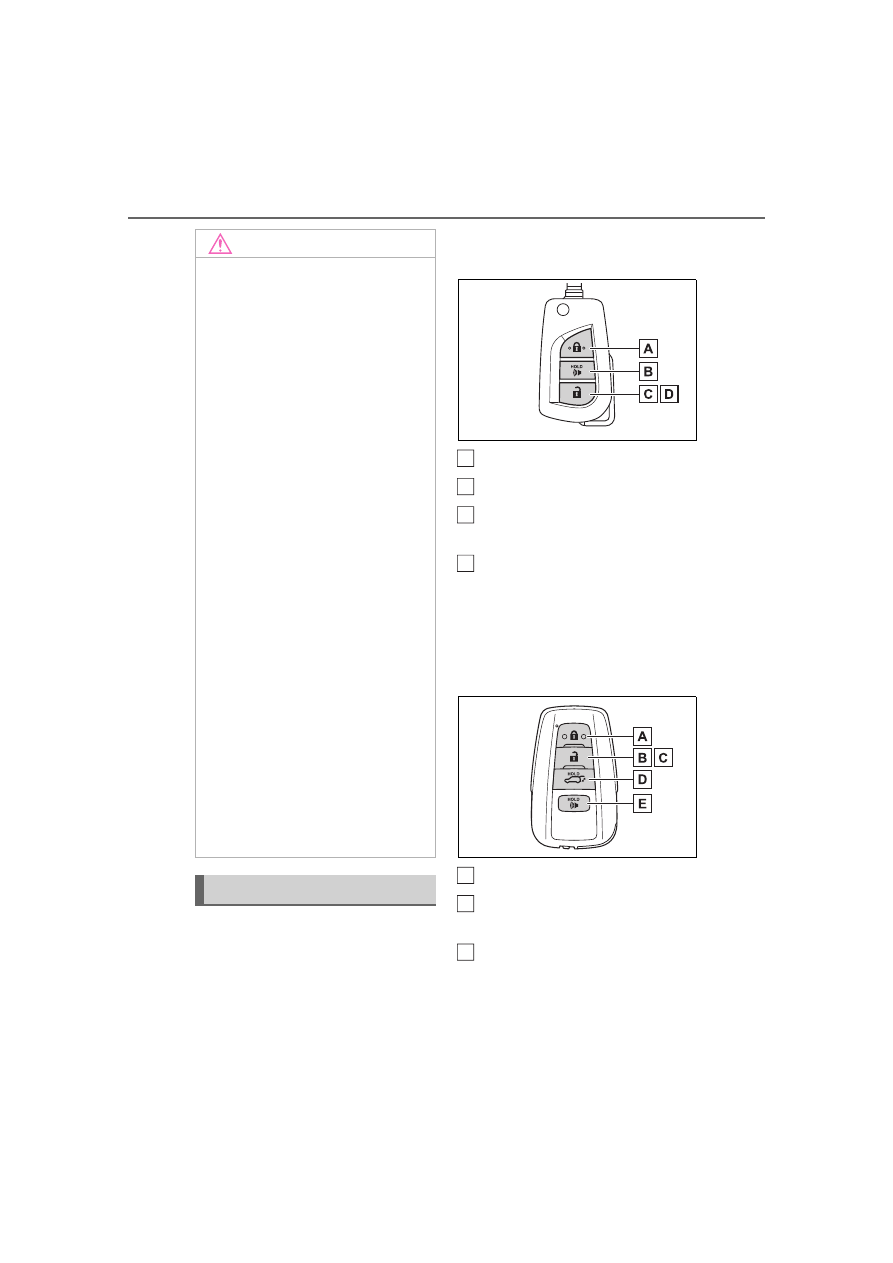

The keys are equipped with the

following wireless remote con-

trol:



Vehicles without smart key

system

Locks all the doors (

Sounds the alarm (



P.117)

Unlocks all the doors

(

Opens the side windows

(



: This setting must be customized

at your Toyota dealer.



Vehicles with smart key sys-

tem

Locks all the doors (

Unlocks all the doors

(

Opens the side windows

and the moon roof

*1, 2

panoramic moon roof

*1, 2

(



NOTICE

●

Do not attach a sticker or any-

thing else to the surface of the

keys.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

■

Carrying the electronic key

on your person (vehicles with

smart key system)

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other key-

related problems (vehicles

with smart key system)



P.472

■

When an electronic key is lost

(vehicles with smart key sys-

tem)



P.472

Wireless remote control

117

3-1. Key information

Before driving

Opens and closes the power

back door

(



P.129)

Sounds the alarm (

P.117)

: These settings must be custom-

ized at your Toyota dealer.

: If equipped

■

Theft deterrent panic mode



Vehicles without smart key system

When

is pressed for longer

than about 1 second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person
from trying to break into or damage
your vehicle.

To stop the alarm, press any button
on the key.



Vehicles with smart key system

When

is pressed for longer

than about 1 second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person
from trying to break into or damage
your vehicle.

To stop the alarm, press any button
on the electronic key.

■

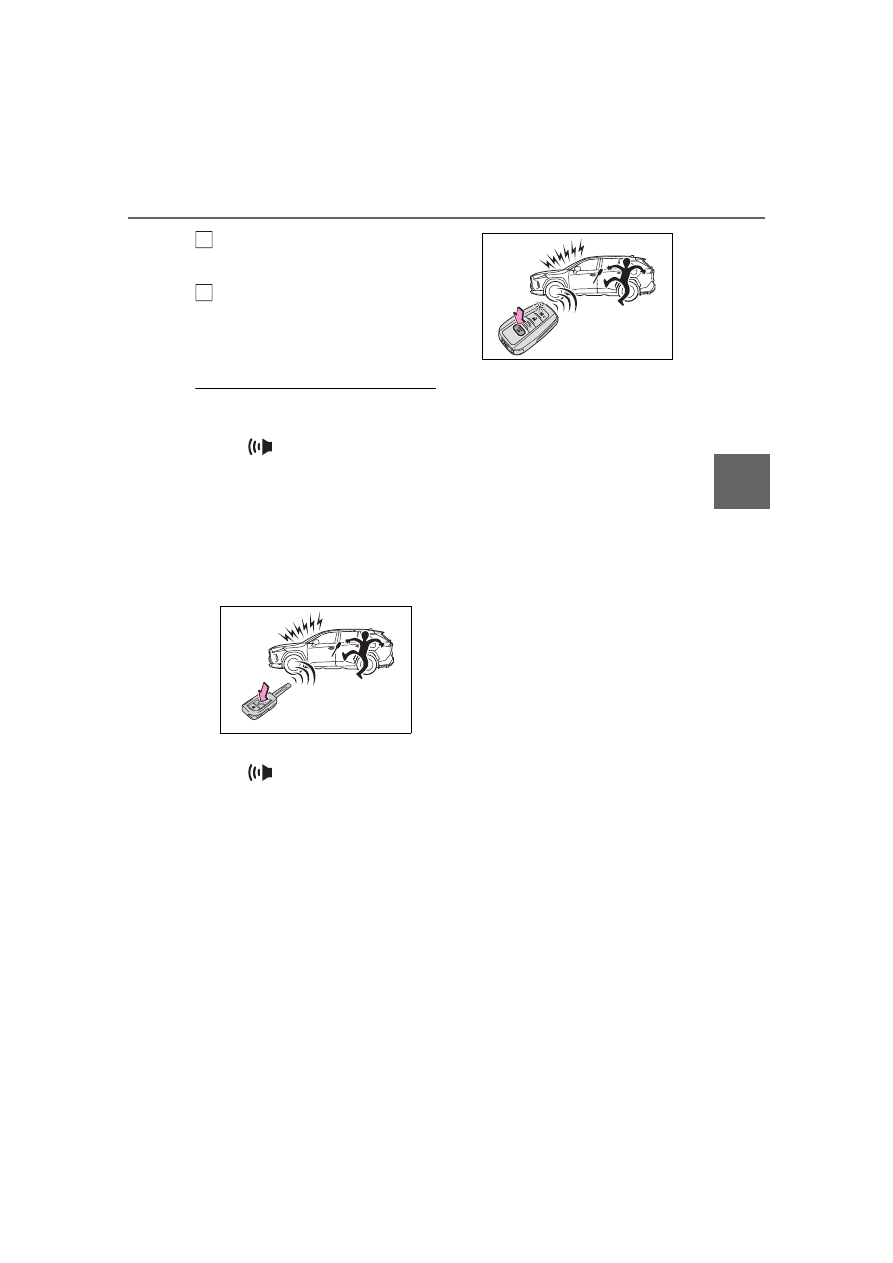

Conditions affecting operation



Vehicles without smart key system

The wireless remote control function
may not operate normally in the fol-
lowing situations.

●

When the wireless key battery is
depleted

●

Near a TV tower, electric power
plant, gas station, radio station,
large display, airport or other facil-
ity that generates strong radio
waves or electrical noise

●

When carrying a portable radio,
cellular phone or other wireless
communication device

●

When the wireless key is in con-
tact with, or is covered by a metal-
lic object

●

When other wireless key (that
emits radio waves) is being used
nearby

●

If window tint with a metallic con-
tent or metallic objects are
attached to the rear window



Vehicles with smart key system



P.141

118

3-1. Key information

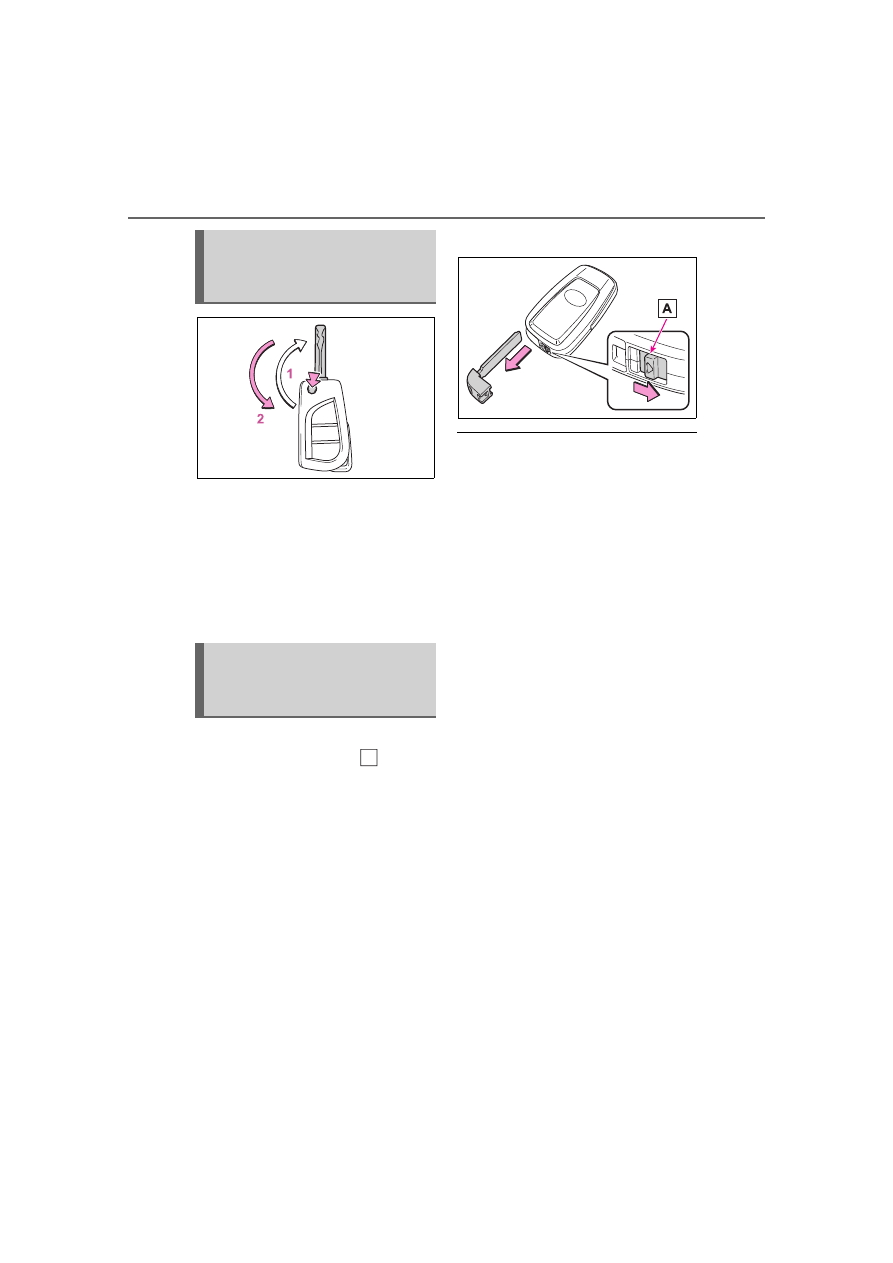

Releasing

To release the key, press the but-
ton.

Folding

To stow the key back in its case,
push the key back to the stowed
position while pressing the button.

To take out the mechanical key,

slide the release lever

and

take the key out.

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.

After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.

(



P.472)

■

When required to leave the
vehicle’s key with a parking
attendant

Lock the glove box as circum-
stances demand. (

P.351)

Remove the mechanical key for
your own use and provide the atten-
dant with the electronic key only.

■

If you lose your keys



P.472

■

If a wrong key is used

The key cylinder rotates freely to
isolate inside mechanism.

Using the master key
(vehicles without smart
key system)

Using the mechanical key
(vehicles with smart key
system)

119

3-2. Opening, closing and locking the doors

Before driving

3-2.Opening, closing and locking the doors

■

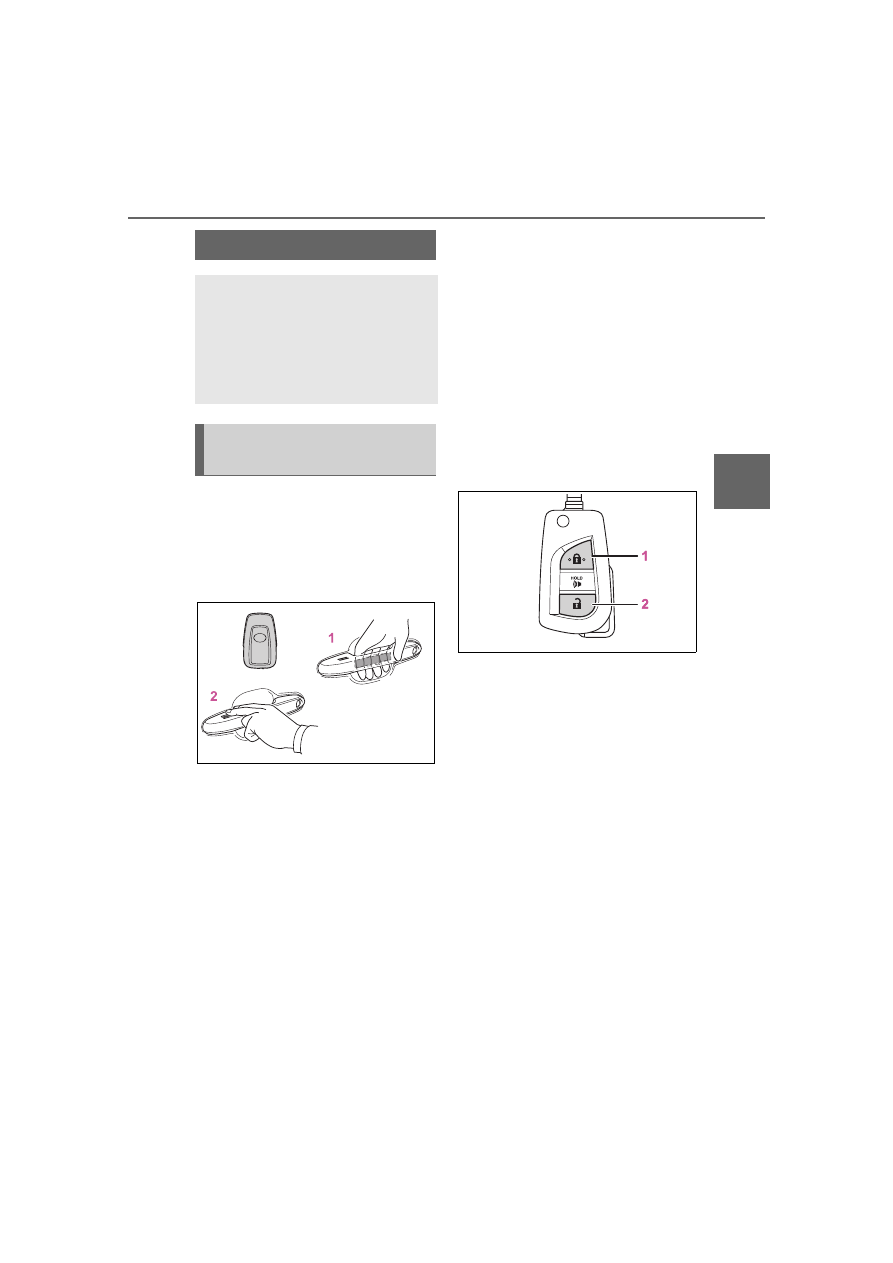

Using the entry function
(vehicles with smart key
system)

Carry the electronic key to
enable this function.

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors.
Grip the front passenger’s
door handle or rear door han-
dle (some models) to unlock

all the doors

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.

: The door unlock settings can be

changed. (

P.120)

Touch the lock sensor (the
indentation on the upper part
of the door handle) to lock
the doors.

Check that the door is securely
locked.

■

Using the wireless remote
control



Vehicles without smart key
system

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.

Press and hold to open the side

windows.

: This setting must be customized

at your Toyota dealer.

Side doors

The vehicle can be locked
and unlocked using the
entry function, wireless
remote control, door lock
switches, key or inside lock
buttons.

Unlocking and locking the
doors from the outside

120

3-2. Opening, closing and locking the doors



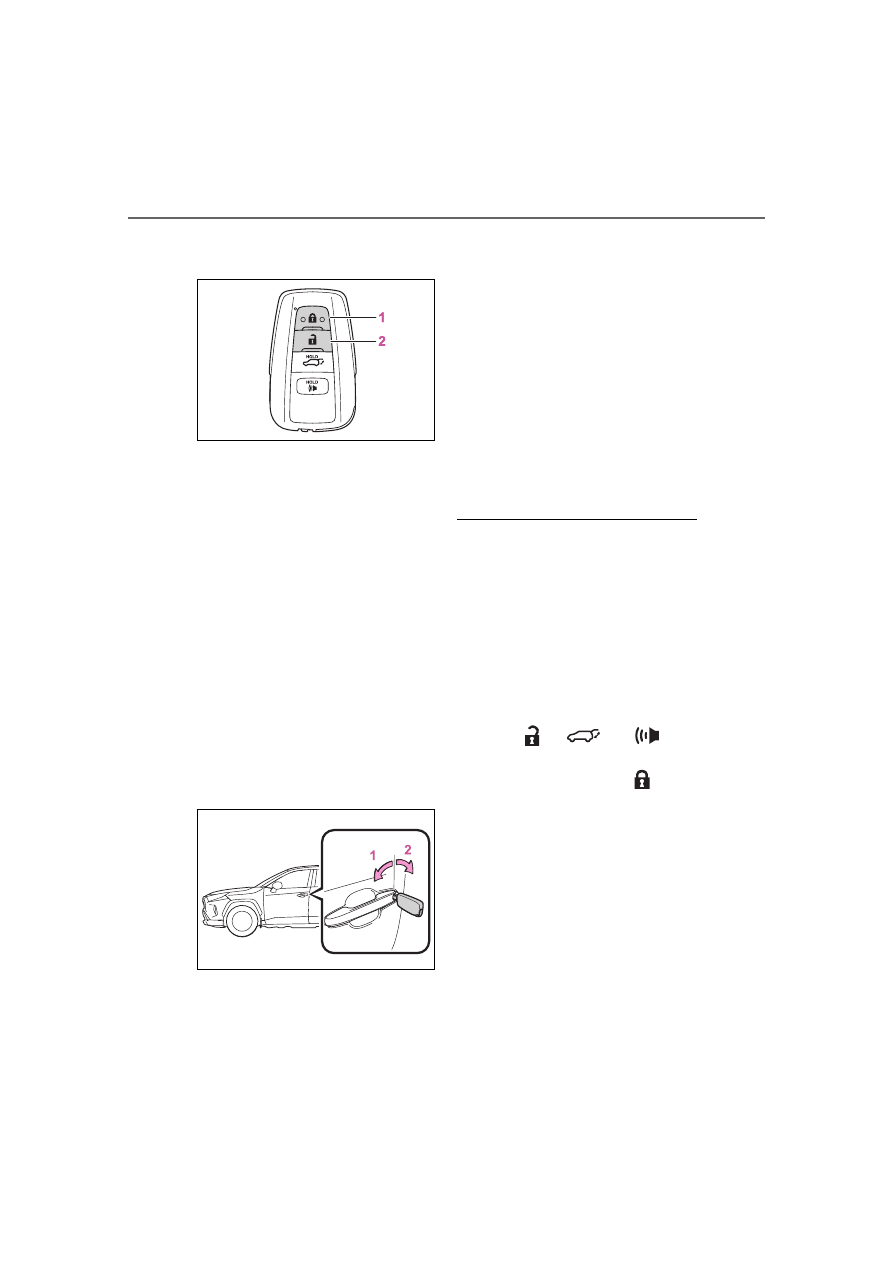

Vehicles with smart key sys-
tem

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.

Press and hold to open the side
windows and moon roof (if
equipped) or panoramic moon roof

(if equipped).

: This setting must be customized

at your Toyota dealer.

■

Using the key



Vehicles without smart key
system

Locks all the doors

Turn and hold to close the side win-

dows.

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again within 5
seconds unlocks the other doors.

Turn and hold to open the side win-

dows.

: These settings must be custom-

ized at your Toyota dealer.



Vehicles with smart key sys-
tem

The doors can also be locked
and unlocked with the mechani-
cal key. (

P.473)

■

Switching the door unlock func-
tion (vehicles with smart key
system)

It is possible to set which doors the
entry function unlocks using the
wireless remote control. Operate the
switching operation in the vehicle or
within approximately 3.2 ft. (1 m) of
the vehicle.

Turn the engine switch to OFF.

When the indicator light on the
key surface is not on, press and

hold ,

for

approximately 5 seconds while

pressing and holding

The setting changes each time an
operation is performed, as shown
below. (When changing the setting
continuously, release the buttons,
wait for at least 5 seconds, and
repeat step

121

3-2. Opening, closing and locking the doors

Before driving

: Vehicles with 7-inch multi-infor-

mation display

: Vehicles with 12.3-inch multi-

information display

Vehicles with alarm: To prevent
unintended triggering of the alarm,
unlock the doors using the wireless
remote control and open and close
a door once after the settings have
been changed. (If a door is not
opened within 60 seconds after

is pressed, the doors will be

locked again and the alarm will
automatically be set.)
In a case that the alarm is triggered,
immediately stop the alarm.
(

P.71)

■

Operation signals

Doors: A buzzer sounds and the
emergency flashers flash to indicate

that the doors have been
locked/unlocked using the entry
function or wireless remote control.
(Locked: Once; Unlocked: Twice)

Side windows and moon roof (if
equipped) or panoramic moon roof
(if equipped): A buzzer sounds to
indicate that the side windows and
moon roof or panoramic moon roof
are operating using the wireless
remote control.

■

Security feature



Vehicles without smart key system

If a door is not opened within
approximately 60 seconds after the
vehicle is unlocked using the wire-
less remote control, the security fea-
ture automatically locks the vehicle
again.



Vehicles with smart key system

If a door is not opened within
approximately 60 seconds after the
vehicle is unlocked using the entry
function or wireless remote control,
the security feature automatically
locks the vehicle again. (However,
depending on the location of the
electronic key, the key may be
detected as being in the vehicle. In
this case, vehicle may be unlocked.)

■

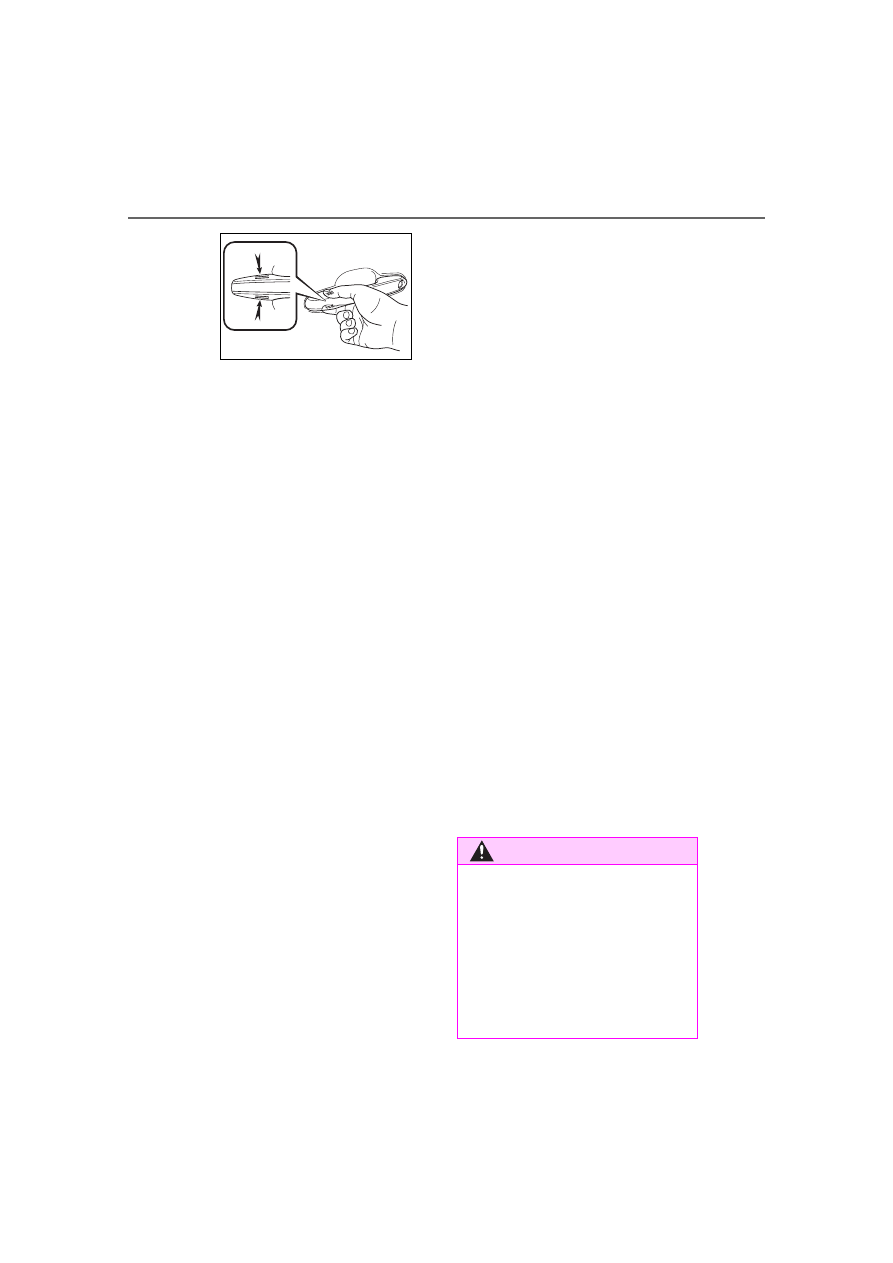

When the door cannot be
locked by the lock sensor on
the upper part of the door han-
dle (vehicles with smart key
system)

If the door will not lock even when
the topside sensor area is touched,
try touching both the topside and
underside sensor areas at the same
time.

When gloves are being worn,
remove the gloves.

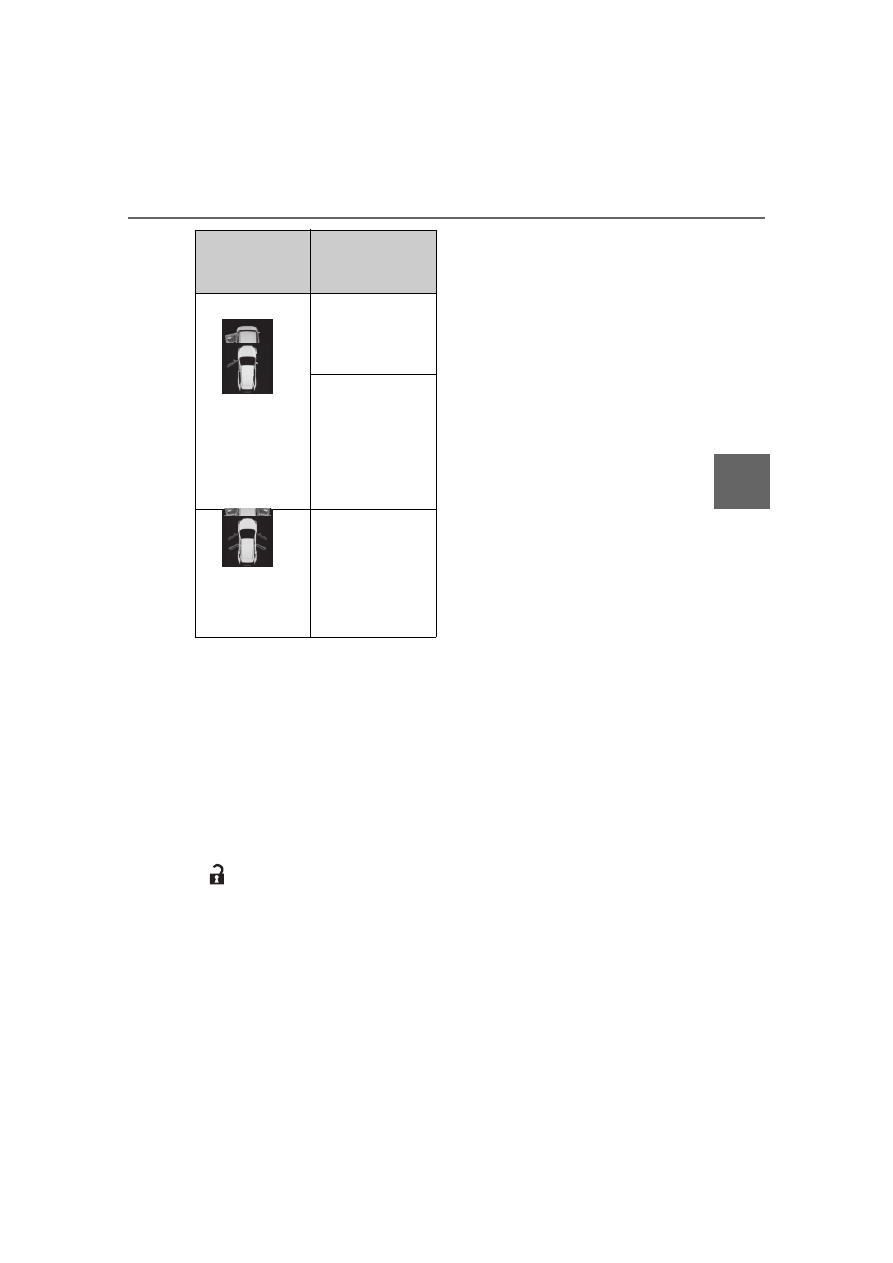

Multi-informa-

tion dis-

play/Beep

Unlocking func-

tion

Exterior: Beeps

3 times

Interior: Pings

once

Holding the
driver’s door han-
dle unlocks only
the driver’s door.

Holding the pas-
senger’s door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding a door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

122

3-2. Opening, closing and locking the doors

■

Door lock buzzer (vehicles with

smart key system)

If an attempt to lock the doors using

the smart key system is made when

a door other than the door you are

locking is open, a buzzer sounds

continuously for 5 seconds. Fully

close all the doors, and lock the

vehicle once more.

■

Setting the alarm (if equipped)

Locking the doors will set the alarm

system. (

P.71)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



Vehicles without smart key system

P.117



Vehicles with smart key system

P.141

■

If the smart key system (if

equipped) or the wireless

remote control does not oper-

ate properly

●

Vehicles with smart key system:

Use the mechanical key to lock

and unlock the doors. (



P.473)

●

Replace the key battery with a

new one if it is depleted. (



P.424)

■

If the battery is discharged

The doors cannot be locked and

unlocked using the smart key sys-

tem (if equipped) or wireless remote

control. Lock or unlock the doors

using the key (vehicles without

smart key system) or mechanical

key (vehicles with smart key sys-

tem). (



P.120, 473)

■

Rear seat reminder function

●

In order to remind you not to for-

get luggage, etc. in the rear seat,

when the engine switch is turned

to OFF after any of the following

conditions are met, a buzzer will

sound and a message will be dis-

played on the multi-information

display for approximately 6 sec-

onds.

• The engine is started within 10

minutes after opening and closing

a rear door.

• A rear door has been opened and

closed after the engine was

started.

However, if a rear door is opened

and then closed within approxi-

mately 2 seconds, the rear seat

reminder function may not operate.

●

The rear seat reminder function

determines that luggage, etc. has

been placed in a rear seat based

on opening and closing of a rear

door. Therefore, depending on the

situation, the rear seat reminder

function may not operate and you

may still forget luggage, etc. in the

rear seat, or it may operate unnec-

essarily.

●

The rear seat reminder function

can be enabled/disabled.

(



P.510)

■

Customization

Settings (e.g. unlocking function

using a key) can be changed.

(Customizable features:

P.513)

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

could be thrown out of the vehicle,

resulting in death or serious

injury.

●

Ensure that all doors are prop-

erly closed and locked.

123

3-2. Opening, closing and locking the doors

Before

driving

■

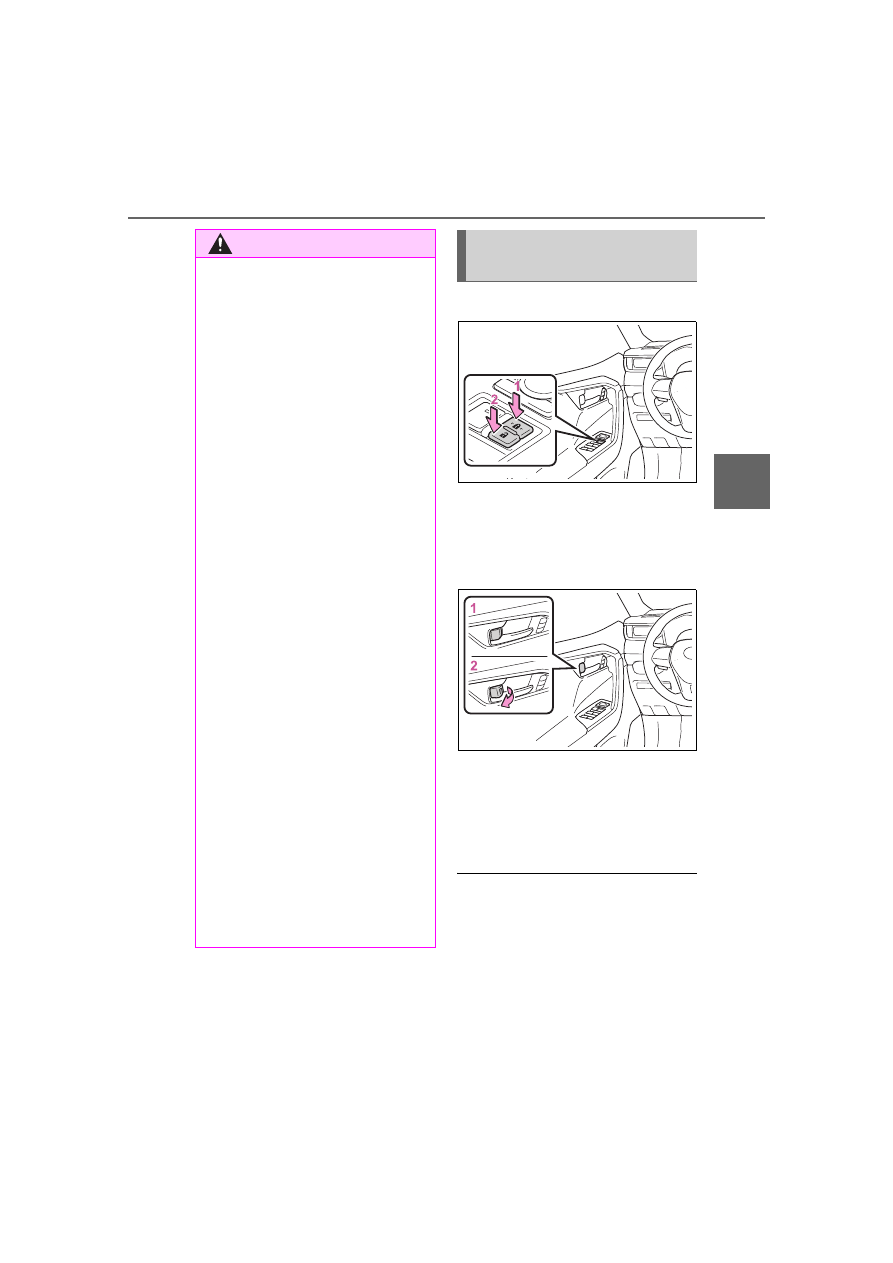

Using the door lock switch

Locks all the doors

Unlocks all the doors

■

Using the inside lock but-

tons

Locks the door

Unlocks the door

The front doors can be opened by

pulling the inside handle even if the

lock buttons are in the lock position.

■

Locking the front doors from

the outside without a key

Move the inside lock button to

the lock position.

Close the door.



Vehicles without smart key system

The door cannot be locked if the key

is in the engine switch.

WARNING

●

Do not pull the inside handle of

the doors while driving.

Be especially careful for the

front doors, as the doors may

be opened even if the inside

lock buttons are in locked posi-

tion.

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

■

When using the wireless

remote control, key or

mechanical key and operating

the power windows, moon

roof (if equipped) or pan-

oramic moon roof (if

equipped)

Operate the power window, moon

roof or panoramic moon roof after

checking to make sure that there

is no possibility of any passenger

having any of their body parts

caught in the side window, moon

roof or panoramic moon roof.

Also, do not allow children to

operate the wireless remote con-

trol, key or mechanical key. It is

possible for children and other

passengers to get caught in the

side window, moon roof or pan-

oramic moon roof.

Unlocking and locking the

doors from the inside

124

3-2. Opening, closing and locking the doors



Vehicles with smart key system

The door cannot be locked if the
engine switch is in ACC or ON, or
the electronic key is left inside the
vehicle.

Depending on the position of the
electronic key, the key may not be
detected correctly and the door may
be locked.

■

Open door warning buzzer

If the vehicle speed reaches 3 mph
(5 km/h), a buzzer sounds to indi-
cate that the door(s) or the hood is
not fully closed.
The open door(s) or hood is dis-
played on the multi-information dis-
play.

■

When all the doors are locked
with the entry function (vehicles
with smart key system), wire-
less remote control or key

●

The doors cannot be unlocked
with the door lock switch.

●

The door lock switch can be reset
by unlocking all the doors with the
entry function (vehicles with smart
key system), wireless remote con-
trol or key.

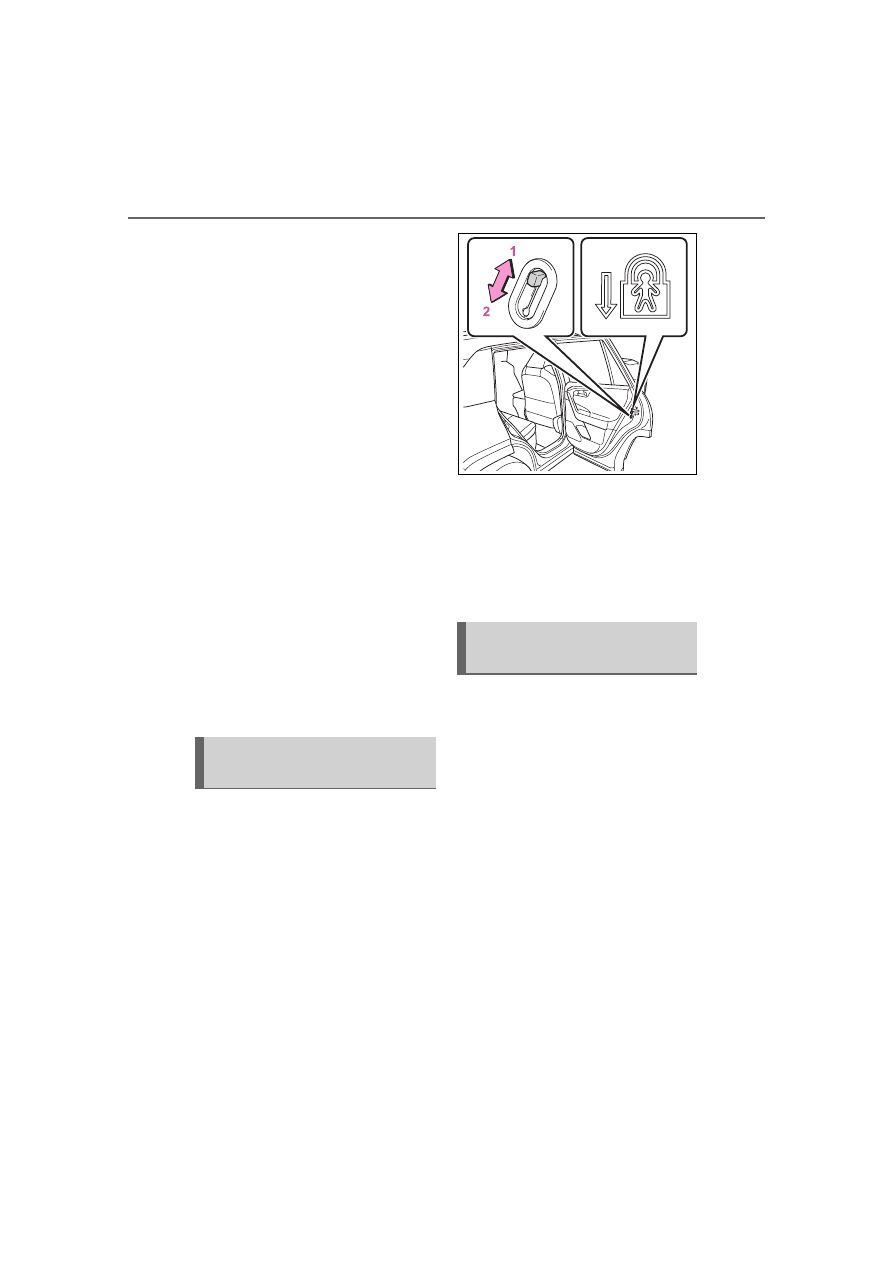

The door cannot be opened
from inside the vehicle when the
lock is set.

Unlock

Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

The following functions can be
set or canceled:

For instructions on customizing,
refer to P.508.

Rear door child-protector
lock

Automatic door locking
and unlocking systems

125

3-2. Opening, closing and locking the doors

Before

driving

Function

Operation

Speed linked

door locking

function

All doors are

automatically

locked when

vehicle speed is

approximately

12mph (20 km/h)

or higher.

Shift position

linked door lock-

ing function

All doors are

automatically

locked when

shifting the shift

lever to position

other than P.

Shift position

linked door

unlocking func-

tion

All doors are

automatically

unlocked when

shifting the shift

lever to P.

Driver’s door

linked door

unlocking func-

tion

All doors are

automatically

unlocked when

driver’s door is

opened within

approximately 45

seconds after

turning the

engine switch to

OFF.

Back door

The back door can be

locked/unlocked and

opened/closed by the fol-

lowing procedures.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before driving

●

Make sure that the back door is

fully closed.

If the back door is not fully

closed, it may open unexpect-

edly while driving and hit near-

by objects or luggage in the lug-

gage compartment may be

thrown out, causing an acci-

dent.

●

Do not allow children to play in

the luggage compartment.

If a child is accidentally locked

in the luggage compartment,

they could get heat exhaustion

or other injuries.

●

Do not allow a child to open or

close the back door.

Doing so may cause the back

door to operate unexpectedly,

or cause the child’s hands,

head, or neck to be caught by

the closing back door.

■

Important points while driving

●

Keep the back door closed

while driving.

If the back door is left open, it

may hit near-by objects or lug-

gage in the luggage compart-

ment may be thrown out,

causing an accident.

126

3-2. Opening, closing and locking the doors

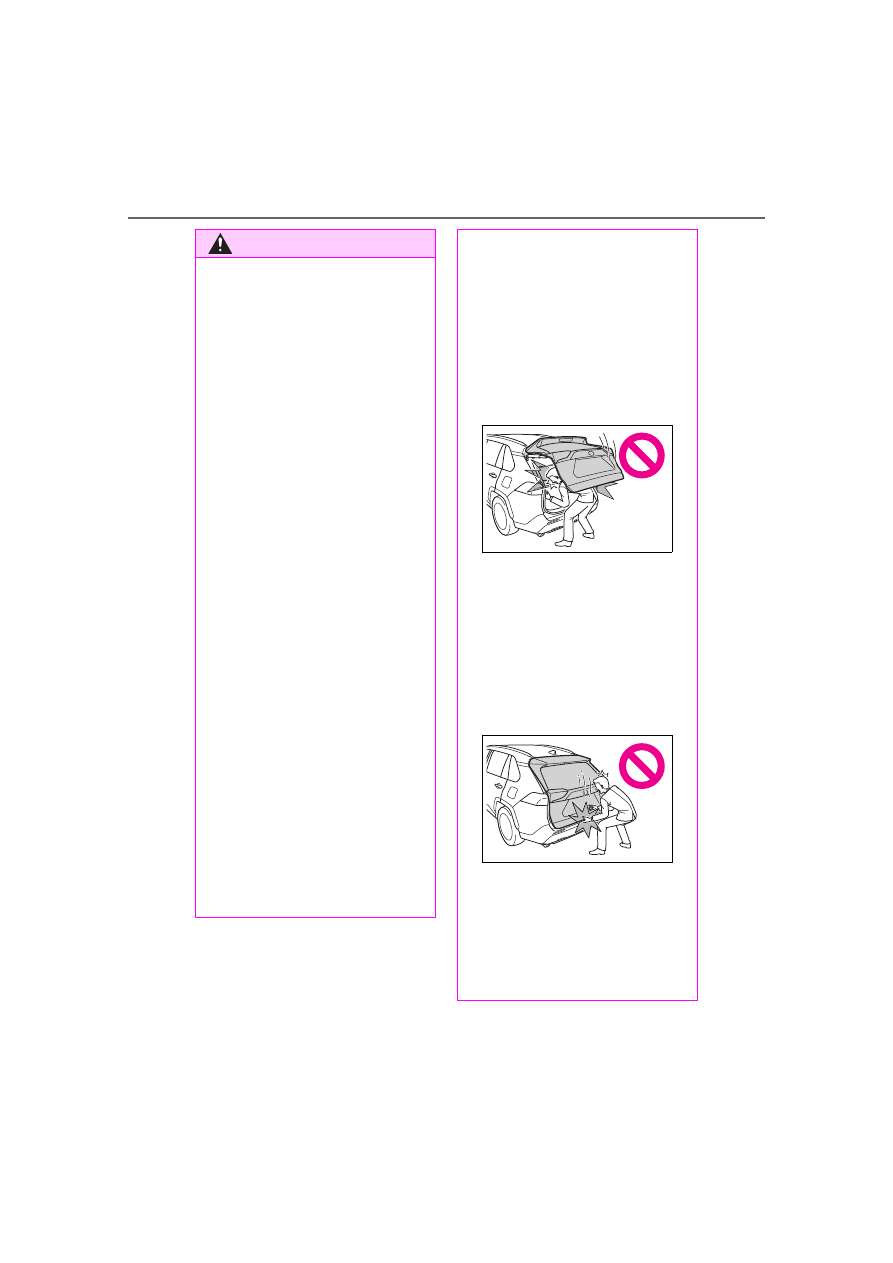

WARNING

●

Never let anyone sit in the lug-

gage compartment.

In the event of sudden braking,

sudden swerving or a collision,

they are susceptible to death or

serious injury.

■

Back door handles

Do not hang any object to the

back door handles.

If any object is hung, the back

door may suddenly shut, causing

parts of the body to be caught,

resulting in death or serious

injury.

■

Operating the back door

Observe the following precau-

tions.

Failure to do so may cause parts

of the body to be caught, resulting

in death or serious injury.

●

Remove any heavy loads, such

as snow and ice, from the back

door before opening it. Failure

to do so may cause the back

door to suddenly shut again

after it is opened.

●

When opening or closing the

back door, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

Use caution when opening or

closing the back door in windy

weather as it may move

abruptly in strong wind.

●

Vehicles without power back

door: The back door may sud-

denly shut if it is not opened

fully. It is more difficult to open

or close the back door on an

incline than on a level surface,

so beware of the back door

unexpectedly opening or closing

by itself. Make sure that the

back door is fully open and

secure before using the luggage

compartment.

●

Vehicles with power back door:

The back door may suddenly

shut if it is not opened fully,

while on a steep incline. Make

sure that the back door is

secured before using the lug-

gage compartment.

●

When closing the back door,

take extra care to prevent your

fingers, etc. from being caught.

●

Vehicles without power back

door: When closing the back

door, make sure to press it

lightly on its outer surface. If the

back door handle is used to fully

close the back door, it may

result in hands or arms being

caught.

127

3-2. Opening, closing and locking the doors

Before

driving

■

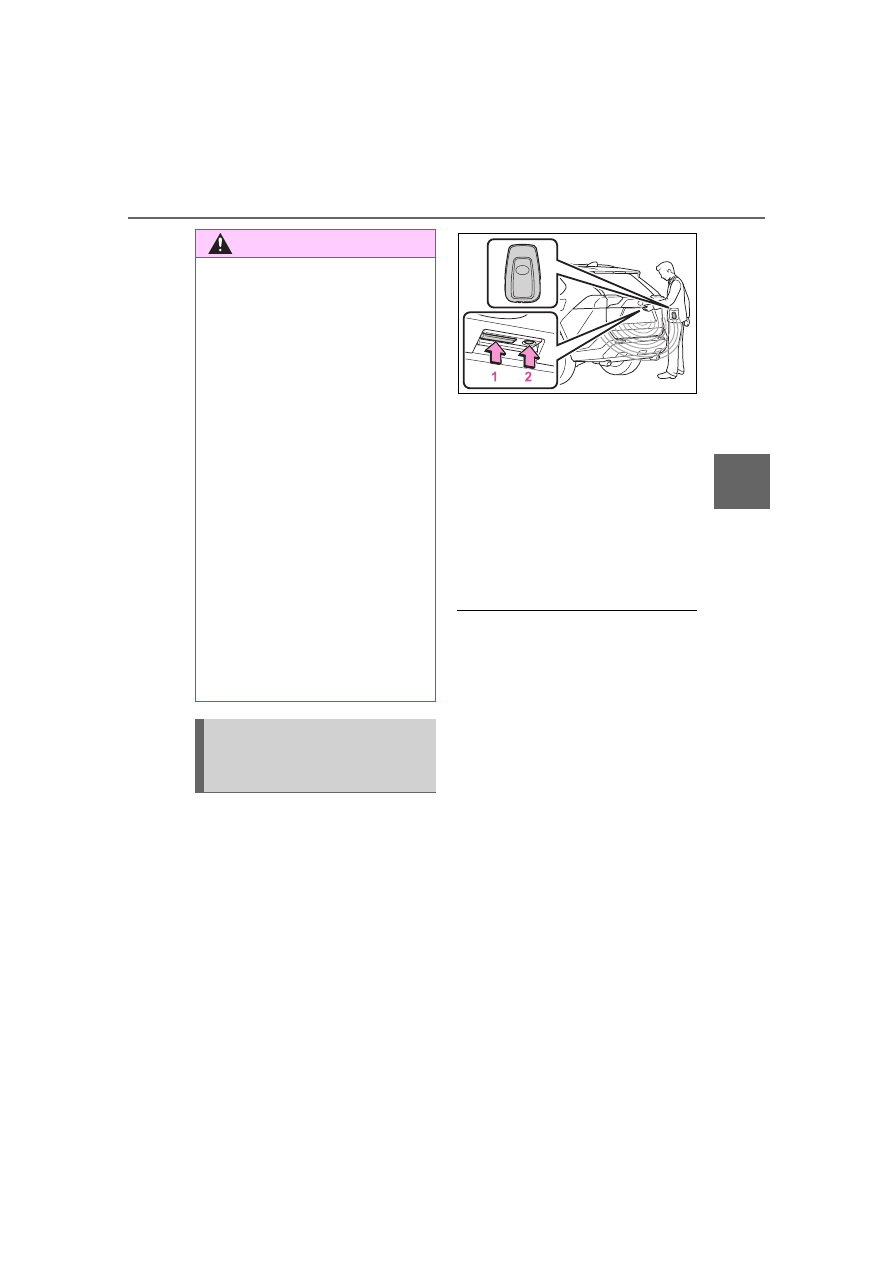

Using the entry function

(vehicles with smart key

system)

Carry the electronic key to

enable this function.

Unlocks all the doors

The doors cannot be unlocked for 3

seconds after the doors are locked.

Locks all the doors

Check that the door is securely

locked.

■

Using the wireless remote

control

P.119

■

Operation signals

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked using the entry

function (if equipped) or wireless

remote control. (Locked: once;

Unlocked: twice)

■

Security feature



Vehicles without smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the wire-

less remote control, the security fea-

ture automatically locks the vehicle

again.



Vehicles with smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the entry

function or wireless remote control,

the security feature automatically

locks the vehicle again. (However,

depending on the location of the

WARNING

●

Do not pull on the back door

damper stay (vehicles without

power back door) (

P.129) or

back door spindle (vehicles with

power back door) (
