257

4-5. Using the driving support systems

4

Dr

iv

ing

*

: If equipped



When the front camera

detects a sign or information

of a sign is available from the

navigation system, the sign

will be displayed on the dis-

play.



Multiple signs can be dis-

played.

Depending on the specifications of

the vehicle, the number of dis-

played signs may be limited.

■

Operating conditions of sign

display

Signs will be displayed when the fol-

lowing conditions are met:

●

The system has detected a sign

In the following situations, a dis-

played sign may stop being dis-

played:

●

When a new sign has not been

detected for a certain distance

●

When the system determines that

the road being driven on has

changed, such as after a left or

right turn

■

Situations in which the display

function may not operate prop-

erly

In the following situations, the RSA

system may not operate properly

and may not detect signs or may

display the incorrect sign. However,

this does not indicate a malfunction.

●

When a sign is dirty, faded, tilted

or bent

●

When the contrast of an electronic

sign is low

●

When all or part of a sign is hidden

by a tree, utility pole, etc.

●

When a sign is detected by the

front camera for a short amount of

time

●

When the driving state (turning,

changing lanes, etc.) is judged

incorrectly

RSA (Road Sign

Assist)

*

The RSA system detects

specific road signs using

the front camera and/or nav-

igation system (when speed

limit information is avail-

able) and warns the driver

via displays and buzzers.

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver. Pay

careful attention to the sur-

rounding conditions in order to

ensure safe driving.

●

Do not rely solely upon the

RSA. The RSA assists the

driver by providing road sign

information, but it is not a

replacement for the driver’s own

vision and awareness. Driving

safely is solely the responsibility

of the driver. Pay careful atten-

tion to the surrounding condi-

tions in order to ensure safe

driving.

■

Situations in which the RSA

should not be used

When it is necessary to disable

the system:



P.215

■

Situations in which the sys-

tem may not operate properly

●

Situations in which the sensors

may not operate properly:



P.219

Display Function

258

4-5. Using the driving support systems

●

When a sign is immediately after a
freeway junction or in an adjacent
lane just before merging

●

When stickers are attached to the
rear of a preceding vehicle

●

When a sign similar to a system
compatible sign is detected as a
system compatible sign

●

When a speed limit sign for a
frontage road is within detection
range of the front camera

●

When driving around a round-
about

●

When a sign intended for trucks,
etc. is detected

●

When the navigation system map
data is out of date

●

When the navigation system can-
not be used

In this case, the speed limit signs
displayed on the multi-information
display and navigation system dis-
play may differ.

In the following situations, the
RSA system will output a warn-
ing to notify the driver.



If the vehicle speed exceeds
the speed warning threshold
of the speed limit sign dis-
played on the display, the
sign display will be empha-
sized and a buzzer will sound.



When the RSA system
detects a do not enter sign
and determines that the vehi-
cle has entered a no-entry
area, the do not enter sign
displayed on the display will
flash and a buzzer will sound.

■

Operating conditions of the
notification functions

●

Excess speed notification function

This function will operate when the
following condition is met:
• A speed limit road sign is recog-

nized by the system.

●

No entry notification function

This function will operate when all of
the following conditions are met:
• More than one no entry road signs

are recognized by the system
simultaneously.

• The vehicle is passing between no

entry road signs recognized by the
system.



The following types of road
signs can be displayed.

However, non-standard or recently
introduced traffic signs may not be
displayed.

Notification function

Types of road signs sup-
ported

Speed limit

Do Not Enter

No U-turn

No Turn On Red

259

4-5. Using the driving support systems

4

Dr

iv

ing



Depending on the specifica-

tions of the vehicle, signs may

be displayed overlapping.



The following settings of the

RSA can be changed through

customize settings. (



P.548)

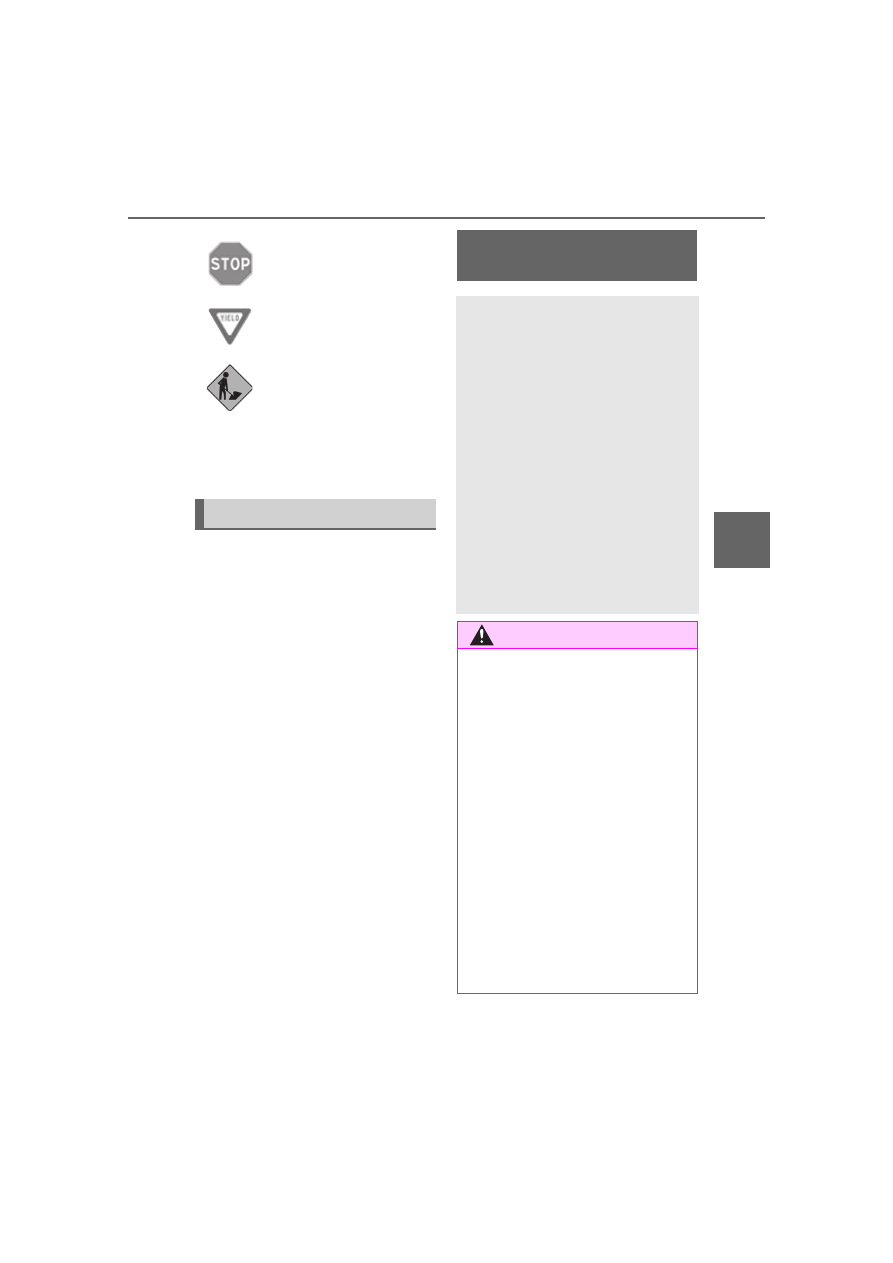

Stop

Yield

Warning

Changing RSA settings

Dynamic radar cruise

control

This dynamic radar cruise

control detects the pres-

ence of vehicles ahead,

determines the current vehi-

cle-to-vehicle distance, and

operates to maintain a suit-

able distance from the vehi-

cle ahead. The desired

vehicle-to-vehicle distance

can be set by operating the

vehicle-to-vehicle distance

switch.
Use the dynamic radar

cruise control only on high-

ways and expressways.

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver. Do

not overly rely on this system,

and pay careful attention to the

surrounding conditions in order

to ensure safe driving.

●

The dynamic radar cruise con-

trol provides driving assistance

to reduce the driver’s burden.

However, there are limitations

to the assistance provided.

Read the following items care-

fully. Do not overly rely on this

system and always drive care-

fully.
Conditions under which the sys-

tem may not operate correctly:



P.265

260

4-5. Using the driving support systems

WARNING

●

Set the speed appropriately

according to the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for confirm-

ing the set speed.

●

Even if the system is operating

correctly, the condition of a pre-

ceding vehicle as recognized by

the driver and detected by the

system may differ. Therefore, it

is necessary for the driver to

pay attention, assess risks, and

ensure safety. Over-reliance on

this system to drive the vehicle

safely may lead to an accident

resulting in death or serious

injury.

■

Precautions for the driving

assist systems

Observe the following precau-

tions, as there are limitations to

the assistance provided by the

system. Over-reliance on this sys-

tem may lead to an accident

resulting in death or serious

injury.

●

Details of support provided for

the driver’s vision

The dynamic radar cruise control

is only intended to help the driver

in determining the distance

between the driver’s own vehicle

and a designated preceding vehi-

cle. It is not a system which allows

for careless or inattentive driving,

and is not a system which assists

in poor visibility conditions.
The driver must pay attention to

their surroundings, even when the

vehicle stops.

●

Details of support provided for

the driver’s judgement

The dynamic radar cruise control

determines whether the distance

between the driver’s own vehicle

and a designated preceding vehi-

cle is within a set range. It is not

capable of making any other type

of judgement. Therefore, it is

absolutely necessary for the

driver to remain vigilant and to

determine whether or not there is

a possibility of danger.

●

Details of support provided for

the driver’s operation

The dynamic radar cruise control

does not include functions which

will prevent or avoid collisions

with vehicles ahead of your vehi-

cle. Therefore, if there is ever any

possibility of danger, the driver

must take immediate and direct

control of the vehicle and act

appropriately in order to ensure

safety.

■

Situations in which the

dynamic radar cruise control

should not be used

Do not use the dynamic radar

cruise control in the following situ-

ations. As the system will not be

able to provide appropriate con-

trol, using it may lead to an acci-

dent resulting in death or serious

injury.

●

Roads where there are pedes-

trians, cyclists, etc.

●

When driving on a highway or

expressway entrance or exit

●

When the approach warning

sounds frequently

●

Situations in which the sensors

may not operate properly:



P.219

●

Situations in which the lane may

not be detected:



P.221

261

4-5. Using the driving support systems

4

Dr
iv

ing

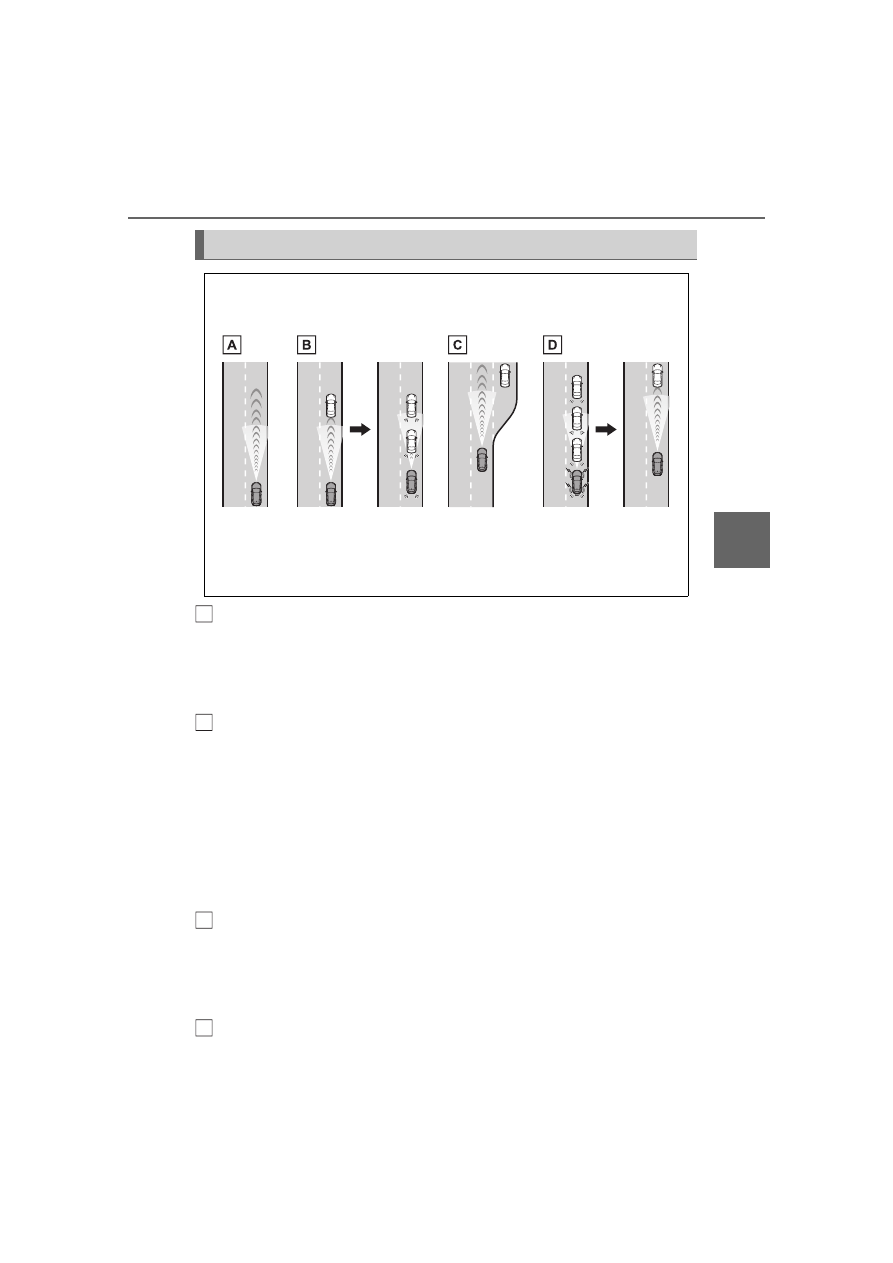

Constant speed cruising
When there are no vehicles ahead

The vehicle drives at the speed set by the driver.

If the set vehicle speed is exceeded while driving down a hill, the set vehicle
speed display will blink and a buzzer will sound.

Deceleration and follow-up cruising
When a preceding vehicle driving slower than the set vehicle
speed is detected

When a vehicle is detected driving ahead of your vehicle, the vehicle auto-
matically decelerates and if a greater reduction in vehicle speed is neces-
sary, the brakes are applied (the stop lights will come on at this time). The
vehicle is controlled to maintain the vehicle-to-vehicle distance set by the
driver, in accordance with changes in the speed of the preceding vehicle. If
vehicle deceleration is not sufficient and the vehicle approaches the vehicle
ahead, the approach warning will sound.

Acceleration
When there are no longer any preceding vehicles driving slower
than the set vehicle speed

The vehicle accelerates until the set vehicle speed is reached and then
resumes constant speed cruising.

Starting off

Basic functions

A

B

C

D

262

4-5. Using the driving support systems

If a preceding vehicle stops, the vehicle will also stop (controlled
stop). After the preceding vehicle starts off, pressing the “RES”
switch or depressing the accelerator pedal will resume follow-up
cruising (start off operation). If a start off operation is not performed,
the controlled stop will continue.

■

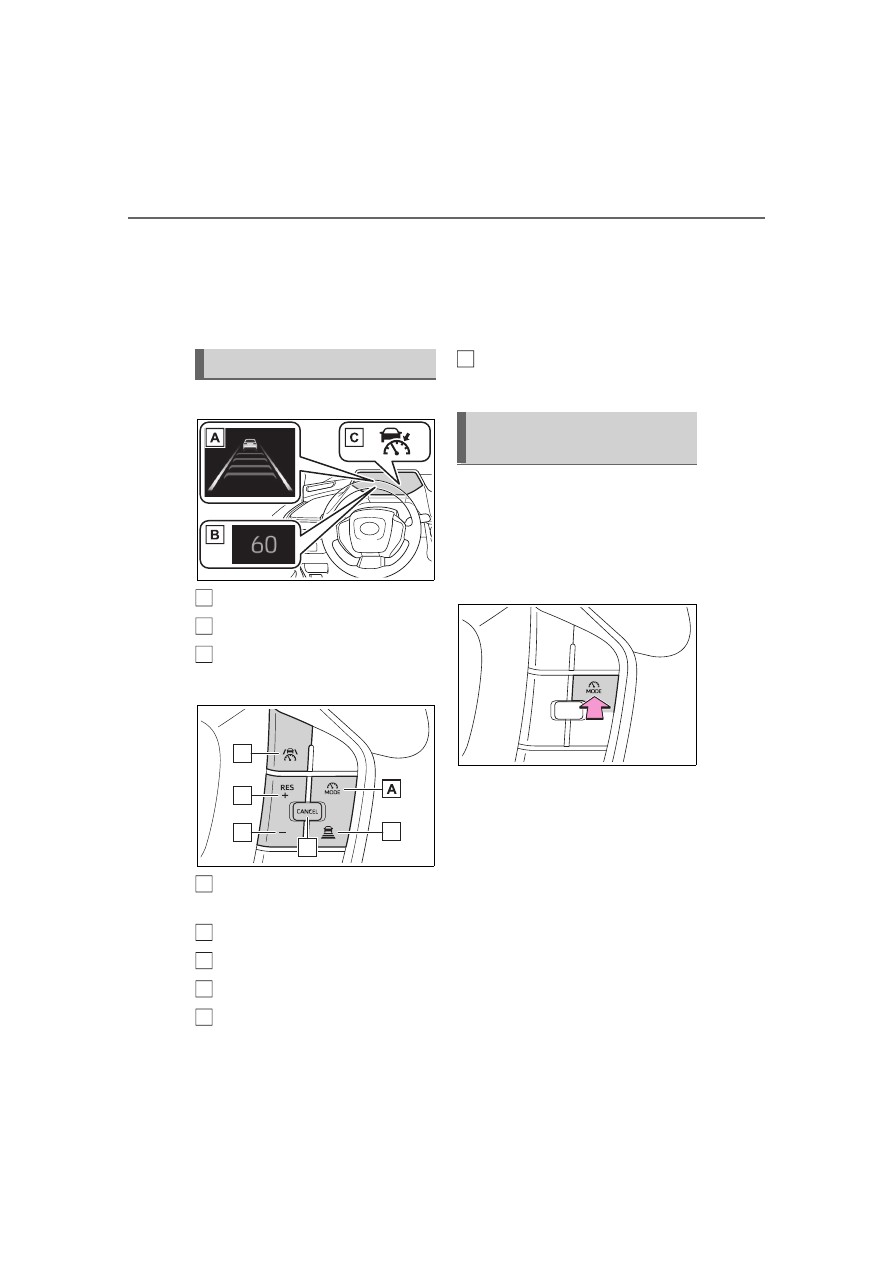

Meter display

Multi-information display

Set vehicle speed

Indicators

■

Switches

Driving assist mode select
switch

Driving assist switch

“+” switch/“RES” switch

“-” switch

Cancel switch

Vehicle-to-vehicle distance
switch

■

Setting the vehicle speed

1

Press the driving assist mode
select switch to select
dynamic radar cruise control.

The dynamic radar cruise control
indicator will illuminate.

2

Using the accelerator pedal,
accelerate or decelerate to
the desired vehicle speed
(approximately 20 mph [30
km/h] or more), and press the
driving assist switch to set
the set vehicle speed.

The set vehicle speed will be dis-
played on the multi-information dis-
play.

The vehicle speed at the moment
the switch is released will be the set

System components

A

B

C

B

C

F

D

E

A

B

C

D

E

Using the dynamic radar
cruise control

F

263

4-5. Using the driving support systems

4

Dr
iv

ing

vehicle speed.

■

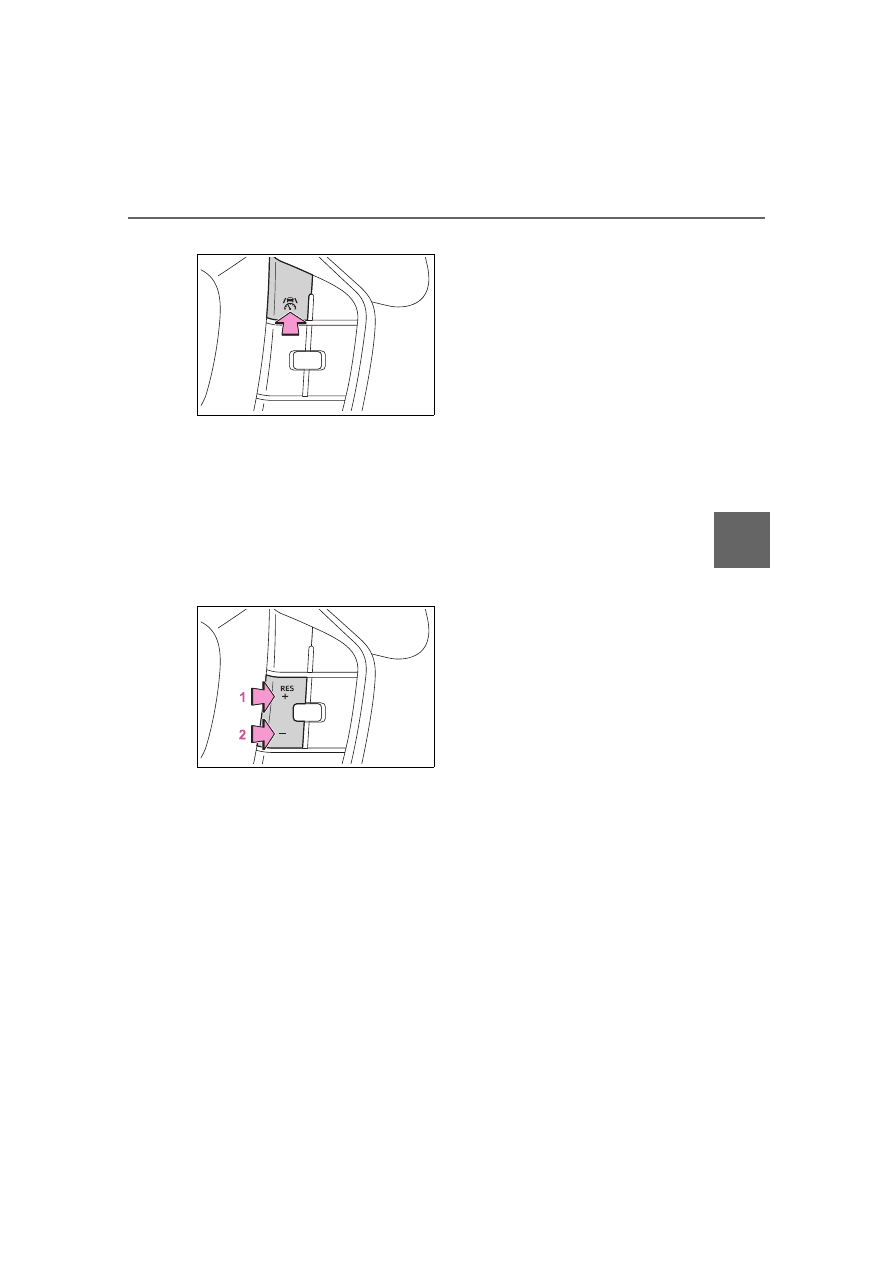

Adjusting the set vehicle
speed



Adjusting the set vehicle
speed using the switches

To change the set vehicle
speed, press the “+” switch or “-”
switch until the desired speed is
displayed.

1

Increase set vehicle speed

2

Decrease set vehicle speed

Short press adjustment: Press the
switch

Long press adjustment: Press and
hold the switch until the desired set
vehicle speed is reached.

The set vehicle speed will
increase or decrease as follows:



For the U.S. mainland and
Hawaii

Short press adjustment:

Increases or decreases by 1
mph (1.6 km/h) each time the
switch is pressed

Long press adjustment:
Increases or decreases in 1
mph (1.6 km/h) increments con-
tinuously while the switch is
pressed and held



Except for the U.S. mainland
and Hawaii

Short press adjustment: By 0.6
mph (1 km/h) or 1.6 km/h (1
mph) each time the switch is
pressed

Long press adjustment:
Increases or decreases in 3.1
mph (5 km/h) or 8 km/h (5 mph)
increments continuously while
the switch is pressed and held



Increasing the set vehicle
speed using the accelerator
pedal

1

Depress the accelerator
pedal to accelerate the vehi-
cle to the desired vehicle
speed.

2

Press the “+” switch.

■

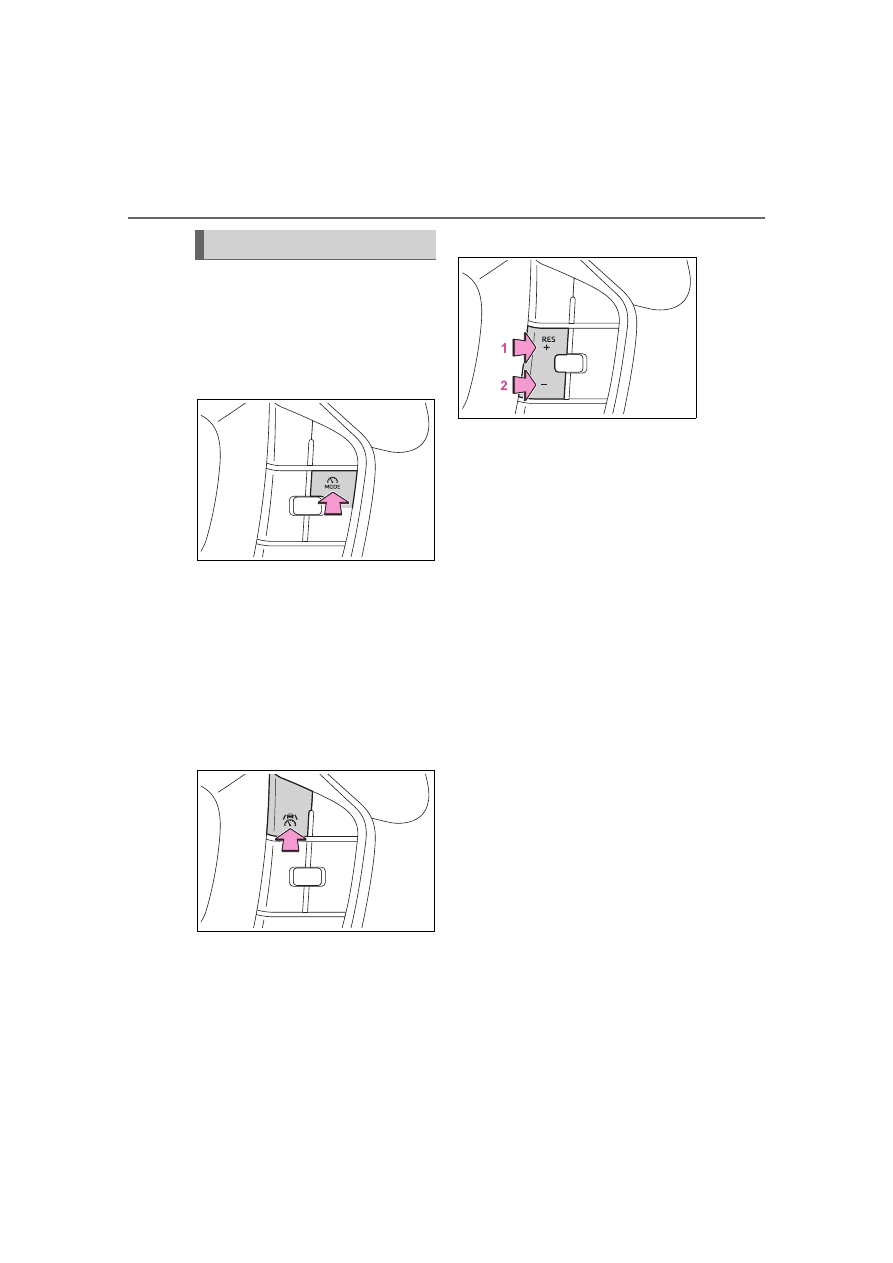

Canceling/resuming control

1

Press the cancel switch or
driving assist switch to cancel
control.

Control will also be canceled if the
brake pedal is depressed.
(If the vehicle has been stopped by
system control, depressing the

264

4-5. Using the driving support systems

brake pedal will not cancel control.)

2

Press the “RES” switch to
resume control.

■

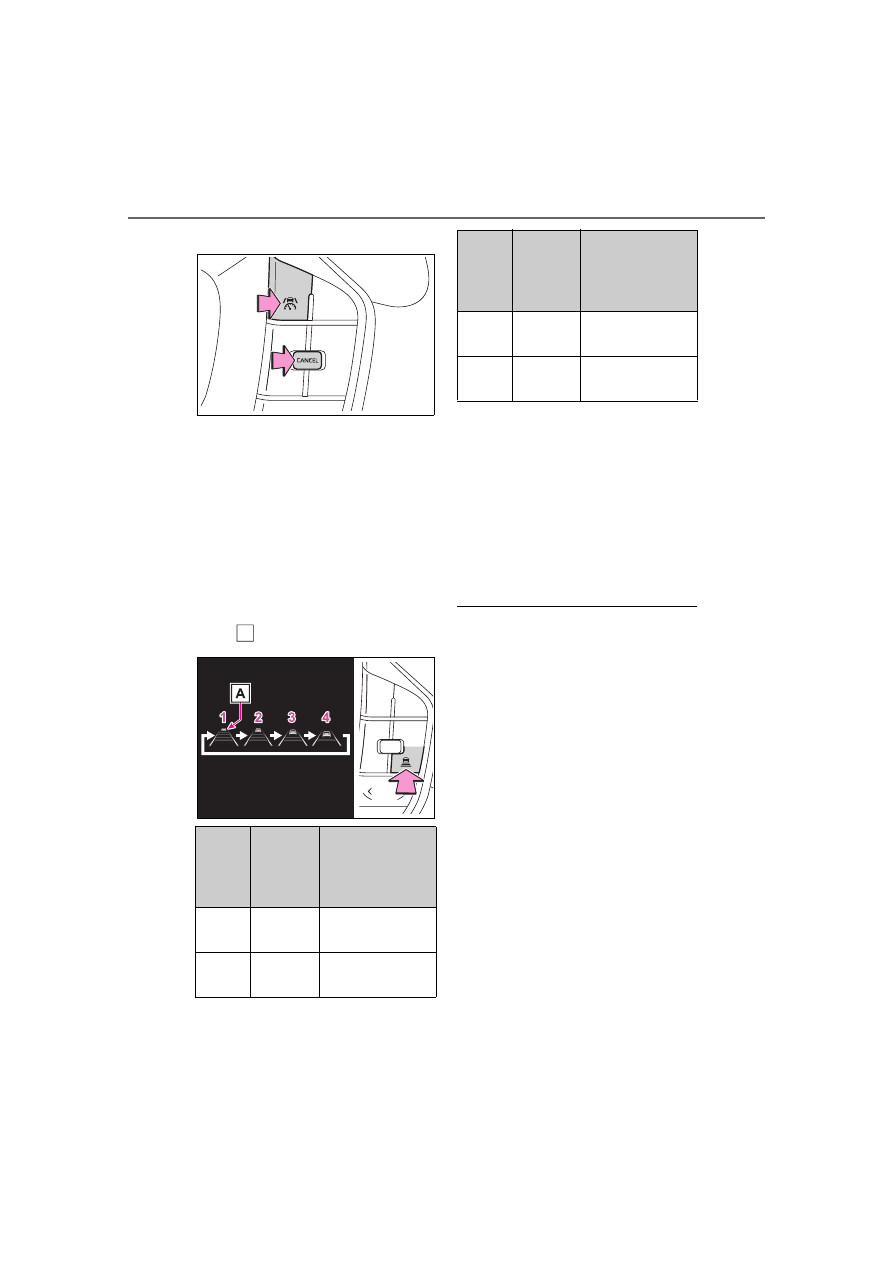

Changing the vehicle-to-
vehicle distance

Each time the switch is pressed,
the vehicle-to-vehicle distance
setting will change as follows:

If a preceding vehicle is
detected, the preceding vehicle

mark

 will be displayed.

The actual vehicle-to-vehicle
distance varies in accordance
with the vehicle speed. Also,
when the vehicle is stopped by
system control, it will be stopped
at a certain distance from the
preceding vehicle, depending on
the situation, regardless of the
setting.

■

Operating conditions

●

The D shift position is selected.

●

The desired set speed can be set
when the vehicle speed is approx-
imately 20 mph (30 km/h) or more.

• If the vehicle speed is set while

driving at below approximately 20
mph (30 km/h), the set vehicle
speed will be approximately 20
mph (30 km/h).

• If the vehicle speed is set while

driving at a speed that exceeds
the system’s upper limit, the set
vehicle speed will be the system’s
upper limit.

■

Accelerating after setting the
vehicle speed

As with normal driving, acceleration
can be performed by depressing the
accelerator pedal. After accelerat-
ing, the vehicle will return to the set
vehicle speed. However, while in
vehicle-to-vehicle distance control
mode, the vehicle speed may
decrease to below the set vehicle
speed in order to maintain the dis-
tance from the preceding vehicle.

Illus-

tration

Num-

ber

Vehicle-

to-vehi-

cle dis-

tance

Approximate

Distance (Vehi-

cle Speed: 60

mph [100 km/h])

1

Extra

long

Approximately

200 ft. (60 m)

2

Long

Approximately

145 ft. (45 m)

A

3

Medium

Approximately

100 ft. (30 m)

4

Short

Approximately

85 ft. (25 m)

Illus-

tration

Num-

ber

Vehicle-

to-vehi-

cle dis-

tance

Approximate

Distance (Vehi-

cle Speed: 60

mph [100 km/h])

265

4-5. Using the driving support systems

4

Dr
iv

ing

■

When the vehicle is stopped by
system control during follow-up
cruising

●

When the “RES” switch is pressed
while the vehicle is stopped by
system control, if the preceding
vehicle starts off within approxi-
mately 3 seconds, follow-up cruis-
ing will resume.

●

If the preceding vehicle starts off
within approximately 3 seconds of
the vehicle being stopped by sys-
tem control, follow-up cruising will
resume.

■

Automatic cancellation of vehi-
cle-to-vehicle distance control
mode

In the following situations, vehicle-
to-vehicle distance control mode will
be canceled automatically:

●

When the brake control or output
restriction control of a driving sup-
port system operates
(For example: Pre-Collision Sys-
tem, drive-start control)

●

When the parking brake has been
operated

●

When the vehicle is stopped by
system control on a steep incline

●

When any of the following are
detected while the vehicle is
stopped by system control:

• The driver’s seat belt is unfas-

tened

• The driver’s door is opened
• Approximately 3 minutes have

elapsed since the vehicle was
stopped

The parking brake may be actived
automatically.

●

Situations in which some or all of
the functions of the system cannot
operate:



P.221

■

Dynamic radar cruise control
system warning messages and
buzzers

For safe use:



P.215

■

Preceding vehicles that the sen-
sor may not detect correctly

In the following situations, depend-
ing on the conditions, if the system
cannot provide sufficient decelera-
tion or acceleration is necessary,
operate the brake pedal or accelera-
tor pedal.

As the sensor may not be able to
correctly detect these types of vehi-
cles, the approach warning
(



P.265) may not operate.

●

When a vehicle cuts in front of
your vehicle or changes lanes
away from your vehicle extremely
slowly or quickly

●

When changing lanes

●

When a preceding vehicle is driv-
ing at a low speed

●

When a vehicle is stopped in the
same lane as the vehicle

●

When a motorcycle is traveling in
the same lane as the vehicle

■

Conditions under which the
system may not operate cor-
rectly

In the following situations, operate
the brake pedal (or accelerator
pedal, depending on the situation)
as necessary.

As the sensor may not be able to
correctly detect a vehicle, the sys-
tem may not operate properly.

●

When a preceding vehicle brakes
suddenly

●

When changing lanes at low
speeds, such as in a traffic jam

In situations where the vehicle
approaches a preceding vehicle
and the system cannot provide
sufficient deceleration, such as
if a vehicle cuts in front of the
vehicle, a warning display will

Approach warning

266

4-5. Using the driving support systems

flash and a buzzer will sound to
alert the driver. Depress the
brake pedal to ensure appropri-
ate vehicle-to-vehicle distance.

■

Warnings may not occur
when

In the following situations, the
warning may not operate even
though the vehicle-to-vehicle
distance is short.



When the preceding vehicle is
traveling at the same speed
or faster than your vehicle



When the preceding vehicle is
traveling at an extremely low
speed



Immediately after the vehicle
speed has been set



When the accelerator pedal is
depressed

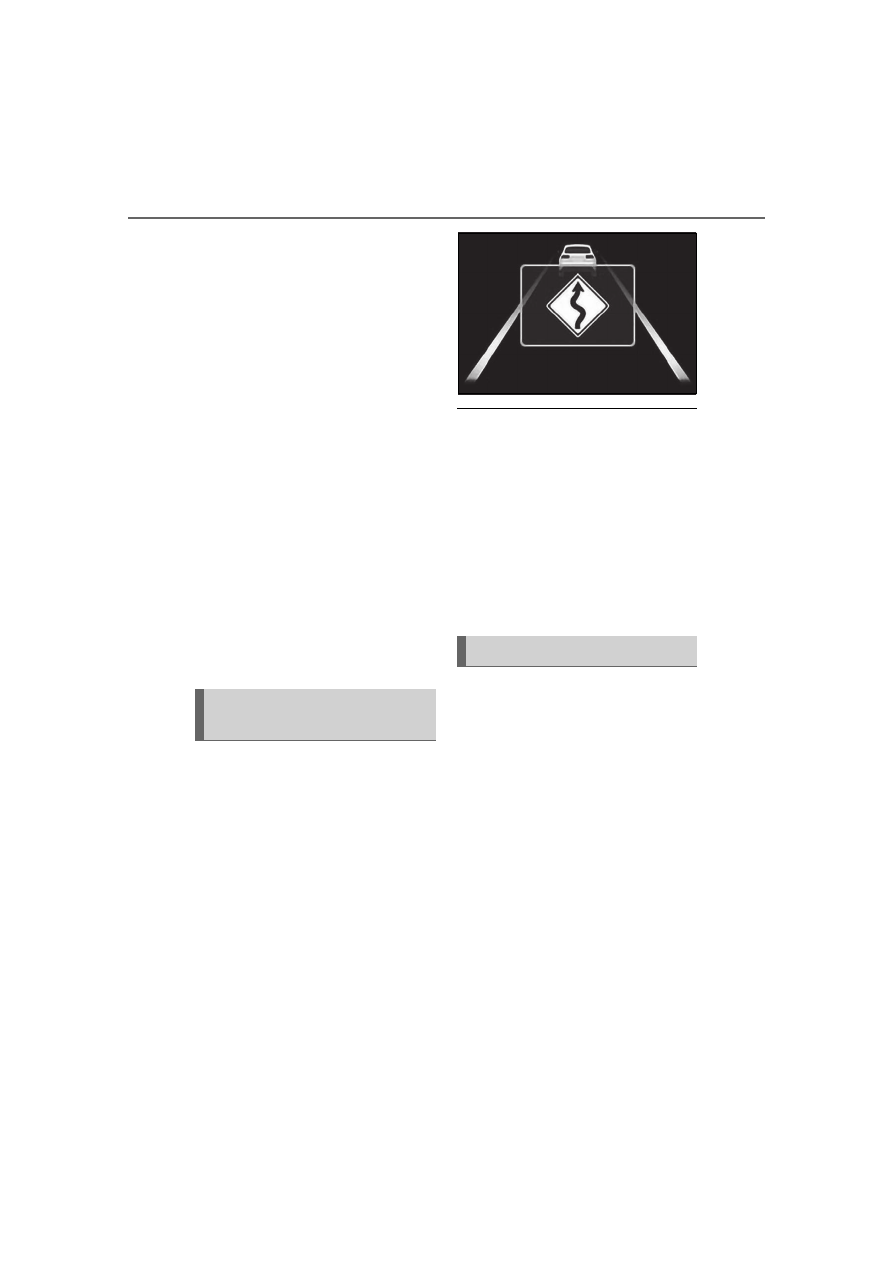

When a curve is detected, the
vehicle speed will begin being
reduced. When the curve ends,
the vehicle speed reduction will
end.

Depending on the situation, the
vehicle speed will then return to the
set vehicle speed.

In situations where vehicle-to-vehi-
cle distance control needs to oper-
ate, such as when a preceding
vehicle cuts in front of your vehicle,
the curve speed reduction function
will be canceled.

■

Situations in which the curve
speed reduction function may
not operate

In situations such as the following,
the curve speed reduction function
may not operate:

●

When the vehicle is being driven
around a gentle curve

●

When the accelerator pedal is
being depressed

●

When the vehicle is being driven
around an extremely short curve

If your vehicle is being driven at
approximately 50 mph (80 km/h)
or more and a lane change to
the passing lane is performed,
when the turn signal lever is
operated and the lane is
changed, the vehicle will accel-
erate up to the set speed to
assist in overtaking.

The system’s recognition of
which lane is the passing lane
may be based solely on the
location of the steering wheel in
the vehicle (left-hand drive/right-
hand drive). If the vehicle is
driven in a location where the
passing lane is on the opposite
side of that where the vehicle

Curve speed reduction
function

Support for lane change

267

4-5. Using the driving support systems

4

Dr
iv

ing

was originally sold, the vehicle
may accelerate when the turn
signal lever is operated away
from the passing lane. (e.g. The
vehicle was manufactured for a
right-hand traffic location, but is
being driven in a left-hand traffic
location. The vehicle may accel-
erate when the turn signal lever
is operated to the right.)

If your vehicle is being driven at
approximately 50 mph (80 km/h)
or more and the lane is changed
to that with a vehicle traveling

slower than your vehicle, when
the turn signal lever is operated
the vehicle will gradually decel-
erate to assist in changing
lanes.

The settings of Dynamic radar
cruise control can be changed
through customize settings.
(



P.549)

The operating state of Dynamic radar cruise control is indicated.

Changing Dynamic radar
cruise control settings

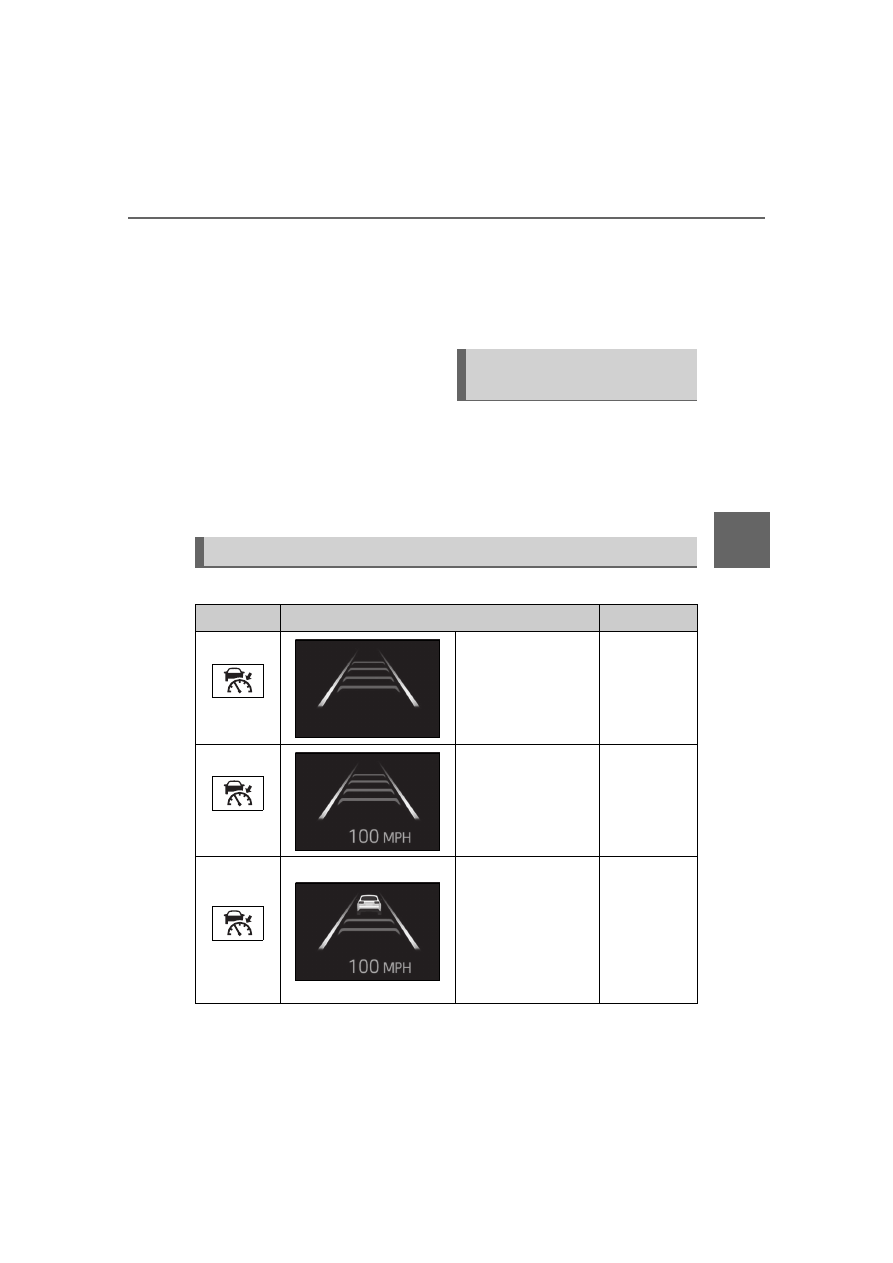

Display and system operation state

Indicator

Multi-information display

Situation

White

Vehicle-to-vehicle
distance setting:
Gray

Dynamic
radar cruise
control being
OFF

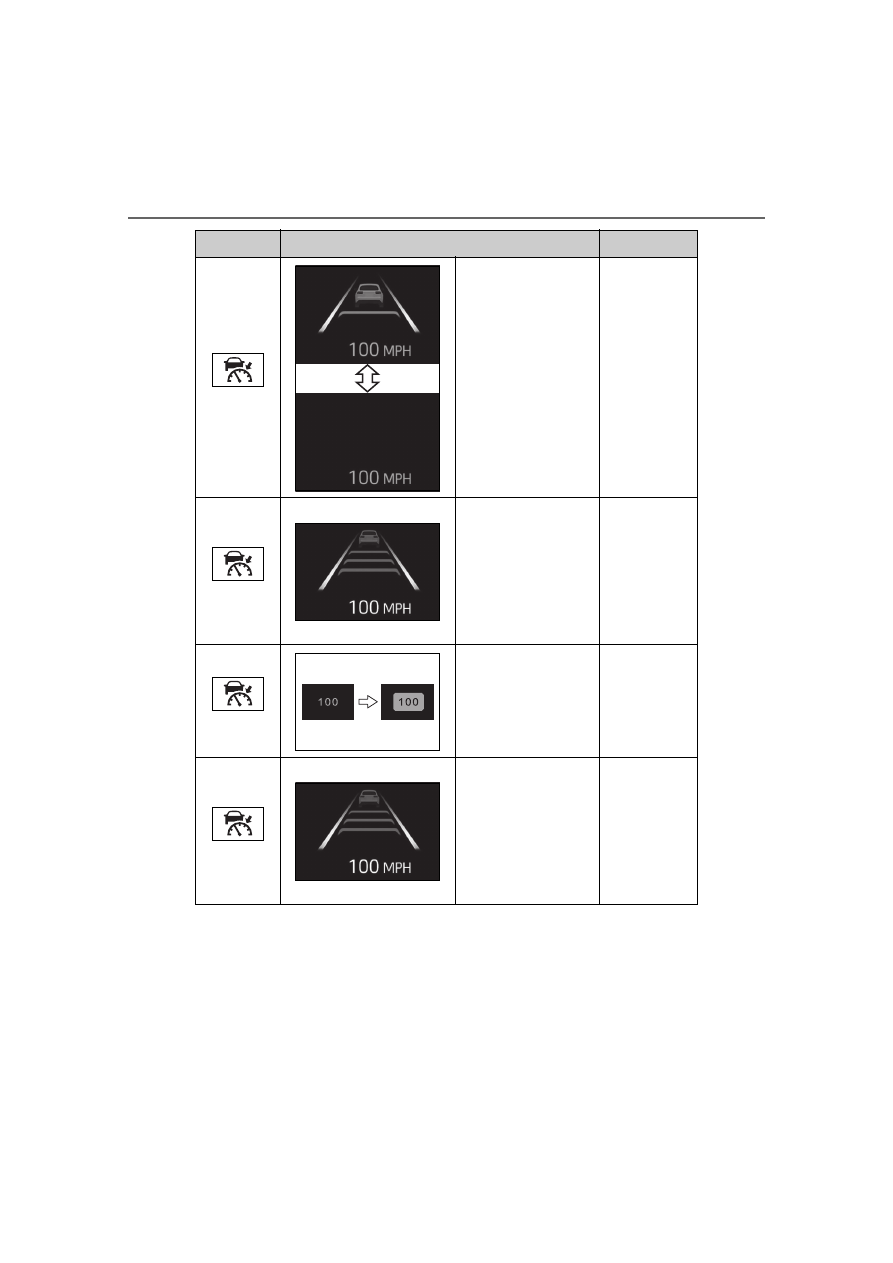

Green

Vehicle-to-vehicle
distance setting:
Blue

Set vehicle speed:
Green

Constant
speed cruis-
ing

Green

Vehicle-to-vehicle
distance setting:
Blue

Set vehicle speed:
Green

Preceding vehicle:
White

Follow-up
cruising

268

4-5. Using the driving support systems

Green

Vehicle-to-vehicle
distance setting:
Orange flashing

Set vehicle speed:
Green

Preceding vehicle:
Orange flashing

Approach
warning

Green

Vehicle-to-vehicle
distance setting:
Gray

Set vehicle speed:
White

Preceding vehicle:
Gray

Accelerating
with the
accelerator
pedal

Green

Set vehicle speed:
Green in reverse
display

Set vehicle
speed being
exceeded

Green

Vehicle-to-vehicle
distance setting:
Gray

Set vehicle speed:
White

Preceding vehicle:
Gray

Vehicle in
controlled
stop

Indicator

Multi-information display

Situation

269

4-5. Using the driving support systems

4

Dr

iv

ing

■

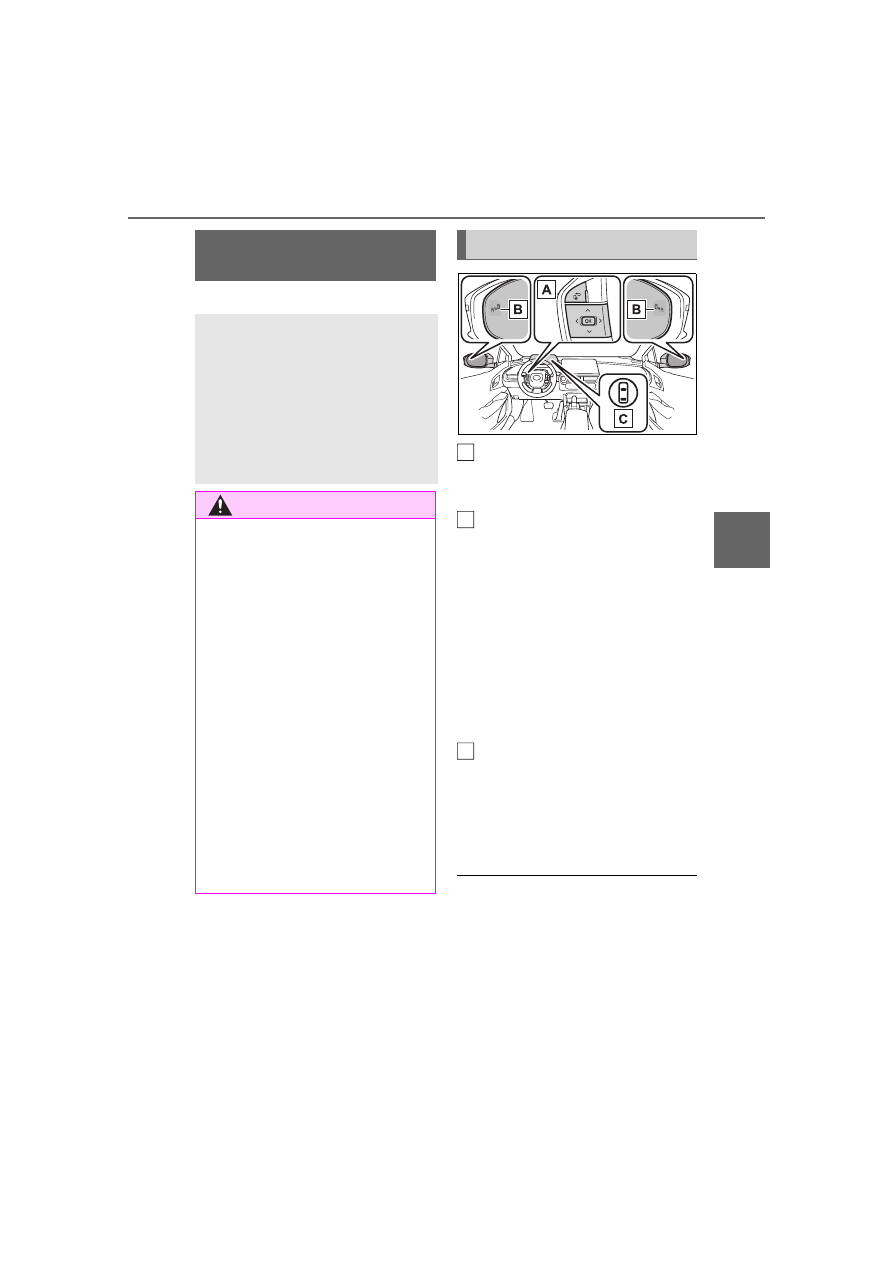

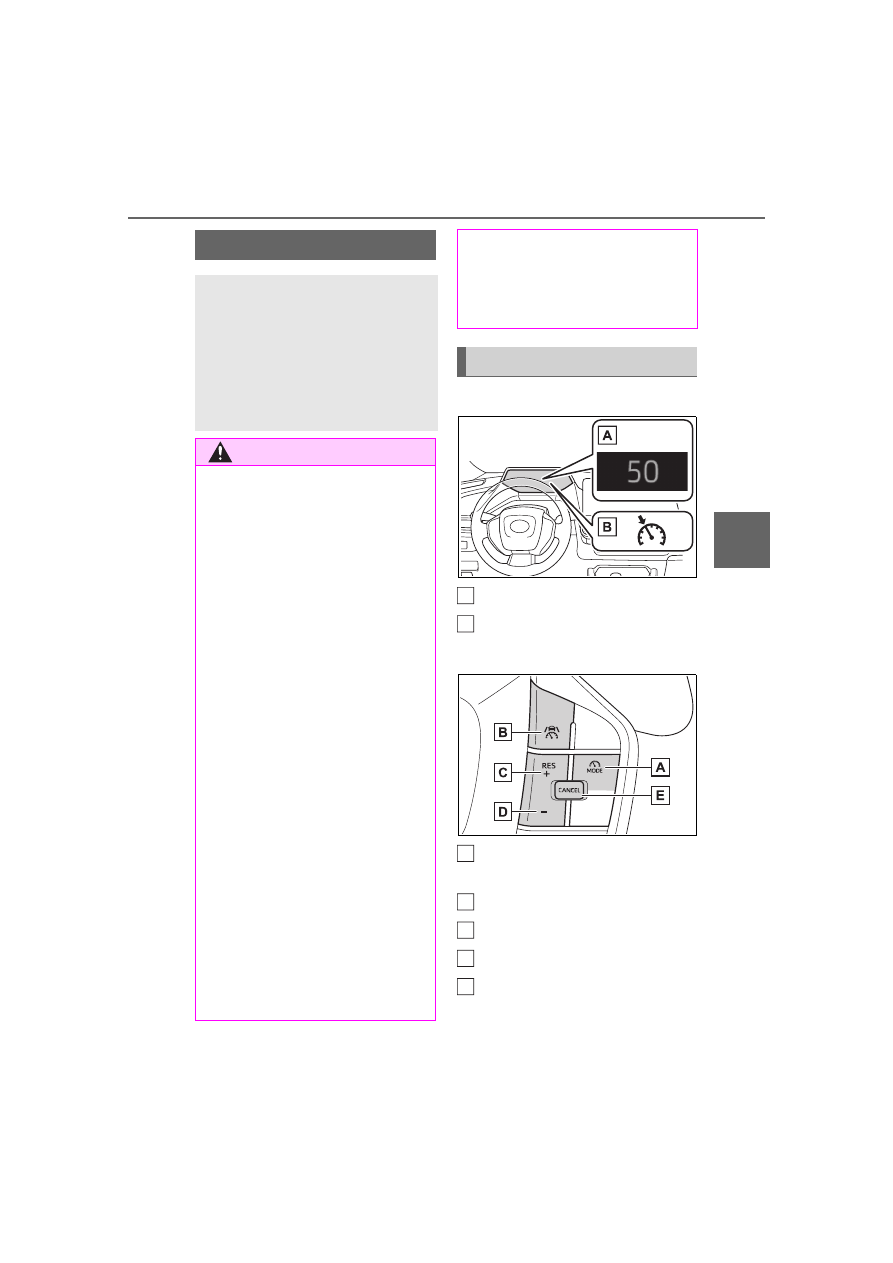

Meter display

Set vehicle speed
Cruise control indicator

■

Switches

Driving assist mode select

switch
Driving assist switch
“+” switch / “RES” switch
“-” switch
Cancel switch

Cruise control

The vehicle can be driven at

a set speed even if the

accelerator pedal is not

depressed.
Use the cruise control only

on highways and express-

ways.

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver.

Therefore, do not overly rely on

this system. The driver is solely

responsible for paying attention

to the vehicle’s surroundings

and driving safely.

●

Set the speed appropriately

according to the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for confirm-

ing the set speed.

■

Situations in which cruise

control should not be used

Do not use the cruise control in

the following situations. As the

system will not be able to provide

appropriate control, using it may

lead to an accident resulting in

death or serious injury.

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as

those covered with rain, ice or

snow

●

On steep downhills, or where

there are sudden changes

between sharp up and down

gradients

Vehicle speed may exceed the

set speed when driving down a

steep hill.

●

When it is necessary to disable

the system:



P.215

System Components

A

B

A

B

C

D

E

270

4-5. Using the driving support systems

■

Setting the vehicle speed

1

Press the driving assist mode
select switch to select cruise
control.

The cruise control indicator will illu-
minate.

2

Using the accelerator pedal,
accelerate to the desired
vehicle speed (approxi-
mately 20 mph [30 km/h] or
more), and press the driving
assist switch to set the set
vehicle speed.

The vehicle speed at the moment
the switch is released will be the set
vehicle speed.

■

Adjusting the set speed



Adjusting the set vehicle
speed using the switches

To change the set vehicle speed,
press the “+” or “-” switch until the

desired speed is displayed.

1

Increase set vehicle speed

2

Decrease set vehicle speed

The set vehicle speed will increase
or decrease as follows:

Fine adjustment: By 1 mph (1.6
km/h) or 1 km/h (0.6 mph) each
time the switch is pressed

Large adjustment: Increases con-
tinuously while the switch is
pressed and held



Increasing the set vehicle
speed using the accelerator
pedal

1

Depress the accelerator
pedal to accelerate the vehi-
cle to the desired vehicle
speed.

2

Press the “+” switch.

■

Canceling/resuming control

1

Press the cancel switch or
driving assist switch to cancel
control.

Control will also be canceled if the

Using the cruise control

271

4-5. Using the driving support systems

4

Dr
iv

ing

brake pedal is depressed.

2

Press the “RES” switch to
resume control.

■

Automatic cancellation of the
cruise control

In the following situations, the cruise

control will be canceled automati-
cally:

●

When the vehicle speed drops
approximately 10 mph (16 km/h)
or more below the set vehicle
speed

●

When the vehicle speed drops
below approximately 20 mph (30
km/h)

●

When the brake control or output
restriction control of a driving sup-
port system operates (For exam-
ple: PCS, drive-start control)

●

When the parking brake has been
operated

●

Situations in which some or all of
the functions of the system cannot
operate:



P.221

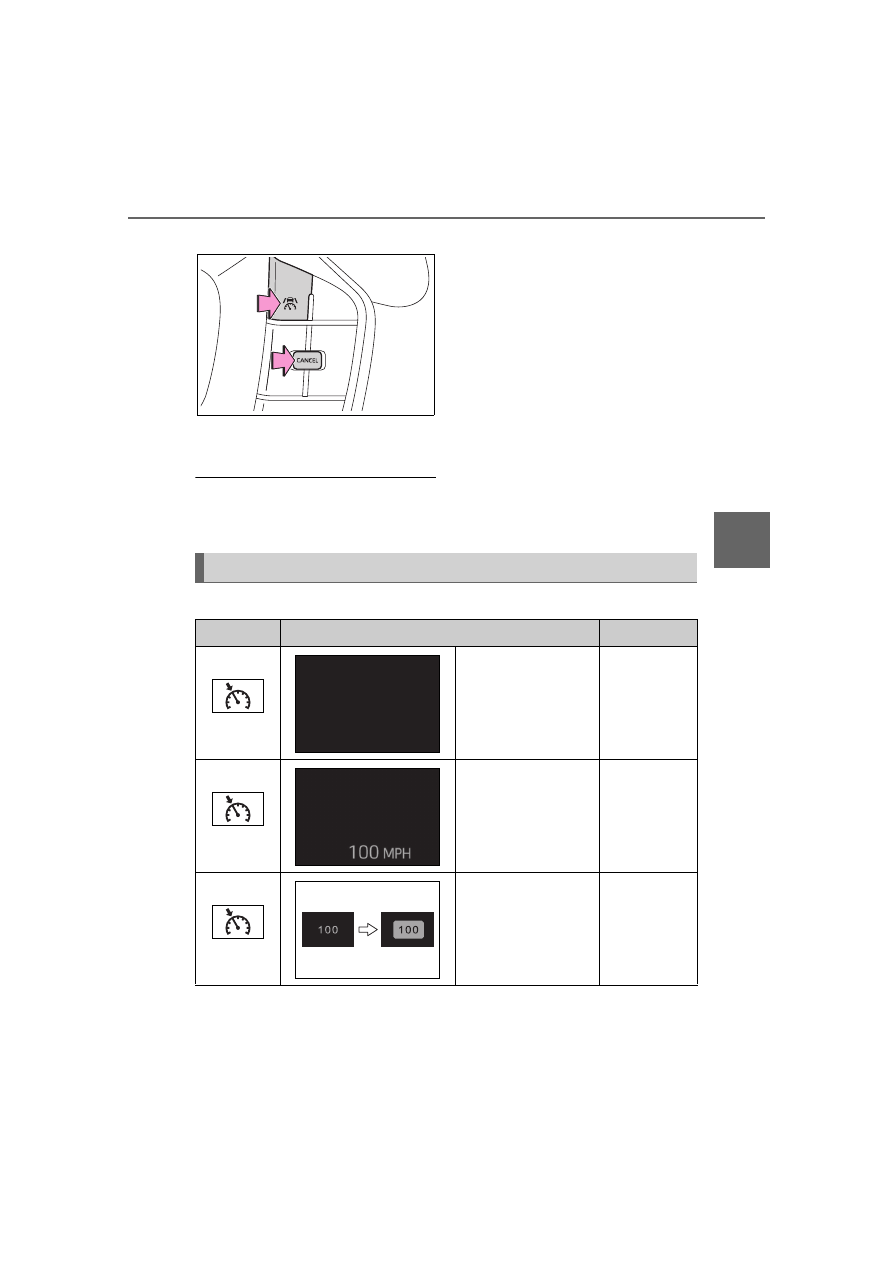

The operating state of cruise control is indicated.

Display and system operation state

Indicator

Multi-information display

Situation

White

Blank

Cruise con-
trol being
OFF

Green

Set vehicle speed:
Green

Constant
speed cruis-
ing

Green

Set vehicle speed:
Green in reverse
display

Set vehicle
speed being
exceeded

272

4-5. Using the driving support systems

*

: If equipped

Emergency Driving

Stop System

*

The emergency driving stop

system is a system which

automatically decelerates

and stops the vehicle within

its lane if the driver

becomes unable to continue

driving the vehicle, such as

if they have suffered a medi-

cal emergency, etc.
During LTA (Lane Tracing

Assist) control, if the sys-

tem does not detect driving

operations, such as if the

driver is not holding the

steering wheel, and deter-

mines the driver is not

responsive, the vehicle will

be decelerated and stopped

within its current lane to

help avoid a collision or

reduce the impact of a colli-

sion.

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver. Pay

careful attention to the sur-

rounding conditions in order to

ensure safe driving. The emer-

gency driving stop system is

designed to provide support in

an emergency where it is diffi-

cult for the driver to continue

driving, such as if they have had

a medical emergency. It is not

designed to support driving

while drowsy or in poor physical

health, or inattentive driving.

●

Although the emergency driv-

ing stop system is designed to

decelerate the vehicle within its

lane to help avoid or help

reduce the impact of a collision

if the system determines that it

is difficult for the driver to con-

tinue driving, its effectiveness

may change according to vari-

ous conditions. Therefore, it

may not always be able to

achieve the same level of per-

formance. Also, if the operating

conditions are not met, this

function will not operate.

●

After the emergency driving

stop system operates, if driving

becomes possible again, imme-

diately begin driving again or, if

necessary, park the vehicle on

the shoulder of the road and set

a warning reflector and flare to

warn other drivers of your

stopped vehicle.

●

After this system operates, pas-

sengers should attend to the

driver as necessary and take

appropriate hazard prevention

measures, such as moving to a

place where safety can be

ensured, such as the shoulder

of the road or behind a guard-

rail.

273

4-5. Using the driving support systems

4

Dr

iv

ing

Operation of this system is sep-

arated into 4 control states.

Through control state “warning

phase 1” and “warning phase 2”,

the system determines if the

driver is aware and responsive

while outputting a warning and

controlling the vehicle speed. If

the system determines the

driver is not responsive, it will

operate in control state “deceler-

ation stop phase” and “stop hold

phase” and decelerate and stop

the vehicle. It will then operate

continuously in “stop hold

phase”.

■

Operating conditions

This system operates when all of

the following conditions are met:

●

When the LTA is on

●

When the vehicle speed is

approximately 30 mph (50 km/h)

or more

■

Operation cancelation condi-

tions

In the following situations, system

operation will be canceled:

●

When LTA control has been can-

celed (the LTA switch has been

pressed, etc.)

●

When the dynamic radar cruise

control has been canceled

●

When driver operations are

detected (the steering wheel is

held, the brake pedal, accelerator

pedal, parking brake, emergency

flasher switch, or turn signal lever

is operated)

●

When the driving assist switch is

pressed while in the stop and hold

phase

●

When the power switch has been

turned from ON mode to off

●

Situations in which some or all of

the functions of the system cannot

operate:



P.221

■

LTA control when operation is

canceled

When emergency driving stop sys-

tem operation is canceled, LTA con-

trol may also be canceled.

If driving operations are not

detected after the hands off

steering wheel warning oper-

ates, a buzzer will sound inter-

mittently and a message will be

displayed to warn the driver, and

the system will judge if the driver

is responsive or not. If driving

operations, such as holding the

steering wheel, are not per-

formed within a certain amount

of time, the system will enter

warning phase 2.

After entering warning phase 2,

WARNING

●

This system detects the condi-

tion of the driver through the

operation of the steering wheel.

This system may operate if the

driver is aware but intentionally

and continuously does not oper-

ate the vehicle. Also, the system

may not operate if it cannot

determine that the driver is not

responsive, such as if they are

leaning on the steering wheel.

Summary of the system

Warning phase 1

Warning phase 2

274

4-5. Using the driving support systems

a buzzer will sound in short
intervals and a message will be
displayed to warn the driver, and
the vehicle will slowly deceler-
ate. If driving operations, such
as holding the steering wheel,
are not performed within a cer-
tain amount of time, the system
will determine that the driver is
not responsive and enter the
deceleration stop phase.

The audio system will be muted
until the driver becomes respon-
sive.

When the vehicle is decelerat-
ing, the brake lights may illumi-
nate, depending on the road
conditions, etc.

After entering the deceleration
stop phase, a buzzer will sound
continuously and a message will
be displayed to warn the driver,
and the vehicle will slowly decel-
erate and stop. After the vehicle
stops, the system will enter the
stop and hold phase.

After the vehicle is stopped, the
parking brake will be applied
automatically. After entering the
stop and hold phase, the buzzer
will continue sounding continu-
ously and the emergency flash-
ers (hazard lights) will flash to
warn other drivers of the emer-

gency.

■

Restricted functions after the
operation is canceled

After shifting to the deceleration
stop phase, the following functions
will not be available until the hybrid
system is re-started even though
the emergency driving stop system
is canceled:

●

LTA

●

LCA (if equipped)

Deceleration stop phase

Stop hold phase

275

4-5. Using the driving support systems

4

Dr

iv

ing

*

: If equipped

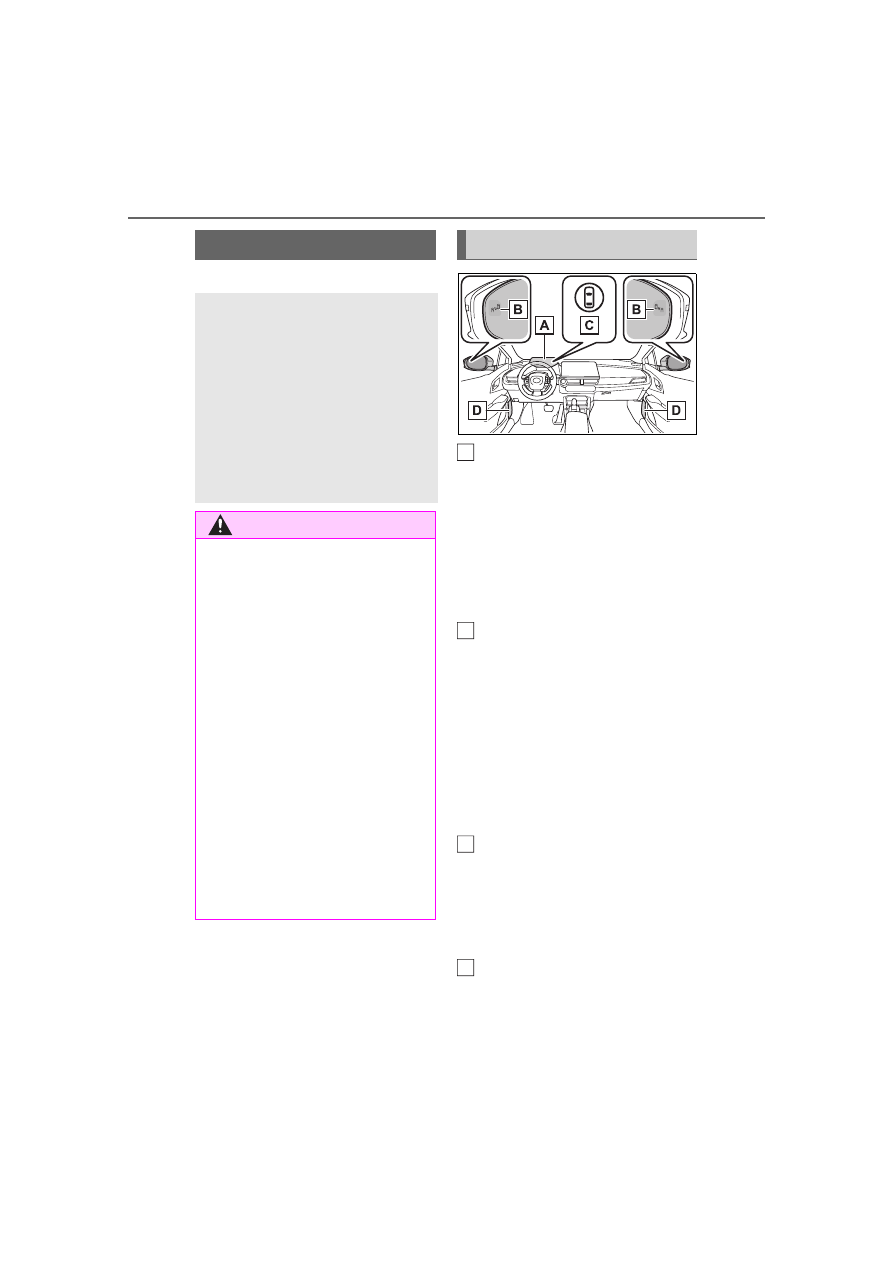

Meter control switches

Turning the Blind Spot Monitor

on/off.

Outside rear view mirror indi-

cators

When a vehicle is detected in a

blind spot of the outside rear view

mirrors or approaching rapidly from

behind into a blind spot, the outside

rear view mirror indicator on the

detected side will illuminate. If the

turn signal lever is operated toward

the detected side, the outside rear

view mirror indicator will flash and a

buzzer will sound.

Driving assist information

indicator

Illuminates when the Blind Spot

Monitor is turned off. At this time, a

message will be displayed on the

multi-information display.

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Buzzer

If the volume setting of the audio

system is high or the surrounding

area is loud, it may be difficult to

BSM (Blind Spot Moni-

tor)

*

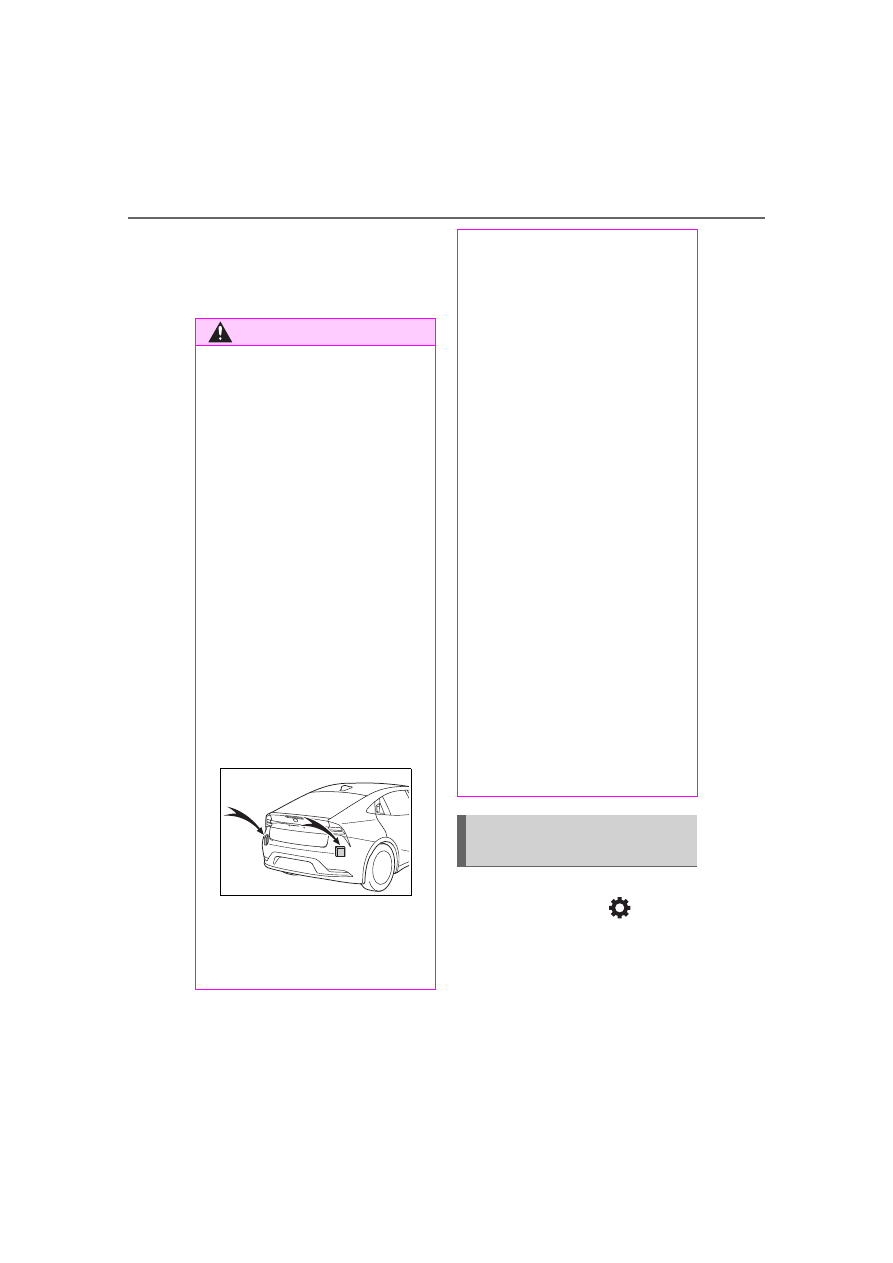

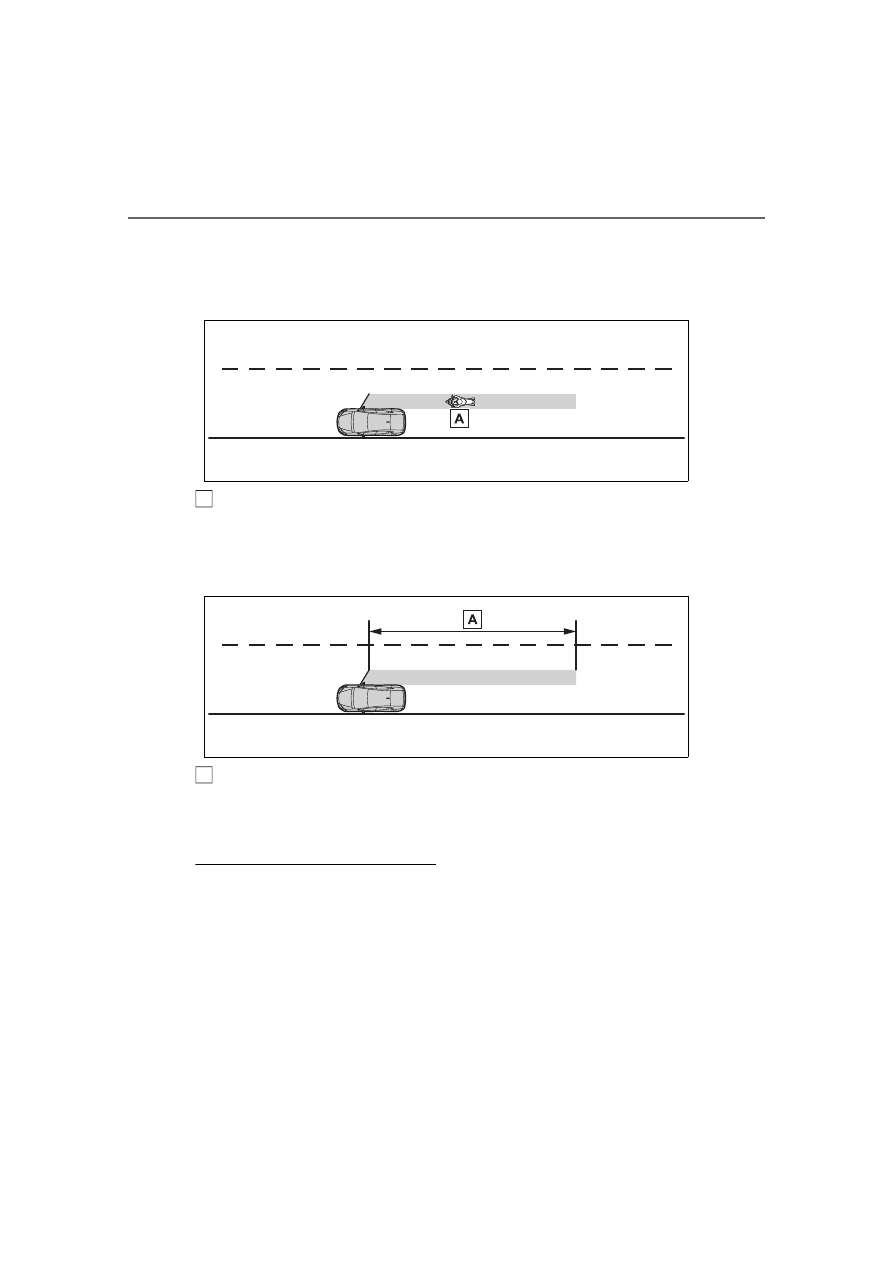

The Blind Spot Monitor is a

system that uses rear side

radar sensors installed on

the inner side of the rear

bumper on the left and right

side to assist the driver in

confirming safety when

changing lanes.

WARNING

■

Cautions regarding the use of

the system

●

The driver is solely responsible

for safe driving. Always drive

safely, taking care to observe

your surroundings.

●

The Blind Spot Monitor is a sup-

plementary function which alerts

the driver that a vehicle is in a

blind spot of the outside rear

view mirrors or is approaching

rapidly from behind into a blind

spot. Do not overly rely on the

Blind Spot Monitor. As the func-

tion cannot judge if it is safe to

change lanes, over reliance

could lead to an accident result-

ing in death or serious injury. As

the system may not function

correctly under certain condi-

tions, the driver’s own visual

confirmation of safety is neces-

sary.

System components

A

B

C

276

4-5. Using the driving support systems

hear the buzzer.

■

Customization

Some functions can be customized.

(



P.540)

The Blind Spot Monitor can be
enabled/disabled on   of the

multi-information display.

(



P.540)

When the Blind Spot Monitor is

off, the driving assist information

indicator (



P.84) will illuminate

WARNING

■

To ensure the system can

operate properly

Blind Spot Monitor sensors are

installed behind the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

operate correctly.

●

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding

area on the rear bumper is dirty

or covered with snow, the Blind

Spot Monitor may not operate

and a warning message will be

displayed. In this situation, clear

off the dirt or snow and drive the

vehicle with the operation condi-

tions of the BSM function

(



P.278) satisfied for approxi-

mately 10 minutes. If the warn-

ing message does not

disappear, have the vehicle

inspected by your Toyota

dealer.

●

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc. to

a sensor or its surrounding area

on the rear bumper.

●

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have

your vehicle inspected by your

Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

●

Do not disassemble the sensor.

●

Do not modify the sensor or sur-

rounding area on the rear

bumper.

●

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your

Toyota dealer.

●

The sensors are likely to be

affected by paint on the rear

bumper. If the rear bumper is

not repaired correctly, the Blind

Spot Monitor may not operate

with a warning message dis-

played. If any paint repair is

needed, contact your Toyota

dealer.

Turning the Blind Spot

Monitor on/off

277

4-5. Using the driving support systems

4

Dr
iv

ing

and a message will be displayed
on the multi-information display.

Each time the power switch is
turned to ON, the Blind Spot
Monitor is enabled.

■

Objects that can be detected while driving

The Blind Spot Monitor uses rear side radar sensors to detect the
following vehicles traveling in adjacent lanes and advises the driver
of the presence of such vehicles via the indicators on the outside
rear view mirrors.

Vehicles that are traveling in areas that are not visible using the
outside rear view mirrors (the blind spots)

Vehicles that are approaching rapidly from behind in areas that
are not visible using the outside rear view mirrors (the blind spots)

■

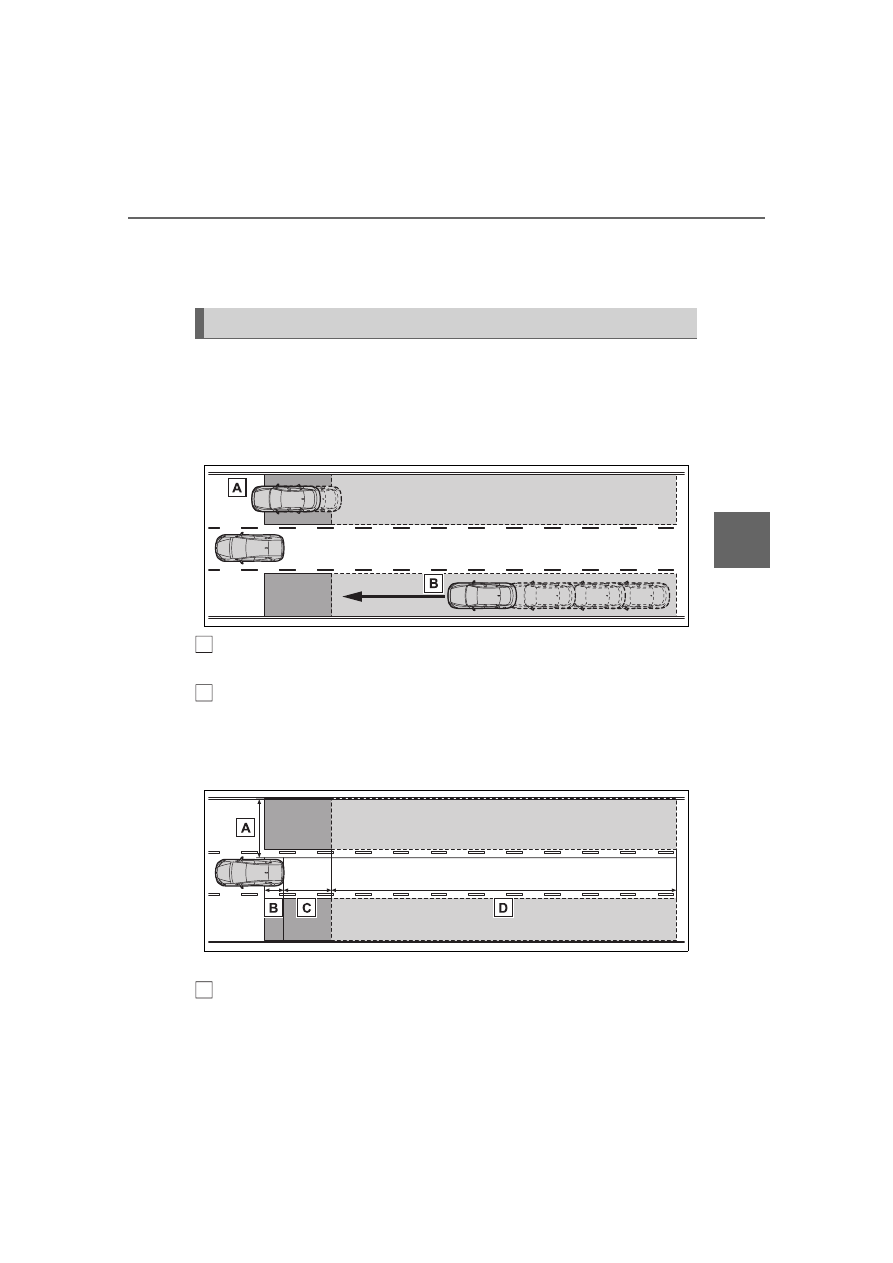

Detection range while driving

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of

the vehicle

*1

Blind Spot Monitor operation

A

B

A

278

4-5. Using the driving support systems

Approximately 3.3 ft. (1 m) forward of the rear bumper

*2

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 230 ft. (70 m) from the rear

bumper

*3

*1

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

*2

: While the vehicle is to being overtaken, up to approximately 9.8 ft. (3 m)

forward of the rear bumper will be detected.

*3

: The greater the difference in speed between your vehicle and the

detected vehicle is, the farther away the vehicle will be detected, causing
the outside rear view mirror indicator to illuminate or flash.

■

The Blind Spot Monitor linked function

The LDA (Lane Departure Alert) has a function that uses information
of detected vehicles driving in an adjacent lane. For details about the
function and its operating conditions, P.242

■

The Blind Spot Monitor is oper-
ational when

The Blind Spot Monitor is opera-
tional when all of the following con-
ditions are met:

●

The power switch is in ON.

●

The Blind Spot Monitor is on.

●

The shift position is in a position
other than R.

●

The vehicle speed is approxi-
mately 7 mph (10 km/h) or more.

■

The Blind Spot Monitor will
detect a vehicle when

The Blind Spot Monitor will detect a
vehicle present in the detection area
in the following situations:

●

A vehicle in an adjacent lane over-
takes your vehicle.

●

You overtake a vehicle in an adja-
cent lane slowly.

●

Another vehicle enters the detec-
tion area when it changes lanes.

■

Situations in which the Blind
Spot Monitor cannot detect
vehicles

The Blind Spot Monitor cannot
detect the following vehicles and
other objects:

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles traveling in the opposite
direction

●

Guardrails, walls, signs, parked
vehicles and similar stationary
objects

*

●

Following vehicles that are in the
same lane

*

●

Vehicles traveling 2 lanes away
from your vehicle

*

●

Vehicles which are being over-
taken rapidly by your vehicle.

*

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

B

C

D

279

4-5. Using the driving support systems

4

Dr
iv

ing

■

Situations in which the buzzer
does not sound

In the following situations, the out-
side rear view mirror indicator
flashes but the buzzer does not
sound even when the turn signal
lever is operated.

●

When another vehicle is detected
while the turn signal lever is being
operated

●

When your vehicle overtakes a
vehicle in an adjacent lane with a
large speed difference

*

*

: Depending on the conditions, the

buzzer may sound.

■

Conditions under which the
system may not function cor-
rectly

●

The Blind Spot Monitor may not
detect vehicles correctly in the fol-
lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-
sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-
rounding area on the rear bumper

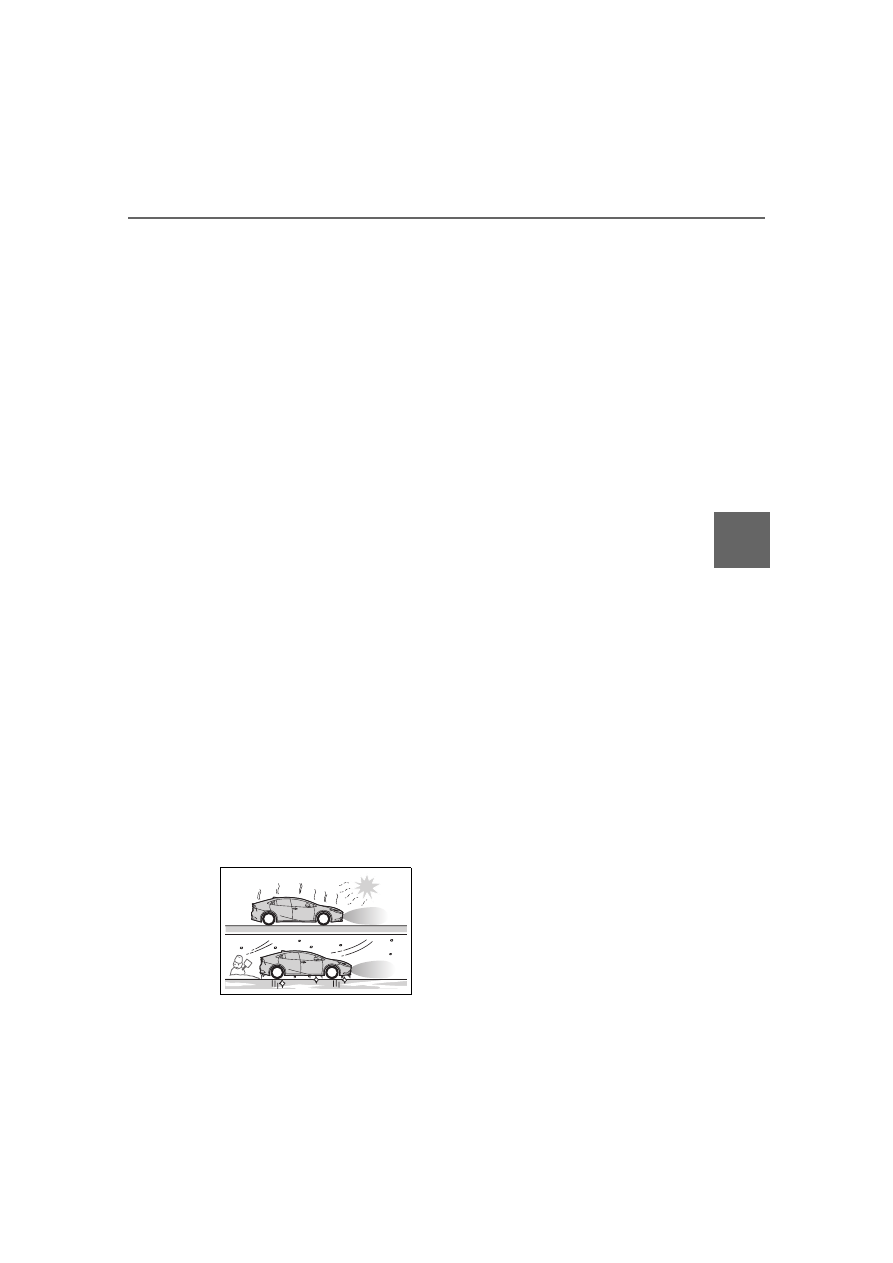

• When driving on a road surface

that is wet with standing water
during bad weather, such as
heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap
between each vehicle

• When the distance between your

vehicle and a following vehicle is
short

• When there is a significant differ-

ence in speed between your vehi-
cle and the vehicle that enters the
detection area

• When the difference in speed

between your vehicle and another
vehicle is changing

• When a vehicle enters a detection

area traveling at about the same
speed as your vehicle

• As your vehicle starts from a stop,

a vehicle remains in the detection
area

• When driving up and down con-

secutive steep inclines, such as
hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or
uneven surfaces

• When vehicle lanes are wide, or

when driving on the edge of a
lane, and the vehicle in an adja-
cent lane is far away from your
vehicle

• When an accessory (such as a

bicycle carrier) is installed to the
rear of the vehicle

• When there is a significant differ-

ence in height between your vehi-
cle and the vehicle that enters the
detection area

• Immediately after the Blind Spot

Monitor is turned on

• When towing with the vehicle

●

Instances of the Blind Spot Moni-
tor unnecessarily detecting a vehi-
cle and/or object may increase in
the following situations:

• When the sensor is misaligned

due to a strong impact to the sen-
sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.
that enters the detection area is
short

• When driving up and down con-

secutive steep inclines, such as
hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a
lane, and a vehicle traveling in a
lane other than the adjacent lanes
enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or
uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is
short

• When an accessory (such as a

bicycle carrier) is installed to the
rear of the vehicle

• When towing with the vehicle

280

4-5. Using the driving support systems

*

: If equipped

Multi-information display

Turning the safe exit assist on/off.
If collision with a door is likely and

the door is opened, the door will be

displayed on the multi-information

display. Also, if a door is opened

when an outside rear view mirror

indicator is illuminated, a buzzer

will sound as a warning.

Outside rear view mirror indi-

cators

When a vehicle or bicycle which

may collide with a door (other than

the back door) when opened is

detected, the outside rear view mir-

ror indicator on the detected side

will illuminate. If the door on the

detected side is opened, the out-

side rear view mirror indicator will

blink.

Driving assist information

indicator

Illuminates when the safe exit

assist is turned off. At this time, a

message will be displayed on the

multi-information display.

Speakers (voice notifica-
tions

*

)

When the outside rear view mirror

indicator blinks, the driver is

Safe Exit Assist

*

The safe exit assist is a sys-

tem that uses rear side

radar sensors installed on

the inner side of the rear

bumper to help occupants

judge if an approaching

vehicle or bicycle may col-

lide with a door when exit-

ing, to help reduce the

possibility of a collision.

WARNING

■

Cautions regarding the use of

the system

●

The driver is solely responsible

for safe driving. Always drive

safely, taking care to observe

your surroundings.

●

The safe exit assist is a supple-

mentary system that, when the

vehicle is stopped, informs

occupants of the existence of

approaching vehicles and bicy-

cles. As this system alone can-

not be used to judge safety,

over-reliance on this system

may lead to an accident result-

ing in death or serious injury.

In certain situations, this system

may not function to its fullest

extent. Therefore it is necessary

for the occupants to visually

check for safety directly and using

the mirrors.

System components

A

B

C

D

281

4-5. Using the driving support systems

4

Dr

iv

ing

informed through voice guidance

that the system has operated. After

the notification through voice guid-

ance is made, no more voice guid-

ance notifications will be made

again until the door is fully closed.

*

: If equipped

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Buzzer

If the volume setting of the audio

system is high or the surrounding

area is loud, it may be difficult to

hear the buzzer.

■

Voice notifications (if equipped)

In the following situations, voice

notifications will not be output:

●

When it is estimated that no occu-

pants are on board

*

●

After opening a door and entering

the vehicle, until the hybrid system

is started

●

When 3 minutes or more have

elapsed since the hybrid system

was stopped

●

When the language setting of the

Multimedia Display has been set

to a language that does not sup-

port voice notifications

●

When all of the doors have been

locked from outside the vehicle

●

When a door remains open for 1

minute or more after the hybrid

system is stopped

●

When the ACC mode (



P.540)

has been enabled through a cus-

tomize setting on the Multimedia

Display and the hybrid system has

been stopped

●

When the parking assist volume

setting on the Multimedia Display

has been set to off

*

: For each seating position, judg-

ment is made based on the open-

ing and closing of a door, before

driving for ingress and after driv-

ing for egress.

■

Customization

Some functions can be customized.

(



P.540)

The safe exit assist can be
enabled/disabled on   of the

multi-information display.

(



P.540)

When the safe exit assist is off,

the driving assist information

indicator will illuminate and a

message will be displayed on

the multi-information display.
Each time the power switch is

turned to ON, the safe exit

assist is enabled.

■

Objects that can be detected by the safe exit assist

When the safe exit assist detects the following vehicles or bicycles

WARNING

■

To ensure the system can

operate properly



P.276

Turning the safe exit

assist system ON/OFF

Safe exit assist operation

282

4-5. Using the driving support systems

behind your vehicle using a rear side radar sensor, the occupants of
the vehicle are informed through an outside rear view mirror indica-
tor, buzzer, multi-information display, and voice notification (if
equipped).

Vehicle or bicycle which has a high possibility of colliding with a
door (other than the back door) when opened

■

The safe exit assist detection areas

The areas that vehicles can be detected in are outlined below.

Approximately 145 ft. (45 m) rearward from the front door

*

*

: The faster a vehicle or bicycle is approaching, the distance at which an

outside rear view mirror indicator will illuminate or blink will become fur-
ther.

■

The safe exit assist is opera-
tional when

The safe exit assist is operational
when all of the following conditions
are met:

●

When the power switch is ON,
less than 3 minutes have elapsed
since the hybrid system was off, or
less than 3 minutes have elapsed
since a door was opened and

someone has entered the vehicle
(the time which operation is possi-
ble may be extended if a door is
opened and closed)

●

Safe exit assist is on

●

The vehicle is stopped.

●

The shift position is in a position
other than R.

A

A

283

4-5. Using the driving support systems

4

Dr
iv

ing

■

The safe exit assist will detect a
vehicle when

The safe exit assist will detect a
vehicle present in the detection area
in the following situations:

●

When the vehicle is stopped and a
vehicle or bicycle, which is travel-
ing parallel to the vehicle, is
approaching within the area that a
door opens (other than the back
door)

■

Conditions under which the
system will not detect a vehicle

●

Safe exit assist does not detect
the following objects, vehicles,
and bicycles:

• Vehicles or bicycles which are

approaching slowly

*

• Vehicles or bicycles which are

determined to have a low possibil-
ity of colliding with a door (other
than the back door) when opened

*

• Vehicles or bicycles which are

approaching from directly behind

*

• Vehicles or bicycles which are

approaching from the front

*

• Guardrails, walls, signs, parked

vehicles, and other stationary
objects

*

• Pedestrians, animals, etc.

*

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

●

In situations such as the following,
safe exit assist will not operate:

• When 3 minutes or more have

elapsed since the hybrid system
off (the time which operation is
possible may be extended if a
door is opened and closed)

• When your vehicle is not com-

pletely stopped

■

Conditions under which the
system may not function cor-
rectly

●

The safe exit assist may not
detect vehicles correctly in the fol-
lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-
sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-
rounding area on the rear bumper

• When the vehicle is stopped on a

wet road surface, such as in a
puddle, while in inclement
weather, such as heavy rain,
snow, fog, etc.

• When a vehicle or bicycle

approaches from behind a nearby
parked vehicle

• When an approaching vehicle or

bicycle suddenly changes direc-
tion

• Immediately after a vehicle or

bicycle starts moving

• When the back door is open
• When a bicycle carrier, ramp, or

other accessory is installed to the
back of the vehicle

• When a parked vehicle, wall, sign,

person or other stationary object
is behind the vehicle

• When the vehicle is stopped at an

angle to the road

• When a vehicle is traveling near

an approaching vehicle or bicycle

• When an approaching vehicle or

bicycle is traveling along a station-
ary object, such a wall or sign

• When a vehicle or bicycle is

approaching at high speed

• When towing with the vehicle
• When stopped on a steep slope
• When stopped on a curve or at the

exit of a curve

●

Instances of the safe exit assist
unnecessarily detecting a vehicle
and/or object may increase in the
following situations:

• When the sensor is misaligned

due to a strong impact to the sen-
sor or its surrounding area

• When a vehicle or bicycle

approaches from behind your
vehicle at an angle

• When the vehicle is stopped at an

angle to the road

• When a vehicle or bicycle

approaches from behind a parked
vehicle at an angle

284

4-5. Using the driving support systems

• When a parked vehicle, wall, sign,

person or other stationary object
is behind the vehicle

• When an approaching vehicle or

bicycle suddenly changes direc-
tion

• When an approaching vehicle or

bicycle is traveling along a station-
ary object, such a wall or sign

• When the back door is open
• When a bicycle carrier, ramp, or

other accessory is installed to the
back of the vehicle

• When a vehicle or bicycle is

approaching at high speed

• When towing with the vehicle
• When stopped on a steep slope
• When stopped on a curve or at the

exit of a curve

■

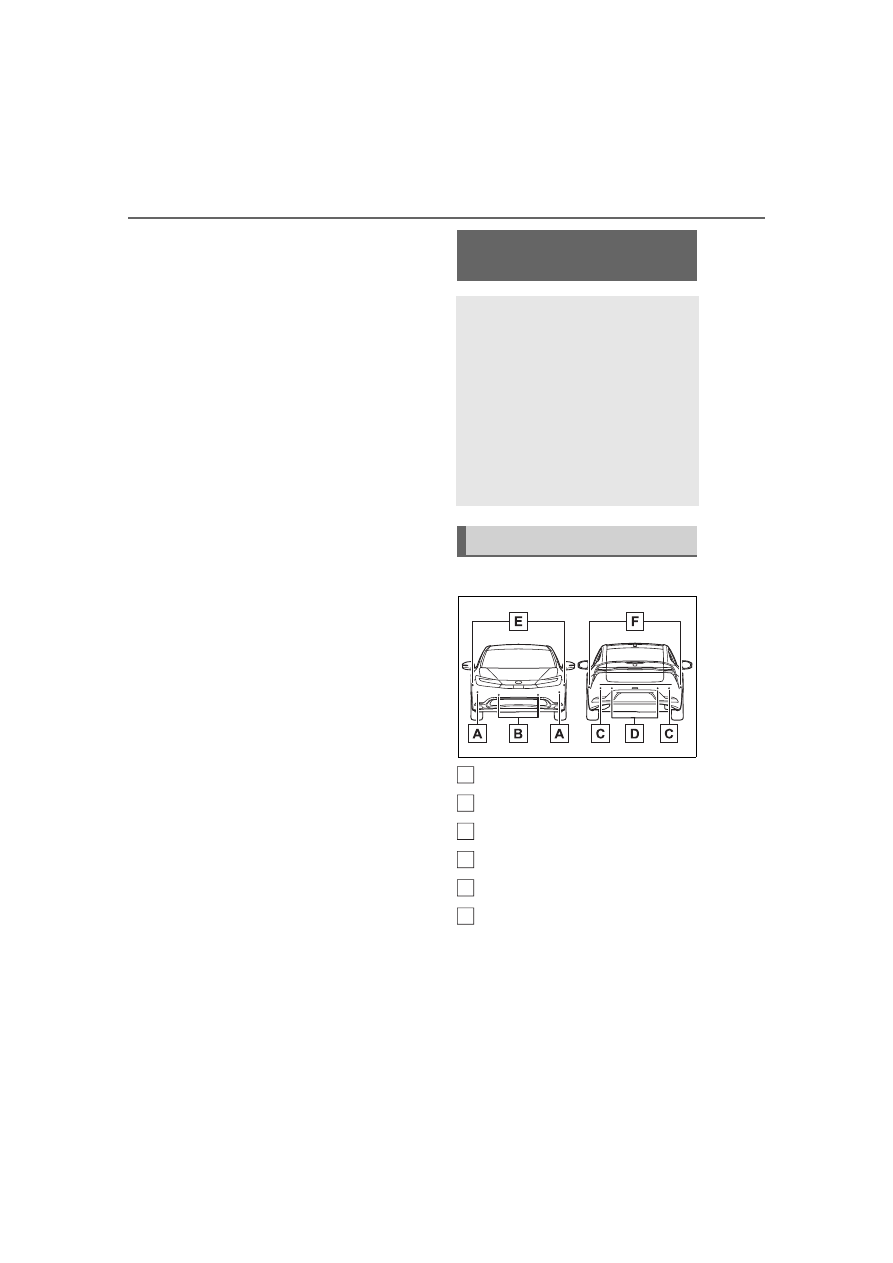

Types of sensors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

Front side sensors

*

Rear side sensors

*

*

: Vehicles with Advanced Park

■

Display

When the sensors detect an
object, such as a wall, a graphic
is shown on the Multimedia Dis-

Intuitive parking

assist

The distance from your
vehicle to objects, such as a
wall, when parallel parking
or maneuvering into a
garage is measured by the
sensors and communicated
via the Multimedia Display
and a buzzer. Always check
the surrounding area when
using this system.

System components

A

B

C

D

E

F

285

4-5. Using the driving support systems

4

Dr

iv

ing

play depending on the position

and distance to the object.

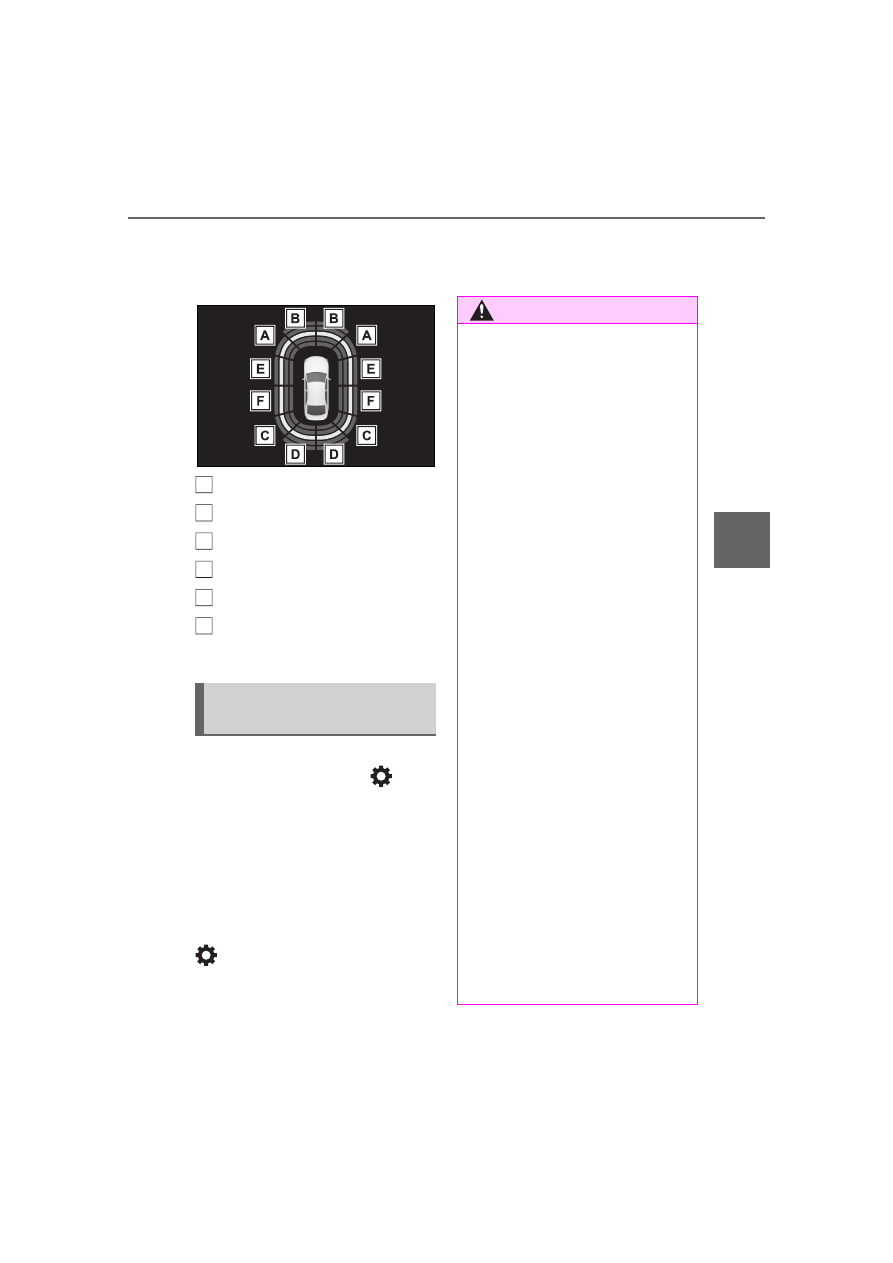

Display example:

Front corner sensor detection
Front center sensor detection
Rear corner sensor detection
Rear center sensor detection
Front side sensor detection

*

Rear side sensor detection

*

*

: Vehicles with Advanced Park

The intuitive parking assist can
be enabled/disabled on   of

the multi-information display.

(



P.96)

When the intuitive parking assist

function is disabled, the intuitive

parking assist OFF indicator

(



P.84) illuminates.

To re-enable the system, select

 on the multi-information dis-

play, select the intuitive parking

assist and turn it on. If the sys-

tem is disabled, it will remain off

even if the power switch is

turned to ON after the power

switch has been turned off.

Turning the intuitive park-

ing assist on/off

A

B

C

D

E

F

WARNING

■

Cautions regarding the use of

the system

There is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’s surroundings and

driving safely.

■

To ensure the system can

operate properly

Make sure to observe the follow-

ing precautions. The system may

not operate properly and may

lead to an unexpected accident.

When these precautions cannot

be observed, turn the system off.

●

Do not damage the sensors,

and always keep them clean.

●

Do not attach a sticker or install

an electronic component, such

as a backlit license plate (espe-

cially fluorescent type), fog

lights, fender pole or wireless

antenna near a radar sensor.

●

Do not subject the surrounding

area of the sensor to a strong

impact. If subjected to an

impact, have the vehicle

inspected by your Toyota

dealer. If the front or rear

bumper needs to be

removed/installed or replaced,

contact your Toyota dealer.

●

Do not modify, disassemble or

paint the sensors.

●

Do not attach a license plate

cover.

286

4-5. Using the driving support systems

■

The system can be operated

when

●

The power switch is in ON.

●

The intuitive parking assist func-

tion is on.

●

The vehicle speed is less than

about 6 mph (10 km/h).

●

The shift position is in a position

other than P.

■

If “Parking Assist Unavailable

Sensor Blocked” is displayed

on the multi-information display

A sensor may be covered with ice,

snow, dirt, etc. Remove the ice,

snow, dirt, etc., from the sensor to

return the system to normal.
Also, due to ice forming on a sensor

at low temperatures, a warning

message may be displayed or the

sensor may not be able to detect an

object. Once the ice melts, the sys-

tem will return to normal.

If an abnormality is displayed even

though there are no water droplets,

ice, snow or dirt, the sensor may be

operating abnormally. Have the

vehicle inspected by your Toyota

dealer.

■

If “System Stopped See

Owner’s Manual” is displayed

on the multi-information display

Water may be continuously flowing

over the sensor surface, such as in

a heavy rain. When the system

determines that it is normal, the sys-

tem will return to normal.

■

If “System Malfunction Visit

Your Dealer” is displayed on

the multi-information display

There may be a sensor or voltage

malfunction. Have the vehicle

inspected by your Toyota dealer.

■

Sensor detection information

●

The sensor’s detection areas are

limited to the areas around the

vehicle’s front and rear bumpers.

●

Certain vehicle conditions and the

surrounding environment may

affect the ability of a sensor to cor-

rectly detect an object.

●

Objects may not be detected if

they are too close to the sensor.

●

There will be a short delay

between object detection and dis-

play. Even at low speeds, there is

a possibility that the object will

come within the sensor’s detection

areas before the display is shown

and the warning beep sounds.

●

It might be difficult to hear the

buzzer due to the volume of the

audio system or air flow noise of

the air conditioning system.

●

It may be difficult to hear the

buzzer if buzzers for other sys-

tems are sounding.

●

If the meter malfunctions, the

buzzer may not sound.

WARNING

●

Keep your tires properly

inflated.

●

A non-genuine Toyota suspen-

sion (lowered suspension, etc.)

is installed.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area. Doing so may result in the

sensor malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.

287

4-5. Using the driving support systems

4

Dr
iv

ing

■

Objects which the system may
not properly detect

The shape of the object may pre-
vent the sensor from detecting it.
Pay particular attention to the fol-
lowing objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials
that absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections
projecting outwards in the direc-
tion of your vehicle

People may not be detected if they
are wearing certain types of cloth-
ing.

■

Situations in which the system
may not operate properly

Certain vehicle conditions and the
surrounding environment may affect
the ability of a sensor to correctly
detect objects. Particular instances
where this may occur are listed
below.

●

There is dirt, snow, water drops or
ice on a sensor. (Cleaning the
sensors will resolve this problem.)

●

A sensor is frozen. (Thawing the
area will resolve this problem.)
In especially cold weather, if a
sensor is frozen the sensor dis-
play may be displayed abnor-
mally, or objects, such as a wall,
may not be detected.

●

When a sensor or the area around
a sensor is extremely hot or cold.

●

On an extremely bumpy road, on
an incline, on gravel, or on grass.

●

When vehicle horns, vehicle
detectors, motorcycle engines, air
brakes of large vehicles, the clear-
ance sonar of other vehicles or
other devices which produce ultra-
sonic waves are near the vehicle.

●

A sensor is coated with a sheet of
spray or heavy rain.

●

If objects draw too close to the
sensor.

●

When a pedestrian is wearing
clothing that does not reflect ultra-
sonic waves (ex. skirts with gath-
ers or frills).

●

When objects that are not perpen-
dicular to the ground, not perpen-
dicular to the vehicle traveling
direction, uneven, or waving are in
the detection range.

●

When strong winds are blowing.

●

When driving in inclement weather
such as fog, snow or a sandstorm.

●

When an object that cannot be
detected is between the vehicle
and a detected object.

●

If an object such as a vehicle,
motorcycle, bicycle or pedestrian
cuts in front of the vehicle or runs
out from the side of the vehicle.

●

If the orientation of a sensor has
been changed due to a collision or
other impact.

●

When equipment such as a towing
eyelet, transport hook, bumper
protector, bumper trim, bicycle
carrier or snow-removal device
(snow plow) is installed near the
sensor.

●

If the front of the vehicle is raised
or lowered due to the carried load.

●

If the vehicle cannot be driven in a
stable manner, such as when the
vehicle has been in an accident or
is malfunctioning.

●

When tire chains, a compact
spare tire or an emergency tire
puncture repair kit are used.

288

4-5. Using the driving support systems

■

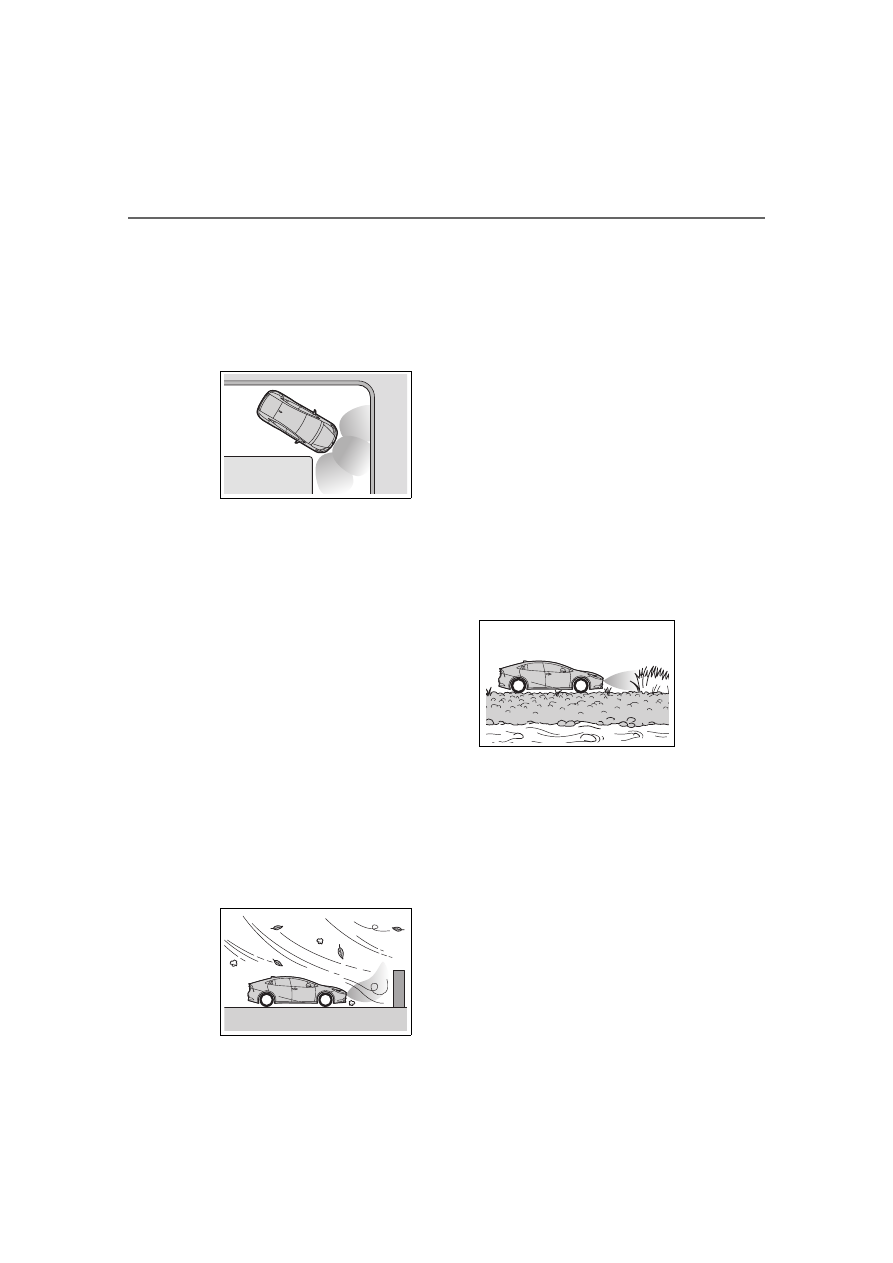

Situations in which the system
may operate even if there is no
possibility of a collision

In some situations, such as the fol-
lowing, the system may operate
even though there is no possibility of
a collision.

●

When driving on a narrow road.

●

When driving toward a banner,
flag, low-hanging branch or boom
barrier (such as those used at rail-
road crossings, toll gates and
parking lots).

●

When there is a rut or hole in the
surface of the road.

●

When driving on a metal cover
(grating), such as those used for
drainage ditches.

●

When driving up or down a steep
slope.

●

If a sensor is hit by a large amount
of water, such as when driving on
a flooded road.

●

There is dirt, snow, water drops or
ice on a sensor. (Cleaning the
sensors will resolve this problem.)

●

A sensor is coated with a sheet of
spray or heavy rain.

●

When driving in inclement weather
such as fog, snow or a sandstorm.

●

When strong winds are blowing.

●

When vehicle horns, vehicle
detectors, motorcycle engines, air
brakes of large vehicles, the clear-
ance sonar of other vehicles or
other devices which produce ultra-
sonic waves are near the vehicle.

●

If the front of the vehicle is raised
or lowered due to the carried load.

●

If the orientation of a sensor has
been changed due to a collision or
other impact.

●

The vehicle is approaching a tall
or curved curb.

●

Driving close to columns (H-
shaped steel beams, etc.) in multi-
story parking garages, construc-
tion sites, etc.

●

If the vehicle cannot be driven in a
stable manner, such as when the
vehicle has been in an accident or
is malfunctioning.

●

On an extremely bumpy road, on
an incline, on gravel, or on grass.

●

When tire chains, a compact
spare tire or an emergency tire
puncture repair kit are used.
