193

4-2. Driving procedures

4

Dr
iv

ing

■

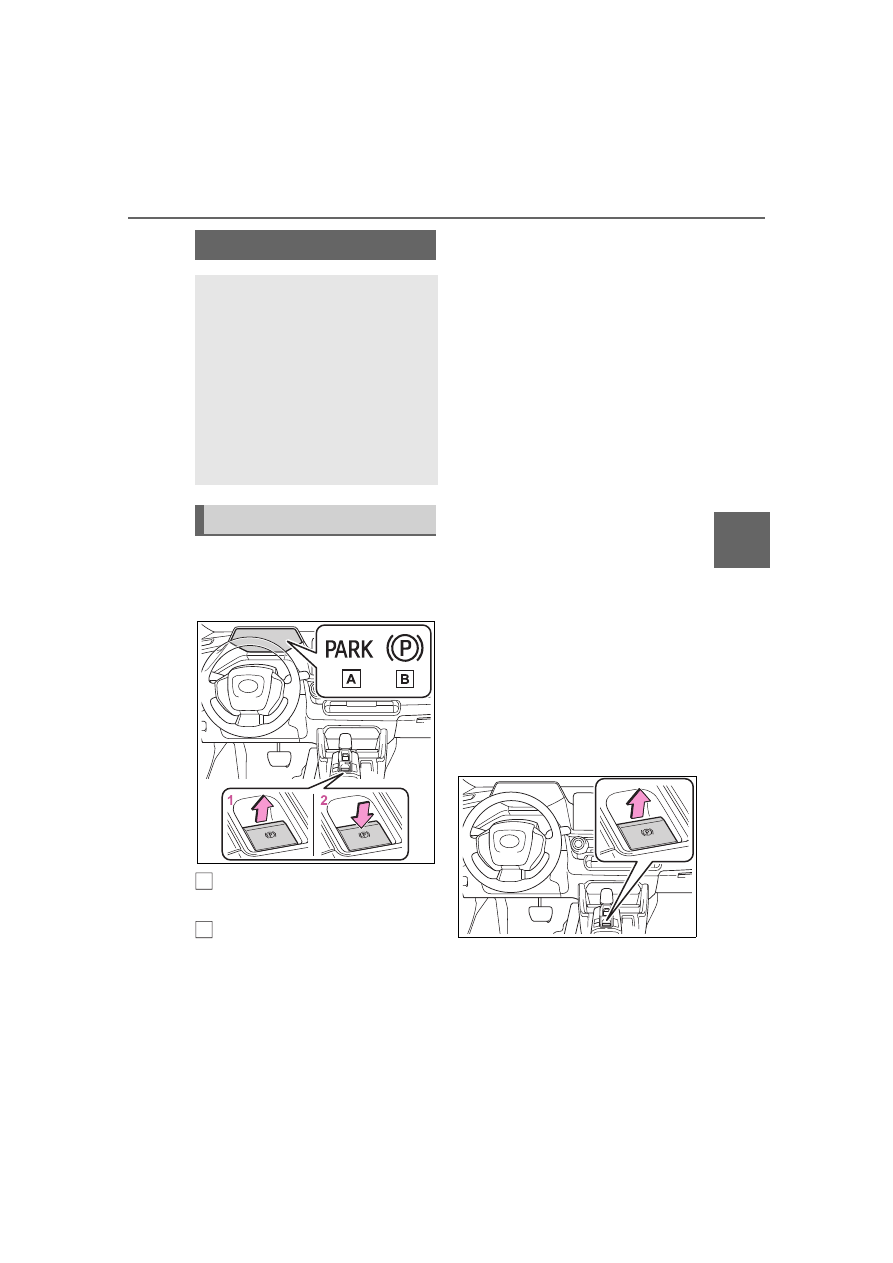

Using the manual mode

The parking brake can be set
and released manually.

Parking brake indicator light
(for U.S.A.)

Parking brake indicator light
(for Canada)

1

Pull the switch to set the
parking brake.

The parking brake indicator light
will turn on.

Pull and hold the parking brake
switch if an emergency occurs and
it is necessary to operate the park-
ing brake while driving.

2

Press the switch to release
the parking brake.

• Operate the parking brake switch

while depressing the brake pedal.

• Using the parking brake auto-

matic release function, the park-
ing brake can be released by
depressing the accelerator pedal.
When using this function, slowly
depress the accelerator pedal.
(



P.194)

Make sure that the parking brake
indicator light turns off.

If the parking brake indicator
light flashes, operate the switch
again. (



P.464)

■

Turning the automatic
mode on

While the vehicle is stopped,
pull and hold the parking brake
switch until a buzzer sounds and
a message is shown on the
multi-information display.

When the automatic mode is
turned on, the parking brake
operates as follows.



When the shift position is

Parking brake

The parking brake can be
set or released automati-
cally or manually. In auto-
matic mode, the parking
brake can be set or released
automatically according to
shift position operation.
Also, even in automatic
mode, the parking brake can
be set or released manually.

Operating instructions

A

B

194

4-2. Driving procedures

shifted from P, the parking
brake will be released, and
the parking brake indicator
light will turn off.



When the shift position is
shifted to P, the parking brake
will be set, and the parking
brake indicator light will turn
on.

Operate the shift position and P
position switch with the vehicle
stopped and the brake pedal
depressed.

The auto function may not operate
if the shift lever is moved extremely
quickly. In this situation, apply the
parking brake manually. (



P.193)

■

Turning the automatic
mode off

While the vehicle is stopped and
depressing the brake pedal,
press and hold the parking
brake switch until a buzzer
sounds and a message is
shown on the multi-information
display.

■

Parking brake operation

●

When the power switch is not in
ON, the parking brake cannot be
released using the parking brake

switch.

●

When the power switch is not in
ON, automatic mode (automatic
brake setting and releasing) is not
available.

■

Parking brake automatic
release function

When all of the following conditions
are met, the parking brake can be
released by depressing the acceler-
ator pedal.

●

The driver’s door is closed

●

The driver is wearing the seat belt

●

The shift position is in a forward
driving position or reverse driving
position

●

The malfunction indicator lamp or
brake system warning light is not
illuminated.

When depressing the accelerator
pedal, depress it slowly.

If the parking brake is not released
when the accelerator pedal is
depressed, release the parking
brake manually.

When the shift position is shifted
from P, the parking brake will be
released automatically.

■

Parking brake automatic lock
function

The parking brake will be set auto-
matically under the following condi-
tions:

●

The brake pedal is not depressed

●

The driver’s door is open

●

The driver’s seat belt is not fas-
tened

●

The shift position is in a position
other than P or N

(The shift position is in P during

advanced park

*

 operation.)

●

The malfunction indicator lamp
and brake system warning light
are not illuminated

195

4-2. Driving procedures

4

Dr

iv

ing

*

: If equipped.

■

If “Parking Brake Temporarily

Unavailable” is displayed on

the multi-information display

If the parking brake is operated

repeatedly over a short period of

time, the system may restrict opera-

tion to prevent overheating. If this

happens, refrain from operating the

parking brake. Normal operation will

return after about 1 minute.

■

If “Parking Brake Unavailable”

is displayed on the multi-infor-

mation display

Operate the parking brake switch. If

the message does not disappear

after operating the switch several

times, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

■

Parking brake operation sound

When the parking brake operates, a

motor sound (whirring sound) may

be heard.

This does not indicate a malfunc-

tion.

■

Parking brake indicator light

●

Depending on the power switch

mode, the parking brake indicator

light will turn on and stay on as

described below:

ON: Comes on until the parking

brake is released.

Not in ON: Stays on for approxi-

mately 15 seconds.

●

When the power switch is turned

off with the parking brake set, the

parking brake indicator light will

stay on for about 15 seconds. This

does not indicate a malfunction.

■

When the parking brake switch

malfunctions

Automatic mode (automatic brake

setting and releasing) will be turned

on automatically.

■

Parking the vehicle



P.167

■

Parking brake engaged warning

buzzer

A buzzer will sound if the vehicle is

driven with the parking brake

engaged.

“Parking Brake ON” is displayed on

the multi-information display (with

the vehicle reaching a speed of 3

mph [5 km/h]).

■

If the brake system warning

light comes on



P.464

■

Usage in winter time



P.354

WARNING

■

When parking the vehicle

Do not leave a child in the vehicle

alone. The parking brake may be

released unintentionally by a child

and there is the danger of the

vehicle moving that may lead to

an accident resulting in death or

serious injury.

■

Parking brake switch

Do not set any objects near the

parking brake switch. Objects

may interfere with the switch and

may lead the parking brake to

unexpectedly operate.

■

Parking brake automatic lock

function

Never use the automatic parking

brake engagement function in

place of normal parking brake

operation. This function is

designed to reduce the risk of a

collision due to the driver forget-

ting to engage the parking brake.

Over-reliance on this function to

park the vehicle safely may lead

to an accident resulting in death

or serious injury.

196

4-2. Driving procedures

Turn the brake hold system on

The brake hold standby indicator
(green)

 comes on. While the

system is holding the brake, the

brake hold operated indicator (yel-
low)

 comes on.

■

Brake hold system operating

conditions

The brake hold system cannot be

turned on in the following condi-

tions:

●

The driver’s door is not closed.

●

The driver is not wearing the seat

belt.

NOTICE

■

When parking the vehicle

Before you leave the vehicle, shift

the shift position to P, set the

parking brake and make sure that

the vehicle does not move.

■

When the system malfunc-

tions

Stop the vehicle in a safe place

and check the warning messages.

■

When the vehicle 12-volt bat-

tery is discharged

The parking brake system cannot

be activated. (



P.508)

■

When the parking brake can-

not be released due to a mal-

function

Driving the vehicle with the park-

ing brake set will lead to brake

components overheating, which

may affect braking performance

and increase brake wear. Have

the vehicle inspected by your

Toyota dealer immediately if this

occurs.

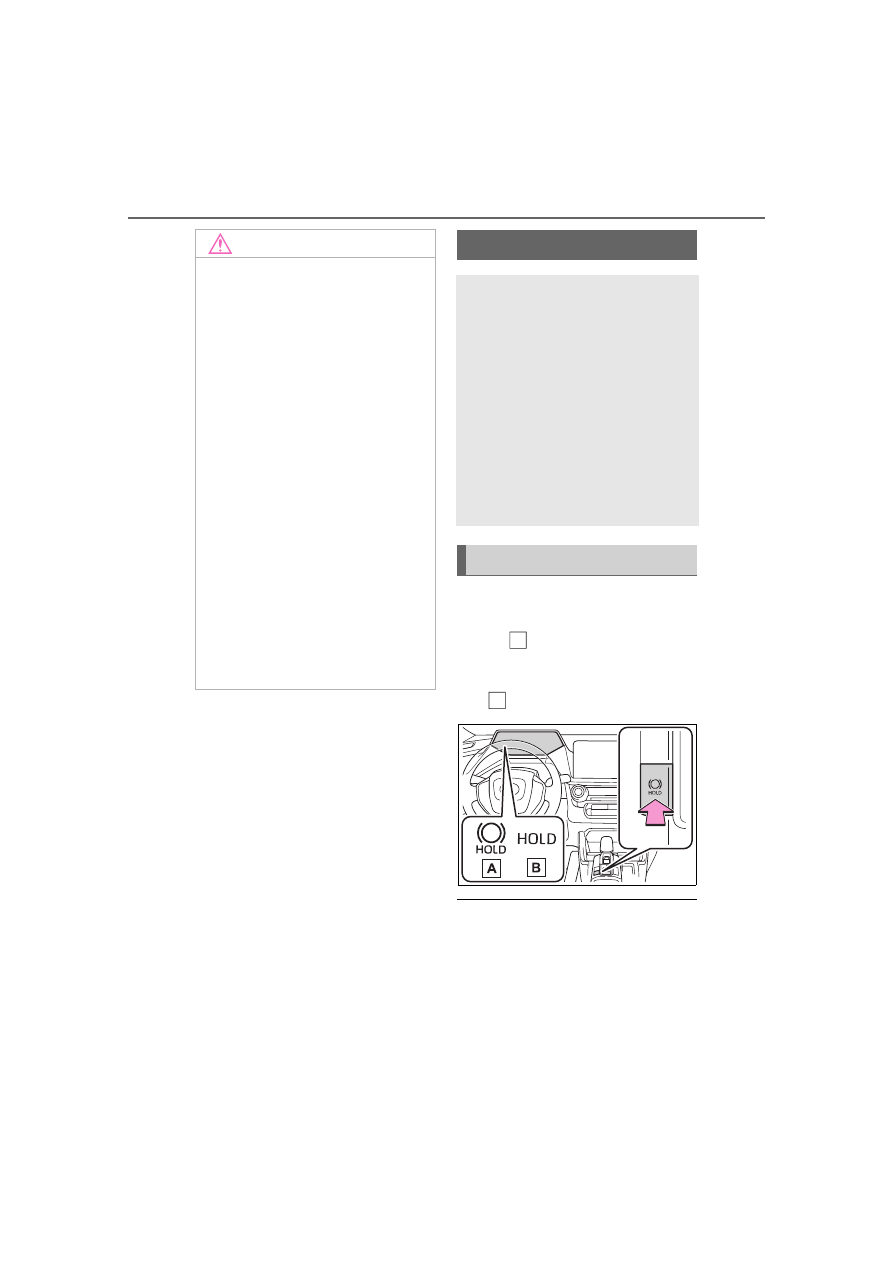

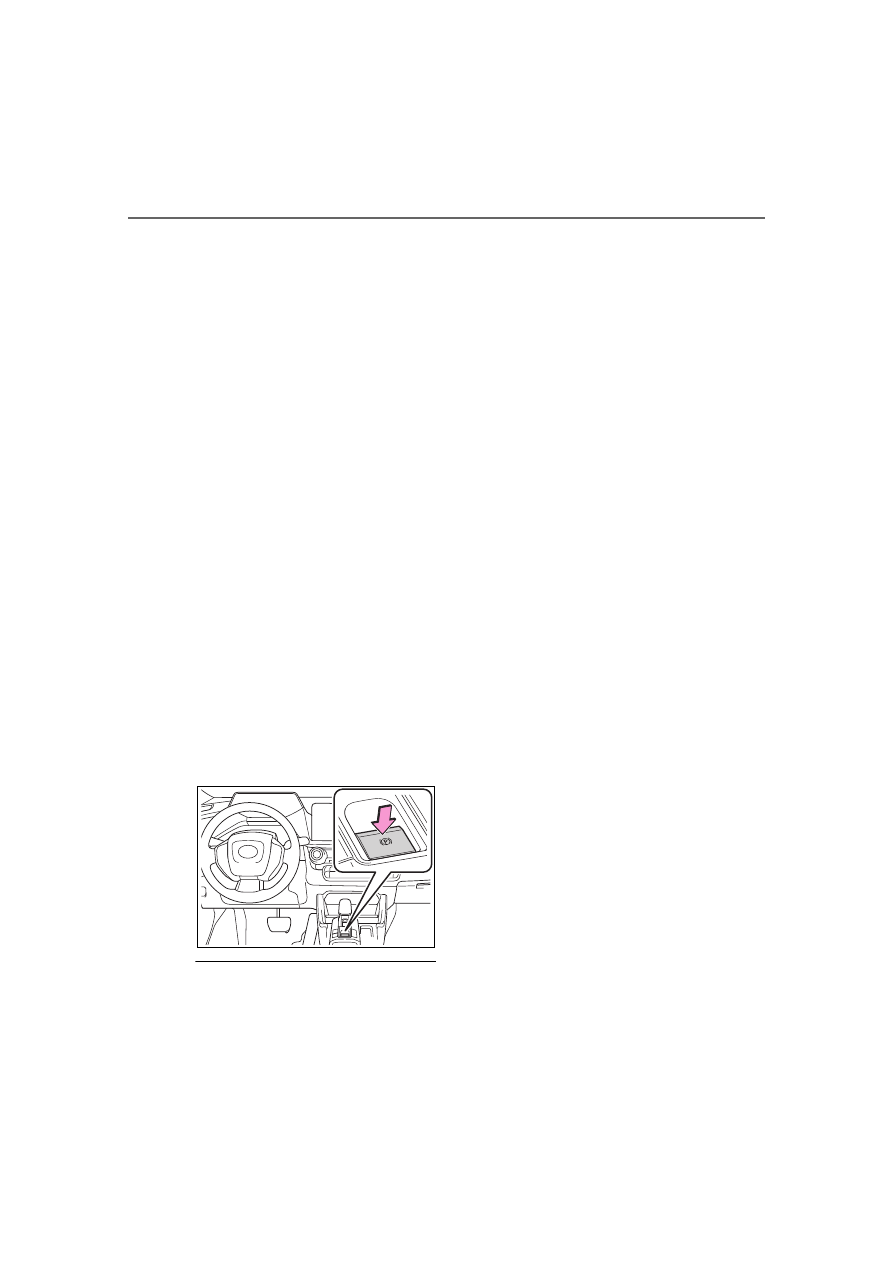

Brake Hold

The brake hold system

keeps the brake applied

when the shift position is in

D or N with the system on

and the brake pedal has

been depressed to stop the

vehicle. The system

releases the brake when the

accelerator pedal is

depressed with the shift

position in D to allow

smooth start off.

Enabling the system

A

B

197

4-2. Driving procedures

4

Dr
iv

ing

●

“Parking Brake Unavailable” or
“EPB Malfunction Visit Your
Dealer” is displayed on the multi-
information display.

If any of the conditions above are
detected when the brake hold sys-
tem is enabled, the system will turn
off and the brake hold standby indi-
cator light will go off. In addition, if
any of the conditions are detected
while the system is holding the
brake, a warning buzzer will sound
and a message will be shown on the
multi-information display. The park-
ing brake will then be set automati-
cally.

■

Brake hold function

●

If the brake pedal is left released
for a period of about 3 minutes
after the system has started hold-
ing the brake, the parking brake
will be set automatically. In this
case, a warning buzzer sounds
and a message is shown on the
multi-information display.

●

To turn the system off while the
system is holding the brake, firmly
depress the brake pedal and
press the button again.

●

The brake hold function may not
hold the vehicle when the vehicle
is on a steep incline. In this situa-
tion, it may be necessary for the
driver to apply the brakes. A warn-
ing buzzer will sound and the
multi-information display will
inform the driver of this situation. If
a warning message is shown on
the multi-information display, read
the message and follow the
instructions.

●

When do not wish for the parking
brake to operate automatically,
press and hold the brake hold
switch until the standby indicator
(green) turns off, and then turn the
power switch off.

■

When the parking brake is set
automatically while the system
is holding the brakes

Perform any of the following opera-

tions to release the parking brake.

●

Depress the accelerator pedal.
(The parking brake will not be
released automatically if the seat
belt is not fastened.)

●

Operate the parking brake switch
with the brake pedal depressed.

Make sure that the parking brake
indicator light goes off. (



P.193)

■

When an inspection at your
Toyota dealer is necessary

When the brake hold standby indi-
cator (green) does not illuminate
even when the brake hold switch is
pressed with the brake hold system
operating conditions met, the sys-
tem may be malfunctioning. Have
the vehicle inspected at your Toyota
dealer.

■

If “Brake Hold Malfunction
Press Brake to Deactivate Visit
Your Dealer” or “Brake Hold
Malfunction Visit Your Dealer”
is displayed on the multi-infor-
mation display

The system may be malfunctioning.
Have the vehicle inspected by your
Toyota dealer.

■

Warning messages and buzzers

Warning messages and buzzers are
used to indicate a system malfunc-
tion or to inform the driver of the
need for caution. If a warning mes-
sage is shown on the multi-informa-
tion display, read the message and
follow the instructions.

■

If the brake hold operated indi-
cator flashes



P.470

198

4-2. Driving procedures

WARNING

■

When the vehicle is on a

steep incline

Take care when using the brake

hold system on a steep incline,

exercise caution. The brake hold

function may not hold brakes in

such situations.
Also, the system may not activate

depending on the angle of the

slope.

■

When stopped on a slippery

road

The system cannot stop the vehi-

cle when the gripping ability of the

tires has been exceeded. Do not

use the system when stopped on

a slippery road.

NOTICE

■

When parking the vehicle

The brake hold system is not

designed for use when parking

the vehicle for a long period of

time. Turning the power switch off

while the system is holding the

brake may release the brake,

which would cause the vehicle to

move. When operating the power

switch, depress the brake pedal,

shift the shift position to P and set

the parking brake.

199

4-3. Operating the lights and wipers

4

Dr
iv

ing

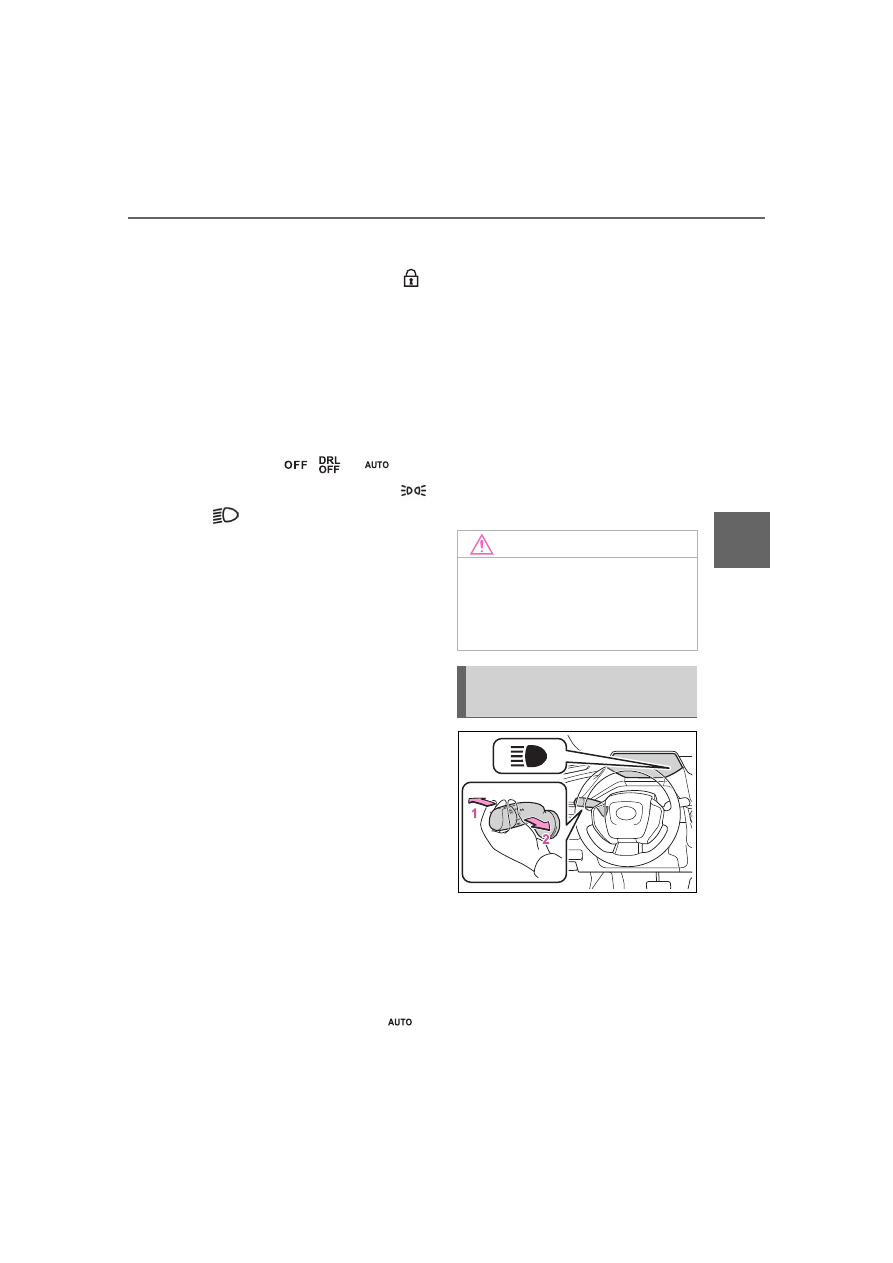

4-3.Operating the lights and wipers

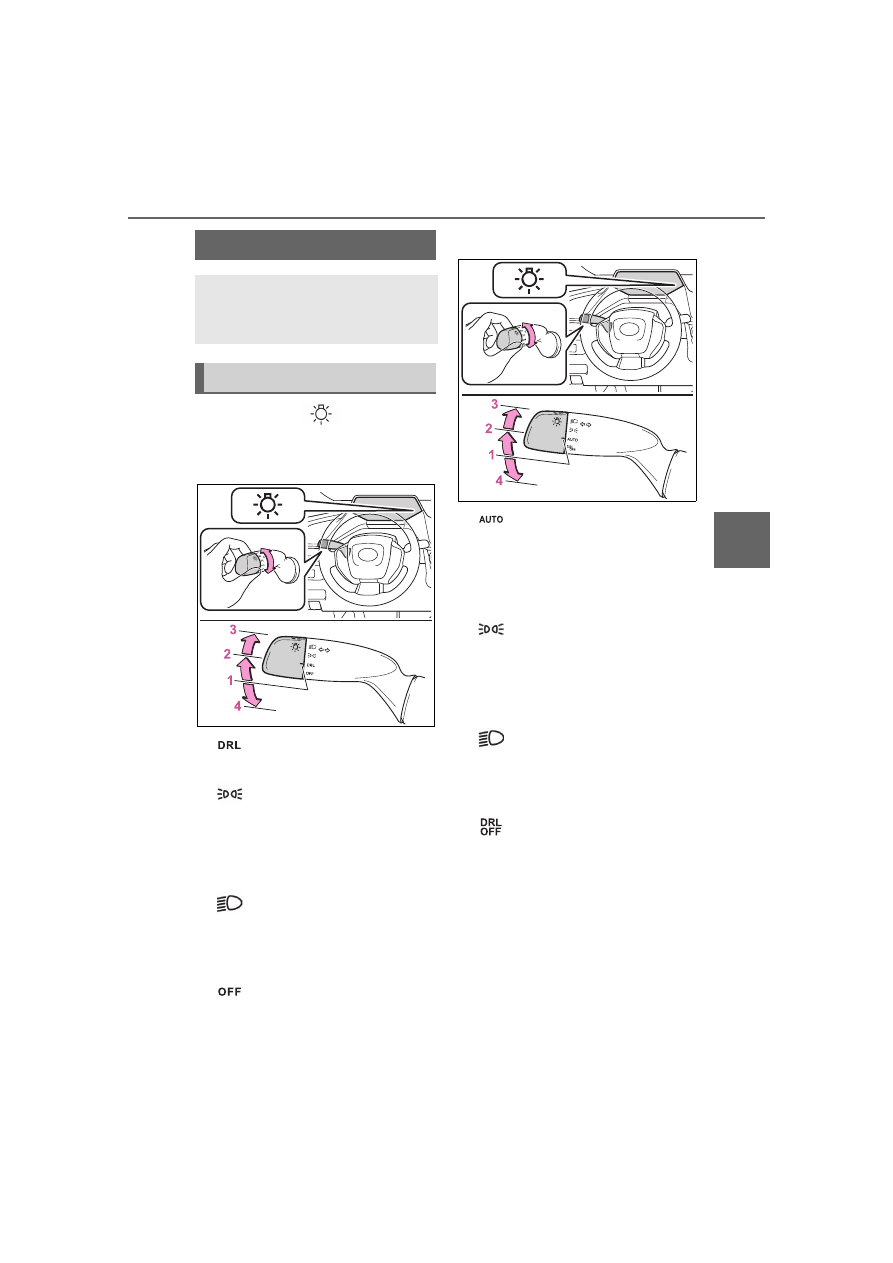

Operating the

 switch

turns on the lights as follows:



U.S.A. (type A)

1

 The daytime running

lights turn on. (



P.200)

2

 The side marker, park-

ing, tail, license plate, instru-
ment panel lights, and
daytime running lights
(



P.200) turn on.

3

 The headlights and all

lights listed above (except
daytime running lights) turn
on.

4

 Off



U.S.A. (type B)

1

 The headlights, side

marker, parking, LED acces-
sories lamp, daytime running
lights (



P.200) and so on

turn on and off automatically.

2

 The side marker, park-

ing, LED accessories lamp,
tail, license plate, instrument
panel lights, and daytime run-
ning lights (



P.200) turn on.

3

 The headlights and all

lights listed above (except
daytime running lights) turn
on.

4

 The daytime running

lights turn off.

Headlight switch

The headlights can be oper-
ated manually or automati-
cally.

Turning on the headlights

200

4-3. Operating the lights and wipers



Canada

1

 The headlights, side

marker, parking, LED acces-
sories lamp, daytime running
lights (



P.200) and so on

turn on and off automatically.

2

 The side marker, park-

ing, LED accessories lamp,
tail, license plate, instrument
panel lights, and daytime run-
ning lights (



P.200) turn on.

3

 The headlights and all

lights listed above (except
daytime running lights) turn
on.

■

AUTO mode can be used when

The power switch is in ON.

■

Daytime running light system

●

Vehicles without LED accessories
lamp: The daytime running lights
illuminate using the same lights as
the low beam headlights, and illu-
minate dimmer than the low beam
headlights.

●

Vehicles with LED accessories
lamp: The daytime running lights
illuminate using the same lights as

the parking lights, and illuminate
brighter than the parking lights.

●

To make your vehicle more visible
to other drivers during daytime
driving, the daytime running lights
turn on automatically when all of
the following conditions are met.
(The daytime running lights are
not designed for use at night.)

• The hybrid system is operating
• The parking brake is released

• The headlight switch is in the

,

 or

*

 position

*

: When the surroundings are bright

The daytime running lights remain
on after they illuminate, even if the
parking brake is set again.

●

For the U.S.A.: Daytime running
lights can be turned off by operat-
ing the switch.

●

Compared to turning on the head-
lights, the daytime running light
system offers greater durability
and consumes less electricity, so
it can help improve fuel economy.

■

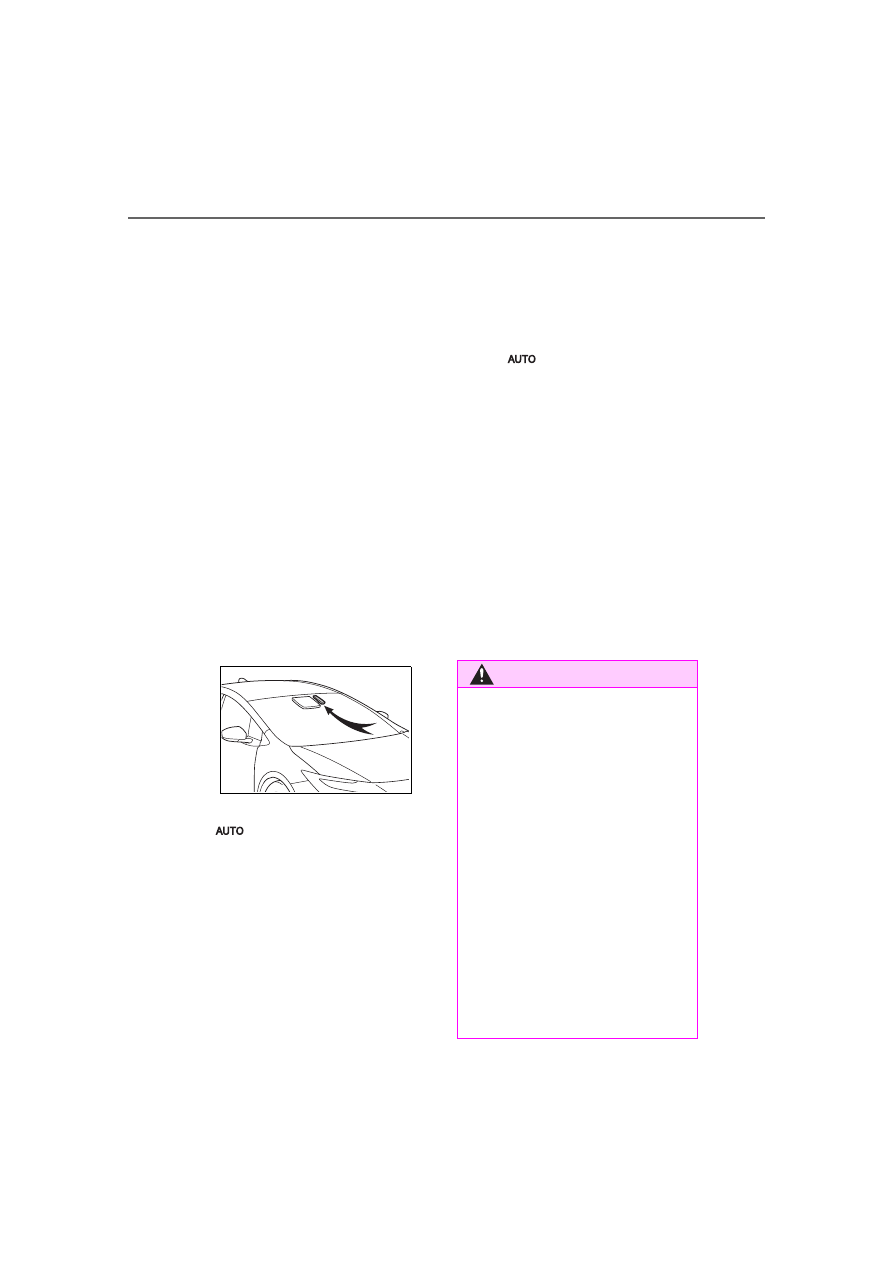

Headlight control sensor (if
equipped)

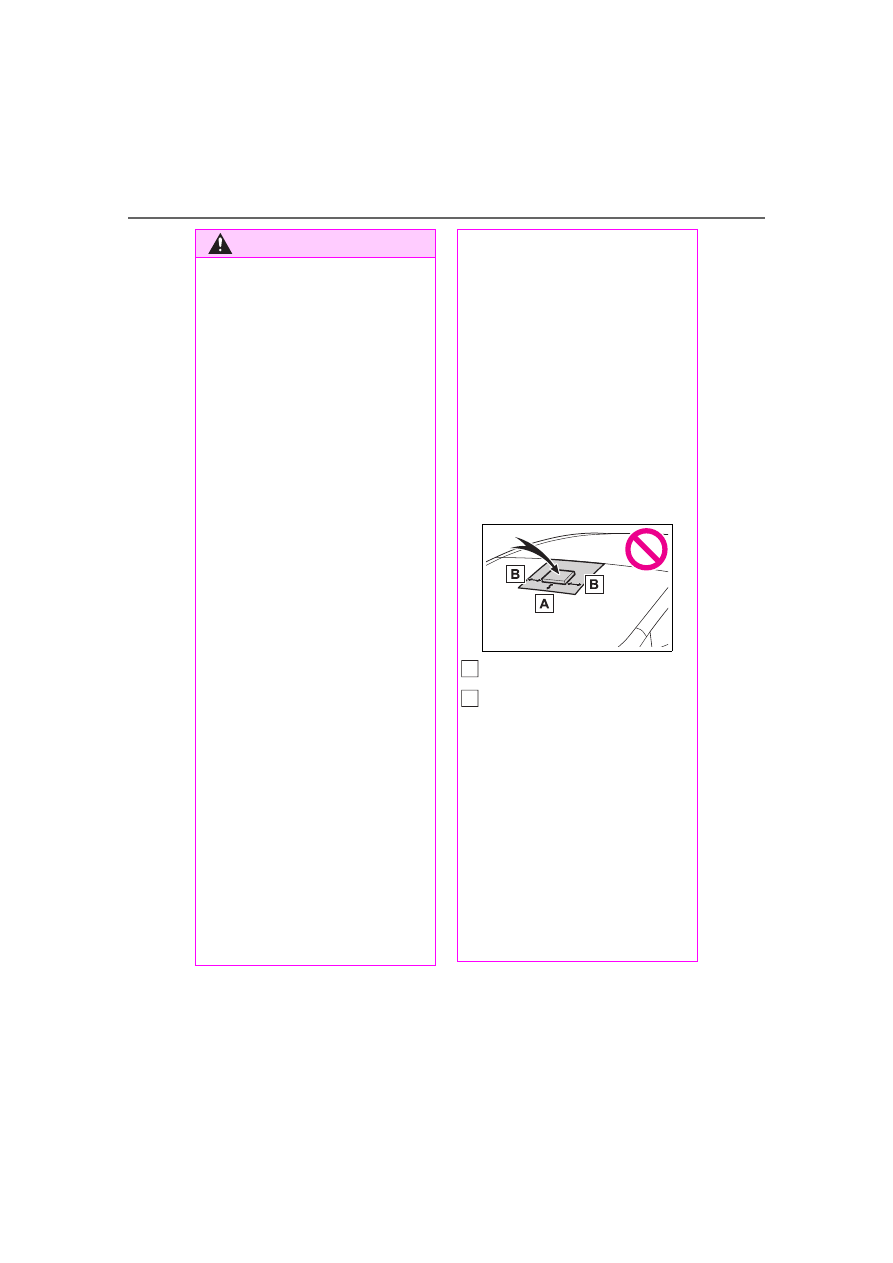

The sensor may not function prop-
erly if an object is placed on the sen-
sor, or anything that blocks the
sensor is affixed to the windshield.
Doing so interferes with the sensor
detecting the level of ambient light
and may cause the automatic head-
light system to malfunction.

■

Automatic light off system

●

When the headlights are on: The
lights turn off 30 seconds after the

201

4-3. Operating the lights and wipers

4

Dr

iv

ing

power switch is turned to OFF and

a door is opened and closed. (The
lights turn off immediately if



on the key is pressed after all the

doors are closed.)

●

When only the tail lights are on:

The tail lights turn off automati-

cally if the power switch is turned

to OFF and the driver’s door is

opened.

To turn the lights on again, turn the

power switch to ON, or turn the light
switch to the

,

 or

 posi-

tion once and then back to the



or

 position.

■

Light reminder buzzer

A buzzer sounds when the driver’s

door is opened while the lights are

turned on with the power switch in

OFF (except when the automatic

light off system is operated).

■

12-volt battery-saving function

In order to prevent the 12-volt bat-

tery of the vehicle from discharging,

if the headlights and/or tail lights are

on when the power switch is turned

to OFF, the battery saving function

will operate and automatically turn

off all the lights after approximately

20 minutes.
When any of the following are per-

formed, the 12-volt battery-saving

function is canceled once and then

reactivated. All the lights will turn off

automatically 20 minutes after the

12-volt battery-saving function has

been reactivated:

●

When the headlight switch is oper-

ated

●

When a door is opened or closed

■

Windshield wiper linked head-

light illumination (if equipped)

When driving during daytime with
the headlight switch is in the



position, if the windshield wipers are

used, the headlights will turn on

automatically after several seconds

to help enhance the visibility of your

vehicle.

■

If “Headlight System Malfunc-

tion Visit Your Dealer” is dis-

played on the multi-information

display

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

Customization

Settings (e.g. light sensor sensitiv-

ity) can be changed.

(Customizable features:



P.540)

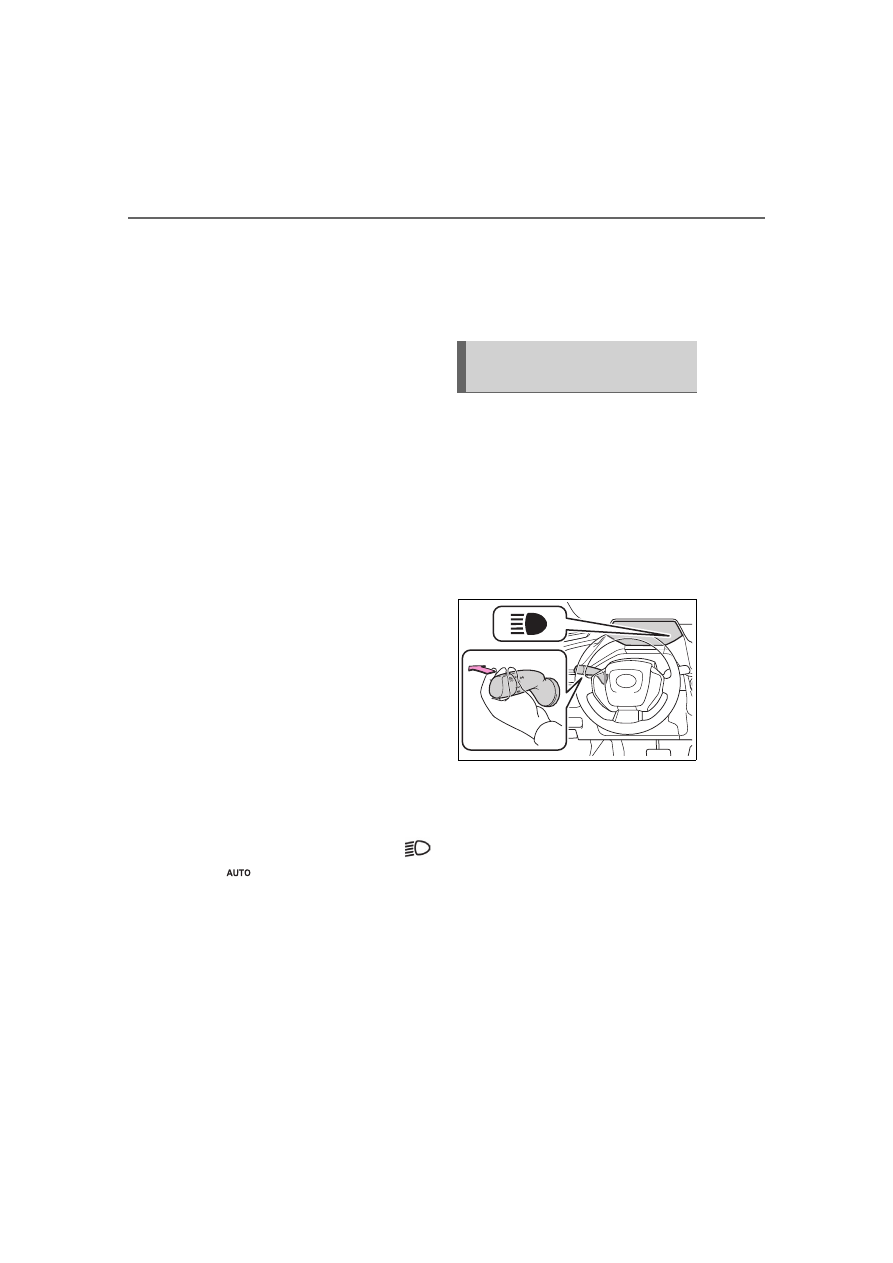

1

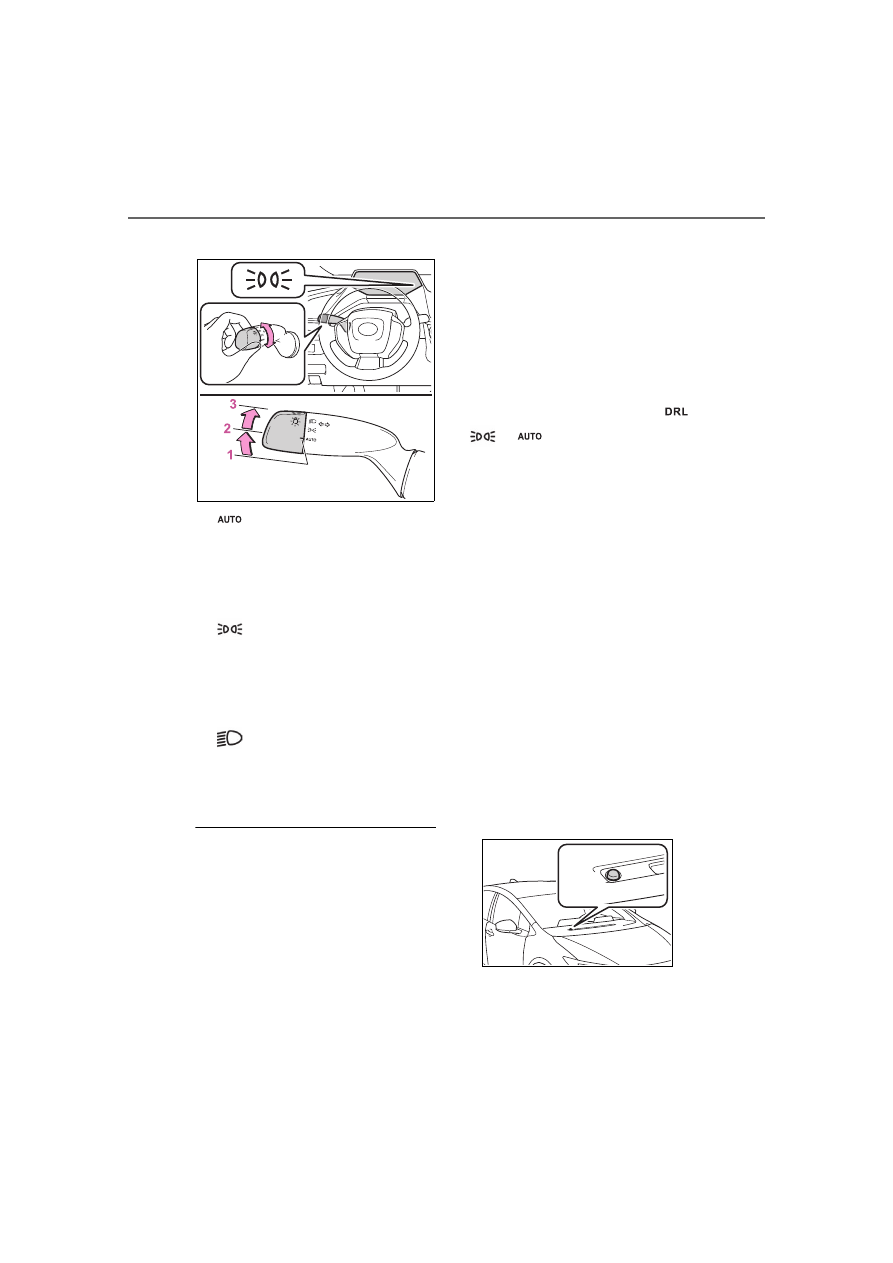

With the headlights on, push

the lever away from you to

turn on the high beams.

Pull the lever toward you to the

center position to turn the high

beams off.

2

Pull the lever toward you and

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the lights on longer

than necessary when the hybrid

system is not operating.

Turning on the high beam

headlights

202

4-3. Operating the lights and wipers

release it to flash the high

beams once.

You can flash the high beams with

the headlights on or off.

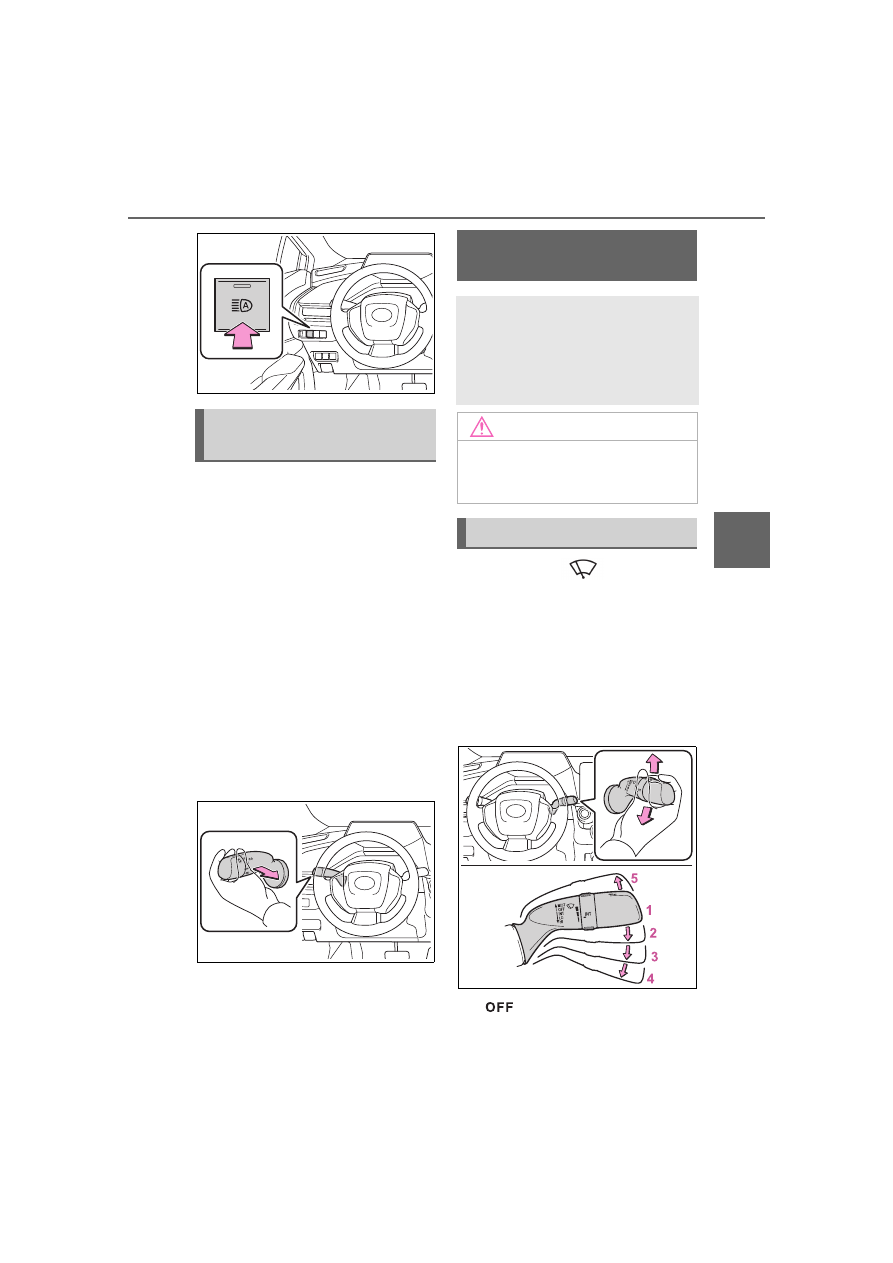

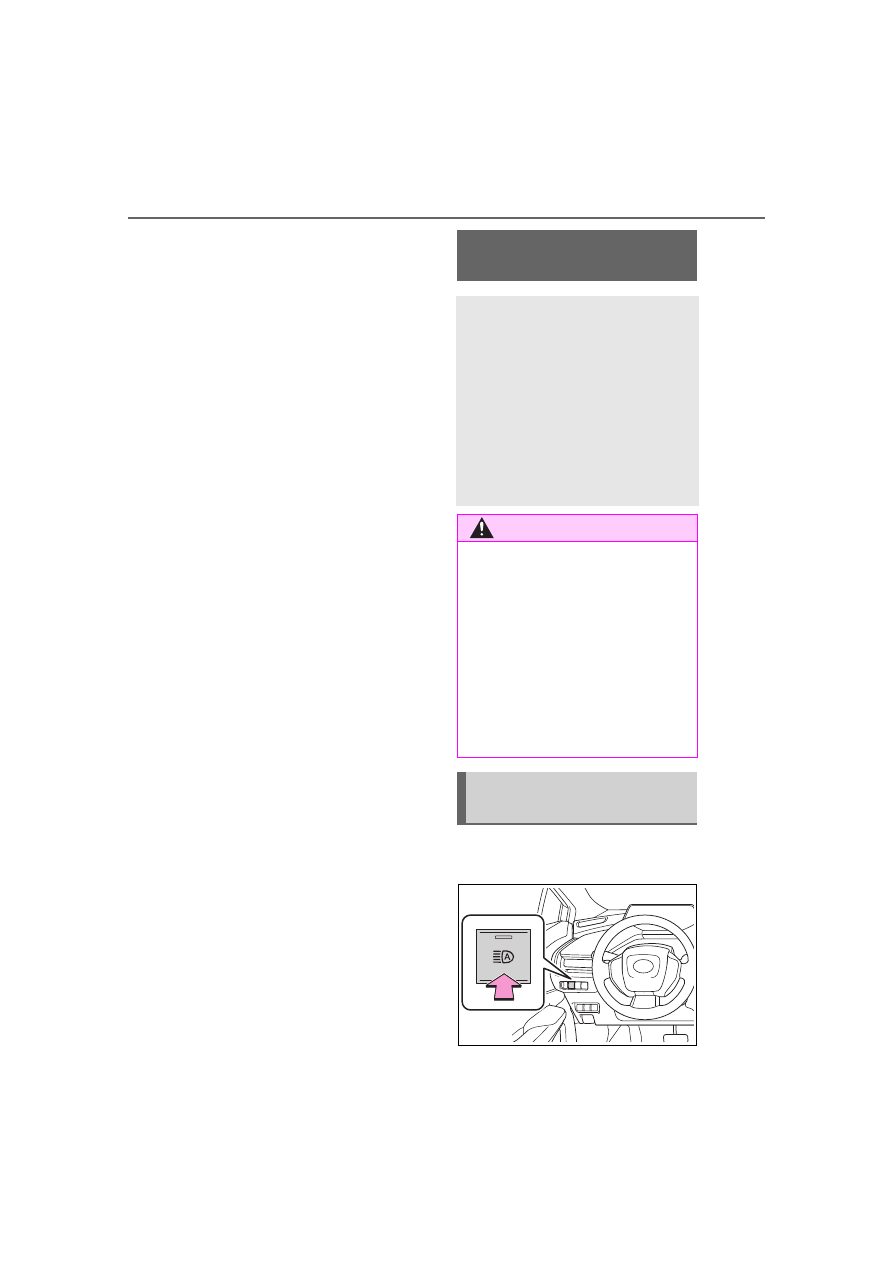

1

Press the Automatic High

Beam switch.

AHB (Automatic High

Beam)

The Automatic High Beam

uses a front camera located

on the upper portion of the

windshield to detect the

brightness of the lights of

vehicles ahead, street-

lights, etc., and automati-

cally changes the head

lights between the high

beams and low beams.

WARNING

■

For safe use

Do not overly rely on the Auto-

matic High Beam. Always drive

safely, taking care to observe

your surroundings and turning the

high beams on or off manually if

necessary.

■

To prevent unintentional

operation of the Automatic

High Beam system

●

When it is necessary to disable

the system:



P.215

Using the Automatic High

Beam system

203

4-3. Operating the lights and wipers

4

Dr
iv

ing

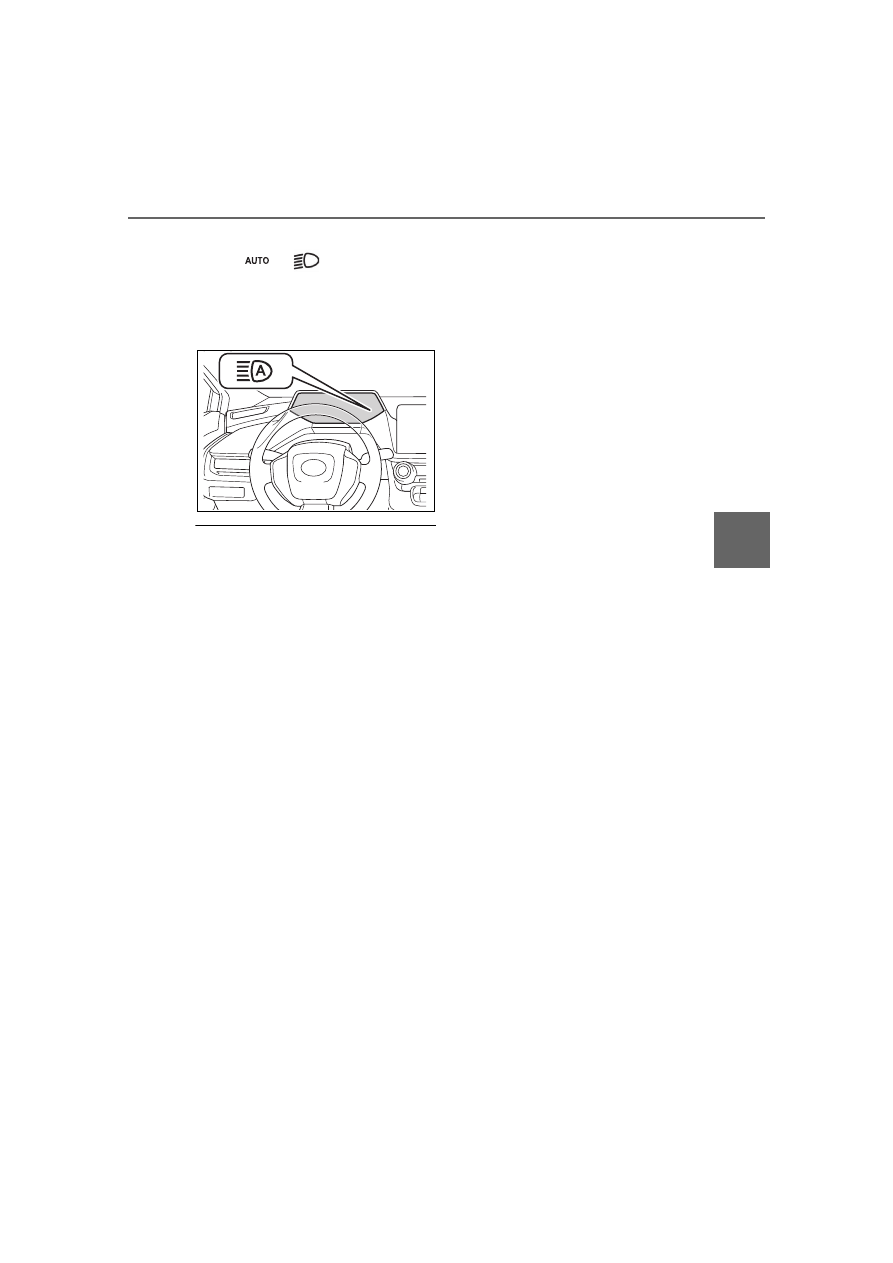

2

Turn the headlight switch to

the

or

position.

When the headlight switch lever is
in the low beam position, the AHB
system will be enabled and the
AHB indicator will illuminate.

■

Automatic operating condi-
tions of the high beams

●

When all of the following condi-
tions are met, the high beams will
illuminate automatically:

• The vehicle speed is approxi-

mately 21 mph (34 km/h) or more.

• The area ahead of the vehicle is

dark.

• There are no vehicles ahead with

lights on.

• There are few streetlights or other

lights on the road ahead.

●

If any of the following conditions
are met, the headlights will
change to the low beams:

• Vehicle speed drops below

approximately 17 mph (27 km/h).

• The area ahead of the vehicle is

not dark.

• There is a vehicle ahead with

lights on.

• There are many streetlights or

other lights on the road ahead.

■

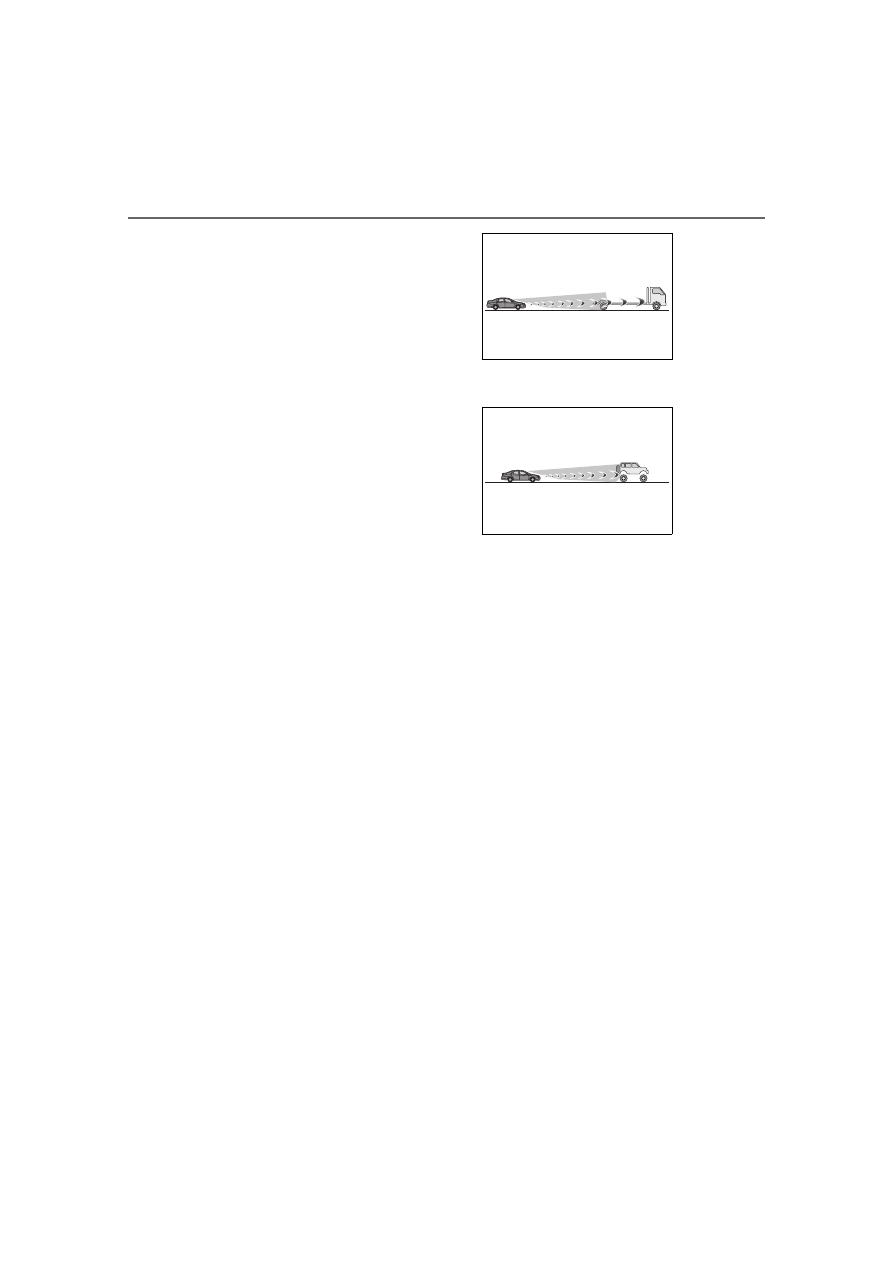

Front camera detection

●

In the following situations, the high
beams may not be automatically
changed to the low beams:

• When a vehicle cuts in front of

your vehicle

• When another vehicle crosses in

front of the vehicle

• When vehicles ahead are repeat-

edly detected and then hidden
due to repeated curves, road
dividers or roadside trees

• When a vehicle ahead

approaches from a far lane

• When a vehicle ahead is far away
• When a vehicle ahead has no

lights

• When the lights of a vehicle ahead

are dim

• When a vehicle ahead is reflecting

strong light, such as own head-
lights

• Situations in which the sensors

may not operate properly:



P.219

●

The headlights may change to the
low beams if a vehicle ahead that
is using fog lights without its head-
lights turned on is detected.

●

House lights, street lights, traffic
signals, and illuminated billboards
or signs may cause the high
beams to change to the low
beams, or the low beams to
remain on.

●

The following may change the tim-
ing at which the headlights
change to the low beams:

• The brightness of lights of vehi-

cles ahead

• The movement and direction of

vehicles ahead

• The distance between the vehicle

and a vehicle ahead

• When a vehicle ahead only has

lights illuminated on one side

• When a vehicle ahead is a two-

wheeled vehicle

• The condition of the road (gradi-

ent, curve, condition of the road
surface, etc.)

• The number of passengers and

amount of luggage

●

The headlights may change
between the high beams and low
beams unexpectedly.

●

Bicycles and other small vehicles
may not be detected.

●

In the following situations, the sys-
tem may not be able to correctly
detect the brightness of the sur-

204

4-3. Operating the lights and wipers

roundings. This may cause the
low beams to remain on or the
high beams to flash or dazzle
pedestrians or vehicles ahead. In
such a case, it is necessary to
manually change between the
high beams and low beams.

• When there are lights similar to

headlights or tail lights in the sur-
rounding area

• When headlights or tail lights of

vehicles ahead are turned off,
dirty, changing color, or not aimed
properly

• When the headlights are repeat-

edly changing between the high
beams and low beams.

• When use of the high beams is

inappropriate or when the high
beams may be flashing or daz-
zling pedestrians or other drivers.

• When the vehicle is used in an

area in which vehicles travel on
the opposite side of the road of
the country for which the vehicle
was designed, for example using
a vehicle designed for right-hand
traffic in a left-hand traffic area, or
vice versa

• When it is necessary to disable

the system:



P.215

• Situations in which the sensors

may not operate properly:



P.219

■

Temporarily reducing front
camera sensitivity

The sensitivity of the front camera
can be temporarily reduced.

1

Turn the power switch off with
the following conditions met.

●

The headlight switch is in the



or

position.

●

The headlight switch lever is in the
low beam position.

●

The automatic High Beam switch
is on.

2

Turn the power switch to ON.

3

Within 60 seconds after perform-
ing step

2

, push the headlight

switch lever to the high beam
position then pull it to the original

position quickly 10 times, then
leave the lever in its original
position.

4

If the sensitivity is changed, the
Automatic High Beam indicator
will blink 3 times.

■

Changing to the high
beams

Push the lever forward.

The AHB indicator will turn off and
the headlight high beam indicator
will turn on.

Pull the lever to its original position
to enable the Automatic High Beam
system again.

■

Changing to the low beams

Press the Automatic High Beam
switch.

The AHB indicator will turn off.

Press the switch to enable the
Automatic High Beam system
again.

Turning the high beams
on/off manually

205

4-3. Operating the lights and wipers

4

Dr

iv

ing

It is recommended to switch to

the low beams when use of the

high beams is inappropriate or

when the high beams may

cause problems or distress to

other drivers or pedestrians

nearby.
Pull the lever rearward and then

return it to its original position.

The high beams will illuminate

while the lever is pulled, however,

after the lever is returned to its orig-

inal position, the low beams will

remain on for a certain amount of

time. After this, the Automatic High

Beam system will operate.

Operating the

 lever oper-

ates the wipers or washer as fol-

lows:



Intermittent windshield wipers

When intermittent windshield

wiper operation is selected,

wiper interval can also be

adjusted.

1

Off

Temporarily changing to

the low beams

Windshield wipers and

washer

Operating the lever can

switch between automatic

operation and manual oper-

ation, or can use the

washer.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they

may damage the windshield.

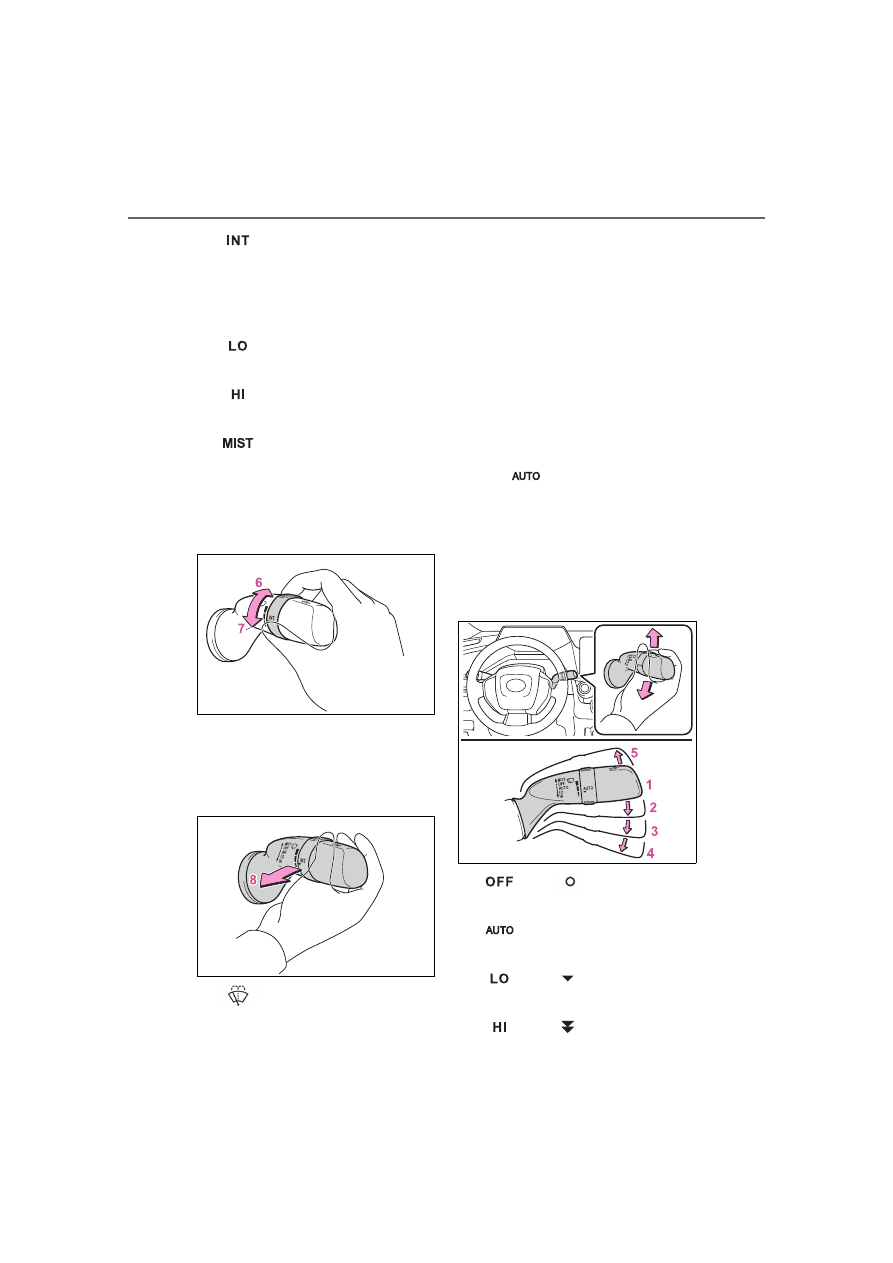

Operating the wiper lever

206

4-3. Operating the lights and wipers

2

Intermittent operation

The intermittent windshield wiper
operates more frequently as vehicle
speed becomes higher.

3

Low speed operation

4

High speed operation

5

Temporary operation

Wiper intervals can be adjusted
when intermittent operation is
selected.

6

Increases the intermittent
windshield wiper frequency

7

Decreases the intermittent
windshield wiper frequency

8

 Windshield cleaning

washer/wiper dual operation

Pulling the lever operates the wip-
ers and washer.

The wipers will automatically oper-
ate a couple of times after the
washer squirts. (After operating
several times, the wipers operate
once more time after a short delay
to prevent dripping. However, the
dripping prevention does not oper-
ate while the vehicle is moving.)



Rain-sensing windshield wip-
ers

When

 is selected, the

wipers will operate automatically
when the sensor detects falling
rain. The system automatically
adjusts wiper timing in accor-
dance with rain volume and
vehicle speed.

1

*1

 or

*2



Off

2



Rain-sensing operation

3

*1

 or

*2



Low speed operation

4

*1

 or

*2



207

4-3. Operating the lights and wipers

4

Dr
iv

ing

High speed operation

5

*1

 or

*2



Temporary operation

*1

: For  the  U.S.A.

*2

: For Canada

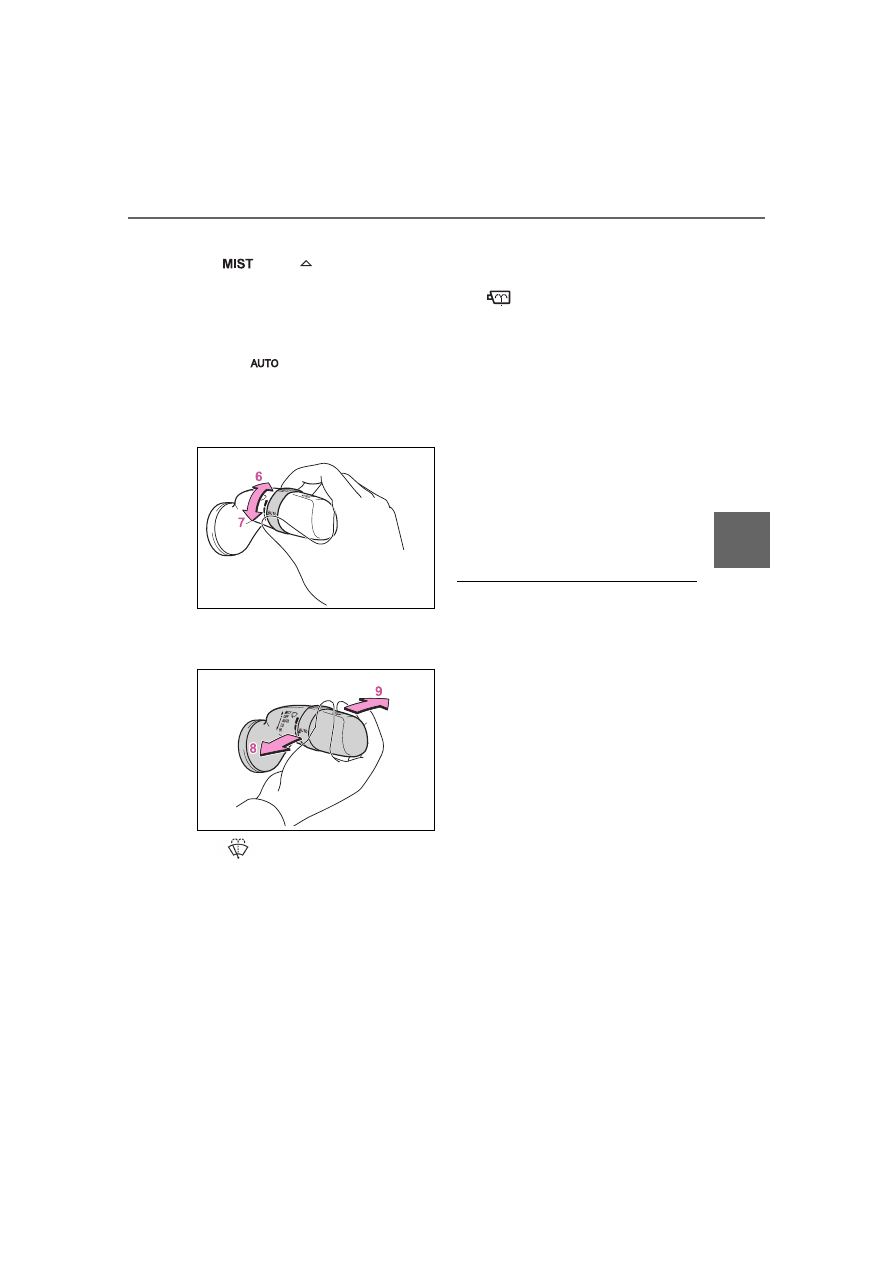

When

 is selected, the

sensor sensitivity can be
adjusted by turning the switch
ring.

6

Increases the sensitivity

7

Decreases the sensitivity

8

 Windshield cleaning

washer/wiper dual operation

Pulling the lever operates the wip-
ers and windshield cleaning
washer.

The wipers will automatically oper-
ate a couple of times after the
washer squirts. (After operating
several times, the wipers operate
once more time after a short delay

to prevent dripping. However, the
dripping prevention does not oper-
ate while the vehicle is moving.)

9

 Camera cleaning

washer operation (if
equipped)

Pushing the lever operates the ded-
icated camera cleaning washer to
clean the following cameras.
• The camera for Digital Rear-view

Mirror (if equipped) (



P.149)

• The camera for rear view monitor

system

*

 (if equipped)

• The rear camera for panoramic

view monitor

*

 (if equipped)

*

: Refer to “MULTIMEDIA

OWNER’S MANUAL”.

■

The windshield wiper and
washer can be operated when

The power switch is in ON.

■

Using the voice control system
(if equipped)

The following operations can be
performed using the voice control
system:

●

Operating the windshield wipers
only once

●

Operating the windshield clean-
ing washer (it can be performed
only when the vehicle is stopped)

For details regarding the voice con-
trol system, refer to “MULTIMEDIA
OWNER’S MANUAL”.

■

Effects of vehicle speed on
wiper operation



Vehicles with intermittent wind-
shield wipers

With low speed windshield wiper
operation selected, wiper operation
will be switched from low speed to
intermittent wiper operation when
the vehicle is stationary. (However,

208

4-3. Operating the lights and wipers

when the wiper intervals are

adjusted to the highest level, the

mode will not switch.)



Vehicles with rain-sensing wind-

shield wipers

With low speed windshield wiper

operation selected, wiper operation

will be switched from low speed to

intermittent wiper operation when

the vehicle is stationary. (However,

when the sensor sensitivity is

adjusted to the highest level, the

mode will not switch.)

■

Raindrop sensor (vehicles with

rain-sensing windshield wipers)

●

The raindrop sensor judges the

amount of raindrops.

An optical sensor is adopted. It may

not operate properly when sunlight

from the rising or setting of the sun

intermittently strikes the windshield,

or if bugs, etc. are present on the

windshield.

●

If the wiper switch is turned to the

 position while the power

switch is in ON, the wipers will

operate once to show that “AUTO”

mode is activated.

●

When the sensor sensitivity ring is

turned toward high while in the

“AUTO” mode, the wipers will

operate once to indicate that the

sensor sensitivity is enhanced.

●

If the temperature of the raindrop

sensor is 185°F (85°C) or higher,

or 5°F (-15°C) or lower, the auto-

matic operation may not occur. In

this case, operate the wipers in

any mode other than “AUTO”.

■

Front door opening linked wind-

shield wiper stop function

(vehicles with rain-sensing

windshield wipers)

When

 is selected and the

windshield wipers are operating, if a

front door is opened while the vehi-

cle is stopped and the P position is

selected, operation of the wind-

shield wipers will be stopped to pre-

vent anyone near the vehicle from

being sprayed by water from the

wipers. When the front door is

closed, wiper operation will resume.

■

If no windshield washer fluid

sprays

Check that the washer nozzles are

not blocked if there is washer fluid in

the windshield washer fluid reser-

voir.

WARNING

■

Caution regarding the use of

windshield wipers in “AUTO”

mode (vehicles with rain-

sensing windshield wipers)

The windshield wipers may oper-

ate unexpectedly if the sensor is

touched or the windshield is sub-

ject to vibration in “AUTO” mode.

Take care that your fingers or

anything else do not become

caught in the windshield wipers.

■

Caution regarding the use of

windshield cleaning washer

fluid

When it is cold, do not use the

washer fluid until the windshield

becomes warm. The fluid may

freeze on the windshield and

cause low visibility. This may lead

to an accident, resulting in death

or serious injury.

209

4-3. Operating the lights and wipers

4

Dr

iv

ing

NOTICE

■

When the washer fluid tank is

empty

Do not operate the switch continu-

ally as the washer fluid pump may

overheat.

■

When a nozzle becomes

blocked

In this case, contact your Toyota

dealer.

Do not try to clear it with a pin or

other object. The nozzle will be

damaged.

■

To prevent 12-volt battery dis-

charge

Do not leave the wipers on longer

than necessary when the hybrid

system is off.

210

4-4. Refueling

4-4.Refueling



Close all the doors and win-

dows, and turn the power

switch to OFF.



Confirm the type of fuel.

■

Fuel types



P.528

■

Fuel tank opening for unleaded

gasoline

To help prevent incorrect fueling,

your vehicle has a fuel tank opening

that only accommodates the spe-

cial nozzle on unleaded fuel pumps.

Opening the fuel tank

cap

The fuel tank of your vehicle

has a special structure,

which requires a reduction

in fuel tank pressure before

refueling. After the opener

switch has been pressed, it

will take several seconds

until the vehicle is ready for

refueling.

Before refueling the vehi-

cle

WARNING

■

When refueling the vehicle

Observe the following precautions

while refueling the vehicle. Failure

to do so may result in death or

serious injury.

●

After exiting the vehicle and

before opening the fuel door,

touch an unpainted metal sur-

face to discharge any static

electricity. It is important to dis-

charge static electricity before

refueling because sparks result-

ing from static electricity can

cause fuel vapors to ignite while

refueling.

●

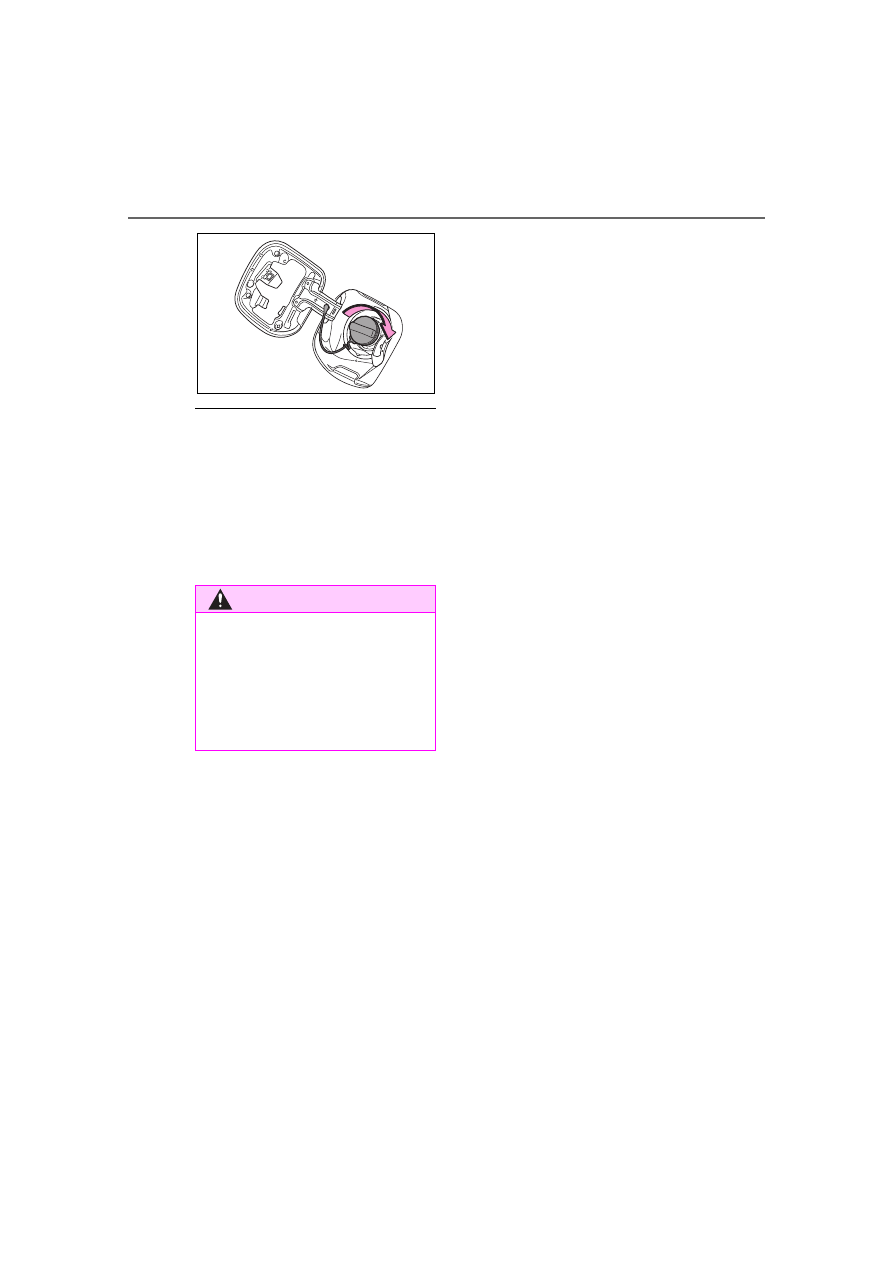

Always hold the grips on the

fuel tank cap and turn it slowly

to remove it.

A whooshing sound may be

heard when the fuel tank cap is

loosened. Wait until the sound

cannot be heard before fully

removing the cap. In hot

weather, pressurized fuel may

spray out of the filler neck and

cause injury.

●

Do not allow anyone that has

not discharged static electricity

from their body to come close to

an open fuel tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that

are harmful if inhaled.

●

Do not smoke while refueling

the vehicle.

Doing so may cause the fuel to

ignite and cause a fire.

●

Do not return to the vehicle or

touch any person or object that

is statically charged. This may

cause static electricity to build

up, resulting in a possible igni-

tion hazard.

■

When refueling

Observe the following precautions

to prevent fuel overflowing from

the fuel tank:

●

Securely insert the fuel nozzle

into the fuel filler neck.

●

Stop filling the tank after the fuel

nozzle automatically clicks off.

211

4-4. Refueling

4

Dr

iv

ing

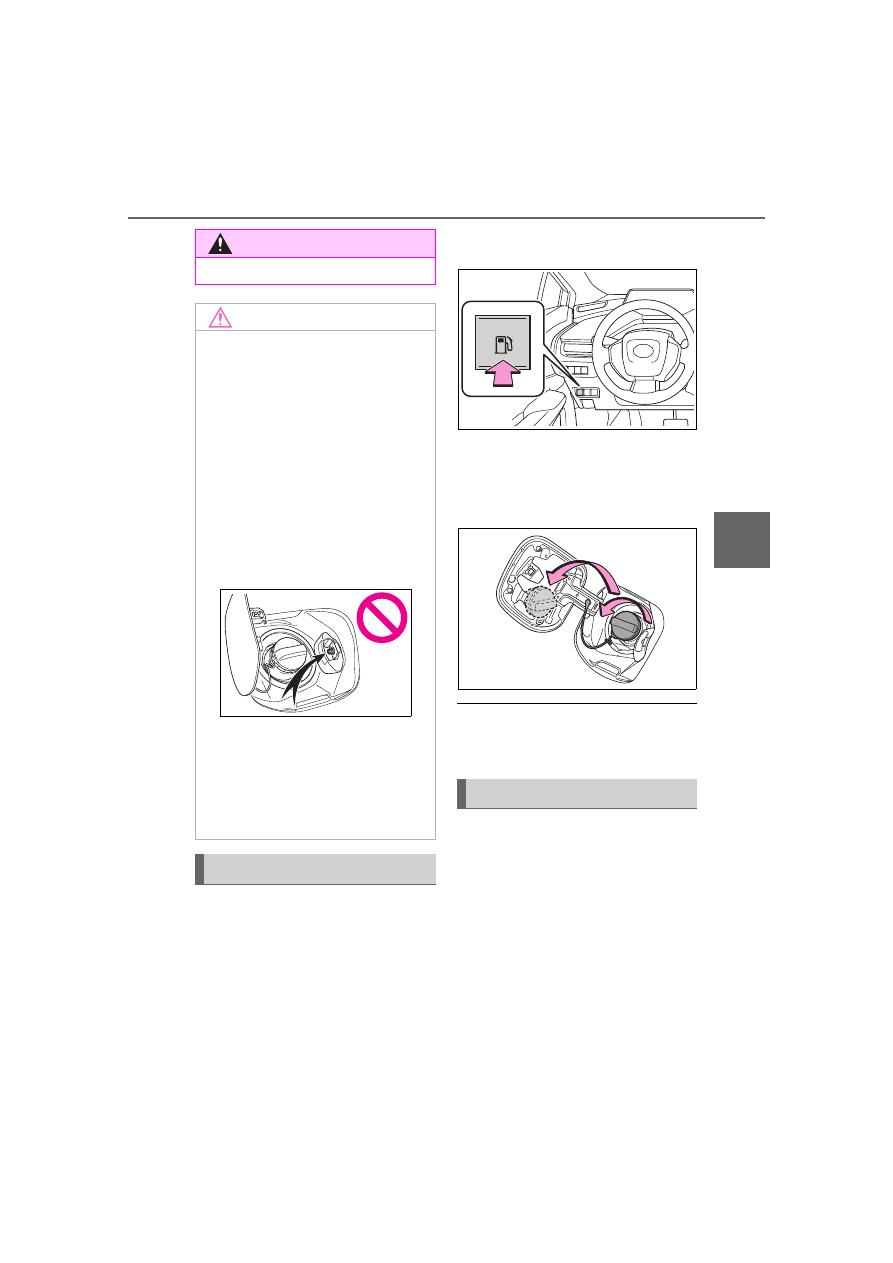

1

Press the opener switch to

open the fuel filler door.

The fuel filler door will open within

about 10 seconds of the switch

being pressed. Before refueling is

possible, a message will be shown

on the multi-information display in

the instrument cluster to indicate

the progress of the fuel filler door

opener.

2

Turn the fuel tank cap slowly

to open and hang it on the

back of holder on the fuel

filler door.

■

If the fuel filler door cannot be

opened

Consult your Toyota dealer.

After refueling, turn the fuel tank

cap until you hear a click. Once

the cap is released, it will turn

slightly in the opposite direction.

WARNING

●

Do not top off the fuel tank.

NOTICE

■

Refueling

●

Finish refueling within 30 min-

utes. If more than 30 minutes

passes, the internal valve

closes. In this condition, fuel

may overflow during the refuel-

ing process. Press the fuel filler

door opener switch again.

●

Make sure that the fuel filler

door lock is not pushed by the

fuel nozzle boot, etc. If the lock

is held, the internal valve closes

and fuel may overflow. To pre-

vent it, press the fuel filler door

opener switch again.

●

Do not spill fuel during refueling.

Doing so may damage the vehi-

cle, such as causing the emis-

sion control system to operate

abnormally or damaging fuel

system components or the vehi-

cle’s painted surface.

Opening the fuel tank cap

Closing the fuel tank cap

212

4-4. Refueling

■

When “Check Fuel Cap” is dis-

played on the multi-information

display

The fuel tank cap may be unfas-

tened or loose. Turn the power

switch to OFF, check the cap and

tighten it securely. If the message

remains, wait a few seconds and

then turn the power switch to OFF

once again.

WARNING

■

When replacing the fuel tank

cap

Do not use anything but a genu-

ine Toyota fuel tank cap designed

for your vehicle. Doing so may

cause a fire or other incident

which may result in death or seri-

ous injury.

213

4-5. Using the driving support systems

4

Dr

iv

ing

4-5.Using the driving support systems

This Owner’s Manual contains

information for Ver.2. For the lat-

est information about the con-

trols, use, warnings/precautions,

etc. of each function of Toyota

Safety Sense 3.0, refer to the

Digital Owner’s Manual at the

Owner’s Manual website.
If the software of this system

has been updated after initial

purchase of the vehicle, before

using this system, be sure to

read the Owner’s Manual which

corresponds to the software ver-

sion of the system.

■

Precautions for use

●

Be aware that some functions

may temporarily be disabled if a

legal or safety related issue

occurs.

●

If a connected services contract

has not been entered or has

expired, software updates will not

be able to be performed wire-

lessly.

If the software of this system

has been updated after initial

purchase of the vehicle, to

access the appropriate Owner’s

Manual, it is necessary to check

the software version of the sys-

tem and then visit the Owner’s

Manual website.

■

Checking the version using

OneApp

The software version of the sys-

tem can be checked using One-

App.

■

Using your vehicle’s Toyota

Safety Sense 3.0 version

1

Access the following URL

using a computer or smart-

phone:

Toyota Safety Sense

3.0 software update

It is necessary to enter a

connected services con-

tract, provided by Toyota, to

use these functions. For

details, contact your Toyota

dealer.

WARNING

■

For safe use

When the Toyota Safety Sense

3.0 software is updated, the oper-

ating methods of functions may

change. Using this system without

knowing the correct operating

methods may lead to an accident

resulting in death or serious

injury.

●

Make sure to read the Digital

Owner’s Manual which corre-

sponds to the software version

of the system, available at the

Owner’s Manual website, before

using this system.

Content of the Toyota

Safety Sense 3.0 Owner’s

Manual

Checking your vehicle’s

Toyota Safety Sense 3.0

version

214

4-5. Using the driving support systems



For U.S.A owners

https://www.toyota.com/owners/
resources/warranty-owners-manu-
als/
manual?om=om47f46u.prius.
2024.2309.hev.vh



For Canadian owners

https://www.toyota.ca/toyota/
owners/manual?om=om47f46u.
prius.2024.2309.hev.vh

2

Select the file which includes
the previously checked sys-
tem version.

If a software update is available,
a notification will be displayed
by OneApp. Follow the instruc-
tions displayed on the screen.

■

Software update precautions

●

After a software update has been

performed, it will not be possible
to revert to a previous version.

●

Depending on the communication
environment and the content of an
update, a software update may
take several hours. Although an
update will be suspended when
the power switch is turned off, it
will resume when the power
switch is changed back to ON
mode.

●

Toyota Safety Sense 3.0 can still
be used while a software update
is being performed.

■

What can be checked using the
OneApp

The following items can be checked
or performed.

●

Software version, update details,
precautions, use methods, etc.

●

Software update

Updating the software

215

4-5. Using the driving support systems

4

Dr

iv

ing

Toyota Safety Sense

3.0

The Toyota Safety Sense 3.0

consists of the driving

assist systems and contrib-

utes to a safe and comfort-

able driving experience:

WARNING

■

Toyota Safety Sense 3.0

The Toyota Safety Sense 3.0

operates under the assumption

that the driver will drive safely,

and is designed to help reduce

the impact to the occupants in a

collision and assist the driver

under normal driving conditions.
As there is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is solely

responsible for paying attention to

the vehicle’s surroundings and

driving safely.

■

For safe use

●

Do not overly rely on this sys-

tem. The driver is solely respon-

sible for paying attention to the

vehicle’s surroundings and driv-

ing safely. This system may not

operate in all situations and pro-

vided assistance is limited.

Over-reliance on this system to

drive the vehicle safely may

lead to an accident resulting in

death or serious injury.

●

Do not attempt to test the oper-

ation of the system, as it may

not operate properly, possibly

leading to an accident.

●

If attention is necessary while

performing driving operations or

a system malfunction occurs, a

warning message or warning

buzzer will be operated. If a

warning message is displayed

on the display, follow the

instructions displayed.

●

Depending on external noise,

the volume of the audio system,

etc. it may be difficult to hear the

warning buzzer. Also, depend-

ing on the road conditions, it

may be difficult to recognize the

operation of the system.

■

When it is necessary to dis-

able the system

In the following situations, make

sure to disable the system.
Failure to do so may lead to the

system not operating properly,

possibly leading to an accident

resulting in death or serious

injury.

●

When the vehicle is tilted due to

being overloaded or having a

flat tire

●

When driving at extremely high

speeds

●

When towing another vehicle

●

When the vehicle is being trans-

ported by a truck, ship, train,

etc.

●

When the vehicle is raised on a

lift and the tires are allowed to

rotate freely

●

When inspecting the vehicle

using a drum tester such as a

chassis dynamometer or speed-

ometer tester, or when using an

on vehicle wheel balancer

●

When the vehicle is driven in a

sporty manner or off-road

216

4-5. Using the driving support systems

■

AHB (Automatic High

Beam)



P.202

■

PCS (Pre-Collision System)



P.222

■

LTA (Lane Tracing Assist)



P.234

■

LDA (Lane Departure Alert)



P.242

■

LCA (Lane Change Assist)

*



P.239

■

FCTA (Front Cross Traffic
Alert)

*



P.254

■

RSA (Road Sign Assist)

*



P.257

■

Dynamic radar cruise con-

trol



P.259

■

Cruise control



P.269

■

Emergency Driving Stop
System

*



P.272

*

: If equipped

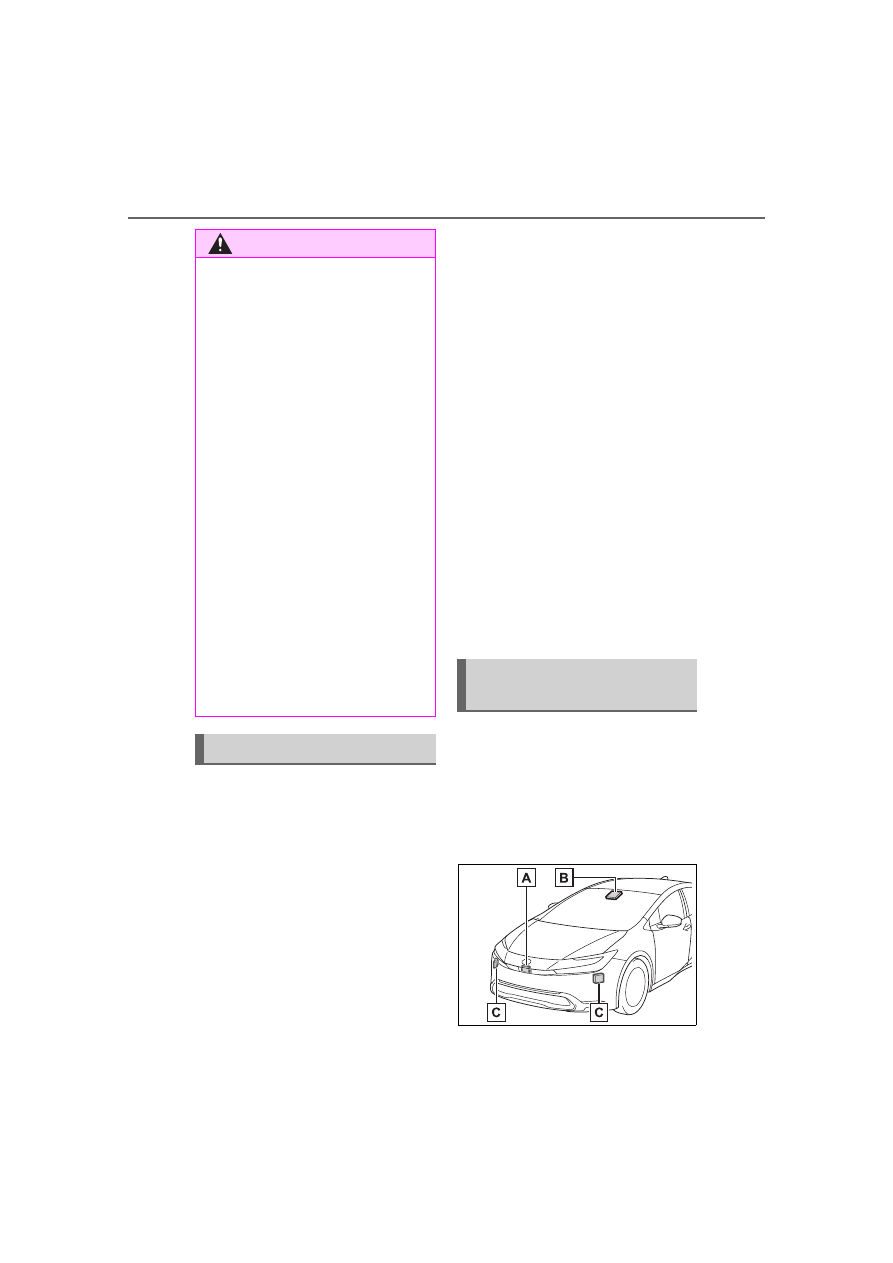

Various sensors are used to

obtain the necessary informa-

tion for system operation.

■

Sensors which detect the

surrounding conditions



Front

WARNING

●

When using an automatic car

wash

●

When a sensor is misaligned or

deformed due to a strong

impact being applied to the sen-

sor or the area around the sen-

sor

●

When accessories which

obstruct a sensor or light are

temporarily installed to the vehi-

cle

●

When a compact spare tire or

tire chains are installed to the

vehicle or an emergency tire

puncture repair kit has been

used

●

When the tires are excessively

worn or the inflation pressure of

the tires is low

●

When tires other than the manu-

facturer specified size are

installed

●

When the vehicle cannot be

driven stably, due to a collision,

malfunction, etc.

Driving assist system

Sensors used by Toyota

Safety Sense 3.0

217

4-5. Using the driving support systems

4

Dr

iv

ing

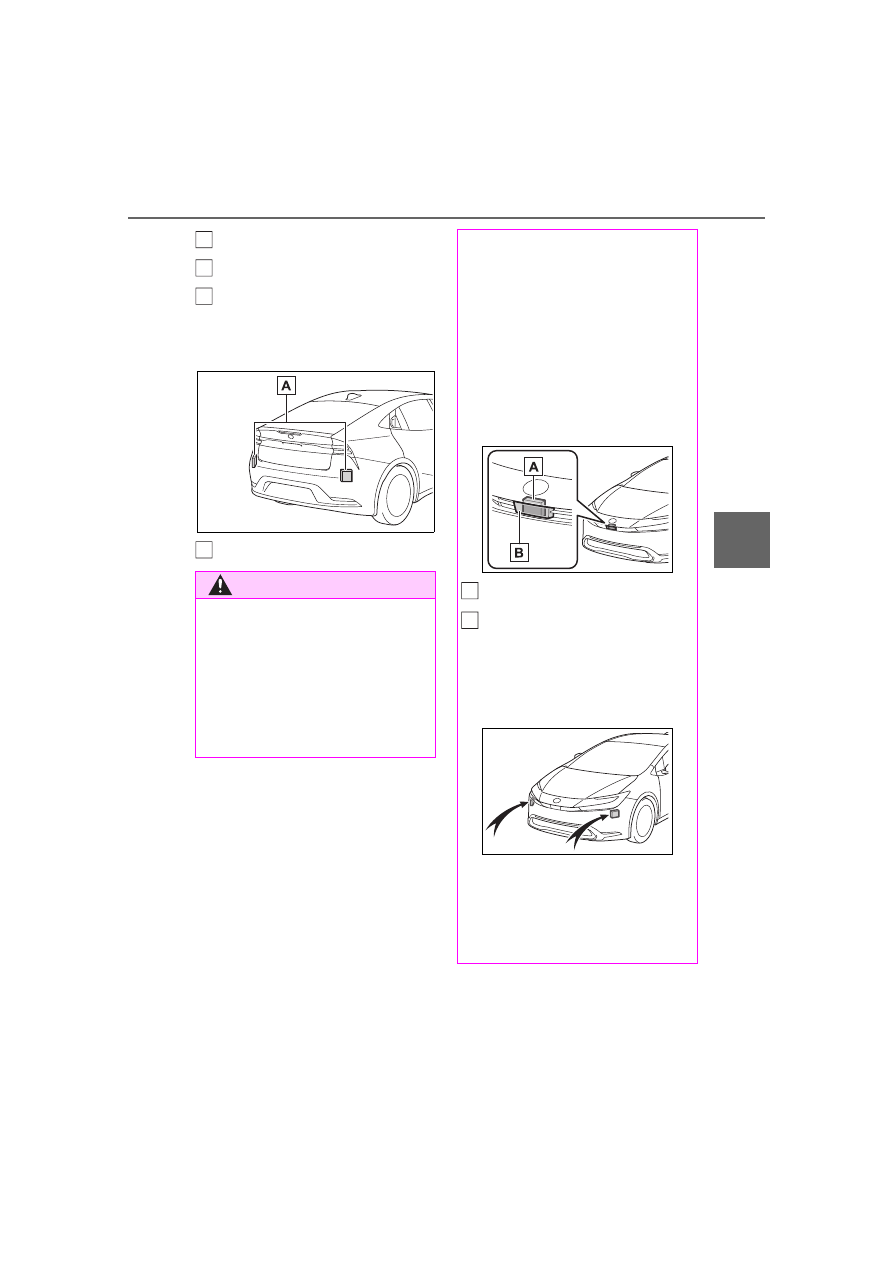

Front radar sensor
Front camera
Front side radar sensors

*

*

: If equipped



Rear

Rear side radar sensors

WARNING

■

To prevent malfunction of the

radar sensors

Observe the following precau-

tions.
Failure to do so may lead to a

radar sensor not operating prop-

erly, possibly leading to an acci-

dent resulting in death or serious

injury.

A

B

C

A

●

Keep the radar sensors and

radar sensor covers clean at all

times.

Clean the front of a radar sensor

or the front or back of a radar sen-

sor cover if it is dirty or covered

with water droplets, snow, etc.
When cleaning the radar sensor

and radar sensor cover, use a soft

cloth to remove dirt so as to not

damage them.

Radar sensor
Radar sensor cover

●

Vehicles with front side radar

sensors: Keep the surrounding

area of the front side radar sen-

sors on the front bumper clean

at all times.

●

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc. to

a radar sensor or radar sensor

cover and their surrounding

area.

A

B

218

4-5. Using the driving support systems

WARNING

●

Do not subject a radar sensor or

its surrounding area to impact.

If a radar sensor, the front grille,

or front bumper has been sub-

jected to a impact, have the vehi-

cle inspected by your Toyota

dealer.

●

Do not disassemble the radar

sensors.

●

Do not modify or paint the radar

sensors or radar sensor cover,

or replace them with anything

other than Toyota genuine

parts.

●

In the following situations, recal-

ibration of the radar sensors will

be necessary. For details, con-

tact your Toyota dealer.

• When a radar sensor is

removed and installed, or

replaced

• When the front bumper or the

front grille has been replaced

■

To prevent malfunction of the

front camera

Observe the following precau-

tions.
Failure to do so may lead to the

front camera not operating prop-

erly, possibly leading to an acci-

dent resulting in death or serious

injury.

●

Always keep the windshield

clean.

• If the windshield is dirty or cov-

ered with an oily film, water

droplets, snow, etc., clean the

windshield.

• Even if a glass coating agent is

applied to the windshield, it will

still be necessary to use the

windshield wipers to remove

water droplets, etc. from the

area of the windshield in front of

the front camera.

• If the inner side of the wind-

shield where the front camera is

installed is dirty, contact your

Toyota dealer.

●

Do not attach stickers (including

transparent stickers) or other

items to the area of the wind-

shield in front of the front cam-

era (shaded area in the

illustration).

Approximately 1.6 in. (4 cm)
Approximately 1.6 in. (4 cm)

●

If the part of the windshield in

front of the front camera is

fogged up or covered with con-

densation or ice, use the wind-

shield defogger to remove the

fog, condensation, or ice.

●

If water droplets cannot be

properly removed from the area

of the windshield in front of the

front camera by the windshield

wipers, replace the wiper insert

or wiper blade.

●

Do not attach window tint to the

windshield.

A

B

219

4-5. Using the driving support systems

4

Dr

iv

ing

■

Precautions for use

Vehicles with a display audio: It is

necessary to enter a connected ser-

vices contract, provided by Toyota,

to use these functions. For details,

contact your Toyota dealer.

●

LCA (Lane Change Assist)



P.239

■

Situations in which the sensors

may not operate properly

●

When the height or inclination of

the vehicle has been changed due

to modifications

●

When the windshield is dirty,

fogged up, cracked or damaged

●

When the ambient temperature is

high or low

●

When mud, water, snow, dead

insects, foreign matter, etc., is

attached to the front of the sensor

●

When in inclement weather such

as heavy rain, fog, snow, or a

sandstorm

●

When water, snow, dust, etc. is

thrown up in front of the vehicle, or

when driving through mist or

smoke

WARNING

●

Replace the windshield if it is

damaged or cracked.

If the windshield has been

replaced, recalibration of the front

camera will be necessary. For

details, contact your Toyota

dealer.

●

Do not allow liquids to contact

the front camera.

●

Do not allow bright lights to

shine into the front camera.

●

Do not damage the lens of the

front camera or allow it to

become dirty.

When cleaning the inside of the

windshield, do not allow glass

cleaner to contact the lens of the

front camera. Do not touch the

lens of the front camera.
If the lens of the front camera is

dirty or damaged, contact your

Toyota dealer.

●

Do not subject the front camera

to a strong impact.

●

Do not change the position or

orientation of the front camera

or remove it.

●

Do not disassemble the front

camera.

●

Do not modify any parts around

the front camera, such as the

inside rear view mirror or ceil-

ing.

●

Do not attach accessories

which may obstruct the front

camera to the hood, front grille,

or front bumper. For details,

contact your Toyota dealer.

●

If a surfboard or other long

object is to be mounted on the

roof, make sure that it will not

obstruct the front camera.

●

Do not modify or change the

headlights and other lights.

■

Front camera installation area

on the windshield

If the system determines that the

windshield may be fogged up, it

will automatically operate the

heater to defog the part of the

windshield around the front cam-

era. When cleaning, etc., be care-

ful not to touch the area around

the front camera until the wind-

shield has cooled sufficiently, as

touching it may cause burns.

220

4-5. Using the driving support systems

●

When the headlights are not illu-
minated while driving in the dark,
such as at night or when in a tun-
nel

●

When the lens of a headlight is
dirty and illumination is weak

●

When the headlights are mis-
aligned

●

When a headlight is malfunction-
ing

●

When the headlights of another
vehicle, sunlight, or reflected light
shines directly into the front cam-
era

●

When the brightness of the sur-
rounding area changes suddenly

●

When driving near a TV tower,
broadcasting station, electric
power plant, radar equipped vehi-
cles, etc., or other location where
strong radio waves or electrical
noise may be present

●

When a wiper blade is blocking
the front camera

●

When in a location or near objects
which strongly reflect radio waves,
such as the following:

• Tunnels
• Truss bridges
• Gravel roads
• Rutted, snow-covered roads
• Walls
• Large trucks
• Manhole covers
• Guardrail
• Metal plates

●

When near a step or protrusion

●

When a detectable vehicle is nar-
row, such as a small mobility vehi-
cle

●

When a detectable vehicle has a
small front or rear end, such as an
unloaded truck

●

When a detectable vehicle has a
low front or rear end, such as a
low bed trailer

●

When a detectable vehicle has
extremely high ground clearance

●

When a detectable vehicle is car-
rying a load which protrudes from
its cargo area

●

When a detectable vehicle has lit-
tle exposed metal, such as a vehi-
cle which is partially covered with
cloth, etc.

●

When a detectable vehicle is
irregularly shaped, such as a trac-
tor, sidecar, etc.

●

When the distance between the
vehicle and a detectable vehicle
has become extremely short

●

When a detectable vehicle is at an
angle

●

When snow, mud, etc. is attached
to a detectable vehicle

●

When driving on the following
kinds of roads:

• Roads with sharp curves or wind-

ing roads

• Roads with changes in grade,

such as sudden inclines or
declines

• Roads which is sloped to the left

or right

• Roads with deep ruts
• Roads which are rough and

unmaintained

• Roads which frequently undulate

or are bumpy

221

4-5. Using the driving support systems

4

Dr
iv

ing

●

When the steering wheel is being
operated frequently or suddenly

●

When the vehicle is not in a con-
stant position within a lane

●

When parts related to this system,
the brakes, etc. are cold or
extremely hot, wet, etc.

●

When the wheels are misaligned

●

When driving on slick road sur-
faces, such as when it is covered
with ice, snow, gravel, etc.

●

When the course of the vehicle
differs from the shape of a curve

●

When the vehicle speed is exces-
sively high when entering a curve

●

When entering/exiting a parking
lot, garage, car elevator, etc.

●

When driving in a parking lot

●

When driving through an area
where there are obstructions
which may contact your vehicle,
such as tall grass, tree branches,
a curtain, etc.

●

When driving in strong wind

■

Situations in which the lane
may not be detected

●

When the lane is extremely wide
or narrow

●

Immediately after changing lanes
or passing through an intersection

●

When driving in a temporary lane
or lane regulated by construction

●

When there are structures, pat-
terns, shadows which are similar
to lane lines in the surrounding

●

When there are multiple white
lines for a lane line

●

When the lane lines are not clear
or driving on a wet road surface

●

When a lane line is on a curb

●

When driving on a bright, reflec-
tive road surface, such as con-
crete

■

Situations in which some or all
of the functions of the system
cannot operate

●

When a malfunction is detected in
this system or a related system,
such as the brakes, steering, etc.

●

When the VSC, TRAC, or other
safety related system is operating

●

When the VSC, TRAC, or other
safety related system is off

■

Changes in brake operation
sound and pedal response

●

When the brakes have been oper-
ated, brake operation sounds may
be heard and the brake pedal
response may change, but this
does not indicate a malfunction.

●

When the system is operating, the
brake pedal may feel stiffer than
expected or sink. In either situa-
tion the brake pedal can be
depressed further. Further
depress the brake pedal as nec-
essary.

222

4-5. Using the driving support systems

The system can detect the fol-

lowing as detectable objects.

(Detectable objects differ

depending on the function.)



Vehicles



Bicycles

*

PCS (Pre-Collision Sys-

tem)

The pre-collision system

uses sensors to detect

objects (



P.222) in the path

of the vehicle. When the

system determines that the

possibility of a frontal colli-

sion with a detectable

object is high, a warning

operates to urge the driver

to take evasive action and

the potential brake pressure

is increased to help the

driver avoid the collision. If

the system determines that

the possibility of a collision

is extremely high, the

brakes are automatically

applied to help avoid the

collision or help reduce the

impact of the collision.

The pre-collision system can

be disabled/enabled and the

warning timing can be

changed. (



P.233)

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver. Pay

careful attention to the sur-

rounding conditions in order to

ensure safe driving.

Never use the pre-collision sys-

tem in place of normal braking

operations. This system cannot

help avoid or reduce the impact of

a collision in every situation.

Over-reliance on this system to

drive the vehicle safely may lead

to an accident resulting in death

or serious injury.

●

Although the pre-collision sys-

tem is designed to help avoid or

help reduce the impact of a col-

lision, its effectiveness may

change according to various

conditions. Therefore, it may not

always be able to achieve the

same level of performance.

Read the following items care-

fully. Do not overly rely on this

system and always drive care-

fully.
• For safe use:



P.215

■

When to disable the pre-colli-

sion system

●

When it is necessary to disable

the system:



P.215

Detectable objects

223

4-5. Using the driving support systems

4

Dr
iv

ing



Pedestrians



Motorcycles

*



Walls

*

: Detected as a detectable object

only when being ridden.

■

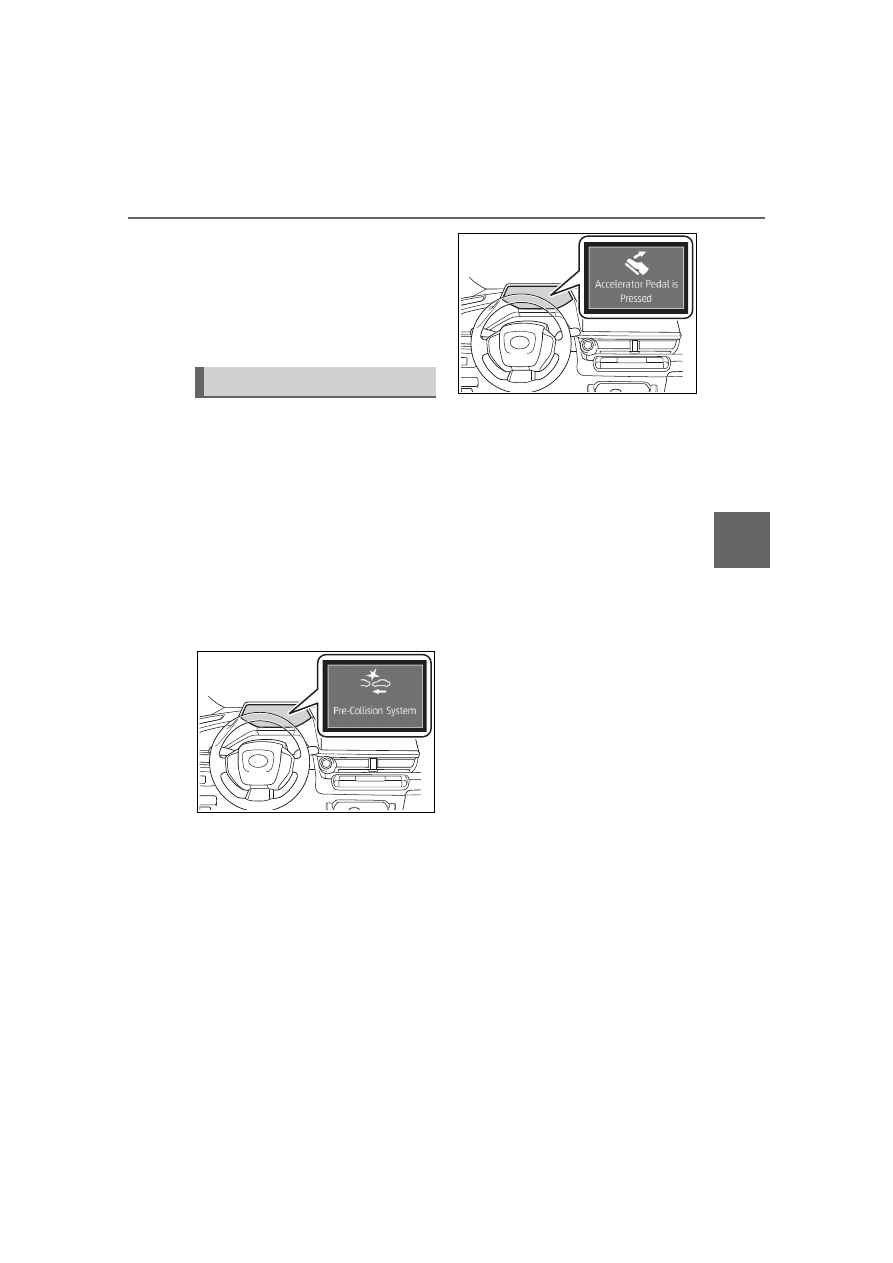

Pre-collision warning

When the system determines
that the possibility of a collision
is high, a buzzer will sound and
an icon and warning message
will be displayed on the multi-
information display to urge the
driver to take evasive action.

If the detectable object is a vehi-
cle, moderate braking will be
performed with the warning.

If the system determines that
the accelerator pedal is strongly
depressed, the following icon
and message will be displayed
on the multi-information display.

■

Pre-collision brake assist

If the system determines that
the possibility of a collision is
high and the brake operation by
the driver is insufficient, the
braking power will be increased.

■

Pre-collision brake control

If the system determines that
the possibility of a collision is
extremely high, the brakes are
automatically applied to help
avoid the collision or reduce the
impact of the collision.

■

Emergency steering assist

If the system determines that
the following conditions are met,
assistance will be provided to
help enhance vehicle stability
and prevent lane departure.
During assistance, in addition to
the pre-collision warning, the fol-
lowing icon will be displayed on
the multi-information display.



The possibility of a collision is
high



There is sufficient space
within the lane to perform
evasive steering maneuvers



The driver is operating the

System functions

224

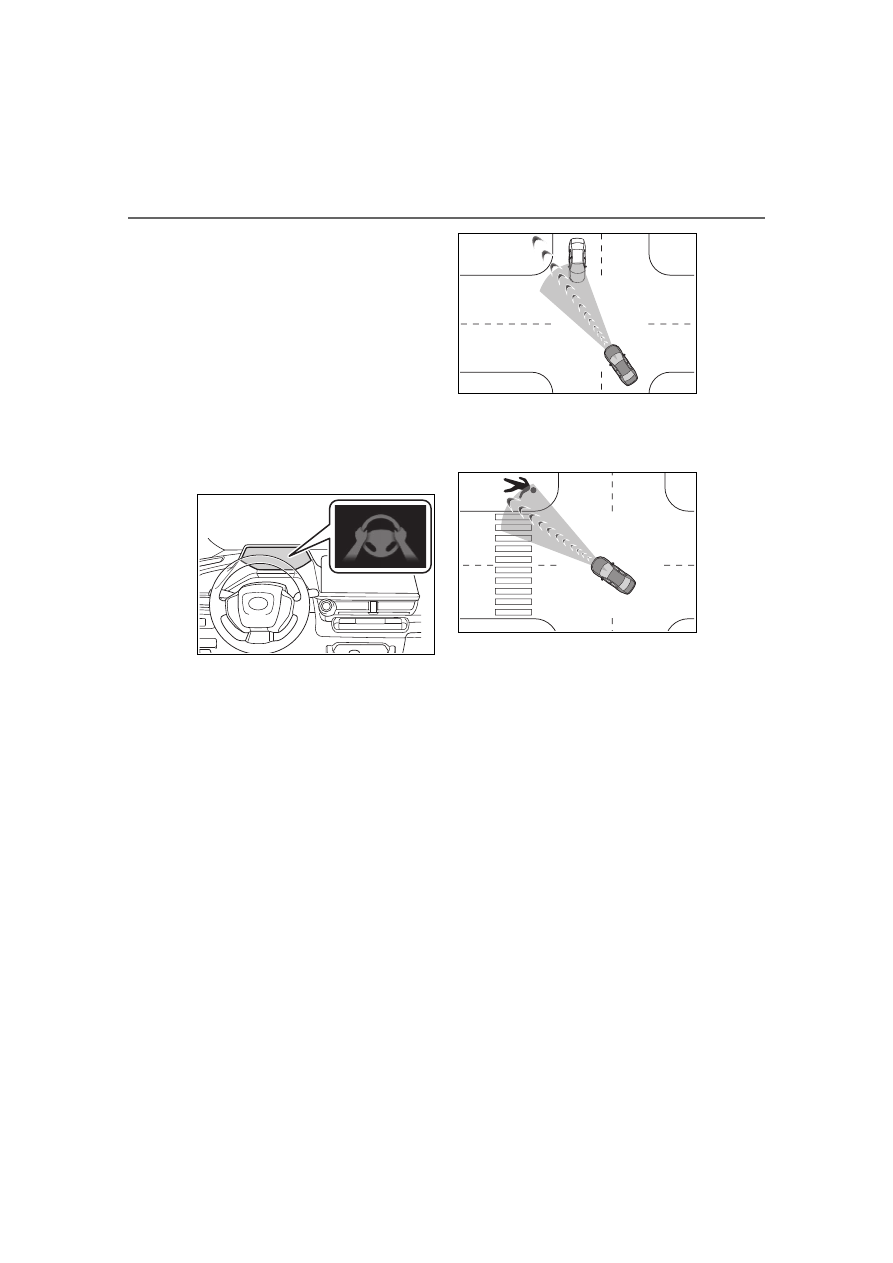

4-5. Using the driving support systems

steering wheel

Vehicles with active steering
function: The brakes and steer-
ing are controlled to help avoid a
collision or reduce the impact of
a collision, regardless of the
evasive steering maneuvers
performed by the driver.

During assistance, the pre-colli-
sion warning will operate and a
message will be displayed to
warn the driver.

■

Intersection collision avoid-
ance support (left/right
turn)

In situations such as the follow-
ing, if the system determines
that the possibility of a collision
is high, the pre-collision warning
and pre-collision braking will
operate.

Depending on the intersection,
assistance may not operate cor-
rectly.



When turning left/right at an
intersection and crossing the
path of an oncoming vehicle



When turning left/right and a
pedestrian or bicycle is
detected

■

Intersection collision avoid-
ance support (crossing
vehicles)

At an intersection, etc., if the
system determines that the pos-
sibility of a collision with an
approaching vehicle or motorcy-
cle is high, the pre-collision
warning and pre-collision brak-
ing will operate.

Depending on the intersection,
assistance may not operate cor-
rectly.
