209

3. Instrument cluster

3

In

st

rum

ent cl

ust
e

r

■

Main display and multi-information display

*

1

: The displayed indicator changes according to the current plug-in hybrid

system operation mode.

*

2

: The displayed indicator changes according to the current driving mode.

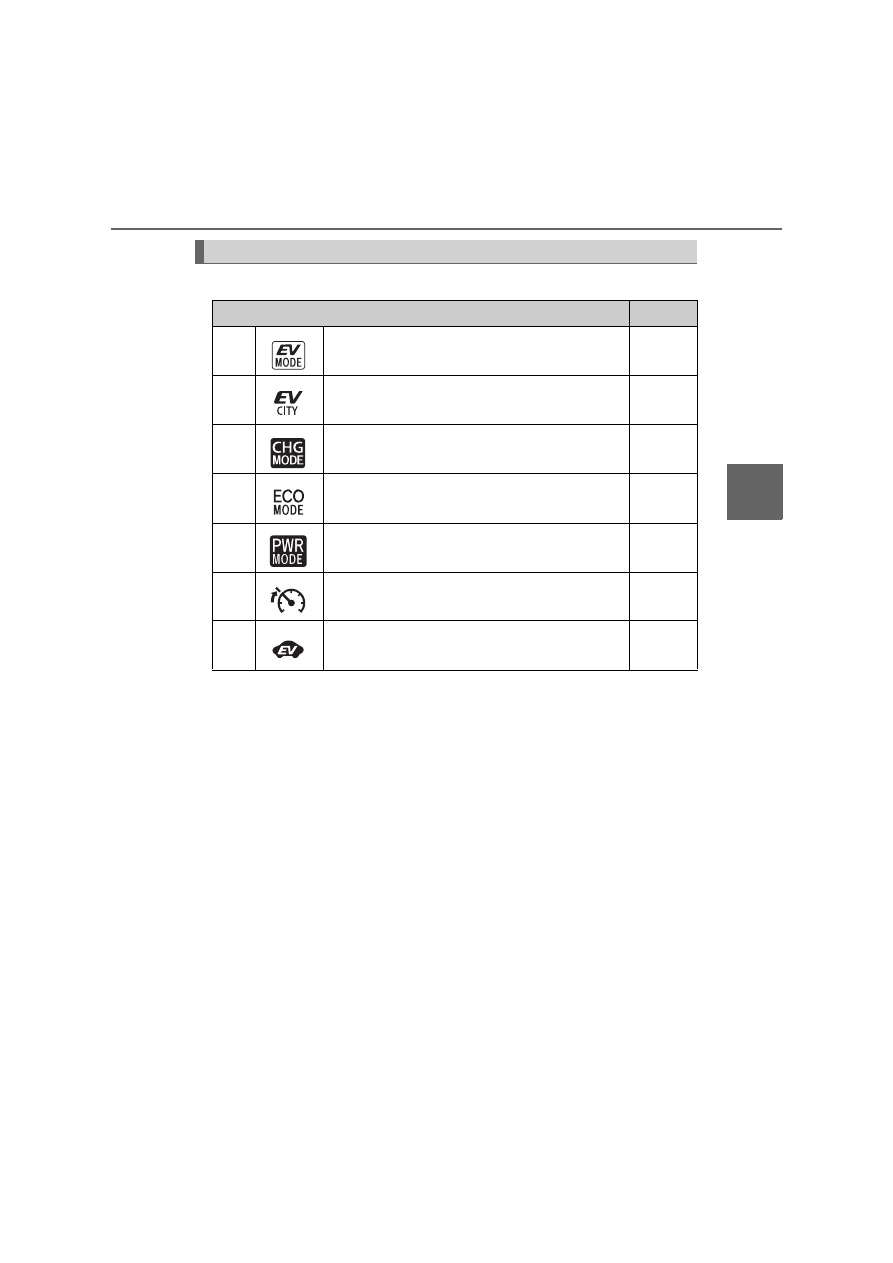

Indicators and symbols displayed on the display

Indicators

Pages

*

1

EV drive mode indicator

P. 88

*

1

EV City mode indicator

P. 88

*

1

Hybrid battery charge mode indicator

P. 89

*

2

“ECO MODE” indicator

P. 418

*

2

“PWR MODE” indicator

P. 418

Speed limiter indicator

P. 420

EV indicator

P. 228

210

3. Instrument cluster

■

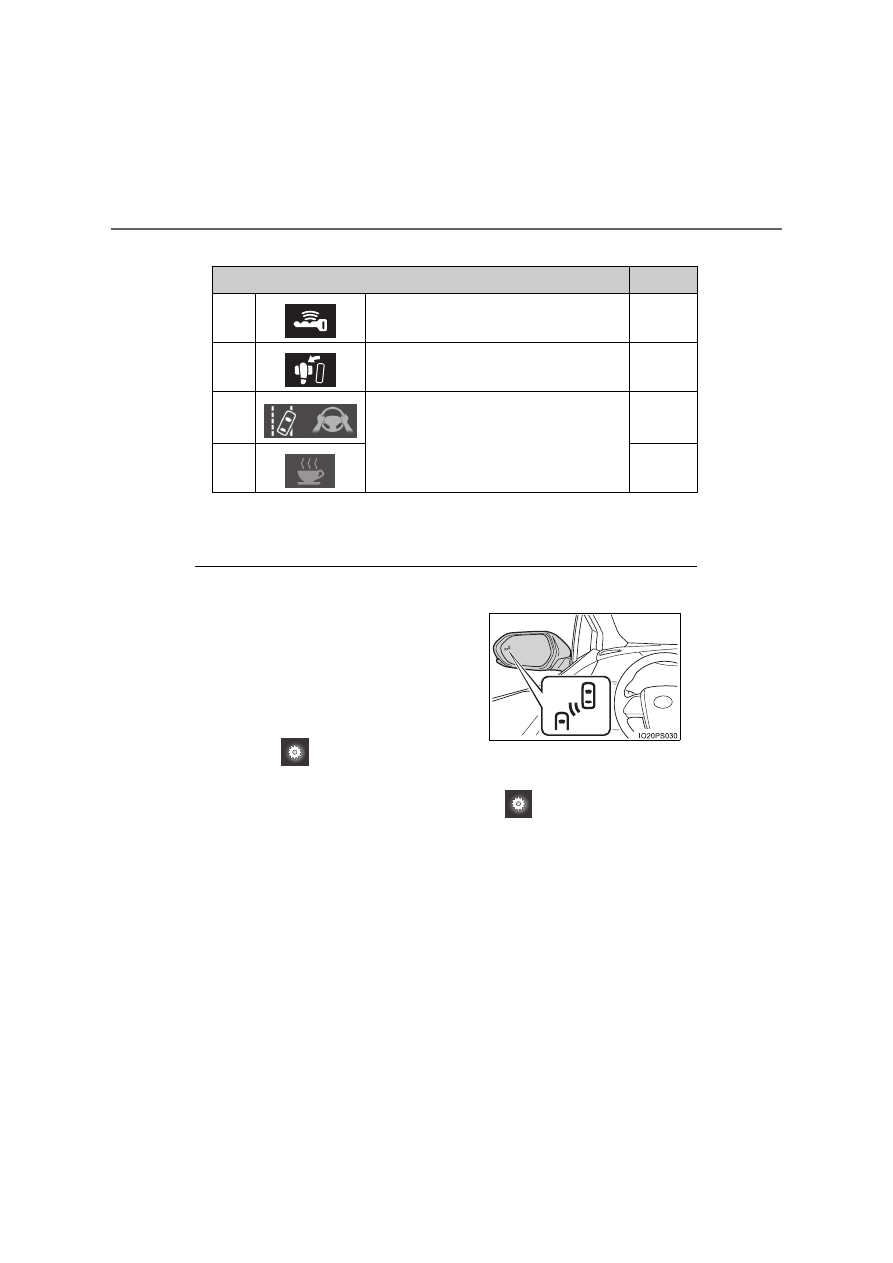

Multi-information display (symbol display

*

)

*

: These symbols are displayed along with a message. Also, the symbol dis-

plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.

■

BSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (



P. 423)

• When the BSM function is enabled on the

 screen of the multi-infor-

mation display, the power switch is turned to ON mode.

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.

Symbol display

Pages

Smart entry & start system

P. 323

Inappropriate pedal operation

P. 663

LTA (Lane Tracing Assist)

P. 393

P. 393

●

Indicators are also displayed on the out-
side rear view mirrors.

●

In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON

mode, the BSM function is enabled

on the

 screen of the multi-infor-

mation display.

211

3. Instrument cluster

3

In

st

rum

ent cl

ust
e

r

WARNING

■

If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer imme-
diately if this occurs.

NOTICE

■

To prevent damage to the engine and its components

The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (



P. 705)

212

3. Instrument cluster

Main display

The units used on the display may differ depending on the target region.

The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.

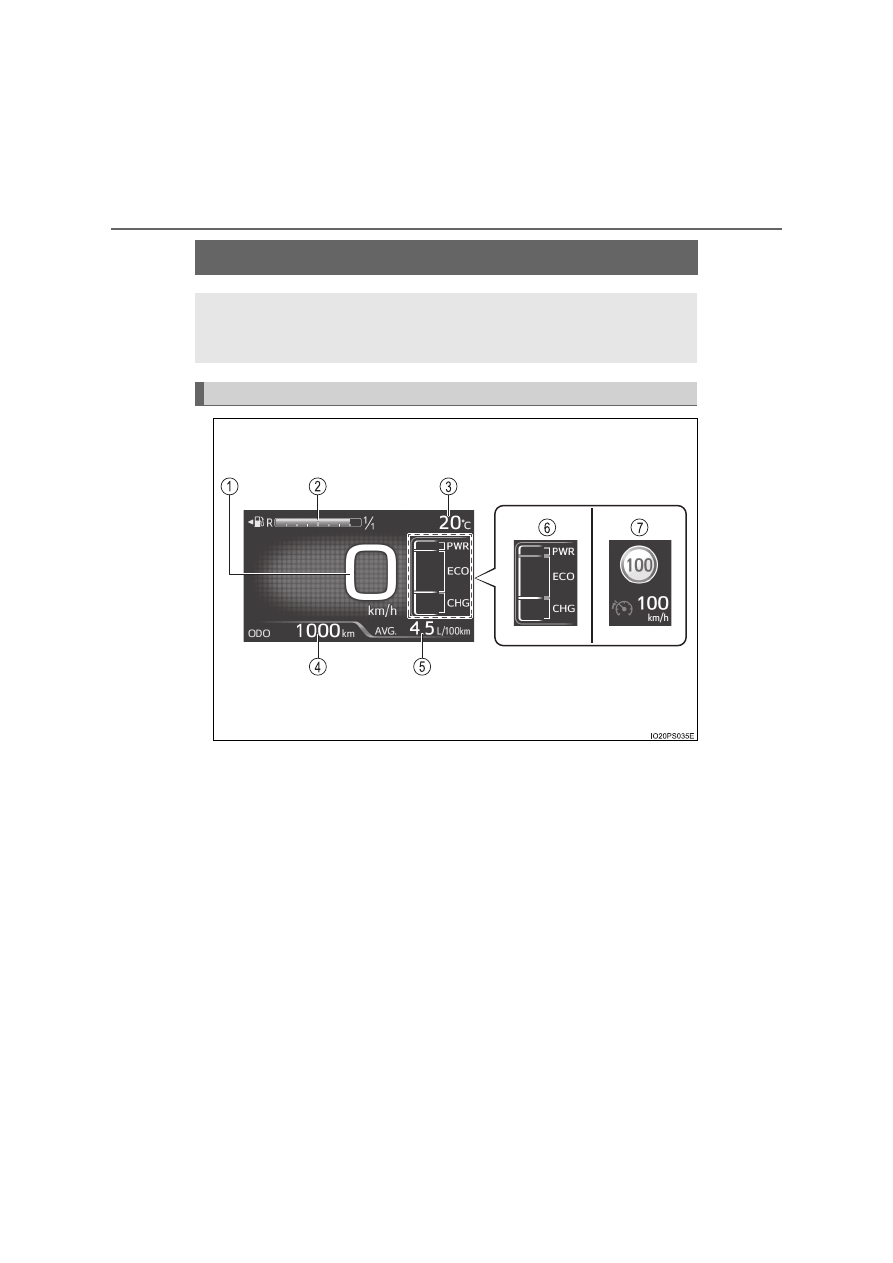

Display contents

213

3. Instrument cluster

3

In

st

rum

ent cl

ust
e

r

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 3°C (37°F) or less, and then
stops flashing.

Mileage display (odometer/trip meters/driving range)

The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (



P. 214)

Average fuel consumption display

The average electricity and fuel consumption that is linked with the con-
tents of the mileage display can be displayed. (



P. 214)

Sub-screen (when RSA [Road Sign Assist] and speed limiter are
off)

Information such as the Hybrid System Indicator and current fuel con-
sumption can be displayed. (



P. 216)

Sub-screen (when RSA [Road Sign Assist] and/or speed limiter is
on)

Displays information related to RSA (Road Sign Assist)

*

 or speed limiter.

(



P. 395, 420)

*

: When RSA (Road Sign Assist) information is displayed in the

 screen

of the multi-information display (



P. 246), RSA (Road Sign Assist) infor-

mation is not displayed on the sub-screen.

1

2

3

4

5

6

7

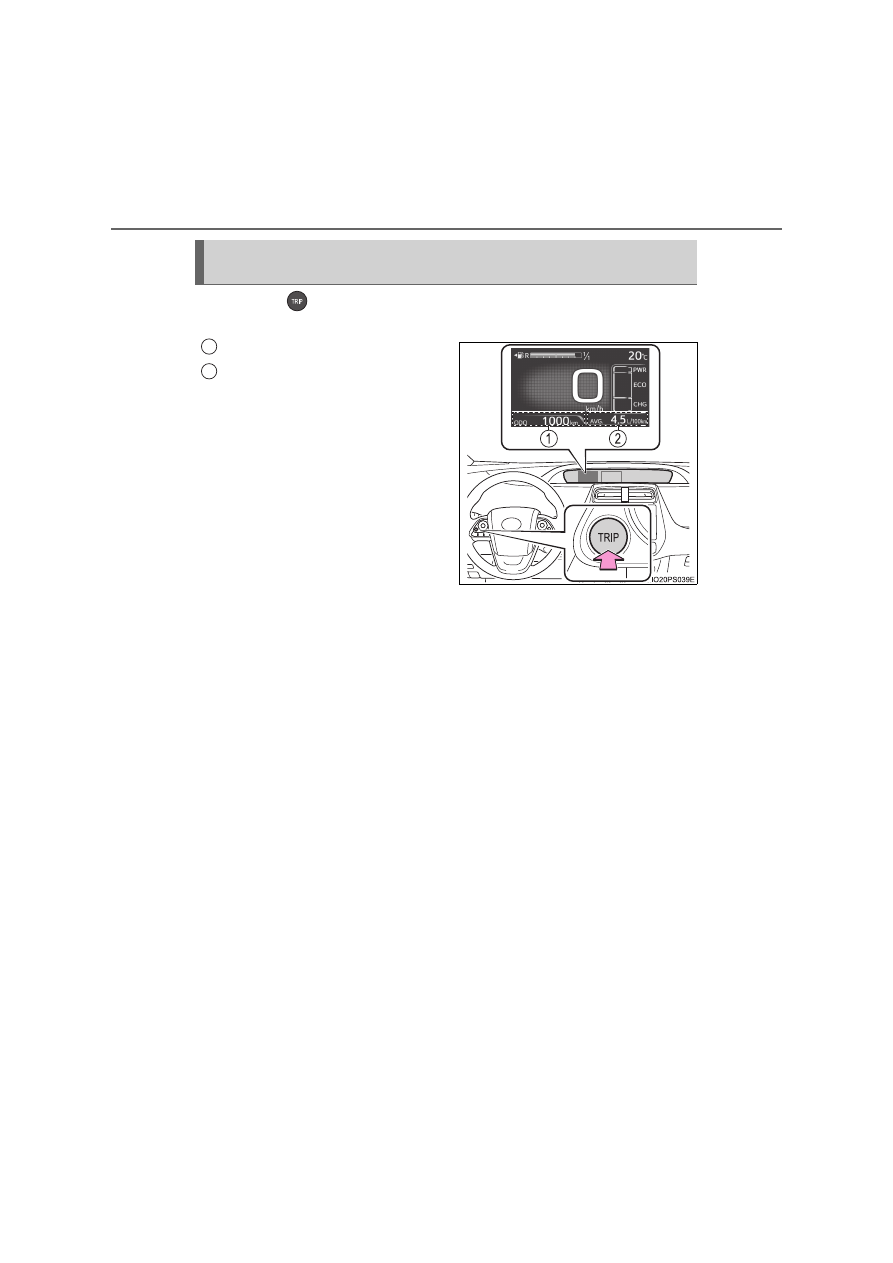

214

3. Instrument cluster

Each time

 is pressed, the mileage display and fuel consumption

display change in the following order from 1 to 7.

Mileage display
Average fuel consumption dis-
play

After 1 to 7 are displayed, the dis-
plays return to 1.
Use the displayed average fuel
consumption as a reference.

Switching the mileage display and average fuel consumption
display

1
2

215

3. Instrument cluster

3

In

st

rum

ent cl

ust
e

r

*

1

: If

 is pressed and held while this item is displayed, the information is

reset.

*

2

: This item is reset each time the hybrid system starts.

*

3

: This value is not displayed if electricity needed for EV driving is not remain-

ing.

*

4

: When the air conditioning system is operating, the icon display changes to

 and the driving range with the air conditioning system on is dis-

played.

*

5

: The EV driving range may shorten even when not driving due to power

consumption by the system.

 Mileage display

 Average fuel consumption display

1

ODO (Odometer)

Total mileage

Average fuel consumption since
last reset

Average fuel consumption since
last reset

*

1

2

TRIP A (Trip meter A)

Mileage since last reset

*

1

TRIP A average fuel consumption

Average fuel consumption since
TRIP A was reset

*

1

3

TRIP B (Trip meter B)

Mileage since last reset

*

1

TRIP B average fuel consumption

Average fuel consumption since
TRIP B was reset

*

1

4

 (Mileage since hybrid sys-

tem was started)

Mileage since hybrid system
started

*

2

Average fuel consumption after
hybrid system started

Average fuel consumption since
hybrid system was started

*

2

5

 (Distance to empty)

Approximate distance vehicle
can travel based on current
remaining fuel amount

Blank screen

6

 (EV driving range)

Approximate driving range using
only the electric motor (traction
motor) (



P. 109)

*

3, 4, 5

Blank screen

7

Blank screen

Blank screen

1

2

216

3. Instrument cluster

When RSA (Road Sign Assist) and speed limiter are off, display con-
tents on the sub-screen can be selected.

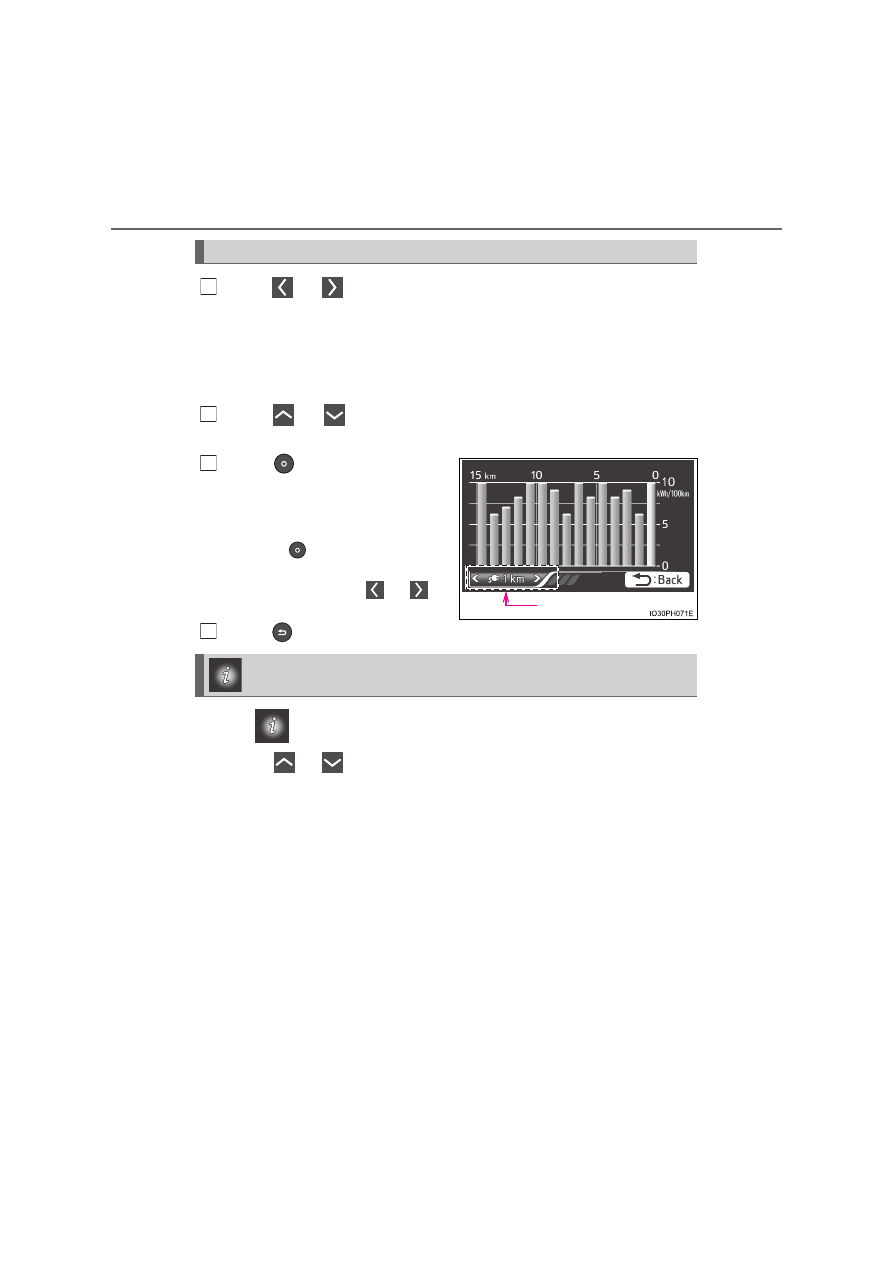

Press

 or

 of the meter

control switches and select the
sub-screen.

When the sub-screen is selected,

 is displayed on the sub-

screen.

Press

 or

 of the meter control switches to select the display

item.

One of the following 4 items can be displayed.

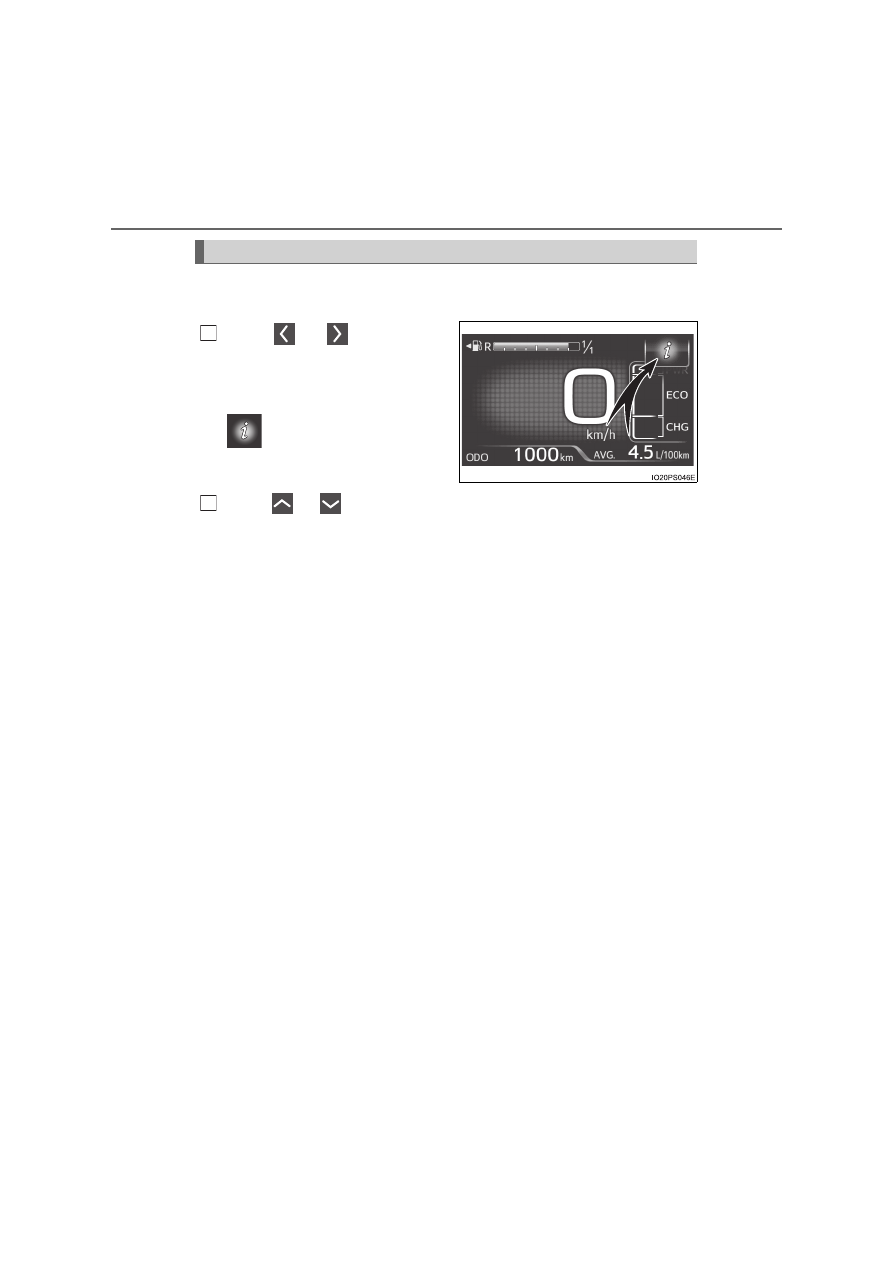

Switching contents displayed on the sub-screen

1

2

217

3. Instrument cluster

3

In

st

rum

ent cl

ust
e

r

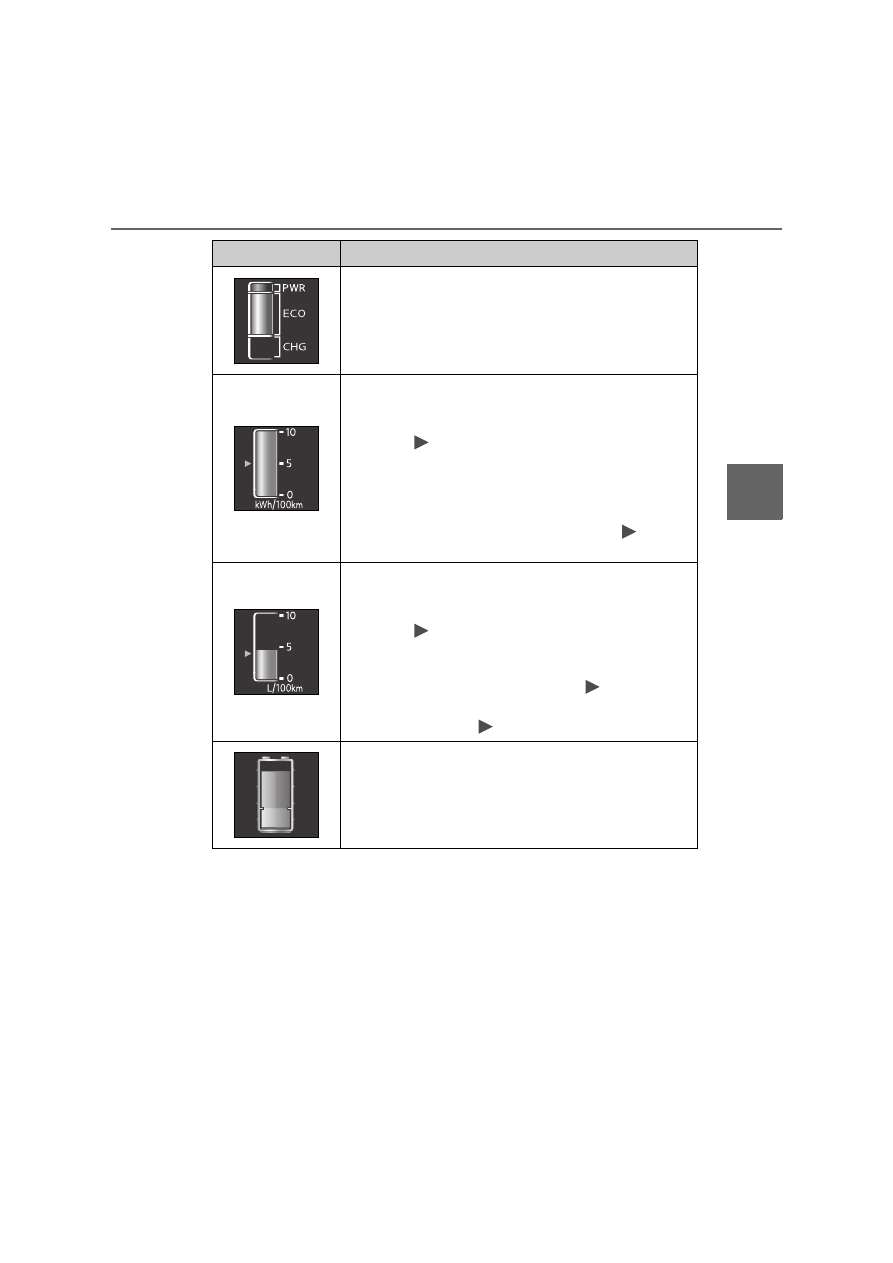

Display contents

Detail

Hybrid System Indicator

A convenient Hybrid System Indicator is displayed.
Refer to P. 226 for details on how to read the Hybrid
System Indicator.

Current electricity consumption

When in EV/EV City mode, the current electricity
consumption during driving is displayed.

• The

 mark indicates the total average electric-

ity consumption since last reset until it is reset
again.

• When “Electricity Consumption Reset” (



P. 251)

is performed, the data of the total average elec-
tricity consumption is deleted and the

 mark is

reset to 0.

Current fuel consumption

When in HV mode, the current fuel consumption
during driving is displayed.

• The

 mark indicates the value displayed in the

average fuel consumption display (



P. 214).

Switching the average fuel consumption display
also changes the position of the

 mark.

• When the average fuel consumption is reset, the

position of the

 mark is reset to 0.

Hybrid battery (traction battery) status

The same contents as the hybrid battery (traction
battery) status on the Hybrid System Indicator are
displayed. (



P. 226)

218

3. Instrument cluster

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

■

Electricity consumption

When the unit is set to “km/h”:
Electricity consumption is the consumption rate of the electricity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, electricity consumed per 100 km (“kWh/100 km”) is
displayed as electricity consumption on each screen.
When the unit is set to “MPH” (if equipped):
Electricity consumption is the consumption rate of the electricity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, driven distance per kWh of electricity consumed
(“miles/kWh”) is displayed as electricity consumption on each screen.

■

EV driving range



P. 109

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.

219

3. Instrument cluster

3

In

st

rum

ent cl

ust
e

r

■

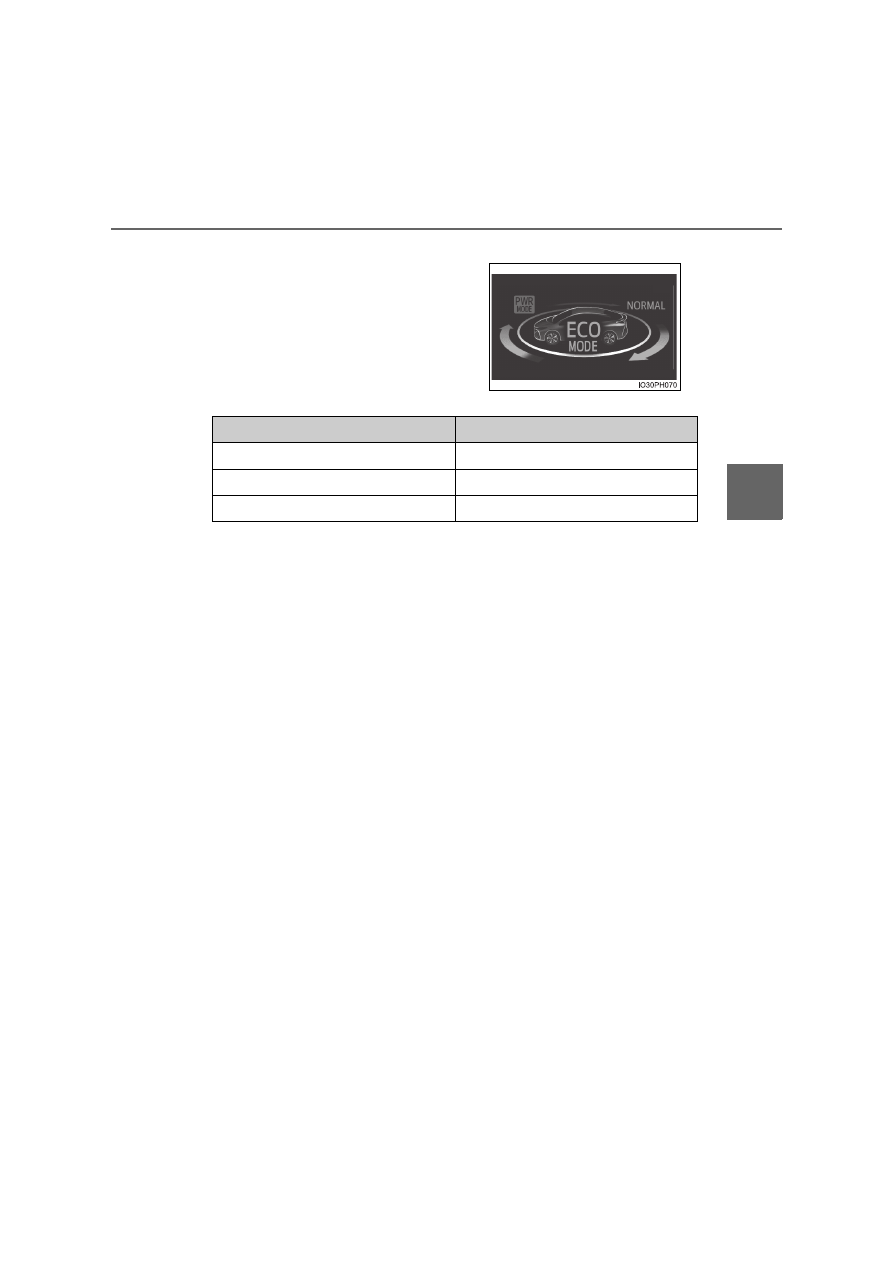

Switching the driving mode (



P. 418)

*

: The animation displayed when the driving mode is switched can be turned

off in the “Meter Customize” settings. (



P. 250)

When the driving mode is switched, the
driving mode indicator changes and an
animation

*

 is displayed on the multi-infor-

mation display.
Also, the background color of the main
display, energy monitor (



P. 223) and

Hybrid System Indicator (



P. 226)

change as follows.

Driving modes

Background color

Normal mode

Green

Power mode

Red

Eco drive mode

Blue

220

3. Instrument cluster

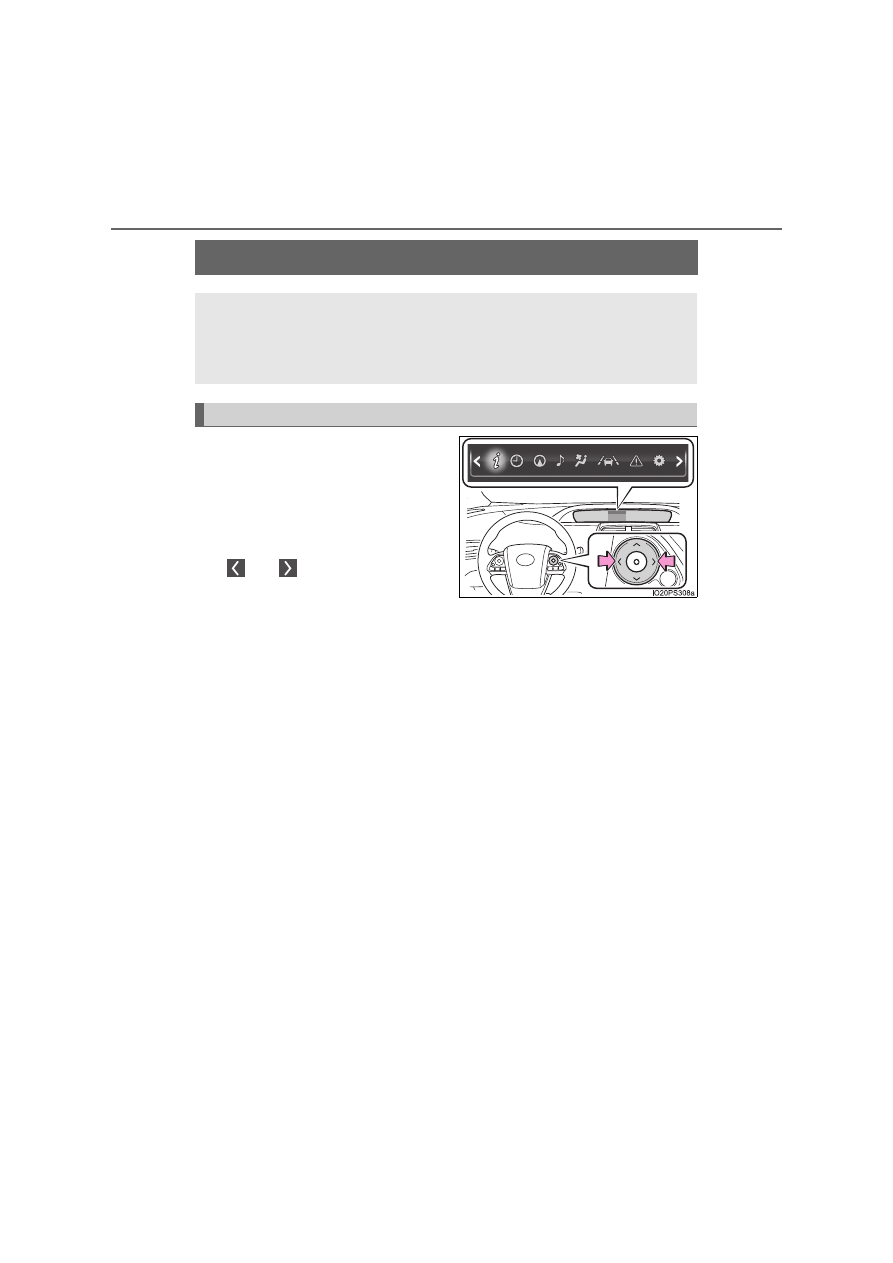

Multi-information display

Information related to each icon
on the upper portion of the multi-
information display can be dis-
played by operating the meter
control switches to select the icon.

Icons are displayed when pressing

 or

 of the meter control

switches and turn off shortly after
pressing the switch.
Screens linked with vehicle functions may be automatically displayed
according to the operation status of the corresponding functions.

A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.

Display contents

221

3. Instrument cluster

3

In

st

rum

ent cl

ust
e

r

*

: When there is a warning message that can be displayed, the color of

changes to amber.

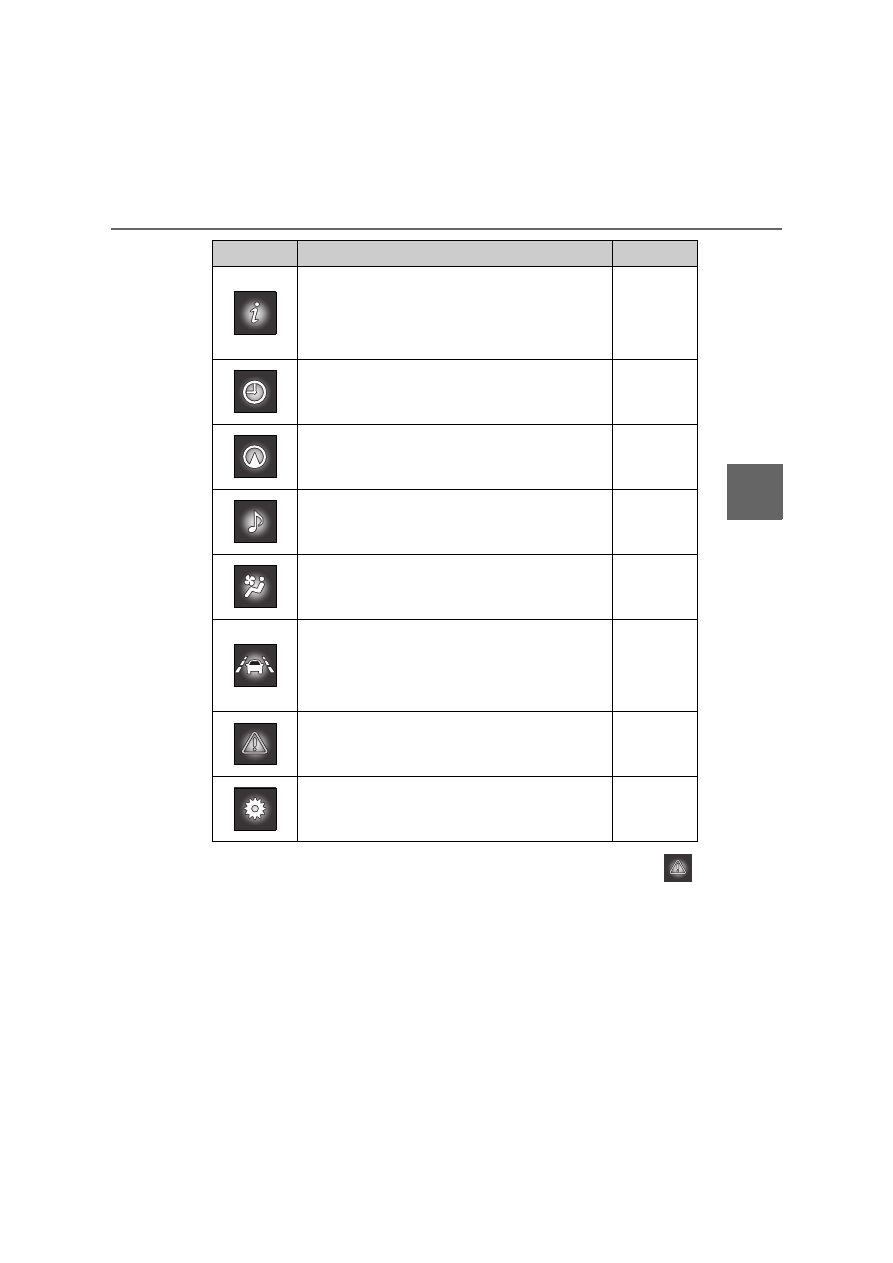

Menu icons

Contents

Pages

Drive information

The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as electricity consumption and fuel
consumption are displayed.

P. 222

Clock setting display

The clock settings can be changed.

P. 240

Navigation system-linked display

The information related to the navigation sys-
tem is displayed.

P. 241

Audio system-linked display

The audio system settings can be changed.

P. 241

Air conditioning system settings screen

The air conditioning system settings can be
changed.

P. 242

Driving assist system information

The information related to driving assist sys-
tems such as the LTA (Lane Tracing Assist)
and dynamic radar cruise control with full-
speed range is displayed.

P. 246

Warning message display

*

The warning messages are displayed.

P. 246

Settings display

The settings of the vehicle functions, meter
display, etc. can be changed.

P. 247

222

3. Instrument cluster

Press

 or

 of the meter control switches and select the icon

of the desired item.

The selected icon is highlighted and the display switches to the information
screen.
When RSA (Road Sign Assist) and speed limiter is off, the sub-screen of
the main display can also be selected. (



P. 216)

Press

 or

 of the meter control switches to switch the con-

tents of the display.

Press

 on screens where it

is necessary to select or con-
firm an item.

On screens with tab displays,
pressing

 selects the tab dis-

play, and the screen display can be
changed by pressing

 or

 of

the meter control switches.

Press

 to return to the previous screen.

When

 is selected, the following information can be displayed by

pressing

 or

 of the meter control switches.

●

Energy monitor (



P. 223)

●

Hybrid System Indicator (



P. 226)

●

“Fuel Consumption Record” (



P. 234)

●

“Drive Monitor” (



P. 237)

●

“Drive Monitor 2” (



P. 238)

●

“Eco-Diary” (



P. 239)

Basic Operations

1

2

Tab display

3

 Drive information

4

223

3. Instrument cluster

3

In

st

rum

ent cl

ust
e

r

◆

Energy monitor

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.

While charging from the external power source, the flow of electrical
energy while charging is displayed.
On vehicles with solar charging system, the approximate power genera-
tion level is also displayed.

When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light is not displayed.

●

The arrows from the image of the engine to that of the electric
motor (traction motor) or tires are displayed in red.

●

The arrow indicating energy consumption is displayed in yellow,
and the arrow indicating energy regeneration or charging is dis-
played in green. Also, the color around the image of the hybrid
battery (traction battery) is changed.

As an example, all arrows are shown in the illustration, but the actual
contents of the display will differ.

224

3. Instrument cluster

■

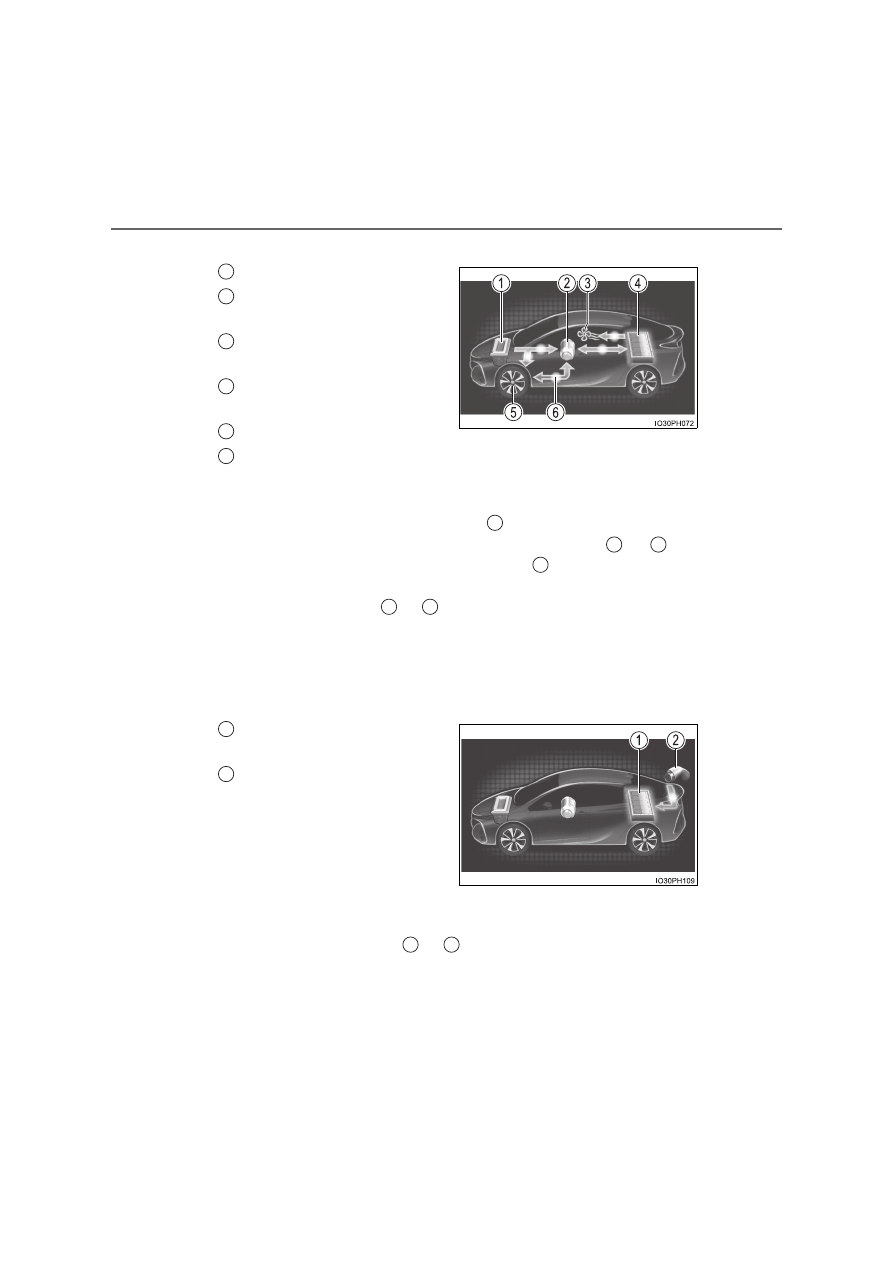

Except when charging

Gasoline engine
Electric motor
(traction motor)
Air conditioning system oper-
ation

*

1

Hybrid battery
(traction battery)
Tire
Bright point of light showing the flow of energy

(Display example)

●

When the hybrid battery (traction battery) is being charged, the
bright point of light moves towards

.

●

During driving, the bright point of light moves from

 or

 (or

both depending on the situation) towards

.

*

2

●

When the air conditioning compressor is operating, a bright point
of light moves from

 to

.

●

During driving, the image of the tires rotates.

*

1

: It is displayed while the air conditioning system is operating.

*

2

: The display may differ depending on the driving status.

■

While charging

Hybrid battery (traction bat-
tery)
Charging connector

(Display example)
When the hybrid battery (traction battery) is being charged, a bright
point of light moves from

 to

.

1
2

3

4

5
6

4

1

2

5

4

3

1

2

2

1
