Toyota Prius Plug-in Hybrid (2023 year). Manual in english

225

3. Instrument cluster

rum

ent cl

ust
e

■

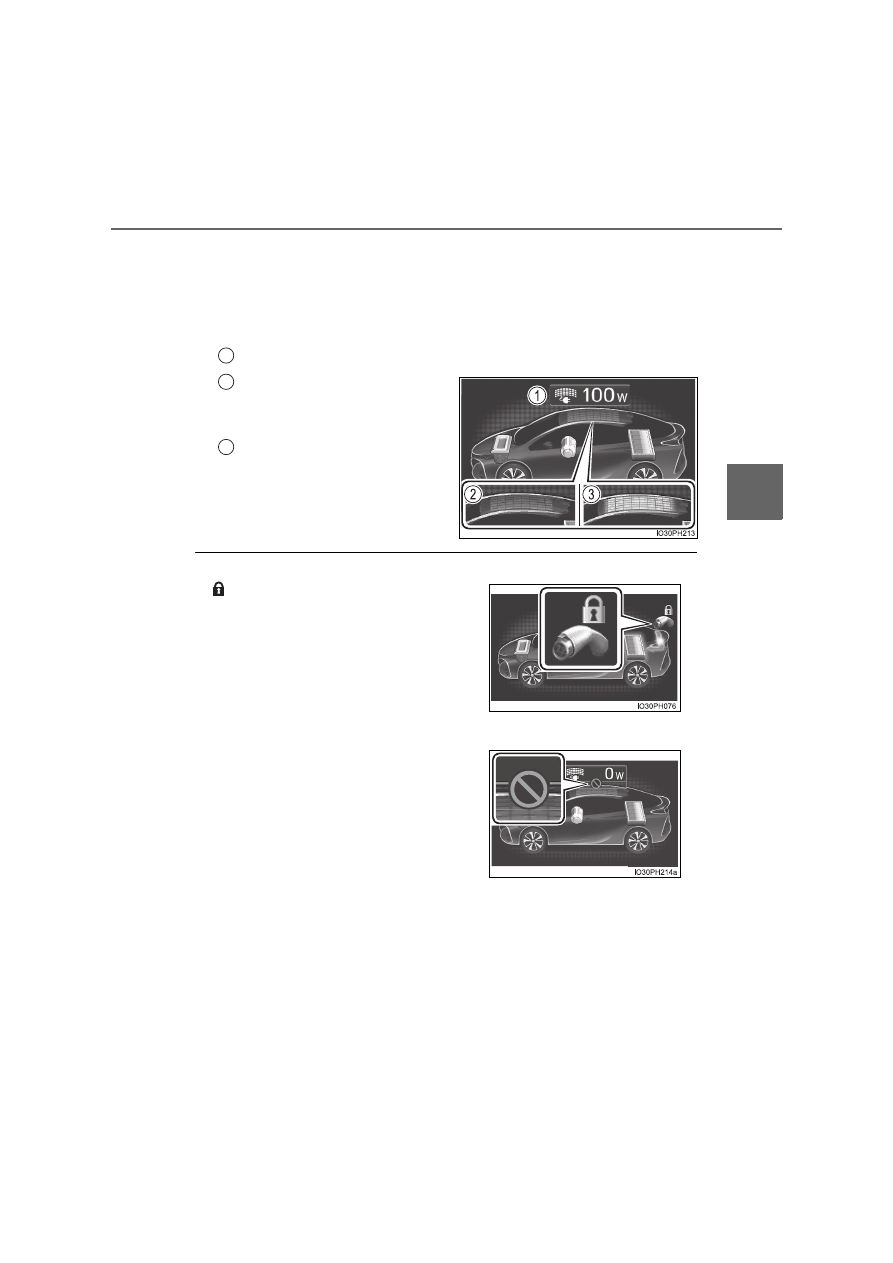

While the solar charging system is operating (if equipped)

The user is informed of the current approximate solar power gener-
ation level with the display of the instantaneous power generation
amount and changes in the display* of the roof on the energy moni-
tor.

Indicates the instantaneous power generation amount

Indicates that solar power
generation is not being per-
formed
Indicates that the amount of
solar power generation is
near the maximum

: The display changes in 5 levels.

■

When the charging connector is locked (



P. 157)

■

When the solar charging system is malfunctioning (if equipped)

is displayed in the charging connector

display portion on the energy monitor.

The mark indicating a malfunction is dis-
played in the solar roof display portion on
the energy monitor. If the mark is dis-
played, have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer immediately.

226

3. Instrument cluster

◆

Hybrid System Indicator

The display changes according to accelerator pedal operation and
displays the current driving status and energy regeneration status.

The display contents of the Hybrid System Indicator are different in EV
mode and HV mode.
The Hybrid System Indicator can be displayed on the sub-screen of the
main display (



P. 217) and the head-up display (if equipped)

(



P. 255).

■

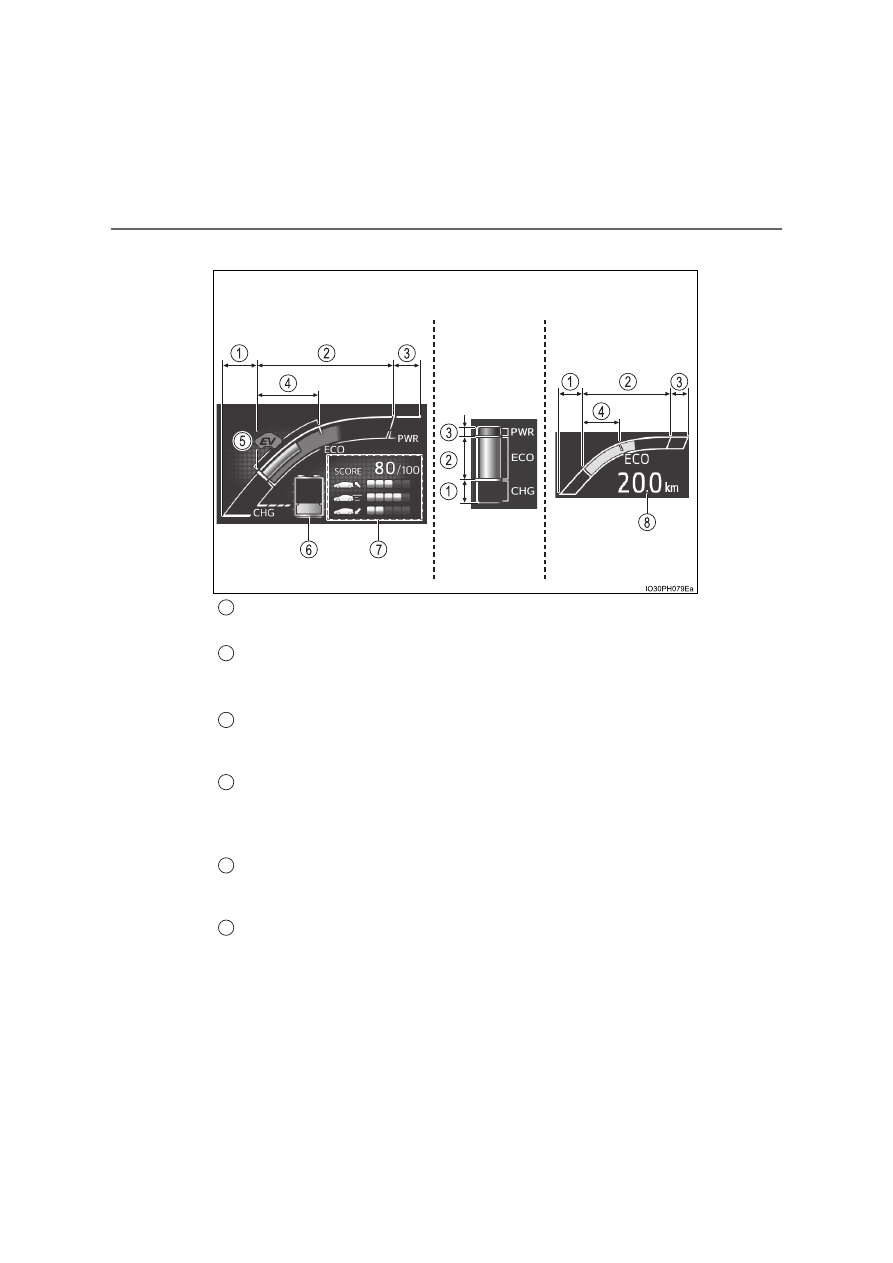

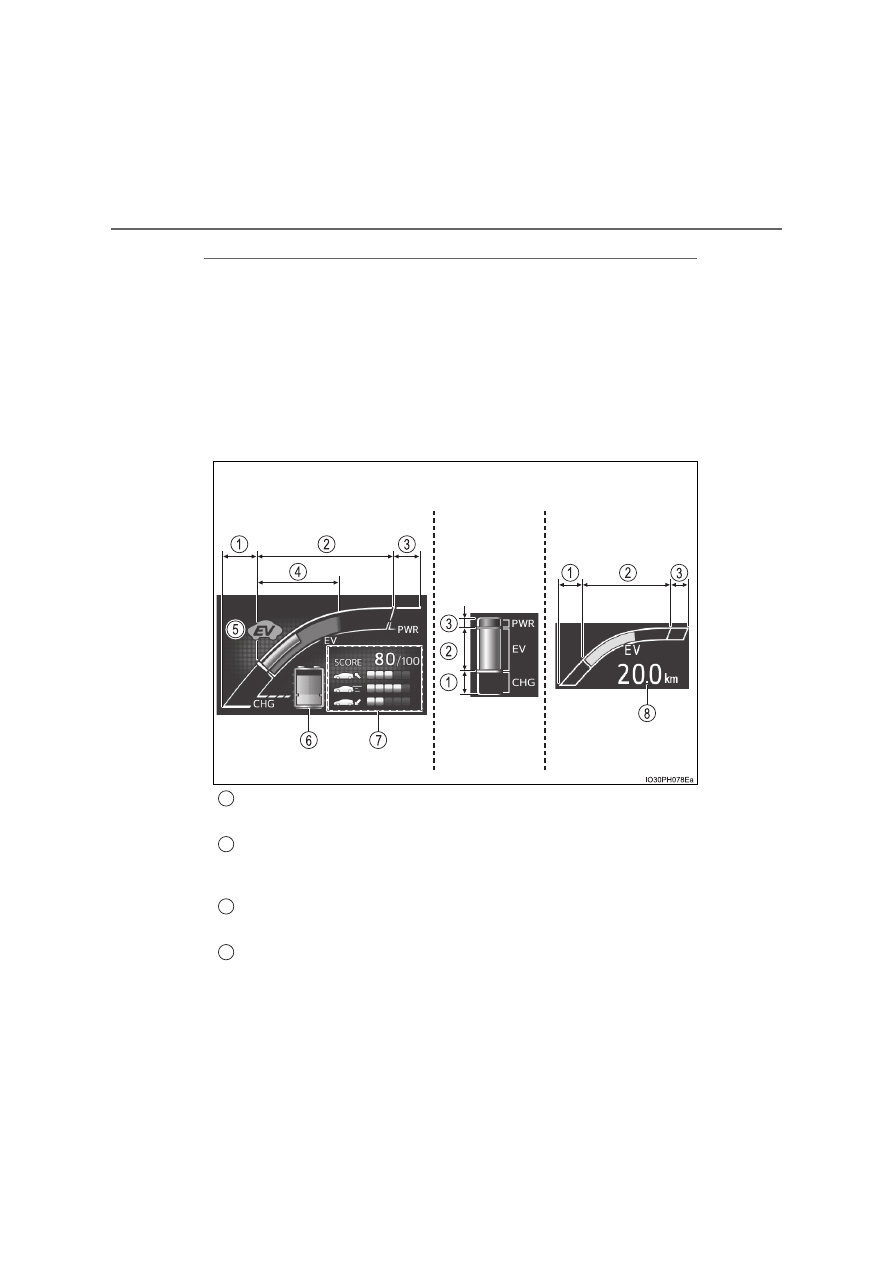

How to read the display



In EV mode

Charge area

Shows that energy is being recovered via the regenerative charging.

EV driving area

Shows that the vehicle is driven using only the electric motor (traction
motor).

Gasoline engine running area

Shows that the gasoline engine is used as auxiliary power.

Eco area

Shows that the vehicle is being driven in an Eco-friendly manner.
Changed within the “ECO Accelerator Guidance” range. (



P. 229)

Head-up display

(if equipped)

Sub-screen

Multi-information

display

227

3. Instrument cluster

rum

ent cl

ust
e

EV indicator

1, 2

The EV indicator comes on when the vehicle is driven using only the
electric motor (traction motor) or the gasoline engine is stopped.

Hybrid battery (traction battery) status



P. 232

Eco score



P. 230

EV driving range



P. 255

●

By keeping the indicator within Eco area, more Eco-friendly driv-
ing can be achieved.

●

Charge area indicates regeneration

status. Regenerated

energy will be used to charge the hybrid battery (traction battery).

: Not displayed on the sub-screen or head-up display.

: The EV indicator function can be turned off in the “Meter Customize”

settings. (



P. 250)

: When used in this manual, “regeneration” refers to the conversion of

energy created by the movement of the vehicle into electrical energy.

228

3. Instrument cluster



In HV mode

Charge area

Shows that energy is being recovered via the regenerative charging.

Eco area

Shows that the vehicle is being driven in an Eco-friendly manner.
Changed within the “ECO Accelerator Guidance” range. (



P. 229)

Power area

Shows that an Eco-friendly driving range is being exceeded (during full
power driving etc.)

Hybrid Eco area

Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under various
conditions.

EV indicator

1, 3

The EV indicator comes on when the vehicle is driven using only the
electric motor (traction motor) or the gasoline engine is stopped.

Hybrid battery (traction battery) status



P. 232

Head-up display

(if equipped)

Sub-screen

Multi-information

display

229

3. Instrument cluster

rum

ent cl

ust
e

Eco score



P. 230

EV driving range



P. 255

●

By keeping the indicator within Eco area, more Eco-friendly driv-
ing can be achieved.

●

Charge area indicates regeneration

status. Regenerated

energy will be used to charge the hybrid battery (traction battery).

: Not displayed on the sub-screen or head-up display.

: Not displayed on the sub-screen.

: The EV indicator function can be turned off in the “Meter Customize”

settings. (



P. 250)

: When used in this manual, “regeneration” refers to the conversion of

energy created by the movement of the vehicle into electrical energy.

■

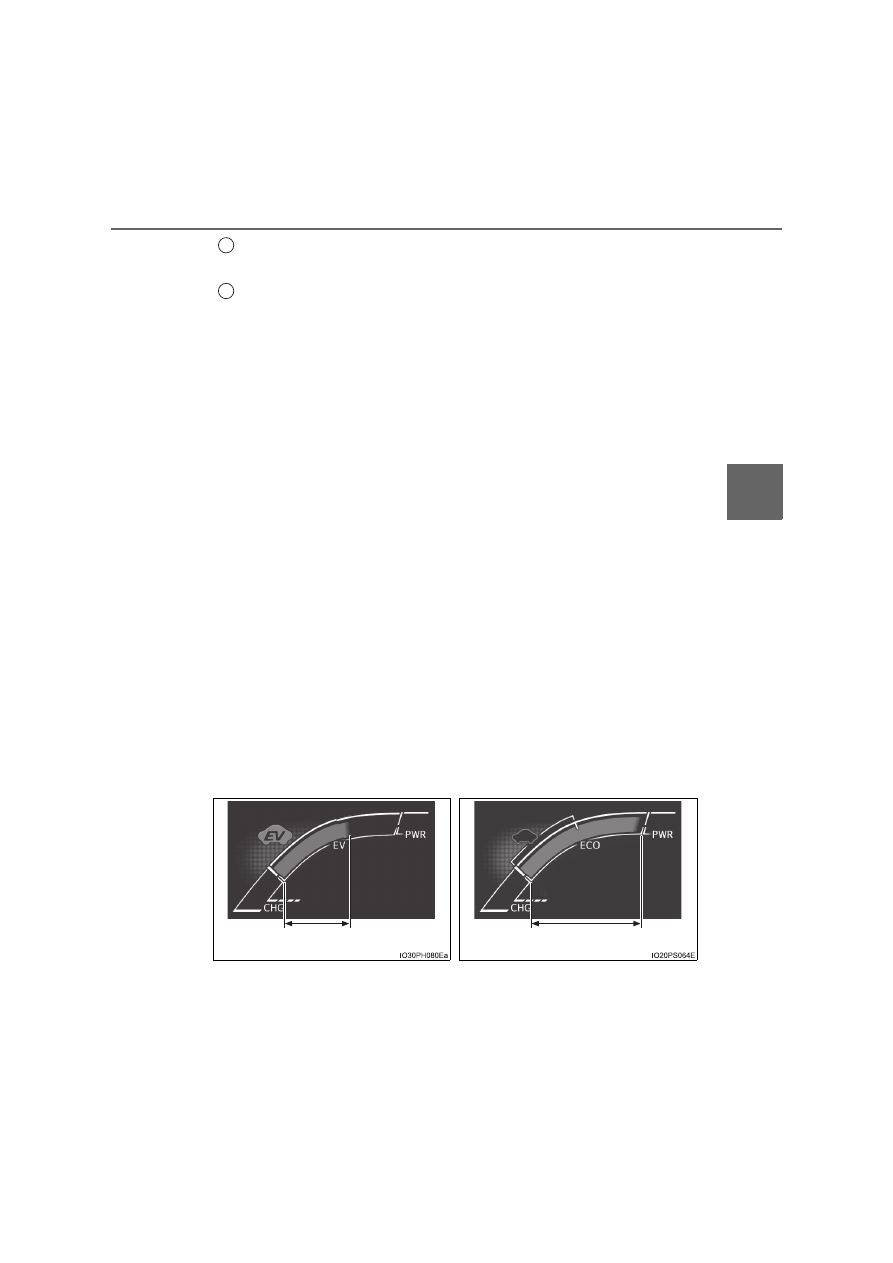

“ECO Accelerator Guidance”

A blue zone is displayed in the Eco area which can be used as a
reference operation range for using the accelerator pedal according
to driving conditions such as starting off and cruising.

The “ECO Accelerator Guidance” display changes according to the driv-
ing status, such as when starting off or cruising.
It is easier to drive in an Eco-friendly manner by driving according to the
display showing the accelerator pedal operations and staying within the
“ECO Accelerator Guidance” range. (



P. 310)

The “ECO Accelerator Guidance” function can be turned off in the
“Meter Customize” settings. (



P. 250)



In EV mode



In HV mode

“ECO Accelerator Guidance”

230

3. Instrument cluster

■

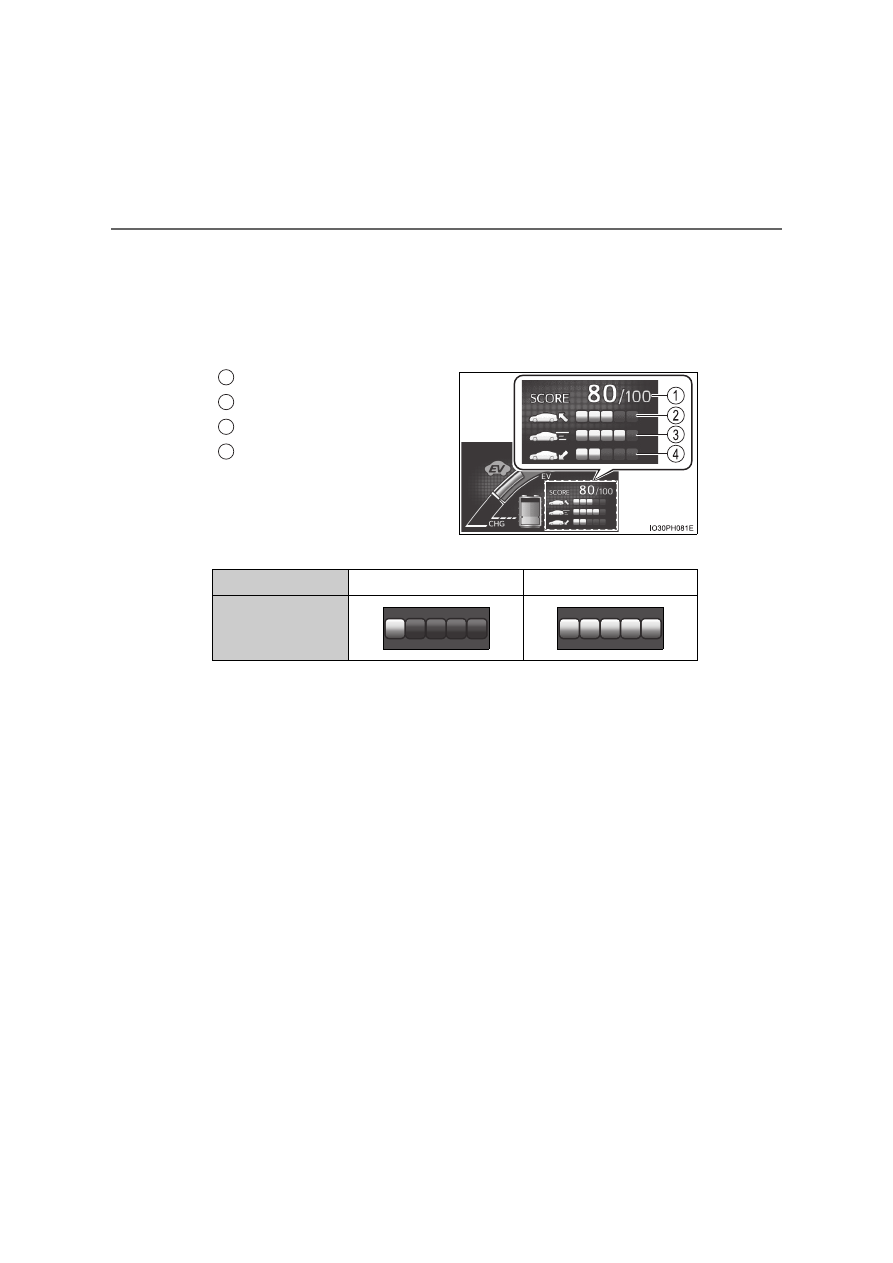

Eco score

The driving status for the following 3 situations are evaluated in 5
levels: Smooth start-off acceleration (“Eco-Start”), driving without
sudden acceleration (“Eco-Cruise”) and smooth stopping (“Eco-
Stop”). Each time the vehicle is stopped, a score result is displayed
out of a perfect score of 100 points.

Score result
“Eco-Start” status
“Eco-Cruise” status
“Eco-Stop” status

How to read the bar display:

: For items not currently evaluated, the display reads 0.

●

The Eco score is reset each time the vehicle starts off to start a new
evaluation.

●

When the shift position is P, only the Eco score display area is
enlarged and displayed. When the shift position is shifted from P,
the display returns to normal.

●

When the hybrid system stops, the current total score result and
advice on how to increase the score are displayed. (



P. 198)

1
2
3
4

Score

Low

High

Bar display

231

3. Instrument cluster

rum

ent cl

ust
e

■

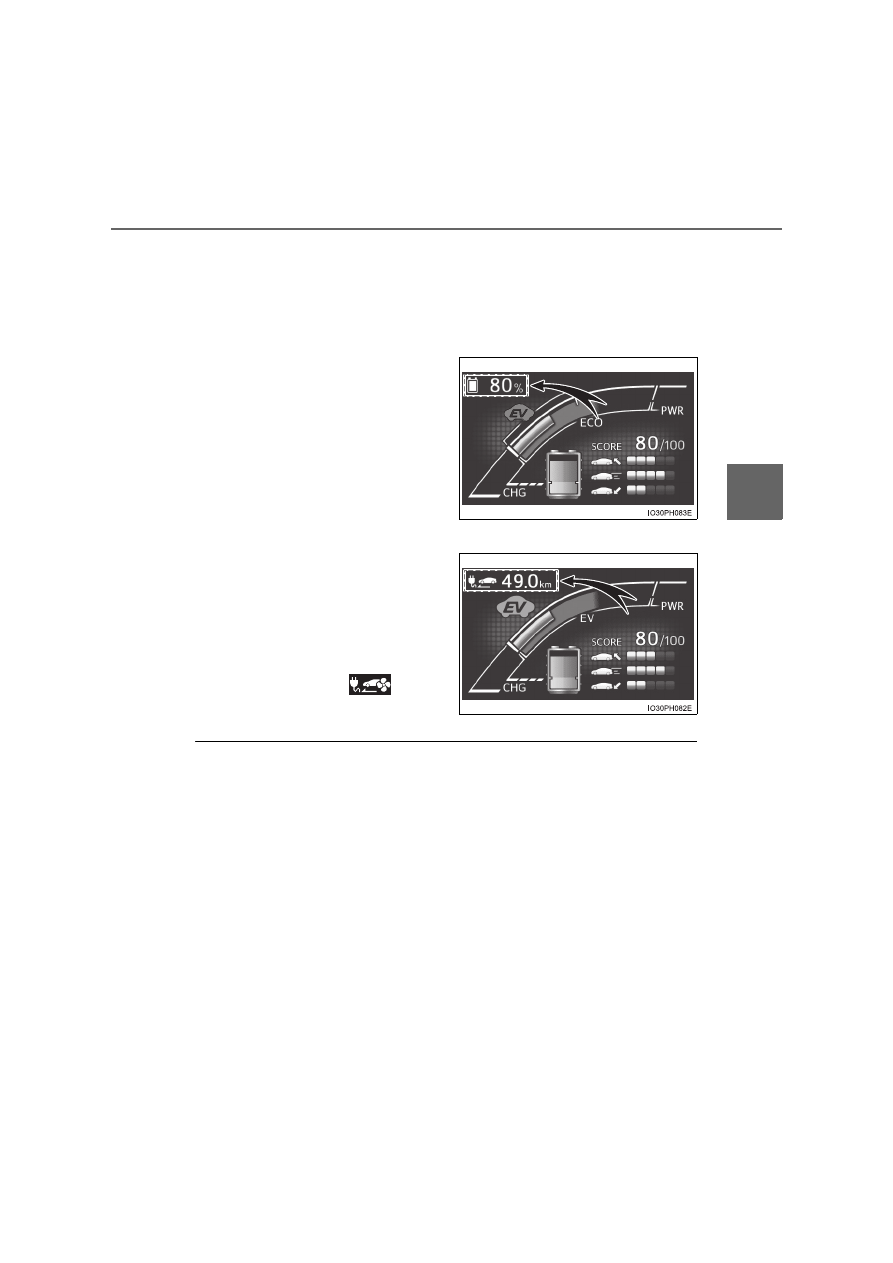

Information display of EV driving

One of the following 2 information in the items of “HV System Indi-
cator” in “Meter Customize” settings can be selected to display in
the left upper corner of the Hybrid System Indicator. (



P. 250)



“EV Energy”

The percentage of the remain-
ing hybrid battery (traction bat-
tery) that can be used for EV
driving is displayed.

Becomes 100% when the hybrid
battery (traction battery) is fully
charged.



“EV Distance”

The approximate distance that
can be driven using only the
electric motor (traction motor).
(



P. 109)

When the air conditioning sys-
tem is operating, the icon dis-

play changes to

and the

driving range with the air condi-
tioning system on is displayed.

■

When operation of each function stops

●

The Hybrid System Indicator stops operating in the following situations.
• The “READY” indicator is not illuminated.
• The shift position is not D or B.

●

The Eco score and “ECO Accelerator Guidance” stop operating in the fol-
lowing situations.
• The Hybrid System Indicator is not operating.
• Dynamic radar cruise control with full-speed range is being used.
• The speed limiter system is being used and the vehicle speed is approxi-

mately the limit speed or higher.

232

3. Instrument cluster

■

Display of the remaining hybrid battery (traction battery)

●

The current amount of the remaining hybrid battery (traction battery) is dis-
played in the Hybrid System Indicator or the sub-screen on the main display.
(



P. 217)

• The remaining battery for EV driving in EV mode is displayed in green,

and the remaining battery used in HV mode is displayed in blue.

• The amount of the remaining battery displayed decrease as the vehicle is

driven and increase when the hybrid battery (traction battery) is charged,
electrical energy is regenerated using the regenerative braking (



P. 93)

or electricity is generated by the gasoline engine.

• If the remaining battery is not displayed in green, HV mode is automati-

cally selected and EV mode cannot be used. To enable EV driving,
charge the hybrid battery (traction battery). (



P. 111)

●

The amount of the hybrid battery (traction battery) in HV mode is automati-
cally controlled by the hybrid system. The amount of remaining hybrid battery
(traction battery) in HV mode may not reach the top line

even if electrical

energy is regenerated using the regenerative braking (



P. 93) or electricity

is generated by the gasoline engine. However, this does not indicate a mal-
function. Also, even if the display of the remaining hybrid battery (traction
battery) exceeds the top line, the display is shown in blue until the vehicle
returns to EV mode.

: The position of the boundary line between EV mode and HV mode on the

display of the remaining hybrid battery (traction battery).

●

Depending on the charging situation, when the display of the remaining
hybrid battery (traction battery) is shown during charging, charging continues
even after the display of the remaining hybrid battery (traction battery) shows
a fully charged state. However, this does not indicate a malfunction. Please
wait until charging is finished.

The hybrid battery (traction battery)
is fully charged
The hybrid battery (traction battery)
for EV mode is not remaining

233

3. Instrument cluster

rum

ent cl

ust
e

■

Remaining charge amount warning of hybrid battery (traction battery)

●

The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift position is in N, or the remaining
charge amount drops below a certain level.
If the remaining charge amount drops further, the buzzer sounds continu-
ously.

●

When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.

■

About the Eco score

●

After starting off, Eco score display does not start until the vehicle speed
exceeds approximately 30 km/h (19 mph).

●

In addition to the vehicle driving status, the Eco score also evaluates the air
conditioning system usage condition (



P. 244). The score displayed when

the hybrid system stops is the total result of the driving status after the
hybrid system starts and the air conditioning usage condition.

■

“EV Energy” and “EV Distance” display

The rate at which the “EV Energy” and “EV Distance” remaining amount
decreases depends on the driving conditions of the vehicle. Also, the “EV
Energy” and “EV Distance” remaining amount may decrease due to system
power consumption even though the vehicle is not being driven.

234

3. Instrument cluster

◆

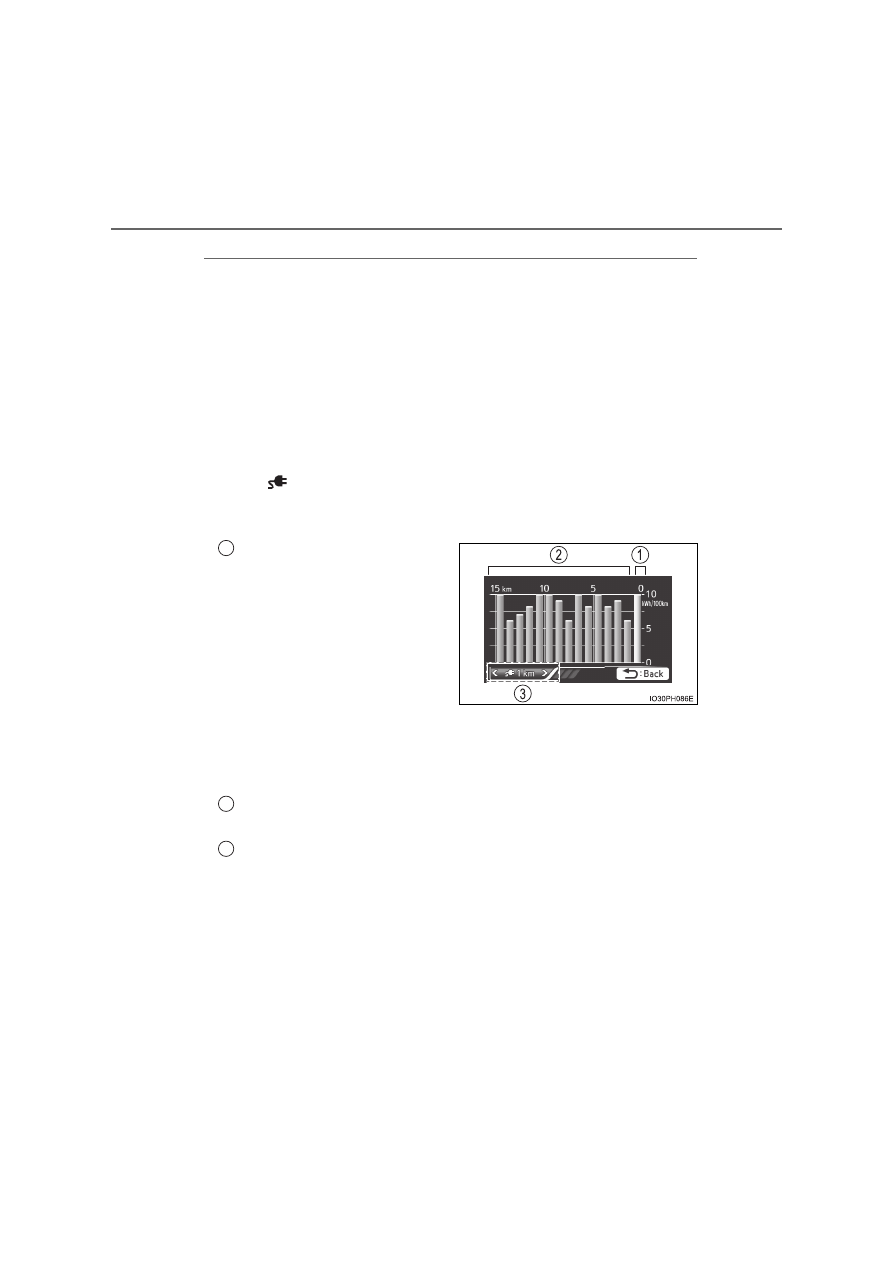

“Fuel Consumption Record”



When the unit is set to “km/h”

The transitions of the average fuel consumption after the hybrid
system starts can be checked in units of 1 km (0.6 mile) or 5 km
(3.1 miles) of driving.



When the unit is set to “MPH” (if equipped)

The transitions of the average fuel consumption after the hybrid
system starts can be checked in units of 1 mile (1.6 km) or 5 miles
(8 km) of driving.

■

How to read the screen

The “

1 km” display is shown as an example. However, the

basic method for how to read the screen is the same for each fuel
consumption history screen.

Current average electricity
and fuel consumption record
(yellow display)

When the unit is set to “km/h”:
When the recorded unit is
exceeded (every 1 km [0.6 mile]
or 5 km [3.1 miles]) the currently
displayed history moves
towards the left side and the old-
est record is deleted.
When the unit is set to “MPH” (if equipped):
When the recorded unit is exceeded (every 1 mile [1.6 km] or 5 miles
[8 km] the currently displayed history moves towards the left side and
the oldest record is deleted.

Past average electricity and fuel consumption record (green dis-
play)
Tab display

Displays types of “Fuel Consumption Record”.

235

3. Instrument cluster

rum

ent cl

ust
e

■

Types of “Fuel Consumption Record”



When the unit is set to “km/h”

: This record is reset each time the hybrid system stops.



When the unit is set to “MPH” (if equipped)

: This record is reset each time the hybrid system stops.

Tab display

Recorded contents

Recorded range

“

1 km”

Average electricity con-
sumption of every 1 km
(0.6 mile) driven

The last 15 km (9.3 miles)
driven

“

5 km”

Average electricity con-
sumption of every 5 km
(3.1 miles) driven

The last 30 km (18.6 miles)
driven

“

1 km”

Average fuel consumption
of every 1 km (0.6 mile)
driven

The last 15 km (9.3 miles)
driven

“

5 km”

Average fuel consumption
of every 5 km (3.1 miles)
driven

The last 30 km (18.6 miles)
driven

Tab display

Recorded contents

Recorded range

“

1 miles”

Average electricity con-
sumption of every 1 mile
(1.6 km) driven

The last 15 miles (24.1 km)
driven

“

5 miles”

Average electricity con-
sumption of every 5 miles (8
km) driven

The last 30 miles (48.3 km)
driven

“

1 miles”

Average fuel consumption
of every 1 mile (1.6 km)
driven

The last 15 miles (24.1 km)
driven

“

5 miles”

Average fuel consumption
of every 5 miles (8 km)
driven

The last 30 miles (48.3 km)
driven

236

3. Instrument cluster

■

Switching the electricity and fuel consumption history screen

While the “Fuel Consumption Record” screen is displayed, press

The tab display is selected and it is possible to switch the contents of
the display.

Press

of the meter control switches to switch the con-

tents of the display.

Each time

is pressed, the display switches in the following order:



When the unit is set to “km/h”

“

1 km”, “

5 km”, “

1 km” and “

5 km”

. When

pressed, it switches in the reverse order.



When the unit is set to “MPH” (if equipped)

“

1 miles”, “

5 miles”, “

1 miles” and “

5 miles”

. When

is pressed, it switches in the reverse order.

: After “

5 km”, the display returns to “

1 km”.

: After “

5 miles”, the display returns to “

1 miles”.

237

3. Instrument cluster

rum

ent cl

ust
e

◆

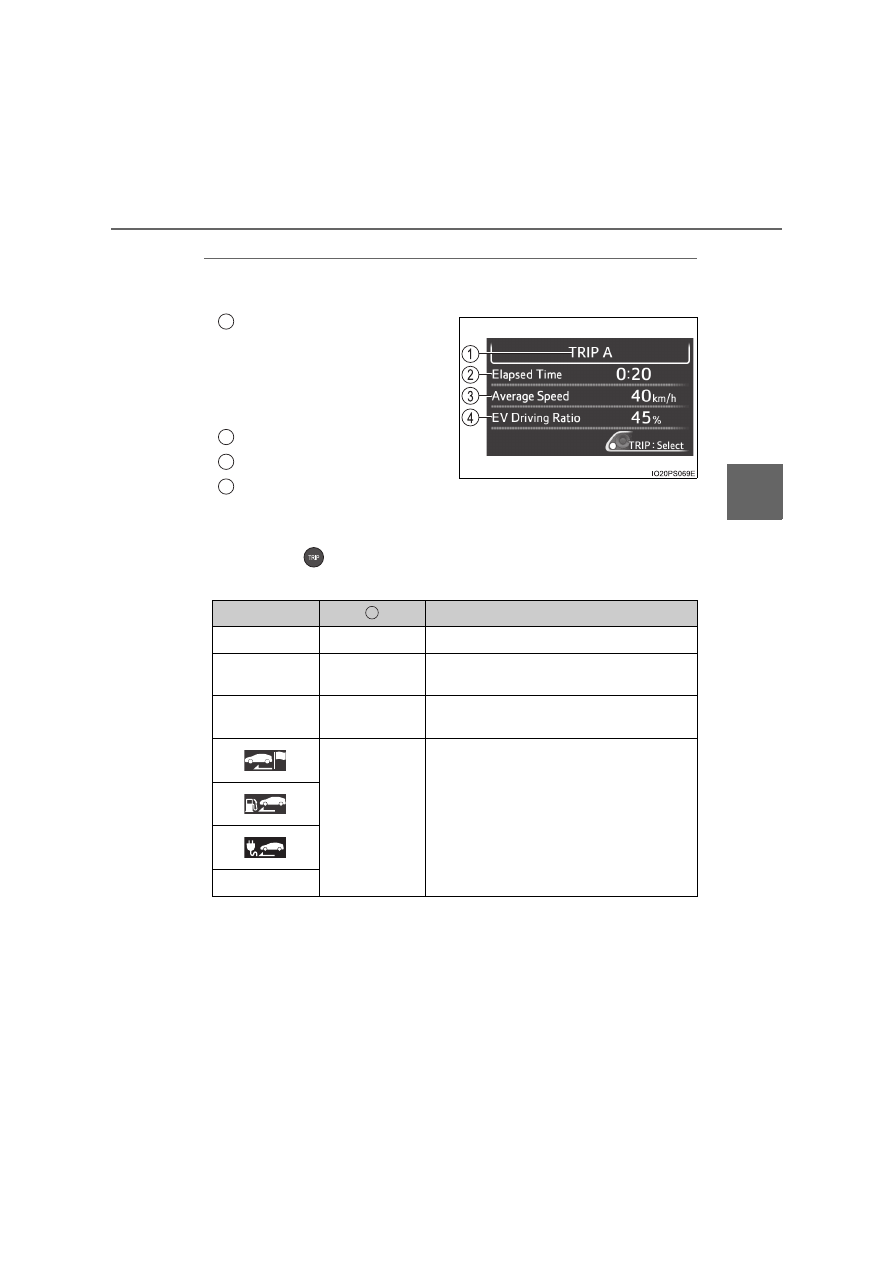

“Drive Monitor”

Displays information such as the driving time and average vehicle
speed, which are linked with the current mileage display. (



P. 214)

Current contents of the dis-
play

Displayed information shows
which driving record the cur-
rently displayed contents are
based on.

“Elapsed Time”
“Average Speed”
“EV Driving Ratio”

For the displayed distance of the mileage display, the percent traveled
using only electric motor power is displayed.

Each time

is pressed, the mileage display (



P. 214) switches

and the contents of the “Drive monitor” change as follows.

: When the average fuel consumption is reset (



P. 215), the “Drive monitor”

display is also reset.

: When the trip meter is reset (



P. 215), the “Drive monitor” display is also

reset.

: This item is reset each time the hybrid system starts.

2
3
4

Mileage display

Contents of the “Drive monitor”

ODO

After Reset

Information since last reset

TRIP A

Information based on driving record of
TRIP A

TRIP B

Information based on driving record of
TRIP B

After Start

Information since hybrid system was
started

Blank screen

238

3. Instrument cluster

◆

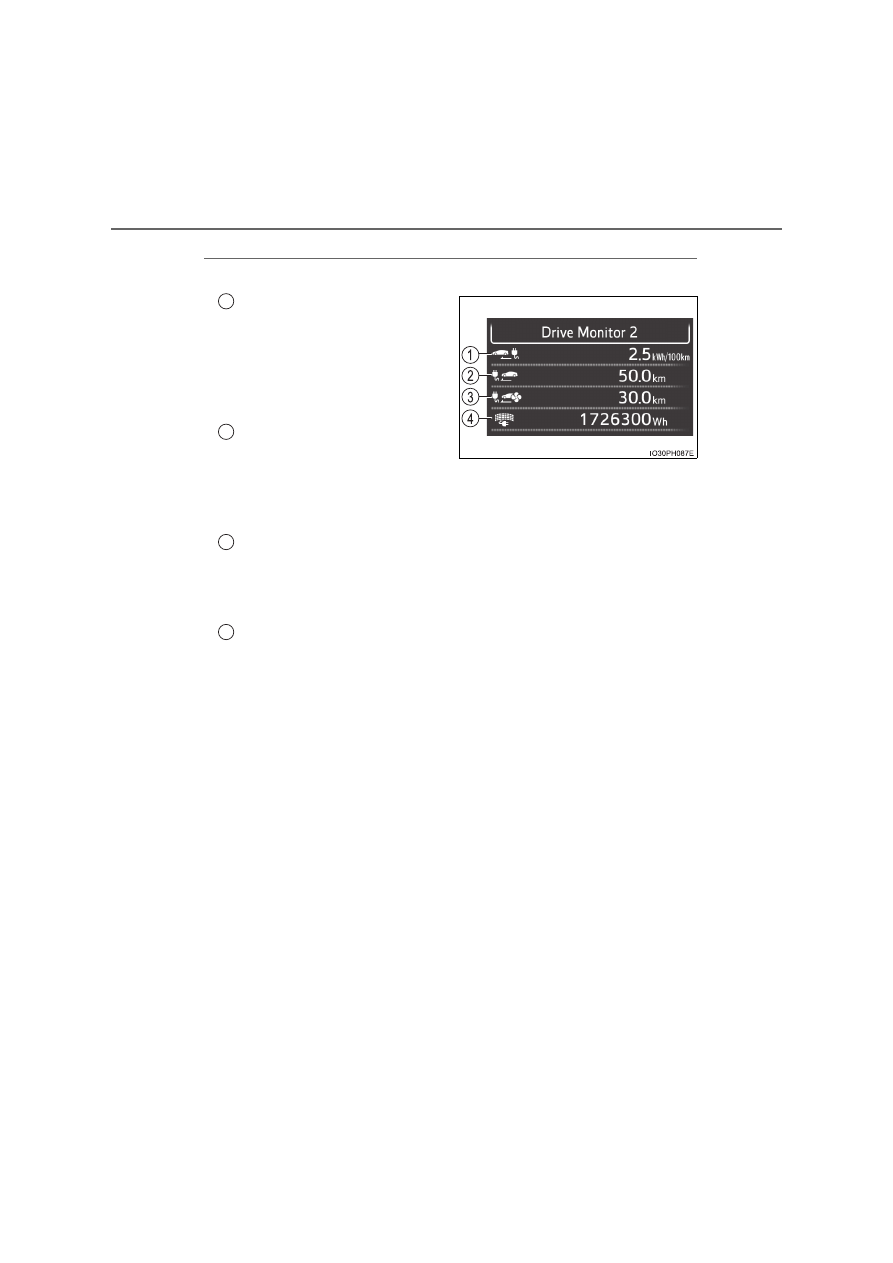

“Drive Monitor 2”

The following information of EV driving is displayed.

Total average electricity con-
sumption
Indicates the total average
electricity consumption since
last reset until it is reset
again.

EV driving range (without
using the air conditioning
system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery). (



P. 109)

EV driving range (with using the air conditioning system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery) while using the air
conditioning system.

Accumulated power generation quantity by the solar charging
system (if equipped)
Indicates the accumulated solar power generation quantity up
until now by the solar charging system.

: When “Electricity Consumption Reset” (



P. 251) is performed, the data

of the total average electricity consumption is deleted.

: The EV driving range may shorten even when not driving due to power

consumption by the system.

239

3. Instrument cluster

rum

ent cl

ust
e

◆

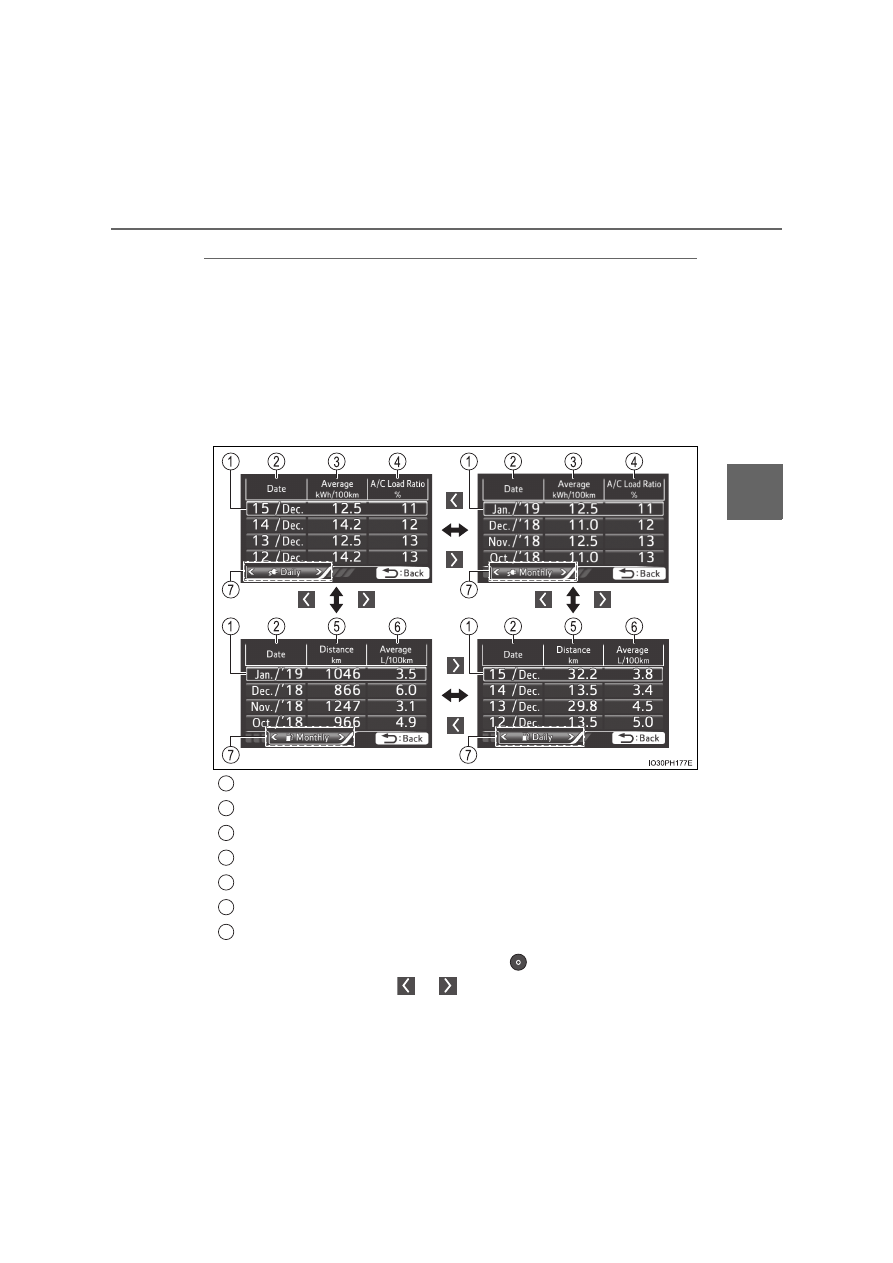

“Eco-Diary”

The history of the average electricity consumption, air conditioning
system load ratio (“A/C Load Ratio”)

, distance traveled and aver-

age fuel consumption can be displayed in a table according to day
(“Daily”) or month (“Monthly”) units.

: It indicates the percentage of the electricity consumed from the hybrid

battery (traction battery) that is consumed by the air conditioning sys-
tem.

■

How to read the display

Record of the day/month
Date/month of stored information
Average electricity consumption of the day/month
“A/C Load Ratio” of the day/month
Total distance traveled for the day/month
Average fuel consumption of the day/month
Tab display

The display can be switched by pressing

to enter the select condi-

tion, and then operating

of the meter control switches.

1
2
3
4
5
6
7

240

3. Instrument cluster

■

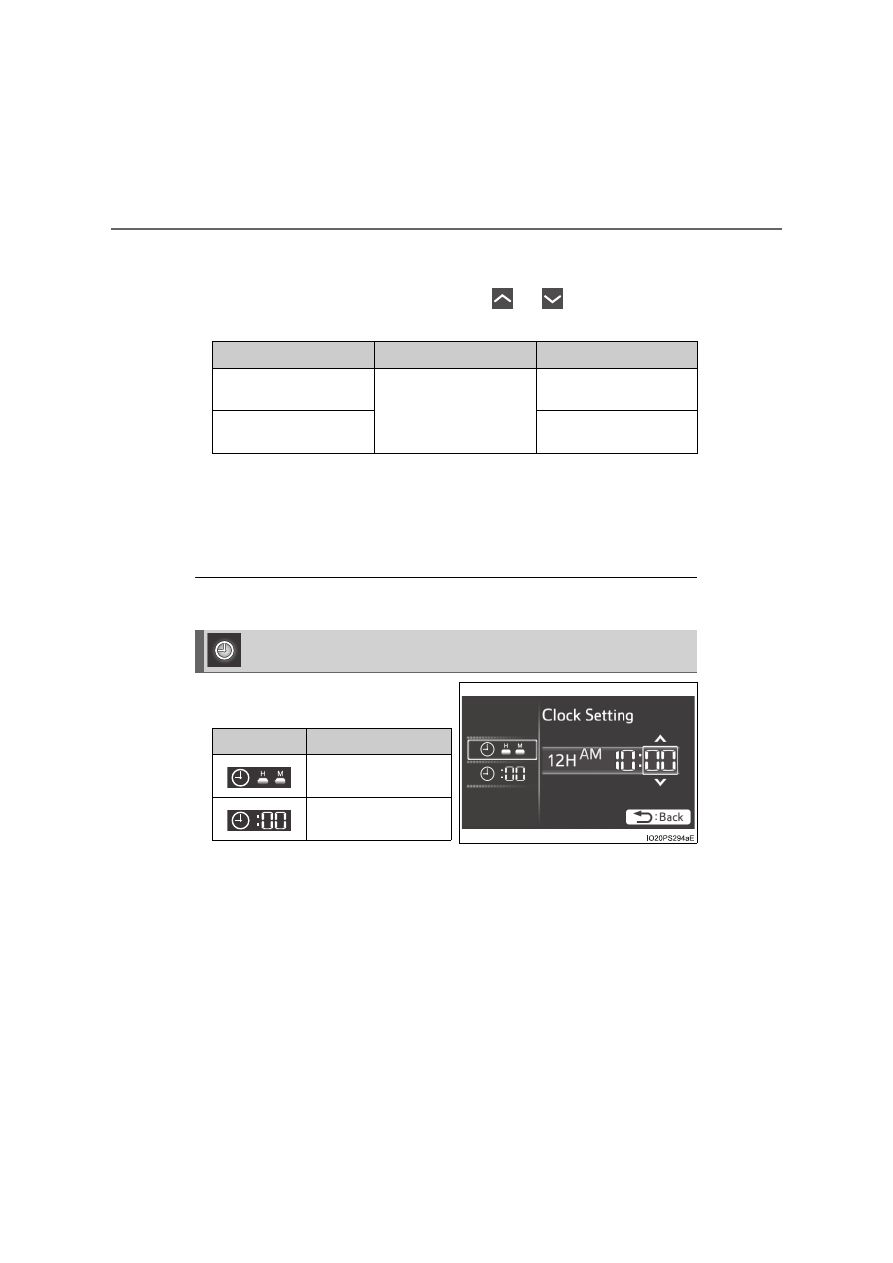

Checking history

When each screen is selected, past records from the following

ranges can be displayed by pressing

of the meter con-

trol switches.

●

If the above number of records is exceeded, the oldest informa-
tion is deleted.

●

To reset the history, perform “History Reset” in the “Meter Custo-
mize” settings (



P. 250). (“Daily” and “Monthly” information can

be reset independently.)

■

Calendar setting



P. 252

The clock settings can be
changed.

Displayed screen

Displayed information

Stored information

“Daily”

4 reports

Up to 32 reports

(8 screens)

“Monthly”

Up to 12 reports

(3 screens)

Clock setting display

Item

Setting result

Adjusts the clock.
(



P. 200)

Sets the minutes to
“00”. (



P. 201)

Toyota Prius Plug-in Hybrid (2023 year). Manual in english - page 14
