2. Instrument cluster

rum

ent cl

ust
e

WARNING

■

Cautions while setting up the display

As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

160

2. Instrument cluster

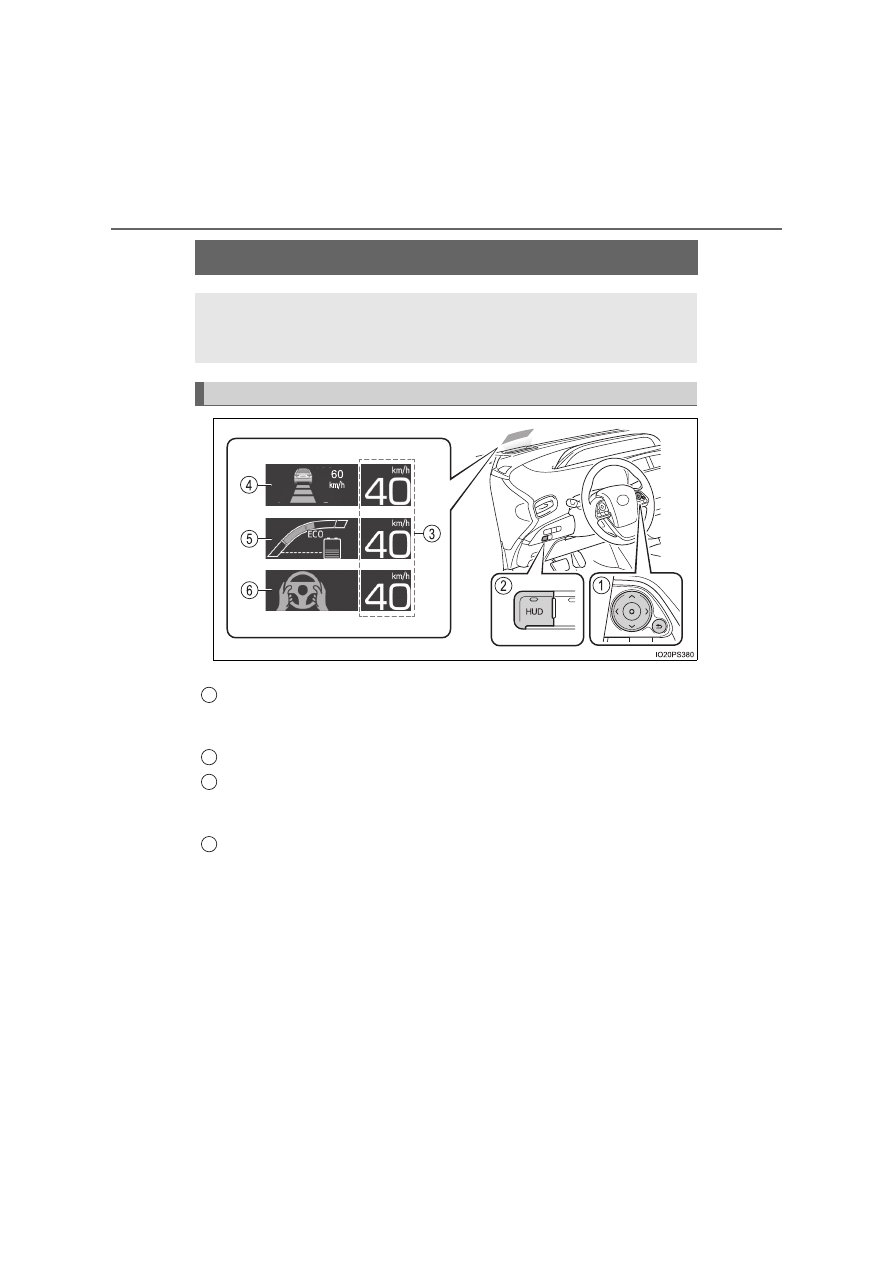

Head-up display



The units used on the display may differ depending on the target region.

Meter control switches

These switches are used when adjusting the display position and bright-
ness of the head-up display. (



P. 162)

“HUD” (Head-up display) switch

(



P. 161

)

Vehicle speed display

Right-hand drive vehicles:
The speed unit appears under the vehicle speed display.

Cruise control display

Dynamic radar cruise control with full-speed range (if equipped):
Displays the set speed and approach warning display. (



P. 329)

Cruise control (if equipped):
Displays the set speed only. (



P. 346)



: If equipped

The head-up display can display the current vehicle speed and
Hybrid System Indicator in front of the driver. Also, it can display
various types of information to assist the driver.

Operation switches and display contents

2
3

161

2. Instrument cluster

rum

ent cl

ust
e

Hybrid System Indicator (



P. 132)

Insert display

(



P. 163

)

This display inserts information from each driving support system accord-
ing to driving conditions.

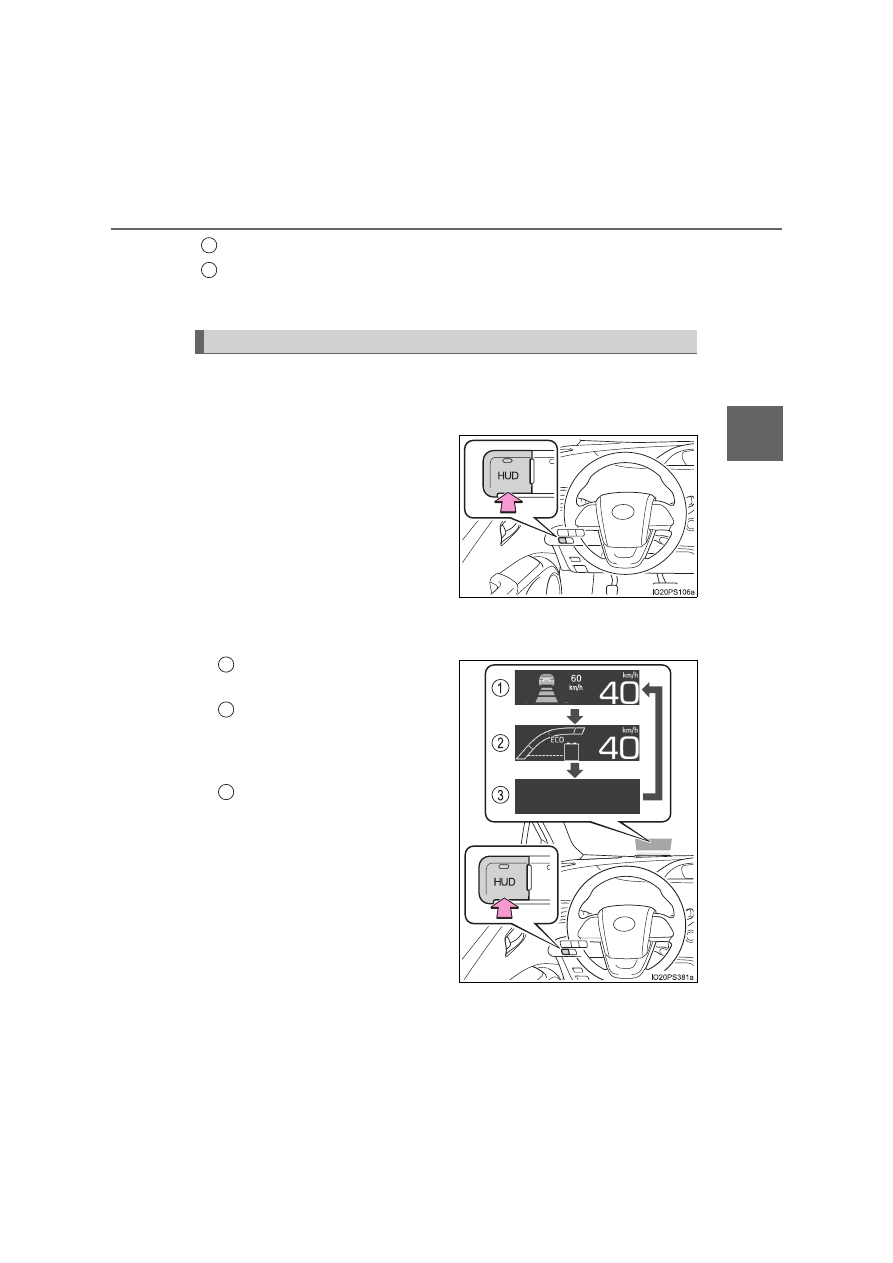

The “HUD” switch can be used to turn the head-up display on and off,
or switch the display contents.

■

When the head-up display is off

Pressing the “HUD” switch
turns the head-up display on
and starts the display.

The indicator light on the “HUD”
switch comes on.
The display position and bright-
ness adjustment screen is auto-
matically displayed on the multi-
information display. (



P. 162)

■

When the head-up display is on

Display items can be switched by pressing the “HUD” switch.

Vehicle speed display and
cruise control display

Vehicle speed display and
Hybrid System Indicator

Refer to P. 132 for details of the
Hybrid System Indicator.

No display (head-up display
is off)

The indicator light on the “HUD”
switch turns off.

: When the insert display of each

driving support system is dis-
played, the display is temporar-
ily turned off.

“HUD” (Head-up display) switch

5
6

162

2. Instrument cluster

In order to improve the visibility of the head-up display, the display
position and brightness can be adjusted.

Displaying the adjustment screen on the multi-information display.
When the head-up display is on:

Select

on the

screen of the multi-information dis-

play, and then press

. (



P. 153)

When the head-up display is off:
When the “HUD” switch is pressed, the adjustment screen for the
head-up display automatically displays.

If an adjustment operation is not performed for approximately 6 seconds

the multi-information display automatically returns to the previous screen.

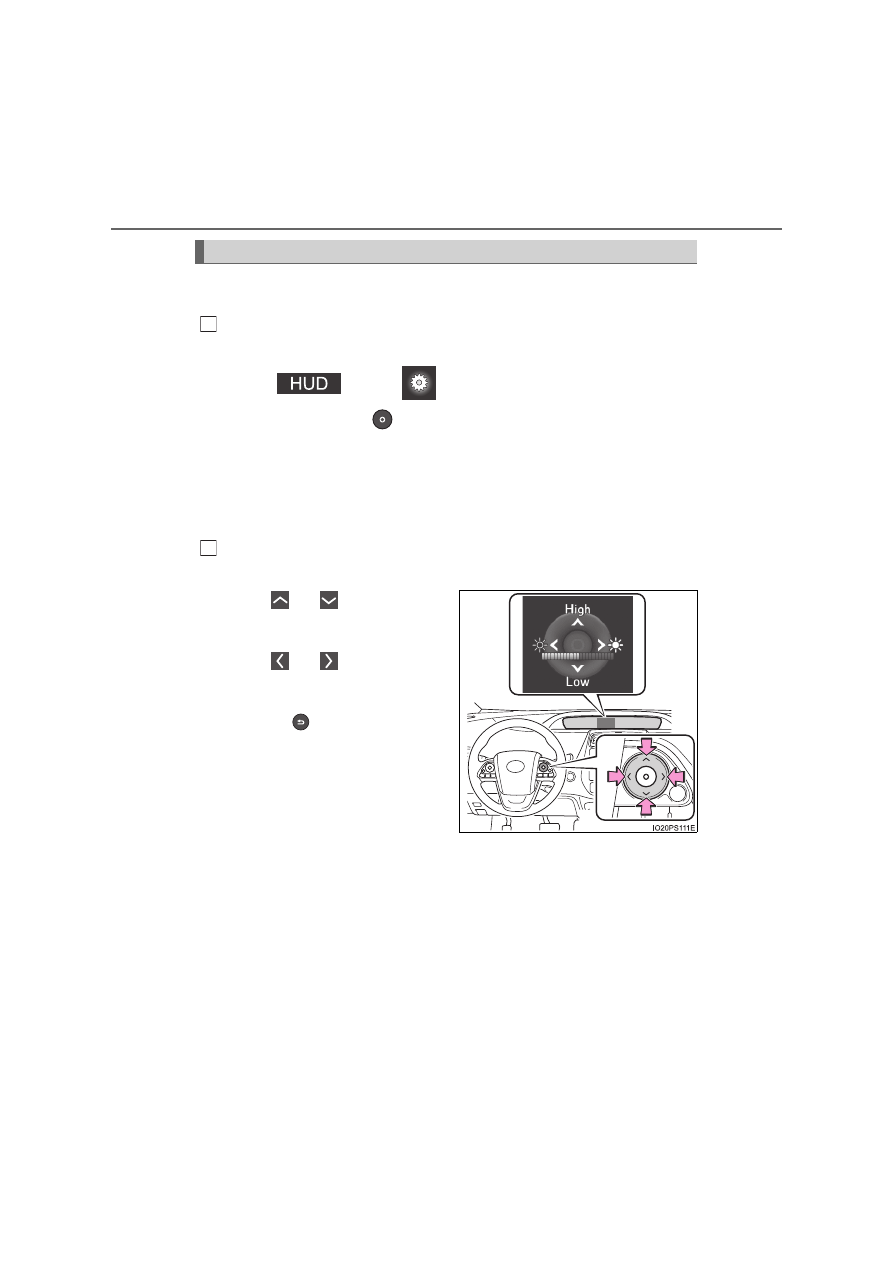

Adjusting the display position and brightness by operating the
meter control switches.

When

is pressed, the

position of the head-up display
changes.

When

is pressed, the

brightness of the head-up display
changes.

When the

is pressed, the multi-

information display returns to the
previous screen.

: This function can be turned off. (



P. 156)

: The adjustment screen may suddenly be canceled if it is interrupted by a

warning message shown on the display.

Display position and brightness adjustment

163

2. Instrument cluster

rum

ent cl

ust
e

■

Insert displays of the driving support systems

Insert displays are linked with the operation of the following sys-
tems and used to show some of the information shown on the multi-
information display on the head-up display.

: If equipped

■

Master warning light insert display

When the master warning light
(



P. 584) is illuminated or

flashing, an insert display is
shown on the head-up display
to inform the driver.

When the master warning light is
illuminated or flashing, check the
message displayed on the multi-
information display and perform
the corresponding troubleshoot-
ing procedure. (



P. 589)

Right-hand drive vehicles:
The master warning light display appears under the vehicle speed dis-
play.

Insert display

System

Displayed information

PCS (Pre-Collision System)

(



P. 296)

Pre-collision warning

LTA (Lane Tracing Assist)

(



P. 307)

Lane departure alert function
display

Hands off steering wheel warn-
ing

Vehicle sway warning function
display

Dynamic radar cruise control with full-
speed range

(



P. 329)

Approach warning display

RSA (Road Sign Assist)

(



P. 323)

Road signs, supplemental mark,
etc.

Parking Support Brake function

(



P. 394)

Operation display
(symbol display)

164

2. Instrument cluster

■

Enabling/disabling of the head-up display

When the head-up display is turned off with the “HUD” switch, it is not dis-
played until the “HUD” switch is used to turn the head-up display on again.
(Operation of the head-up display is not linked with the power switch.)

■

Display brightness

●

The brightness of the head-up display is automatically adjusted according to
the operation status of the headlights (on/off) and the brightness of the sur-
roundings.

●

When the brightness of the head-up display is adjusted to a certain level or
higher, the display automatically dims when the vehicle is stopped. Once the
vehicle starts off and the vehicle speed reaches approximately 5 km/h
(3.1 mph) or more, the display automatically returns to its previous bright-
ness.

■

Vehicle speed display

In extremely cold environments, the display of the speedometer and the vehi-
cle speed of the head-up display may slightly differ.

■

Head-up display

The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.

■

When the 12-volt battery is disconnected

The customize settings of the head-up display will be reset.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

165

2. Instrument cluster

rum

ent cl

ust
e

NOTICE

■

To prevent damage to components

●

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.

●

Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

Display projector

166

2. Instrument cluster

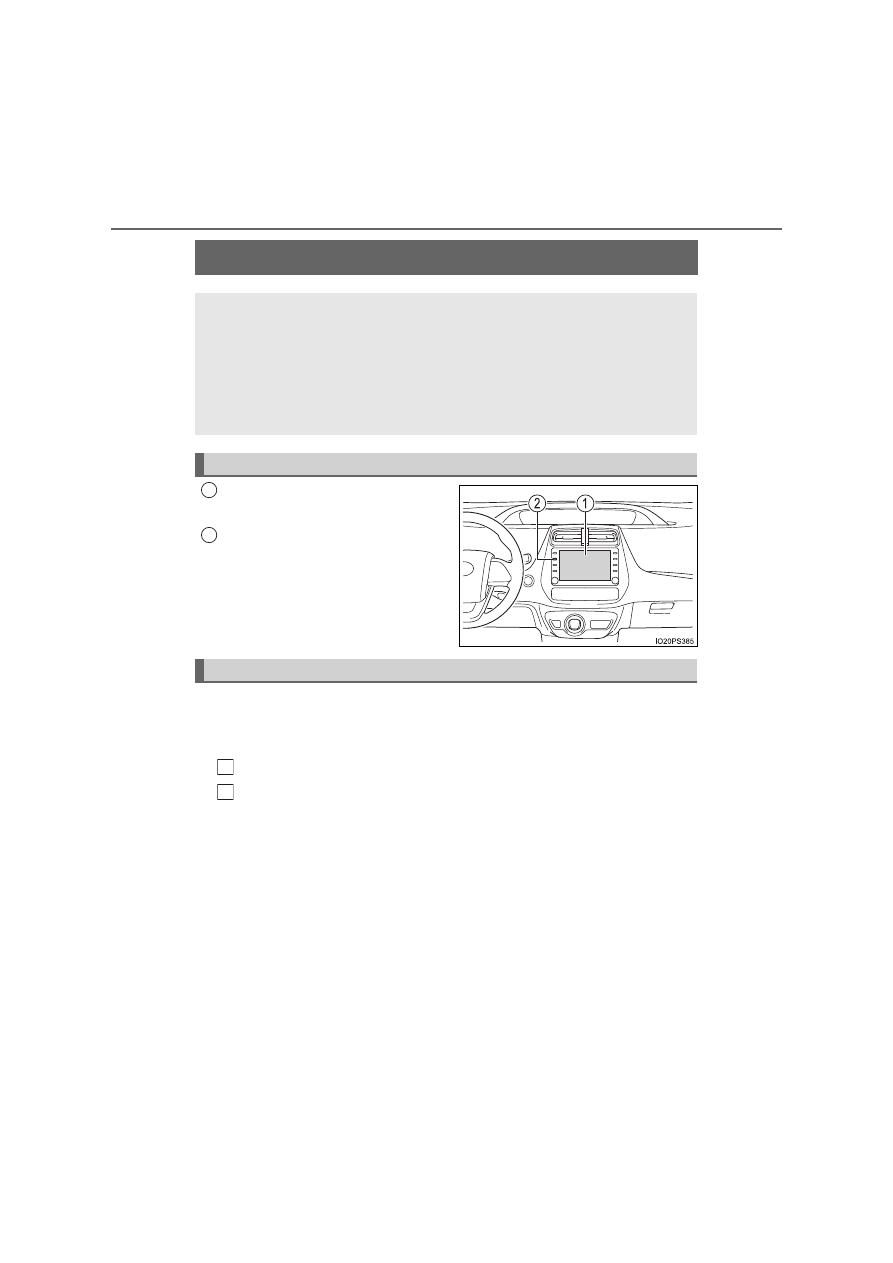

Energy monitor/consumption screen

Navigation or multimedia sys-
tem screen
“MENU” button

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.

■

Display procedure

Press the “MENU” button.
Select “Info” on the “Menu” screen.

If a screen other than “Energy Monitor” is displayed, select
“Energy”.

The state of the hybrid system can be viewed on the navigation
or multimedia system screen.
The energy monitor and fuel consumption screen can also be
displayed on the multi-information display and home screen of
the navigation or multimedia system screen.

For information regarding the multi-information display, refer to P. 127.

System components

Energy monitor

167

2. Instrument cluster

rum

ent cl

ust
e

■

Reading the display

The arrows will appear in accordance with the energy flow. When
there is no energy flow, arrows will not be displayed.
The color of the arrows will change as follows.
Green: When the hybrid battery (traction battery) is regenerated or
charged.
Yellow: When the hybrid battery (traction battery) is in use.
Red: When the gasoline engine is in use.



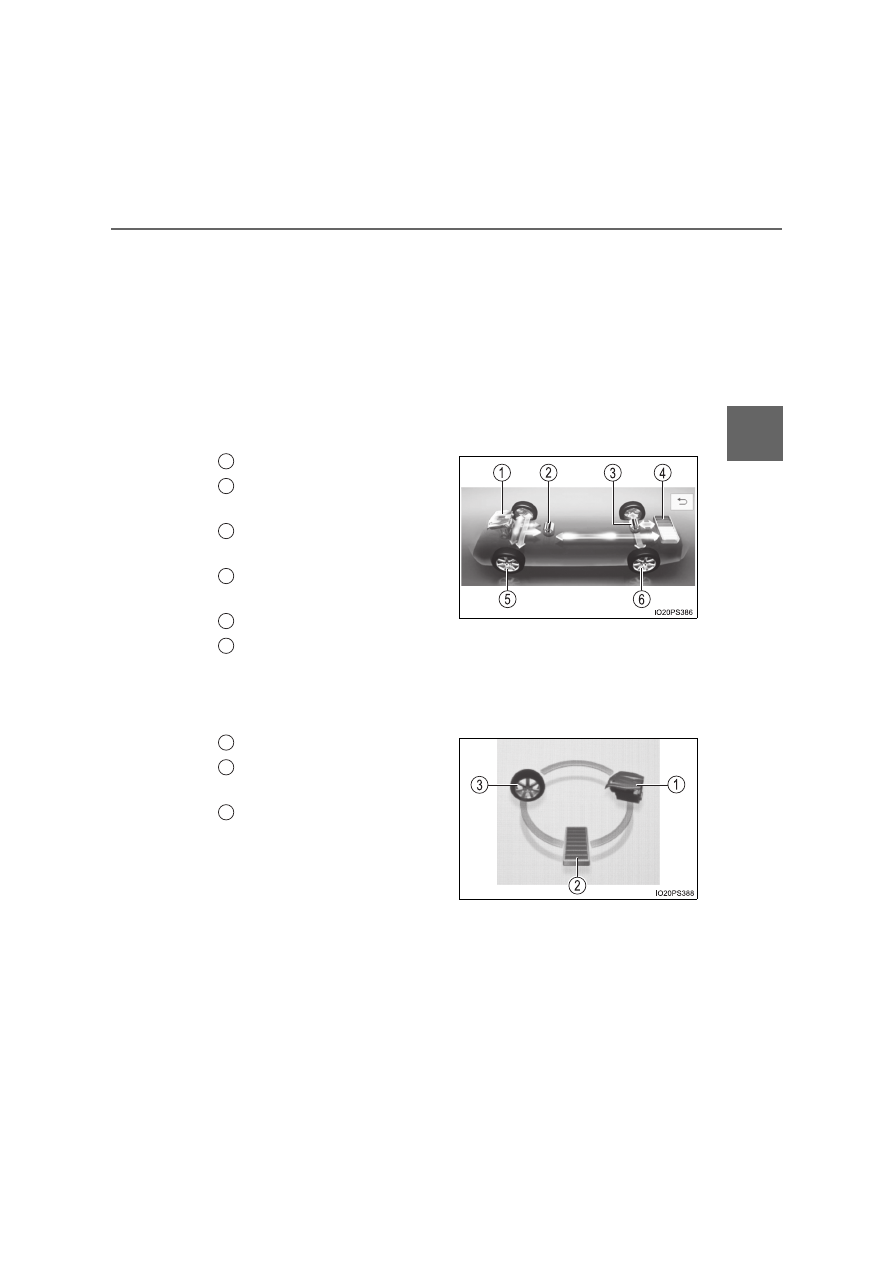

Navigation or multimedia system screen

Gasoline engine
Front electric motor (traction
motor)
Rear electric motor (traction
motor) (AWD models)
Hybrid battery (traction bat-
tery)
Front tires
Rear tires

The image shows all the arrows as an example. The actual display
will vary depending on conditions.



Navigation or multimedia system screen (Home screen)

Gasoline engine
Hybrid battery (traction bat-
tery)
Tires

The image shows all the arrows as an example. The actual display
will vary depending on conditions.

1
2

5
6

1
2

168

2. Instrument cluster

■

Hybrid battery (traction battery) status

■

Remaining charge amount warning of hybrid battery (traction battery)

●

The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift position is in N, or the remaining
charge amount drops below a certain level. If the remaining charge amount
drops further, the buzzer sounds continuously.

●

When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.

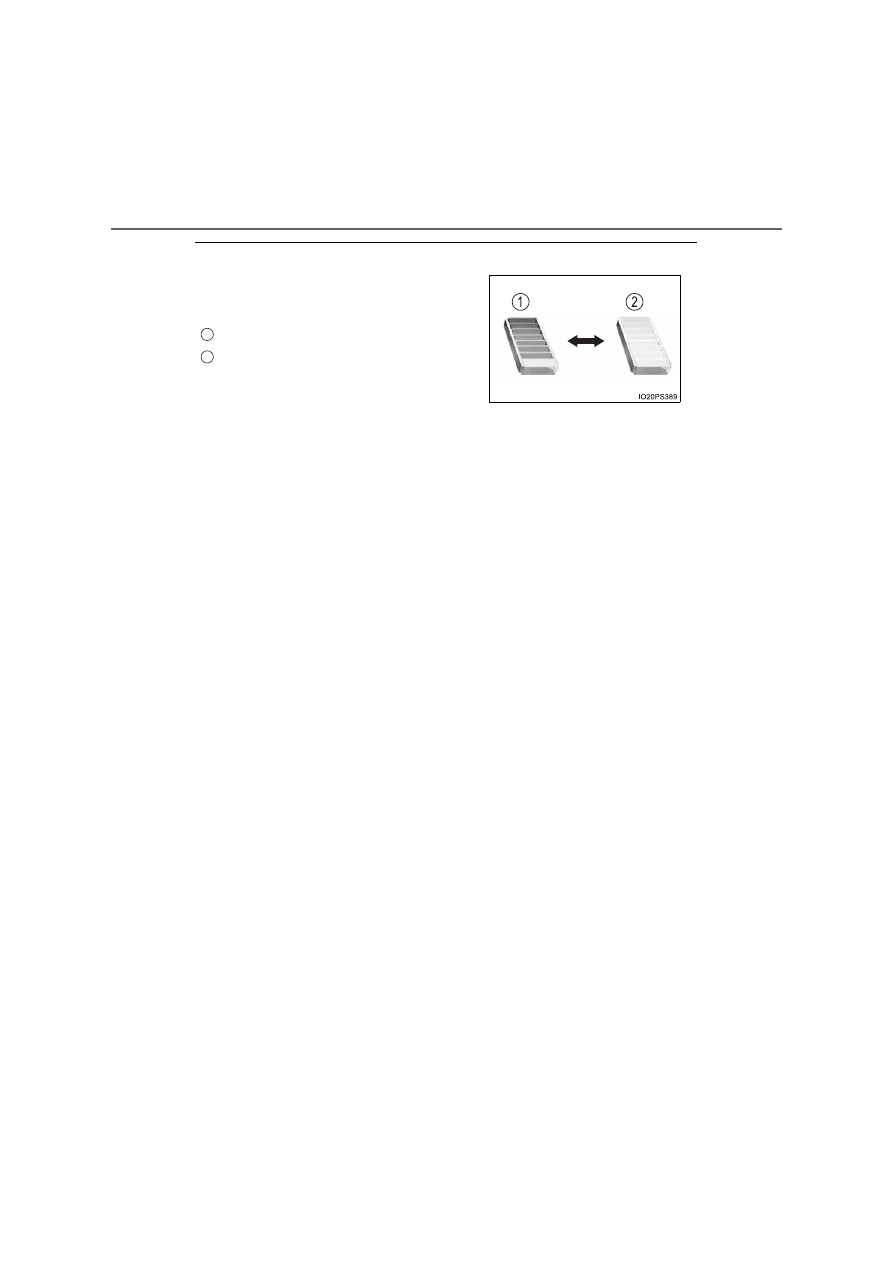

The display changes in 8 levels according
to the remaining charge amount of the
hybrid battery (traction battery).

Low
High

169

2. Instrument cluster

rum

ent cl

ust
e

■

Display procedure

Press the “MENU” button.
Select “Info” on the “Menu” screen.

■

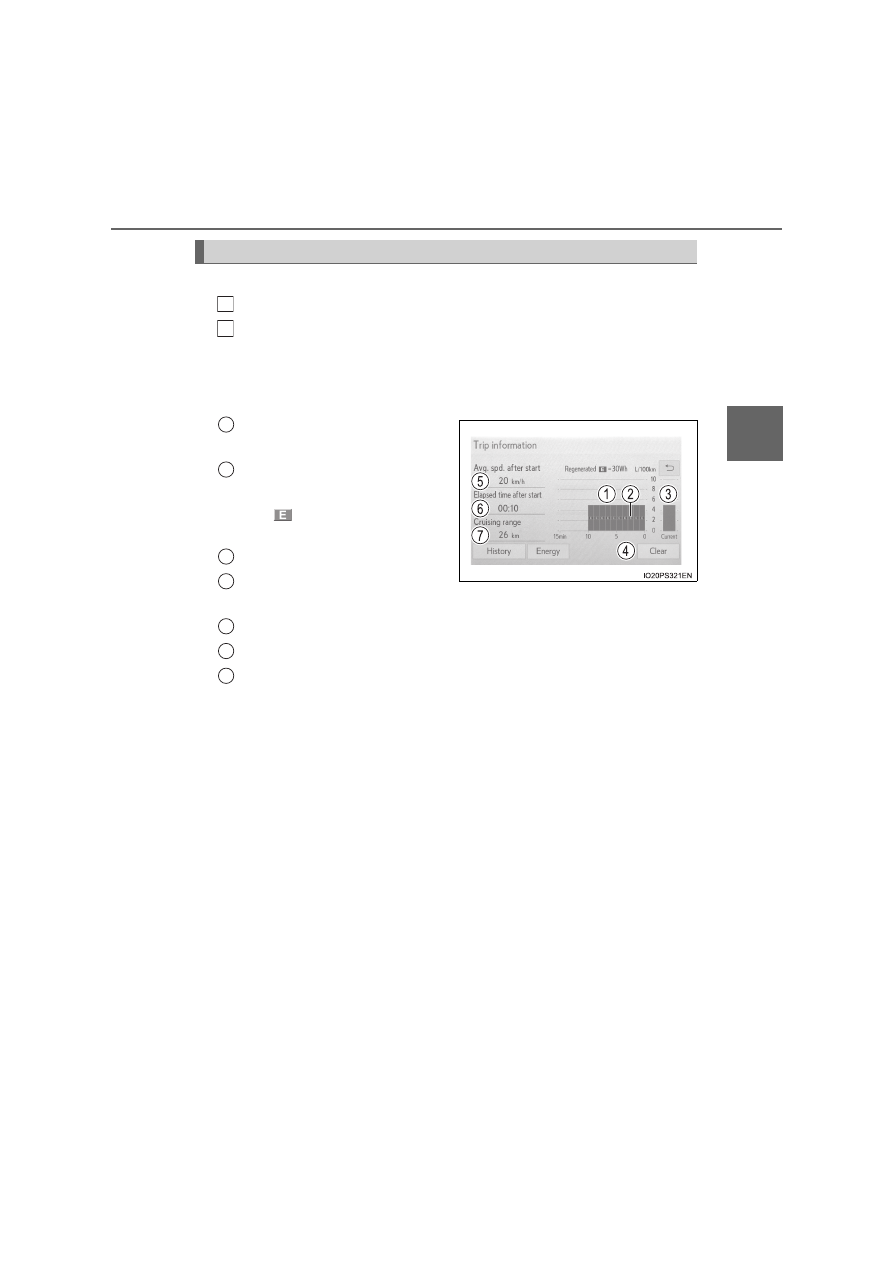

Trip information

If a screen other than “Trip information” is displayed, select “Trip
information”.

Fuel consumption in the past
15 minutes
Regenerated energy in the
past 15 minutes

One

symbol indicates 30 Wh.

Up to 5 symbols are shown.

Current fuel consumption
Resetting the consumption
data
Average vehicle speed since the hybrid system was started
Elapsed time since the hybrid system was started
Cruising range

Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode.
Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual
conditions.

Consumption screen

3
4

5
6
7

170

2. Instrument cluster

■

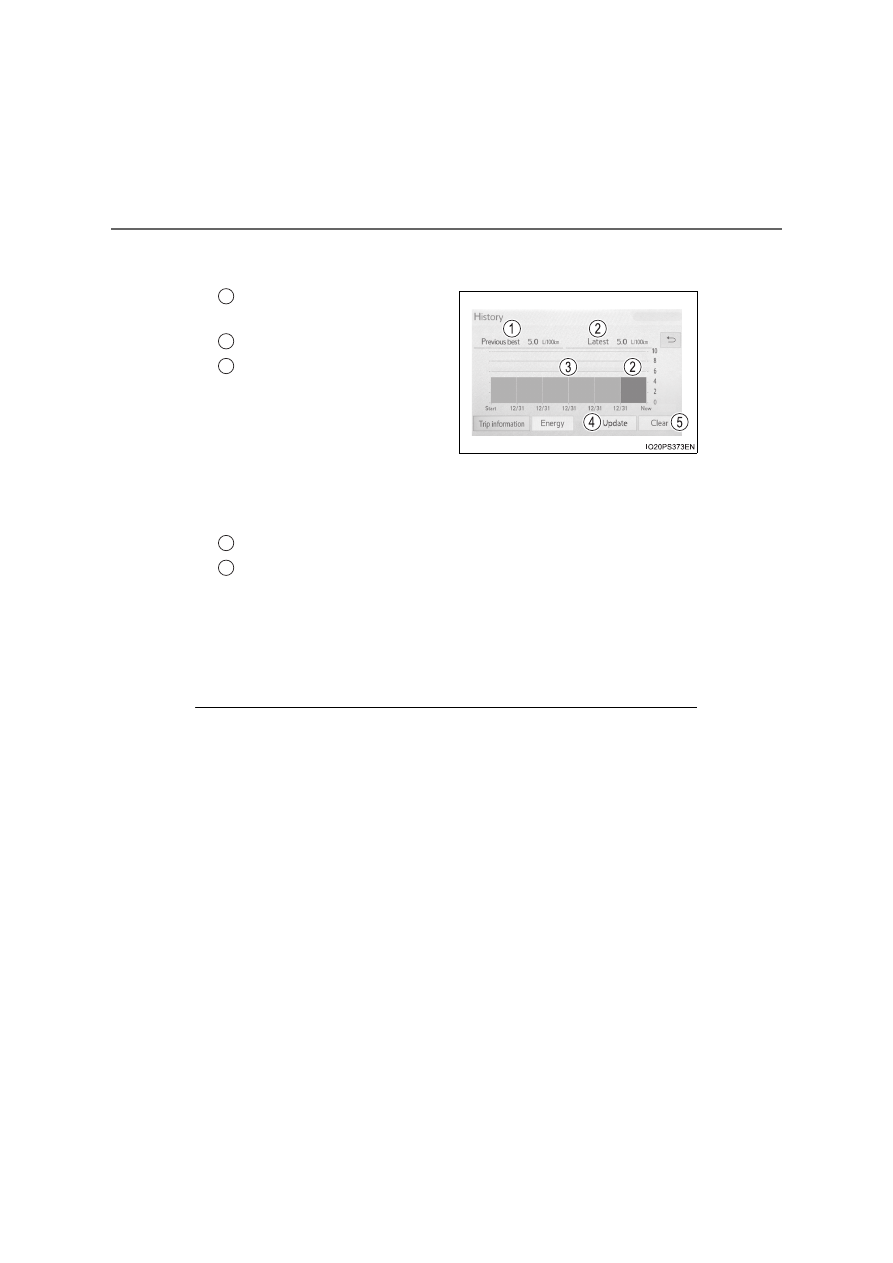

History

If a screen other than “History” is displayed, select “History”.

Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record

• Vehicles without navigation

function:
Displays the daily average fuel
consumption. (Instead of the
date, “Trip 1” through “Trip 5” will
be displayed.)

• Vehicles with navigation function:

Displays the daily average fuel consumption.

Updating the latest fuel consumption data
Resetting the history data

The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual
conditions.

■

Updating the history data

Update the latest fuel consumption by selecting “Update” to measure the cur-
rent fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

■

Home screen

The average fuel consumption and distance to empty can be displayed on the
home screen of the navigation or multimedia system screen.
For details of the home screen, refer to the “Navigation and multimedia sys-
tem Owner’s manual”.

2
3

4
5

171

Operation of

each component

3-1. Key information

Keys...................................172

3-2. Opening, closing and

locking the doors

Side doors..........................177
Back door...........................182
Smart entry & start

system .............................187

3-3. Adjusting the seats

Front seats.........................194
Rear seats .........................196
Head restraints ..................199

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ...................203
Inside rear view mirror .......205
Outside rear view

mirrors .............................207

3-5. Opening and closing the

windows and moon roof

Power windows..................210
Moon roof...........................215

172

3-1. Key information

Keys

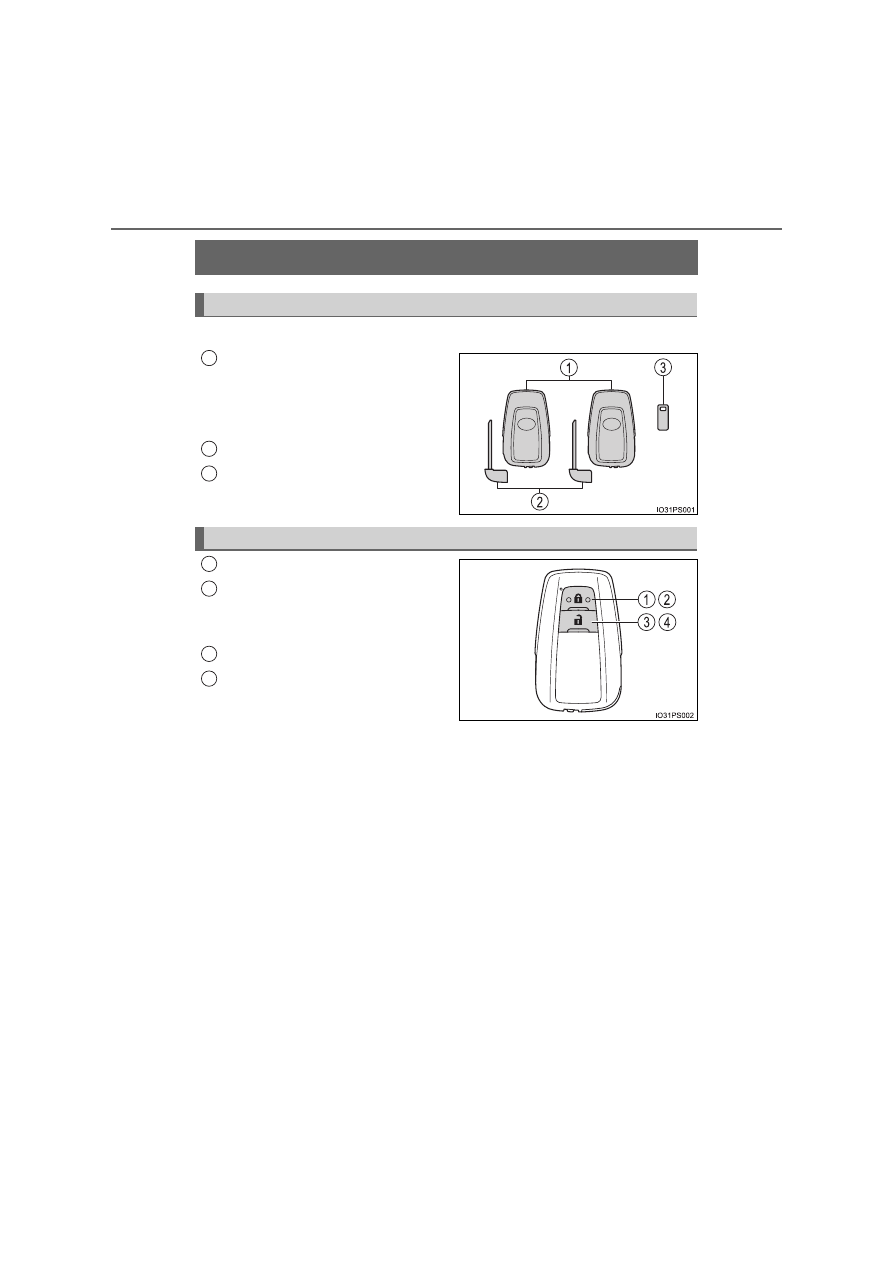

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart entry &

start system (



P. 187)

• Operating the wireless remote

control function

Mechanical keys
Key number plate

Locks all the doors (



P. 177)

Closes the side windows and
moon roof (if equipped)

(



P. 177)

Unlocks all the doors (



P. 177)

Opens the side windows and
moon roof (if equipped)

(



P. 177)

: These settings must be customized at any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

The keys

2
3

Wireless remote control

1
2

3
4

173

3-1. Key information

ati

on
of e
a

pon
ent

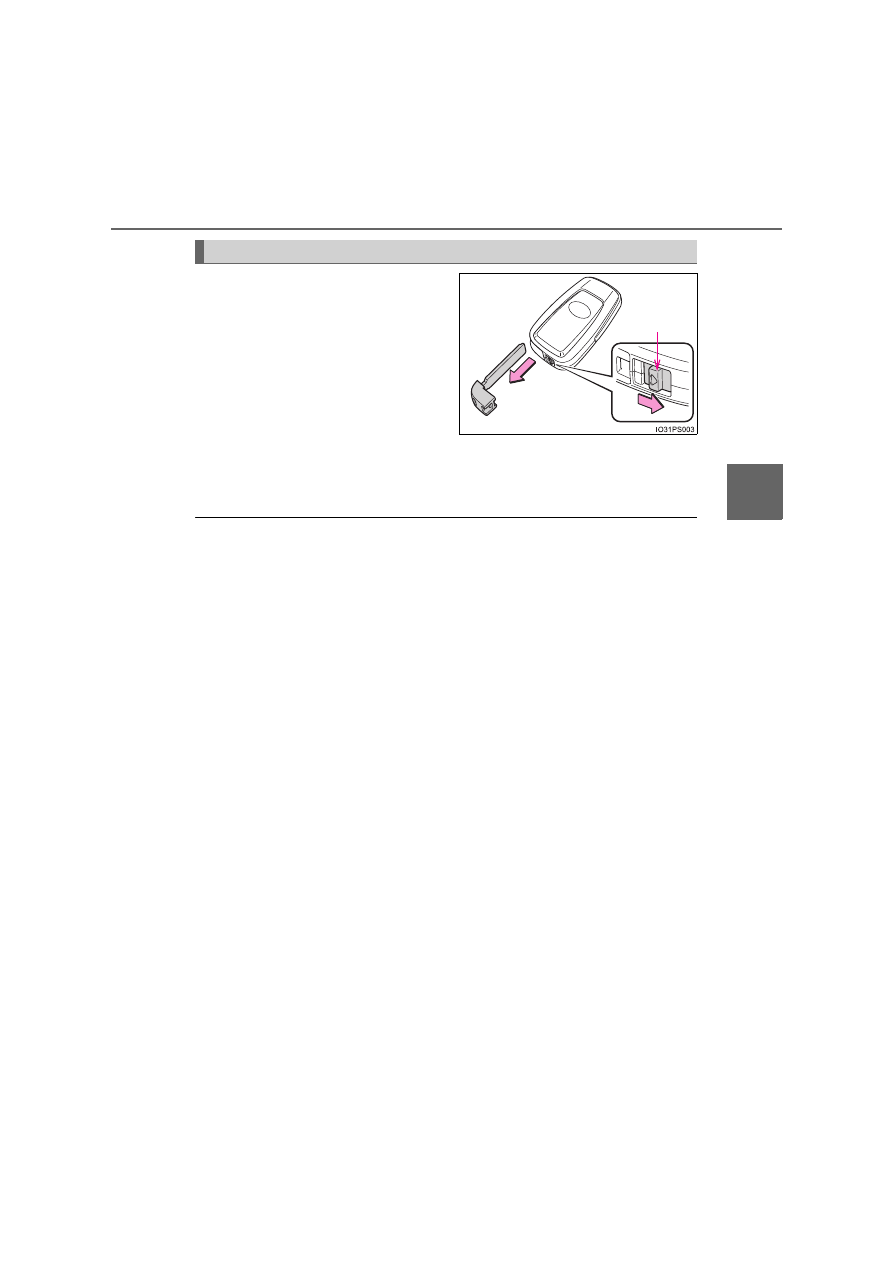

To take out the mechanical key,
slide the release lever and take
the key out.

The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (



P. 636)

■

If you lose your mechanical keys

New genuine mechanical keys can be made by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer using another mechani-
cal key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.

Using the mechanical key

Release
lever

174

3-1. Key information

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin and a message
will be displayed on the multi-information display when the hybrid system
stops.

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (



P. 554)

• The smart entry & start system or the wireless remote control does not

operate.

• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
You can replace the battery by yourself (



P. 554). However, as there is a

danger that the electronic key may be damaged, it is recommended that
replacement is carried out by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.

●

To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Table lamps
• Induction cookers

Toyota Prius (2023 year). Manual in english - page 10
