7-3. Do-it-yourself maintenance

■

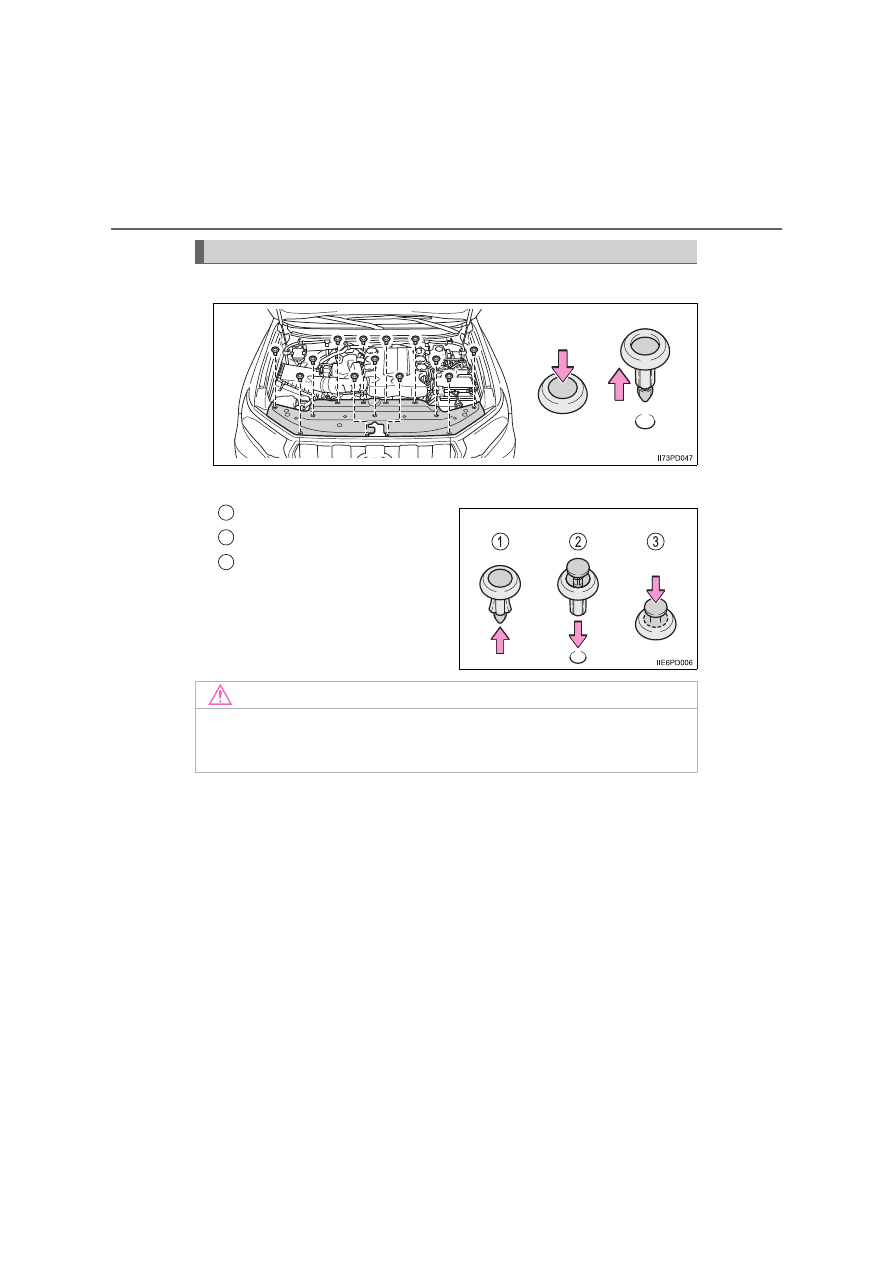

Removing the engine compartment cover

■

Installing the clips

Push up center portion
Insert
Press

Engine compartment cover

1
2
3

NOTICE

■

After installing an engine compartment cover

Make sure the cover is securely installed in its original position.

579

7-3. Do-it-yourself maintenance

nan
ce and

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

Checking the engine oil

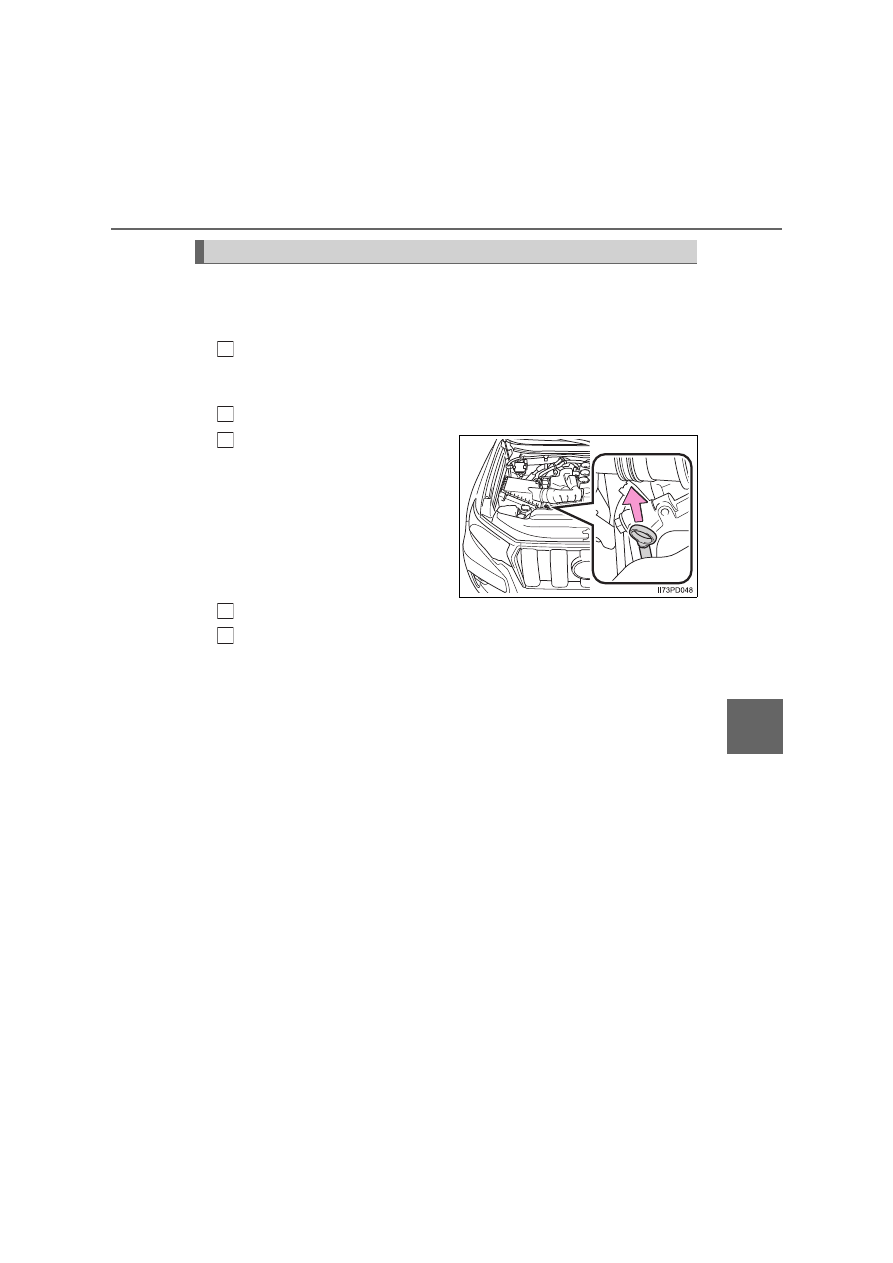

Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Remove the sand and dust from around the dipstick.

Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.

Engine oil

580

7-3. Do-it-yourself maintenance

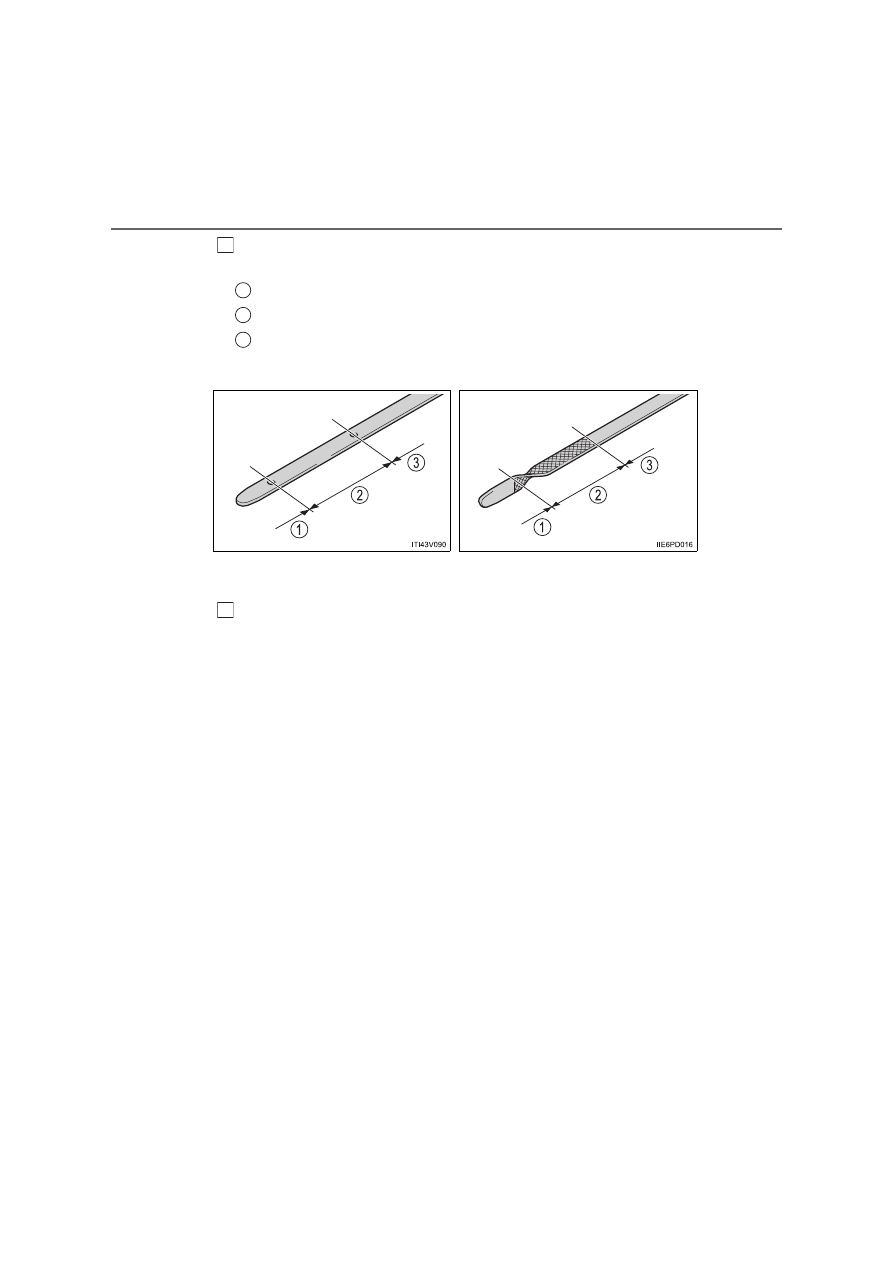

Holding a rag under the end, pull the dipstick out and check the
oil level.

Low
Normal
Excessive

The shape of the dipstick may differ depending on the type of vehicle or
engine.

Wipe the dipstick and reinsert it fully.

1
2
3



Type A



Type B

581

7-3. Do-it-yourself maintenance

nan
ce and

■

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as already
in the engine.

Make sure to check the oil type and prepare the items needed
before adding oil.

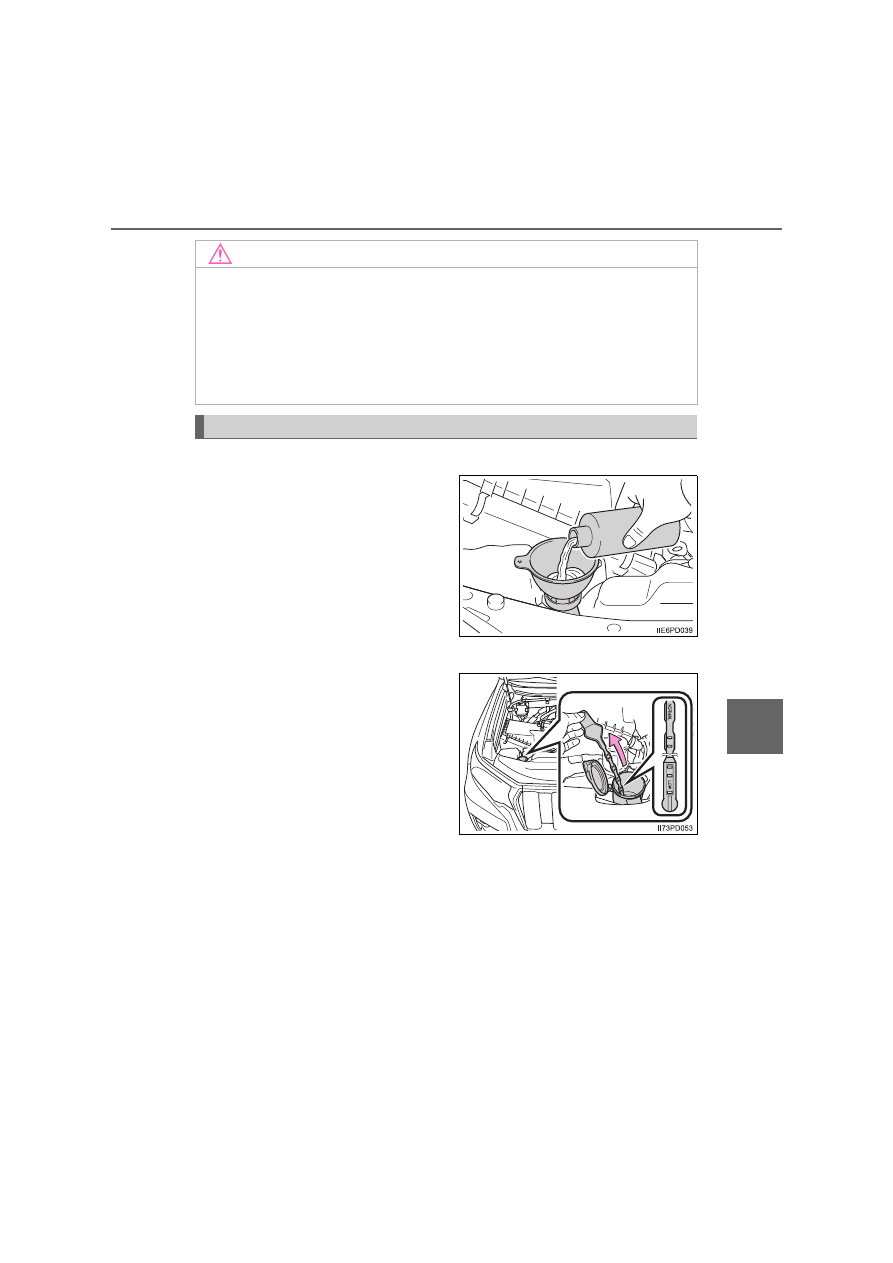

Remove the sand and dust from around the oil filler cap.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

Engine oil selection



P. 745

Oil quantity
(Low



Full)

1GR-FE engine

1.7 L (1.8 qt., 1.5 Imp.qt.)

2TR-FE engine

1.5 L (1.6 qt., 1.3 Imp.qt.)

1GD-FTV engine 1.2 L (1.3 qt., 1.1 Imp.qt.)

Items

Clean funnel

582

7-3. Do-it-yourself maintenance

■

Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

■

After changing the engine oil (1GD-FTV engine only)

The oil maintenance data should be reset. Perform the following procedures:



Vehicles with the multi-information display type A
Switch the display to the trip meter “A” when the engine is running.
(



P. 131)

Turn the engine switch off.
While pressing the “ODO TRIP” button (



P. 131), set the engine switch to

IGNITION ON mode (but do not start the engine because otherwise the
reset mode will be canceled). Continue to press and hold the button until
the multi-information display indicates that the reset is complete.



Vehicles with the multi-information display type B
Use the meter control switches to select

on the multi-information dis-

play.
Choose the “Oil Maintenance” using

, and then press

Push

to Reset Oil Maintenance Data.

To stop the selection, press

to return to the previous screen.

WARNING

■

Used engine oil

●

Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer, service station or auto parts store for information
concerning recycling or disposal.

●

Do not leave used engine oil within the reach of children.

583

7-3. Do-it-yourself maintenance

nan
ce and

■

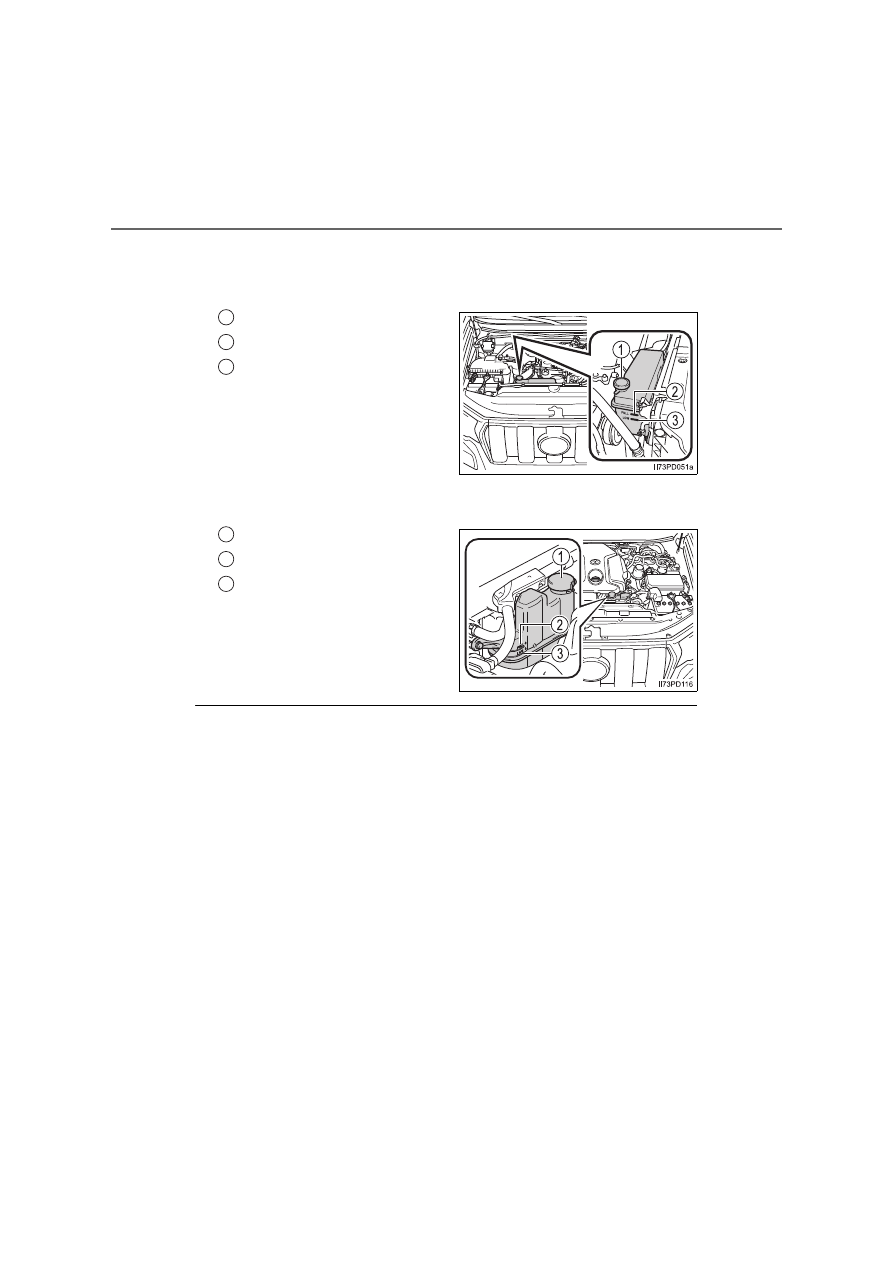

Engine coolant reservoir



Gasoline engine

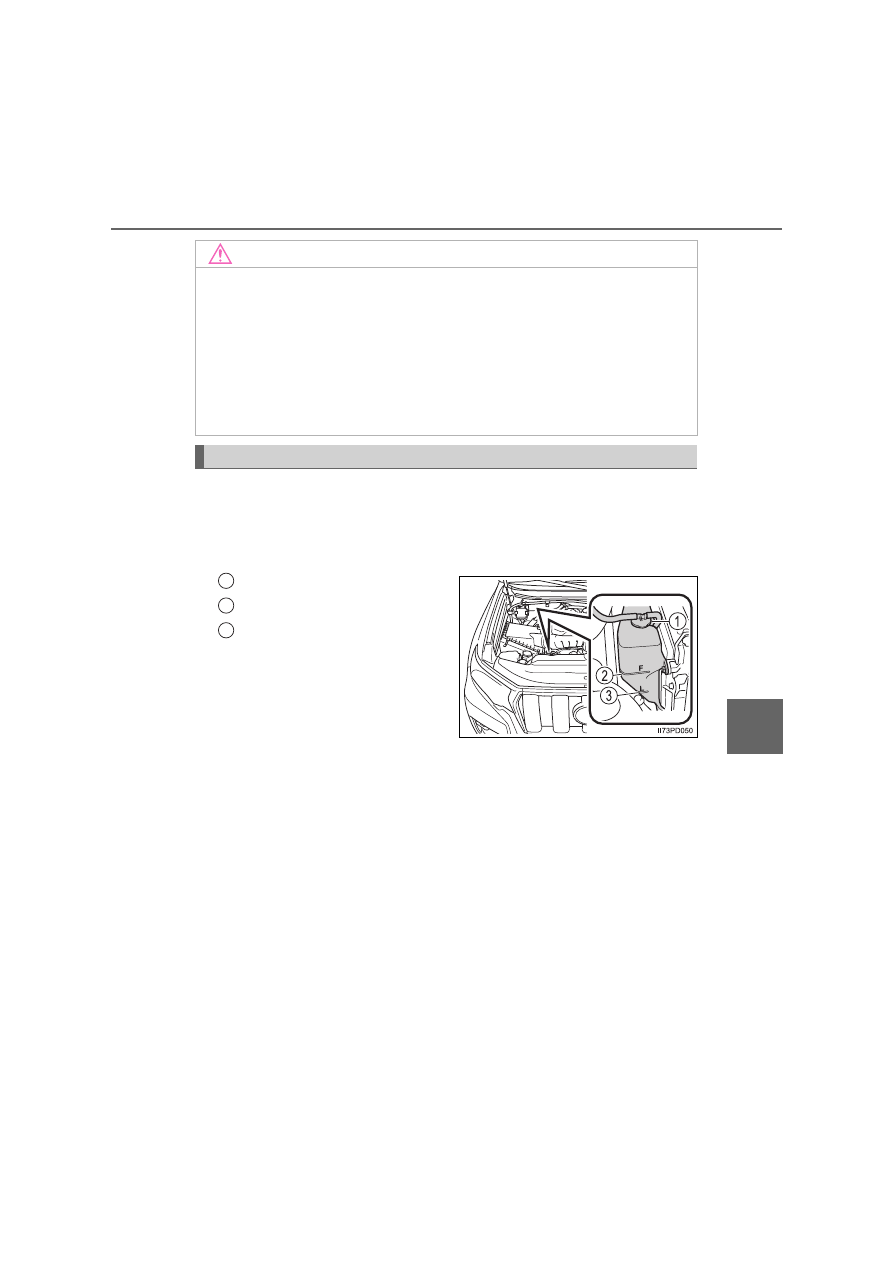

The coolant level is satisfactory if it is between the “F” and “L” lines
on the reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If the level is on or below the “L”
line, add coolant up to the “F”
line.

NOTICE

■

To prevent serious engine damage

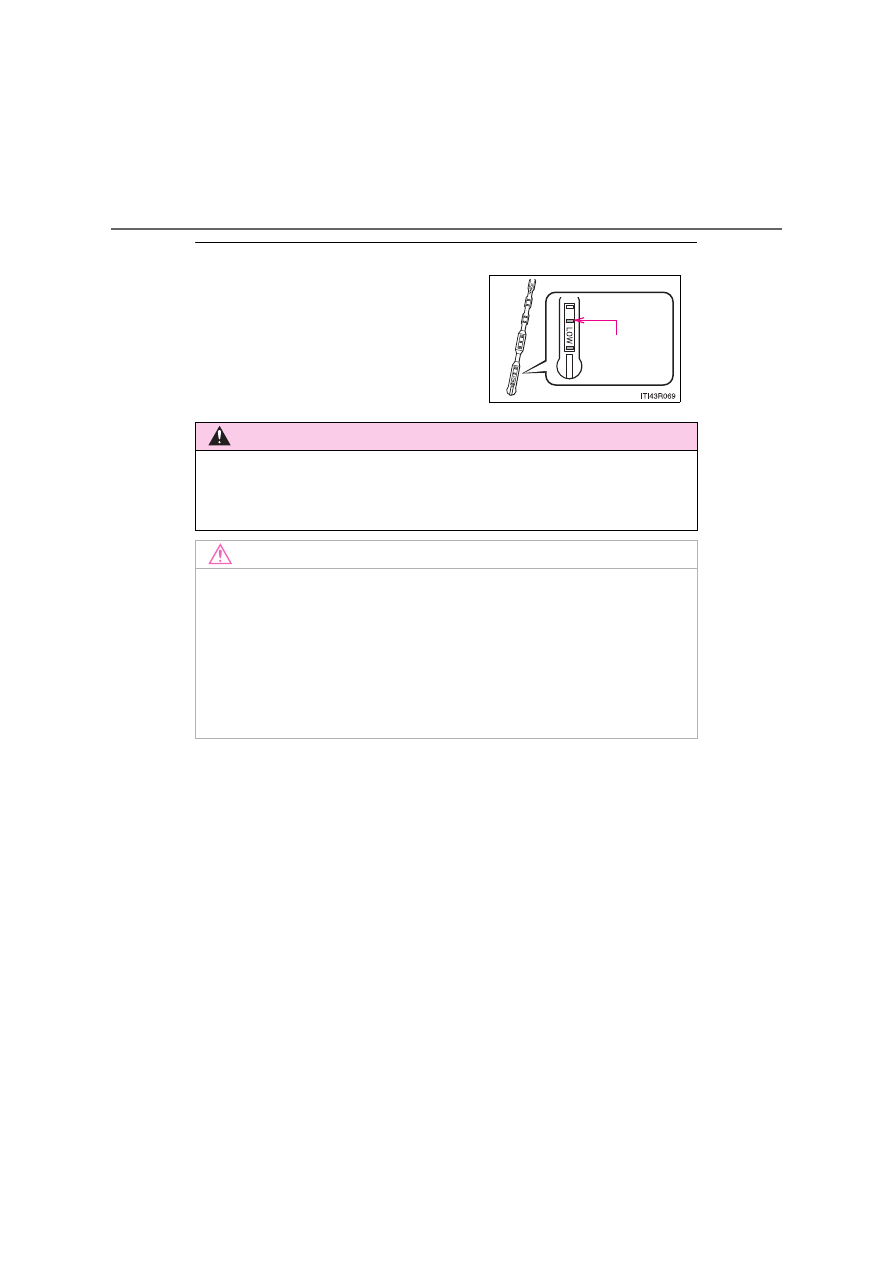

Check the oil level on regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

Coolant

1
2
3

584

7-3. Do-it-yourself maintenance



Diesel engine

The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir when the engine is cold.

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.

■

Intercooler coolant reservoir (1GD-FTV engine with water-
cooled intercooler)

Reservoir cap
“FULL”
“LOW”

If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.

■

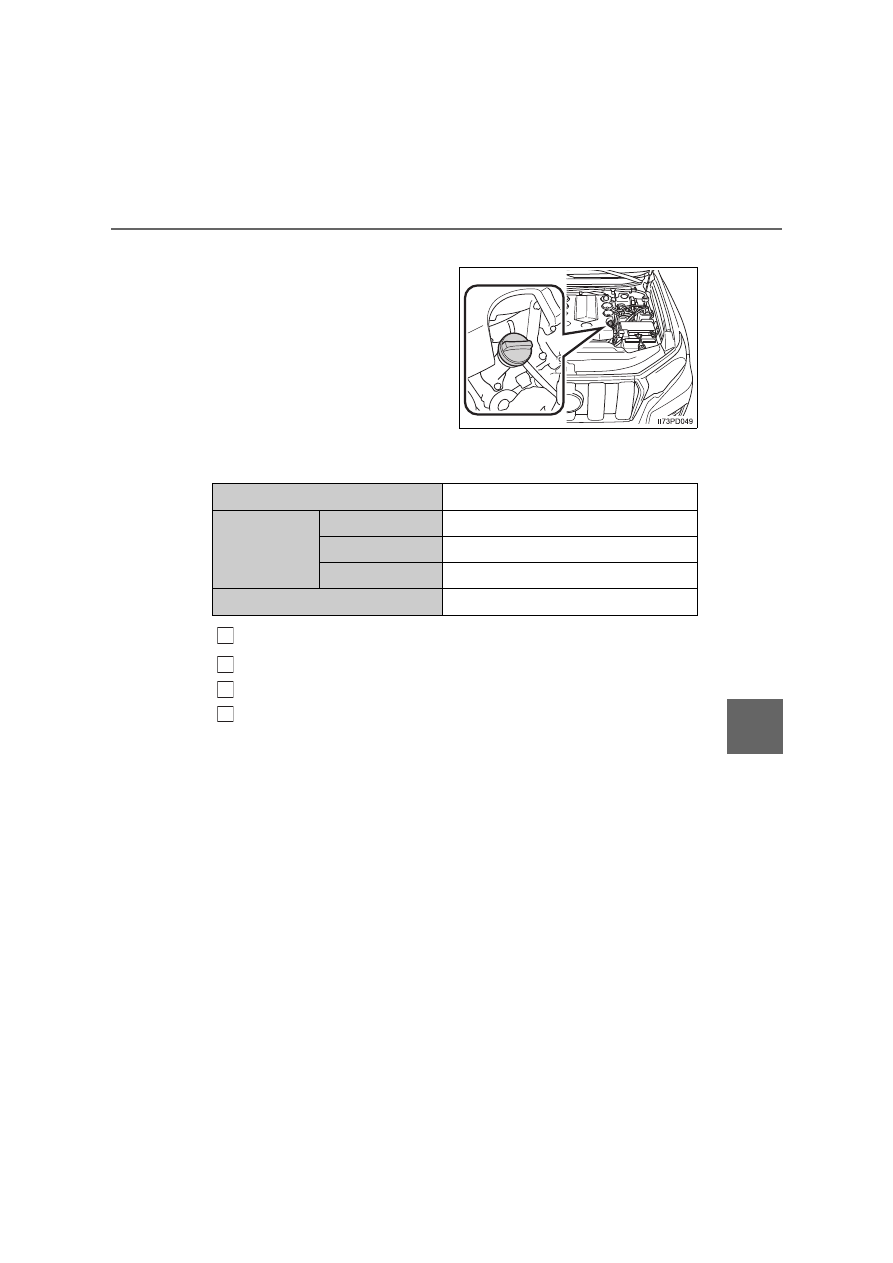

Coolant selection

Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50 % coolant and 50 %
deionized water. (Enabled: -35



C [-31



F])

For more details about coolant, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

■

If the coolant level drops within a short time of replenishing

Visually check the radiator, hoses, engine coolant reservoir cap, radiator cap
(if equipped), intercooler coolant reservoir cap (if equipped), drain cock and
water pump. If you cannot find a leak, have any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer test the caps and check for
leaks in the cooling system.

1
2
3

585

7-3. Do-it-yourself maintenance

nan
ce and

Check the radiator, condenser and intercooler (if equipped) and clear
any foreign objects. If any of the above parts are extremely dirty or
you are not sure of their condition, have your vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

WARNING

■

When the engine is hot

Do not remove the radiator cap (if equipped), or the coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to prevent it from damage to parts or paint.

Radiator, condenser and intercooler

WARNING

■

When the engine is hot

Do not touch the radiator, condenser or intercooler as they may be hot and
cause serious injuries, such as burns.

586

7-3. Do-it-yourself maintenance

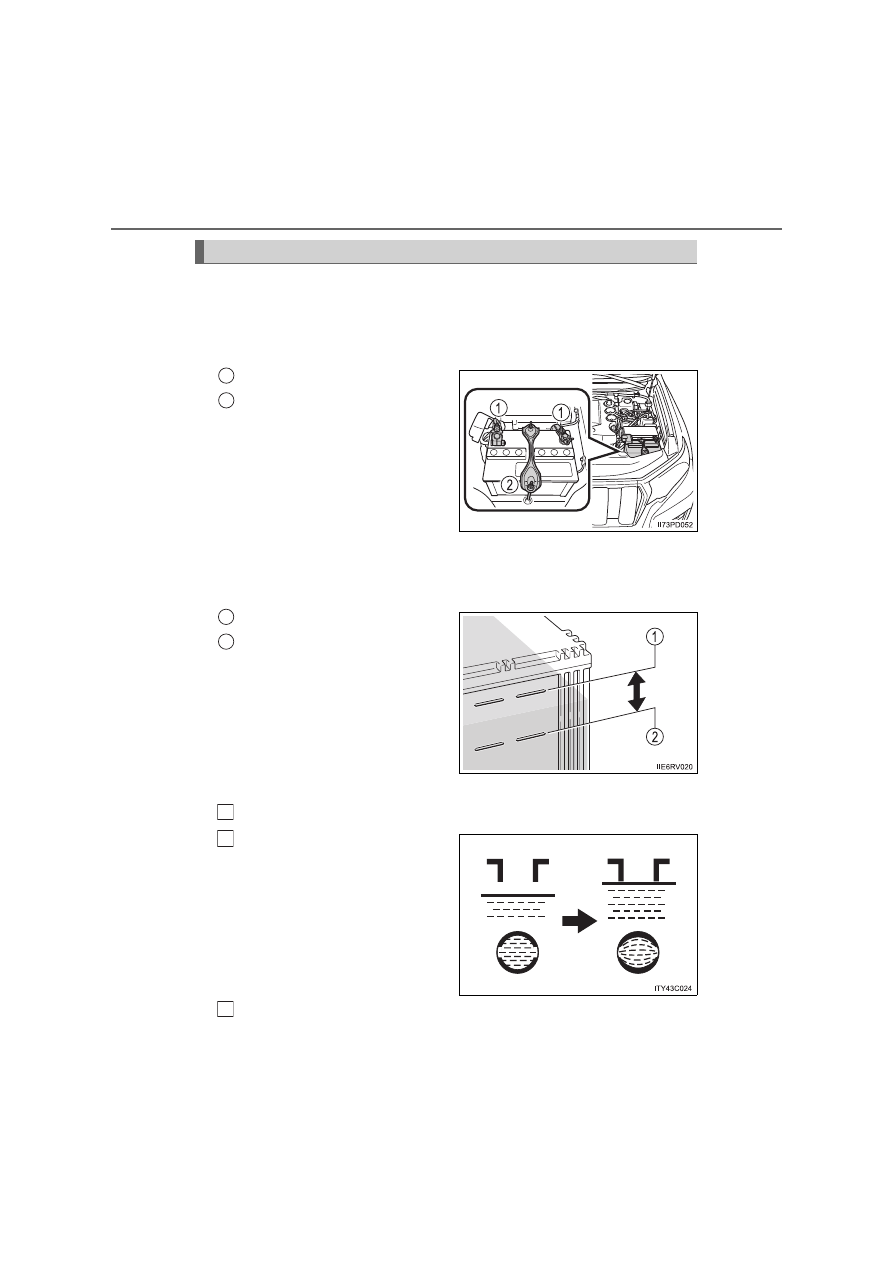

Check the battery as follows.

■

Battery exterior

Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.

Terminals
Hold-down clamp

■

Checking battery fluid

Check that the level is between the “UPPER LEVEL” and “LOWER
LEVEL” lines.

“UPPER LEVEL” line
“LOWER LEVEL” line

If the fluid level is at or below the
“LOWER LEVEL” line, add dis-
tilled water.

■

Adding distilled water

Remove the vent plug.

Add distilled water.

If the “UPPER LEVEL” line can-
not be seen, check the fluid
level by looking directly at the
cell.

Put the vent plug back on and close securely.

Battery

1
2

Low

O.K.

587

7-3. Do-it-yourself maintenance

nan
ce and

■

Handling of the sub battery (if equipped)

●

Vehicles with a sub battery have the same 12-volt specification as vehicles
without a sub battery.

●

When replacing the sub battery, replace it with a battery that is the same
brand and specification as the previous one, and replace the sub battery at
the same time as the main battery.

●

When disconnecting, be sure to disconnect both negative terminals on the
two batteries.

■

Before recharging

When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:

●

If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.

●

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.

■

After recharging/reconnecting the battery (vehicles with a smart entry &
start system)

Vehicles with the steering lock system: The engine may not start. Follow the
procedure below to initialize the system.

Shift the shift lever to P (automatic transmission) or depress the brake
pedal with the shift lever in N (manual transmission).
Open and close any of the doors.
Restart the engine.

●

Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.

●

The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnect the battery. Take extra care when connecting the battery
if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

588

7-3. Do-it-yourself maintenance

WARNING

■

Chemicals in the battery

Batteries contain poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near
battery:

●

Do not cause sparks by touching the battery terminals with tools.

●

Do not smoke or light a match near the battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the battery.

●

Keep children away from the battery.

■

Where to safely charge the battery

Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is not sufficient ventilation.

■

Emergency measures regarding electrolyte

●

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

●

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

●

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

●

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

589

7-3. Do-it-yourself maintenance

nan
ce and

Add washer fluid in any of the following situations:

●

A washer does not work.

●

The low washer fluid warning
light comes on (vehicles with
multi-information display type
A:



P. 662)

●

“Windshield Washer Fluid Low”
appears on the multi-informa-
tion display (vehicles with multi-
information display type B)

●

The washer fluid level is at
“LOW”

NOTICE

■

When recharging the battery

Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.

■

When adding distilled water

Avoid overfilling. Water spilled during battery recharging may cause corro-
sion.

Washer fluid

590

7-3. Do-it-yourself maintenance

■

Using the gauge (if equipped)

The washer fluid level is checked by
observing the position of the level on the
liquid covered holes in the gauge.
If the level falls below the second hole
from the bottom (“LOW” position), refill the
washer fluid.

WARNING

■

When adding washer fluid

Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.

NOTICE

■

Do not use any fluid other than washer fluid

Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as
damaging the pump leading to problems of washer fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

Current
fluid level

591

7-3. Do-it-yourself maintenance

nan
ce and

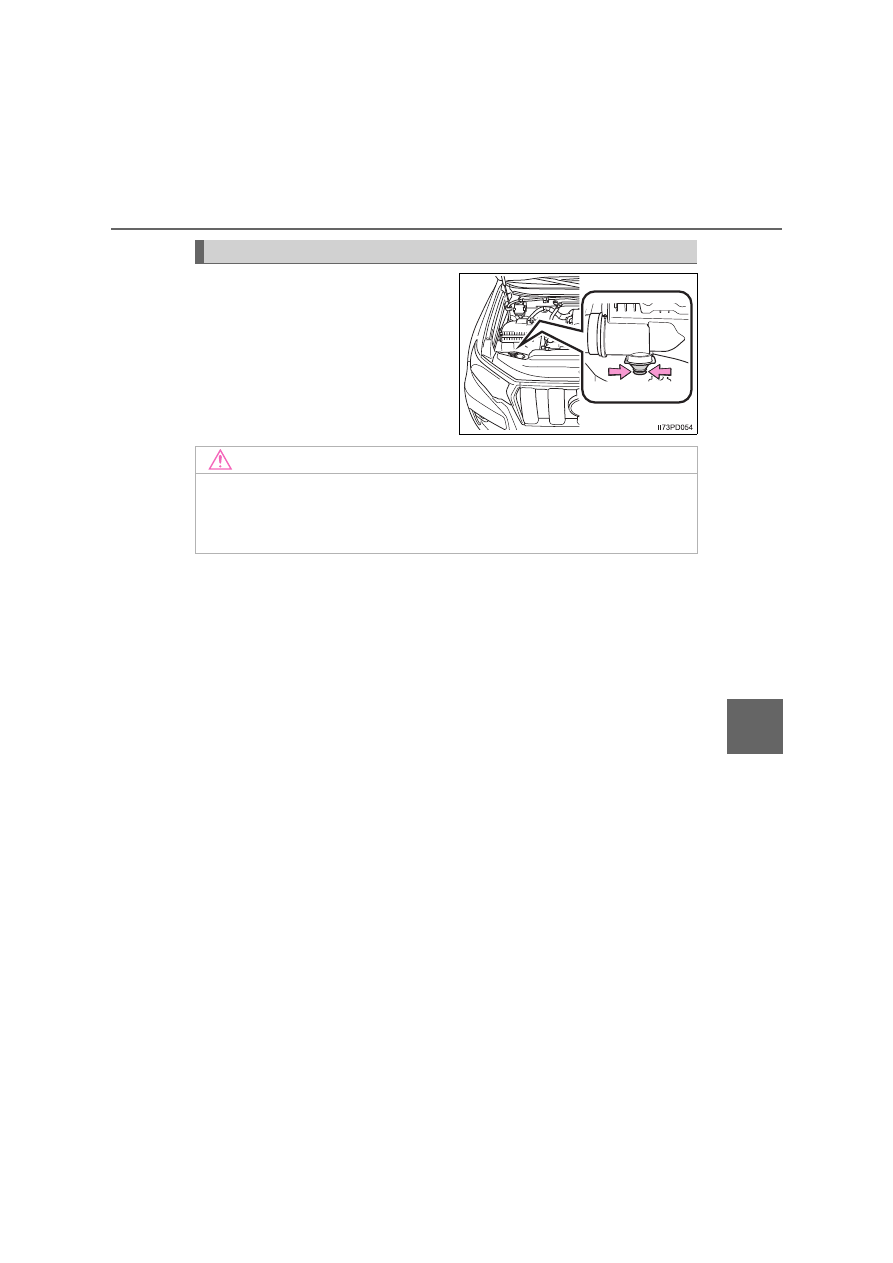

Squeeze the rubber cap to
remove the dust if the discharging
dust valve is dirty.

Shape of the valve differs slightly in
accordance with the engine.

Discharging dust valve (if equipped)

NOTICE

■

To prevent damaging the engine

Do not drive with the discharging dust valve removed. Doing so causes
excessive engine wear.

592

7-3. Do-it-yourself maintenance

The water in the fuel filter must be drained immediately if the following
symptom occurs:



Vehicles with the multi-information display type A

The fuel system warning light flashes and buzzer sounds or the fuel
filter warning light comes on.



Vehicles with the multi-information display type B

When the warning message “Drain Water from Fuel Filter” appears on
the instrument cluster and buzzer

sounds.

: On some models

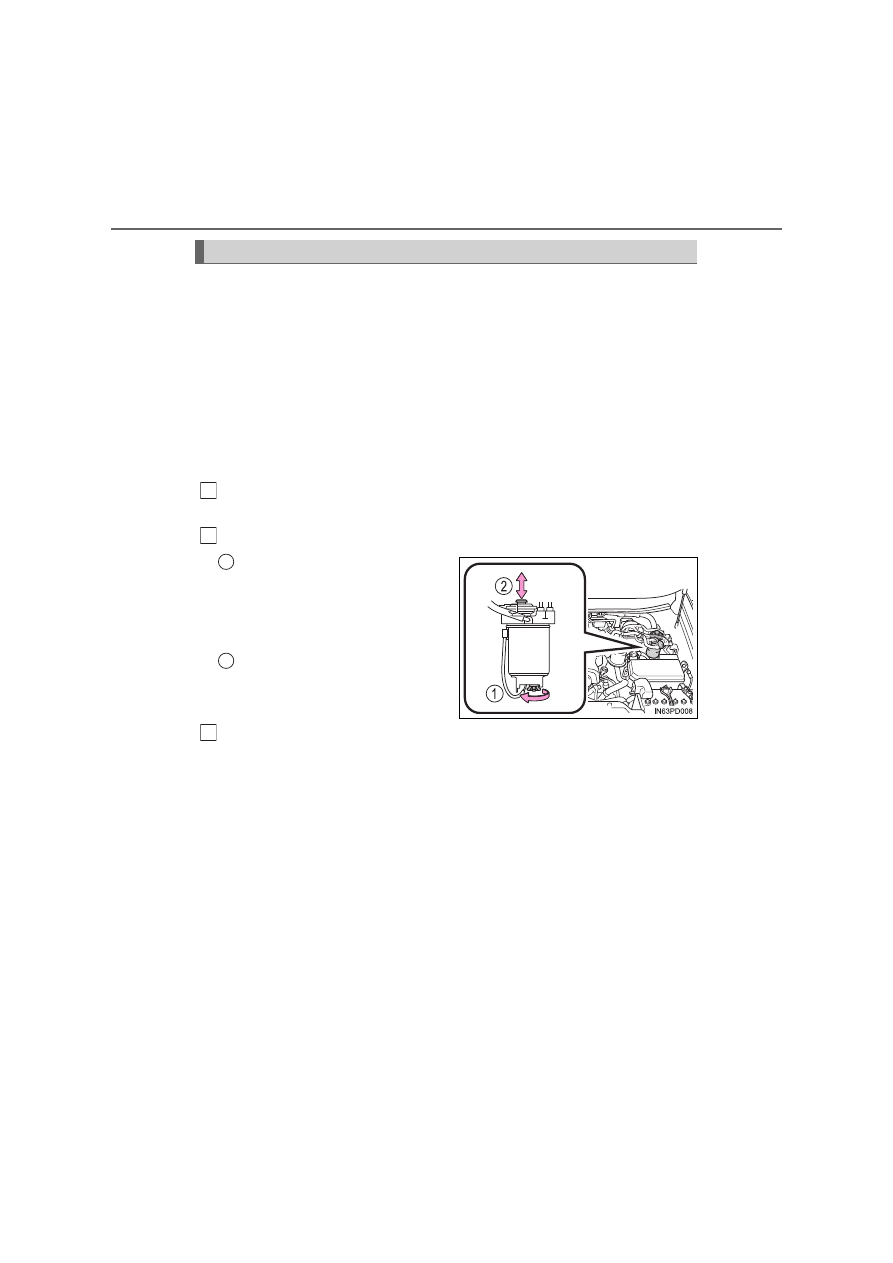

Remove the drain plug from the clamp and place a small tray to
catch the water.
Perform the draining as shown in the illustration.

Turn the drain plug about 2-
2-1/2 turns.

Loosening more than this will
cause water oozing from around
the drain plug.

Operate the priming pump
until the fuel begins to run
out.

After draining, retighten the drain plug. Do not use a tool.

Draining the fuel filter water (diesel engine only)

593

7-3. Do-it-yourself maintenance

nan
ce and

AdBlue™ is used to reduce the amount of nitrogen oxides in exhaust
gas. Make sure to observe the following precautions regarding
AdBlue™.

●

AdBlue™ is consumed in the process of driving.

●

When AdBlue™ is depleted, the engine cannot be restarted.

●

When AdBlue™ needs to be refilled, have it refilled at any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

It may be a criminal offence to use a vehicle that does not consume
any reagent if it is required for the reduction of emissions.

■

Possible driving range

The amount of AdBlue™ that is consumed while driving differs
according to the driving conditions and driving environment. When
the amount of AdBlue™ that is consumed increases, the possible
driving range until it is necessary to refill AdBlue™ decreases.

: When the vehicle is used at high elevations and in low temperatures, the

amount of AdBlue™ that is consumed increases.

: During normal driving, 1 L (1.1 qt., 0.9 Imp.qt.) of AdBlue™ is consumed

approximately every 700 km (435 miles). Also, after a full refill, the vehi-
cle can be driven for approximately 8000 km (4971 miles) before all
AdBlue™ is depleted.

AdBlue™ (if equipped)

Possible driving range

Short

Long

[High-load driving]

[Normal driving]

[Low-load driving]

• When your vehicle is

towing a trailer

• When firmly depress-

ing the accelerator
pedal

• When driving on long

uphill slopes

• When the Diesel Par-

ticulate Filter system
is operating

• When driving short

distances

• When in traffic con-

gestion

Content .. 34 35 36 37 ..
