Toyota Land Cruiser Prado (2023 year). Manual in english

1-2. Child safety

Fo
r s

ty a
n

d se
cu

rity

■

Recommended child restraint systems information

The child restraint systems mentioned in the table may not be avail-
able outside the EU countries and United Kingdom.

Recommended

child restraint sys-

tem

Size

Direction of travel

Fixation

fixed with

lower

anchorages

fixed

with a

seat belt

MAXI COSI CAB-

RIOFIX

Up to 13 kg

(Up to 28 lb.)

Rearward-facing

use only

Not appli-

cable

Yes

TOYOTA MAXI

PLUS

15 to 36kg

(34 to 79 lb.)

Forward-facing

use only

Yes

1-2. Child safety



5-door models (5-seat models with double fold function second
seats)

■

Compatibility of each seating position with child restraint sys-
tems

Left-hand drive vehicles:

Right-hand drive vehicles:

1, 2, 3

2, 3

Deactivation of front passenger airbag.

Activation of front passenger airbag.
Never use a rearward-facing child restraint system on the front
passenger seat when the airbag manual on-off switch is on.

1-2. Child safety

Fo
r s

ty a
n

d se
cu

rity

: Move the front seat fully rearward. If the passenger seat height can be

adjusted, move it to the upper most position.

: Adjust the seatback angle to the

most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.

: If the head restraint interferes with your child restraint system, and the

head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.

: Top tether anchorage for center seat only.

Suitable for “universal” category child restraint system fixed with
the seat belt.

Suitable for forward-facing “universal” category child restraint sys-
tem fixed with the seat belt.

Suitable for child restraint systems given on recommended child
restraint systems information (



P. 85).

Suitable for ISOFIX child restraint system.

Includes a top tether anchorage point.

1-2. Child safety

When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next
to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your shoul-
der and low on your hips. If it does not, or if it interferes with the
child restraint, move to a different position.
Failure to do so may result in death or serious injury.

●

When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint
system.

●

When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interference.

●

If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.

●

When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cush-
ion forward.

1-2. Child safety

Fo
r s

ty a
n

d se
cu

rity

■

Detail information for child restraint systems installation

: All universal categories (group 0, 0+, I, II and III).

Toyota suggests the users to use and seating positions.

Seating position

Seat position number

Without

airbag

manual

on-off

switch

Airbag manual

on-off switch

OFF

Left

Center Right

Seating position suit-
able for universal
belted (Yes/No)

Yes

Forward-

facing

only

Yes

Forward-

facing

only

Yes

i-Size seating posi-
tion (Yes/No)

Seating position suit-
able for lateral fix-
ture (L1/L2/No)

Suitable rearward
facing fixture (R1/
R2X/R2/R3/No)

Suitable forward fac-
ing fixture (F2X/F2/
F3/No)

F2X,

F2, F3

F2X,

F2, F3

Suitable junior seat
fixture (B2/B3/No)

B2, B3

1-2. Child safety

ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” relation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.

Mass

groups

Child weight

Size

class

Fixture

Description

up to 10 kg

(22 lb.)

Rearward-facing infant seat

Left lateral-facing infant seat

(Carrycot)

Right lateral-facing infant seat

(Carrycot)

up to 13 kg

(28 lb.)

Full-size, rearward-facing child

restraint system

Reduced-size, rearward-facing

child restraint system

―

R2X

Reduced-size, rearward-facing

child restraint system

Rearward-facing infant seat

9 to 18 kg

(20 to 39 lb.)

Full-height, forward-facing child

restraint system

Reduced-height, forward-facing

child restraint system

F2X

Reduced-height, forward-facing

child restraint system

Full-size, rearward-facing child

restraint system

Reduced-size, rearward-facing

child restraint system

15 to 25 kg

(34 to 55 lb.)

―

B2, B3

Junior seat

III

22 to 36 kg

(48 to 79 lb.)

1-2. Child safety

Fo
r s

ty a
n

d se
cu

rity

■

Recommended child restraint systems information

The child restraint systems mentioned in the table may not be avail-
able outside the EU countries and United Kingdom.

Recommended

child restraint sys-

tem

Size

Direction of travel

Fixation

fixed with

lower

anchorages

fixed

with a

seat belt

TOYOTA MAXI

PLUS

15 to 36kg

(34 to 79 lb.)

Forward-facing

use only

Yes

1-2. Child safety



5-door models (5-seat models with walk-in function second seats)

■

Compatibility of each seating position with child restraint sys-
tems

Left-hand drive vehicles:

Right-hand drive vehicles:

1, 2, 3

2, 3

Deactivation of front passenger airbag.

Activation of front passenger airbag.
Never use a rearward-facing child restraint system on the front
passenger seat when the airbag manual on-off switch is on.

1-2. Child safety

Fo
r s

ty a
n

d se
cu

rity

: Move the front seat fully rearward. If the passenger seat height can be

adjusted, move it to the upper most position.

: Adjust the seatback angle to the

most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.

: If the head restraint interferes with your child restraint system, and the

head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.

: Top tether anchorage for center seat only.

Suitable for “universal” category child restraint system fixed with
the seat belt.

Suitable for forward-facing “universal” category child restraint sys-
tem fixed with the seat belt.

Suitable for child restraint systems given on recommended child
restraint systems information (



P. 91).

Suitable for ISOFIX child restraint system.

Includes a top tether anchorage point.

1-2. Child safety

●

When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint
system.

●

When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interference.

●

If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.

●

1-2. Child safety

Fo
r s

ty a
n

d se
cu

rity

■

Detail information for child restraint systems installation

: All universal categories (group 0, 0+, I, II and III).

Toyota suggests the users to use and seating positions.

Seating position

Seat position number

Without

airbag

manual

on-off

switch

Airbag manual

on-off switch

OFF

Left

Center Right

Seating position suit-
able for universal
belted (Yes/No)

Yes

Forward-

facing

only

Yes

Forward-

facing

only

Yes

i-Size seating posi-
tion (Yes/No)

Seating position suit-
able for lateral fix-
ture (L1/L2/No)

Suitable rearward
facing fixture (R1/
R2X/R2/R3/No)

Suitable forward fac-
ing fixture (F2X/F2/
F3/No)

F2X,

F2, F3

F2X,

F2, F3

Suitable junior seat
fixture (B2/B3/No)

B2, B3

1-2. Child safety

Mass

groups

Child weight

Size

class

Fixture

Description

up to 10 kg

(22 lb.)

Rearward-facing infant seat

Left lateral-facing infant seat

(Carrycot)

Right lateral-facing infant seat

(Carrycot)

up to 13 kg

(28 lb.)

Full-size, rearward-facing child

restraint system

Reduced-size, rearward-facing

child restraint system

―

R2X

Reduced-size, rearward-facing

child restraint system

Rearward-facing infant seat

9 to 18 kg

(20 to 39 lb.)

Full-height, forward-facing child

restraint system

Reduced-height, forward-facing

child restraint system

F2X

Reduced-height, forward-facing

child restraint system

Full-size, rearward-facing child

restraint system

Reduced-size, rearward-facing

child restraint system

15 to 25 kg

(34 to 55 lb.)

―

B2, B3

Junior seat

III

22 to 36 kg

(48 to 79 lb.)

1-2. Child safety

Fo
r s

ty a
n

d se
cu

rity

■

Recommended child restraint systems information

The child restraint systems mentioned in the table may not be avail-
able outside the EU countries and United Kingdom.

Recommended

child restraint sys-

tem

Size

Direction of travel

Fixation

fixed with

lower

anchorages

fixed

with a

seat belt

MAXI COSI CAB-

RIOFIX

Up to 13 kg

(Up to 28 lb.)

Rearward-facing

use only

Not appli-

cable

Yes

TOYOTA MAXI

PLUS

15 to 36kg

(34 to 79 lb.)

Forward-facing

use only

Yes

1-2. Child safety



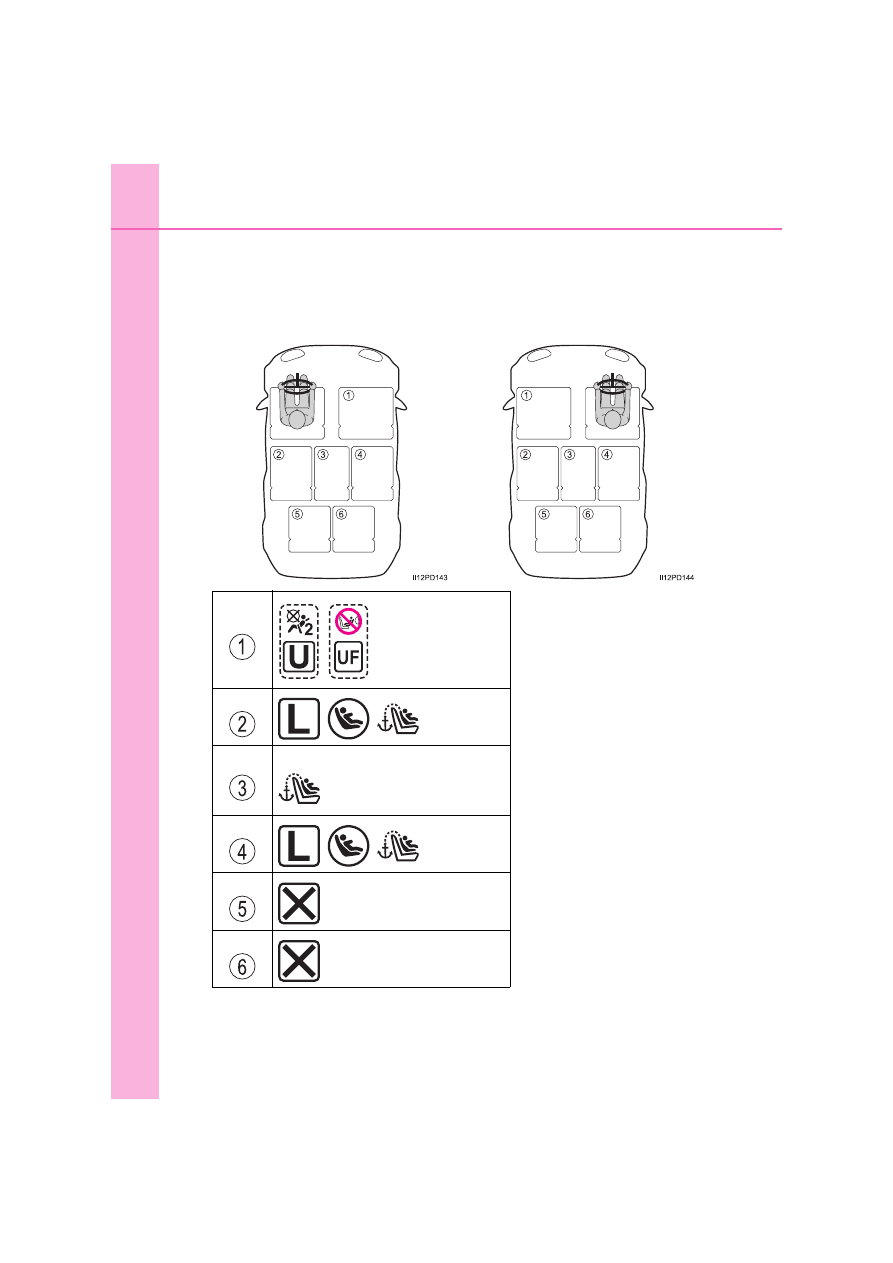

5-door models (7-seat models)

■

Compatibility of each seating position with child restraint sys-
tems

Left-hand drive vehicles:

Right-hand drive vehicles:

1, 2, 3

2, 3

1-2. Child safety

Fo
r s

ty a
n

d se
cu

rity

: Move the front seat fully rearward. If the passenger seat height can be

adjusted, move it to the upper most position.

: Adjust the seatback angle to the

most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.

: If the head restraint interferes with your child restraint system, and the

head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.

: Top tether anchorage for center seat only.

Deactivation of front passenger airbag.

Activation of front passenger airbag.
Never use a rearward-facing child restraint system on the front
passenger seat when the airbag manual on-off switch is on.

Suitable for “universal” category child restraint system fixed with
the seat belt.

Suitable for forward-facing “universal” category child restraint sys-
tem fixed with the seat belt.

Suitable for child restraint systems given on recommended child
restraint systems information (



P. 97).

Suitable for ISOFIX child restraint system.

Includes a top tether anchorage point.

Not suitable for child restraint system.

1-2. Child safety

●

When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint
system.

●

When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interference.

●

If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.

●

Toyota Land Cruiser Prado (2023 year). Manual in english - page 5
