4-5. Using the driving support systems



The distance guide lines and
the vehicle width guide lines
may not actually be parallel
with the dividing lines of the
parking space, even when
they appear to be so. Be sure
to check visually.



The distances between the
vehicle width guide lines and
the left and right dividing lines
of the parking space may not
be equal, even when they
appear to be so. Be sure to
check visually.



The distance guide lines give
a distance guide for flat road
surfaces. In any of the follow-
ing situations, there is a mar-
gin of error between the guide
lines on the screen and the
actual distance/course on the
road.

■

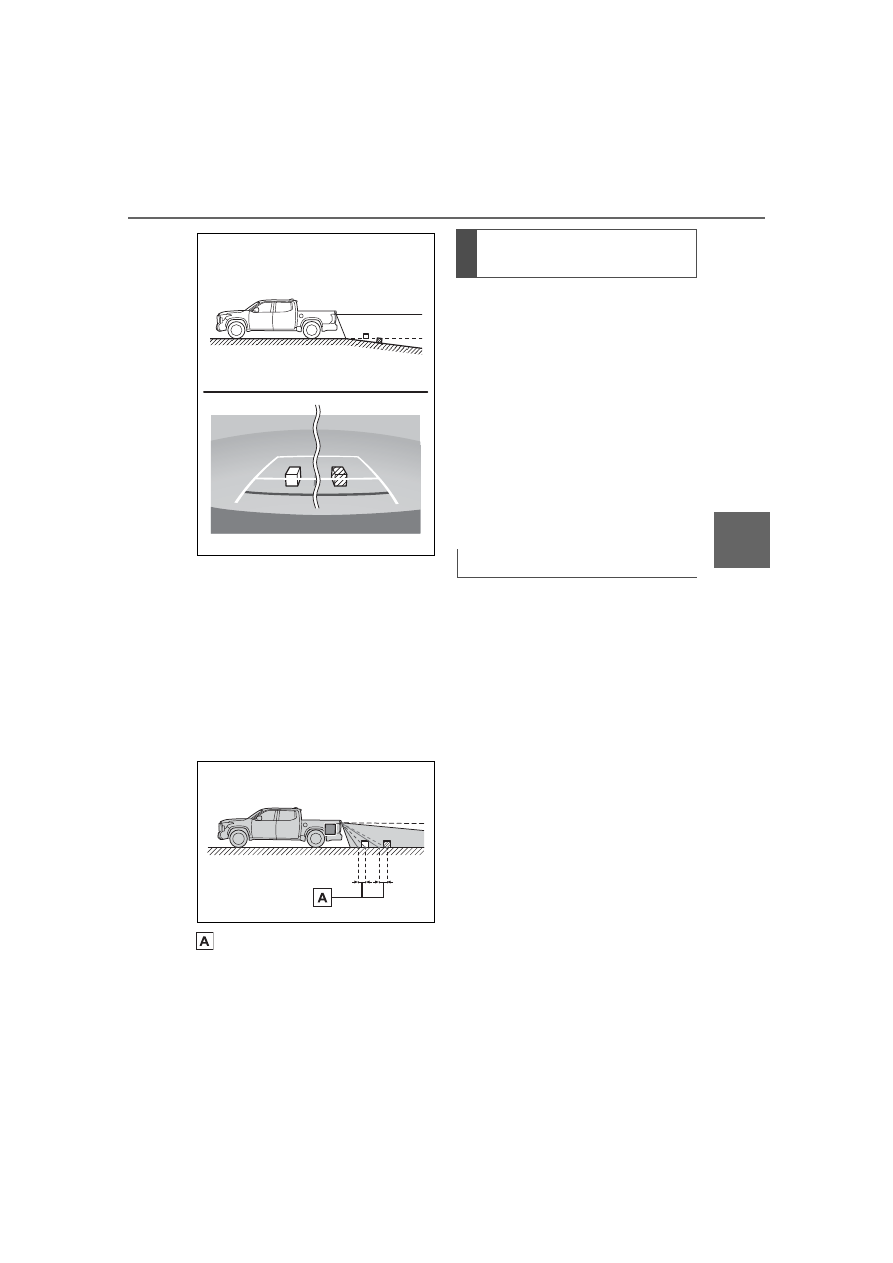

When the ground behind
the vehicle slopes up
sharply

The distance guidelines are pro-
jected on a horizontal surface,
distances on an upward sloping
surface appear farther from the
vehicle than the actual distance.
Because of this, objects will
appear to be farther away than
they actually are. In the same
way, there will be a margin of
error between the guidelines
and the actual distance/course

on the road.

■

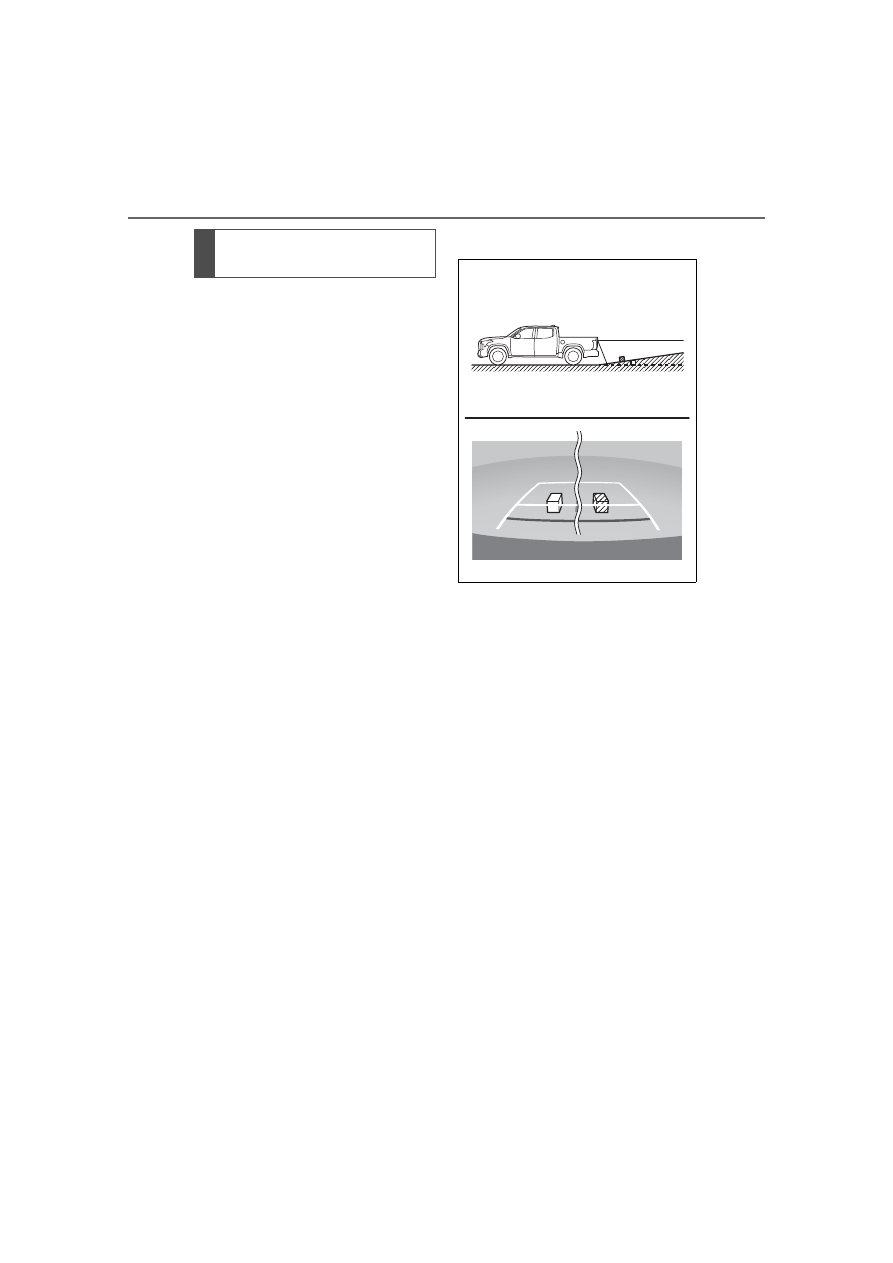

When the ground behind
the vehicle slopes down
sharply

The distance guidelines are pro-
jected on a horizontal surface,
distances on an downward slop-
ing surface appear closer to the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guidelines and the
actual distance/course on the
road.

Differences between the
screen and the actual road

305

4-5. Using the driving support systems

4

Dr

iv

ing

■

When any part of the vehi-
cle sags

When the vehicle posture tilts
due to the number of passen-
gers or the distribution of the
load, there is a margin of error
between the guide lines on the
screen and the actual dis-
tance/course on the road.

A margin of error

The estimated course lines tar-
get flat surfaced objects (such
as the road). It is not possible to
determine the position of three-
dimensional objects (such as
vehicles) using the estimated
course lines and distance guide
lines. When approaching a
three-dimensional object that
extends outward (such as the
flatbed of a truck), be careful of
the following.

Visually check the surroundings
and the area behind the vehicle.
In the case shown below, the
truck appears to be outside of
the estimated course lines and
the vehicle does not look as if it
hits the truck. However, the rear
body of the truck may actually
cross over the estimated course
lines. In reality if you back up as
guided by the estimated course
lines, the vehicle may hit the
truck.

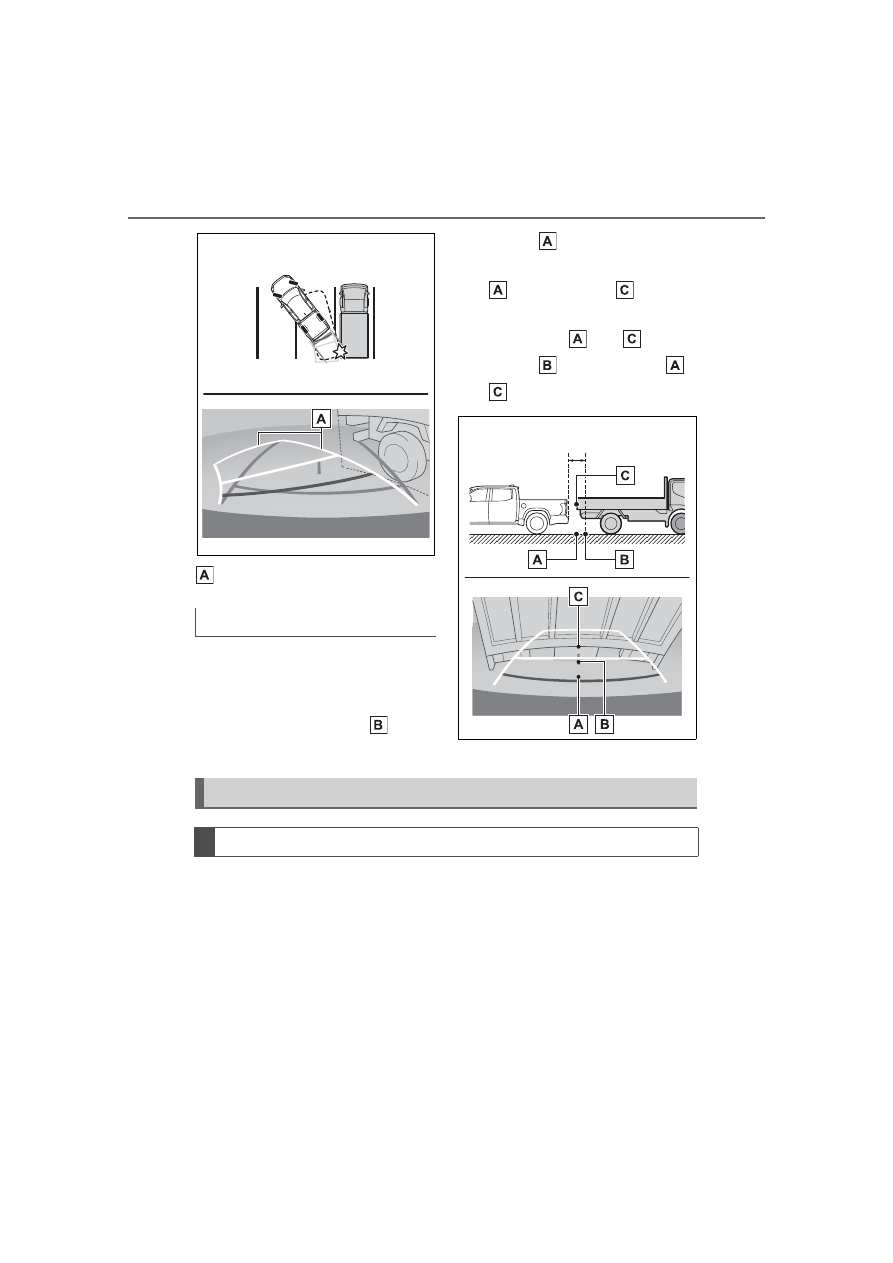

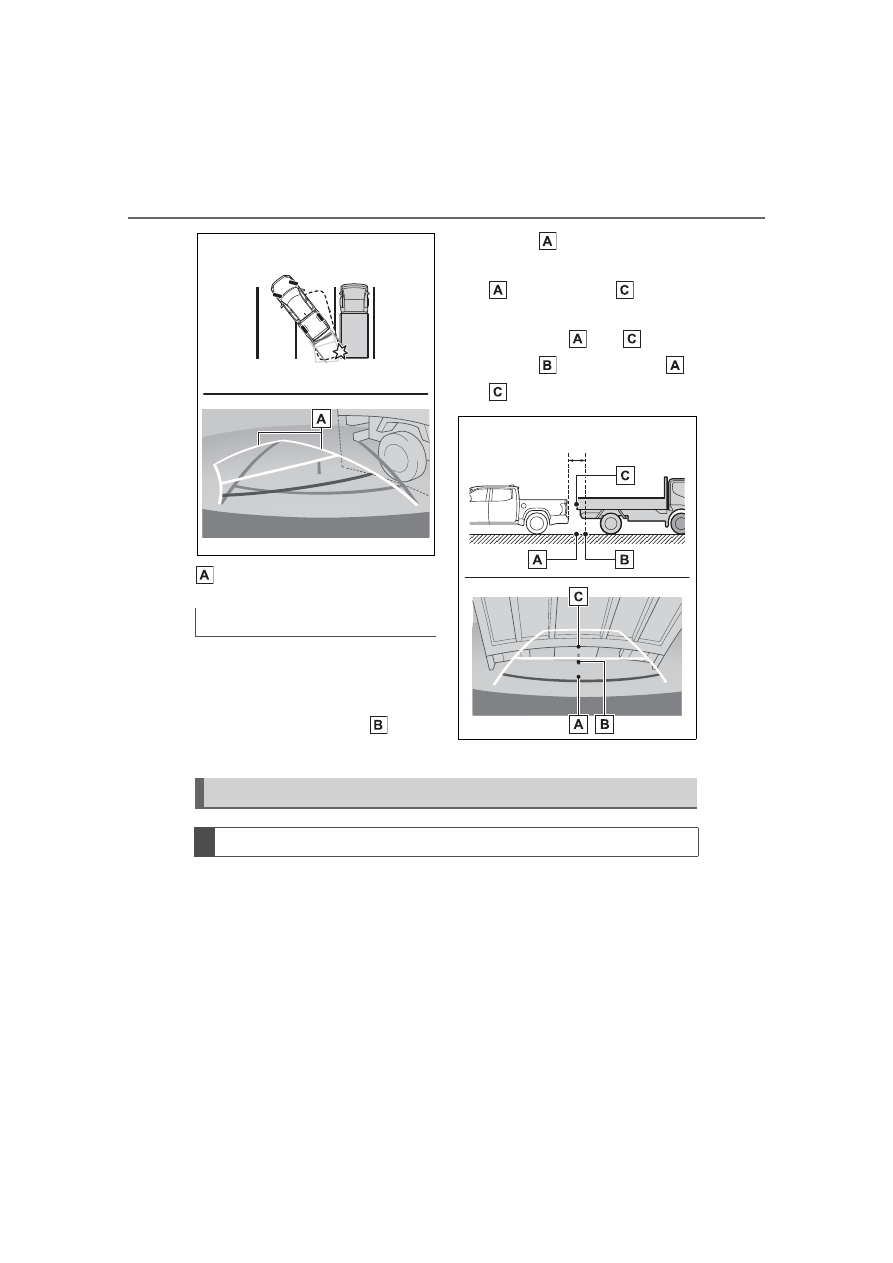

When approaching three-
dimensional objects

Estimated course lines

306

4-5. Using the driving support systems

Estimated course lines

Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point  .
However, in reality if you back

up to point  , you will hit the
truck. On the screen, it appears
that   is closest and   is far-
thest away. However, in reality,
the distance to   and   is the
same, and   is farther than
and  .

If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.

Distance guide lines

Things you should know

If you notice any symptoms

307

4-5. Using the driving support systems

4

Dr

iv

ing

Symptom

Likely cause

Solution

The image is difficult to
see



The vehicle is in a dark
area



The temperature
around the lens is
either high or low



The outside tempera-
ture is low



There are water drop-
lets on the camera



It is raining or humid



Foreign matter (mud,
etc.) is adhering to the
camera



Sunlight or headlights
are shining directly
into the camera



The vehicle is under
fluorescent lights,
sodium lights, mer-
cury lights, etc.

Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once con-
ditions have been
improved.)
The procedure for
adjusting the picture
quality of the parking
assist monitor is the
same as the procedure
for adjusting the screen
display. (Refer to the
“MULTIMEDIA
OWNER’S MANUAL”.)

The image is blurry

Dirt or foreign matter
(such as water droplets,
snow, mud, etc.) is
adhering to the camera.

Flush the camera with a
large quantity of water
and wipe the camera
lens clean with a soft
and wet cloth.

The image is out of
alignment

The camera or sur-
rounding area has
received a strong
impact.

Have the vehicle
inspected by your Toy-
ota dealer.

The guide lines are
very far out of align-
ment

The camera position is
out of alignment.

Have the vehicle
inspected by your Toy-
ota dealer.



The vehicle is tilted
(there is a heavy load
on the vehicle, tire
pressure is low due to
a tire puncture, etc.)



The vehicle is used on
an incline.

If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings.

308

4-5. Using the driving support systems

The estimated course
lines move even
though the steering
wheel is straight

There is a malfunction in
the signals being output
by the steering sensor.

Have the vehicle
inspected by your Toy-
ota dealer.

Guide lines are not dis-
played

The tailgate is open.

Close the tailgate.
If this does not resolve
the symptom, have the
vehicle inspected by
your Toyota dealer.

 is displayed



12-volt battery has
been reinstalled.



The steering wheel
has been moved while
the 12-volt battery was
being reinstalled.



12-volt battery power
is low.



The steering sensor
has been reinstalled.



There is a malfunction
in the signals being
output by the steering
sensor.

Stop the vehicle, and
turn the steering wheel
as far as it will go to the
left and right.
If this does not resolve
the symptom, have the
vehicle inspected by
your Toyota dealer.

Symptom

Likely cause

Solution

309

4-5. Using the driving support systems

4

Dr

iv

ing

*

: If equipped

●

The screen illustrations used in

this text are intended as exam-

ples, and may differ from the

image that is actually displayed on

the screen.

The panoramic view monitor is a
supplemental device intended to
assist the driver when checking
around the vehicle. When using,
be sure to visually check all
around the vehicle both directly
and using the mirrors before
proceeding. If you do not, you
may hit another vehicle or possi-

bly cause an accident.
Pay attention to the following
precautions when using the
panoramic view monitor.

Panoramic view moni-

tor

*

Panoramic view monitor
assists the driver in viewing
the surroundings, when
operating at low speeds, by
combining the front, side
and rear cameras and dis-
playing a complete vehicle
overhead image on the
screen.
When you press the camera
switch or shift the shift lever
to R while the power switch
is in ON, the panoramic
view monitor operates.
The monitor displays vari-
ous views of the position
and surroundings of the
vehicle.

Driving precautions

WARNING

●

Never depend on the panoramic

view monitor entirely. The

image and the position of the

guide lines displayed on the

screen may differ from the

actual state. Use caution just as

you would when driving any

other vehicle.

●

Always make sure to check all

around the vehicle with your

own eyes when driving.

●

Never drive while looking only at

the screen as the image on the

screen is different from actual

conditions. If you are driving

while looking only at the screen,

you may hit a person or an

object, resulting in an accident.

When driving, be sure to check

the vehicle’s surroundings with

your own eyes and the vehicle’s

mirrors.

●

Depending on the circum-

stances of the vehicle (number

of passengers, amount of lug-

gage, etc.), the position of the

guide lines displayed on the

screen may change. Be sure to

check visually around the vehi-

cle before proceeding.

310

4-5. Using the driving support systems

WARNING

●

Do not use the panoramic view

monitor system in the following

cases:

• On icy or slick road surfaces, or

in snow

• When using tire chains or emer-

gency tires

• When the front door or the tail-

gate is not closed completely

• On roads that are not flat or

straight, such as curves or

slopes

• If the suspension has been

modified or tires of a size other

than specified are installed

●

In low temperatures, the screen

may darken or the image may

become faint. The image could

distort when the vehicle is mov-

ing, or you may become unable

to see the image on the screen.

Be sure to visually check all

around the vehicle both directly

and using the mirrors before

proceeding.

●

If the tire sizes are changed, the

position of the guide lines dis-

played on the screen may

change.

●

The camera uses a special lens.

The distances between objects

and pedestrians that appear in

the image displayed on the

screen will differ from the actual

distances. (



P.335)

●

When an aftermarket part is

installed in the display area of

the screen.

NOTICE

●

In panoramic view/moving

view/see-through view, the sys-

tem combines images taken

from the front, back, left and

right side cameras into a single

image. There are limits to the

range and content that can be

displayed. Familiarize yourself

with the characteristics of the

panoramic view monitor system

before using it.

●

Image clarity may decline at the

four corners of the panoramic

view/moving view/see-through

view. However, this is not a mal-

function, as these are the

regions along the border of

each camera image where the

images are combined.

●

Depending on lighting condi-

tions near each of the cameras,

bright and dark patches may

appear on the panoramic

view/moving view/see-through

view.

●

The panoramic view/moving

view/see-through view display

does not extend higher than the

installation position and image

capture range of each camera.

●

There are blind spots around

the vehicle. Accordingly, there

are regions not displayed in

panoramic view.

●

Three-dimensional objects dis-

played in wide front view, rear

view or side view may not be

displayed in panoramic

view/moving view/see-through

view.

311

4-5. Using the driving support systems

4

Dr

iv

ing

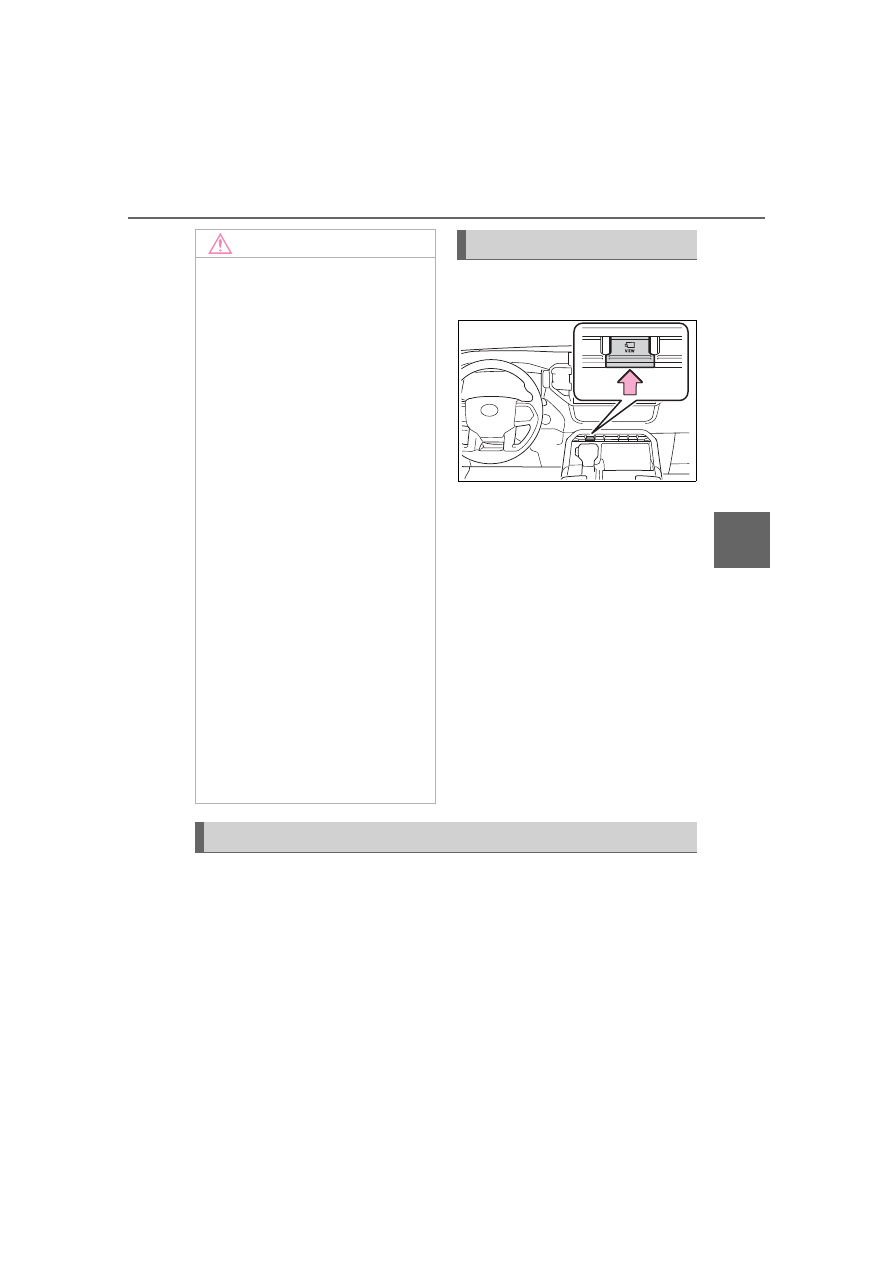

The camera switch is located as
shown in the illustration.

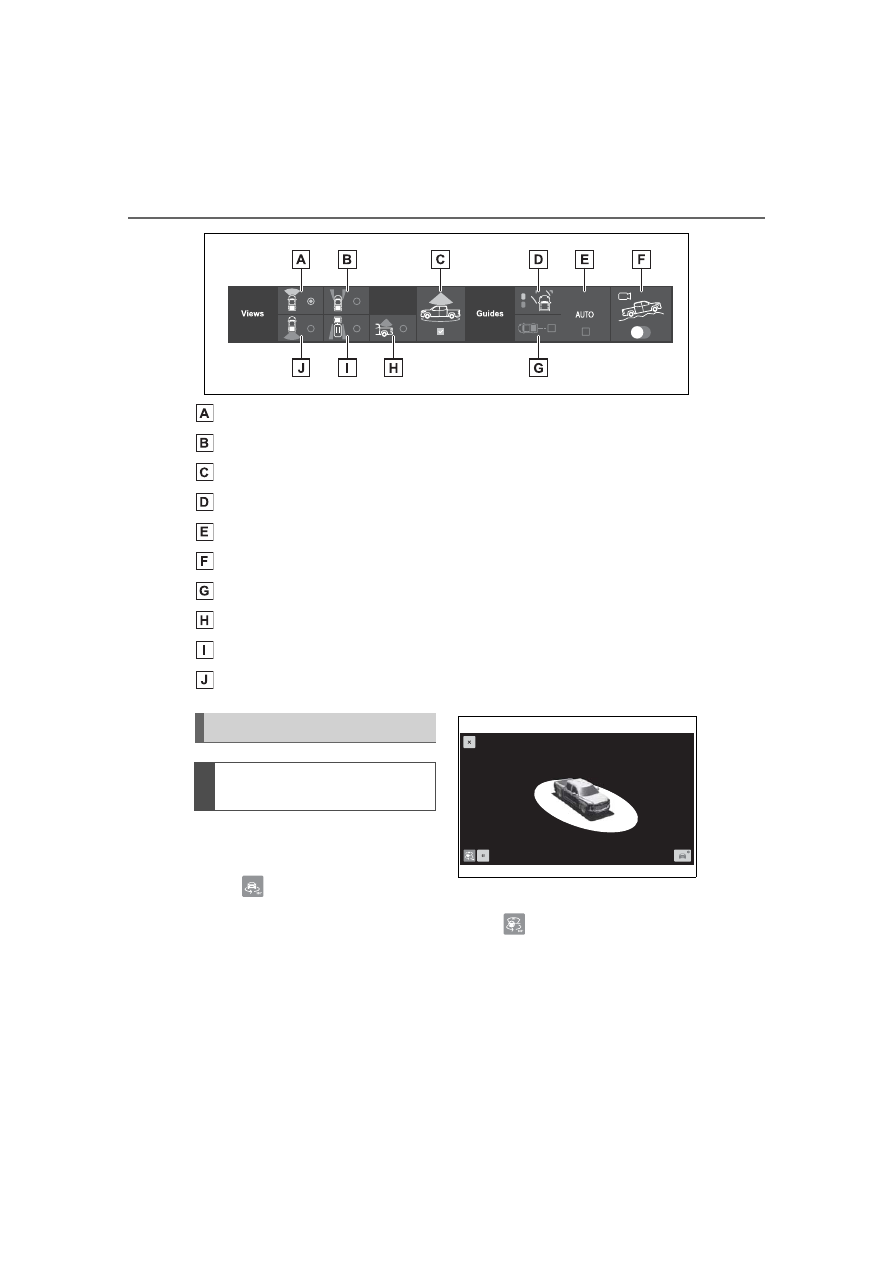

The screens which are displayed from the following buttons can be
selected. Also, the display can be changed to various screens from
button combinations.
The button display changes due to the situation of the vehicle, such
as the screen and speed being displayed, shift position, vehicle
equipment, etc.

The menu button is displayed when the shift lever is in D, N, or R.

NOTICE

●

People and other three-dimen-

sional obstacles may appear

differently when displayed on

the panoramic view monitor.

(These differences include,

among others, cases in which

displayed objects appear to

have fallen over, disappear near

image processing areas, appear

from image processing areas,

or when the actual distance to

an object differs from the dis-

played position.)

●

When the tailgate, which is

equipped with the back camera,

or front doors, which are

equipped with door mirrors that

have built-in side cameras, are

open, images will not be dis-

played properly on the pan-

oramic view monitor.

●

The vehicle icon displayed in

panoramic view/moving

view/see-through view is a com-

puter generated image. Accord-

ingly, properties such as the

color, shape and size will differ

from the actual vehicle. For this

reason, nearby three-dimen-

sional objects may appear to be

touching the vehicle, and actual

distances to three-dimensional

objects may differ from those

displayed.

Camera switch

Menu button

312

4-5. Using the driving support systems

Front view button

Front split view button

Panoramic view on/off button

Guide line select button (



P.319, 323)

Auto mode on/off button (



P.320)

Multi-terrain Monitor on/off button (



P.344)

Center guide line on/off button (



P.323)

Bed view button (



P.329)

Rear split view button

Rear view button

When the shift lever is in P.



Moving view

Press

.



See-through view

Press

.

Display

Checking around the vehi-
cle

313

4-5. Using the driving support systems

4

Dr

iv

ing

When the shift lever is in a posi-
tion other than P.



Panoramic view & front view

Select the front view button and
then turn ON the panoramic
view button.



Wide front view

Select the front view button and
then turn OFF the panoramic
view button.



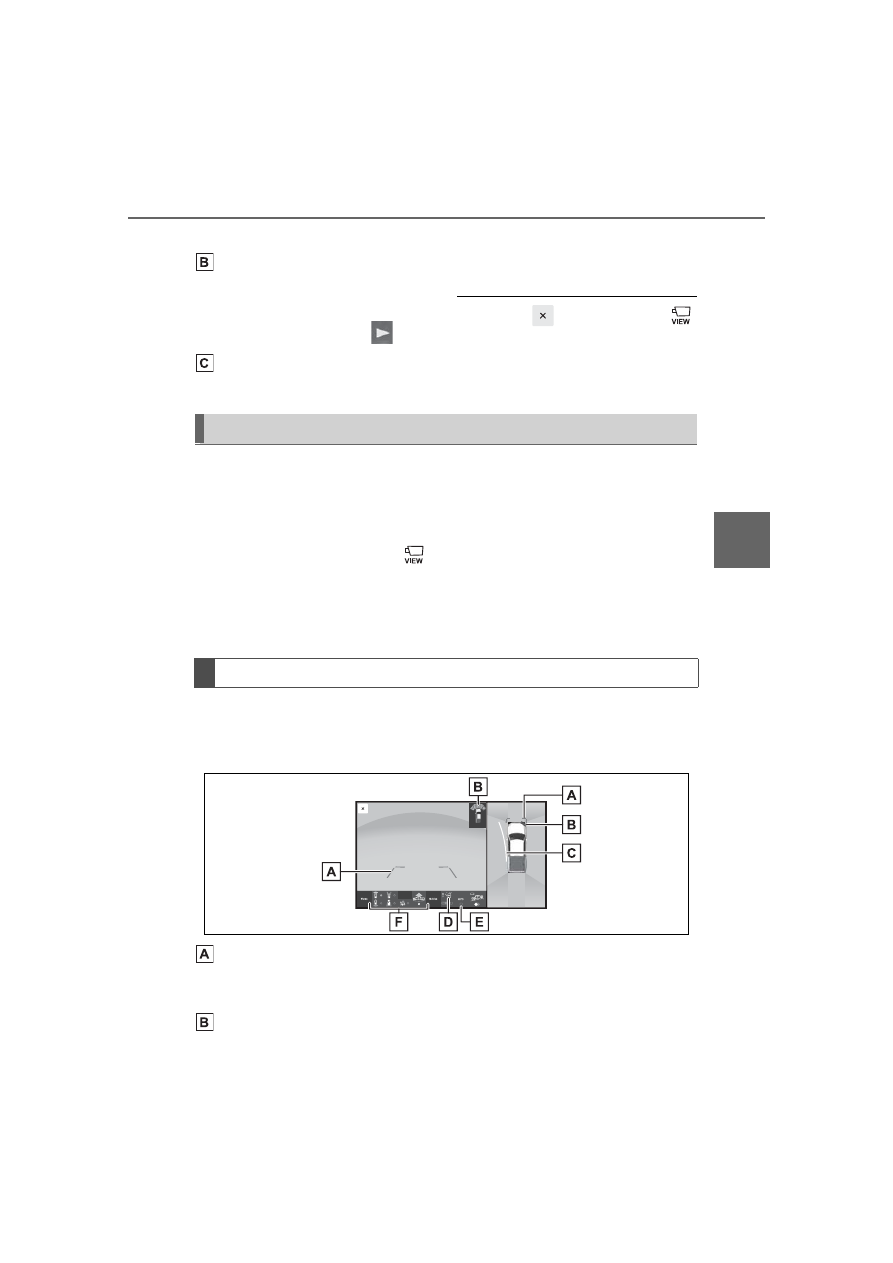

Front split view

Select the front split view button.

When the shift lever is in a posi-
tion other than P.



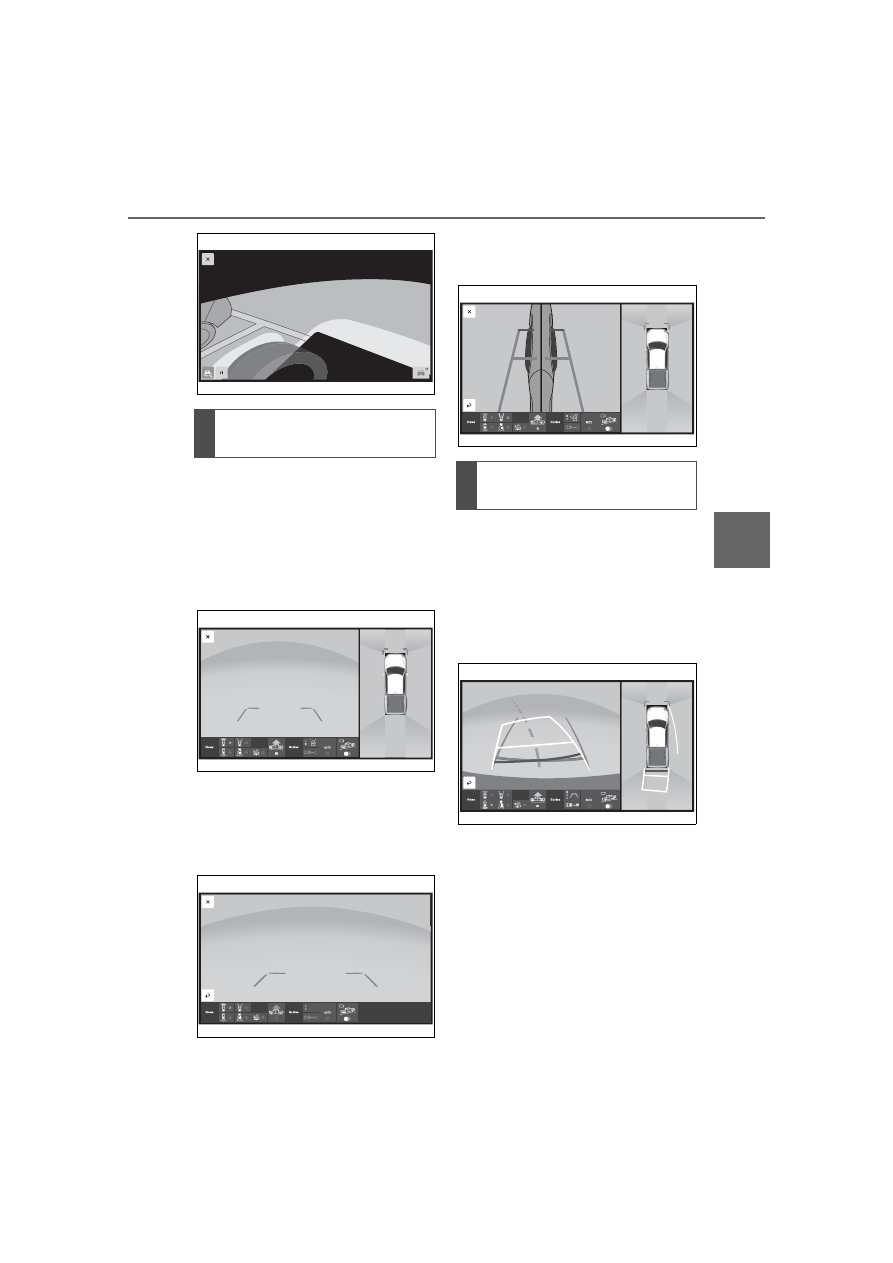

Panoramic view & rear view

Select the rear view button and
then turn ON the panoramic
view button.



Wide rear view

Select the rear view button and
then turn OFF the panoramic
view button.

Checking the front and
around the vehicle

Checking the rear and
around the vehicle

314

4-5. Using the driving support systems



Rear split view

Select the rear split view button.

Select the bed view button.

The moving view screen and the
see-through view screen pro-
vide support when checking the
areas of around the vehicle
while parking. These screens

display an image of the vicinity
of the vehicle combined from the
4 cameras. The screen will dis-
play a 360° view around the
vehicle from either inside the
vehicle or from a birds-eye view
at an angle.

To display the moving view/see-
through view screen, press



when the shift lever is in P and
the intuitive parking assist is
enabled.



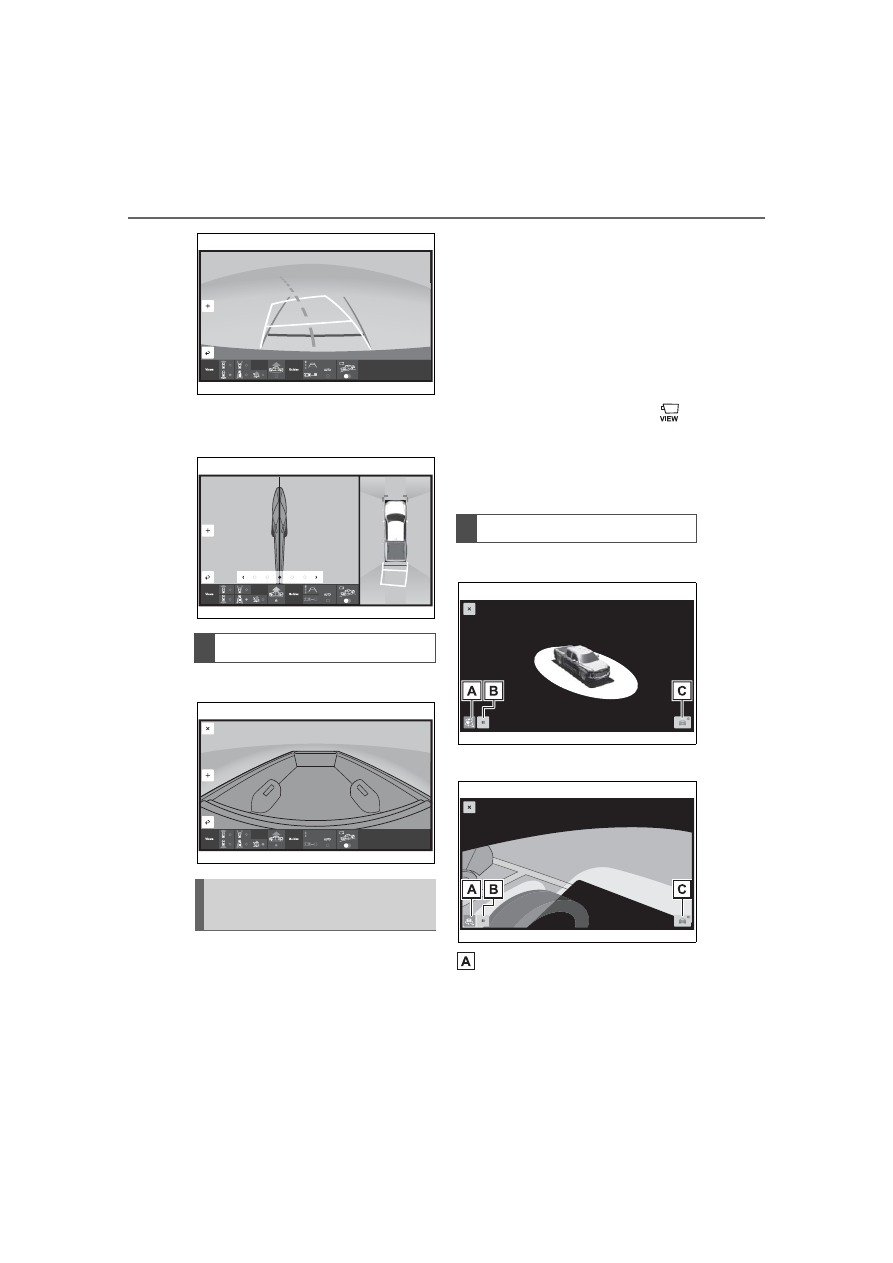

Moving view



See-through view

Display mode switching but-
ton

Select to change the display mode
between the moving view and the

Checking the bed

Checking around the
vehicle

Screen display

315

4-5. Using the driving support systems

4

Dr

iv

ing

see-through view.

Rotation pause switch

Select to pause the rotation of the
screen.

To resume rotation, select

.

Body color setting switch

Select to display the body color set-

ting screen and change the color of
the vehicle displayed on the pan-
oramic view monitor. (



P.330)

●

Pressing

 on the screen or



again changes the screen back to
the previously displayed screen,
such as the navigation screen.

The panoramic view & front view/wide front view/front split view
screen provides support when checking the areas in front of the
vehicle and around the vehicle when taking-off at T-intersections or
other intersections during poor visibility.

To display the screen, press

 when the shift lever is in D or N with

the vehicle moving approximately 10 mph (16 km/h) or less.
This screen will be displayed if the intuitive parking assist detects an
object in front of your vehicle (intuitive parking assist linked display).

Each time the display mode switching button is selected, the mode
will change as follows:



Panoramic view & front view

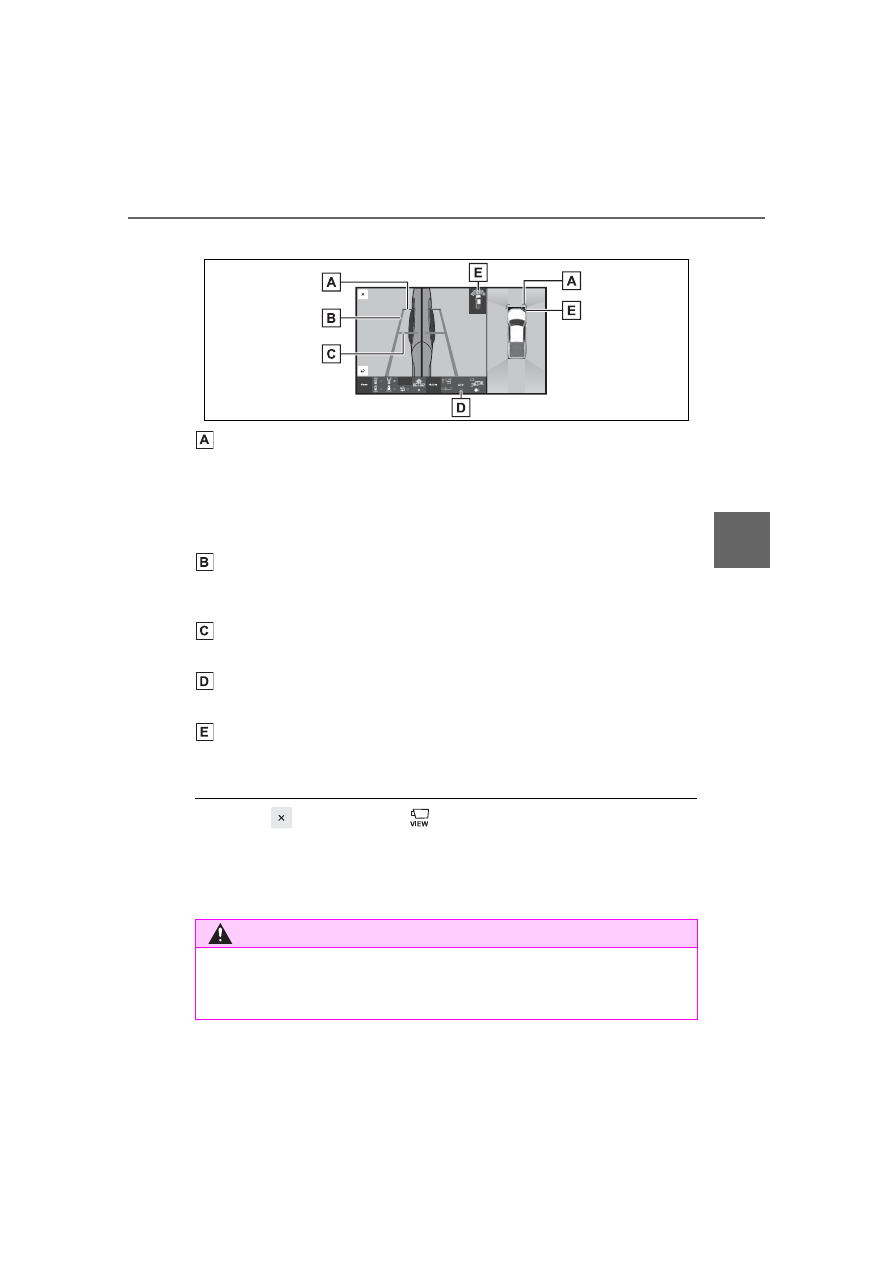

Distance guide lines

Shows distance in front of the vehicle.
• Display points approximately 3 ft. (1 m) from the edge of the bumper.

Intuitive parking assist

Checking the front and around the vehicle

Screen display

316

4-5. Using the driving support systems

When a sensor detects an obstacle, the direction of and the approximate
distance to the obstacle are displayed and the buzzer sounds.

Estimated course lines

Shows an estimated course when the steering wheel is turned.
• This line will be displayed when the steering wheel is turned by 90° or

more from the center (straight-line) position.

Guide line switching button

Select to change the guide line mode between the distance guide line mode
and the estimated course line mode. (



P.319)

Automatic display button

Select to turn automatic display mode on/off. (



P.320)

Display mode switching buttons

The display can be changed to various screens from button combinations.



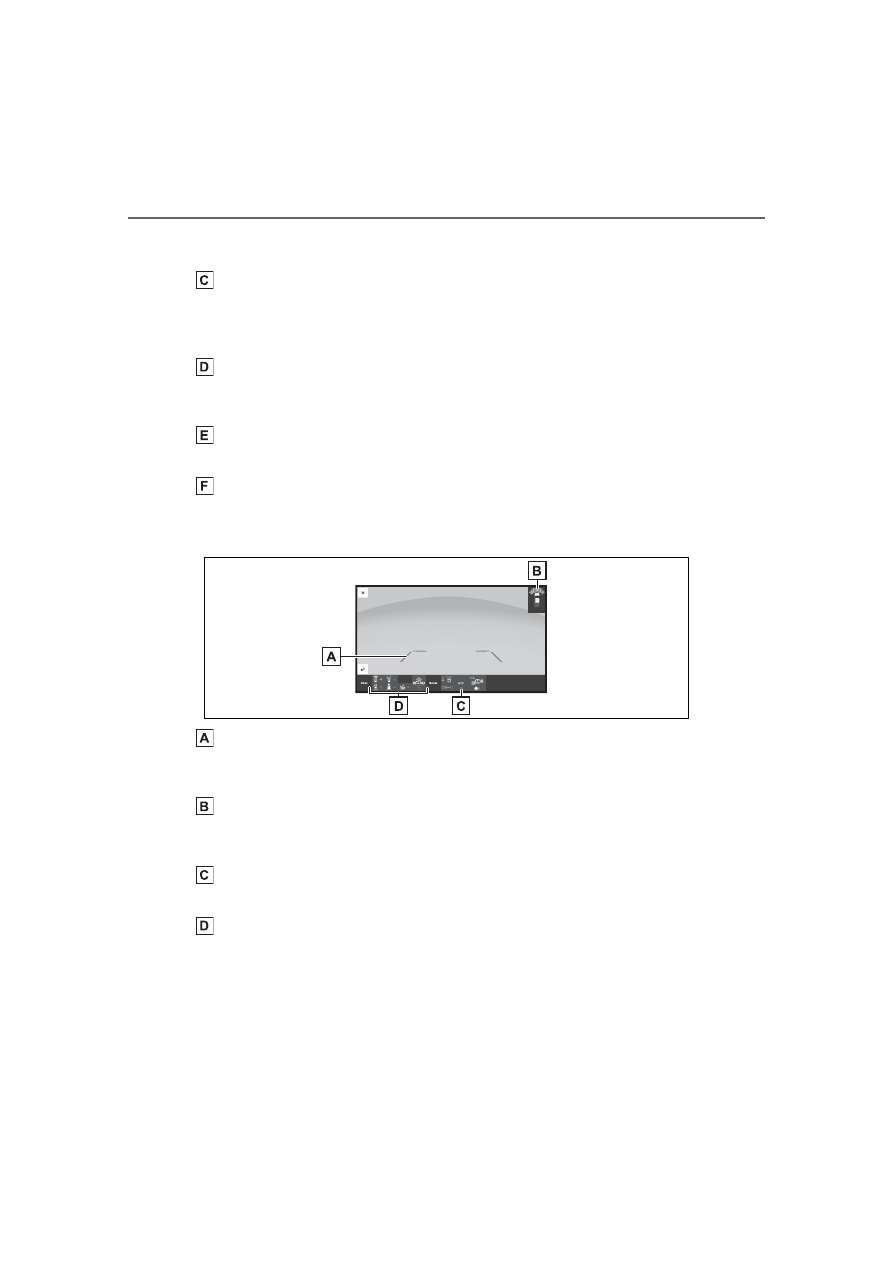

Wide front view

Distance guide lines

Shows distance in front of the vehicle.
• Display points approximately 3 ft. (1 m) from the edge of the bumper.

Intuitive parking assist

When a sensor detects an obstacle, the direction of and the approximate
distance to the obstacle are displayed and the buzzer sounds.

Automatic display button

Select to turn automatic display mode on/off. (



P.320)

Display mode switching buttons

The display can be changed to various screens from button combinations.

317

4-5. Using the driving support systems

4

Dr

iv

ing



Front split view

Distance guide lines

Shows distance in front of the vehicle.
• Split view: Display points approximately 1.5 ft. (0.5 m) from the edge of

the bumper.

• Panoramic view: Display points approximately 3 ft. (1 m) from the edge of

the bumper.

Vehicle width guide lines

Shows guide lines of the vehicle’s width including the outside rear view mir-
rors.

Front tire guide lines

Shows guide lines of where the front tire touches the ground.

Automatic display button

Select to turn automatic display mode on/off. (



P.320)

Intuitive parking assist

When a sensor detects an obstacle, the direction of and the approximate
distance to the obstacle are displayed and the buzzer sounds.

●

Pressing

 on the screen or

 changes the screen to the previously

displayed screen, such as the navigation screen.

●

For details about the intuitive parking assist (



P.274).

●

The display position of the intuitive parking assist and the position of

obstacles displayed in the camera image do not match.

WARNING

●

When a sensor indicator on the intuitive parking assist display illumi-

nates in red or a buzzer sounds continuously, be sure to check the area

around the vehicle immediately and do not proceed any further until

safety has been ensured, otherwise an unexpected accident may occur.

318

4-5. Using the driving support systems

Each time the guide line switch-
ing button is selected, the mode
will change as follows:



Distance guide line



Only the distance guide lines
are displayed.



Estimated course line



Estimated course lines will be
added to the distance guide
lines.

The front split view screen dis-
plays images from the cameras
installed on each outside rear
view mirror. This screen is
designed to support the driver in
safe driving in situations such as
when driving on a narrow road,
by allowing them to check the
areas around the sides of the
vehicle.



Check the positions and dis-
tance between the vehicle
width guide line and a target
object such as the obstacle or

WARNING

●

As the intuitive parking assist display is displayed over the camera view,

it may be difficult to see the intuitive parking assist display depending on

the color and brightness of the surrounding area.

Switching the guide line
mode (panoramic view &
front view mode)

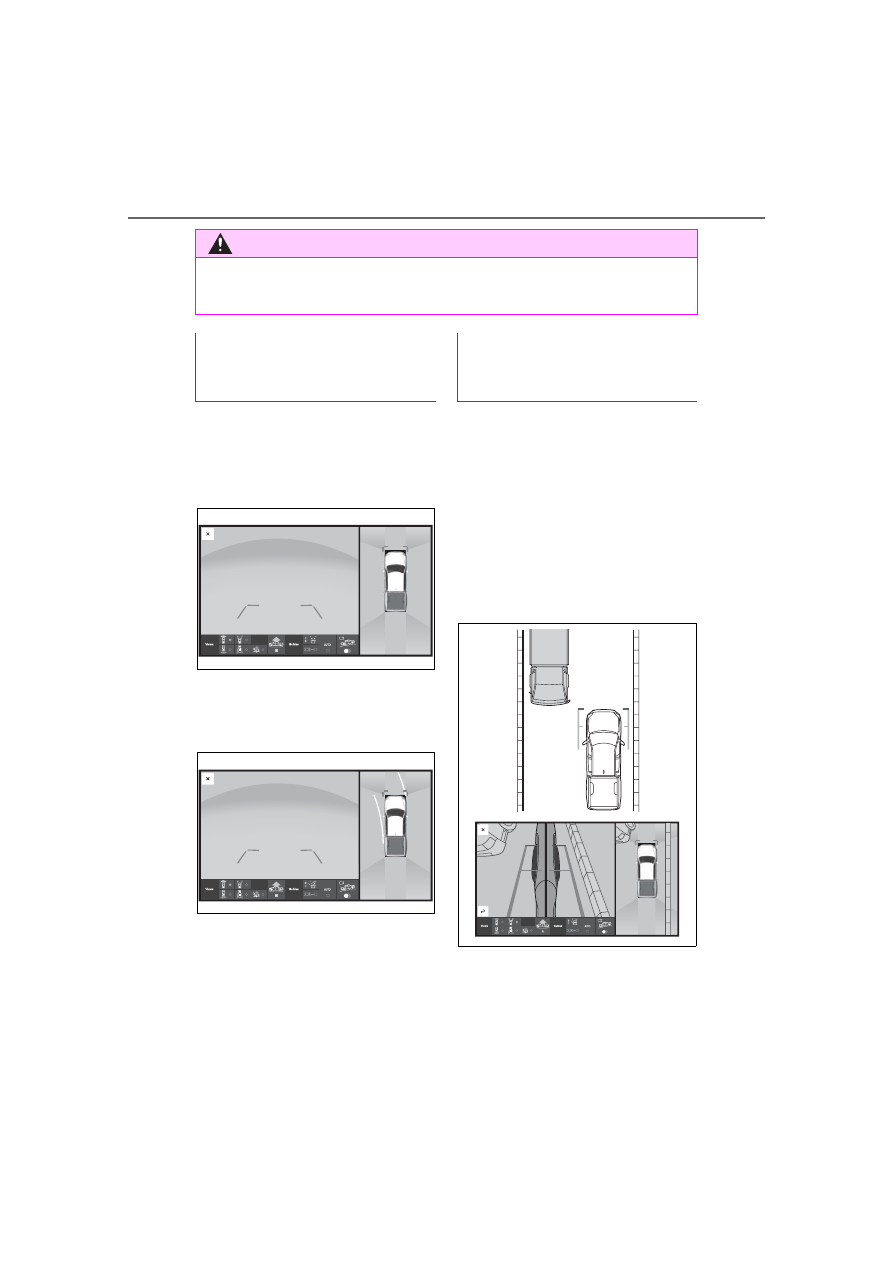

Using the vehicle width
guide line (front split view
mode)

319

4-5. Using the driving support systems

4

Dr

iv

ing

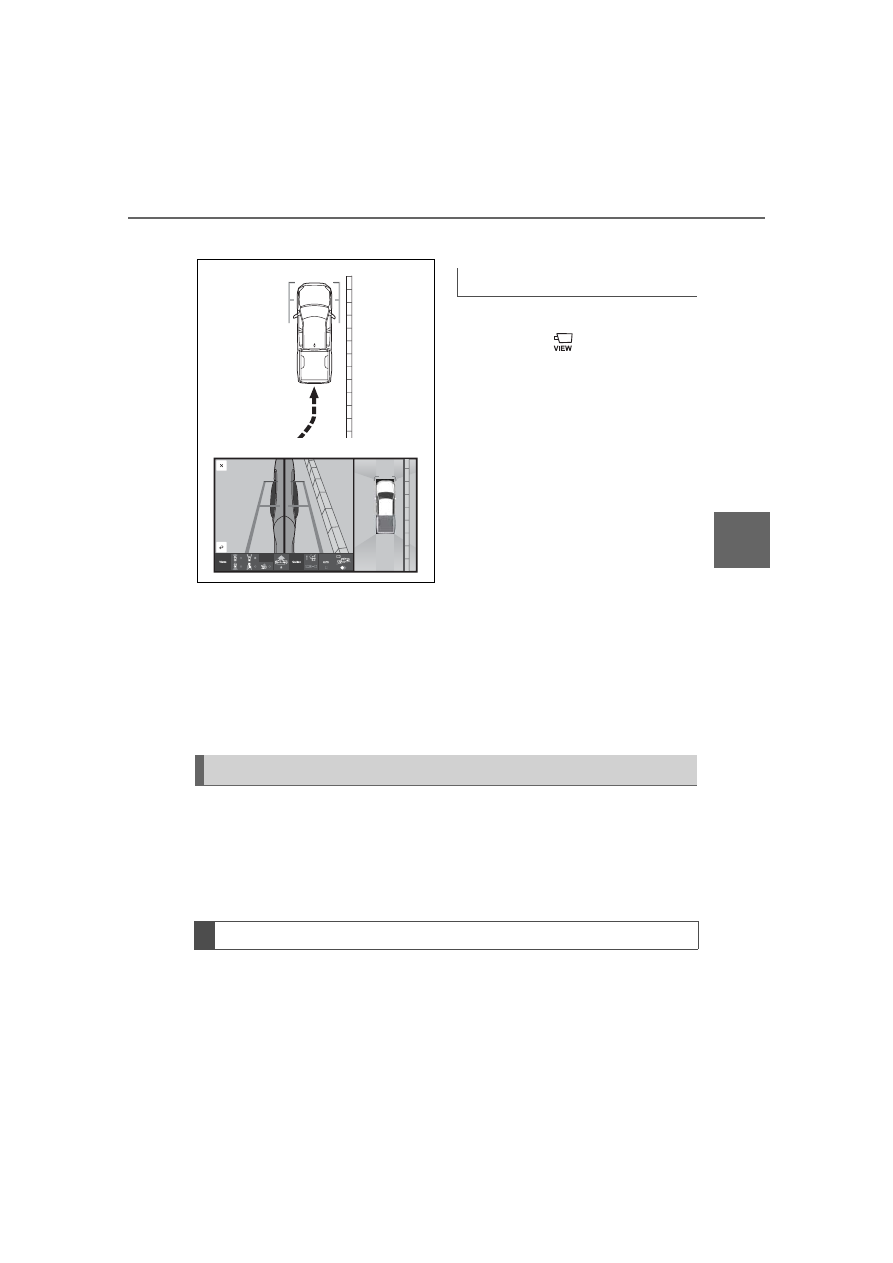

curb of the road.



Pull over to the curb as shown
in the illustration above, tak-
ing care not to let the vehicle
width guide line overlap the
target object.



Ensure that the vehicle width
guide line is parallel to the tar-

get object.

In addition to screen switching
by operating

, automatic dis-

play mode is available. In this
mode, the screen is switched
automatically in response to
vehicle speed.
Each time the “AUTO” button is
selected, automatic display
mode is enabled/disabled.
In automatic display mode, the
monitor will automatically dis-
play images in the following situ-
ations:



When the shift lever is shifted
to D or N.



When vehicle speed is
reduced to approximately 10
mph (16 km/h) or less.

The panoramic view & rear view/wide rear view/rear split view
screen provide support when checking the areas of behind the vehi-
cle and around the vehicle while backing up, for example while park-
ing.
The screens will be displayed when the shift lever is in R.

Each time the display mode switching button is selected, the mode
will change as follows:

Automatic display mode

Checking the rear and around the vehicle

Screen display
