Toyota Tundra Hybrid (2023 year). Manual in english

288

4-5. Using the driving support systems

WARNING

■

Cautions regarding the use of

the system

Do not overly rely on the system,

as doing so may lead to an acci-

dent.
Always drive while checking the

safety of the surroundings of the

vehicle.
Depending on the vehicle and

road conditions, weather, etc., the

system may not operate.
The detection capabilities of sen-

sors and radars are limited.

Always drive while checking the

safety of the surroundings of the

vehicle.

●

The driver is solely responsible

for safe driving. Always drive

carefully, taking care to observe

your surroundings. The Parking

Support Brake system is

designed to provide support to

lessen the severity of collisions.

However, it may not operate in

some situations.

●

The Parking Support Brake sys-

tem is not designed to stop the

vehicle completely. Additionally,

even if the system has stopped

the vehicle, it is necessary to

depress the brake pedal imme-

diately as brake control will be

canceled after approximately 2

seconds.

●

It is extremely dangerous to

check the system operations by

intentionally driving the vehicle

into the direction of a wall, etc.

Never attempt such actions.

■

When to disable the Parking

Support Brake

In the following situations, disable

the Parking Support Brake as the

system may operate even though

there is no possibility of a colli-

sion.

●

When inspecting the vehicle

using a chassis roller, chassis

dynamo or free roller

●

When loading the vehicle onto a

boat, truck or other transport

vessel

●

If the suspension has been

modified or tires of a size other

than specified are installed

●

If the front of the vehicle is

raised or lowered due to the

carried load

●

When equipment that may

obstruct a sensor is installed,

such as a towing eyelet, bumper

protector (an additional trim

strip, etc.), bicycle carrier, or

snow plow

●

When using automatic car

washing devices

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When a tire chains, compact

spare tire or an emergency tire

puncture repair kit is used

289

4-5. Using the driving support systems

ing

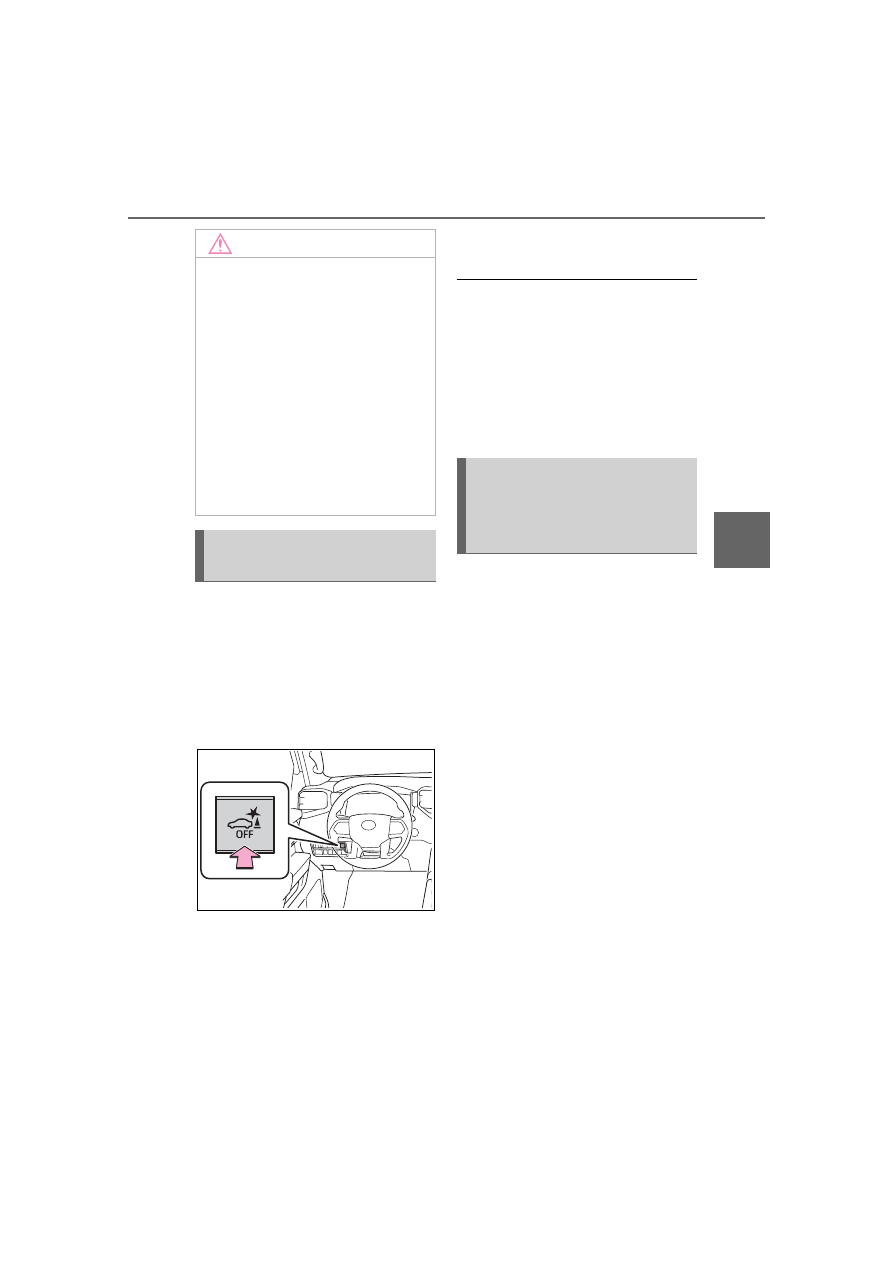

Press the switch to enable/dis-
able the parking support brake.
All of the Parking Support Brake
functions (static objects and
rear-crossing vehicles) are
enabled/disabled simultane-
ously.

When the Parking Support Brake is
disabled, the PKSB OFF indicator
(



P.89) illuminates.

To enable the system, press the
switch again. If disabled using this
method, the system will not be re-

enabled by turning the power
switch off and then to ON.

■

When towing a trailer

When the 7-pin connector is con-

nected and Auto Trailer Detection

(ATD) (



P.270) is activated, the

function automatically turns off.

■

When “4L” mode selected (4WD

models)

The parking support brake is auto-

matically disabled.

If the hybrid system output restric-
tion control or brake control oper-
ates, a buzzer will sound and a
message will be displayed on the
multi-information display and head-
up display (if equipped), multimedia
display, to alert the driver.
Depending on the situation, hybrid
system output restriction control will
operate to either limit acceleration
or restrict output as much as possi-
ble.



Hybrid system output restric-
tion control is operating
(acceleration restriction)

Acceleration greater than a certain
amount is restricted by the system.
Multi-information display: “Object
Detected Acceleration Reduced”
Multimedia display and head-up
display (if equipped): No warning
displayed
PKSB OFF indicator: Not illumi-
nated

NOTICE

■

If “PKSB Unavailable” is dis-

played on the multi-informa-

tion display and the PKSB

OFF indicator is on

If this message is displayed

immediately after the power

switch is changed to ON, operate

the vehicle carefully, paying atten-

tion to your surroundings. It may

be necessary to drive the vehicle

for a certain amount of time

before the system returns to nor-

mal. (If the system does not return

to normal after driving for a while,

clean the sensors and their sur-

rounding area on the bumpers.)

Enabling/Disabling the
Parking Support Brake

Display and buzzer for
hybrid system output
restriction control and
brake control

290

4-5. Using the driving support systems

Buzzer: Does not sound



Hybrid system output restric-
tion control is operating (out-
put restricted as much as
possible)

The system has determined that
stronger-than-normal brake opera-
tion is necessary.
Multimedia display: “BRAKE!”
Multi-information display and head-
up display (if equipped): “BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Brake control is operating

The system determined that emer-
gency braking is necessary.
Multimedia display: “BRAKE!”
Multi-information display and head-
up display (if equipped): “BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Vehicle stopped by system
operation

The vehicle has been stopped by
brake control operation.
Multimedia display: “Press Brake
Pedal”
Multi-information display and head-
up display (if equipped): “Switch to
Brake” (If the accelerator pedal is
not depressed, “Press Brake Pedal”
will be displayed.)
PKSB OFF indicator: Illuminated
Buzzer: Short beep

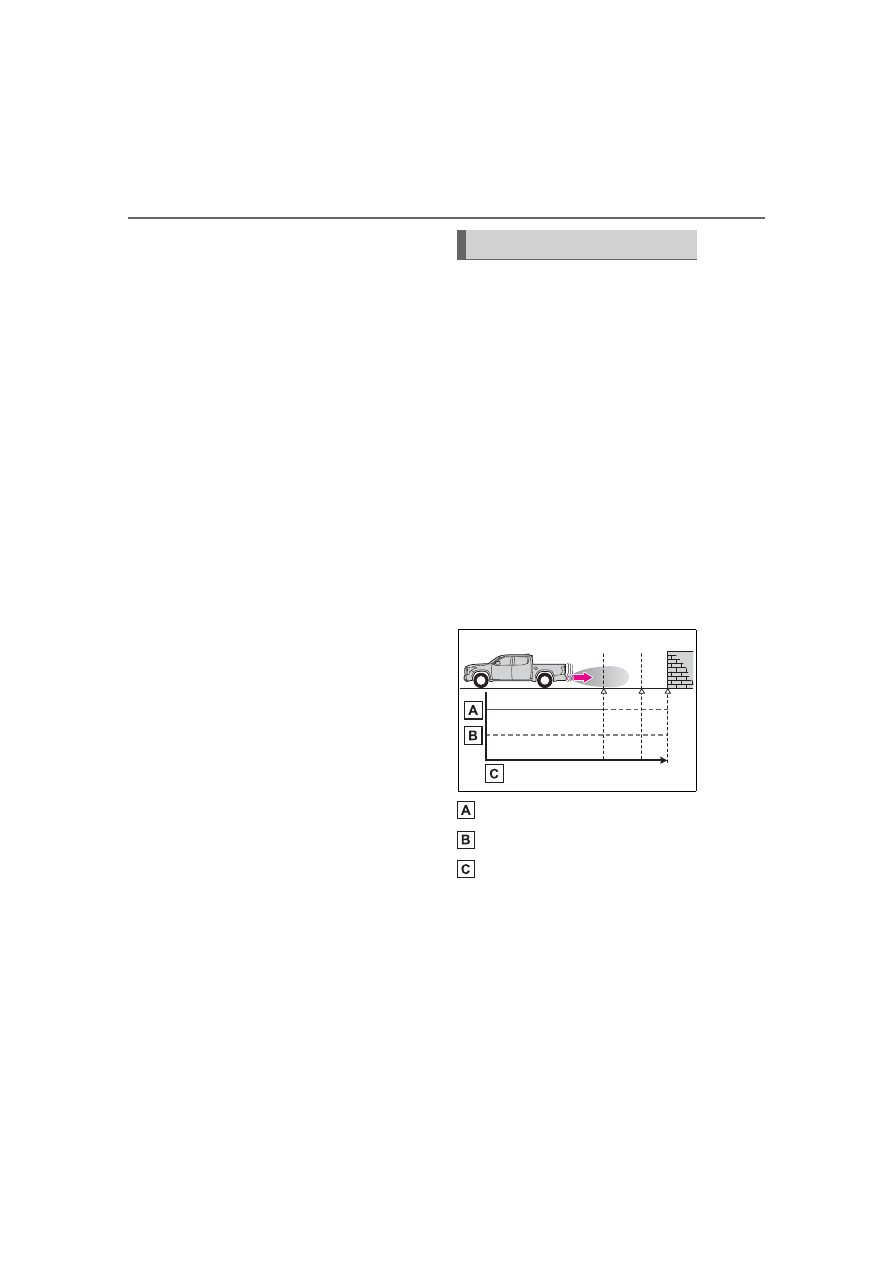

If the Parking Support Brake
determines that a collision with a
detected object is possible, the
hybrid system output will be
restricted to restrain any
increase in the vehicle speed.
(Hybrid system output restriction
control: See figure 2.)
Additionally, if the accelerator
pedal continues to be
depressed, the brakes will be
applied automatically to reduce
the vehicle speed. (Brake con-
trol: See figure 3.)



Figure 1 When the PKSB
(Parking Support Brake) is not
operating

Hybrid system output

Braking force

Time



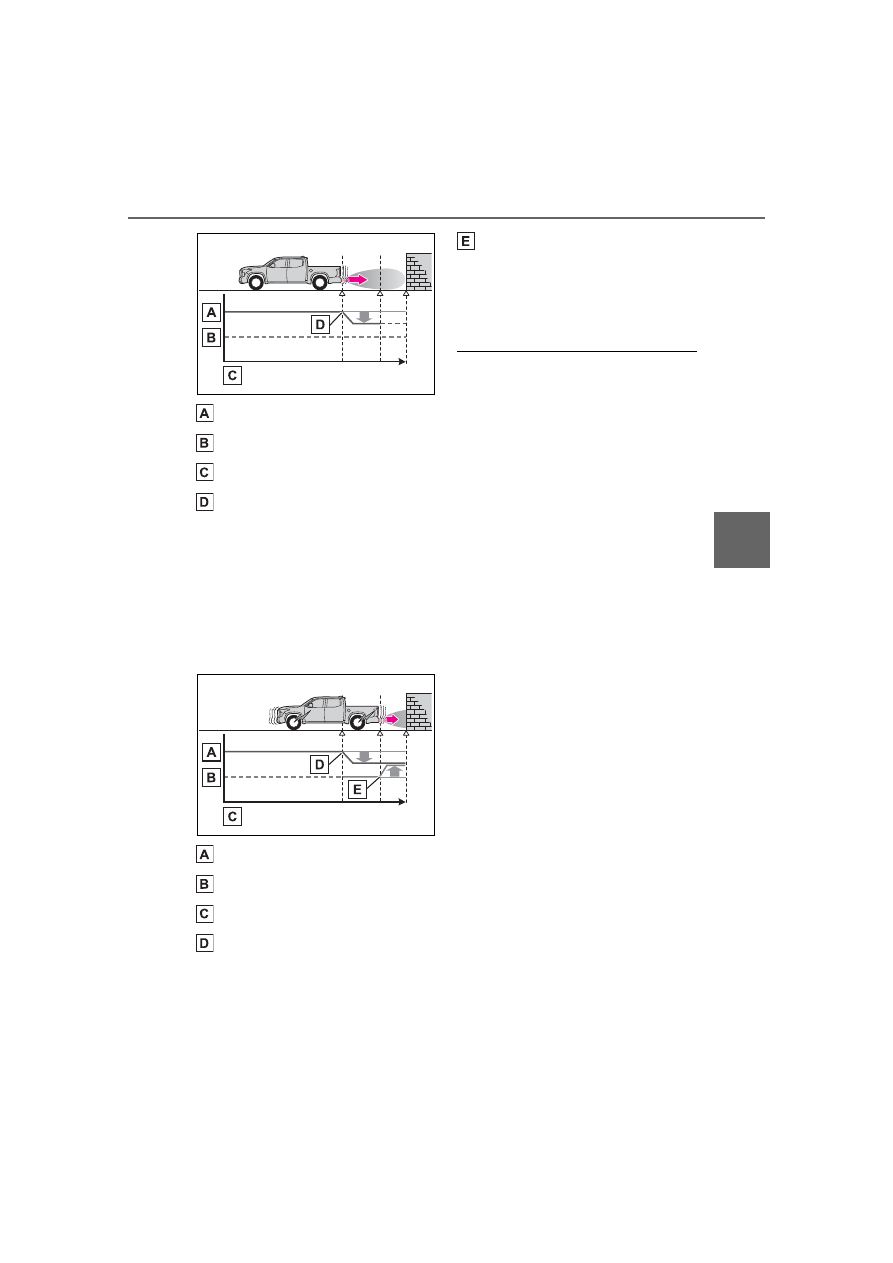

Figure 2 When hybrid system
output restriction control oper-
ates

System overview

291

4-5. Using the driving support systems

ing

Hybrid system output

Braking force

Time

Hybrid system output restric-
tion control begins operating
(System determines that pos-
sibility of collision with
detected object is high)



Figure 3 When hybrid system
output restriction control and
brake control operates

Hybrid system output

Braking force

Time

Hybrid system output restric-
tion control begins operating
(System determines that pos-
sibility of collision with
detected object is high)

Brake control begins operat-
ing (System determines that
possibility of collision with
detected object is extremely
high)

■

If the Parking Support Brake

has operated

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate. If the Parking Sup-

port Brake operates unnecessarily,

brake control can be canceled by

depressing the brake pedal or wait-

ing for approximately 2 seconds for

it to automatically be canceled.

Then, the vehicle can be operated

by depressing the accelerator pedal.

■

Re-enabling the Parking Sup-

port Brake

To re-enable the Parking Support

Brake when it has been disabled

due to operation of the Parking Sup-

port Brake, either enable the system

again (



P.289), or turn the power

switch off and then back to ON.
Additionally, if any of the following

conditions are met, the system will

be re-enabled automatically and the

PKSB OFF indicator will turn off:

●

The P shift position is selected

●

The object is no longer detected in

the traveling direction of the vehi-

cle

●

The traveling direction of the vehi-

cle changes

■

If “PKSB Unavailable” is dis-

played on the multi-information

display and the PKSB OFF indi-

cator is on

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate.

292

4-5. Using the driving support systems

●

A sensor may be covered with

water drops, ice, snow, dirt, etc.

Remove the water drops, ice,

snow, dirt, etc., from the sensor to

return the system to normal.

Also, due to ice forming on a sen-

sor at low temperatures, a warn-

ing message may be displayed or

the sensor may not be able to

detect an object. Once the ice

melts, the system will return to

normal.

●

If this message continues to be

displayed even after cleaning the

sensor, or is displayed even

though the sensor is clean, have

the vehicle inspected by your Toy-

ota dealer.

■

If a 12-volt battery terminal has

been disconnected and recon-

nected

The system needs to be initialized.

To initialize the system, drive the

vehicle straight ahead for 5 seconds

or more at a speed of approximately

22 mph (35 km/h) or more.

This function will operate in situ-
ations such as the following if an
object is detected in the travel-
ing direction of the vehicle.

Parking Support Brake

function (static

objects)

If the sensors detect a static
object, such as a wall, in the
traveling direction of the
vehicle and the system
determines that a collision
may occur due to the vehi-
cle suddenly moving for-
ward due to an accidental
accelerator pedal operation,
the vehicle moving the
unintended direction due to
the wrong shift position
being selected, or while
parking or traveling at low
speeds, the system will
operate to lessen the impact
with the detected static
object and reduce the
resulting damage.

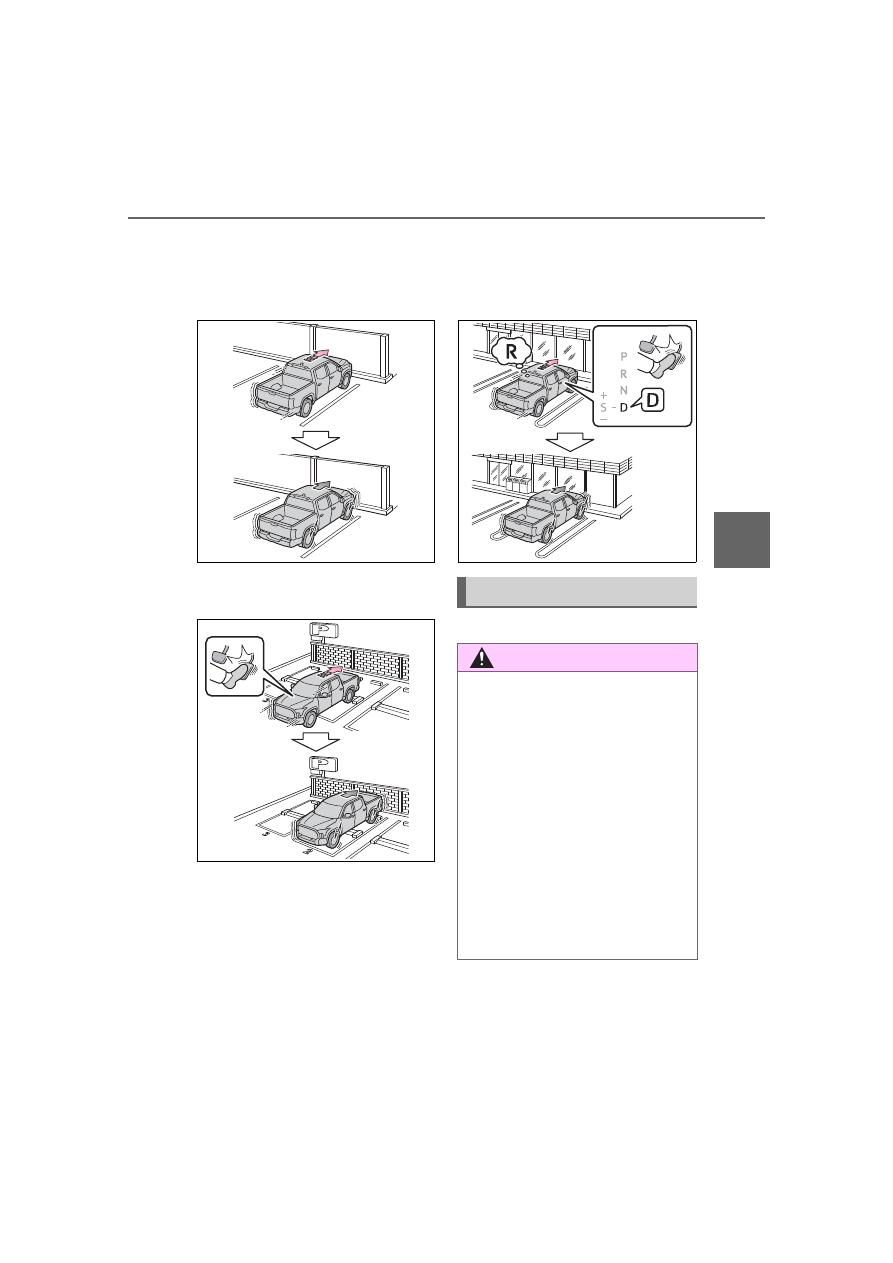

Examples of function
operation

293

4-5. Using the driving support systems

ing

■

When traveling at a low
speed and the brake pedal
is not depressed, or is
depressed late

■

When the accelerator pedal
is depressed excessively

■

When the vehicle moves in
the unintended direction
due to the wrong shift posi-
tion being selected



P.274

Types of sensors

WARNING

■

To ensure the system can

operate properly

Observe the following precau-

tions.
Failing to do so may result in the

vehicle being unable to be driven

safely and possibly cause an acci-

dent.

●

Do not damage the sensors,

and always keep them clean.

●

Do not attach a sticker or install

an electronic component, such

as a backlit license plate (espe-

cially fluorescent type), fog

lights, fender pole or wireless

antenna near a radar sensor.

294

4-5. Using the driving support systems

■

The Parking Support Brake

function (static object) will

operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.89, 504) and

all of the following conditions are

met:

●

Hybrid system output restriction

control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• There is a static object in the trav-

eling direction of the vehicle and

approximately 6 to 13 ft. (2 to 4 m)

away.

• The Parking Support Brake deter-

mines that a stronger-than-nor-

mal brake operation is necessary

to avoid a collision.

●

Brake control

• Hybrid system output restriction

control is operating.

• The Parking Support Brake deter-

mines that an immediate brake

operation is necessary to avoid a

collision.

WARNING

●

Do not subject the surrounding

area of the sensor to a strong

impact. If subjected to an

impact, have the vehicle

inspected by your Toyota

dealer. If the front or rear

bumper needs to be

removed/installed or replaced,

contact your Toyota dealer.

●

Do not modify, disassemble or

paint the sensors.

●

Do not attach a license plate

cover.

●

Keep your tires properly

inflated.

■

Handling the suspension

Do not modify the suspension, as

changes to the height or inclina-

tion of the vehicle may prevent

the sensors from detecting

objects correctly or cause the sys-

tem to not operate or operate

unnecessarily.

■

If the Parking Support Brake

function (static objects) oper-

ates unnecessarily, such as

at a railroad crossing

In the event that the Parking Sup-

port Brake function (static objects)

operates unnecessarily, such as

at a railroad crossing, brake con-

trol will be canceled after approxi-

mately 2 seconds, allowing you to

proceed forward and leave the

area, brake control can also be

canceled by depressing the brake

pedal. Depressing the accelera-

tor pedal after brake control is

canceled will allow you to proceed

forward and leave the area.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area.
Doing so may result in the sensor

malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.

295

4-5. Using the driving support systems

ing

■

The Parking Support Brake

function (static objects) will

stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Hybrid system output restriction

control

• The Parking Support Brake is dis-

abled.

• The system determines that the

collision has become avoidable

with normal brake operation.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

■

Detection range of the Parking

Support Brake function (static

objects)

The detection range of the Parking

Support Brake function (static

objects) differs from the detection

range of the intuitive parking assist.

(



P.279) Therefore, even if the intu-

itive parking assist detects an object

and provides a warning, the Parking

Support Brake function (static

objects) may not start operating.

■

Situations in which the system

may not operate properly



P.277

■

Situations in which the system

may operate even if there is no

possibility of a collision



P.278

This function will operate in situ-
ations such as the following if a
vehicle is detected in the travel-
ing direction of the vehicle.

■

When reversing, a vehicle is
approaching and the brake
pedal is not depressed, or
is depressed late



P.269

Parking Support Brake

function (rear-crossing

vehicles)

If a rear radar sensor
detects a vehicle approach-
ing from the right or left at
the rear of the vehicle and
the system determines that
the possibility of a collision
is high, this function will
perform brake control to
reduce the likelihood of an
impact with the approach-
ing vehicle.

Examples of function
operation

Types of sensors

296

4-5. Using the driving support systems

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.89, 504) and

all of the following conditions are

met:

●

Hybrid system output restriction

control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• Vehicles are approaching from the

right or left at the rear of the vehi-

cle at a traveling speed of approx-

imately 5 mph (8 km/h) or more.

• The shift position is in R.

• The Parking Support Brake deter-

mines that a stronger than normal

brake operation is necessary to

avoid a collision with an approach-

ing vehicle.

●

Brake control

• Hybrid system output restriction

control is operating.

• The Parking Support Brake deter-

mines that an emergency brake

operation is necessary to avoid a

collision with an approaching vehi-

cle.

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Hybrid system output restriction

control

• The Parking Support Brake is dis-

abled.

• The collision becomes avoidable

with normal brake operation.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

■

Detection area of the Parking

Support Brake function (rear-

crossing vehicles)

The detection area of the Parking

Support Brake function (rear-cross-

ing vehicles) differs from the detec-

tion area of the RCTA function

(



P.283). Therefore, even if the

RCTA function detects a vehicle and

WARNING

■

To ensure the system can

operate properly

Observe the following precautions

regarding the rear radar sensors

(



P.268). Failure to do so may

cause a sensor to not operate

properly, and may cause an acci-

dent.

●

Do not modify, disassemble or

paint the sensors.

●

Do not replace a rear radar sen-

sor with a part other than a gen-

uine part.

●

Do not damage the rear radar

sensors, and always keep the

radar sensors and their sur-

rounding area on the bumper

clean.

●

If the area around a rear radar

sensor is subjected to an

impact, the system may not

operate properly due to a sen-

sor malfunction. Have the vehi-

cle inspected by your Toyota

dealer.

●

Observe the rear radar sensor

handling precautions. (



P.268)

297

4-5. Using the driving support systems

ing

provides an alert, the Parking Sup-

port Brake function (rear-crossing

vehicles) may not start operating.

■

Situations in which the system

may not operate properly



P.285

■

Situations in which the system

may operate even if there is no

possibility of a collision



P.286

: If equipped

●

The screen illustrations used in

this text are intended as exam-

ples, and may differ from the

image that is actually displayed on

the screen.

The parking assist monitor is a
supplemental device intended to
assist the driver when backing
up. When backing up, be sure to
visually check all around the
vehicle both directly and using
the mirrors before proceeding. If
you do not, you may hit another
vehicle, and could possibly
cause an accident.
Pay attention to the following
precautions when using the
parking assist monitor.

Toyota parking assist

monitor

The parking assist monitor
assists the driver by dis-
playing an image of the
view behind the vehicle
while backing up, for exam-
ple while parking.
When the display is
changed to the wide rear
view mode, a wider lateral
view behind the vehicle will
be displayed.

Driving precautions

298

4-5. Using the driving support systems

The parking assist monitor
screen will be displayed if the
shift lever is shifted to R while
the power switch is in ON.
Each time the display mode
switching button is selected, the
mode will change as follows:

Rear view: Displays the rear view of
the vehicle.
Wide rear view: Displays a near
180° image from the rear view cam-
era.

WARNING

●

Never depend on the parking

assist monitor entirely when

backing up. The image and the

position of the guide lines dis-

played on the screen may differ

from the actual state.

Use caution, just as you would

when backing up any vehicle.

●

Be sure to back up slowly,

depressing the brake pedal to

control vehicle speed.

●

If you seem likely to hit nearby

vehicles, obstacles, people or

mount the shoulder, depress the

brake pedal to stop the vehicle.

●

The instructions given are only

guidelines. When and how

much to turn the steering wheel

will vary according to traffic con-

ditions, road surface condi-

tions, vehicle condition, etc.,

when parking. It is necessary to

be fully aware of this before

using the parking assist system.

●

When parking, be sure to check

that the parking space will

accommodate your vehicle

before maneuvering into it.

●

Do not use the parking assist

monitor in the following cases:

• On icy or slick road surfaces, or

in snow

• When using tire chains or emer-

gency tires

• When the tailgate is not closed

completely

• On roads that are not flat or

straight, such as curves or

slopes

• If the suspension has been

modified or tires of a size other

than specified are installed

●

In low temperatures, the screen

may darken or the image may

become faint. The image could

distort when the vehicle is mov-

ing, or you may become unable

to see the image on the screen.

Be sure to visually check all

around the vehicle both directly

and using the mirrors before

proceeding.

●

If the tire sizes are changed, the

position of the guide lines dis-

played on the screen may

change.

●

The camera uses a special lens.

The distances between objects

and pedestrians that appear in

the image displayed on the

screen will differ from the actual

distances. (



P.304)

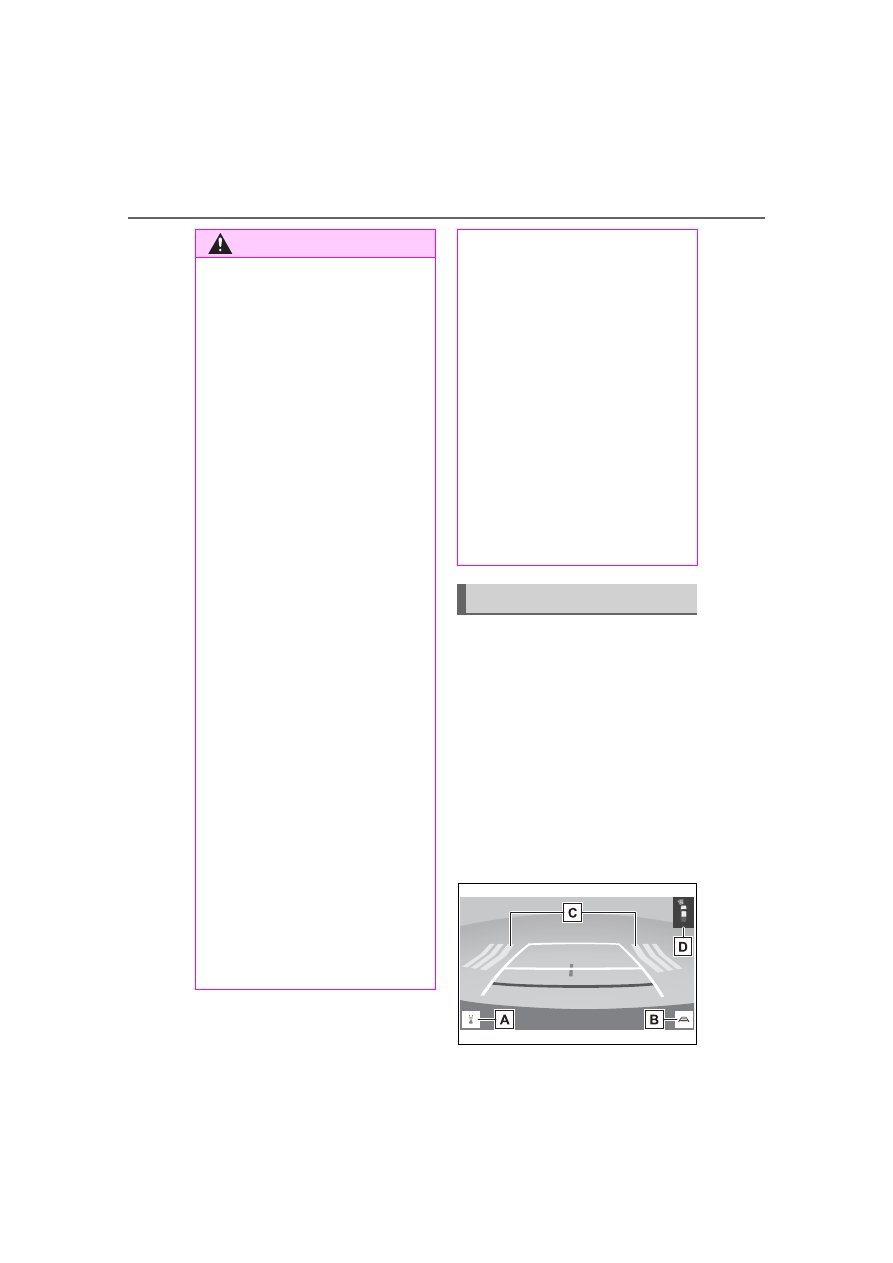

Screen display

299

4-5. Using the driving support systems

ing

Display mode switching but-
ton

Each time the button is selected,
the rear view mode and the wide
rear view mode are switched.

Guide line switching button

Select to switch the guide line
mode. (



P.299)

• Each time the button is selected,

the display mode changes in the
following order:

Estimated course line display mode



Parking assist guide line display

mode



Distance guide line display

mode



Center guide line display

mode.

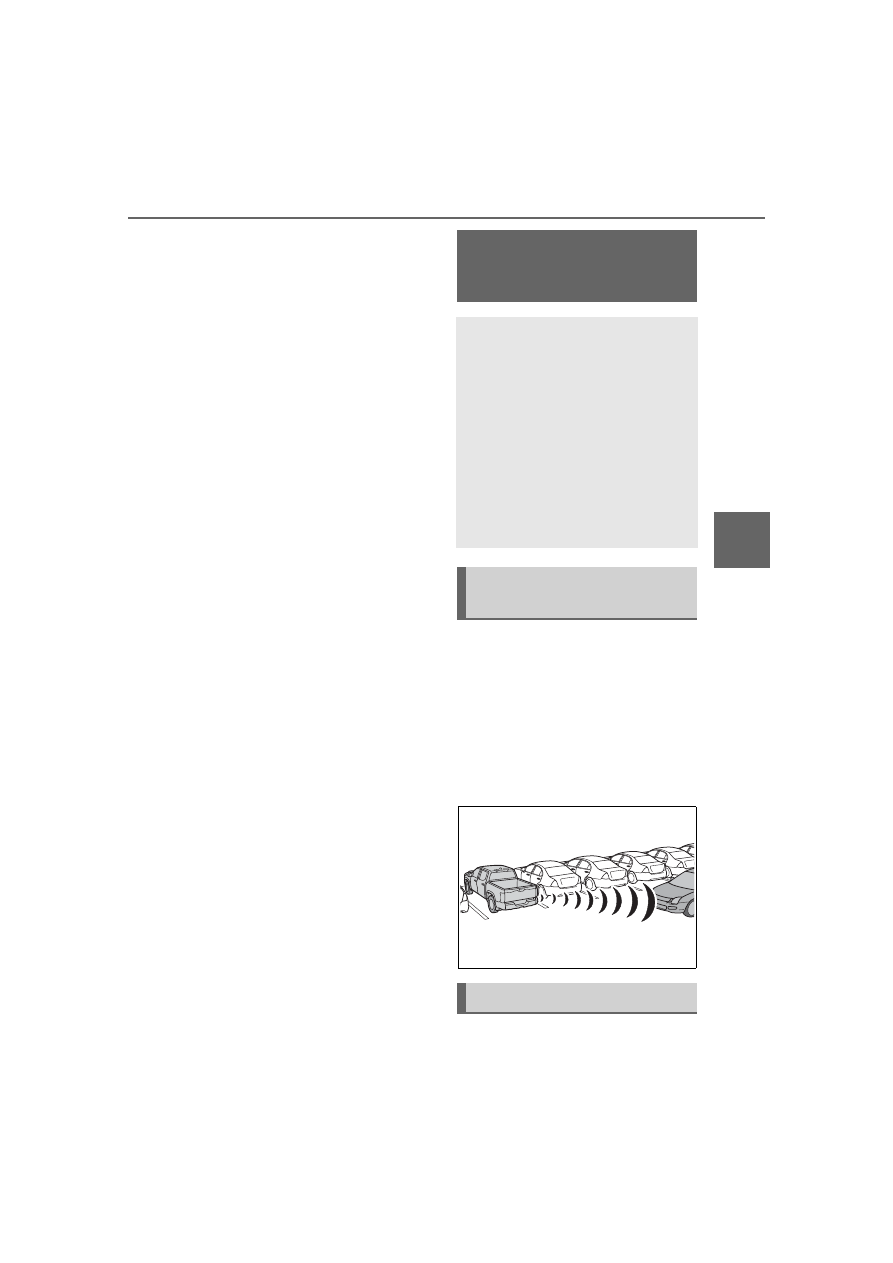

Rear Cross Traffic Alert

When a sensor detects a vehicle
approaching from the rear, the
direction of the vehicle approaching
from the rear is displayed and the
buzzer sounds.

Intuitive parking assist

When a sensor detects a stationary
object, the direction of and the
approximate distance to the a sta-
tionary object are displayed and the
buzzer sounds.

: If equipped

●

For details about the Rear Cross

Traffic Alert function (



P.281) and

intuitive parking assist. (



P.274)

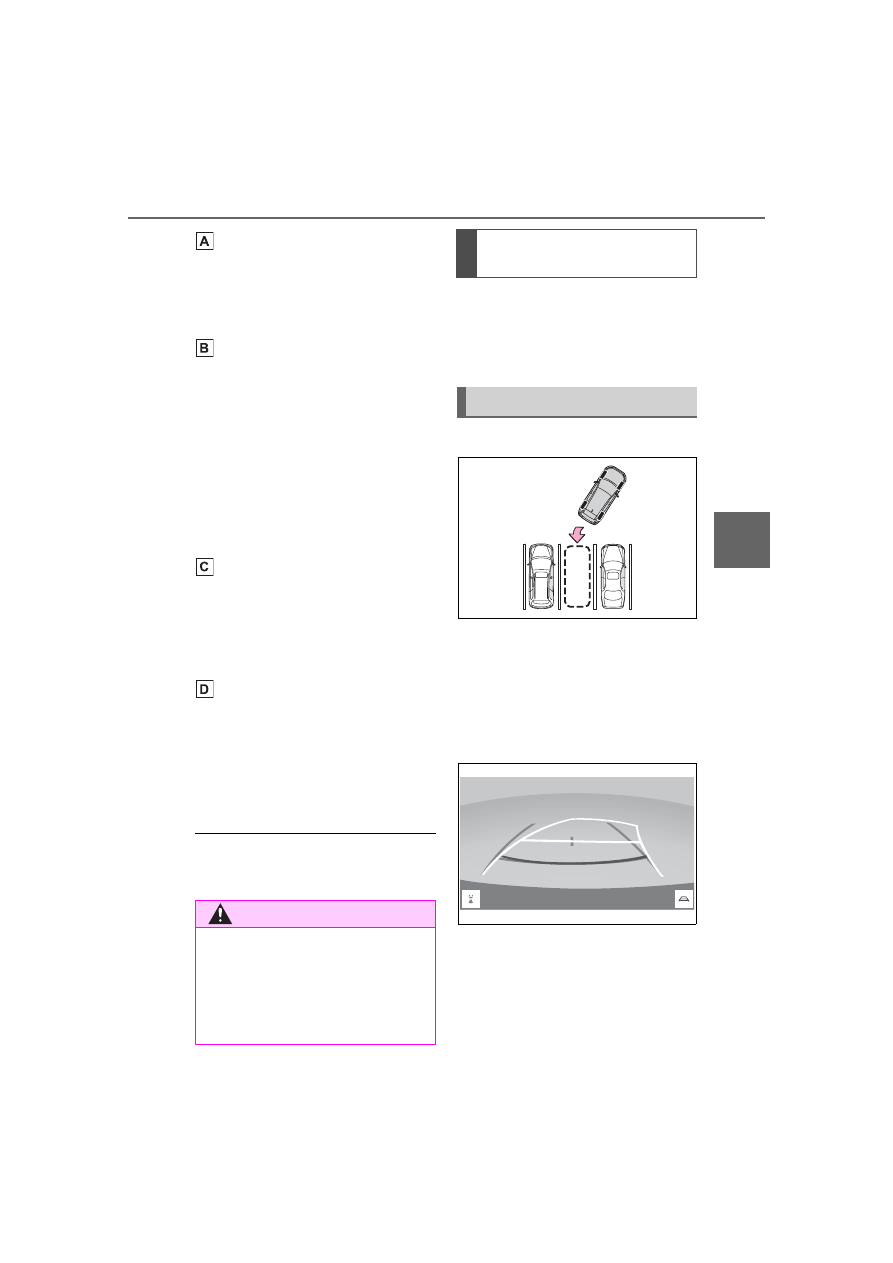

The parking assist monitor is
canceled when the shift lever is
shifted into any position other
than R.

Use any of the following modes.



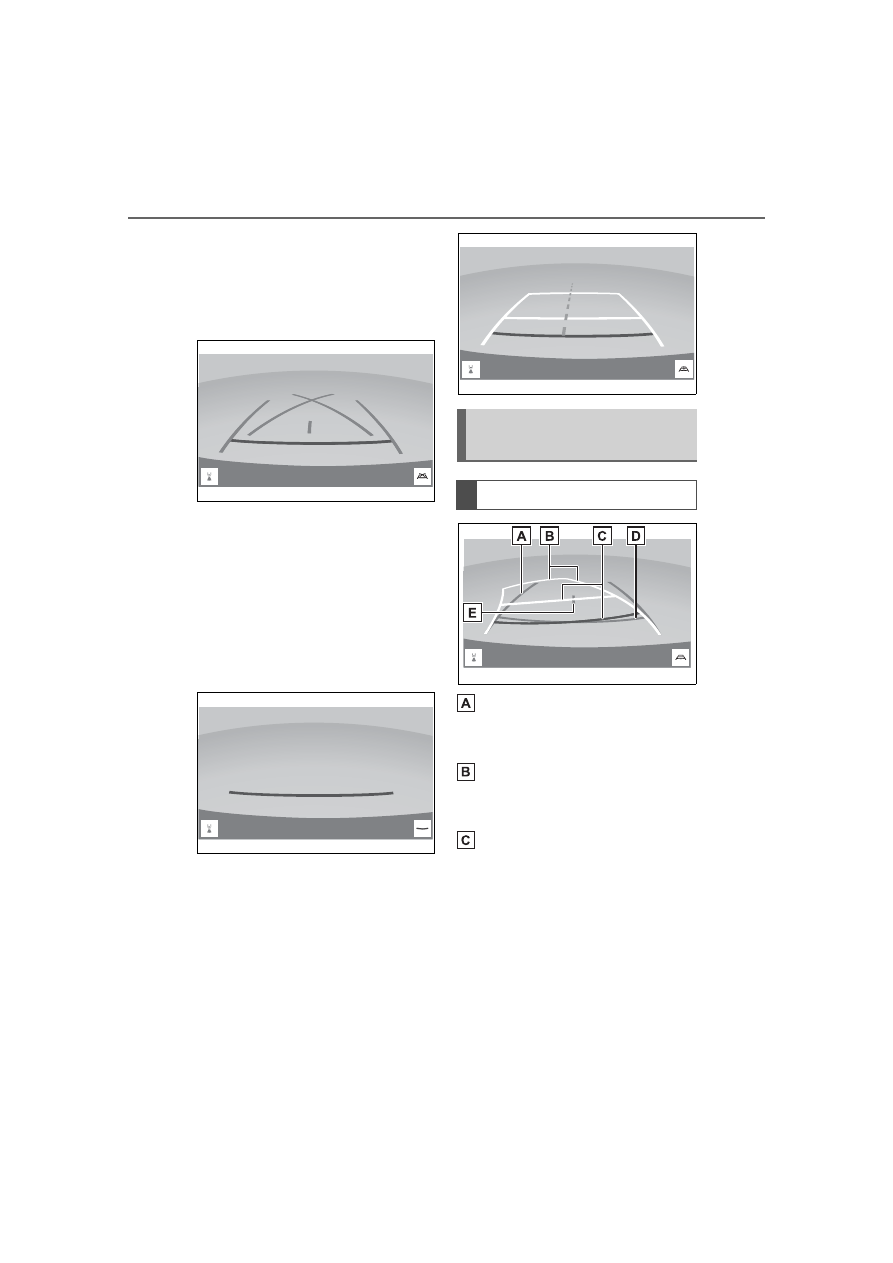

Estimated course line display
mode (



P.300)

Estimated course lines are dis-
played which move in accor-
dance with the operation of the
steering wheel.



Parking assist guide line dis-
play mode (



P.301)

The steering wheel return points
(parking assist guide lines) are
displayed.

WARNING

●

As the Rear Cross Traffic Alert

display is displayed over the

camera view, it may be difficult

to see the Rear Cross Traffic

Alert display depending on the

color and brightness of the sur-

rounding area.

Canceling Toyota parking
assist monitor

Using the system

300

4-5. Using the driving support systems

This mode is recommended for
those who are comfortable with
parking the vehicle without the
aid of the estimated course
lines.



Distance guide line display
mode (



P.302)

Distance guide lines only are
displayed.
This mode is recommended for
those who are comfortable with
parking the vehicle without the
aid of the guide lines.



Center guide line display
mode (



P.302)

Estimated course lines and
vehicle center line are displayed
which move in accordance with
the operation of the steering
wheel.

Vehicle width guide line

Displays a guide path when the
vehicle is being backed straight up.

Estimated course lines

Show an estimated course when
the steering wheel is turned.

Distance guide lines

Show distance behind the vehicle
when the steering wheel is turned.
• The guide lines move in conjunc-

tion with the estimated course
lines.

• The guide lines display points

approximately 1.5 ft. (0.5 m) (red)
and approximately 3 ft. (1 m) (yel-
low) from the center of the edge
of the bumper.

Estimated course line dis-
play mode

Screen description

301

4-5. Using the driving support systems

ing

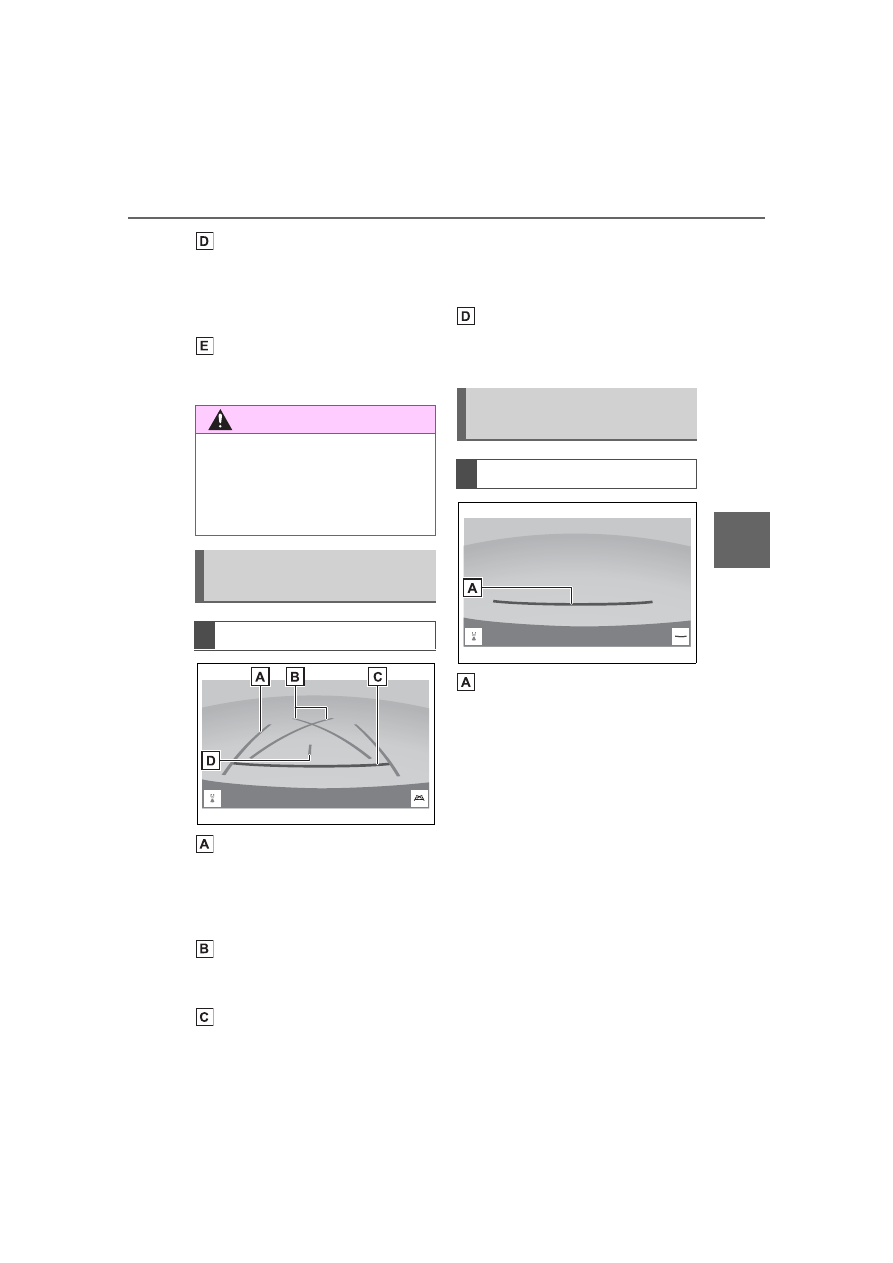

Distance guide line

Shows distance behind the vehicle.
• Displays a point approximately

1.5 ft. (0.5 m) (blue) from the
edge of the bumper.

Vehicle center guide line

Indicates the estimated vehicle
center on the ground.

Vehicle width guide line

Displays a guide path when the
vehicle is being backed straight up.
• The displayed width is wider than

the actual vehicle width.

Parking assist guide lines

Show the path of the smallest turn
possible behind the vehicle.

Distance guide line

Shows distance behind the vehicle.
• Displays points approximately 1.5

ft. (0.5 m) (red) from the edge of
the bumper.

Vehicle center guide line

Indicates the estimated vehicle
center on the ground.

Distance guide line

Shows distance behind the vehicle.
• Displays points approximately 1.5

ft. (0.5 m) (red) from the edge of
the bumper.

WARNING

●

If the steering wheel is straight

and the vehicle width guide

lines and the estimated course

lines are not in alignment, have

the vehicle inspected by your

Toyota dealer.

Parking assist guide line
display mode

Screen description

Distance guide line dis-
play mode

Screen description

303

4-5. Using the driving support systems

ing

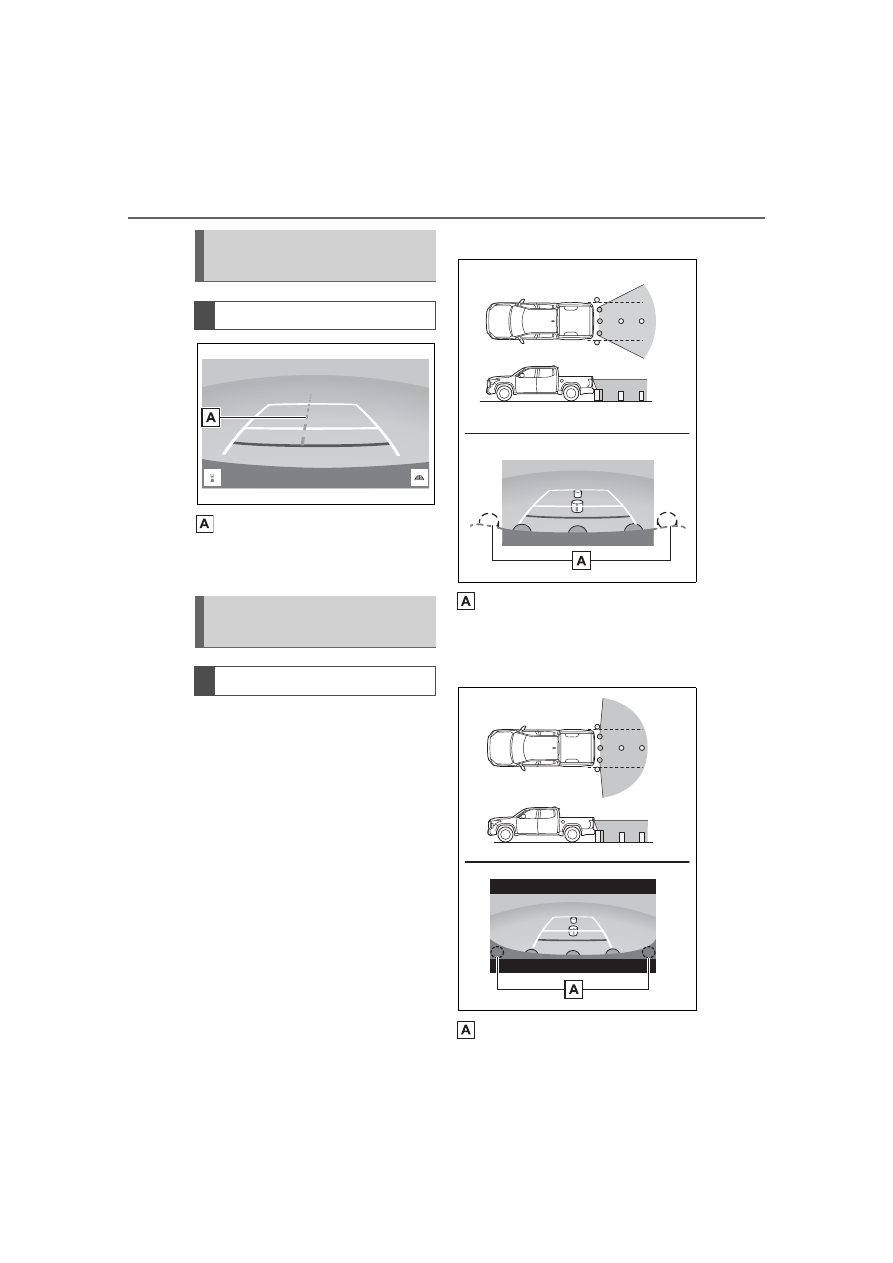

• The area around both corners of

the bumper will not be displayed.

●

The image adjustment procedure

for the parking assist monitor

screen is the same as the proce-

dure for adjusting the screen dis-

play. (Refer to the “MULTIMEDIA

OWNER’S MANUAL”.)

●

The area displayed on the screen

may vary according to vehicle ori-

entation conditions.

●

Objects which are close to either

corner of the bumper or under the

bumper cannot be displayed.

●

The camera uses a special lens.

The distance of the image that

appears on the screen differs from

the actual distance.

●

Items which are located higher

than the camera may not be dis-

played on the monitor.

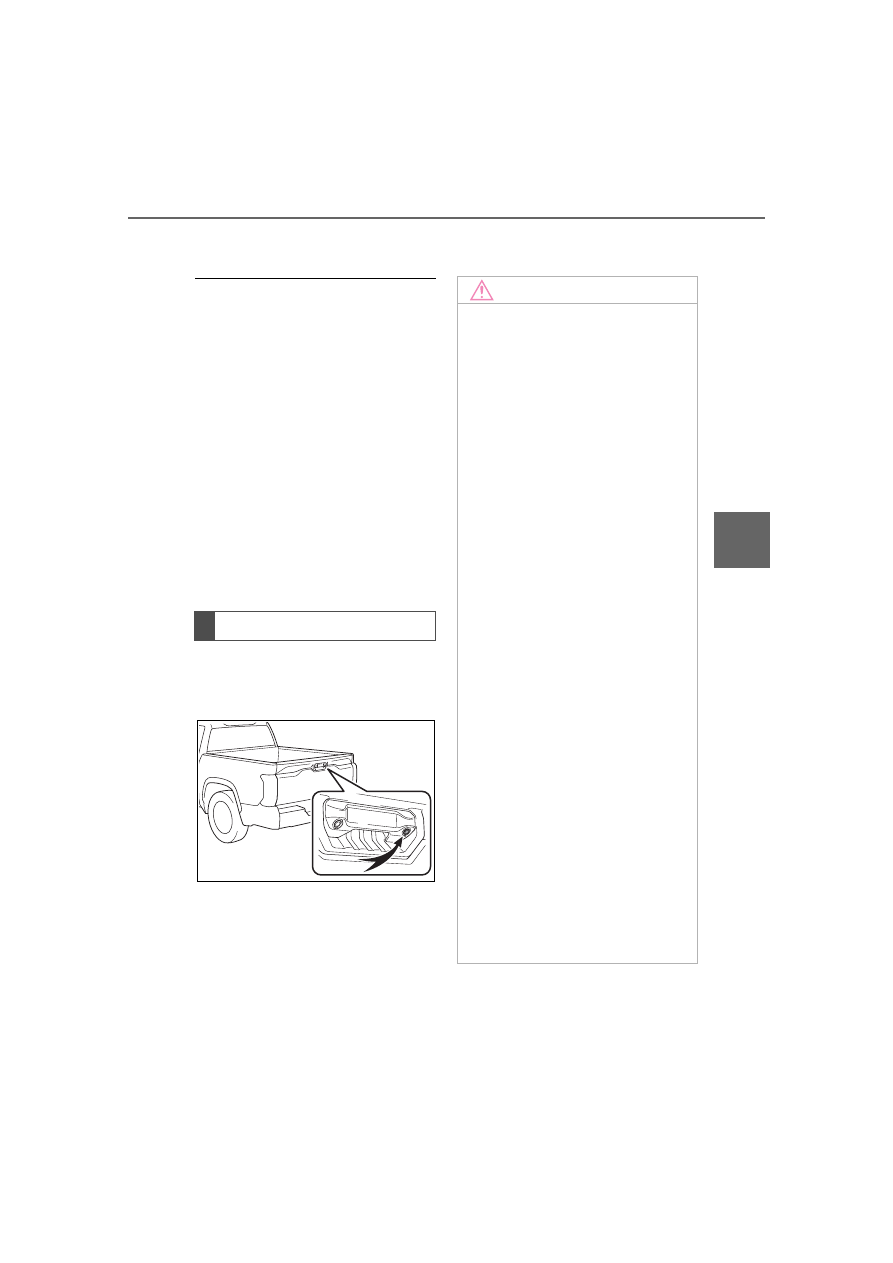

The camera for the parking
assist monitor is located as
shown in the illustration.

■

Using the camera

If dirt or foreign matter (such as
water droplets, snow, mud, etc.)
is adhering to the camera, it
cannot transmit a clear image.
In this case, flush it with a large
quantity of water and wipe the

camera lens clean with a soft
and wet cloth.

The camera

NOTICE

●

The parking assist monitor may

not operate properly in the fol-

lowing cases.

• If the back of the vehicle is hit,

the position and mounting angle

of the camera may change.

• As the camera has a water

proof construction, do not

detach, disassemble or modify

it. This may cause incorrect

operation.

• When cleaning the camera lens,

flush the camera with a large

quantity of water and wipe it

with a soft and wet cloth.

Strongly rubbing the camera

lens may cause the camera lens

to be scratched and unable to

transmit a clear image.

• Do not allow organic solvent,

car wax, window cleaner or a

glass coating to adhere to the

camera. If this happens, wipe it

off as soon as possible.

• If the temperature changes rap-

idly, such as when hot water is

poured on the vehicle in cold

weather, the system may not

operate normally.

• When washing the vehicle, do

not apply intensive bursts of

water to the camera or camera

area. Doing so may result in the

camera malfunctioning.

●

Do not expose the camera to

strong impact as this could

cause a malfunction. If this hap-

pens, have the vehicle

inspected by your Toyota dealer

as soon as possible.

Toyota Tundra Hybrid (2023 year). Manual in english - page 18
