4-5. Using the driving support systems

shaped, such as a tractor or side

car

• If a vehicle ahead is a child sized

bicycle, a bicycle that is carrying a

large load, a bicycle ridden by

more than one person, or a

uniquely shaped bicycle (bicycle

with a child seat, tandem bicycle,

etc.)

• If a pedestrian/or the riding height

of a bicyclist ahead is shorter than

approximately 3.2 ft. (1 m) or taller

than approximately 6.5 ft. (2 m)

• If a pedestrian/bicyclist is wearing

oversized clothing (a rain coat,

long skirt, etc.), making their sil-

houette obscure

• If a pedestrian is bending forward

or squatting or bicyclist is bending

forward

• If a pedestrian/bicyclist is moving

fast

• If a pedestrian is pushing a

stroller, wheelchair, bicycle or

other vehicle

• When driving in inclement weather

such as heavy rain, fog, snow or a

sandstorm

• When driving through steam or

smoke

• When the surrounding area is dim,

such as at dawn or dusk, or while

at night or in a tunnel, making a

detectable object appear to be

nearly the same color as its sur-

roundings

• When driving in a place where the

surrounding brightness changes

suddenly, such as at the entrance

or exit of a tunnel

• After the hybrid system has

started the vehicle has not been

driven for a certain amount of time

• While making a left/right turn and

for a few seconds after making a

left/right turn

• While driving on a curve and for a

few seconds after driving on a

curve

• If your vehicle is skidding

• If the front of the vehicle is raised

or lowered

• If the wheels are misaligned

• If a wiper blade is blocking the

front camera

• The vehicle is being driven at

extremely high speeds

• When driving on a hill

• If the radar sensor or front camera

is misaligned

• When driving in a traffic lane sep-

arated by more than one lane

where oncoming vehicles are driv-

ing while making a right/left turn

• When largely out of place with the

opposite facing targeted oncom-

ing vehicle during a right/left turn

• While making a right/left turn,

when a pedestrian approaches

from behind or side of your vehicle

• When the vehicle is lifted up using

an aftermarket lift kit

• When the vehicle is lifted up more

than 4 in. (101 mm)

●

In addition to the above, in some

situations, such as the following,

the emergency steering assist

241

4-5. Using the driving support systems

ing

may not operate.

• When the white (yellow) lane lines

are difficult to see, such as when

they are faint, diverging/merging,

or a shadow is cast upon them

• When the lane is wider or nar-

rower than normal

• When there is a light and dark pat-

tern on the road surface, such as

due to road repairs

• When a pedestrian is detected

near the centerline of the vehicle

• When the target is too close

• When there is insufficient safe or

unobstructed space for the vehicle

to be steered into

• If oncoming vehicle is present

• If VSC function is operating

●

In some situations such as the fol-

lowing, sufficient braking force or

steering force may not be

obtained, preventing the system

from performing properly:

• If the braking functions cannot

operate to their full extent, such as

when the brake parts are

extremely cold, extremely hot, or

wet

• If the vehicle is not properly main-

tained (brakes or tires are exces-

sively worn, improper tire inflation

pressure, etc.)

• When the vehicle is being driven

on a gravel road or other slippery

surface

• When the road surface has deep

wheel tracks

• When driving on a hill road

• When driving on a road that has

inclines to the left or right

• When your vehicles is towing a

trailer or another vehicle

• When your vehicle is lifted up

■

If VSC is disabled

●

If VSC is disabled (



P.376), the

pre-collision brake assist and pre-

collision braking functions are also

disabled.

●

The PCS warning light will turn on

and “VSC Turned OFF Pre-Colli-

sion Brake System Unavailable”

will be displayed on the multi-

information display.

242

4-5. Using the driving support systems

While driving on a road with
clear white (yellow) lane lines,
the LTA system warns the driver
if the vehicle may deviate from
the current lane

, and also can

slightly operate the steering
wheel to help avoid deviation
from the lane. Also, while the
dynamic radar cruise control
with full-speed range is operat-
ing, this system will operate the
steering wheel to maintain the
vehicle’s lane position.
The LTA system recognizes
white (yellow) lane lines

using

the front camera. Additionally, it
detects preceding vehicles
using the front camera and
radar.

: May recognize the boundaries

between the asphalt and the side
of the road, such as grass, soil, or
the curb, to be road lanes

LTA (Lane Tracing

Assist)

Summary of functions

WARNING

■

Before using LTA system

●

Do not rely solely upon the LTA

system. The LTA system does

not automatically drive the vehi-

cle or reduce the amount of

attention that must be paid to

the area in front of the vehicle.

The driver must always assume

full responsibility for driving

safely by paying careful atten-

tion to the surrounding condi-

tions and operating the steering

wheel to correct the path of the

vehicle. Also, the driver must

take adequate breaks when

fatigued, such as from driving

for a long period of time.

●

Failure to perform appropriate

driving operations and pay care-

ful attention may lead to an

accident, resulting in death or

serious injury.

●

When connecting a trailer which

can be connected with Toyota’s

official TBC ECU, the lane cen-

tering function will be disabled

automatically when LTA detects

a trailer connection.

When other trailer is connected,

turn off the lane centering func-

tion if a trailer is connected and

it is not automatically disabled.

After trailer disconnect and

power switch is turned off, lance

centering function can be turned

on.

243

4-5. Using the driving support systems

ing

WARNING

●

This vehicle has Automatic

Trailer Detection feature that

can detect certain trailers under

certain conditions. After trailer is

detected, lane centering func-

tion will be disabled. In certain

conditions, there is a possibility

of falsely detecting trailer when

there is no actual trailer. In that

case, lane centering function

will be disabled. To activate lane

centering function, turn power

switch to off and then turn it on

again.

●

Following scenes has possibility

of false detection of trailer:

Crowded environments such as

parking lots or camping

grounds, closely following vehi-

cles such traffic jam, drive

through, parallel parking, etc.

●

Do not use the lane centering

system and steering assist func-

tion when the vehicle is lifted

unless using a Toyota official lift

up kit up to 4 in. (101 mm),

including tire height. Aftermar-

ket lift kits may degrade system

performance.

■

Situations unsuitable for LTA

system

In the following situations, use the

LTA switch to turn the system off.

Failure to do so may lead to an

accident, resulting in death or

serious injury.

●

Vehicle is driven on a road sur-

face which is slippery due to

rainy weather, fallen snow,

freezing, etc.

●

Vehicle is driven on a snow-cov-

ered road.

●

White (yellow) lines are difficult

to see due to rain, snow, fog,

dust, etc.

●

Vehicle is driven in a temporary

lane or restricted lane due to

construction work.

●

Vehicle is driven in a construc-

tion zone.

●

A spare tire, tire chains, etc.,

are equipped.

●

When the tires have been

excessively worn, or when the

tire inflation pressure is low.

●

When your vehicles is towing a

trailer or another vehicle, except

when the following condition is

met.

• When the other vehicle is a

trailer properly attached and

connected to Toyota’s official

TBC ECU. (



P.181)

●

When the vehicle is lifted up,

except in the following cases.

• When using a Toyota official lift

kit up to 4 in. (101 mm), includ-

ing tire height. Aftermarket lift

kits may degrade system perfor-

mance.

■

Preventing LTA system mal-

functions and operations per-

formed by mistake

●

Do not modify the headlights or

place stickers, etc., on the sur-

face of the lights.

●

Do not modify the suspension,

etc. If the suspension, etc.,

needs to be replaced, contact

your Toyota dealer.

●

Do not install or place anything

on the hood or grille. Also, do

not install a grille guard (bull

bars, kangaroo bar, etc.).

●

If your windshield needs

repairs, contact your Toyota

dealer.

244

4-5. Using the driving support systems

WARNING

■

Conditions in which functions

may not operate properly

In the following situations, the

functions may not operate prop-

erly and the vehicle may depart

from its lane. Drive safely by

always paying careful attention to

your surroundings and operate

the steering wheel to correct the

path of the vehicle without relying

solely on the functions.

●

When the follow-up cruising dis-

play is displayed (



P.248) and

the preceding vehicle changes

lanes. (Your vehicle may follow

the preceding vehicle and also

change lanes.)

●

When the follow-up cruising dis-

play is displayed (



P.248) and

the preceding vehicle is sway-

ing. (Your vehicle may sway

accordingly and depart from the

lane.)

●

When the follow-up cruising dis-

play is displayed (



P.248) and

the preceding vehicle departs

from its lane. (Your vehicle may

follow the preceding vehicle and

depart from the lane.)

●

When the follow-up cruising dis-

play is displayed (



P.248) and

the preceding vehicle is being

driven extremely close to the

left/right lane line. (Your vehicle

may follow the preceding vehi-

cle and depart from the lane.)

●

Vehicle is being driven around a

sharp curve.

●

Objects or patterns that could

be mistaken for white (yellow)

lines are present on the side of

the road (guardrails, reflective

poles, etc.).

●

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white

(yellow) lines, etc., are present

due to road repair.

●

There are shadows on the road

that run parallel with, or cover,

the white (yellow) lines.

245

4-5. Using the driving support systems

ing

WARNING

●

The vehicle is driven in an area

without white (yellow) lines,

such as in front of a tollgate or

checkpoint, or at an intersec-

tion, etc.

●

The white (yellow) lines are

cracked, “Botts’ dots”, “Raised

pavement marker” or stones are

present.

●

The white (yellow) lines cannot

be seen or are difficult to see

due to sand, etc.

●

The vehicle is driven on a road

surface that is wet due to rain,

puddles, etc.

●

The traffic lines are yellow

(which may be more difficult to

recognize than lines that are

white).

●

The white (yellow) lines cross

over a curb, etc.

●

The vehicle is driven on a bright

surface, such as concrete.

●

The vehicle is driven on a sur-

face that is bright due to

reflected light, etc.

●

The vehicle is driven in an area

where the brightness changes

suddenly, such as at the

entrances and exits of tunnels,

etc.

●

Light from the headlights of an

oncoming vehicle, the sun, etc.,

enters the camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road

which tilts left or right, or a wind-

ing road.

●

The vehicle is driven on an

unpaved or rough road.

●

The traffic lane is excessively

narrow or wide.

●

The vehicle is extremely tilted

due to carrying heavy luggage

or having improper tire pres-

sure.

●

The distance to the preceding

vehicle is extremely short.

●

The vehicle is moving up and

down a large amount due to

road conditions during driving

(poor roads or road seams).

●

When driving in a tunnel or at

night with the headlights off or

when a headlight is dim due to

its lens being dirty or it being

misaligned.

●

The vehicle is struck by a cross-

wind.

●

The vehicle is affected by wind

from a vehicle driven in a

nearby lane.

●

The vehicle has just changed

lanes or crossed an intersec-

tion.

●

Tires which differ by structure,

manufacturer, brand or tread

pattern are used.

●

When tires of a size other than

specified are installed.

●

Snow tires, etc., are equipped.

●

The vehicle is being driven at

extremely high speeds.

●

When your vehicles is towing a

trailer or another vehicle, except

when the following condition is

met.

• When the other vehicle is a

trailer properly attached and

connected to Toyota’s official

TBC ECU. (



P.181)

246

4-5. Using the driving support systems

■

Lane departure alert func-
tion

When the system determines
that the vehicle might depart
from its lane

, a warning is dis-

played on the multi-information
display, and either a warning
buzzer will sound or the steering
wheel will vibrate to alert the
driver.

When the warning buzzer sounds
or the steering wheel vibrates,
check the area around your vehicle
and carefully operate the steering
wheel to move the vehicle back to
the center of the lane.
When the system determines that
the vehicle might depart from its
lane and that the possibility of a col-
lision with an overtaking vehicle in
the adjacent lane is high, the lane
departure alert will operate even if
the turn signals are operating.

: May recognize the boundaries

between the asphalt and the side
of the road, such as grass, soil, or
the curb, to be road lanes

■

Steering assist function

When the system determines
that the vehicle might depart
from its lane, the system pro-
vides assistance as necessary
by operating the steering wheel
in small amounts for a short
period of time to keep the vehi-
cle in its lane.

When the system determines that
the vehicle might depart from its
lane and that the possibility of a col-
lision with an overtaking vehicle in
the adjacent lane is high, the steer-
ing assist function will operate even
if the turn signals are operating.

WARNING

●

When the vehicle is lifted up,

except in the following cases.

• When using a Toyota official lift

kit up to 4 in. (101 mm), includ-

ing tire height. Aftermarket lift

kits may degrade system perfor-

mance.

Functions included in LTA
system

248

4-5. Using the driving support systems

Press the LTA switch to turn the
LTA system on

The LTA indicator illuminates and a
message is displayed on the multi-
information display.
Press the LTA switch again to turn
the LTA system off.
When the LTA system is turned on
or off, operation of the LTA system
continues in the same condition the
next time the hybrid system started.

“LTA Steering Assist Active

Lane Centering Active”

LTA indicator

The illumination condition of the
indicator informs the driver of the
system operation status.
Illuminated in white: LTA system is
operating.
Illuminated in green: Steering wheel
assistance of the steering assist
function or lane centering function
is operating.
Flashing in orange: Lane departure
alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
screen.
Indicates that steering wheel assis-
tance of the steering assist function
or lane centering function is operat-
ing.
Both outer sides of the lane are dis-
played: Indicates that steering
wheel assist of the lane centering
function is operating.
One outer side of the lane is dis-

Turning LTA system on

Indications on multi-infor-
mation display

249

4-5. Using the driving support systems

ing

played: Indicates that steering
wheel assist of the steering assist
function is operating.
Both outer sides of the lane are
flashing: Alerts the driver that their
input is necessary to stay in the
center of the lane (lane centering
function).

Follow-up cruising display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
screen.
Indicates that steering assist of the
lane centering function is operating
by monitoring the position of a pre-
ceding vehicle.
When the follow-up cruising display
is displayed, if the preceding vehi-
cle moves, your vehicle may move
in the same way. Always pay care-
ful attention to your surroundings
and operate the steering wheel as
necessary to correct the path of the
vehicle and ensure safety.

Lane departure alert function
display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
screen.



Inside of displayed lines is
white

Indicates that the system is rec-
ognizing white (yellow) lines

When the vehicle departs from
its lane, the white line displayed
on the side the vehicle departs
from flashes orange.



Inside of displayed lines is
black

Indicates that the system is not
able to recognize white (yellow)
lines

or is temporarily canceled.

: May recognize the boundaries

between the asphalt and the side
of the road, such as grass, soil, or
the curb, to be road lanes

■

Operation conditions of each

function

●

Lane departure alert function

This function operates when all of
the following conditions are met.
• LTA is turned on.

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• System recognizes white (yellow)

lane lines

. (When a white [yel-

low] line

is recognized on only

one side, the system will operate

only for the recognized side.)

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

(Except when another vehicle is in

the lane on the side where the

250

4-5. Using the driving support systems

turn signal was operated)

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.252)

:The function operates even if the

vehicle speed is less than
approximately 32 mph (50 km/h)
when the lane centering function
is operating.

:May recognize the boundaries

between the asphalt and the side
of the road, such as grass, soil, or
the curb, to be road lanes

●

Steering assist function

This function operates when all of
the following conditions are met in
addition to the operation conditions
for the lane departure alert function.
• Vehicle is not accelerated or

decelerated by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning

is not displayed. (



P.251)

●

Vehicle sway warning function

This function operates when all of
the following conditions are met.

• Setting for “Sway Warning” in

of the multi-information display is
set to “ON”. (



P.567)

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• No system malfunctions are

detected. (



P.252)

●

Lane centering function

This function operates when all of
the following conditions are met.
• LTA is turned on.

• Setting for “Lane Center” in

the multi-information display is set
to “ON”. (



P.567)

• This function recognizes white

(yellow) lane lines or the position

of a preceding vehicle (except

when the preceding vehicle is

small, such as a motorcycle).

• The dynamic radar cruise control

with full-speed range is operating

in vehicle-to-vehicle distance con-

trol mode.

• Width of traffic lane is approxi-

mately 10 to 13 ft. (3 to 4 m).

• Turn signal lever is not operated.

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.252)

• Vehicle does not accelerate or

decelerate by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning

is not displayed. (



P.251)

• The vehicle is being driven in the

center of a lane.

• Steering assist function is not

operating.

• When your vehicle is not towing a

trailer or during emergency tow-

ing.

■

Temporary cancelation of func-

tions

●

When operation conditions are no

longer met, a function may be

temporarily canceled. However,

when the operation conditions are

met again, operation of the func-

tion is automatically restored.

(



P.249)

●

If the operation conditions
(



P.249) are no longer met while

the lane centering function is
operating, the steering wheel may
vibrate and the buzzer may sound

251

4-5. Using the driving support systems

ing

to indicate that the function has
been temporarily canceled. How-
ever, if the “Alert” customization
setting is set to

, the system

will notify the driver by vibrating
the steering wheel instead of
sounding the buzzer.

■

Steering assist function/lane

centering function

●

Depending on the vehicle speed,

lane departure situation, road con-

ditions, etc., the driver may not

feel the function is operating or

the function may not operate at

all.

●

The steering control of the func-

tion is overridden by the driver’s

steering wheel operation.

●

Do not attempt to test the opera-

tion of the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be diffi-

cult to hear due to external noise,

audio playback, etc. Also, it may

be difficult to feel steering wheel

vibrations due to the road condi-

tions, etc.

●

It may not be possible for the sys-

tem to determine if there is a dan-

ger of a collision with a vehicle in

an adjacent lane.

●

Do not attempt to test the opera-

tion of the lane departure alert

function.

■

Hands off steering wheel warn-

ing

In the following situations, a warning

message urging the driver to hold

the steering wheel and the symbol

shown in the illustration are dis-

played on the multi-information dis-

play to warn the driver. The warning

stops when the system determines

that the driver holds the steering

wheel. Always keep your hands on

the steering wheel when using this

system, regardless of warnings.

●

When the system determines that

the driver is driving without hold-

ing the steering wheel while the

system is operating

If the driver continues to keep their
hands off of the steering wheel, the
buzzer sounds, the driver is warned
and the function is temporarily can-
celed. This warning also operates in
the same way when the driver con-
tinuously operates the steering
wheel only a small amount.

The buzzer also sounds even if the
alert type is set to

●

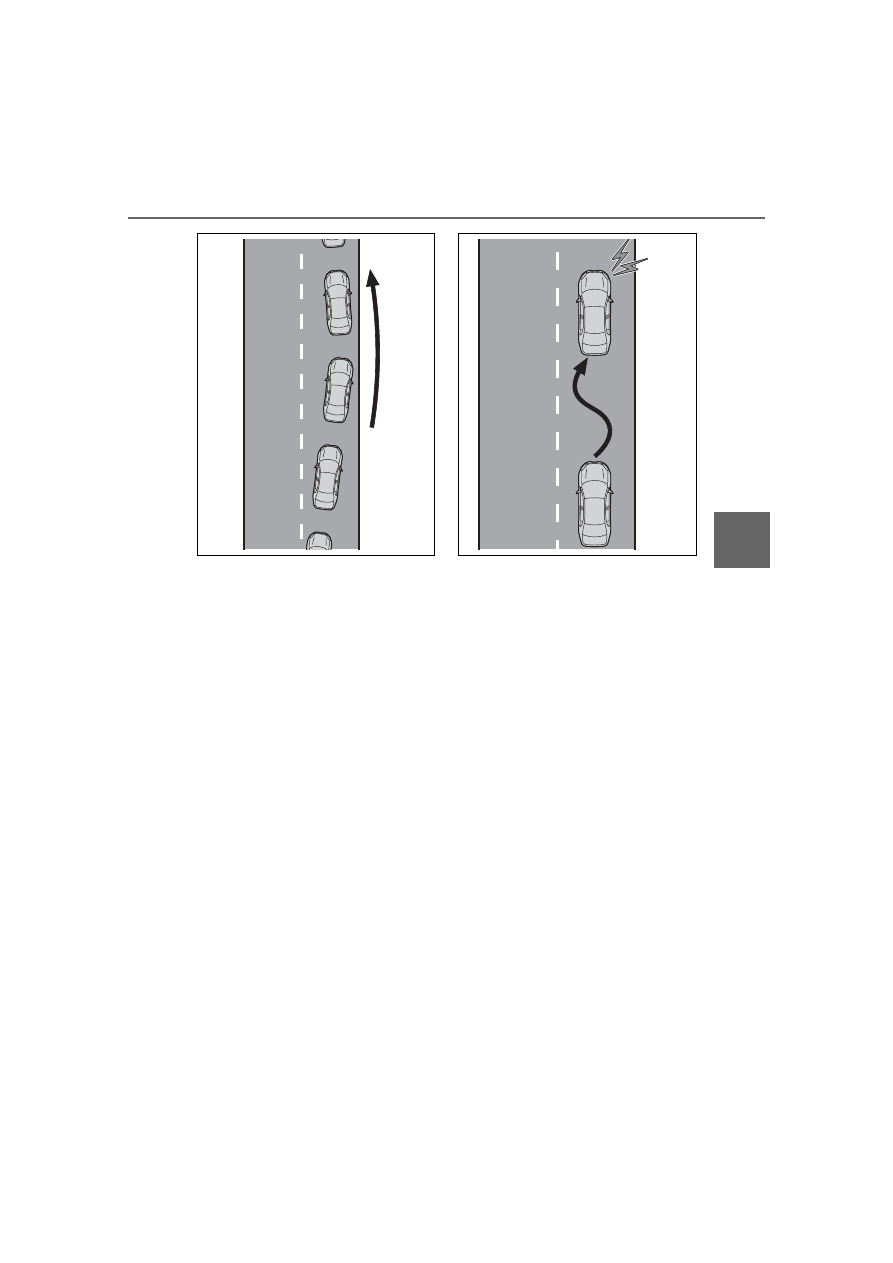

When the system determines that

the vehicle may deviate from the

lane while driving around a curve

while the lane centering function is

operating.

Depending on the vehicle condition
and road conditions, the warning
may not operate. Also, if the system
determines that the vehicle is driv-
ing around a curve, warnings will
occur earlier than during straight-
lane driving.

●

When the system determines that

the driver is driving without hold-

ing the steering wheel while the

steering wheel assist of the steer-

ing assist function is operating.

If the driver continues to keep their
hands off of the steering wheel and
the steering wheel assist is operat-
ing, the buzzer sounds and the
driver is warned. Each time the
buzzer sounds, the continuing time

252

4-5. Using the driving support systems

of the buzzer becomes longer.

The buzzer also sounds even if the
alert type is set to

■

Vehicle sway warning function

When the system determines that

the vehicle is swaying while the

vehicle sway warning function is

operating, a buzzer sounds and a

warning message urging the driver

to rest and the symbol shown in the

illustration are simultaneously dis-

played on the multi-information dis-

play.

Depending on the vehicle and road

conditions, the warning may not

operate.

■

Warning message

If the following warning message is

displayed on the multi-information

display and the LTA indicator illumi-

nates in orange, follow the appropri-

ate troubleshooting procedure. Also,

if a different warning message is

displayed, follow the instructions

displayed on the screen.

●

“LTA Malfunction Visit Your

Dealer”

The system may not be operating

properly. Have the vehicle inspected

by your Toyota dealer.

●

“LTA Unavailable”

The system is temporarily canceled

due to a malfunction in a sensor

other than the front camera. Turn

the LTA system off, wait for a little

while, and then turn the LTA system

back on.

●

“LTA Unavailable at Current

Speed”

The function cannot be used as the

vehicle speed exceeds the LTA

operation range. Drive slower.

■

Customization

Function settings can be changed.

(Customizable features:



P.567)

253

4-5. Using the driving support systems

ing

: If equipped

The RSA system recognizes
specific road signs using the
front camera and/or navigation
system (when speed limit infor-
mation is available) to provide
information to the driver via the
display.

If the system judges that the
vehicle is being driven over the
speed limit, performing prohib-
ited actions, etc., according to
the recognized road signs, it
notifies the driver through a
visual notification and notifica-
tion buzzer.

When the front camera recog-
nizes a sign and/or information
of a sign is available from the
navigation system, the sign will
be displayed on the multi-infor-
mation display.



When the driving support sys-
tem information is selected, a
maximum of 3 signs can be
displayed. (



P.95)



When a tab other than the
driving support system infor-
mation is selected, the follow-
ing types of road signs will be
displayed. (



P.95)

• Speed limit sign
• Do Not Enter sign (when notifica-

tion is necessary)

If signs other than speed limit signs

RSA (Road Sign

Assist)

Summary of function

WARNING

■

Before using the RSA

Do not rely solely upon the RSA

system. RSA is a system which

supports the driver by providing

information, but it is not a replace-

ment for a driver’s own vision and

awareness. Drive safely by

always paying careful attention to

the traffic rules.

Indication on the multi-
information display

254

4-5. Using the driving support systems

are recognized, they will be dis-
played in an overlapping stack
under the current speed limit sign.

The following types of road
signs, including electronic signs
and blinking signs, are recog-
nized.

A non-official or a recently intro-
duced traffic sign may not be recog-
nized.

In the following situations, the
RSA system will notify the
driver.



When the vehicle speed
exceeds the speed notifica-
tion threshold of the speed
limit sign displayed, the sign
display will be emphasized
and a buzzer will sound.



When the RSA system recog-
nizes a do not enter sign and

determines that your vehicle
has entered a no-entry area,
the displayed sign will flash
and a buzzer will sound.

Depending on the situation, a
notification function may not
operate properly.

■

Setting procedure

Press

of the meter

control switches and select

Press

of the meter

control switches and select
“

RSA”, then press

■

Automatic turn-off of RSA sign

display

In the following situations, a dis-

played speed limit sign and/or do

not enter sign will stop being dis-

played automatically:

●

No sign has been recognized for a

certain distance.

●

The road changes due to a left or

right turn, etc.

In the following situations, stop and

yield signs will stop being displayed

automatically:

●

The system determines that your

vehicle has passed the sign.

●

The road changes due to a left or

right turn, etc.

■

Conditions in which the func-

tion may not operate or detect

correctly

In the following situations, RSA

does not operate normally and may

not recognize signs, display the

incorrect sign, etc. However, this

does not indicate a malfunction.

●

The front camera is misaligned

due to a strong impact being

applied to the sensor, etc.

●

Dirt, snow, stickers, etc., are on

Supported types of road
signs

Speed limit

Do Not Enter

Stop

Yield

Notification function

255

4-5. Using the driving support systems

ing

the windshield near the front cam-

era.

●

In inclement weather such as

heavy rain, fog, snow or sand

storms

●

Light from an oncoming vehicle,

the sun, etc., enters the front cam-

era.

●

The sign is dirty, faded, tilted or

bent.

●

The contrast of electronic sign is

low.

●

All or part of the sign is hidden by

the leaves of a tree, a pole, etc.

●

The sign is only visible to the front

camera for a short amount of time.

●

The driving scene (turning, lane

change, etc.) is judged incorrectly.

●

If a sign not appropriate for the

currently traveled lane, but the

sign exists directly after a freeway

branches, or in an adjacent lane

just before merging.

●

Stickers are attached to the rear of

the preceding vehicle.

●

A sign resembling a system com-

patible sign is recognized.

●

Side road speed signs may be

detected and displayed (if posi-

tioned in sight of the front camera)

while the vehicle is traveling on

the main road.

●

Roundabout exit road speed signs

may be detected and displayed (if

positioned in sight of the front

camera) while traveling on a

roundabout.

●

The front of the vehicle is raised or

lowered due to the carried load.

●

The surrounding brightness is not

sufficient or changes suddenly.

●

When a sign intended for trucks,

etc., is recognized.

●

The navigation system map data

is outdated.

●

The navigation system is not oper-

ating.

●

The speed information displayed

on the meter and on the naviga-

tion system may be different due

to the navigation system using

map data.

■

Speed limit sign display

If the power switch was last turned

off while a speed limit sign was dis-

played on the multi-information dis-

play, the same sign displays again

when the power switch is turned to

ON.

■

If “RSA Malfunction Visit Your

Dealer” is shown

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

Customization

Some functions can be customized.

(Customizable features:



P.568)

Toyota Tundra Hybrid (2023 year). Manual in english - page 15
