2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

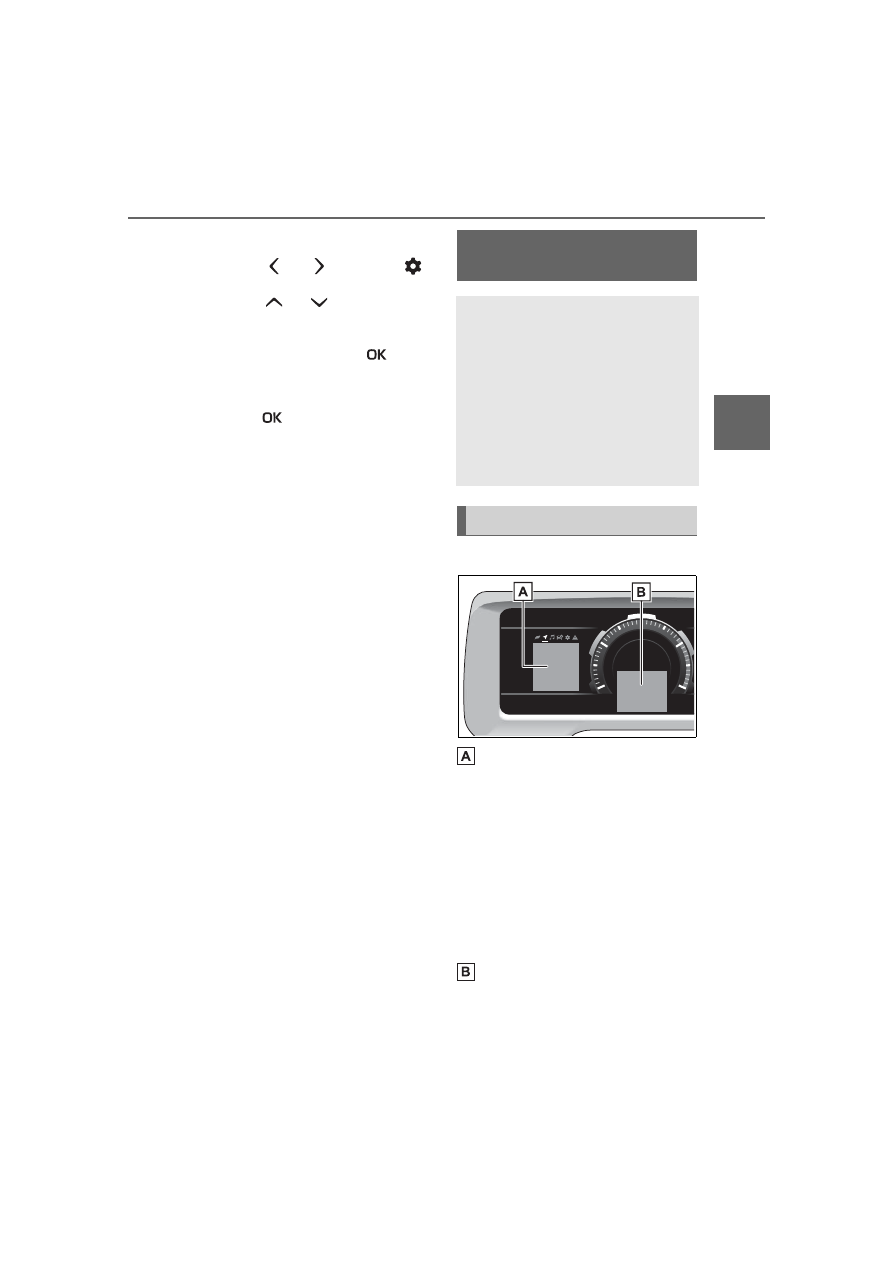

Changing the display items

Press

to select

Press

to select

“Customize Right Side”, and
then press and hold

Select the item and then
press

■

Display

Content display area

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.
Warning or advice pop-up displays
are also displayed in certain situa-
tions.

Driving support system status
display area

• LTA (Lane Tracing Assist)

(



P.242)

Multi-information dis-

play

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display and menu icons

2-1. Instrument cluster

• Dynamic radar cruise control with

full-speed range (



P.256)

• RSA (Road Sign Assist) (if

equipped) (



P.253)

■

Menu icons

The menu icons will be dis-
played by pressing the

meter control switch.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

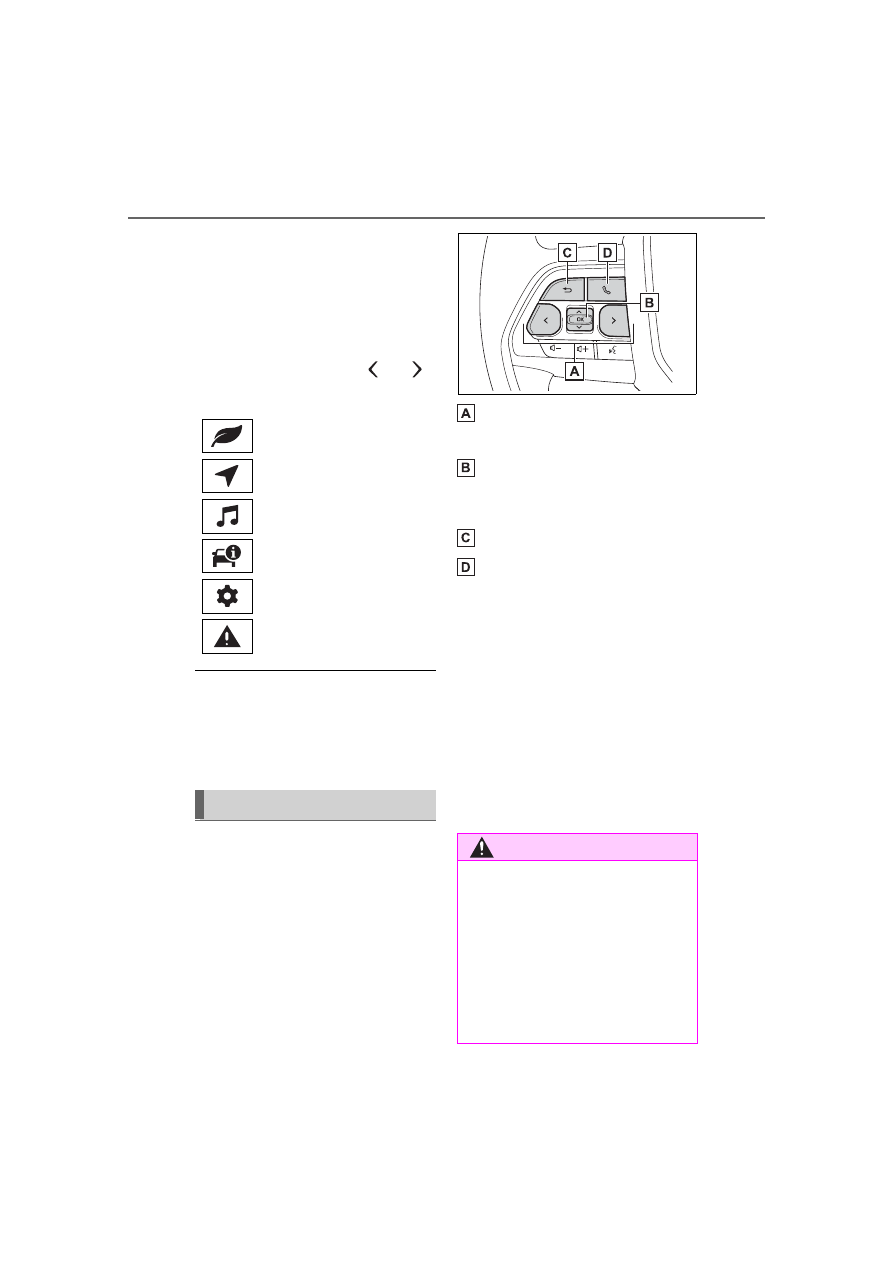

The multi-information display is
operated using the meter control
switches.

Scroll the screen

/switch the

display

/move the cursor

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Driving information display
(



P.97)

Navigation system-linked
display (



P.98)

Audio system-linked dis-
play (



P.98)

Vehicle information dis-
play (



P.98)

Settings display (



P.99)

Warning message display
(



P.101)

Changing the display

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switch while driving

as much as possible, and do not

look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switch. Failure to do

so may cause a steering wheel

operation error, resulting in an

unexpected accident.

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

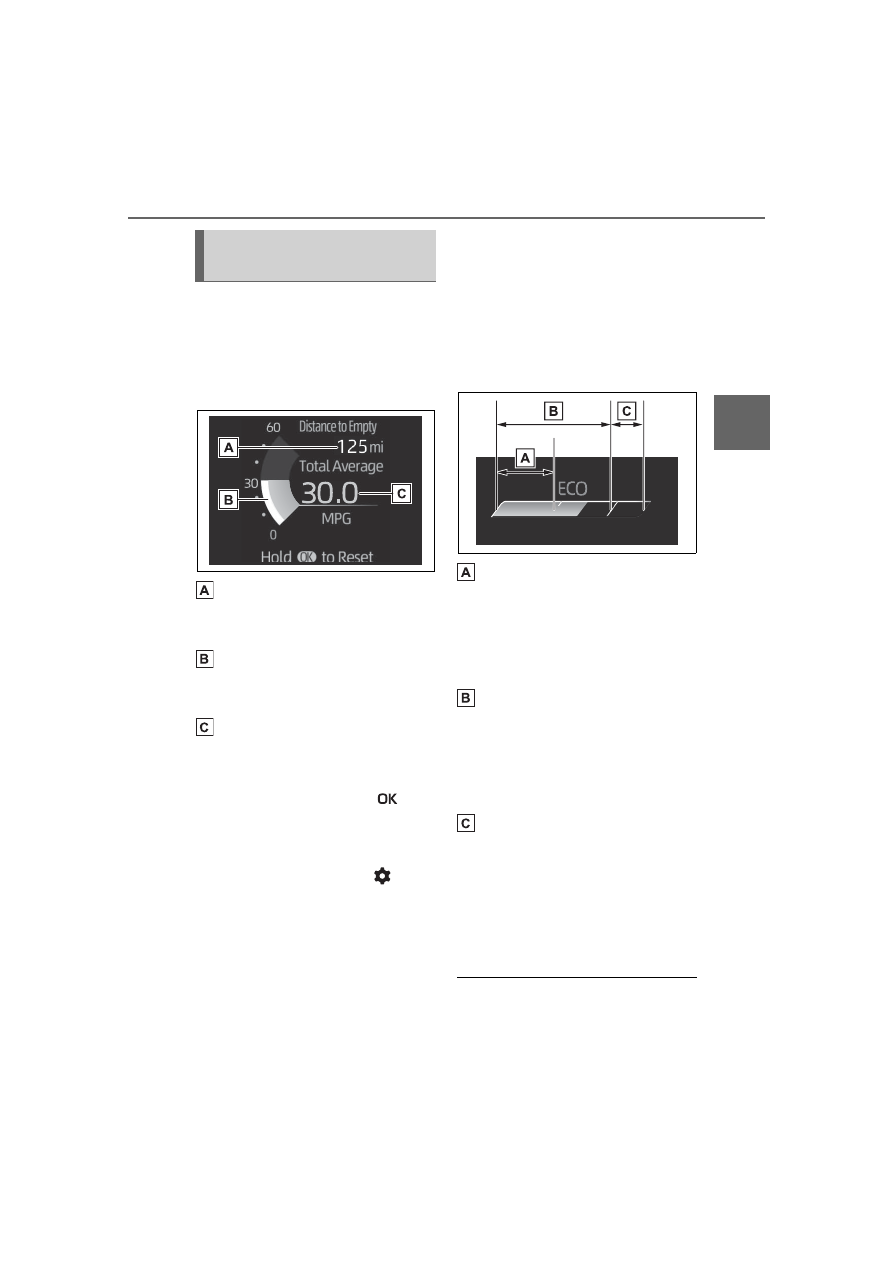

Select to display fuel consump-
tion data in various forms.

■

Fuel economy

Use the displayed values as a ref-
erence only.

Distance to empty

Displays the driving range with
remaining fuel. (



P.98)

Current fuel consumption

Displays instantaneous current fuel
consumption.

Average fuel economy (after
reset)

To reset the average fuel economy
display, press and hold the

meter control switch.

The average fuel economy dis-
play can be changed in

(



P.99)



Average fuel economy (after
start)

Displays the average fuel con-
sumption since hybrid system start.



Average fuel economy (after

refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

Hybrid System Indica-
tor/Distance to empty



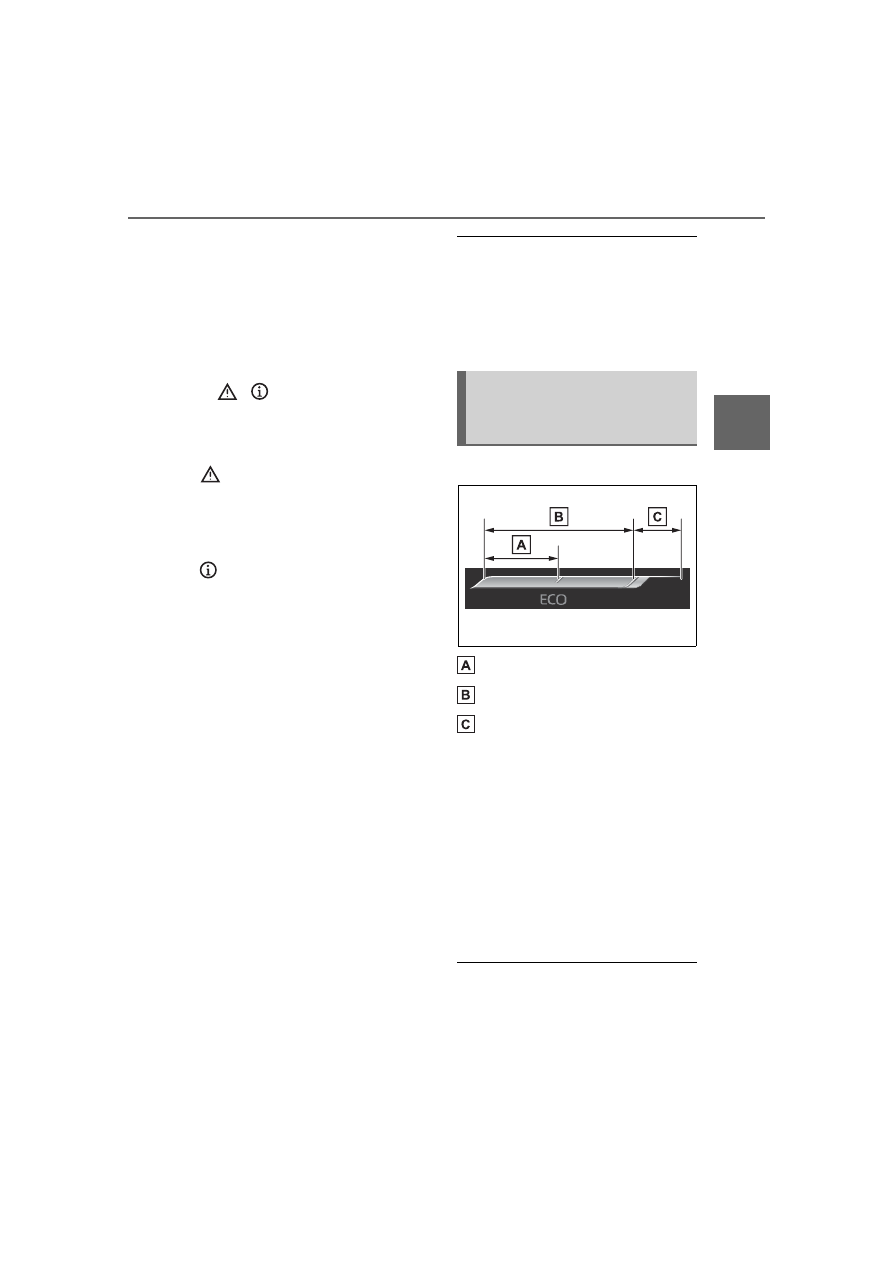

Hybrid System Indicator

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-
cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within the Eco area, more Eco-
friendly driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)



Distance to empty

Displays the driving range with
remaining fuel. (



P.98

)

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

Content of driving infor-
mation

2-1. Instrument cluster

tion. As a result, the actual dis-

tance that can be driven may differ

from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch to OFF.

If the vehicle is refueled without

turning the power switch to OFF,

the display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated. Refuel immediately.

■

Hybrid System Indicator

The Hybrid System Indicator will not

operate in the following situations:

●

The “READY” indicator is not illu-

minated.

●

The shift lever is in a range other

than D or S.

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (heading-up
display)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Trailer brake

Displays trailer brake control
status (



P.380) and trailer

type

: To select the trailer, press and

hold the

meter control switch.

(



P.100)

■

Trailer Mode BSM

Displays trailer length

and

trailer blind spot status
(



P.267).

: To select the trailer, press and

hold the

meter control switch.

(



P.100)

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



P.99)

Use the displayed information as a
reference only.
Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
hybrid system start

Navigation system-linked
display

Audio system-linked dis-
play

Vehicle information dis-
play

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

• “Distance”: Displays the distance

driven since hybrid system start

• “Total Time”: Displays the elapsed

time since hybrid system start

: These items are reset each time

the hybrid system stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

• “Distance”: Displays the distance

driven since the display was
reset

• “Total Time”: Displays the elapsed

time since the display was reset

: To reset, display the desired item

and press and hold the

meter

control switch.

■

Tire inflation pressure

Displays inflation pressure of
each tire.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Meter Type

Select to change the main dial type
to speedometer or tachometer.



(Driving information dis-

play settings)

• Fuel economy display
Select to change the average fuel
consumption display between after
start/after reset/after refuel.
(



P.97)



(Audio settings)

Select to display/not display the
audio system linked display.



(Vehicle information dis-

play settings)

Select to change the displayed con-
tent of the following:
• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Select to turn the multi-information
display off.
To turn the multi-information display
on again, press any of the meter
control switches.



Default setting

Select to reset the meter display
settings to the default setting.

Settings display

100

2-1. Instrument cluster

■

Changing settings of the
trailer type



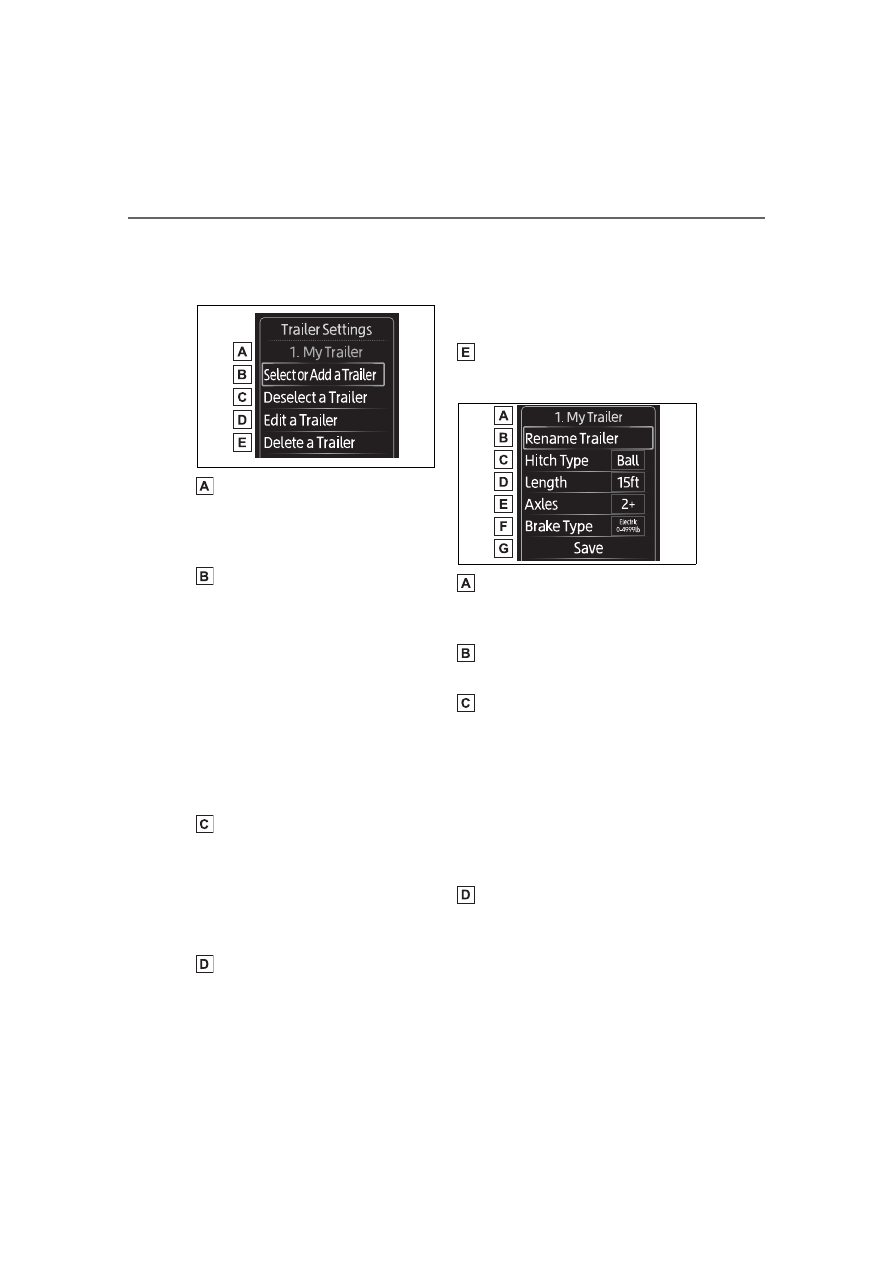

Trailer settings screen

Displays the name of the cur-
rently selected trailer or “No
Trailer Selected” if a trailer
has not yet been selected

Add a new trailer or select an
existing saved trailer

• Maximum of 10 trailers can be

saved.

• Select the trailer name, length,

hitch type, brake type and num-
ber of axles.

• The parameters which can be set

depend on which of the trailer
systems are installed on the vehi-
cle. (Trailer Brake Controller,
Trailer Backup Guide and Trailer
Mode BSM)

Deselect the currently
selected trailer

• Used when a 4-pin trailer connec-

tor has been disconnected. (4-pin
trailer connector disconnection
cannot be automatically detected
by Trailer Brake Controller)

Edit the parameters of a
saved trailer (name, length,
hitch type, brake type and
number of axles)

• The parameters which can be

edited depend on which of the
trailer systems are installed on
the vehicle (Trailer Brake Control-
ler, Trailer Backup Guide and
Trailer Mode BSM)

Delete a saved trailer



Trailer detail screen

Displays the name of the cur-
rent trailer which is being
added or edited.

Change the name of the
trailer.

Change the hitch type of the
trailer between ball hitch
(conventional), gooseneck or
fifth wheel. Note that goose-
neck and fifth wheel trailers
are not supported for some
features (Trailer Backup
Guide and Trailer Mode
BSM)

Change the length of the
trailer. If the exact length is
not listed, round up the actual
length of the trailer to the
closest available value.

“Auto” length detection can also be
selected.

101

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Change the number of axles.

Change the brake type (elec-
tric or electric over hydraulic)
and weight of the trailer, or
turn trailer brakes off for that
trailer.

Save the trailer information

If there are any errors with the
trailer values, re-select the value or
delete and re-save the trailer. If the
error continues, contact your Toy-
ota dealer.

■

Vehicle functions and set-
tings that can be changed



P.561

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.511)

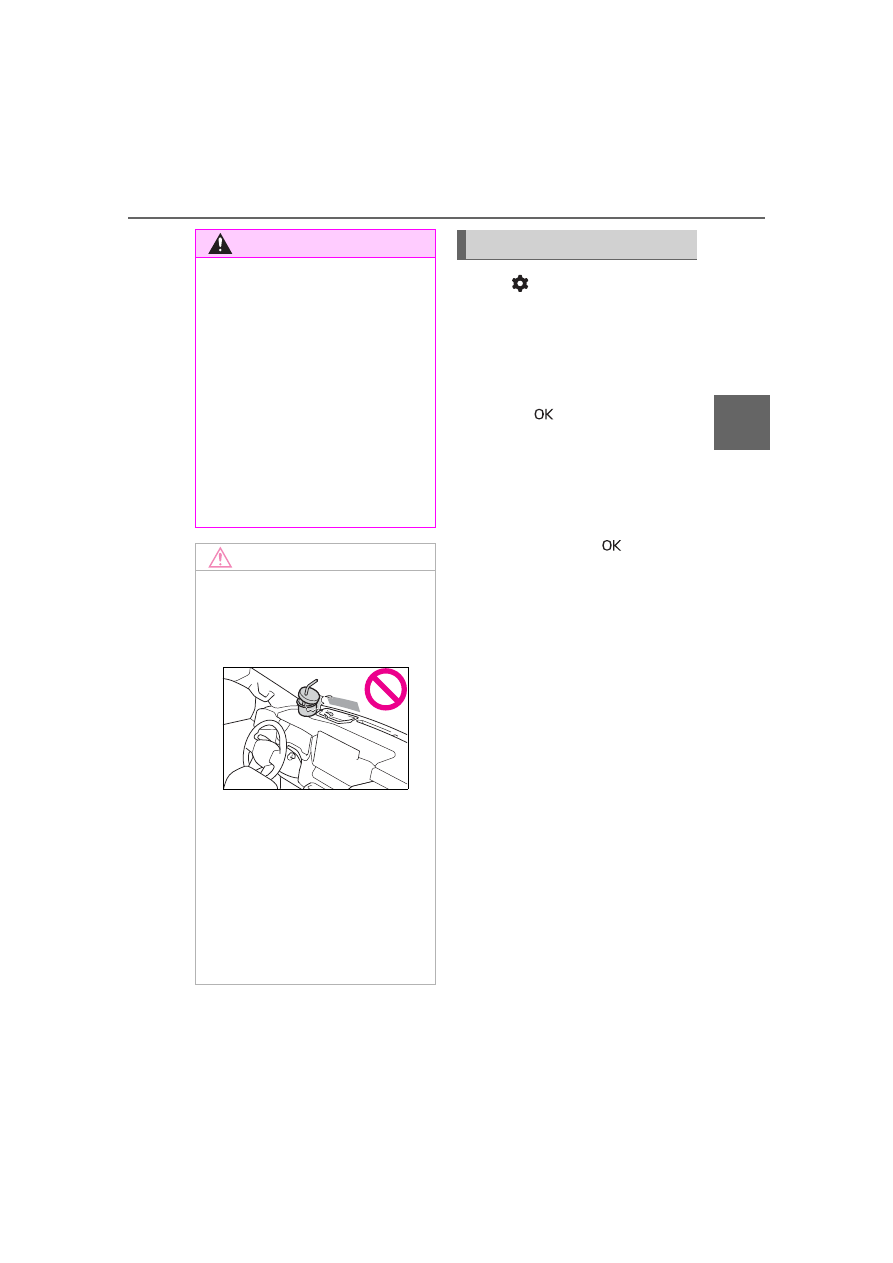

WARNING

■

Cautions during setting up

the display

If the hybrid system is operating

when changing the display set-

tings, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

102

2-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as examples, and may differ from
the image that is actually displayed by the head-up display.

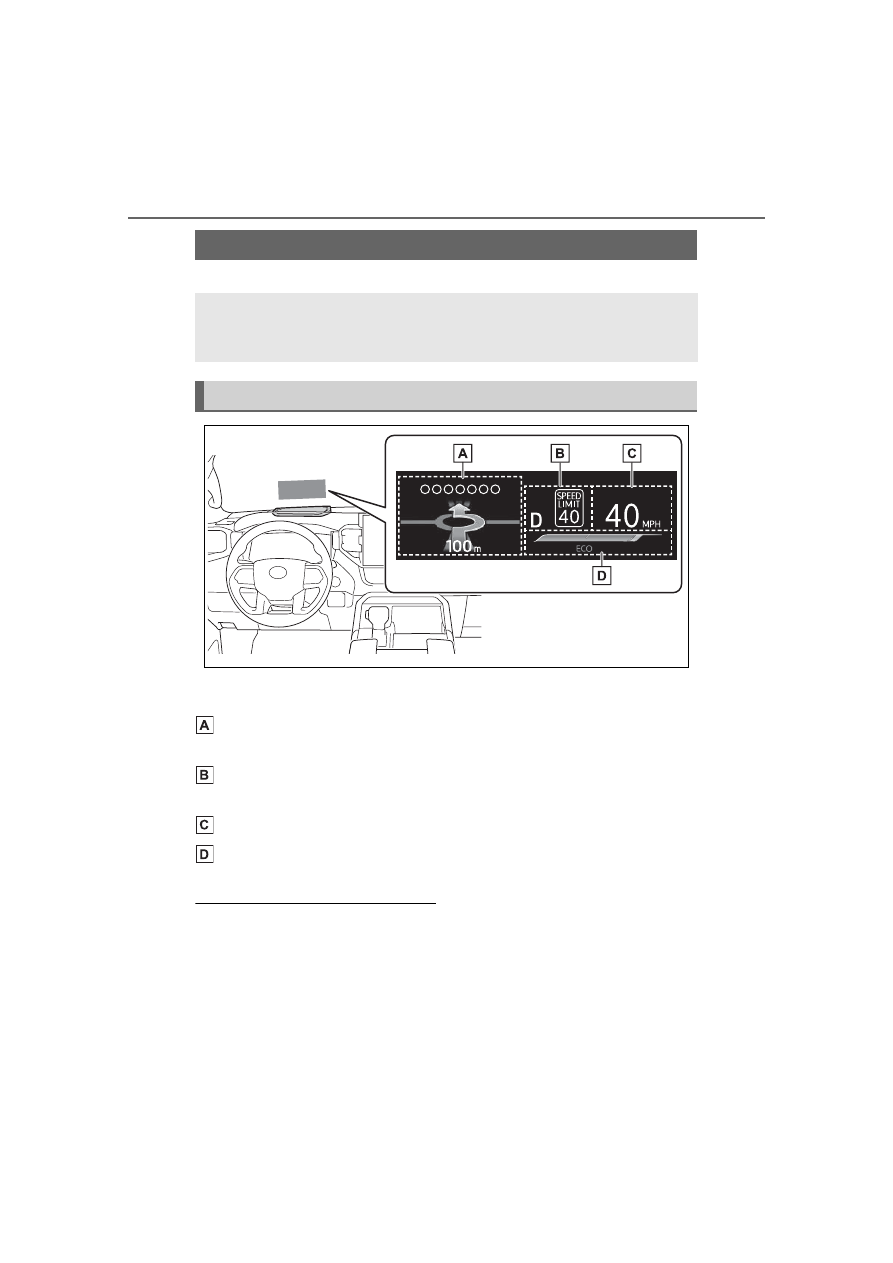

Driving support system status/navigation system-linked display
area (



P.104)

Shift position display/RSA (Road Sign Assist) (if equipped) dis-
play area (



P.200, 253)

Vehicle speed display

Hybrid System Indicator/Outside temperature display area
(



P.105)

■

Head-up display will operate

when

The power switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are

included in the map data will be dis-

played.

Head-up display

The head-up display projects a variety of driving-related infor-
mation and the operating state of the driving support systems
on the windshield.

System components

103

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Select

on the multi-informa-

tion display (



P.563) and then

“HUD Main”.

■

Enabling/disabling the
head-up display

Press the

meter control

switch to enable/disable the
head-up display.

■

Changing the head-up dis-
play settings

Press and hold the

meter

control switch to change the fol-
lowing settings:



Brightness and vertical posi-
tion of the head-up display

Select to adjust the brightness or
vertical position of the head-up dis-
play.



Display content

Select to change the display
between the following:
• No content
• Hybrid System Indicator



Select to enable/disable the
following items:

• Route guidance to destination
• Driving support system display
• Compass (heading-up display)
• Audio system operation status



Display angle

Select to adjust the angle of the
head-up display.

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc., ahead

of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt head-

up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

Using the head-up display

104

2-1. Instrument cluster

■

Enabling/disabling of the head-

up display

If the head-up display is disabled, it

will remain disabled when the power

switch is turned off then back to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

of the

multi-information display. Also, it is
automatically adjusted according to
the ambient brightness.

■

Driving support system sta-
tus display

Displays the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.242)



Dynamic radar cruise control
with full-speed range
(



P.256)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

■

Navigation system-linked
display area

Displays the following items
which are linked to the naviga-
tion system:



Street name



Route guidance to destination



Compass (heading-up dis-
play)

Pop-up displays for the following
systems will be displayed when
necessary:

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(



P.230)



LTA (Lane Tracing Assist)
(



P.242)



PKSB (Parking Support
Brake) (



P.287)



Brake Override System

WARNING

■

Caution for changing settings

of the head-up display

If the hybrid system is operating

when changing the display

settings, ensure that the vehicle

is parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

When changing the settings

of the head-up display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while chang-

ing the settings of the head-up

display.

Driving support system
status/navigation system-
linked display area

Pop-up display

105

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

(



P.172)



Drive-Start Control (



P.177)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

■

icons

These icons are linked to the
multi-information display

: Master warning icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display. (



P.511)

: Information icon

Displayed when an advice pop-up
display is displayed on the multi-
information display.

■

Warning message

Some warning messages are
displayed when necessary,
according to certain conditions.

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display.

■

Audio system operation
status

Displayed when an audio
remote control switch on the
steering wheel is operated.

■

Hands-free system status

Displayed when the hands-free
system is operated.

■

When a pop-up display is dis-

played

When a pop-up display is displayed,

a current display may no longer be

displayed. In this case, the display

will return after the pop-up display

disappears.

■

Hybrid System Indicator

Hybrid Eco area

Eco area

Power area

Displayed content is the same as
that displayed on the multi-informa-
tion display (Hybrid System Indica-
tor). For details, refer to P.97.

■

Outside temperature dis-
play

Displayed when the power
switch is turned to ON or when
the low outside temperature
indicator is flashing.

■

Outside temperature display

●

When the ambient temperature is

approximately 37°F (3°C) or

lower, the low outside temperature

Hybrid System Indica-
tor/Outside temperature
display

106

2-1. Instrument cluster

indicator will flash for approxi-

mately 10 seconds and the out-

side temperature display will turn

off. In this case, the display will be

displayed again when the outside

temperature becomes approxi-

mately 41°F (5°C) or higher.

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” is displayed, the system

may be malfunctioning. Take your

vehicle to your Toyota dealer.

■

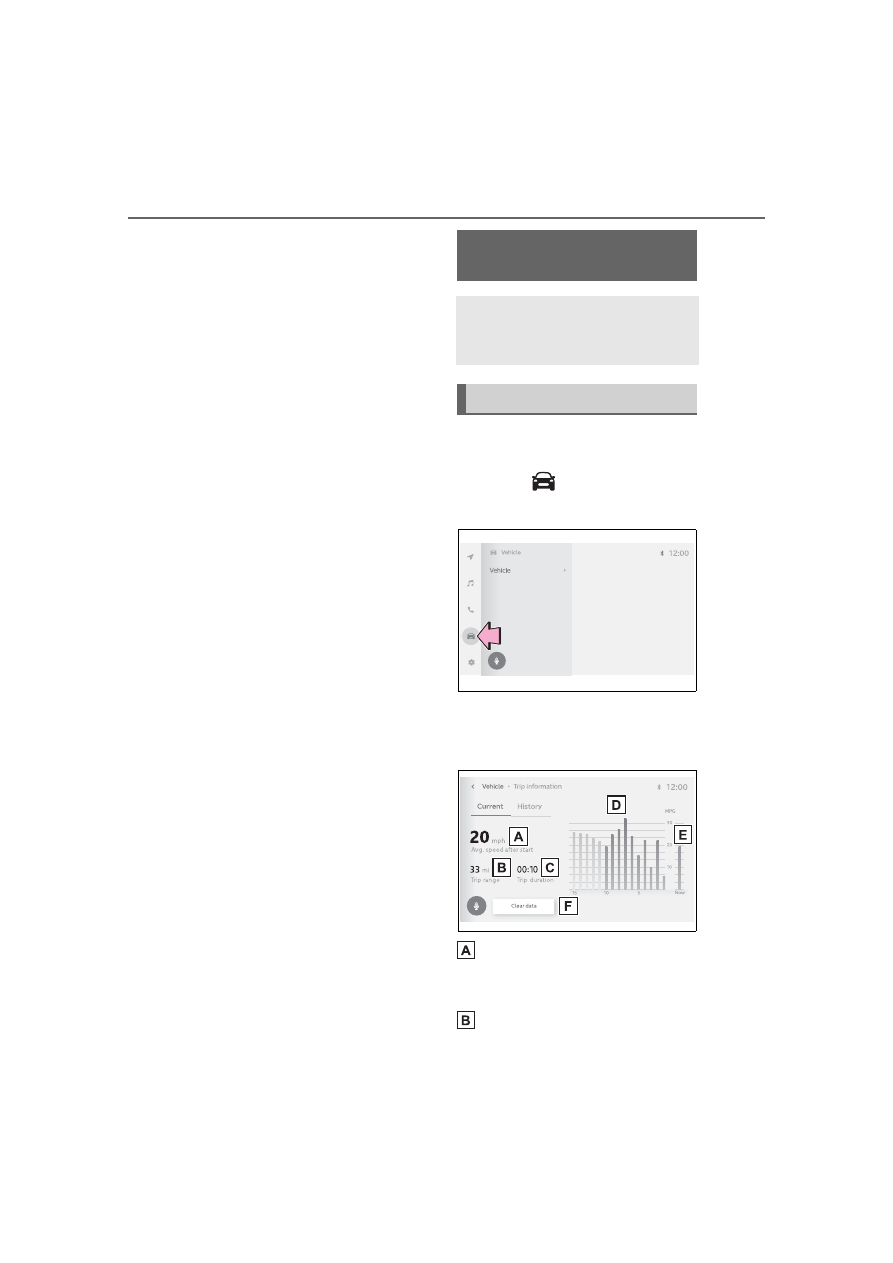

Current fuel consumption
screen

Select

on the main

menu.

Select “Trip information”.

If a screen other than “Current” is
displayed, select “Current”.

Average vehicle speed since
the hybrid system was
started.

Trip range

Fuel consumption

information

Fuel consumption informa-
tion can be displayed on the
multimedia system.

Consumption

107

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Elapsed time since the hybrid
system was started.

Fuel consumption in the past
15 minutes

Current fuel consumption

Resetting the consumption
data

Use the displayed average fuel
consumption as a reference. The
image is an example only, and may
vary slightly from actual conditions.

■

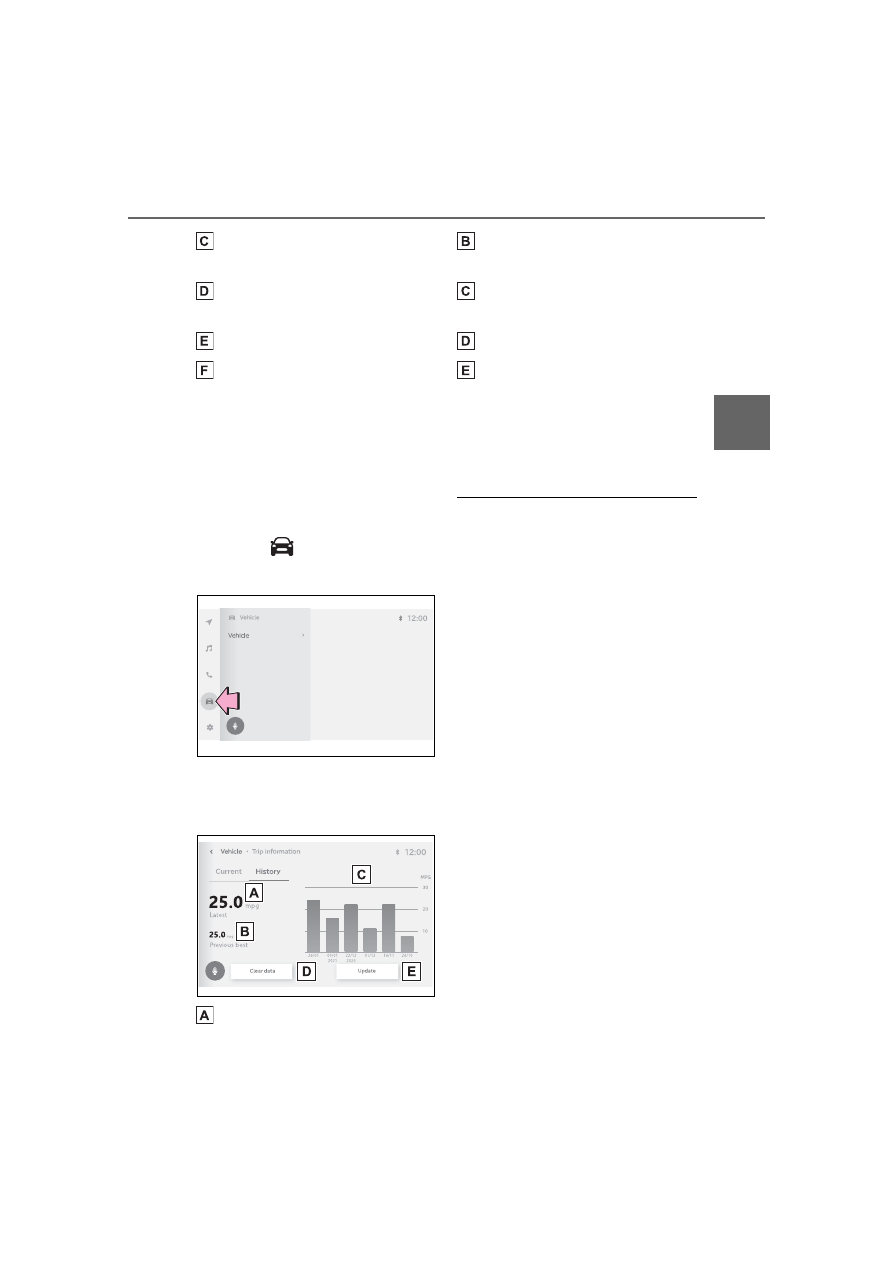

History fuel consumption
screen

Select

on the main

menu.

Select “Trip information”.

If a screen other than “History” is
displayed, select “History”.

Latest fuel consumption

Best recorded fuel consump-
tion

Previous fuel consumption
record

Resetting the history data

Updating the latest fuel con-
sumption data

Use the displayed average fuel
consumption as a reference. The
image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the average fuel consump-

tion by selecting “Update” to mea-

sure the current fuel consumption

again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear data”.

■

Trip range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
As a result, the actual distance that

can be driven may differ from that

displayed.

109

Before

driving

Before driving

3-1. Key information

Keys ............................

110

3-2. Opening, closing and

locking the doors and
tailgate

Side doors...................

113

Power running boards.

117

Tailgate........................

120

Power bed step ...........

126

Smart key system .......

128

3-3. Adjusting the seats

Front seats ..................

133

Rear seats...................

134

Driving position memory

..................................

137

Head restraints............

140

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

143

Inside rear view mirror

145

Digital Rear-view Mirror

146

Outside rear view mirrors

..................................

155

3-5. Opening, closing the win-

dows and moon roof

Power windows ...........

160

Power back window ....

163

Panoramic moon roof..

164

110

3-1. Key information

3-1.Key information

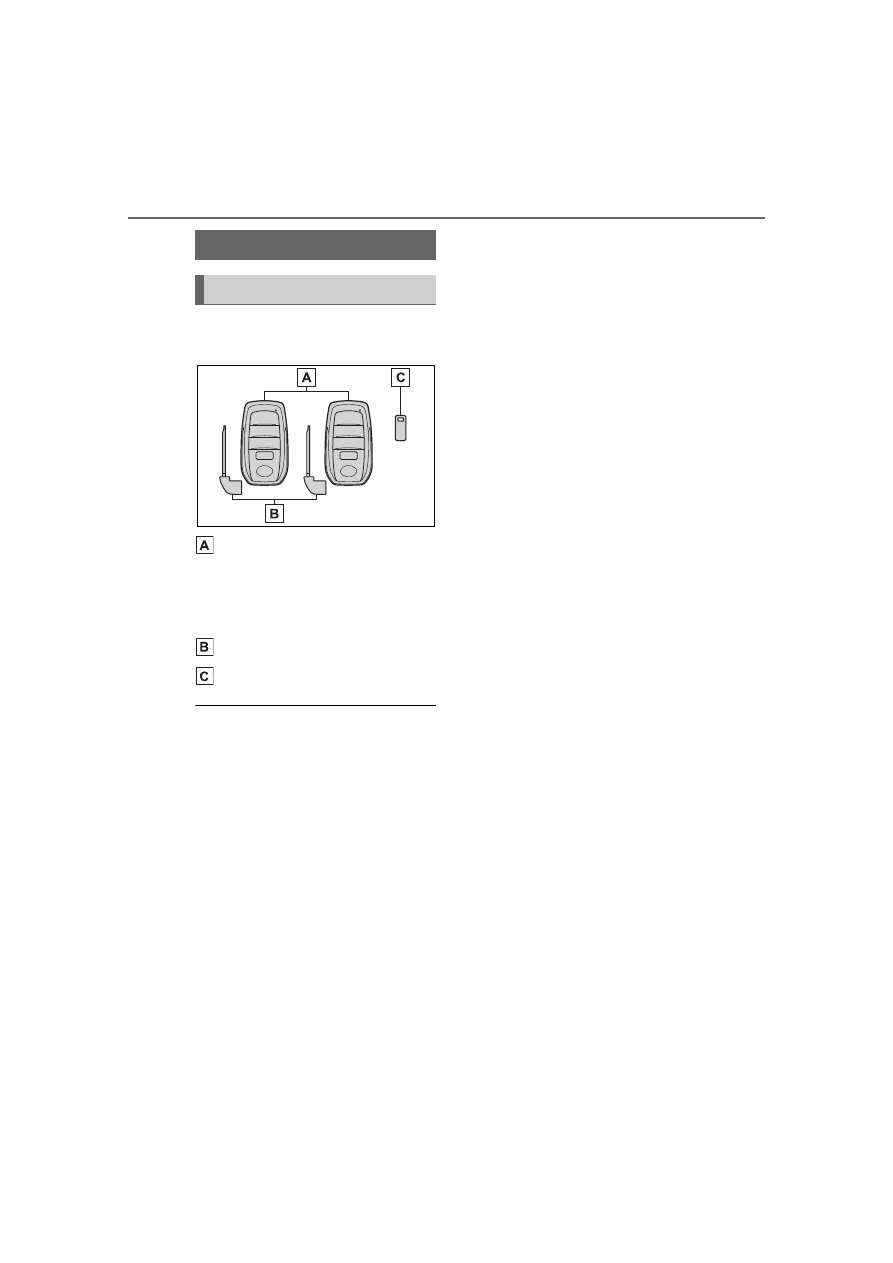

The following keys are provided
with the vehicle.

Electronic keys

• Operating the smart key system

(



P.128)

• Operating the wireless remote

control function (



P.111)

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing an electronic key

onto an aircraft, make sure you do

not press any buttons on the elec-

tronic key while inside the aircraft

cabin. If you are carrying an elec-

tronic key in your bag, etc., ensure

that the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the electronic key

to emit radio waves that could inter-

fere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be shown on the

multi-information display when the

hybrid system is stopped.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.129)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary.

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.484

■

Confirmation of the number of

registered keys

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is shown on the multi-

information display

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

Keys

The keys

111

3-1. Key information

Before

driving

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

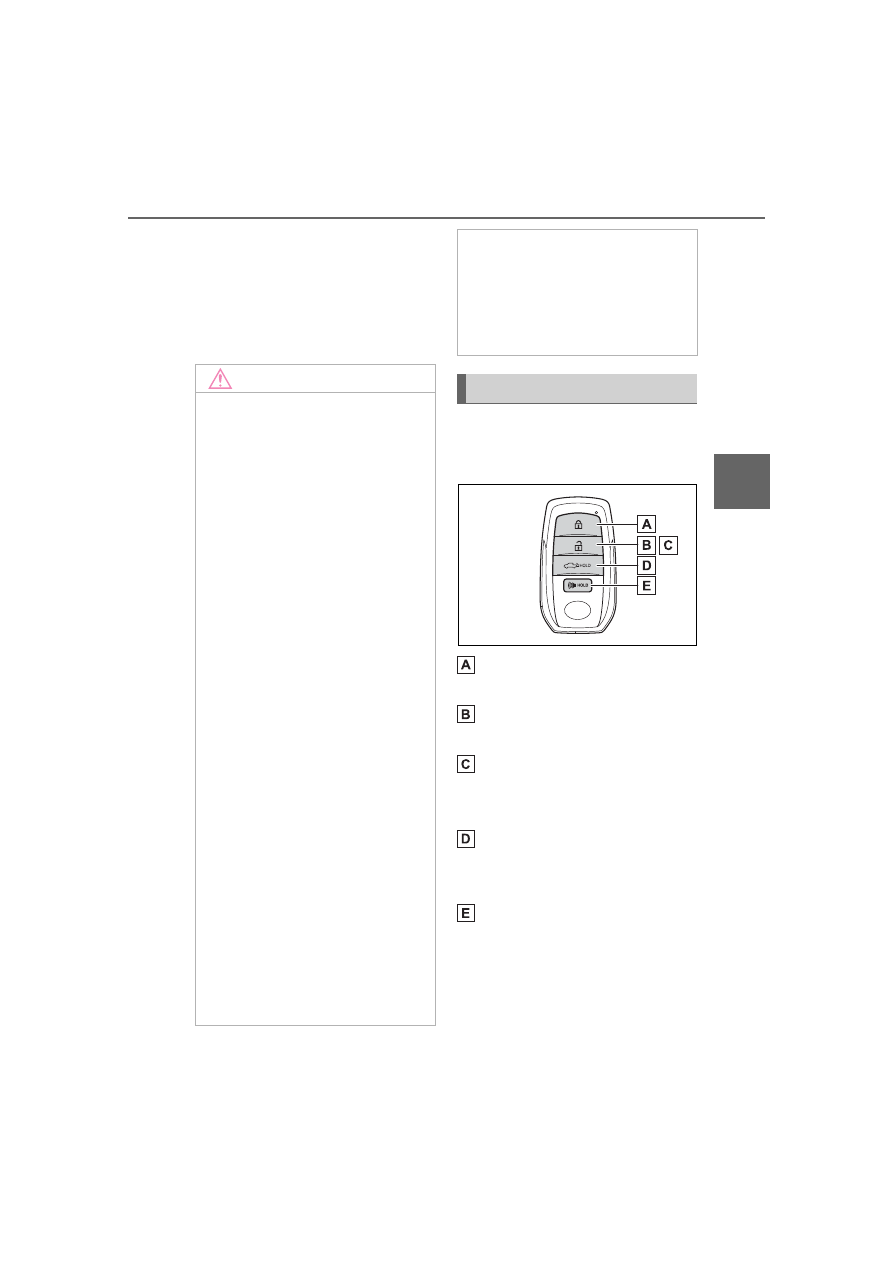

The electronic keys are
equipped with the following
wireless remote control:

Locks the doors and the tail-
gate (



P.113)

Unlocks the doors and the
tailgate (



P.113)

Opens the windows

and the

panoramic moon roof

*1, 2

(



P.113)

Opens the tailgate and
deploys power bed step

*1, 2

(



P.121, 127)

Sounds the alarm

:This setting must be customized

at your Toyota dealer.

:If equipped

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks, or bend

them.

●

Do not expose the keys to high

temperatures for a long period

of time.

●

Do not get the keys wet or wash

them in an ultrasonic washer,

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

electronic key.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers, or

medical electrical equipment,

such as low-frequency therapy

equipment.

■

Carrying the electronic key

on your person

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other key-

related problems



P.527

■

When an electronic key is lost



P.526

Wireless remote control

Toyota Tundra Hybrid (2023 year). Manual in english - page 6
