P.497)

●

Carefully inspect the ground

under the vehicle. If you find

that liquid has leaked onto the

ground, the fuel system may

have been damaged. Leave the

vehicle as soon as possible.

●

If a fluid leak occurs, do not

touch the fluid as it may be

strong alkaline electrolyte from

the hybrid battery (traction bat-

tery). If it comes into contact

with your skin or eyes, wash it

off immediately with a large

amount of water or, if possible,

boric acid solution. Seek imme-

diate medical attention.

■

Hybrid battery (traction bat-

tery)

●

Never resell, hand over or mod-

ify the hybrid battery. To prevent

accidents, hybrid batteries that

have been removed from a dis-

posed vehicle are collected

through your Toyota dealer. Do

not dispose of the battery your-

self.

Unless the battery is properly col-
lected, the following may occur,
resulting in death or serious
injury:

• The hybrid battery may be ille-

gally disposed of or dumped,

and it is hazardous to the envi-

ronment or someone may touch

a high voltage part, resulting in

an electric shock.

• The hybrid battery is intended to

be used exclusively with your

Hybrid Electric Vehicle. If the

hybrid battery is used outside of

your vehicle or modified in any

way, accidents such as electric

shock, heat generation, smoke

generation, an explosion and

electrolyte leakage may occur.

When reselling or handing over

your vehicle, the possibility of an

accident is extremely high

because the person receiving the

vehicle may not be aware of these

dangers.

●

If your vehicle is disposed of

without the hybrid battery hav-

ing been removed, there is a

danger of serious electric shock

if high voltage parts, cables and

their connectors are touched. In

the event that your vehicle must

be disposed of, the hybrid bat-

tery must be disposed of by

your Toyota dealer. If the hybrid

battery is not disposed of prop-

erly, it may cause electric shock

that can result in death or seri-

ous injury.

1-4. Hybrid system

For
safety and secu

rity

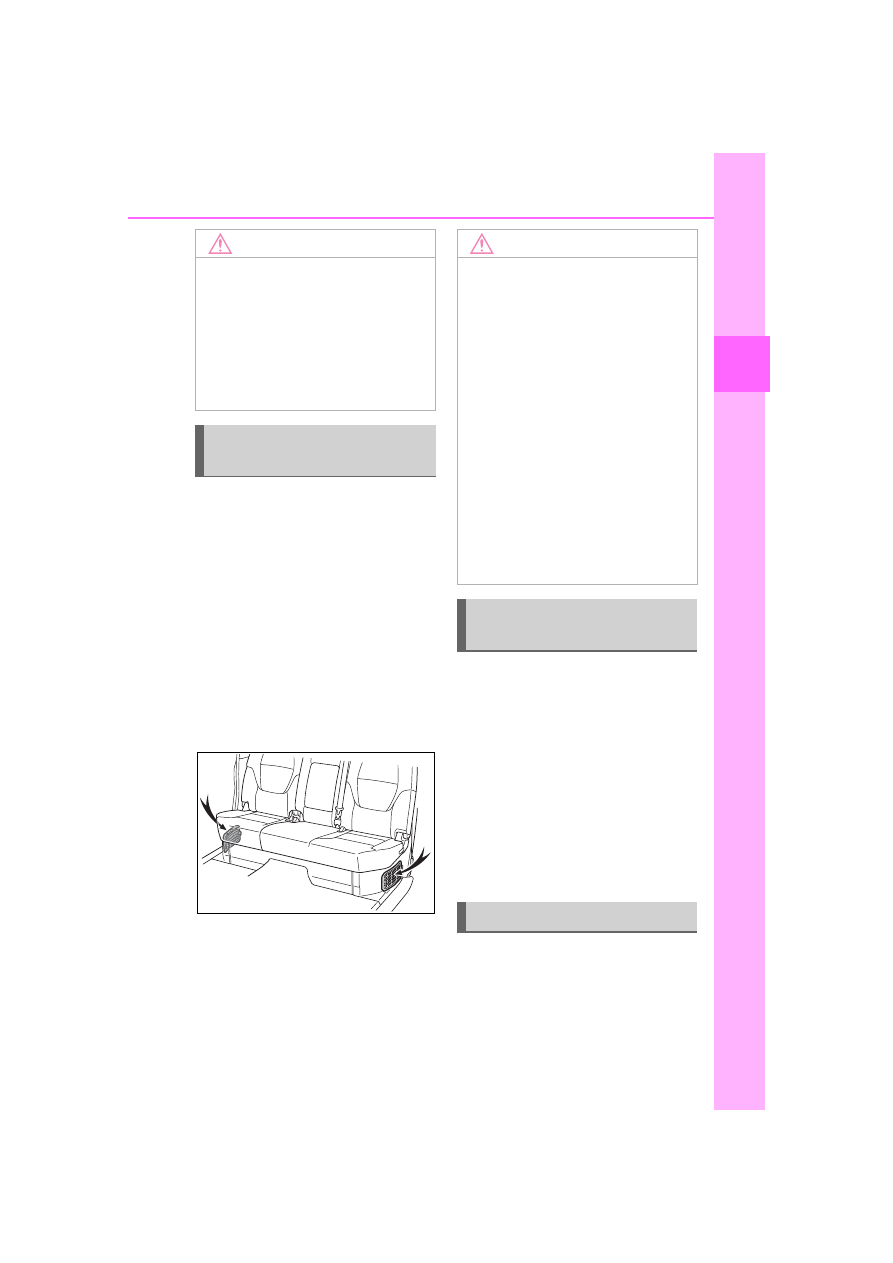

There are air intake vents under
the rear seat for the purpose of
cooling the hybrid battery (trac-
tion battery).
If the vents are blocked, it may
interfere with the cooling of the
hybrid battery (traction battery).

If input/output of the hybrid battery
(traction battery) becomes limited
and the distance that the vehicle
can be driven using the electric
motor (traction motor) is reduced,
the fuel economy may be reduced.

When a certain level of impact is
detected by the impact sensor,
the emergency shut off system
blocks the high voltage current
and stops the fuel pump to mini-
mize the risk of electrocution
and fuel leakage. If the emer-
gency shut off system activates,
your vehicle will not restart. To
restart the hybrid system, con-
tact your Toyota dealer.

A message is automatically dis-
played when a malfunction
occurs in the hybrid system or
an improper operation is
attempted.

NOTICE

■

Hybrid battery (traction bat-

tery)

Do not carry large amounts of

water such as water cooler bottles

in the vehicle. If water spills onto

the hybrid battery (traction bat-

tery), the battery may be dam-

aged. Have the vehicle inspected

by your Toyota dealer.

Hybrid battery (traction
battery) air intake vents

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vents

●

Make sure not to block the air

intake vents with anything, such

as a seat cover, plastic cover, or

luggage.

The input/output of the hybrid

battery (traction battery) may be

restricted, leading to a reduction

in hybrid battery (traction bat-

tery) output and a malfunction.

●

Periodically clean the air intake

vents to prevent them from clog-

ging. (

P.481)

●

Do not get water or foreign

materials in the air intake vents

as this may cause a short circuit

and damage the hybrid battery

(traction battery).

Emergency shut off sys-
tem

Hybrid warning message

1-5. Theft deterrent system

For
safety and secu

rity

1-5.Theft deterrent system

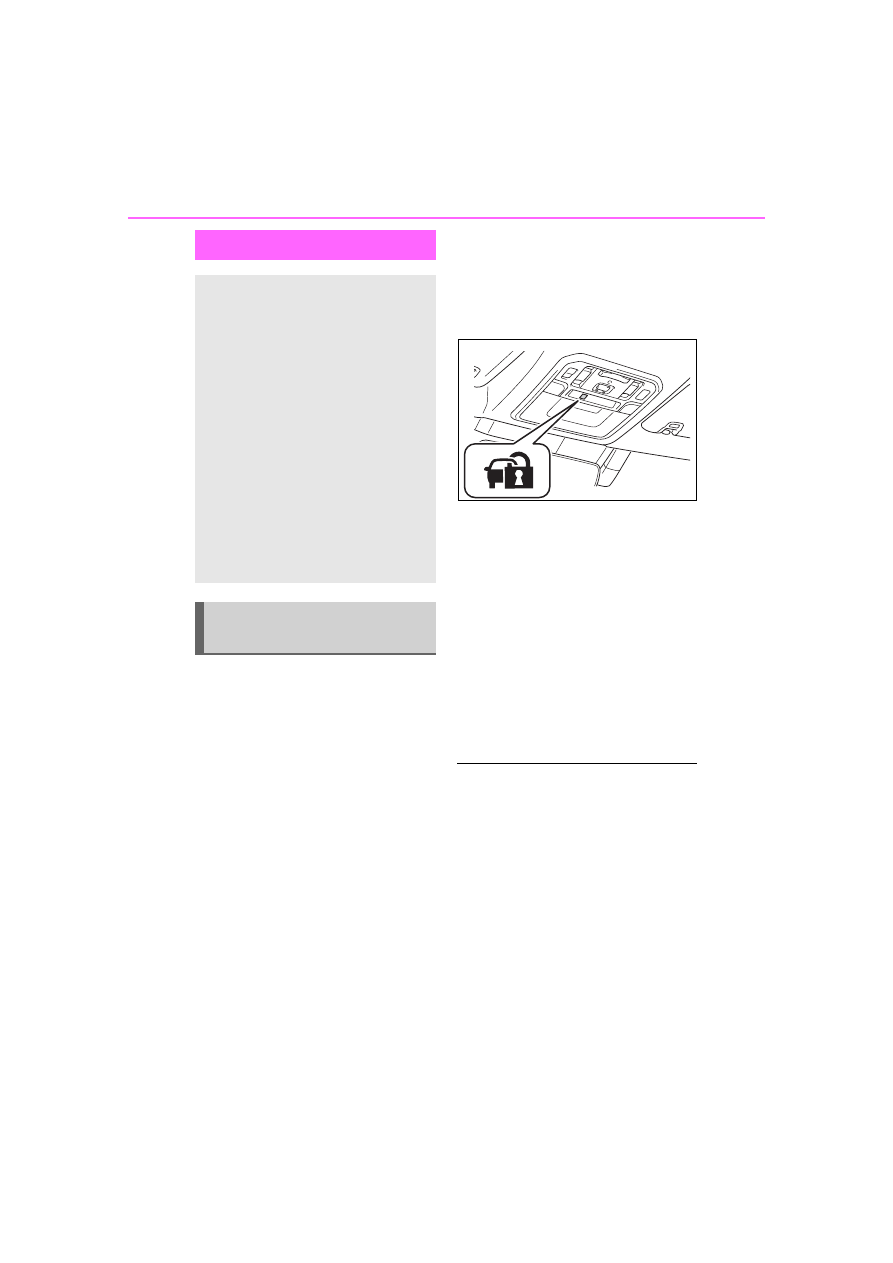

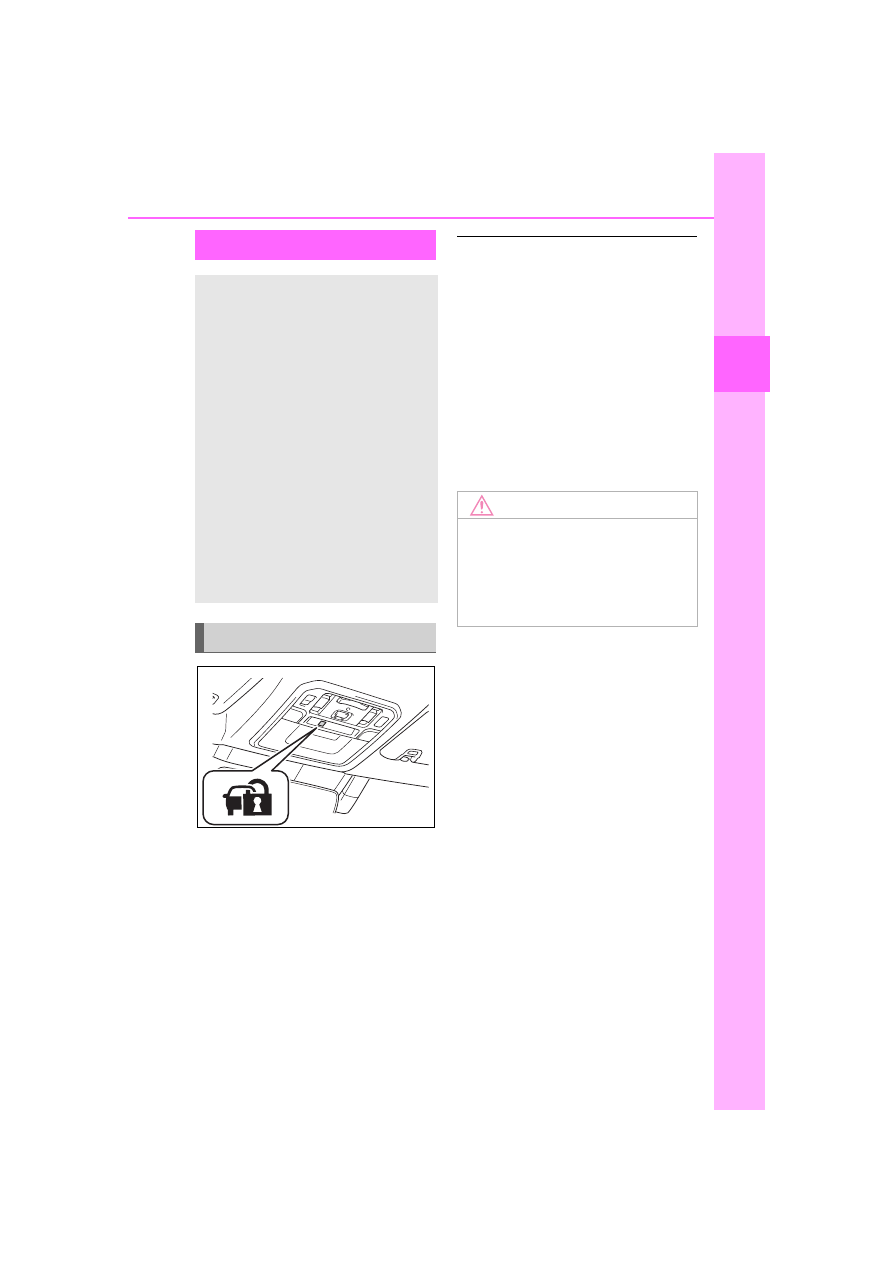

The indicator light flashes after
the power switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a maintenance-free

type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

■

Certification



P.611

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

1-5. Theft deterrent system

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The windows and the pan-
oramic moon roof (if
equipped) are closed before
the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors and hood, and
lock all the doors using the entry
function or wireless remote con-

trol. The system will be set auto-
matically after 30 seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

■

Deactivating or stopping

Do one of the following to deac-
tivate or stop the alarms:



Unlock the doors and tailgate
using the entry function or
wireless remote control.



Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free

type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

The doors are unlocked using the

mechanical key.

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



A locked door or tailgate is
unlocked or opened in any
way other than using the
entry function or wireless
remote control. (The doors
will lock again automati-
cally.)



The hood is opened.

Setting/deactivating/stop-
ping the alarm system

1-5. Theft deterrent system

For
safety and secu

rity

●

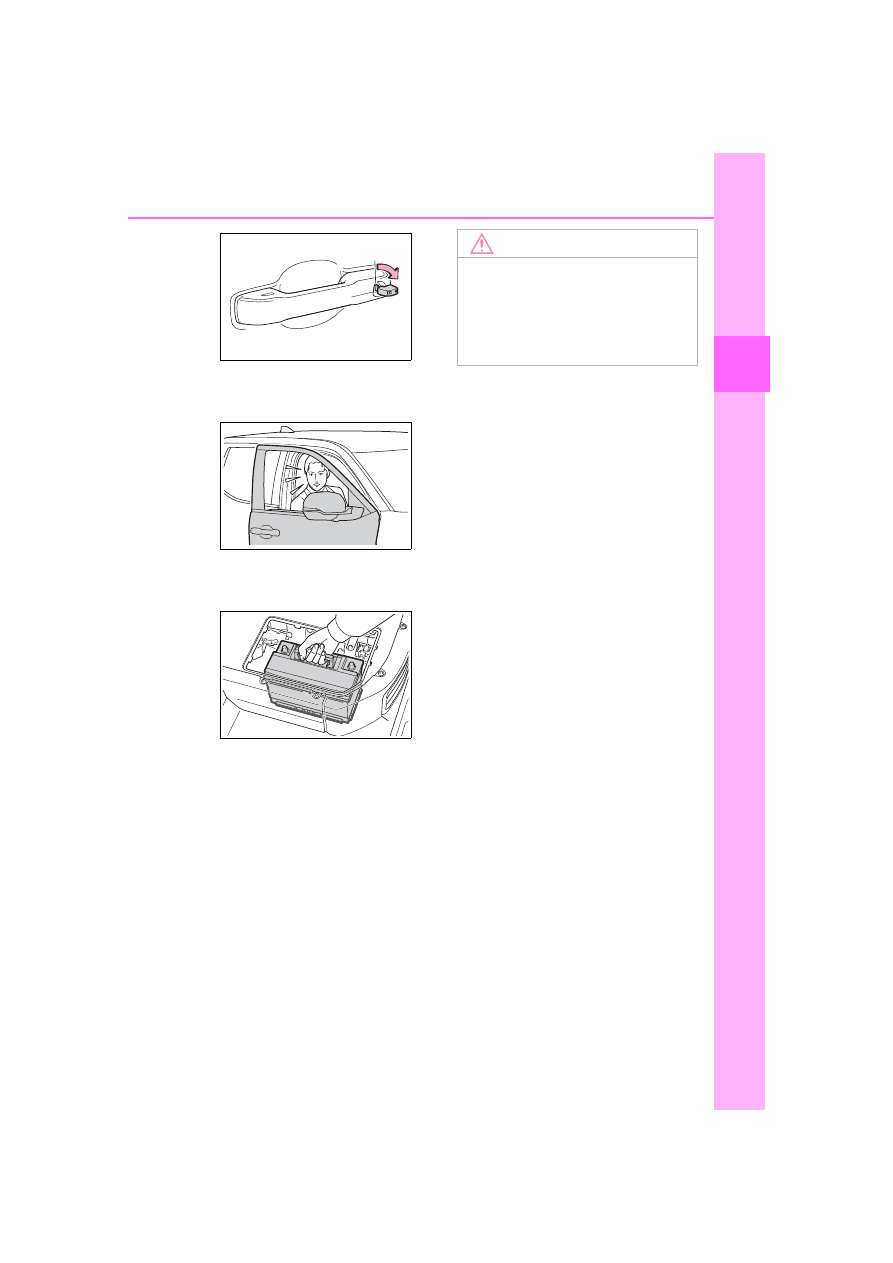

A person inside the vehicle opens

a door or hood, or unlocks the

vehicle.

●

The 12-volt battery is recharged or

replaced when the vehicle is

locked. (



P.532)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

12-volt battery.

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

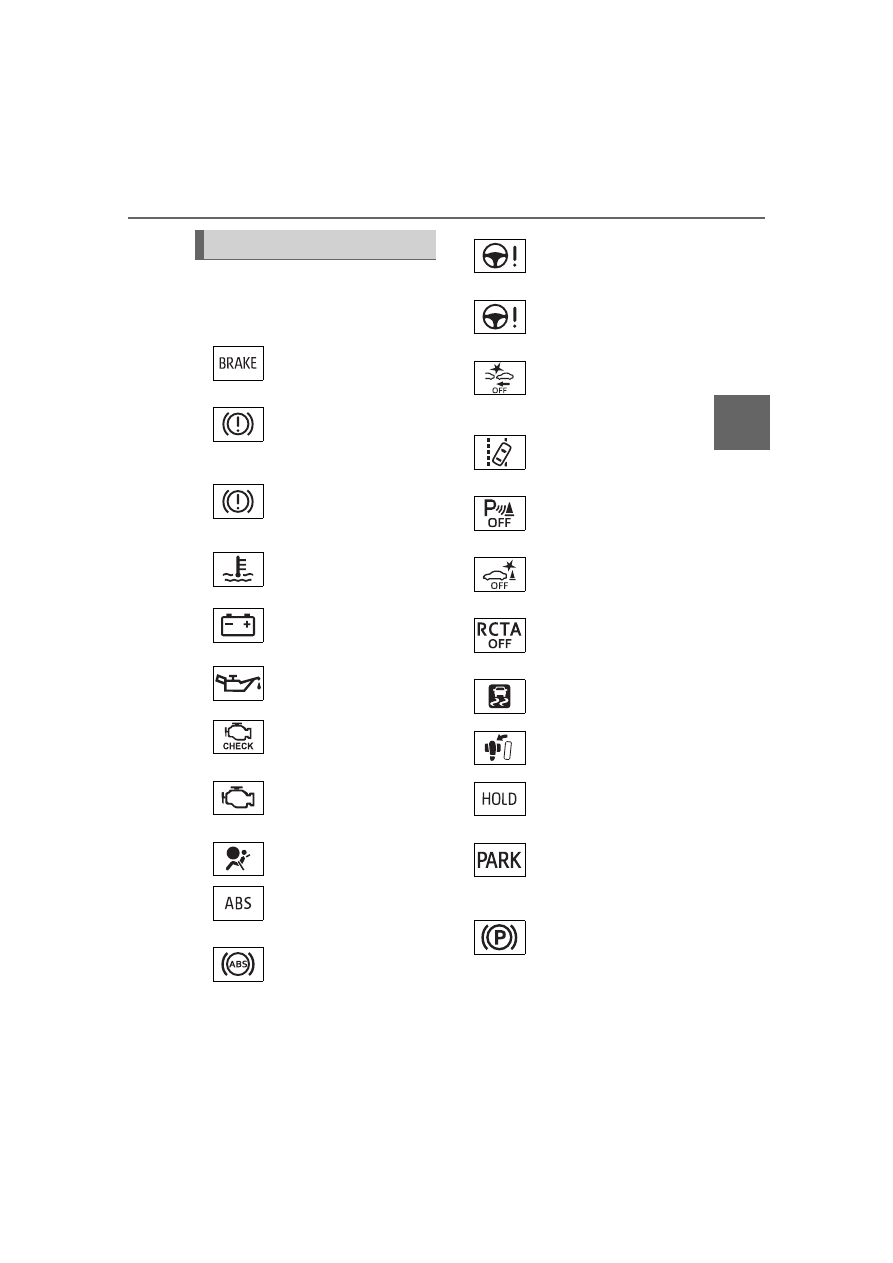

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warn-
ing light

(



(Canada)

(Red)

Brake system warn-
ing light

(



(Yellow)

Brake system warn-
ing light

(



High coolant tempera-
ture warning light

(

Charging system
warning light

(

Low engine oil pres-
sure warning light

(

(U.S.A.)

Malfunction indicator
lamp

(

(Canada)

Malfunction indicator
lamp

(

SRS warning light

(

(U.S.A.)

ABS warning light

(

(Canada)

ABS warning light

(

(Red)

Electric power steer-
ing system warning
light

(



(Yellow)

Electric power steer-
ing system warning
light

(



(Flashes or

illuminates)

PCS warning light

(



(Orange)

LTA indicator
(



P.504)

(Flashes)

Intuitive parking assist
OFF indicator

(



P.504)

(Flashes)

PKSB OFF indica-
tor

(



P.504)

(Flashes)

“RCTA OFF” indica-
tor

(



P.505)

Slip indicator light

(



P.505)

Inappropriate pedal
operation warning
light

(



P.505)

(Flashes)

Brake hold operated
indicator

(



(U.S.A.)

(Flashes)

Parking brake indica-
tor (



(Canada)
(Flashes)

Parking brake indica-
tor (



2-1. Instrument cluster

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is
started, or after a few seconds.
There may be a malfunction in a
system if the light does not come
on, or turn off. Have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the

multi-information display with a
message.

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

(Flashes)

Rear differential lock
indicator (if equipped)
(

Tire pressure warning
light

(

Low fuel level warn-
ing light (

P.507)

Driver’s and front pas-
senger’s seat belt
reminder light
(

P.507)

Rear passengers’ seat
belt reminder lights
(

P.507)

Air suspension mal-
function indicator (if
equipped) (

P.508)

Trailer brake warning
light (



P.508)

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

hybrid system, this could mean

that these systems are not avail-

able to help protect you in an acci-

dent, which could result in death

or serious injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

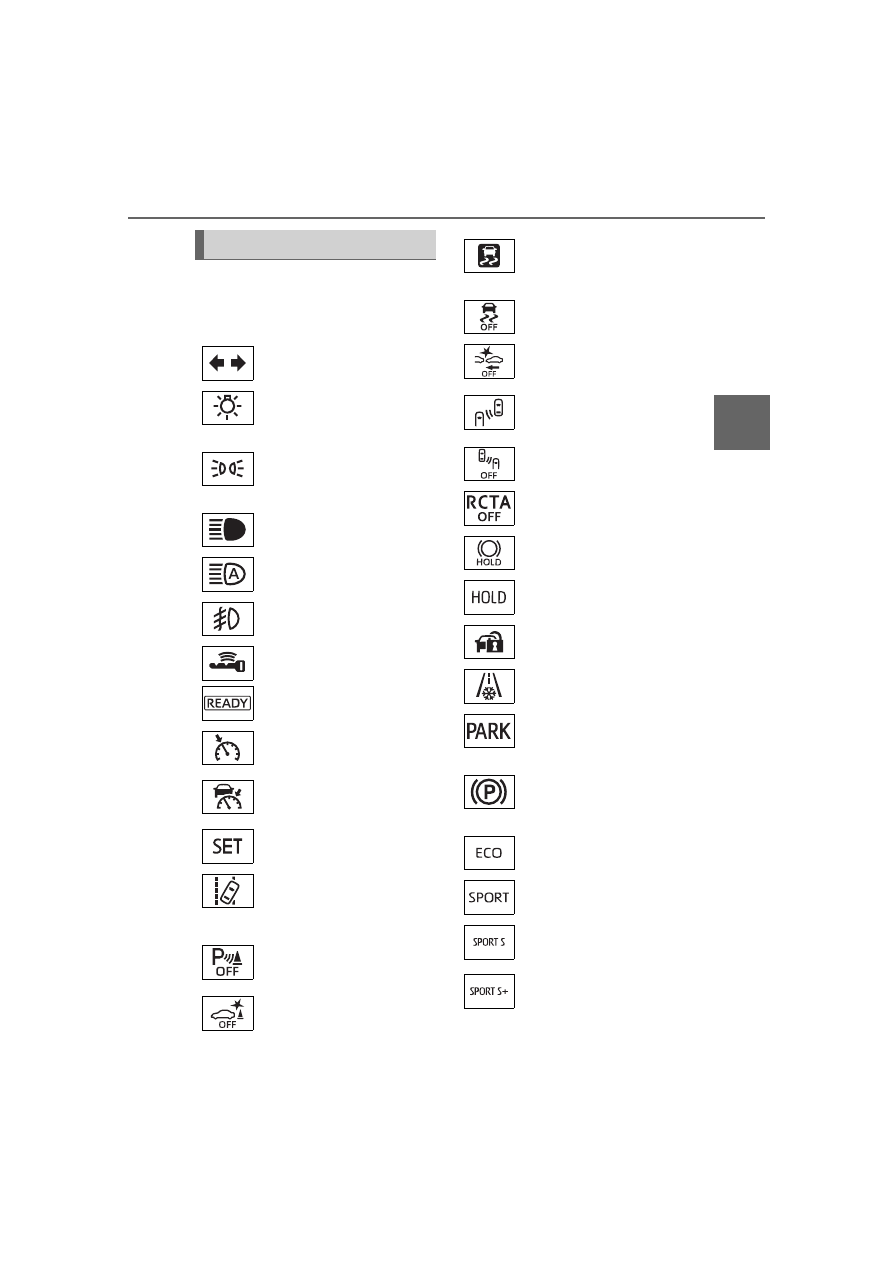

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

Indicators

Turn signal indicator
(

P.204)

(U.S.A.)

Headlight indicator
(

P.211)

(Canada)

Tail light indicator
(

P.211)

Headlight high beam indi-
cator (



P.213)

Automatic High Beam
indicator (



P.214)

Front fog light indicator
(

P.214)

Smart key system indica-
tor

(

“READY” indicator
(

Cruise control indicator
(

P.256)

Dynamic radar cruise
control indicator
(

P.256)

Cruise control “SET” indi-
cator (



P.256)

(

)

LTA indicator (



P.231,

248)

Intuitive parking assist
OFF indicator

*3, 4

(

P.275)

PKSB OFF indicator

*3, 5

(

P.289)

(Flashes)

Slip indicator light

(



P.375)

VSC OFF indicator

*3, 5

(



P.376)

PCS warning light

*3, 5

(



P.234)

BSM outside rear view
mirror indicators

*5, 6

(



P.268, 282)

BSM OFF indicator

*3, 5

(



P.269)

RCTA OFF indicator

*3, 5

(



P.282)

Brake hold standby indi-
cator

(



P.208)

Brake hold operated indi-
cator

(



P.208)

Security indicator

(



P.81, 82)

Low outside temperature
indicator

(



P.92)

(U.S.A.)

Parking brake indicator
(



P.205)

(Canada)

Parking brake indicator
(



P.205)

“ECO” mode indicator
(



“SPORT” mode indicator
(if equipped) (

“SPORT S” mode indica-
tor (if equipped) (

“SPORT S+” mode indi-
cator (if equipped)
(



2-1. Instrument cluster

:This light illuminates on the

multi-information display with a
message.

:Depending on the operating con-

ditions of the system, the color
and state (illuminated/blinking) of
the indicator change.

:The light comes on when the

system is turned off.

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is
started, or after a few seconds.
There may be a malfunction in a
system if the lights do not turn
on, or turn off. Have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the out-

side rear view mirrors.

:This light illuminates on the over-

head console.

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

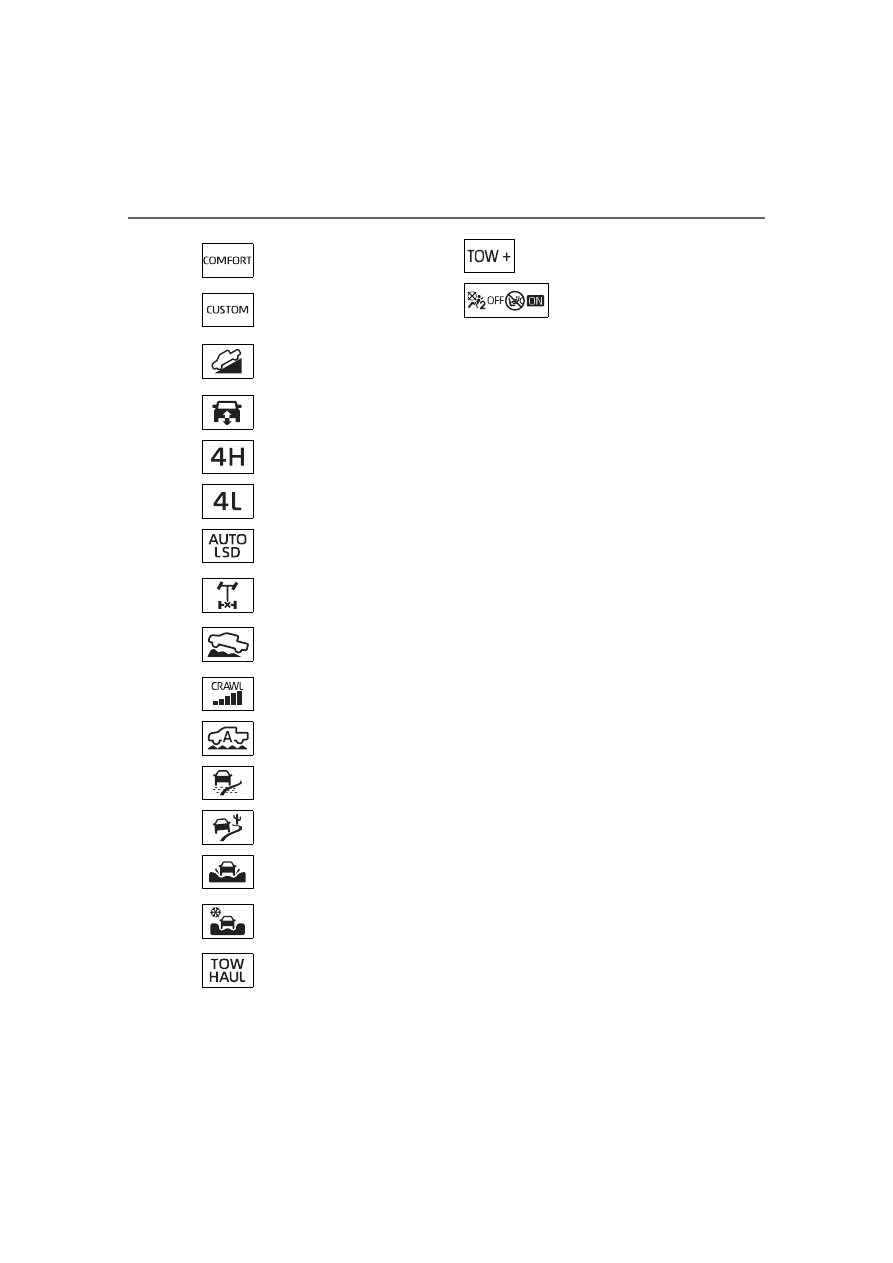

“COMFORT” mode indi-
cator (if equipped)
(

“CUSTOM” mode indica-
tor (if equipped) (



Downhill assist control
system indicator

(if

equipped) (



P.372)

Air suspension indicator
(if equipped) (



P.355)

“4H” indicator (if
equipped) (



P.361)

“4L” indicator (if
equipped) (



P.361)

“AUTO LSD” indicator

(if equipped) (



P.363)

Rear differential lock indi-
cator (if equipped)
(

P.364)

Crawl Control indicator

(if equipped) (



P.365)

Crawl Control speed level
indicator (if equipped)
(

P.365)

AUTO mode indicator (if
equipped) (



DIRT mode indicator (if
equipped) (



SAND mode indicator (if
equipped) (



MUD mode indicator (if
equipped) (



DEEP SNOW mode indi-
cator (if equipped)
(

“TOW HAUL” indicator
(

P.203)

“TOW+” indicator
(



P.203)

“AIR BAG ON/OFF”
indicator

*3, 7

(

P.46)

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

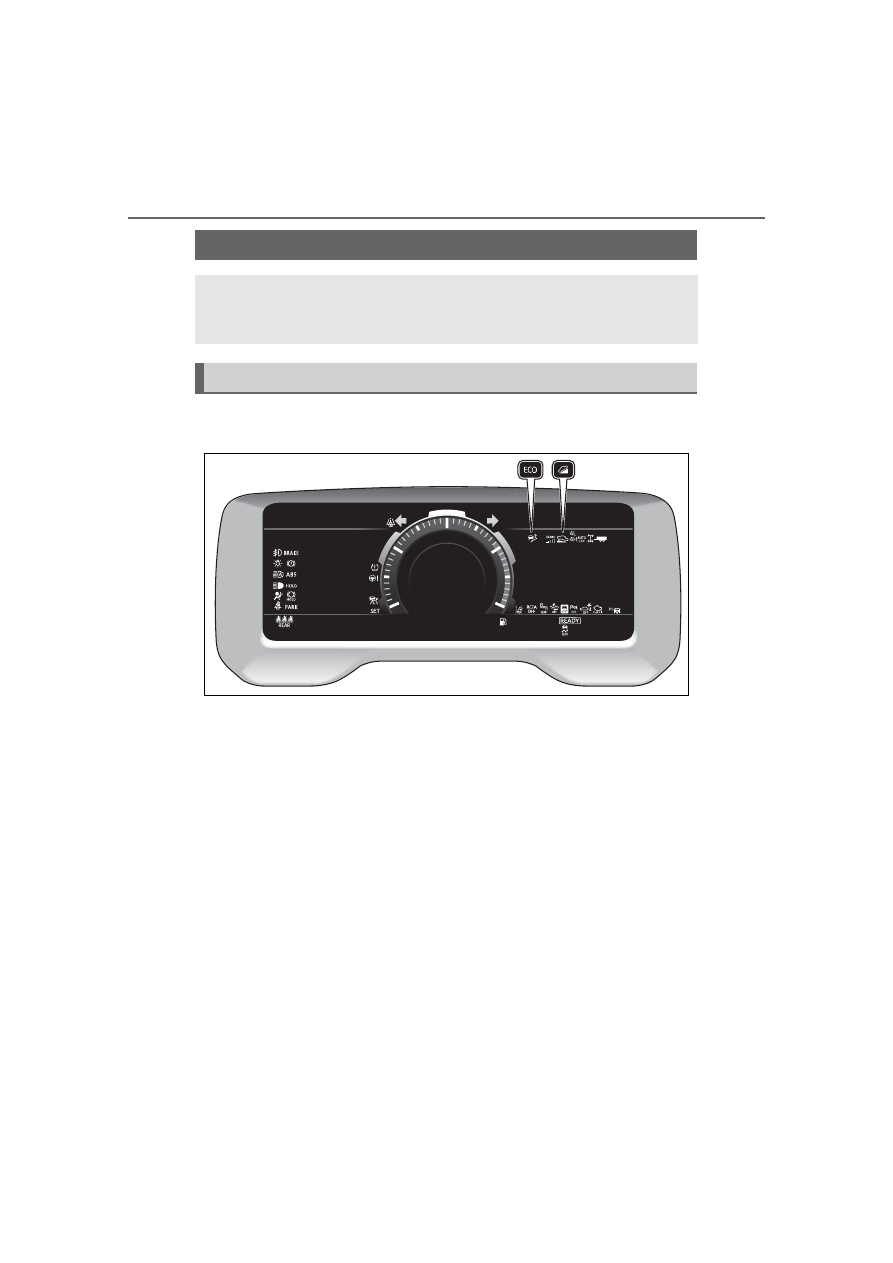

The units used on the meter and display may differ depending on the target
region.

Multi-information display

Presents the driver with a variety of driving-related data (

P.95)

Displays warning messages if a malfunction occurs (



P.511)

Outside temperature (

P.92)

Tachometer

Displays the engine speed in revolutions per minute

Clock (

P.92)

Time displayed is linked to the multimedia system. For details, refer to
“MULTIMEDIA OWNER’S MANUAL”.

Right Side Gauges

Presents the driver with a variety of vehicle states data (



P.94)

Shift position and shift range display

Displays the selected shift position or selected shift range (

P.200)

Fuel gauge

Displays the quantity of fuel remaining in the tank

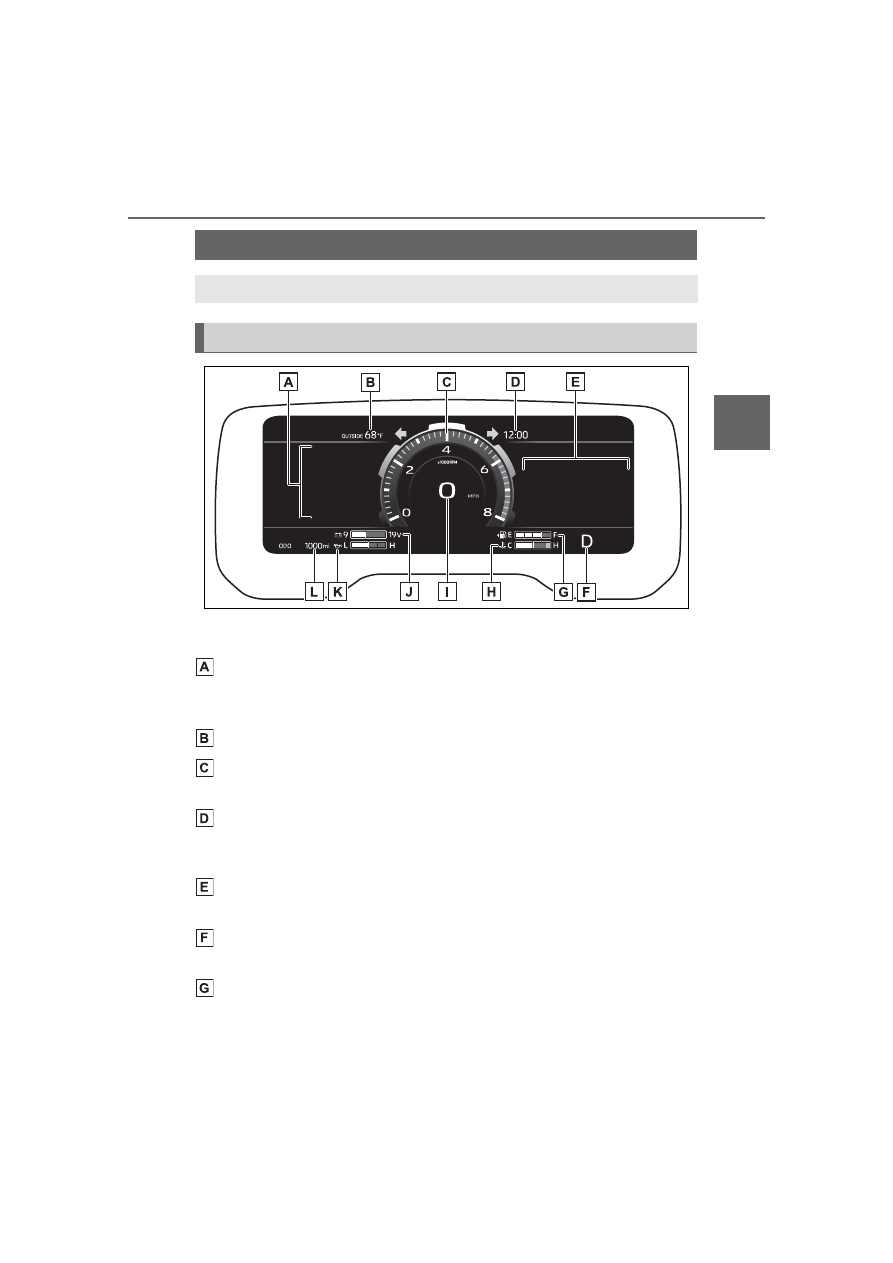

Gauges and meters

The meters display various drive information.

Meter display

2-1. Instrument cluster

Engine coolant temperature gauge

Displays the engine coolant temperature

Speedometer

Displays the vehicle speed

Voltmeter

Displays the charge state

Engine oil pressure gauge

Displays the engine oil pressure

Odometer and trip meter (



P.93)

■

The meters and display illumi-

nate when

The power switch is in ON.

■

Tachometer needle feature

The tachometer needle will fade in

or out during the engine starting or

stopping, respectively.

The needle is completely visible

after the engine is turned on or

turned off.

■

Clock settings screen

If clock setting item is displayed
when

is selected on the multi-

information display, the system may
be malfunctioning. Have the vehicle
inspected by your Toyota dealer.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator

will flash

for approximately 10 seconds,
then stay on.

■

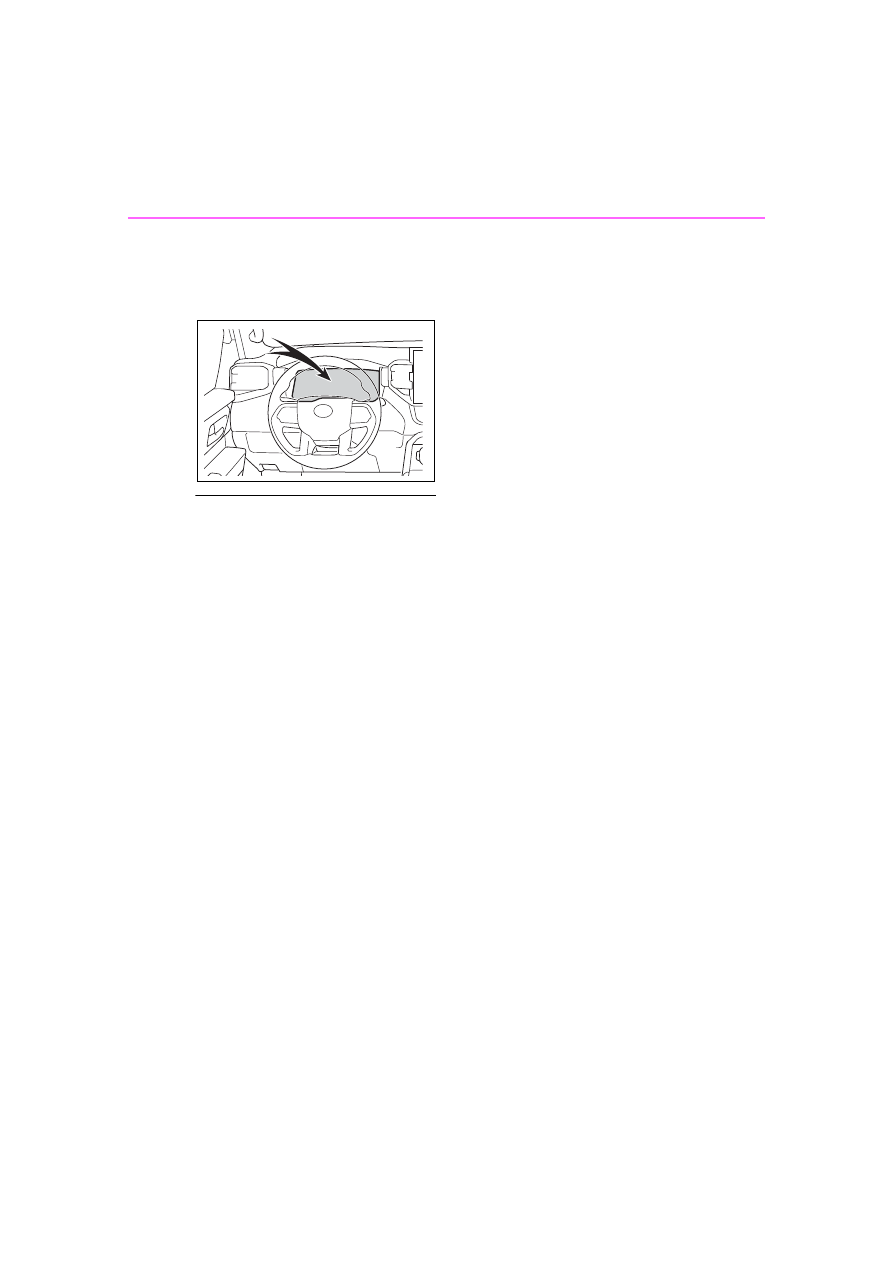

Liquid crystal display



P.96

■

Customization

Settings (e. g. meter display) can be
changed on

screen of the multi-

information display. (

P.99)

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle
can be driven until an oil change is
necessary.

■

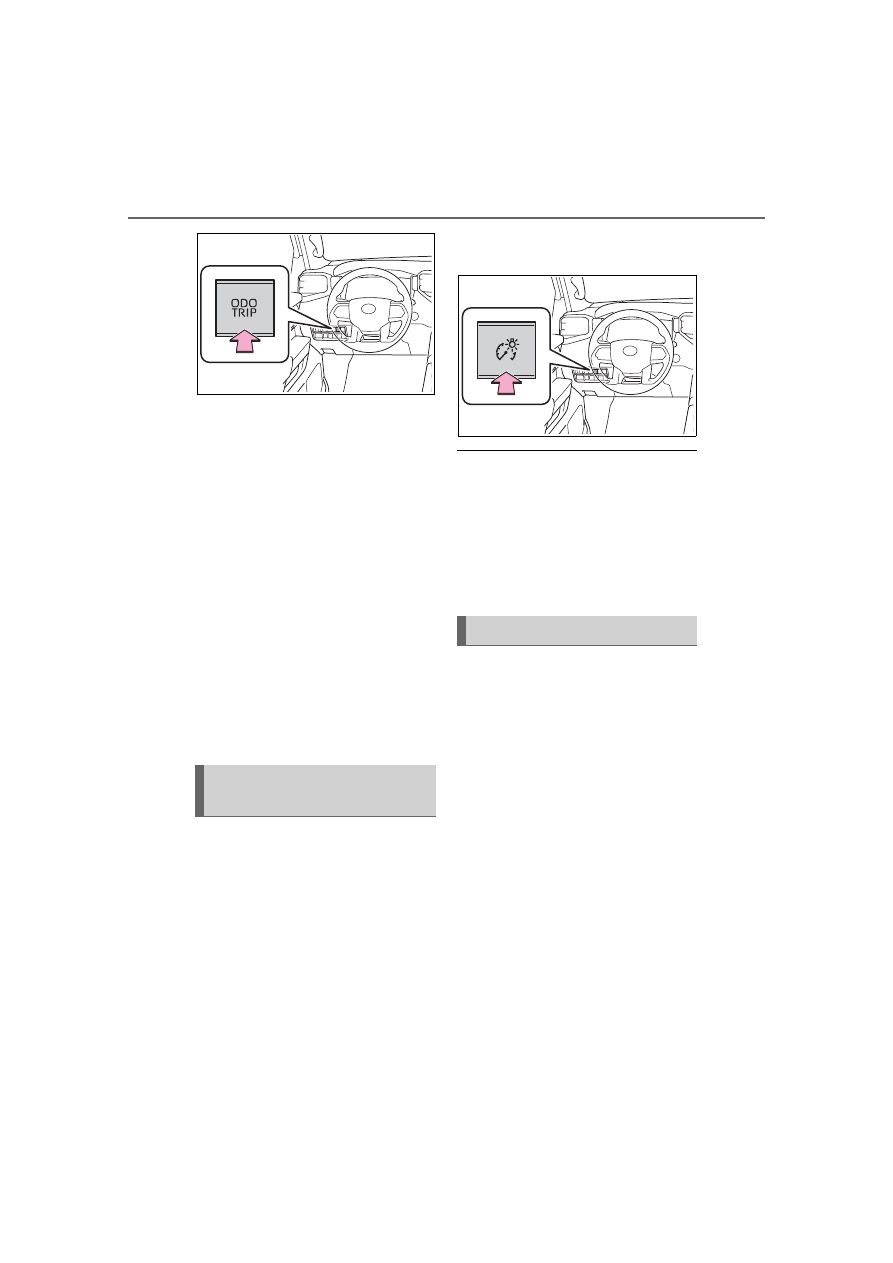

Changing the display

Each time the “ODO TRIP”
switch is pressed, the displayed
item will be changed. When the
trip meter is displayed, pressing
and holding the switch will reset
the trip meter.

WARNING

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(

P.535)

■

Voltmeter

When the voltmeter indicates 19

V or higher or 9 V or lower while

the hybrid system is operating,

there may be a 12-volt battery or

charging system malfunction.

Have the vehicle inspected at

your Toyota dealer.

■

Engine oil pressure gauge

When the value of the engine oil

pressure gauge drops while the

engine is running, stop the vehicle

in a safe place immediately and

check the amount of engine oil.

(
