Toyota Tundra (2023 year). Manual in english - page 18

287

4-5. Using the driving support systems

4

Dr

iv

ing

●

The vehicle speed is greater than

approximately 6 mph (10 km/h).

■

The Blind Spot Monitor will

detect a vehicle when

The Blind Spot Monitor will detect a

vehicle present in the detection area

in the following situations:

●

A vehicle in an adjacent lane over-

takes your vehicle.

●

You overtake a vehicle in an adja-

cent lane slowly.

●

Another vehicle enters the detec-

tion area when it changes lanes.

■

Conditions under which the

system will not detect a vehicle

The Blind Spot Monitor is not

designed to detect the following

types of vehicles and/or objects:

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles traveling in the opposite

direction

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Following vehicles that are in the
same lane

*

●

Vehicles traveling 2 lanes away
from your vehicle

*

●

Vehicles which are being over-
taken rapidly by your vehicle

*

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Conditions under which the

system may not function cor-

rectly

●

The Blind Spot Monitor may not

detect vehicles correctly in the fol-

lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc., is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When the distance between your

vehicle and a following vehicle is

short

• When there is a significant differ-

ence in speed between your vehi-

cle and the vehicle that enters the

detection area

• When the difference in speed

between your vehicle and another

vehicle is changing

• When a vehicle enters a detection

area traveling at about the same

speed as your vehicle

• As your vehicle starts from a stop,

a vehicle remains in the detection

area

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When vehicle lanes are wide, or

when driving on the edge of a

lane, and the vehicle in an adja-

cent lane is far away from your

vehicle

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When driving with tailgate in the

open position or when cargo (such

as lumber) is loaded on the open

tailgate.

• When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

• Immediately after the Blind Spot

Monitor is turned on

●

Instances of the Blind Spot Moni-

tor unnecessarily detecting a vehi-

cle and/or object may increase in

the following situations:

• When the sensor is misaligned

due to a strong impact to the sen-

288

4-5. Using the driving support systems

sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.,

that enters the detection area is

short

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a

lane, and a vehicle traveling in a

lane other than the adjacent lanes

enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is

short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When turning at an intersection

with a trailer is being towed and

an adjacent vehicle continues

traveling straight

*

: If equipped

■

Types of sensors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

■

Display

When the sensors detect an
object, such as a wall, a graphic
is shown on the multi-informa-

Intuitive parking

assist

*

The distance from your
vehicle to objects, such as a
wall, when parallel parking
or maneuvering into a
garage is measured by the
sensors and communi-
cated via the multi-informa-
tion display and/or
multimedia display and a
buzzer. Always check the
surrounding area when
using this system.

System components

289

4-5. Using the driving support systems

4

Dr

iv

ing

tion display and/or multimedia
display depending on the posi-
tion and distance to the object.
(As the distance to the object
becomes short, the distance
segments may blink.)



Multi-information display



Multimedia display

Front corner sensor detection

Front center sensor detection

Rear corner sensor detection

Rear center sensor detection

Use the meter control switches
to enable/disable the intuitive
parking assist. (



P.94)

1

Press

 or

 to select

.

2

Press

 or

 to select



and then press

.

When the intuitive parking assist

function is disabled, the intuitive

parking assist OFF indicator

(



P.82) illuminates.

To re-enable the system when it
was disabled, select

 on the

multi-information display, select

 and then On. If disabled using

this method, the system will not be
re-enabled by turning the engine
switch off and then to ON.

■

When towing a trailer

When the 7-pin connector is con-

nected and Auto Trailer Detection

(ATD) (



P.284) is activated, the

rear sensor automatically turns off.

Turning intuitive parking
assist on/off

WARNING

■

Cautions regarding the use of

the system

There is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’ surroundings and

driving safely.

■

To ensure the system can

operate properly

Observe the following precau-

tions.
Failing to do so may result in the

vehicle being unable to be driven

safely and possibly cause an acci-

dent.

●

Do not damage the sensors,

and always keep them clean.

290

4-5. Using the driving support systems

■

The system can be operated

when

●

The engine switch is in ON.

●

Intuitive parking assist function is

on.

●

The vehicle speed is less than

about 6 mph (10 km/h).

●

A shift position other than P is

selected.

■

If “Parking Assist Unavailable

Clean Parking Assist Sensor” is

displayed on the multi-informa-

tion display

A sensor may be covered with water

drops, ice, snow, dirt, etc. Remove

the water drops, ice, snow, dirt, etc.,

from the sensor to return the system

to normal.
Also, due to ice forming on a sensor

at low temperatures, a warning

message may be displayed or the

sensor may not be able to detect an

object. Once the ice melts, the sys-

tem will return to normal.
If a warning message is displayed

even if the sensor is clean, there

may be a sensor malfunction. Have

the vehicle inspected by your Toyota

dealer.

■

If “Parking Assist Unavailable”

is displayed on the multi-infor-

mation display

Water may be continuously flowing

WARNING

●

Do not attach a sticker or install

an electronic component, such

as a backlit license plate (espe-

cially fluorescent type), fog

lights, fender pole or wireless

antenna near a radar sensor.

●

Do not subject the surrounding

area of the sensor to a strong

impact. If subjected to an

impact, have the vehicle

inspected by your Toyota

dealer. If the front or rear

bumper needs to be

removed/installed or replaced,

contact your Toyota dealer.

●

Do not modify, disassemble or

paint the sensors.

●

Do not attach a license plate

cover.

●

Keep your tires properly

inflated.

■

When to disable the function

In the following situations, disable

the function as it may operate

even though there is no possibility

of a collision.

●

Failing to observe the warnings

above.

●

A non-genuine Toyota suspen-

sion (lowered suspension, etc.)

is installed.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area.
Doing so may result in the sensor

malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.

291

4-5. Using the driving support systems

4

Dr

iv

ing

over the sensor surface, such as in

a heavy rain. When the system

determines that it is normal, the sys-

tem will return to normal.

■

Sensor detection information

●

The sensor’s detection areas are

limited to the areas around the

vehicle’ front and rear bumpers.

●

The following situations may occur

during use.

• Depending on the shape of the

object and other factors, the

detection distance may shorten, or

detection may be impossible.

• Detection may be impossible if

static objects draw too close to the

sensor.

• There will be a short delay

between static object detection

and display (warning buzzer

sounds). Even at low speeds,

there is a possibility that the object

will come within 11.9 in. (30 cm)

before the display is shown and

the warning buzzer sounds.

• It might be difficult to hear the

buzzer due to the volume of the

audio system or air flow noise of

the air conditioning system.

• It may be difficult to hear the

sound of this system due to the

buzzers of other systems.

■

Objects which the system may

not be properly detected

The shape of the object may pre-

vent the sensor from detecting it.

Pay particular attention to the follow-

ing objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials

that absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections

projecting outwards in the direc-

tion of your vehicle

■

Situations in which the system

may not operate properly

Certain vehicle conditions and the

surrounding environment may affect

the ability of a sensor to correctly

detect objects. Particular instances

where this may occur are listed

below.

●

There is dirt, snow, water drops or

ice on a sensor. (Cleaning the

sensors will resolve this problem.)

●

A sensor is frozen. (Thawing the

area will resolve this problem.)

In especially cold weather, if a

sensor is frozen the sensor dis-

play may be displayed abnormally,

or objects, such as a wall, may not

be detected.

●

When a sensor or the area around

a sensor is extremely hot or cold.

●

On an extremely bumpy road, on

an incline, on gravel, or on grass.

●

When vehicle horns, vehicle

detectors, motorcycle engines, air

brakes of large vehicles, the clear-

ance sonar of other vehicles or

other devices which produce ultra-

sonic waves are near the vehicle

●

A sensor is coated with a sheet of

spray or heavy rain.

●

If objects draw too close to the

sensor.

●

When a pedestrian is wearing

clothing that does not reflect ultra-

sonic waves (ex. skirts with gath-

ers or frills).

●

When objects that are not perpen-

dicular to the ground, not perpen-

dicular to the vehicle traveling

direction, uneven, or waving are in

the detection range.

●

Strong wind is blowing

●

When driving in inclement weather

292

4-5. Using the driving support systems

such as fog, snow or a sandstorm

●

When an object that cannot be

detected is between the vehicle

and a detected object

●

If an object such as a vehicle,

motorcycle, bicycle or pedestrian

cuts in front of the vehicle or runs

out from the side of the vehicle

●

If the orientation of a sensor has

been changed due to a collision or

other impact

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

If the front of the vehicle is raised

or lowered due to the carried load

●

If the vehicle cannot be driven in a

stable manner, such as when the

vehicle has been in an accident or

is malfunctioning

●

When a tire chains, compact

spare tire or an emergency tire

puncture repair kit is used

●

When the tailgate is opened

■

Situations in which the system

may operate even if there is no

possibility of a collision

In some situations, such as the fol-

lowing, the system may operate

even though there is no possibility of

a collision.

●

When driving on a narrow road

●

When driving toward a banner,

flag, low-hanging branch or boom

barrier (such as those used at rail-

road crossings, toll gates and

parking lots)

●

When there is a rut or hole in the

surface of the road

●

When driving on a metal cover

(grating), such as those used for

drainage ditches

●

When driving up or down a steep

slope

●

If a sensor is hit by a large amount

of water, such as when driving on

a flooded road

●

There is dirt, snow, water drops or

ice on a sensor. (Cleaning the

sensors will resolve this problem.)

●

A sensor is coated with a sheet of

spray or heavy rain

●

When driving in inclement weather

such as fog, snow or a sandstorm

●

When strong winds are blowing

●

When vehicle horns, vehicle

detectors, motorcycle engines, air

brakes of large vehicles, the clear-

ance sonar of other vehicles or

other devices which produce ultra-

sonic waves are near the vehicle

●

If the front of the vehicle is raised

or lowered due to the carried load

●

If the orientation of a sensor has

been changed due to a collision or

other impact

●

The vehicle is approaching a tall

or curved curb

●

Driving close to columns (H-

shaped steel beams, etc.) in multi-

story parking garages, construc-

tion sites, etc.

●

If the vehicle cannot be driven in a

stable manner, such as when the

vehicle has been in an accident or

is malfunctioning

293

4-5. Using the driving support systems

4

Dr

iv

ing

●

On an extremely bumpy road, on

an incline, on gravel, or on grass

●

When a tire chains, compact

spare tire or an emergency tire

puncture repair kit is used

■

When towing a trailer

Rear sensors turn off when the

trailer connection is detected.
When reversing, the rear sensors

turn off, but the front corner sensors

operate.

■

Certification



P.623

■

Detection range of the sen-
sors

Approximately 3.3 ft. (100
cm)

Approximately 4.9 ft. (150
cm)

Approximately 2.0 ft. (60 cm)

The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect objects that
are extremely close to the vehicle.
The range of the sensors may
change depending on the shape of
the object, etc.

Sensor detection display,
object distance

294

4-5. Using the driving support systems

■

The distance and buzzer

*

: Automatic buzzer mute function is enabled. (



P.295)

■

Buzzer operation and dis-
tance to an object

A buzzer sounds when the sen-
sors are operating.



The buzzer beeps faster as
the vehicle approaches an
object.
When the vehicle comes
within approximately 1.0 ft.
(30 cm) of the object, the
buzzer sounds continuously.



When 2 or more sensors
simultaneously detect a static
object, the buzzer sounds for
the nearest object.



Even when the sensors are
operating, the buzzer will be
muted in some situations.
(automatic buzzer mute func-
tion)

■

Adjusting the buzzer vol-
ume

The buzzer volume can be

adjusted on the multi-informa-
tion display.
Use the meter control switches
to change settings. (



P.94)

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch to select



and then press and hold

.

3

Select the volume and then
press

.

Each time the switch is pressed,

the volume level will change

between 1, 2, and 3.

■

Muting a buzzer

A mute button will be displayed
on the multi-information display
when an object is detected. To
mute the buzzer, press

.

Approximate distance to obstacle

Buzzer

Front sensor:

3.3 ft. to 2.0 ft. (100 cm to 60 cm)

*

Rear sensor:

4.9 ft. to 2.0 ft. (150 cm to 60 cm)

*

Slow

2.0 ft. to 1.5 ft. (60 cm to 45 cm)

*

Medium

1.5 ft. to 1.0 ft. (45 cm to 30 cm)

*

Fast

1.0 ft. to 0.5 ft. (30 cm to 15 cm)

Continuous

Less than 0.5 ft. (15 cm)

295

4-5. Using the driving support systems

4

Dr

iv

ing

The buzzers for the intuitive
parking assist and RCTA func-
tion (if equipped) will be muted
simultaneously.
Mute will be canceled automati-
cally in the following situations:



When the shift position is
changed.



When the vehicle speed
exceeds a certain speed.



When there is a malfunction
in a sensor or the system is
temporarily unavailable.



When the operating function
is disabled manually.



When the engine switch is
turned off.

*

: If equipped

RCTA (Rear Cross Traf-

fic Alert)

*

The RCTA function uses the
BSM rear side radar sen-
sors installed behind the
rear bumper. This function
is intended to assist the
driver in checking areas
that are not easily visible
when backing up.

WARNING

■

Cautions regarding the use of

the system

There is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’s surroundings and

driving safely. (



P.282)

■

To ensure the system can

operate properly



P.283

System components

296

4-5. Using the driving support systems

Meter control switches

Turning the RCTA function on/off.

Outside rear view mirror indi-
cators

When a vehicle approaching from
the right or left at the rear of the
vehicle is detected, both outside
rear view mirror indicators will flash.

Multimedia display

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, the RCTA icon
(



P.298) for the detected side will

be displayed on the multimedia dis-
play. This illustration shows an
example of a vehicle approaching
from both sides of the vehicle.

RCTA buzzer

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, a buzzer will sound.
The buzzer also sounds for approx-
imately 1 second immediately after

the RCTA function is turned on.

Use the meter control switches
to enable/disable the RCTA
function. (



P.94)

1

Press

 or

 to select

.

2

Press

 or

 to select

“RCTA” and then press

.

When the RCTA function is dis-

abled, the “RCTA OFF” indicator

(



P.82) illuminates. (Each time the

engine switch is turned off then

changed to ON, the RCTA function

will be enabled automatically.)

■

When towing a trailer

When Auto Trailer Detection (ATD)

(



P.284) is activated, the function

automatically turns off.

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to

hear over loud noises, such as high

audio volume.

■

When “Rear Cross Traffic Alert

Unavailable” is shown on the

multi-information display

The sensor voltage has become

abnormal, or water, snow, mud, etc.,

may be built up in the vicinity of the

sensor area of the rear bumper.

(



P.283)

Removing the water, snow, mud,

etc., from the vicinity of the sensor

area should return it to normal. Also,

the sensor may not function nor-

Turning the RCTA func-
tion on/off

297

4-5. Using the driving support systems

4

Dr

iv

ing

mally when used in extremely hot or

cold weather.

■

When “Rear Cross Traffic Alert

Malfunction Visit Your Dealer”

is shown on the multi-informa-

tion display

There may be a sensor malfunction

or misaligned. Have the vehicle

inspected at your Toyota dealer.

■

Radar sensors



P.283

■

Operation of the RCTA
function

The RCTA function uses radar
sensors to detect vehicles
approaching from the right or left
at the rear of the vehicle and
alerts the driver of the presence
of such vehicles by flashing the
outside rear view mirror indica-
tors and sounding a buzzer.

Approaching vehicles

Detection areas of approach-
ing vehicles

■

RCTA icon display

When a vehicle approaching
from the right or left at the rear
of the vehicle is detected, the

following will be displayed on
the multimedia display.
This illustration shows an exam-
ple of a vehicle approaching
from both sides of the vehicle.

■

RCTA function detection
areas

The areas that vehicles can be
detected in are outlined below.

The buzzer can alert for faster
vehicles approaching from far-
ther away.
Example:

RCTA function

298

4-5. Using the driving support systems

■

The RCTA function is opera-

tional when

The RCTA function operates when

all of the following conditions are

met:

●

The engine switch is in ON.

●

The RCTA function is on.

●

The shift position is in R.

●

The vehicle speed is less than

approximately 5 mph (8 km/h).

●

The approaching vehicle speed is

between approximately 5 mph (8

km/h) and 17 mph (28 km/h).

●

The 7-pin connector for Trailer

Brake controller is not engaged. (if

equipped)

■

Adjusting the buzzer volume

The buzzer volume can be adjusted

on the multi-information display.
Use the meter control switches to

change settings. (



P.94)

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch to select “RCTA”
and then press and hold

.

3

Press

 to select the volume.

Each time the switch is pressed, the

volume level will change between 1,

2, and 3.

■

Muting a buzzer temporarily

A mute button will be displayed on
the multi-information display when a
vehicles or an object is detected. To
mute the buzzer, press

.

The buzzers for the RCTA function
and intuitive parking assist will be
muted simultaneously.
Mute will be canceled automatically

in the following situations:

●

When the shift lever is changed.

●

When the vehicle speed exceeds

a certain speed.

●

When there is a malfunction in a

sensor or the system is temporar-

ily unavailable.

●

When the operating function is

disabled manually.

●

When the engine switch is turned

off.

■

Conditions under which the

system will not detect a vehicle

The RCTA function is not designed

to detect the following types of vehi-

cles and/or objects:

●

Vehicles approaching from directly

behind

●

Vehicles backing up in a parking

space next to your vehicle

●

Vehicles that the sensors cannot

detect due to obstructions

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles moving away from your

Approach-

ing vehicle

Speed



Approxi-

mate alert

distance

Fast

17 mph

(28 km/h)

66 ft. (20

m)

Slow

5 mph (8

km/h)

18 ft. (5.5

m)

299

4-5. Using the driving support systems

4

Dr

iv

ing

vehicle

●

Vehicles approaching from the

parking spaces next to your vehi-
cle

*

●

The distance between the sensor

and approaching vehicle gets too

close

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Situations in which the system

may not operate properly

The RCTA function may not detect

vehicles correctly in the following

situations:

●

When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

●

When mud, snow, ice, a sticker,

etc.,is covering the sensor or sur-

rounding area on the position

above the rear bumper

●

When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

●

When multiple vehicles are

approaching with only a small gap

between each vehicle

●

When a vehicle is approaching at

high speed

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

When backing up on a slope with

a sharp change in grade

●

When backing out of a sharp

angle parking spot

●

Immediately after the RCTA func-

tion is turned on

●

Immediately after the engine is

started with the RCTA function on

●

When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

●

When turning while backing up

300

4-5. Using the driving support systems

●

When a vehicle turns into the

detection area

■

Situations in which the system

may operate even if there is no

possibility of a collision

Instances of the RCTA function

unnecessary detecting a vehicle

and/or object may increase in the

following situations:

●

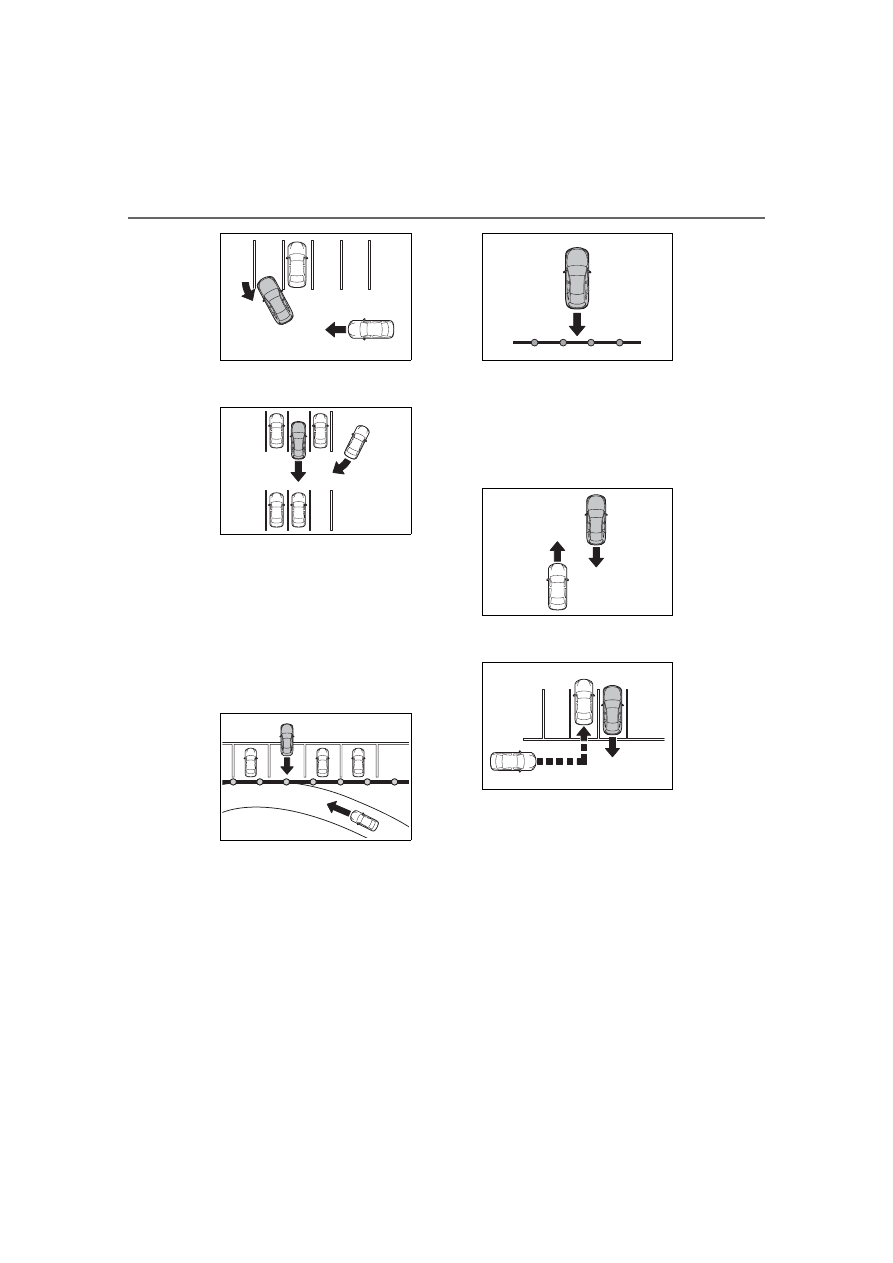

When the parking space faces a

street and vehicles are being

driven on the street

●

When the distance between your

vehicle and metal objects, such as

a guardrail, wall, sigh, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

When a vehicle passes by the

side of your vehicle

●

When a detected vehicle turns

while approaching the vehicle

●

When there are spinning objects

near your vehicle such as the fan

of an air conditioning unit

●

When water is splashed or

sprayed toward the rear bumper,

such as from a sprinkler

●

Moving objects (flags, exhaust

fumes, large rain droplets or

snowflakes, rain water on the road

surface, etc.)

●

When the distance between your

vehicle and a guardrail, wall, etc.,

that enters the detection area is

short

●

Gratings and gutters

301

4-5. Using the driving support systems

4

Dr

iv

ing

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

*

: If equipped

■

Parking Support Brake
function (static objects)



P.307

■

Parking Support Brake
function (rear-crossing
vehicles)



P.310

PKSB (Parking Sup-

port Brake)

*

The Parking Support Brake
system consists of the fol-
lowing functions that oper-
ate when driving at a low
speed or backing up, such
as when parking. When the
system determines that the
probability of a collision
with a detected object or
pedestrian is high, a warn-
ing operates to urge the
driver to take evasive
action. If the system deter-
mines that the possibility of
a collision with a detected
object or pedestrian is
extremely high, the brakes
are automatically applied to
help avoid the collision or
help reduce the impact of
the collision.

PKSB (Parking Support
Brake) system

302

4-5. Using the driving support systems

WARNING

■

Cautions regarding the use of

the system

Do not overly rely on the system,

as doing so may lead to an acci-

dent.
Always drive while checking the

safety of the surroundings of the

vehicle.
Depending on the vehicle and

road conditions, weather, etc., the

system may not operate.
The detection capabilities of sen-

sors and radars are limited.

Always drive while checking the

safety of the surroundings of the

vehicle.

●

The driver is solely responsible

for safe driving. Always drive

carefully, taking care to observe

your surroundings. The Parking

Support Brake system is

designed to provide support to

lessen the severity of collisions.

However, it may not operate in

some situations.

●

The Parking Support Brake sys-

tem is not designed to stop the

vehicle completely. Additionally,

even if the system has stopped

the vehicle, it is necessary to

depress the brake pedal imme-

diately as brake control will be

canceled after approximately 2

seconds.

●

It is extremely dangerous to

check the system operations by

intentionally driving the vehicle

into the direction of a wall, etc.

Never attempt such actions.

■

When to disable the Parking

Support Brake

In the following situations, disable

the Parking Support Brake as the

system may operate even though

there is no possibility of a colli-

sion.

●

When inspecting the vehicle

using a chassis roller, chassis

dynamo or free roller

●

When loading the vehicle onto a

boat, truck or other transport

vessel

●

If the suspension has been

modified or tires of a size other

than specified are installed

●

If the front of the vehicle is

raised or lowered due to the

carried load

●

When equipment that may

obstruct a sensor is installed,

such as a towing eyelet, bumper

protector (an additional trim

strip, etc.), bicycle carrier, or

snow plow

●

When using automatic car

washing devices

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When a tire chains, compact

spare tire or an emergency tire

puncture repair kit is used
