Toyota Tundra (2023 year). Manual in english - page 17





271

4-5. Using the driving support systems

4

Dr

iv

ing

cles, the approach warning

(

P.268) may not be activated.

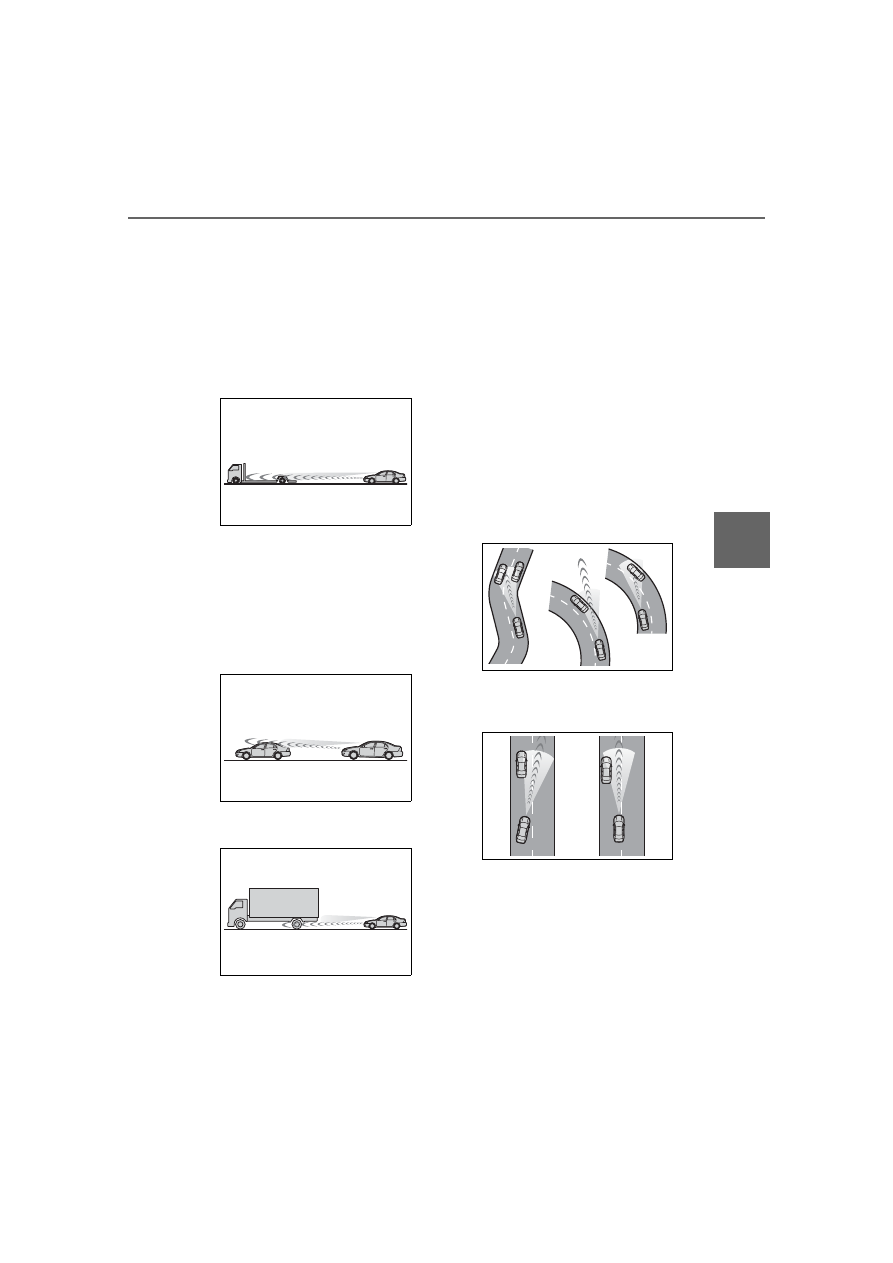

Vehicles that cut in suddenly

Vehicles traveling at low speeds

Vehicles that are not moving in the

same lane

Vehicles with small rear ends

(trailers with no load on board,

etc.)

Motorcycles traveling in the same

lane

When water or snow thrown up by

the surrounding vehicles hinders

the detecting of the sensor

When your vehicle is pointing

upwards (caused by a heavy load

in the luggage compartment, etc.)

Preceding vehicle has an

extremely high ground clearance

When the vehicle is towing a

trailer or during emergency tow-

ing.

When the vehicle is lifted up,

except in the following cases.

• When using a Toyota official lift kit

up to 4 in. (101 mm), including tire

height. Aftermarket lift kits may

degrade system performance.

Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly

In the case of the following condi-

tions, operate the brake pedal (or

accelerator pedal, depending on the

situation) as necessary.

As the sensor may not be able to

correctly detect vehicles ahead, the

system may not operate properly.

When the road curves or when the

lanes are narrow

When steering wheel operation or

your position in the lane is unsta-

ble

When the vehicle ahead of you

decelerates suddenly

When driving on a road sur-

rounded by a structure, such as in

a tunnel or on a bridge

While the vehicle speed is

decreasing to the set speed after

the vehicle accelerates by

depressing the accelerator pedal

When your vehicles is towing a

272

4-5. Using the driving support systems

trailer or another vehicle, except

when the following condition is

met.

• When the other vehicle is a trailer

properly attached and connected

to Toyota’s official TBC ECU.

(

P.186)

When the vehicle is lifted up,

except in the following cases.

• When using a Toyota official lift kit

up to 4 in. (101 mm), including tire

height. Aftermarket lift kits may

degrade system performance.

*

: If equipped

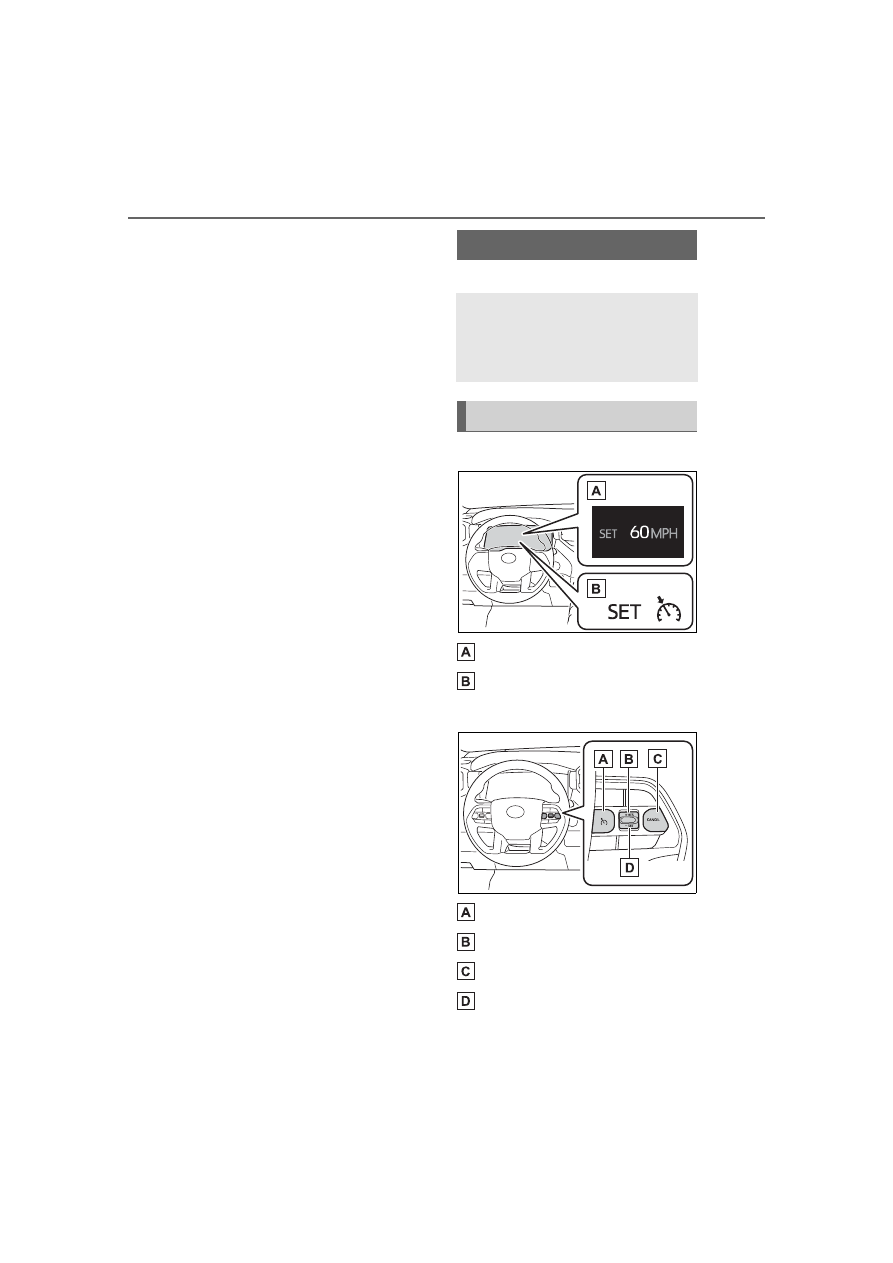

Meter display

Set speed

Indicators

Operation switches

Cruise control main switch

“+RES” switch

Cancel switch

“-SET” switch

Cruise control

*

Use the cruise control to
maintain a set speed with-
out depressing the acceler-
ator pedal.

System Components

273

4-5. Using the driving support systems

4

Dr

iv

ing

1

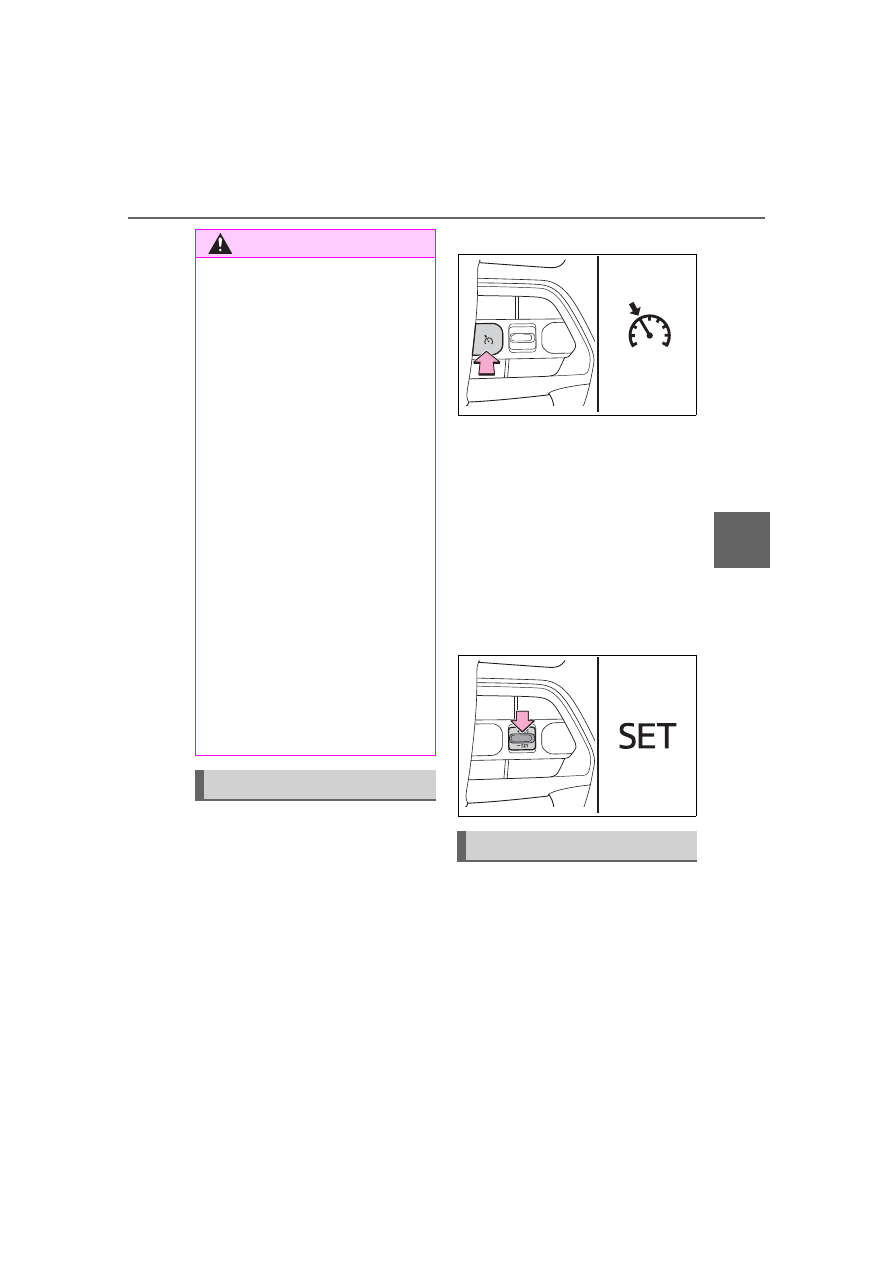

Press the cruise control main
switch to activate the cruise
control.

Cruise control indicator will be dis-

played.

Press the switch again to deacti-

vate the cruise control.

2

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired speed (at
or above approximately 20
mph [30 km/h] and press the
“-SET” switch to set the
speed.

Cruise control “SET” indicator will

be displayed.

The vehicle speed at the moment

the switch is released becomes the

set speed.

To change the set speed, oper-
ate the “+RES” or “-SET” switch
until the desired set speed is
obtained.

WARNING

To avoid operating the cruise

control by mistake

Switch the cruise control off using

the cruise control main switch

when not in use.

Situations unsuitable for

cruise control

Do not use cruise control in any of

the following situations.

Doing so may result in loss of

control and could cause an acci-

dent resulting in death or serious

injury.

In heavy traffic

On roads with sharp bends

On winding roads

On slippery roads, such as

those covered with rain, ice or

snow

On steep hills

Vehicle speed may exceed the

set speed when driving down a

steep hill.

When your vehicle is towing a

trailer or during emergency tow-

ing

Setting the vehicle speed

Adjusting the set speed

274

4-5. Using the driving support systems

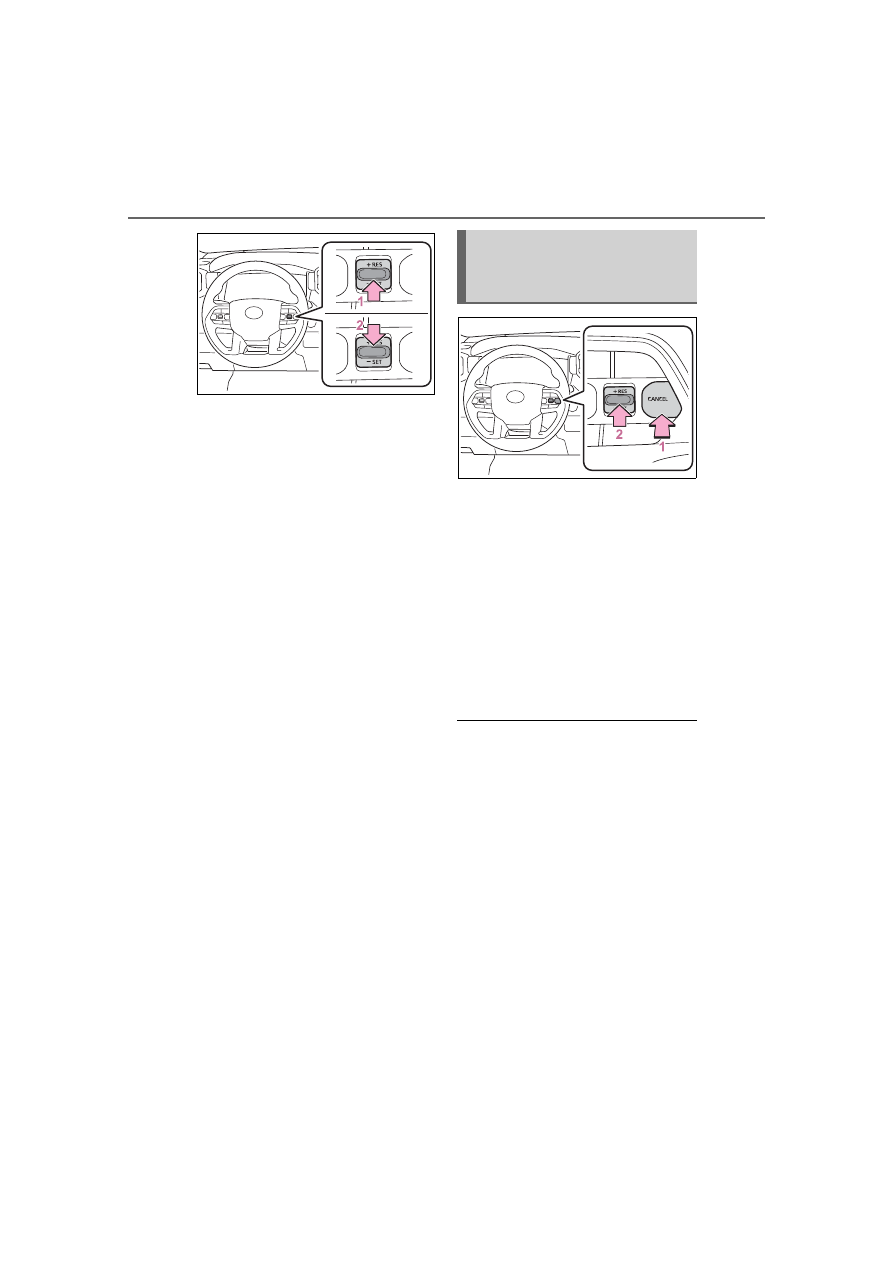

1

Increases the speed

2

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold
the switch to change the speed,
and release when the desired
speed is reached.

The set speed will be increased
or decreased as follows:
Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2



each time the switch is oper-
ated.
Large adjustment: The set
speed can be increased or
decreased continually until the
switch is released.

*1

:When the set speed is shown in

“MPH”

*2

:When the set speed is shown in

“km/h”

1

Pressing the cancel switch
cancels the constant speed
control.

The speed setting is also canceled
when the brakes are applied.

2

Pressing the “+RES” switch
resumes the constant speed
control.

Resuming is available when the
vehicle speed is more than approxi-
mately 20 mph (30 km/h).

Cruise control can be set when

The shift lever is in D.

Vehicle speed is above approxi-

mately 20 mph (30 km/h).

Accelerating after setting the

vehicle speed

The vehicle can be accelerated

normally. After acceleration, the

set speed resumes.

Even without canceling the cruise

control, the set speed can be

increased by first accelerating the

vehicle to the desired speed and

then pushing the “-SET” switch to

set the new speed.

Automatic cancelation of cruise

control

Cruise control will stop maintaining

Canceling and resuming
the constant speed con-
trol

275

4-5. Using the driving support systems

4

Dr

iv

ing

the vehicle speed in any of the fol-

lowing situations.

Actual vehicle speed falls more

than approximately 10 mph (16

km/h) below the preset vehicle

speed.

Actual vehicle speed is below

approximately 20 mph (30 km/h).

VSC is activated.

TRAC is activated for a period of

time.

When the VSC or TRAC system is

turned off.

If the warning message for the

cruise control is shown on the

multi-information display

Press the cruise control main switch

once to deactivate the system, and

then press the switch again to reac-

tivate the system.

If the cruise control speed cannot be

set or if the cruise control cancels

immediately after being activated,

there may be a malfunction in the

cruise control system. Have the

vehicle inspected by your Toyota

dealer.

Stopping the engine

While driving with the D shift
position selected, depress the
brake pedal and stop the vehi-
cle. The engine will stop auto-
matically.

When the engine stops, the Stop &
Start indicator will illuminate.

Restarting the engine

Release the brake pedal. The
engine will start automatically.

When the engine starts, the Stop &
Start indicator will turn off.

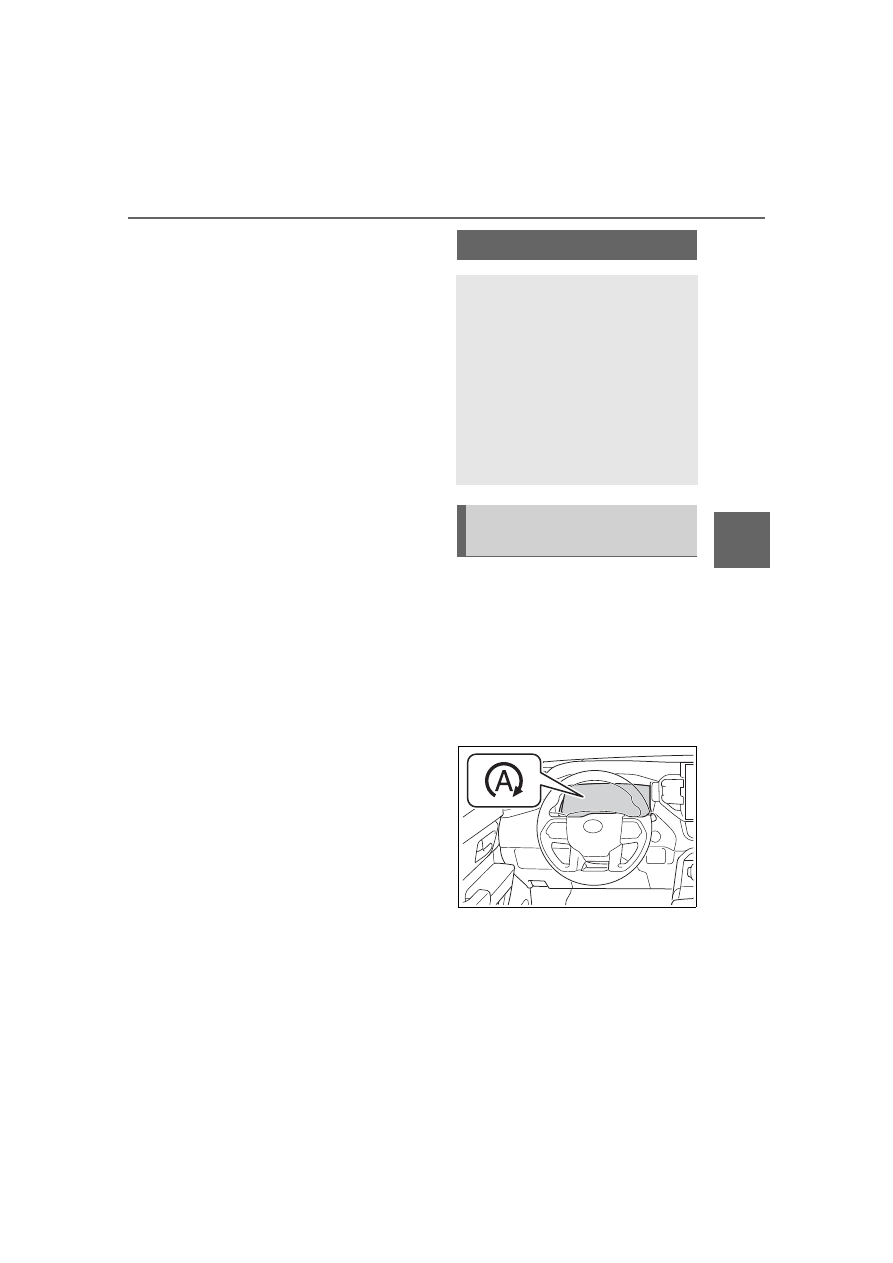

Stop & Start system

The Stop & Start system
stops and starts the engine
according to brake pedal or
shift lever operation when
the vehicle is stopped, such
as at a stoplight, intersec-
tion, etc., in order to
improve fuel economy and
reduce noise pollution
caused by the engine idling.

Stop & Start system oper-
ation

276

4-5. Using the driving support systems

When the brake hold sys-
tem is operating

When the engine is stopped
by the Stop & Start system, if
the brake pedal is released
the engine will remain
stopped.

If the accelerator pedal is
depressed while the engine is
stopped by the Stop & Start
system, the engine will
restart.

While the engine is stopped
by the Stop & Start system, if
the engine is restarted, the
brake hold system will con-
tinue to apply the brakes,
unless the operation condi-
tions of the brake hold system
are no longer met. (

P.214)

When the dynamic radar
cruise control with full-
speed range is operating
(vehicles with a dynamic
radar cruise control with
full-speed range)

When the vehicle is stopped
by the dynamic radar cruise
control with full-speed range,
the engine will stop automati-
cally even though the brake
pedal is not depressed.

When the preceding vehicle
starts off, the engine will
restart automatically.

If the engine is restarted auto-
matically by the Stop & Start
system during a controlled

stop by the dynamic radar
cruise control with full-speed
range, the controlled stop will
continue.

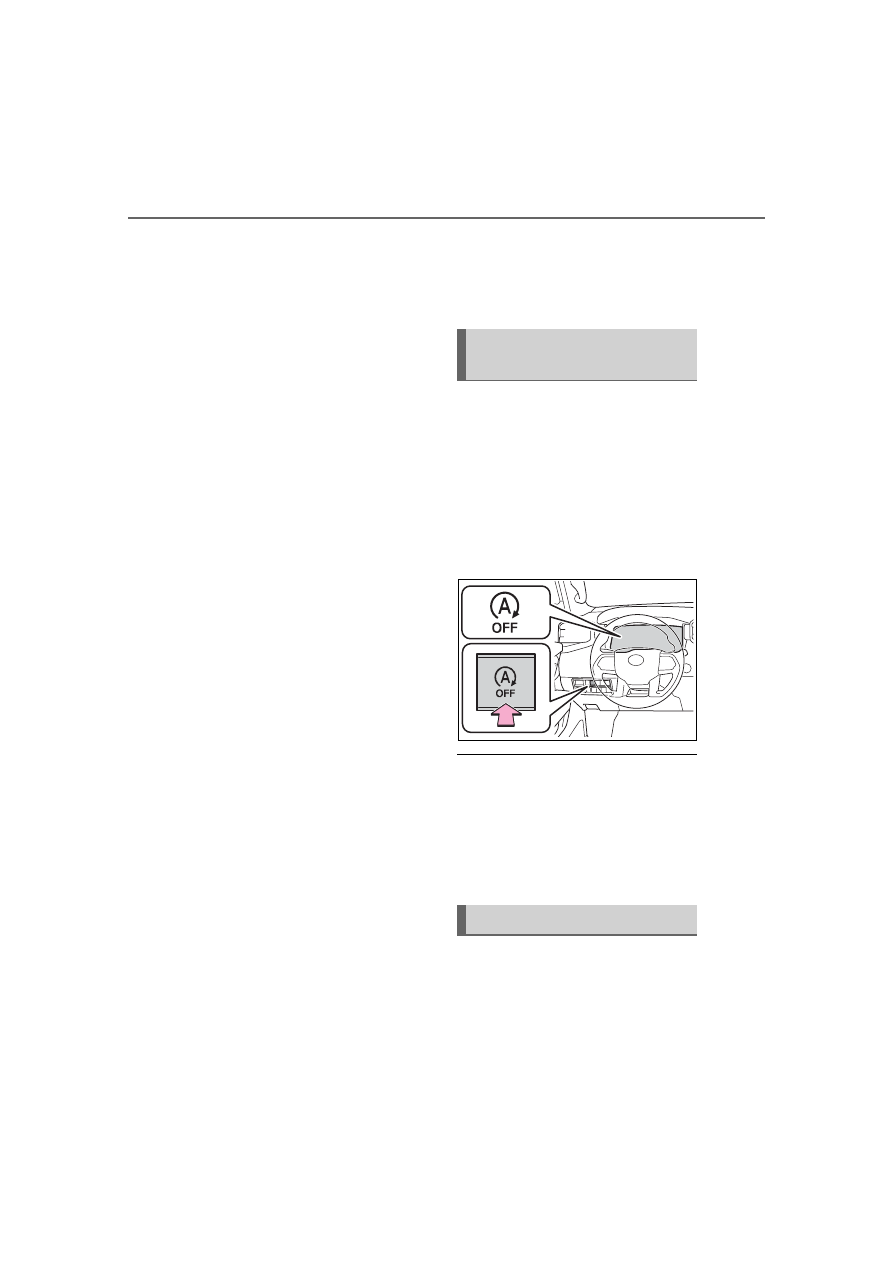

Press the Stop & Start cancel
switch to disable the Stop &
Start system.
The Stop & Start cancel indica-
tor will illuminate.

Pressing the switch again will
enable the Stop & Start system and
the Stop & Start cancel indicator will
turn off.

Automatic enabling of the Stop

& Start system

If the Stop & Start system is dis-

abled using the Stop & Start cancel

switch, it will be automatically re-

enabled once the engine switch is

turned off and then the engine is

started.

When the engine is stopped by
the Stop & Start system when
the vehicle is on an incline,
when the brake pedal is
released, brake force is tempo-

Disabling the Stop & Start
system

Hill-start assist control

277

4-5. Using the driving support systems

4

Dr

iv

ing

rarily maintained to prevent the
vehicle from rolling backwards
before the engine is restarted
and drive force is generated.
When drive force is generated,
the maintained brake force is
automatically canceled.

This function operates on flat
surfaces as well as steep
inclines.

Sound may be generated
from the brake system, but
this does not indicate a mal-
function.

Brake pedal response may
change and vibration may
occur, but this does not indi-
cate a malfunction.

Points for use

If the engine switch is pressed

when the engine is stopped by the

Stop & Start system, the engine

will not be able to be restarted by

the automatic engine start func-

tion. In this case, restart the

engine using the normal engine

starting procedure. (

P.202)

When the engine is being

restarted by the Stop & Start sys-

tem, the power outlets may be

temporarily unusable, but this

does not indicate a malfunction.

Installation and removal of electri-

cal components and wireless

devices may affect the Stop &

Start system. Contact your Toyota

dealer for details.

When stopping the vehicle for a

longer period of time, turn the

engine switch off to stop the

engine completely.

When the engine is restarted by

the Stop & Start system, the steer-

ing wheel may temporarily feel

heavy.

Operating conditions

The Stop & Start system is opera-

tional when all of the following

conditions are met:

• The vehicle has been driven a cer-

tain amount of time.

• Vehicles with dynamic radar

cruise control with full-speed

range: The brake pedal is being

depressed firmly. (Except when

the vehicle is stopped by the

dynamic radar cruise control with

full-speed range when in vehicle-

to-vehicle distance control mode)

• Vehicles without dynamic radar

cruise control with full-speed

range: The brake pedal is being

depressed firmly.

• The D shift position is selected.

• The driver’s seat belt is fastened.

• The driver’s door is closed.

• The selected driving mode is not

“4H” or “4L” mode. (4WD models

only)

• The Multi-terrain Select is not

operated (if equipped)

• The windshield defogger is off.

• The accelerator pedal is not being

depressed.

• The engine is adequately warmed

up.

• The outside temperature is 23°F (-

5°C) or higher.

• The hood is closed. (

P.278)

• “TOW HAUL” or “TOW+” mode is

not operated (if equipped)

In the following situations the

engine may not be stopped by the

Stop & Start system. This is not a

malfunction of the Stop & Start

system.

• When the air conditioning system

is being used.

• When the battery is undergoing a

periodic recharge.

• When the battery is not sufficiently

charged, such as if the vehicle

has been parked for a long time

and the battery charge has

decreased, the electric load is

large, the battery fluid tempera-

278

4-5. Using the driving support systems

ture is excessively low or the bat-

tery has deteriorated.

• When the brake booster vacuum

is low.

• When the elapsed time since the

engine was restarted is short.

• When the vehicle is stopped fre-

quently, such as when in a traffic

jam.

• When the engine coolant tem-

perature or transmission fluid tem-

perature is extremely low or high.

• When the vehicle is stopped on a

steep incline.

• When the steering wheel is being

operated.

• When the vehicle is being driven

in a high altitude area.

• When the battery fluid tempera-

ture is extremely low or high.

• For a while after the battery termi-

nals have been disconnected and

reconnected.

When the engine is stopped by

the Stop & Start system, the

engine will be restarted automati-

cally if any of the following condi-

tions are met:

(To enable the engine to be

stopped by the Stop & Start sys-

tem again, drive the vehicle.)

• The air conditioning system is

turned on.

• The windshield defogger is turned

on.

• The shift lever is shifted from D or

P.

• The shift lever is shifted from P.

(When the engine is stopped by

the Stop & Start system when the

shift lever is in P.

• The driver’s seat belt is unfas-

tened.

• The driver’s door is opened.

• The selected driving mode is “4H”

or “4L” mode. (4WD models only)

• The Multi-terrain Select is oper-

ated (if equipped)

• “TOW HAUL” or “TOW+” mode is

operated (if equipped)

• The Stop & Start cancel switch is

pressed.

• The steering wheel is operated.

• The accelerator pedal is

depressed.

• The vehicle starts to roll on an

incline.

When the engine is stopped by

the Stop & Start system, the

engine may restart automatically

in the following situations: (To

enable the engine to be stopped

by the Stop & Start system again,

drive the vehicle.)

• When the brake pedal is pumped

or strongly depressed.

• When the air conditioning system

is being used.

• When a switch of the air condition-

ing system is operated (windshield

defogger switch, etc.).

• If the battery charge becomes low.

When the hood is opened

If the hood is opened while the

engine is stopped by the Stop &

Start system, the engine will stall

and will not be able to be restarted

by the automatic engine start

function. In this case, restart the

engine using the normal engine

starting procedure. (

P.202)

If the hood is closed after the

engine is started with the hood

open, the Stop & Start system will

not operate. Close the hood, turn

the engine switch off, wait 30 sec-

onds or more, and then start the

engine.

Air conditioning system opera-

tion while the engine is stopped

by the Stop & Start system

When the air conditioning is in auto-

matic mode and the engine is

stopped by the Stop & Start system,

the fan may operate at a low speed

in order to prevent the temperature

in the cabin from increasing or

decreasing or may be stopped.
To prioritize air conditioning system

performance when the vehicle is

stopped, disable the Stop & Start

system by pressing the Stop & Start

cancel switch.

If the windshield is fogged up

279

4-5. Using the driving support systems

4

Dr

iv

ing

Turn the windshield defogger on.
(

P.414)

If the windshield fogs up frequently,
press the Stop & Start cancel switch
to disable the Stop & Start system.

If an odor is emitted from the air

conditioning system

• Press the Stop & Start cancel

switch to deactivate the Stop &

Start system.

Changing the idling stop time

with the air conditioning system

on

The length of time the Stop & Start
system will operate when the air
conditioning system is on can be
changed in

 of the multi-informa-

tion display (

P.574). (The length of

time the Stop & Start system will
operate when the air conditioning
system is off cannot be changed.)

Displaying the Stop & Start sys-

tem status

P.100

Multi-information display mes-

sages

If the following situations,



and a message may be displayed
on the multi-information display.

When the engine cannot be

stopped by the Stop & Start sys-

tem

 “Press Brake More to Acti-

vate”
• The brake pedal is not sufficiently

depressed.

 If the brake pedal is depressed

further, the system will operate.

 “Non-Dedicated Battery”

• A battery not designed for use

with a Stop & Start system may

have been installed.

 Have the vehicle inspected by

your Toyota dealer.

 “Battery Charging”

• The battery charge may be low.

 Stopping of the engine is tempo-

rarily prohibited to prioritize charging
of the battery. After the engine runs
for a certain amount of time, the sys-
tem will be enabled.
• A refresh charge may be occur-

ring

 After a refresh charge for up to

an hour completes, the system can
be operated.
• If displayed continuously for a

long time (more than an hour)

 The battery may be deteriorated.

Contact your Toyota dealer for
details.

 “Stop & Start Unavailable”

• The Stop & Start system is tempo-

rarily disabled.

 Allow the engine to run for some

time.
• The engine may have been

started with the hood open.

 Close the hood, turn the engine

switch off, wait for 30 seconds or
more, and then start the engine.

 “In Preparation”

• The vehicle is being driven in a

high altitude area.

• The brake booster vacuum is low.

 When the brake booster vacuum

reaches a predetermined level, the
system will be enabled.

 “For Climate Control”

• The air conditioning system is

being used when the ambient

temperature is high or low.

If the difference between the set

temperature and cabin temperature
becomes small, the system will be
enabled.
• The windshield defogger is on.

280

4-5. Using the driving support systems

When the engine automatically

restarts while stopped by the Stop

& Start system

 “In Preparation”

• The brake pedal has been

depressed further or pumped.

 The system will be enabled after

the engine runs and the brake
booster vacuum reaches a predeter-
mined level.

 “For Climate Control”

• The air conditioning system has

been turned on or is being used.

• The windshield defogger has

been turned on.

 “Battery Charging”

• The battery charge may be low.

The system will be enabled after

the engine runs to sufficiently
charge the battery.

When the buzzer sounds

If the driver’s door is opened when

the engine is stopped by the Stop &

Start system and the shift lever is in

D, a buzzer will sound and the Stop

& Start system indicator will flash. To

stop the buzzer, close the driver’s

door.

The Stop & Start system protec-

tion function

When the volume of the audio

system is excessively high, sound

output from the audio system may

suddenly be cut off in order to

reduce battery consumption. To

prevent the audio system from

being cut off, keep the volume of

audio system at a moderate level.

If the audio system has been cut

off, turn the engine switch off, wait

for 3 seconds or more and then

turn it to ACC or ON to re-enable

the audio system.

The audio system may not be acti-

vated if the battery terminals are

disconnected and then recon-

nected. If this occurs, turn the

engine switch off and then repeat

the following operation twice to

activate the audio system nor-

mally.

• Turn the engine switch to ON and

then to off.

Replacing the battery

P.539

If the Stop & Start cancel indica-

tor flashes continuously

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

If “Stop & Start System Mal-

function Visit Your Dealer” is

displayed on the multi-informa-

tion display

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

WARNING

When the Stop & Start system

is operating

Make sure to disable the Stop &

Start system while the vehicle is in

a poorly ventilated area.

If not disabled, the engine may be

automatically restarted unexpect-

edly, causing exhaust gases to

collect and enter the vehicle, pos-

sibly resulting in death or a seri-

ous health hazard.

Do not leave the vehicle while

the engine is stopped by the

Stop & Start system (while the

Stop & Start indicator is on). An

accident may occur due to the

automatic engine start function.

Depress the brake pedal and

apply the parking brake when

necessary while the engine is

stopped by the Stop & Start sys-

tem (while the Stop & Start indi-

cator is on).

281

4-5. Using the driving support systems

4

Dr

iv

ing

*

: If equipped

NOTICE

To ensure the system oper-

ates correctly

If any of the following situations

occur, the Stop & Start system

may not operate correctly. Have

your vehicle inspected by your

Toyota dealer.

While the driver’s seat belt is

fastened, the driver’s and front

passenger’s seat belt reminder

light flashes.

Even though the driver’s seat

belt is not fastened, the driver’s

and front passenger’s seat belt

reminder light does not illumi-

nate.

Even though the driver’s door is

closed, the open door warning

light is illuminated or the interior

light is illuminated when the

interior light switch is in the door

position.

Even though the driver’s door is

open, the open door warning

light does not illuminate or the

interior light does not illuminate

when the interior light switch is

in the door position.

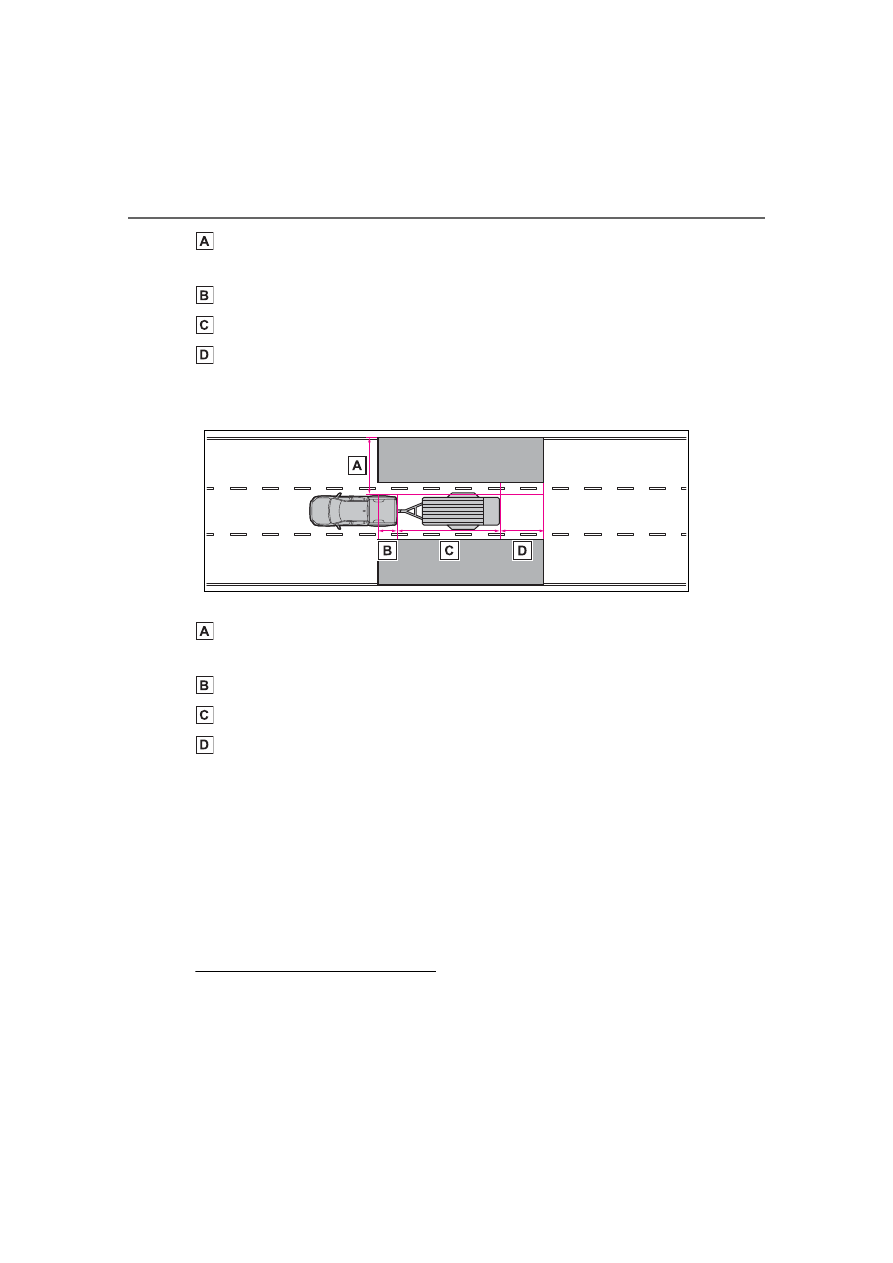

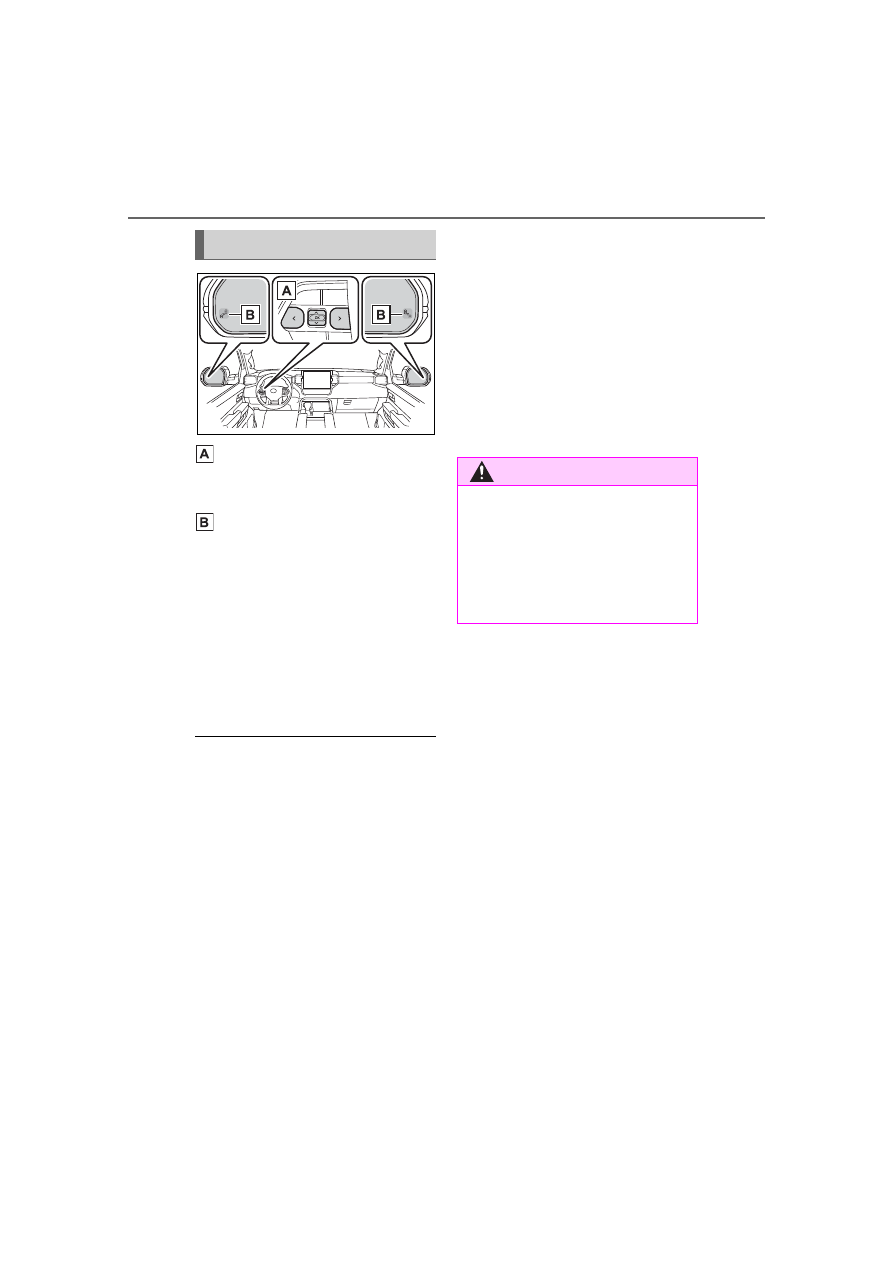

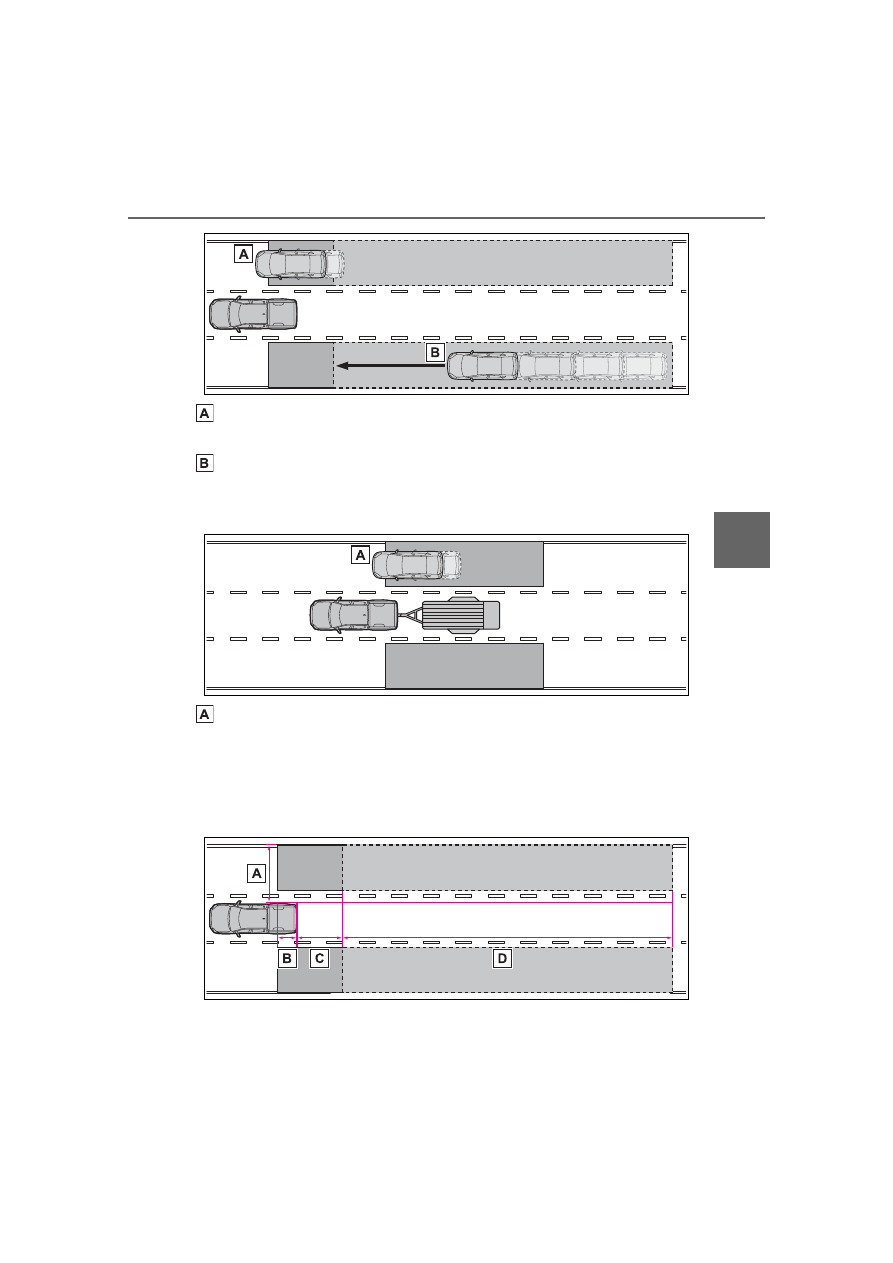

BSM (Blind Spot Moni-

tor)

*

The Blind Spot Monitor is a
system that uses rear side
radar sensors installed on
the inner side of the rear
bumper on the left and right
side to assist the driver for
lane changing decision.

WARNING

Cautions regarding the use of

the system

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.
The Blind Spot Monitor is a sup-

plementary function which alerts

the driver that a vehicle is in a

blind spot of the outside rear view

mirrors or is approaching rapidly

from behind into a blind spot. Do

not overly rely on the Blind Spot

Monitor. As the function cannot

judge if it is safe to change lanes,

over reliance could lead to an

accident resulting in death or seri-

ous injury.
As the system may not function

correctly under certain condi-

tions, the driver’s own visual con-

firmation of safety is necessary.

282

4-5. Using the driving support systems

Meter control switches

Turning the Blind Spot Monitor
on/off.

Outside rear view mirror indi-
cators

When a vehicle is detected in a
blind spot of the outside rear view
mirrors or approaching rapidly from
behind into a blind spot, the outside
rear view mirror indicator on the
detected side will illuminate. If the
turn signal lever is operated toward
the detected side, the outside rear
view mirror indicator flashes.

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

When “Blind Spot Monitor

Unavailable” is shown on the

multi-information display

Ice, snow, mud, etc., may be

attached to the rear bumper around

the sensors. (

P.283) The system

should return to normal operation

after removing the ice, snow, mud,

etc., from the rear bumper. Addition-

ally, the sensors may not operate

normally when driving in extremely

hot or cold environments.

When “Blind Spot Monitor Mal-

function Visit Your Dealer” is

shown on the multi-information

display

There may be a sensor malfunction

or misaligned. Have the vehicle

inspected by your Toyota dealer.

Customization

Some functions can be customized.

(

P.575)

Certification

P.622

System components

WARNING

To ensure the system can

operate properly

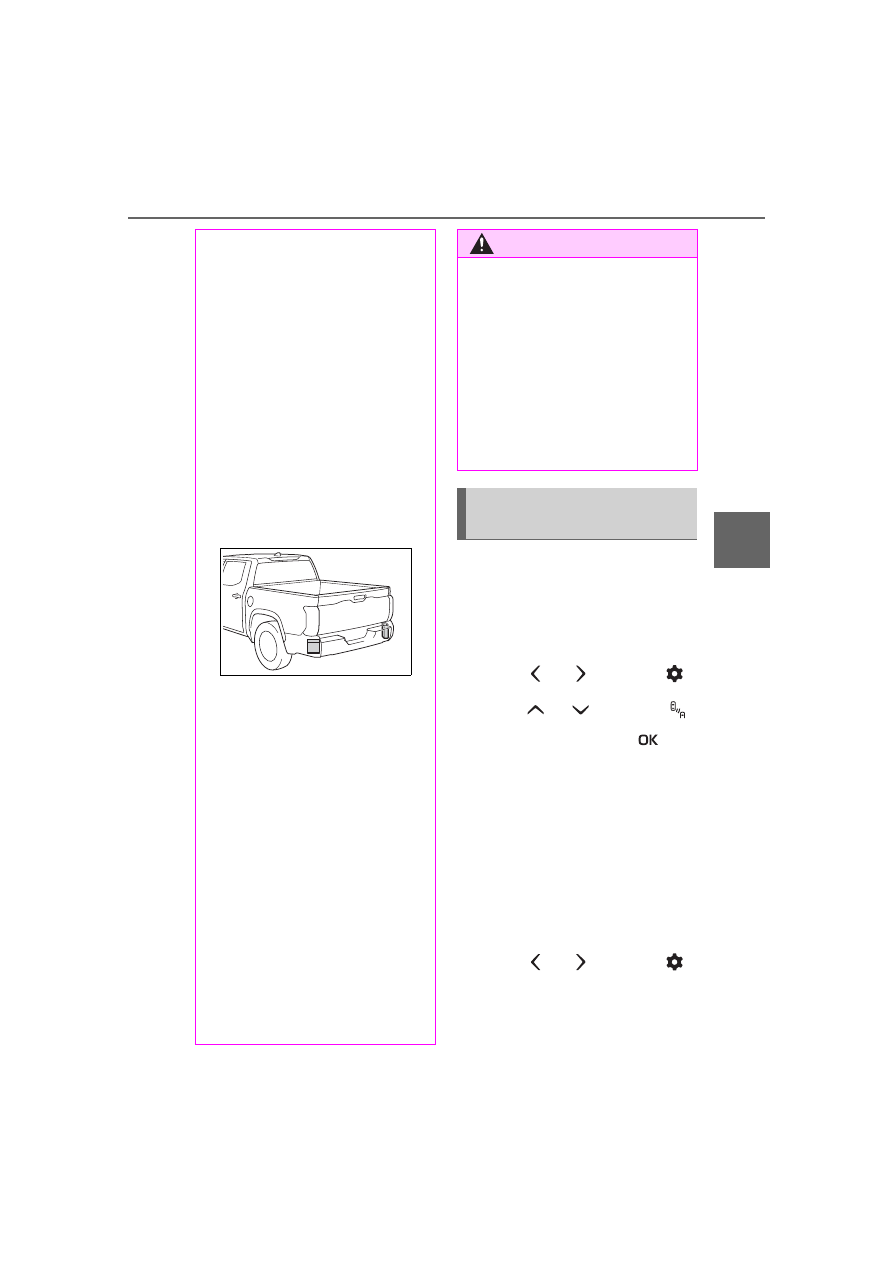

Blind Spot Monitor sensors are

installed behind the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

operate correctly.

283

4-5. Using the driving support systems

4

Dr

iv

ing

Turning the Blind Spot Mon-
itor on/off

Use the meter control switches
to turn on/off the function.
(

P.94)

1

Press

 or

 to select

.

2

Press

 or

 to select “



BSM” and then press

.

When the BSM function is disabled,

the BSM OFF indicator (

P.82) illu-

minates. (Each time the engine

switch is turned off then changed to

ON, the Blind Spot Monitor will be

enabled automatically.)

Setting the trailer type

Use the meter control switches
to select the trailer type.
(

P.94)

1

Press

 or

 to select

.

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding area
on the rear bumper is dirty or cov-
ered with snow, the Blind Spot
Monitor may not operate and a
warning message (

P.282) will

be displayed. In this situation,
clear off the dirt or snow and drive
the vehicle with the operation con-
ditions of the BSM function
(

P.287) satisfied for approxi-

mately 10 minutes. If the warning
message does not disappear,
have the vehicle inspected by
your Toyota dealer.

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc.,

to a sensor or its surrounding

area on the rear bumper.

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have

your vehicle inspected by your

Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

WARNING

Do not disassemble the sensor.

Do not modify the sensor or sur-

rounding area on the rear

bumper.

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your Toyota

dealer.

Do not paint the rear bumper

any color other than an official

Toyota color.

Changing settings of the
Blind Spot Monitor

284

4-5. Using the driving support systems

2

Press

 or

 to select

“Trailer Settings” and then
press and hold

.

3

According to the display,
select the desired setting and
then press

. (

P.98)

Auto Trailer Detection (ATD)

Auto Trailer Detection (ATD) detects

if a trailer is attached by using the

Trailer Brake Controller (TBC) or the

Blind Spot Monitor (BSM) sensors.

Trailers that use TBC can be

detected by using the 7-pin trailer

brake connectors.

Other types of trailers can be

detected using the BSM sensors.

When a trailer is detected via BSM

or TBC, RCTA function will be dis-

abled.

As soon as the trailer is detected,

the detection area will be

extended to a maximum length of

approximately 16 ft. (15 m) from

the rear bumper of the truck.

If the trailer does not have a 7-pin

connector, or the 7-pin connector

is not engaged, the trailer is

detected via the BSM sensor. In

this case PKSB and Intuitive park-

ing assist functions will not be dis-

abled.

For trailer auto detection without

engagement of 7-pin connector,

the vehicle should be moving for-

ward at speed of above 0.6 mph

(1 km/h) for at least 10 seconds.

ATD function is triggered at every

engine switch on/off cycle or if the

vehicle is stopped in shift the shift

lever is in P or N for more than 90

seconds.

Trailer detection vis BSM sensors

may be delayed if the vehicle is in

a crowded environment such as

busy parking lot, area surrounded

with trees (camping ground) or in

an environment with objects in the

immediate environment that pre-

vent sensors from sufficiently

detecting the trailer.

Trailer Length Detection (TLD)

Once a trailer is detected and if

the trailer length in the meter is

selected as “Auto”, the TLD func-

tion will estimate the trailer length

using the Blind Spot Monitor sen-

sors.

In order to estimate the trailer length

with TLD function and detection

area, make at least two 90 degree

turns.
If the trailer length is entered manu-

ally via multi-information display

input, the detection area is also

adjusted to exceed the length of the

trailer.

Depending on some trailer types

and the dimensions of the trailer

TMW performance may be

degraded.

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the fol-
lowing vehicles traveling in adjacent lanes and advises the driver of
the presence of such vehicles via the indicators on the outside rear
view mirrors.

When not towing a trailer

Blind Spot Monitor operation

285

4-5. Using the driving support systems

4

Dr

iv

ing

Vehicles approaching in adjacent lanes that may not be visible
using the outside rear view mirrors (the blind spots)

Vehicles that are approaching rapidly in adjacent lanes that are
not visible using the outside rear view mirrors (the blind spots)

When towing a trailer

Vehicles approaching in adjacent lanes that may not be visible
using the outside rear view mirrors (the blind spots)

The Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

When not towing a trailer

The range of each detection area is:

286

4-5. Using the driving support systems

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of
the vehicle

*1

Approximately 3.3 ft. (1 m) forward of the rear bumper

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear
bumper

*2

When towing a trailer

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of
the vehicle

*1

Approximately 3.3 ft. (1 m) forward of the rear bumper

Trailer overall length

*3

Approximately 9.8 ft. (3 m) from the rear end of trailer

*3

*1

:The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

*2

:The outer mirror indicator warning may be delayed. The delay increases

in proportion to the speed differential with vehicles approaching in the
adjacent lane.

*3

:The system does not support trailers wider than 8.5 ft. (2.59 m) and/or

longer than 39 ft. (12.0 m). For box trailers and certain other trailer types
that are up to 8.5 ft. (2.59 m) wide and/or 39 ft. (12.0 m) long, the indica-
tor warning in the outer mirror may be delayed if the vehicle in the adja-
cent lane overtakes your vehicle at a high-speed differential.

The Blind Spot Monitor is oper-

ational when

The Blind Spot Monitor is opera-

tional when all of the following con-

ditions are met:

The Blind Spot Monitor is on.

The shift position is in a position

other than R.















Content      ..     15      16      17      18     ..
