3-1. CONTROLS

CON

ROLS

Depending on the vehicle speci-
fications, the current power out-
put and torque can be displayed
on the control display.

The following information is dis-
played:



Torque.



Power.

Via Toyota Supra Command:

"My vehicle"

"Sport displays"

A speed limit can be set that
when reached will cause a
warning to be issued.

The warning is repeated if the
vehicle speed exceeds the set
speed limit again, after it has
dropped below it by 3 mph/5

km/h.

Via Toyota Supra Command:

"My Vehicle"

"Vehicle settings"

"Speed warning"

"Warning at:"

Turn the Controller until the
desired speed is displayed.

Press the Controller.

Via Toyota Supra Command:

"My Vehicle"

"Vehicle settings"

"Speed warning"

Via Toyota Supra Command:

"My Vehicle"

"Vehicle settings"

"Speed warning"

"Select current speed"

The status can be displayed and

Sport displays

Concept

Display on the Control Dis-
play

Overview

Displays

Speed warning

Concept

General information

Configuring the speed
limit warning

Activating/deactivating the
speed warning

Setting your current speed
as the speed warning

Vehicle status

General information

154

3-1. CONTROLS

actions performed for several
systems.

Via Toyota Supra Command:

"My vehicle"

"Vehicle status"



"Tire Pressure Monitor":

Status of the Tire Pressure
Monitor, refer to page 288.



"Engine oil level": Elec-

tronic engine oil level check,
refer to page 303.



"Vehicle messages": Vehi-

cle messages are stored in
the background and can be
displayed on the Control Dis-
play. Displaying stored vehi-
cle messages, refer to page
141.



"Service required": Dis-

playing service notifications,
refer to page 148.



"Remote maintenance

Call": service request.

: if equipped

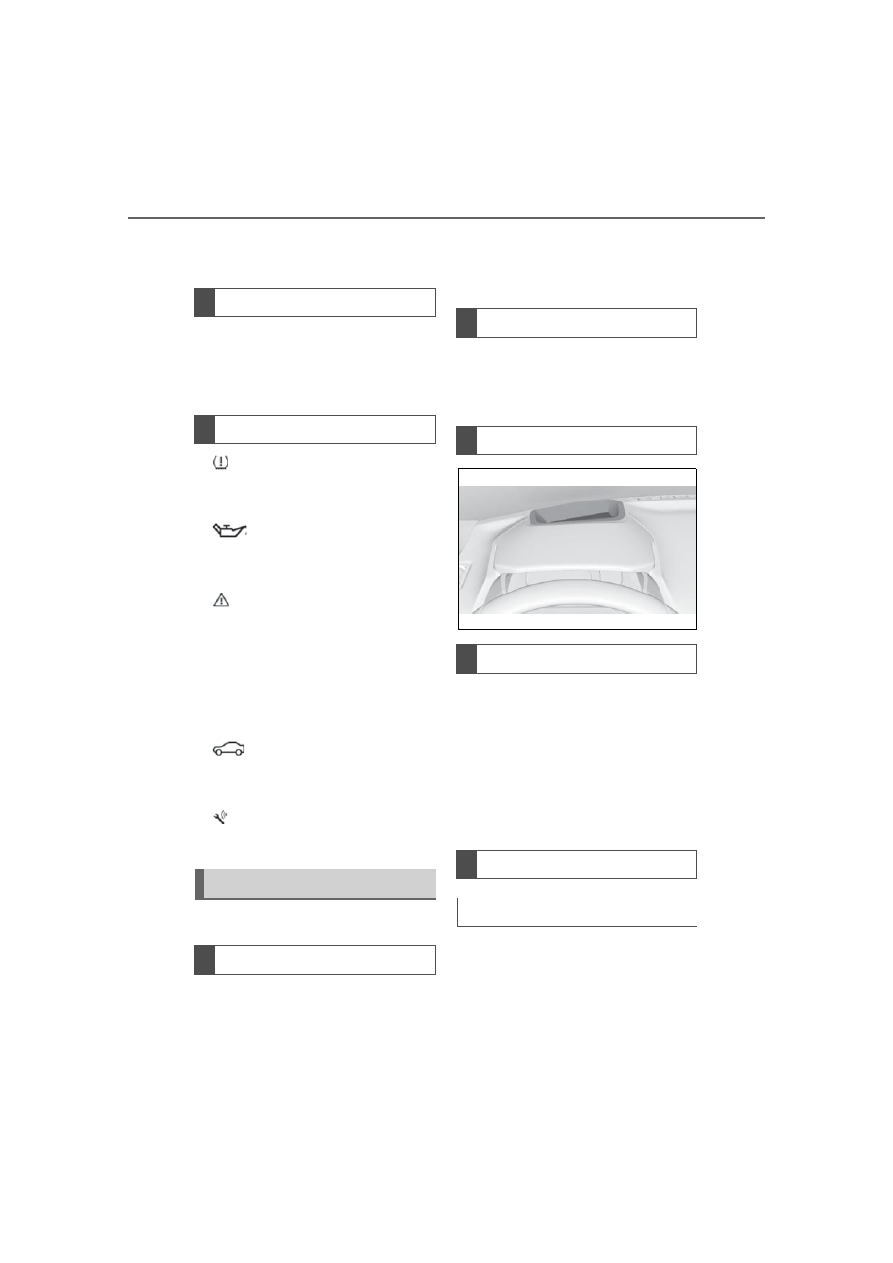

This system projects important
information into the driver's field
of vision, for instance the speed.

The driver can get information
without averting his or her eyes
from the road.

Follow the information on clean-
ing the Head-up Display, refer to
page 337.

Via Toyota Supra Command:

"My vehicle"

"System settings"

"Displays"

"Head-up display"

The following information is dis-
played on the Head-up Display:



Speed.



Navigation instructions.

Opening the vehicle status

Information at a glance

Head-up Display*

Concept

General information

Overview

Switching on/off

Display

Overview

155

3-1. CONTROLS

CON

ROLS



Vehicle messages.



Selection list in the instrument
cluster.



Driver assistance systems.

Some of this information is only
displayed briefly as needed.

Various views are available for
the Head-up Display.
Via Toyota Supra Command:

"My vehicle"

"System settings"

"Displays"

"Head-up display"

Select the desired setting.

The brightness adapts automati-
cally to the ambient brightness.
The basic setting can be
adjusted manually.
Via Toyota Supra Command:

"My vehicle"

"System settings"

"Displays"

"Head-up display"

"Brightness"

Turn the Controller until the
desired brightness is set.

Press the Controller.

When the low beams are
switched on, the brightness of

the Head-up Display can be
additionally influenced using the
instrument lighting.

Via Toyota Supra Command:

"My vehicle"

"System settings"

"Displays"

"Head-up display"

"Height"

Turn the Controller until the
desired height is reached.

Press the Controller.

The height of the Head-up Dis-
play can also be stored using
the memory function, refer to
page 112.

The Head-up Display view can
be rotated.
Via Toyota Supra Command:

"My vehicle"

"System settings"

"Displays"

"Head-up display"

"Rotation"

Turn the Controller until the
desired setting is selected.

Press the Controller.

Selecting the view

Setting the brightness

Adjusting the height

Setting the rotation

156

3-1. CONTROLS

The visibility of the displays in
the Head-up Display is influ-
enced by the following factors:



Seat position.



Objects on the protective
glass of the Head-up Display.



Dust or dirt on the protective
glass of the Head-up Display.



Windshield dirty on inside or
outside.



Sunglasses with certain polar-
ization filters.



Wet roads.



Unfavorable light conditions.

If the image is distorted, have
the basic settings checked by
your Toyota dealer.

The windshield is part of the
system.
The shape of the windshield
makes it possible to display a
precise image.
A film in the windshield prevents
double images from being gen-
erated.
For this reason, it is strongly
suggested to have the special
windshield replaced by your
Toyota dealer if necessary.

This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures and functions that are not
necessarily available in your
vehicle, e.g., due to the selected
options or country versions. This
also applies to safety-related
functions and systems. When
using these functions and sys-
tems, the applicable laws and
regulations must be observed.

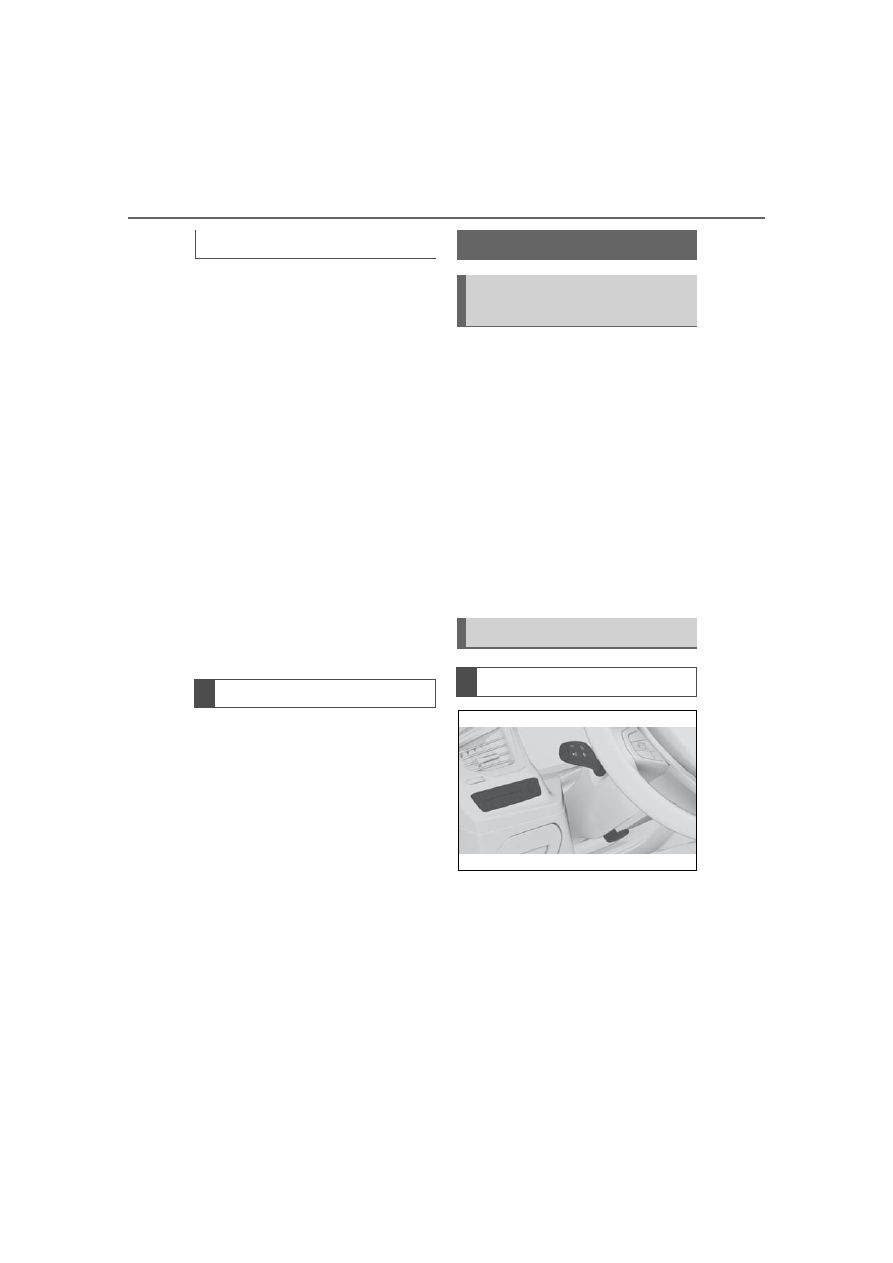

The light switch element is
located next to the steering
wheel.

Visibility of the display

Special windshield

Lights

Vehicle features and
options

Lights and lighting

Switches in the vehicle

157

3-1. CONTROLS

CON

ROLS

The low beams are switched on
and off automatically depending
on the ambient brightness, for
instance in tunnels, in twilight or
if there is precipitation.

A blue sky with the sun low on
the horizon can cause the lights

to be switched on.
If the low beams are switched
on manually, the automatic
headlight control is deactivated.

The LED in the button lights up.

The automatic headlight control
cannot serve as a substitute for
your personal judgment of light-
ing conditions.
For example, the sensors are
unable to detect fog or hazy
weather. In these situations,
switch the light on manually.

If the driver's door is opened
when the drive-ready state is
switched off, the exterior lighting
is automatically switched off
after a period of time.

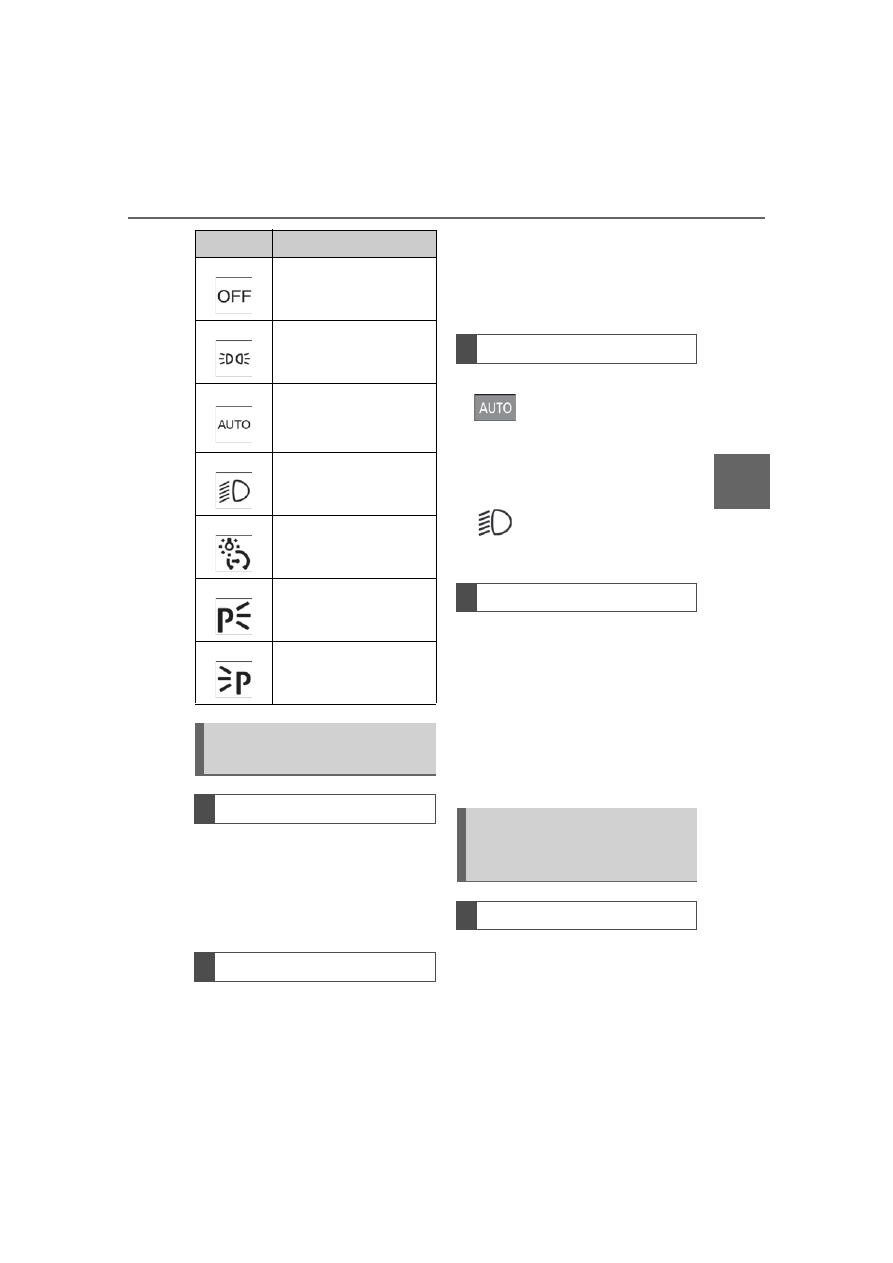

Symbol

Function

Lights off.

Daytime running lights.

Parking lights.

Automatic headlight

control.

Adaptive light functions.

Low beams.

Instrument lighting.

Right roadside parking

light.

Left roadside parking

light.

Automatic headlight con-
trol

Concept

General information

Activating

Press the button on the
light switch element.

The indicator light in the
instrument cluster is
illuminated when the
low beams are
switched on.

System limits

Parking lights, low beams
and roadside parking
lights

General information

158

3-1. CONTROLS

The parking lights can only be
switched on in the low speed
range.

The vehicle is illuminated on all
sides.
Do not use the parking lights for
extended periods; otherwise,
they might drain the battery and
it would then be impossible to
switch on drive-ready state.

After the drive-ready state is
switched on, the automatic
headlight control will be acti-
vated.

The low beams illuminate when
drive-ready state is switched on.

Press the button again to switch
on the low beams when the
standby state is switched on.

Depending on the country vari-
ant, the low beams can be
switched off in the low speed
range.
Depending on the surrounding
conditions, the low beam head-
lights may not be able to be
turned off.

When the vehicle is parked, a
one-sided roadside parking light
can be switched on.

Parking lights

General information

Switching on

Press the button on the
light switch element.

The indicator light in the
instrument cluster lights
up.

Switching off

Press the button on the
light switch element or
switch on the
drive-ready state.

Low beams

Switching on

Press the button on the
light switch element.

The indicator light in the
instrument cluster lights
up.

Switching off

Press the button on the
light switch element.

Roadside parking lights

159

3-1. CONTROLS

CON

ROLS

Switching off the roadside park-
ing light:

Depending on the equipment,
the exterior lighting of the vehi-
cle can be set individually.

Via Toyota Supra Command:

"My Vehicle"

"Vehicle settings"

"Exterior lighting"

Select desired setting:



"Welcome lights"

Individual light functions are
switched on for a limited time.

The low beams stay illuminated
for a particular time if the high
beams are switched on after the
drive-ready state is switched off.

Via Toyota Supra Command:

"My Vehicle"

"Vehicle settings"

"Exterior lighting"

"Pathway lighting"

Select the desired setting.

The daytime running lights light
up when drive-ready state is
switched on.

In some countries, daytime run-
ning lights are mandatory, so it
may not be possible to deacti-
vate the daytime running lights.
Via Toyota Supra Command:

"My Vehicle"

"Vehicle settings"

"Exterior lighting"

Button

Function

Right roadside
parking light
on/off.

Left roadside
parking light
on/off.

Press the button on the
light switch element or
switch on the
drive-ready state.

Welcome lights and head-
light courtesy delay fea-
ture

Welcome lights

General information

Activating/deactivating

Headlight courtesy delay
feature

General information

Setting the duration

Daytime running lights

General information

Activating/deactivating

160

3-1. CONTROLS

"Daytime running lamps"

The Automatic high-beam
detects other traffic participants
early on and automatically
switches the high beams on or
off depending on the traffic situ-
ation.

The Automatic high-beam
ensures that the high beams are
switched on, whenever the traf-
fic situation allows. In the low
speed range, the high beams
are not switched on by the sys-
tem.
The system responds to light
from oncoming traffic and traffic
driving ahead of you, and to
ambient lighting, for instance in
towns and cities.

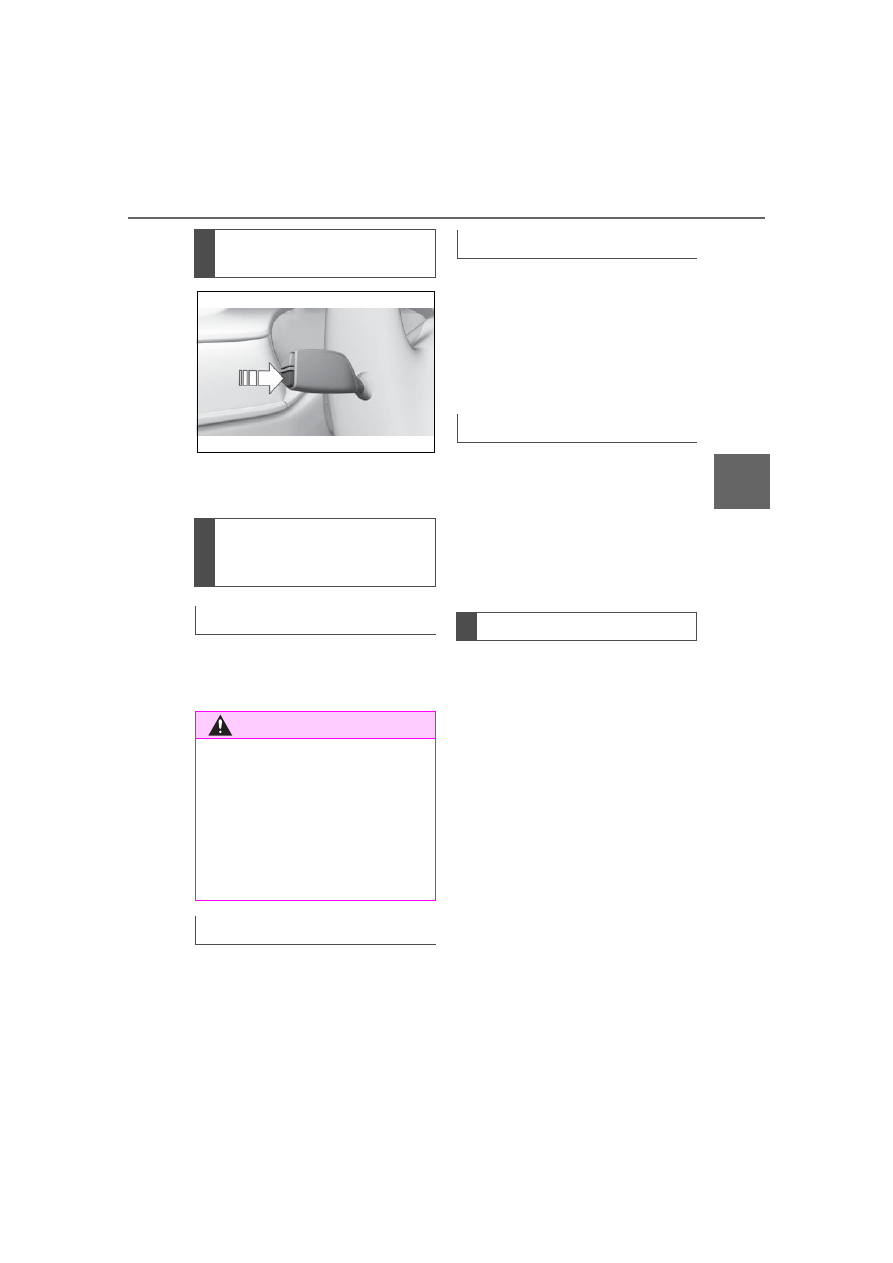

The high beams can be
switched on and off manually at
any time.

Press the button on the

light switch element.

The LED in the button lights up.

Press and hold the button on
the turn signal lever.

The headlights are automatically
switched between low beams
and high beams.

Driving interruption with acti-
vated Automatic high-beam: the
Automatic high-beam remains
activated when driving contin-
ues.
The Automatic high-beam is
deactivated when manually
switching the high beams on
and off, refer to page 127.
To reactivate the Automatic
high-beam, press the button on
the turn signal lever.

Automatic high-beam

Concept

General information

Activating

The indicator light in the
instrument cluster is
illuminated when the
low beams are
switched on.

The blue indicator light
in the instrument clus-
ter lights up when the
system switches on the
high beams.

161

3-1. CONTROLS

CON

ROLS

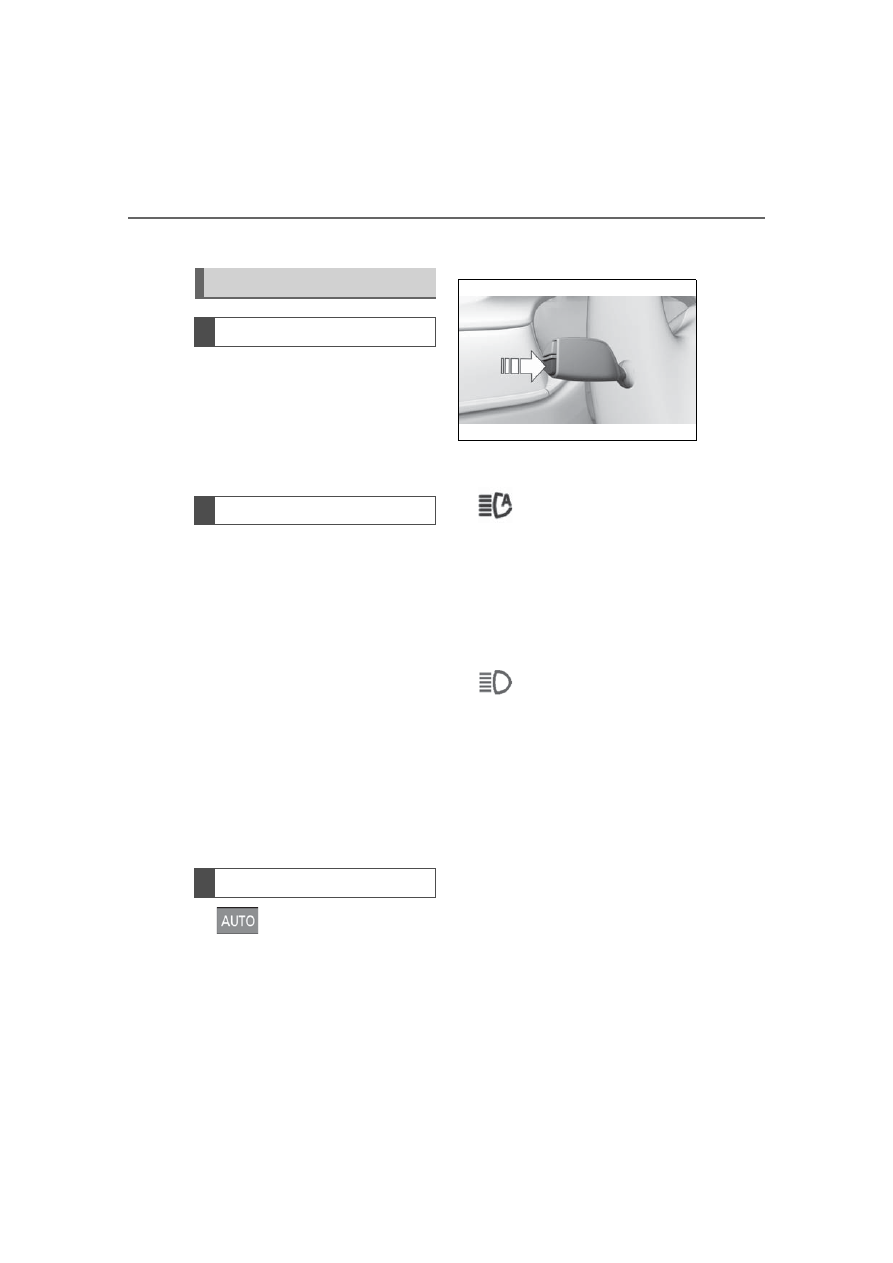

Press and hold the button on the
turn signal lever.

The sensitivity of the Automatic
High Beam Assistant can be
adjusted.

• Setting at standstill only.
• Drive readiness is switched

on.

• Light is turned off.

Push the turn signal lever to the
front for approximately 10 sec-
onds.
A Check Control message is
displayed. The system responds
more sensitively.

Push the turn signal lever to the
front again for approx. 10 sec-
onds or switch off the
drive-ready state.

The sensitivity of the Automatic
High Beam Assistant is reset to the
factory settings.

The Automatic High Beam
Assistant cannot replace the
driver's personal judgment of
when to use the high beams. In
situation that require this, there-
fore dimming manually.
The system is not fully functional
in the following situations, and
driver intervention may be nec-
essary:



In very unfavorable weather
conditions, such as fog or
heavy precipitation.



When detecting poorly-lit road
users such as pedestrians,
cyclists, horseback riders and
wagons; when driving close to
train or ship traffic; or at ani-

Deactivate Automatic High
Beam Assistant

Sensitivity of the Auto-
matic High Beam Assis-
tant

General information

WARNING

If adjustments have been made or

the sensitivity has been modified,

oncoming traffic may be momen-

tarily blinded. There is a risk of an

accident. If adjustments have

been made and the sensitivity has

been modified, make sure that

oncoming traffic is not momentar-

ily blinded. Switch off the high

beams manually if required.

Functional requirements

Increase sensitivity

Resetting the sensitivity

System limits

162

3-1. CONTROLS

mal crossings.



In tight curves, on hilltops or
in depressions, in crossing
traffic or half-obscured
oncoming traffic on highways.



In poorly-lit towns and cities
or in the presence of highly
reflective signs.



When the windshield in front
of the interior mirror is fogged
over, dirty or covered with
stickers, etc.

The parking lights or low beams
must be switched on to adjust
the brightness.

Depending on the equipment
version, interior lights, footwell
lights and door entry lighting are
automatically controlled.

To switch off permanently: press
the button and hold for approx. 3
seconds.

Instrument lighting

Functional requirement

Settings

Adjust the brightness
with the thumbwheel.

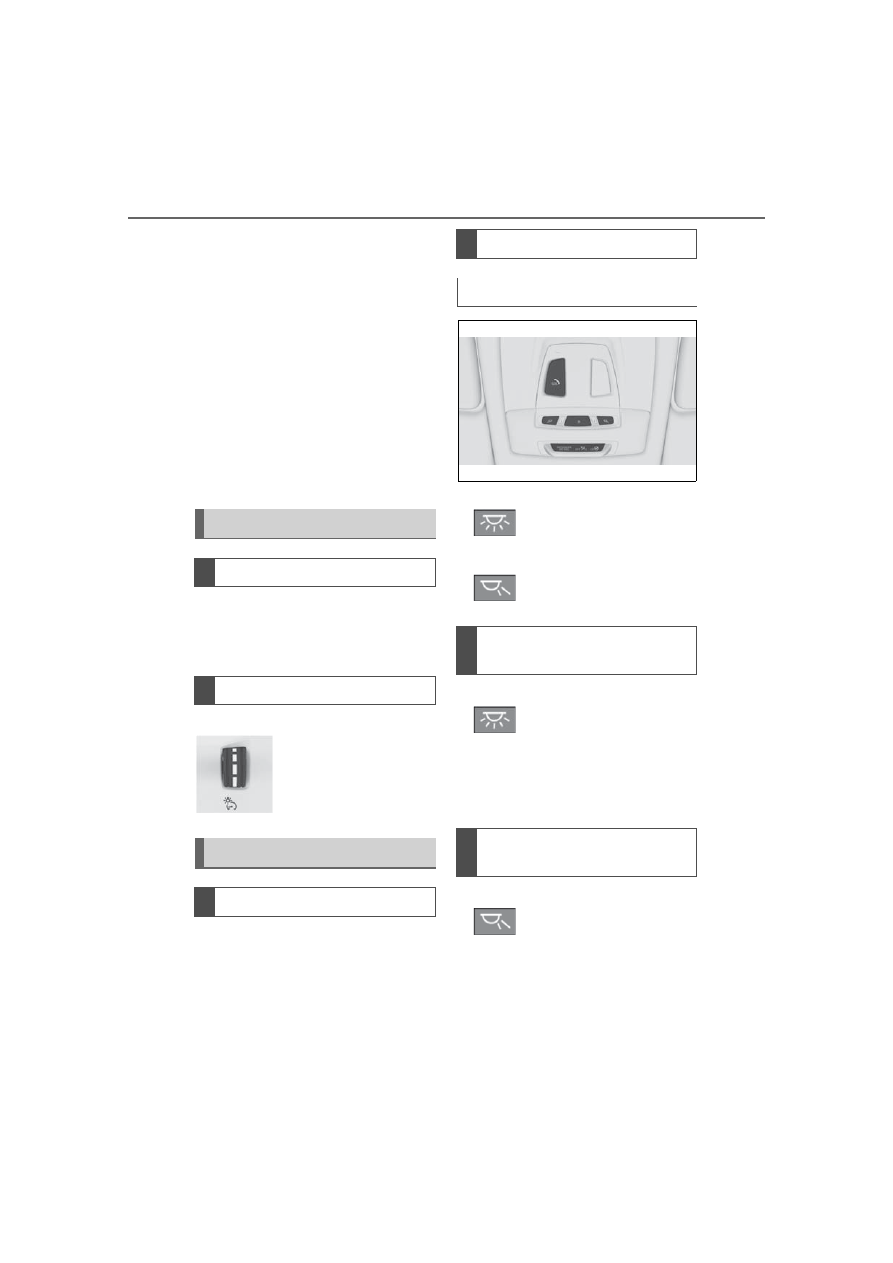

Interior lights

General information

Overview

Buttons in the vehicle

Interior lights

Reading lights

Switching the interior
lights on/off

Press the button.

Switching the reading
lights on/off

Press the button.

164

3-1. CONTROLS

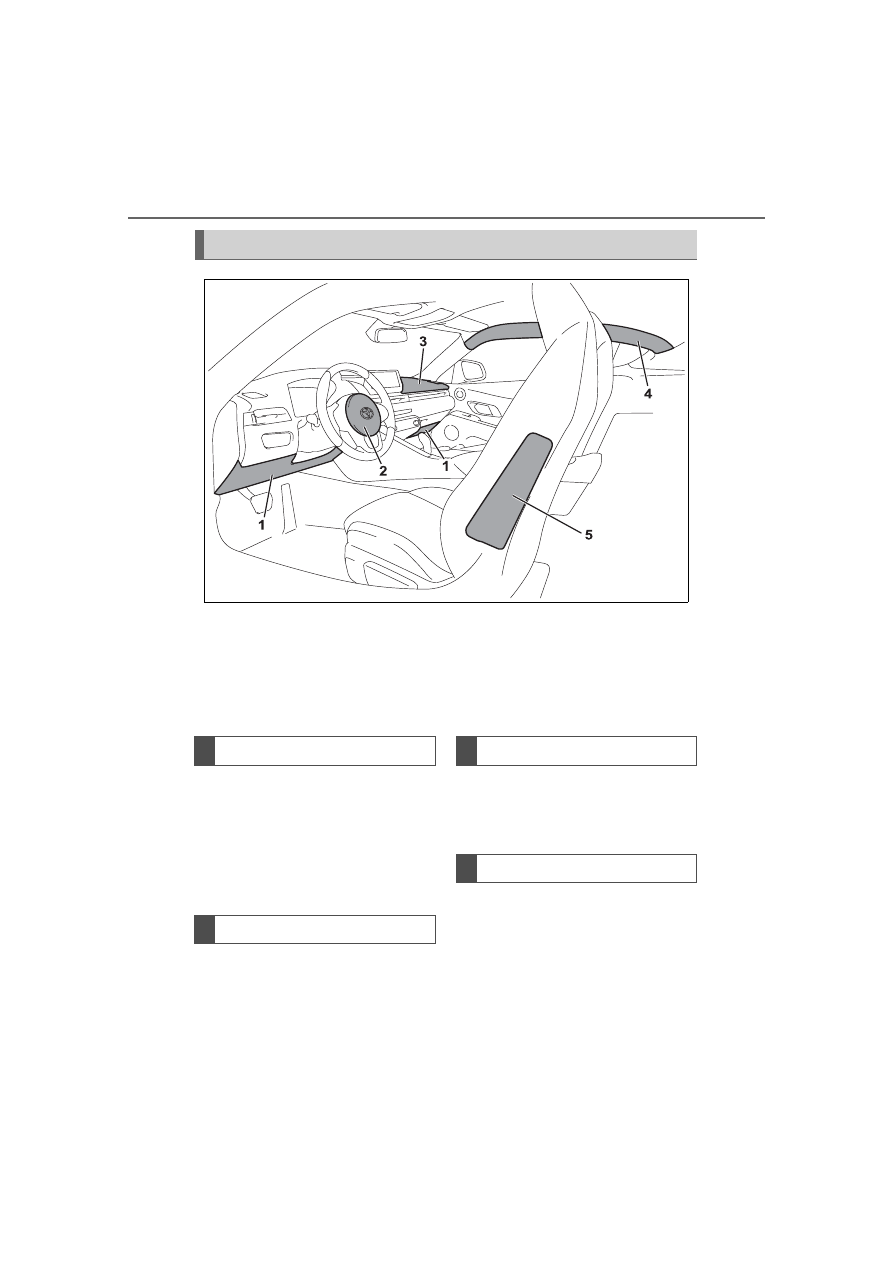

Knee airbag

Front airbag, driver

Front airbag, front passenger

Curtain shield airbag

Side airbag

Front airbags help protect the
driver and the front passenger
by responding to frontal impacts
in which safety belts alone
would not provide adequate pro-
tection.

In the event of a side impact, the
side airbag protects the side of
the body in the chest, lap, and
head area.

The knee airbag protects the
legs in the event of a frontal
impact.

The curtain shield airbag sup-
ports the head in the event of a
side-on crash.

Airbags

Front airbags

Side airbag

Knee airbag

Curtain shield airbag

165

3-1. CONTROLS

CON

ROLS

Airbags are not triggered in
every impact situation, for
instance in less severe acci-
dents.



Keep a distance from the air-
bags.



Always grasp the steering
wheel on the steering wheel
rim. Hold your hands at the 3
o'clock and 9 o'clock posi-
tions, to keep the risk of injury
to your hands or arms as low
as possible when the airbag is
triggered.



Adjust seat and steering
wheel so that hands can be
crossed over the steering
wheel. Select the settings so
that the shoulder rests against
the backrest when crossing
the hands and the upper body

is as far back as possible
while still maintaining a com-
fortable grip on the steering
wheel.



Make sure that the front pas-
senger is sitting correctly, i.e.,
keeps his or her feet and legs
in the floor area and does not
support them on the dash-
board.



Make sure that occupants
keep their heads away from
the side airbag.



There should be no addi-
tional persons, animals or
objects between an airbag
and a person.



Dashboard and windshield on
the front passenger side must
stay clear - do not attach
adhesive labels or coverings
and do not attach brackets or
cables, for instance for GPS
devices or mobile phones.



Do not apply adhesive materi-
als to the airbag cover panels,
do not cover them or modify
them in any way.



Do not use the cover of the
front airbag on the front pas-
senger side as a storage
area.



Do not attach slip covers, seat
cushions or other objects to
the front passenger seat that
are not specifically suited for
seats with integrated side air-
bags.

Protective effect

General information

Information on optimum
effect of the airbags

WARNING

If the seat position is incorrect or

the deployment area of the air-

bags is impaired, the airbag sys-

tem cannot provide protection as

intended and may cause addi-

tional injuries due to triggering.

There is a risk of injuries or dan-

ger to life. Follow the information

on achieving the optimum protec-

tive effect of the airbag system.

166

3-1. CONTROLS



Do not hang pieces of cloth-
ing, such as jackets, over the
backrests.



Never modify either the indi-
vidual components or the wir-
ing in the airbag system. This
also applies to steering wheel
covers, the dashboard, and
the seats.



Do not remove the airbag sys-
tem.

Even when you follow all
instructions very closely, injury
from contact with the airbags
cannot be fully ruled out in cer-
tain situations.
The ignition and inflation noise
may lead to short-term and, in
most cases, temporary hearing
impairment in sensitive occu-
pants.
Vehicle modifications for a per-
son with disabilities may affect
the air bag system; contact the
Toyota dealer for further infor-
mation.
Warnings and information on the
airbags are also found on the
sun visors.

Functional readiness of
the airbag system

Safety information

WARNING

Individual components can be hot

after triggering of the airbag sys-

tem. There is a risk of injury. Do

not touch individual components.

WARNING

Improperly executed work can

lead to failure, malfunction or

unintentional triggering of the air-

bag system. In the case of a mal-

function, the airbag system might

not trigger as intended despite the

accident severity. There is a risk

of injuries or danger to life. Have

the airbag system checked,

repaired, dismantled and

scrapped by your Toyota dealer.

Display in the instrument
cluster

When drive-ready state is
switched on, the warning
light in the instrument
cluster lights up briefly and
thereby indicates the func-
tion readiness of the entire
airbag system and the belt
tensioners.

Malfunction



Warning light does not
come on when
drive-ready state is
switched on.



The warning light lights
up continuously.

167

3-1. CONTROLS

CON

ROLS

Have the system checked.

The power that deploys the
driver's/front passenger airbags
depends on the position of the
driver's/front passenger seat.
To maintain the accuracy of this
function, calibrate the electrical
front seats as soon as a respec-
tive message appears on the
control display.
For further information:
Electrically adjustable seats,
see page P.102.

The airbags are not designed to
be used in place of the seat
belts.
The SRS front airbags and SRS
knee airbags are designed to
supplement the seat belts, not
be used in place of them, to
increase their effectiveness as
an occupant protection device.

SRS is an acronym for Supplemen-
tal Restraint System

In the event of a collision, the
seat belts restrain the occupants
in their seats, but if the impact of
the collision is especially
severe, there is danger of an
occupant’s head and chest con-
tacting the steering wheel, dash-

board and windshield. In this
case, the SRS front airbags and
SRS knee airbags deploy
(inflate), instantly creating an air
cushion to help reduce the
impact on the occupants and
restrain them from contacting
the steering wheel, etc. with
their head, chest and knees.
The SRS front air bags and SRS
knee airbags deploy only when
an impact exceeding a certain
threshold is detected. In a colli-
sion, even if the impact is
severe enough to cause the
vehicle body to deform, the SRS
airbags may not deploy if the
impact of the collision is suffi-
ciently dispersed by the crash
structures of the vehicle body. If
the force of the collision does
not cause the airbags to deploy,
the seatbelts will protect the
occupants.
When an airbag deploys, as it
will inflate nearly instantly, it may
impact an occupant and cause
an injury, or the loud noise emit-
ted by ignition or deployment
may cause temporary partial
loss of hearing. Also, as an air-
bag and nearby parts will be
extremely hot after the airbag
deploys, touching them may
cause burns. For these reasons,
deployment of the airbags is not
entirely risk free. Therefore, in
order to reduce this risk, the air-
bags are designed to only

Setting the front seat posi-
tions

SRS front airbag/SRS knee
airbag

168

3-1. CONTROLS

deploy when additional reduc-
tion of the impact applied to the
occupants in a collision is nec-
essary.

WARNING

Wear the seatbelt correctly and sit

with the correct posture.

If you sit with your head too close

to the steering wheel, when the

SRS front airbag deploys, it may

apply a very large impact to your

body. Sit in the driver’s seat with

the correct posture and keep an

appropriate distance away from

the steering wheel.

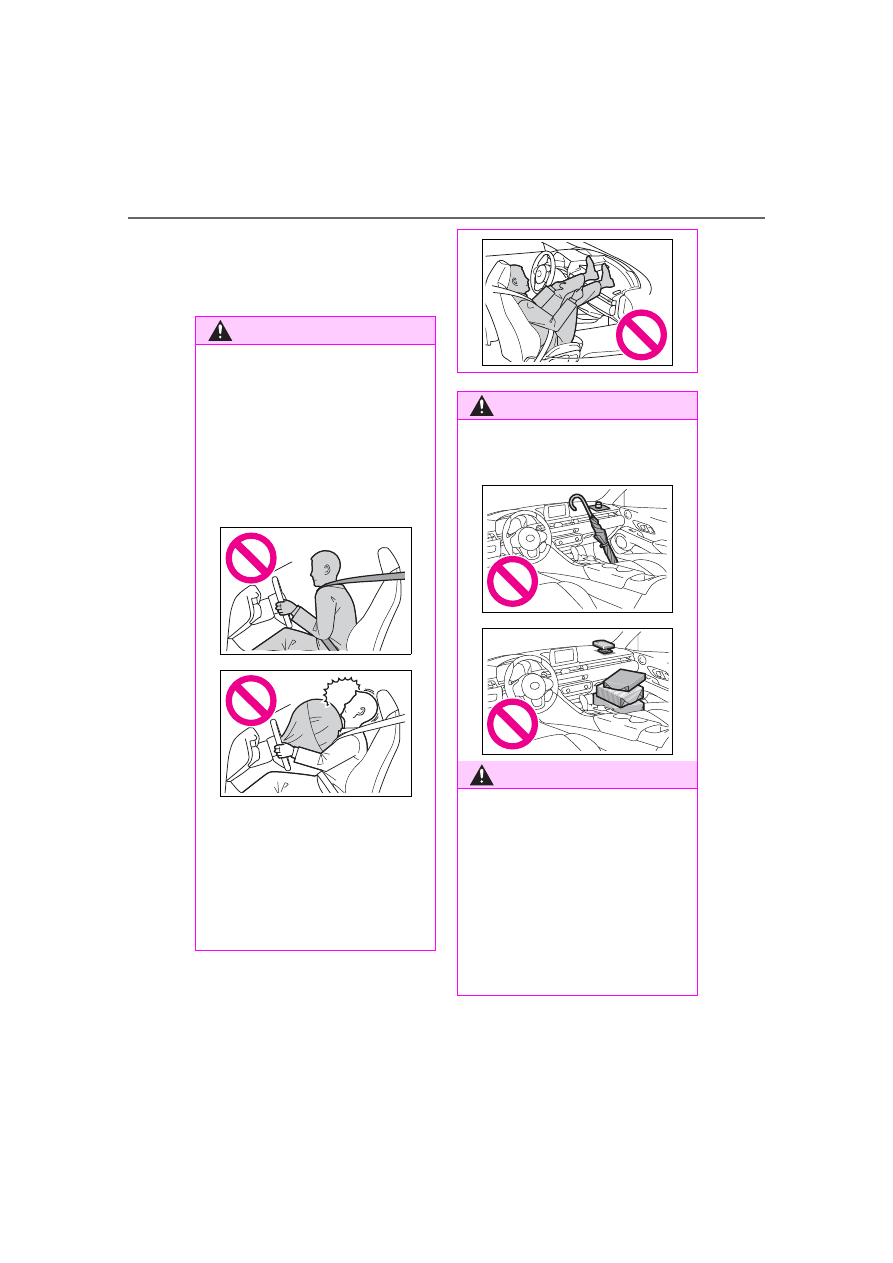

Do not position the passenger’s

seat too close to the dashboard or

rest your feet on the dashboard,

as doing so may lead to a serious

injury if the SRS airbags deploy.

Sit in the passenger’s seat with

the correct posture and keep an

appropriate distance away from

the dashboard.

WARNING

Do not attach anything to or lean

anything against areas near the

SRS airbags.

WARNING

Do not install or attach anything,

such as a sticker to areas such as

the steering wheel pad and near

the SRS knee airbags. Also, do

not attach any accessories, such

as an air freshener, to the passen-

ger’s side instrument panel or

place anything on the floor in front

of the seat. If anything is attached

to or left in these areas, they may

prevent an airbag from deploying

or become a projectile when the

airbags deploy.

Toyota Supra (2023 year). Manual in english - page 10
