Multi-information display

Presents the driver with a variety of driving-related data (

P.104)

Displays warning messages if a malfunction occurs (



P.475)

Clock (

P.100)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer, trip meter and oil maintenance

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

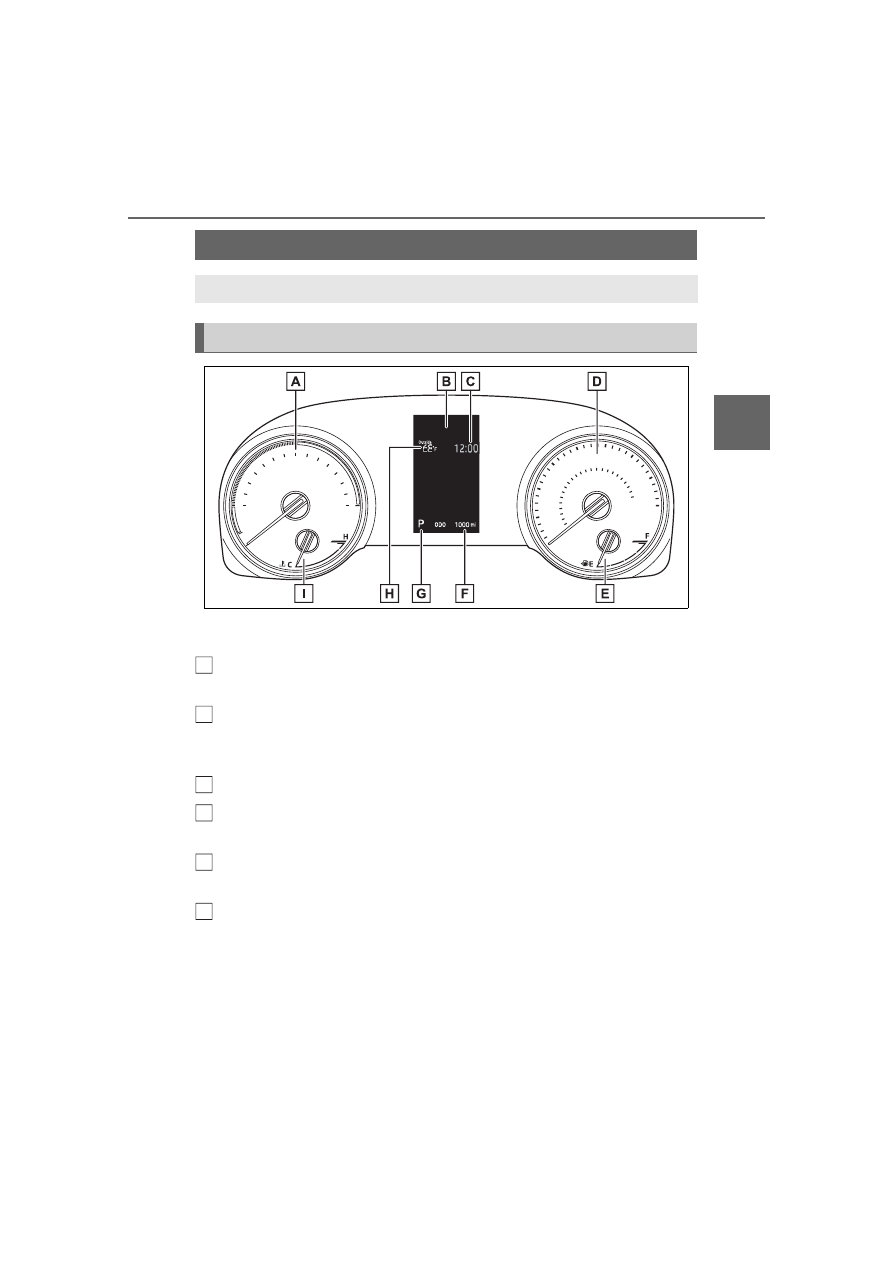

Gauges and meters (with 4.2-inch display)

The meters display various drive information.

Meter display

2-1. Instrument cluster

Oil maintenance:
Displays the distance until the next engine oil change.

Shift position and shift range indicator

Displays the selected shift position or selected shift range (

P.241)

Outside temperature (

P.98)

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The power switch is in ON.

■

When changing driving mode

Speedometer color is changed fol-

lowing the selected driving mode.

(



P.334)

■

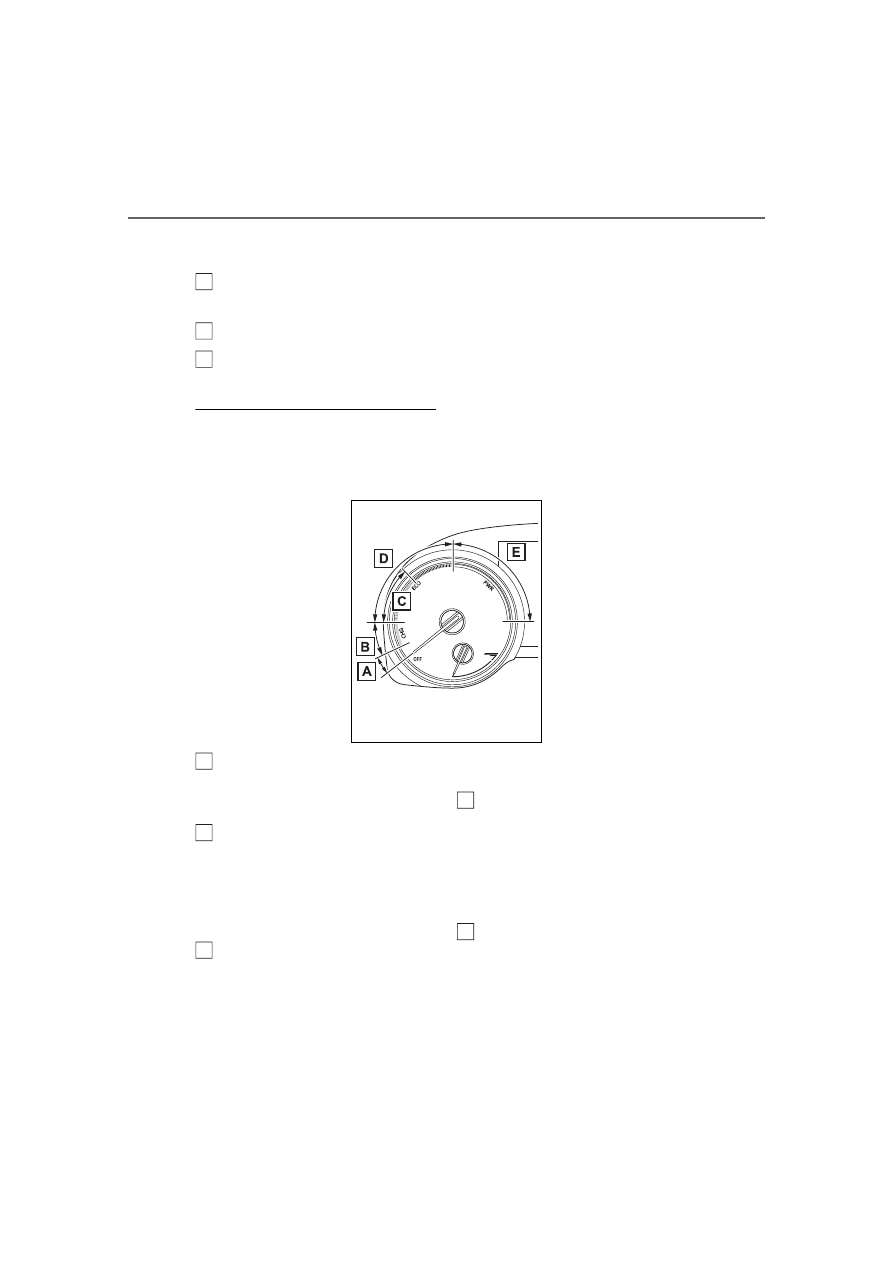

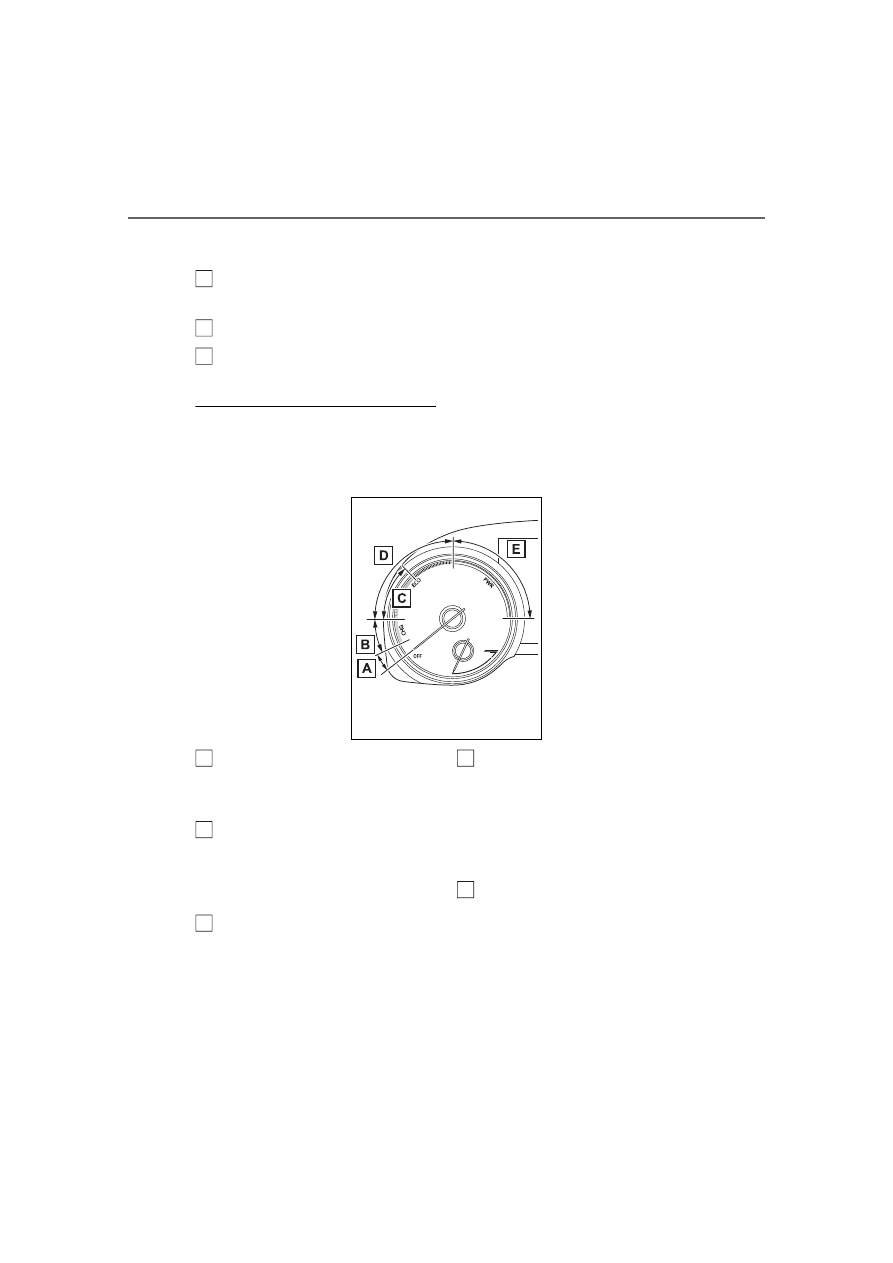

Hybrid System Indicator

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction
battery).

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-

cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

: When used in this manual, “regen-

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

In the following situation, the Hybrid

System Indicator does not operate.

●

“READY” indicator is not illumi-

nated.

●

The shift lever is in a range other

than D or S.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or

lower, the low outside temperature

indicator will flash for approxi-

mately 10 seconds, then stay on.

■

Liquid crystal display

P.105

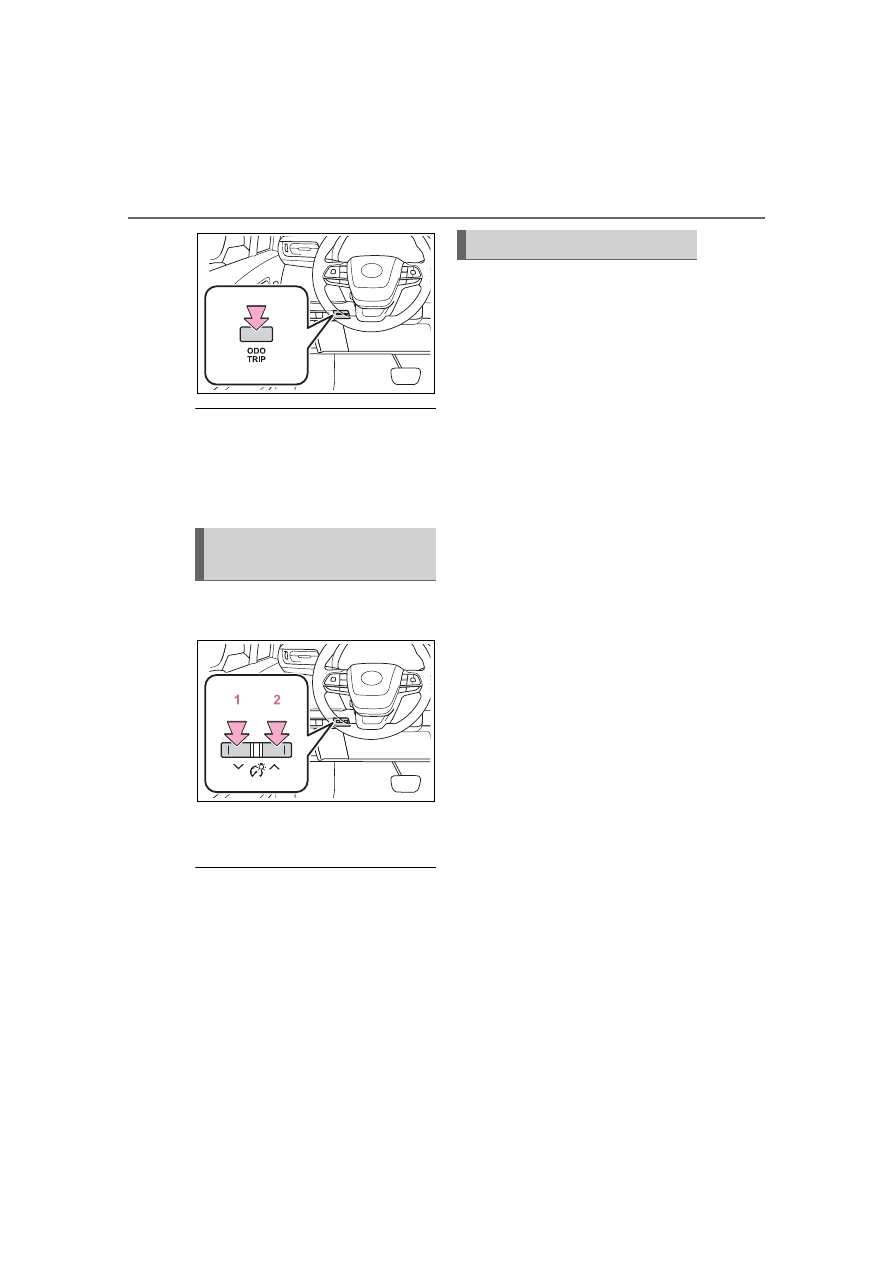

Switches the items of the odom-
eter, trip meter A, trip meter B
and oil maintenance by pressing
the “ODO TRIP” switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new shift range appearing on

the display. This lag could cause

the driver to downshift again,

causing rapid and excessive

engine braking and possibly an

accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

the engine coolant temperature

gauge is in the red zone (“H”). In

this case, immediately stop the

vehicle in a safe place, and check

the engine after it has cooled

completely. (

P.509)

Changing the trip meter
display

100

2-1. Instrument cluster

■

Pop-up display

Distance until the next engine oil

change will displayed when a warn-

ing message indicating that oil

maintenance should be performed

soon or is required is displayed.

The brightness of the instrument
panel lights can be adjusted.

Darker

Brighter

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clocks can be adjusted on
the audio system screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Changing the instrument
panel light brightness

Adjusting the clock

101

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the Hybrid System Indicator (

P.102)

Multi-information display

Presents the driver with a variety of driving-related data (

P.104)

Displays warning messages if a malfunction occurs (



P.475)

Clock (

P.104)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer, trip meter and oil maintenance

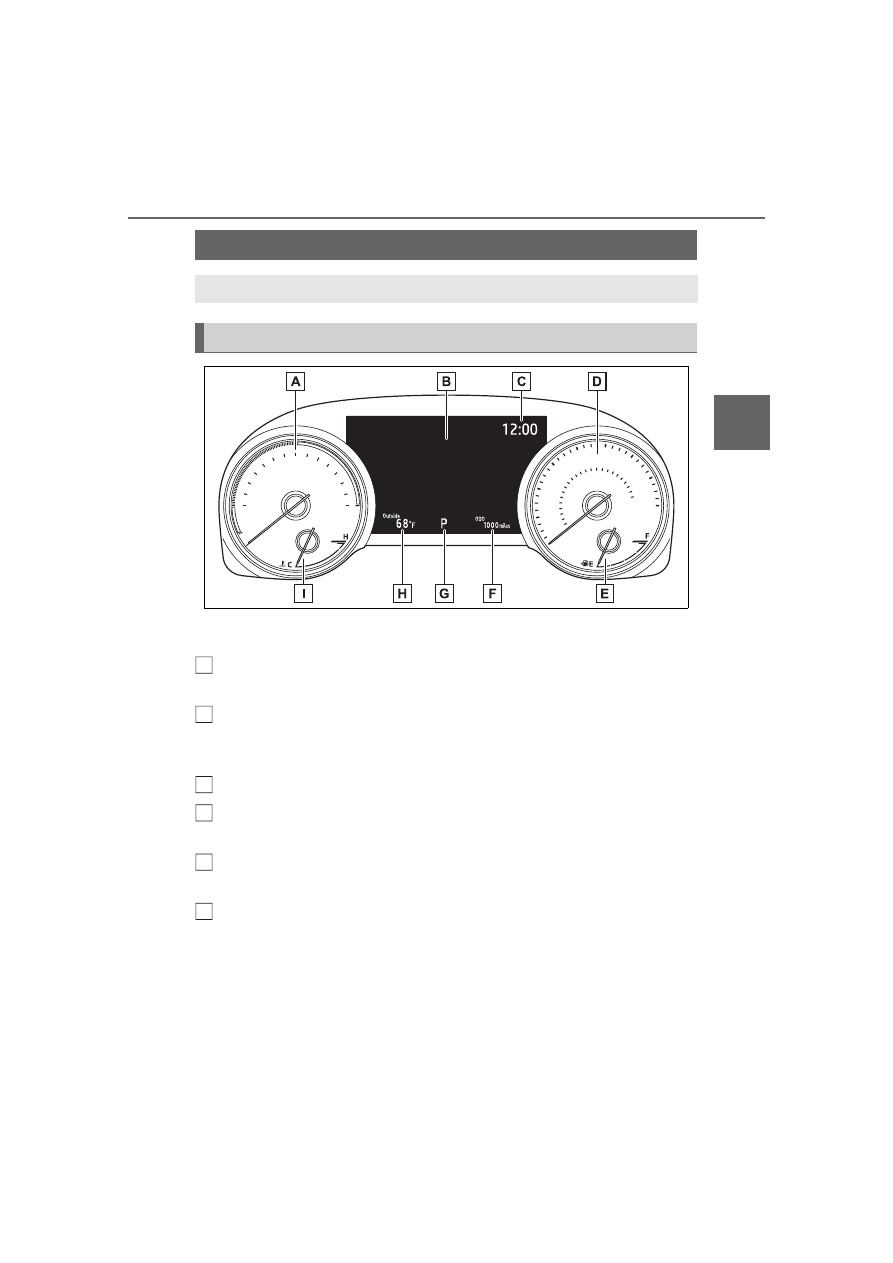

Gauges and meters (with 7-inch display)

The meters display various drive information.

Meter display

102

2-1. Instrument cluster

Oil maintenance:
Displays the distance until the next engine oil change.

Shift position and shift range indicator

Displays the selected shift position or selected shift range (

P.241)

Outside temperature (

P.102)

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The power switch is in ON.

■

When changing driving mode

Speedometer color is changed fol-

lowing the selected driving mode.

(



P.334)

■

Hybrid System Indicator

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

status. Regen-

erated energy will be used to charge
the hybrid battery (traction battery).

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-
cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

: When used in this manual, “regen-

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical

103

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

energy.

In the following situation, the Hybrid

System Indicator does not operate.

●

“READY” indicator is not illumi-

nated.

●

The shift lever is in a range other

than D or S.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or

lower, the low outside temperature

indicator will flash for approxi-

mately 10 seconds, then stay on.

■

Liquid crystal display

P.105

■

Customization

Settings (e. g. meter display) can be
changed on the

screen of the

multi-information display. (

P.539)

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new shift range appearing on

the display. This lag could cause

the driver to downshift again,

causing rapid and excessive

engine braking and possibly an

accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

the engine coolant temperature

gauge is in the red zone (“H”). In

this case, immediately stop the

vehicle in a safe place, and check

the engine after it has cooled

completely. (

P.509)

Changing the trip meter
display

104

2-1. Instrument cluster

■

Pop-up display

Distance until the next engine oil

change will displayed when a warn-

ing message indicating that oil

maintenance should be performed

soon or is required is displayed.

The brightness of the instrument
panel lights can be adjusted.

Darker

Brighter

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clocks can be adjusted on
the audio system screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Changing the instrument
panel light brightness

Adjusting the clock

105

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

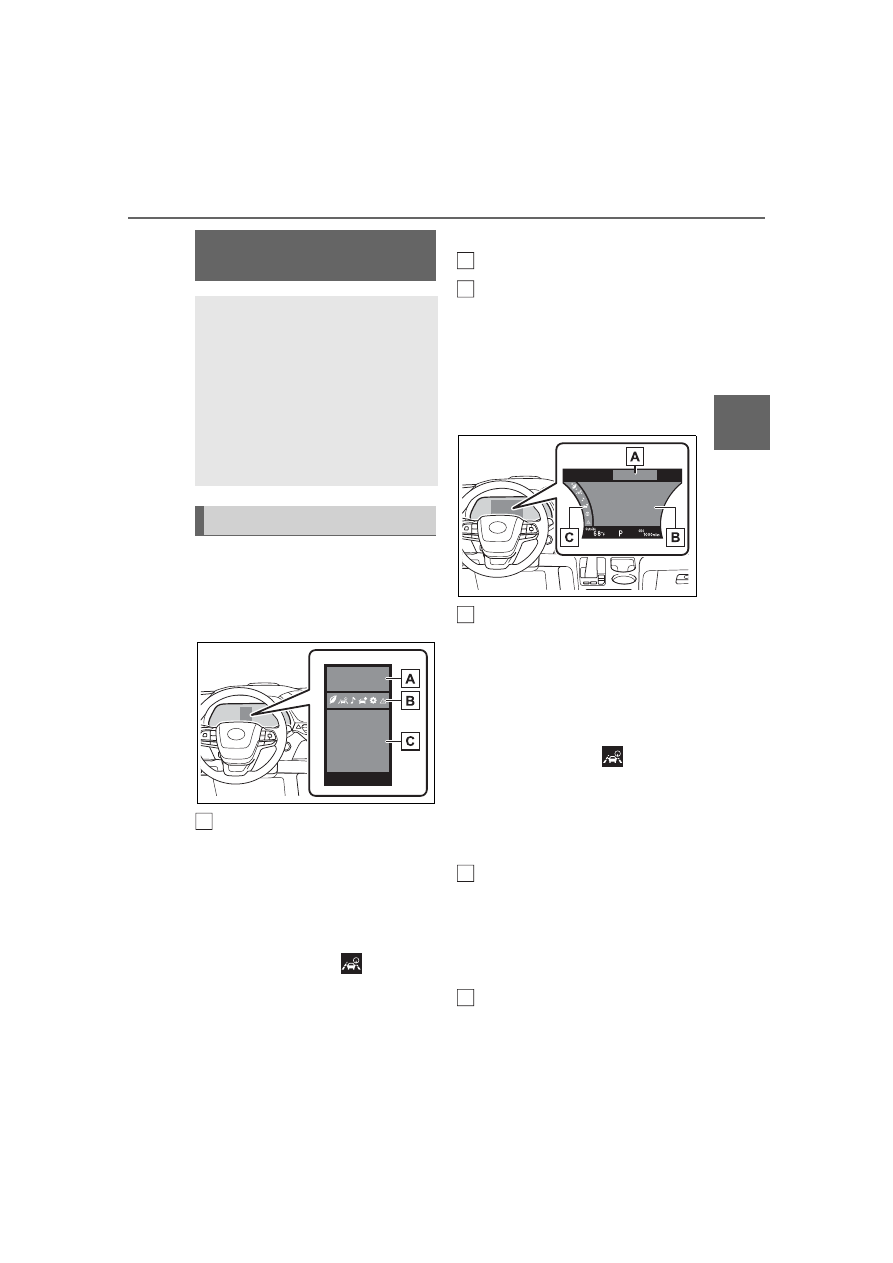

Following information is dis-
played on the multi-information
display.



Vehicles with 4.2-inch display

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.288)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)

(

P.278)

• Dynamic radar cruise control with

full-speed range (

P.291)

Menu icons (



P.106)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.



Vehicles with 7-inch display

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (

P.288)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)

(



P.278)

• Dynamic radar cruise control with

full-speed range (

P.291)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

Menu icons (



P.106)

Multi-information dis-

play

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

106

2-1. Instrument cluster

■

The multi-information display is

displayed when

The power switch is in ON.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode.

(

P.334)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

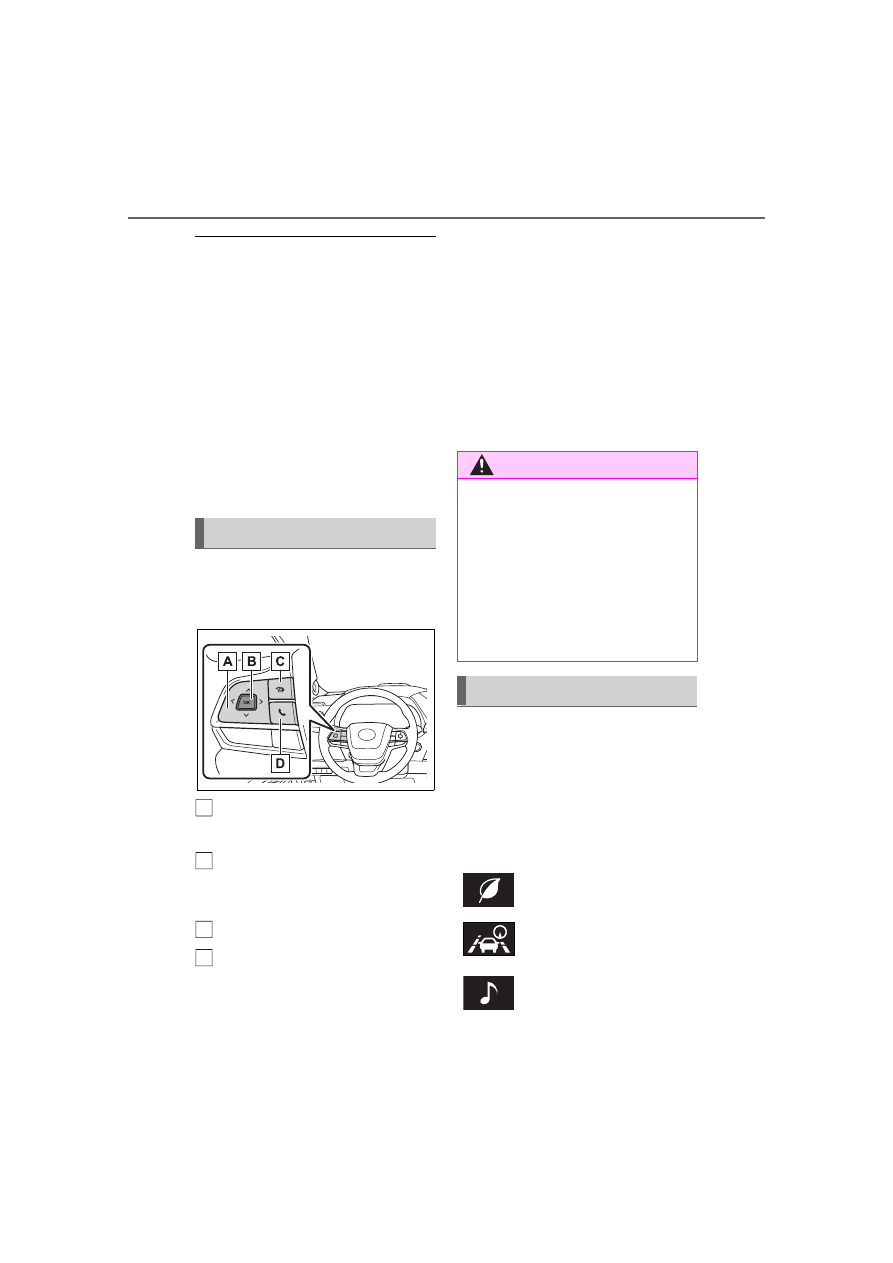

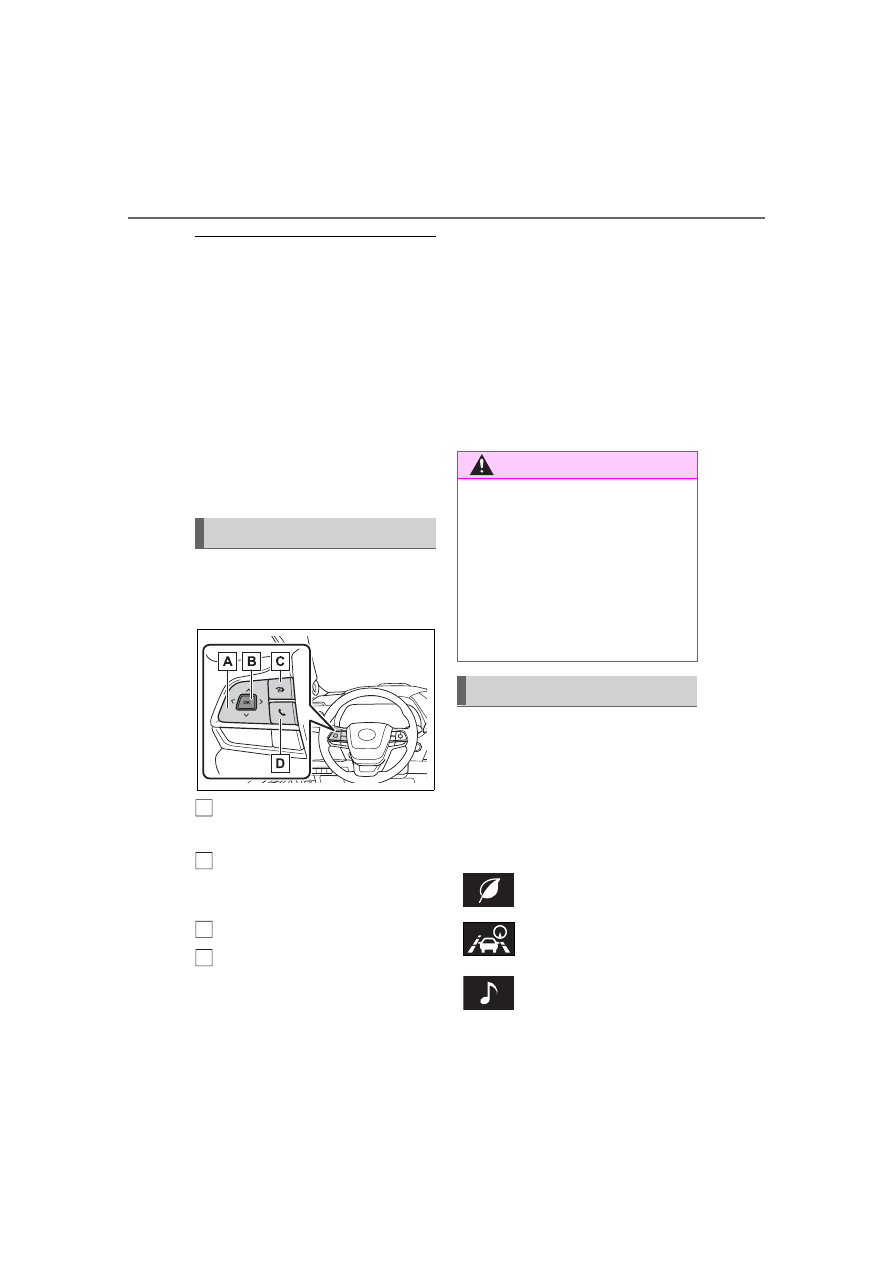

The multi-information display is
operated using the meter control
switches.

Scroll the screen

/switch the

display

/move the cursor

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display
Linked with the hands-free
system, sending or receiving

call is displayed. For details
regarding the hands-free sys-
tem, refer to “NAVIGATION
AND MULTIMEDIA SYS-
TEM OWNER’S MANUAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Changing the display

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

Driving information dis-
play (

P.106)

Driving support system
information display
(



Audio system-linked dis-
play (if equipped)
(



P.111)

107

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

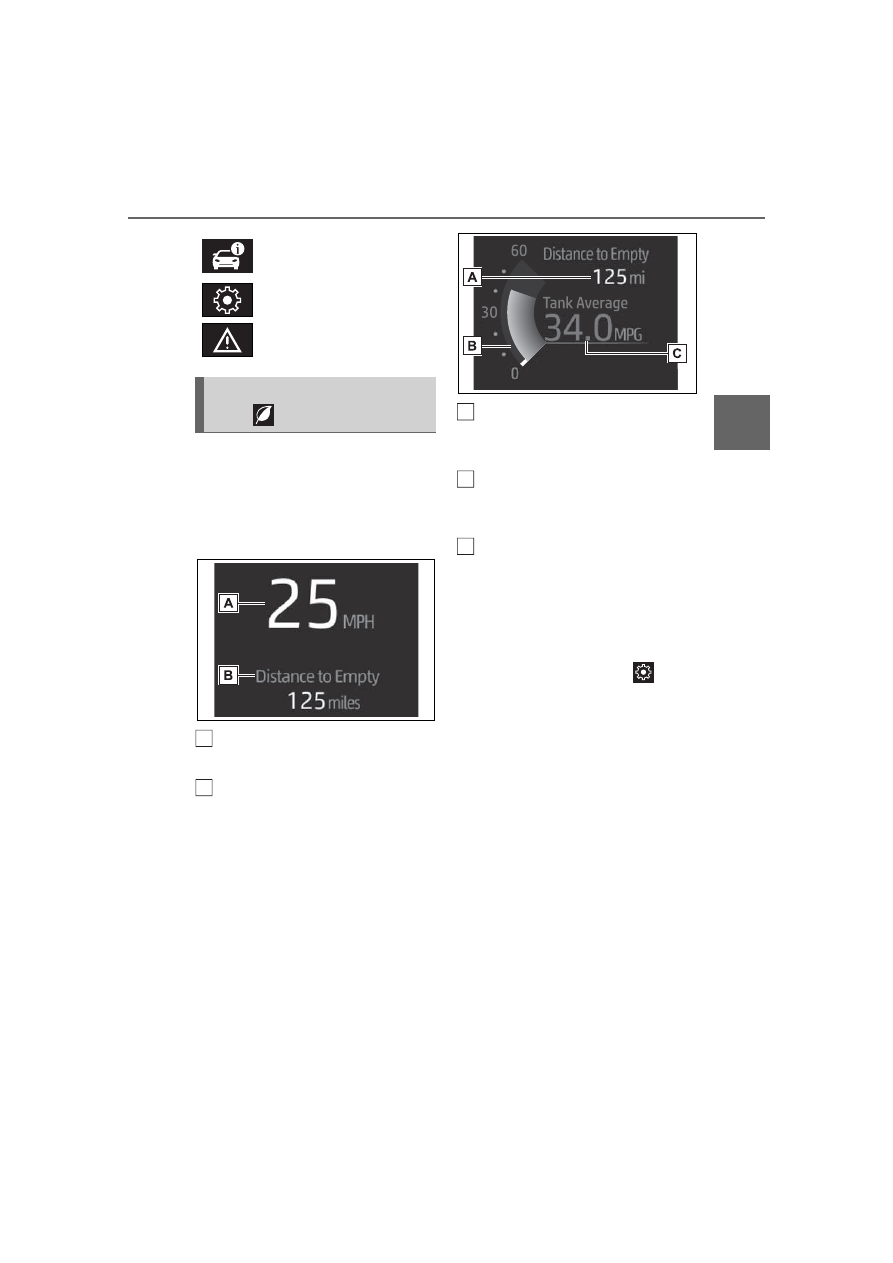

Select to display fuel consump-
tion data in various forms.

■

Speedometer display/Dis-
tance to empty (4.2-inch
display)

Speedometer display

Displays the vehicle speed.

Distance to empty

Displays the driving range with
remaining fuel. (



■

Fuel Economy



4.2-inch display

Following information is dis-
played.

Distance to empty

Displays the driving range with
remaining fuel. (

Current fuel economy

Displays the instantaneous current
fuel economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed. (



:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy since the

function was reset can be reset
by pressing and holding “OK”.

:Average fuel economy after

starting is reset each time the
hybrid system stops.



7-inch display

Following information is displayed.

Vehicle information dis-
play (



P.111)

Settings display
(

Warning message dis-
play (



P.117)

Driving information dis-
play (

)

108

2-1. Instrument cluster

Current fuel economy

Displays the instantaneous current
fuel economy.

Average fuel economy (after
start)

Displays the average fuel con-
sumption since hybrid system
start.

Distance to empty

Displays the driving range with
remaining fuel. (



Average fuel economy

Displayed item (listed below) can
be changed on the fuel economy
type screen of

. (



Total (after reset)

Displays the average fuel con-
sumption since the display was
reset.

*1, 2



Tank (after refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch
off, the display may not be updated.

:Use the displayed fuel consump-

tion as a reference only.

:This display can be reset by

pressing and holding “OK” while
it is displayed.

■

ECO Accelerator Guid-
ance/“Eco Score”

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.



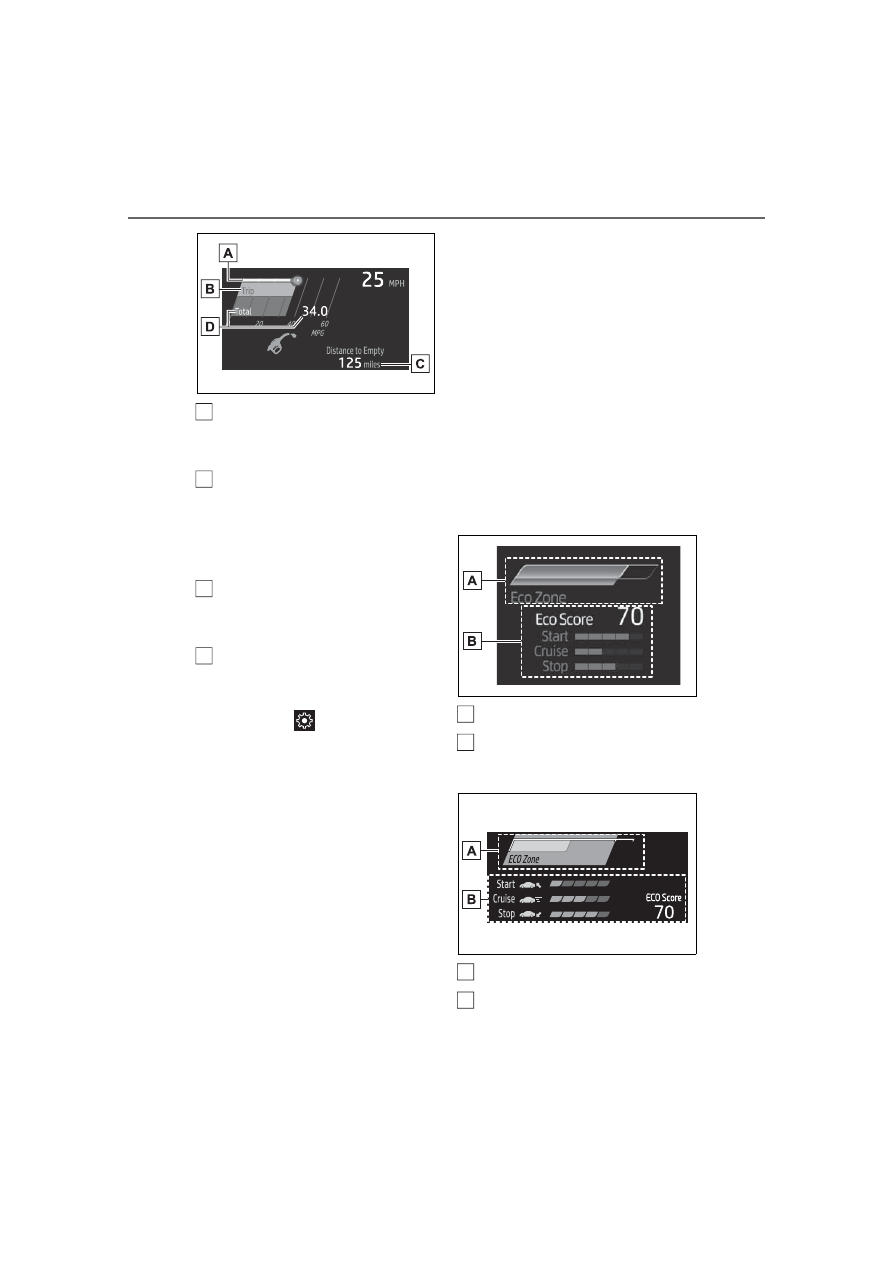

4.2-inch display

ECO Accelerator Guidance

“Eco Score”



7-inch display

ECO Accelerator Guidance

“Eco Score”



ECO Accelerator Guidance

109

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



4.2-inch display

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Displayed as a green bar when
within the Eco area. Eco-friendly
acceleration can be achieved by
keeping the accelerator pedal oper-
ation display within the range indi-
cated by the blue bar. (



P.211)

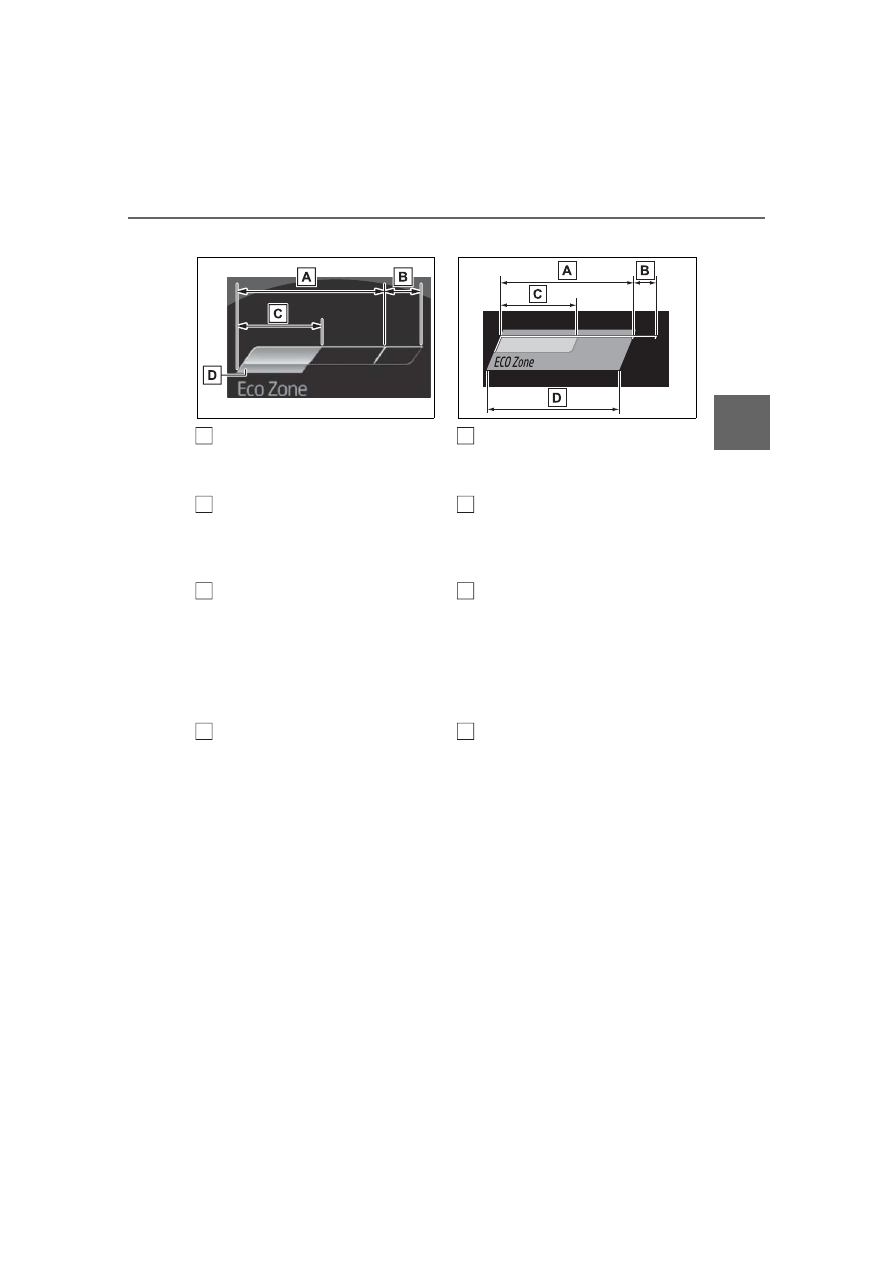

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-
ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.



7-inch display

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Displayed as a green bar when
within the Eco area. Eco-friendly
acceleration can be achieved by
keeping the accelerator pedal oper-
ation display within the range indi-
cated by the blue bar. (

P.211)

Reference operation range

110

2-1. Instrument cluster



“Eco Score”

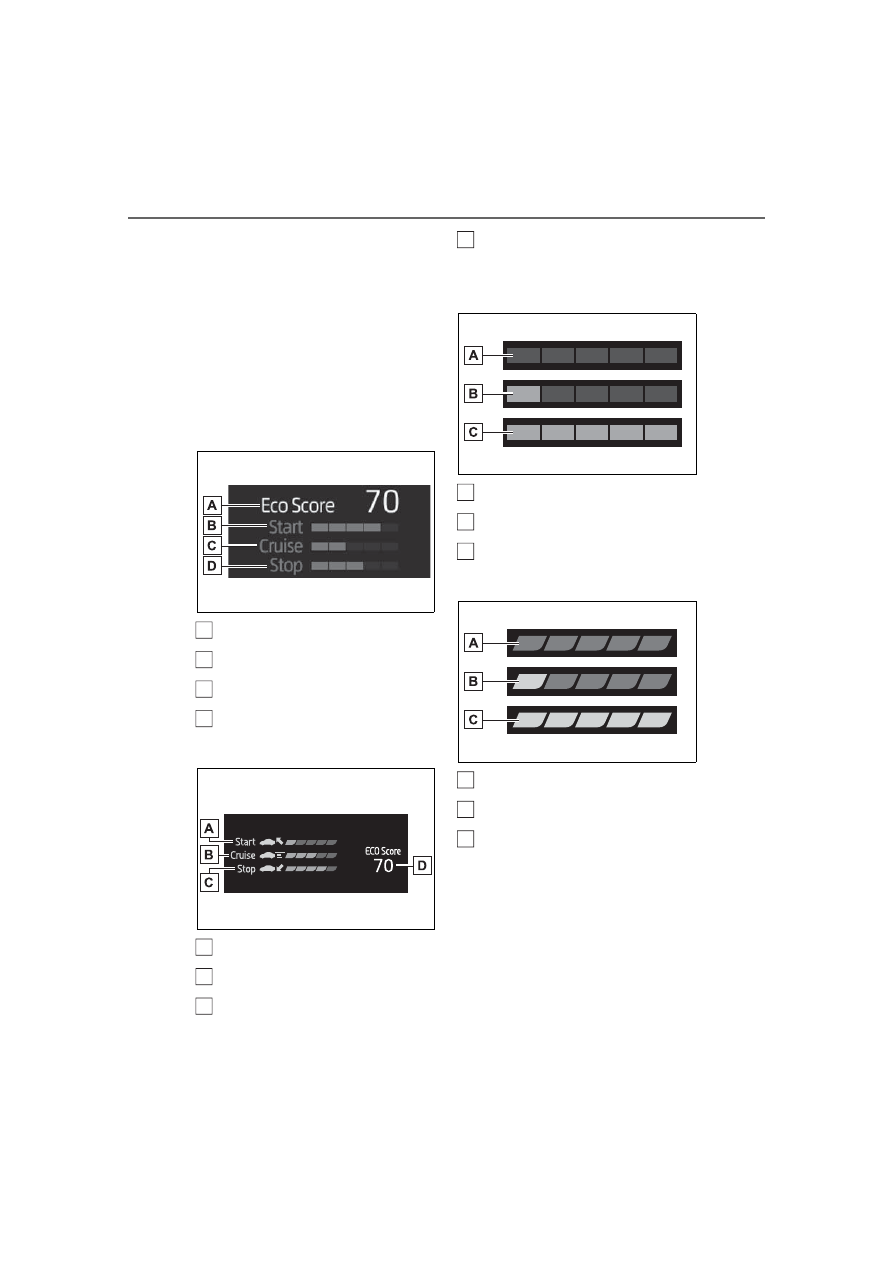

The driving status for the following
3 situations are evaluated in 5 lev-
els: Smooth start-off acceleration
(“Start”), driving without sudden
acceleration (“Cruise”) and smooth
stopping (“Stop”). Each time the
vehicle is stopped, a score result is
displayed out of a perfect score of
100 points.



4.2-inch display

Score result

Eco start status

Eco cruise status

Eco stop status



7-inch display

Eco start status

Eco cruise status

Eco stop status

Score result

How to read the bar display:



4.2-inch display

Not yet evaluated

Low

High



7-inch display

Not yet evaluated

Low

High

After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately 12
mph (20 km/h).
The “Eco Score” is reset each time
the vehicle starts off to start a new
evaluation.
When the hybrid system stops, the
current total score result is dis-

111

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

played.

: The score result is displayed only

when “Eco Score” is selected for
“Trip Summary”. (
