Toyota Sienna Hybrid (2023 year). Manual in english

112

2-1. Instrument cluster

(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



P.112)

Use the displayed information as a
reference only.
Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
hybrid system start

• “Distance”: Displays the distance

driven since hybrid system start

• “Total Time”: Displays the

elapsed time since hybrid system
start

: These items are reset each time

the hybrid system stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

• “Distance”: Displays the distance

driven since the display was
reset

• “Total Time”: Displays the

elapsed time since the display
was reset

: To reset, display the desired item

and press and hold “OK”.

■

Energy monitor



P.122

■

Tire pressure



P.424

■

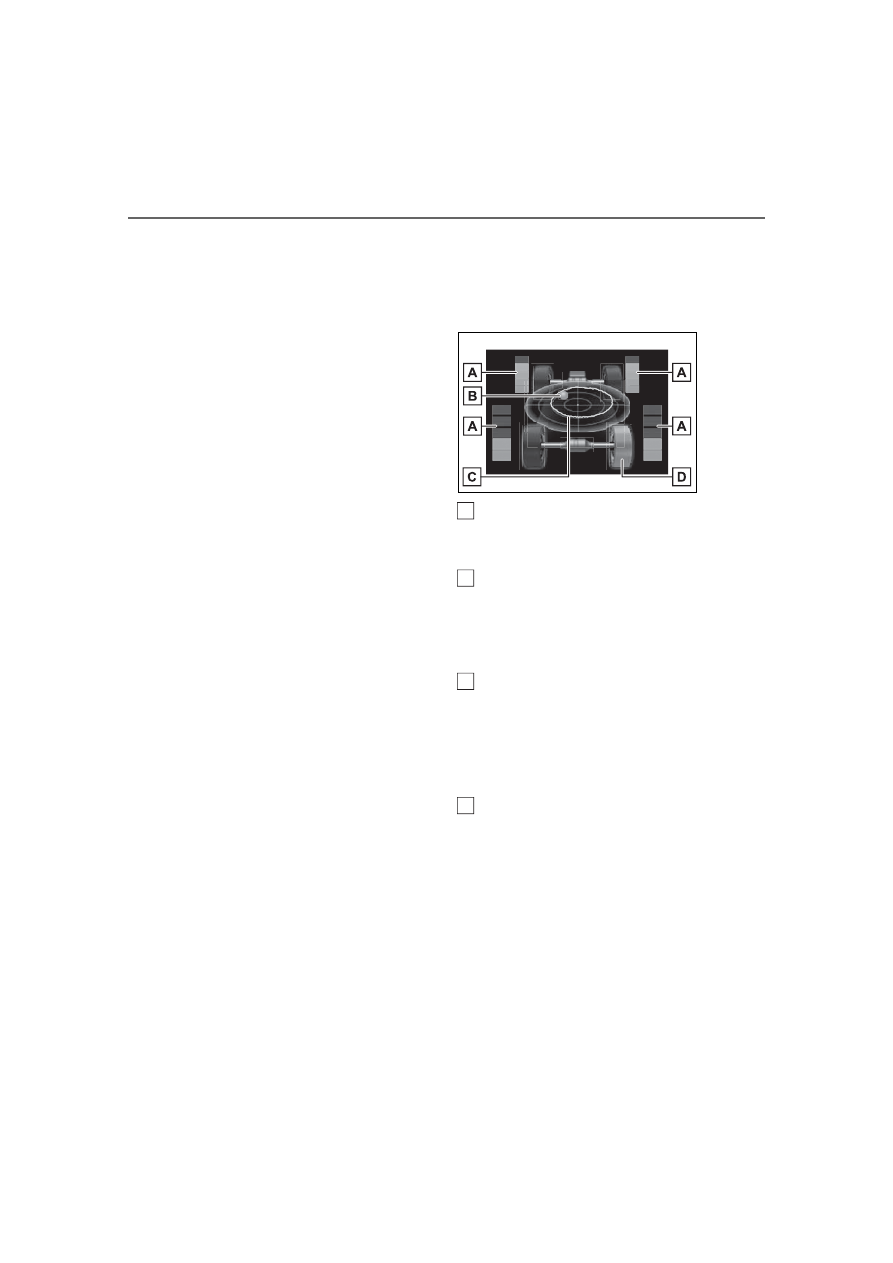

AWD system display (AWD
models)

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.
Press and hold “OK” to reset the
record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.

113

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Safety system status (7-
inch display)

Enable/Disable the following
systems:



PCS (Pre-Collision system)
(



P.270)



Intuitive parking assist (if
equipped) (



P.312)



BSM (Blind Spot Monitor)
(



P.302)



RCTA (Rear Cross Traffic
Alert) (



P.302)

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure



4.2-inch display

Press

of the meter

control switches and select

Press

of the meter

control switches and select
the desired item.



7-inch display

Press

of the meter

control switches and select

Press

of the meter

control switches and select
the desired item.



If the function is turned on and

off or the volume, etc. is
changed on the setting
screen, the setting is changed
each time “OK” is pressed.



For functions that allow oper-
ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and
holding “OK”. When the set-
ting screen is displayed,
select the setting or desired
value (time, etc.) with “OK”.

After changing the settings,
press

of the meter control

switches to return to the pre-
vious screen.

■

Setting items



LTA (Lane Tracing Assist)

(



P.278)

Select to set up the following items.
• “Lane Center”
Select to enable/disable the lane
centering function.
• “Steering Assist”
Select to enable/disable steering
wheel assistance.
• “Alert”
Select to set the alert type.
• “Sensitivity”
Select to set the lane departure
alert sensitivity.
• “Sway Warning”
Select to enable/disable the vehicle
sway warning.
• “Sway Sensitivity”

Settings display

114

2-1. Instrument cluster

Select to set the vehicle sway warn-
ing sensitivity.



PCS (Pre-Collision Sys-

tem) (



P.270)

Select to set up the following items.
• PCS (Pre-Collision System)

on/off

Select to enable/disable the pre-
collision system.
• “Sensitivity”
Select to change the pre-collision
warning timing.



BSM (Blind Spot Monitor)

(if equipped) (



P.302)

Select to set up the following items.
• BSM (Blind Spot Monitor) on/off
Select to enable/disable the BSM
function.
• “Brightness”
Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.303)

• “Sensitivity”
Select to change the alert timing for
an approaching vehicle.



Intuitive parking assist (if

equipped) (



P.312)

Select to set up the following items.
• Intuitive parking assist on/off
Select to enable/disable the Intui-
tive parking assist.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.



RCTA (Rear Cross Traffic

Alert) (if equipped) (



P.302)

• RCTA (Rear Cross Traffic Alert)

on/off

Select to enable/disable the RCTA
function.
• “Volume”
Select to change the RCTA buzzer
volume.



PKSB (Parking Support

Brake System) (if equipped)
(



P.324)

Select to enable/disable the Park-
ing Support Brake function.



HUD (Head-up display) (if

equipped)

Select to enable/disable the head-
up display.
Press and hold “OK” to change the
settings of the following items:
• “HUD Brightness/Position”
Select to adjust the brightness/posi-
tion of the head-up display.
• “HUD Driving Support”
Select to change the displayed
head-up display driving support
item.
• “HUD Rotation”
Select to adjust the angle of the
head-up display.



RSA (Road Sign Assist) (if

equipped) (



P.288)

Select to set up the following items.
• RSA (Road Sign Assist) on/off
Select to enable/disable the RSA
system.
• “Notification method”

115

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Select to change each notification
method used to warn the driver
when the system recognizes
excess speed, no overtaking and
no-entry sign.
• “Notification Level”
Select to change each notification
level used to warn the driver when
the system recognizes a speed limit
sign.



RCD (Rear Camera

Detection) (if equipped)
(



P.320)

• RCD (Rear Camera Detection)

on/off

Select to enable/disable the RCD
function.
• “Volume”
Select to change the RCD buzzer
volume.

■

Vehicle Settings



PSD (Power Sliding

Doors) (



P.137)

Select to set up the following items.
• “Left Hands Free PSD” (if

equipped)

Select to enable/disable the left-
hand power sliding door kick sen-
sor.
• “Right Hands Free PSD” (if

equipped)

Select to enable/disable the right-
hand power sliding door kick sen-
sor.
• “Left PSD Alert Volume”
Select to set the volume of the
buzzer which sounds when the left-
hand power sliding door system

operates.
• “Right PSD Alert Volume”
Select to set the volume of the
buzzer which sounds when the
right-hand power sliding door sys-
tem operates.



PBD (Power Back Door)

(if equipped) (



P.153)

Select to set up the following items.
• PBD (Power Back Door) on/off
Select to enable/disable the power
back door system.
• “Hands Free”
Select to enable/disable the kick
sensor.
• “PBD Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.



Rear Seat Reminder
(



P.134)

Select to enable/disable the rear
seat reminder function.



“TPWS Setting” (Tire Pres-
sure Warning System)
(



P.424)

• “Setting Pressure”
Select to initialize the tire pressure
warning system.
• “Identifying Each Wheel & Posi-

tion”

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.

116

2-1. Instrument cluster

Select to change the tire pressure
warning system sensor ID code set.
To enable this function, a second
set of tire pressure warning system
sensor ID codes must be registered
by a Toyota dealer. For information
regarding changing the registered
ID code set, contact your Toyota
dealer.
• “Setting UNIT”
Select to change the units of the
tire pressure displayed.



“Scheduled Maintenance”
(



P.403)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.



“Oil Maintenance” (



P.415)

Select to reset the Oil maintenance.

■

Meter Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



Digital Speed (7-inch display)

Select to enable/disable the speed-
ometer display.



EV indicator (



P.80)

Select to enable/disable the EV
indicator.



Driving information display

settings

Select to set up the following items.
• “Hybrid System”
Select to enable/disable the ECO
Accelerator Guidance (



P.108).

• “Fuel Economy”
Select to change the average fuel
economy display (



P.106).



Audio settings

Select to enable/disable the audio
system-linked display.



Vehicle information dis-

play settings

• “Display Contents”
Select to display the following
items.
“Energy monitor”
Select to enable/disable the Energy
monitor (



P.122)

“AWD” (AWD models)
Select to enable/disable the AWD
system display (



P.112).

• “Drive Info Type” (4.2-inch dis-

play)

Select to change the drive informa-
tion type between trip and total
(



P.111).

• “Drive Info Items” (4.2-inch dis-

play)

Select to set the items on the upper
and lower side of the drive informa-
tion screen. from three items, aver-
age speed, distance and total time.



“Trip Summary” (4.2-inch dis-
play)

Select to set the items displayed
when the power switch is turned off.



“Pop-Up Display”

117

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.
• TbT Navigation (if equipped)
• Telephone (if equipped)
• Audio operation
• Volume operation
• Voice control (if equipped)
• Brightness



“Multi-Information Display
OFF”

A blank screen is displayed.



“Default Settings”

Select to reset the meter display
settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.475)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn on the
headlights

If the headlight switch is in other
than

, and the vehicle

speed is 3 mph (5 km/h) or

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message dis-
play (

)

Suggestion function

118

2-1. Instrument cluster

higher for a certain amount of
time when the surroundings are
dark, a suggestion message will
be displayed.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

The suggestion function can be

turned on/off. (Customizable fea-

tures:



P.539)

: If equipped

Illustrations used in this text are
intended as examples, and may dif-
fer from the image that is actually
displayed by the head-up display.

Driving support system dis-
play area (



P.120)

Navigation system-linked dis-
play area (if equipped)

Displays the following items which
are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving information display
area

Head-up display

The head-up display proj-
ects a variety of driving-
related information and the
operating state of the driv-
ing support systems on the
windshield.

System components

119

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Displays the following items:
• Speed limit of the current road

(linked to the navigation system)
(U.S.A. only)

• RSA (Road Sign Assist) display

(if equipped) (



P.288)

• Speedometer
• Shift position/shift range

(



P.241)

Hybrid System Indica-
tor/tachometer/outside tem-
perature display area
(



P.121)

■

Head-up display will operate

when

The power switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display (vehicles

with navigation system)

Only street names which are

included in the map data will be dis-

played.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “-” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or

lower, the low outside temperature

indicator will flash for approxi-

mately 10 seconds, then stay on.

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc. ahead

of the vehicle.

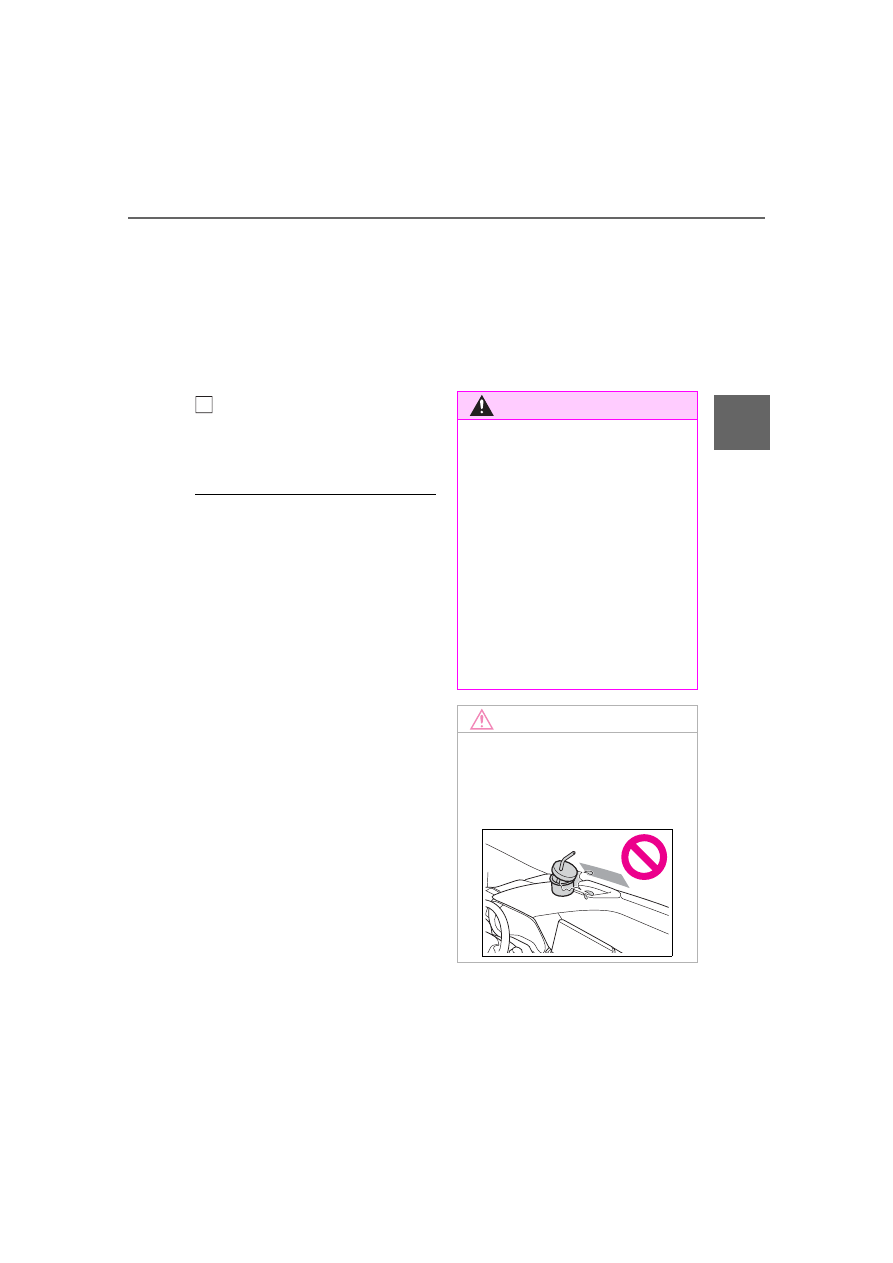

NOTICE

■

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

120

2-1. Instrument cluster

■

Enabling/disabling the
head-up display

Select

on the multi-informa-

tion display, select “Vehicle Set-
tings” (4.2-inch) /

(7-inch)

and then select “HUD Main”.
“ON” and “OFF” switches each
time when “OK” is pressed.

■

Changing settings of the
head-up display

The following settings can be
changed on “HUD Main” of the
multi-information display.
(



P.112)

Press and hold “OK” to display
the following settings:



“HUD Brightness/Position”

Select to adjust the brightness or
vertical position of the head-up dis-
play.



“HUD Driving Support”

• Tachometer Settings
Blank/Hybrid System/Tachometer
Select to change the display to
blank (no display)/Hybrid System

Indicator/tachometer.
Select to enable/disable the follow-
ing items:
• Navigation (if equipped)
• Driving Assist
• Compass (if equipped)
• Audio



“HUD Rotation”

Select to adjust the angle of the
head-up display.

Press the

switch to adjust

the angle of the head-up display.

■

Enabling/disabling of the head-

up display

If the head-up display is disabled, it

will remain disabled when the power

switch is turned off then back to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

of the

multi-information display. Also, it is
automatically adjusted according to
the ambient brightness.

■

Head-up display automatic

position adjustment (vehicles

with driving position memory)

If the display position is recorded

into memory, the head-up display

will be automatically adjusted to the

desired position. (



P.179)

■

When the 12-volt battery is dis-

connected

The customize settings of the head-

up display will be reset.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt head-

up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

Using the head-up display

121

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Displays the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.278)



Dynamic radar cruise control
with full-speed range
(



P.291)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

Pop-up displays for the following

systems will be displayed when
necessary.

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(



P.270)



Parking Support Brake func-
tion (for static objects) (if
equipped) (



P.329)



Brake Override System
(



P.211)



Drive-Start Control (



P.211)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

■

icons

These icons are linked to the
multi-information display

: Master warning icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display. (



P.475)

: Information icon

Displayed when a suggestion pop-
up display (



P.104) or advice pop-

up display is displayed on the multi-
information display.

■

Warning message

Some warning messages are
displayed when necessary,
according to certain conditions.

WARNING

■

Caution for changing settings

of the head-up display

As the hybrid system needs to be

operating while changing the set-

tings of the head-up display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

When changing the settings

of the head-up display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while chang-

ing the settings of the head-up

display.

Driving support system
display area

Pop-up display

122

2-1. Instrument cluster

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display.

■

Audio system operation
status

Displayed when an audio
remote control switch on the
steering wheel is operated.

■

Hands-free system status

Displayed when the hands-free
system is operated.

■

When a pop-up display is dis-

played

When a pop-up display is displayed,

a current display may no longer be

displayed. In this case, the display

will return after the pop-up display

disappears.

■

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as
that displayed on the meter (Hybrid
System Indicator). For details, refer
to P.98 or P.102.

■

Tachometer

Displays the engine speed in
revolutions per minute.

■

Outside temperature

Displayed in the following situa-
tions:



When the power switch is
turned to ON (Displayed for
approximately 10 seconds)



When the low outside tem-
perature indicator is flashing

Displayed content is the same as
that displayed on the multi-informa-
tion display.

Hybrid System Indica-
tor/tachometer/outside
temperature display area

123

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

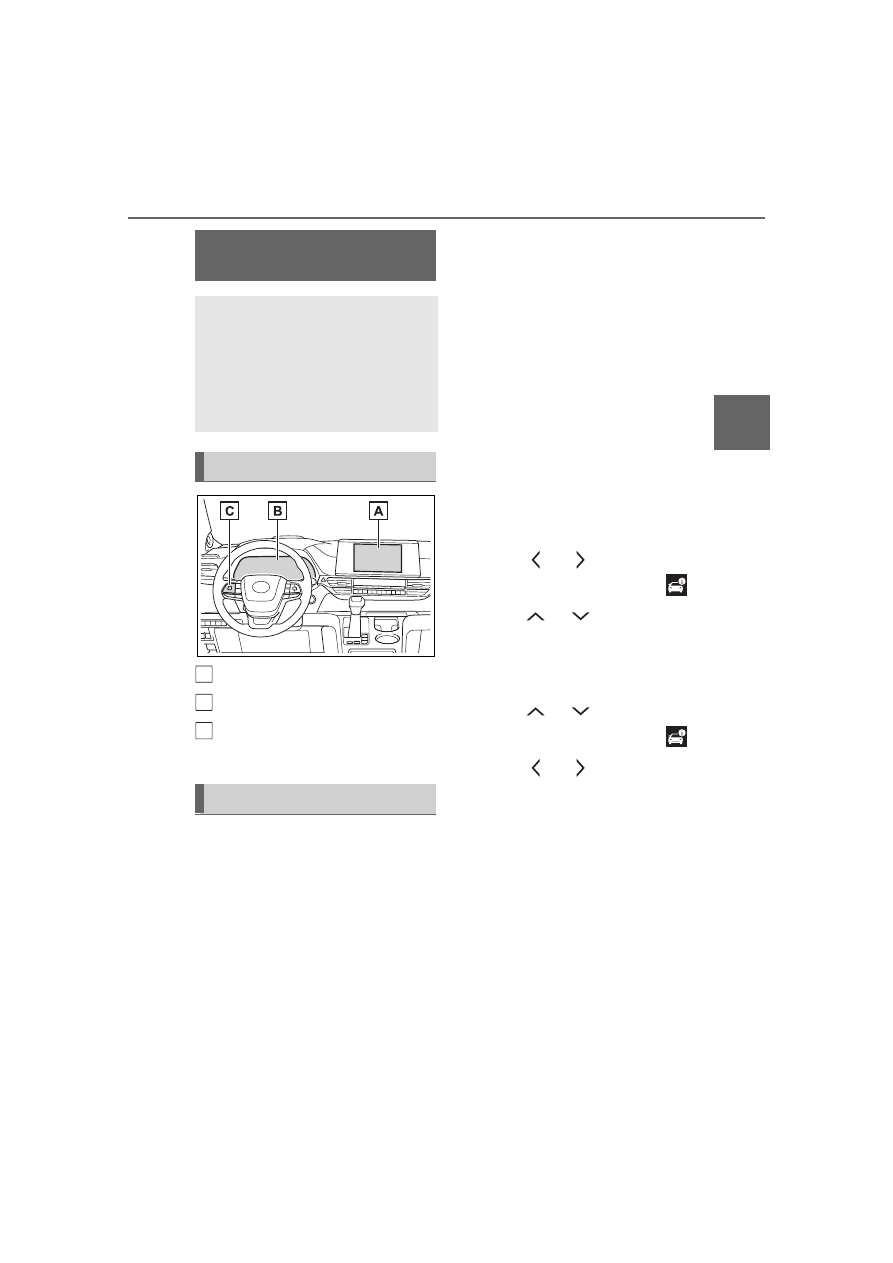

Audio system screen

Multi-information display

Meter control switches
(



P.105)

■

Audio system screen



Audio or Audio Plus (vehicles
without Data Communication
Module)

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Energy mon-
itor” is displayed, select “Energy”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Energy mon-

itor” is displayed, select “Energy”.
These images are examples only,

and may vary slightly from actual

conditions.

■

Multi-information display



4.2-inch display

Press

of the meter

control switches to select

Press

of the meter

control switches to select the
energy monitor display.



7-inch display

Press

of the meter

control switches to select

Press

of the meter

control switches to select the
energy monitor display.

These images are examples only,

and may vary slightly from actual

conditions.

■

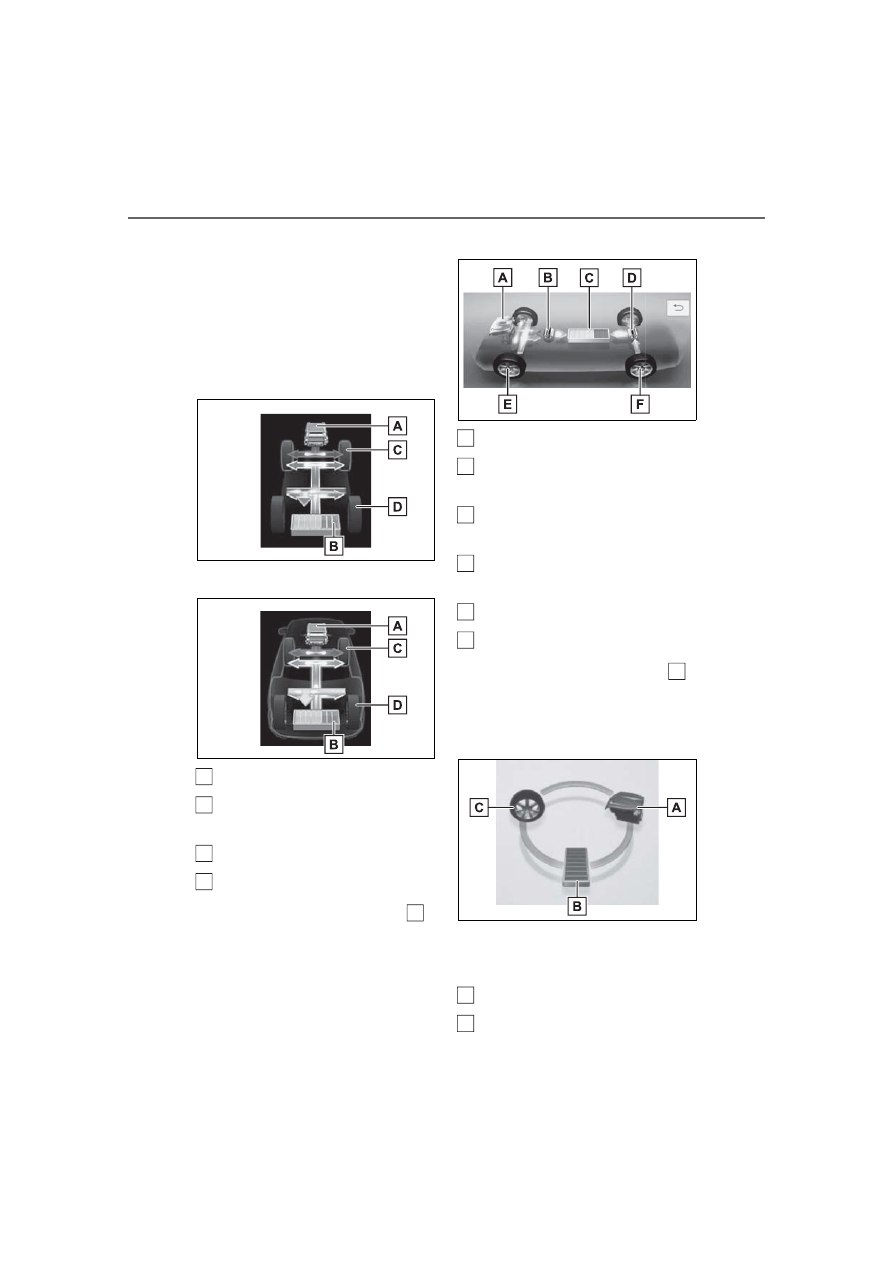

Reading the display

The arrows will appear in accor-
dance with the energy flow.
When there is no energy flow,
arrows will not be displayed.

The color of the arrows will change
as follows.
Green: When the hybrid battery

Energy monitor/con-

sumption screen

You can view the status of
your vehicle on the multi-
information display and the
audio system screen

: For navigation system or multi-

media system

System components

Energy monitor

124

2-1. Instrument cluster

(traction battery) is regenerated or
charged.
Yellow: When the hybrid battery
(traction battery) is in use.
Red: When the gasoline engine is
in use.



Multi-information display

With 4.2-inch display

With 7-inch display

Gasoline engine

Hybrid battery (traction bat-
tery)

Front tire

Rear tire

: For FF vehicles, the arrows to

are not displayed.



Audio system screen

Gasoline engine

Front electric motor (traction
motor)

Hybrid battery (traction bat-
tery)

Rear electric motor (traction
motor)

Front tire

Rear tire

: For FF vehicles, the arrows to

are not displayed.



Audio system screen (Home
screen)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction bat-

125

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

tery)

Tire

■

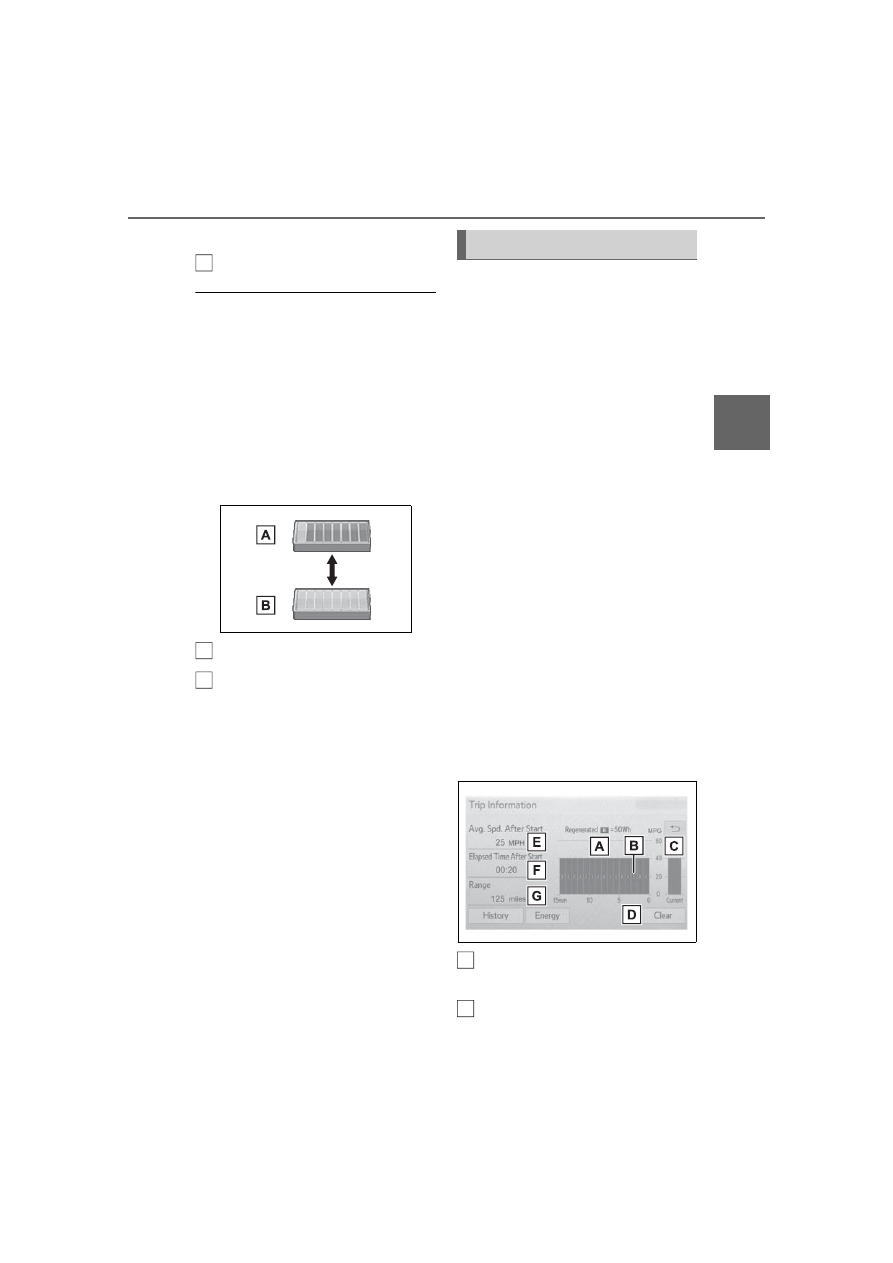

Hybrid battery (traction battery)

status

The display changes in 8 levels

according to the remaining charge

amount of the hybrid battery (trac-

tion battery).

●

The figure shows the multi-infor-

mation display as an example for

explanation.

●

These images are examples only,

and may vary slightly from actual

conditions.

Low

High

■

Remaining charge amount

warning of hybrid battery (trac-

tion battery)

●

The buzzer sounds intermittently

when the hybrid battery (traction

battery) remains without charging

while the shift lever is in N, or the

remaining charge amount drops

below a certain level. If the

remaining charge amount drops

further, the buzzer sounds contin-

uously.

●

When a warning message is

shown on the multi-information

display and the buzzer sounds,

follow the instructions displayed

on the screen to perform trouble-

shooting.

■

Trip information



Audio or Audio Plus (vehicles
without Data Communication
Module)

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Trip Informa-

tion” is displayed, select “Trip Infor-

mation”.
The image is an example only, and

may vary slightly from actual condi-

tions.

Fuel consumption in the past
15 minutes

Regenerated energy in the
past 15 minutes

Consumption

126

2-1. Instrument cluster

One symbol indicates 50 Wh. Up to
5 symbols are shown.

Current fuel consumption

Resetting the consumption
data

Average vehicle speed since
the hybrid system was
started

Elapsed time since the hybrid
system was started

Cruising range (



P.126)

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
power switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

■

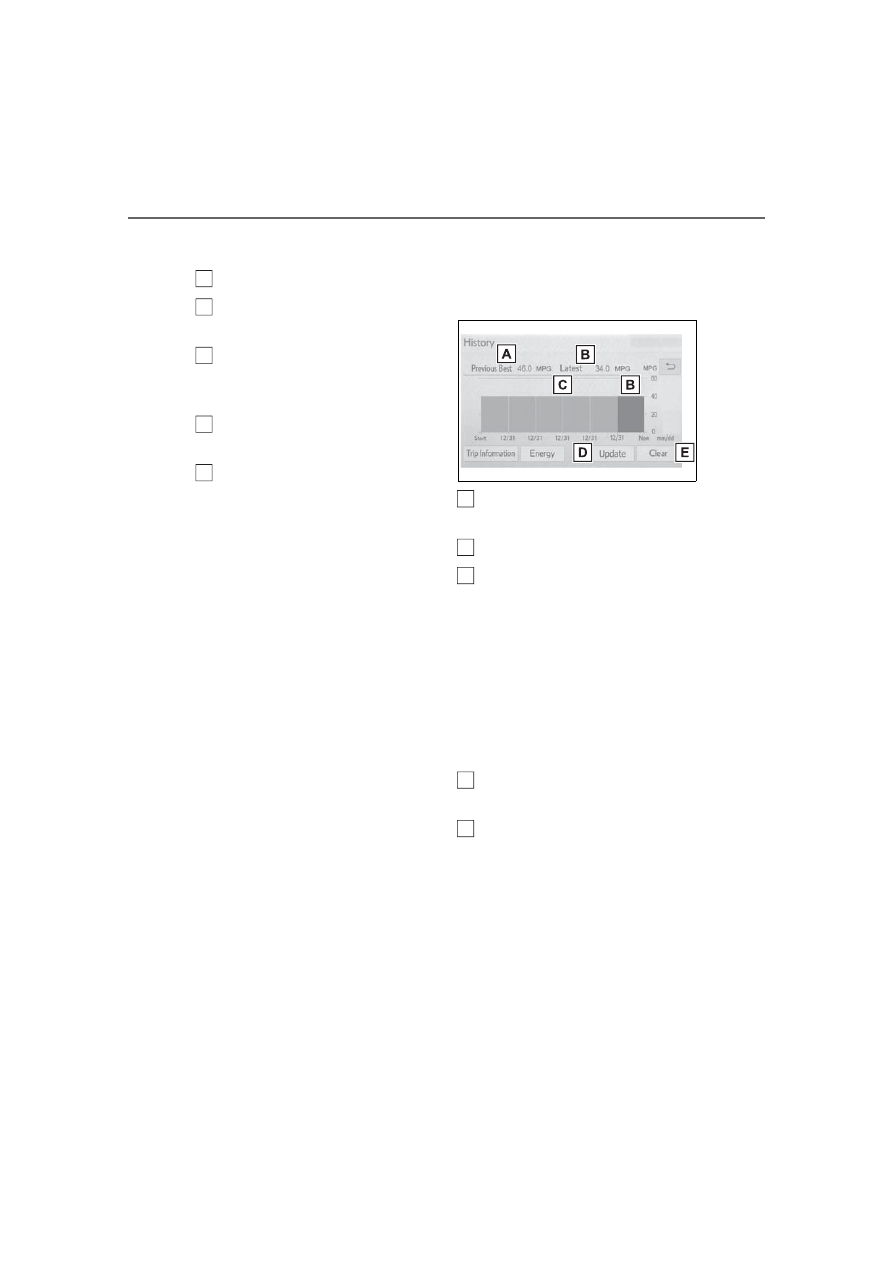

History



Audio or Audio Plus (vehicles
without Data Communication
Module)

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “History” is
displayed, select “History”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “History” is

displayed, select “History”.
The image is an example only, and

may vary slightly from actual condi-

tions.

Best recorded fuel consump-
tion

Latest fuel consumption

Previous fuel consumption
record

• Audio and Audio Plus:
Displays the daily average fuel con-
sumption. (Instead of the date, “Trip
1” through “Trip 5” will be dis-
played.)
• Premium Audio:
Displays the daily average fuel con-
sumption.

Updating the latest fuel con-
sumption data

Resetting the history data

The average fuel consumption
history is divided by color into
past averages and the average
fuel consumption since the last
time updated. Use the displayed
average fuel consumption as a
reference.

127

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Updating the history data

Update the latest fuel consumption

by selecting “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption. As

a result, the actual distance that can

be driven may differ from that dis-

played.

Toyota Sienna Hybrid (2023 year). Manual in english - page 7
