Toyota Sequoia Hybrid (2023 year). Manual in english

336

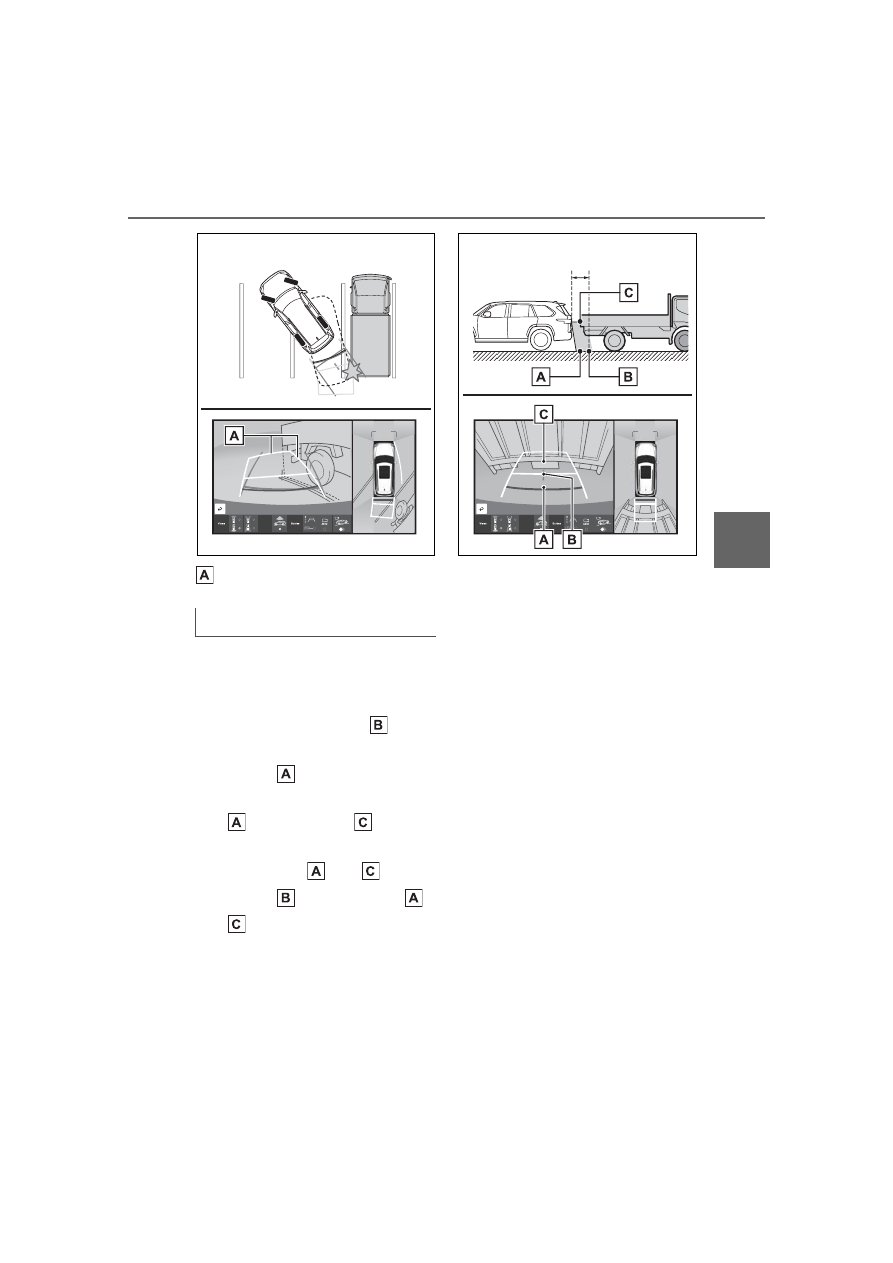

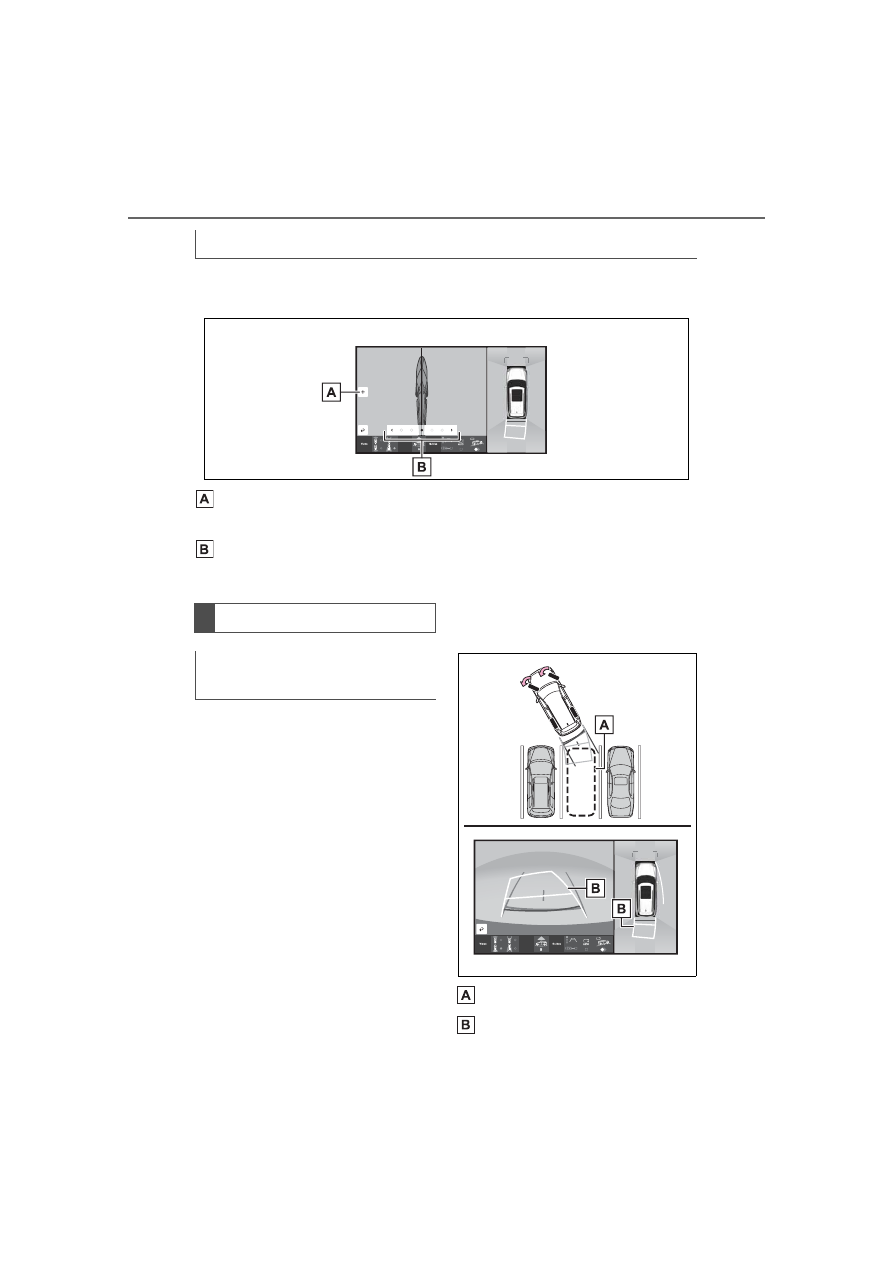

4-5. Using the driving support systems

If towing a trailer, magnify the difficult to see section of the vehicle
rear or change the screen display and use when checking.

Zoom button

The rear split view, which is currently displayed, can be magnified.

Camera angle adjustment button

The direction of the camera can be changed from left to right in 5 stages.

When parking in a space which
is in the reverse direction to the
space described in the proce-
dure below, the steering direc-
tions will be reversed.

Shift the shift lever to R.

Turn the steering wheel so
that the estimated course

lines are within the parking
space, and back up slowly.

Parking space

Estimated course lines

Using the rear split view

Parking

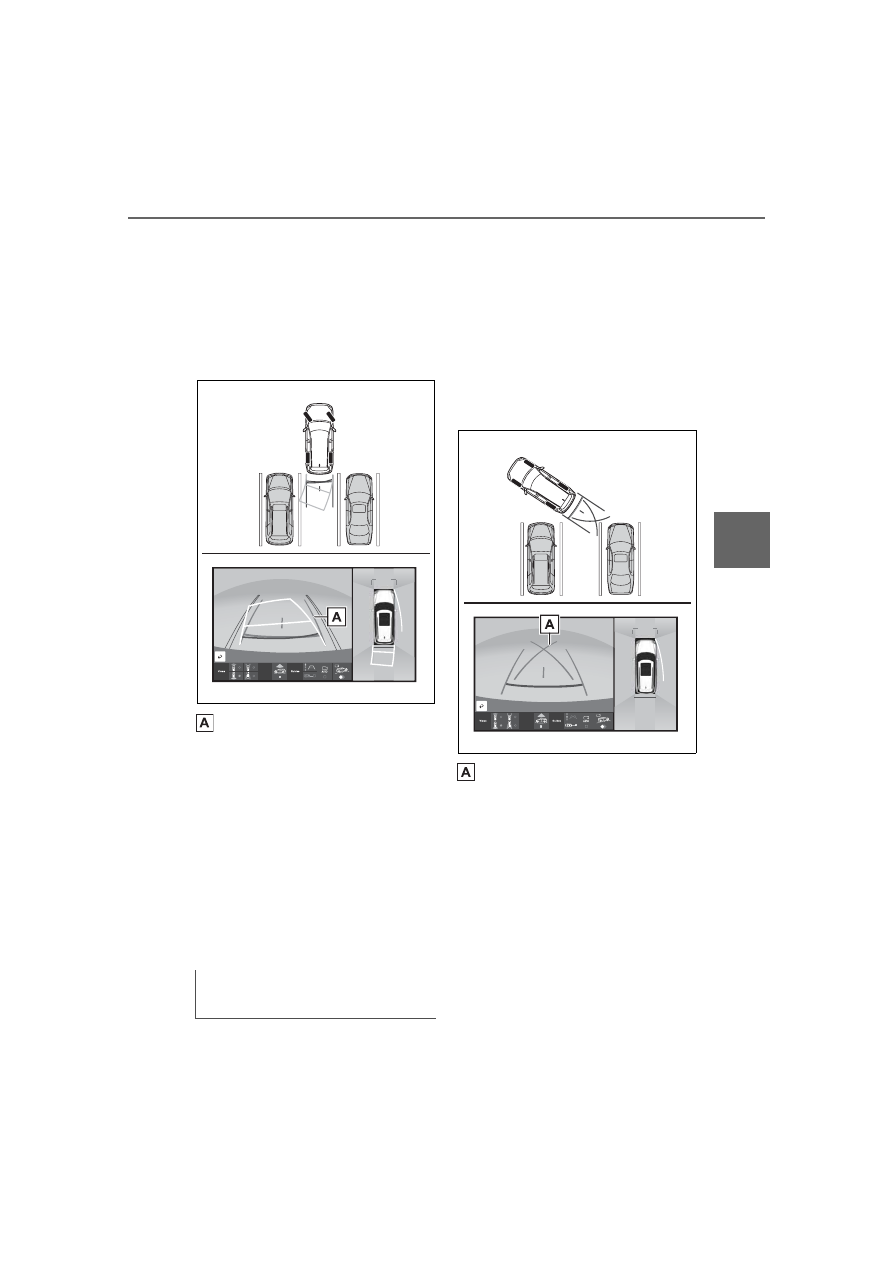

Using the estimated course
line

337

4-5. Using the driving support systems

ing

When the rear position of the
vehicle has entered the park-
ing space, turn the steering
wheel so that the vehicle
width guide lines are within
the left and right dividing lines
of the parking space.

Vehicle width guide line

Once the vehicle width guide
lines and the parking space
lines are parallel, straighten
the steering wheel and back
up slowly until the vehicle
has completely entered the
parking space.

Stop the vehicle in an appro-
priate place, and finish park-
ing.

When parking in a space which

is in the reverse direction to the
space described in the proce-
dure below, the steering direc-
tions will be reversed.

Shift the shift lever to R.

Back up until the parking
assist guide line meets the
edge of the dividing line of
the parking space.

Parking assist guide line

Turn the steering wheel all
the way to the left, and back
up slowly.

Once the vehicle is parallel
with the parking space,
straighten the steering wheel
and back up slowly until the
vehicle has completely
entered the parking space.

Stop the vehicle in an appro-
priate place, and finish park-
ing.

Using parking assist guide
line

338

4-5. Using the driving support systems

If displayed objects are too
small to see clearly when the
panoramic view is displayed, the
area around any of the 4 cor-
ners of the vehicle can be mag-
nified.

Turn the intuitive parking
assist on.

Select the area on the pan-
oramic view display you wish
to magnify.



Touching one of the 4 areas
within the dotted lines will
magnify that area. (Dotted
lines are not displayed on the
actual display.)



To return to the normal view,
touch the panoramic view dis-
play again.

●

The magnifying function is

enabled when all of the following

conditions are met:

• The panoramic view & front view

or the panoramic view & rear view

is displayed.

• The vehicle speed is below

approximately 10 mph (16 km/h).

• The intuitive parking assist is

available.

●

In the following situations, the

magnified display will be can-

celed automatically:

• The vehicle speed is approxi-

mately 10 mph (16 km/h) or

higher.

• The intuitive parking assist is

unavailable.

●

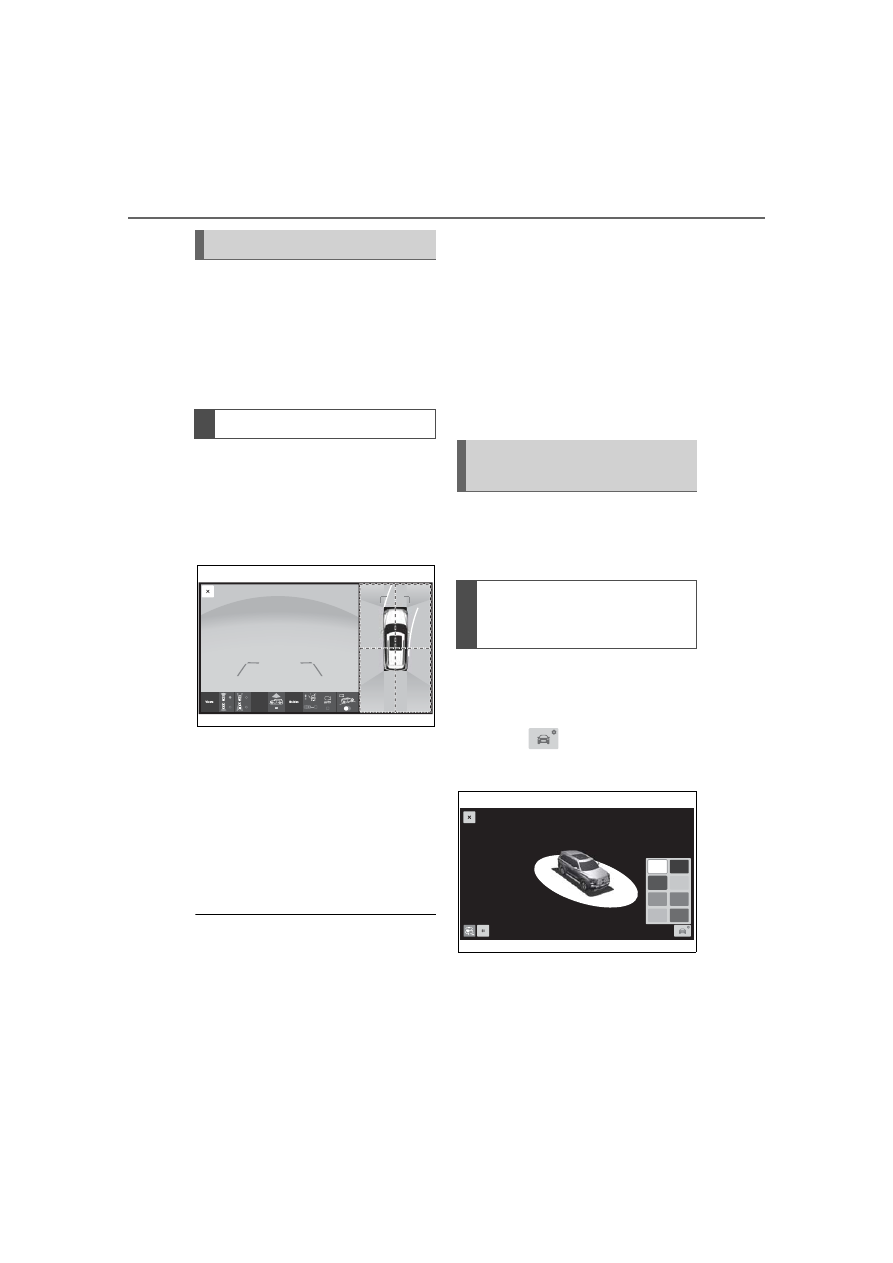

When the display is magnified, the

guide lines will not be displayed.

The color of the vehicle dis-
played on the panoramic view
monitor can be changed.

Display the moving view/see-
through view screen.
(



P.322)

Select

Select the desired color.

Magnifying function

Magnifying the display

Customizing the pan-
oramic view monitor

Changing the body color
displayed in the pan-
oramic view monitor

339

4-5. Using the driving support systems

ing

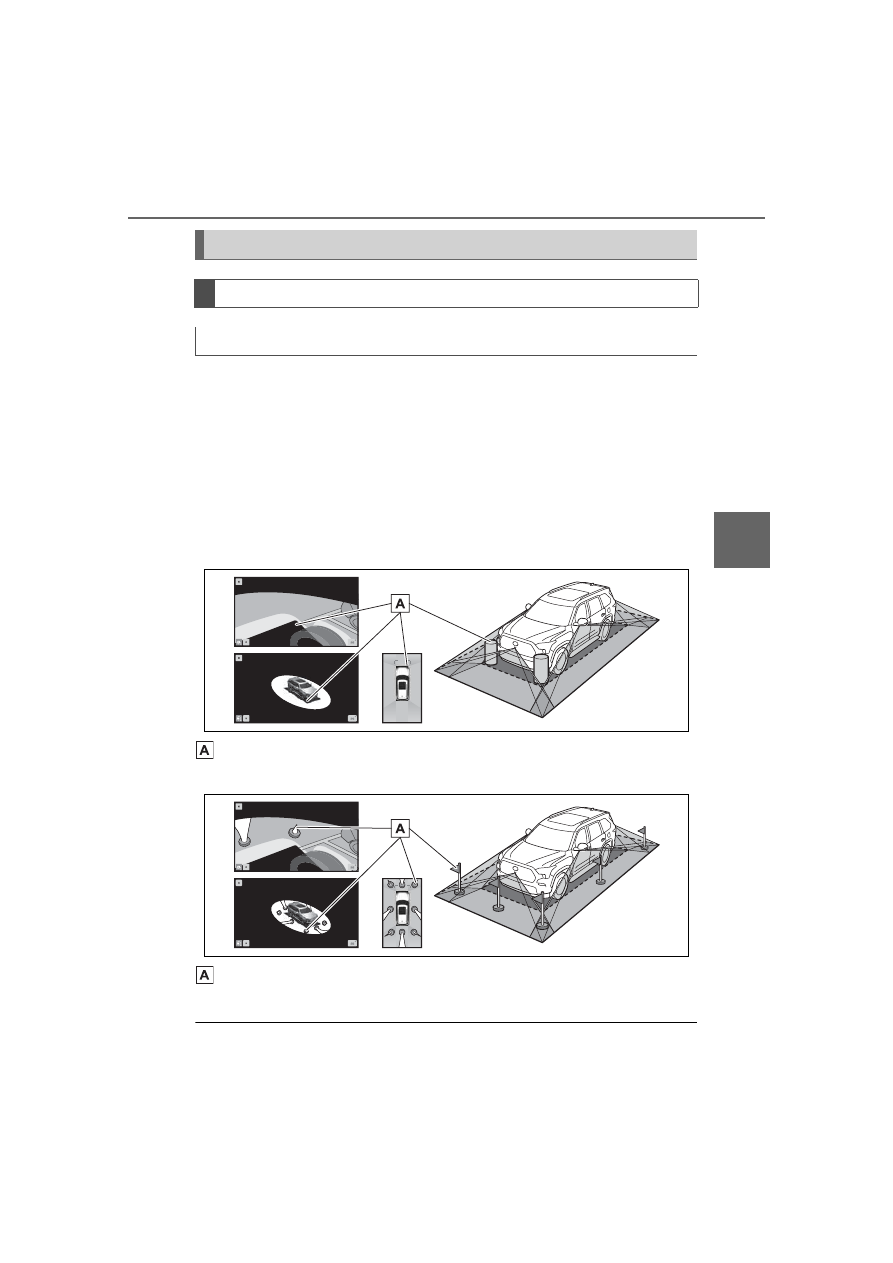

The panoramic view monitor displays an image of the surrounding
view of the vehicle.
Since the panoramic view processes and displays images based on
flat road surfaces, it cannot depict the position of three-dimension
objects (such as vehicle bumpers, etc.) that are in positions higher
than the surface of the road. Even if there is room between the bum-
pers of the vehicles and it seems not likely to collide in the image, in
reality, the both vehicles are on a collision course.
Check the safety of the surroundings directly.

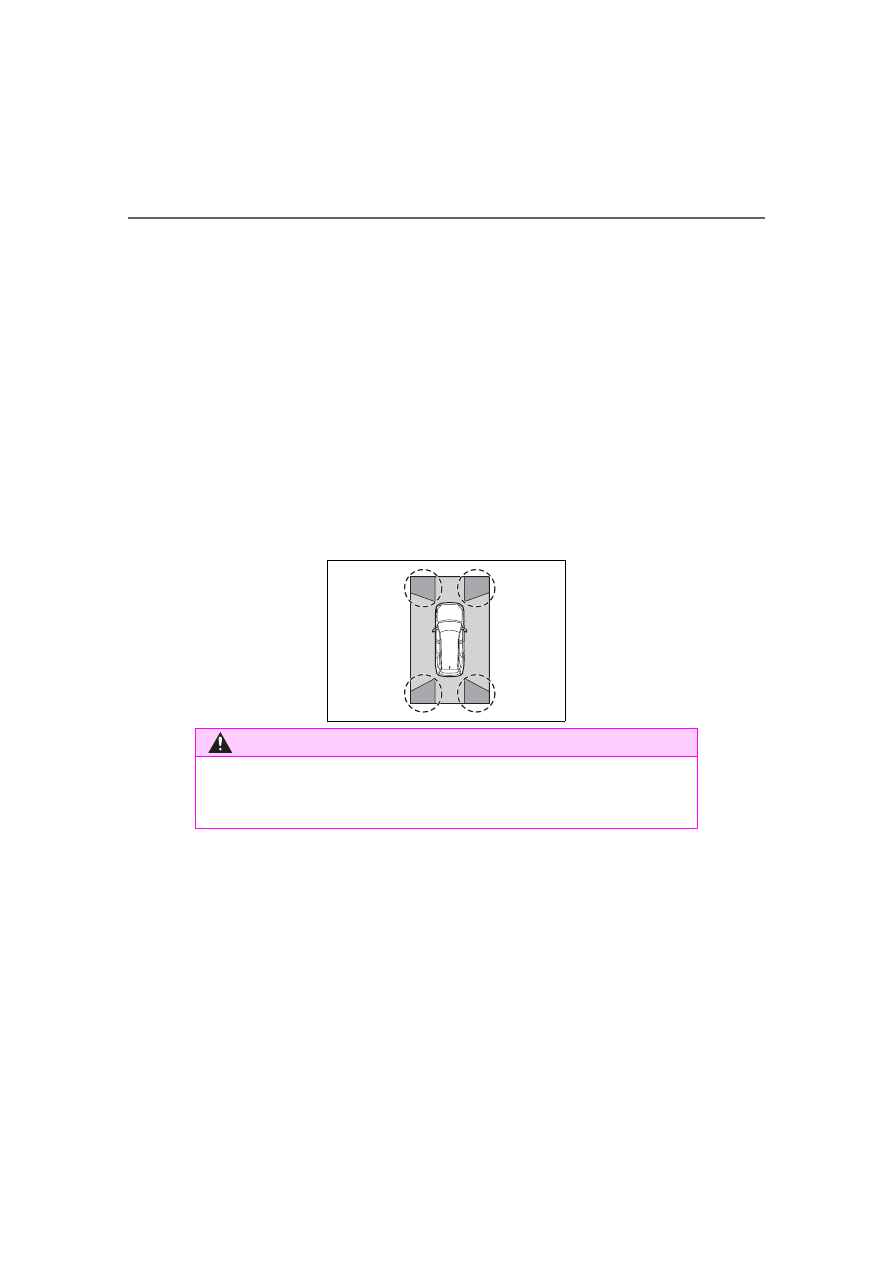

Objects located in the shaded areas will not be displayed on the
screen.

Parts of objects which extend above a certain height cannot be
displayed on the screen.

●

As the images obtained from four cameras are processed and displayed

Panoramic view monitor precautions

Area displayed on screen

Area of image of panoramic view

340

4-5. Using the driving support systems

on the standard of a flat road surface; the panoramic view/moving

view/see through view may be displayed as follows.

• Objects may look collapsed; thinner or bigger than usual.

• An object with a higher position than the road surface may look farther

away than it actually is or may not appear at all.

• Tall objects may appear protruding from the non-displayed areas of the

image.

●

Variations in the brightness of the image may appear for every camera.

●

The displayed image may be shifted by inclination of the vehicle body,

change in vehicle height, etc., depending on the number of passengers,

amount of luggage, fuel quantity, etc.

●

If the front doors or back door are not completely closed; neither the

image nor the guide lines are displayed.

●

The position relations of the vehicle icon and the road surface or obstacle

may differ from the actual positions.

●

The black areas of the vicinity of the vehicle icon are areas that are not

captured by the camera.

●

Images like the following are combined, thus some areas may be difficult

to view.

WARNING

●

When a sensor indicator on the intuitive parking assist display illumi-

nates in red or a buzzer sounds continuously, be sure to check the area

around the vehicle immediately and do not proceed any further until

safety has been ensured, otherwise an unexpected accident may occur.

341

4-5. Using the driving support systems

ing



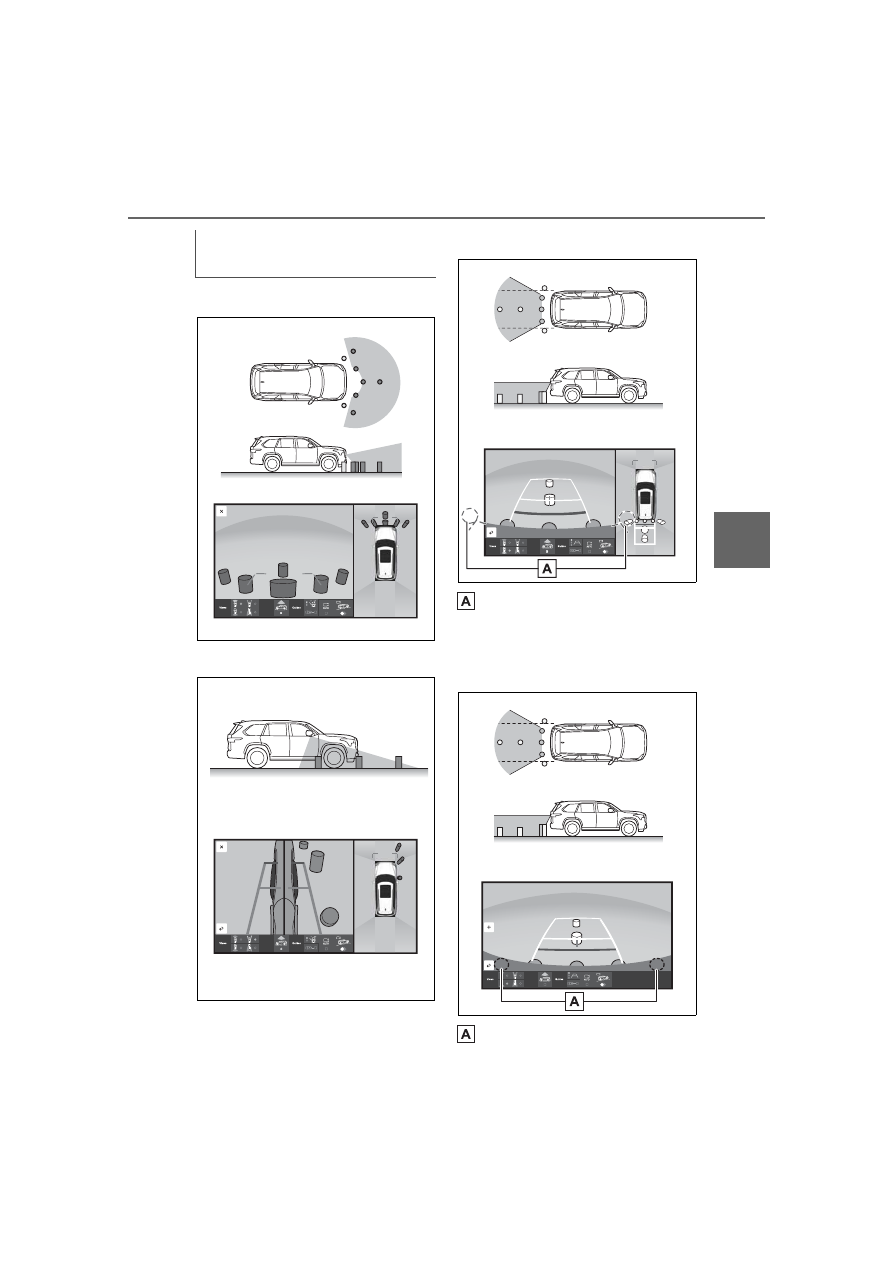

Panoramic view & front view



Front split view



Panoramic view & rear view

The area around both cor-
ners of the bumper will not be
displayed.



Wide rear view

The area around both cor-

Area of the image captured
by the camera

342

4-5. Using the driving support systems

ners of the bumper will not be
displayed.



Rear split view

The area able to be seen changes
depending on the camera angle
adjustments.

When the camera angle is in
the middle (Left: 50%/Right:
50%)

When the camera angle is at
the MAX on the left side (Left:
100%)



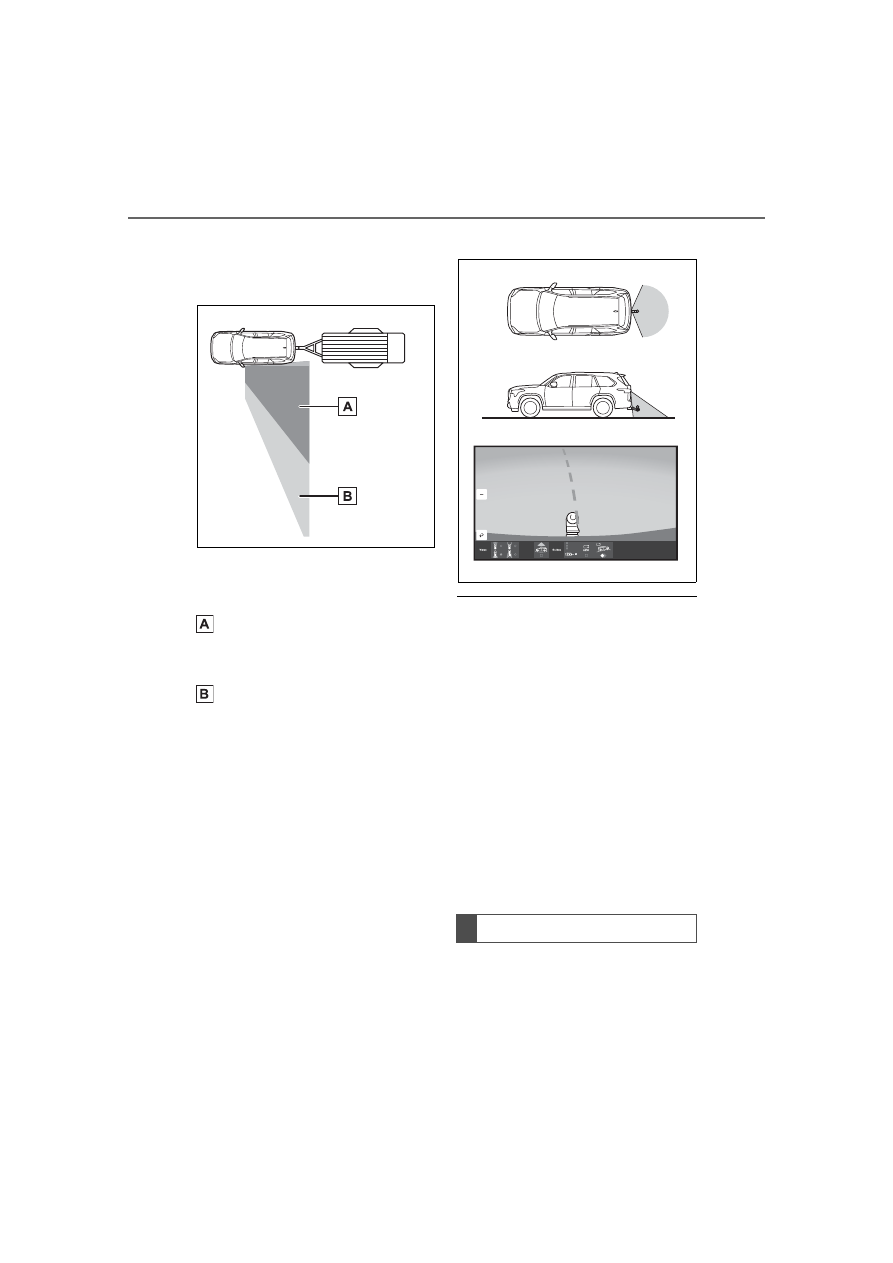

Hitch zoom view

●

The area covered by the camera

is limited. Objects which are close

to either corner of the bumper or

under the bumper cannot be seen

on the screen.

●

The area displayed on the screen

may vary depending on vehicle

orientation or road conditions.

●

The camera uses a special lens.

The distance in the image dis-

played on the screen will differ

from the actual distance.

●

In the rear split view, there is a

blind spot due to the size (length

and height) of the trailer.

●

In the hitch zoom view, if a backlit

license plate is equipped it may be

reflected in the screen.

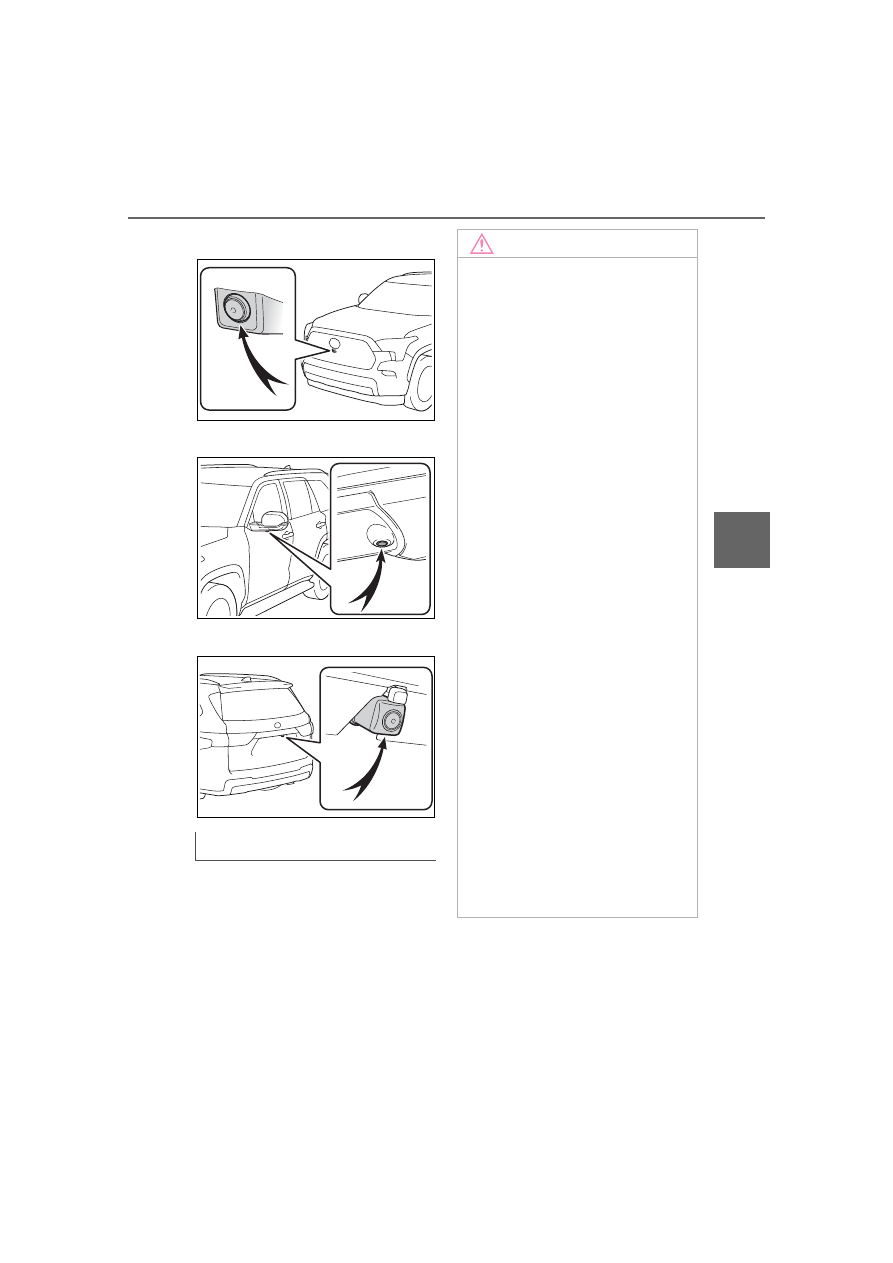

The cameras for the panoramic
view monitor are located as
shown in the illustrations.

The camera

343

4-5. Using the driving support systems

ing



Front camera



Side cameras



Rear camera

If dirt or foreign matter (such as
water droplets, snow, mud, etc.)
is adhering to the camera, it
cannot transmit a clear image.
In this case, flush it with a large
quantity of water and wipe the
camera lens clean with a soft
and wet cloth.

Using the camera

NOTICE

●

The panoramic view monitor

may not operate properly in the

following cases.

• If the camera is hit, the position

and mounting angle of the cam-

era may change.

• As the camera has a water

proof construction, do not

detach, disassemble or modify

it. This may cause incorrect

operation.

• When cleaning the camera lens,

flush the camera with a large

quantity of water and wipe it

with a soft and wet cloth.

Strongly rubbing the camera

lens may cause the camera lens

to be scratched and unable to

transmit a clear image.

• Do not allow an organic solvent,

car wax, window cleaner or a

glass coating to adhere to the

camera. If this happens, wipe it

off as soon as possible.

• If the temperature changes rap-

idly, such as when hot water is

poured on the vehicle in cold

weather, the system may not

operate normally.

• When washing the vehicle, do

not apply intensive bursts of

water to the camera or camera

area. Doing so may result in the

camera malfunctioning.

●

Do not expose the camera to

strong impacts as this could

cause a malfunction. If this hap-

pens, have the vehicle

inspected by your Toyota dealer

as soon as possible.

344

4-5. Using the driving support systems



The distance guide lines and
the vehicle width guide lines
may not actually be parallel
with the dividing lines of the
parking space, even when
they appear to be so. Be sure
to check visually.



The distances between the
vehicle width guide lines and
the left and right dividing lines
of the parking space may not
be equal, even when they
appear to be so. Be sure to
check visually.



The distance guide lines give
a distance guide for flat road
surfaces. In any of the follow-
ing situations, there is a mar-
gin of error between the guide
lines on the screen and the
actual distance/course on the
road.

The distance guidelines are pro-
jected on a horizontal surface,
distances on an upward sloping
surface appear farther from the
vehicle than the actual distance.
Because of this, objects will
appear to be farther away than
they actually are. In the same
way, there will be a margin of
error between the guidelines
and the actual distance/course

on the road.

The distance guidelines are pro-
jected on a horizontal surface,
distances on an downward slop-
ing surface appear closer to the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guidelines and the
actual distance/course on the
road.

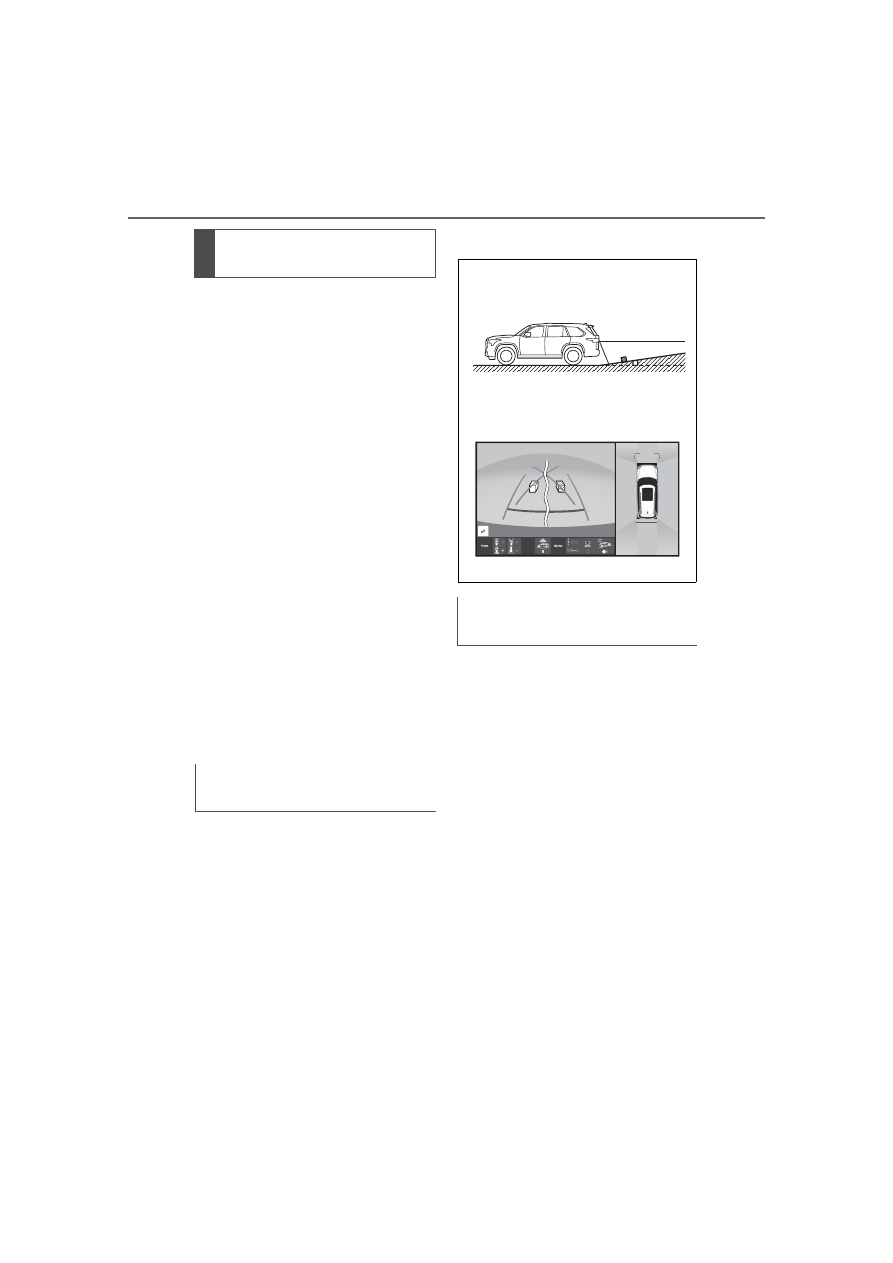

Difference between the
screen and the actual road

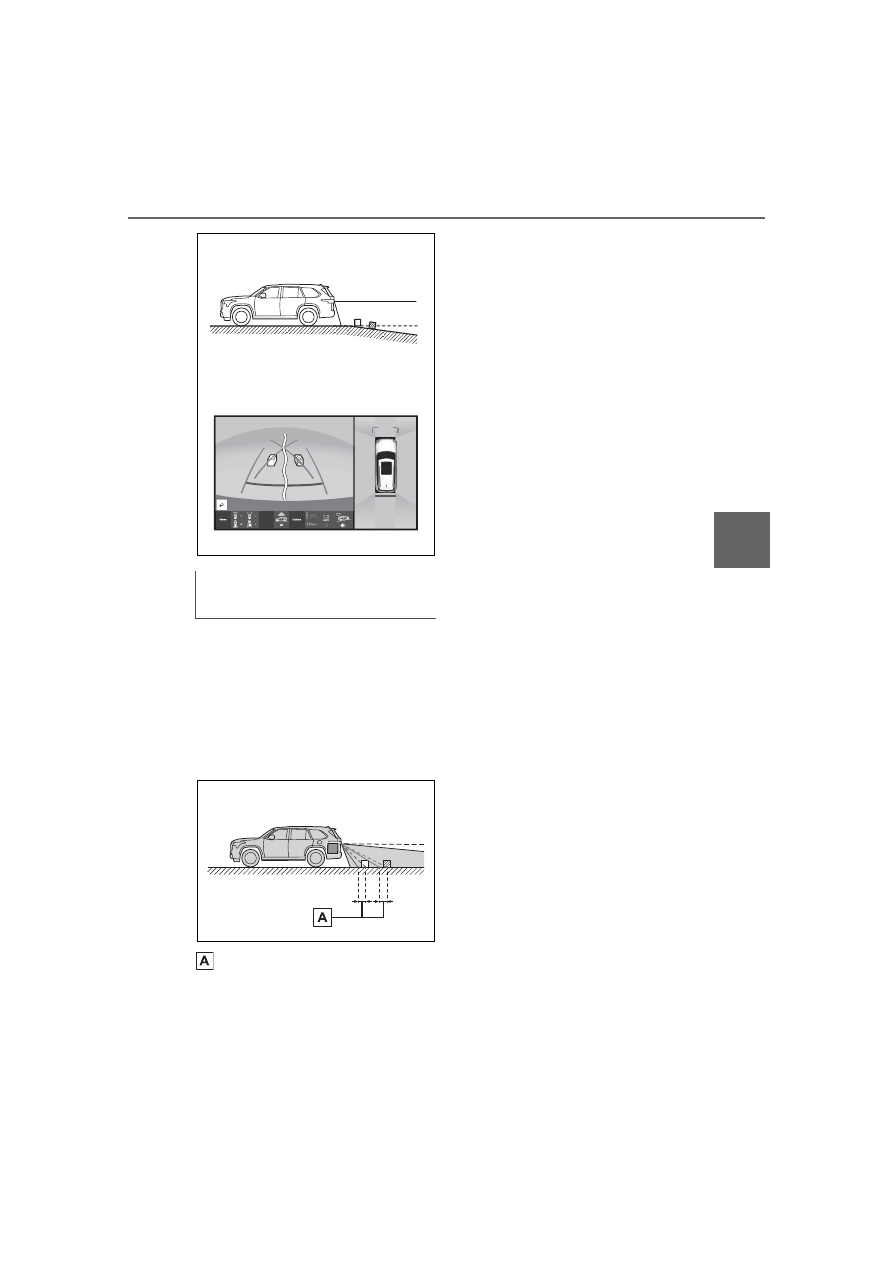

When the ground behind the
vehicle slopes up sharply

When the ground behind the
vehicle slopes down sharply

346

4-5. Using the driving support systems

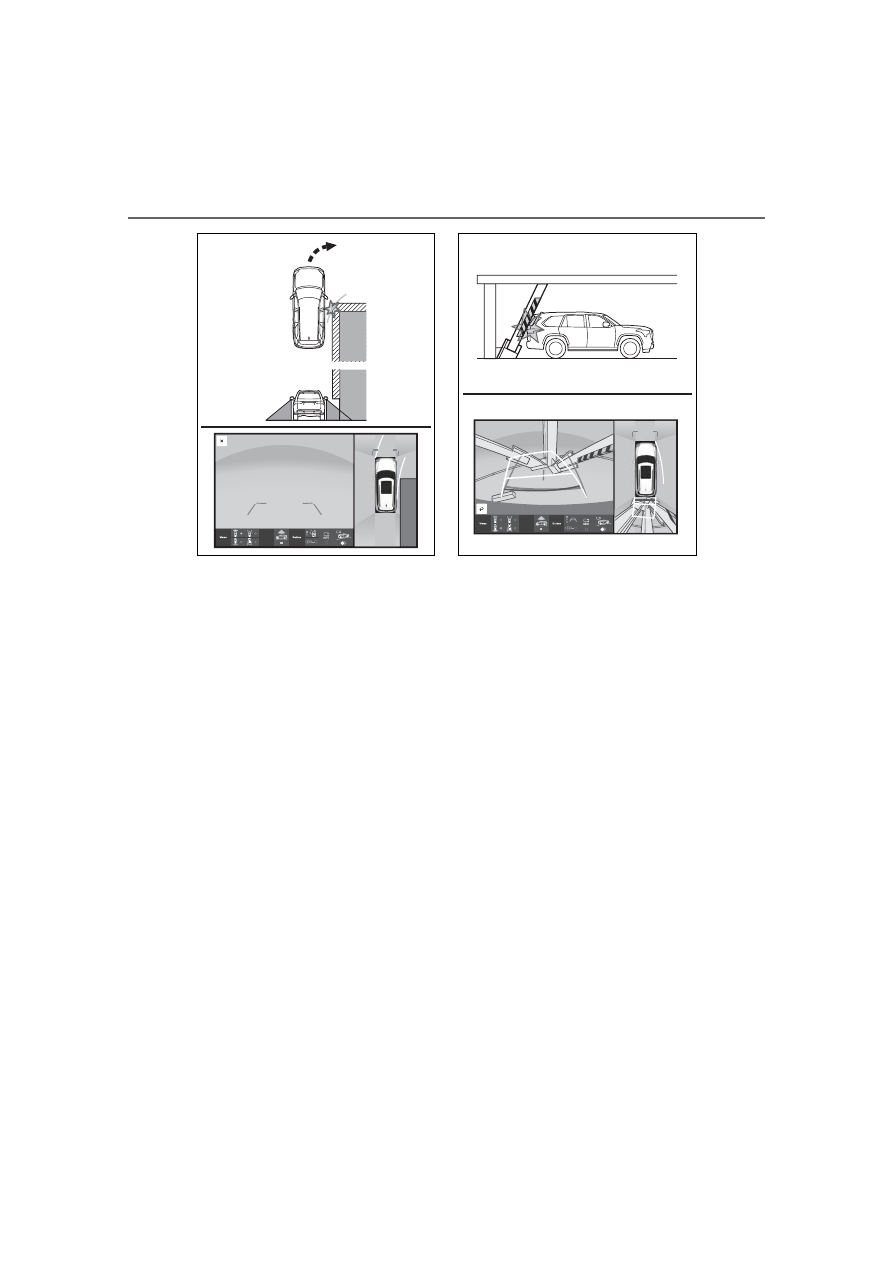

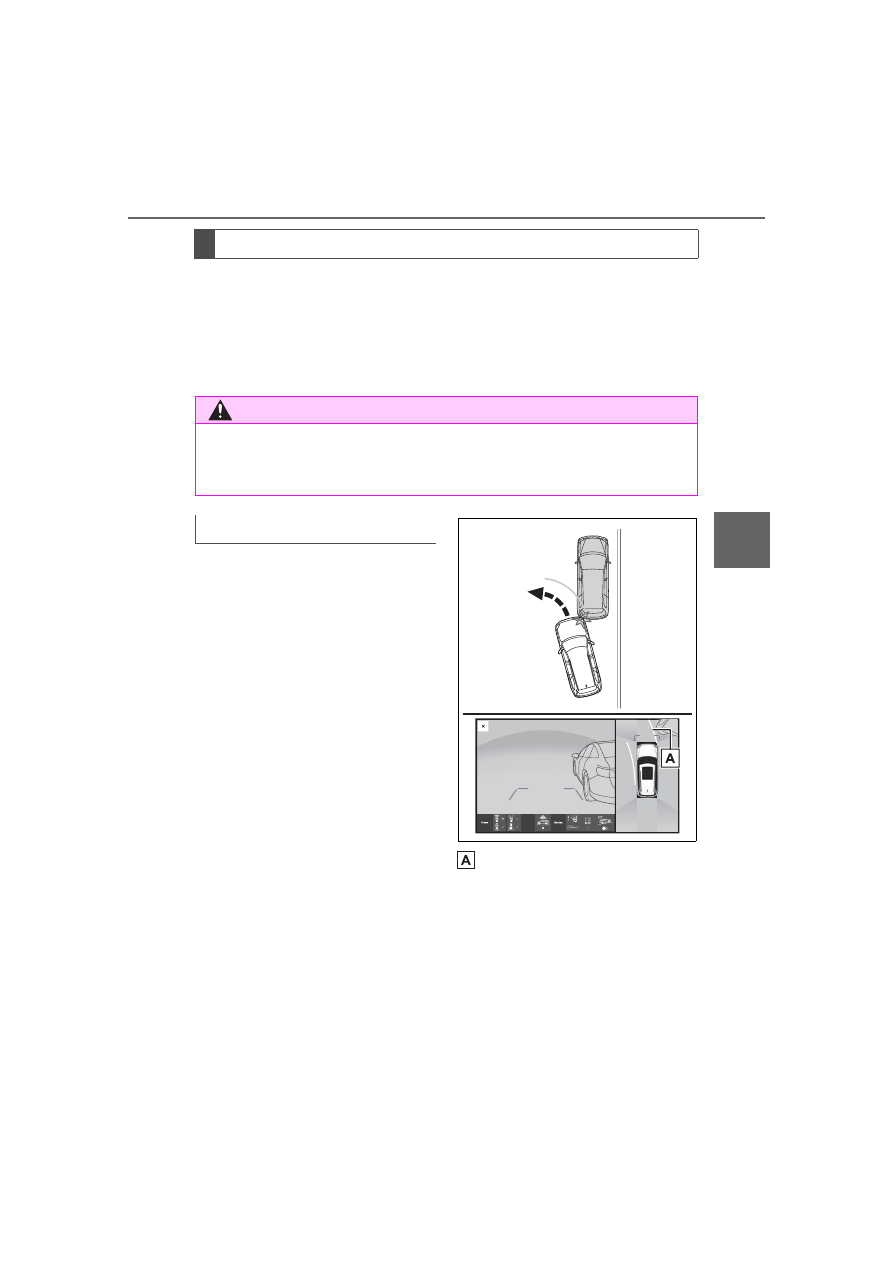

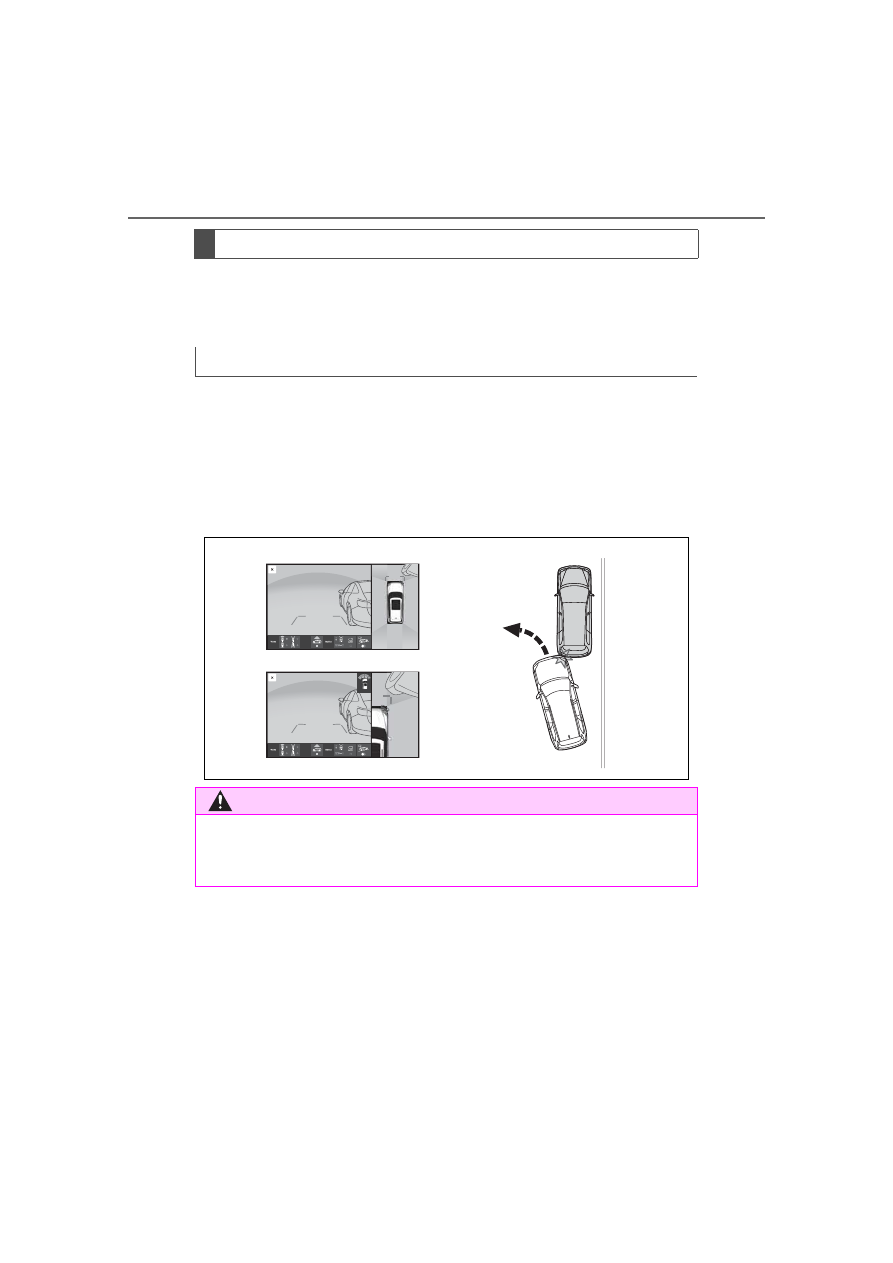

When there are three-dimensional objects (such as vehicle bum-
pers, etc.) nearby in positions higher than the surface of the road,
take extra care when using the following.

Since the panoramic view processes and displays images based on
flat road surfaces, it cannot depict the position of three-dimension
objects (such as vehicle bumpers, etc.) that are in positions higher
than the surface of the road. For example, even though it appears
that there is space between the bumpers of the two vehicles in the
illustration below and they are not likely to collide, in reality, a colli-
sion is about to occur.

Distortion of three-dimensional objects on the screen

Panoramic view display (including magnified display)

WARNING

●

When a sensor indicator on the intuitive parking assist display illumi-

nates in red or a buzzer sounds continuously, be sure to check the area

around the vehicle immediately and do not proceed any further until

safety has been ensured, otherwise an unexpected accident may occur.

347

4-5. Using the driving support systems

ing

The estimated course lines target flat surfaced objects (such as the
road). It is not possible to determine the position of three-dimen-
sional objects (such as vehicles) using the estimated course lines
and distance guide lines. When approaching a three-dimensional
object that extends outward (such as the flatbed of a truck), be care-
ful of the following.

Since the estimated course line
is displayed for a flat road sur-
face, it cannot depict the posi-
tion of three-dimensional objects
(such as vehicle bumpers, etc.)
that are in positions higher than
the surface of the road. Even if
the bumpers of the vehicle is on
the outside of the estimated
course line in the image, in real-
ity, the vehicles are on a colli-
sion course.

Estimated course line

Three-dimensional objects
(such as the overhang of a wall
or loading platform of a truck) in
high positions may not be pro-
jected on the screen. Check the
safety of the surroundings
directly.

When approaching three-dimensional objects

WARNING

●

When a sensor indicator on the intuitive parking assist display illumi-

nates in red or a buzzer sounds continuously, be sure to check the area

around the vehicle immediately and do not proceed any further until

safety has been ensured, otherwise an unexpected accident may occur.

Estimated course lines

348

4-5. Using the driving support systems

The pillar that is diagonal to the
parking spot may be displayed
perpendicular on the screen.
Even if it seems like there will
not be a collision, the pillar is
diagonal, so there may be colli-
sion with the upper part of the
pillar.
Check the safety of the sur-
roundings directly.

Visually check the surroundings
and the area behind the vehicle.
In the case shown below, the
truck appears to be outside of
the estimated course lines and
the vehicle does not look as if it
hits the truck. However, the rear
body of the truck may actually
cross over the estimated course
lines. In reality if you back up as
guided by the estimated course
lines, the vehicle may hit the
truck.

349

4-5. Using the driving support systems

ing

Estimated course lines

Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point  .
However, in reality if you back
up to point  , you will hit the
truck. On the screen, it appears
that   is closest and   is far-
thest away. However, in reality,
the distance to   and   is the
same, and   is farther than
and  .

Distance guide lines

350

4-5. Using the driving support systems

If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.

Things you should know

If you notice any symptoms

Symptom

Likely cause

Solution

The image is difficult to
see



The vehicle is in a
dark area



The temperature
around the lens is
either high or low



The outside tempera-
ture is low



There are water drop-
lets on the camera



It is raining or humid



Foreign matter (mud,
etc.) is adhering to the
camera



Sunlight or headlights
are shining directly
into the camera



The vehicle is under
fluorescent lights,
sodium lights, mer-
cury lights, etc.

Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once con-
ditions have been
improved.)
The procedure for
adjusting the picture
quality of the pan-
oramic view monitor
system is the same as
the procedure for
adjusting the screen dis-
play. (Refer to the
“MULTIMEDIA
OWNER’S MANUAL”.)

The image is blurry

Dirt or foreign matter
(such as water drop-
lets, snow, mud, etc.) is
adhering to the camera.

Flush the camera with a
large quantity of water
and wipe the camera
lens clean with a soft
and wet cloth.

The image is out of
alignment

The camera or sur-
rounding area has
received a strong
impact.

Have the vehicle
inspected by your Toy-
ota dealer.

351

4-5. Using the driving support systems

ing

The guide lines are very
far out of alignment

The camera position is
out of alignment.

Have the vehicle
inspected by your Toy-
ota dealer.



The vehicle is tilted.
(There is a heavy load
on the vehicle, tire
pressure is low due to
a tire puncture, etc.)



The vehicle is used on
an incline.

If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings.

The estimated course
lines move even though
the steering wheel is
straight

There is a malfunction
in the signals being out-
put by the steering sen-
sor.

Have the vehicle
inspected by your Toy-
ota dealer.

Guide lines are not dis-
played

The back door is open.

Close the back door.
If this does not resolve
the symptom, have the
vehicle inspected by
your Toyota dealer.

is displayed



12-volt battery has
been reinstalled.



The steering wheel
has been moved while
the 12-volt battery
was being reinstalled.



12-volt battery power
is low.



The steering sensor
has been reinstalled.



There is a malfunction
in the signals being
output by the steering
sensor.

Have the vehicle
inspected by your Toy-
ota dealer.

The panoramic view dis-
play cannot be magni-
fied

The intuitive parking
assist may be malfunc-
tioning or dirty.

Follow the correction
procedures for malfunc-
tions of the intuitive
parking assist. (



P.294)

The see-through
view/moving view can-
not be displayed

Symptom

Likely cause

Solution

Toyota Sequoia Hybrid (2023 year). Manual in english - page 21
