353

5-3. Using the storage features

Interior

featur

Raise the hook to use.

The cargo hooks are provided for
securing loose items.

■

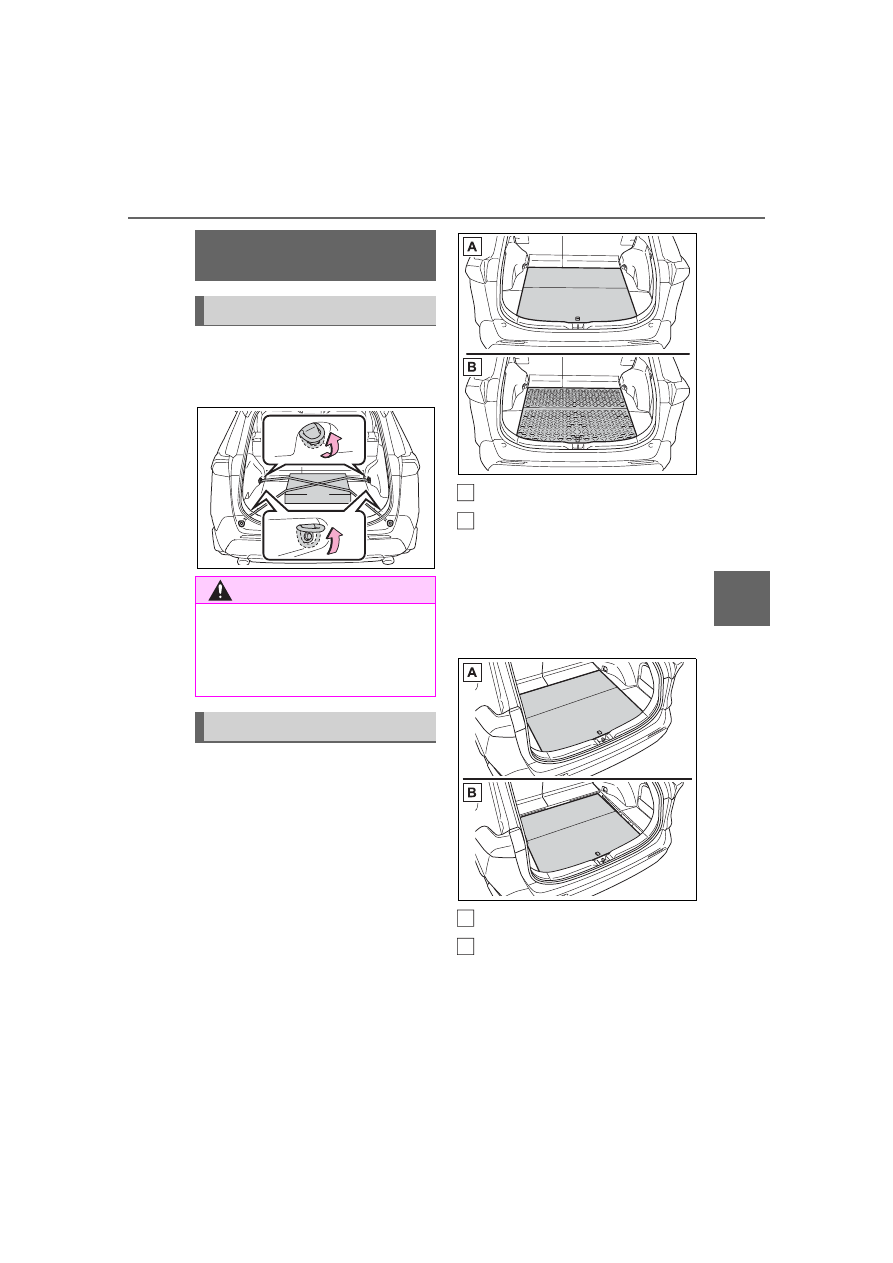

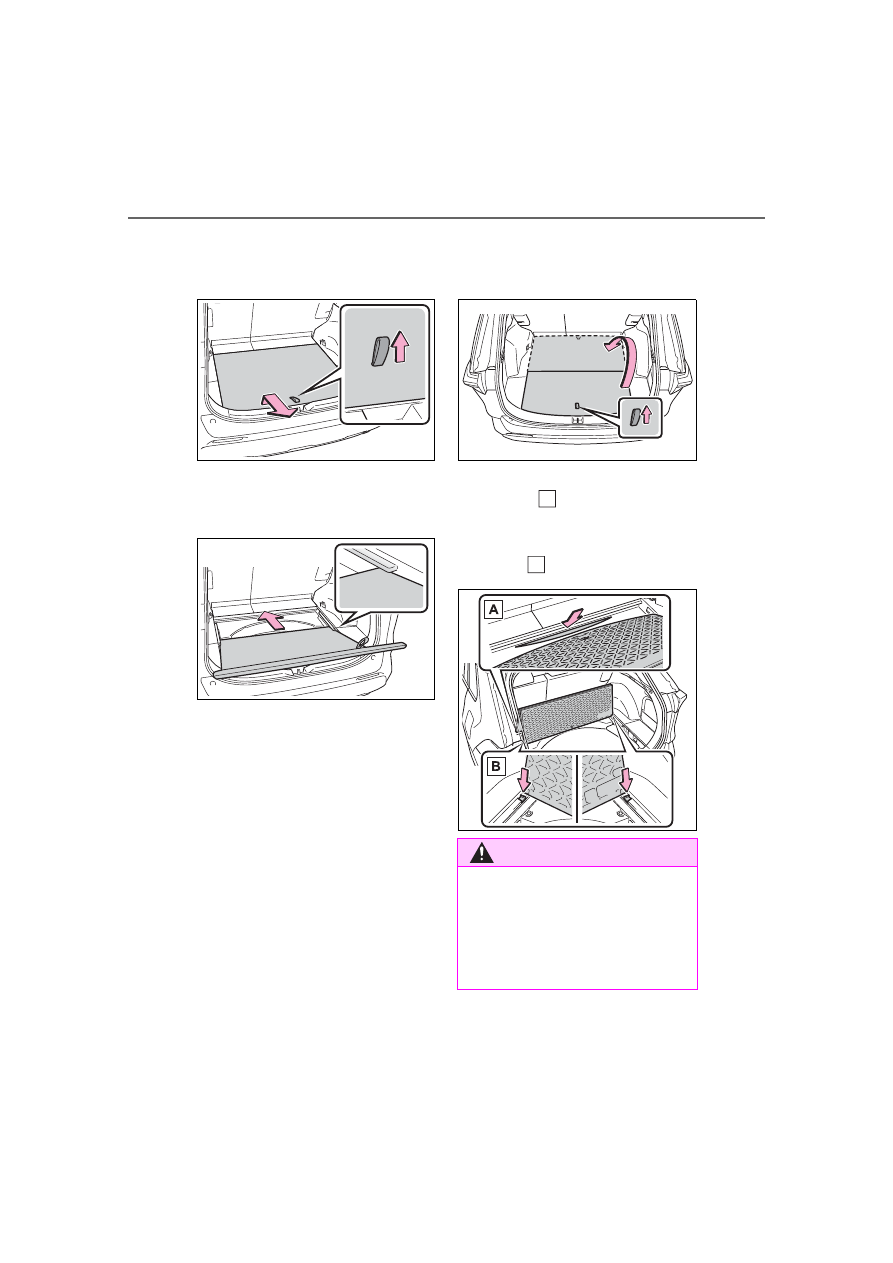

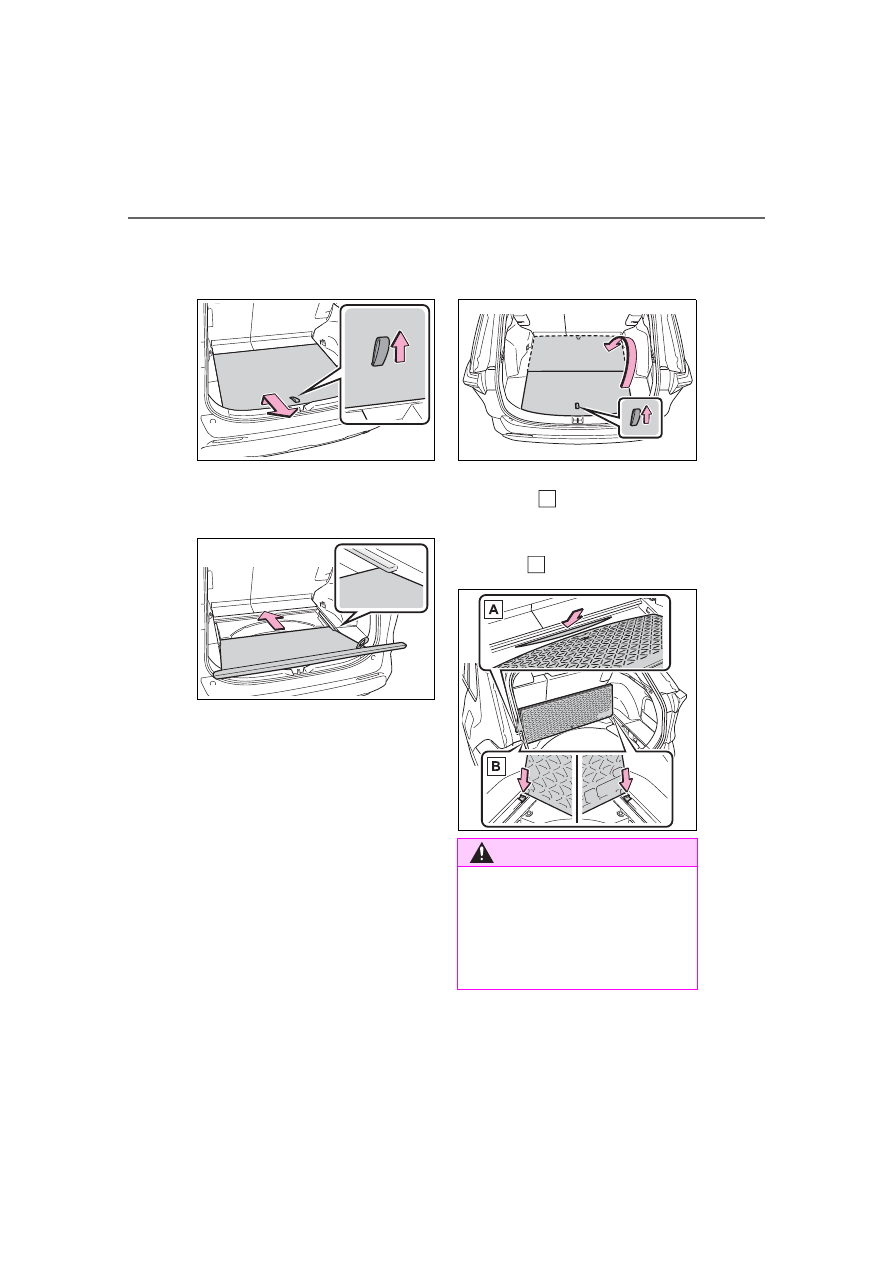

Flipping the deck board
upside down

The deck board can be flipped
upside down (resin side up)
depending on the situation.

Original position

Underside (resin side)

■

Changing the deck board
positions

Height of the deck board can be
changed by setting the deck
board under the floor.

Upper

Lower

Luggage compart-

ment features

Cargo hooks

WARNING

■

When cargo hooks are not in

use

To avoid injury, always return the

hooks to their stowed positions

when not in use.

Deck board

354

5-3. Using the storage features

Pull up the tab to raise the
deck board and move it
toward you to remove.

Place the deck board through
the groove and move for-
ward.

■

Setting the deck board
upright

When taking out the tools, the
deck board can be set upright.

When the back surface (resin sur-
face) of the deck board is facing up,
flip it back to the original position.

Pull up the tab to raise the
deck board and fold it for-
ward.

Place the edge into the
groove (

), and with the

deck board in a standing
state, put the edge into the
holes (

WARNING

■

When operating the deck

board

Do not place anything on the deck

board when operating the board.

Otherwise, your fingers may be

caught or an accident may result

causing injuries.

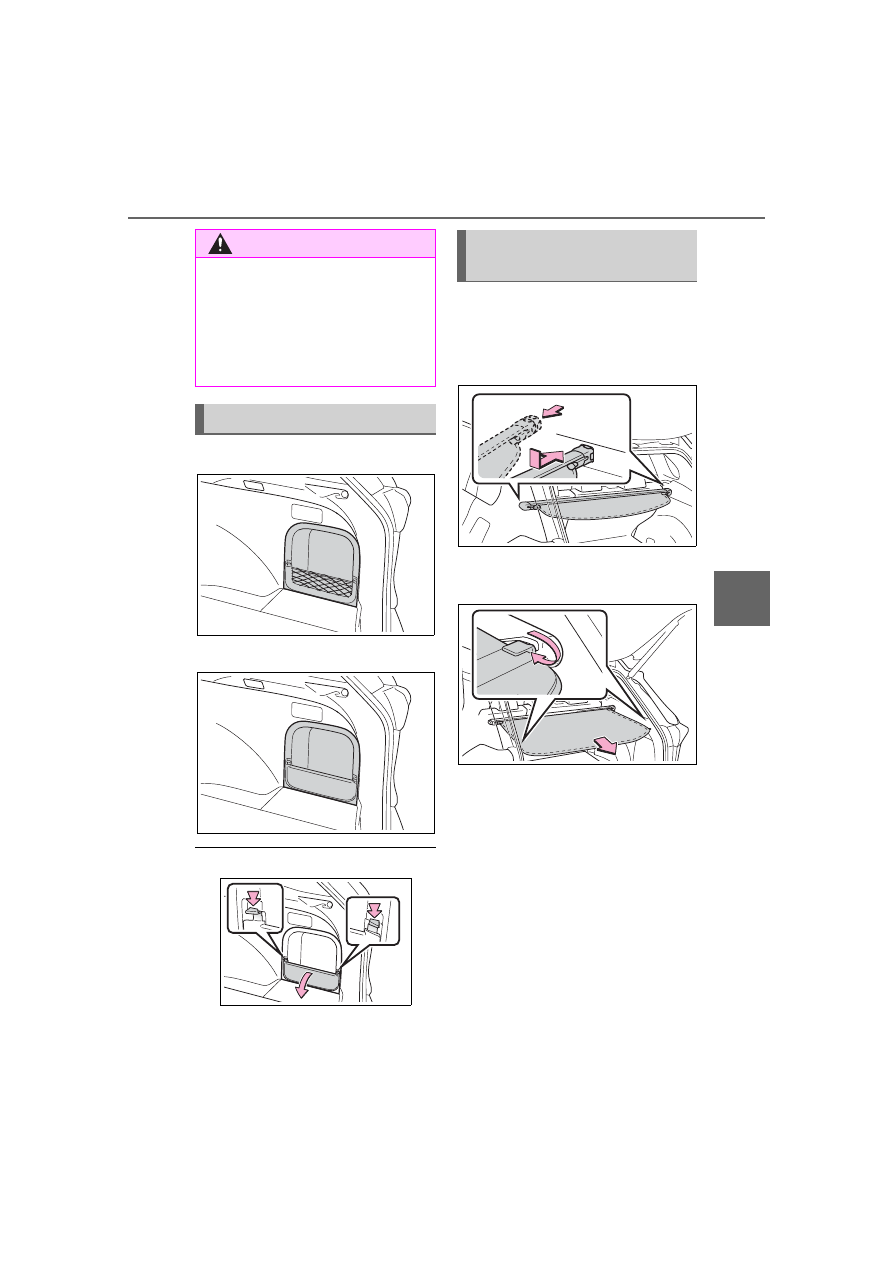

355

5-3. Using the storage features

Interior

featur



Type A



Type B

■

Removing the partition plate

Disengage the claws

■

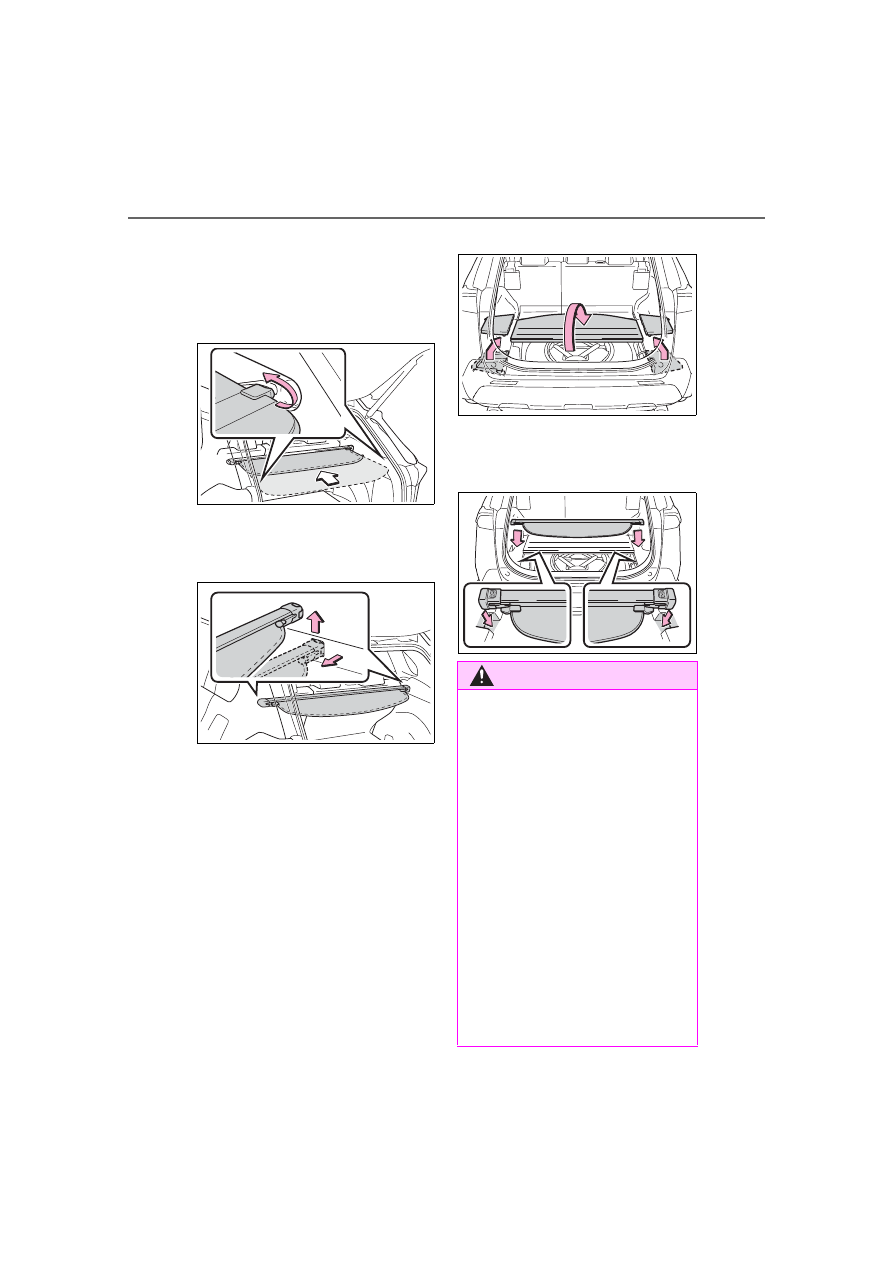

Installing the luggage cover

Compress the both ends of
the luggage cover and insert
into the recess to install.

Pull out the luggage cover
and hook it onto the anchors.

WARNING

■

Caution while driving

Keep the deck board closed.
In the event of sudden braking, an

accident may occur due to an

occupant being struck by the deck

board or the items stored under

the deck board.

Side auxiliary box

Luggage cover (if
equipped)

356

5-3. Using the storage features

■

Removing the luggage
cover

Release the cover from the
left and right anchors and
allow it to retract.

Compress the end of the lug-
gage cover and lift the lug-
gage cover up.

■

Stowing the luggage cover

Open the rear deck board
and remove the side deck
covers.

When the back surface (resin sur-

face) of the deck board is facing up,

remove the deck board.

Place the both ends of the
luggage cover into the
holder.

WARNING

■

Luggage cover

●

When installing/stowing the lug-

gage cover, make sure that the

luggage cover is securely

installed/stowed. Failure to do

so may result in serious injury in

the event of sudden braking or a

collision.

●

Do not place anything on the

luggage cover. In the event of

sudden braking or turning, the

item may go flying and strike an

occupant. This could lead to an

unexpected accident, resulting

in death or serious injury.

●

Do not allow children to climb

on the luggage cover. Climbing

on the luggage cover could

result in damage to the luggage

cover, possibly causing death or

serious injury to the child.

357

5-3. Using the storage features

Interior

featur

NOTICE

■

To prevent damage to the lug-

gage cover

Do not place anything on top of

the luggage cover. When rolling

up the luggage cover, objects

may be caught in the cover, dam-

aging the cover and generating

noise.

358

5-4. Using the other interior features

5-4.Using the other interior features

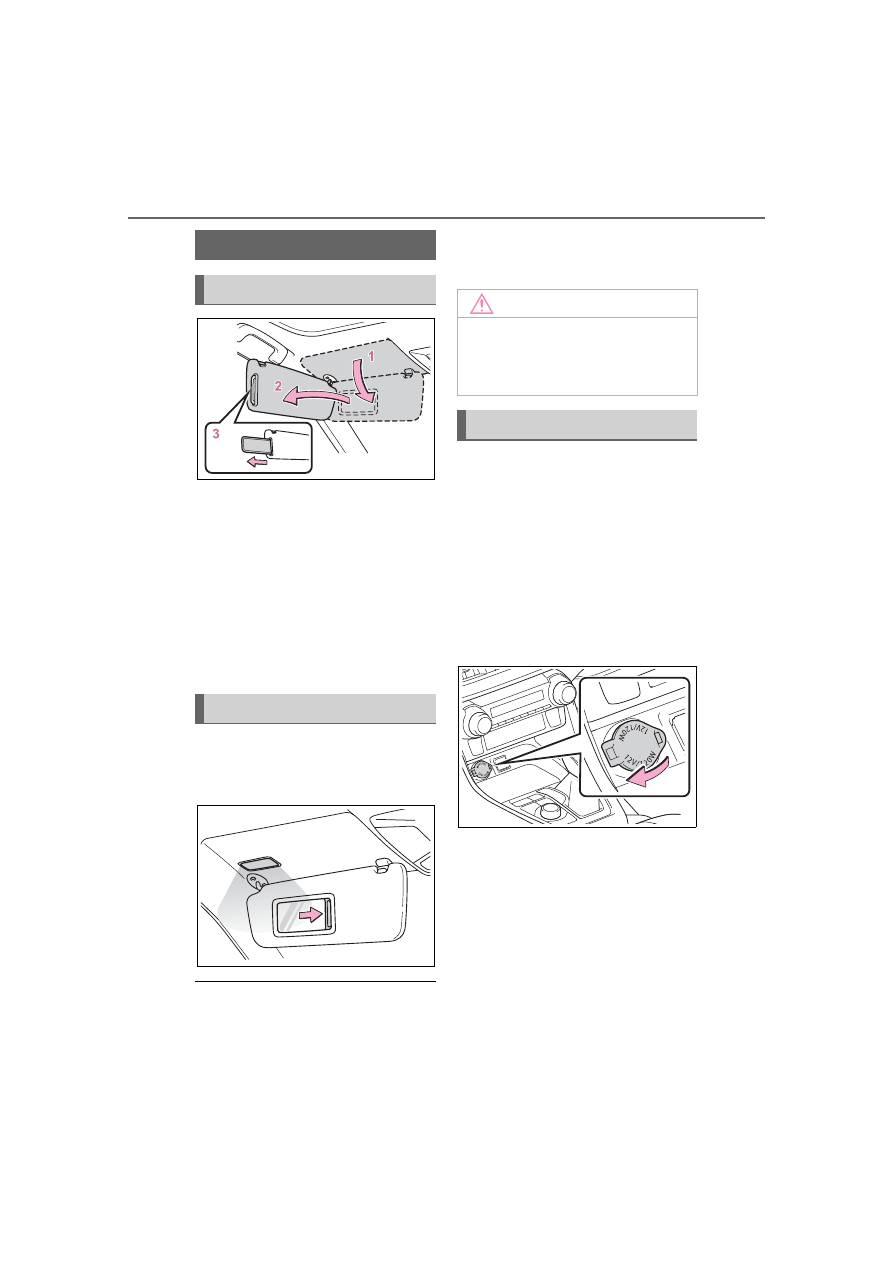

To set the visor in the forward
position, flip it down.

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

To use the side extender (if
equipped), place the visor in
the side position, then slide it
backward.

Slide the cover to open.

The light turns on when the cover is
opened.

■

Automatic light off to prevent

battery discharge

If the vanity lights remain on when

the engine switch is turned to OFF,

the lights will go off automatically

after 20 minutes.

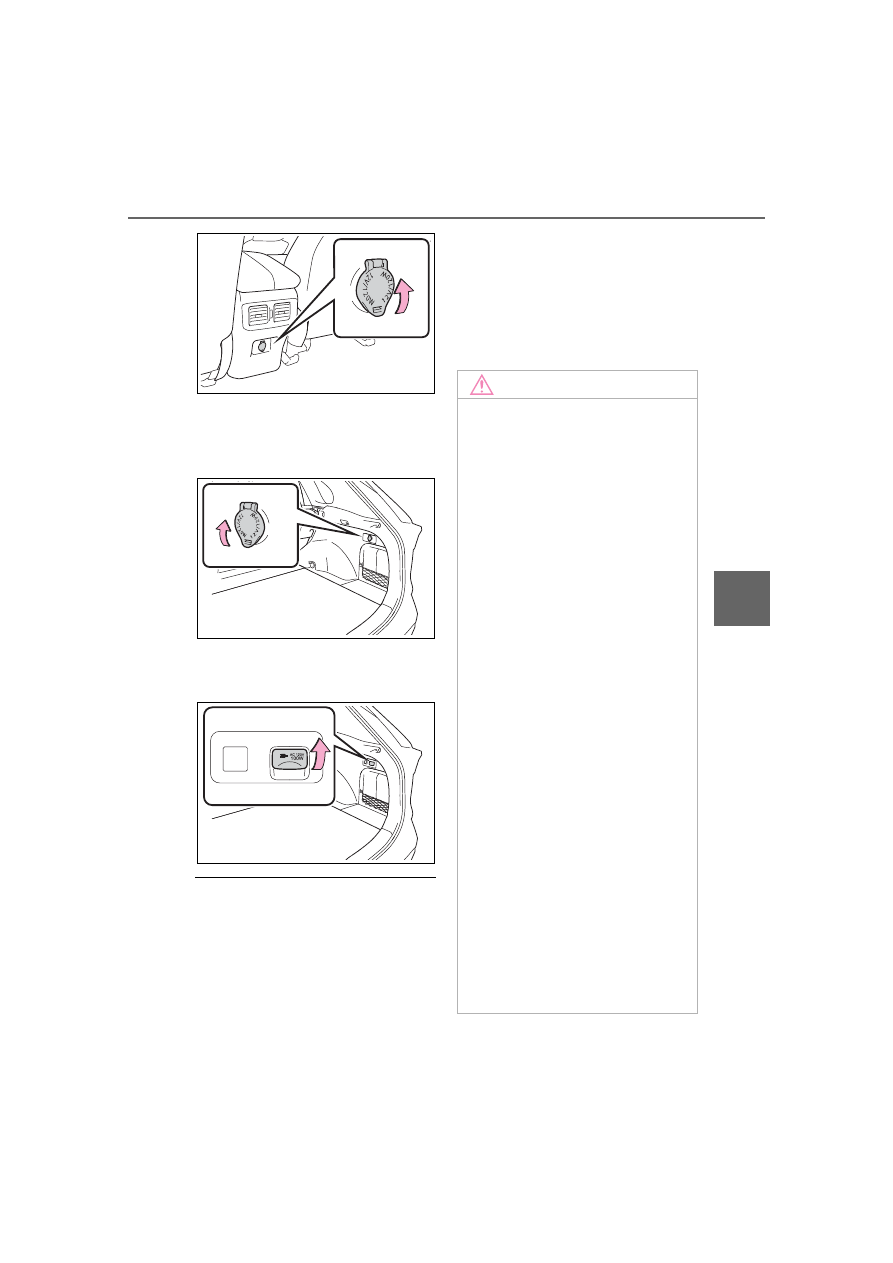

The power outlet can be used
for the following components:
12 V: Accessories that run on
less than 10 A.
120 VAC: Accessories that use
less than 100 W.

■

12 V



Front

Open the lid.



Rear (if equipped)

Open the lid.

Other interior features

Sun visors

Vanity mirrors

NOTICE

■

To prevent battery discharge

Do not leave the vanity lights on

for extended periods while the

engine is off.

Power outlet

359

5-4. Using the other interior features

Interior

featur



Luggage compartment (if
equipped)

Open the lid.

■

120 VAC (if equipped)

Open the lid.

■

The power outlet can be used

when



12 V

The engine switch is in ACC or ON.



120 VAC

The engine switch is in ON.

■

When turning the engine switch

to OFF

Disconnect electrical devices with

charging functions, such as mobile

battery packs.

If such devices are left connected,

the engine switch may not be turned

off normally.

NOTICE

■

When power outlet is not in

use

To avoid damaging the power out-

let, close the power outlet lid

when the power outlet is not in

use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

■

To prevent the fuse from

being blown

●

12 V

Do not use an accessory that
uses more than 12 V 10 A.

●

120 VAC

Do not use a 120 VAC appliance
that requires more than 100 W. If
a 120 VAC appliance that con-
sumes more than 100 W is used,
the protection circuit will cut the
power supply.

■

To prevent battery discharge

Do not use the power outlet lon-

ger than necessary when the

engine is not running.

■

Appliances that may not

operate properly (120 VAC)

The following 120 VAC appli-

ances may not operate properly

even if their power consumption is

under 100 W.

●

Appliances with high initial peak

wattage

360

5-4. Using the other interior features

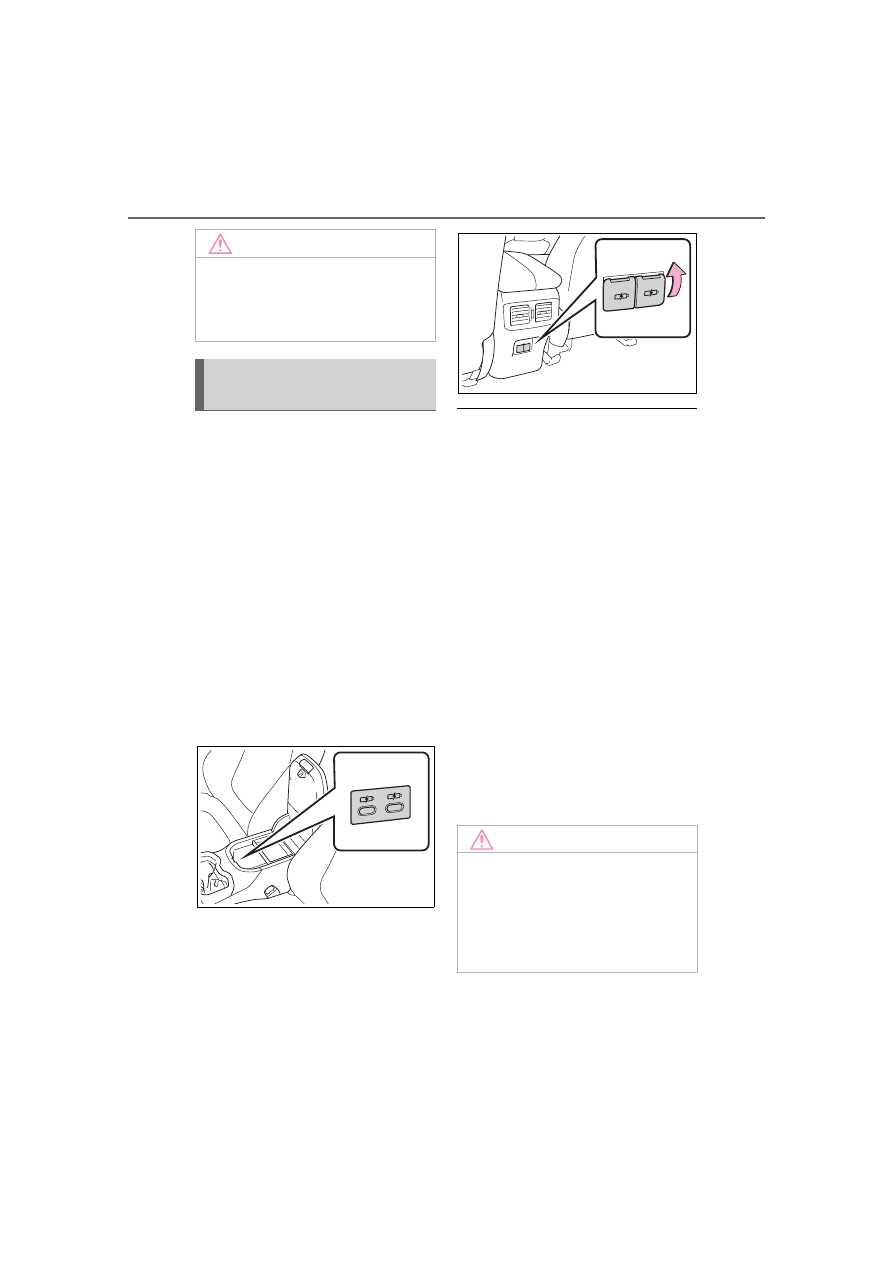

The USB Type-C charging ports
are used to supply 3 A of elec-
tricity at 5 V to external devices.
The USB Type-C charging ports
are for charging only. They are
not designed for data transfer or
other purposes.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

■

Using the USB Type-C
charging ports



Console box



Rear (if equipped)

Open the lid.

■

The USB Type-C charging ports

can be used when

The engine switch is in ACC or ON.

■

Situations in which the USB

Type-C charging ports may not

operate correctly

●

If a device which consumes more

than 3 A at 5 V is connected

●

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

●

If the connected external device is

turned off (depending on device)

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

■

About connected external

devices

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

NOTICE

●

Measuring devices that pro-

cess precise data

●

Other appliances that require an

extremely stable power supply

USB Type-C charging
ports

NOTICE

■

To prevent damage to the

USB Type-C charging ports

●

Do not insert foreign objects into

the ports.

●

Do not spill water or other liq-

uids into the ports.

361

5-4. Using the other interior features

Interior

featur

A portable device can be
charged by just placing Qi stan-
dard wireless charge compatible
portable devices according to
the Wireless Power Consortium,
such as smartphones and
mobile batteries, etc., on the
charge area.
This function cannot be used
with portable devices that are
larger than the charging tray.

Also, depending on the portable
device, it may not operate as
normal. Please read the opera-
tion manual for portable devices
to be used.

■

The “Qi” logo

The “Qi” logo is a trademark of
the Wireless Power Consortium.

■

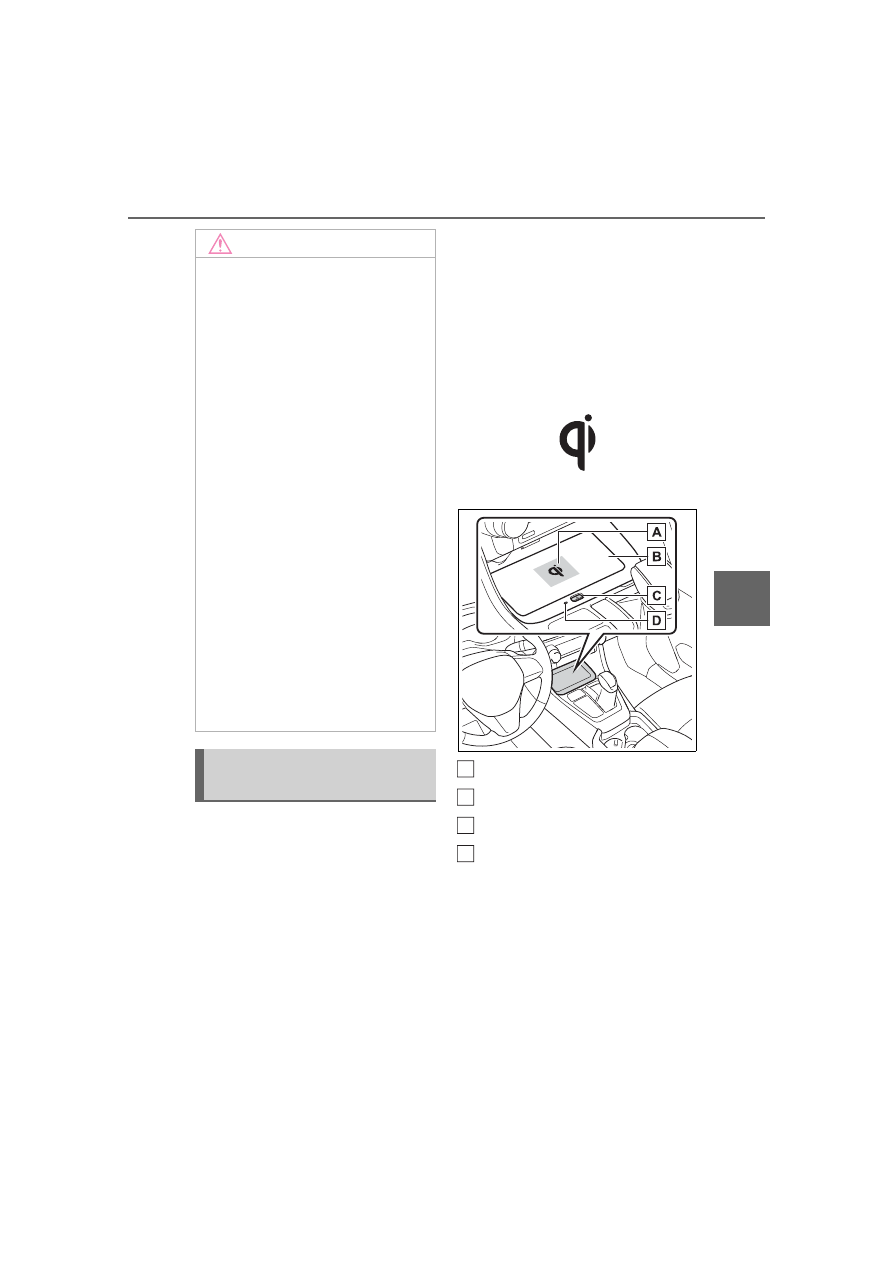

Name for all parts

Charge area

Charging tray

Power supply switch

Operation indicator light

: Portable devices and wireless

chargers contain charging coils.
The charging coil in the wireless
charger can be moved within the
charge area near the center of
the charging tray. If the charging
coil inside a portable device is
detected in the charge area, the
charging coil inside the wireless

NOTICE

●

When the USB Type-C charging

ports are not in use, close the

lids. If a foreign object or liquid

enters a port may cause a short

circuit.

●

Do not apply excessive force to

or impact the USB Type-C

charging ports.

●

Do not disassemble or modify

the USB Type-C charging ports.

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent battery discharge

Do not use the USB Type-C

charging ports for a long period of

time when the engine is off.

Wireless charger (if
equipped)

362

5-4. Using the other interior features

charger will move toward it and
start charging. If the charging coil
inside a portable device moves
outside of the charge area,
charging will automatically stop.
If 2 or more portable devices are
placed on the charging tray, their
charging coils may not be prop-
erly detected and they may not
be charged.

■

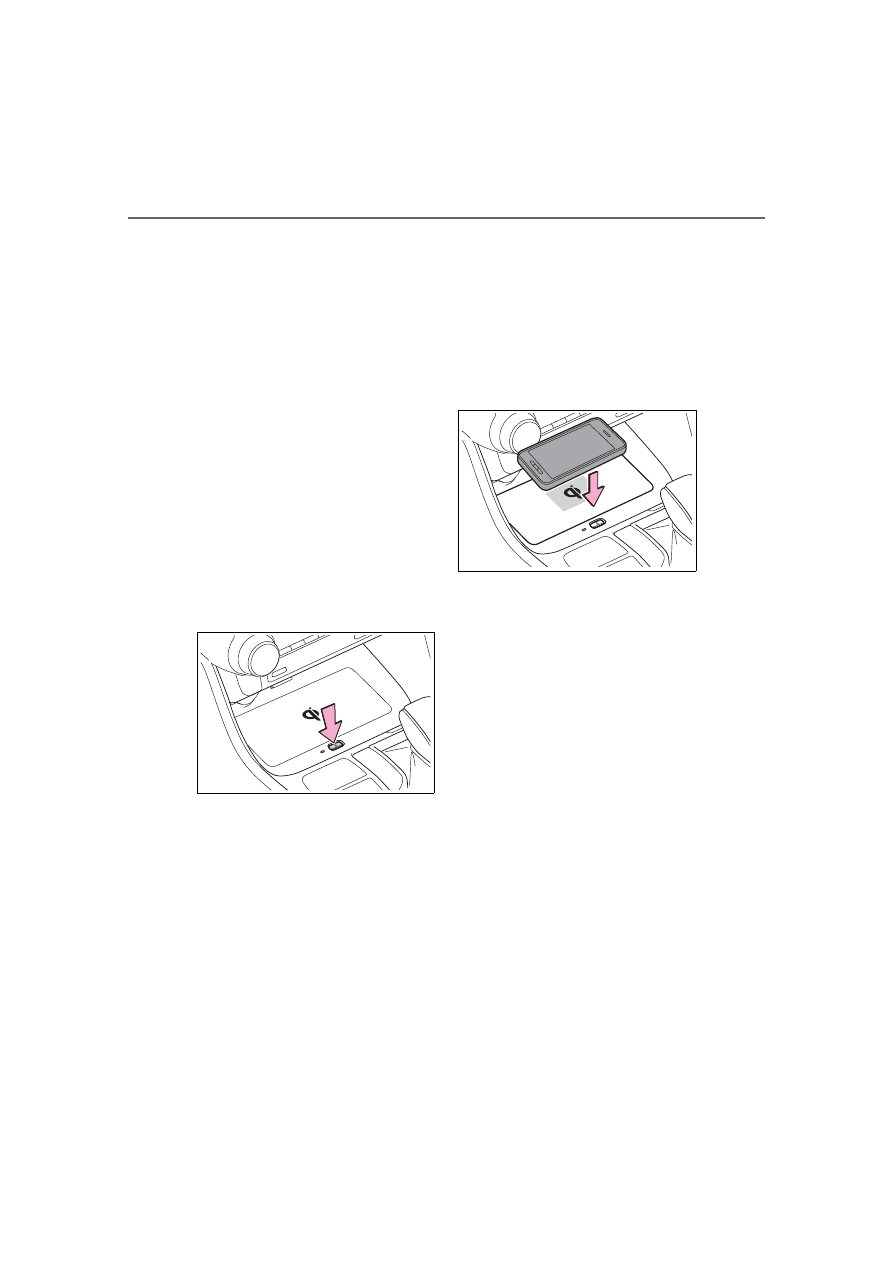

Using the wireless charger

Press the power supply
switch of the wireless char-
ger.

Switches on and off with each

press of the power supply switch.
When turned on, the operation indi-

cator light (green) comes on.
Even with the engine off, the on/off

state of the power supply switch is

memorized.

Place the portable device on
the charging tray

Place the charging side of the por-

table device down with the center of

the device in the center of the

charge area. Depending on the por-

table device, its charging coil may

not be in the center of the device. In

this case, place the portable device

so that its charging coil is centered

in the charging area.
When charging, the operation indi-

cator light (orange) comes on.
If charging is not occurring, try plac-

ing the portable device as close to

the center of the charging area as

possible. If charging is not per-

formed, the operation indicator light

will slowly illuminate in green and

orange alternatively and a sound of

charging coil operation may be

heard repeatedly.
When charging is complete, the

operation indicator light (green)

comes on.

■

Recharging function



When charging is complete
and after a fixed time in the
charge suspension state,
charging restarts.



If a portable device is moved
significantly within the
charging area, the charging
coil may disconnect and
charging may temporarily be
stopped. However, if a
charging coil is detected
within the charging area, the
charging coil inside the wire-
less charger will move near
the other coil and charging
will resume.

■

Rapid charging function



The following portable
devices support rapid
charging.

363

5-4. Using the other interior features

Interior

featur

• Portable devices compliant with

WPC Ver1.2.4 and compatible
with rapid charging

• iPhone’s with an iOS version that

supports 7.5 W charging (iPhone
8 and later models)



To switch to the rapid
charging function, press the
power supply switch 3 times
while charging. When rapid
charging is possible, the oper-
ation indicator light will switch
from orange to flashing
between green and orange.



When charging is complete,
the rapid charging function
will stop. Switch again to the
rapid charging function to use
rapid charging again.

■

Lighting conditions of oper-
ation indicator light

:Charging power will not be out-

put during standby. A metallic
object will not be heated, if it is
placed on the charging tray in
this state.

:Depending on the portable

device, there are cases where
the operation indicator light will
continue being lit up orange even
after the charging is complete.

■

When the operation indica-
tor light flashes

When an error occurs, the oper-
ation indicator light flashes an
orange color.
Handle the error based on the
following tables.

Operation

indicator

light

Conditions

Turning off

When the Wireless
charger power supply
is off

Green
(comes
on)

On Standby (charging
possible state)

When charging is com-
plete

Orange
(comes
on)

When placing the por-
table device on the
charging area (detect-
ing the portable device)

Charging

Flashing
between
green and
orange

When any of the follow-
ing portable devices is
using rapid charging
• Portable devices

compliant with WPC
Ver1.2.4 and compat-
ible with rapid
charging

• iPhone’s with an iOS

version that supports
7.5 W charging
(iPhone 8 and later
models)

Operation

indicator

light

Conditions

364

5-4. Using the other interior features



Flashing repeatedly once
every second (Orange)



Repeatedly flashes 3 times
continuously (Orange)

Suspected

causes

Handling method

Vehicle to char-
ger communica-
tion failure.

If the engine is
running, stop
and then restart
the engine. If the
engine switch is
in ACC, start the
engine.
(



P.204)

Suspected

causes

Handling method

Foreign sub-
stance detection:
A metallic for-
eign substance
is in the charge
area, and so the
abnormal heat-
ing prevention
function oper-
ated

Remove the for-
eign substance
from the charge
area.

Portable device
misaligned:
The charging coil
in the portable
device moved
outside of the
charge area, and
so the abnormal
heating preven-
tion function
operated

Remove the por-
table device from
the charging
tray, check that
the operation
indicator light
switches back to
green, and then
once again place
the device near
the center of the
charging tray. If
there is a case or
cover attached
to the portable
device, remove
it.

365

5-4. Using the other interior features

Interior

featur



Repeatedly flashes 4 times
continuously (Orange)

■

The wireless charger can be

operated when

The engine switch is in ACC or ON.

■

Usable portable devices

●

Qi standard wireless charge stan-

dard can be used on compatible

devices. However, not all Qi stan-

dard devices and compatibility are

guaranteed.

●

Starting with mobile phones and

smartphones, it is aimed for low

power electrically supplied porta-

ble devices of no more than 5W.

●

However, charging exceeding 5 W

is supported by the following por-

table devices.

• Charging at 7.5 W or less is sup-

ported by iPhone’s that support

7.5 W charging.

• Charging at 10 W or less is sup-

ported by portable devices compli-

ant with EPP output as defined by

WPC standard Ver1.2.4.

■

Using the smart key system

If the smart key system detects the

key while a device is being charged,

charging will be temporarily

stopped.

■

When covers and accessories

are attached to portable devices

Do not charge in situations where

cover and accessories not able to

handle Qi are attached to the porta-

ble device. Depending on the type

of cover (including the certain genu-

ine manufacture parts) and acces-

sory, it may not be possible to

charge. When charging is not per-

formed even with the portable

device placed on the charge area,

remove the cover and accessories.

■

While charging, noise enters

the AM radio

●

Turn off the wireless charger and

confirm that the noise has

decreased. If the noise

decreases, continuously pushing

the power supply switch of the

wireless charger for 2 seconds,

the frequency of the charger can

be changed and the noise can be

reduced. Also, on that occasion,

the operation indicator light will

flash orange 2 times.

●

iPhone’s use a particular fre-

quency for rapid charging.

Depending on the iOS version,

rapid charging may not be per-

formed while switching frequen-

cies.

■

Important points of the wireless

charger

●

If the electronic key cannot be

detected within the vehicle inte-

rior, charging cannot be done.

When the door is opened and

closed, charging may be tempo-

rarily suspended.

●

When charging, the wireless

charging device and portable

device will get warmer, however

this is not a malfunction.

When a portable device gets

warm while charging, charging

may stop due to the protection

function on the portable device

side. In this case, when the tem-

perature of the portable device

drops significantly, charge again.

The fan may start operating to lower

the temperature inside the wireless

charger, however this is not a mal-

Suspected

causes

Handling method

Safety shut-
down resulting
when the tem-
perature within
the wireless
charger
exceeded the set
value

Stop charging,
remove the por-
table device from
the charging
tray, wait for the
temperature to
drop, and then
start charging
again.

366

5-4. Using the other interior features

function.

■

Operation sounds

A buzzing noise may be heard when

pressing the power supply switch to

turn the power supply on, when

turning the engine switch to ACC or

ON while the wireless charger

power supply is on, or when detect-

ing a portable device. However, this

is not a malfunction.

■

If the smartphone OS has been

updated

If the smartphone OS has been

updated to a newer version, its

charging specifications may have

changed significantly. For details,

check the information on the manu-

facturer’s website.

■

Trademark information

iPhone is a trademark of Apple Inc.,

registered in the U.S. and other

countries.

WARNING

■

Caution while driving

When charging a portable device,

for safety reasons, the driver

should not operate the main part

of the portable device while driv-

ing.

■

Caution while in motion

Do not charge lightweight devices

such as wireless headphones

while in motion. These devices

are very light and may be ejected

from the charging tray, which may

lead to unforeseen accidents.

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy-pacemakers or

implantable cardioverters, as well

as any other electrical medical

device, should consult their physi-

cian about the usage of the wire-

less charger.

■

To prevent malfunctions or

burns

Observe the following precau-

tions. Failure to do so may result

in a equipment failure and dam-

age, catch fire, burns due to over-

heat or electric shock.

●

Do not insert any metallic

objects between the charge

area and the portable device

while charging

●

Do not attach an aluminum

sticker or other metallic object to

the charge area

●

Do not attach an aluminum

sticker or other metallic object to

the side of the portable device

(or to its case or cover) that

touches the charge area

●

Do not use the charging tray as

a small storage space

●

Do not subject to a strong force

or impact

●

Do not disassemble, modify or

remove

●

Do not charge devices other

than specified portable devices

●

Keep away from magnetic items

●

Do not charge devices if the

charge area is covered in dust

●

Do not cover with a cloth or sim-

ilar material

NOTICE

■

Situations in which the func-

tion may not operate normally

Devices may not be charged nor-

mally in the following situations.

●

The portable device is fully

charged

367

5-4. Using the other interior features

Interior

featur

NOTICE

●

The portable device is being

charged with a cable connected

●

There is foreign matter between

the charge area and portable

device

●

Charging has caused the porta-

ble device to heat up

●

The temperature around the

charging tray is 95°F (35°C) or

higher, such as in extreme heat

●

The portable device is placed

with its charging side facing up

●

When the charging coil for the

portable device is misaligned

from the charge area (In particu-

lar, small portable devices such

as foldable devices may be mis-

aligned from the charging area

while driving)

●

The portable device is larger

than the charging tray

●

The camera lens protrudes 3

mm (0.12 in) or more from the

surface of the portable device

●

The vehicle is in an area where

strong electrical waves or noise

are emitted, such as near a tele-

vision tower, power plant, gaso-

line station, broadcasting

station, large display, airport,

etc.

●

Any of the following objects that

is 0.08 in (2 mm) or thicker is

between the charging side of

the portable device and the

charge area

• Thick cases or covers

• Thick decorations

• Accessories, such as finger

rings, straps, etc.

●

When the portable device is in

contact with, or is covered by

any of the following metallic

objects:

• A card that has metal on it, such

as aluminum foil, etc.

• A pack of cigarettes that

includes aluminum foil

• A wallet or bag that is made of

metal

• Coins

• A heating pad

• CDs, DVDs or other media

• A metal accessory

• A case or cover made of metal

• Casing which has magnet in it

on the charging side of the por-

table device

●

Electric wave type wireless

remote controls are being used

nearby

●

The electronic key is not inside

the vehicle

●

2 or more portable devices are

placed on the charging tray at

the same time

If charging is abnormal or the

operation indicator light contin-

ues to flash for any other reason,

the wireless charger may be mal-

functioning. Contact your Toyota

dealer.

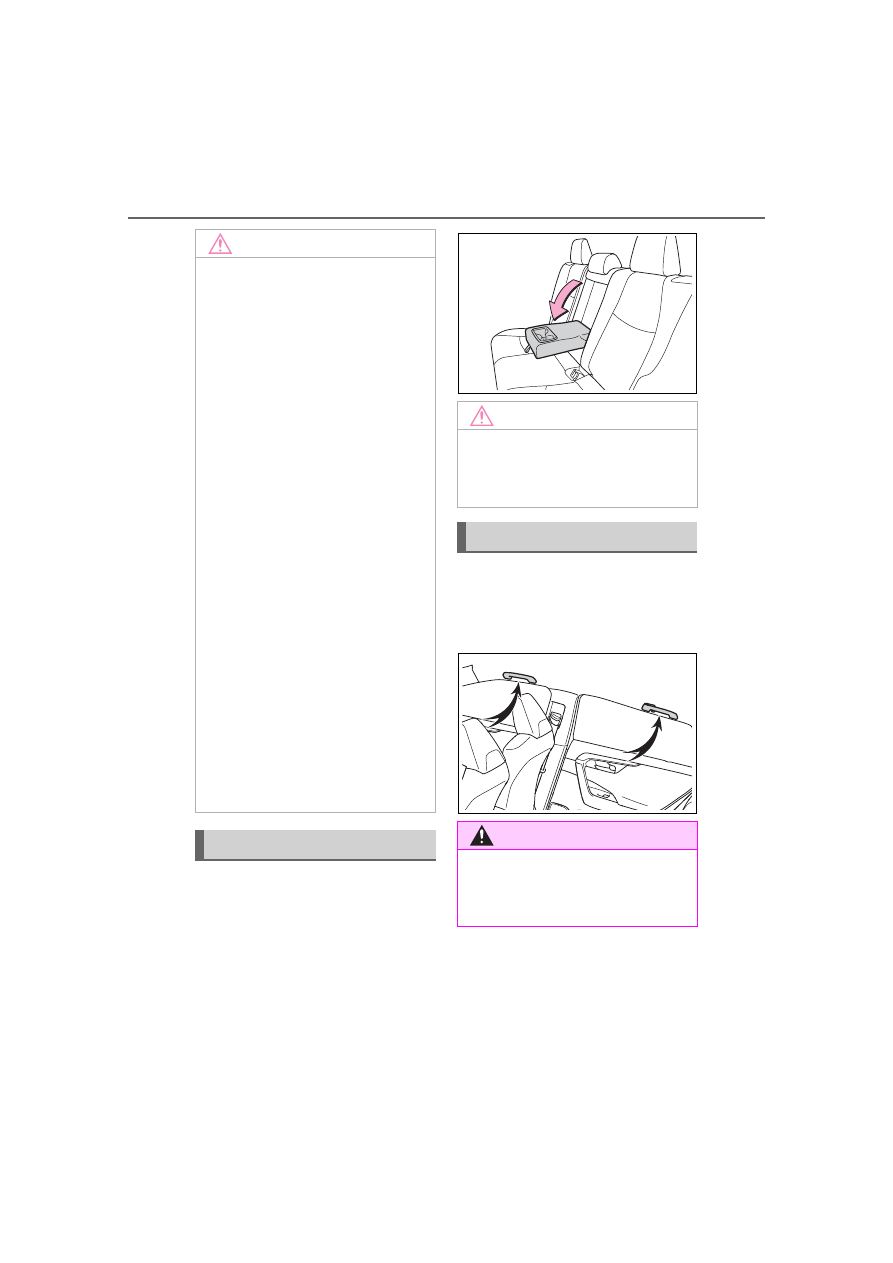

368

5-4. Using the other interior features

Fold down the armrest for use.

An assist grip installed on the
ceiling can be used to support
your body while sitting on the
seat.

NOTICE

■

To prevent malfunctions and

data corruptions

●

When charging, bringing a

credit, or other magnetic card,

or magnetic storage media

close to the charge area may

clear any stored data due to

magnetic influence. Also, do not

bring a wristwatch or other pre-

cision instrument close to the

charge area since doing so may

cause it to malfunction.

●

Do not charge with a non-con-

tact IC card such as a transpor-

tation system IC card inserted

between the charging side of a

portable device and the charge

area. The IC chip may become

extremely hot and damage the

portable device or IC card. Be

especially careful not to charge

a portable device inside a case

or cover with a non-contact IC

card attached.

●

Do not leave portable devices

inside the vehicle. The inside of

the vehicle can become hot in

extreme heat, which could

cause a malfunction.

■

To prevent battery discharge

Do not use the wireless charger

for a long period of time when the

engine is stopped.

Armrest

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

Assist grips

WARNING

■

Assist grips

Do not use the assist grip when

getting in or out of the vehicle or

rising from your seat.

Content .. 20 21 22 23 ..
