4-5. Using the driving support systems

ing

●

The parking brake is not engaged

●

The engine switch is in ON

■

Automatic system cancelation

of hill-start assist control

The hill-start assist control will turn

off in any of the following situations:

●

The shift lever is shifted to P or N

●

The accelerator pedal is

depressed

●

The parking brake is engaged

●

2 seconds at maximum elapsed

after the brake pedal is released

●

The engine switch is turned to

OFF

■

Sounds and vibrations caused

by the ABS, brake assist, VSC,

TRAC, Trailer Sway Control and

hill-start assist control systems

●

A sound may be heard from the

engine compartment when the

brake pedal is depressed repeat-

edly, when the engine is started or

just after the vehicle begins to

move. This sound does not indi-

cate that a malfunction has

occurred in any of these systems.

●

Any of the following conditions

may occur when the above sys-

tems are operating. None of these

indicates that a malfunction has

occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard also

after the vehicle comes to a stop.

• The brake pedal may pulsate

slightly after the ABS is activated.

• The brake pedal may move down

slightly after the ABS is activated.

■

Active Cornering Assist opera-

tion sounds and vibrations

When the Active Cornering Assist is

operated, operation sounds and

vibrations may be generated from

the brake system, but this is not a

malfunction.

■

AWD system operation sounds

and vibrations when switching

between AWD and front wheel

drive

When the vehicle switches from

AWD to front wheel drive and vice

versa, operation sounds and vibra-

tions may be generated, but this is

not a malfunction.

■

Automatic reactivation of

TRAC, Trailer Sway Control and

VSC systems

After turning the TRAC, Trailer

Sway Control and VSC systems off,

the systems will be automatically re-

enabled in the following situations:

●

When the engine switch is turned

off

●

If only the TRAC system is turned

off, the TRAC will turn on when

vehicle speed increases.

If both the TRAC and VSC sys-

tems are turned off, automatic re-

enabling will not occur when vehi-

cle speed increases

■

Operating conditions of Active

Cornering Assist

The system operates when the fol-

lowing occurs.

●

TRAC/VSC can operate

●

The driver is attempting to accel-

erate while turning

●

The system detects that the vehi-

cle is drifting to the outer side

●

The brake pedal is released

■

Reduced effectiveness of the

EPS system

The effectiveness of the EPS sys-

tem is reduced to prevent the sys-

tem from overheating when there is

frequent steering input over an

extended period of time. The steer-

ing wheel may feel heavy as a

result. Should this occur, refrain

from excessive steering input or

stop the vehicle and turn the engine

off. The EPS system should return

to normal within 10 minutes.

322

4-5. Using the driving support systems

■

Secondary Collision Brake

operating conditions

The system operates when the SRS

airbag sensor detects a collision

while the vehicle is in motion. How-

ever, the system does not operate

when the components are dam-

aged.

■

Secondary Collision Brake

automatic cancellation

The system is automatically can-

celed in any of the following situa-

tions.

●

The vehicle speed is below 6 mph

(10 km/h)

●

A certain amount of time elapses

during operation

●

The accelerator pedal is

depressed a large amount

■

If a message about AWD is

shown on the multi-information

display (AWD models)

Perform the following actions.

●

“AWD System Overheated

Switching to 2WD Mode”

AWD system is overheated. Stop
the vehicle in a safe place with the
engine running.

If the message disappears after a
while, there is no problem. If the
message remains, have the vehicle
inspected by your Toyota dealer
immediately.

●

“AWD System Overheated 2WD

Mode Engaged”

AWD system has been temporarily
released and switched to front-
wheel drive due to overheating.
Stop the vehicle in a safe place with
the engine running.

If the message disappears after a
while, AWD system will automati-
cally recover. If the message
remains, have the vehicle inspected

by your Toyota dealer immediately.

●

“AWD System Malfunction 2WD

Mode Engaged Visit Your Dealer”

A malfunction occurs in the AWD
system. Have the vehicle inspected
by your Toyota dealer immediately.

: When stopping the vehicle, do not

stop the engine until the display
message has turned off.

WARNING

■

The ABS does not operate

effectively when

●

The limits of tire gripping perfor-

mance have been exceeded

(such as excessively worn tires

on a snow-covered road).

●

The vehicle hydroplanes while

driving at high speed on wet or

slick roads.

■

Stopping distance when the

ABS is operating may exceed

that of normal conditions

The ABS is not designed to

shorten the vehicle’s stopping dis-

tance. Always maintain a safe dis-

tance from the vehicle in front of

you, especially in the following sit-

uations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the

road

●

When driving over roads with

potholes or uneven surfaces

323

4-5. Using the driving support systems

ing

WARNING

■

TRAC/VSC may not operate

effectively when

Directional control and power may

not be achievable while driving on

slippery road surfaces, even if the

TRAC/VSC system is operating.

Drive the vehicle carefully in con-

ditions where stability and power

may be lost.

■

Active Cornering Assist does

not operate effectively when

●

Do not overly rely on Active

Cornering Assist. Active Corner-

ing Assist may not operate

effectively when accelerating

down slopes or driving on slip-

pery road surfaces.

●

When Active Cornering Assist

frequently operates, Active Cor-

nering Assist may temporarily

stop operating to ensure proper

operation of the brakes, TRAC

and VSC.

■

Hill-start assist control does

not operate effectively when

●

Do not overly rely on hill-start

assist control. Hill-start assist

control may not operate effec-

tively on steep inclines and

roads covered with ice.

●

Unlike the parking brake, hill-

start assist control is not

intended to hold the vehicle sta-

tionary for an extended period

of time. Do not attempt to use

hill-start assist control to hold

the vehicle on an incline, as

doing so may lead to an acci-

dent.

■

When the TRAC/VSC/Trailer

Sway Control is activated

The slip indicator light flashes.

Always drive carefully. Reckless

driving may cause an accident.

Exercise particular care when the

indicator light flashes.

■

When the TRAC/VSC/Trailer

Sway Control systems are

turned off

Be especially careful and drive at

a speed appropriate to the road

conditions. As these are the sys-

tems to help ensure vehicle stabil-

ity and driving force, do not turn

the TRAC/VSC/Trailer Sway Con-

trol systems off unless necessary.
Trailer Sway Control is part of the

VSC system and will not operate

if VSC is turned off or experiences

a malfunction.

■

Dynamic Torque Vectoring

AWD system (if equipped)

The cornering performance of the

newly developed AWD system

has been improved. However, do

not overly rely on the system and

drive with caution.

■

Replacing tires

Make sure that all tires are of the

specified size, brand, tread pat-

tern and total load capacity. In

addition, make sure that the tires

are inflated to the recommended

tire inflation pressure level.

The ABS, TRAC, Trailer Sway

Control and VSC systems will not

function correctly if different tires

are installed on the vehicle.

Contact your Toyota dealer for

further information when replacing

tires or wheels.

■

Handling of tires and the sus-

pension

Using tires with any kind of prob-

lem or modifying the suspension

will affect the driving assist sys-

tems, and may cause a system to

malfunction.

324

4-5. Using the driving support systems

WARNING

■

Trailer Sway Control precau-

tion

The Trailer Sway Control system

is not able to reduce trailer sway

in all situations. Depending on

many factors such as the condi-

tions of the vehicle, trailer, road

surface and driving environment,

the Trailer Sway Control system

may not be effective. Refer to

your trailer owner’s manual for

information on how to tow your

trailer properly.

■

If trailer sway occurs

Observe the following precau-

tions.

Failing to do so may cause death

or serious injury.

●

Firmly grip the steering wheel.

Steer straight ahead. Do not try

to control trailer sway by turning

the steering wheel.

●

Begin releasing the accelerator

pedal immediately but very

gradually to reduce speed.

Do not increase speed. Do not

apply vehicle brakes.

If you make no extreme correction
with the steering or brakes, your
vehicle and trailer should stabi-
lize. (



P.189)

■

Secondary Collision Brake

Do not rely solely upon the Sec-

ondary Collision Brake. This sys-

tem is designed to help reduce

the possibility of further damage

due to a secondary collision, how-

ever, that effect changes accord-

ing to various conditions. Overly

relying on the system may result

in death or serious injury.

325

4-6. Driving tips

ing

4-6.Driving tips



Use fluids that are appropriate
to the prevailing outside tem-
peratures.

• Engine oil
• Engine coolant
• Washer fluid



Have a service technician
inspect the condition of the
battery.



Have the vehicle fitted with
four snow tires or purchase a
set of tire chains for the front
tires.

Ensure that all tires are the same
size and brand, and that chains
match the size of the tires.

: Tire chains cannot be mounted

on vehicles with 235/55R19 tires.

Winter driving tips

Carry out the necessary
preparations and inspec-
tions before driving the
vehicle in winter. Always
drive the vehicle in a man-
ner appropriate to the pre-
vailing weather conditions.

Pre-winter preparations

WARNING

■

Driving with snow tires

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Use tires of the specified size.

●

Maintain the recommended

level of air pressure.

●

Do not drive in excess of 75

mph (120 km/h), regardless of

the type of snow tires being

used.

●

Use snow tires on all, not just

some wheels.

■

Driving with tire chains

(except 235/55R19 tires)

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in the

vehicle being unable to be driven

safely, and may cause death or

serious injury.

●

Do not drive in excess of the

speed limit specified for the tire

chains being used, or 30 mph

(50 km/h), whichever is lower.

●

Avoid driving on bumpy road

surfaces or over potholes.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

●

Slow down sufficiently before

entering a curve to ensure that

vehicle control is maintained.

●

Do not use LTA (Lane Tracing

Assist) system.

NOTICE

■

Repairing or replacing snow

tires (vehicles with tire pres-

sure warning system)

Request repairs or replacement of

snow tires from your Toyota

dealer or legitimate tire retailers.

This is because the removal and

attachment of snow tires affects

the operation of the tire pressure

warning valves and transmitters.

326

4-6. Driving tips

Perform the following according
to the driving conditions:



Do not try to forcibly open a
window or move a wiper that
is frozen. Pour warm water
over the frozen area to melt
the ice. Wipe away the water
immediately to prevent it from
freezing.



To ensure proper operation of
the climate control system
fan, remove any snow that
has accumulated on the air
inlet vents in front of the wind-
shield.



Check for and remove any
excess ice or snow that may
have accumulated on the
exterior lights, outside rear
view mirrors, windows, vehi-
cle’s roof, chassis, around the
tires or on the brakes.



Remove any snow or mud
from the bottom of your shoes
before getting in the vehicle.

Accelerate the vehicle slowly,
keep a safe distance between
you and the vehicle ahead, and
drive at a reduced speed suit-
able to road conditions.



Turn automatic mode of the

parking brake off. Otherwise,
the parking brake may freeze
and not be able to be
released automatically.

Also, avoid using the following as
the parking brake may operate
automatically, even if automatic
mode is off.
• Brake hold system



Park the vehicle and shift the
shift lever to P without setting
the parking brake. The park-
ing brake may freeze up, pre-
venting it from being released.
If the vehicle is parked without
setting the parking brake,
make sure to block the
wheels. Failure to do so may
be dangerous because it may
cause the vehicle to move
unexpectedly, possibly lead-
ing to an accident.



When the parking brake is in
automatic mode, release the
parking brake after shifting
the shift lever to P. (



P.215)



If the vehicle is parked without
setting the parking brake,
confirm that the shift lever
cannot be moved out of P.



If the vehicle is left parked
with the brakes damp in cold
temperatures, there is a pos-
sibility of the brakes freezing.

Before driving the vehicle

When driving the vehicle

When parking the vehicle

327

4-6. Driving tips

ing



Vehicles without 235/55R19
tires

Use the correct tire chain size
when mounting the tire chains.
Chain size is regulated for each
tire size.

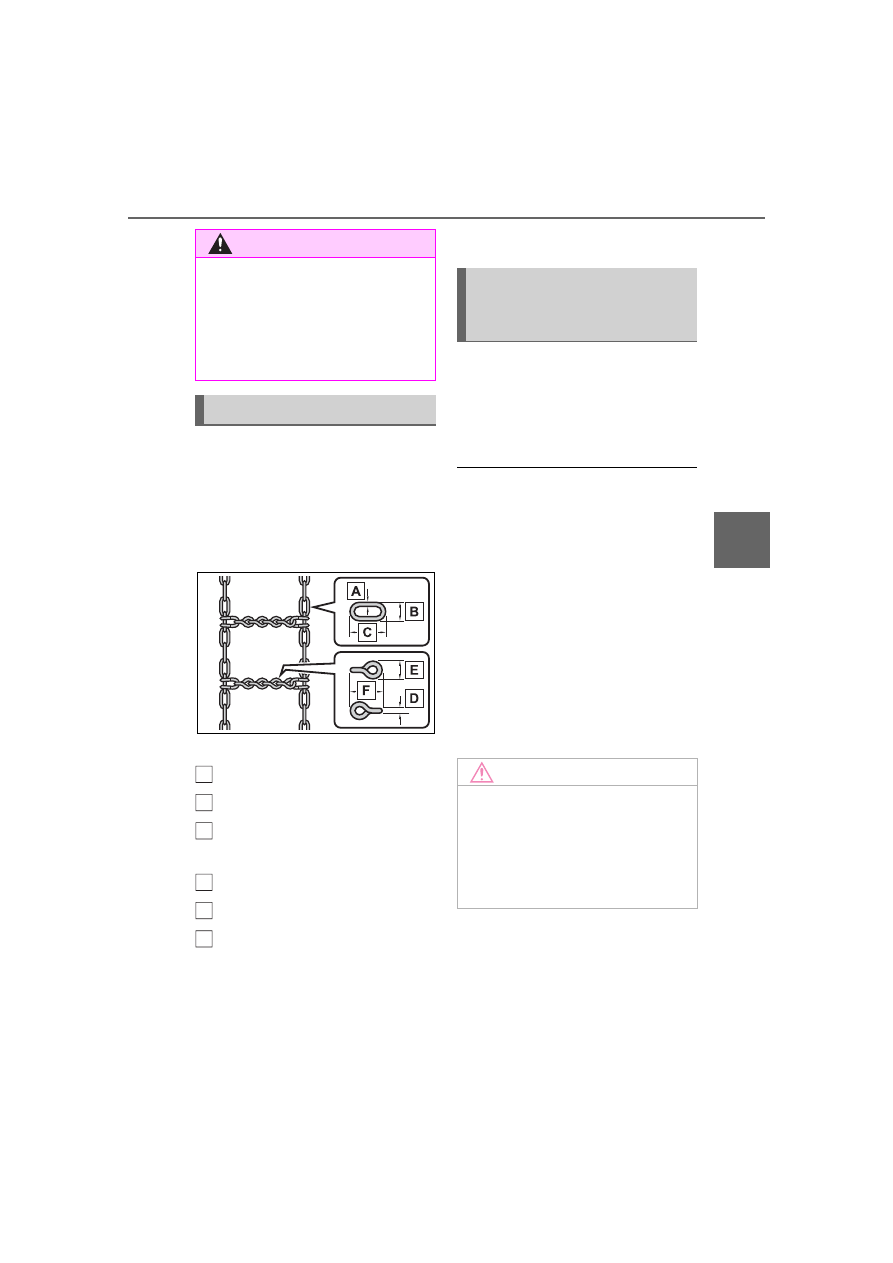

Side chain:

0.12 in. (3 mm) in diameter

0.39 in. (10 mm) in width

1.18 in. (30 mm) in length

Cross chain:

0.16 in. (4 mm) in diameter

0.55 in. (14 mm) in width

0.98 in. (25 mm) in length



Vehicles with 235/55R19 tires

Tire chains cannot be mounted.
Snow tires should be used

instead.

Regulations regarding the use
of tire chains vary depending on
location and type of road.
Always check local regulations
before installing chains.

■

Tire chain installation

Observe the following precautions

when installing and removing

chains:

●

Install and remove tire chains in a

safe location.

●

Install tire chains on the front tires

only. Do not install tire chains on

the rear tires.

●

Install tire chains on front tires as

tightly as possible. Retighten

chains after driving 1/4 - 1/2 mile

(0.5 - 1.0 km).

●

Install tire chains following the

instructions provided with the tire

chains.

WARNING

■

When parking the vehicle

When parking the vehicle without

applying the parking brake, make

sure to chock the wheels. If you

do not chock the wheels, the vehi-

cle may move unexpectedly, pos-

sibly resulting in an accident.

Selecting tire chains

Regulations on the use of
tire chains (except
235/55R19 tires)

NOTICE

■

Fitting tire chains (vehicles

with tire pressure warning

system)

The tire pressure warning valves

and transmitters may not function

correctly when tire chains are fit-

ted.

328

4-6. Driving tips



Specific design characteris-
tics give it a higher center of
gravity than ordinary passen-
ger cars. This vehicle design
feature causes this type of
vehicle to be more likely to
rollover. And, utility vehicles
have a significantly higher
rollover rate than other types
of vehicles.



An advantage of the higher
ground clearance is a better
view of the road allowing you
to anticipate problems.



It is not designed for corner-
ing at the same speeds as
ordinary passenger cars any
more than low-slung sports
cars are designed to perform
satisfactorily under off-road
conditions. Therefore, sharp
turns at excessive speeds
may cause the vehicle to roll-
over.

When driving your vehicle off-

Utility vehicle precau-

tions

This vehicle belongs to the
utility vehicle class, which
has higher ground clear-
ance and narrower tread in
relation to the height of its
center of gravity to make it
capable of performing in a
wide variety of off-road
applications.

Utility vehicle feature

WARNING

■

Utility vehicle precautions

Always observe the following pre-

cautions to minimize the risk of

death, serious injury or damage to

your vehicle:

●

In a rollover crash, an unbelted

person is significantly more

likely to die than a person wear-

ing a seat belt. Therefore, the

driver and all passengers

should always fasten their seat

belts.

●

Avoid sharp turns or abrupt

maneuvers, if at all possible.

Failure to operate this vehicle

correctly may result in loss of

control or vehicle rollover caus-

ing death or serious injury.

●

Loading cargo on the roof lug-

gage carrier (if equipped) will

make the center of the vehicle

gravity higher. Avoid high

speeds, sudden starts, sharp

turns, sudden braking or abrupt

maneuvers, otherwise it may

result in loss of control or vehi-

cle rollover due to failure to

operate this vehicle correctly.

●

Always slow down in gusty

crosswinds. Because of its pro-

file and higher center of gravity,

your vehicle is more sensitive to

side winds than an ordinary

passenger car. Slowing down

will allow you to have better

control.

●

Do not drive horizontally across

steep slopes. Driving straight up

or straight down is preferred.

Your vehicle (or any similar off-

road vehicle) can tip over side-

ways much more easily than

forward or backward.

Off-road driving

329

4-6. Driving tips

ing

road, please observe the follow-
ing precautions to ensure your
driving enjoyment and to help
prevent the closure of areas to
off-road vehicles:



Drive your vehicle only in
areas where off-road vehicles
are permitted to travel.



Respect private property. Get
owner’s permission before
entering private property.



Do not enter areas that are
closed. Honor gates, barriers
and signs that restrict travel.



Stay on established roads.
When conditions are wet,
driving techniques should be
changed or travel delayed to
prevent damage to roads.

■

Additional information for off-

road driving



For owners in U.S. mainland,

Hawaii and Puerto Rico:

To obtain additional information per-
taining to driving your vehicle off-
road, consult the following organiza-
tions:

• State and Local Parks and Recre-

ation Departments

• State Motor Vehicle Bureau

• Recreational Vehicle Clubs

• U.S. Forest Service and Bureau of

Land Management

WARNING

■

Off-road driving precautions

Always observe the following pre-

cautions to minimize the risk of

death, serious injury or damage to

your vehicle:

●

Drive carefully when off the

road. Do not take unnecessary

risks by driving in dangerous

places.

●

Do not grip the steering wheel

spokes when driving off-road. A

bad bump could jerk the wheel

and injure your hands. Keep

both hands and especially your

thumbs on the outside of the

rim.

●

Always check your brakes for

effectiveness immediately after

driving in sand, mud, water or

snow.

●

After driving through tall grass,

mud, rock, sand, rivers, etc.,

check that there is no grass,

bush, paper, rags, stone, sand,

etc. adhering or trapped on the

underbody. Clear off any such

matter from the underbody. If

the vehicle is used with these

materials trapped or adhering to

the underbody, a breakdown or

fire could occur.

330

4-6. Driving tips

WARNING

●

When driving off-road or in rug-

ged terrain, do not drive at

excessive speeds, jump, make

sharp turns, strike objects, etc.

This may cause loss of control

or vehicle rollover causing

death or serious injury. You are

also risking expensive damage

to your vehicle’s suspension

and chassis.

NOTICE

■

To prevent the water damage

Take all necessary safety mea-

sures to ensure that water dam-

age to the engine or other

components does not occur.

●

Water entering the engine air

intake will cause severe engine

damage.

●

Water entering the automatic

transmission will cause deterio-

ration in shift quality, locking up

of your transmission accompa-

nied by vibration, and ultimately

damage.

●

Water can wash the grease

from wheel bearings, causing

rusting and premature failure,

and may also enter the differen-

tials, transmission and transfer

case (AWD models), reducing

the gear oil’s lubricating quali-

ties.

■

When you drive through

water

If driving through water, such as

when crossing shallow streams,

first check the depth of the water

and the bottom of the riverbed for

firmness. Drive slowly and avoid

deep water.

■

Inspection after off-road driv-

ing

●

Sand and mud that has accu-

mulated around brake discs

may affect braking efficiency

and may damage brake system

components.

●

Always perform a maintenance

inspection after each day of off-

road driving that has taken you

through rough terrain, sand,

mud, or water. For scheduled

maintenance information, refer

to the “Scheduled Maintenance

Guide” or “Owner’s Manual

Supplement”.

331

Interior

featur

Interior features

5-1. Using the air conditioning

system and defogger

Manual air conditioning sys-

tem ............................

332

Automatic air conditioning

system.......................

338

Heated steering wheel/seat

heaters/seat ventilators

..................................

345

5-2. Using the interior lights

Interior lights list ..........

348

5-3. Using the storage features

List of storage features

350

Luggage compartment fea-

tures ..........................

354

5-4. Using the other interior

features

Other interior features .

359

Garage door opener....

370

332

5-1. Using the air conditioning system and defogger

5-1.Using the air conditioning system and defogger

: If equipped

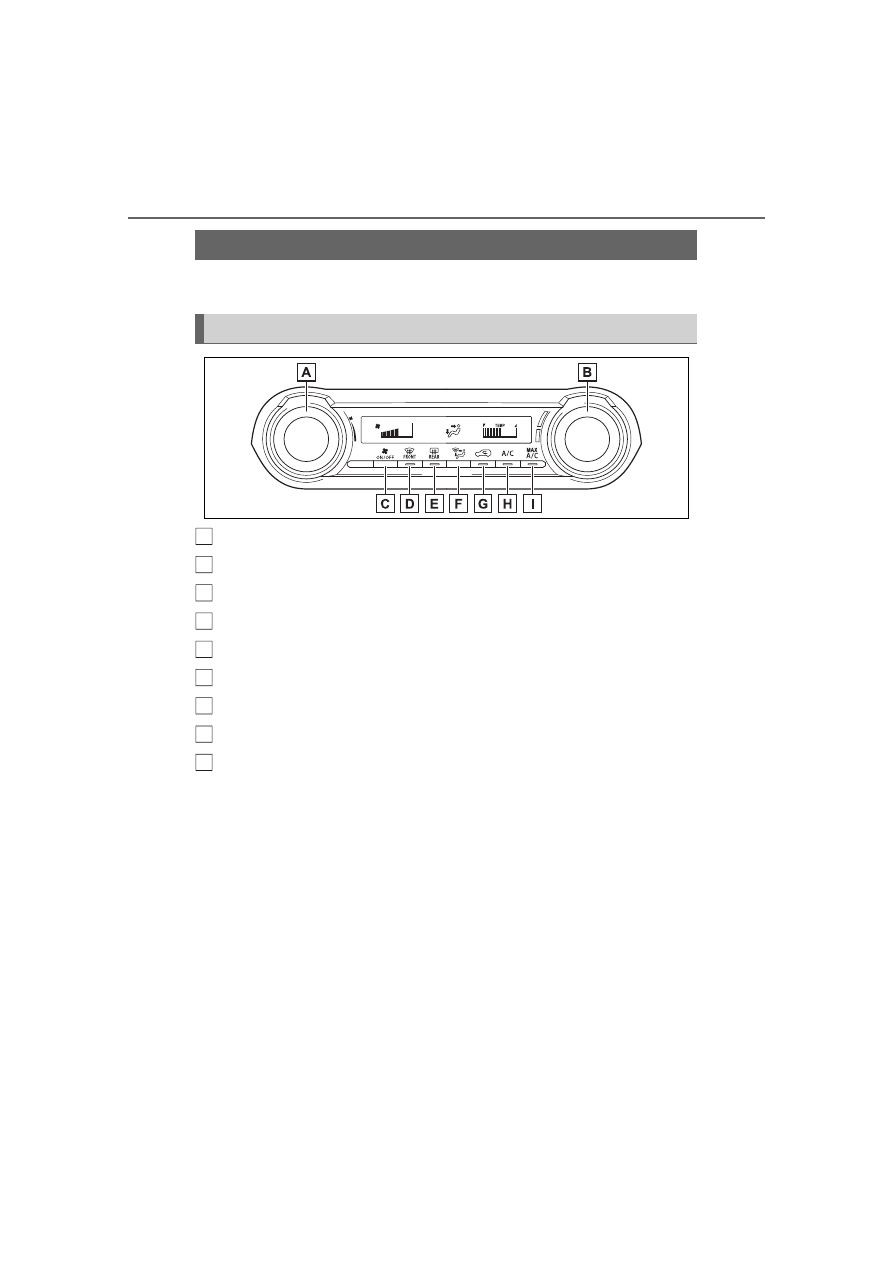

Fan speed control switch

Temperature control switch

On/off switch

Windshield defogger switch

Rear window and outside rear view mirror defoggers

switch

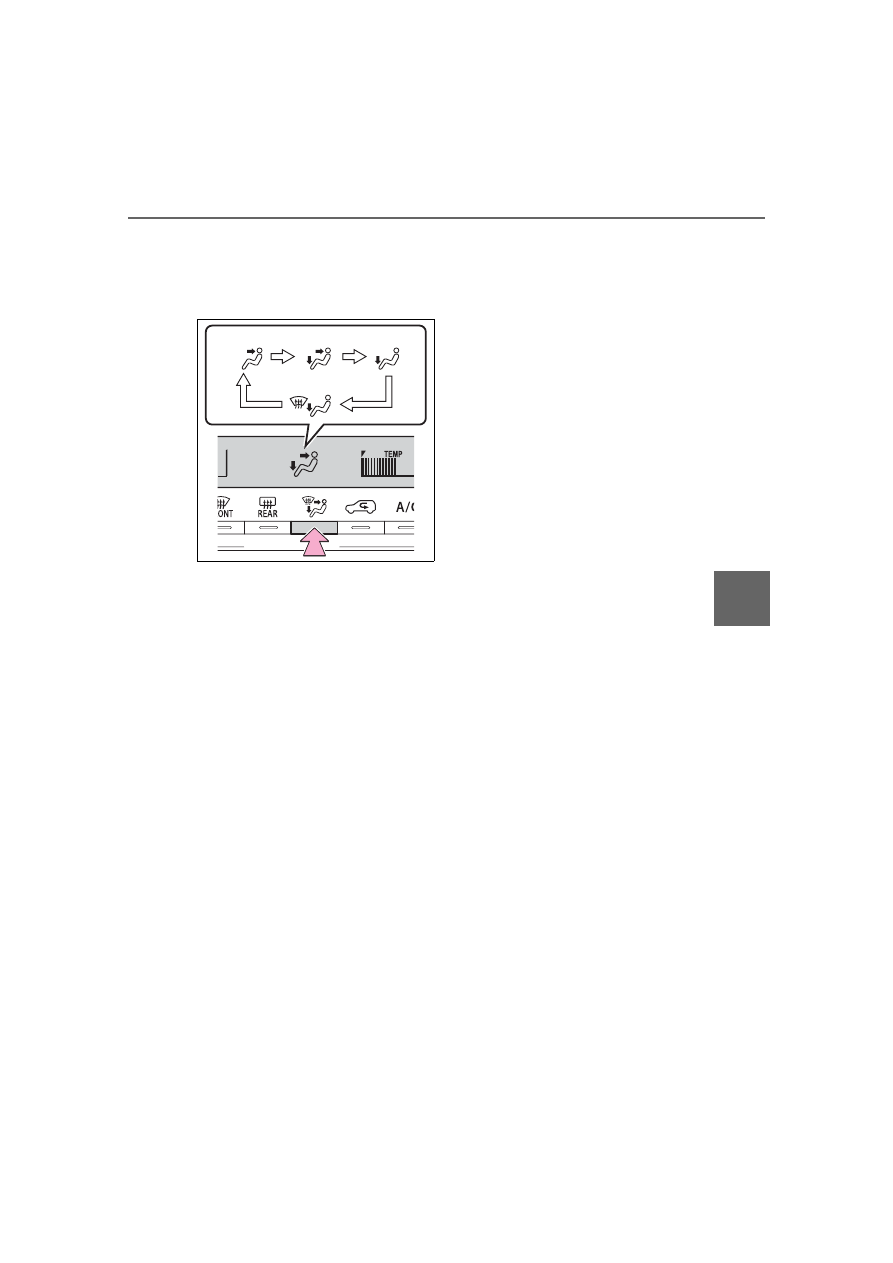

Airflow mode control switch

Outside/recirculated air mode switch

“A/C” switch

“MAX A/C” switch

: If equipped

■

Adjusting the temperature
setting

To adjust the temperature set-
ting, turn the temperature con-
trol switch clockwise (warm) or
counterclockwise (cool).

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

■

Fan speed setting

To adjust the fan speed, turn the

fan speed control switch clock-
wise (increase) or counterclock-
wise (decrease).

Pressing the on/off switch turns off
the fan.
When the fan is off, pressing the
on/off switch or turning the fan
speed control switch will turn on the
fan.

■

Change the airflow mode

Press the airflow mode control

Manual air conditioning system

Air conditioning controls

333

5-1. Using the air conditioning system and defogger

Interior

featur

switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

Upper body

Upper body and feet

Feet

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.
The mode switches between
outside air mode and recircu-
lated air mode each time the
switch is operated.

When recirculated air mode is
selected, the indicator illuminates
on the outside/ recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used.
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors (if equipped)

Defoggers are used to defog the
rear window, and to remove
raindrops, dew and frost from
the outside rear view mirrors (if
equipped).
Press the rear window and out-
side rear view mirror defoggers
switch.

When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.
The rear window and rear view mir-

334

5-1. Using the air conditioning system and defogger

ror defoggers automatically turn off
after approximately 60 minutes.
However, the rear window and rear
view mirror defoggers might auto-
matically turn off after approxi-
mately 15 minutes depending on
conditions including the outside
temperature and charging system
conditions.

■

For quick cooling

Press the “MAX A/C” switch.

The air conditioning will automati-

cally turn on.
At this time, the following will occur:

●

The recirculated air mode will be

set

●

The windshield defogger will turn

off

●

The air flow mode will change to

the upper body mode

■

Operation of the air condition-

ing system in Eco drive mode

In Eco drive mode, the air condition-

ing system is controlled to prioritize

fuel efficiency by regulating the

engine speed and compressor oper-

ation to restrict the heating/cooling

capacity.
To improve air conditioning perfor-

mance, perform the following opera-

tions:

●

Adjust the fan speed

●

Adjust the temperature setting

●

Turn off Eco drive mode (



P.310)

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning the “A/C” switch on

will dehumidify the air from the

outlets and defog the windshield

effectively.

●

If you turn the “A/C” switch off, the

windows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode

and the fan speed to any setting

except off.

■

Outside/recirculated air mode

Setting to the recirculated air mode

temporarily is recommended in pre-

venting dirty air from entering the

vehicle interior and helping to cool

the vehicle when the outside air

temperature is high.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when the “A/C”

switch is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning system opera-

tions when the engine is

stopped due to the Stop & Start

system (vehicles with Stop &

Start system)

When the engine is stopped due to

335

5-1. Using the air conditioning system and defogger

Interior

featur

the Stop & Start system operations,

the air conditioning cooling, heating

and dehumidification functions turn

off and only ambient temperature air

is blown, and there is a possibility

that the blowing of ambient tem-

perature air will stop. To prevent the

air conditioning system from turning

off, press the Stop & Start cancel

switch to deactivate the system.

■

When the windshield is fogged

up and the engine is stopped

due to the Stop & Start system

(vehicles with Stop & Start sys-

tem)

Press the windshield defogger

switch to restart the engine and

defog the windshield.
If the windshield continuously fogs

up, press the Stop & Start cancel

switch and refrain from using the

Stop & Start system.

■

When an odor comes from the

air conditioning system while

the engine is stopped due to the

Stop & Start system (vehicles

with Stop & Start system)

Press the Stop & Start cancel switch

to restart the engine.

■

Air conditioning filter



P.420

■

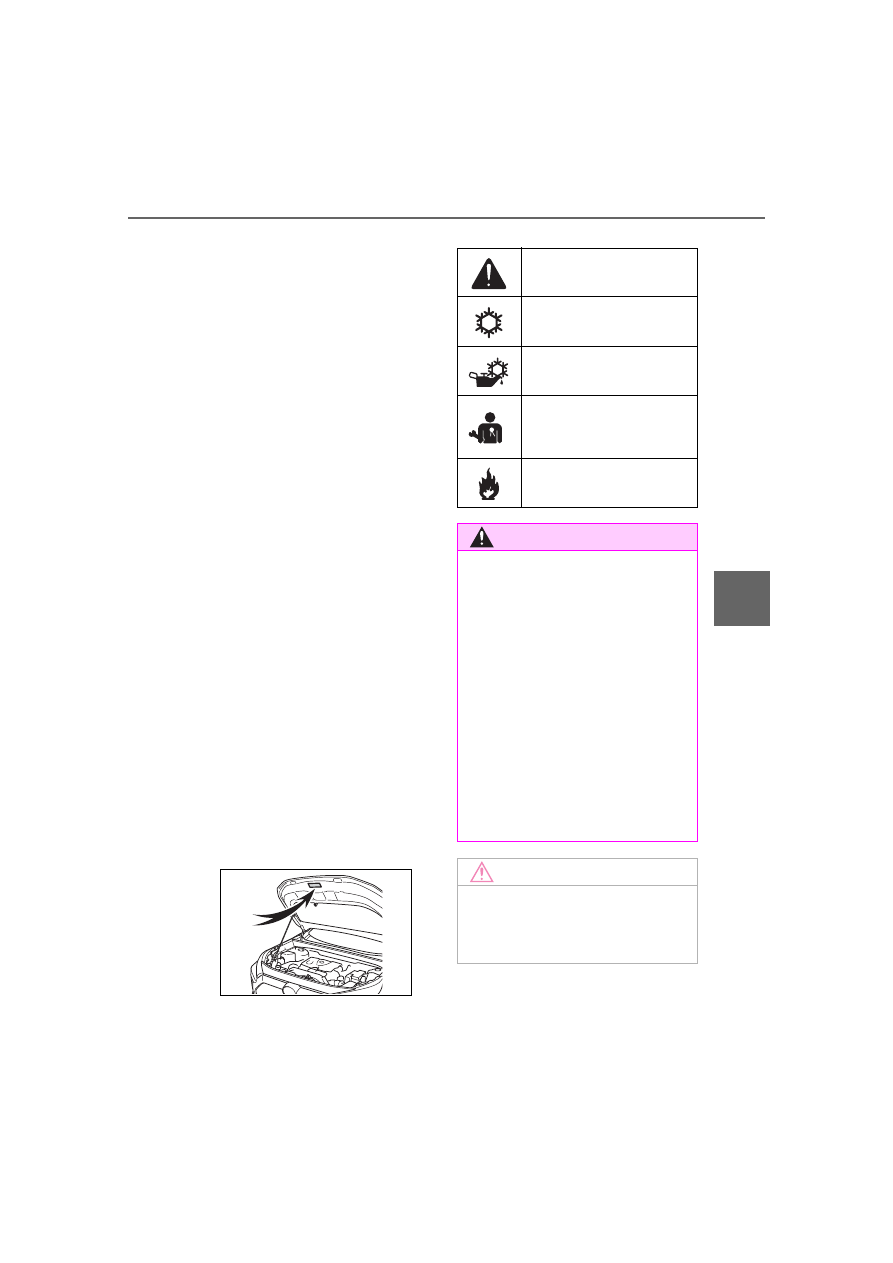

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

Caution

Air conditioning system

Air conditioning system
lubricant type

Requires registered tech-
nician to service air con-
ditioning system

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing (if equipped)

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning

system on longer than necessary

when the engine is off.

336

5-1. Using the air conditioning system and defogger

■

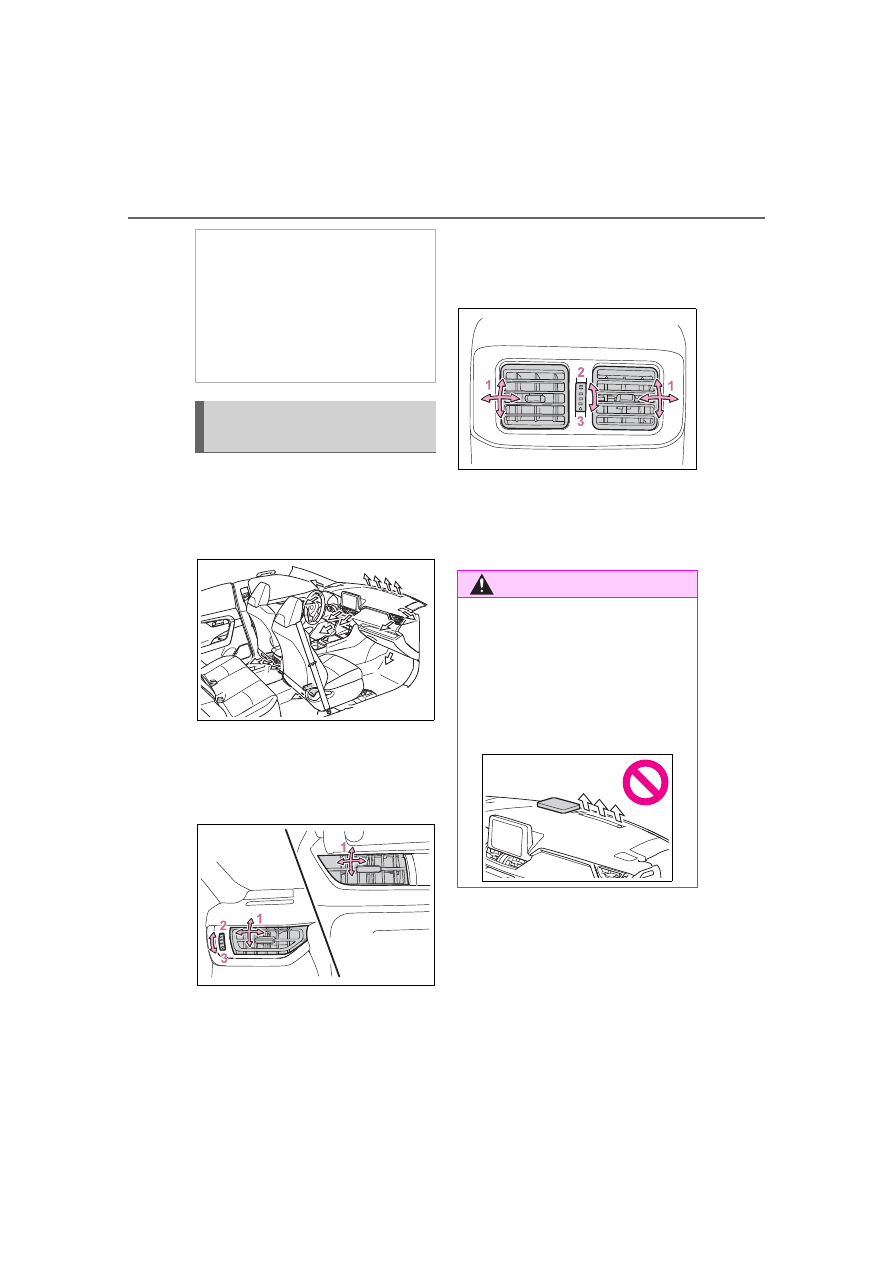

Location of air outlets

The air outlets and air volume
change according to the
selected airflow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

Direct air flow to the left or
right, up or down.

Open the vent

Close the vent



Rear

Direct air flow to the left or
right, up or down

Open the vent

Close the vent

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air condition-

ing system, such as the evapora-

tor, is to be replaced, it must be

replaced with a new one.

Air outlet layout and oper-
ations

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

Toyota RAV4 (2023 year). Manual in english - page 20
