4-5. Using the driving support systems

ing

: If equipped

Meter control switches

Turning the RCTA function on/off.
When the RCTA function is dis-
abled, the RCTA OFF indicator illu-
minates.

Outside rear view mirror indi-
cators

If a vehicle is detected as
approaching from the left or right
behind the vehicle, both outside
rear view mirror indicators will blink
and a buzzer will sound.

Multimedia display

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, the RCTA icon
(



P.290) for the detected side will

be displayed on the Multimedia dis-
play. This illustration shows an
example of a vehicle approaching
from both sides of the vehicle.

The RCTA can be enabled/dis-
abled on

of the multi-infor-

mation display. (



P.509)

When the RCTA function is dis-

RCTA (Rear Cross

Traffic Alert) function

The RCTA function uses the
BSM rear side radar sensors
installed behind the rear
bumper. This function is
intended to assist the driver
in checking areas that are
not easily visible when
backing up.

WARNING

■

Cautions regarding the use of

the system

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.
The RCTA function is only a sup-

plementary function which alerts

the driver that a vehicle is

approaching from the right or left

at the rear of the vehicle.
As the RCTA function may not

function correctly under certain

conditions, the driver’s own visual

confirmation of safety is neces-

sary.
Over reliance on this function may

lead to an accident resulting

death or serious injury.

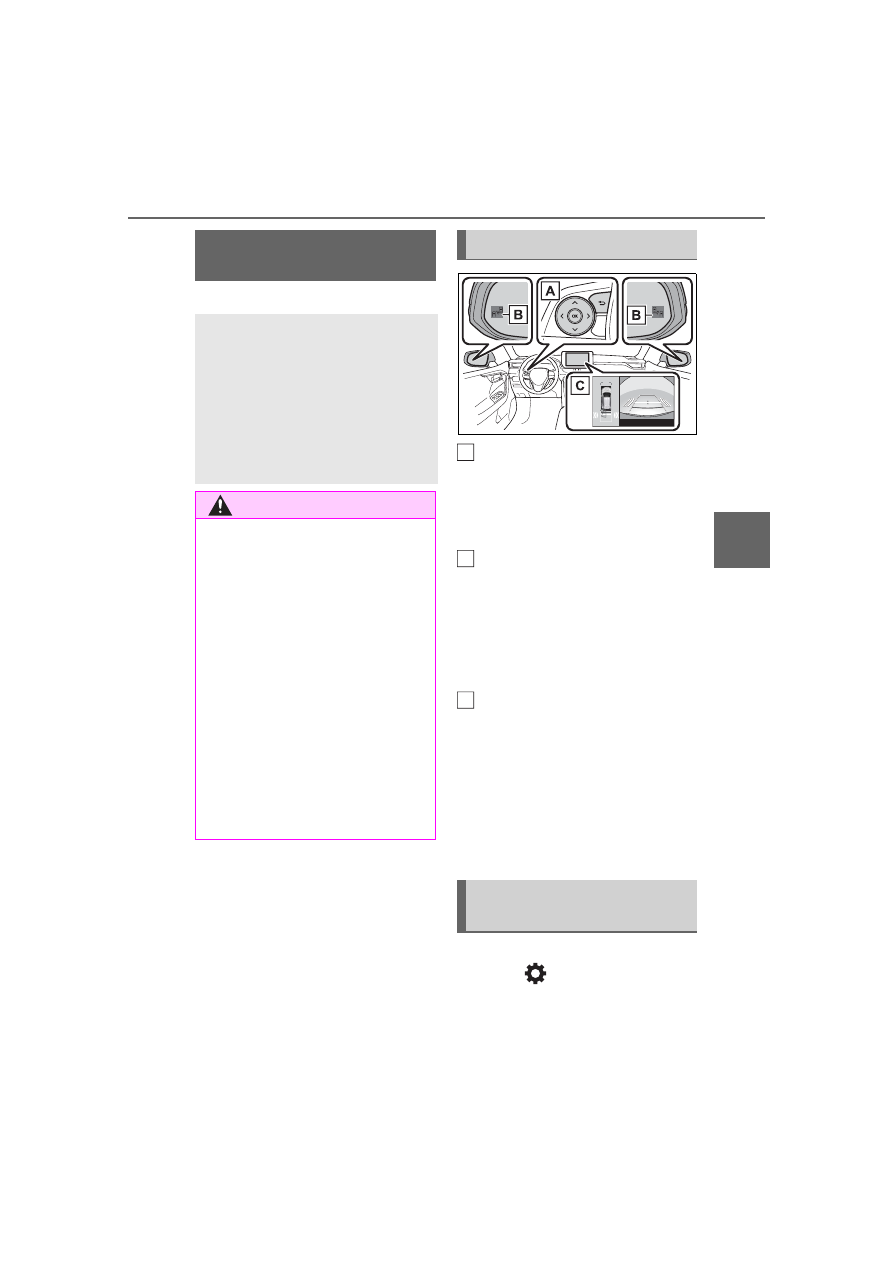

System components

Turning the RCTA func-
tion on/off

290

4-5. Using the driving support systems

abled, the RCTA OFF indicator
(



P.80) illuminates. (Each time

the engine switch is turned to
OFF then changed to ON, the
RCTA function will be enabled
automatically.)

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to

hear over loud noises, such as if the

audio system volume is high.

■

When “Rear Cross Traffic Alert

Unavailable” is shown on the

multi-information display

Ice, snow, mud, etc., may be

attached to the rear bumper around

the sensors. (



P.276) Removing

the ice, snow, mud, etc., from the

attached to the rear bumper around

the sensors to normal. Additionally,

the function may not function nor-

mally when used in extremely hot or

cold environments.

■

When “Rear Cross Traffic Alert

Malfunction Visit Your Dealer”

is shown on the multi-informa-

tion display

There may be a sensor malfunction

or misaligned. Have the vehicle

inspected at a Toyota dealer.

■

Rear side radar sensors



P.276

■

Operation of the RCTA
function

The RCTA function uses rear
side radar sensors to detect
vehicles approaching from the

right or left at the rear of the
vehicle and alerts the driver of
the presence of such vehicles
by flashing the outside rear view
mirror indicators and sounding a
buzzer.

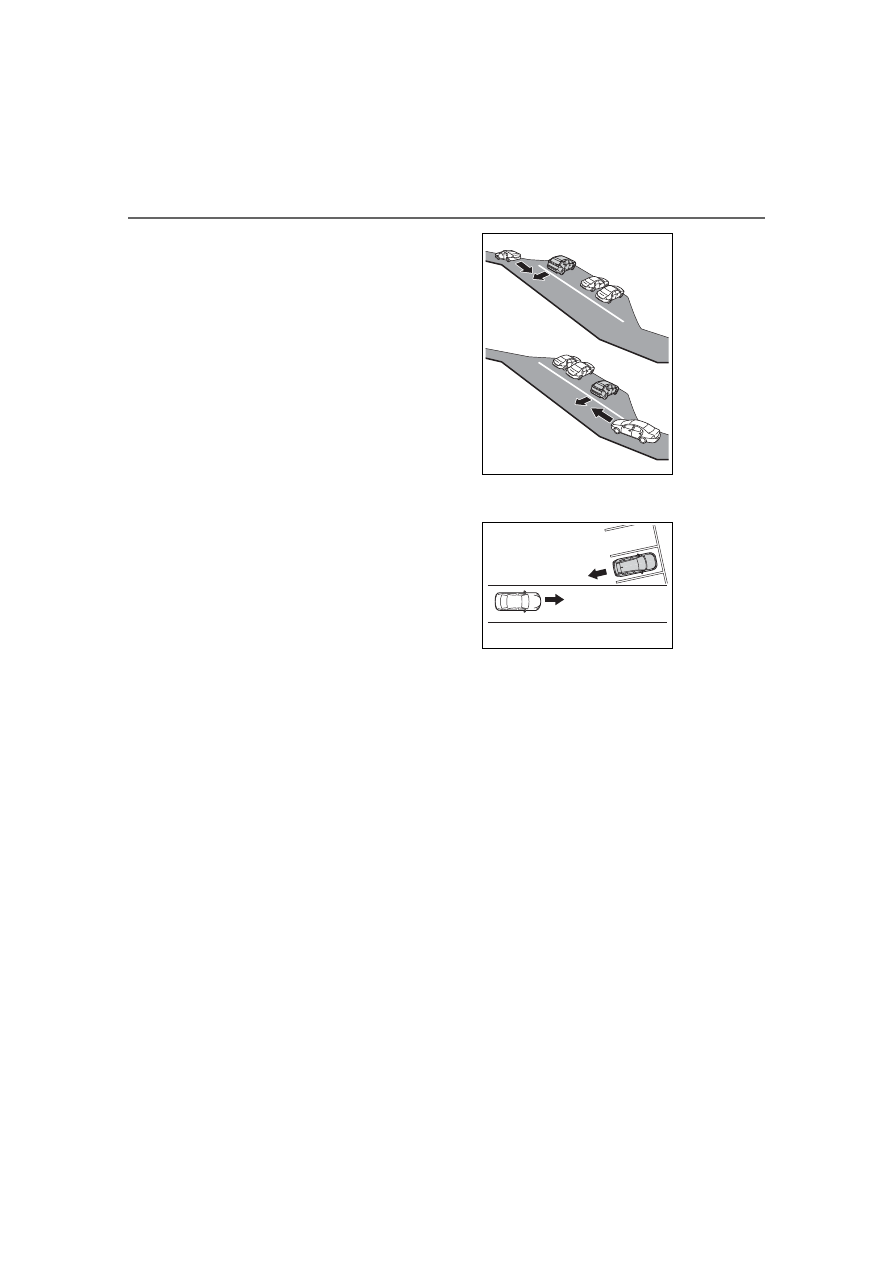

Approaching vehicles

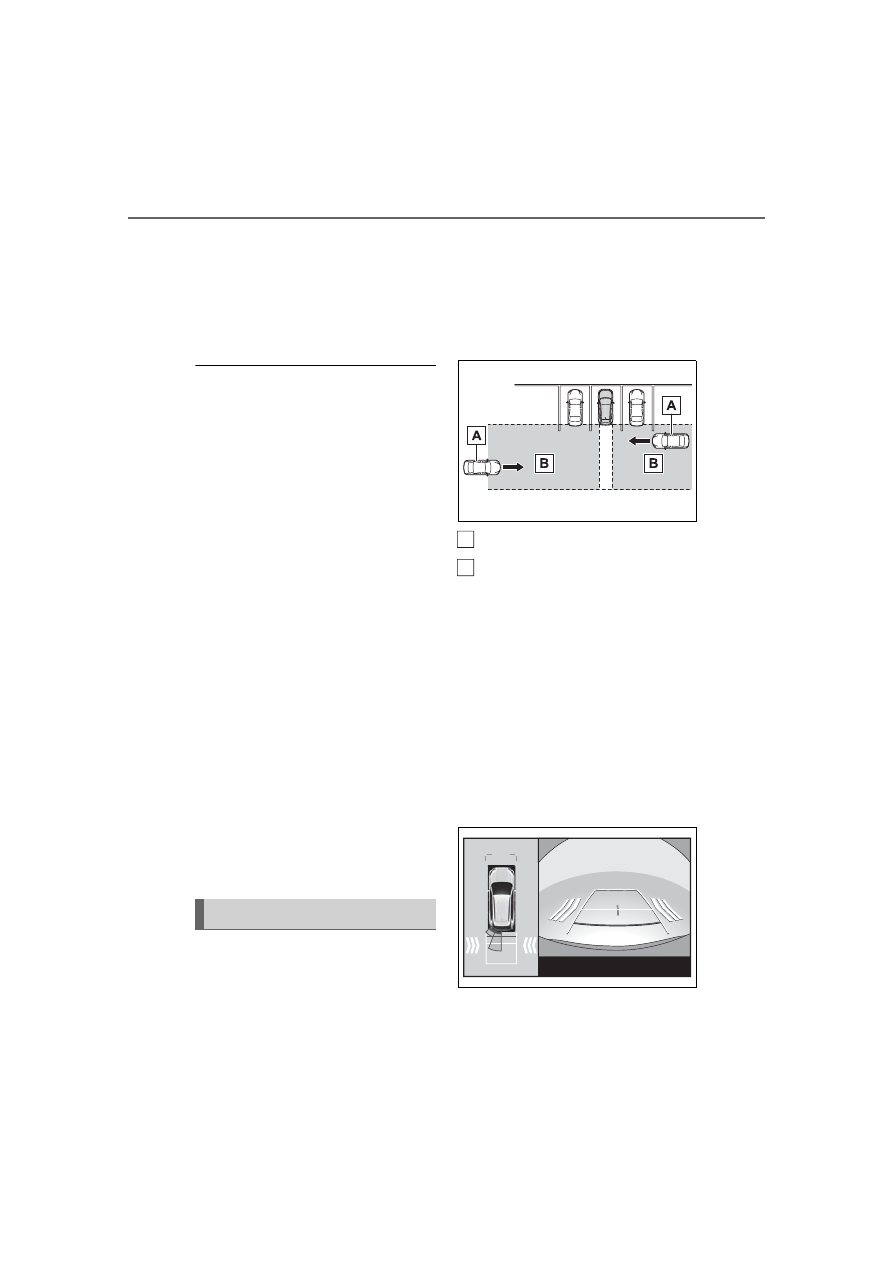

Detection areas of approach-
ing vehicles

■

RCTA icon display

When a vehicle approaching
from the right or left at the rear
of the vehicle is detected, the
following will be displayed on
the Multimedia display.
• Example (Panoramic view

monitor) (if equipped): Vehi-
cles are approaching from
both sides of the vehicle

RCTA function

291

4-5. Using the driving support systems

ing

■

RCTA function detection
areas

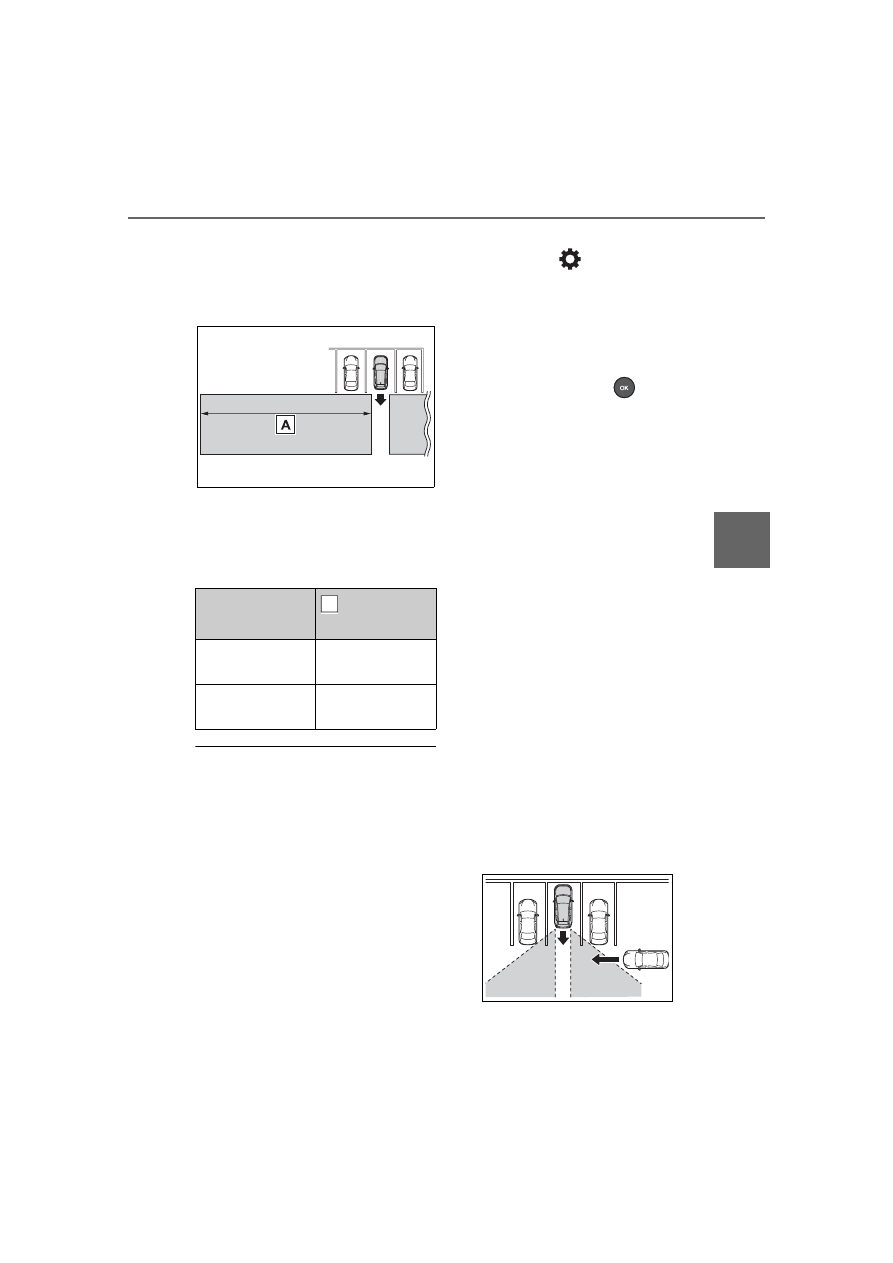

The areas that vehicles can be
detected in are outlined below.

The buzzer can alert the driver
of faster vehicles approaching
from farther away.
Example:

■

The RCTA function is opera-

tional when

The RCTA function operates when

all of the following conditions are

met:

●

The engine switch is in ON.

●

The RCTA function is on.

●

The shift lever is in R.

●

The vehicle speed is less than

approximately 9 mph (15 km/h).

●

The approaching vehicle speed is

between approximately 5 mph (8

km/h) and 34 mph (56 km/h).

■

Setting the buzzer volume

The buzzer volume can be adjusted

on the multi-information display.

The volume of the RCTA buzzer can
be adjusted on

of the multi-infor-

mation display. (



P.509)

■

Muting a buzzer temporarily

A mute button will be displayed on
the multi-information display when a
vehicles or an object is detected. To
mute the buzzer, press

The buzzers for the RCTA function

and intuitive parking assist will be

muted simultaneously.
Mute will be canceled automatically

in the following situations:

●

When the shift lever is changed.

●

When the vehicle speed exceeds

a certain speed.

●

When there is a malfunction in a

sensor or the system is temporar-

ily unavailable.

●

When the operating function is

disabled manually.

●

When the engine switch is turned

off.

■

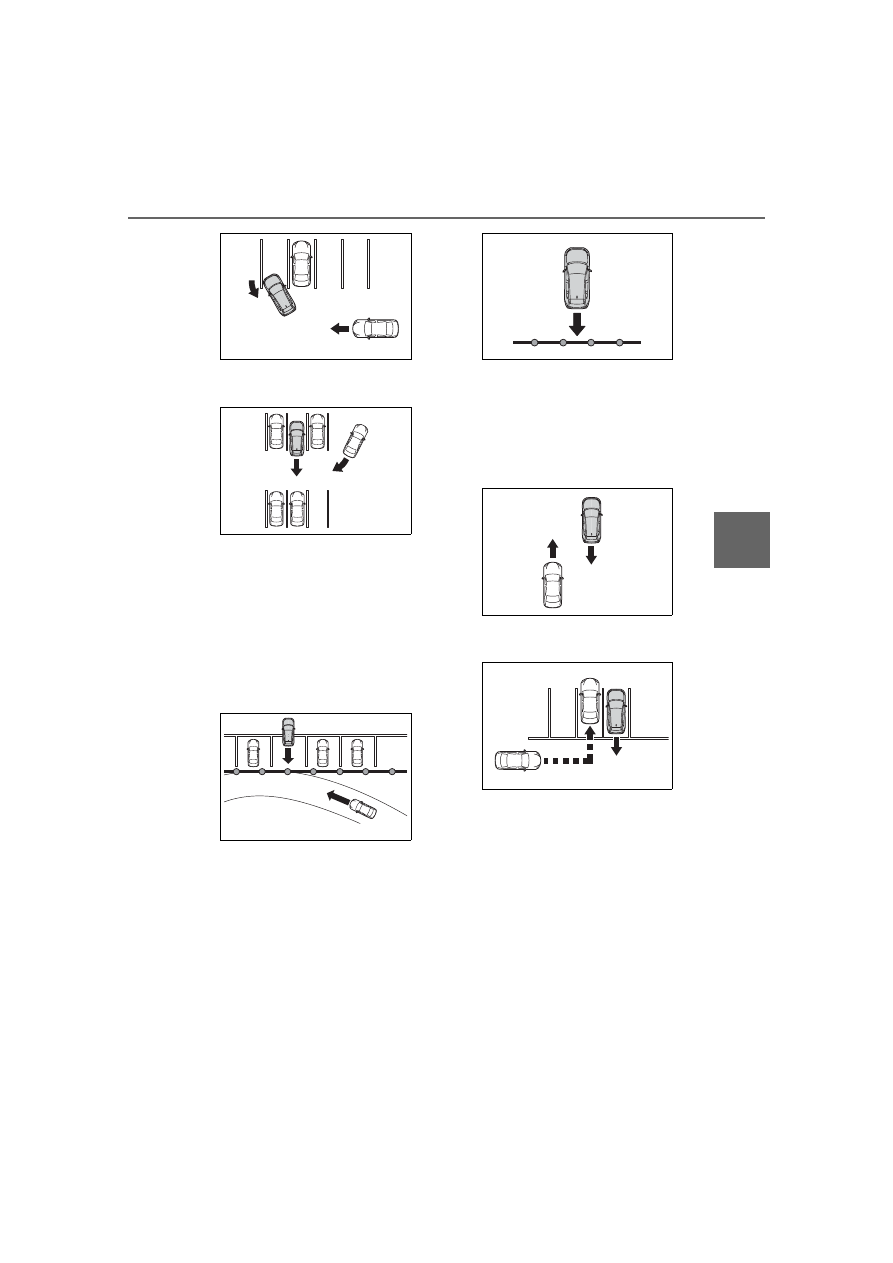

Conditions under which the

system will not detect a vehicle

The RCTA function is not designed

to detect the following types of vehi-

cles and/or objects:

●

Vehicles approaching from

directly behind

●

Vehicles backing up in a parking

space next to your vehicle

●

Vehicles that the sensors cannot

detect due to obstructions

●

Guardrails, walls, signs, parked

vehicles and similar stationary

Approaching

vehicle speed

Approximate

alert distance

34 mph (56
km/h) (fast)

131 ft. (40 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

292

4-5. Using the driving support systems

objects

●

Small motorcycles, bicycles,
pedestrians, etc.

●

Vehicles moving away from your

vehicle

●

Vehicles approaching from the

parking spaces next to your vehi-
cle

●

The distance between the sensor

and approaching vehicle gets too

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Situations in which the system

may not operate properly

The RCTA function may not detect

vehicles correctly in the following

situations:

●

When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

●

When mud, snow, ice, a sticker,

etc., is covering the sensor or sur-

rounding area on the rear bumper

●

When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

●

When multiple vehicles are

approaching with only a small gap

between each vehicle

●

When a vehicle is approaching at

high speed

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

When backing up on a slope with

a sharp change in grade

●

When backing out of a sharp

angle parking spot

●

Immediately after the RCTA func-

tion is turned on

●

Immediately after the engine is

started with the RCTA function on

●

When the sensors cannot detect a

vehicle due to obstructions

●

When towing a trailer

●

When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

●

When turning while backing up

293

4-5. Using the driving support systems

ing

●

When a vehicle turns into the

detection area

■

Situations in which the system

may operate even if there is no

possibility of a collision

Instances of the RCTA function

unnecessarily detecting a vehicle

and/or object may increase in the

following situations:

●

When the parking space faces a

street and vehicles are being

driven on the street

●

When the distance between your

vehicle and metal objects, such as

a guardrail, wall, sign, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

When a vehicle passes by the

side of your vehicle

●

When a detected vehicle turns

while approaching the vehicle

●

When there are spinning objects

near your vehicle such as the fan

of an air conditioning unit

●

When water is splashed or

sprayed toward the rear bumper,

such as from a sprinkler

●

Moving objects (flags, exhaust

fumes, large rain droplets or

snowflakes, rain water on the road

surface, etc.)

●

When the distance between your

vehicle and a guardrail, wall, etc.,

that enters the detection area is

short

●

Gratings and gutters

294

4-5. Using the driving support systems

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

: If equipped

■

Parking Support Brake
function (static objects)



P.299

■

Parking Support Brake
function (rear-crossing
vehicles)



P.302

PKSB (Parking Sup-

port Brake)

The Parking Support Brake
system consists of the fol-
lowing functions that oper-
ate when driving at a low
speed or backing up, such
as when parking. When the
system determines that the
possibility of a collision
with a detected object is
high, a warning operates to
urge the driver to take eva-
sive action. If the system
determines that the possi-
bility of a collision with a
detected object is extremely
high, the brakes are auto-
matically applied to help
avoid the collision or help
reduce the impact of the
collision.

PKSB (Parking Support
Brake) system

295

4-5. Using the driving support systems

ing

WARNING

■

Cautions regarding the use of

the system

Do not overly rely on the system,

as doing so may lead to an acci-

dent.
Always drive while checking the

safety of the surroundings of the

vehicle.
Depending on the vehicle and

road conditions, weather, etc., the

system may not operate.
The detection capabilities of sen-

sors and radars are limited.

Always drive while checking the

safety of the surroundings of the

vehicle.

●

The driver is solely responsible

for safe driving. Always drive

carefully, taking care to observe

your surroundings. The Parking

Support Brake system is

designed to provide support to

lessen the severity of collisions.

However, it may not operate in

some situations.

●

The Parking Support Brake sys-

tem is not designed to stop the

vehicle completely. Addition-

ally, even if the system has

stopped the vehicle, it is neces-

sary to depress the brake pedal

immediately as brake control

will be canceled after approxi-

mately 2 seconds.

●

It is extremely dangerous to

check the system operations by

intentionally driving the vehicle

into the direction of a wall, etc.

Never attempt such actions.

■

When to disable the Parking

Support Brake

In the following situations, disable

the Parking Support Brake as the

system may operate even though

there is no possibility of a colli-

sion.

●

When inspecting the vehicle

using a chassis roller, chassis

dynamo or free roller.

●

When loading the vehicle onto a

boat, truck or other transport

vessel.

●

If the suspension has been

modified or tires of a size other

than specified are installed.

●

If the front of the vehicle is

raised or lowered due to the

carried load.

●

When equipment that may

obstruct a sensor is installed,

such as a towing eyelet, bumper

protector (an additional trim

strip, etc.), bicycle carrier, or

snow plow.

●

When using automatic car

washing devices.

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning.

●

When the vehicle is driven in a

sporty manner or off-road.

●

When the tires are not properly

inflated.

●

When the tires are very worn.

●

When tire chains, a compact

spare tire or an emergency tire

puncture repair kit are used.

●

When your vehicle is towing a

trailer or during emergency tow-

ing.

296

4-5. Using the driving support systems

The Parking Support Brake can
be enabled/disabled on the

screen of the multi-information
display. All of the Parking Sup-
port Brake functions (static
objects and rear-crossing vehi-
cles) are enabled/disabled
simultaneously. (



P.98, 107)

When the Parking Support Brake is
disabled, the PKSB OFF indicator
(



P.80) illuminates on the multi-

information display.

To re-enable the system, select

on the multi-information display,
select

and turn it on.

If the system is disabled, it will
remain off even if the engine switch
is turned to ON after the engine
switch has been turned off.

If the engine output restriction
control or brake control oper-
ates, a buzzer will sound and a
message will be displayed on
the multi-information display or
Multimedia Display, to alert the
driver.

Depending on the situation, engine
output restriction control will oper-
ate to either limit acceleration or
restrict output as much as possible.



Engine output restriction con-
trol is operating (acceleration
restriction)

Acceleration greater than a certain
amount is restricted by the system.
Multimedia Display: No warning
displayed
Multi-information display: “Object
Detected Acceleration Reduced”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Does not sound



Engine output restriction con-
trol is operating (output
restricted as much as possi-
ble)

The system has determined that
stronger-than-normal brake opera-
tion is necessary.
Multimedia Display: “BRAKE!”
Multi-information display: “BRAKE!”
PKSB OFF indicator: Not illumi-
nated

NOTICE

■

If “PKSB Unavailable” is dis-

played on the multi-informa-

tion display and the PKSB

OFF indicator is flashing

If this message is displayed

immediately after the engine

switch is changed to ON, operate

the vehicle carefully, paying atten-

tion to your surroundings. It may

be necessary to drive the vehicle

for a certain amount of time

before the system returns to nor-

mal. (If the system does not return

to normal after driving for a while,

clean the sensors and their sur-

rounding area on the bumpers.)

Enabling/Disabling the
Parking Support Brake

Display and buzzer for
engine output restriction
control and brake control

297

4-5. Using the driving support systems

ing

Buzzer: Short beep



Brake control is operating

The system determined that emer-
gency braking is necessary.
Multimedia Display: “BRAKE!”
Multi-information display: “BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Vehicle stopped by system
operation

The vehicle has been stopped by
brake control operation.
Multimedia Display: “Press Brake
Pedal”
Multi-information display: “Switch to
Brake” (If the accelerator pedal is
not depressed, “Press Brake Pedal”
will be displayed.)
PKSB OFF indicator: Illuminated
Buzzer: Short beep

If the Parking Support Brake
determines that a collision with a
detected object is possible, the
engine output will be restricted
to restrain any increase in the
vehicle speed. (Engine output
restriction control: See figure 2.)
Additionally, if the accelerator
pedal continues to be
depressed, the brakes will be
applied automatically to reduce
the vehicle speed. (Brake con-
trol: See figure 3.)



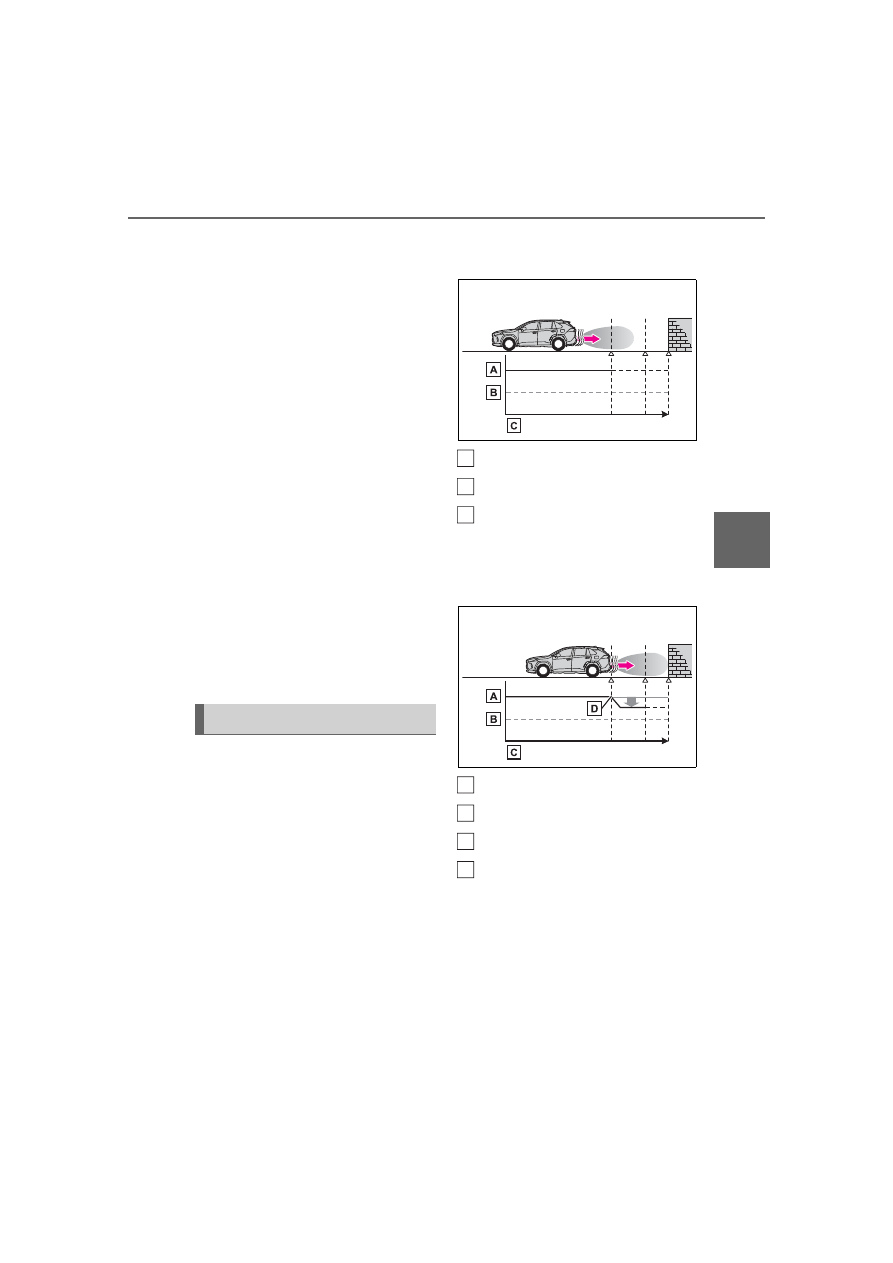

Figure 1: When the PKSB

(Parking Support Brake) is not
operating

Engine output

Braking force

Time



Figure 2: When engine out-
put restriction control oper-
ates

Engine output

Braking force

Time

Engine output restriction con-
trol begins operating (System
determines that possibility of
collision with detected object
is high)



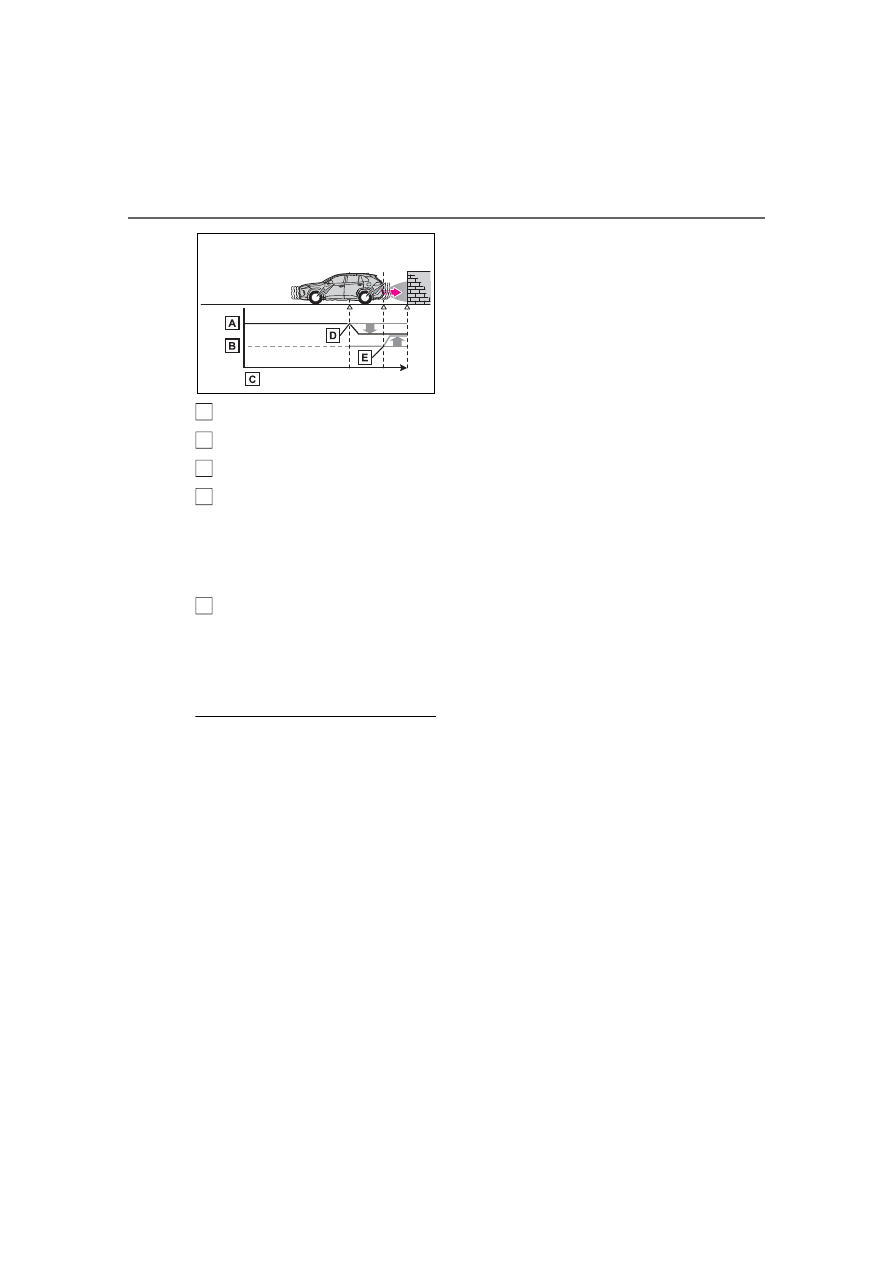

Figure 3: When engine out-
put restriction control and
brake control operates

System overview

298

4-5. Using the driving support systems

Engine output

Braking force

Time

Engine output restriction con-
trol begins operating (System
determines that possibility of
collision with detected object
is high)

Brake control begins operat-
ing (System determines that
possibility of collision with
detected object is extremely
high)

■

If the Parking Support Brake

has operated

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate. If the Parking Sup-

port Brake operates unnecessarily,

brake control can be canceled by

depressing the brake pedal or wait-

ing for approximately 2 seconds for

it to automatically be canceled.

Then, the vehicle can be operated

by depressing the accelerator pedal.

■

Re-enabling the Parking Sup-

port Brake

To re-enable the Parking Support

Brake when it is disabled due to

operation of the Parking Support

Brake, either enable the system

again (



P.296), or turn the engine

switch to OFF and then back to ON.

Additionally, if the object becomes

no longer in the traveling direction of

the vehicle or if the traveling direc-

tion of the vehicle changes (such as

changing from moving forward to

backing up, or from backing up to

moving forward), the system will be

re-enabled automatically.

■

If “PKSB Unavailable” is dis-

played on the multi-information

display and the PKSB OFF indi-

cator is flashing

If this message is displayed, a sen-

sor on the front or rear bumper may

be dirty. Clean the sensors and their

surrounding area on the bumpers.

■

If “PKSB Unavailable” and

“Parking Assist Unavailable

Clean Parking Assist Sensor”

are displayed on the multi-infor-

mation display and the PKSB

OFF indicator is flashing

●

A sensor may be covered with ice,

snow, dirt, etc. In this case,

remove the ice, snow, dirt, etc.,

from the sensor to return the sys-

tem to normal. If this message is

shown even after removing dirt

from the sensor, or shown when

the sensor was not dirty to begin

with, have the vehicle inspected at

your Toyota dealer.

●

A sensor may be frozen. Once the

ice melts, the system will return to

normal.

●

Water may be continuously flow-

ing over the sensor surface, such

as in a heavy rain. When the sys-

tem determines that it is normal,

the system will return to normal.

■

If a battery terminal has been

disconnected and reconnected

The system needs to be initialized.

To initialize the system, drive the

vehicle straight ahead for 5 seconds

or more at a speed of approximately

22 mph (35 km/h) or more.

299

4-5. Using the driving support systems

ing

: If equipped

This function will operate in situations such as the following if an
object is detected in the traveling direction of the vehicle.

■

When traveling at a low speed and the brake pedal is not
depressed, or is depressed late

Parking Support Brake function (static objects)

If the sensors detect a static object, such as a wall, in the
traveling direction of the vehicle and the system determines
that a collision may occur due to the vehicle suddenly moving
forward due to an accidental accelerator pedal operation, the
vehicle moving the unintended direction due to the wrong
shift position being selected, or while parking or traveling at
low speeds, the system will operate to lessen the impact with
the detected static object and reduce the resulting damage.

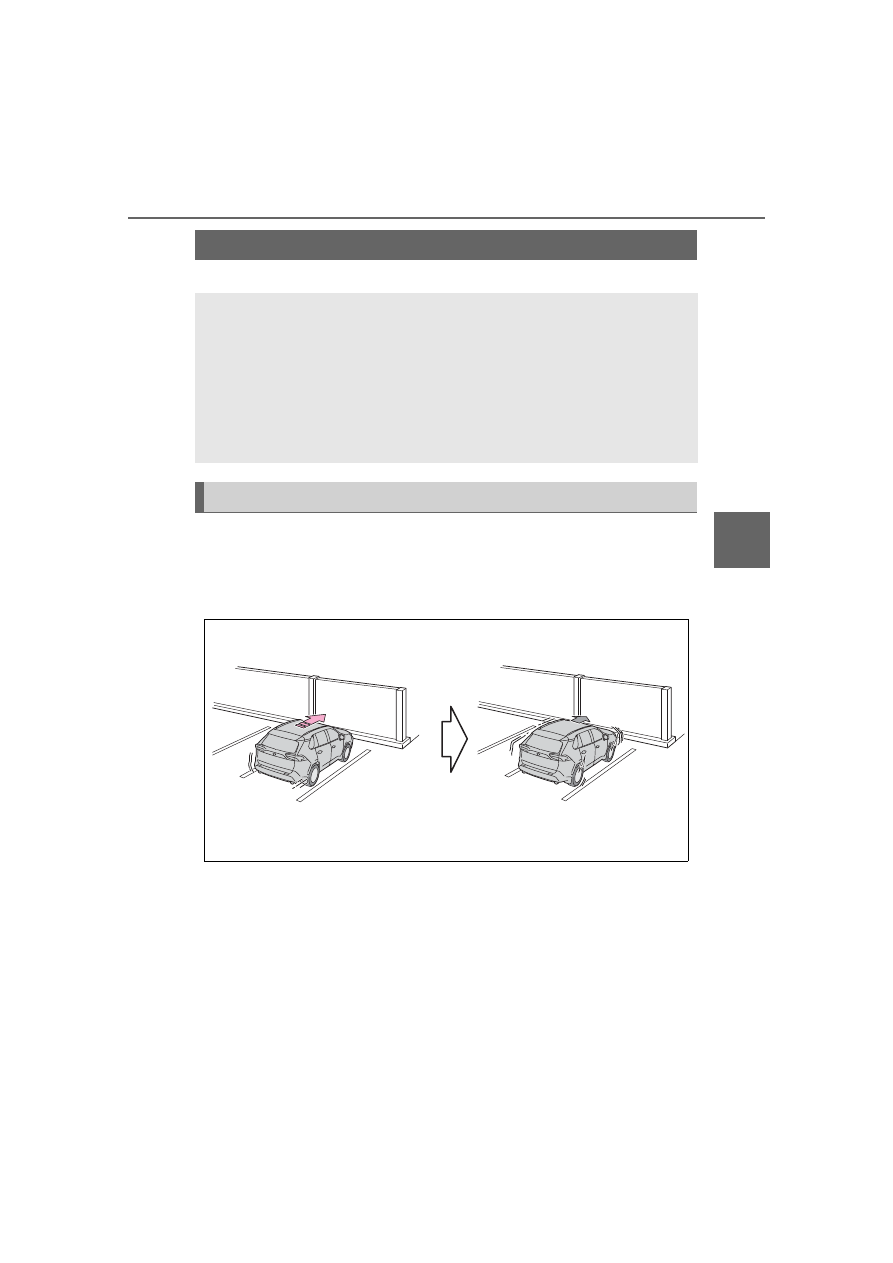

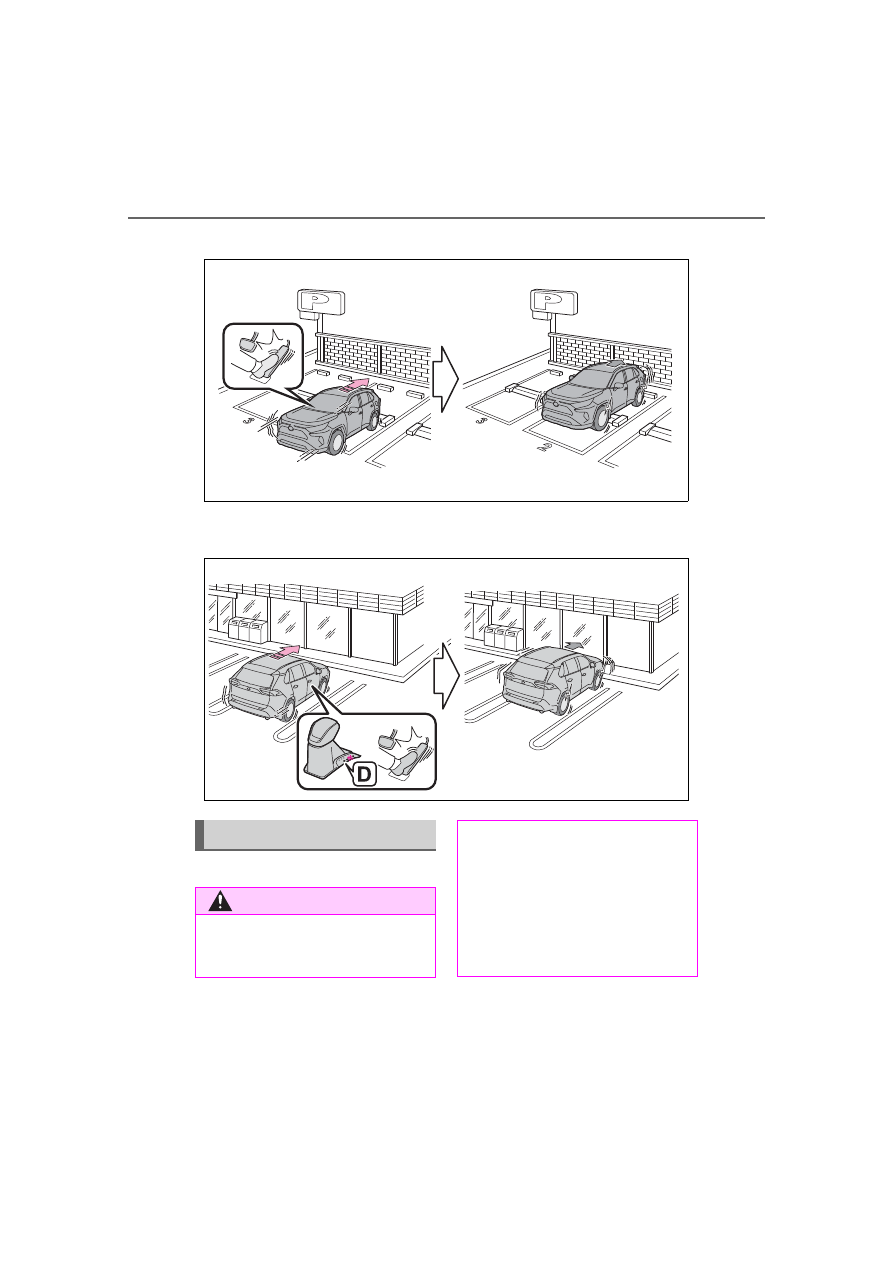

Examples of function operation

300

4-5. Using the driving support systems

■

When the accelerator pedal is depressed excessively

■

When the vehicle moves in the unintended direction due to
the wrong shift position being selected



P.280

Types of sensors

WARNING

■

To ensure the system can

operate properly



P.282

■

If the Parking Support Brake

function (static objects) oper-

ates unnecessarily, such as

at a railroad crossing



P.298

■

Notes when washing the vehi-

cle



P.282

301

4-5. Using the driving support systems

ing

■

The Parking Support Brake

function (static object) will

operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.78, 80) and

all of the following conditions are

met:

●

Engine output restriction control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• There is a static object in the trav-

eling direction of the vehicle and

approximately 6 to 13 ft. (2 to 4 m)

away.

• The Parking Support Brake deter-

mines that a stronger-than-nor-

mal brake operation is necessary

to avoid a collision.

●

Brake control

• Engine output restriction control is

operating

• The Parking Support Brake deter-

mines that an immediate brake

operation is necessary to avoid a

collision.

■

The Parking Support Brake

function (static objects) will

stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Engine output restriction control

• The Parking Support Brake is dis-

abled.

• The system determines that the

collision has become avoidable

with normal brake operation.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

■

Detection range of the Parking

Support Brake function (static

objects)

The detection range of the Parking

Support Brake function (static

objects) differs from the detection

range of the intuitive parking assist.

(



P.286) Therefore, even if the

intuitive parking assist detects an

object and provides a warning, the

Parking Support Brake function

(static objects) may not start operat-

ing.

■

Situations in which the Parking

Support Brake function (static

objects) may not operate

When the shift lever is in N

■

Situations in which the system

may not operate properly



P.284

■

Situations in which the system

may operate even if there is no

possibility of a collision



P.284

302

4-5. Using the driving support systems

: If equipped

This function will operate in situations such as the following if a vehi-
cle is detected in the traveling direction of the vehicle.

■

When reversing, a vehicle is approaching and the brake pedal
is not depressed, or is depressed late



P.276

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.78, 80) and

all of the following conditions are

met:

●

Engine output restriction control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

Parking Support Brake function (rear-crossing

vehicles)

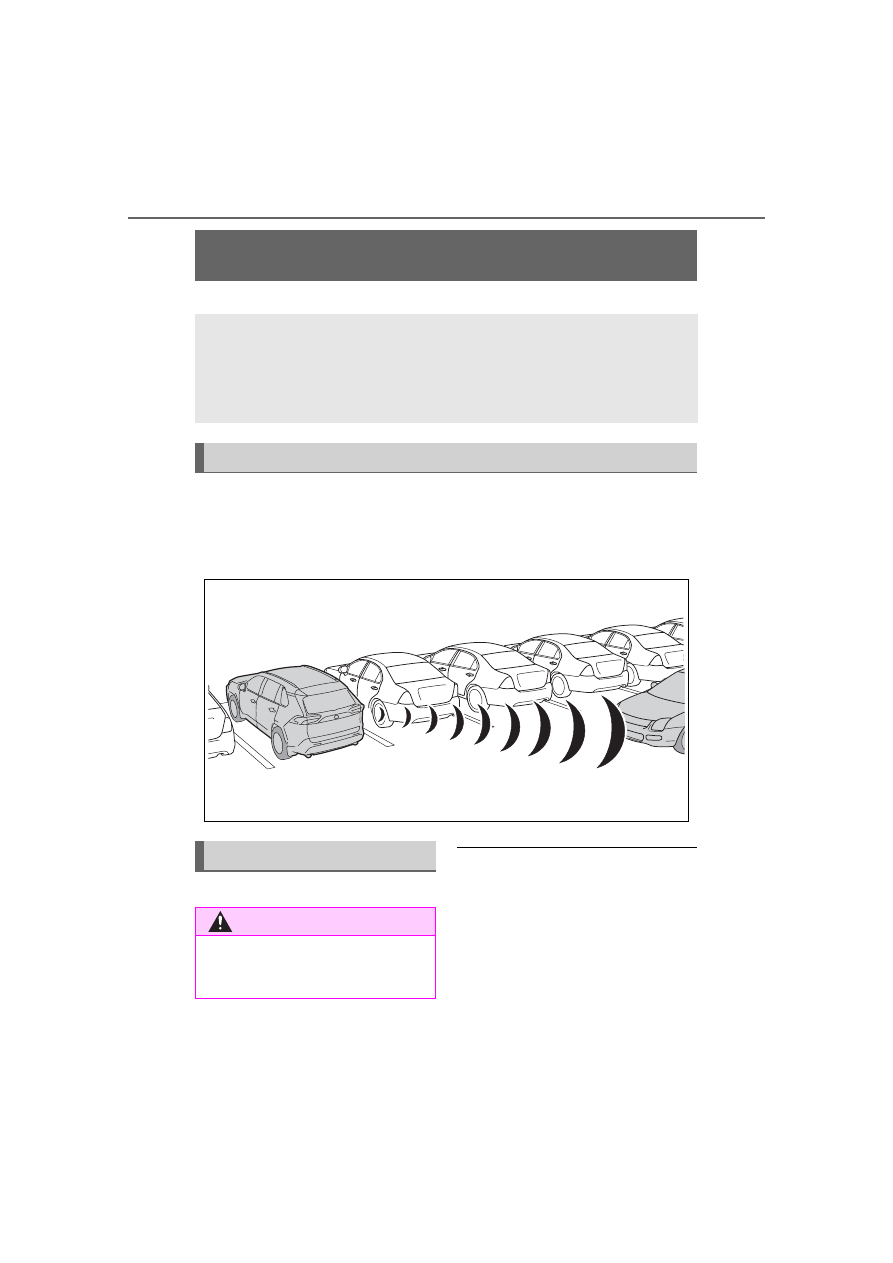

If a rear radar sensor detects a vehicle approaching from the
right or left at the rear of the vehicle and the system deter-
mines that the possibility of a collision is high, this function
will perform brake control to reduce the likelihood of an
impact with the approaching vehicle.

Examples of function operation

Types of sensors

WARNING

■

To ensure the system can

operate properly



P.276

303

4-5. Using the driving support systems

ing

mately 9 mph (15 km/h) or less.

• Vehicles are approaching from the

right or left at the rear of the vehi-

cle at a traveling speed of approx-

imately 5 mph (8 km/h) or more.

• The shift lever is in R.

• The Parking Support Brake deter-

mines that a stronger than normal

brake operation is necessary to

avoid a collision with an approach-

ing vehicle.

●

Brake control

• Engine output restriction control is

operating

• The Parking Support Brake deter-

mines that an emergency brake

operation is necessary to avoid a

collision with an approaching vehi-

cle.

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Engine output restriction control

• The Parking Support Brake is dis-

abled.

• The collision becomes avoidable

with normal brake operation.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

■

Detection area of the Parking

Support Brake function (rear-

crossing vehicles)

The detection area of the Parking

Support Brake function (rear-cross-

ing vehicles) differs from the detec-

tion area of the RCTA function

(



P.291). Therefore, even if the

RCTA function detects a vehicle

and provides an alert, the Parking

Support Brake function (rear-cross-

ing vehicles) may not start operat-

ing.

■

Situations in which the system

may not operate properly



P.292

■

Situations in which the system

may operate even if there is no

possibility of a collision



P.293

304

4-5. Using the driving support systems

: If equipped

■

Stopping the engine

While driving with the D shift
position selected, depress the
brake pedal and stop the vehi-
cle. The engine will stop auto-
matically.

When the engine stops, the Stop &
Start indicator will illuminate.

■

Restarting the engine

Release the brake pedal. The
engine will start automatically.

When the engine starts, the Stop &
Start indicator will turn off.

■

When the brake hold sys-
tem is operating



When the engine is stopped
by the Stop & Start system, if
the brake pedal is released
the engine will remain
stopped.



If the accelerator pedal is
depressed while the engine is
stopped by the Stop & Start
system, the engine will
restart.



While the engine is stopped
by the Stop & Start system, if
the engine is restarted, the
brake hold system will con-
tinue to apply the brakes,
unless the operation condi-
tions of the brake hold system
are no longer met. (



P.217)

■

When the dynamic radar
cruise control with full-
speed range is operating



When the vehicle is stopped
by the dynamic radar cruise
control with full-speed range,
the engine will stop automati-
cally even though the brake
pedal is not depressed.



When the preceding vehicle
starts off, the engine will
restart automatically.



If the engine is restarted by
the Stop & Start system while
the vehicle is stopped by the
dynamic radar cruise control
with full-speed range, the
vehicle will remain stopped.

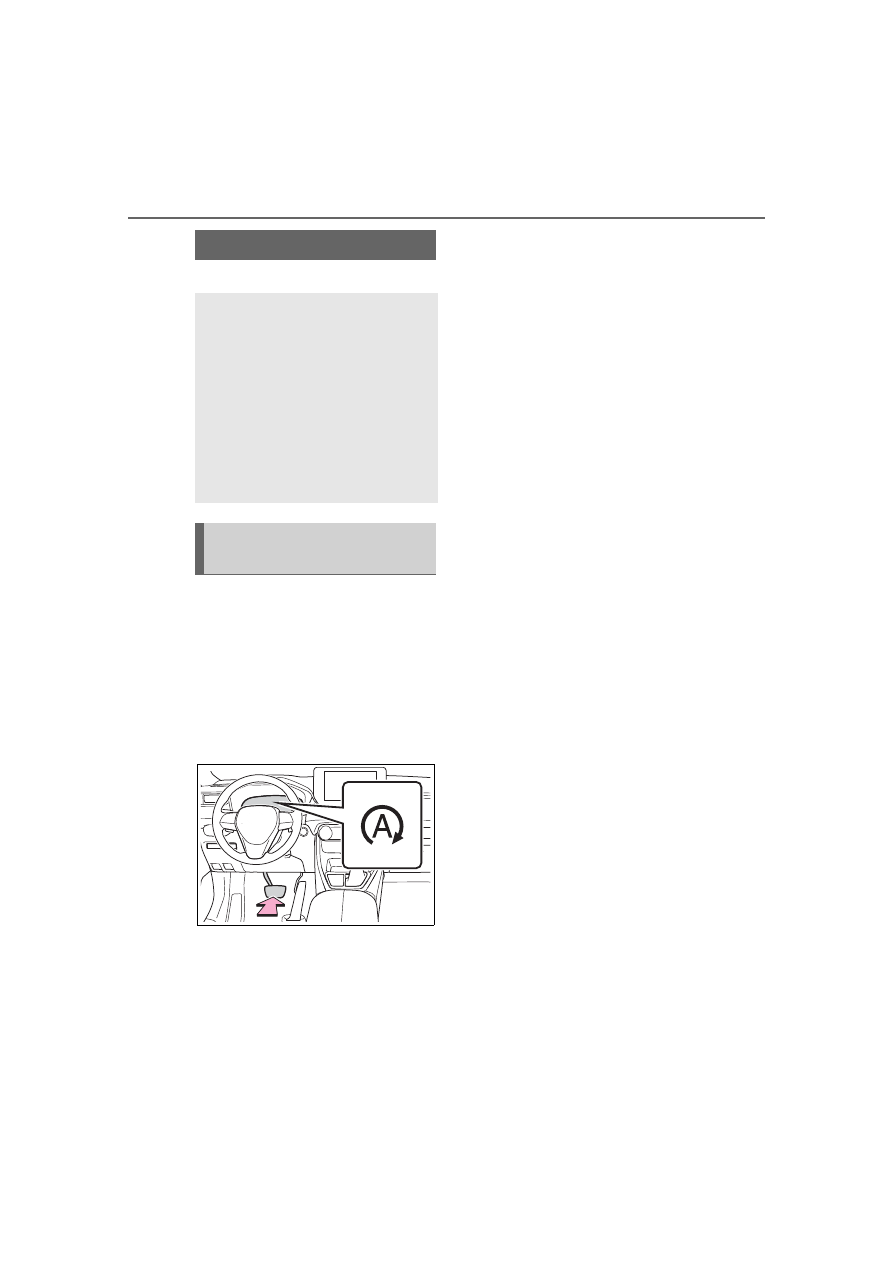

Stop & Start system

The Stop & Start system
stops and starts the engine
according to brake pedal or
shift lever operation when
the vehicle is stopped, such
as at a stoplight, intersec-
tion, etc., in order to
improve fuel economy and
reduce noise pollution
caused by the engine idling.

Stop & Start system oper-
ation

Toyota RAV4 (2023 year). Manual in english - page 18
