Toyota RAV4 (2023 year). Manual in english

2-1. Instrument cluster

engine stops.

■

Eco Driving Indicator/Dis-
tance to empty



Display contents

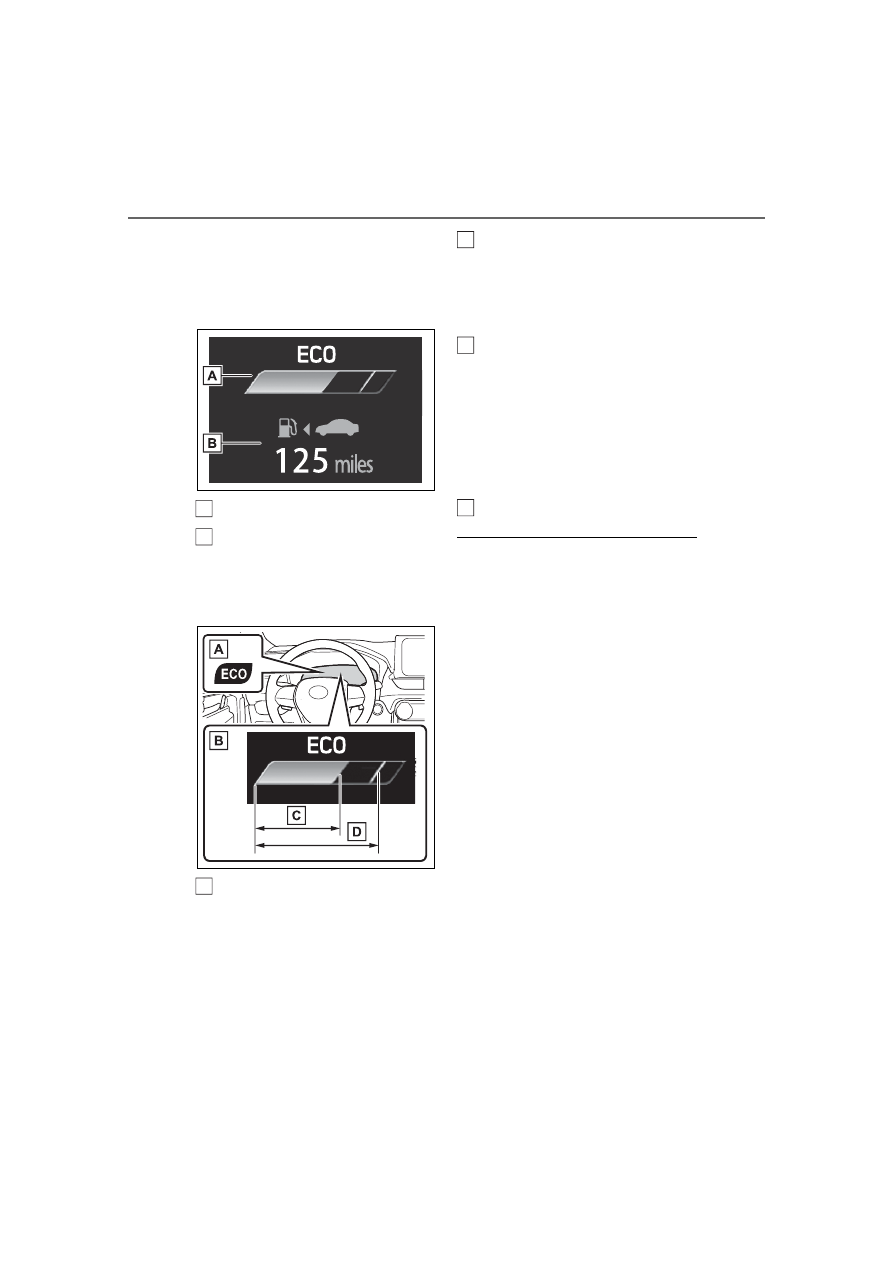

Eco Driving Indicator

Distance to empty

Displays the driving range with
remaining fuel. (



P.96)



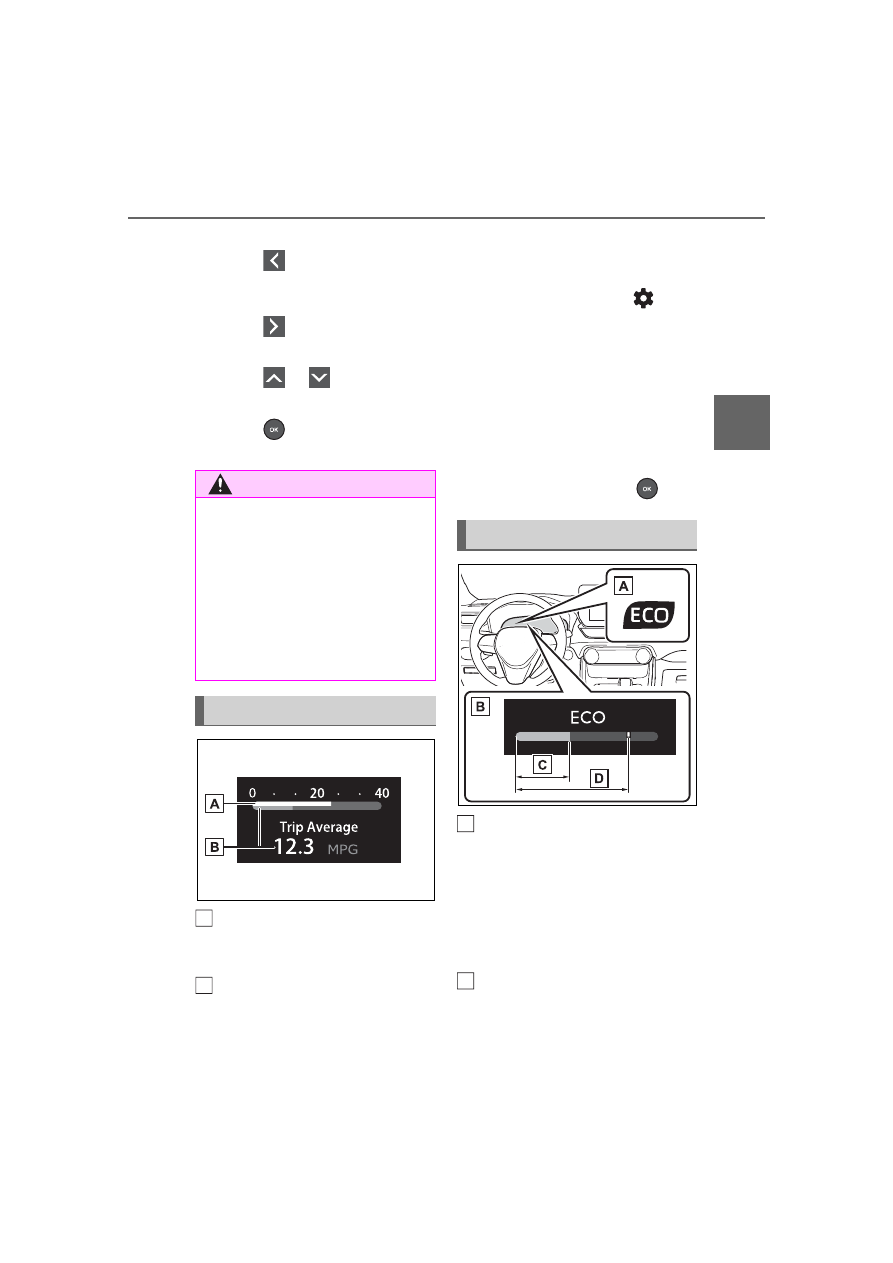

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration
operation (Eco driving), the Eco
Driving Indicator Light will turn on.
When the acceleration exceeds
Zone of Eco driving, or when the
vehicle is stopped, the light turns
off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display will
illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the engine switch to OFF.

If the vehicle is refueled without

turning the engine switch to OFF,

the display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated.

Refuel immediately.

■

The ECO Driving indicator will

not operate when

Eco Driving Indicator will not oper-

ate in the following conditions:

●

The shift lever is in any position

other than D.

●

Neither normal mode nor Eco

drive mode is selected.

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Driving support system
information display

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.250)



Dynamic radar cruise control
with full-speed range
(



P.264)



RSA (Road Sign Assist)
(



P.261)

Select to display the following
navigation system-linked infor-
mation.



Route guidance



Compass display

Select to enable selection of an
audio source or track on the dis-
play.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and

total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



P.98)

Use the displayed information as a
reference only.
Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
engine start

• “Distance”: Displays the distance

driven since engine start

• “Total Time”: Displays the

elapsed time since engine start

: These items are reset each time

the engine stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

• “Distance”: Displays the distance

driven since the display was
reset

• “Total Time”: Displays the

elapsed time since the display
was reset

: To reset, display the desired item

and press and hold

Driving support system
information display

Navigation system-linked
display (if equipped)

Audio system-linked dis-
play (if equipped)

Vehicle information dis-
play

2-1. Instrument cluster

■

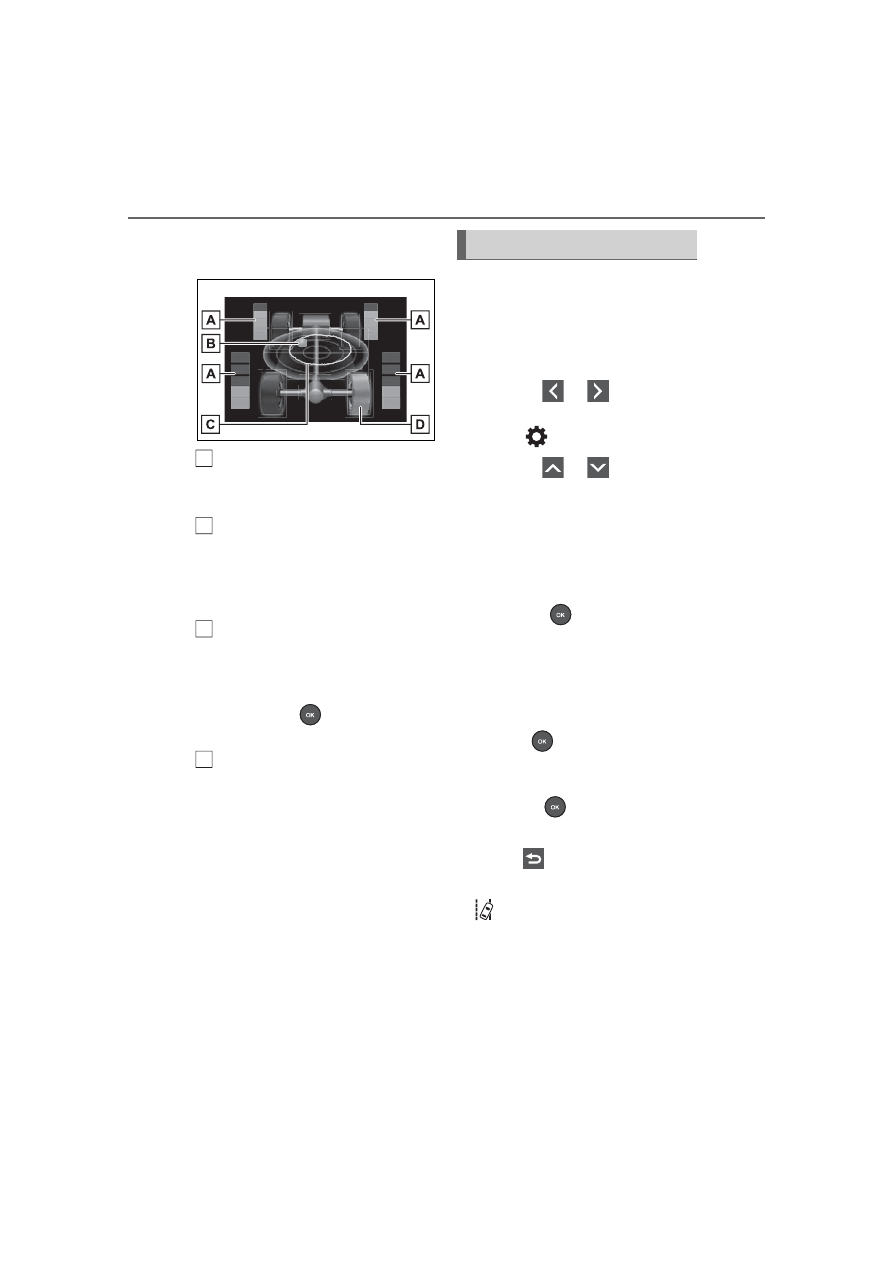

AWD system display (AWD
models)

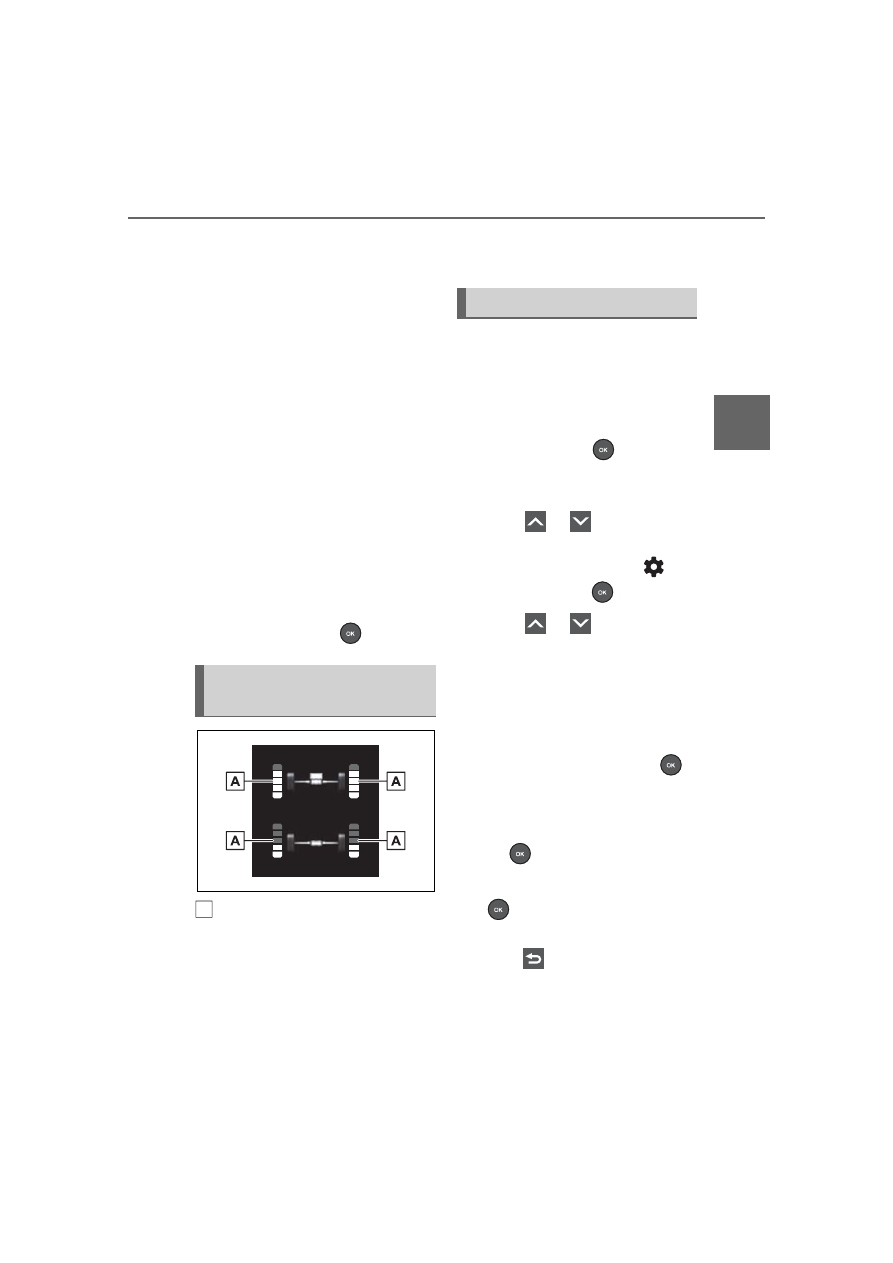

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.

Press and hold

to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

The illustration used is intended
as an example, and may differ
from the image that is actually
displayed on the multi-informa-
tion display.

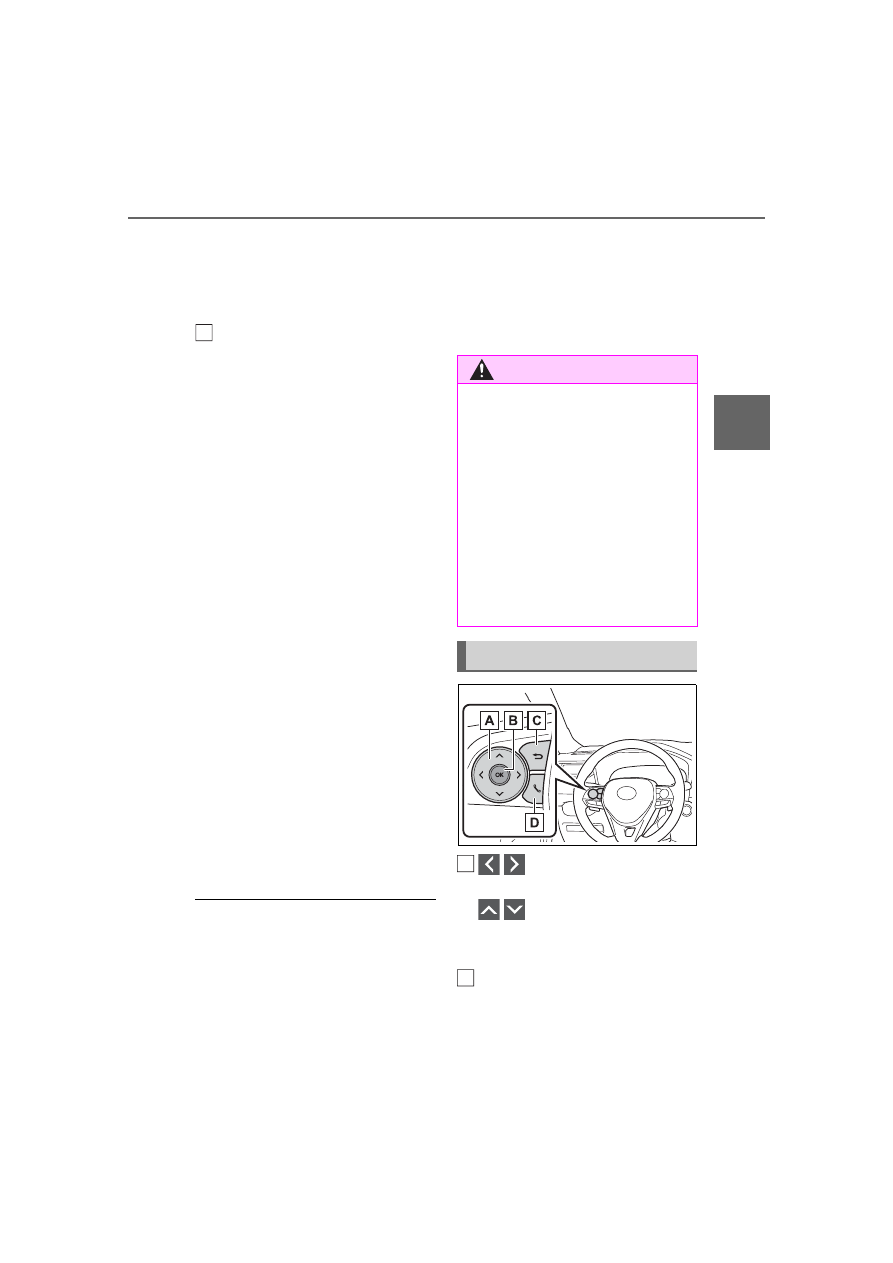

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

Operate

of the

meter control switches and
select

Operate

of the

meter control switches and
select the desired item.

• If the function is turned on and

off or the volume, etc. is
changed on the setting
screen, the setting is changed
each time

is pressed.

• For functions that allow oper-

ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and
holding

. When the setting

screen is displayed, select the
setting or desired value (time,
etc.) with

After changing the settings,
press

of the meter control

switches.

■

LTA (Lane Tracing

Assist) (



P.250)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane

Settings display

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

centering function.



“Sensitivity”

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

PCS (Pre-Collision Sys-

tem) (



P.239)

Select to set up the following
items.



PCS on/off

Select to enable/disable the pre-
collision system.



“Warning timing”

Select to change the pre-collision
warning timing.

■

BSM (Blind Spot Moni-

tor) (if equipped) (



P.275)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM
system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.276)



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

(Intuitive parking

assist) (if equipped)
(



P.280)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (if equipped)
(



P.289)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.294)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign

Assist) (if equipped)
(



P.261)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.

100

2-1. Instrument cluster



“Notification method”

Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and Do Not Enter
sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle Settings



PBD (Power Back Door)

(if equipped) (



P.129)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.

• “Hands Free”

Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

: Vehicles with Hands Free Power

Back Door



(Stop & Start system) (if

equipped) (



P.304)

Select to set the length of time the
Stop & Start system will operate
when the “A/C” switch of the air
conditioning system is on.



“TPWS” (Tire Pressure Warn-

ing System) (if equipped)
(



P.408)

• “Set Pressure”
Select to initialize the tire pressure
warning system.
• “Change Wheel”
Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.



“Rear Seat Reminder”
(



P.122)

Select to enable/disable the rear
seat reminder function.



“Scheduled Maintenance”
(



P.388)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.

■

Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



“Meter Type”

Select to change the speedometer
display.



(Eco Driving Indicator

Light) (



P.96)

Select to activate/deactivate the
Eco Driving Indicator Light.



(Driving information dis-

101

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

play settings)

Select to change the display on
Fuel Economy (



P.95).



(Audio settings) (if

equipped)

Select to enable/disable

screen.



(Vehicle information dis-

play settings)

• “Display Contents”
Select to enable/disable the AWD
system display (



P.98). (AWD

models)
• “Drive Info Type”
Select to change the drive informa-
tion type display between trip and
total. (



P.97).

• “Drive Info Items”
Select to set the items on the upper
and lower side of the drive informa-
tion screen from three items, aver-
age speed, distance and total time.



“Pop-Up Display”

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.
• Intersection guidance display of

the navigation system-linked sys-
tem (if equipped)

• Incoming call display of the

hands-free phone system (if
equipped)

• Audio operation (if equipped)
• Volume operation (if equipped)
• Voice control (if equipped)
• Stop & Start system duration (if

equipped)

• Stop & Start system status (if

equipped)



“MID OFF”

A blank screen is displayed



“Default Settings”

Select to reset the meter display
settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

WARNING

■

Cautions during setting up

the display

As the engine needs to be run-

ning during setting up the display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

102

2-1. Instrument cluster

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.459)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
engine switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the engine switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Convenience Services (Suggestion

function) can be turned on/off. (Cus-

tomizable features:



P.511)

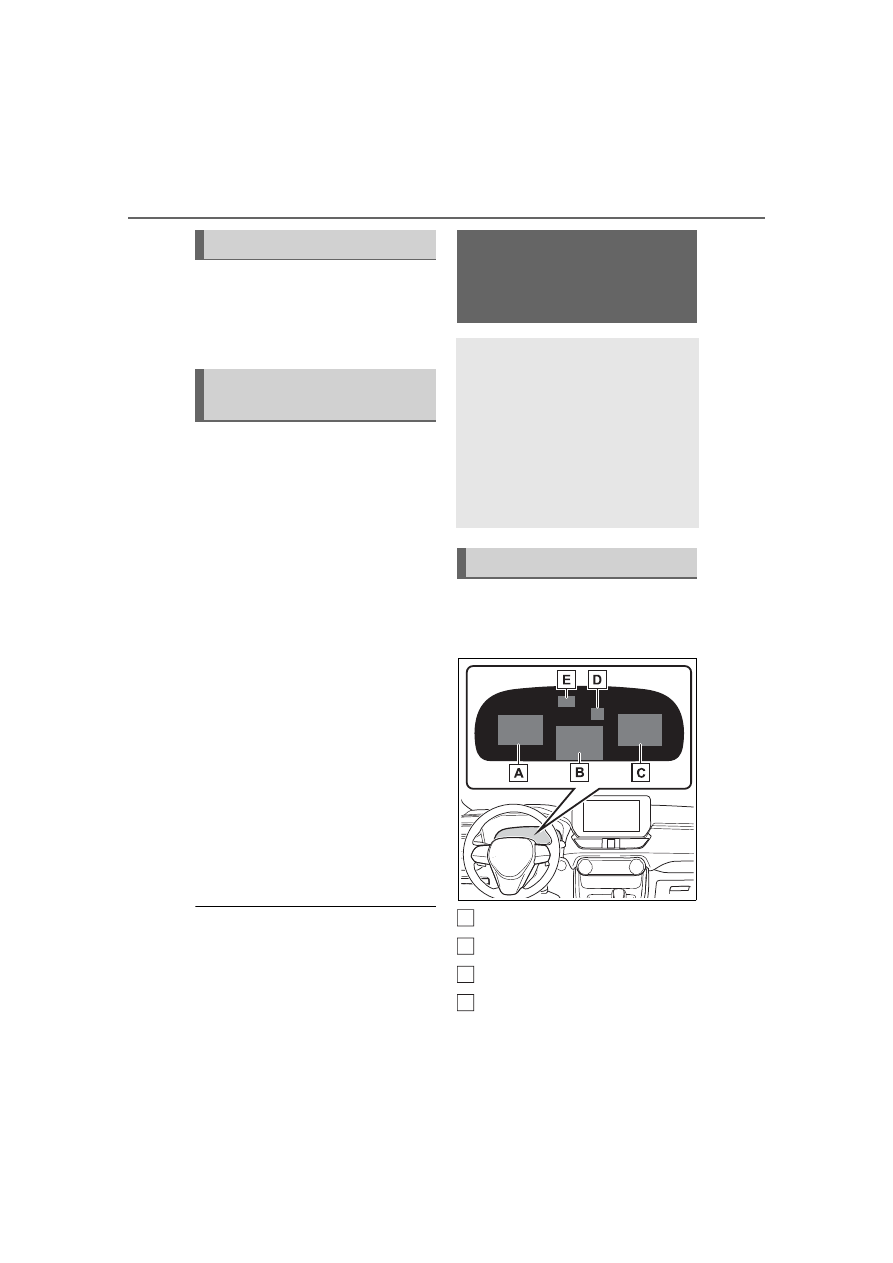

Following information is dis-
played on the multi-information
display.

Content display area (left)

Content display area (center)

Content display area (right)

Driving support system infor-
mation display area

Warning message display

Convenience Services
(Suggestion function)

Multi-information dis-

play (with 12.3-inch

multi-information dis-

play)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

103

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

When driving information support
system is displayed on the content
display area, the system operating
state will not be displayed in this
area.

RSA (Road Sign Assist) dis-
play area (if equipped)
(



P.261)

■

Content display area (cen-
ter)



Driving support system infor-
mation display (



P.106)



Settings display (



P.107)



Warning message display

■

Content display area (cen-
ter)



Fuel Economy (



P.105)



Eco Driving Indicator
(



P.105)



Driving support system infor-
mation display (



P.106)



Navigation system-linked
information display (if
equipped) (



P.106)



Audio system-linked display
(



P.106)



Drive information (



P.106)



AWD operation status display
(if equipped) (



P.107)

■

The multi-information display is

displayed when

The engine switch is in ON.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode.

(



P.310)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

: Change the screen

and move the cursor

: Change displayed

content and scroll up/down
the screen

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items/Dis-

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.92

Meter control switches

104

2-1. Instrument cluster

play the cursor

Move the main meter and
return to the previous screen

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

The multi-information display is
operated using the meter control
switches.

■

Changing the meter display
type setting

The meter display type setting
can be changed on

(



P.107)

■

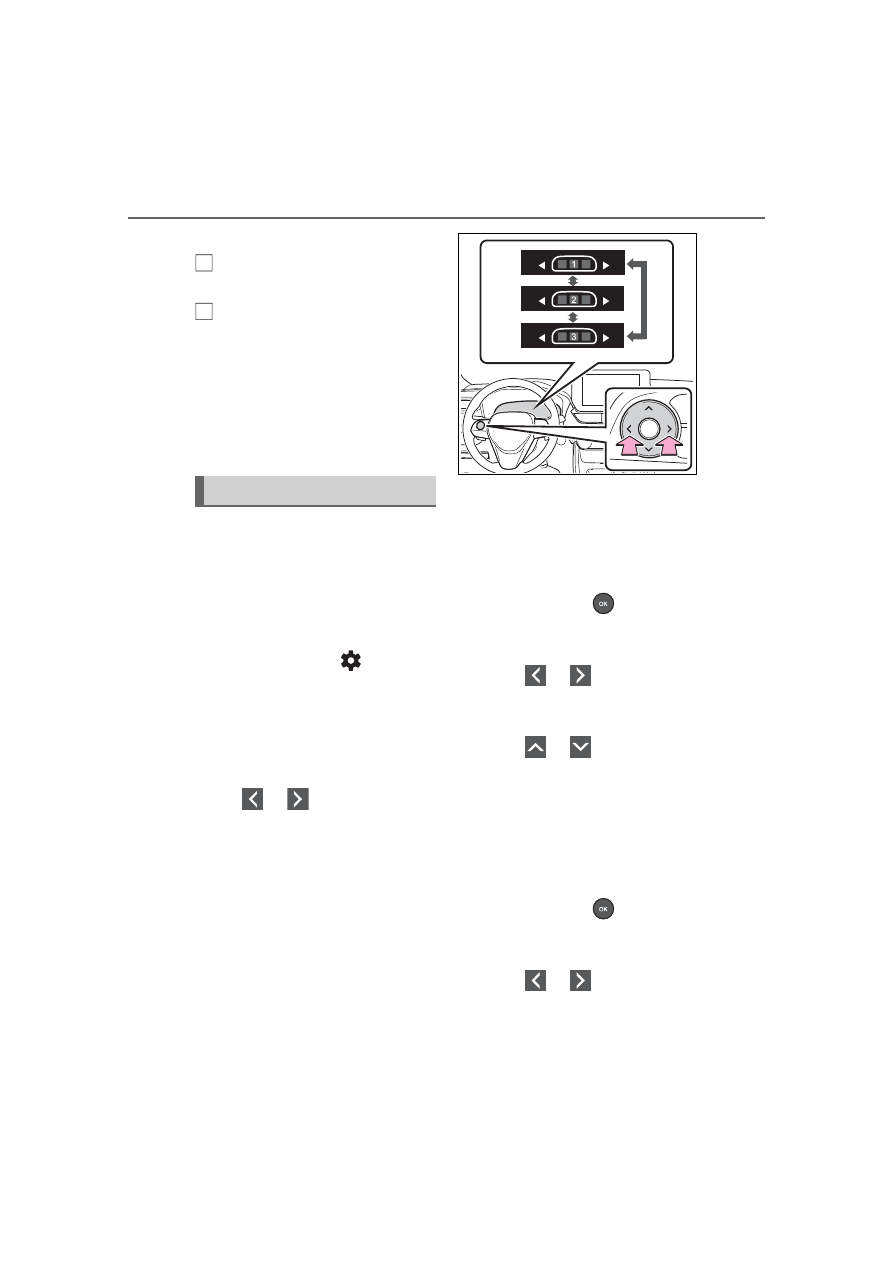

Changing the screen

Select items from the combina-
tion of 3 screens to display on
each 3 content display areas.
Press

of the meter

control switches to scroll the
screen.

■

Changing the display con-
tents

Switches items displayed on
each contents display area
(left/center/right).

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

to move the

cursor and select the content
display area.

Press

to select the

items.

■

Items displayed in the con-
tent display area

Select to enable/disable items
on the content display area
(left/right).

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

to move the

cursor and select the content
display area.

Changing the display

105

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Contents display area (left):
Press

to display contents

list.
Contents display area (right):
Press

to display contents

list.

Press

to select the

items.

Press

to select

enable/disable items.

Current fuel economy

Displays the driving range with
remaining fuel.

Average fuel economy

Displays the average fuel economy
since the function was reset or the

average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed.

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy after

starting is reset each time the
engine stops.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

Eco Driving Indicator Light

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Fuel Economy

Eco Driving Indicator

106

2-1. Instrument cluster

with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display will
illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving

■

The ECO Driving indicator will

not operate when

Eco Driving Indicator will not oper-

ate in the following conditions:

●

The shift lever is in any position

other than D.

●

Neither normal mode nor Eco

drive mode is selected.

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.250)



RSA (Road Sign Assist)

(



P.261)



Dynamic radar cruise control
with full-speed range
(



P.264)

: If equipped

Select to display the following
navigation system-linked infor-
mation.



Route guidance to destination



Street name



Compass

Select to enable selection of an
audio source or track on the
meter

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed and distance)
can be displayed vertically.

Use the displayed information as a
reference only.

• “Average Speed”: Displays

the average vehicle speed
since engine start

• “Distance”: Displays the dis-

tance driven since engine
start

• “Total Time”: Displays

elapsed time since engine
start

: These items are reset each time

the engine stops.

Driving support system
information display

Navigation system-linked
display (if equipped)

Audio system-linked dis-
play

Driving information dis-
play

107

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Trip information

2 items that are selected using
the “TRIP A Items” or “TRIP B
Items” setting (average speed
and distance) can be displayed
vertically.

Use the displayed information as a
reference only.

• “Average Speed”: Displays

the average vehicle speed
since the display was reset

• “Distance”: Displays the dis-

tance driven since the display
was reset

• “Total Time”: Displays

elapsed time since the display
was reset

: To reset, display the desired item

and press and hold

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.
The illustration used is intended
as an example, and may differ
from the image that is actually

displayed on the multi-informa-
tion display.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

with the cur-

sor on the content display
area (center) to select

and then press

Press

of the meter

control switches and move
the cursor to select the item
for changing settings.

If the function is turned on and off

or the volume, etc. is changed on

the setting screen, the setting is
changed each time is pressed

For functions that allow operation

contents, display contents, etc., of

function to be selected, the setting

screen is displayed by pressing and
holding

. When the setting

screen is displayed, select the set-

ting or desired value (time, etc.)
with

After changing the settings,
press

of the meter control

switches.

AWD system display
(AWD models)

Settings display

108

2-1. Instrument cluster

■

LTA (Lane Tracing

Assist) (



P.250)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Sensitivity”

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

BSM (Blind Spot Moni-

tor) (if equipped) (



P.275)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off
Select to enable/disable the
BSM system.



“Sensitivity”
Select to change the alert tim-
ing for an approaching vehi-
cle.



“Brightness”
Select to switch the bright-
ness of the outside rear view
mirror indicators. (



P.276)

■

PCS (Pre-Collision Sys-

tem) (



P.239)

Select to set up the following

items.



PCS on/off
Select to enable/disable the
pre-collision system.



“Sensitivity”
Select to change the pre-colli-
sion warning timing.

■

(Intuitive parking

assist) (if equipped)
(



P.280)

Select to set up the following
items.



Intuitive parking assist on/off
Select to enable/disable the
Intuitive parking assist.



“Volume”
Select to set the volume of the
buzzer which sounds when
the Intuitive parking assist is
operated.

■

RCTA (Rear Cross Traffic

Alert) (if equipped)
(



P.289)

Select to set up the following
items.



RCTA (Rear Cross Traffic
Alert) on/off
Select to enable/disable the
RCTA system.



“Volume”
Select to set the volume of the
buzzer which sounds when
the RCTA system is operated.

109

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.294)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign Assist)

(if equipped) (



P.261)

Select to set up the following
items.



Road Sign Assist on/off
Select to enable/disable the
RSA system.



“Notification Method”
Select to change each notifi-
cation method used to notify
the driver when the system
recognizes excess speed and
Do Not Enter sign.



“Notification Level”
Select to change each notifi-
cation level used to notify the
driver when the system recog-
nizes a speed limit sign.

■

Vehicle Settings



PBD (Power Back Door)

(if equipped) (



P.138)

Select to set up the following items.
• System settings

Select to enable/disable the
power back door system.

• “Hands Free”

Select to enable/disable the
Hands Free Power Back Door.

• “Opening Adjustment”

Select the open position when
power back door is fully open.

• “Volume”

Select to set the volume of the
buzzer which sounds when the
power back door system oper-
ates.

: Vehicles with Hands Free Power

Back Door



Stop & Start system (if

equipped) (



P.304)

Select to set the length of time the
Stop & Start system will operate
when the “A/C” switch of the air
conditioning system is on.



“Scheduled Maintenance”
(



P.388)

Select to reset the scheduled
maintenance information
(message indicating mainte-
nance is required and dis-
tance until the next
maintenance) after all mainte-
nance is performed.



Rear Seat Reminder
(



P.388)

Select to enable/disable the
rear seat reminder function.



“TPWS” (Tire Pressure Warn-
ing System) (



P.410)

• “Set Pressure”

Select to initialize the tire pres-
sure warning system.

• “Change Wheel”

Select to change the tire pressure
warning system sensor ID code
set. To enable this function, a
second set of tire pressure warn-
ing system sensor ID codes must
be registered by a Toyota dealer.
For information regarding chang-
ing the registered ID code set,

110

2-1. Instrument cluster

contact your Toyota dealer.

■

Settings



“Language”
Select to change the lan-
guage on the multi-informa-
tion display.



“Units”
Select to change the unit of
measure for fuel consump-
tion.



Meter Type
Select to change the meter
type setting.



Meter Style
Select to change the meter
style.



Dial Type
Select to change dial type.
(



P.88)



(Eco Driving Indicator

Light) (



P.96)

Select to activate/deactivate the
Eco Driving Indicator Light.



Fuel Economy
Select to change the display
on Fuel Economy. (



P.105)



Drive Info
Select to change displayed
items on drive information dis-
play. (



P.106)



Pop-Up Display
Select to enable/disable the
pop-up displays, which may
appear in some situations.



Default Settings
Select to reset the meter dis-

play settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.459)

WARNING

■

Cautions during setting up

the display

As the engine needs to be run-

ning during setting up the display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

Warning message display

111

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn off the
headlights

If the driver’s door is opened after
the engine switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Convenience Services (Suggestion

function) can be turned on/off. (Cus-

tomizable features:



P.509)

Press

from the main menu,

then press “Trip information”.

■

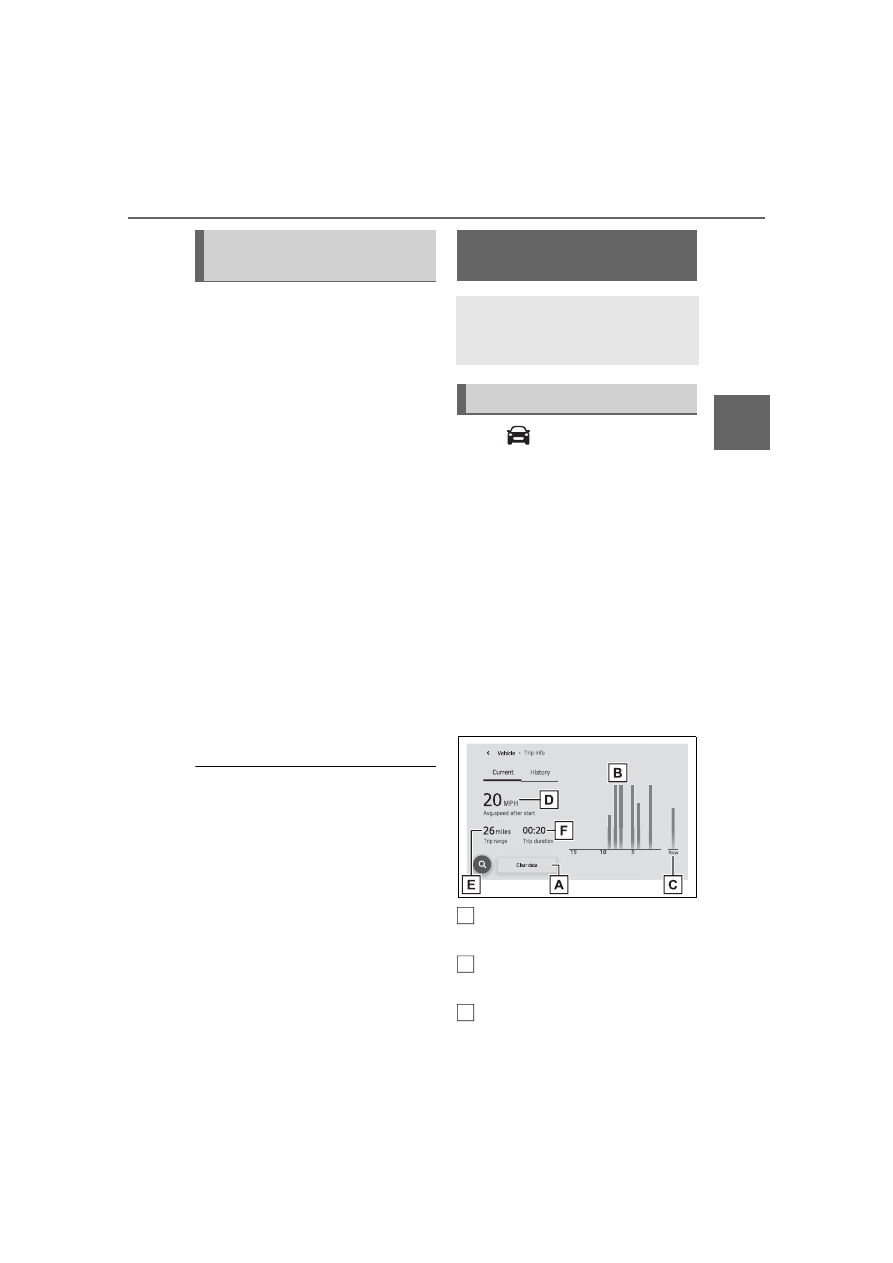

Current fuel consumption
screen

If a screen other than current
fuel consumption screen is dis-
played, press “Current”.

Use the displayed average fuel
consumption as a reference.
Some screens may vary depending
on the type of multi-media display.
The image is an example only, and
may vary slightly from actual condi-
tions.

Resetting the consumption
data

Fuel consumption in the past
15 minutes

Current fuel consumption

Convenience Services
(Suggestion function)

Fuel consumption

information

The fuel consumption infor-
mation can be displayed on
the Multimedia Display.

Display procedure

Toyota RAV4 (2023 year). Manual in english - page 6
