Toyota RAV4 (2023 year). Manual in english - page 5





80

2-1. Instrument cluster

indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the light does not come on, or
turn off. Have the vehicle
inspected by your Toyota dealer.

*2

:This light illuminates on the

multi-information display with a
message.

*3

:Intuitive parking assist OFF indi-

cator turns on when the engine
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

*4

:Vehicles with 12.3-inch multi-

information display

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

WARNING

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

engine, this could mean that

these systems are not available to

help protect you in an accident,

which could result in death or seri-

ous injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

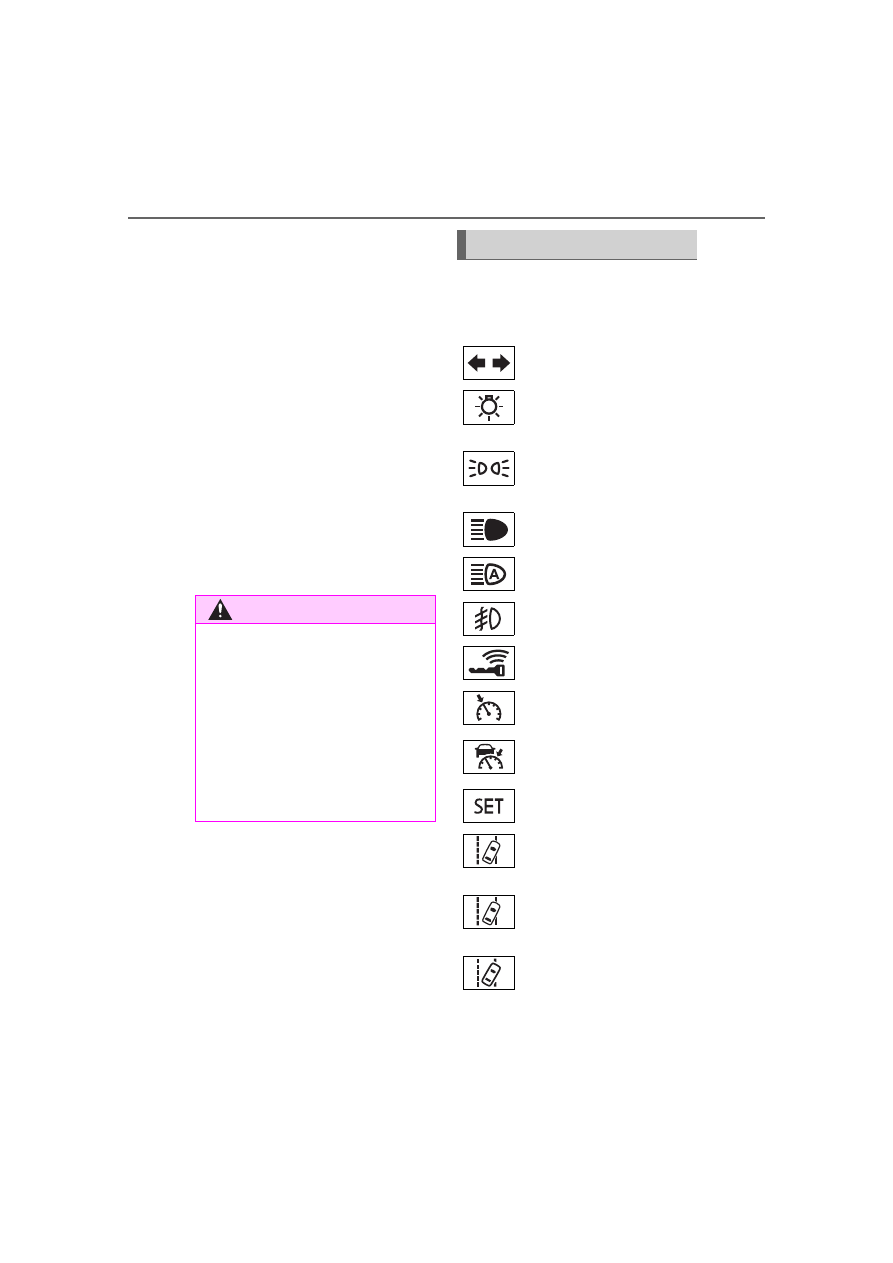

Indicators

Turn signal indicator
(

P.212)

(U.S.A.)

Headlight indicator
(

P.219)

(Canada)

Tail light indicator
(

P.219)

Headlight high beam indi-
cator (

P.222)

Automatic High Beam
indicator (

P.222)

Fog light indicator (if
equipped) (

P.226)

Smart key system indica-
tor

*1

 (

P.204)

Cruise control indicator
(

P.264)

Dynamic radar cruise
control indicator
(

P.264)

Cruise control “SET” indi-
cator (

P.264)

(white)

LTA indicator

*2

 (

P.255)

(Green)

LTA indicator

*2

 (

P.239,

255)

(Orange)

(Flashes)

LTA indicator

*2

 (

P.255)

81

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

*1

:This light illuminates on the

multi-information display with a
message.

*2

:Depending on the operating con-

ditions of the system, the color
and state (illuminated/blinking) of
the indicator change.

*3

:The light comes on when the

system is turned off.

*4

:Intuitive parking assist OFF indi-

cator turns on when the engine
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

*5

:These lights turn on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or

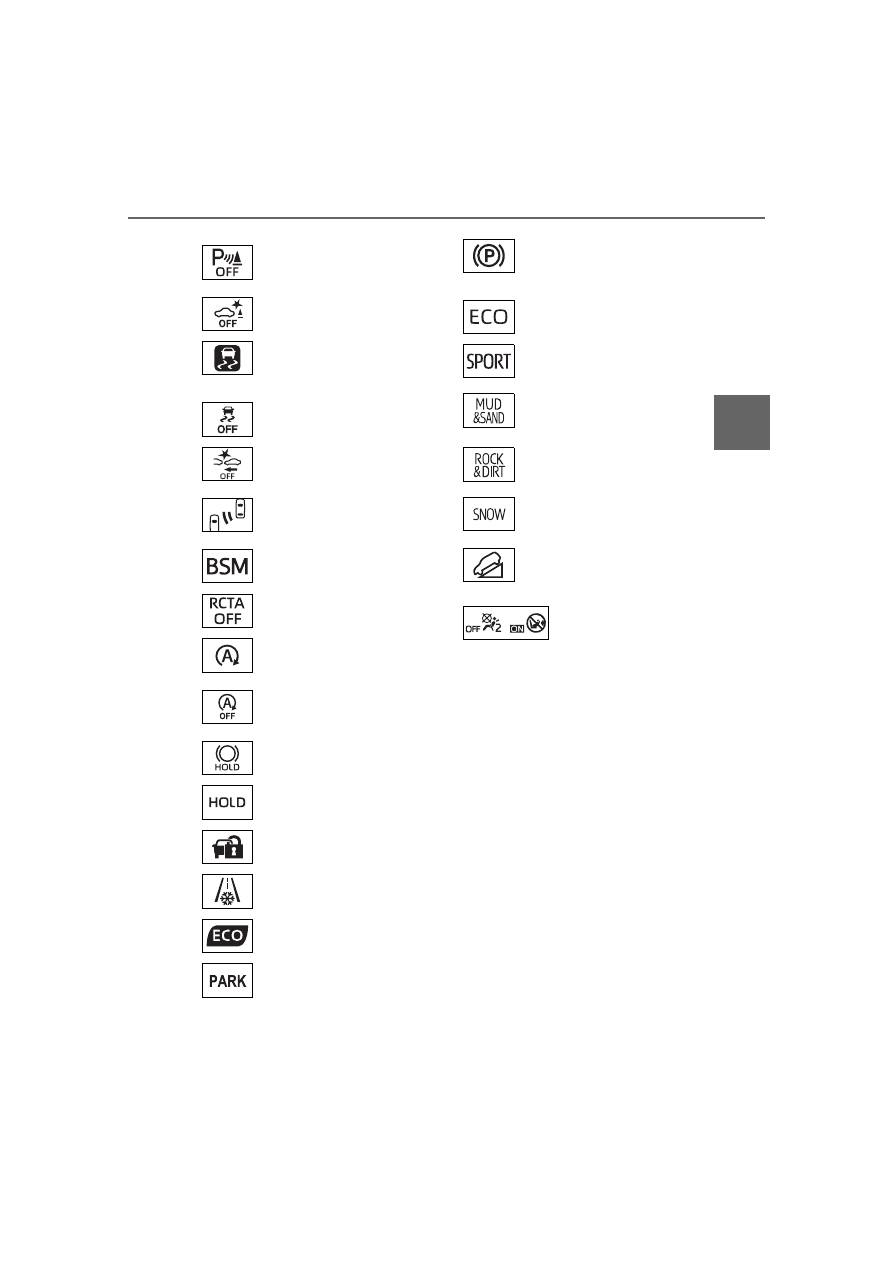

Intuitive parking assist
OFF indicator

*3, 4

 (if

equipped) (

P.282)

PKSB OFF indicator

*3, 5



(if equipped) (

P.296)

(Flashes)

Slip indicator light

*5



(

P.320)

VSC OFF indicator

*3, 5



(

P.320)

PCS warning light

*3, 5



(

P.242)

BSM outside rear view
mirror indicators

*5, 6

 (if

equipped) (

P.276)

BSM indicator (if
equipped) (

P.275)

RCTA OFF indicator

*3, 5



(if equipped) (

P.289)

Stop & Start indicator

*5

 (if

equipped) (

P.304)

Stop & Start cancel indi-
cator

*3, 5

 (if equipped)

(

P.305)

Brake hold standby indi-
cator

*5

 (

P.217)

Brake hold operated indi-
cator

*5

 (

P.217)

Security indicator

*8



(

P.70, 72)

Low outside temperature
indicator

*7

 (

P.91, 86)

Eco Driving Indicator
Light

*5

 (

P.96)

(U.S.A.)

Parking brake indicator
(

P.213)

(Canada)

Parking brake indicator
(

P.213)

Eco drive mode indicator
(

P.310)

Sport mode indicator
(

P.310)

Mud & sand mode indica-
tor (if equipped)
(

P.313)

Rock & dirt mode indica-
tor (if equipped)
(

P.313)

Snow mode indicator (if
equipped) (

P.315)

Downhill assist control
system indicator

*5

 (if

equipped) (

P.316)

“AIR BAG ON/OFF”
indicator

*5, 8



(

P.43)

82

2-1. Instrument cluster

after a few seconds. There may
be a malfunction in a system if
the lights do not turn on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

*6

:This light illuminates on the out-

side rear view mirrors.

*7

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

*8

:This light illuminates on the cen-

ter panel.

BSM (Blind Spot Monitor) out-

side rear view mirror indicators

(if equipped)

In order to confirm operation, the

BSM outside rear view mirror indica-

tors illuminate in the following situa-

tions:

When the engine switch is turned
to ON while the BSM function is
enabled on the

 screen of the

multi-information display.

When the BSM function is
enabled on the

 screen of the

multi-information display while the
engine switch is in ON.

If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror

indicators do not illuminate or do not

turn off, there may be a malfunction

in the system. If this occurs, have

the vehicle inspected by your

Toyota dealer.

83

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

The display of the speedometer can be selected from two types,
analog or digital. (

P.98)

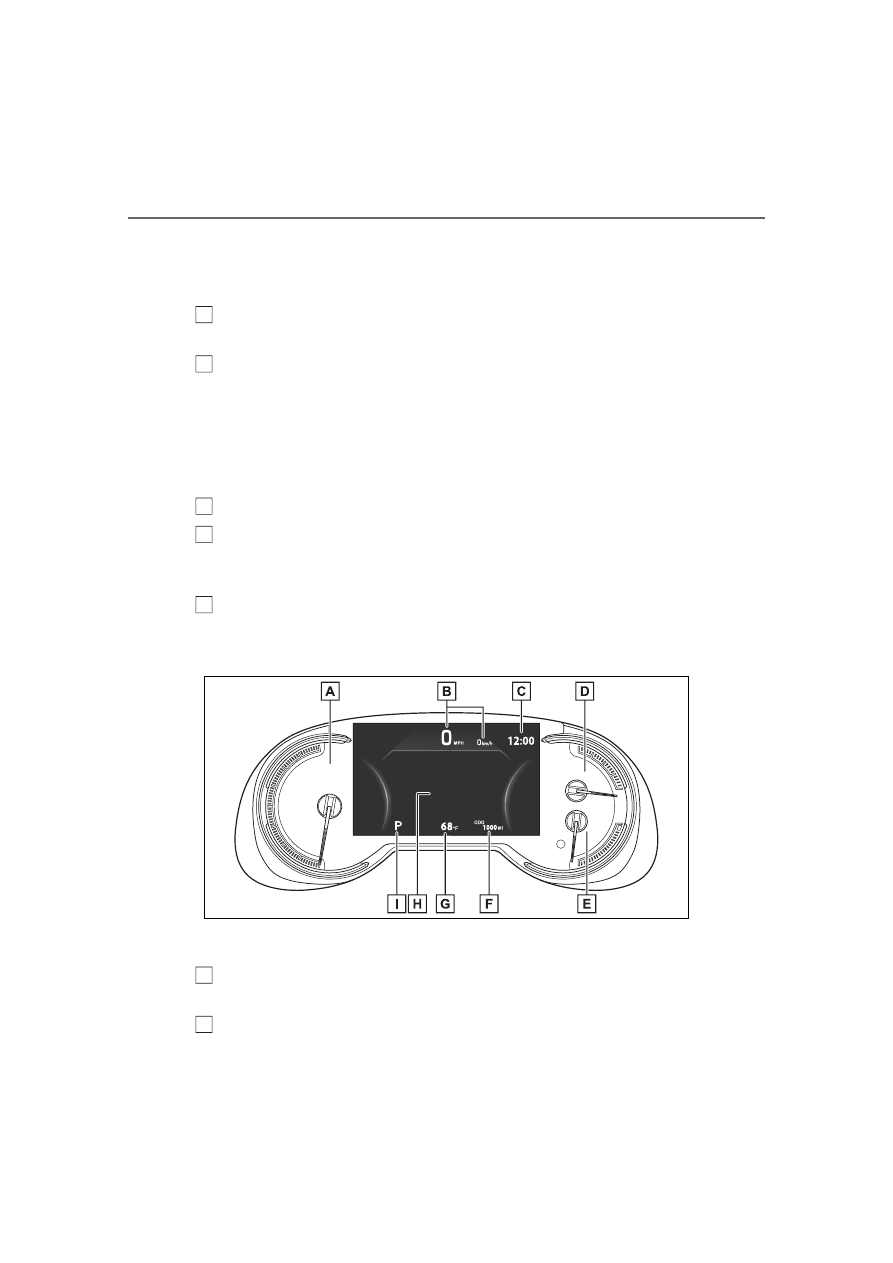

Analog speedometer

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Fuel gauge

Displays the quantity of fuel remaining in the tank.
In the following situations, the actual quantity of fuel remaining in the tank
may not be displayed correctly. Refer to P.85 if the actual quantity of fuel
remaining in the tank is not displayed correctly.

Gauges and meters (with 7-inch multi-information

display)

The meters display various drive information.

Meter display

A

B

C

D

84

2-1. Instrument cluster

• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (

P.86)

Multi-information display

Presents the driver with a variety of driving-related data (

P.93)

Displays warning messages if a malfunction occurs (

P.459)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (

P.209)

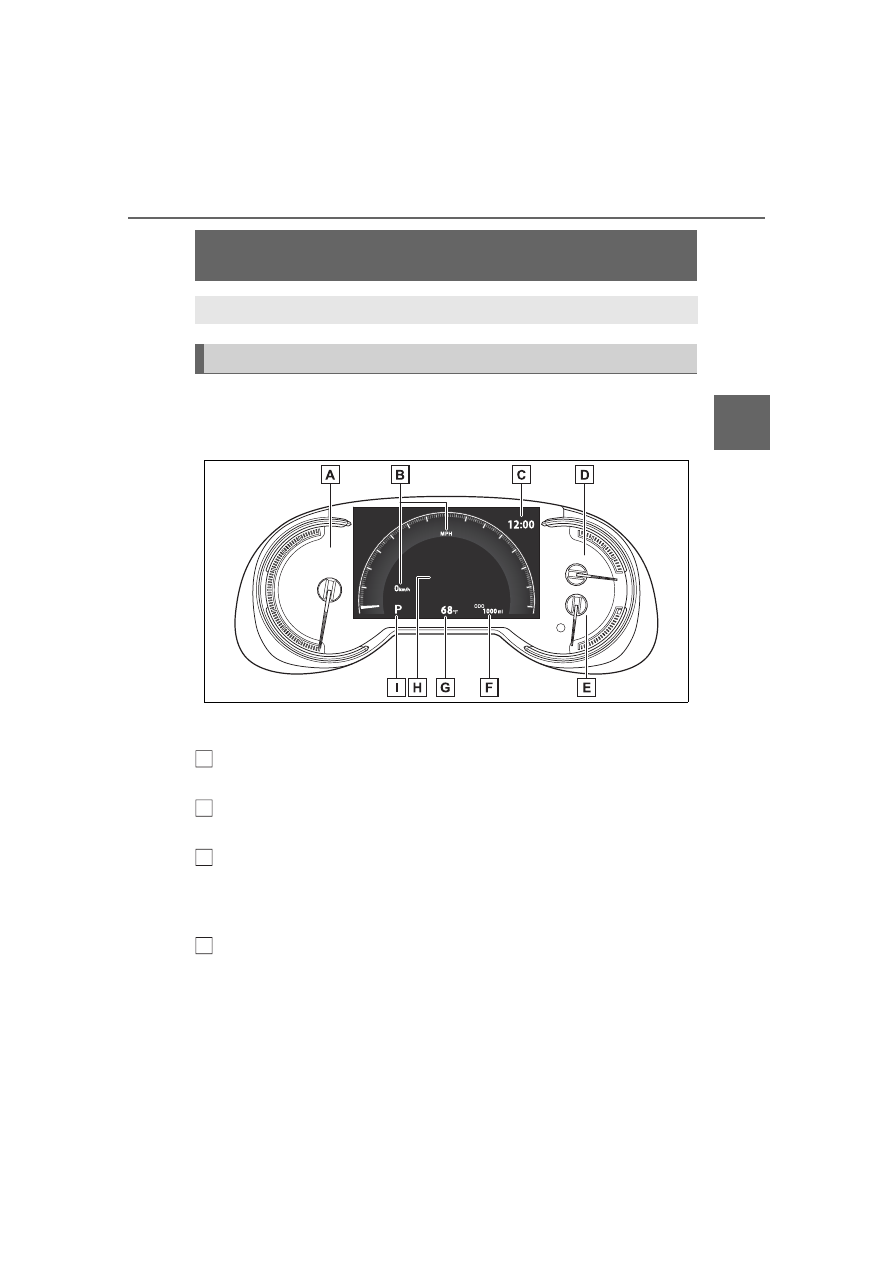

Digital speedometer

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

E

F

G

H

I

A

B

85

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Displays the vehicle speed

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Fuel gauge

Displays the quantity of fuel remaining in the tank.
In the following situations, the actual quantity of fuel remaining in the tank
may not be displayed correctly. Refer to P.85 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (

P.86)

Multi-information display

Presents the driver with a variety of driving-related data (

P.93)

Displays warning messages if a malfunction occurs (

P.459)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (

P.209)

The meters and display illumi-

nate when

The engine switch is in ON.

When changing driving mode

Speedometer color is changed fol-

lowing the selected driving mode.

(

P.310)

AWD models: Speedometer color

is changed following the selected

driving mode or Multi-terrain

Select mode. (

P.310, 312)

Manually updating the fuel

gauge and possible driving

range

The fuel gauge and the possible

driving range are linked. If the dis-

plays of the fuel gauge and possible

driving range do not update after

adding a small amount of fuel, the

displays can be updated by per-

C

D

E

F

G

H

I

86

2-1. Instrument cluster

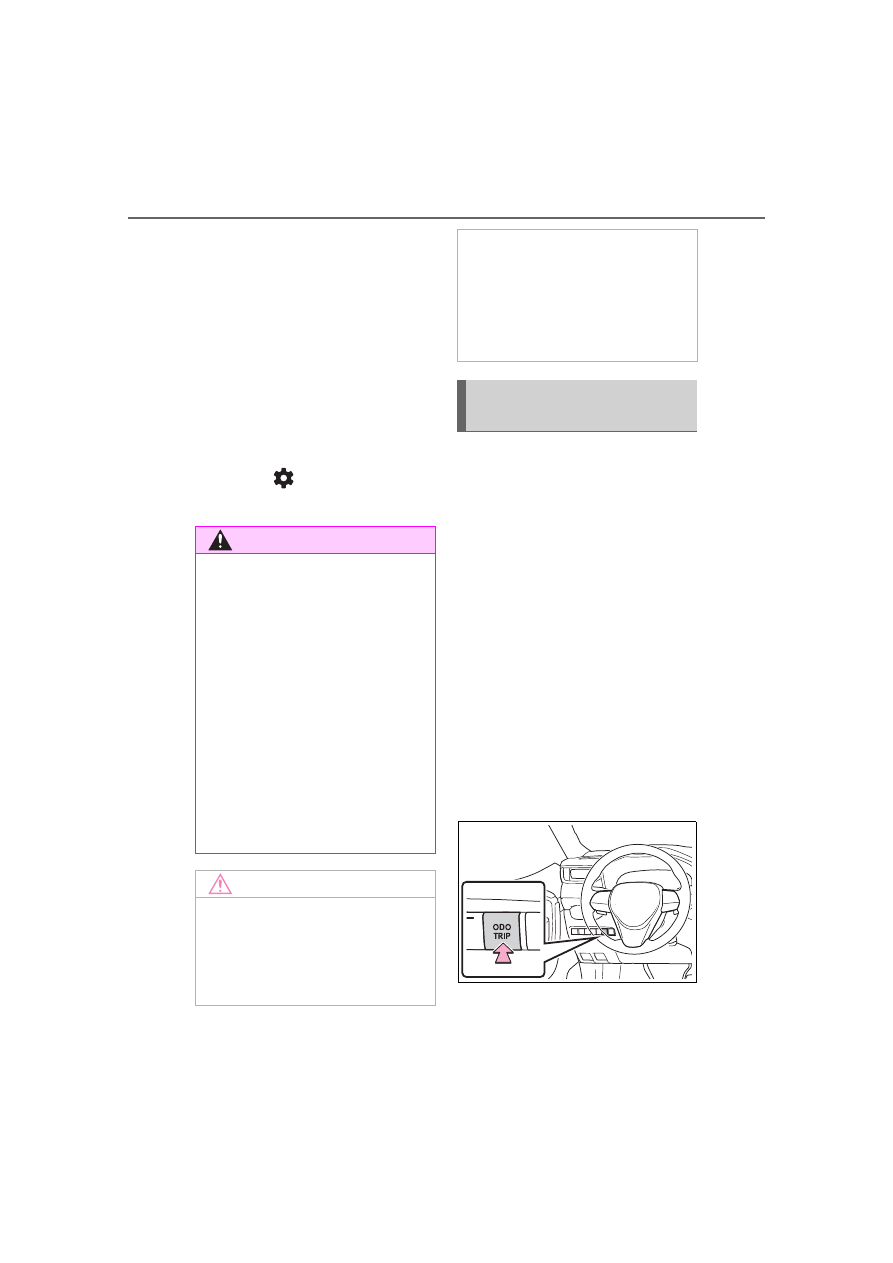

forming the following procedure.

1

Stop the vehicle on a level sur-

face.

2

Press the “ODO TRIP” switch to

change the odometer and trip

meter display to odometer.

3

Turn the engine switch off.

4

While pressing and holding the

“ODO TRIP” switch, turn the

engine switch to ON.

5

Continue to hold the “ODO TRIP”

switch for approximately 5 sec-

onds, and then release it once

the odometer begins flashing.

Updating is complete once the

odometer flashes for approximately

5 seconds and then the display

returns to normal.

Outside temperature display

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator

 will flash

for approximately 10 seconds,
then stay on.

Liquid crystal display

P.94

Customization

Settings (e. g. meter display) can be

changed on the

 screen of the

multi-information display. (

P.98)

Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”

WARNING

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

To prevent damage to the

engine and its components

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(“H”). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(

P.480)

Using the “ODO TRIP”
switch

87

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

switch.

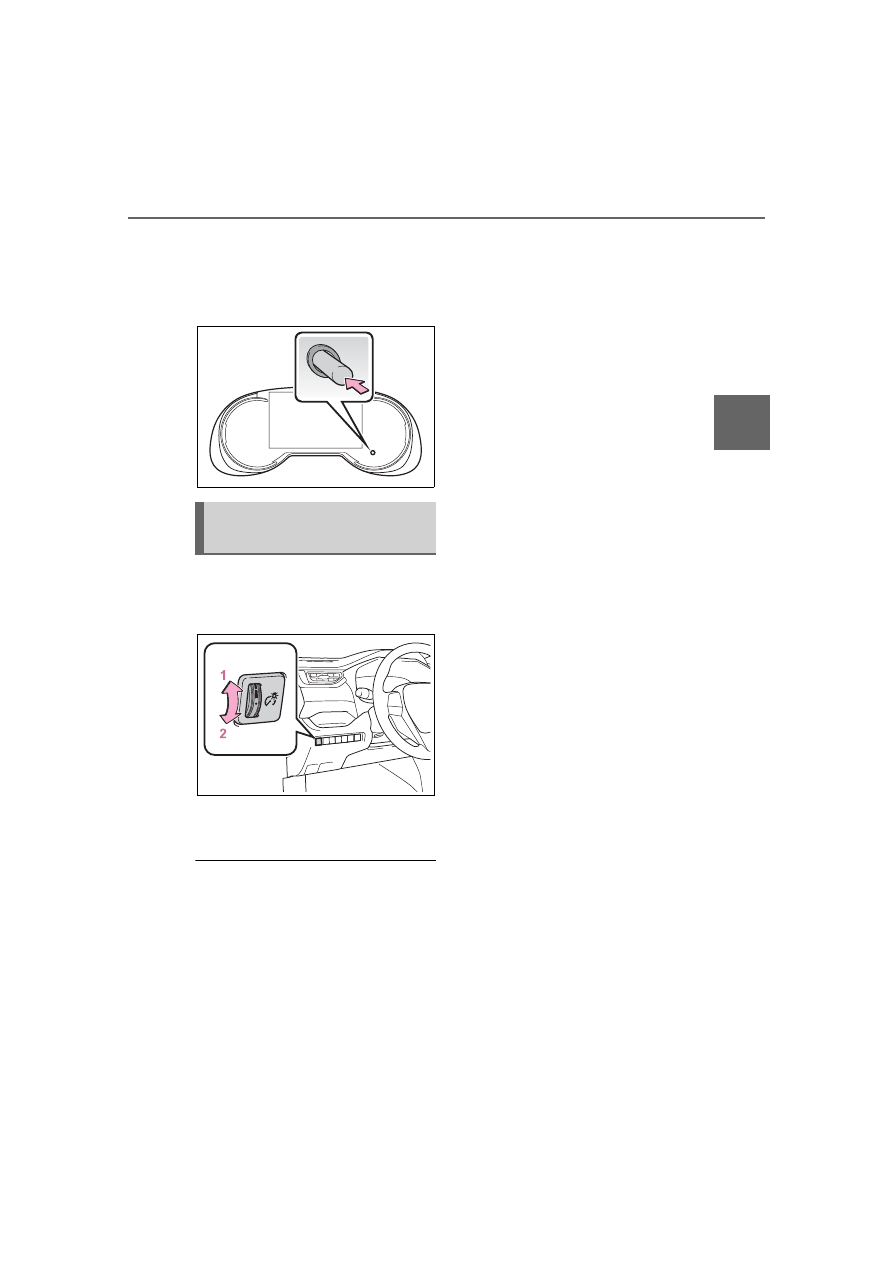

When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

1

Brighter

2

Darker

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

Instrument panel light
control

88

2-1. Instrument cluster

Locations of gauges and meters

The meter type can be changed on

 of the multi-information dis-

play. (

P.107)

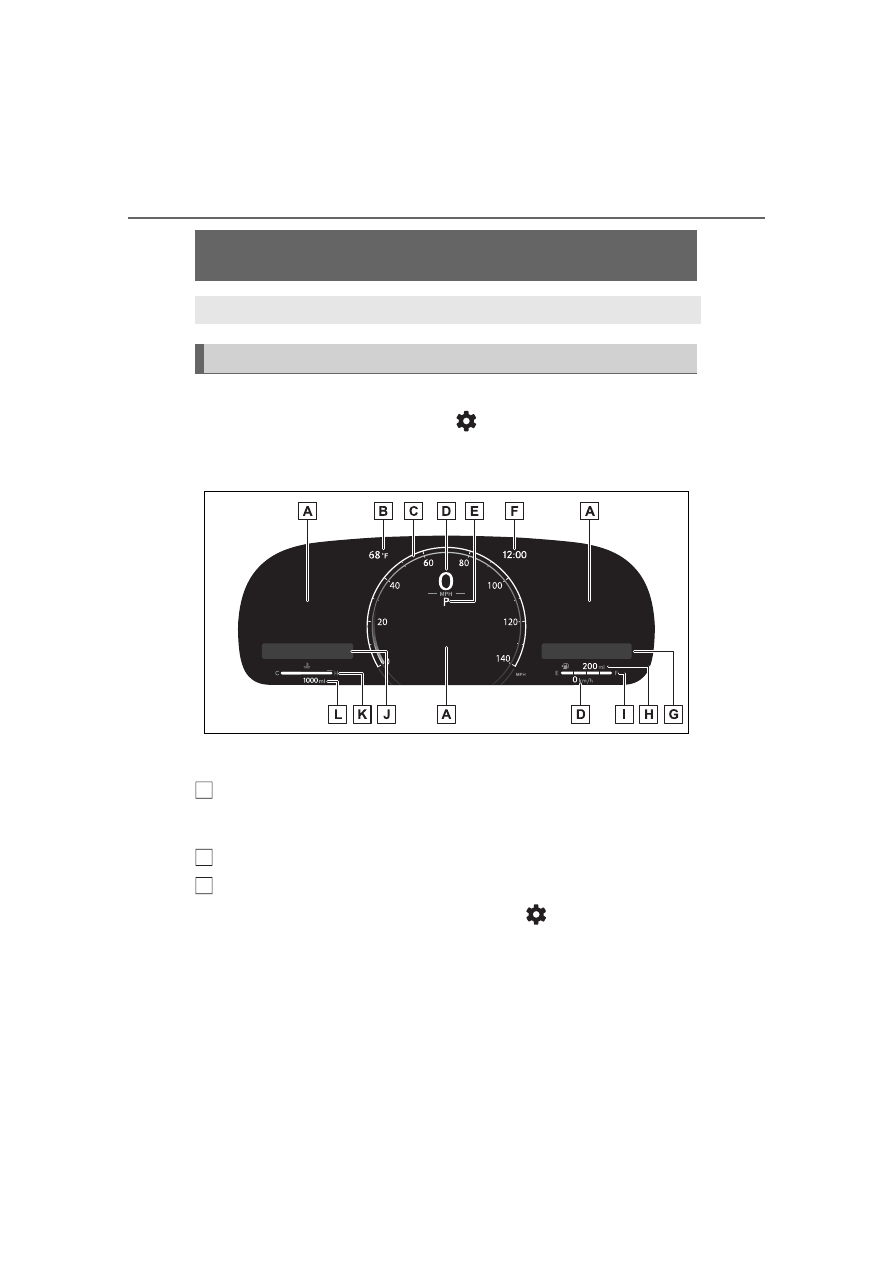

Type 1/Type 2

The units of measure may differ depending on the intended destination of
the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (

P.102)

Displays warning messages if a malfunction occurs (

P.459)

Outside temperature (

P.91)

Analog meter (Type 2 only)

The dial type of analog meter can be changed on

 of the multi-informa-

tion display. (

P.111)

Tachometer:
Displays the engine speed in revolutions per minute.
Analog speedometer:
Displays the vehicle speed.

Gauges and meters (with 12.3-inch multi-informa-

tion display)

The meters display various drive information.

Meter display

A

B

C

89

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Digital speedometer

Displays the vehicle speed

Shift position and shift range

Displays the selected shift position or selected shift range (

P.209)

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Widget (Audio system-linked display)

Displays selection of an audio source or track on the meter. (

P.106)

If contents list is displayed on the multi-information display, widget will not
be displayed. (

P.104)

Distance to empty

Displays driving range with remaining fuel. (

P.91)

Fuel gauge

Displays the quantity of fuel remaining in the tank.
In the following situations, the actual quantity of fuel remaining in the tank
may not be displayed correctly. Refer to P.91 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Widget (Fuel Economy)

Displays fuel economy information. (

P.105)

If contents list is displayed on the multi-information display, widget will not
be displayed. (

P.104)

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (

P.92)

D

E

F

G

H

I

J

K

L

90

2-1. Instrument cluster

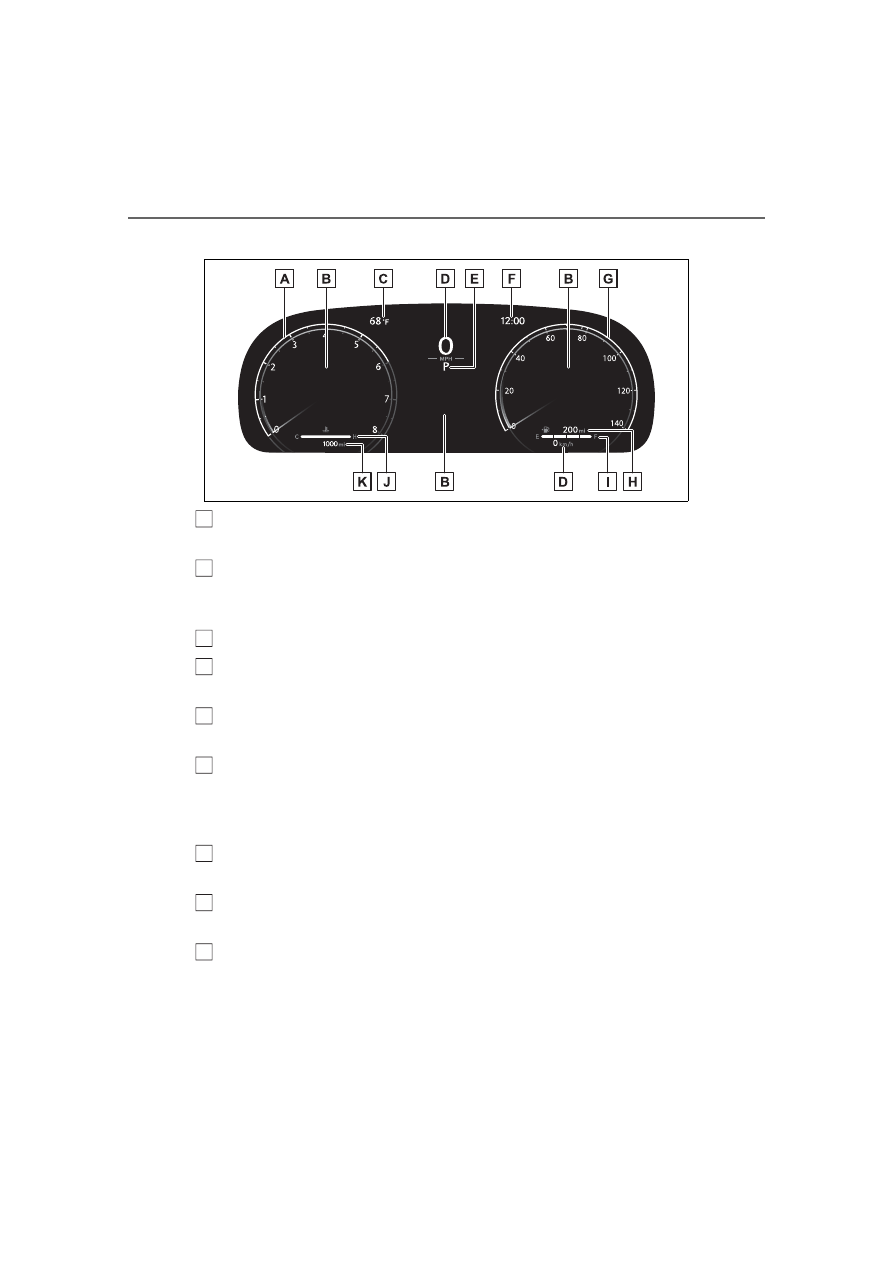

Type 3

Tachometer

Displays the engine speed in revolutions per minute.

Multi-information display

Presents the driver with a variety of vehicle data (

P.102)

Displays warning messages if a malfunction occurs (

P.459)

Outside temperature (

P.91)

Digital speedometer

Displays the vehicle speed.

Shift position and shift range

Displays the selected shift position or selected shift range (

P.209)

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Analog speedometer

Displays the vehicle speed.

Distance to empty

Displays driving range with remaining fuel. (

P.209)

Fuel gauge

Displays the quantity of fuel remaining in the tank.
In the following situations, the actual quantity of fuel remaining in the tank
may not be displayed correctly. Refer to P.91 if the actual quantity of fuel
remaining in the tank is not displayed correctly.

A

B

C

D

E

F

G

H

I

91

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (

P.92)

The meters and display illumi-

nate when

The engine switch is in ON.

Distance to empty

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the engine switch off. If

the vehicle is refueled without

turning the engine switch off, the

display may not be updated.

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated. Refuel immediately.

Manually updating the fuel

gauge and possible driving

range

The fuel gauge and the possible

driving range are linked. If the dis-

plays of the fuel gauge and possible

driving range do not update after

adding a small amount of fuel, the

displays can be updated by per-

forming the following procedure.

1

Stop the vehicle on a level sur-

face.

2

Press the “ODO TRIP” switch to

change the odometer and trip

meter display to odometer.

3

Turn the engine switch off.

4

While pressing and holding the

“ODO TRIP” switch, turn the

engine switch to ON.

5

Continue to hold the “ODO TRIP”

switch for approximately 5 sec-

onds, and then release it once

the odometer begins flashing.

Updating is complete once the

odometer flashes for approximately

5 seconds and then the display

returns to normal.

Outside temperature display

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator

 will flash

for approximately 10 seconds,
then stay on.

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

J

K

92

2-1. Instrument cluster

Free/Open Source Software

Information

This product contains Free/Open

Source Software (FOSS). The

license information and/or the

source code of such FOSS can be

found at the following URL.
https://www.denso.com/global/en/

opens ource/meter/toyota/

Liquid crystal display

P.103

Customization

The gauges and meters can be cus-
tomized on

 of the multi-informa-

tion display. (

P.509)

Display items

Odometer

Displays the total distance the vehi-
cle has been driven.

Trip meter A/trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.

Changing the display

Each time the “ODO TRIP”
switch is pressed, the displayed
item will be changed.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

WARNING

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

To prevent damage to the

engine and its components

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(

P.480)

Odometer and trip meter
display

93

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

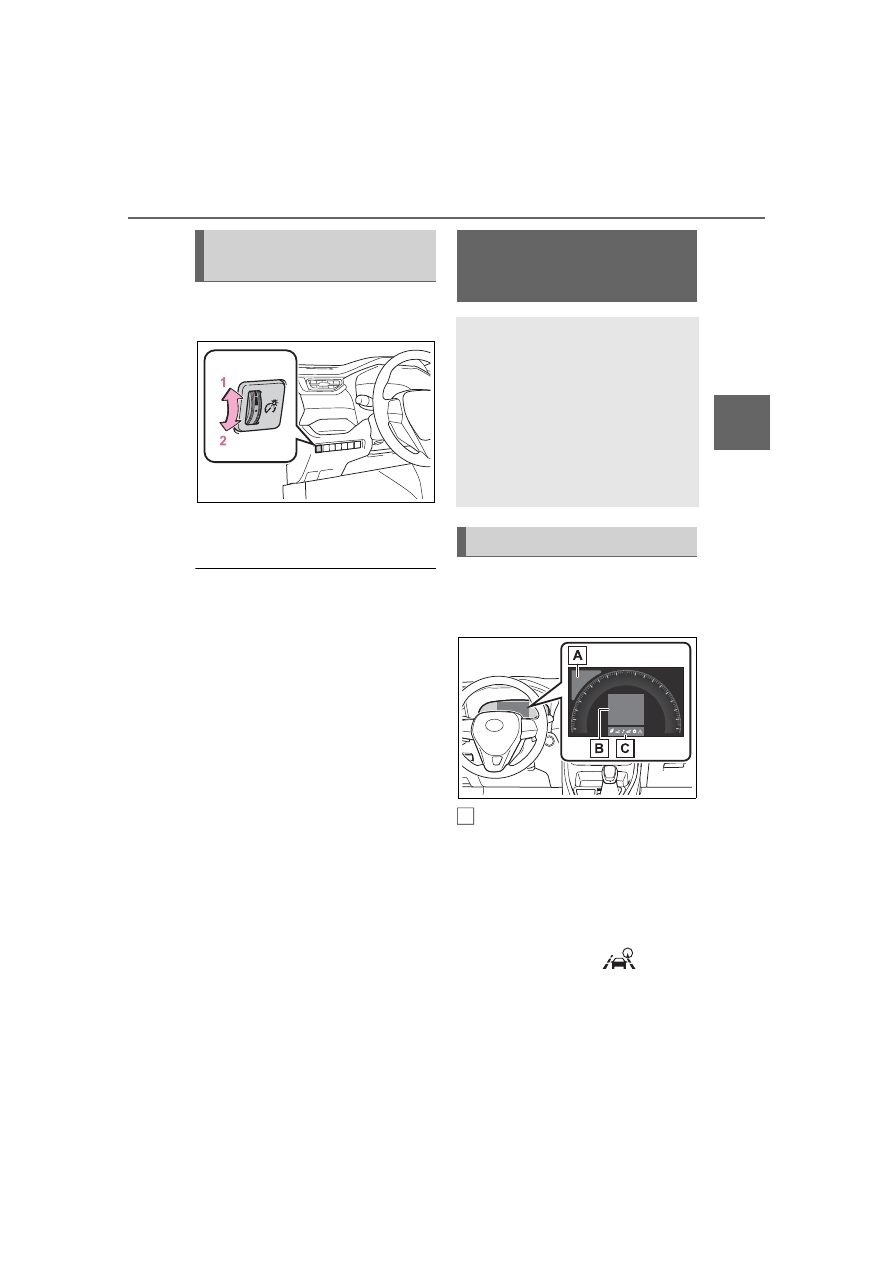

The brightness of the instrument
panel lights can be adjusted.

1

Brighter

2

Darker

Brightness of the meter lights

(day mode and night mode)

The brightness of the meter lights

can be adjusted individually.
In the following situations, the

meters changes between day mode

and night mode.

Day mode: When the tail lights are

off or when the tail lights are on

but the surrounding area is bright

Night mode: When the tail lights

are on and the surrounding area is

dark

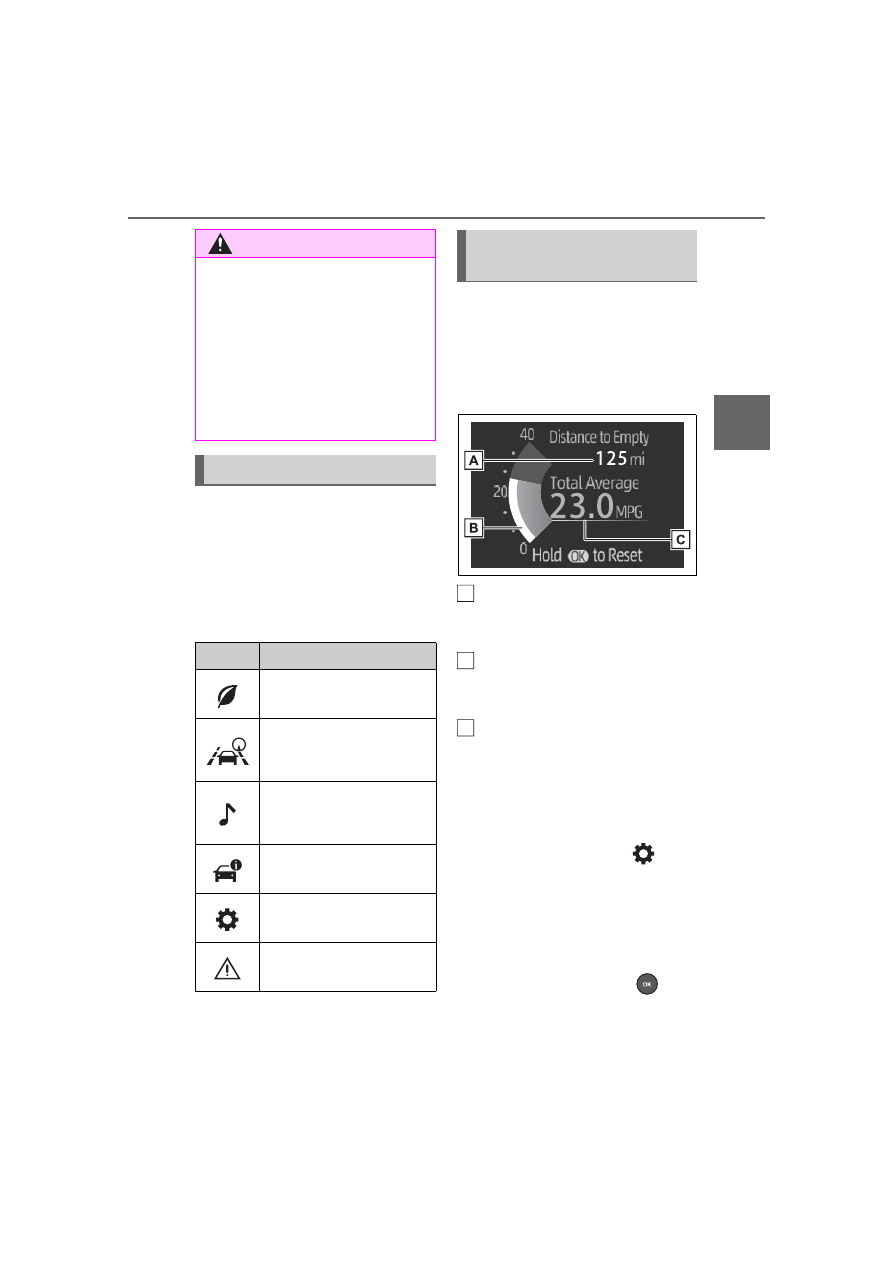

Following information is dis-
played on the multi-information
display.

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (

P.261)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

 is

selected:
• LTA (Lane Tracing Assist)

(

P.250)

• Dynamic radar cruise control with

Changing the instrument
panel light brightness

Multi-information dis-

play (with 7-inch multi-

information display)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

A

94

2-1. Instrument cluster

full-speed range (

P.264)

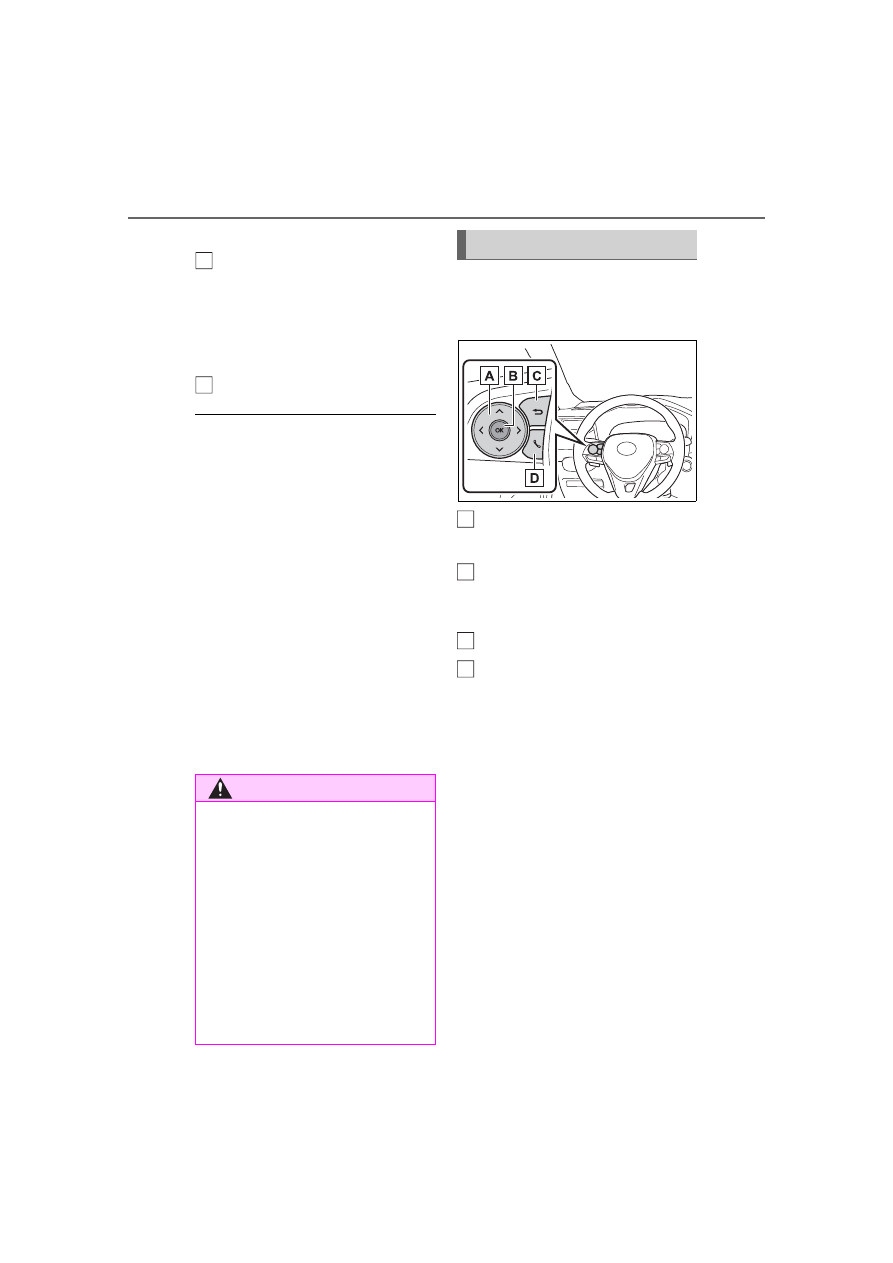

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

Menu icons (

P.95)

The multi-information display is

displayed when

The engine switch is in ON.

When changing driving mode

Background color of the multi-

information display is changed fol-

lowing the selected driving mode.

(

P.310)

AWD models: Background color of

the multi-information display is

changed following the selected

driving mode or Multi-terrain

Select mode. (

P.310, 312)

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

The multi-information display is
operated using the meter control
switches.

Scroll the screen

*

/switch the

display

*

/move the cursor

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display (if equipped)
Linked with the hands-free
system, sending or receiving
call is displayed. For details
regarding the hands-free sys-
tem, refer to “MULTIMEDIA
OWNER’S MANUAL”.

*

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

WARNING

Caution for use while driving

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

The information display at

low temperatures

P.86

B

C

Changing the display

A

B

C

D

95

2-1. Instrument cluster

2

Vehicle

 s

ta

tu

s information an

d in
dicat

or

s

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Select to display fuel consump-
tion data in various forms.

Fuel Economy

Following information is dis-
played.

Distance to empty

Displays the driving range with
remaining fuel. (

P.96)

Current fuel economy

Displays the instantaneous current
fuel Economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the



screen is displayed. (

P.98)

*1

:Use the displayed fuel consump-

tion as a reference only.

*2

:Average fuel economy since the

function was reset can be reset
by pressing and holding

.

*3

:Average fuel economy after

starting is reset each time the

WARNING

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

Icon

Display

Driving information dis-
play (

P.95)

Driving support system
information display
(

P.97)

Audio system-linked dis-
play (if equipped)
(

P.97)

Vehicle information dis-
play (

P.97)

Settings display (

P.98)

Warning message dis-
play (

P.102)

Driving information dis-
play

A

B

C















Content      ..     3      4      5      6     ..
