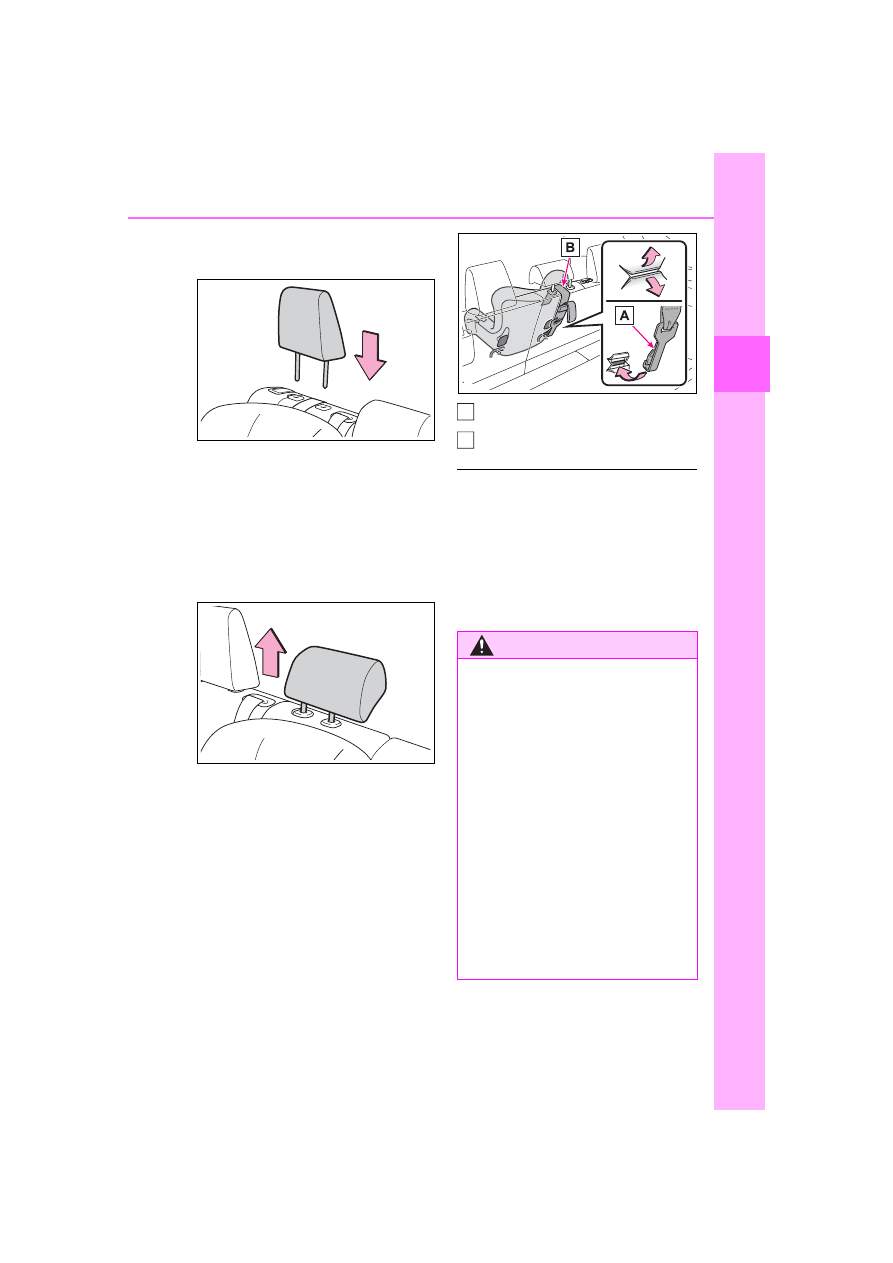

Latch the hook onto the
anchor bracket and tighten
the top tether strap.

Make sure the top tether strap is

securely latched.
When installing the child restraint

system with the head restraint

being raised, be sure to have the

top tether strap pass underneath

the head restraint.

Hook

Top tether strap

■

Laws and regulations pertain-

ing to anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming

to FMVSS213 or CMVSS213 speci-

fications can be used.

This vehicle is designed to conform

to SAE J1819.

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Firmly attach the top tether

strap and make sure that the

belt is not twisted.

●

Do not attach the top tether

strap to anything other than the

anchor bracket.

●

After securing a child restraint

system, never adjust the seat.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

1-3. Emergency assistance

For
safety and secu

rity

1-3.Emergency assistance

: If equipped



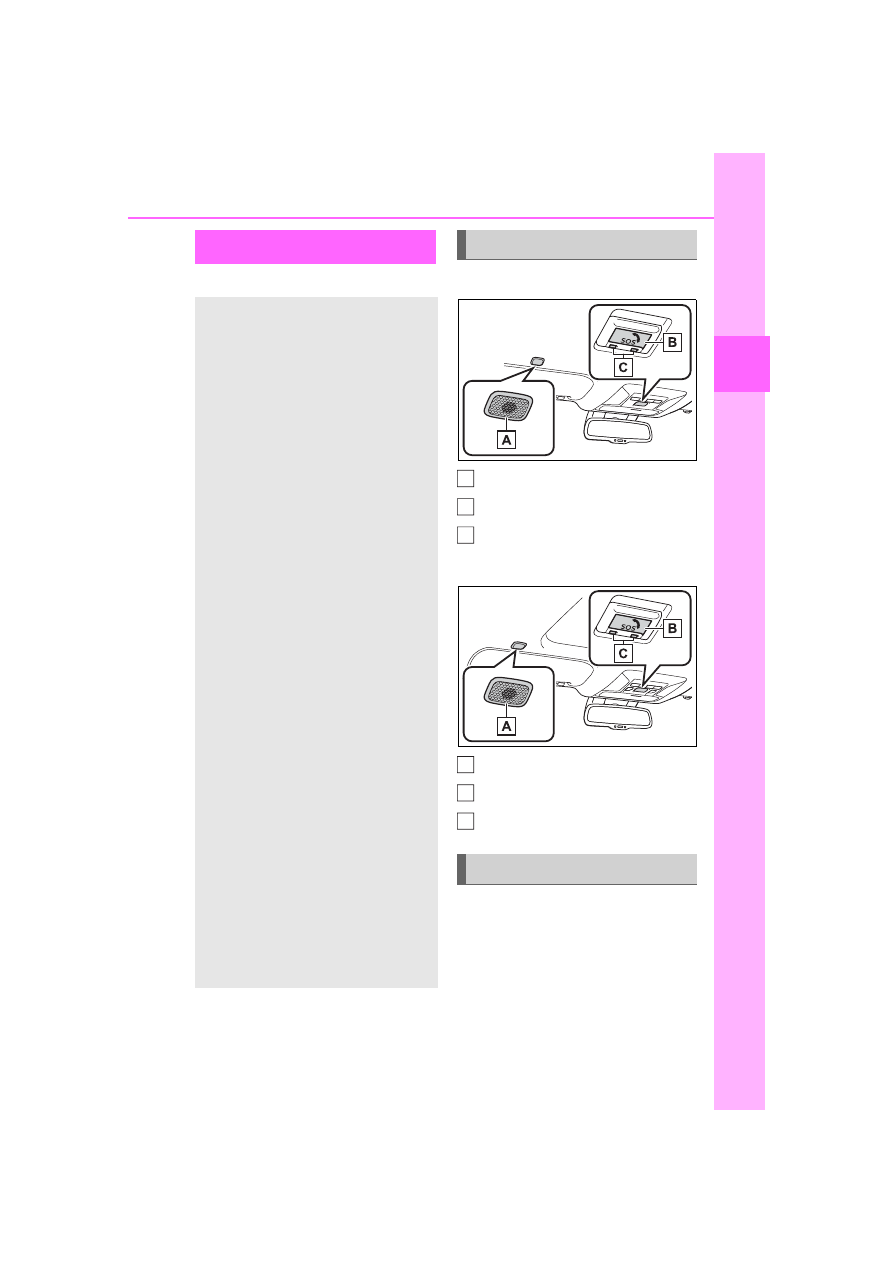

Type A

Microphone

“SOS” button

LED light indicators



Type B

Microphone

“SOS” button

LED light indicators

Subscribers have the following
Safety Connect services avail-
able:



Automatic Collision Notifica-
tion

Helps drivers receive necessary
response from emergency service

Safety Connect

Safety Connect is a sub-
scription-based telematics
service that uses Global
Positioning System (GPS)
data and embedded cellular
technology to provide
safety and security features
to subscribers. Safety Con-
nect is supported by
Toyota’s designated
response center, which
operates 24 hours per day, 7
days per week.
Safety Connect service is
available by subscription on
select, telematics hardware-
equipped vehicles.

By using the Safety Connect
service, you are agreeing to
be bound by the Telematics
Subscription Service Agree-
ment and its Terms and
Conditions, as in effect and
amended from time to time,
a current copy of which is
available at Toyota.com in
the United States,
Toyotapr.com in Puerto
Rico and Toyota.ca in Can-
ada. All use of the Safety
Connect service is subject
to such then-applicable
Terms and Conditions.

System components

Services

1-3. Emergency assistance

providers. (

P.67

)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle
theft. (



P.67

)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-cen-
ter support. (

P.68

)



Enhanced Roadside Assis-
tance

Provides drivers various on-road
assistance. (

P.68

)

After you have signed the
Telematics Subscription Ser-
vice Agreement and are
enrolled, you can begin receiv-
ing services.
A variety of subscription terms
are available for purchase. Con-
tact your Toyota dealer, call the
following appropriate Customer
Experience Center or push the
“SOS” button in your vehicle for
further subscription details.



The United States

1-800-331-4331



Canada

1-888-869-6828



Puerto Rico

1-877-855-8377

■

Safety Connect Services Infor-

mation

●

Phone calls using the vehicle’s
Bluetooth

technology will not be

possible when Safety Connect is

active and in use.

●

Safety Connect is available begin-

ning Fall 2009 on select Toyota

models (in the contiguous United

States only). Contact with the

Safety Connect response center

is dependent upon the telematics

device being in operative condi-

tion, cellular connection availabil-

ity, and GPS satellite signal

reception, which can limit the abil-

ity to reach the response center or

receive emergency service sup-

port. Enrollment and Telematics

Subscription Service Agreement

are required. A variety of subscrip-

tion terms are available; charges

vary by subscription term selected

and location.

●

Automatic Collision Notification,

Emergency Assistance and Stolen

Vehicle Location are available in

the United States, including

Hawaii and Alaska, Puerto Rico

and Canada, and Enhanced

Roadside Assistance are avail-

able in the United States, Puerto

Rico and Canada.

●

Automatic Collision Notification,

Emergency Assistance, Stolen

Vehicle and Enhanced Road

Assistance are not available in the

U.S. Virgin Islands.

For vehicles first sold in the U.S.

Virgin Islands, no Safety Connect

services will function in or outside

the U.S. Virgin Islands.

●

Safety Connect services are not

subject to section 255 of the Tele-

communications Act and the

device is not TTY compatible.

■

Languages

The Safety Connect response cen-

ter will offer support in multiple lan-

guages. The Safety Connect system

Subscription

1-3. Emergency assistance

For
safety and secu

rity

will offer voice prompts in English,

Spanish, and French. Please indi-

cate your language of choice when

enrolling.

■

When contacting the response

center

You may be unable to contact the

response center if the network is

busy.

When the engine switch is
turned to ON, the red indicator
light comes on for 2 seconds
then turns off. Afterward, the
green indicator light comes on,
indicating that the service is
active.
The following indicator light pat-
terns indicate specific system
usage conditions:



Green indicator light on =
Active service



Green indicator light flashing
= Safety Connect call in pro-
cess



Red indicator light (except at
vehicle start-up) = System
malfunction (contact your
Toyota dealer)



No indicator light (off) =
Safety Connect service not
active

■

Automatic Collision Notifi-
cation

In case of either airbag deploy-
ment or severe rear-end colli-
sion, the system is designed to
automatically call the response
center. The responding agent
receives the vehicle’s location
and attempts to speak with the
vehicle occupants to assess the
level of emergency. If the occu-
pants are unable to communi-
cate, the agent automatically
treats the call as an emergency,
contacts the nearest emer-
gency services provider to
describe the situation, and
requests that assistance be sent
to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety
Connect can work with local
authorities to assist them in
locating and recovering the
vehicle. After filing a police
report, call the Customer Experi-
ence Center at 1-800-331-4331
in the United States, 1-877-855-
8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow
the prompts for Safety Connect
to initiate this service.
In addition to assisting law
enforcement with recovery of a
stolen vehicle, Safety-Connect-
equipped vehicle location data
may, under certain circum-

Safety Connect LED light
Indicators

Safety Connect services

1-3. Emergency assistance

stances, be shared with third
parties to locate your vehicle.
Further information is available
at Toyota.com in the United
States, Toyotapr.com in Puerto
Rico and Toyota.ca in Canada.

■

Emergency Assistance But-
ton (“SOS”)

In the event of an emergency on
the road, push the “SOS” button
to reach the Safety Connect
response center. The answering
agent will determine your vehi-
cle’s location, assess the emer-
gency, and dispatch the
necessary assistance required.

If you accidentally press the “SOS”
button, tell the response-center
agent that you are not experiencing
an emergency.

■

Enhanced Roadside Assis-
tance

Enhanced Roadside Assistance
adds GPS data to the already
included warranty-based Toyota
roadside service.
Subscribers can press the
“SOS” button to reach a Safety
Connect response-center agent,
who can help with a wide range
of needs, such as: towing, flat
tire, fuel delivery, etc. For a
description of the Enhanced
Roadside Assistance services
and their limitations, please see
the Safety Connect Terms and
Conditions, which are available
at Toyota.com in the United
States, Toyotapr.com in Puerto

Rico and Toyota.ca in Canada.

Important! Read this informa-
tion before using Safety Con-
nect.

■

Exposure to radio fre-
quency signals

The Safety Connect system
installed in your vehicle is a low-
power radio transmitter and
receiver. It receives and also
sends out radio frequency (RF)
signals.
In August 1996, the Federal
Communications Commission
(FCC) adopted RF exposure
guidelines with safety levels for
mobile wireless phones. Those
guidelines are consistent with
the safety standards previously
set by the following U.S. and
international standards bodies.



ANSI (American National
Standards Institute) C95.1
[1992]



NCRP (National Council on
Radiation Protection and
Measurement) Report 86
[1986]



ICNIRP (International Com-
mission on Non-Ionizing Radi-
ation Protection) [1996]

Those standards were based on
comprehensive and periodic
evaluations of the relevant sci-

Safety information for
Safety Connect

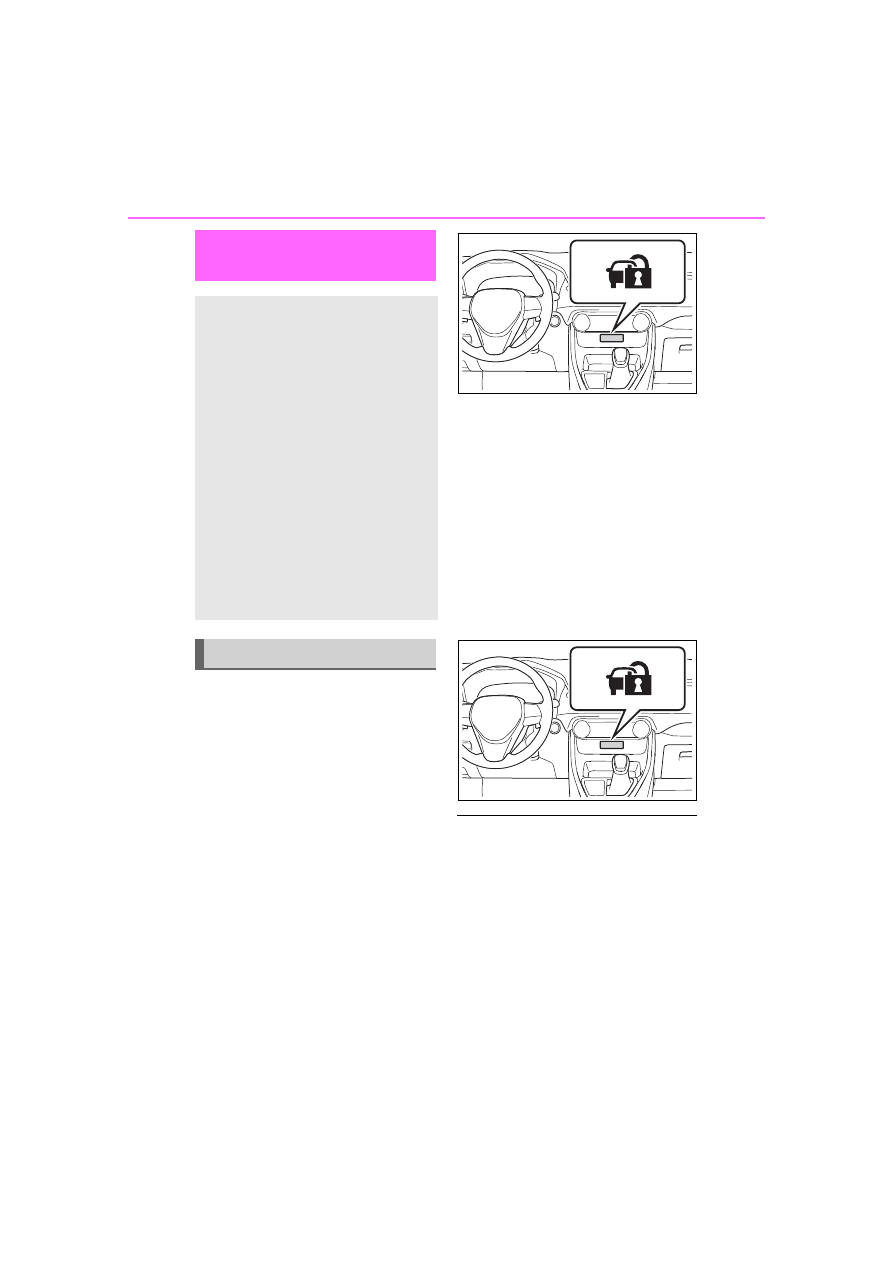

1-4. Theft deterrent system

1-4.Theft deterrent system



Vehicles without smart key
system

The indicator light flashes after
the key has been removed from
the engine switch to indicate
that the system is operating.
The indicator light goes off after
the registered key has been
inserted into the engine switch
to indicate that the system has
been canceled.



Vehicles with smart key sys-
tem

The indicator light flashes after
the engine switch has been
turned to OFF to indicate that
the system is operating.
The indicator light goes off after
the engine switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a maintenance-free

type engine immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

Engine immobilizer

system

The vehicle’s keys have
built-in transponder chips
that prevent the engine from
starting if a key has not
been previously registered
in the vehicle’s on-board
computer.
Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft but
does not guarantee absolute
security against all vehicle
thefts.

Operating the system

1-4. Theft deterrent system

For
safety and secu

rity

: If equipped

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.

The alarm is triggered in the
following situations when
the alarm is set:



Vehicles without smart key
system: A locked door is
unlocked or opened in any
way other than using the
wireless remote control or
key. (The doors will lock
again automatically.)



Vehicles with smart key
system: A locked door is
unlocked or opened in any
way other than using the
entry function, wireless
remote control or mechani-
cal key. (The doors will lock
again automatically.)



For Canada: A locked door
is unlocked or opened in
any way other than using
the entry function (if
equipped) or wireless
remote control. (The doors
will lock again automati-
cally.)



The hood is opened.

1-4. Theft deterrent system

■

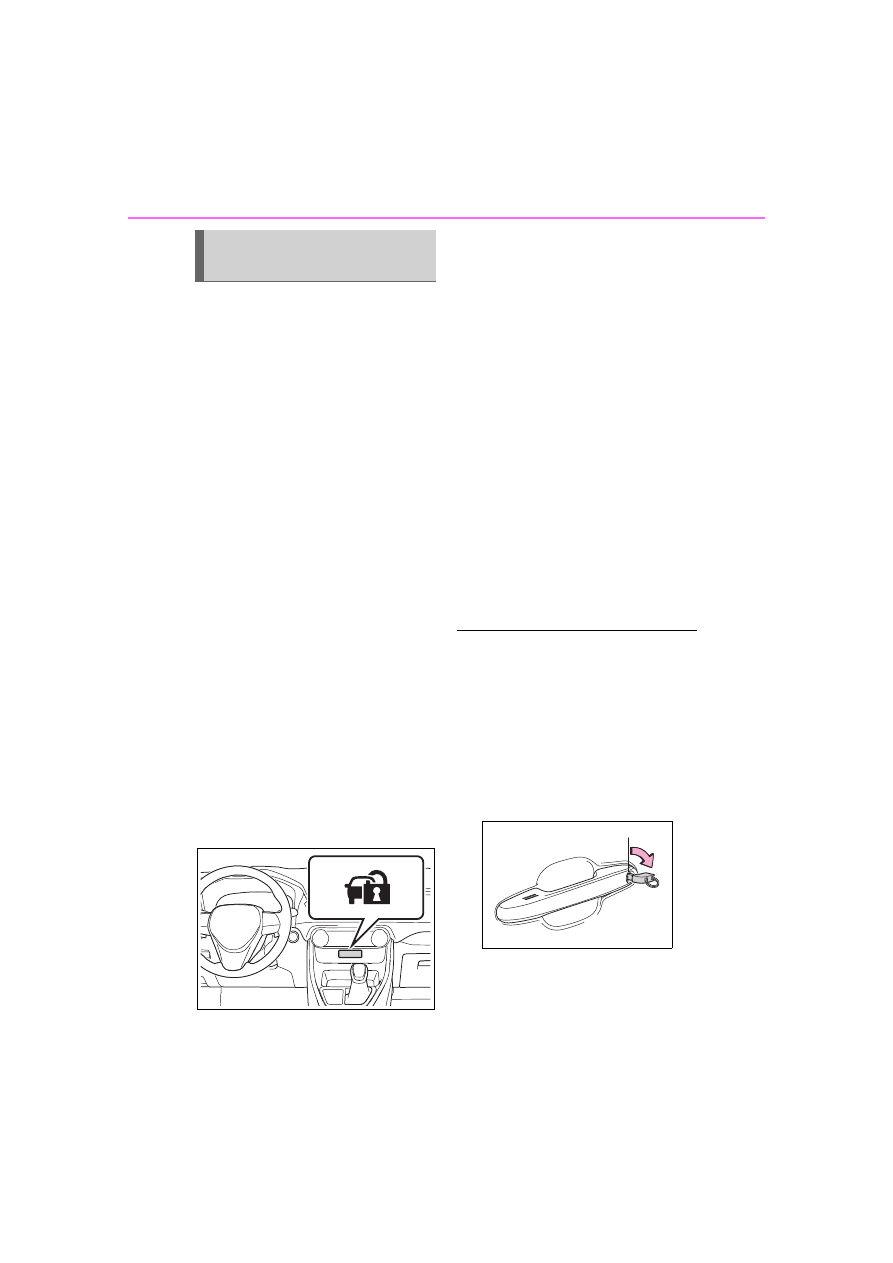

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The side windows and moon
roof (if equipped) or pan-
oramic moon roof (if
equipped) are closed before
the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors and hood, and
lock all the doors. The system
will be set automatically after 30
seconds.
Except for Canada, the alarm
can also be set using the
mechanical key.

The security indicator changes from
being on to flashing when the sys-
tem is set.

■

Canceling or stopping

Do one of the following to deac-
tivate or stop the alarm:



Except for Canada



Unlock the doors.



Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)



For Canada



Unlock the doors using the
entry function (if equipped) or
wireless remote control.



Start the engine. (The alarm
will be deactivated or stopped
after a few seconds.)

■

System maintenance

The vehicle has a maintenance-free

type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

For Canada: The doors are

unlocked using the key.

●

A person inside the vehicle opens

a door or hood, or unlocks the

vehicle using an inside lock but-

ton.

Setting/canceling/stop-
ping the alarm system

1-4. Theft deterrent system

For
safety and secu

rity

●

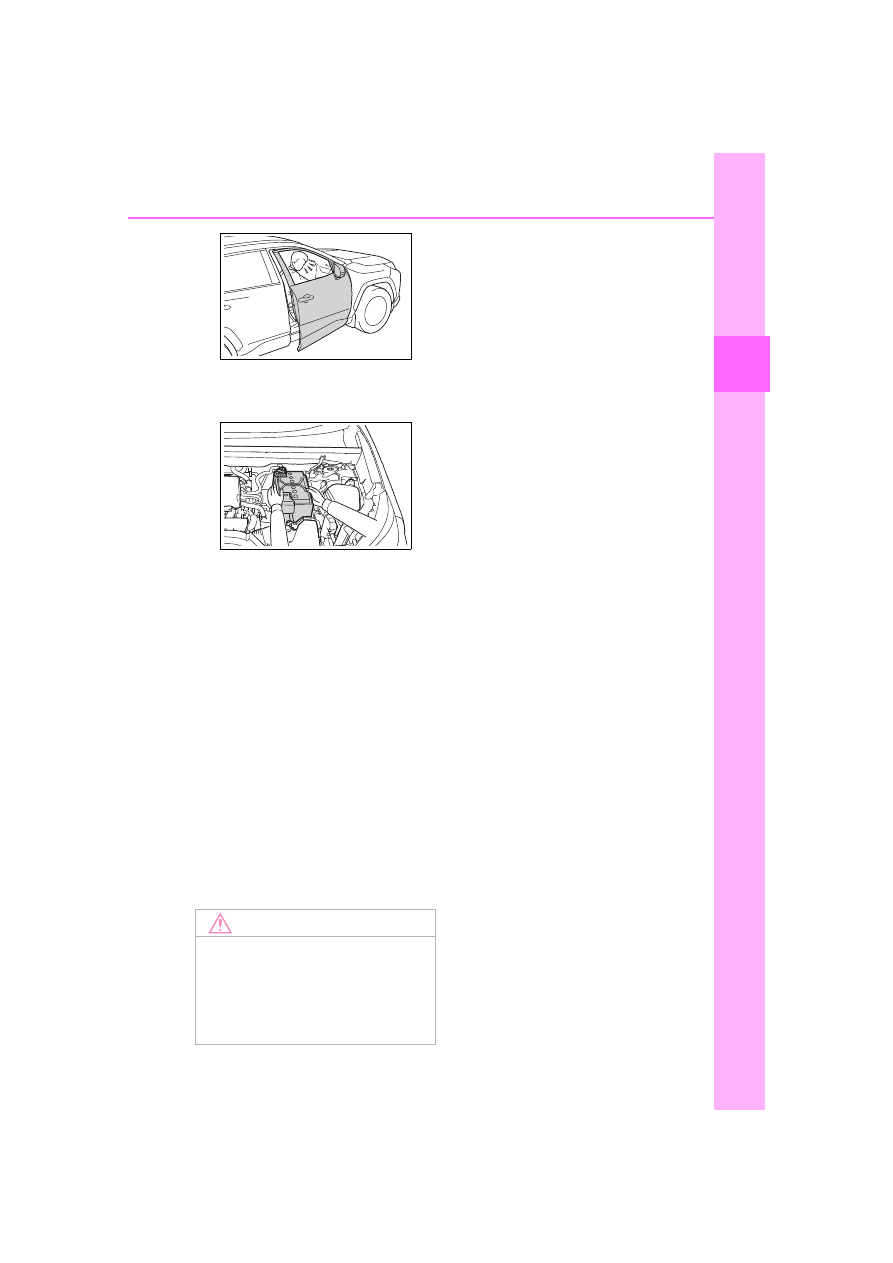

The battery is recharged or

replaced when the vehicle is

locked. (



P.476)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

battery.

■

Customization (for Canada)

The alarm can be set to deactivate

when the key (vehicles without

smart key system) or mechanical

key (vehicles with smart key sys-

tem) is used to unlock. (Customiz-

able features:

P.510)

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

Vehicle

statu

s information an

d in
dicator

Vehicle status informa-

tion and indicators

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

Gauges and meters (with 7-

inch multi-information dis-
play) .............................

Gauges and meters (with

12.3-inch multi-informa-
tion display) ..................

Multi-information display

(with 7-inch multi-informa-
tion display) ..................

Multi-information display

(with 12.3-inch multi-infor-
mation display) ..........

102

Fuel consumption informa-

tion ............................

111

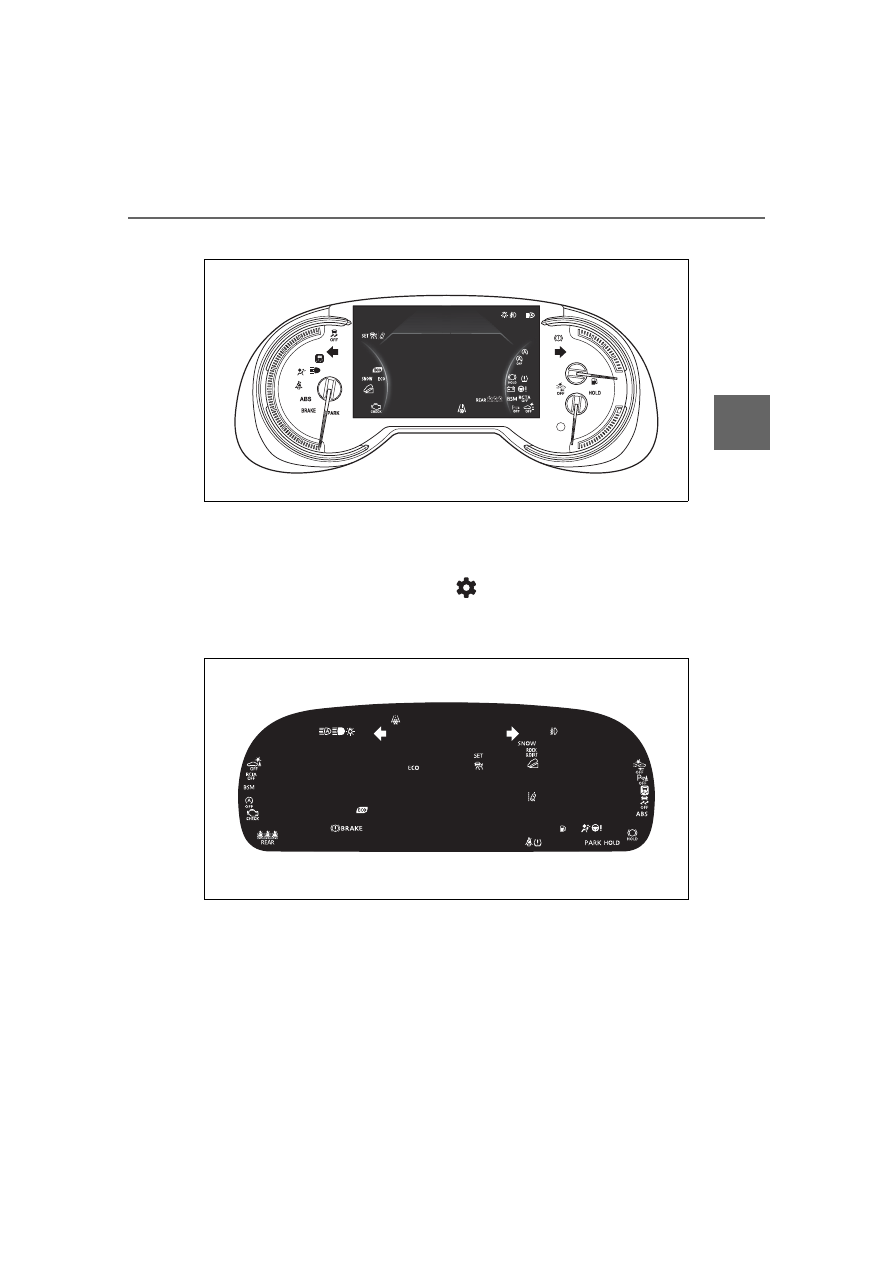

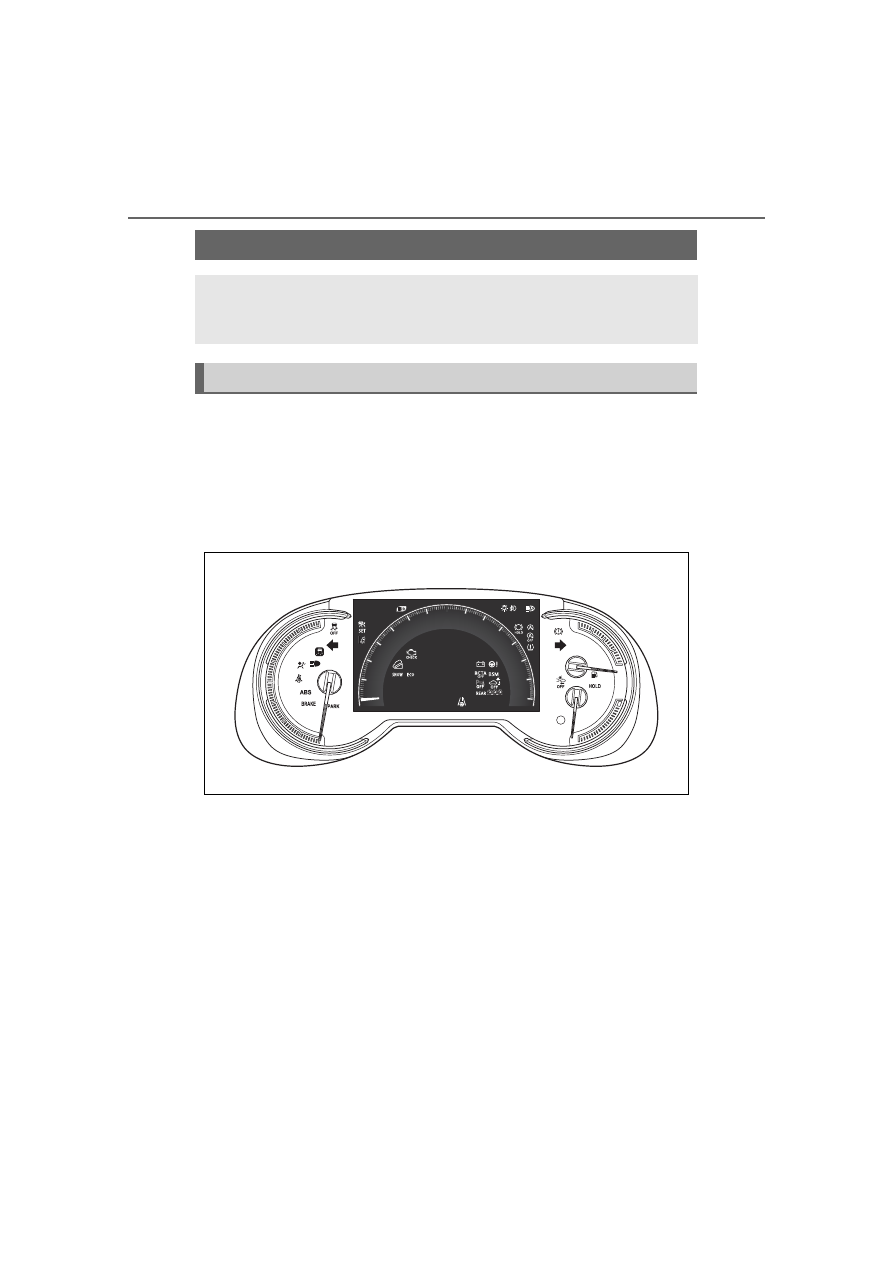

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

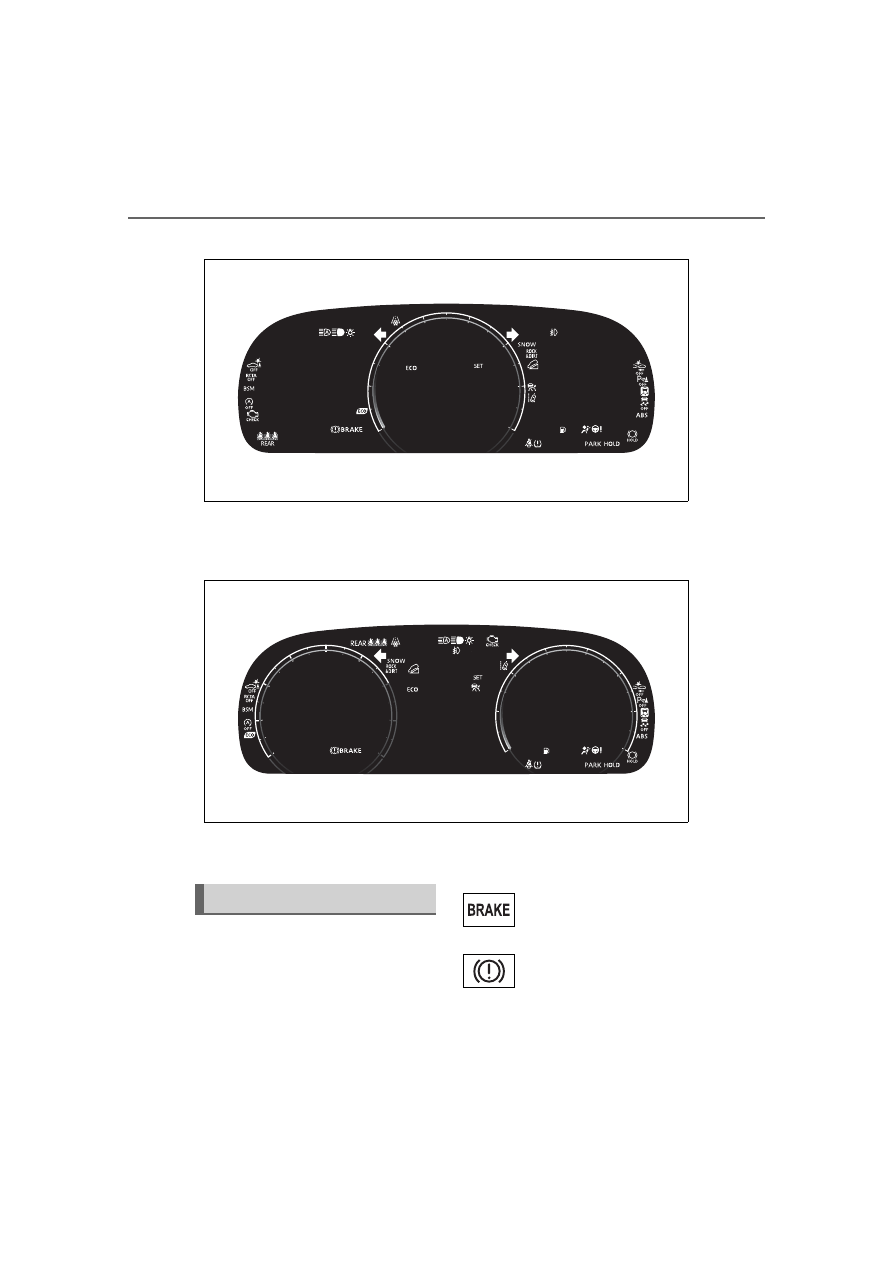

:These lights turn on when the

engine switch is turned to ON to

(Yellow)

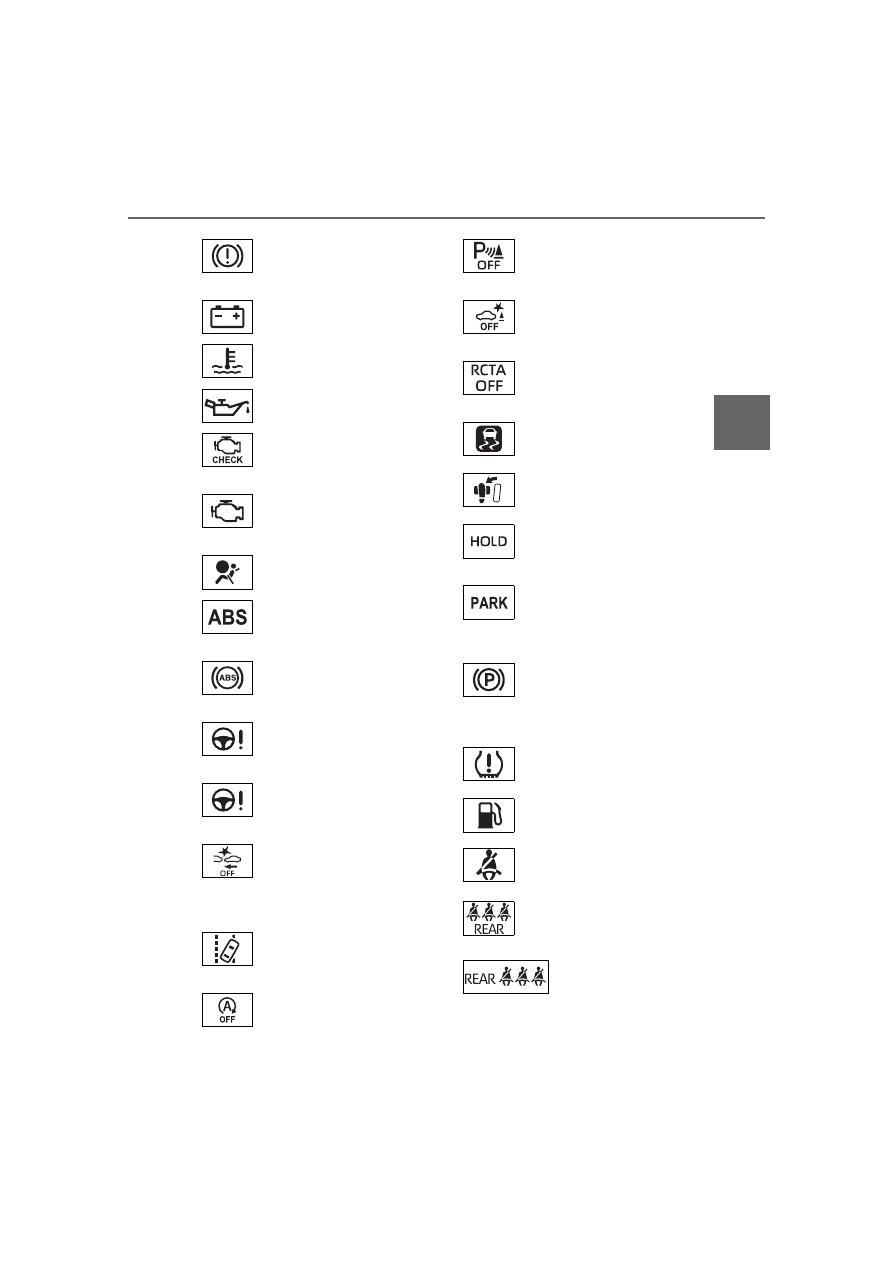

Brake system warning
light

(

P.449)

Charging system warning
light

(

P.449)

High coolant temperature
warning light

(



Low engine oil pressure
warning light

(



(U.S.A.)

Malfunction indicator
lamp

(

(Canada)

Malfunction indicator
lamp

(

SRS warning light

(

(U.S.A.)

ABS warning light

(

(Canada)

ABS warning light

(

(Red)

Electric power steering
system warning light

(

(Yellow)

Electric power steering
system warning light

(

(Flashes

or illumi-

nates)

PCS warning light

(

(Orange)

LTA indicator (



P.452)

(Flashes)

Stop & Start cancel indica-
tor

(if equipped)

(

P.452)

(Flashes)

Intuitive parking assist
OFF indicator

(if

equipped) (

P.452)

(Flashes)

PKSB OFF indicator

(if

equipped) (

P.453)

(Flashes)

RCTA OFF indicator

(if

equipped) (

P.453)

Slip indicator light

(



P.453)

Inappropriate pedal opera-
tion warning light

(



(Flashes)

Brake hold operated indi-
cator

(

(U.S.A.)

(Flashes)

Parking brake indicator
(



(Canada)
(Flashes)

Parking brake indicator
(



Tire pressure warning
light

(if equipped)

(



P.455)

Low fuel level warning
light (

P.455)

Driver’s and front passen-
ger’s seat belt reminder
light (
