Toyota Raize (2023 year). Manual in english

225

4-5. Using the driving support systems

riv

WARNING

⬛

Before using the front corner sensors or reverse sensors

Make sure to observe the following precautions.
Failure to do so is dangerous, as it may lead to an unforeseen accident.

⚫

Do not let the vehicle speed exceed approx. 10 km/h (6 mph).

⚫

There is a limit to the sonar’s recognition range and activation speed. When
you move your vehicle forward or backward, make sure to check the safety

around the vehicle, which is outside the sonar’s recognition range (especially

the sides of the vehicle), use the brake pedal to control the speed adequately

and drive slowly.

⚫

Do not paste stickers or install accessories on the sonar sensors or their sur-
rounding areas.

⚫

Vehicles with TFT color multi-information display: If the warning message
“Sonar Sensor Function Stop” appears, check the sonar conditions. If the

warning message appears even when the sonar is not covered with rain,

snow, ice, or dirt, it could be due to a malfunction of the front corner sensors

or reverse sensors. Have the vehicle inspected at your Toyota dealer.

⬛

Front corner sensors and reverse sensors

In the following situations, the front corner sensors or reverse sensors may

not work normally and could lead to an unforeseen accident. Make sure to

drive carefully.

⚫

Road conditions (slopes, unevenness, etc.)

⚫

Vehicle’s maintenance conditions (brake-related issues, worn out tires, infla-
tion pressure, driving on a spare tire, etc.)

⚫

Bad weather (heavy rain, snowstorm, fog, etc.)

⚫

When the vehicle is significantly tilted by carrying a heavy load or being on
the surface with different height, or when the vehicle height has significantly

changed

⚫

Distance from the obstacle, orientation or position (the obstacle is located
near the center of the vehicle)

⚫

When driving on a steep slope

⚫

When the sonar system cannot recognize the obstacle correctly (the follow-
ing cases in particular)

⦁

When an obstacle is extremely close to the sonar (when approaching too

close to the obstacle, the buzzer may change from continuous sound to

intermittent sound)

⦁

When an obstacle is located at a high position from the ground

⦁

Short obstacles

⦁

Small obstacles (such as small animals and infants), narrow obstacles

226

4-5. Using the driving support systems

WARNING

⦁

Moving objects (those appearing suddenly or traveling across the vehicle)

⦁

Sponge-like items or obstacles with soft surfaces such as snow, which are

likely to absorb sound waves

⦁

When the obstacle’s surface is diagonal to the vehicle

⦁

A wall that is not perpendicular to the ground

⦁

Non-planar walls, such as those with uneven or wavy surface

⦁

Thin obstacles such as wires, wire mesh, ropes, road signs, utility poles and

other poles

⦁

When pillars or pipes are sticking out from the wall

⦁

When an unrecognizable obstacle is located between a recognizable

obstacle and the vehicle

⦁

Obstacles located outside of the sonar’s recognition range

⦁

When the sonar sensor areas are extremely hot under the blazing sun or

extremely cold during winter

⦁

When the sonar sensors are covered with rain, snow, ice or dirt

⦁

During pouring rain or when water splashes over the vehicle, or strong

wind blowing

⦁

When there is a loud noise around, or there are devices emitting ultra-

sonic waves (the sound of other vehicles’ horns, motorcycle engines, and

air brakes of large vehicles, vehicle detectors, or sonar systems of other

vehicles)

⦁

When commercially available electrical components (such as an internally

illuminated number plate, radio antenna) are installed near the sonar sen-

sors

⦁

When the direction of the sonar sensors is deviated by a collision or other

causes

227

4-5. Using the driving support systems

riv

NOTICE

⬛

Abnormality with the front corner sensors and reverse sensors

In the following cases, abnormalities with the sonar may be preventing the sys-

tem from working properly. Have the vehicle inspected at your Toyota dealer.

⚫

When the front corner sensors or reverse sensors became activated while
no obstacle is recognized

⚫

When a strong impact or force is applied to the sonar or its surrounding
areas

⚫

When the sonar’s surrounding area has been deformed by an accident or
other reasons

⬛

Precautions when washing the vehicle

⚫

Do not splash water directly to the sonar areas using a high-pressure washer
during a car wash. The high water pressure adds stress and may prevent the

system from working properly.

⚫

When you wash the car with a machine using steam, keep the steam away
from the sonar area. The steam may cause the system to malfunction.

228

4-5. Using the driving support systems

✽

: If equipped

Rear-view camera

✽

The rear-view camera is a device designed to assist driving when the

vehicle backs up, such as during parking, by displaying the vehicle’s

rear-view image on the display audio screen.
The operation may differ depending on the display audio your vehi-

cle has. For details, refer to the included instruction manual.

The screen illustration used in this document is an example. The actual

image displayed will be different from this illustration in terms of how the

vehicle appears.

Rear-view camera screen display

When the shift lever is set to R with the engine switch turned “ON”, the dis-

play audio screen shows the vehicle’s rear-view image.

Setting the shift lever to other than R will restore the previous screen.

The rear-view camera image takes precedence over any other screen dis-

play.

Precautions for the rear-view camera

⬛

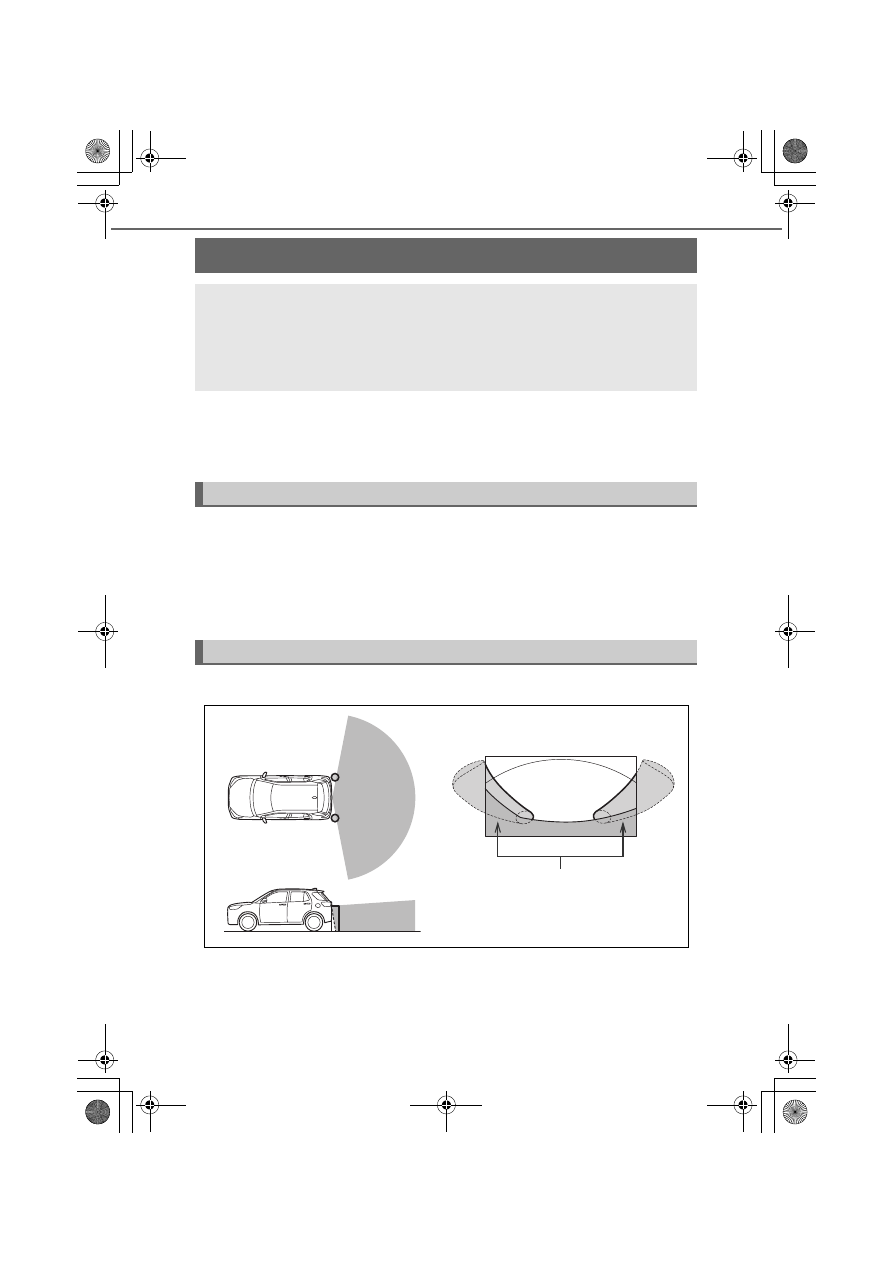

Screen projection range

KBRO460301

Projection range

Screen

The screen shows a part of the

vehicle body (such as a bumper).

229

4-5. Using the driving support systems

riv

⚫

The projection range may be different depending on the vehicle and

road conditions.

⚫

The projection range of the rear-view camera is limited. The camera

does not capture items located near both edges of the bumper or those

located under the bumper.

⚫

Since the rear-view camera uses a special lens, the distance in the cam-

era view is different from the actual distance.

⚫

The colors of the rear-view camera image may appear different from the

actual colors.

⚫

Anything placed above the rear-view camera may not appear on the

monitor.

⬛

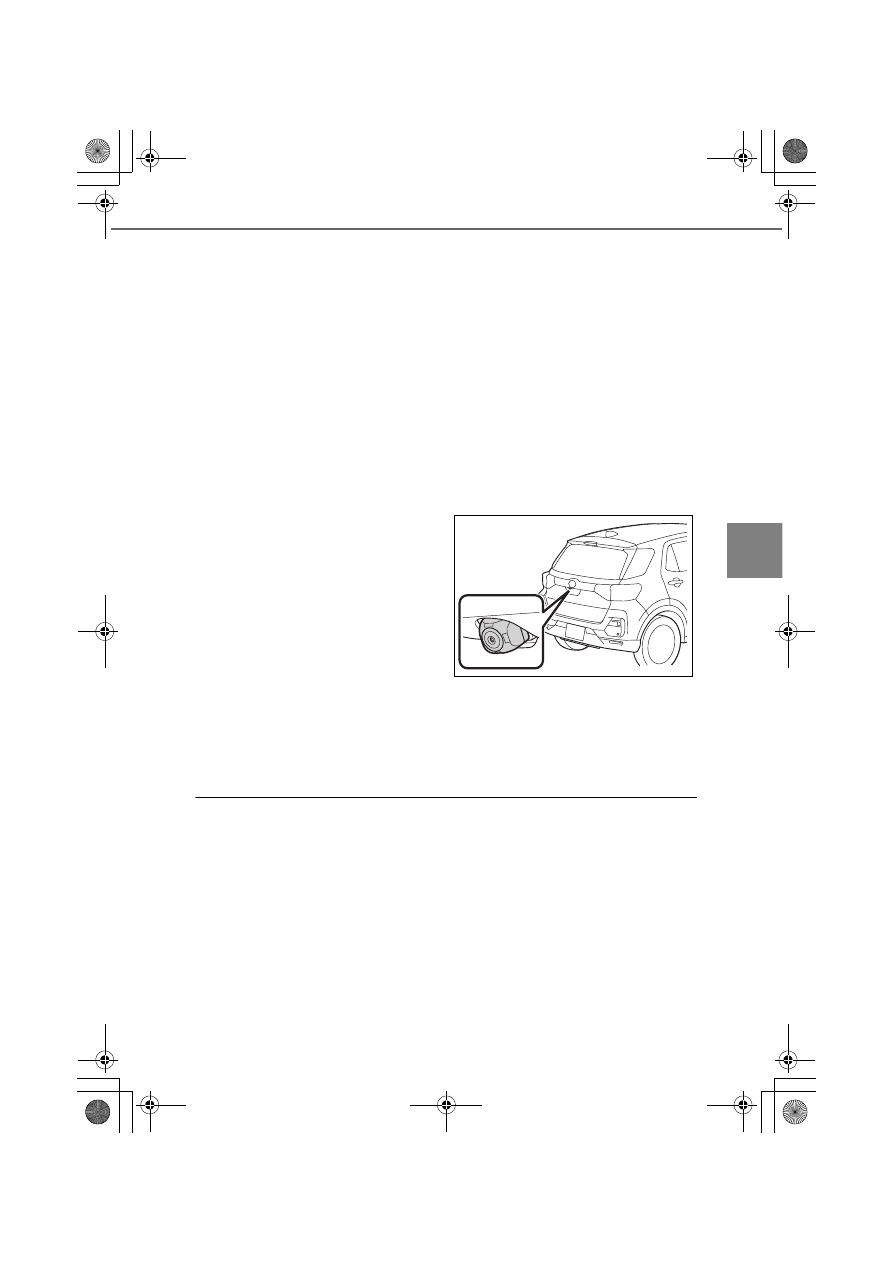

Camera

The rear-view camera is installed at

the following location.

⚫

Camera maintenance and care
If foreign objects, such as water droplets, snow, or dirt, are attached to

the camera, you cannot see a clear image. In this case, wash out dirt

from the camera with water, and wipe it off with a soft cloth dampened

with water. For persistent stains, wash it off with neutral detergent.

⚫

The following situations may make it difficult to view the screen, but they are
not the sign of malfunction.

⦁

Dark places (such as at night)

⦁

When the temperature near the lens is high or low

⦁

When water droplets are attached to the rear-view camera or the humidity is

high (such as during rain)

⦁

When foreign objects (including dirt) are attached near the rear-view camera

⦁

When the sunlight or the headlight beam has directly shined on the lens of

the rear-view camera

KBRO460404

230

4-5. Using the driving support systems

WARNING

⬛

Rear-view camera

Failure to observe the following may cause death or serious injury.

⚫

Do not overly rely on the rear-view camera. Just as when you drive a vehicle
without the rear-view camera, make sure to check the safety around and

behind your vehicle and drive carefully. Be particularly careful not to collide

with the parked vehicles nearby, obstacles, or people.

⚫

When you back up, make sure to check the safety around and behind your
vehicle and drive carefully.

⚫

Never drive the vehicle while looking at the screen only.
The image displayed on the screen may be different from the actual situa-

tion. Note that the projection range of the camera is limited. Never back up

while looking at the screen only. Doing so could get your vehicle hit or lead

to an unforeseen accident. Be sure to confirm the safety around by visually

checking the surroundings with your eyes or using the inside rear view mir-

ror and the outside rear view mirrors before driving.

⚫

Never use it in the situations listed below.

⦁

Frozen, slippery or snowy roads

⦁

When tire chains or spare tires are used

⦁

When the back door is not closed fully

⦁

On a non-flat road surface such as slopes

⚫

If the outside temperature is low, the screen may become dark and the
image may become blurry. Especially since the moving objects may appear

blurred or disappear from the screen, always check the safety around you

directly with your eyes while driving.

231

4-5. Using the driving support systems

riv

NOTICE

⬛

Camera handling

⚫

Be careful with the following since they could cause the rear-view camera to
malfunction.

⦁

Do not install any item around the camera, which could interfere with the

camera’s field of view (such as an item blocking the view or light-emitting

objects, items made of shiny materials).

⦁

Do not apply strong impact to the camera unit, such as hitting it hard or

bumping it against another object. Doing so could cause the camera posi-

tion or mounting angle to be deviated.

⦁

The camera unit has a waterproof structure. Do not remove, disassemble

or alter it.

⦁

When you wash the camera lens, use water to wash the dirt off from the

camera and wipe it off with a soft cloth dampened with water.
If you rub the camera lens too hard, it could scratch the camera lens, and

you will not be able to see clear images.

⦁

The camera’s cover is made of resin. Do not allow organic solvents, body

wax, oil film remover, and glass coating agent to get attached to it. If they

get attached, wipe it off immediately.

⦁

Do not expose it to rapid temperature changes, such as by pouring hot

water over it in cold weather.

⦁

Do not splash water directly to the camera or areas around the camera

using a high-pressure washer during a car wash. The high water pressure

adds stress and may prevent the system from working properly.

⚫

Applying shock to the camera unit may cause the camera to malfunction.
Have the vehicle inspected at your Toyota dealer in your earliest conveni-

ence.

232

4-5. Using the driving support systems

Driving assist systems

The following devices automatically operate according to the driving

conditions to improve driving safety and performance. However,

these systems are supplementary and you should be careful not to

over-rely on them while driving.

◆

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the brakes are applied suddenly, or if

the brakes are applied while driving on a slippery road surface.

◆

Brake assist

Generates an increased level of braking force when the system detects a

panic stop situation.

◆

VSC (Vehicle Stability Control)

Helps the driver to control skidding when swerving suddenly or turning on

slippery road surfaces.

◆

TRC (Traction Control)

Helps to maintain drive power and prevent the drive wheels from spinning

when starting the vehicle or accelerating on slippery roads.

◆

Hill-start assist control

Prevents the vehicle from moving backwards when starting on an uphill.

◆

EPS (Electric Power Steering)

Uses an electric motor to assist steering operation.

◆

Emergency brake signal

Emergency flashers automatically flash when braking suddenly, alerting

the following vehicle and reducing the possibility of a collision.

233

4-5. Using the driving support systems

riv

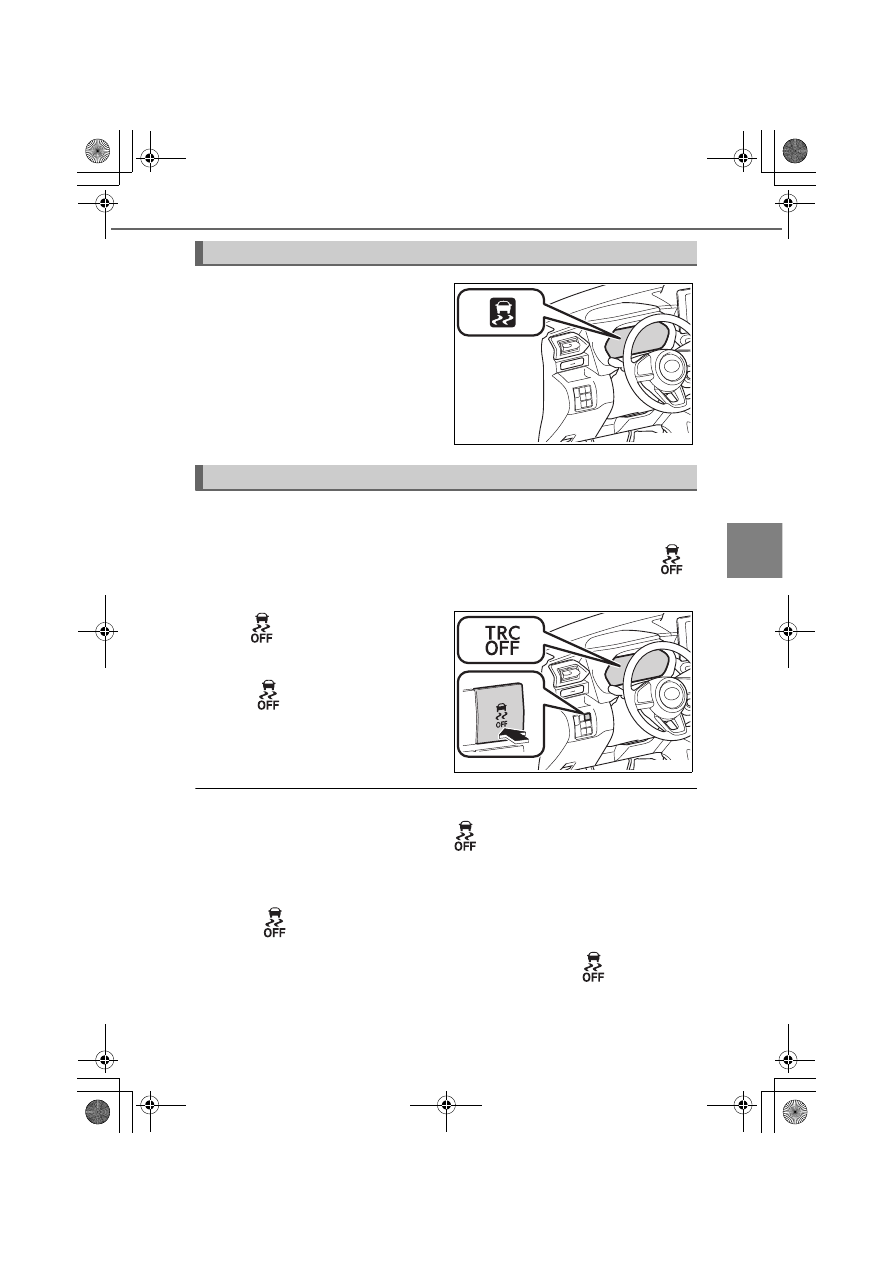

When VSC/TRC is operating

When VSC/TRC is operating, the slip

indicator flashes.

To stop TRC

If TRC is activated when escaping from a muddy, sandy, or snowy road, the

engine output may not increase even when the accelerator pedal is

depressed, making it difficult to escape. In such a case, pressing
may make it easier to escape.

Press

to stop TRC

The TRC OFF indicator lights.

Press

again to return to system

ready state.

⬛

To stop VSC and TRC

To stop VSC and TRC, press and hold

for 3 seconds or more when the

vehicle has come to a stop.
The TRC OFF indicator and VSC OFF indicator light up.

Press

again to return to system ready state.

⬛

When the TRC OFF indicator lights up without pressing

The TRC and hill-start assist control cannot be activated. Contact your Toyota

dealer.

KBRO460201E

KBRO460202E

234

4-5. Using the driving support systems

⬛

Activation of ABS/VSC

ABS/VSC does not work at low speeds. The operation is the same as the nor-

mal brake.

⬛

Activation sound and vibration of the ABS, brake assist, VSC, TRC, and hill-
start assist control

⚫

A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle

begins to move. This sound does not indicate that a malfunction has

occurred in any of these systems.

⚫

Any of the following conditions may occur when the above systems are oper-
ating. None of them indicates that a malfunction has occurred.

⦁

Vibrations may be felt through the vehicle body and steering wheel

⦁

A motor sound may be heard even after the vehicle has come to a stop

⦁

The brake pedal may pulsate slightly after the ABS is activated

⦁

The brake pedal may move down slightly after the ABS is activated

⬛

EPS motor operation sound

When the steering wheel is operated, a motor sound (whirring sound) may be

heard, but this does not indicate a malfunction.

⬛

Automatic reactivation of VSC and TRC

After turning the TRC and VSC systems off, the systems will return to the ready

state in the following situations:

⚫

When the engine switch is turned to “OFF”

⚫

If only the TRC system is turned off, when vehicle speed increases
If both the TRC and VSC systems are turned off, automatic reactivation will

not occur when vehicle speed increases.

⬛

Reduced effectiveness of the EPS system

The effectiveness of the EPS system is reduced to prevent the system from

overheating when there is frequent steering input over an extended period of

time. The steering wheel may feel heavy as a result.
Should this occur, refrain from excessive steering input or stop the vehicle and

turn the engine off. It should return to normal within 10 minutes.

235

4-5. Using the driving support systems

riv

⬛

Activation conditions of the hill-start assist control

The system operates when all of the following conditions are met:

⚫

Continuously variable transmission vehicles: The shift lever is set to other
than P or N (when starting to move the vehicle forward or backward on an

uphill)

⚫

Manual transmission vehicles: The shift lever is set to other than R when
starting to move the vehicle forward on an uphill or the shift lever is set to R

when starting to move the vehicle backward on an uphill

⚫

Vehicle stopped state

⚫

Not depressing the accelerator

⚫

Parking brake is not applied

⬛

Automatic deactivation of the hill-start assist control

The system is deactivated when one of the following occurs:

⚫

Continuously variable transmission vehicles: The shift lever is set to P or N

⚫

Manual transmission vehicles: The shift lever is set to R when starting to
move the vehicle forward on an uphill or the shift lever is set to other than R

when starting to move the vehicle backward on an uphill

⚫

The driver depresses the accelerator

⚫

The driver applies the parking brake

⚫

About 2 seconds have passed since releasing the brake pedal

⬛

When the slip indicator turns on and the warning message (

➞

P. 389)

appears

It may indicate a malfunction in the systems. Contact your Toyota dealer.

⬛

Activation conditions of the emergency brake signal

The system operates when all of the following conditions are met:

⚫

The emergency flashers are not flashing

⚫

The vehicle speed is 60 km/h (38 mph) or more

⚫

The brake pedal is depressed and the vehicle is deemed to brake suddenly
based on the deceleration, or ABS is activated

⬛

Automatic deactivation of the emergency brake signal

The system is deactivated when one of the following occurs:

⚫

The emergency flashers were set to flashing

⚫

The brake pedal was released

⚫

It was determined that the vehicle did not brake suddenly based on the
deceleration

⚫

ABS stopped working

236

4-5. Using the driving support systems

WARNING

⬛

The ABS does not operate effectively when

⚫

Do not overly rely on the ABS.
The limits of tire gripping performance have been exceeded (such as exces-

sively worn tires on a snow covered road).

⚫

The vehicle hydroplanes while driving at high speed on wet or slick roads.

⬛

Stopping distance when the ABS is operating may exceed that of normal
conditions

The ABS is not designed to shorten the vehicle’s stopping distance. Always

maintain a safe distance from the vehicle in front of you, especially in the fol-

lowing situations:

⚫

When driving on dirt, gravel or snow-covered roads

⚫

When driving with tire chains

⚫

When driving over bumps in the road

⚫

When driving over roads with potholes or roads with uneven surfaces

⬛

TRC/VSC may not operate effectively when

⚫

Do not overly rely on the TRC/VSC.
Directional control and power may not be achievable while driving on slip-

pery road surfaces, even if the TRC/VSC system is operating.
Drive the vehicle carefully in conditions where stability and power may be

lost.

⚫

The VSC and TRC may not function properly when tire chains are installed.

⬛

Hill-start assist control does not operate effectively when

⚫

Do not overly rely on hill-start assist control. Hill-start assist control may not
operate effectively on steep inclines and dirt, gravel or snow-covered roads.

⚫

Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use hill-

start assist control to hold the vehicle on an incline, as doing so may lead to

an accident.

⚫

The hill-start assist control may not become activated depending on the
number of occupants or luggage weight in the vehicle, or if the driver did not

step on the brake pedal strong enough when stopping.

⬛

When the VSC is activated

The slip indicator light flashes. Always drive carefully. Reckless driving may

cause an accident. Exercise particular care when the indicator light flashes.

⬛

When the ABS warning light or slip indicator is on

The emergency brake signal (

➞

P. 232) may not be activated.

237

4-5. Using the driving support systems

WARNING

riv

⬛

When the TRC/VSC systems are turned off

Be especially careful and drive at a speed appropriate to the road conditions.

As these are the systems to help ensure vehicle stability and driving force, do

not turn the TRC/VSC systems off unless necessary.

⬛

Replacing tires

Make sure that all tires are of the specified size, brand, tread pattern and total

load capacity. In addition, make sure that the tires are inflated to the recom-

mended tire inflation pressure level.
The ABS, TRC and VSC systems will not function correctly if different tires are

installed on the vehicle.
Contact your Toyota dealer for further information when replacing tires or

wheels.

⬛

Handling of tires and the suspension

Using tires with any kind of problem or modifying the suspension will affect the

driving assist systems, and may cause a system to malfunction.

238

4-6. Driving tips

Winter driving tips

Carry out the necessary preparations and inspections before driving

the vehicle in winter. Always drive the vehicle in a manner appropri-

ate to the prevailing weather conditions.

Preparation for winter

⚫

Use fluids that are appropriate to the prevailing outside temperatures.

⦁

Engine oil

⦁

Coolant

⦁

Washer fluid

⚫

Have a service technician inspect the condition of the battery.

Before driving

Perform the following according to the driving conditions:

⚫

Do not try to forcibly open a window or move a windshield wiper that is

frozen. Pour warm water over the frozen area to melt the ice. Wipe away

the water immediately to prevent it from freezing.

⚫

To ensure proper operation of the air conditioning system fan, remove

any snow that has accumulated on the air inlet vents in front of the

windshield.

⚫

Check for and remove any excess ice or snow that may have accumu-

lated on the exterior lights, vehicle’s roof, around the tires or on the

brakes.

⚫

Look under the vehicle and check that there are no ice blocks around

the ground. Remove any attached ice blocks with great care to avoid

damaging vehicle components. Also check that the pedals and steering

wheel move smoothly.

⚫

Remove any snow or mud from the bottom of your shoes before getting

in the vehicle.

239

4-6. Driving tips

riv

When driving the vehicle

⚫

Accelerate the vehicle slowly, keep a safe distance between you and the

vehicle ahead, and drive at a reduced speed suitable to road conditions.

⚫

During snowfall or cold weather, water adhering to the brake system

may freeze, and the brakes may become less effective. If brake perfor-

mance is poor, paying close attention to the surrounding safety, lightly

depress the brake pedal several times to confirm that the brakes work

properly until their effectiveness is restored.

⚫

When driving on snowy roads, snow attached to the back of the wheel

wells freezes and may gradually accumulate, making it difficult to steer.

Check that there is no abnormal build-up of snow from time to time. The

lights may become dark due to snow during driving, so make sure that

there is no abnormal build-up of snow from time to time.

When parking the vehicle

⚫

The parking brake may freeze up, preventing it from being released. For

continuously variable transmission vehicles, set the shift lever to P. For

the manual transmission vehicles, set the shift lever to R on a downhill,

and set it to the gear 1 on an uphill to park. Do not apply the parking

brake at this time, and make sure to use wheel chocks.
Failure to do so may be dangerous because it may cause the vehicle to

move unexpectedly, possibly leading to an unforeseen accident.

⚫

When you park the continuously variable transmission vehicle without

applying the parking brake, confirm that the shift lever will not move*

with the shift lever being placed in P.

The shift lever will be locked if it is attempted to be shifted from P to any other
position without depressing the brake pedal. If the shift lever can be shifted,
there may be a problem with the shift lock system. Have the vehicle inspected at
your Toyota dealer immediately.

240

4-6. Driving tips

WARNING

⬛

When the brakes freeze

If normal braking is not restored, have the vehicle inspected at your Toyota

dealer immediately.

⬛

Caution when parking

When parking without applying the parking brake, be sure to use wheel

chocks. Failure to do so may be dangerous because it may cause the vehicle to

move unexpectedly, possibly leading to an unforeseen accident.

NOTICE

⬛

When removing ice from the windshield and windows

Do not hit and break the ice.
The glass may crack.

⬛

When the doors, windshield wipers, windshield, or windows freeze

⚫

Thaw the ice by applying lukewarm water.
Hot water may damage or deform components.

⚫

If the windshield wipers, outside rear view mirrors, or windows are forcibly
activated while frozen or when snow is strongly attached, the wiper rubber

may be damaged or the motor may break.

⬛

Repairing or replacing snow tires (vehicles with the tire pressure warning
system)

Request repairs or replacement of snow tires from Toyota dealers or legiti-

mate tire retailers.
This is because the removal and attachment of snow tires affects the operation

of the tire pressure warning valves and transmitters.

⬛

Fitting tire chains (vehicles with the tire pressure warning system)

The tire pressure warning valves and transmitters may not function correctly

when tire chains are fitted.

Toyota Raize (2023 year). Manual in english - page 14
