4-2. Driving procedures

✽

: If equipped

riv

⬛

Power mode

✽

⚫

The power mode control will not be activated in any of the following situa-
tions:

⦁

When the shift lever is set to R

⚫

Even when you have set the D assist switching steering switch to “ON”, turn-
ing the engine switch “OFF” and turning it “ON” will automatically restore the

D assist switching steering switch to “OFF”.

⚫

When the malfunction indicator lamp or the continuously variable transmis-
sion warning light

✽

is lit or flashing, or when the TFT color multi-information

display

✽

shows “Transmission System Malfunction”, the vehicle will not enter

the power mode.

⬛

Reverse warning buzzer

When shifting into R, a buzzer will sound to inform the driver that the shift

lever is in R.

WARNING

⬛

When driving on slippery road surfaces

Do not accelerate or shift gears suddenly. Sudden changes in engine braking

may cause the vehicle to spin or skid.

⬛

To prevent an accident when releasing the shift lock

Before pressing the shift lock override button, make sure to set the parking

brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal

when the shift lock override button is pressed and the shift lever is shifted out

of P, the vehicle may suddenly start, possibly leading to an accident resulting in

death or serious injury.

194

4-2. Driving procedures

✽

: If equipped

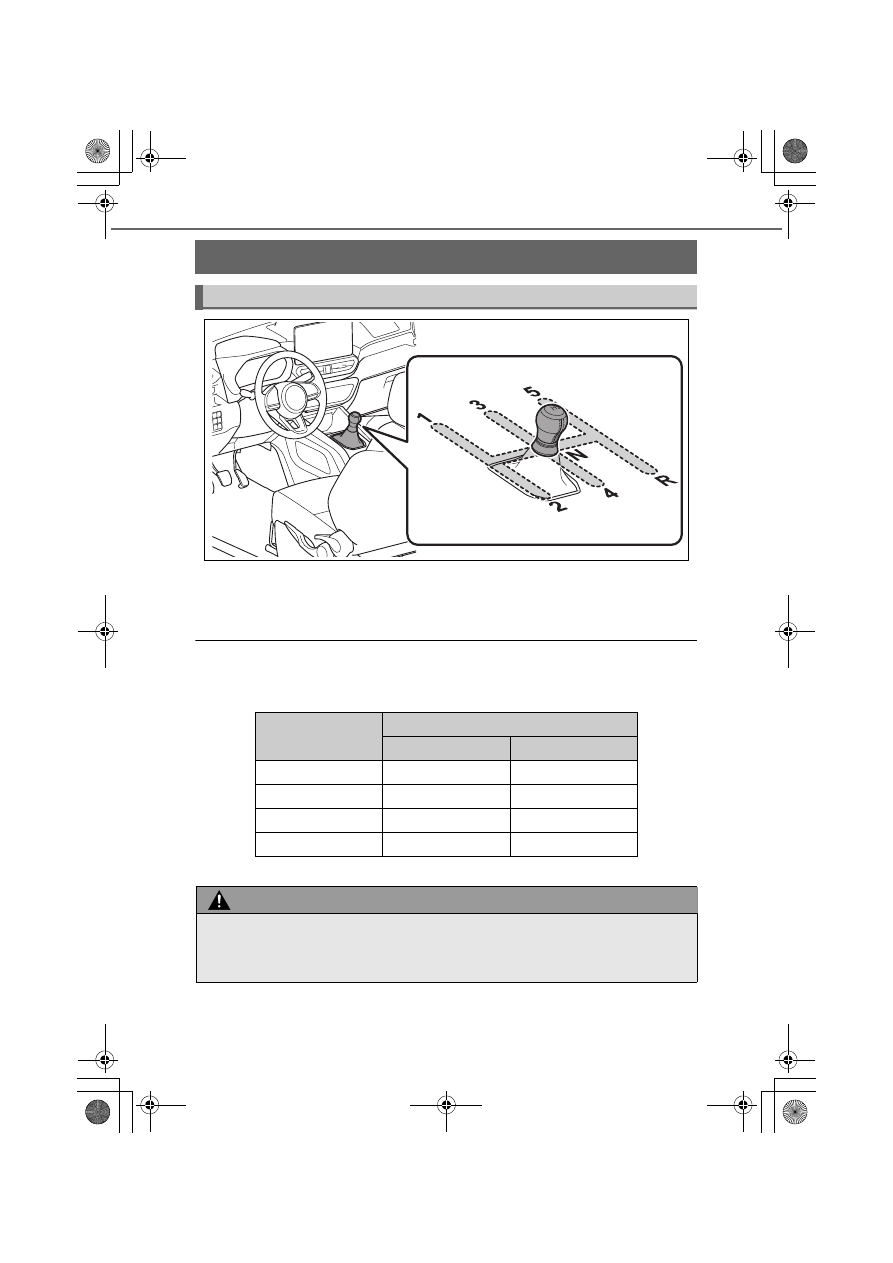

Driving the manual transmission vehicle

✽

Moving the shift lever

Firmly step on the clutch pedal and operate the shift lever slowly.

To prevent mishandling, the gear cannot be shifted directly from 5-speed to R.
Shift the gear to N and then move it to R.

⬛

Speed limit of each shift position

To avoid over-revving of the engine, try not to exceed the value specified for

each shift position listed below.

WARNING

⬛

On slippery road surfaces

Be careful since sudden acceleration or changes in engine braking force may

cause the vehicle to skid or spin.

Shift position

Max. speed km/h (mph)

WA-VE engine

1KR-VET engine

150 (93)

105 (65)

110 (68)

70 (43)

65 (40)

35 (21)

KBRO420401E

195

4-2. Driving procedures

riv

NOTICE

⬛

Speed limit of each shift position

To prevent the engine from revving up too much, try not to exceed the upper

speed limit when you drive. Failure to do so may damage the engine.

196

4-2. Driving procedures

✽

: If equipped

Turn signal lever

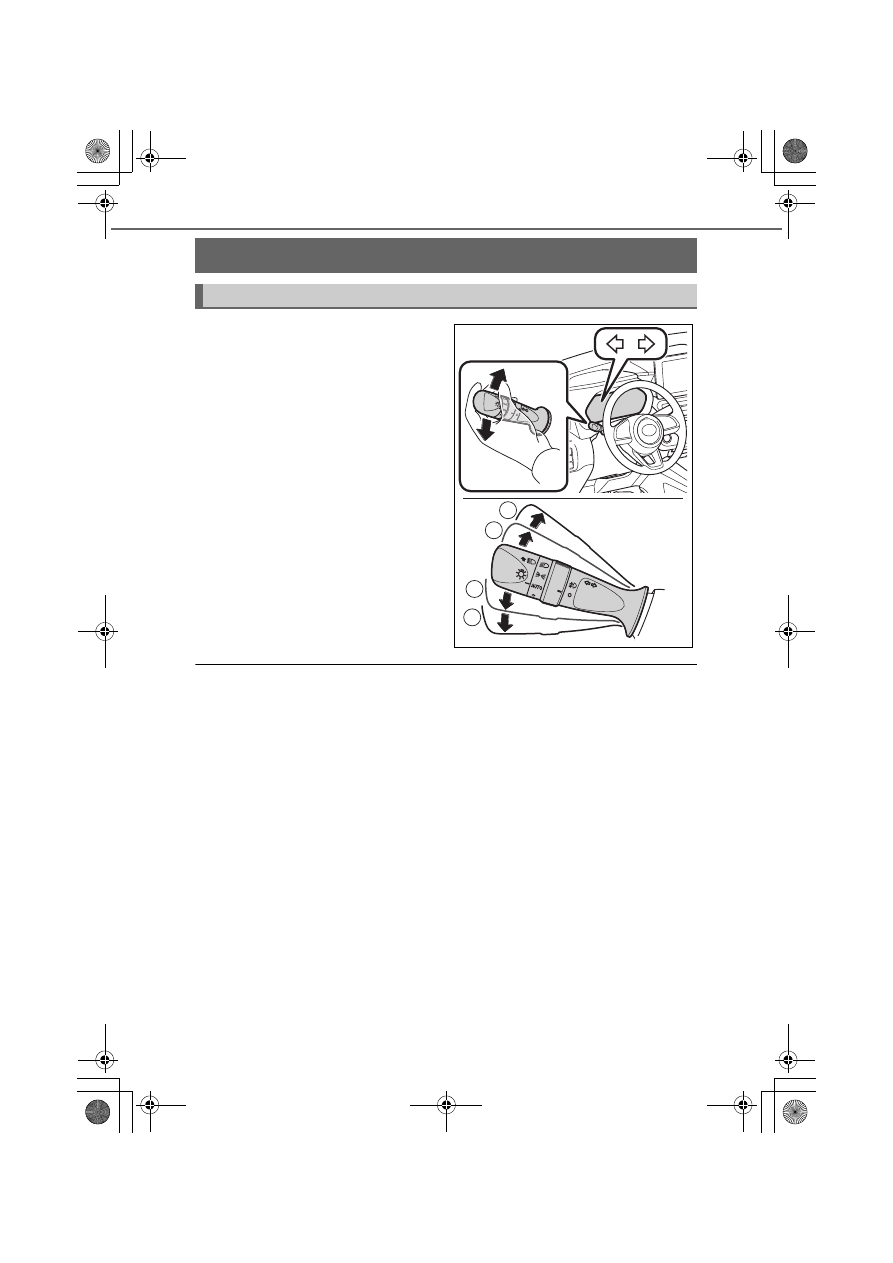

Operation instructions

Right turn

Right turn signal will flash contin-

uously while the lever is kept

position.

Right turn signal will blink three times,

when the lever is pushed to

position

and released immediately.

Left turn signal will flash continu-

ously while the lever is kept

position.

Left turn signal will blink three times,

when the lever is pushed to

position

and released immediately.

Left turn

⬛

Operating conditions

When the engine switch is “ON”

⬛

If the indicator flashes faster than usual

Check that a light bulb in the front or rear turn signal lights has not burned

out.

⬛

Customizations

The turn signal light settings can be changed.
(List of customizable features:

➞

P. 430)

(For some of the features, the settings can be changed from the setup screen

of the multi-information display

✽

➞

P. 91)

(The settings can be changed from the setup screen of the TFT color multi-

information display:

➞

P. 104)

KBRO420501E

197

4-2. Driving procedures

riv

Parking brake

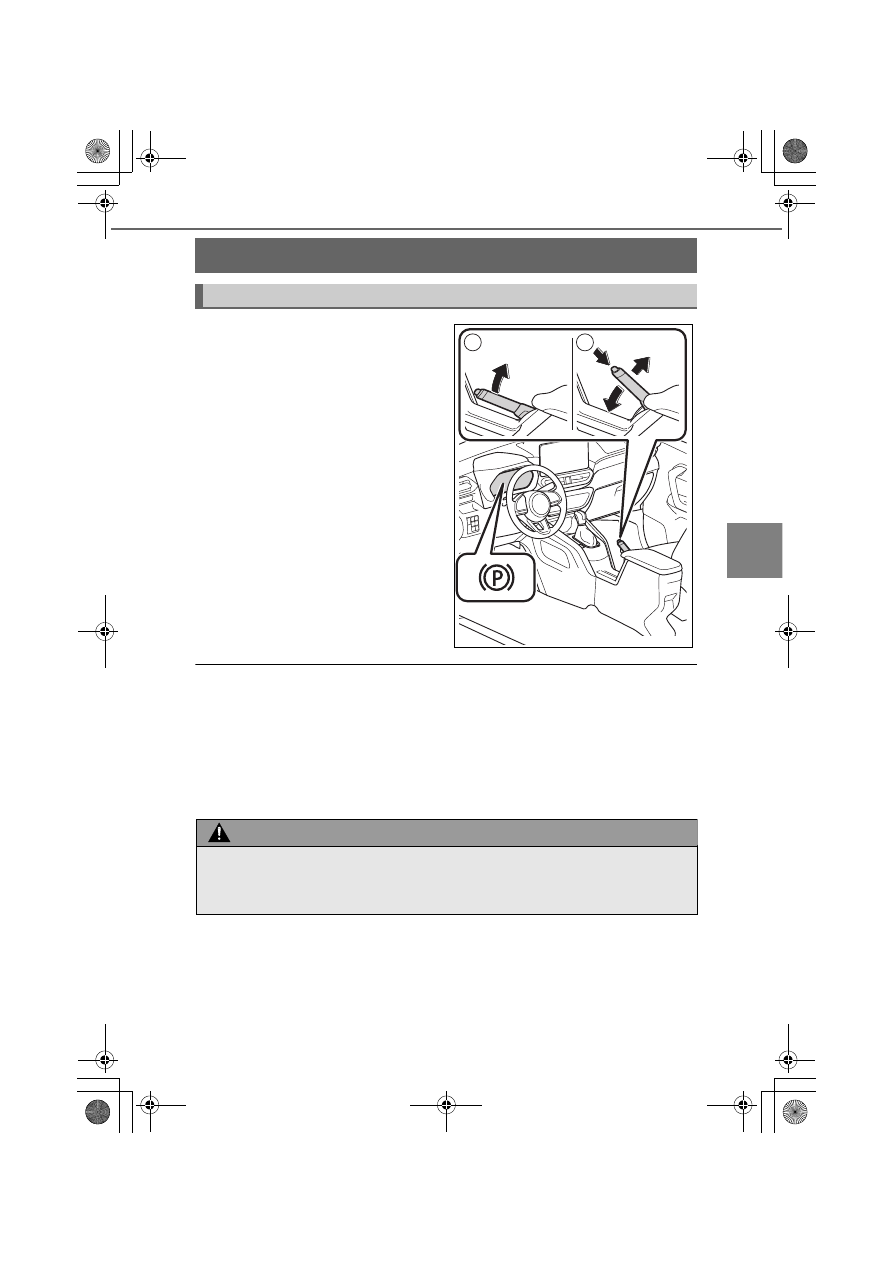

Operation instructions

To apply the parking brake, fully

pull the parking brake lever while

depressing the brake pedal

To release the parking brake,

slightly raise the lever and lower

it completely while pressing the

button

⬛

Parking the vehicle

➞

P. 167

⬛

Usage of parking brake in winter time

➞

P. 239

⬛

Parking brake non-release warning buzzer

➞

P. 382

WARNING

⬛

Important notice before driving

Do not drive the vehicle with the parking brake applied. Doing so will overheat

the brake and degrade its performance, leading to an unforeseen accident.

KBRO420601E

198

✽

: If equipped

4-3. Operating the lights and windshield wipers

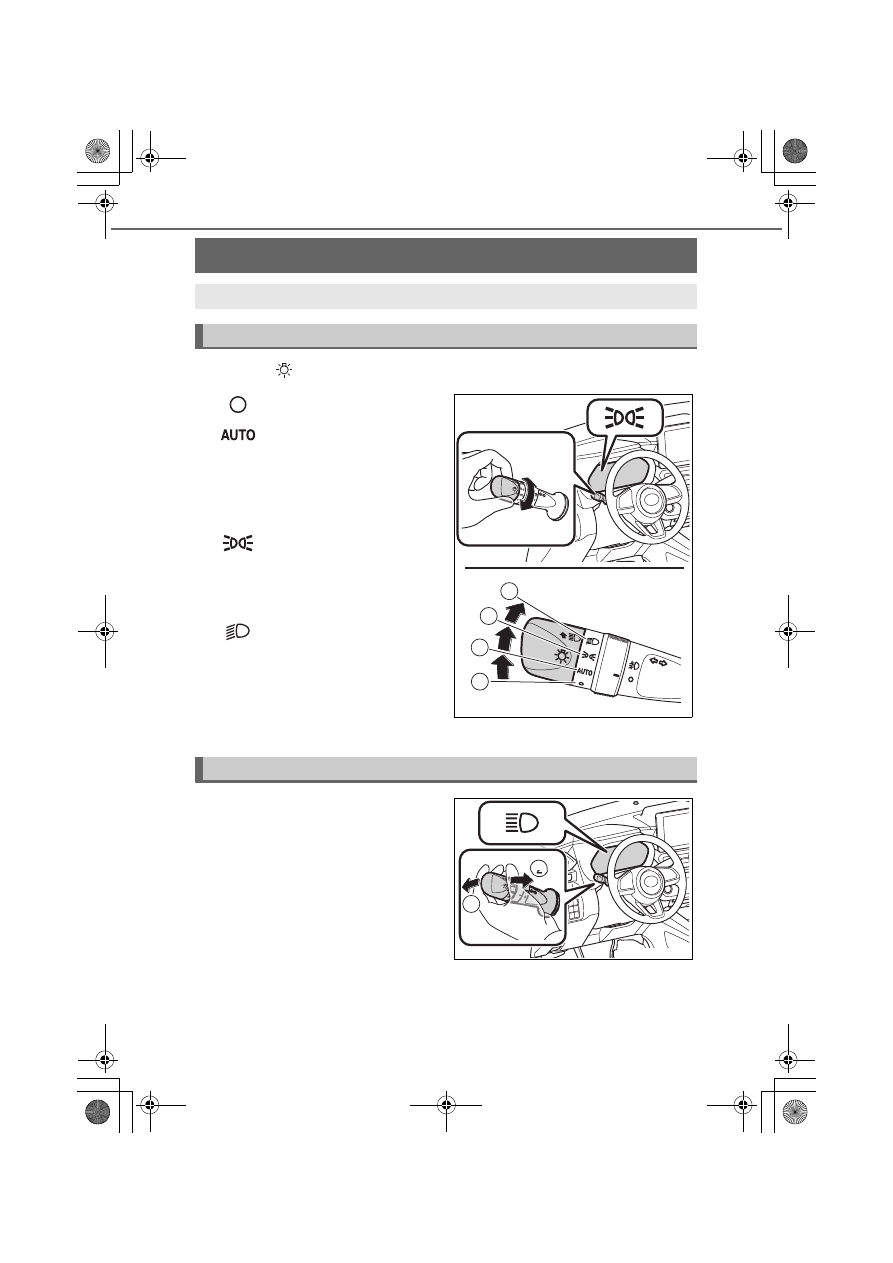

Headlight switch

The headlights can be turned on automatically or manually.

Operation instructions

Moving the switch will turn the lights on and off, as specified below.

: Turns off*

✽

: Automatically turns on/

off the headlights, front position

lights, daytime running lights

✽

(

➞

P. 199) and so on (when the

engine switch is “ON”)

: Turns on the front posi-

tion lights, tail lights, license plate

lights, and instrument panel

lights

: Turns on the lights speci-

fied above and the headlights

Vehicles with daytime running light
system: the daytime running lights
turn on (

➞

P. 199)

Turn on high beam

Switch to high beam when the

headlights are on

Return the lever to its original position

to return to low beam.

High beam is turned on while you

pull the lever

Even if the headlights are off, the high

beam will turn on. Release the lever to

return to low beam or turn off high

beam.

KBRO430101E

KBRO430102E

199

4-3. Operating the lights and windshield wipers

✽

: If equipped

riv

Follow me home system

✽

This system allows the headlights to be turned on for 30 seconds when

the engine switch is turned off.
Pull the lever toward you and
release it with the light switch

in after turning the engine switch

off.

The lights are turned off in the following
situations.

⦁

The engine switch is turned to “ON”.

⦁

The light switch is turned on.

⦁

The light switch is pulled toward you

and then released.

⬛

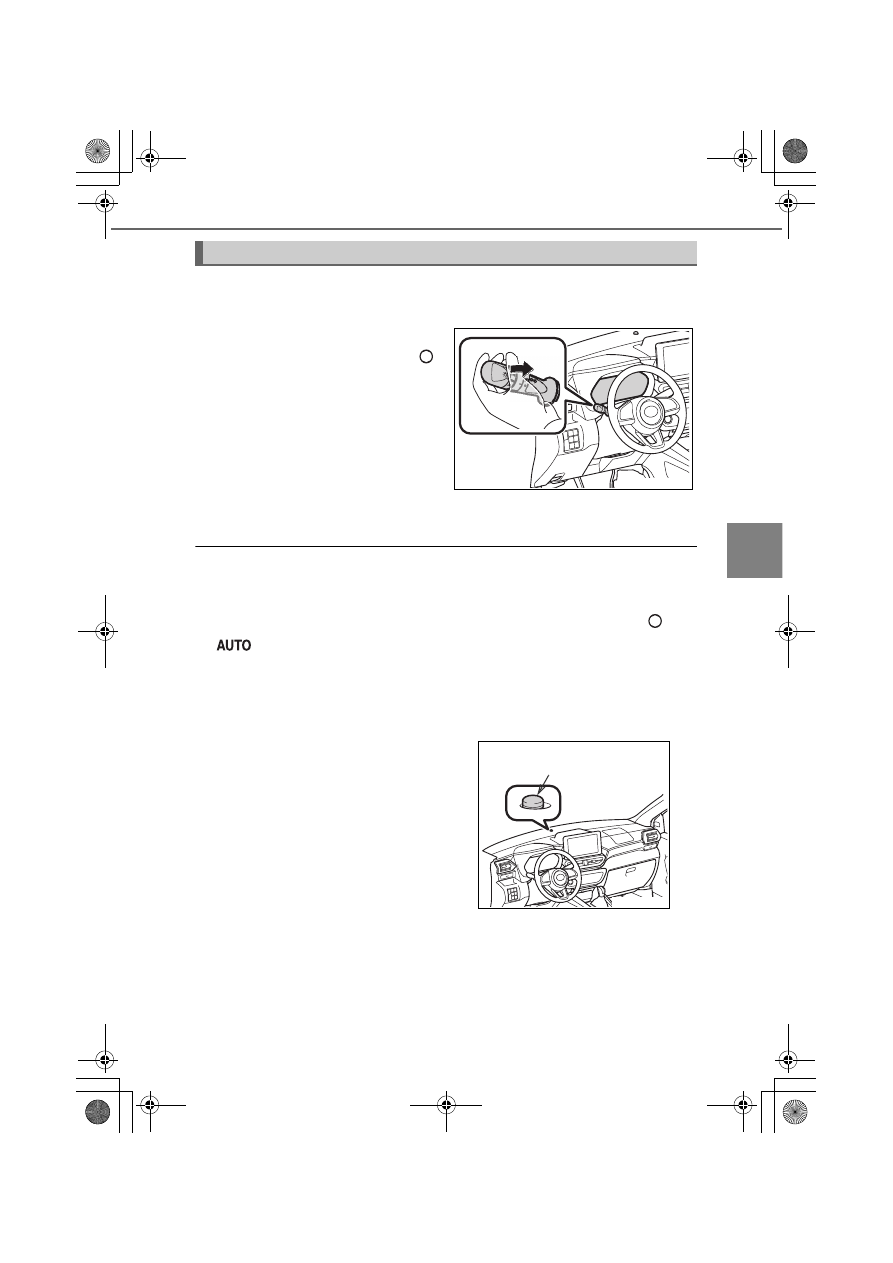

Daytime running light system

✽

To make your vehicle more visible to other drivers during daytime driving, the

daytime running lights turn on automatically whenever the engine is started
and the parking brake is released with the headlight switch in the

* position. (Illuminate brighter than the front position lights.) Daytime

running lights are not designed for use at night.

When the front position lights are not turned on

⬛

Light sensor

✽

⚫

Observe the following precautions.
Failure to do so may prevent the

automatic light on/off function from

working normally.

⦁

Avoid placing any item on the

sensor or pasting items that

would block the sensor on the

windshield

⦁

Do not spray liquid including

glass cleaner

KBRO430103E

KBRO430104E

Light sensor

(with solar radiation sensor)

200

4-3. Operating the lights and windshield wipers

✽

: If equipped

⬛

Automatic light off system

⚫

While the lights are turned on, changing the engine switch from “ON” to
“ACC” or “OFF” will automatically turn off the lit lights.

⚫

To turn the lights on again, turn “ON” the engine switch or move the head-
light switch to the

position, and then move it to the

position.

⬛

Automatic light-off warning buzzer

When the headlights and tail lights are turned on with the engine switch set to

“ACC” or “OFF”, opening the driver’s door will cause the warning buzzer to

sound, letting the driver know that the lights have not been turned off.

⚫

When the buzzer sounds, the warning message also appears for vehicles
with TFT color multi-information display. (

➞

P. 391)

⬛

Power saving function

To prevent the battery from discharging, when the engine switch is set in “ACC”

or “OFF” and the headlights or tail lights are on, the power saving function is

activated and all lights are automatically turned off after about 10 minutes.
After light has been automatically turned off, perform any of the following

operations to cancel the power saving state and turn the lights back on.

⚫

When the engine switch is set to “ON”

⚫

When the headlight switch is operated (However, the lights will turn off again

automatically after about 10 minutes)

⚫

When one of the doors is opened or closed (However, the lights will automati-

cally turn off again after about 10 minutes)

⬛

Customizations

✽

You can change the timing of the headlight switch turning on and off automat-
ically at the

position, etc.

(List of customizable features:

➞

P. 430)

NOTICE

⬛

To prevent battery discharge

Do not leave the lights on for a long time with the engine stopped. Also, be

sure to turn off the lights when you leave the vehicle.

201

4-3. Operating the lights and windshield wipers

✽

: If equipped

riv

Fog light switch

✽

The fog lights secure excellent visibility in difficult driving conditions,

such as in rain and fog.

▶

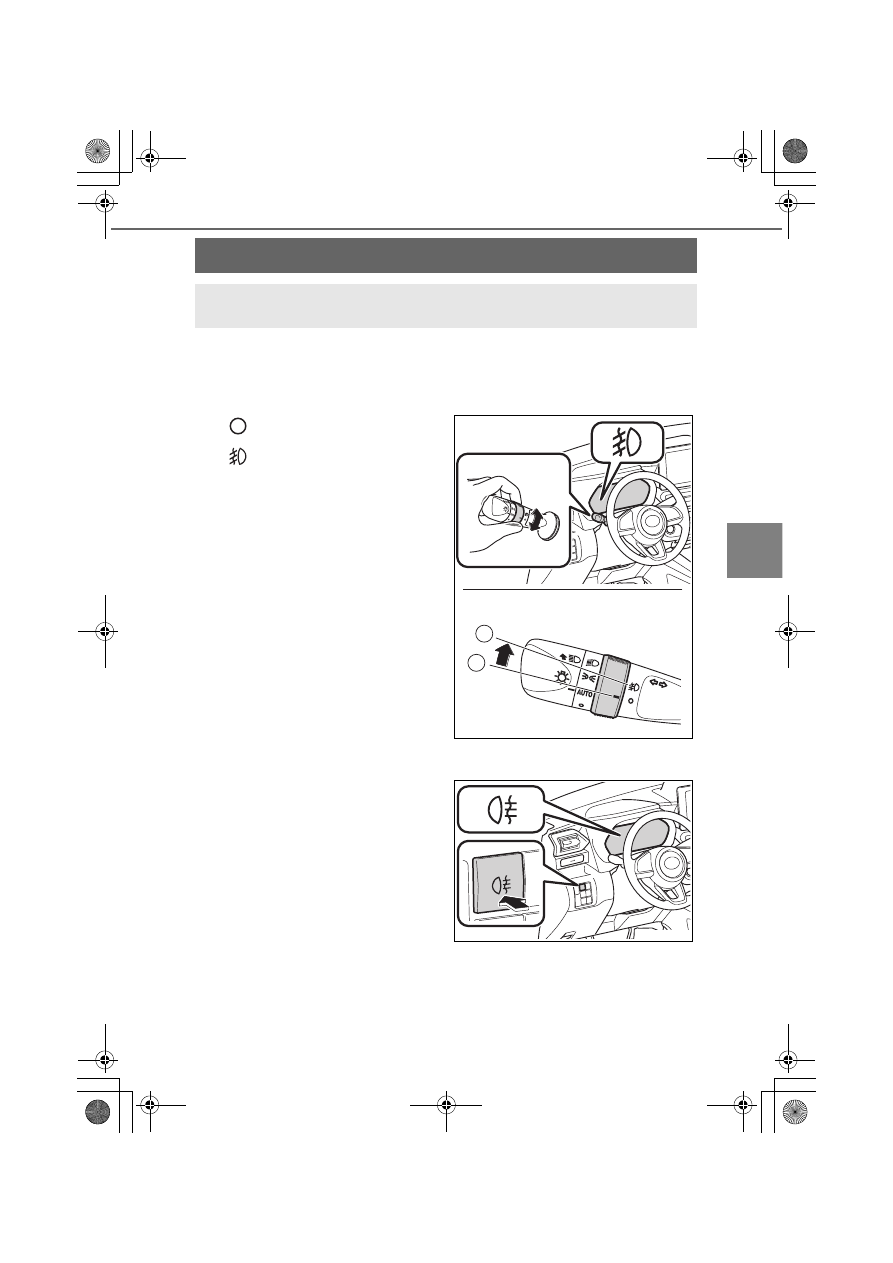

Front fog light switch

Moving the front fog light switch as shown here will turn on and off the

front fog lights.

: Off

: On

▶

Rear fog light switch

Turn the rear fog light on/off

Press the switch to turn on the rear fog

light and the indicator will come on.

KBRO430201E

KBRO430202E

202

4-3. Operating the lights and windshield wipers

⬛

Lighting conditions

▶

Vehicles with front fog light switch

The headlights or the front position lights are turned on.

▶

Vehicles with front and rear fog light switch

Front fog lights: The headlights or the front position lights are turned on.
Rear fog light: The front fog lights are turned on.

▶

Vehicles with rear fog light switch

The headlights are turned on.

203

4-3. Operating the lights and windshield wipers

riv

Windshield wipers and washer (front)

Operation instructions

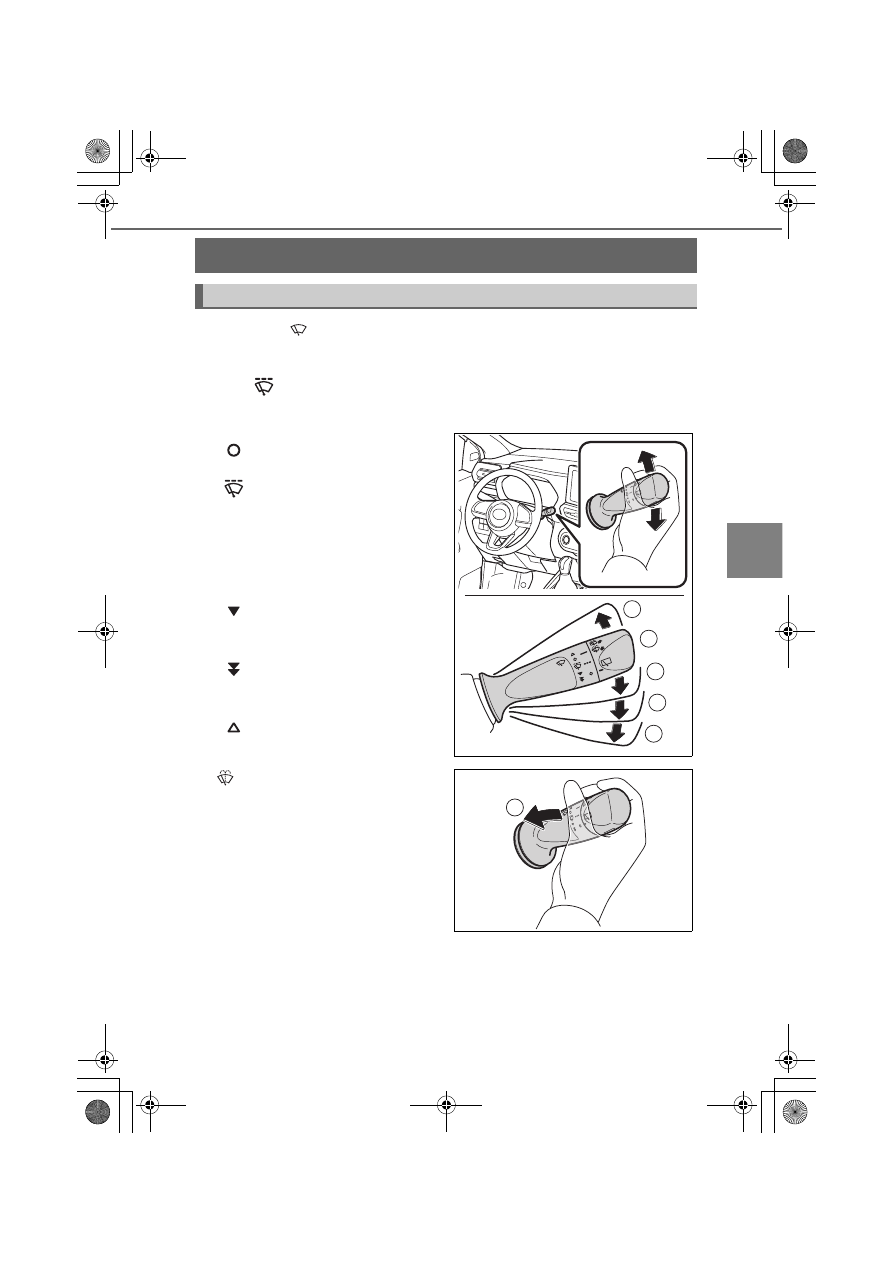

Operate the lever as follows to operate the windshield wipers or

washer.

When

is selected, the intermittent operation time changes according to the

vehicle speed.

: Stopped

: Intermittent windshield

wiper operation

The intermittent windshield wiper

operates more frequently as vehicle

speed becomes higher.

: Low speed windshield

wiper operation

: High speed windshield

wiper operation

: Temporary operation

: Dispense washer fluid

Pulling the lever operates the wind-

shield wipers and washer.

KBRO430301E

KBRO430302E

204

4-3. Operating the lights and windshield wipers

✽

: If equipped

⬛

Operating conditions

When the engine switch is “ON”

⬛

When the washer fluid does not come out

If the washer fluid does not come out even though the washer fluid tank level

is not low, check the nozzles for clogging.

⬛

Customizations

The setting of sensitivity to vehicle speed can be changed.
(List of customizable features:

➞

P. 430)

(For some of the features, the settings can be changed from the setup screen

of the multi-information display

✽

➞

P. 91)

(The settings can be changed from the setup screen of the TFT color multi-

information display

✽

➞

P. 104)

WARNING

⬛

Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes

warm. The fluid may freeze on the windshield and cause low visibility. This may

lead to an accident, resulting in death or serious injury.

NOTICE

⬛

When the windshield is dry

Do not use the windshield wipers,
as they may damage the windshield.

⬛

When the washer fluid does not come out

Do not operate the switch continually
as you may damage the washer fluid pump.

⬛

When a nozzle becomes clogged

When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.

⬛

To prevent battery discharge

Do not leave the windshield wipers on longer than necessary when the engine

is not running.

205

4-3. Operating the lights and windshield wipers

riv

Windshield wipers and washer (rear)

Operation instructions

Moving the switch as shown here will activate the rear wiper.

: Stopped

: After moving at a slow

speed for approximately 4 sec-

onds, the intermittent wiper

operation starts

: Normal operation

: Dispense washer fluid

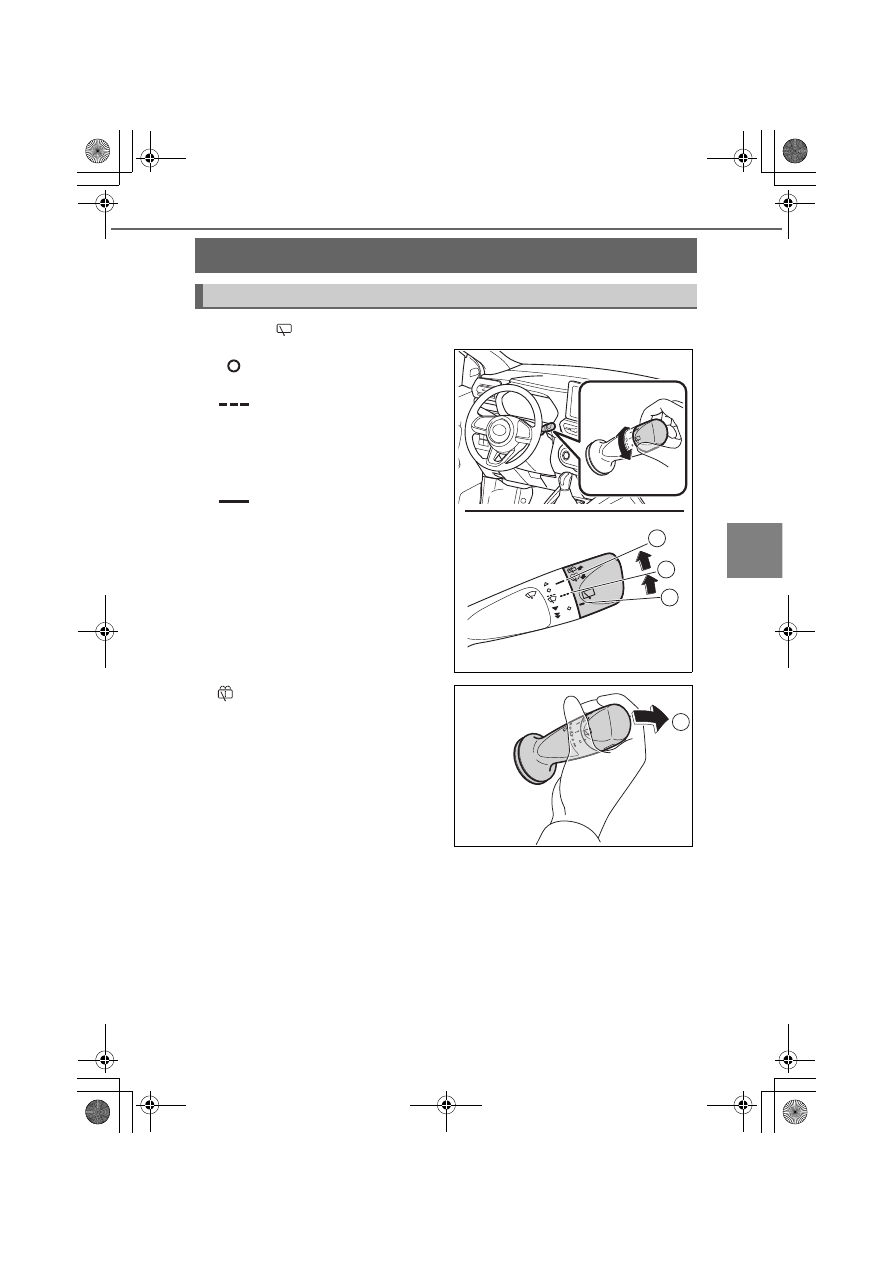

Pushing the lever forwards activates

the washer.

KBRO430401E

KBRO430402E

206

4-3. Operating the lights and windshield wipers

✽

: If equipped

⬛

Operating conditions

When the engine switch is “ON”

⬛

When the washer fluid does not come out

If the washer fluid does not come out even though the washer fluid tank level

is not low, check the nozzles for clogging.

⬛

Reverse wiper function

While the windshield wiper is operating, setting the shift lever to R will move

the rear wiper several times. After the windshield wiper is stopped, setting the

shift lever to R within approximately 10 seconds will also move the rear wiper

several times.

⬛

Customizations

The settings such as operation intervals can be modified.
(List of customizable features:

➞

P. 430)

(For some of the features, the settings can be changed from the setup screen

of the multi-information display

✽

➞

P. 91)

(For some of the features, the settings can be changed from the setup screen

of the TFT color multi-information display

✽

➞

P. 104)

NOTICE

⬛

When the rear window is dry

Do not use the windshield wipers,
as they may damage the windshield.

⬛

When the washer fluid does not come out

Do not operate the switch continually
as you may damage the washer fluid pump.

⬛

When a nozzle becomes clogged

When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.

⬛

To prevent battery discharge

Do not leave the windshield wipers on longer than necessary when the engine

is not running.

207

riv

4-4. Refueling

Opening the fuel tank cap

Perform the following steps to open the fuel tank cap:

Before refueling the vehicle

⚫

Close all the doors and windows, then turn the engine switch to “OFF”.

⚫

Confirm the type of fuel.

⚫

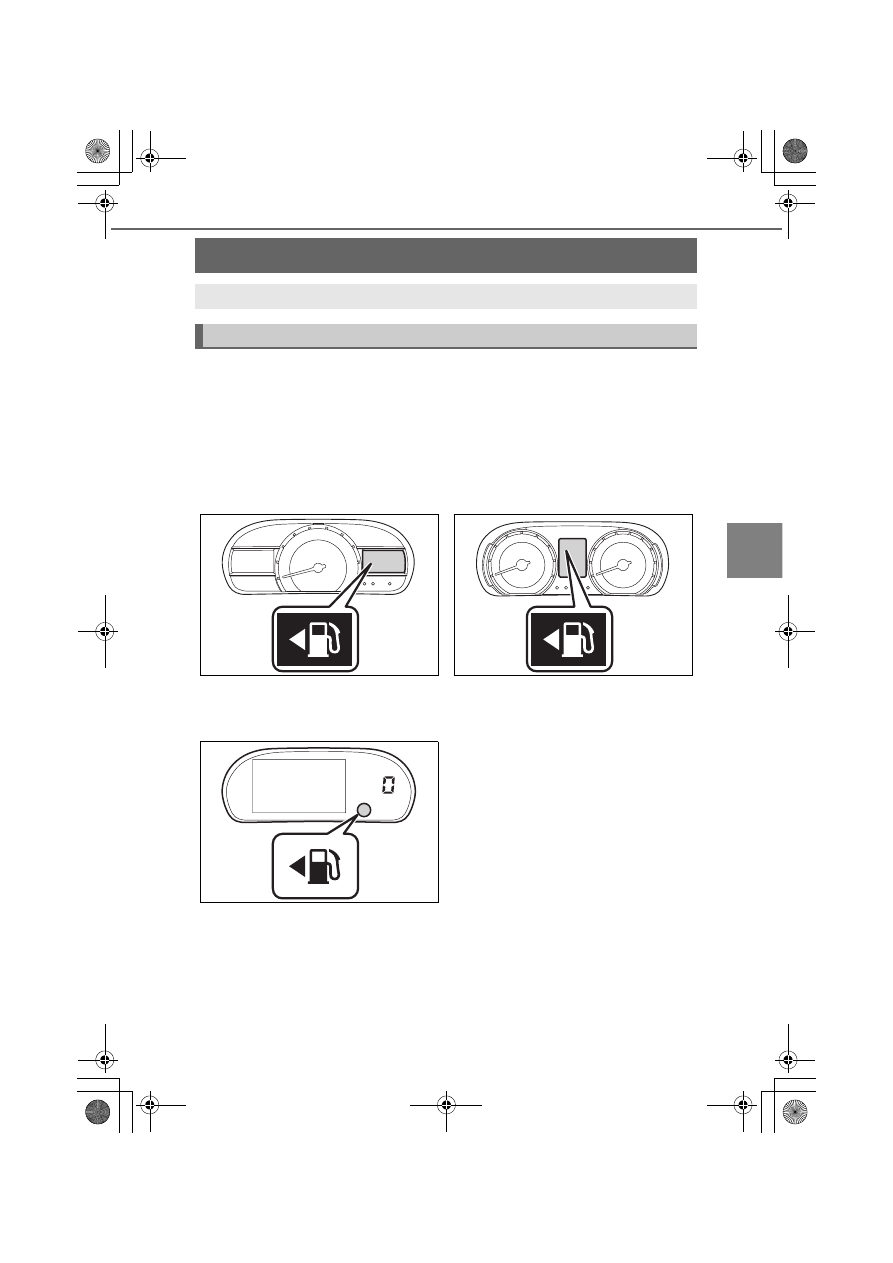

The side on which the fuel tank opening is mounted on the vehicle is

indicated on the meter.

▶

Vehicles without TFT color multi-

information display (vehicles

without tachometer)

▶

Vehicles without TFT color multi-

information display (vehicles

with tachometer)

▶

Vehicles with TFT color multi-
information display

⬛

Fuel types

➞

P. 421

KBRO440112E

KBRO440110

KBRO440111

208

4-4. Refueling

⬛

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehicle has a fuel tank opening that

only accommodates the special nozzle on unleaded fuel pumps.

WARNING

⬛

When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do so

may result in death or serious injury.

⚫

After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to

discharge static electricity before refueling because sparks resulting from

static electricity can cause fuel vapors to ignite while refueling.

⚫

Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot

weather, pressurized fuel may spray out the filler neck and cause injury.

⚫

Do not allow anyone that has not discharged static electricity from their body
to come close to an open fuel tank.

⚫

Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.

⚫

Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.

⚫

Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition

hazard.

⬛

When refueling

Observe the following precautions to prevent fuel overflowing from the fuel

tank:

⚫

Securely insert the fuel nozzle into the fuel filler neck.

⚫

Stop filling the tank after the fuel nozzle automatically clicks off.

⚫

Do not top off the fuel tank.

⬛

When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your

vehicle. Doing so may cause a fire or other incident which may result in death

or serious injury.

Content .. 10 11 12 13 ..
