3-2. Opening, closing and locking the doors

⬛

Important points when locking the doors

During an automatic car wash, the vehicle’s internal buzzer may sound if water

splashes on the door handle while the electronic key is left inside the vehicle.

⬛

Important points when unlocking the doors

⚫

When you pull the door handle while operating the door handle switch, the
door may not get unlocked. In that case, restore the door handle to the orig-

inal position and operate the switch again (except for the back door). When

you verify that the door has been unlocked, pull the door handle.

⚫

When another electronic key is placed within the operating range, it may
take longer to unlock the door from the time when you operate the switch

on the door handle.

⬛

Leaving the vehicle unused for a long period

⚫

To prevent theft, keep the electronic key away from the vehicle for approx. 3
m (9.8 ft.).

⚫

You can also disable the key-free system beforehand.
Contact your Toyota dealer for further information.

⬛

Starting the system normally

Make sure to carry the electronic key with you when you start the system.

When you start the system from outside the vehicle, be careful not to keep the

electronic key too close to the vehicle.
Depending on the electronic key’s position or how you hold it when starting

the system, the key may not be detected correctly, preventing the system from

starting normally. (It could cause the alarm to go off unexpectedly or the door

lock prevention function may not work. :

➞

P. 139)

⬛

When the key-free system does not work properly

⚫

Locking and unlocking doors:

➞

P. 406

⚫

Starting the engine:

➞

P. 406

⬛

Low battery

⚫

The standard battery life is between 1 and 2 years.

⚫

The battery still depletes without using the wireless remote control. Since
the electronic key is constantly receiving radio waves, the battery depletes

even when it is not in use. If you encounter any of the following situations,

the key may be running out of battery. Replace it with a new battery.

⦁

The key-free system or wireless remote control will not start

⦁

The operating range has become narrower

⦁

The LED of the electronic key will not light

129

3-2. Opening, closing and locking the doors

Oper

ati

on of each com

ponent

⚫

When the remaining battery becomes low, a warning buzzer will sound from
inside the vehicle when the engine is stopped. (

➞

P. 394)

⚫

To prevent significant battery drainage, do not store the electronic key within
1 m (3.3 ft.) from the following electronic devices that are known to emit a

magnetic field.

⦁

Audio system

⦁

Personal computers

⦁

AC adapters

⦁

Mobile phones, cordless phones, and chargers

⦁

Desk lamps

⦁

Medical electronic devices such as low-frequency electric therapy equip-

ment

⦁

Liquid crystal display

⦁

Motors

⦁

Induction cookers

⚫

Do not leave electronic keys inside or near the vehicle. Since the electronic
key and the vehicle are constantly communicating with one another, it

speeds up the battery draining. When they enter in the constant communi-

cation state, the indicator of the electronic key starts blinking. Keep the elec-

tronic key away from the vehicle until the indicator turns off.

⚫

If you do not plan on using the electronic key for a long time, set the key to
the battery-saving mode to minimize battery consumption. (

➞

P. 125)

⬛

Running out of the battery

➞

P. 344

⬛

Functions configurable by Toyota dealers

Toyota dealers can deactivate the key-free system.
(List of customizable features:

➞

P. 430)

⬛

When the key-free system was deactivated by a Toyota dealer

⚫

Locking and unlocking doors: The doors can be locked and unlocked using
the wireless function or the emergency key. (

➞

P. 133, 406)

⚫

Starting the engine and switching the engine switch mode:

➞

P. 406

⚫

Stopping the engine:

➞

P. 185

130

3-2. Opening, closing and locking the doors

WARNING

⬛

Caution regarding interference with electronic devices

⚫

People with implantable cardiac pacemakers, cardiac resynchronization ther-
apy-pacemakers or implantable cardioverter defibrillators should maintain a

reasonable distance between themselves and the key-free system antennas.

(

➞

P. 122)

The radio waves may affect the operation of such devices. If necessary, the

key-free function can be disabled. Ask your Toyota dealer for details, such as

the frequency of radio waves and timing of the emitted radio waves. Then,

consult your doctor to see if you should disable the key-free function.

⚫

Users of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable car-

dioverter defibrillators should consult the manufacturer of the device for

information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medi-

cal devices.

Ask your Toyota dealer for details on disabling the key-free function.

NOTICE

⚫

Never apply excessive force or use a sharp object to press the switch on the
door handle. Doing so could cause the switch to break.

131

3-2. Opening, closing and locking the doors

✽

: If equipped

Oper

ati

on of each com

ponent

Wireless remote control

Function overview

You can lock and unlock the doors.

▶

Vehicles without key-free system

➞

P. 133

▶

Vehicles with key-free system

➞

P. 133

⬛

Signaling of the operation

The buzzer and the blinking emergency flashers will notify you of the opera-

tion. (1 time for locking and 2 times for unlocking)

⬛

Customizations

The signaling of the operation can be changed.
(List of customizable features:

➞

P. 430)

(The settings can be changed from the setup screen of the multi-information

display

✽

➞

P. 91)

(The settings can be changed from the setup screen of the TFT color multi-

information display

✽

➞

P. 104)

⬛

Security features for unlocking operation

➞

P. 139

⬛

Situations where the function may not work properly

▶

Vehicles without key-free system

In the following cases, the wireless remote control may not work as intended.

⚫

When the wireless key’s battery is low

⚫

When you are in an area with strong radio waves or noise present, such as
near TV towers, power plants, gas stations, broadcast stations, large display,

airports, and so on

⚫

When you have a wireless communication device such as a radio, mobile
phone, and cordless telephone with you

⚫

If the wireless remote control touches or is covered by a metal object

⚫

When a wireless key (that emits radio waves) is in use near by

⚫

When a metal-containing film is pasted on the rear window

▶

Vehicles with key-free system

➞

P. 125

132

3-2. Opening, closing and locking the doors

⬛

When the wireless remote control does not work normally

▶

Vehicles without key-free system

Locking and unlocking the doors

➞

P. 134

▶

Vehicles with key-free system

Locking and unlocking the doors

➞

P. 406

⬛

Low battery

▶

Vehicles without key-free system

⚫

The standard battery life is between 1 and 2 years.

⚫

The battery still depletes without using the wireless remote control.
If you encounter any of the following situations, the key may be running out

of battery. Replace it with a new battery.

⦁

The wireless remote control does not work

⦁

The operating range has become narrower

▶

Vehicles with key-free system

➞

P. 128

⬛

Running out of the battery

➞

P. 344

133

3-2. Opening, closing and locking the doors

✽

: If equipped

Oper

ati

on of each com

ponent

Doors (front doors, rear doors)

Locking and unlocking the doors

You can lock and unlock the doors using the key-free system

✽

, wireless

function, keys or inside lock buttons.

⬛

Key-free system

✽

Keep the electronic key with you and

touch the lock/unlock switch of the

front door (depressed part of the

handle) to lock or unlock all the doors

Touch the switch as specified.
When you lock the doors, make sure that

they have been locked.
The doors cannot be unlocked after

approximately 3 seconds from being

locked.

⬛

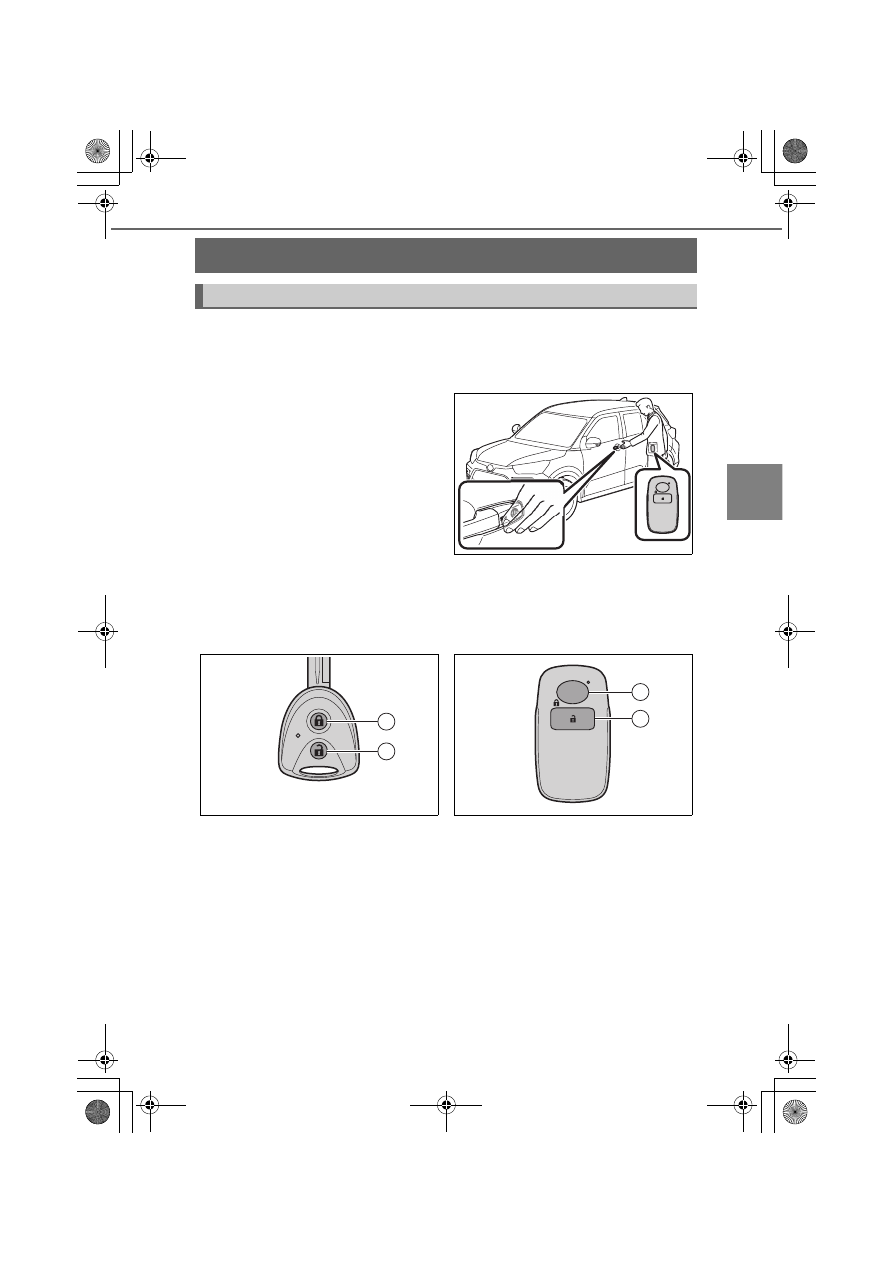

Wireless function

▶

Vehicles without key-free system

▶

Vehicles with key-free system

Locking all the doors

Make sure that the doors have been locked.

Unlocking all the doors

KBRO320101E

KBTA320102

1
2

KBRO320102

134

3-2. Opening, closing and locking the doors

▶

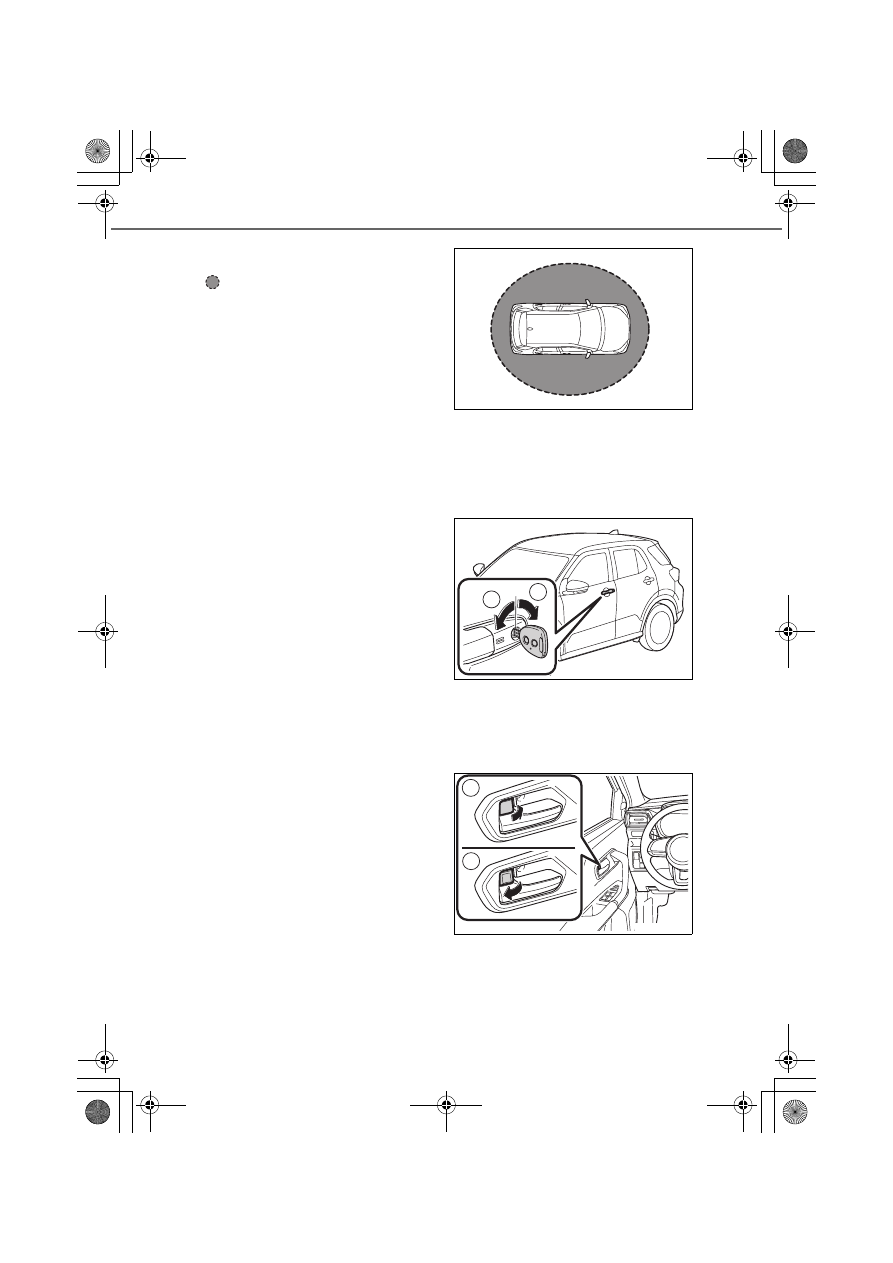

Operating range

: Approx. within the 3 m (9.8 ft.)

range from the center of the

vehicle

⬛

Keys

Using the key, the doors will operate as specified below.

▶

Vehicles without key-free system

Locking all the doors

Unlocking all the doors

▶

Vehicles with key-free system

You can lock and unlock the doors using the emergency key. (

➞

P. 406)

⬛

Inside lock button

Locking the doors

Unlocking the doors

⦁

When you unlock (or lock) the

driver’s door, all the doors will be

unlocked (or locked).

⦁

Even when the inside lock button of

the driver’s door is set to the locked

side, pulling the door handle inside

the vehicle will unlock all the doors

and open the driver’s door.

KBRO320106

KBRO320104E

KBRO320105E

135

3-2. Opening, closing and locking the doors

Oper

ati

on of each com

ponent

When locking the driver’s seat from outside without using the key

Move the inside lock button to the locked side

Close the door while pulling the door handle

▶

Vehicles without key-free system

When the key is inserted to the engine switch, the doors will not be

locked.

▶

Vehicles with key-free system

When the engine switch is “ACC” or “ON”, or when the electronic key is

left inside the vehicle, the doors will not be locked.

In some cases, the key is not detected correctly, causing the doors to get locked.

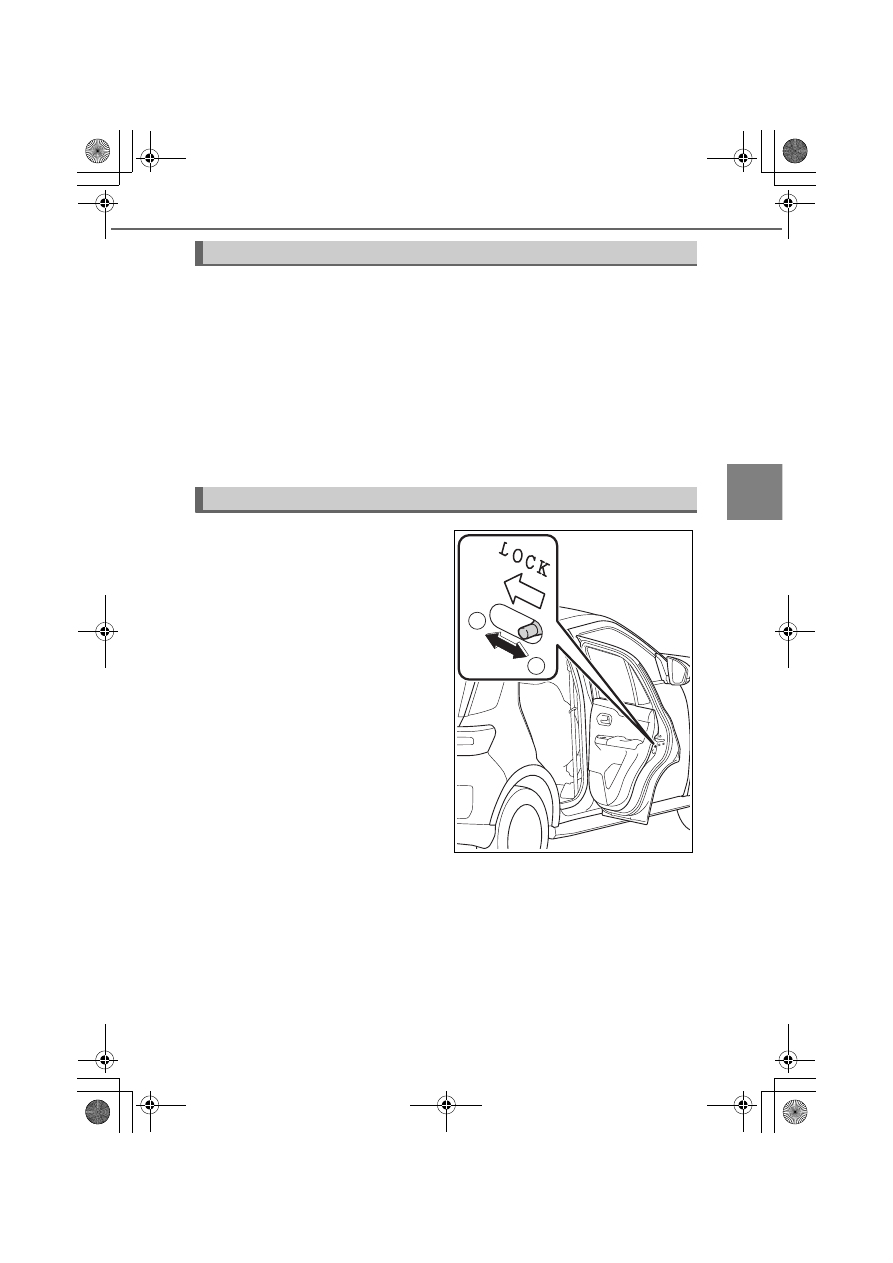

Child-protector lock

When set to the locked side, the rear

doors will not open from inside the

vehicle.

Unlock

Lock

This feature prevents children from

opening the rear door from inside the

vehicle. Set both rear doors to the

locked side.

KBRO320107E

136

3-2. Opening, closing and locking the doors

Auto lock and unlock function

This function automatically locks or unlocks all the doors according to the

vehicle condition.
You can set and cancel the following functions.

▶

Auto lock function

▶

Auto unlock function (by default, this function is disabled.)

Function

Description

Speed linked door locking

function (Default setting)

When the vehicle speed becomes approx. 20 km/h

(12 mph) or faster, all the doors will be locked.

Shift-linked auto lock (con-

tinuously variable transmis-

sion vehicles only)

All the doors will be locked by moving the shift

lever from the P position while the engine is run-

ning.

Function

Description

Engine switch “OFF”-linked

auto unlock

All the doors will be unlocked by turning the engine

switch to “ACC” or “OFF” after driving at approxi-

mately 20 km/h (12 mph) or faster.

Shift-linked auto unlock

(continuously variable trans-

mission vehicles only)

All the doors will be unlocked by moving the shift

lever to P.

137

3-2. Opening, closing and locking the doors

Oper

ati

on of each com

ponent

⬛

How to switch the auto lock function

When you complete each step listed below, the auto lock function will

switch in the order of

, and

Speed linked door locking function

Shift-linked auto lock function (continuously variable transmission vehi-

cles only)

Function disabled

Set the vehicle to the following

state

⦁

Turn off the front position

lights

⦁

Turn the engine switch to “OFF”

⦁

Close all the doors

⦁

Move the inside lock button of

the driver’s door to the locked

side

Turn the engine switch to “ACC” (Within 5 seconds after this, perform

)

Turn on and off the front position lights (within 5 seconds after this,

perform

)

Move the inside lock button of the driver’s door to the unlocked side

Once the switchover is complete, all the doors will be locked within

approximately 3 seconds after the inside lock button of the driver’s door is

set to the unlocked side.
If you stop the operation without finishing to the end, try again from the

beginning.

KBRO320108E

138

3-2. Opening, closing and locking the doors

✽

: If equipped

⬛

How to switch the auto unlock function

When you complete each step listed below, the auto unlock function will

switch in the order of

, and

Function disabled

Shift-linked auto unlock (continuously variable transmission vehicles

only)

Engine switch “OFF”-linked auto unlock

Set the vehicle to the following

state

⦁

Turn off the front position

lights

⦁

Turn the engine switch to “OFF”

⦁

Close all the doors

⦁

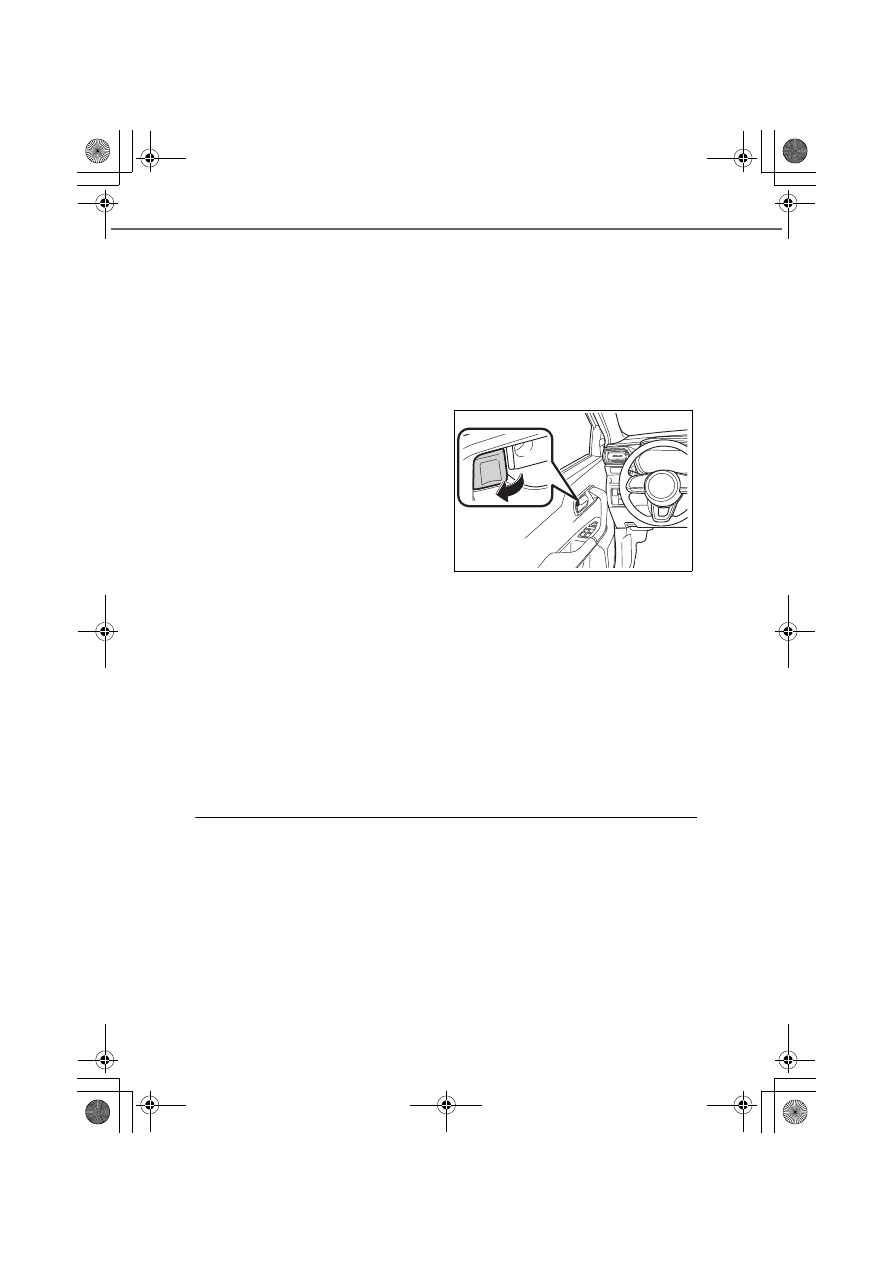

Move the inside lock button of

the driver’s door to the

unlocked side

Turn the engine switch to “ACC” (Within 5 seconds after this, perform

)

Turn on and off the front position lights (within 5 seconds after this,

perform

)

Move the inside lock button of the driver’s door to the locked side

Once the switchover is complete, all the doors will be unlocked within

approximately 3 seconds after the inside lock button of the driver’s door is

set to the locked side.
If you stop the operation without finishing to the end, try again from the

beginning.

⬛

When the alarm

✽

is set

If you unlock and open the door without using the key-free system or wireless

remote control, the alarm will be activated. When that happens, stop the alarm

immediately. (

➞

P. 74)

⬛

Impact detection door lock release system

When the vehicle receives a strong impact on the front, back, right, and left

side, all the doors will be unlocked.
This system will not be activated depending on the degree of the impact or the

type of accident.

KBRO320109E

139

3-2. Opening, closing and locking the doors

✽

: If equipped

Oper

ati

on of each com

ponent

⬛

Security features for unlocking operation

If the door is not opened within approximately 30 seconds after the key-free

system

✽

or wireless remote control has unlocked the door, the door will be

locked automatically for theft prevention.

⚫

After the door has been locked, the alarm

✽

will be set. (

➞

P. 73)

⬛

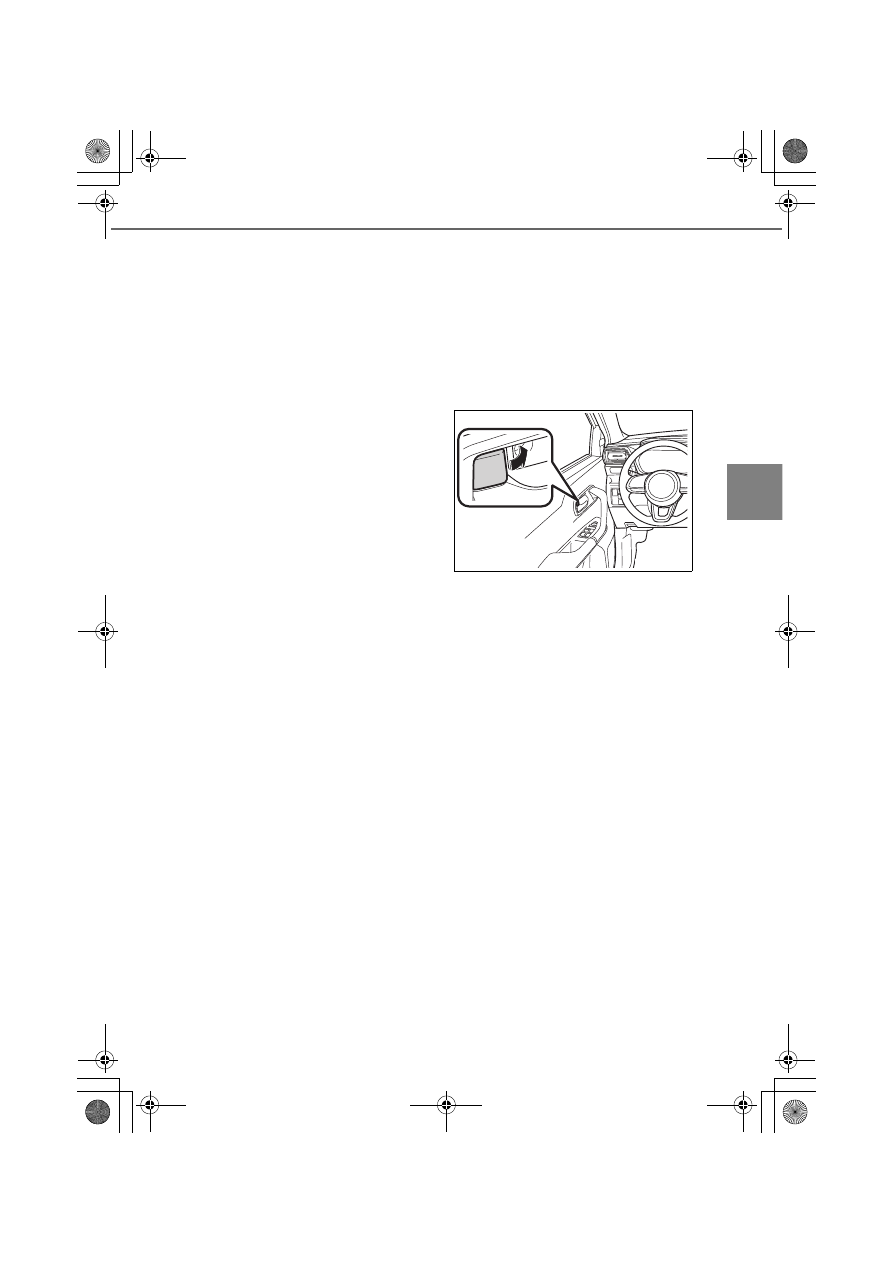

When the lock/unlock switch

✽

on the front door will not lock or unlock the

doors

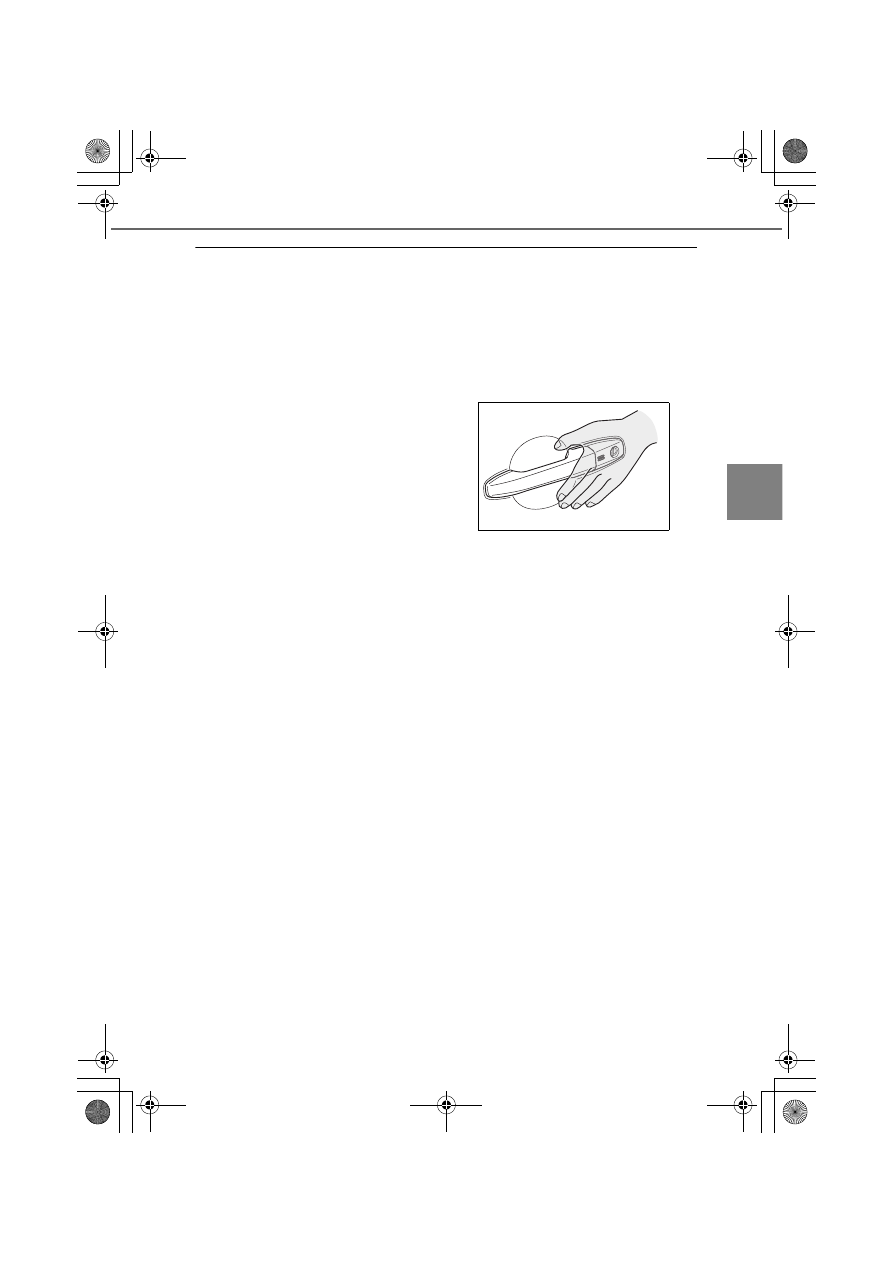

If you cannot lock or unlock the doors

by touching the lock/unlock switch on

the front door with your finger, touch

the lock/unlock switch of the front

door with the palm of your hand.

If you wear gloves, take them off.

⬛

Door lock prevention function

This function prevents the doors from being locked with the key left inside the

vehicle.

▶

Vehicles without key-free system

⚫

When the key is inserted in the engine switch, performing the following
operations will activate the door lock prevention function, unlocking all the

doors.

⦁

Moving the inside lock button of the driver’s door to the locked side with

the driver’s door open

⦁

Unlocking any of the inside lock buttons except the driver’s seat from

inside the vehicle with all the doors locked, and opening the door and then

closing it (The function will not activate when the engine switch is “ON”)

▶

Vehicles with key-free system

⚫

When the engine switch is “ACC” or “ON”, performing the following opera-
tions will activate the door lock prevention function, unlocking all the doors.

⦁

Moving the inside lock button of the driver’s door to the locked side with

the driver’s door open

⦁

Unlocking any of the inside lock buttons except the driver’s seat from

inside the vehicle with all the doors locked, and opening the door and then

closing it (The function will not activate when the engine switch is “ON”)

KBRO320110E

140

3-2. Opening, closing and locking the doors

✽

: If equipped

⚫

When the engine switch is “OFF” and the electronic key is left inside the vehi-
cle, performing the following operations will activate the door lock preven-

tion function, unlocking all the doors.

⦁

Closing the door while pulling the driver’s door handle with the inside lock

button on the driver’s door inside the vehicle being set to the locked side

⦁

Unlocking any of the inside lock buttons except the driver’s seat from

inside the vehicle with all the doors locked, and opening the door and then

closing it

⬛

Open door warning buzzer

➞

P. 381, 390

⬛

Situations where the function may not work properly

➞

P. 125

⬛

Customizations

You can customize some of the key-free system

✽

functions and some of the

auto lock and unlock functions
(List of customizable features:

➞

P. 430)

(For some of the features, the settings can be changed from the setup screen

of the multi-information display

✽

➞

P. 91)

(The settings can be changed from the setup screen of the TFT color multi-

information display

✽

➞

P. 104)

⬛

Auto lock and unlock function

If you unlock the door after it was locked by the auto lock function, the door

will not be locked again. However, the function will be reactivated in any of the

following conditions:

⚫

One of the doors is opened while the vehicle is stopped

⚫

The engine switch is turned to “ACC” or “OFF”

⚫

The doors are unlocked by the auto unlock function

⬛

How to open doors when the child-protector lock is used

Unlock the door and pull the door handle outside the vehicle to open the door.

If you need to open the door from inside the vehicle, pull down the window

and put your hand out, and pull the door handle outside the vehicle.

141

3-2. Opening, closing and locking the doors

Oper

ati

on of each com

ponent

WARNING

⬛

To prevent an accident

Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out, caus-

ing death or serious injury.

⚫

Always use a seat belt

⚫

Always securely close and lock all the doors

⚫

Do not pull the inside handle of the doors while driving.
Be especially careful of the drivers door, as the door may be opened even if

the inside lock knob is in the locked position.

⚫

When children are in the rear seats, use the child-protector lock to prevent
the doors from being opened from inside the vehicle

⬛

Considerations when opening and closing the doors

⚫

Check the surroundings, such as whether the vehicle is on sloping ground,
whether the space between the door and the wall is narrow, and whether

there are strong winds. Hold the door handle securely when opening and

closing the door so that you can deal with any unexpected movement.

⚫

Be careful not to get your fingers caught in the closing door.

⬛

When children are in the vehicle

Do not allow children to open or close doors or play with them. The death or

serious injury can occur as a result of an unforeseen accident.

142

3-2. Opening, closing and locking the doors

✽

: If equipped

Back door

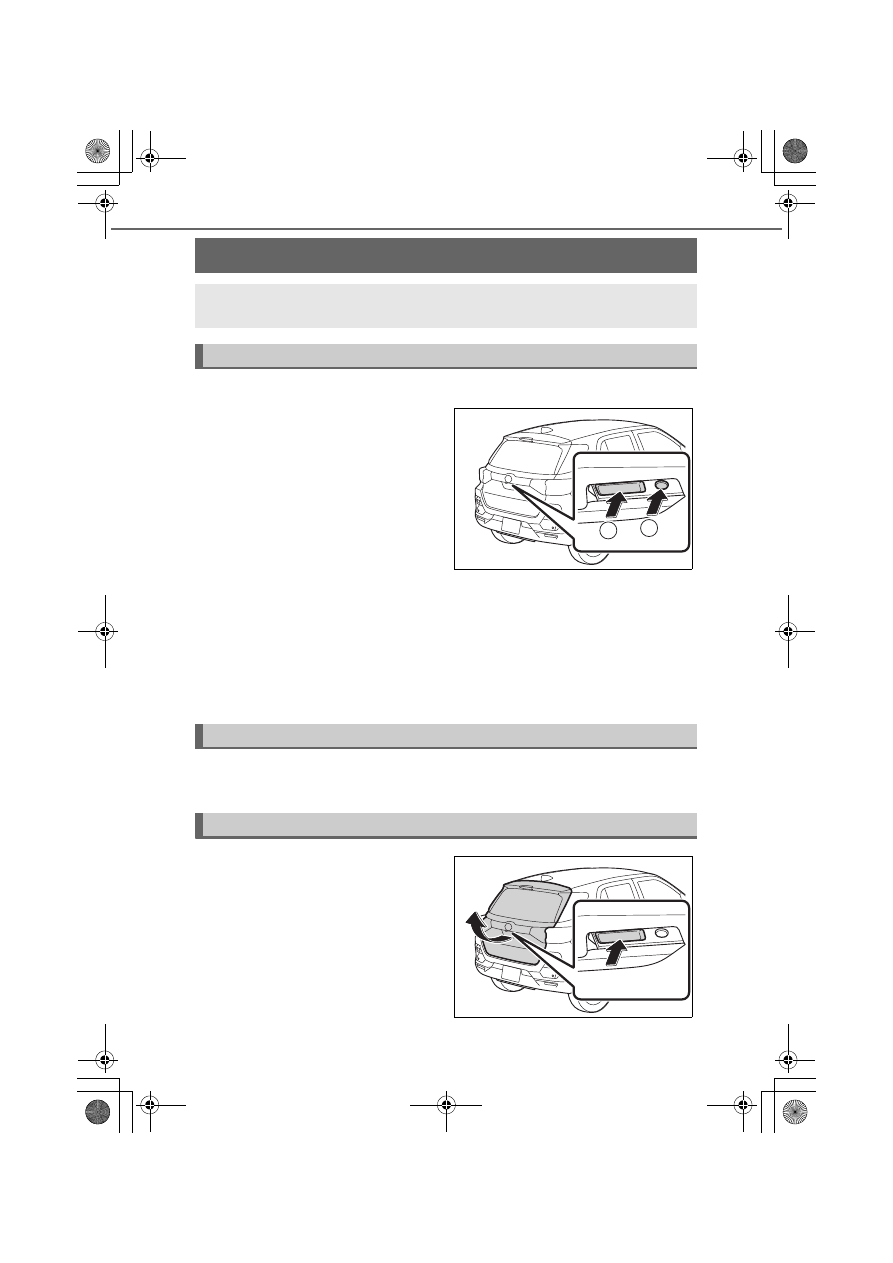

The back door can be locked, unlocked and opened in the following

procedures:

Unlocking and locking the back door from the outside

⬛

Key-free system

✽

Operate this system when you have

the electronic key with you.

Locking all the doors

Make sure that the doors have been

locked.

Unlocking all the doors

The back door will open.
The doors cannot be unlocked after

approximately 3 seconds from being

locked.

⬛

Wireless remote control

➞

P. 133

⬛

Keys

➞

P. 134

Unlocking and locking from inside the vehicle

⬛

Inside lock button

➞

P. 134

Opening the back door

While holding down the back door

opener switch, lift the back door

The back door cannot be closed for

approximately 1 second after the back

door opener switch is pressed.

KBRO320201

KBRO320202

Parts.fm 142 ページ２０２２年６月１７日　金曜日　午前９時２分

143

3-2. Opening, closing and locking the doors

Oper

ati

on of each com

ponent

Closing the back door

Hold the back door inner handle to

lower the back door

Make sure to close it from the outside by

pushing it down.

⬛

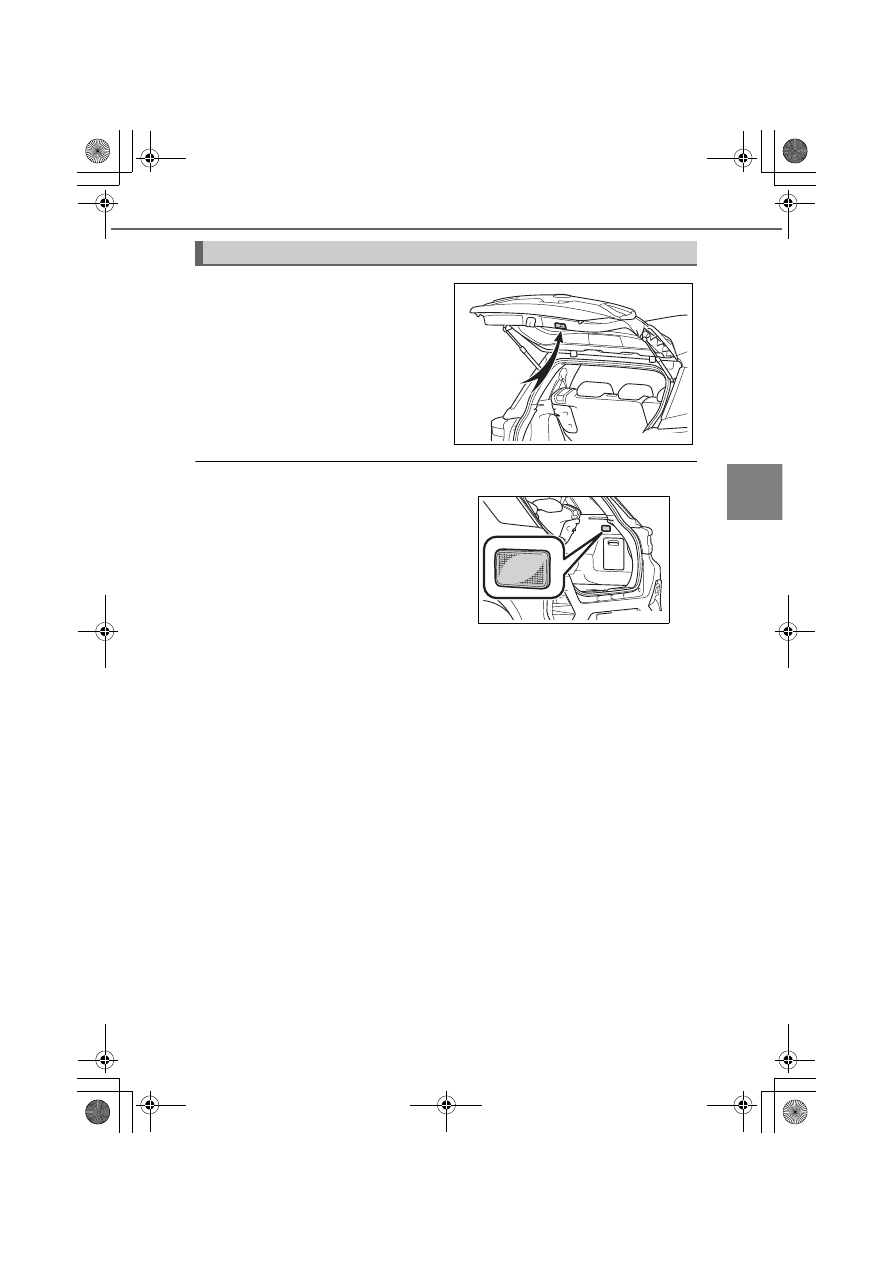

Luggage compartment light (door-linked)

The luggage compartment light

(door-linked) will light up when the

back door or any door other than the

back door is opened.

When the engine switch is “ACC” or

“OFF”, the light will automatically turn

off approximately after 10 minutes.

⬛

Unlocking the back door

If the back door cannot be opened by unlocking with the back door opener

switch, check to see if the back door is slightly open.

⬛

Open door warning buzzer

➞

P. 381, 390

⬛

Customizations

You can customize the operations performed by the back door switch.
(List of customizable features:

➞

P. 430)

KBRO320203N

KBRO530105N

Parts.fm 143 ページ２０２２年６月１７日　金曜日　午前９時２分

Toyota Raize (2023 year). Manual in english - page 8
