95

2-1. Instrument cluster

In

st

ru

me
nt

 c

lus

te

r

2

⬛

About average fuel economy

⚫

Immediately after the engine switch has been turned “ON”, it shows the
value when the engine was stopped last.

⚫

Fuel economy is not displayed if the data cannot be received when refresh-
ing the display, or if invalid data is received.

⬛

About cruising distance

⚫

Refreshing time for display depends on driving conditions (running,
stopped).

⚫

Note that the cruising distance data shown as when you receive your new
vehicle does not necessarily represent the correct value.

⚫

When a malfunction is detected, cruising distance data may not be displayed
for a while.

⬛

About outside temperature

⚫

When the outside temperature cannot be measured correctly, it shows “- -°C”.

⚫

Under the following conditions, the outside temperature may not be dis-
played properly, or update of temperature indication may be delayed. These

phenomena are not considered a failure.

⦁

When the vehicle is stopped or is running at low speeds (approx. 20 km/h

[12.4 mph] or lower)

⦁

When the outside temperature drastically changes (in a garage, or at the

entrance/exit of a tunnel)

⚫

The outside temperature indication may change depending on the vehicle
conditions, such as speed and wind direction.

⬛

About road surface freezing warning indication

⚫

Indication of road surface freezing warning is just a guide. Be sure to check
the actual condition of the road.

⚫

When the engine switch is turned “ON”, the warning will not be displayed if
the outside temperature is already 3°C (37

℉

) or below.

⚫

Once the road surface freezing warning is displayed, the warning will not
appear again until the outside temperature becomes 4°C (39

℉

) or higher

and then goes down to 3°C (37

℉

) or lower.

96

2-1. Instrument cluster

⬛

About instrument panel illumination (day illumination and night illumination)

⚫

There are 2 types of instrument panel illumination: day illumination and
night illumination, and the illumination changes at the following times.

⦁

Day illumination: when the front position lights are turned off

⦁

Night illumination: when the front position lights are turned on

⚫

Instrument panel lights become dimmer when it switches to night illumina-
tion. However, illumination does not become dimmer when the level for

night illumination is set to the brightest.

⬛

When battery terminals are connected/disconnected

Clock data is reset when battery terminals are connected or disconnected.

⬛

About automatic correction of time

Automatic correction of time cannot be set if you connect a device other than 9

inch display audio pairable with smart phones.

⬛

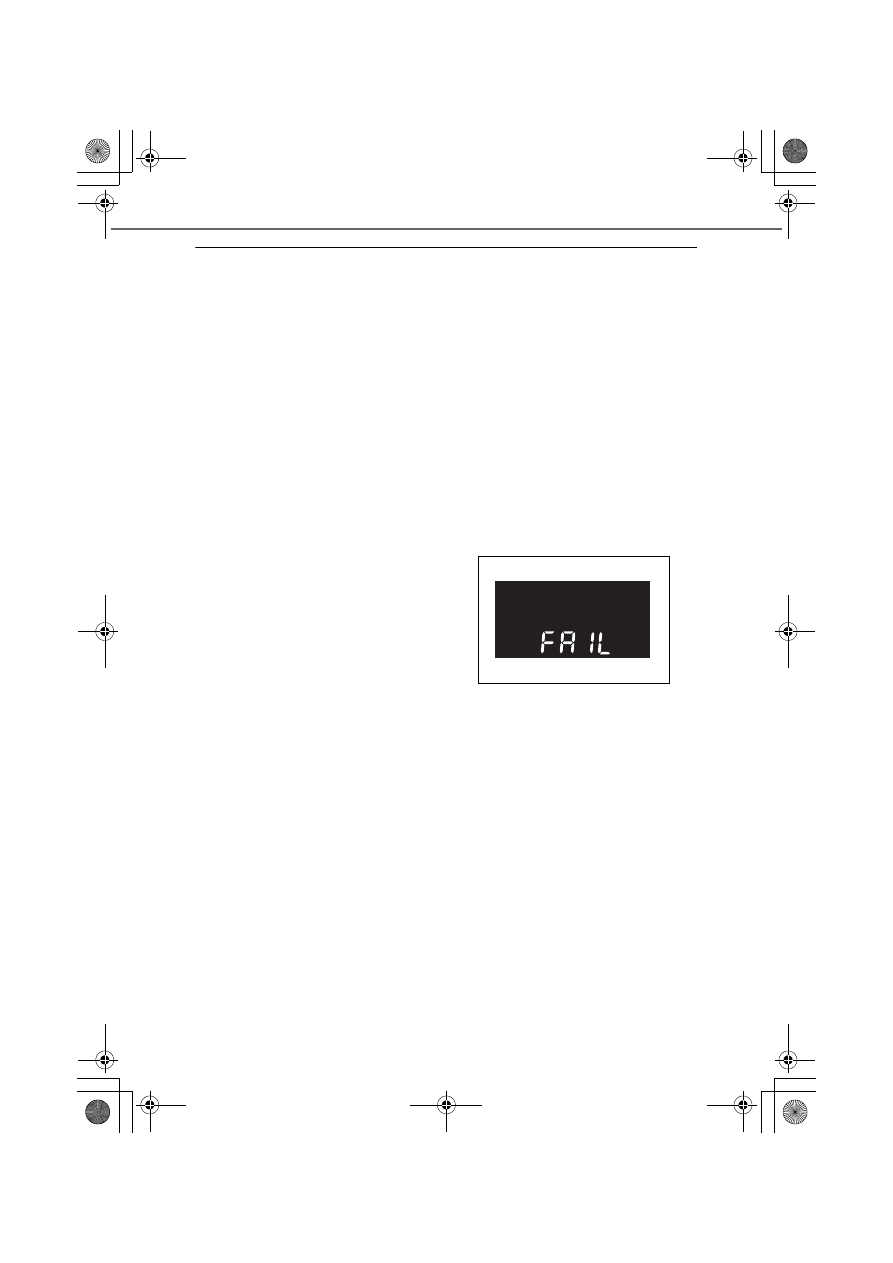

About user customization screen

Operations performed on the user

customization screen will result in dis-

playing “FAIL” if changing the settings

is not allowed.

KBTA210346

97

2-1. Instrument cluster

In

st

ru

me
nt

 c

lus

te

r

2

WARNING

⬛

Caution while driving

For safety reasons, do not operate the display change button or the clock

adjustment switch while driving. Doing so is dangerous and may lead to an

accident such as incorrect operation of the steering wheel.
Stop the vehicle to operate it. While driving, keep the time that you look at the

display to the minimum necessary.

⬛

When changing settings

As the engine needs to be running during setting up the display, ensure that

the vehicle is parked in a place with adequate ventilation. In a closed area such

as a garage, exhaust gases including harmful carbon monoxide (CO) may col-

lect and enter the vehicle. This may cause death or a serious health hazard.

NOTICE

⬛

Screen display at low temperatures

When the display screen temperature is extremely low, the display changes

may be delayed. Allow the interior of the vehicle to warm up before using it.

⬛

When changing display settings

Make sure that the engine is running, as otherwise the battery may discharge.

⬛

About cruising distance

Even if the value indicated for cruising distance seems sufficient, try to fill the

fuel tank when the fuel gauge nears “E”, or the low fuel level warning light

turns on.

98

2-1. Instrument cluster

✽

: If equipped

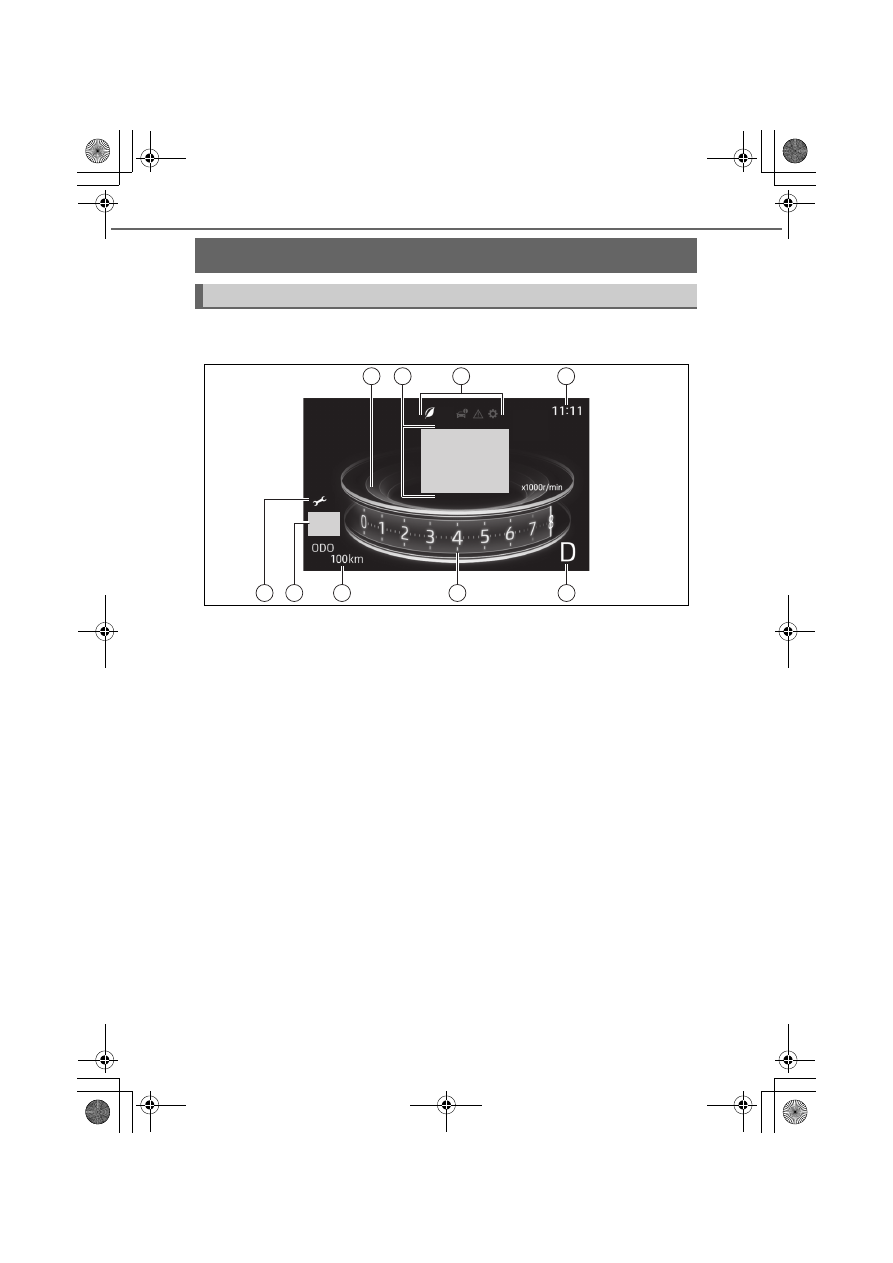

TFT color multi-information display

✽

Display contents

TFT color multi-information display shows various information on vehicle

and running, or allows you to change the settings.

a

Eco driving assist illumination

Color of the illumination changes to green in 3 levels based on drivability regarding

eco-friendliness.

⦁

When power mode is selected, the illumination changes to yellow. (

➞

P. 190)

b

Display contents

A variety of information can be displayed by switching menu icons.
Cautions or advice is displayed according to the driving conditions by pop-up notifi-

cation.

c

Menu icons

Switching icons will display various contents.

d

Clock display

Date is indicated while analog clock (

➞

P. 101) is displayed.

e

Shift position display

✽

Indicates the selected shift position. (

➞

P. 189)

f

Tachometer display

The engine speed in revolutions per minute is displayed.

g

Trip information (

➞

P. 100)

3

6

1

8

9

7

2

4

5

KBRO210401E

99

2-1. Instrument cluster

In

st

ru

me
nt

 c

lus

te

r

2

h

Outside temperature indication

⦁

Displays the outside temperature.

Outside temperature: the temperature is shown in a range from -30°C to 60°C (-

22

℉

 to 140

℉

).

⦁

Road surface freezing warning is displayed when the outside temper-

ature becomes 3°C (37

℉

) or lower.

Temperature indicator blinks indicating the road surface may possibly be frozen.

i

Maintenance icon

This icon turns on when notification is needed.
When this is lit, check the maintenance screen and after the maintenance, set again

the maintenance period. (

➞

P. 111)

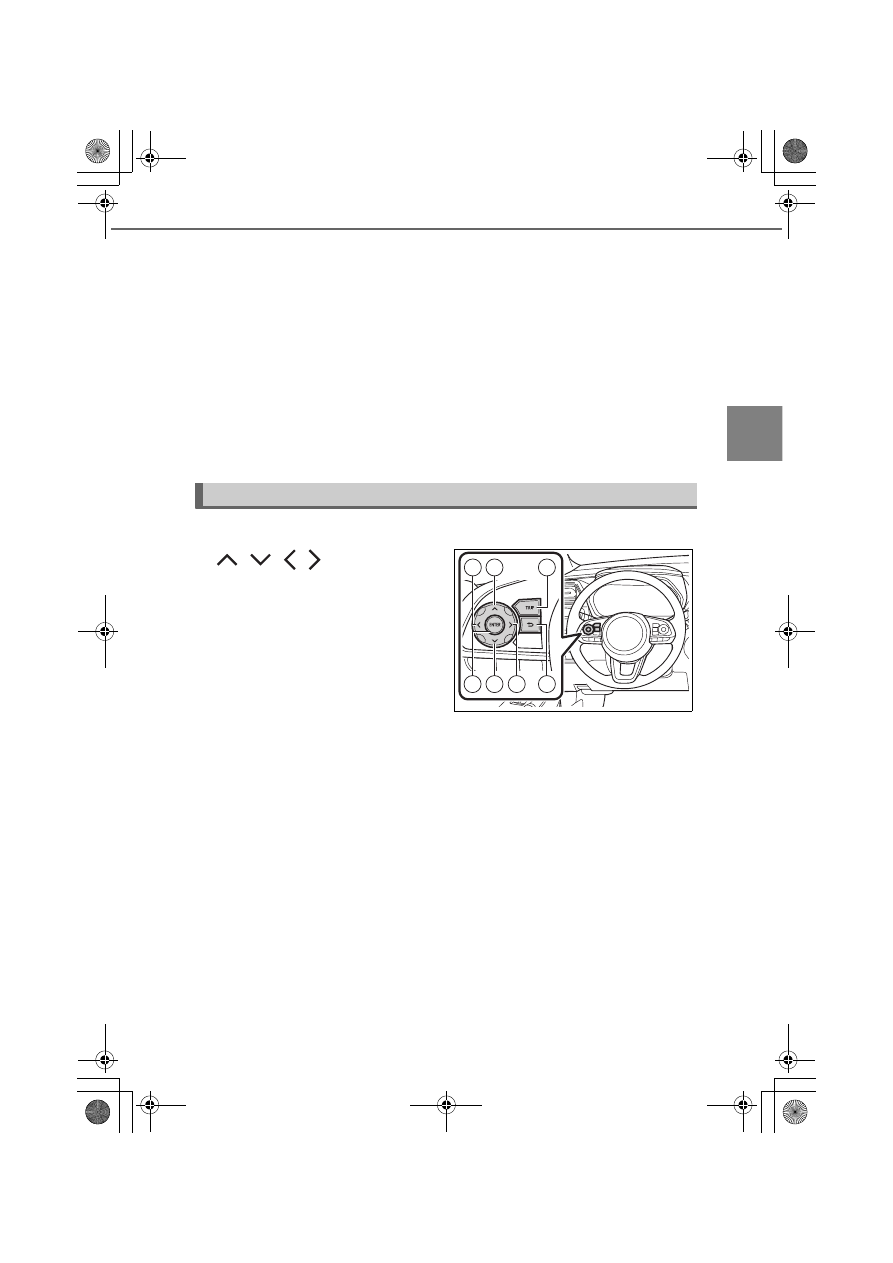

Display change

Press the display change button to switch screens, or change the settings.

a

 /

 /   /   switches

⦁

Switches menus.

⦁

Switches contents, feeds page, and

moves cursor

b

ENTER switch

⦁

Selects and confirms items.

⦁

Resets items for running information

(

➞

P. 101) by pressing and holding

this.

c

TRIP switch

Switches display for trip information.

(

➞

P. 100)

d

RETURN switch

Goes back to the previous screen.
Goes back to the initial screen by

pressing and holding this.

4

3

1

1

2

1

1

KBRO210463E

100

2-1. Instrument cluster

Basic screens

TFT color multi-information display switches between 4 types of basic

screens.
(Initial setting:

➞

P. 113)

a

Press   /   switch to switch menu to

b

Press the

 /

 switch and select “Designs”, and then press the

ENTER switch

c

Press

 /

 switch to select a screen and press the ENTER switch

Trip information

Each time you press the TRIP switch, the indication changes as follows.

a

Odometer

Displays the total distance the vehicle has been driven.

b

Trip meter A*

Displays the distance the vehicle has been driven since the meter was last reset.
To reset the Trip meter, press and hold the TRIP switch for more than 1 second,

while trip meter A is displayed.

c

Trip meter B*

Displays the distance the vehicle has been driven since the meter was last reset.
To reset the Trip meter, press and hold the TRIP switch for more than 1 second,

while trip meter B is displayed.

*

Trip meters A and B can be used to record and display different distances inde-
pendently.

101

2-1. Instrument cluster

In

st

ru

me
nt

 c

lus

te

r

2

Running information

Various information on fuel economy is displayed.

a

Press   /   switch to switch menu to

b

Press

/

switch

to

switch display contents

⬛

“Current”/“Average”

⚫

“Current”

Indicates instantaneous fuel economy at present.

⚫

“Average”

Indicates average fuel economy taken after reset.

⦁

To reset, hold down the ENTER switch while “Average” is being displayed.

⦁

Note that the figures displayed as average fuel economy are just for reference.

⬛

“Range”

Indicates the approximate cruising distance to be attained with the

amount of remaining fuel at present.

⚫

The distance indicated is calculated based on the average fuel economy

taken from the past, which does not necessarily represent the exact dis-

tance the vehicle can actually run.

⦁

Pressing and holding the ENTER switch for approx. 5 seconds and longer while

“Range” is being displayed may erase the average fuel economy data from the past

and refresh the display.

⚫

The display may not be refreshed when the fuel supply is low.

Vehicle information

Various information on vehicles is displayed.

a

Press   /   switch to switch menu to

b

Press

/

switch

to

switch display contents

⬛

Analog clock

Analog clock is displayed.

⬛

Screen OFF

Contents are hidden.

102

2-1. Instrument cluster

Warning messages

 turns yellow only when a warning message with further confirmation is

available.

Press   /   switch to switch menu to  .
When a malfunction is found, messages regarding the issue and the

measure to be taken are displayed.
When more than 2 messages are displayed, press

 /

 switch to tog-

gle the messages.
When no message is stored, “No Messages” will be displayed.

Steering wheel position monitor

When the shift lever is set to R, the orientation of front wheel tires dis-

played.

At the same time, the operating condition of front corner sensor/reverse sensor

(

➞

P. 221) is also displayed.

103

2-1. Instrument cluster

In

st

ru

me
nt

 c

lus

te

r

2

Opening screen

When the engine switch is turned to “ON”, the date and the notification

screen appear for a few seconds, after the presentation screen.
The following notification screens can be displayed.

⚫

New year greetings

⚫

Birthday

⚫

Anniversary

⚫

Date of vehicle inspection

⚫

Date of inspection

⚫

Engine oil replacement

⚫

Oil filter replacement

⚫

Tire rotation

⚫

Distance driven

⬛

New year greetings

Displayed on January 1.

⬛

Birthday, and Anniversary

Displayed on the specified days.

⬛

Date of vehicle inspection, and date of inspection

Displayed when the remaining days till the specified day are less than 1

month, and when once a day after the specified day.

⬛

Engine oil replacement, oil filter replacement, and tire rotation

Displayed once a day when the remaining distance to the specified dis-

tance becomes less than 500 km (310 miles) or when it has reached the

specified distance.

Ending screen

When the engine switch is turned “OFF”, the notification screen appears.

⬛

Driving record, scores (fuel economy)

When the ending setting is switched to “ECO” (

➞

P. 106), the driving

records, which were taken between a period from turning the engine

switch “ON” to “OFF”, will be displayed, and the score for environment-

friendly level will be displayed as points.

104

2-1. Instrument cluster

✽

: If equipped

Settings

While the vehicle is parked with the engine switch turned “ON”, you can

specify or adjust the display and configure the function settings by press-
ing the   /   switch to change the menu to  .
Note that the screen is not operable while the vehicle is running. Be sure

to operate the screen when the vehicle is stopped in a safe place.
The following items can be set and adjusted.

⚫

Instrument panel illumination

adjustment (

➞

P. 104)

⚫

Time and date (

➞

P. 105)

⚫

Display options (

➞

P. 106)

⚫

Screens (

➞

P. 100)

⚫

Buzzers (

➞

P. 107)

⚫

Notification dates (

➞

P. 108)

⚫

BSM/RCTA

✽

 (

➞

P. 109)

⚫

Door lock (

➞

P. 109)

⚫

Windshield wipers (

➞

P. 110)

⚫

Turn signal lights (

➞

P. 111)

⚫

Maintenance (

➞

P. 111)

⚫

Engine oil deterioration warning

reset

✽

 (

➞

P. 112)

⚫

Initialization of display settings

(

➞

P. 113)

⚫

Language (

➞

P. 114)

⬛

Instrument panel illumination adjustment

Day illumination or night illumination (

➞

P. 114) for the meter can be

adjusted.
(Initial setting:

➞

P. 113)

a

Press   /   switch to switch menu to

b

Press the

 /

 switch and select “Display Brightness”, and then

press the ENTER switch

c

After pressing the ENTER switch, press

 /

 switches to adjust the

brightness

⦁

After

 is displayed, press

 /

 to adjust the brightness, and then press

the ENTER switch again.

⦁

Adjust day illumination by turning off the front position lights.

⦁

Adjust night illumination by turning on the front position lights.

⦁

Illumination can be adjusted in 10 steps.

105

2-1. Instrument cluster

In

st

ru

me
nt

 c

lus

te

r

2

⬛

Time and date

Time and date can be set.
Vehicles equipped with 9 inch display audio pairable with smart phones:

ON/OFF for automatic correction of date and time can be set.

a

Press   /   switch to switch menu to

b

Press the

 /

 switch and select “Time and Date”, and then press

the ENTER switch

c

Press

 /

 /   /   switch to select an item you need to set, and

press the ENTER switch

⦁

Each time you press the ENTER switch, “Auto Time ADJ” is switched “ON” or “OFF”.

⦁

When “Auto Time ADJ” is set to “ON”, the date and time adjustment is not availa-

ble.

⦁

For Year/Hour/Minute, after

 appears, use

 /

 switch to set the value,

and press the ENTER switch again.
The clock starts counting from 0 second, which is the reset state of the set time.

⦁

For “12H/24H”, “12H” (12-hour format) and “24H” (24-hour format) will be

switched every time the ENTER switch is pressed.

⦁

Regardless of the “12H/24H” setting, the time is displayed in the 24-hour format

during time adjustment.

⬛

Screen selection

Basic screens can be changed. (

➞

P. 100)

106

2-1. Instrument cluster

⬛

Settings of display options

The follow settings can be selected as needed.

⚫

ON/OFF of eco driving assist illumination

⚫

ON/OFF of resetting average fuel economy when fueling

⚫

ON/OFF of resetting Trip meter A when fueling

⚫

ON/OFF of opening screen display

⚫

Settings of ending screen display (Eco, Standard, OFF)

⚫

ON/OFF of steering wheel position monitor (display of steering wheel

position)

(Initial setting:

➞

P. 113)

a

Press   /   switch to switch menu to

b

Press the

 /

 switch and select “Display Settings”, and then press

the ENTER switch

c

Press and hold the

 /

 switch or press it several times to switch

the “Display Settings” screen

d

Press

 /

 switch to select settings for each function and press the

ENTER switch

⦁

Each time you press the ENTER switch, the display switches to the screen to be

displayed.

⦁

When

 appears after you press the ENTER switch, press

 /

 switch to

select the settings, and then press the ENTER switch again.

107

2-1. Instrument cluster

✽

: If equipped

In

st

ru

me
nt

 c

lus

te

r

2

⬛

Buzzer setting

The follow settings can be selected as needed.

⚫

Buzzer sound for turn signal (turn signal lights)

⚫

Volume for opening screen

⚫

BSM buzzer volume

✽

 (

➞

P. 211)

⚫

RCTA buzzer volume

✽

 (

➞

P. 211)

(Initial setting:

➞

P. 113)

a

Press   /   switch to switch menu to

b

Press and hold the

 /

 switch or press it several times to switch

the “Settings” screen, select “Buzzer” and press the ENTER switch

c

Press and hold the

 /

 switch or press it several times to switch

the “Buzzer” screen

d

Press

 /

 switch to select settings for each function and press the

ENTER switch

⦁

Each time you press the ENTER switch, the display switches to the screen to be

displayed.

⦁

When

 appears after you press the ENTER switch, press

 /

 switch to

select the settings, and then press the ENTER switch again.

108

2-1. Instrument cluster

⬛

Settings of notification dates

Notification dates to be displayed on the opening screen can be set for

birthday, anniversary, date of vehicle inspection, and date of inspection.
(Initial setting:

➞

P. 113)

a

Press   /   switch to switch menu to

b

Press and hold the

 /

 switch or press it several times to switch

the “Settings” screen, select “Notification Day Settings” and press the

ENTER switch

c

Press the

 /

 switch to select a value between 1 and 10 for “Date”

and press the ENTER switch

Specified days from 6 to 10 can be displayed by pressing and holding

 /

switch, or press it several times.

d

In “Category”, when

 appears after pressing the ENTER switch, use

 /

 switch to select items

Select one of the following from “Birthday”, “Anniversary”, “Car Inspection Day”, or

“Maintenance Day”, and press the ENTER switch again.

e

Press the

 /

 switch to select the year, month, and day for “Date”

and press the ENTER switch

⦁

After

 appears, use

 /

 switch to set the value, and press the ENTER switch again.

⦁

For “Birthday” and “Anniversary”, there is no “Year” setting.

f

When setting is complete, press the RETURN switch

The selected category and

 will be displayed.

109

2-1. Instrument cluster

✽

: If equipped

In

st

ru

me
nt

 c

lus

te

r

2

⬛

Settings of BSM/RCTA

✽

The follow settings can be selected as needed.

⚫

ON/OFF of BSM (

➞

P. 211)

⚫

ON/OFF of RCTA (

➞

P. 211)

⚫

Luminance of outside rear view mirror indicators (

➞

P. 211)

(List of customizable features:

➞

P. 430)

a

Press   /   switch to switch menu to

b

Press and hold the

 /

 switch or press it several times to switch the

“Settings” screen, select “Vehicle Settings” and press the ENTER switch

c

Press the

 /

 switch to select “BSM/RCTA” and press the ENTER

switch

d

Press

 /

 switch to select settings for each function and press the

ENTER switch

⦁

Each time you press the ENTER switch, the display switches to the screen to be

displayed.

⬛

Settings of door locking

The follow settings can be selected as needed.

⚫

ON/OFF of speed linked door locking (

➞

P. 136)

Setting this ON will turn OFF the setting for door locking linked with shifting

✽

.

⚫

ON/OFF of door locking linked with shifting

✽

(

➞

P. 136)

When this set to ON, the setting for speed linked door locking turns OFF.

⚫

ON/OFF of door unlocking linked with shifting

✽

(

➞

P. 136)

When this is set to ON, the setting for door unlocking at the time of the ignition OFF

(when the engine switch is “OFF”) turns OFF.

⚫

ON/OFF of door unlocking at the time of the ignition OFF (when the

engine switch is “OFF”) (

➞

P. 136)

Setting this ON will turn OFF the setting for door unlocking linked with shifting

✽

.

⚫

Buzzer volume for answering back (signal for key-free system activation)

(

➞

P. 121)

⚫

ON/OFF of emergency flashers for answering back (signal for key-free

system activation) (

➞

P. 121)

(List of customizable features:

➞

P. 430)

110

2-1. Instrument cluster

a

Press   /   switch to switch menu to

b

Press and hold the

 /

 switch or press it several times to switch

the “Settings” screen, select “Vehicle Settings” and press the ENTER

switch

c

Press the

 /

 switch to select “Door Lock” and press the ENTER

switch

d

Press and hold the

 /

 switch or press it several times to switch

the “Door Lock” screen

e

Press

 /

 switch to select settings for each function and press the

ENTER switch

⦁

Each time you press the ENTER switch, the display switches to the screen to be

displayed.

⦁

When

 appears after you press the ENTER switch, press

 /

 switch to

select the settings, and then press the ENTER switch again.

⬛

Settings of windshield wipers

The follow settings can be selected as needed.

⚫

ON/OFF of speed linked windshield wipers (

➞

P. 203)

⚫

ON/OFF of rear wiper activation linked with reverse position (

➞

P. 206)

(List of customizable features:

➞

P. 430)

a

Press   /   switch to switch menu to

b

Press and hold the

 /

 switch or press it several times to switch

the “Settings” screen, select “Vehicle Settings” and press the ENTER

switch

c

Press the

 /

 switch to select “Wiper” and press the ENTER switch

d

Press the ENTER switch to switch settings

Each time you press the ENTER switch, it toggles between “ON” and “OFF”.
