1-1. For safe use

✽

: If equipped

For safety and s

ecurity

⬛

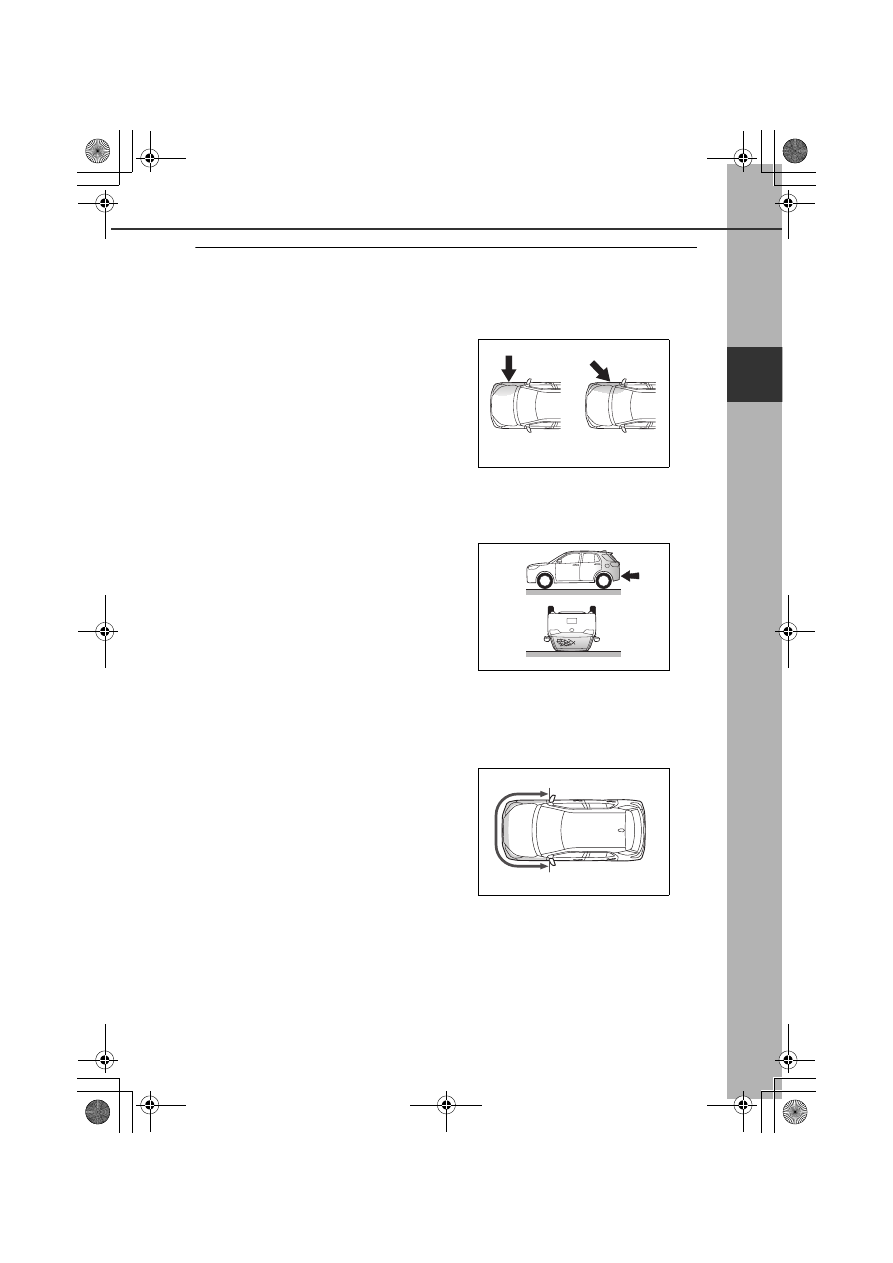

Types of collisions that may not deploy the SRS airbags (SRS side and
curtain shield airbags)

✽

The SRS side and curtain shield airbags may not deploy if the vehicle receives

impact from an angle or to the side of the vehicle that is not part of the cabin.

⚫

Impact to side of vehicle not part of
the cabin

⚫

Angular impact

The SRS side and curtain shield airbags do not generally inflate if the vehicle is

involved in a rear collision, if it rolls over, or if it is involved in a low-speed fron-

tal or side collision.

⚫

Collision from the rear

⚫

Vehicle rollover

⬛

When to contact your Toyota dealer

In the following cases, the vehicle will require inspection and/or repair. Contact

your Toyota dealer as soon as possible.

⚫

Any of the SRS airbags have been inflated

⚫

The vehicle was involved in an acci-
dent that involved collision to the

front area or left the front area

damaged or deformed, but was not

severe enough to cause the SRS

front airbags to inflate

KBRO110410

KBRO110411

KBRO110412

1-1. For safe use

✽

: If equipped

⚫

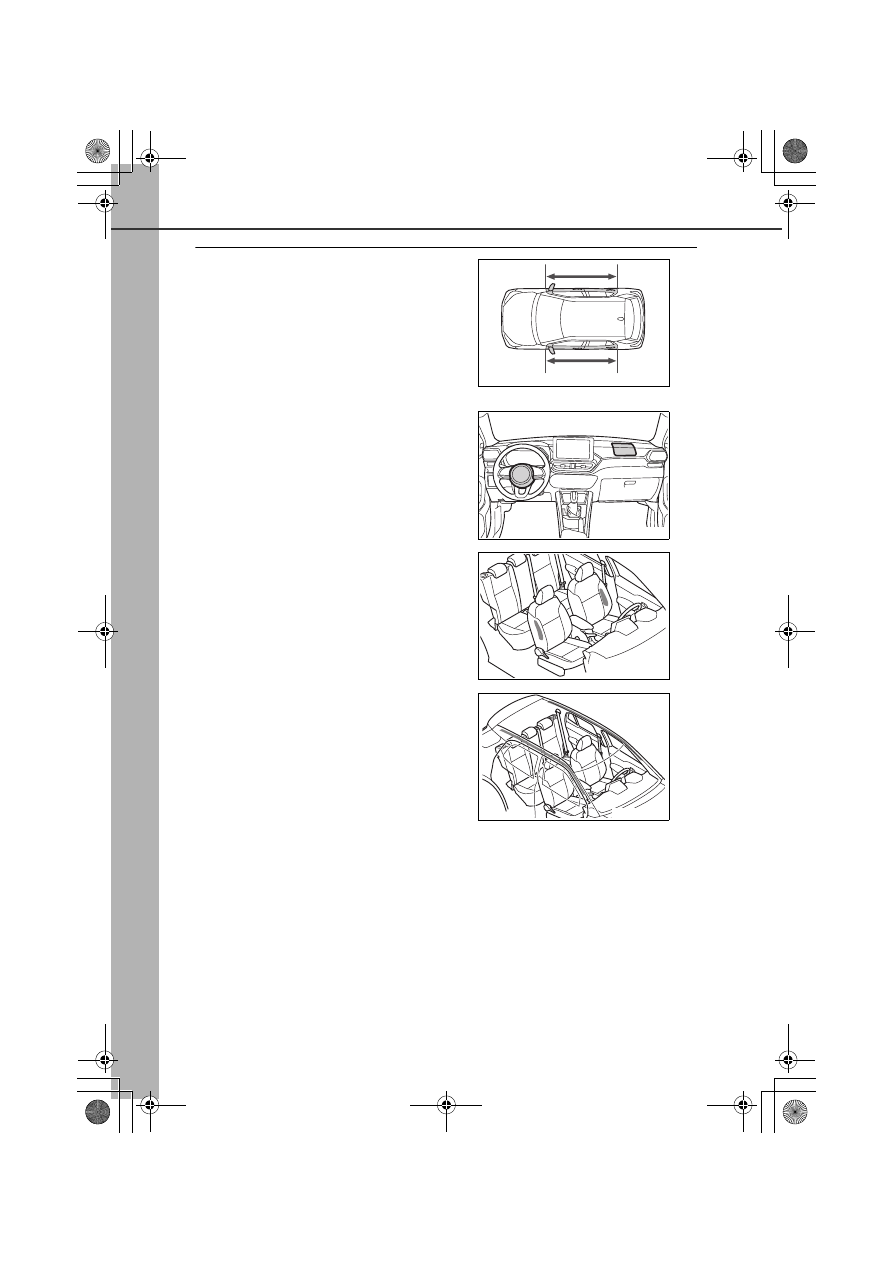

The vehicle was involved in an acci-
dent, resulting in the collision of the

door or the surrounding areas or

causing the doors and the sur-

rounding areas to be damaged or

deformed even though the SRS

side and curtain shield airbags

✽

did

not inflate

⚫

The pad section of the steering
wheel or dashboard near the front

passenger SRS airbag is scratched,

cracked, or otherwise damaged

⚫

The surface of a seat housing an
SRS side airbag

✽

is scratched,

cracked, or otherwise damaged

⚫

The front pillar, rear pillar, or roof
side portions housing the SRS cur-

tain shield airbags

✽

are scratched,

cracked, or otherwise damaged

KBRO110413

KBRO110415E

KBRO110416E

KBRO110417E

1-1. For safe use

For safety and s

ecurity

Exhaust gas precautions

Exhaust gases contain a substance harmful to the human body if

inhaled.

WARNING

Exhaust gases contain harmful carbon monoxide (CO), which is colorless and

odorless. Observe the following precautions.
Failure to do so may cause exhaust gases to enter the vehicle and may lead to an

accident caused by light-headedness, or may cause death or a serious health

hazard.

⬛

Important points while driving

Keep the back door closed.
If you smell exhaust gas in the vehicle even when the back door is closed, open

the windows to allow fresh air in and have the vehicle inspected at your Toyota

dealer immediately.

⬛

When parking the vehicle

⚫

If the vehicle is in a poorly ventilated area or a closed area, such as a garage,
stop the engine.

⚫

Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and

ensure that exhaust gases do not enter the vehicle interior.

⚫

Do not leave the engine running in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the engine is run-

ning, exhaust gases may collect and enter the vehicle.

⬛

Exhaust pipes

The exhaust pipes need to be checked periodically. If there is a hole or crack

caused by corrosion, damage to a joint, or abnormal exhaust noise, be sure to

have the vehicle inspected at your Toyota dealer.

1-2. Safety information for children

When children are in the vehicle

Observe the following precautions when children are in the vehicle.

⚫

Children should always use a seat belt. When a child who cannot prop-

erly wear the seat belt is in the vehicle, use a proper child restraint sys-

tem. (

➞

P. 49)

⚫

It is recommended that children sit in the rear seats to avoid accidental

contact with the device that operates the vehicle.

⚫

Use the child-protector lock (

➞

P. 135) and window lock switch

(

➞

P. 160) to prevent children from opening doors or accidentally oper-

ating power windows while the vehicle is in motion.

⚫

Do not let small children operate equipment which may catch or pinch

body parts, such as power windows, hood, doors, seats, etc.

WARNING

⚫

Never leave children unattended in the vehicle. High temperatures inside the
vehicle can cause heatstroke and dehydration, which can cause death or a seri-

ous health hazard.
Also, children may operate devices inside the vehicle and get caught in the

door window or move a device that operates the vehicle, leading to an unfore-

seen accident.

⚫

When children are in the vehicle, please refer to P. 49, which provides precau-
tions for ensuring your child’s safety, directions on installing child restraint sys-

tems, and other related information.

1-2. Safety information for children

For safety and s

ecurity

Child restraint systems

Before installing a child restraint system in the vehicle, there are pre-

cautions that need to be observed, different types of child restraint

systems, as well as installation methods, etc., written in this manual.

⚫

Use a child restraint system when riding with a small child that cannot

properly use a seat belt. For the child’s safety, install the child restraint

system to a rear seat.
Be sure to follow the installation method that is in the operation man-

ual enclosed with the restraint system.

⚫

The use of a Toyota genuine child restraint system is recommended,

as it is safer to use in this vehicle.
Toyota genuine child restraint systems are made specifically for Toy-

ota vehicles. They can be purchased at a Toyota dealer.

Points to remember

⚫

Prioritize and observe the warnings, as well as the laws and regulations

for child restraint systems.

⚫

Use a child restraint system until the child becomes large enough to

properly wear the vehicle’s seat belt.

⚫

Choose a child restraint system appropriate to the age and size of the

child.

⚫

Note that not all child restraint systems can fit in all vehicles. Before

using or purchasing a child restraint system, check the compatibility of

the child restraint system with seat positions. (

➞

P. 55)

1-2. Safety information for children

Child restraint system compatibility

⬛

Weight groups

Child restraint systems that meet the criteria of UN (ECE) R44* are classi-

fied into the following 5 types according to the weight of the child.
Group 0 :

Up to 10 kg (22 lb.)

Group 0

Up to 13kg (28 lb.)

Group I :

9 to 18 kg (20 to 39 lb.)

Group II :

15 to 25kg (34 to 55 lb.)

Group III :

22 to 36kg (49 to 79 lb.)

UN (ECE) R44 is an international regulation on child restraint systems.

1-2. Safety information for children

For safety and s

ecurity

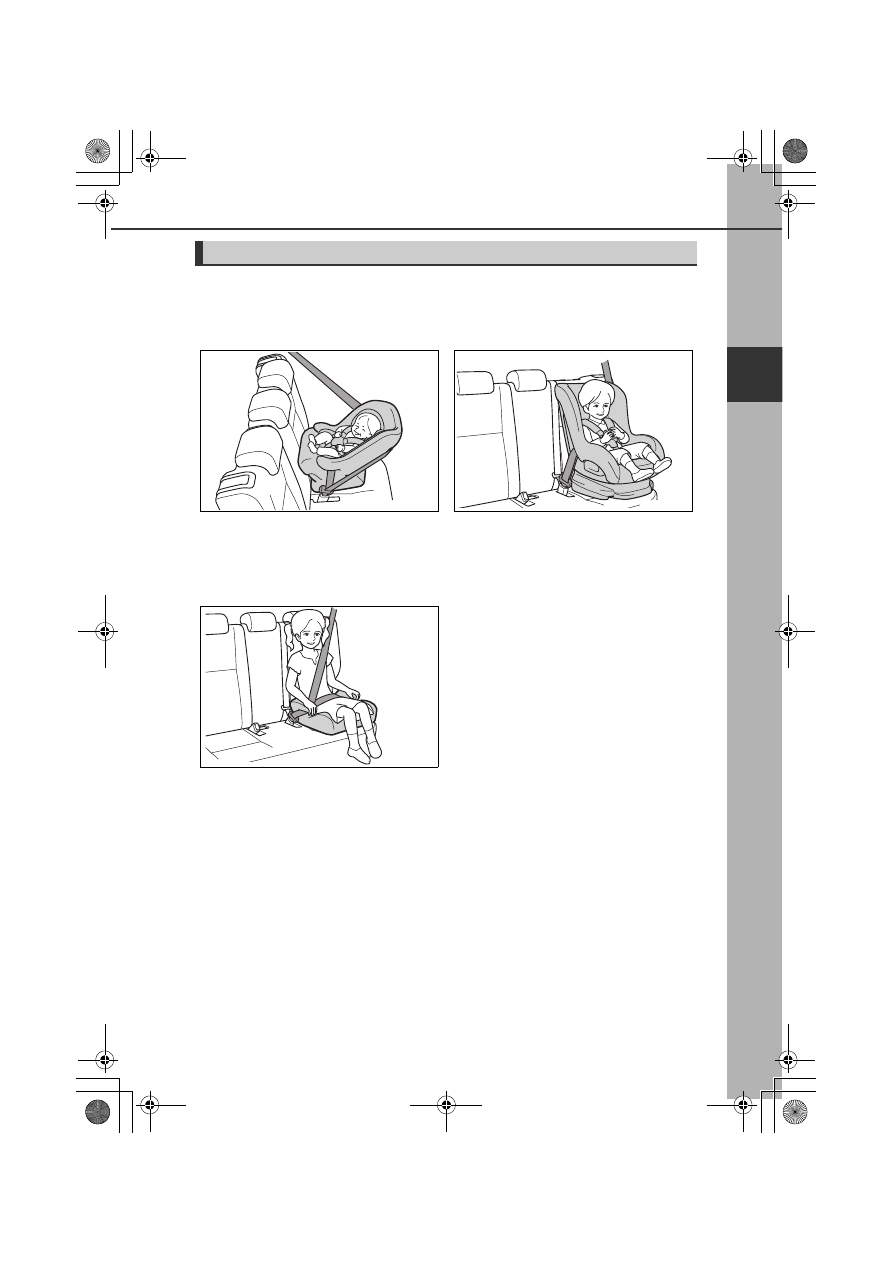

Types of child restraint systems

▶

Baby seats

Equivalent to groups 0 and 0

of the

UN (ECE) R44 standard

▶

Child restraint system

Equivalent to groups 0

and I of the

UN (ECE) R44 standard

▶

Junior seats

Equivalent to groups II and III of the

UN (ECE) R44 standard

KBRO110601

KBRO110602

KBRO110603

1-2. Safety information for children

WARNING

⬛

When a child is riding

Observe the following precautions.
Failure to do so may result in death or serious injury.

⚫

For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system which

is correctly installed. For installation details, refer to the operation manual

enclosed with the child restraint system. General installation instruction is

provided in this manual.

⚫

Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-

ing to accident statistics, the child is safer when properly restrained in the

rear seat than in the front seat.

⚫

Holding a child in your or someone else’s arms is not a substitute for a child
restraint system. In an accident, the child can be crushed against the wind-

shield or between the holder and the interior of the vehicle.

⬛

Handling the child restraint system

If the child restraint system is not properly fixed in place, the child or other

passengers may be seriously injured or even caused death in the event of sud-

den braking, sudden swerving, or an accident.

⚫

If the vehicle were to receive a strong impact from an accident, etc., it is pos-
sible that the child restraint system has damage that is not readily visible. In

such cases, do not reuse the restraint system.

⚫

Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check whether the child restraint system is suita-

ble for installment in the vehicle. (

➞

P. 55)

⚫

Be sure to install and observe the usage rules after carefully reading the
child restraint system fixing method in this manual, as well as the operation

manual enclosed with the child restraint system.

⚫

Keep the child restraint system properly secured on the seat even if it is not
in use. Do not store the child restraint system unsecured in the passenger

compartment.

⚫

If it is necessary to detach the child restraint system, remove it from the vehi-
cle or store it securely in the luggage compartment.

1-2. Safety information for children

For safety and s

ecurity

When using a child restraint system

⬛

When installing a child restraint system to a front passenger seat

For the safety of a child, install a child restraint system to a rear seat.
When installing a child restraint system to a front passenger seat is una-

voidable, adjust the seat as follows and install the child restraint system.

⚫

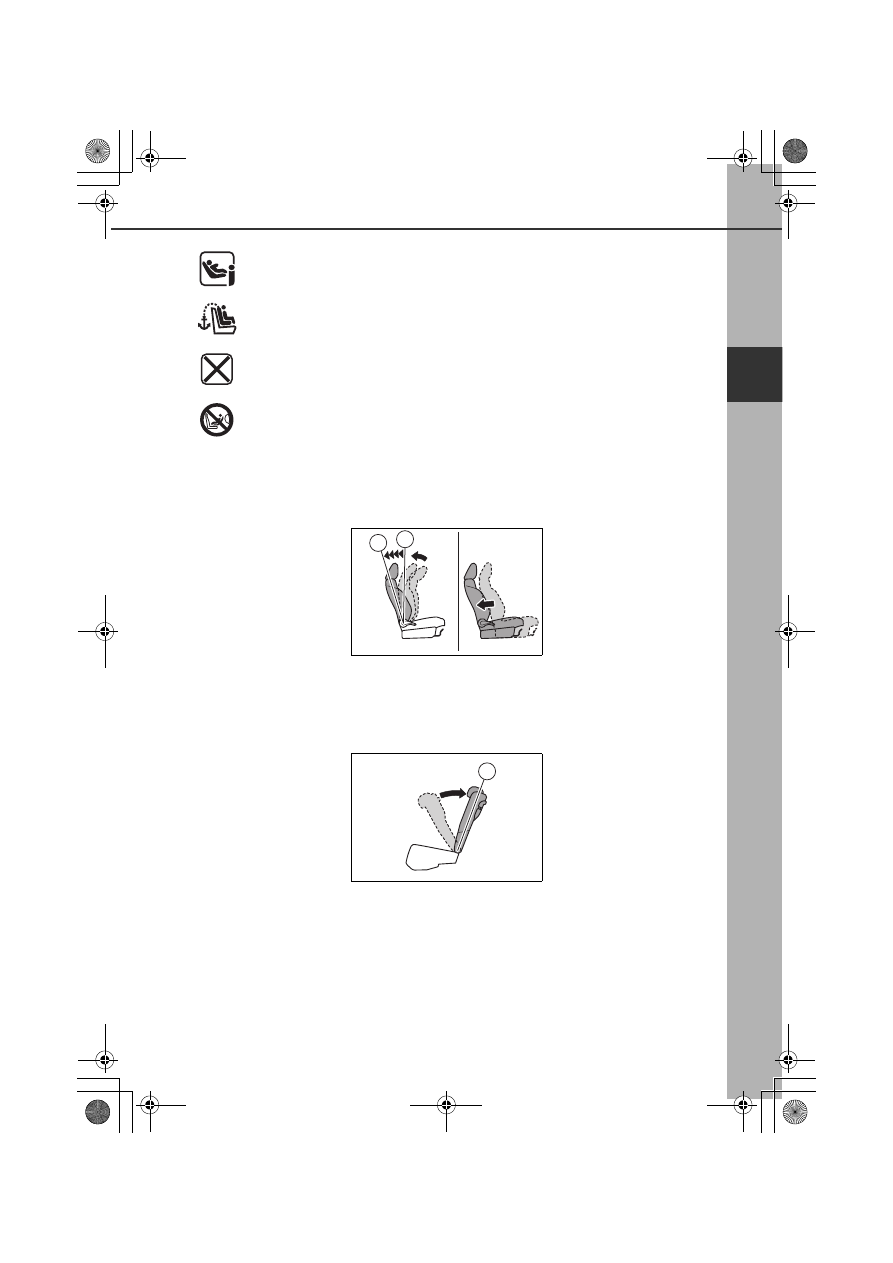

Tilt the seatback forward, place it

back in its 1st fixed position (

), and

adjust it to its 5th fixed position (

)

⚫

If the child restraint system cannot

be properly installed because the

head restraint is in the way, fix the

head restraint at its highest posi-

tion or remove it (

➞

P. 152)

⚫

Push the seat all the way back

WARNING

⬛

When using a child restraint system

Observe the following precautions.

Failure to do so may result in death or serious injury.

⚫

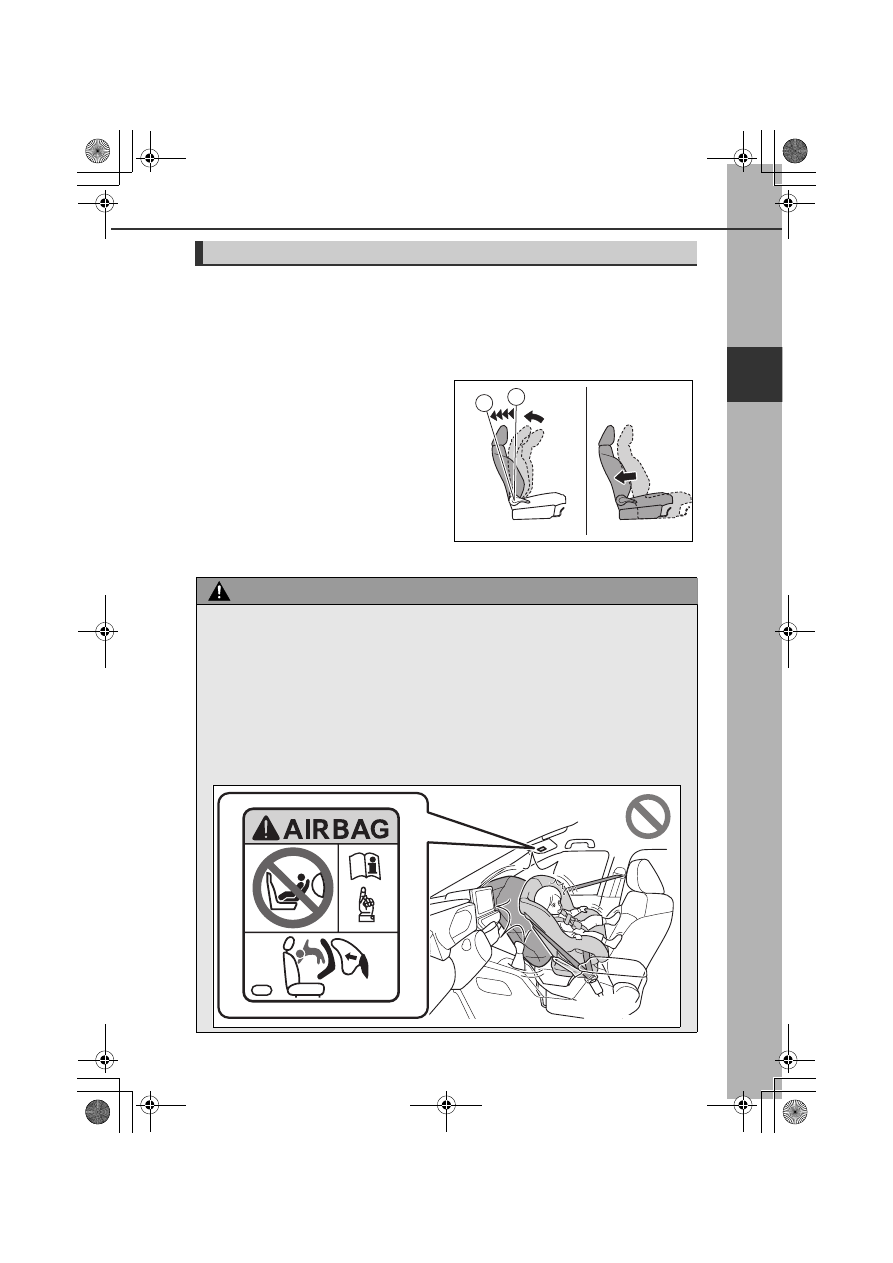

Never use a rear-facing child restraint system on the front passenger seat.
The force of the rapid inflation of the front passenger airbag can cause

death or serious injury to children in the event of an accident.

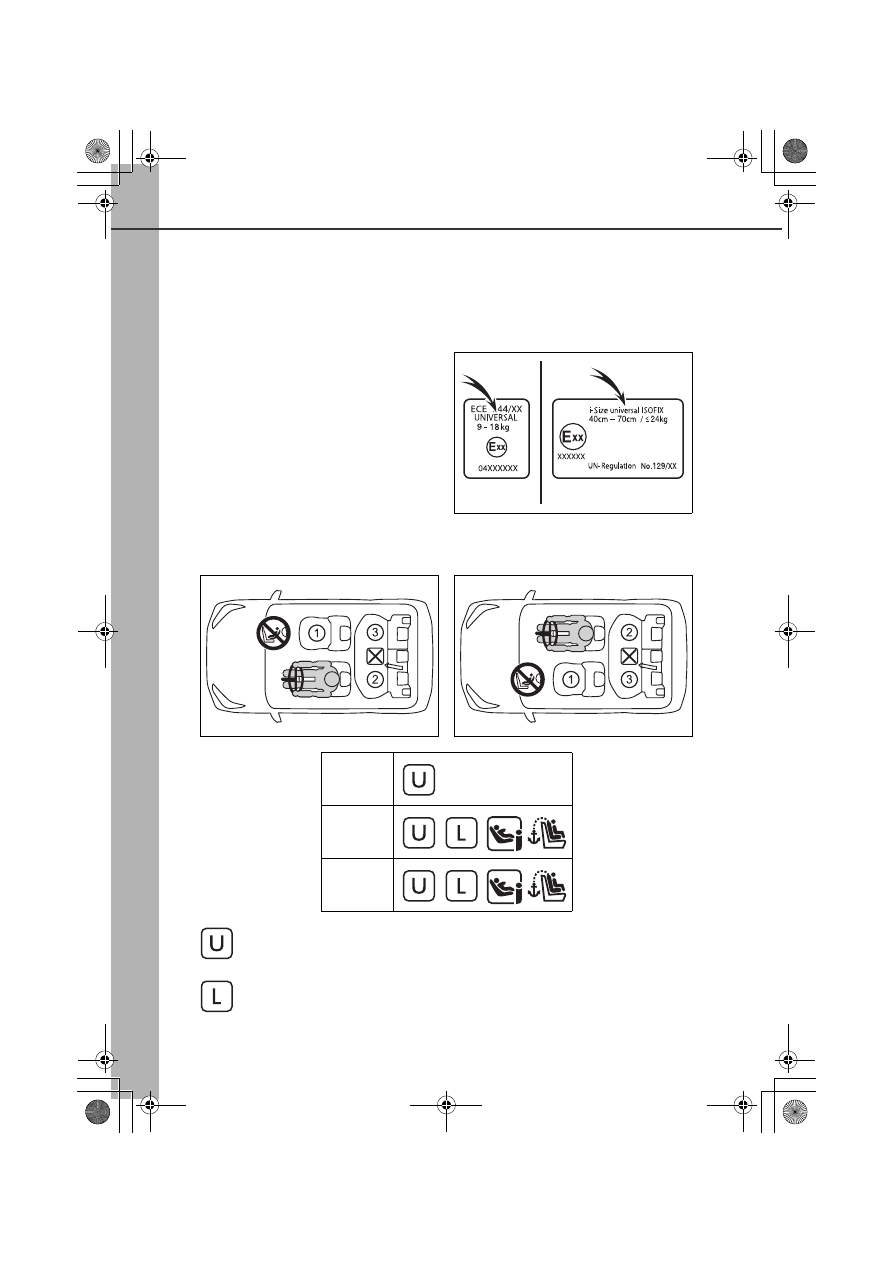

There is a label(s) on the passenger side sun visor, indicating it is forbidden

to attach a rear-facing child restraint system to the front passenger seat.
Details of the label(s) are shown in the illustration below.

KBRO110604E

KBRO110605E

1-2. Safety information for children

WARNING

⚫

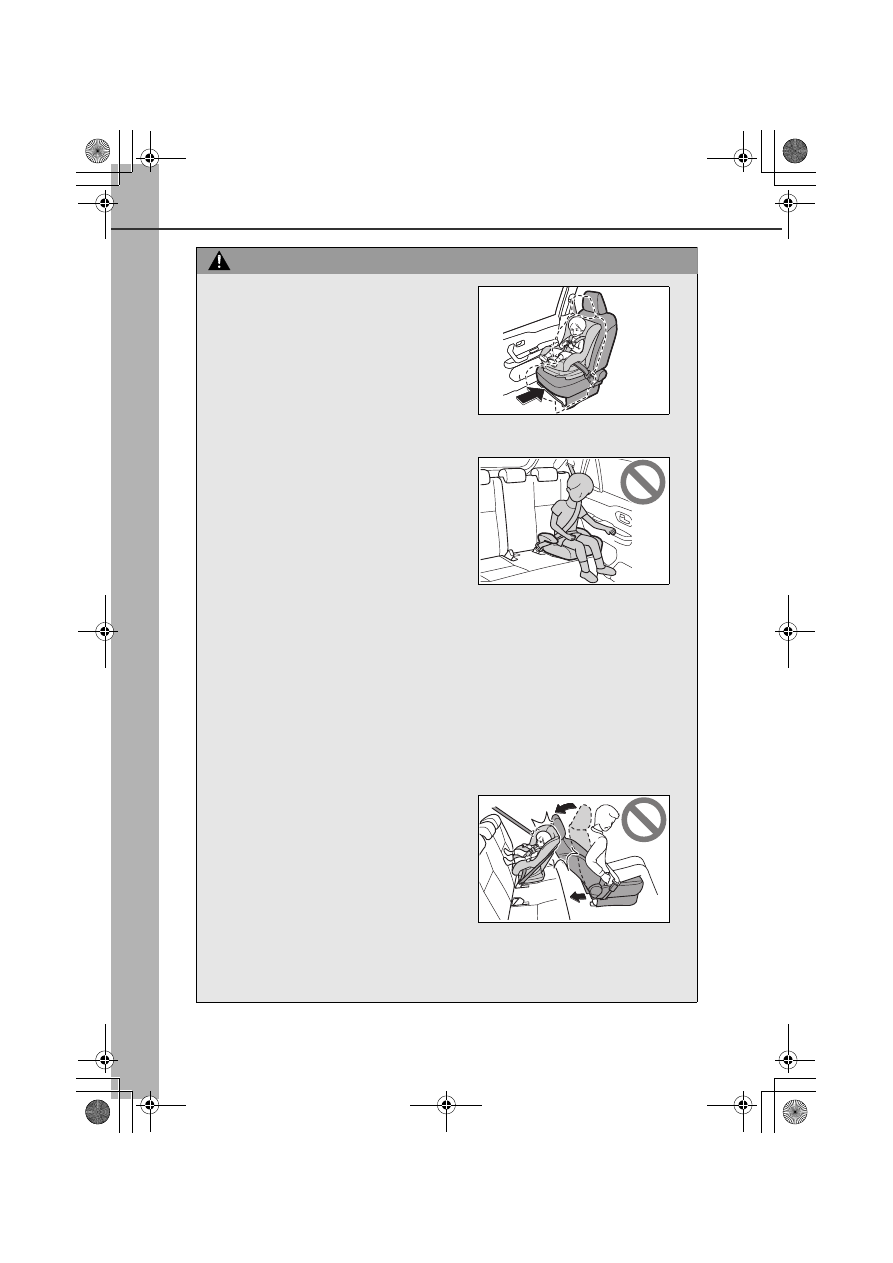

Only put a forward-facing child
restraint system on the front seat

when unavoidable. When installing

a forward-facing child restraint on

the front passenger seat, move the

seat as far back as possible.
Failing to do so may result in death

or serious injury if the airbags

deploy (inflate).

⚫

Do not allow the child to lean his/
her head or any part of his/her

body against the door or the area

of the seat, front or rear pillars, or

roof side rails from which the SRS

side airbags or SRS curtain shield

airbags deploy even if the child is

seated in the child restraint system.

It is dangerous if the SRS side air-

bags and curtain shield airbags

inflate, and the impact could cause

death or serious injury to the child.

⚫

When a junior seat (booster seat) is installed, always ensure that the shoul-
der belt is positioned across the center of the child’s shoulder. The belt

should be kept away from the child’s neck, but not so that it could fall off the

child’s shoulder.

⚫

Use child restraint system suitable to the age and size of the child and install
it to the rear seat.

⚫

If the driver’s seat interferes with
the child restraint system and pre-

vents it from being attached cor-

rectly, attach the child restraint

system to the right-hand rear seat

(left-hand drive vehicles) or the left-

hand rear seat (right-hand drive

vehicles).

⚫

Adjust the front passenger seat so
that it does not interfere with the

child restraint system.

KBRO110606E

KBRO110715

KBRO110608E

1-2. Safety information for children

For safety and s

ecurity

Child restraint system compatibility for each seating position

⬛

Child restraint system compatibility for each seating position

Compatibility of each seating position with child restraint systems (

➞

P. 56)

displays the type of child restraint systems that can be used and possible

seating positions for installation using symbols. Also, the recommended

child restraint system that is suitable for your child can be selected.
Otherwise, check [Recommended child restraint systems and Compatibil-

ity table] for recommended child restraint systems. (

➞

P. 59)

Check the selected child restraint system together with the following

[Before confirming the compatibility of each seating position with child

restraint systems].

⬛

Before confirming the compatibility of each seating position with
child restraint systems

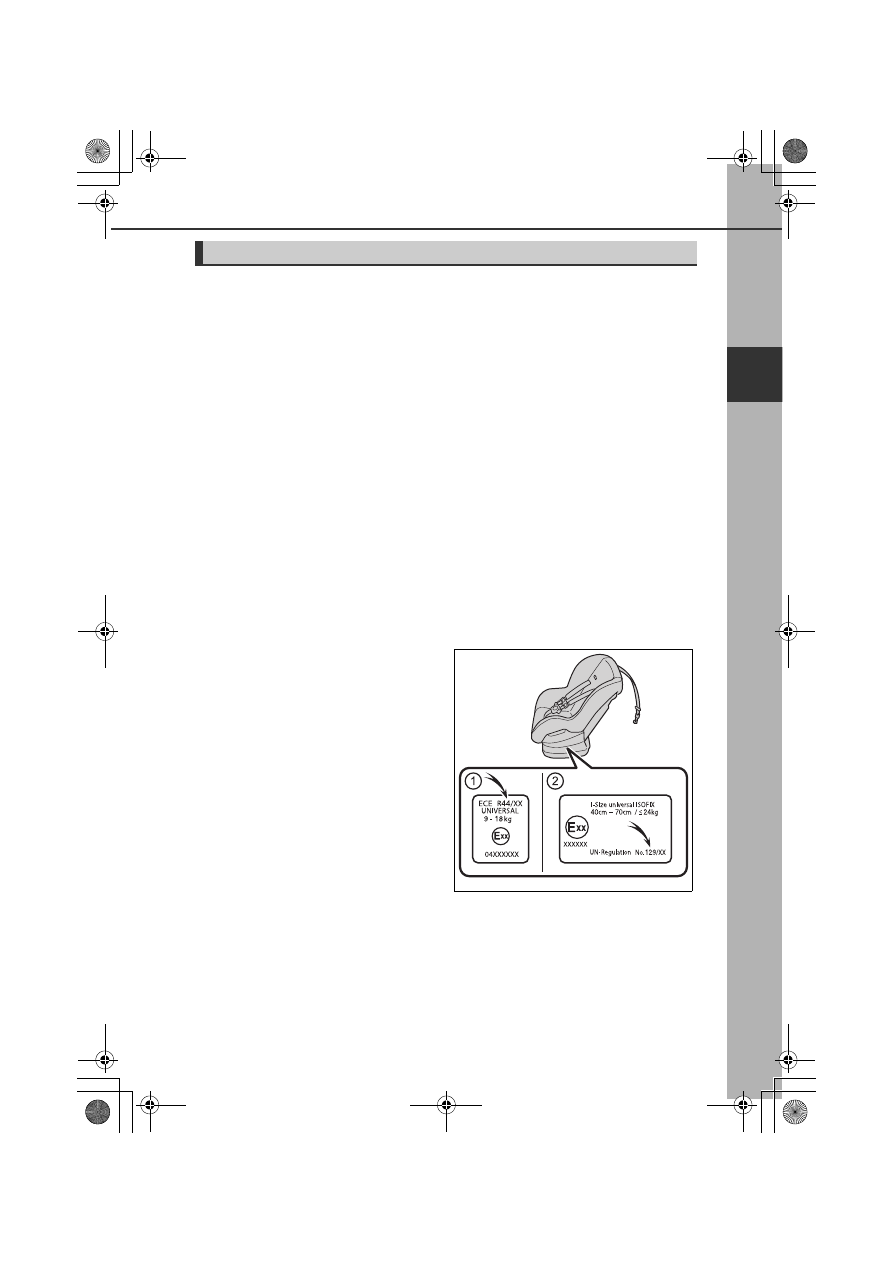

Checking the child restraint system standards.

Use a child restraint system that conforms to UN(ECE) R44*

UN(ECE) R129*

. The following approval mark is displayed on child

restraint systems which are conformed.

Check for an approval mark attached to the child restraint system.

▶

Example of the displayed regu-

lation number

UN(ECE) R44 approval mark*

The weight range of the child

who is applicable for an

UN(ECE) R44 approval mark is

indicated.

UN(ECE) R129 approval mark*

The height range of the child

who is applicable as well as

available weights for an

UN(ECE) R129 approval mark

is indicated.

UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child restraint sys-
tems.

The child restraint systems mentioned in the table may not be available
outside of the EU area.

The displayed mark may differ depending on the product.

KBTA110604

1-2. Safety information for children

Checking the category of the child restraint system.

Check the approval mark of the child restraint system for which of the

following categories the child restraint system is suitable.

Also, if there are any uncertainties, check the user’s guide included with the

child restraint system or contact the retailer of the child restraint system.

⦁

“universal”

⦁

“semi-universal”

⦁

“restricted”

⦁

“vehicle specific”

⬛

Compatibility of each seating position with child restraint systems

▶

Left-hand drive vehicles

▶

Right-hand drive vehicles

Suitable for fixed with vehicle seat belt “universal” category child

restraint system.

Suitable for child restraint systems given on recommended child

restraint systems and compatibility table (

➞

P. 59).

KBTA110606

KBRO110611E

KBRO110801

1-2. Safety information for children

For safety and s

ecurity

Suitable for i-Size and ISOFIX child restraint system.

This seat is fitted with a Top tether anchorage point.

Not suitable for child restraint system.

Never use a rear-facing child restraint system on the front passen-

ger seat.

Install the child restraint system with the seat pushed all the way back.

Tilt the seatback forward, place it back in its 1st fixed position (

), and adjust

it to its 5th fixed position (

If the child restraint system cannot be properly installed because the head
restraint is in the way, fix the head restraint at its highest position or remove
it.

Tilt the seatback forward and place it back in its 1st fixed position (

Child restraint systems should always be used facing forward.

KBRO110612E

KBRO110609

1-2. Safety information for children

⬛

Detail information for CRS installation

ISOFIX child restraint systems are divided into different “fixture”. The child

restraint system can be used in the seating positions for “fixture” men-

tioned in the table above. For kind of “fixture” relation, confirm the follow-

ing table.
If your child restraint system has no kind of “fixture” (or if you cannot find

information in the table below), please refer to the child restraint system

“vehicle list” for compatibility information or ask the retailer of your child

seat.

Seating position

Seat position number

Seating position suitable for universal

belted (yes/no)

Yes

i-Size seating position (yes/no)

Yes

Seating position suitable for lateral fix-

ture (L1/L2/No)

Suitable rearward facing fixture (R1/

R2X/R2/R3/No)

R1, R2X, R2,

Suitable forward facing fixture (F2X/F2/

F3/No)

F2X, F2, F3

Suitable junior seat fixture (B2/B3/No)

B2, B3

Fixture

Description

Full-height, forward-facing child restraint systems

Reduced-height forward-facing child restraint systems

F2X

Reduced-height forward-facing child restraint systems

Full-size, rearward-facing child restraint systems

Reduced-size, rearward-facing child restraint systems

R2X

Reduced-size, rearward-facing child restraint systems

Rearward-facing infant seat

Left lateral-facing (carrycot) infant seat

Right lateral-facing (carrycot) infant seat

Junior seat

1-2. Safety information for children

For safety and s

ecurity

⬛

Recommended child restraint systems and Compatibility table

When installing a child restraint in the rear seats, adjust the front seat so

that it does not interfere with the child or child restraint system.

WARNING

When securing some types of child restraint systems in rear seat, it may not be

possible to properly use the seat belts in positions next to the child restraint

without interfering with it or affecting seat belt effectiveness.
Be sure your seat belt fits snugly across your shoulder and low on your hips. If it

does not, or if it interferes with the child restraint, move to a different position.
Failure to do so may result in death or serious injury.

Mass groups Recommended Child Restraint System

Seating position

0, 0

Up to 13 kg (28

lb.)

i-Size MIDI

Yes

I
9 to 18 kg (20

to 39 lb.)

i-Size MIDI

Yes

1-2. Safety information for children

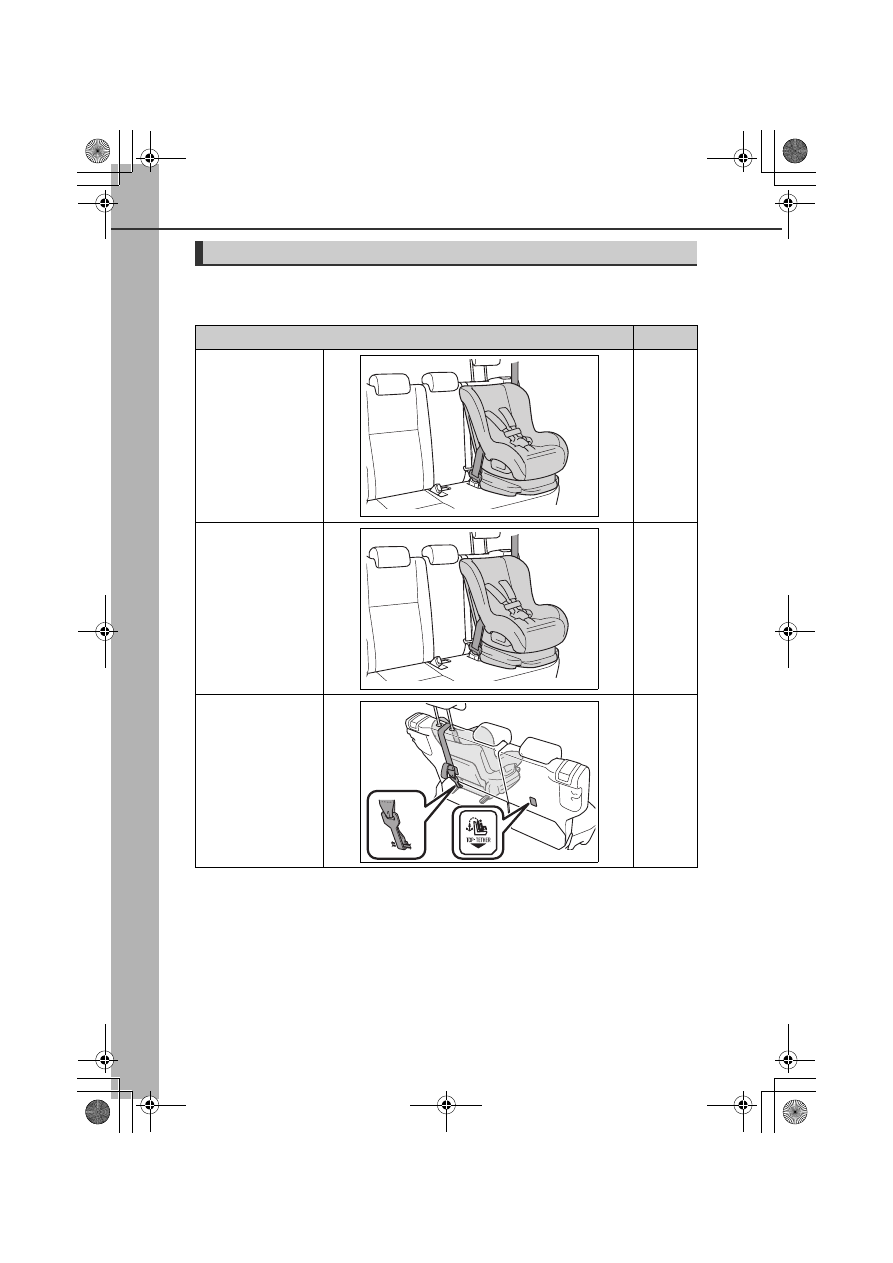

Child restraint system installation method

Confirm with the operation manual enclosed with the child restraint sys-

tem about the installation of the child restraint system.

Installation method

Page

Seat belt attach-

ment

P. 61

ISOFIX lower

anchorage attach-

ment

P. 63

Top tether anchor-

age attachment

P. 66

KBRO110701

KBRO110725N

Toyota Raize (2023 year). Manual in english - page 3
