Toyota GR Corolla (2023 year). Manual in english - page 6

3-2. Opening, closing and locking the doors

Before driv

ing

ing up the back door opener
switch.

The back door cannot be closed
immediately after the back door
opener switch is pushed.

■

Close

Lower the back door using the
back door handle, and make
sure to push the back door
down from the outside to close
it.
Be careful not to pull the back
door sideways when closing the
back door with the handle.

■

Open door warning buzzer



P.92

■

Luggage compartment light

●

The luggage compartment light

turns on when the back door is

opened.

●

If the luggage compartment light is

left on when the engine switch is

turned off, the light will go off auto-

matically after 20 minutes.

NOTICE

■

Back door damper stays

The back door is equipped with

damper stays that hold the back

door in place.

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the back door damper stay,

resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

damper stay rod.

●

Do not touch the damper stay

rod with gloves or other fabric

items.

●

Do not attach any accessories

other than genuine Toyota parts

to the back door.

●

Do not place your hand on the

damper stay or apply lateral

forces to it.

3-2. Opening, closing and locking the doors

■

Antenna location

Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage
compartment

■

Effective range (areas within

which the electronic key is

detected)

When locking or unlocking the
doors

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of an outside front door
handle and back door. (Only the
doors detecting the key can be
operated.)

When starting the engine or
changing engine switch modes

The system can be operated when
the electronic key is inside the vehi-
cle.

■

Alarms and warning messages

A combination of exterior and inte-

rior buzzers as well as warning mes-

sages shown on the

multi-information display are used to

prevent theft of the vehicle and acci-

dents resulting from erroneous

operation. Take appropriate mea-

sures based on the displayed mes-

sage. (



P.325)

When only an alarm sounds, cir-

cumstances and correction proce-

dures are as follows.

●

Exterior buzzer sounds once for 5

seconds

Smart key system

The following operations
can be performed simply by
carrying the electronic key
on your person, for example
in your pocket. The driver
should always carry the
electronic key.



Locks and unlocks the
doors (



P.89)



Locks and unlocks the back
door (



P.94)



Starts the engine (



P.127)

3-2. Opening, closing and locking the doors

Before driv

ing

●

Interior buzzer sounds continu-

ously

■

Battery-saving function

The battery-saving function will be

activated in order to prevent the

electronic key battery and the vehi-

cle battery from being discharged

while the vehicle is not operated for

a long time.

●

In the following situations, the

smart key system may take some

time to unlock the doors.

• The electronic key has been left

within approximately 11 ft. (3.5 m)

of the outside of the vehicle for 2

minutes or longer.

• The smart key system has not

been used for 5 days or longer.

●

If the smart key system has not

been used for 14 days or longer,

the doors cannot be unlocked

from any door except the driver’s

door. In this case, hold the driver’s

door handle, or use the wireless

remote control or mechanical key

to unlock the doors.

■

Electronic key battery-saving

function

When battery-saving mode is set,

battery depletion is minimized by

stopping the electronic key from

receiving radio waves.

Press

twice while pressing and

holding

. Confirm that the elec-

tronic key indicator flashes 4 times.
While the battery-saving mode is

set, the smart key system cannot be

used. To cancel the function, press

any of the electronic key buttons.

■

Conditions affecting operation

The smart key system uses weak

radio waves. In the following situa-

tions, the communication between

the electronic key and the vehicle

may be affected, preventing the

smart key system, wireless remote

control and engine immobilizer sys-

tem from operating properly.

●

When the electronic key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When the electronic key is in con-

tact with, or is covered by the fol-

lowing metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags

• Coins

Situation

Correction

procedure

An attempt was
made to lock the
vehicle while a door
was open.

Close all of
the doors
and lock the
doors again.

Situation

Correction

procedure

The engine switch
was turned to ACC
while the driver’s
door was open (or
the driver’s door was
opened while the
engine switch was in
ACC).

Turn the
engine
switch off
and close
the driver’s
door.

The engine switch
was turned to off
while the driver’s
door was open.

Close the
driver’s door

3-2. Opening, closing and locking the doors

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless keys (that

emit radio waves) are being used

nearby

●

When carrying the electronic key

together with the following devices

that emit radio waves

• Portable radio, cellular phone,

cordless phone or other wireless

communication devices

• Another electronic key or a wire-

less key that emits radio waves

• Personal computers or personal

digital assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window

●

When the electronic key is placed

near a battery charger or elec-

tronic devices

●

When the vehicle is parked in a

pay parking spot where radio

waves are emitted

If the doors cannot be

locked/unlocked using the smart key

system, lock/unlock the doors by

performing any of the following:

●

Bring the electronic key close to

either front door handle and oper-

ate the entry function.

●

Operate the wireless remote con-

trol.

If the doors cannot be

locked/unlocked using the above

methods, use the mechanical key.

(



P.341)

If the engine cannot be started using

the smart key system, refer to

P.342.

■

Note for the entry function

●

Even when the electronic key is

within the effective range (detec-

tion areas), the system may not

operate properly in the following

cases:

• The electronic key is too close to

the window or outside door han-

dle, near the ground, or in a high

place when the doors are locked

or unlocked.

• The electronic key is on the instru-

ment panel, luggage cover or

floor, or in the door pockets or

glove box when the engine is

started or engine switch modes

are changed.

●

Do not leave the electronic key on

top of the instrument panel or near

the door pockets when exiting the

vehicle. Depending on the radio

wave reception conditions, it may

be detected by the antenna out-

side the cabin and the door will

become lockable from the outside,

possibly trapping the electronic

key inside the vehicle.

●

As long as the electronic key is

within the effective range, the

doors may be locked or unlocked

by anyone. However, only the

doors detecting the electronic key

can be used to unlock the vehicle.

●

Even if the electronic key is not

inside the vehicle, it may be possi-

ble to start the engine if the elec-

tronic key is near the window.

●

The doors may unlock or lock if a

large amount of water splashes on

the door handle, such as in the

rain or in a car wash when the

electronic key is within the effec-

tive range. (The doors will auto-

matically be locked after

approximately 60 seconds if the

doors are not opened and closed.)

●

If the wireless remote control is

used to lock the doors when the

electronic key is near the vehicle,

there is a possibility that the door

may not be unlocked by the entry

function. (Use the wireless remote

control to unlock the doors.)

●

Touching the door lock or unlock

sensor while wearing gloves may

prevent lock or unlock operation.

●

When the lock operation is per-

formed using the lock sensor, rec-

3-2. Opening, closing and locking the doors

Before driv

ing

ognition signals will be shown up

to two consecutive times. After

this, no recognition signals will be

given.

●

If the door handle becomes wet

while the electronic key is within

the effective range, the door may

lock and unlock repeatedly. In that

case, follow the following correc-

tion procedures to wash the vehi-

cle:

• Place the electronic key in a loca-

tion 6 ft. (2 m) or more away from

the vehicle. (Take care to ensure

that the key is not stolen.)

• Set the electronic key to bat-

tery-saving mode to disable the

smart key system. (



P.97)

●

If the electronic key is inside the

vehicle and a door handle

becomes wet during a car wash, a

message may be shown on the

multi-information display and a

buzzer will sound outside the vehi-

cle. To turn off the alarm, lock all

the doors.

●

The lock sensor may not work

properly if it comes into contact

with ice, snow, mud, etc. Clean

the lock sensor and attempt to

operate it again.

●

A sudden handle operation or a

handle operation immediately

after entering the effective range

may prevent the doors from being

unlocked. Touch the door unlock

sensor and check that the doors

are unlocked before pulling the

door handle again.

●

If there is another electronic key in

the detection area, it may take

slightly longer to unlock the doors

after the door handle is gripped.

■

When the vehicle is not driven

for extended periods

●

To prevent theft of the vehicle, do

not leave the electronic key within

6 ft. (2 m) of the vehicle.

●

The smart key system can be

deactivated in advance. (



P.374)

●

Setting the electronic key to bat-

tery-saving mode helps to reduce

key battery depletion. (



P.97)

■

To operate the system properly

Make sure to carry the electronic

key when operating the system. Do

not get the electronic key too close

to the vehicle when operating the

system from the outside of the vehi-

cle.

Depending on the position and hold-

ing condition of the electronic key,

the key may not be detected cor-

rectly and the system may not oper-

ate properly. (The alarm may go off

accidentally, or the door lock pre-

vention function may not operate.)

■

If the smart key system does

not operate properly

●

Locking and unlocking the doors:



P.341

●

Starting the engine:



P.342

■

Customization

Some functions can be customized.

(



P.371)

■

If the smart key system has

been deactivated in a custom-

ized setting

●

Locking and unlocking the doors:

Use the wireless remote control or

mechanical key. (



P.89, 341)

●

Starting the engine and changing

engine switch modes:



P.342

●

Stopping the engine:



P.128

100

3-2. Opening, closing and locking the doors

WARNING

■

Caution regarding interfer-

ence with electronic devices

●

People with implantable car-

diac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

keep away from the smart key

system antennas. (



P.96)

The radio waves may affect the

operation of such devices. If

necessary, the entry function

can be disabled. Ask your Toy-

ota dealer for details, such as

the frequency of radio waves

and timing of the emitted radio

waves. Then, consult your doc-

tor to see if you should disable

the entry function.

●

Users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Ask your Toyota dealer for details

on disabling the entry function.

101

3-3. Adjusting the seats

Before driv

ing

3-3.Adjusting the seats

Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)

Front seats

Adjustment procedure

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough

space around the feet so they

do not get stuck.

■

Seat adjustment

●

Be careful that the seat does

not hit passengers or luggage.

●

To reduce the risk of sliding

under the lap belt during a colli-

sion, do not recline the seat

more than necessary.

If the seat is too reclined, the lap

belt may slide past the hips and

apply restraint forces directly to

the abdomen, or your neck may

contact the shoulder belt,

increasing the risk of death or

serious injury in the event of an

accident.

Adjustments should not be

made while driving as the seat

may unexpectedly move and

cause the driver to lose control

of the vehicle.

●

After adjusting the seat, make

sure that the seat is locked in

position.

NOTICE

■

When adjusting a front seat

When adjusting a front seat, make

sure that the head restraint does

not contact the headliner. Other-

wise, the head restraint and head-

liner may be damaged.

102

3-3. Adjusting the seats

Move the front seats forward.
(



P.101)

Stow the rear armrest.
(



P.236)

Lower the head restraints to
the lowest position. (



P.103)

Pull the seatback lock
release lever and fold the
seatback down.

Each seatback may be folded sep-

arately.

Rear seats

The seatbacks of the rear
seats can be folded down.

Folding down the rear
seatbacks

WARNING

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

■

When folding the rear seat-

backs down

●

Do not fold the seatbacks down

while driving.

●

Stop the vehicle on level

ground, set the parking brake

and shift the shift lever to N.

●

Do not allow anyone to sit on a

folded seatback or in the lug-

gage compartment while driv-

ing.

●

Do not allow children to enter

the luggage compartment.

●

Do not allow anyone to sit on

the rear center seat if the rear

right seat is folded down, as the

seat belt buckle for the rear cen-

ter seat belt is then concealed

under the folded seat and can-

not be used.

●

Be careful not to get your hand

caught when folding the rear

seatbacks.

●

Adjust the position of the front

seats before folding down the

rear seatbacks so that the front

seats do not interfere with the

rear seatbacks when folding

down the rear seatbacks.

■

After returning the rear seat-

back to the upright position

●

Make sure that the seatback is

securely locked in position by

lightly pushing it back and forth.

If the seatback is not securely

locked, the red marking will be

visible on the seatback lock

release lever. Make sure that the

red marking is not visible.

103

3-3. Adjusting the seats

Before driv

ing

■

Front seats

Pull the head restraints up.

Down

Push the head restraint down while
pressing the lock release button

WARNING

●

Check that the seat belts are

not twisted or caught in the

seatback.

If the seat belt gets caught

between the seatback’s securing

hook and latch, it may damage

the seat belt.

Head restraints

Head restraints are provided
for all seats.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints.

Failure to do so may result in

death or serious injury.

●

Use the head restraints

designed for each respective

seat.

●

Adjust the head restraints to the

correct position at all times.

●

After adjusting the head

restraints, push down on them

and make sure they are locked

in position.

●

Do not drive with the head

restraints removed.

Adjusting a head restraint

104

3-3. Adjusting the seats

■

Rear outside seats

Pull the head restraints up.

Down

Push the head restraint down while
pressing the lock release button

■

Rear center seat

Pull the head restraint up.

Down

Push the head restraint down while
pressing the lock release button

■

Adjusting the height of the head

restraints (front seats)

Make sure that the head restraints

are adjusted so that the center of

the head restraint is closest to the

top of your ears.

■

Adjusting the rear seat head

restraints

Always raise the head restraint one

level from the stowed position when

using.

■

Front seats

Pull the head restraint up while
pressing the lock release button

■

Rear outside seats

Pull the head restraint up while
pressing the lock release button

Removing the head
restraints

105

3-3. Adjusting the seats

Before driv

ing

■

Rear center seat

Pull the head restraint up while
pressing the lock release button

■

Front seats

Align the head restraint with the
installation holes and push it
down to the lock position.

Press and hold the lock release
button

when lowering the head

restraint.

■

Rear outside seats

Align the head restraint with the
installation holes and push it
down to the lock position.

Press and hold the lock release
button

when lowering the head

restraint.

■

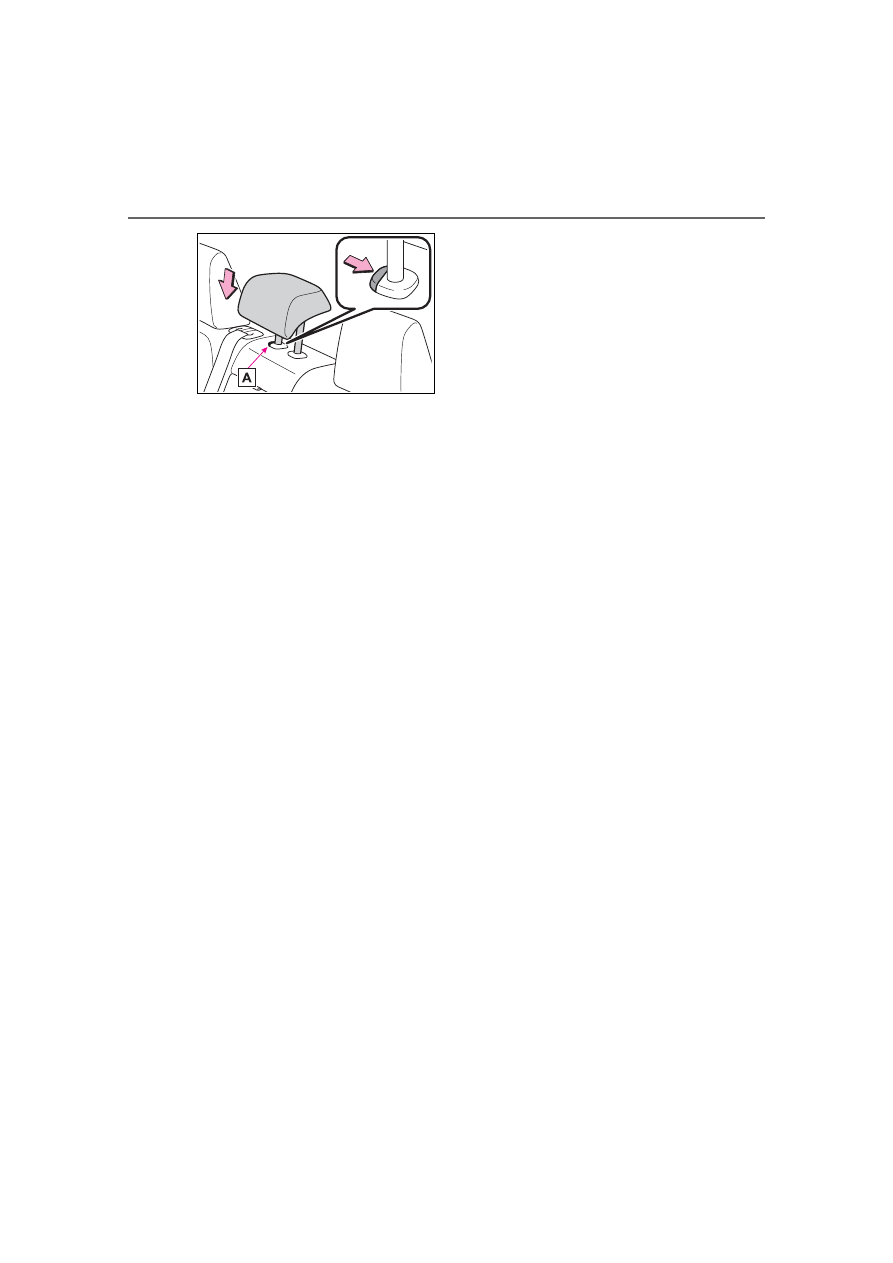

Rear center seat

Align the head restraint with the
installation holes and push it
down to the lock position.

Press and hold the lock release
button

when lowering the head

restraint.

Installing the head
restraints

106

3-3. Adjusting the seats

107

3-4. Adjusting the steering wheel and mirrors

Before driv

ing

3-4.Adjusting the steering wheel and mirrors

Hold the steering wheel and
push the lever down.

Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.

After adjustment, pull the lever up

to secure the steering wheel.

To sound the horn, press on or
close to the

mark.

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel

while driving.

Doing so may cause the driver to

mishandle the vehicle and cause

an accident, resulting in death or

serious injury.

■

After adjusting the steering

wheel

Make sure that the steering wheel

is securely locked.

Otherwise, the steering wheel

may move suddenly, possibly

causing an accident, and resulting

in death or serious injury. Also,

the horn may not sound if the

steering wheel is not securely

locked.

Horn

108

3-4. Adjusting the steering wheel and mirrors

The height of the rear view mir-
ror can be adjusted to suit your
driving posture.
Adjust the height of the rear
view mirror by moving it up and
down.

Reflected light from the head-
lights of vehicles behind can be
reduced by operating the lever.

Normal position
Anti-glare position

Inside rear view mirror

The rear view mirror’s posi-
tion can be adjusted to
enable sufficient confirma-
tion of the rear view.

Adjusting the height of
rear view mirror

WARNING

■

Caution while driving

Do not adjust the position of the

mirror while driving.

Doing so may lead to mishandling

of the vehicle and cause an acci-

dent, resulting in death or serious

injury.

Anti-glare function

109

3-4. Adjusting the steering wheel and mirrors

Before driv

ing

To select a mirror to adjust,
turn the switch.

Left
Right

To adjust the mirror, operate
the switch.

Up
Right
Down
Left

■

Mirror angle can be adjusted

when

The engine switch is in ACC or ON.

■

When the mirrors are fogged up

The outside rear view mirrors can

be cleared using the mirror defog-

gers. Turn on the rear window

defogger to turn on the outside rear

view mirror defoggers. (



P.217)

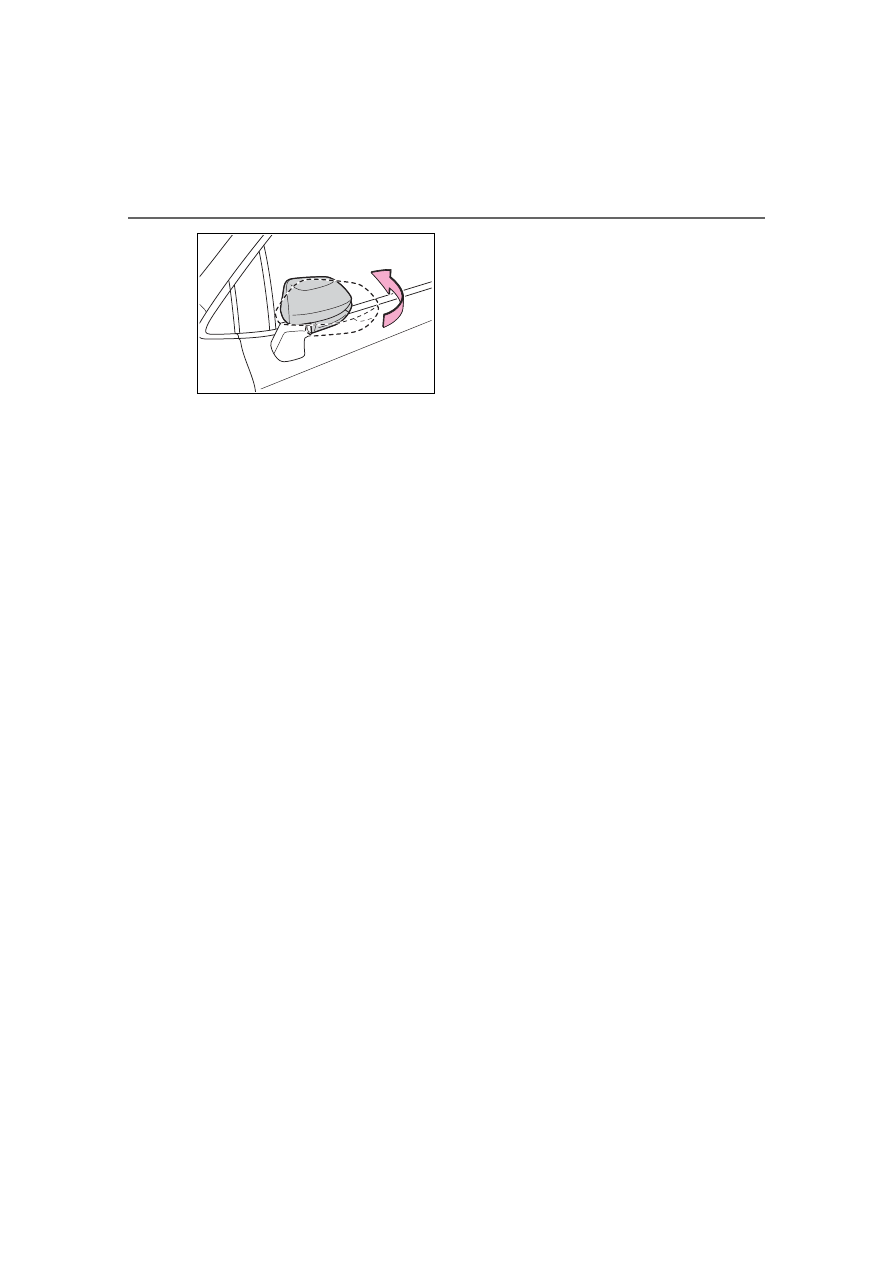

Push the mirror back in the
direction of the vehicle’s rear.

Outside rear view mir-

rors

The rear view mirror’s posi-
tion can be adjusted to
enable sufficient confirma-
tion of the rear view.

WARNING

■

Important points while driving

Observe the following precautions

while driving.

Failure to do so may result in loss

of control of the vehicle and cause

an accident, resulting in death or

serious injury.

●

Do not adjust the mirrors while

driving.

●

Do not drive with the mirrors

folded.

●

Both the driver and passenger

side mirrors must be extended

and properly adjusted before

driving.

Adjustment procedure

WARNING

■

When the mirror defoggers

are operating

Do not touch the rear view mirror

surfaces, as they can become

very hot and burn you.

Folding and extending the
mirrors

110

3-4. Adjusting the steering wheel and mirrors

Content .. 4 5 6 7 ..
