Toyota C-HR (2023 year). Manual in english - page 22





427

4-5. Using the driving support systems

4

D

riv

in

g

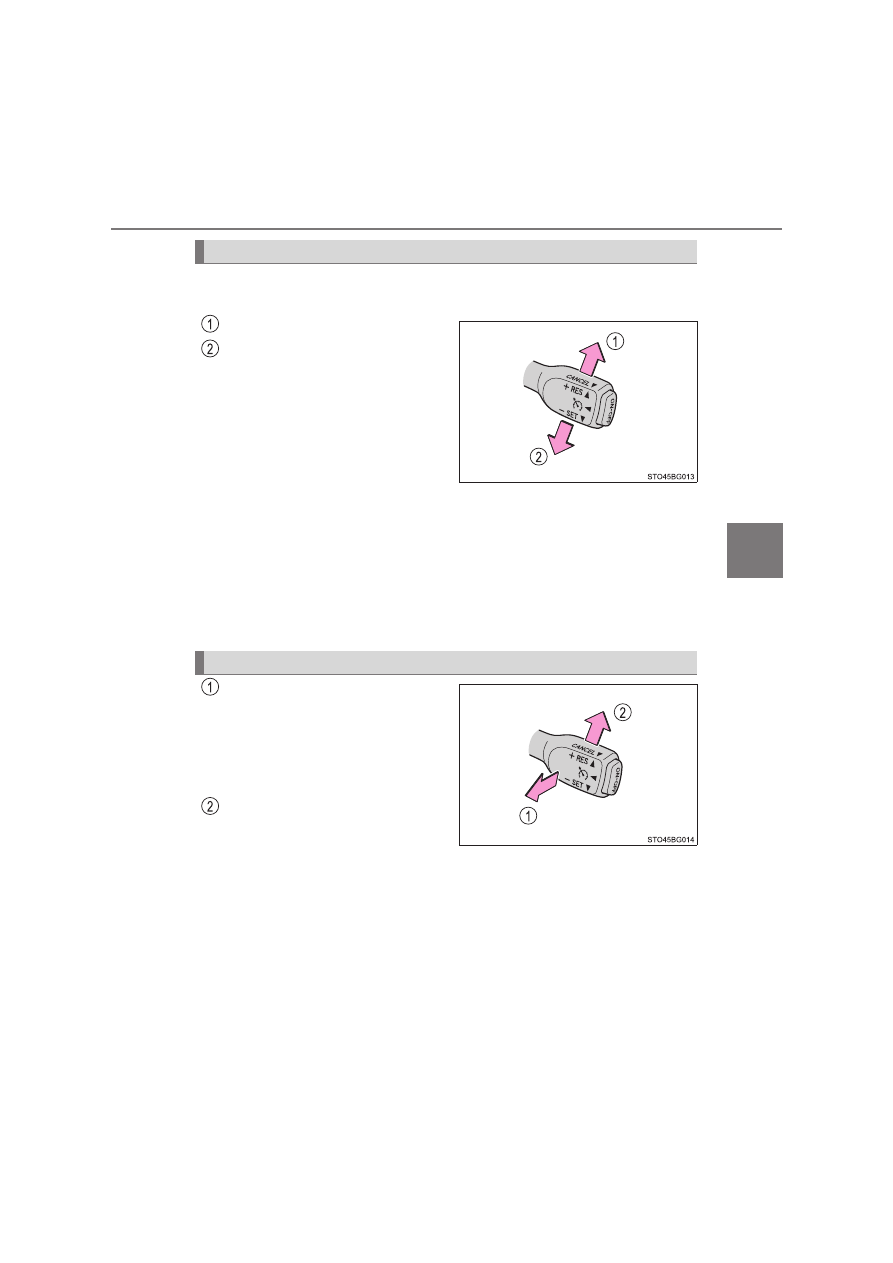

To change the set speed, operate the lever until the desired set speed
is obtained.

Increases the speed
Decreases the speed

Fine  adjustment:  Momentarily
move  the  lever  in  the  desired
direction.
Large  adjustment:  Hold  the  lever
in the desired direction.
The set speed will be increased or
decreased as follows:

Fine adjustment: By approximately 1 km/h (0.6 mph)

*

1

 or 1 mph (1.6 km/h)

*

2

each time the lever is operated
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.

*

1

:  When the set speed is shown in “km/h”

*

2

:  When the set speed is shown in “MPH”

Pulling  the  lever  toward  you
cancels  the  constant  speed
control.

The speed setting is also canceled
when

the

brake

pedal

is

depressed.

Pushing  the  lever  up  resumes
the constant speed control.

However,  resuming  is  available  when  the  vehicle  speed  is  more  than
approximately 30 km/h (20 mph).

Adjusting the set speed

Canceling and resuming the constant speed control

428

4-5. Using the driving support systems

Cruise control can be set when

The shift lever is in D.

Vehicle speed is above approximately 30 km/h (20 mph).

Accelerating after setting the vehicle speed

The vehicle can be accelerated by operating accelerator pedal. After accel-
erating, the set speed resumes.

Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.

Automatic cruise control cancelation

Cruise control is automatically canceled in any of the following situations.

Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the set speed.
At this time, the memorized set speed is not retained.

Actual vehicle speed is below approximately 30 km/h (20 mph).

VSC is activated.

TRC is activated for a period of time.

When the VSC or TRC system is turned off by pressing the VSC off switch.

Speed limiter is activated. (if equipped)

If “Check Cruise Control System Visit Your Dealer” is displayed on the
multi-information display

Press the “ON-OFF” button once to deactivate the system, and then press the
button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels immedi-
ately after being activated, there may be a malfunction in the cruise control sys-
tem.  Have  the  vehicle  inspected  by  any  authorized Toyota  retailer  or Toyota
authorized repairer, or any reliable repairer.

429

4-5. Using the driving support systems

4

D

riv

in

g

WARNING

To avoid operating the cruise control by mistake

Switch the cruise control off using the “ON-OFF” button when not in use.

Situations unsuitable for cruise control

Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.

In heavy traffic

On roads with sharp bends

On winding roads

On slippery roads, such as those covered with rain, ice or snow

On steep downhills
Vehicle speed may exceed the set speed when driving down a steep hill.

When your vehicle is towing a trailer or during emergency towing

430

4-5. Using the driving support systems

Driving mode select

Changing the driving mode

To select the drive mode, perform operations on the multi-information
display.

Press “

” or “

” of the meter control switches and select

.

Press “

” or “

” of the meter control switches, and select “Drive

Mode”.
Press  “

”  or  “

”  of  the  meter  control  switches,  and  select  drive

mode.

Driving modes

“NORMAL” mode
Provides  an  optimal  balance  of  fuel  economy,  quietness,  and
dynamic performance. Suitable for city driving.

“SPORT” mode
Controls  the  hybrid  system  to  provide  quick,  smooth  and  quick
acceleration. This mode also changes the steering feel, making it
suitable for when agile driving response is desired, such as when
driving on roads with many curves.

When  sport  mode  is  selected,  the  “SPORT”  indicator  will  illuminate
on the multi-information display.

In response to driving conditions, one of 3 drive modes can be
selected.

Select the drive mode

1

2

3

431

4-5. Using the driving support systems

4

D

riv

in

g

“ECO” mode
Helps  the  driver  accelerate  in  an  eco-friendly  manner  and
improve  fuel  economy  through  moderate  throttle  characteristics
and  by  controlling  the  operation  of  the  air  conditioning  system
(heating/cooling).

When  Eco  mode  is  selected,  the  “ECO  MODE”  indicator  will  illumi-
nate on the multi-information display.
While  the  air  conditioning  is  being  used,  the  system  automatically
switches to air conditioning eco mode (

P. 552), allowing for driving

that leads to even better fuel economy.

When canceling “ECO” mode/ “SPORT” mode

Select  the  drive  mode  again. Also,  “SPORT”  mode  will  be  canceled  auto-
matically when the power switch is turned off.

However, “NORMAL” mode and “ECO” mode will not be canceled automati-
cally until another drive mode is selected, even if the power switch is turned
off.

Switching the drive mode when in EV drive mode

P. 312

432

4-5. Using the driving support systems

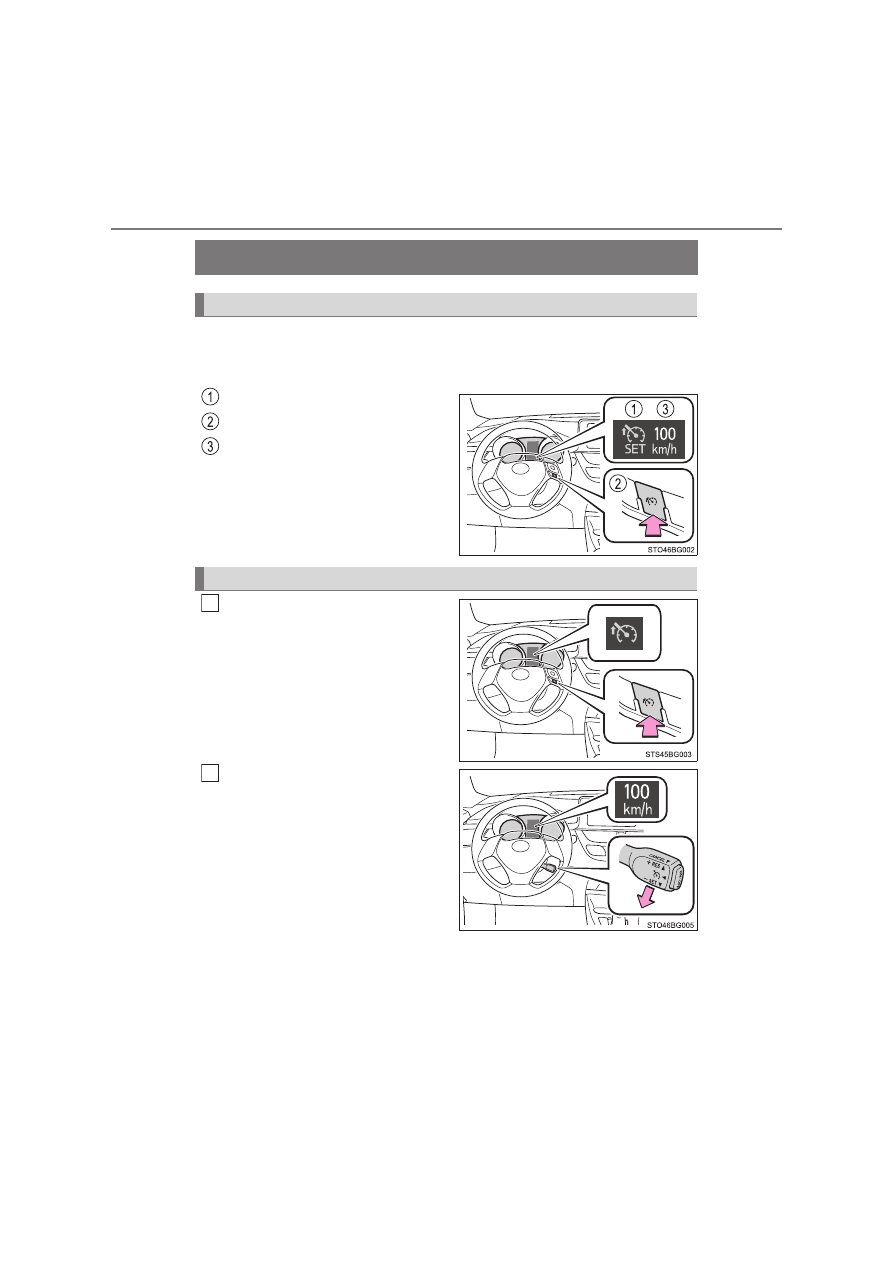

Speed limiter

A desired maximum speed can be set using the cruise control switch.
The  speed  limiter  prevents  vehicle  speed  from  exceeding  the  set
speed.

Indicator
Speed limiter switch
Set speed

Press the switch to activate the
speed limiter.

Press  the  switch  once  more  to
deactivate the speed limiter.

Accelerate or  decelerate  to the
desired  speed  and  push  the
lever  down  to  set  the  desired
maximum speed.

If  the  lever  is  pushed  down  while
the vehicle speed is below 30 km/h
(20 mph),  the  set  speed  will  be
30 km/h (20 mph).

: If equipped

Summary of functions

Setting the vehicle speed

1

2

433

4-5. Using the driving support systems

4

D

riv

in

g

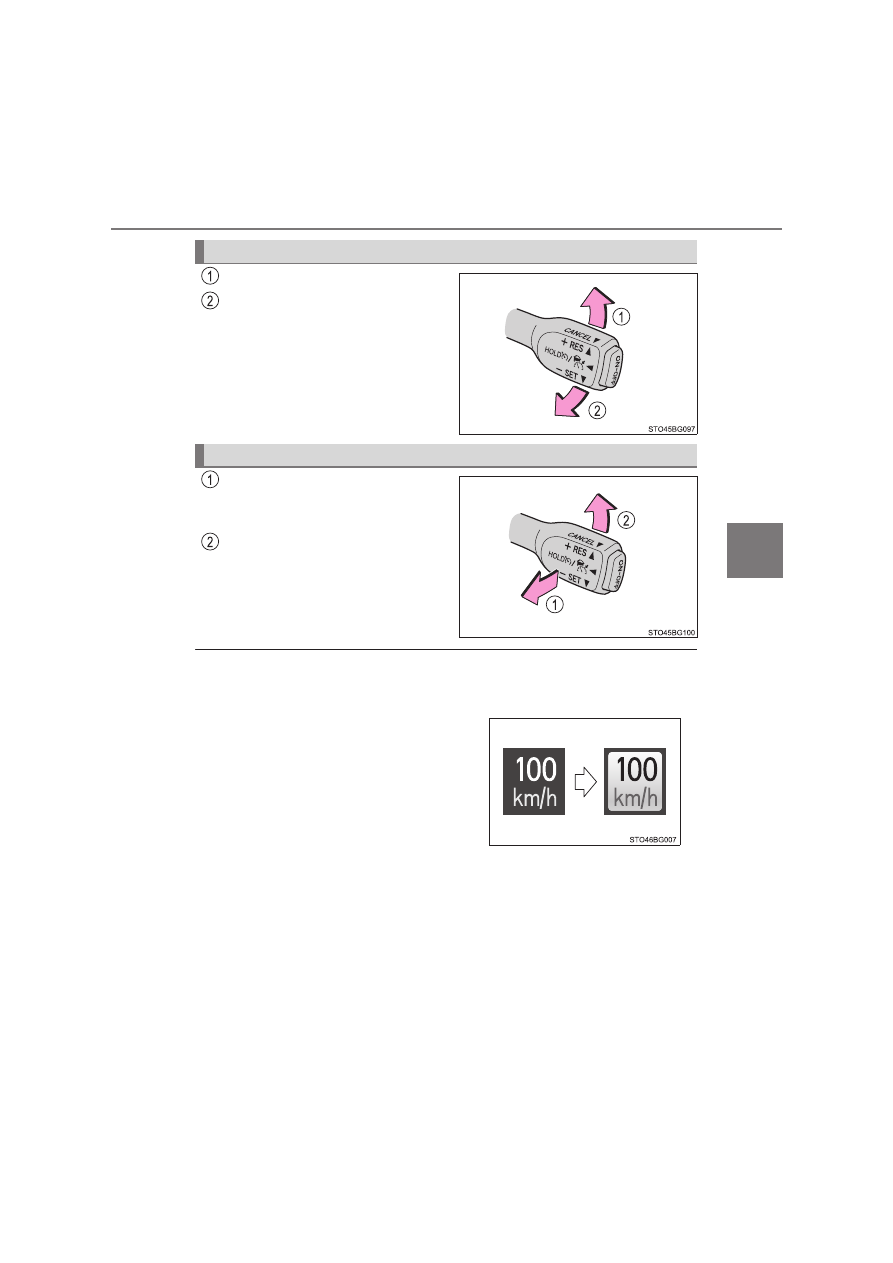

Increase speed
Decrease speed

Hold  the  lever  until  the  desired
speed setting is obtained.
Fine  adjustment  of  the  set  speed
can be made by lightly pushing the
lever up or down and releasing it.

Cancel

Pull  the  lever  towards  you  to  can-
cel the speed limiter.

Resume

To resume use of the speed limiter,
push the lever up.

Exceeding the set speed

In the following situations, the vehicle speed exceeds the set speed and dis-
play characters will be highlighted:

Automatic speed limiter cancellation

The set speed is automatically canceled in any of the situations:

Cruise control is activated.

When  the  VSC  system  and/or  TRC  system  is  turned  off  by  pressing  the
VSC off switch.

Adjusting the speed setting

Canceling and resuming the speed limiter

When  fully  depressing  the  accelerator
pedal

When driving down a hill (a buzzer also
sounds)

434

4-5. Using the driving support systems

If the “Check Speed Limiter System.” is displayed on the multi-informa-
tion display

Stop in a safe place, turn the power switch off and back on again, and then
set the speed limiter. If the speed limiter cannot be set, the system may be
malfunctioning.  Even  though  the  vehicle  can  be  driven  normally,  have  the
vehicle  inspected  by  any  authorized  Toyota  retailer  or  Toyota  authorized
repairer, or any reliable repairer.

WARNING

To avoid operating the speed limiter by mistake

Keep the speed limiter switch off when not in use.

Situations unsuitable for speed limiter

Do not use the speed limiter in either of the following situations.
Doing so may result in control of the vehicle being lost and could cause a
serious or fatal accident.

On slippery roads, such as those covered with rain, ice or snow

On steep hills

When towing a trailer or emergency towing

NOTICE

When a warning is issued using the meter display and buzzer after exceed-
ing the set speed limit on a steep decline, depress the brake pedal to decel-
erate.

435

4

4-5. Using the driving support systems

D

riv

in

g

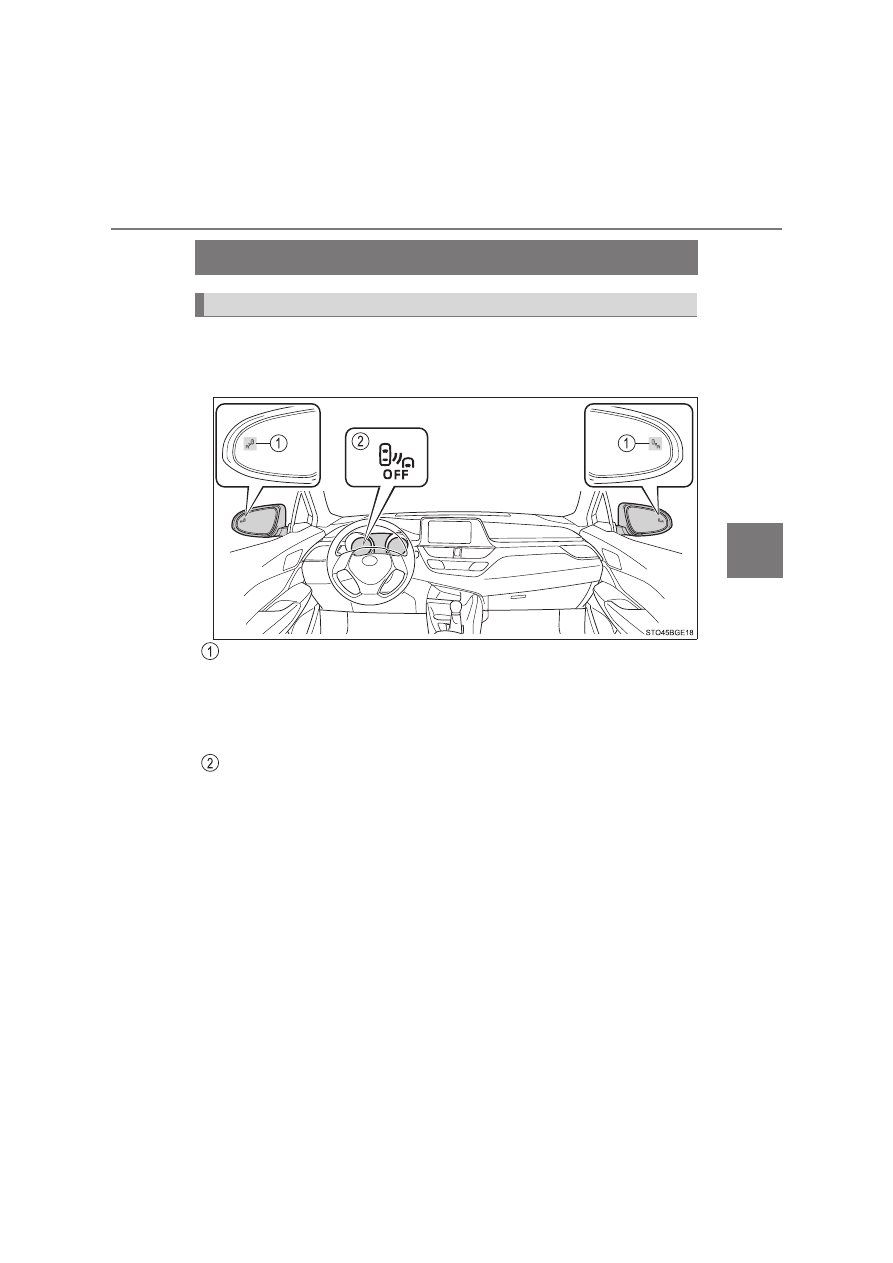

BSM (Blind Spot Monitor)

The Blind Spot Monitor is a system that uses rear side radar sensors
installed on the inner side of the rear bumper on the left and right side
to assist the driver in confirming safety when changing lanes.

Outside rear view mirror indicators

When a vehicle is detected in a blind spot of the outside rear view mirrors
or approaching rapidly from behind into a blind spot, the outside rear view
mirror indicator on the detected side will illuminate. If the turn signal lever
is operated toward the detected side, the outside rear view mirror indicator
flashes.

BSM OFF indicator

Illuminates when the Blind Spot Monitor is disabled.

: If equipped

Summary of the Blind Spot Monitor

436

4-5. Using the driving support systems

Press “

” or “

” of the meter control switches, select

.

Press “

” or “

” of the meter control switches, select

.

Press “

” or “

” of the meter control switches, select

.

When the BSM function is disabled, the BSM OFF indicator (

P. 435) illu-

minates.  (Each  time  the  power  switch  is  turned  off  and  then  changed  to
ON mode, the BSM function will be enabled automatically.)

The outside rear view mirror indicators visibility

When under strong sunlight, the outside rear view mirror indicator may be dif-
ficult to see.

When “Blind Spot Monitor Unavailable.” is shown on the multi-informa-
tion display

Water, snow mud, etc., may be built up in the vicinity of the sensor area of
bumper (

P. 448).

Removing  the  water,  snow,  mud,  etc.,  from  the  vicinity  of  the  sensor  area
bumper should return it to normal.
Also,  the  sensor  may  not  function  normally  when  used  in  extremely  hot  or
cold weather.

When  “Blind  Spot  Monitor  System  Malfunction.  Visit  Your  Dealer.”  is
shown on the multi-information display

There  may  be  a  sensor  malfunction  or  misaligned.  Have  the  vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.

Customization

Some functions can be customized. (

P. 786)

Turning the BSM function on/off

1

2

3

448

4-5. Using the driving support systems

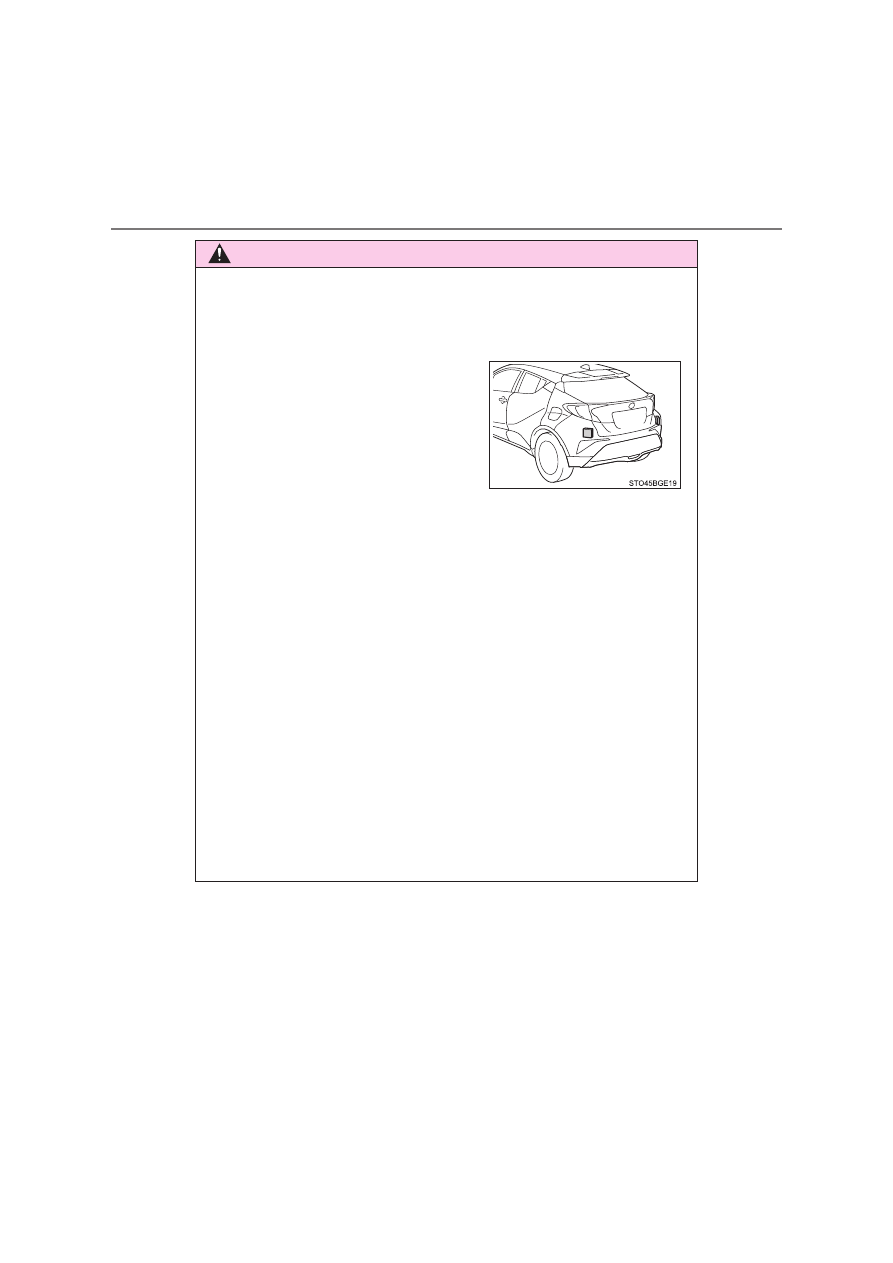

WARNING

To ensure the system can operate properly

One Blind Spot Monitor sensor is installed inside the left and right side of
the vehicle rear bumper  respectively.  Observe the following to  ensure  the
Blind Spot Monitor can function correctly.

If  the  warning  message  does not disappear, have the vehicle inspected
by any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.

Do not subject a sensor or its surrounding area on the rear bumper to a
strong impact.
If a sensor is moved even slightly off position, the system may malfunction
and vehicles may not be detected correctly.
In the following situations, have your vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
• A sensor or its surrounding area is subject to a strong impact.
• If  the  surrounding  area  of  a  sensor  is  scratched  or  dented,  or  part  of

them has become disconnected.

Do not disassemble the sensor.

Do not attach accessories or stickers to the sensor or surrounding area on
the bumper.

Do not modify the sensor or surrounding area on the bumper.

Do not paint the rear bumper any color other than an official Toyota color.

Keep  the  sensor  and  its  surrounding
area on the bumper clean at all times. If
a sensor or its surrounding area on the
rear  bumper  is  dirty  or  covered  with
snow,  the  Blind  Spot  Monitor  may  not
operate and a warning message
(

P. 436) will be displayed.

In  this  situation,  clear  off  the  dirt  or
snow  and  drive  the  vehicle  with  the
operation  conditions  of  the  BSM  func-
tion  (

P.  451)  satisfied  for  approxi-

mately 10 minutes.

449

4-5. Using the driving support systems

4

D

riv

in

g

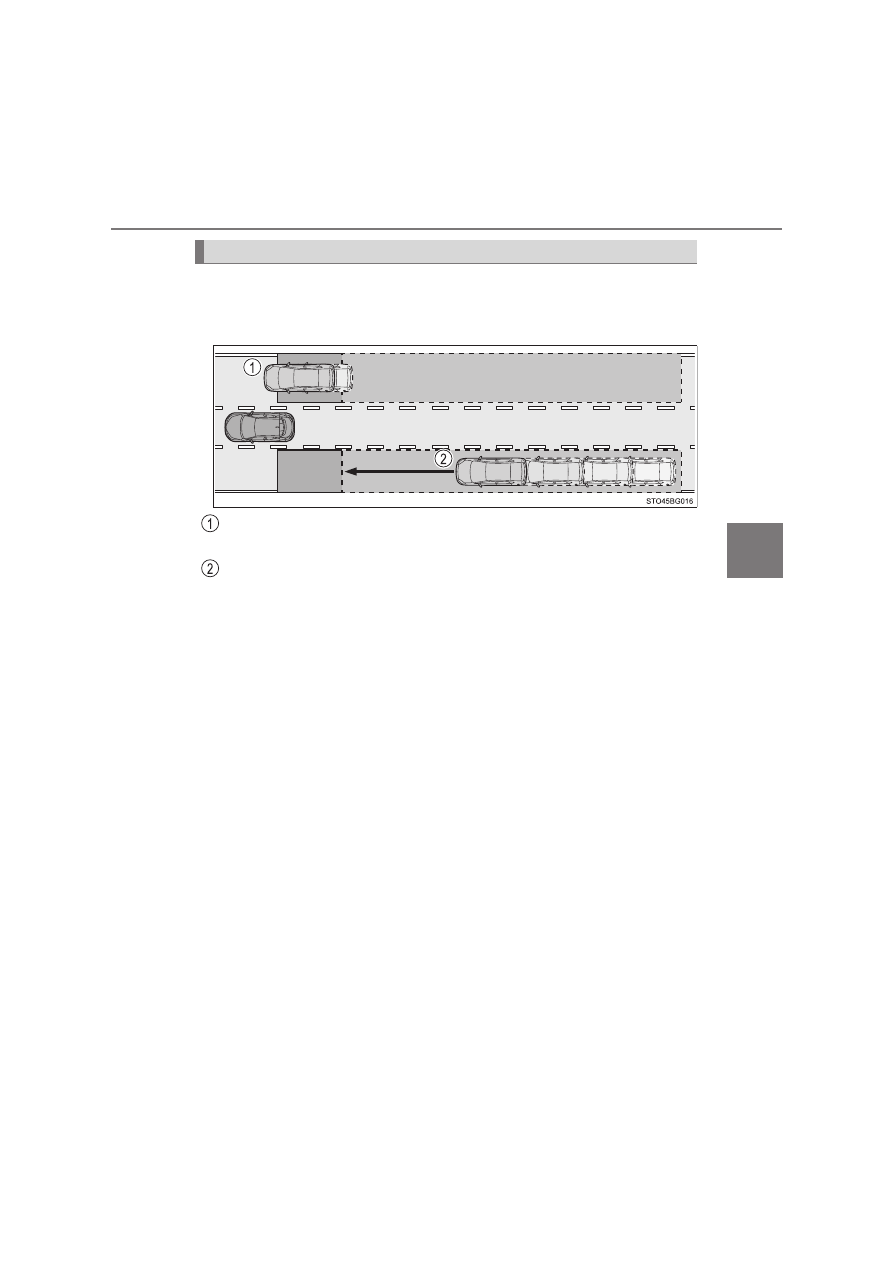

The BSM function uses radar sensors to detect the following vehicles
traveling in adjacent lanes and advises the driver of the presence of
such vehicles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the out-
side rear view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are
not visible using the outside rear view mirrors (the blind spots)

BSM function

450

4-5. Using the driving support systems

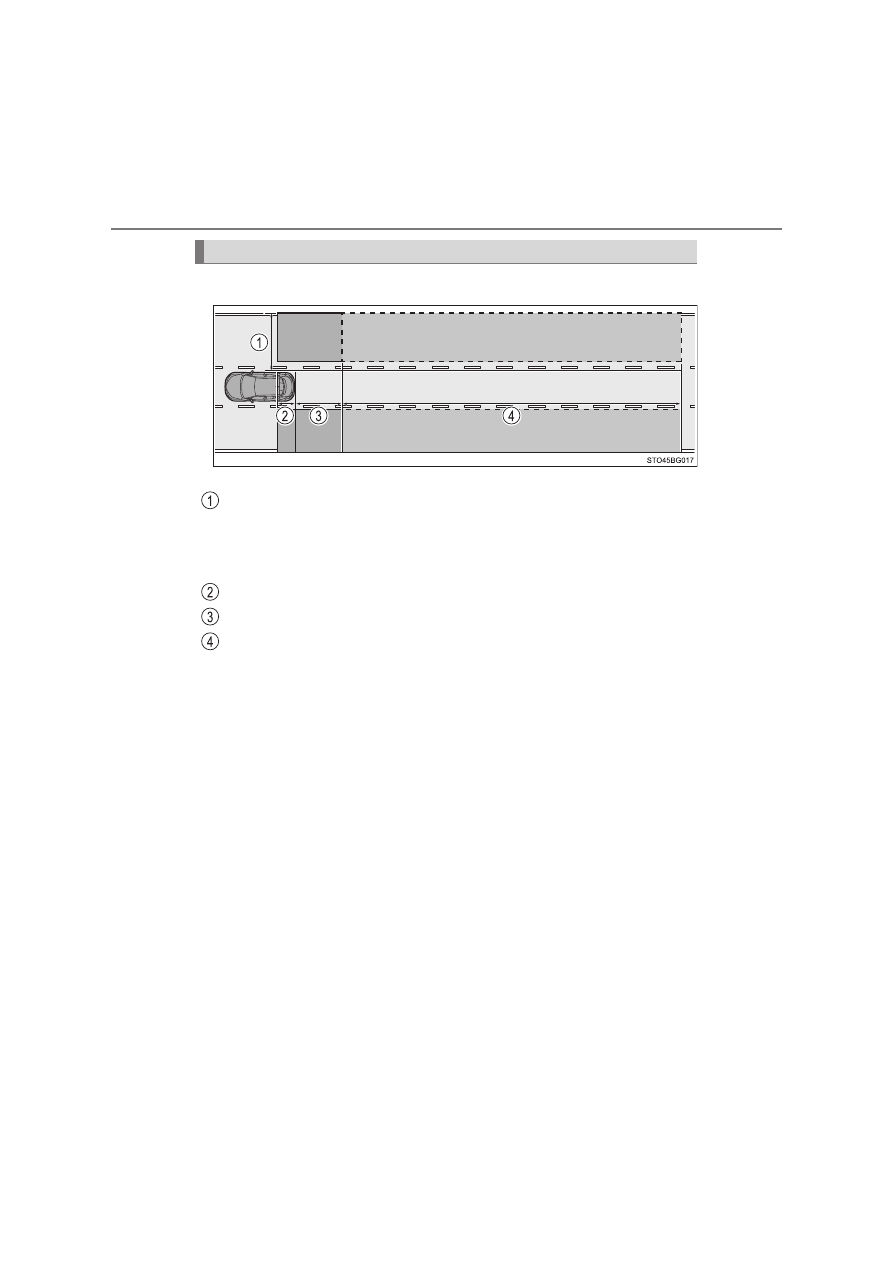

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 0.5 m (1.6 ft.) to 3.5 m (11.5 ft.) from either side of
the vehicle

*

*

: The area between the side of the vehicle and 0.5 m (1.6 ft.) from the side

of the vehicle cannot be detected.

Approximately 1 m (3.3 ft.) forward of the rear bumper
Approximately 3 m (9.8 ft.) from the rear bumper
Approximately 3 m (9.8 ft.) to 60 m (197 ft.) from the rear bumper

*

*

: The greater the difference in speed between your vehicle and the detected

vehicle is, the farther away the vehicle will be detected, causing the out-
side rear view mirror indicator to illuminate or flash.

BSM function detection areas

451

4-5. Using the driving support systems

4

D

riv

in

g

The BSM function is operational when

The BSM function is operational when all of the following conditions are met:

The BSM system is set to on (

P. 436)

The shift lever is in a position other than R.

Vehicle speed is greater than approximately 16 km/h (10 mph)

The BSM function will detect a vehicle when

The BSM function will detect a vehicle present in the detection area in the fol-
lowing situations:

A vehicle in an adjacent lane overtakes your vehicle.

You overtake a vehicle in adjacent lane slowly.

Another vehicle enters the detection area when it changes lanes.

Conditions under which the system will not detect a vehicle

The  BSM  function  is  not  designed  to  detect  the  following  types  of  vehicles
and/or objects:

Small motorcycles, bicycles, pedestrians, etc.

*

Vehicles traveling in the opposite direction

Guardrails, walls, signs, parked vehicles and similar stationary objects

*

Following vehicles that are in the same lane

*

Vehicles traveling 2 lanes away from your vehicle

*

Vehicles which are being overtaken rapidly by your vehicle

*

*

: Depending on conditions, detection of a vehicle and/or object may occur.

WARNING

Cautions regarding the use of the system

The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The Blind Spot Monitor function is a supplementary function which alerts the
driver that a vehicle is present in the blind spot. Do not overly rely on the
Blind Spot Monitor function. The function cannot judge if it is safe to change
lanes, therefore over reliance could cause an accident resulting in death or
serious injury.
According  to  conditions,  the  system  may  not  function  correctly. Therefore
the driver’s own visual confirmation of safety is necessary.

452

4-5. Using the driving support systems

Conditions under which the system may not function correctly

The BSM function may not detect vehicles correctly in the following situa-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When mud, snow, ice, a sticker, etc., is covering the sensor or surround-

ing area on the rear bumper

• When driving on a road surface that is wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching with only a small gap between

each vehicle

• When the distance between your vehicle and a following vehicle is short
• When there is a significant difference in speed between your vehicle and

the vehicle that enters the detection area

• When the difference in speed between your vehicle and another vehicle

is changing

• When  a  vehicle  enters  a  detection  area  traveling  at  about  the  same

speed as your vehicle

• As your vehicle starts from a stop, a vehicle remains in the detection area
• When driving up and down consecutive steep inclines, such as hills, dips

in the road, etc.

• When driving on roads with sharp bends, consecutive curves, or uneven

surfaces

• When vehicle lanes are wide, or when driving on the edge of a lane, and

the vehicle in an adjacent lane is far away from your vehicle

• When a bicycle carrier or other accessory is installed to the rear of the

vehicle

• When there is a significant difference in height between your vehicle and

the vehicle that enters the detection area

• Immediately after the BSM system is set to on
• When towing a trailer

453

4-5. Using the driving support systems

4

D

riv

in

g

Instances  of  the  BSM  function  unnecessarily  detecting  a  vehicle  and/or
object may increase in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When the distance between your vehicle and a guardrail, wall, etc., that

enters the detection area is short

• When driving up and down consecutive steep inclines, such as hills, dips

in the road, etc.

• When vehicle lanes are narrow, or when driving on the edge of a lane,

and a vehicle traveling in a lane other than the adjacent lanes enters the
detection area

• When driving on roads with sharp bends, consecutive curves, or uneven

surfaces

• When the tires are slipping or spinning
• When the distance between your vehicle and a following vehicle is short
• When a bicycle carrier or other accessory is installed to the rear of the

vehicle















Content      ..     20      21      22      23     ..
