354

6-3. Do-it-yourself maintenance

Turn the power switch off.

Open the fuse box cover.



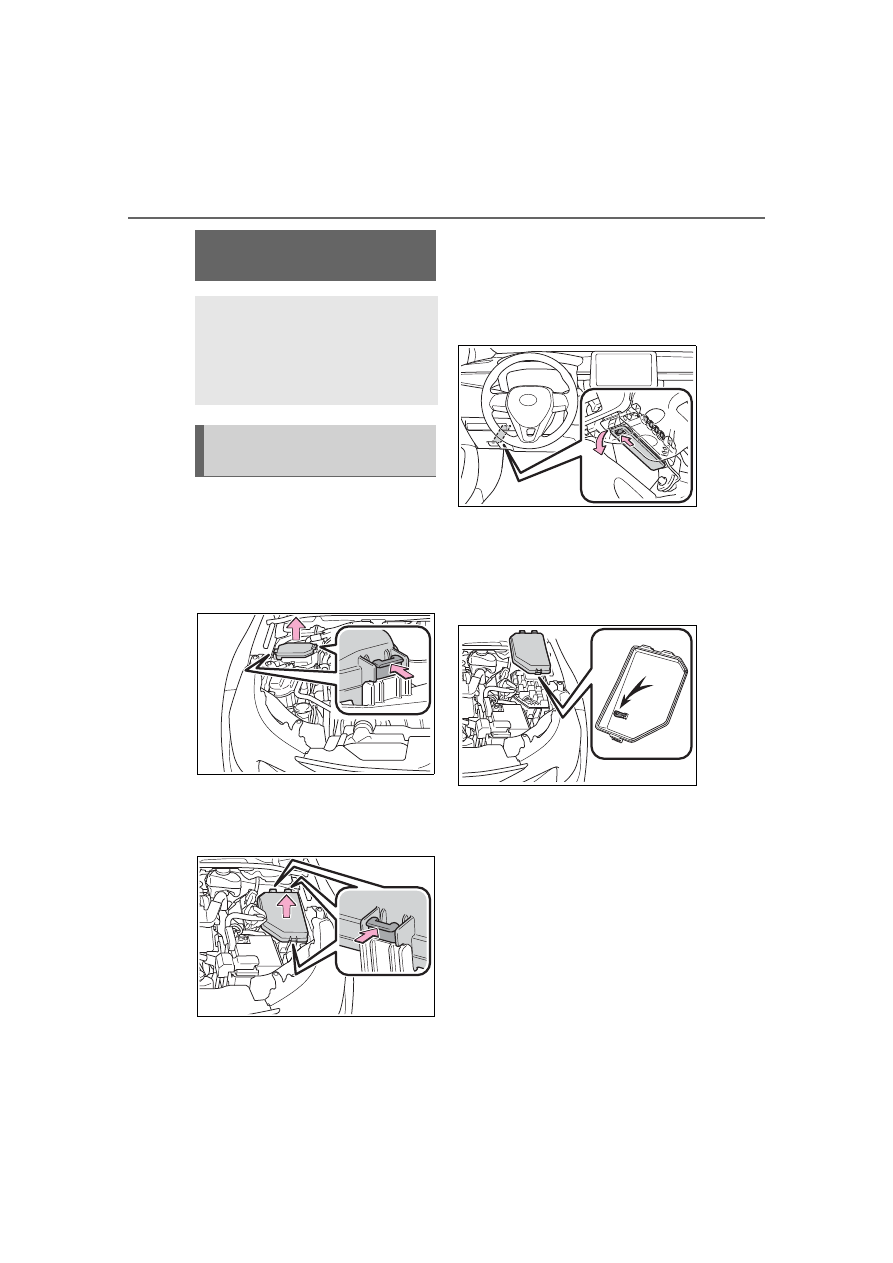

Engine compartment: type A
fuse box

Push the tabs in and lift the lid off.



Engine compartment: type B
fuse box

Push the tabs in and lift the lid off.



Under the driver’s side instru-
ment panel

Remove the lid.
Make sure to push the claw when
removing/installing the lid.

Remove the fuse with the
pullout tool.
Only type A fuse can be
removed using the pullout
tool.

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

355

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca



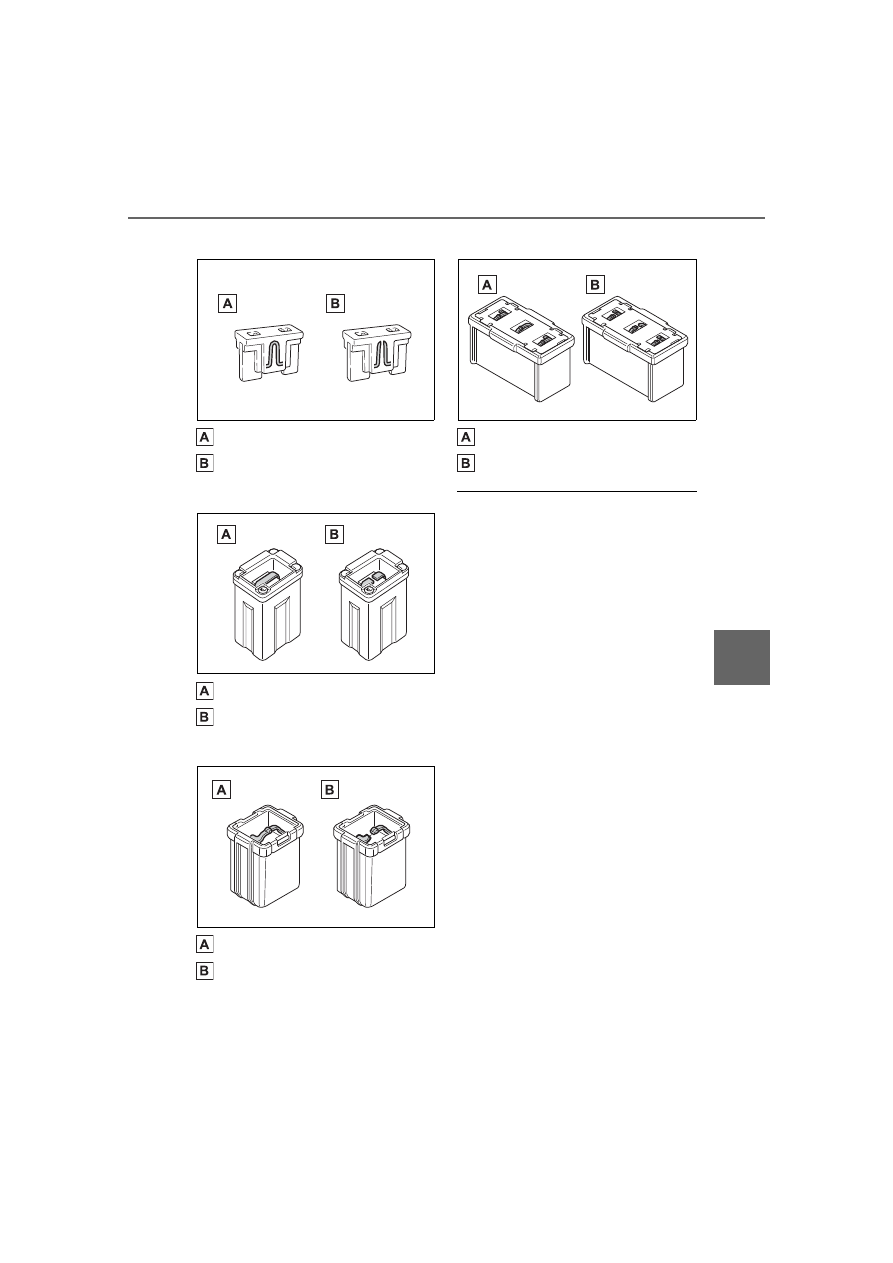

Type A

Normal fuse
Blown fuse



Type B

Normal fuse
Blown fuse



Type C

Normal fuse
Blown fuse



Type D

Normal fuse
Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

(



P.356)

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle.

Because certain bulbs are con-

nected to circuits designed to pre-

vent overload, non-genuine parts or

parts not designed for this vehicle

may be unusable.

356

6-3. Do-it-yourself maintenance

Check the wattage of the light
bulb to be replaced. (



P.428)

■

Rear

Back-up lights
Rear turn signal lights
Rear side marker lights (bulb
type)

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

Light bulbs

You may replace the follow-
ing bulbs yourself. The diffi-
culty level of replacement
varies depending on the
bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.

For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

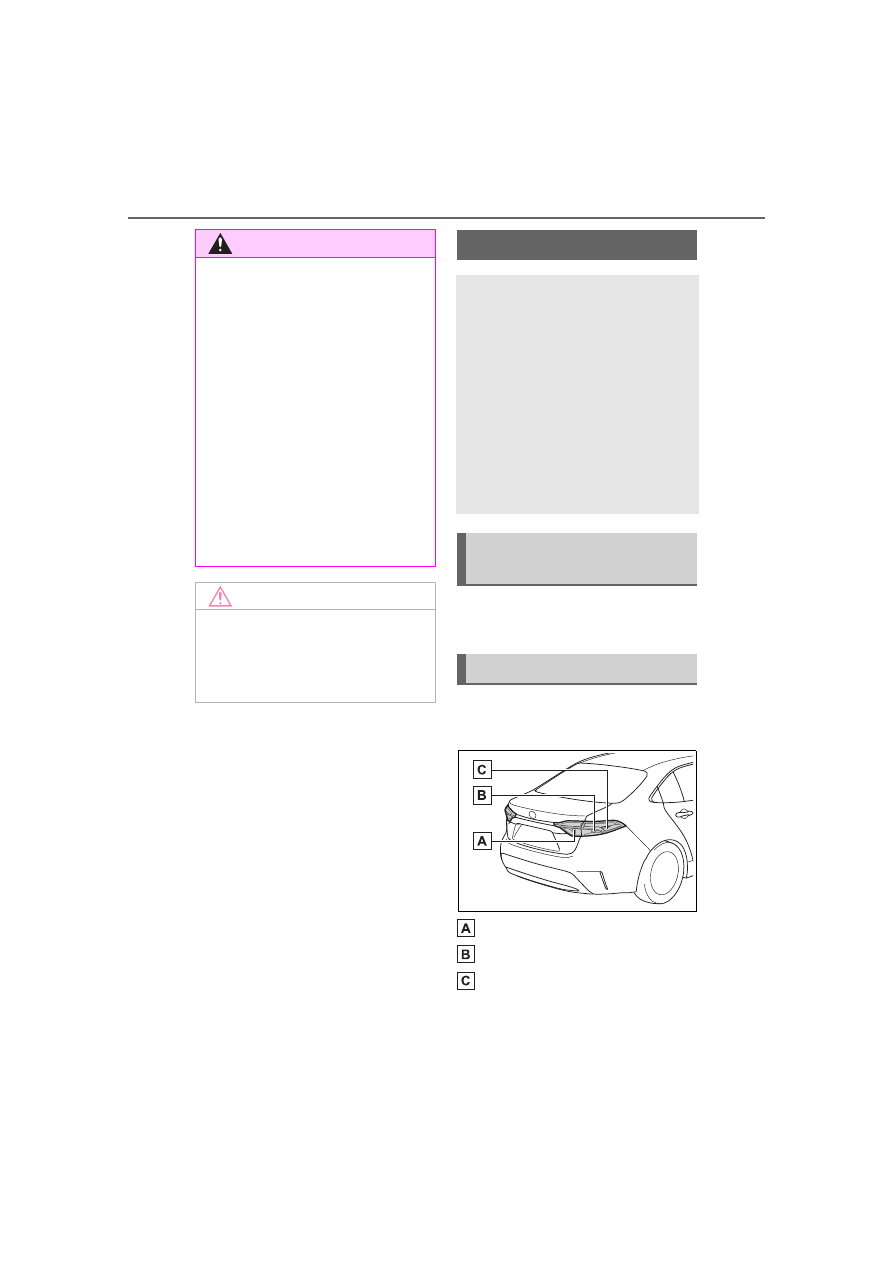

Bulb locations

357

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

Bulbs that need to be
replaced by your Toyota
dealer



Headlights/daytime running
lights



Parking lights



Front turn signal lights



Front side marker lights



LED accent lights (if
equipped)



Side turn signal lights (if
equipped)



Tail lights



Stop lights



Rear side marker lights (LED
type)



High mounted stoplight



License plate lights

■

LED light bulbs

The lights other than the rear turn

signal lights, rear side marker lights

(bulb type) and back-up lights con-

sist of a number of LEDs. If any of

the LEDs burn out, take your vehicle

to your Toyota dealer to have the

light replaced.

■

Condensation build-up on the

inside of the lens

In certain situations, such as when

driving in the rain or when washing

the vehicle, condensation may form

on the inner side of the headlight

lens and other lights. As each light

has a ventilation hole, moist air may

enter. If the ambient temperature is

low, condensation may form tempo-

rarily, but it will dissipate as the

inside of the light is warmed up. As

the condensation is due to a phe-

nomenon similar to windows fogging

in the rain, it does not indicate a

malfunction.
Contact your Toyota dealer for more

information in the following situa-

tions:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the

headlight.

■

When replacing light bulbs



P.355

■

Rear turn signal lights and
rear side marker lights
(vehicles with blub type
rear side marker lights)

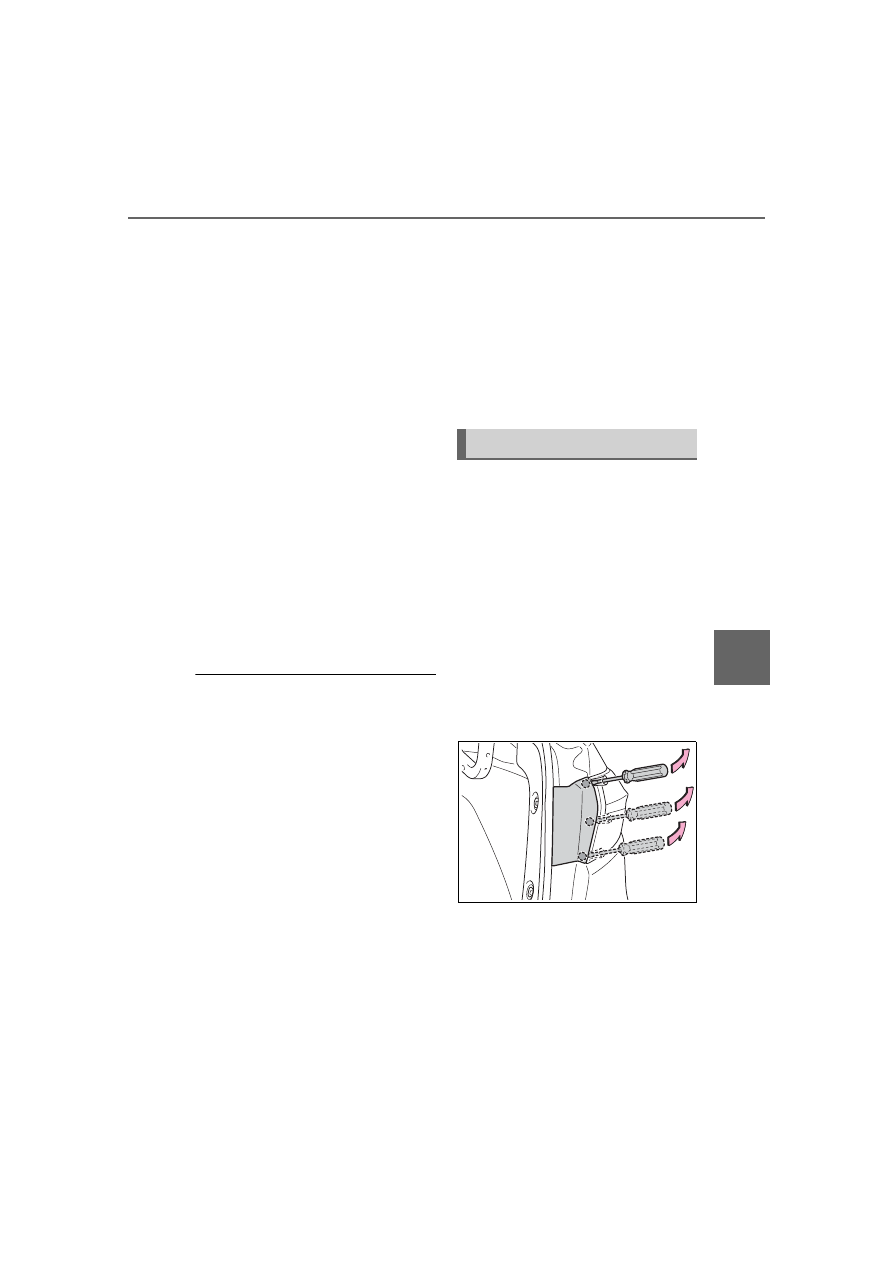

Open the trunk lid.

Insert a flathead screwdriver
between the cover and the
light assembly and pry up the

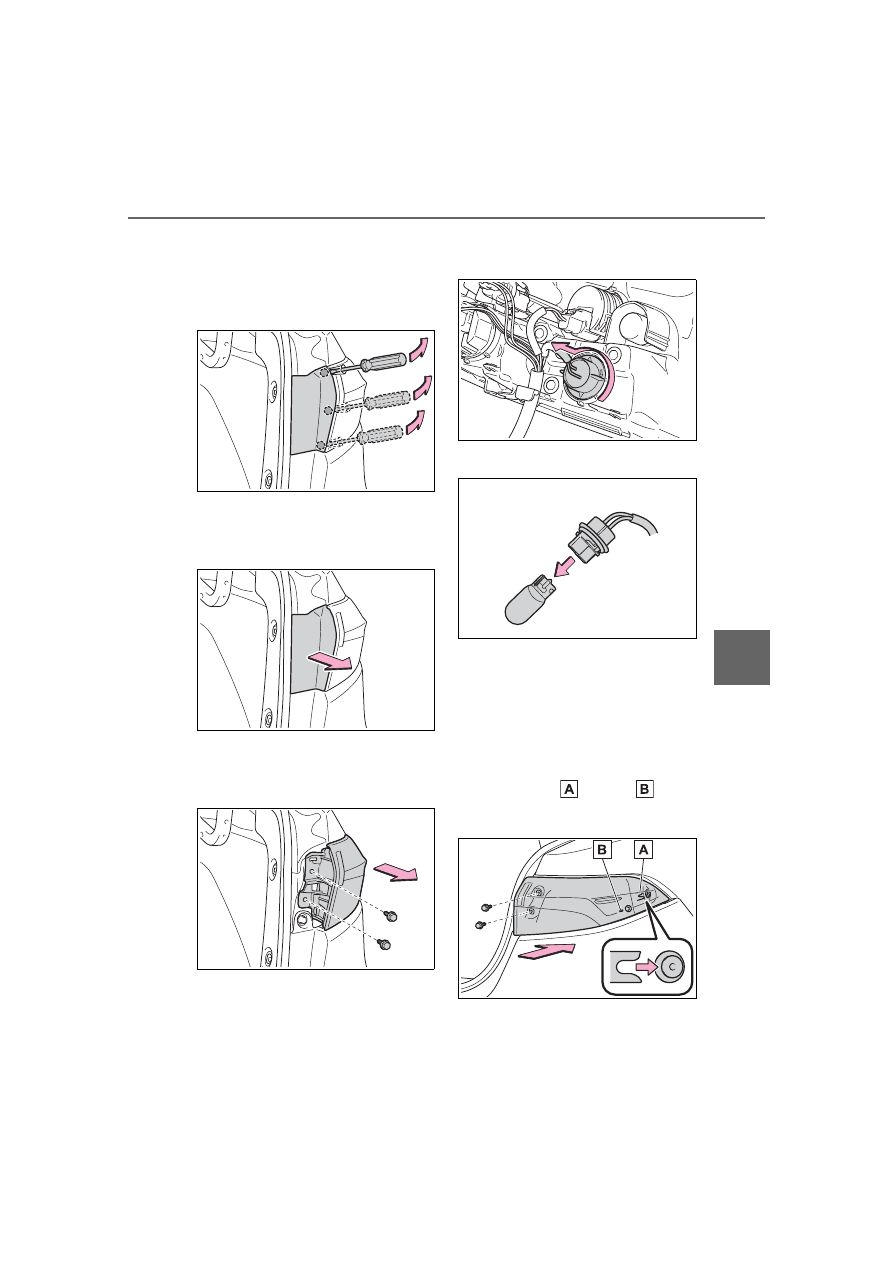

cover to disengage the claws
(indicated by a dotted line).

To prevent scratching the vehicle,

wrap the tip of the flathead screw-

driver with a cloth, etc.

Replacing light bulbs

358

6-3. Do-it-yourself maintenance

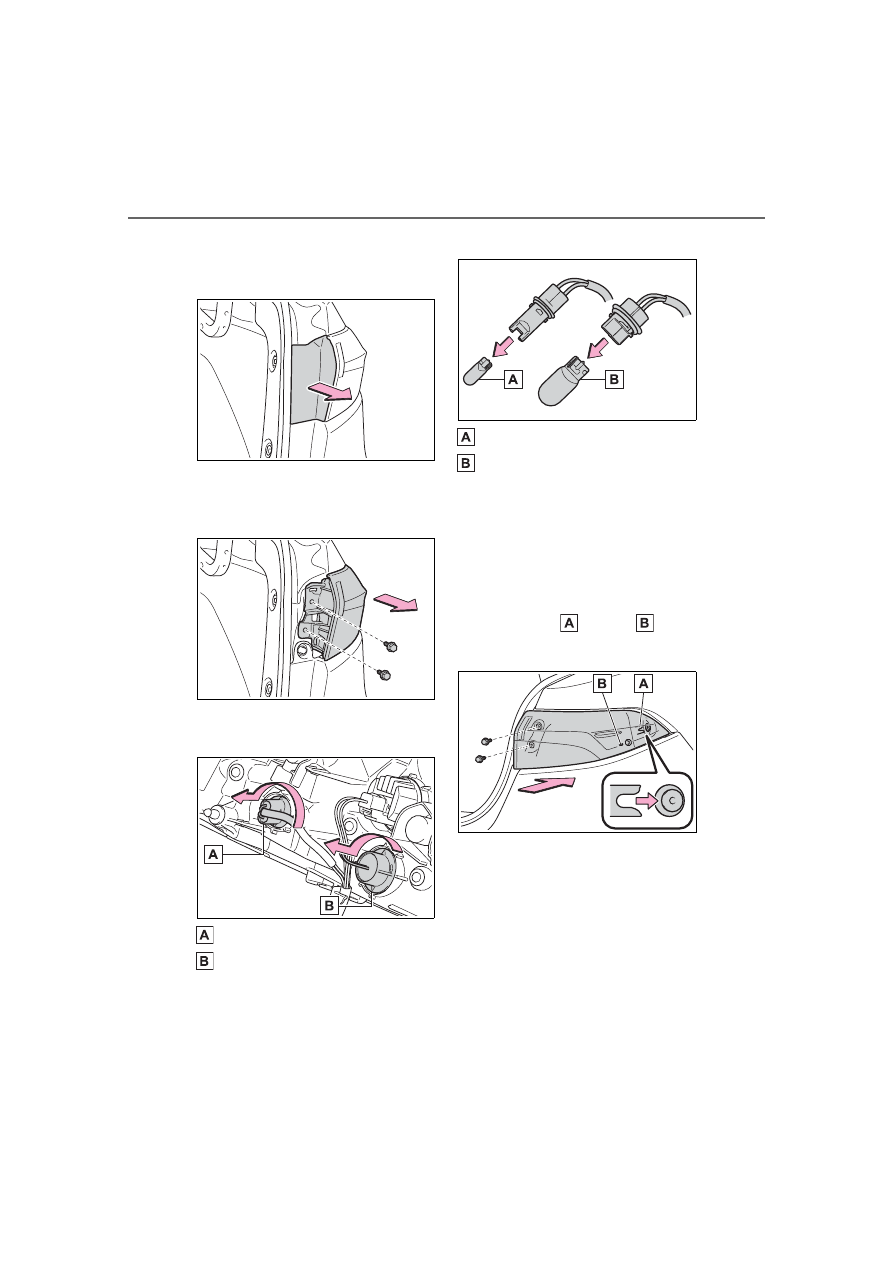

Pull the cover toward the rear
of the vehicle and remove the
cover.

Remove the 2 screws and
then remove the light assem-
bly by pulling it straight back.

Turn the bulb base counter-
clockwise.

Rear side marker lights
Rear turn signal lights

Remove the light bulb.

Rear side marker lights
Rear turn signal lights

When installing the light bulb,
install it by conducting steps

and

with the directions

reversed.

Install the light assembly and
then install the 2 screws.

Align the guide

and pin

the light assembly with the mount-

ing when installing it.

Install the cover.

■

Rear turn signal lights
(vehicles with LED type rear
side marker lights)

Open the trunk lid.

Insert a flathead screwdriver
between the cover and the
light assembly and pry up the

359

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

cover to disengage the claws
(indicated by a dotted line).

To prevent scratching the vehicle,

wrap the tip of the flathead screw-

driver with a cloth, etc.

Pull the cover toward the rear
of the vehicle and remove the
cover.

Remove the 2 screws and
then remove the light assem-
bly by pulling it straight back.

Turn the bulb base counter-
clockwise.

Remove the light bulb.

When installing the light bulb,
install it by conducting steps

and

with the directions

reversed.

Install the light assembly and
then install the 2 screws.

Align the guide

and pin

the light assembly with the mount-

ing when installing it.

Install the cover.

360

6-3. Do-it-yourself maintenance

■

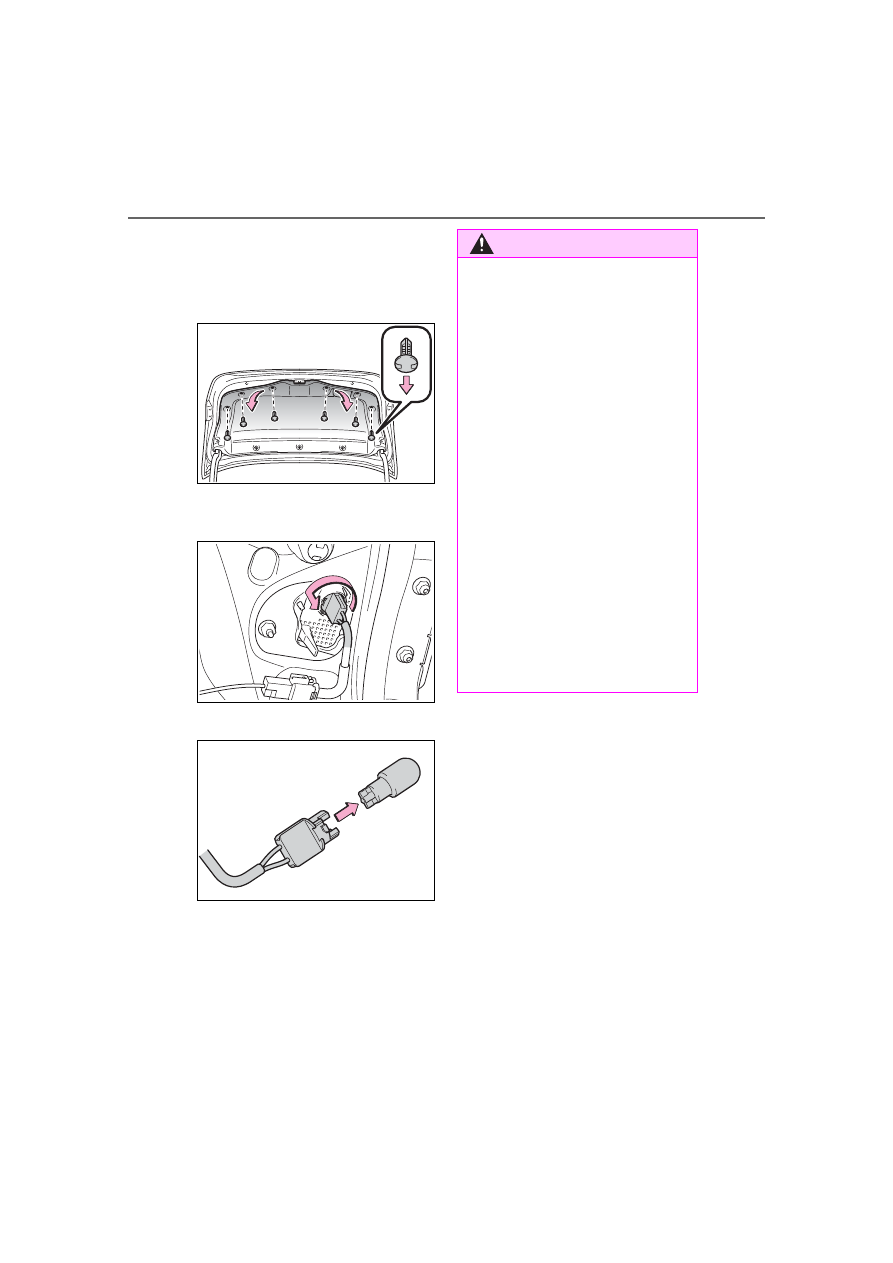

Back-up lights

Open the trunk lid, remove
the clips, and pull back the
cover.

Turn the bulb base counter-
clockwise and remove it.

Remove the light bulb.

When installing, reverse the
steps listed.

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not

attempt to replace the bulb

immediately after turning off the

lights. The bulbs become very

hot and may cause burns.

●

Do not touch the glass portion

of the light bulb with bare

hands. When it is unavoidable

to hold the glass portion, use

and hold with a clean dry cloth

to avoid getting moisture and

oils on the bulb. Also, if the bulb

is scratched or dropped, it may

blow out or crack.

●

Fully install light bulbs and any

parts used to secure them. Fail-

ure to do so may result in heat

damage, fire, or water entering

the light unit. This may damage

the lights or cause condensa-

tion to build up on the lens.

■

To prevent damage or fire

Make sure bulbs are fully seated

and locked.

361

Whe

n tr

ouble

ises

When trouble arises

7-1. Essential information

Emergency flashers ....

362

If your vehicle has to be

stopped in an emergency

..................................

363

If the vehicle is submerged

or water on the road is ris-
ing .............................

364

7-2. Steps to take in an emer-

gency

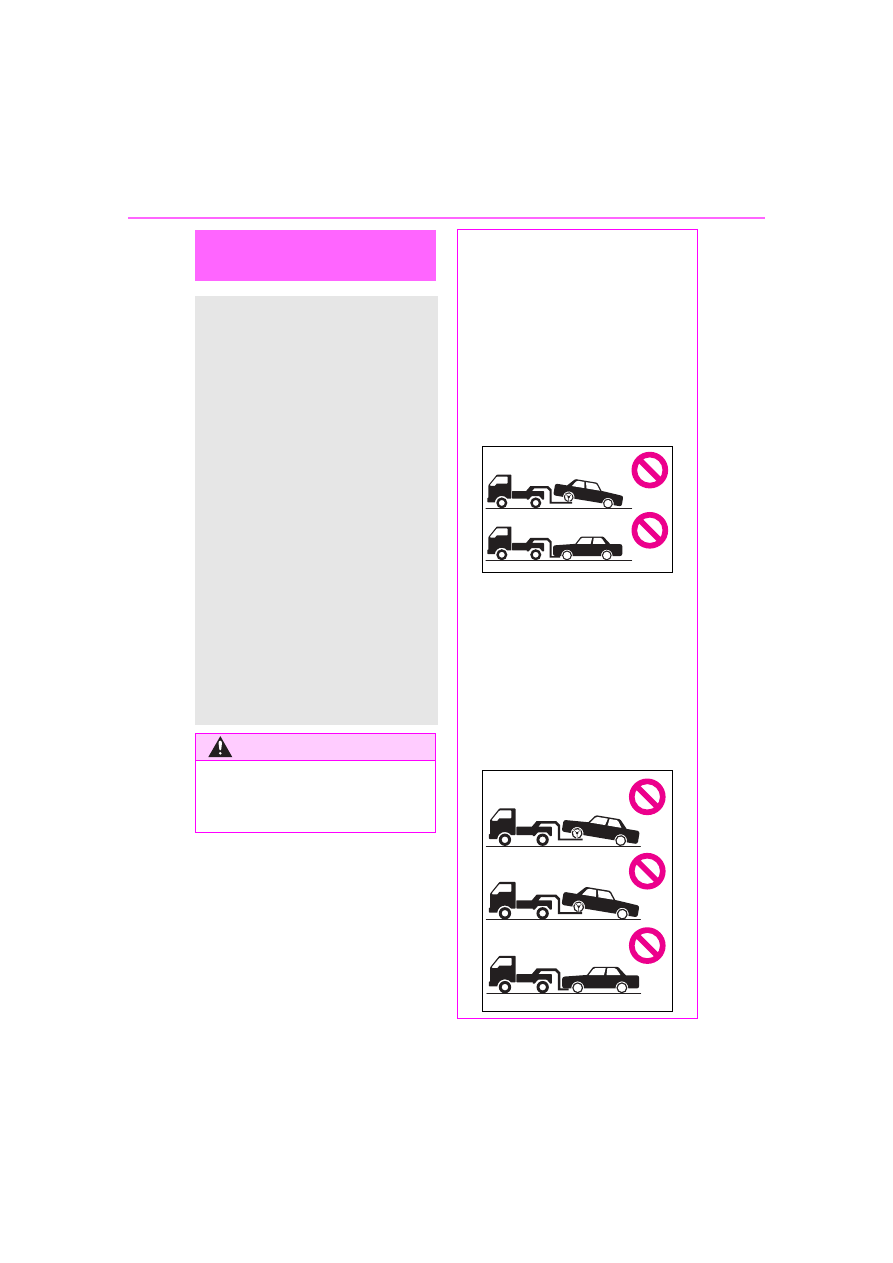

If your vehicle needs to be

towed.........................

366

If you think something is

wrong ........................

370

If a warning light turns on or

a warning buzzer sounds

..................................

372

If a warning message is dis-

played........................

382

If you have a flat tire (vehi-

cles without spare tire)

..................................

387

If you have a flat tire (vehi-

cles with a spare tire)

..................................

398

If the hybrid system will not

start ...........................

406

If you lose your keys ...

407

If the electronic key does

not operate properly ..

408

If the 12-volt battery is dis-

charged .....................

410

If your vehicle overheats

..................................

414

If the vehicle becomes stuck

..................................

417

362

7-1. Essential information

7-1.Essential information

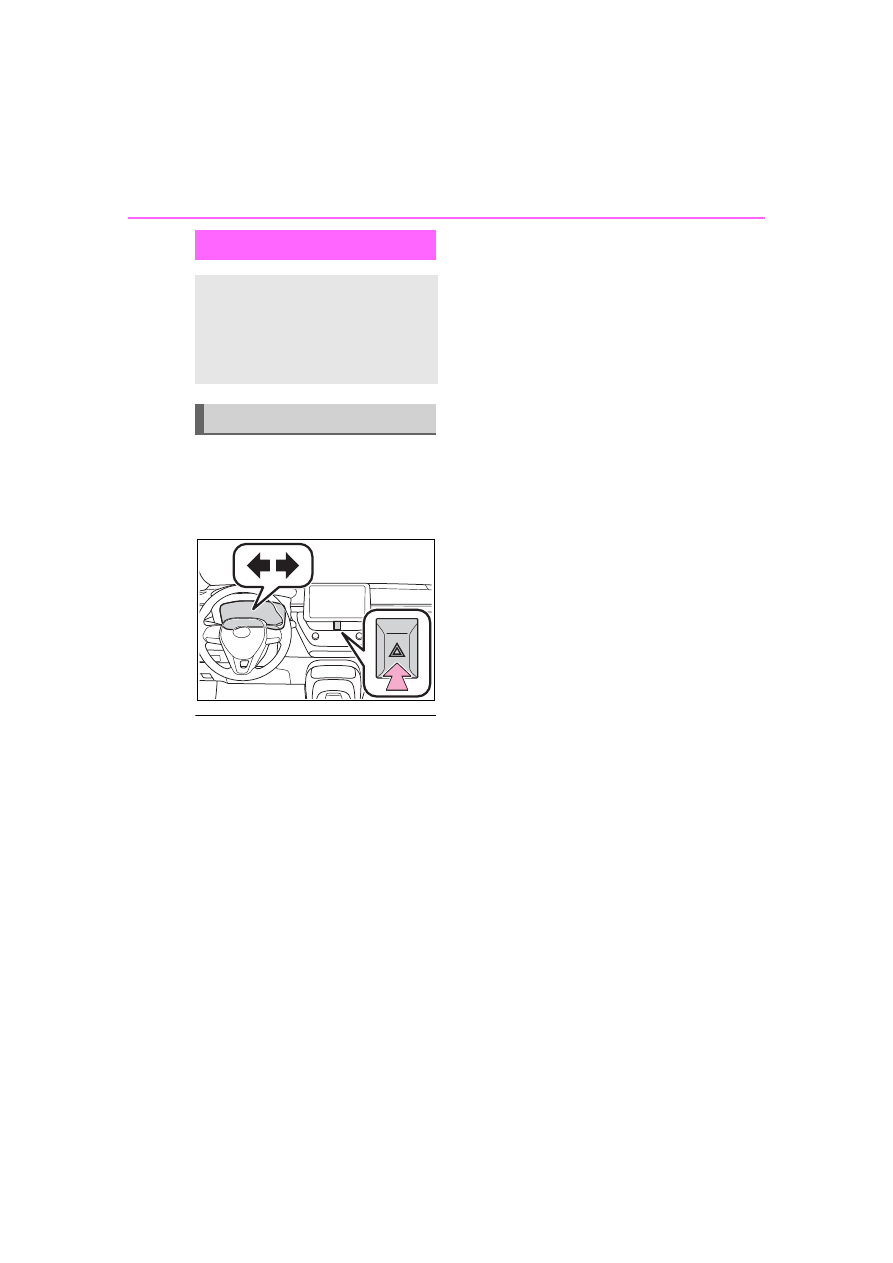

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the

hybrid system is not operating

(while the “READY” indicator is

not illuminated), the 12-volt bat-

tery may discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice.

(The emergency flashers may not

turn on automatically depending

on the force of the impact and

conditions of the collision.)

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to
a breakdown, etc.

Operating instructions

363

7-1. Essential information

tro

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the
vehicle in a safe place by the
road.

Stop the hybrid system.



If the shift lever cannot be
shifted to N

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

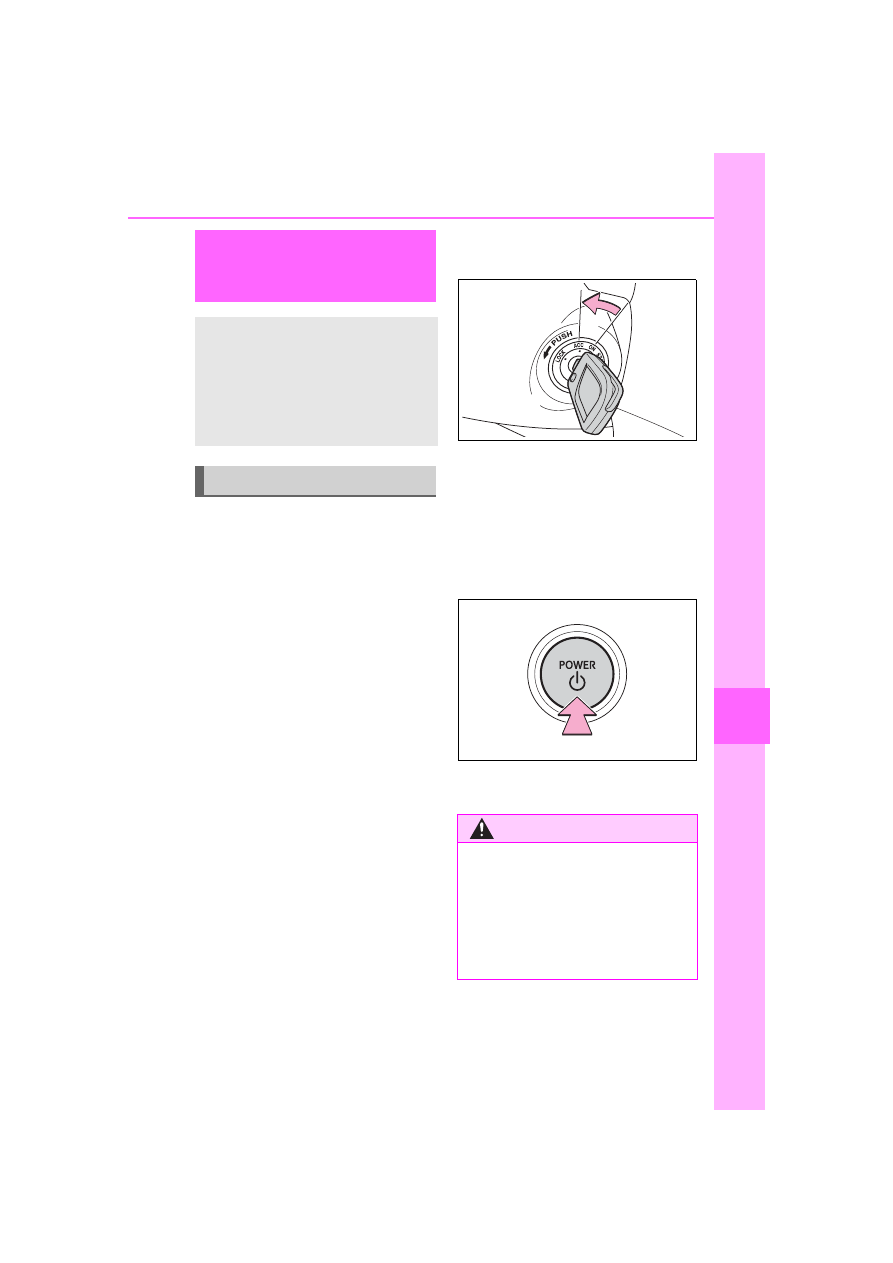

Vehicles without a smart key
system: Stop the hybrid sys-

tem by turning the power
switch to ACC.

Vehicles with a smart key
system: To stop the hybrid
system, press and hold the
power switch for 2 consecu-
tive seconds or more, or
press it briefly 3 times or
more in succession.

Stop the vehicle in a safe
place by the road.

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehicle
using the following proce-
dure:

Stopping the vehicle

WARNING

■

If the hybrid system has to be

turned off while driving

●

Power assist for the steering

wheel will be lost, making the

steering wheel heavier to turn.

Decelerate as much as possible

before turning off the hybrid sys-

tem.

364

7-1. Essential information



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and
ensure an escape route.



If the window can be opened,
exit the vehicle through the
window.



If the door and window cannot
be opened due to the rising
water, remain calm, wait until
the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle and then open the door
after waiting for the rising
water to enter the vehicle, and
exit the vehicle. When the

WARNING

●

Vehicles without a smart key

system: Never attempt to

remove the key, as doing so will

lock the steering wheel.

If the vehicle is sub-

merged or water on

the road is rising

This vehicle is not designed
to be able to drive on roads
that are deeply flooded with
water. Do not drive on roads
where the roads may be
submerged or the water
may be rising. It is danger-
ous to remain in the vehicle,
if it anticipated that the vehi-
cle will be flooded or set a
drift. Remain calm and fol-
low the following.

365

7-1. Essential information

tro

outside water level exceeds
half the height of the door, the
door cannot be opened from
the inside due to water pres-
sure.

■

Water level exceeds the floor

When the water level exceeds the

floor and time has passed, the elec-

trical equipment will get damaged,

the power windows will not operate,

the engine and motor stop, and the

vehicle may not be able to get mov-

ing.

■

Using an emergency escape
hammer

Laminated glass is used in the wind-

shield on this vehicle.

Laminated glass cannot be shat-
tered with an emergency hammer

Tempered glass is used in the win-

dows on this vehicle.

: Contact your Toyota dealer or

aftermarket accessory manufac-
turer for further information about
an emergency hammer.

WARNING

■

Caution while driving

Do not drive on roads where the

roads may be submerged or the

water may be rising. Otherwise

the vehicle may be damaged and

cannot move, as well as become

flooded and set a drift, which may

lead to death.

366

7-2. Steps to take in an emergency

7-2.Steps to take in an emergency

If your vehicle needs

to be towed

If towing is necessary, we
recommend having your
vehicle towed by your Toy-
ota dealer or commercial
towing service, using a
wheel-lift type truck or flat-
bed truck.

Use a safety chain system
for all towing, and abide by
all state/provincial and local
laws.

If towing your vehicle with a
wheel-lift type truck from
the front, the vehicle's rear
wheels and axles must be in
good conditions. (



P.366,

367)
If they are damaged, use a
towing dolly or flatbed
truck.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

When towing the vehicle

2WD models:

Be sure to transport the vehicle

with the front wheels raised or

with all four wheels raised off the

ground. If the vehicle is towed

with the front wheels contacting

the ground, the drivetrain and

related parts may be damaged or

electricity generated by the opera-

tion of the motor may cause a fire

to occur depending on the nature

of the damage or malfunction.

AWD models:

Be sure to transport the vehicle

with all four wheels raised off the

ground. If the vehicle is towed

with the tires contacting the

ground, the drivetrain or related

parts may be damaged, the vehi-

cle may fly off the truck, or elec-

tricity generated by the operation

of the motor may cause a fire to

occur depending on the nature of

the damage or malfunction.

367

7-2. Steps to take in an emergency

tro

The following may indicate a
problem with your transmission.
Contact your Toyota dealer or
commercial towing service
before towing.



The hybrid system warning
message is shown on the
multi-information display and
the vehicle does not move.



The vehicle makes an abnor-
mal sound.



From the front (2WD models)

WARNING

■

While towing

●

When towing using cables or

chains, avoid sudden starts, etc.

which place excessive stress on

the towing eyelets, cables or

chains. The towing eyelets,

cables or chains may become

damaged, broken debris may hit

people, and cause serious dam-

age.

●

Do not turn the power switch off.

There is a possibility that the

steering wheel is locked and

cannot be operated.

■

Installing towing eyelets to

the vehicle

Make sure that towing eyelets are

installed securely.

If not securely installed, towing

eyelets may come loose during

towing.

NOTICE

■

To prevent damage to the

vehicle when towing using a

wheel-lift type truck

●

Vehicles without a smart key

system: Do not tow the vehicle

from the rear when the power

switch is off. The steering lock

mechanism is not strong

enough to hold the front wheels

straight.

●

Vehicles with a smart key sys-

tem: Do not tow the vehicle from

the rear when the power switch

is off.

●

When raising the vehicle,

ensure adequate ground clear-

ance for towing at the opposite

end of the raised vehicle. With-

out adequate clearance, the

vehicle could be damaged while

being towed.

■

To prevent damage to the

vehicle when towing with a

sling-type truck

Do not tow with a sling-type truck,

either from the front or rear.

■

To prevent damage to the

vehicle during emergency

towing

Do not secure cables or chains to

the suspension components.

Situations when it is nec-
essary to contact dealers
before towing

Towing with a wheel-lift
type truck

368

7-2. Steps to take in an emergency

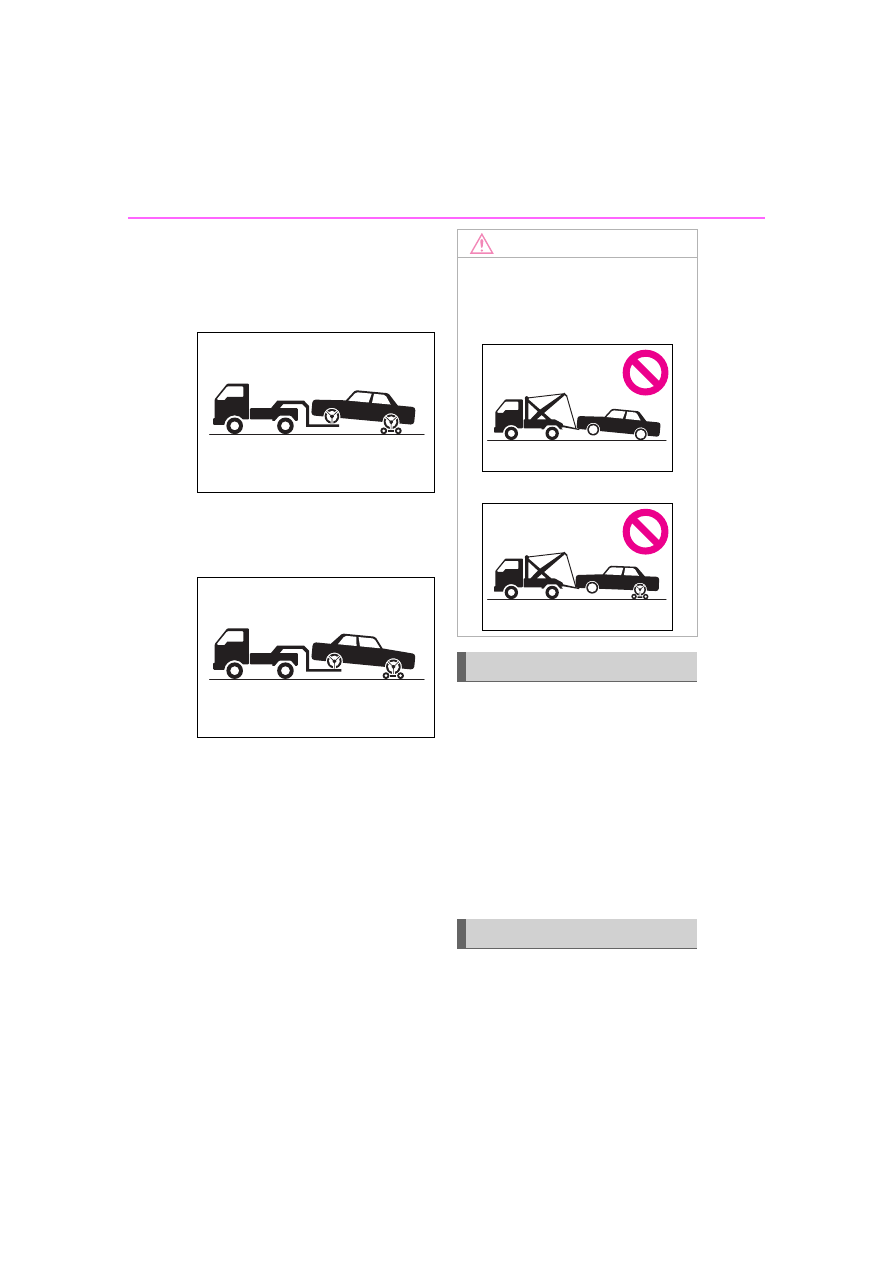

Release the parking brake.
Turn automatic mode off.
(



P.184)



From the front (AWD models)

Use a towing dolly under the
rear wheels.



From the rear

Use a towing dolly under the
front wheels.

When using a flat-bed truck to
transport the vehicle, use tire
strapping belts. Refer to the
owner's manual of the flat-bed
truck for the tire strapping
method.
In order to suppress vehicle
movement during transporta-
tion, set the parking brake and
turn the power switch off.

If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using
cables or chains secured to the

NOTICE

■

Towing with a sling-type truck

Do not tow with a sling-type truck

to prevent body damage.
2WD models:

AWD models:

Using a flatbed truck

Emergency towing

369

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

emergency towing eyelets. This
should only be attempted on
hard surfaced roads for short
distances at under 18 mph (30
km/h).
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.

To have your vehicle towed by
another vehicle, the towing eye-
let must be installed to your
vehicle. Install the towing eyelet
using the following procedure.

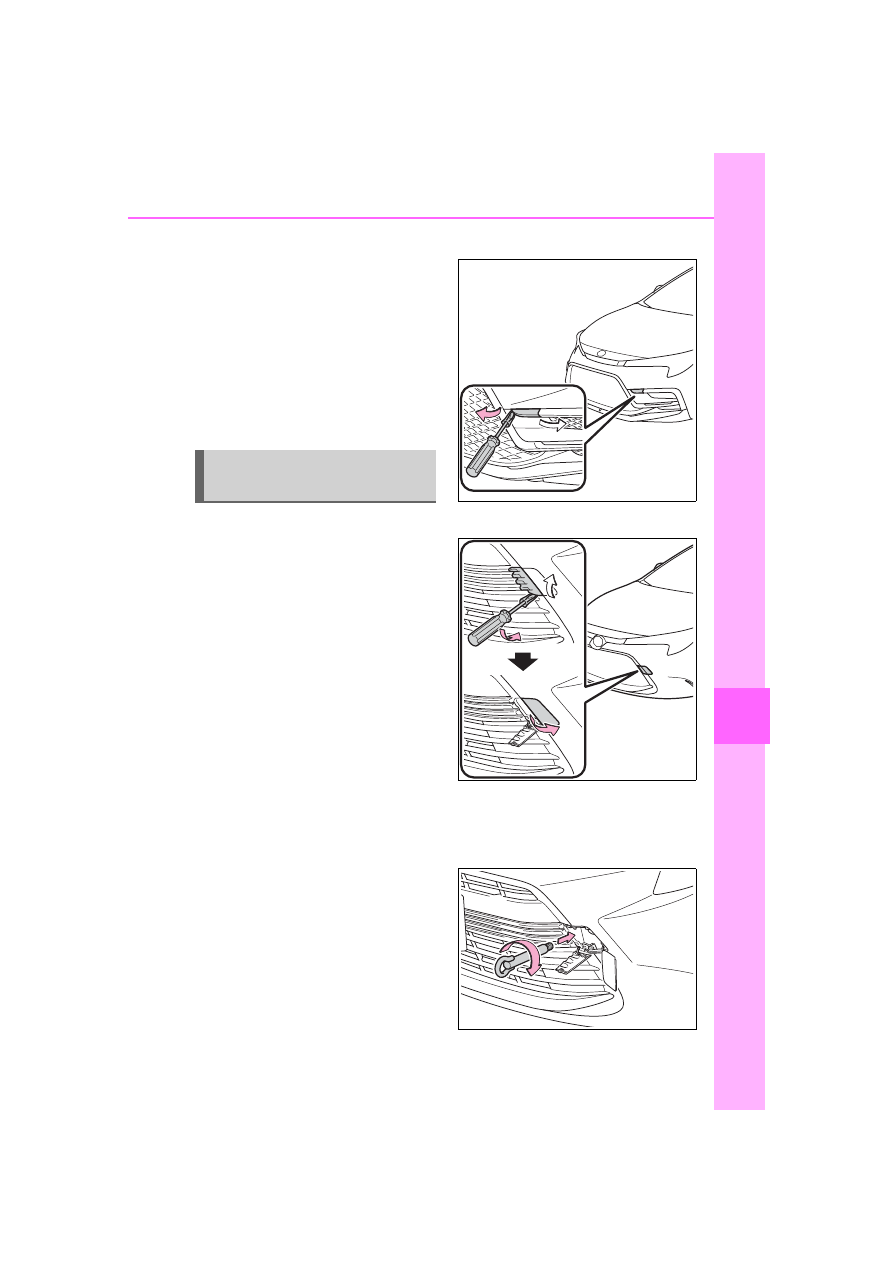

Take out the wheel nut
wrench(if equipped) and tow-
ing eyelet. (



P.387, 399)

Remove the eyelet cover
using a flathead screwdriver.

To protect the bodywork, place a

rag between the screwdriver and

the vehicle body as shown in the

illustration.



Type A



Type B

Insert the towing eyelet into
the hole and tighten partially
by hand.

Emergency towing proce-
dure

Content .. 20 21 22 23 ..
