338

6-3. Do-it-yourself maintenance

sure of each tire on the multi-infor-

mation display.

9

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

When registration is complete, the

tire pressure warning light will turn

off and a message indicating that

registration has been completed

will be displayed on the multi-infor-

mation display.
Registration may take longer than

normal to complete if the vehicle

speed cannot be maintained at

approximately 25 mph (40 km/h) or

more. If registration cannot be com-

pleted after driving for 1 hour or

more, perform the registration pro-

cedure again from the beginning.

10

If the tire inflation pressure of

the wheel set installed differs
from that of the previous set,
it will be necessary to per-
form the tire inflation pres-
sure setting procedure of the
tire pressure warning system.

If the specified tire inflation pres-

sure is the same, it will not be nec-

essary to perform the tire inflation

pressure setting procedure.

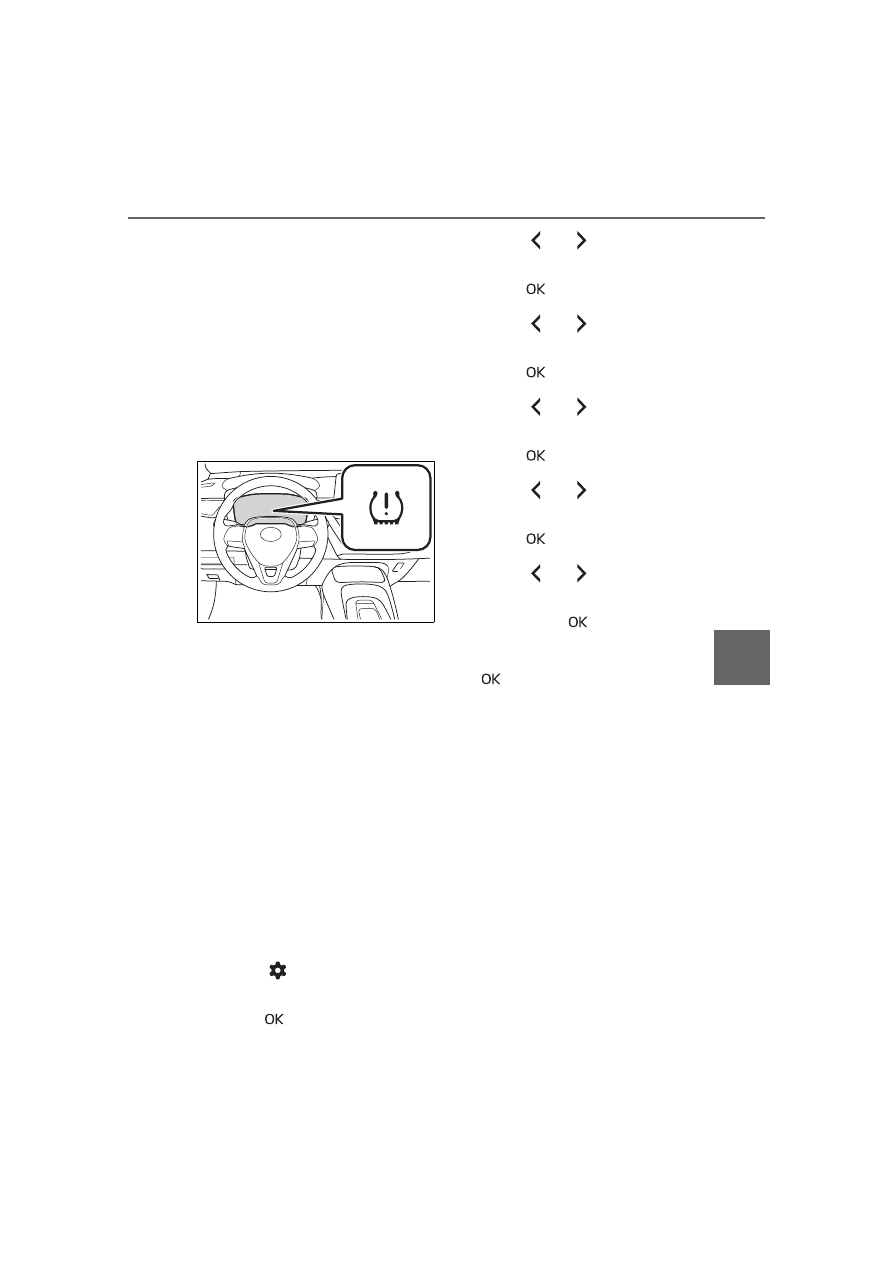

7-inch display

1

Park the vehicle in a safe
place and turn the engine
switch off, wait for approxi-
mately 20 minutes or more,
and then start the hybrid sys-
tem.

The ID code registration procedure

cannot be performed while the

vehicle is moving.

2

Select

 of the multi-infor-

mation display and then

press

.

3

Press

 or

 to select

“Vehicle Settings” and then

press and hold

.

4

Press

 or

 to select

“TPWS setting” and then

press

.

5

Press

 or

 to select

“Tire Set Switching” and then

press

.

6

Press

 or

 to select

“Register New Valve / ID” and

then press

.

7

Press

 or

 to select

“Tire Set 1” or “Tire Set 2”.

Then press

.

ID codes will be registered to the

displayed wheel set.
If ID codes have already been reg-

istered for that wheel set, the tire

pressure warning light will slowly

blink 3 times, and a message indi-

cating that change is occurring will

be displayed on the multi-informa-

tion display.

339

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

8

Select “OK” and then press

.

The tire pressure warning light will

slowly blink 3 times and a message

indicating that ID code registration

is being performed will be displayed

on the multi-information display.

Wheel set changing will be can-

celed and registration will begin.
When registration is being per-

formed, the tire pressure warning

light will blink for approximately 1

minute then illuminate and “---” will

be displayed for the inflation pres-

sure of each tire on the multi-infor-

mation display.

9

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

When registration is complete, the

tire pressure warning light will turn

off and a message indicating that

registration has been completed

will be displayed on the multi-infor-

mation display.
Registration may take longer than

normal to complete if the vehicle

speed cannot be maintained at

approximately 25 mph (40 km/h) or

more. If registration cannot be com-

pleted after driving for 1 hour or

more, perform the registration pro-

cedure again from the beginning.

10

If the tire inflation pressure of

the wheel set installed differs
from that of the previous set,
it will be necessary to per-
form the tire inflation pres-
sure setting procedure of the
tire pressure warning system.

If the specified tire inflation pres-

sure is the same, it will not be nec-

essary to perform the tire inflation

pressure setting procedure.

When registering ID codes

Normally, ID codes registration

can be completed within approxi-

mately 30 minutes.

ID code registration is performed

while driving at a vehicle speed of

approximately 25 mph (40 km/h)

or more.

If ID codes are not registered

easily

In the following situations, ID code

registration may take longer than

usual to be completed or may not

be possible.

• When the vehicle has not been

parked for approximately 20 min-

utes or more before being driven

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valve

and transmitters of your vehicle

over those of other vehicles

• Wheel with tire pressure warning

valve and transmitter installed is

inside or near the vehicle

If the vehicle is reversed during

registration, all data collected until

then will be cleared. Perform driv-

ing again.

If the tire pressure warning light

does not blink 3 times when start-

ing ID code registration proce-

dure to step

8

, the procedure may

not have started. Perform the pro-

cedure again from the beginning.

If registration does not complete

after driving for 1 hour or more,

perform the ID code registration

procedure again from the begin-

ning.

If the ID codes cannot be regis-

tered even when performing the

above procedure, contact your

Toyota dealer.

340

6-3. Do-it-yourself maintenance

Canceling ID code registration

To cancel ID code registration after

it has been started, select “Register

Valve / ID” again on the multi-infor-

mation display.
If ID code registration has been can-

celed, the tire pressure warning light

will turn off.
If the warning light does not turn off,

ID code registration may not have

been cancelled correctly. To cancel

registration, select “Register Valve /

ID” on the multi-information display.

Your vehicle is equipped with a
tire pressure warning system
with a function to register two
sets of ID codes. This allows for
registration of a second wheel
set, for example a winter set.
The wheel set can be changed
only if a second wheel set has
been registered to the system. If
a second wheel set has not
been registered, it will not be
possible to change to the
selected wheel set.
ID codes can be registered by
yourself.

Only a change between both
registered wheel set is possi-
ble, mixing between these
wheel sets is not supported.

While registering ID codes, it
may not be possible to
change between wheel sets
normally. Cancel registration
before changing between
wheel sets.

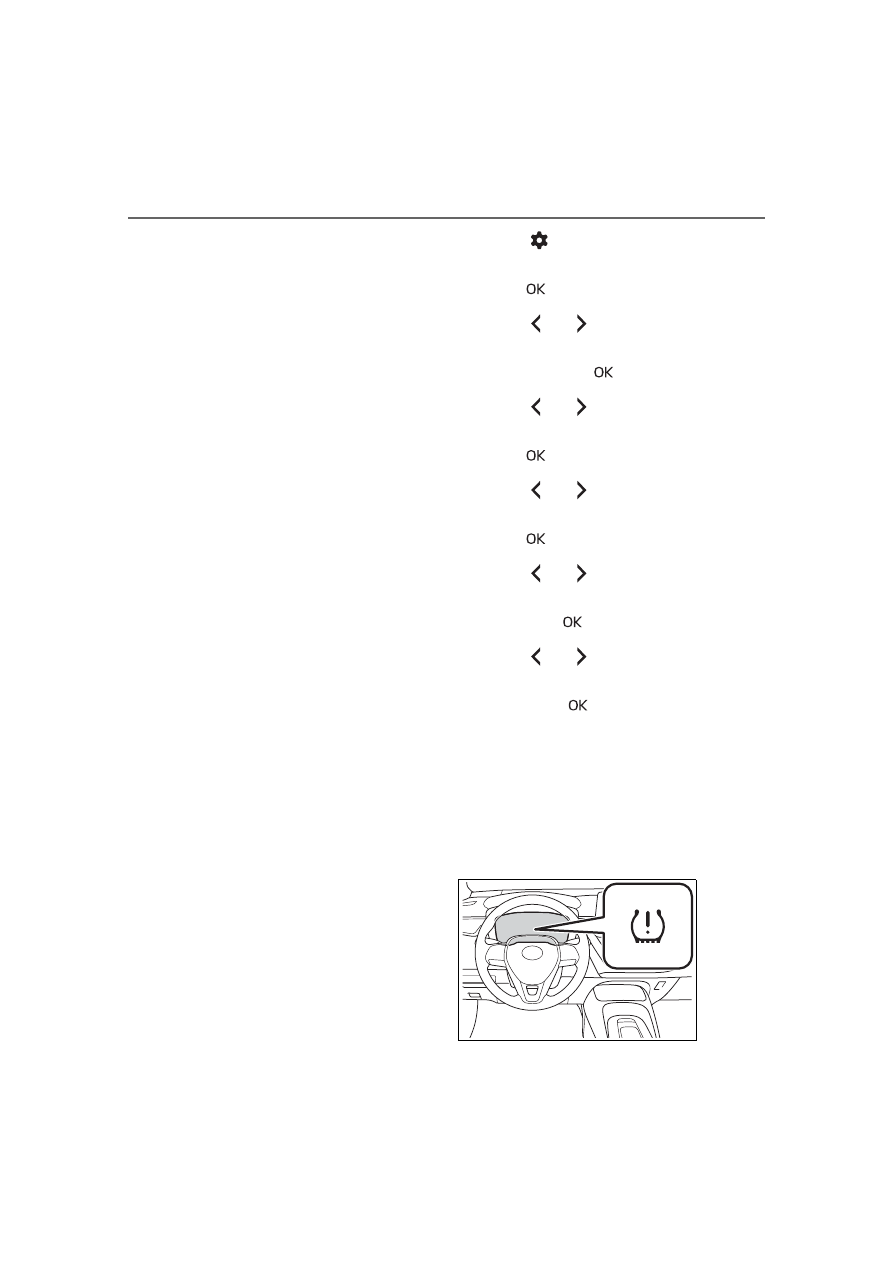

4.2-inch display

1

Install the desired wheel set.

2

Select

 of the multi-infor-

mation display and then

press

.

3

Press

 or

 to select

“Vehicle Settings” and then

press

.

4

Press

 or

 to select

“TPWS setting” and then

press

.

5

Press

 or

 to select

“Tire Set Switching” and then

press

.

6

Press

 or

 to select

“Register Valve / ID” and then

press

.

7

Press

 or

 to select

“Tire Set 1” or “Tire Set 2”.

Then press

.

8

Select “OK” and then press

.

The tire pressure warning light will

slowly blink 3 times, a message

indicating that change is occurring

will be displayed, and the wheel set

change will begin.

Wheel set change will begin and

the tire pressure warning light will

blink for 1 minute and then illumi-

nate.
Also, while the change is being per-

formed, “---” will be displayed for

the tire inflation pressure of each

tire on the multi-information display.

Selecting wheel set

341

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

After approximately 2 minutes, the

wheel set change will complete, the

tire pressure warning light will turn

off, and a completion message will

be displayed on the multi-informa-

tion display.
If changing does not complete after

approximately 4 minutes, a mes-

sage indicating that the change

could not be completed will be dis-

played.
Check which wheel set is installed

and perform the change procedure

again from the beginning.

9

If the specified tire inflation
pressure of the wheel set
installed differs from that of
the previous set, it will be
necessary to perform the tire
inflation pressure setting pro-
cedure of the tire pressure
warning system. (

P.333)

If the specified tire inflation pres-

sure is the same, it will not be nec-

essary to perform the tire inflation

pressure setting procedure.

10

Register the position of each

wheel.

7-inch display

1

Install the desired wheel set.

2

Select

 of the multi-infor-

mation display and then

press

.

3

Press

 or

 to select

“Vehicle Settings” and then

press

.

4

Press

 or

 to select

“TPWS setting” and then

press

.

5

Press

 or

 to select

“Tire Set Switching” and then

press

.

6

Press

 or

 to select

“Register Valve / ID” and then

press

.

7

Press

 or

 to select

“Tire Set 1” or “Tire Set 2”.

Then press

.

8

Select “OK” and then press

.

The tire pressure warning light will

slowly blink 3 times, a message

indicating that change is occurring

will be displayed, and the wheel set

change will begin.

Wheel set change will begin and

the tire pressure warning light will

blink for 1 minute and then illumi-

nate.
Also, while the change is being per-

formed, “---” will be displayed for

the tire inflation pressure of each

tire on the multi-information display.
After approximately 2 minutes, the

wheel set change will complete, the

tire pressure warning light will turn

off, and a completion message will

be displayed on the multi-informa-

tion display.
If changing does not complete after

approximately 4 minutes, a mes-

342

6-3. Do-it-yourself maintenance

sage indicating that the change

could not be completed will be dis-

played.
Check which wheel set is installed

and perform the change procedure

again from the beginning.

9

If the specified tire inflation
pressure of the wheel set
installed differs from that of
the previous set, it will be
necessary to perform the tire
inflation pressure setting pro-
cedure of the tire pressure
warning system. (

P.333)

If the specified tire inflation pres-

sure is the same, it will not be nec-

essary to perform the tire inflation

pressure setting procedure.

10

Register the position of each

wheel.

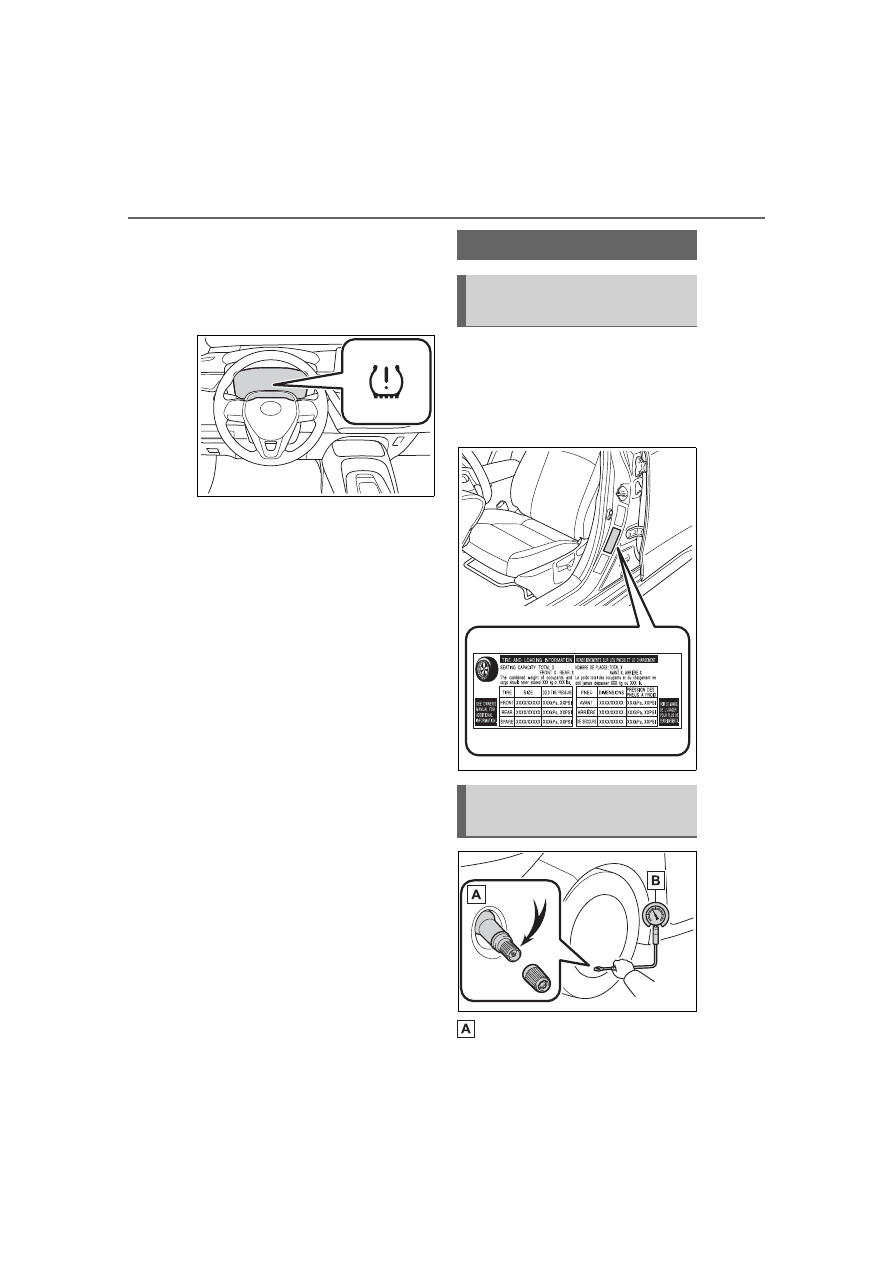

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(

P.426)

Tire valve

Tire inflation pressure

Checking the specified
tire inflation pressure

Inspection and adjust-
ment procedure

343

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Tire pressure gauge

1

Remove the tire valve cap.

2

Press the tip of the tire pres-
sure gauge onto the tire
valve.

3

Read the pressure using the
gauge gradations.

4

If the tire inflation pressure is
not at the recommended
level, adjust the pressure.
If you add too much air, press
the center of the valve to
deflate.

5

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

6

Put the tire valve cap back
on.

Tire inflation pressure check

interval

You should check tire inflation pres-

sure every two weeks, or at least

once a month. Do not forget to

check the spare.

Effects of incorrect tire inflation

pressure

Driving with incorrect tire inflation

pressure may result in the following:

Reduced fuel economy

Reduced driving comfort and poor

handling

Reduced tire life due to wear

Reduced safety

Damage to the drive train

If a tire needs frequent inflating,

have it checked by your Toyota

dealer.

Instructions for checking tire

inflation pressure

When checking tire inflation pres-

sure, observe the following:

Check only when the tires are

cold.

If your vehicle has been parked for

at least 3 hours or has not been

driven for more than 1 mile or 1.5

km, you will get an accurate cold

tire inflation pressure reading.

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

Never exceed the vehicle capacity

weight.

Passengers and luggage weight

should be placed so that the vehi-

cle is balanced.

WARNING

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

Excessive wear

Uneven wear

Poor handling

Possibility of blowouts resulting

from overheated tires

Air leaking from between tire

and wheel

Wheel deformation and/or tire

damage

344

6-3. Do-it-yourself maintenance

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

*

.

Replacement wheels are avail-
able at your Toyota dealer.

*

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:

Wheels of different sizes or
types

Used wheels

Bent wheels that have been
straightened

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, the tire pressure warning

valves and transmitters must be

installed. (

P.330)

WARNING

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

345

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Use only Toyota wheel nuts
and wheel nut wrenches
designed for use with your
aluminum wheels.

When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).

Be careful not to damage the
aluminum wheels when using
tire chains.

Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

WARNING

When replacing wheels

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire.

Doing so may result in an acci-

dent, causing death or serious

injury.

When installing the wheel

nuts

Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively tight-

ened, leading to bolt or disc wheel

damage. In addition, the oil or

grease can cause the wheel nuts

to loosen and the wheel may fall

off, causing an accident and

resulting in death or serious injury.

Remove any oil or grease from

the wheel bolts or wheel nuts.

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels. Doing so could cause the

tire to leak air during driving, pos-

sibly causing an accident.

NOTICE

Replacing tire pressure warn-

ing valves and transmitters

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

Ensure that only genuine Toyota

wheels are used on your vehi-

cle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions (if equipped)

346

6-3. Do-it-yourself maintenance

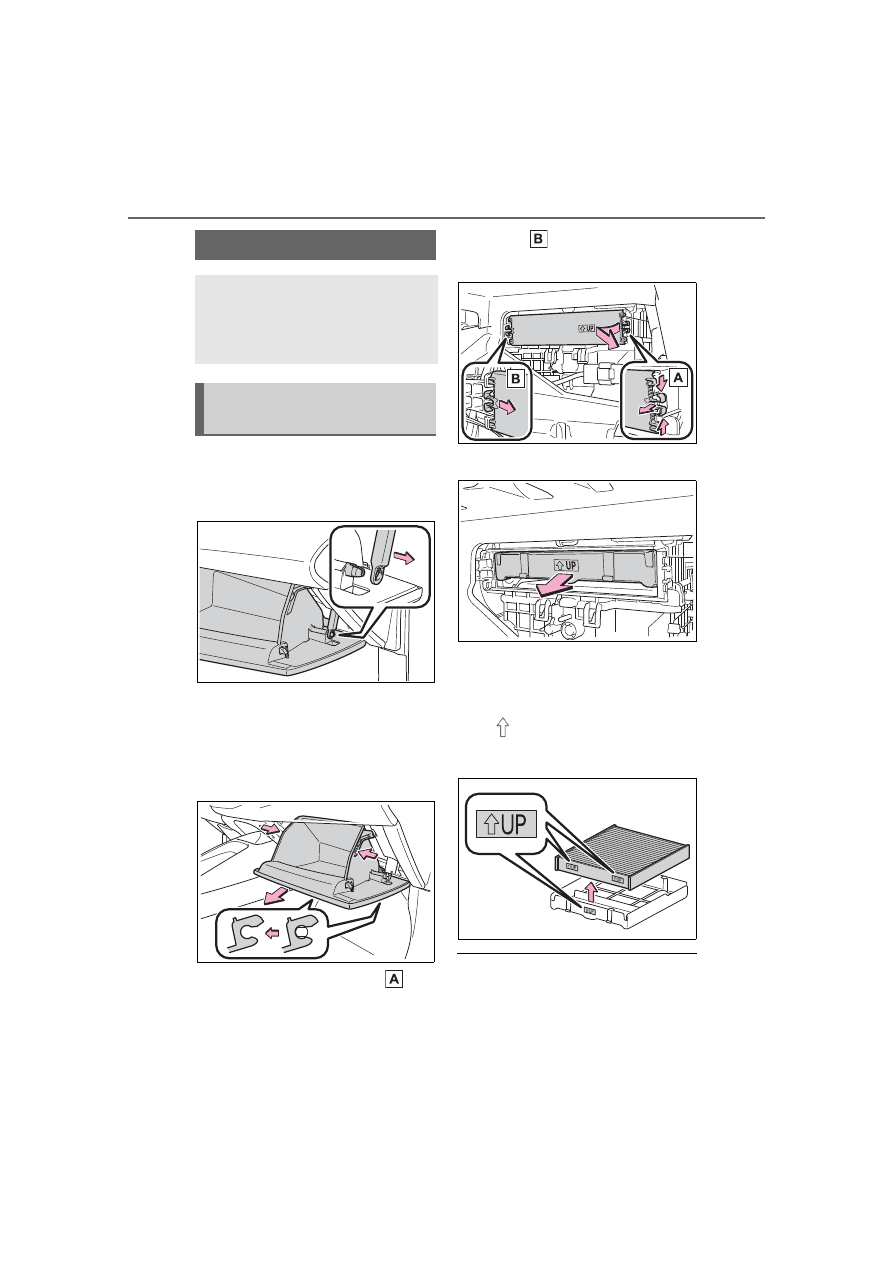

1

Turn the power switch off.

2

Open the glove box. Slide off
the damper.

3

Push in the glove box on the
vehicle’s outer side to discon-
nect the claws. Then pull out
the glove box and disconnect
the lower claws.

4

Unlock the filter cover ( ),
pull the filter cover out of the

claws ( ), and remove the
filter cover.

5

Remove the filter case.

6

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter and the filter case should be

pointing up.

Checking interval

Replace the air conditioning filter

according to the maintenance

schedule. In dusty areas or areas

with heavy traffic flow, early replace-

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removing the air condi-
tioning filter

347

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

ment may be required. (For sched-

uled maintenance information,

please refer to the “Scheduled

Maintenance Guide” or “Owner’s

Manual Supplement”.)

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

Scheduled maintenance of the

air intake vent is necessary

when

In some situations such as when the

vehicle is used frequently or in

heavy traffic or dusty areas, the air

intake vent may need to be cleaned

more regularly. For details, refer to

“Scheduled Maintenance Guide” or

“Owner’s Manual Supplement”.

Cleaning the air intake vent

Improper handling of the air intake

vent cover and filter may result in

damage to them. If you have any

concerns about cleaning the filter,

contact your Toyota dealer.

NOTICE

When using the air condition-

ing system

Make sure that a filter is always

installed.

Using the air conditioning system

without a filter may cause damage

to the system.

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

Cleaning the hybrid

battery (traction bat-

tery) air intake vents

To prevent the fuel economy
from being affected, visually
inspect the hybrid battery
(traction battery) air intake
vents periodically for clogs.
If it is dusty or clogged or if
“Maintenance Required for
Traction Battery Cooling
Parts See Owner’s Manual”
is displayed on the
multi-information display,
clean the air intake vent
using the following proce-
dures:

348

6-3. Do-it-yourself maintenance

1

Turn the power switch off.

2

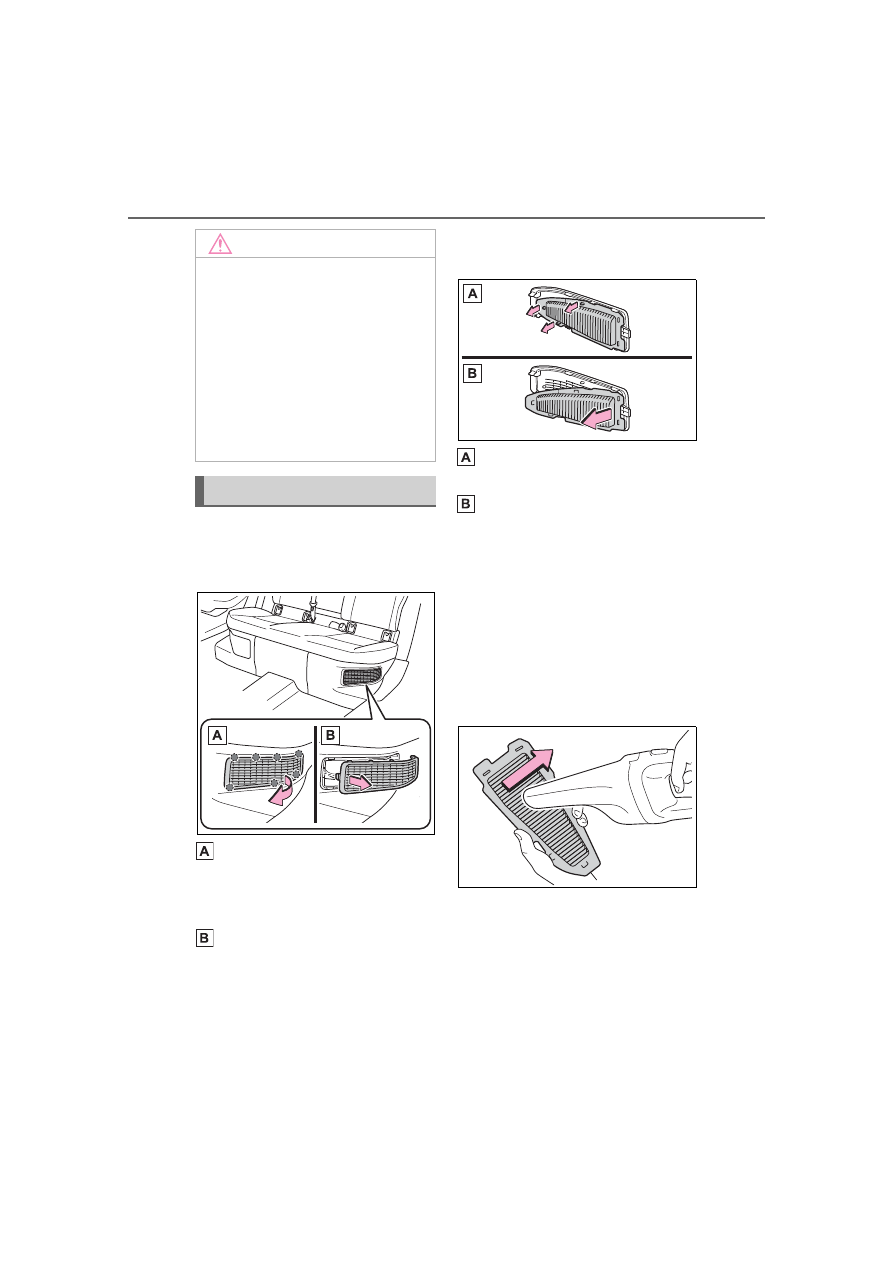

Remove the air intake vent
cover.

Pull the cover as shown in
the illustration to disengage
the 7 claws, starting from the
claw in the upper right corner.
Pull the cover toward the
front of the vehicle to remove
it.

3

Remove the filter from the air
intake vent cover.

Disengage the claw as
shown in the illustration.
Remove the filter from the
cover.

If dust has accumulated on the
air intake vent cover, remove the
dust with a vacuum cleaner, etc.

4

Remove the dust and sand
from the filter.

Using a vacuum cleaner, etc.,

absorb dust and sand from the filter

by profiling the nozzle lightly along

the fold.

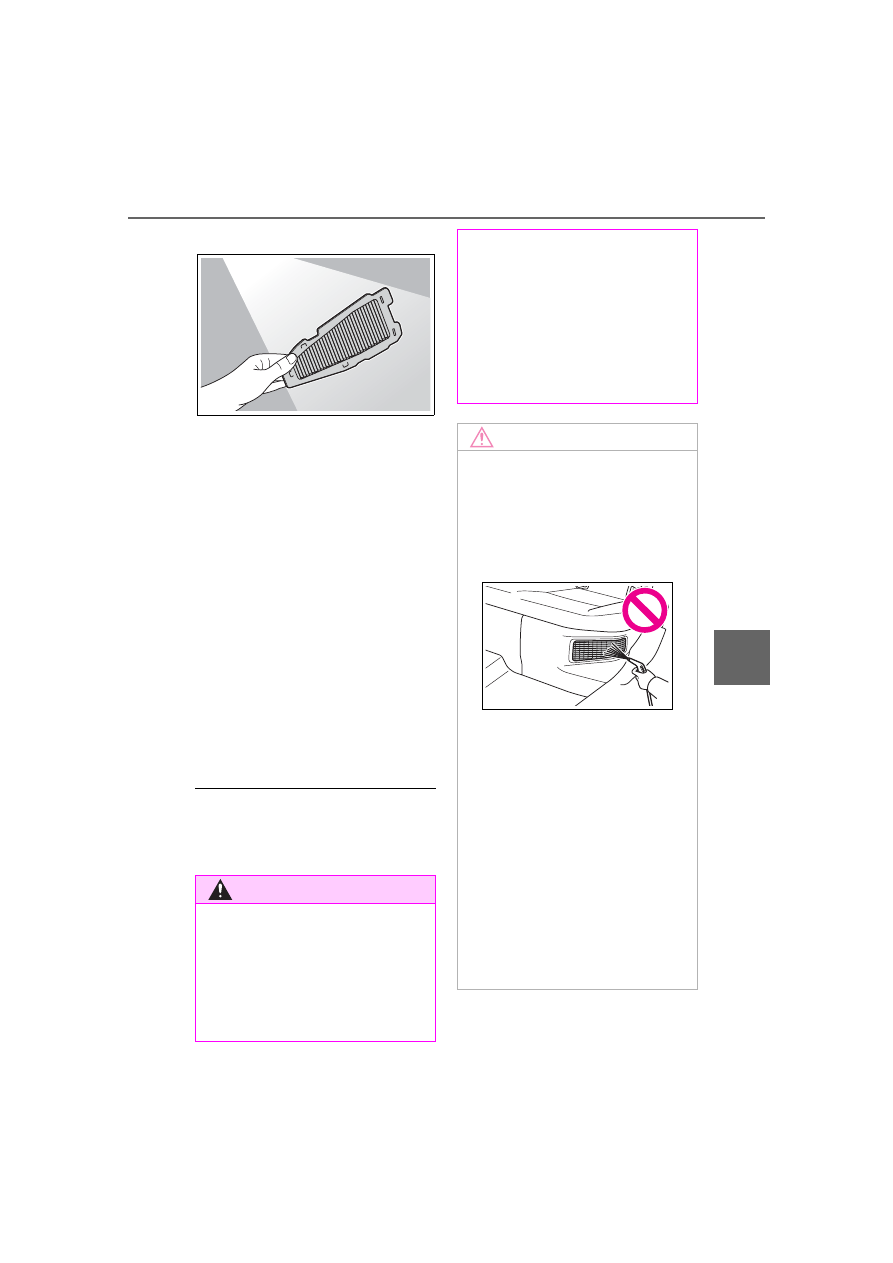

5

Hold the filter to the light and
check if it is not clogged.

If the dust or sand cannot be

removed completely, contact your

NOTICE

If “Maintenance Required for

Traction Battery Cooling

Parts See Owner’s Manual” is

displayed on the multi-infor-

mation display

Clean the air intake vent immedi-

ately.
If the vehicle is continuously

driven with the warning message

displayed, it may cause a mal-

function or output restriction of the

hybrid battery (traction battery).

Cleaning procedure

349

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Toyota dealer.

6

Install the filter in its original
position, and then install the
air intake vent cover.

If “Maintenance Required for
Traction Battery Cooling Parts
See Owner’s Manual” is dis-
played on the multi-informa-
tion display

7

Start the hybrid system and
check that the warning mes-
sage is no longer displayed.

It may be necessary to drive the

vehicle for warning message is dis-

played again then disappears.
If the warning message does not

disappear after some time, have

the vehicle inspected by your Toy-

ota dealer.

If the dust or sand on the filter

cannot be removed

It is recommended to use a vacuum

cleaner with plastic brushes.

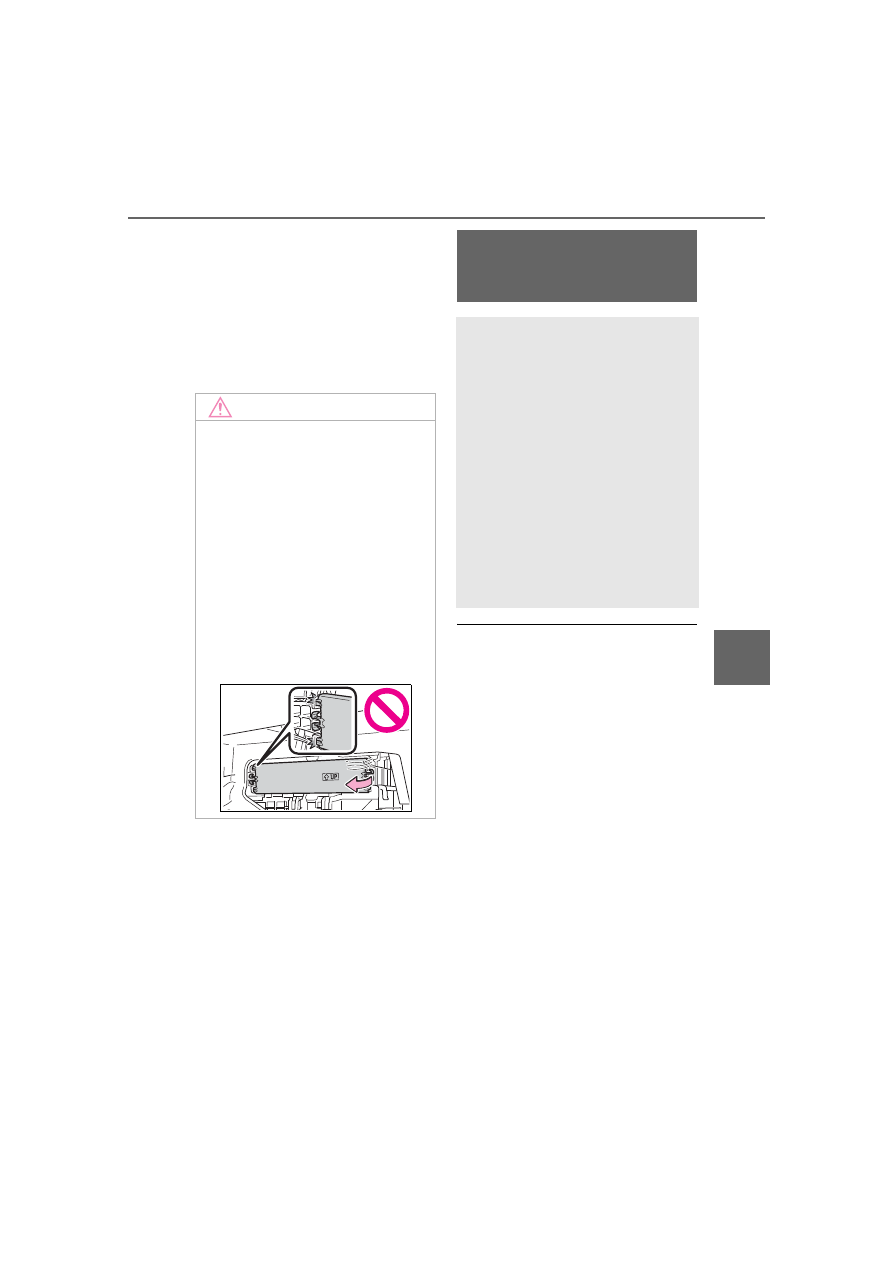

WARNING

When cleaning the air intake

vent

Do not use water or other liq-

uids to clean the air intake vent.

If water is applied to the hybrid

battery (traction battery) or

other components, a malfunc-

tion or fire may occur.

Before cleaning the air intake

vent, make sure to turn the

power switch off to stop the

hybrid system.

Do not put a hand or leg in the

air intake vent. If it is caught in a

cooling fan, or if it touches a

high voltage part that results in

an electric shock, death or seri-

ous injuries may result.

NOTICE

When cleaning the air intake

vent

Do not use an air blow gun, etc.
Dust may be blown out, possibly

causing a malfunction or output

restriction of the hybrid battery

(traction battery).

To prevent damage to the

vehicle

Observe the following precau-

tions:

Do not allow liquid or foreign

material to enter the air intake

vent.

Make sure to reinstall the filter

and cover to their original posi-

tions after cleaning.

Do not install anything to the air

intake vent other than the exclu-

sive filter for this vehicle or use

the vehicle without the filter

installed.

350

6-3. Do-it-yourself maintenance

If the key battery is depleted

The following symptoms may occur:

The smart key system (if

equipped) and wireless remote

control will not function properly.

The operational range will be

reduced.

Flathead screwdriver

Small flathead screwdriver

Lithium battery CR2032 (vehi-
cles without a smart key sys-
tem), or CR2450 (vehicles
with a smart key system)

Use a CR2032 (vehicles without

a smart key system), or CR2450

(vehicles with a smart key sys-

tem) lithium battery

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

Replace only with the same or

equivalent type recommended by

the manufacturer.

NOTICE

To prevent damage to the fil-

ter

Observe the following precau-

tions.

If the filter is damaged, have it

replaced with a new filter by your

Toyota dealer.

Do not use an air blow gun, etc.

Do not press hard a vacuum

cleaner, etc.against the filter.

Do not use a hard brush, such

as a metal brush.

Do not break the fold of the fil-

ter.

Wireless remote con-

trol/electronic key bat-

tery

Replace the battery with a
new one if it is depleted.
As the key may be damaged
if the following procedure is
not performed properly, it is
recommended that key bat-
tery replacement be per-
formed by your Toyota
dealer.

Items to prepare

351

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Dispose of used batteries accord-

ing to local laws.

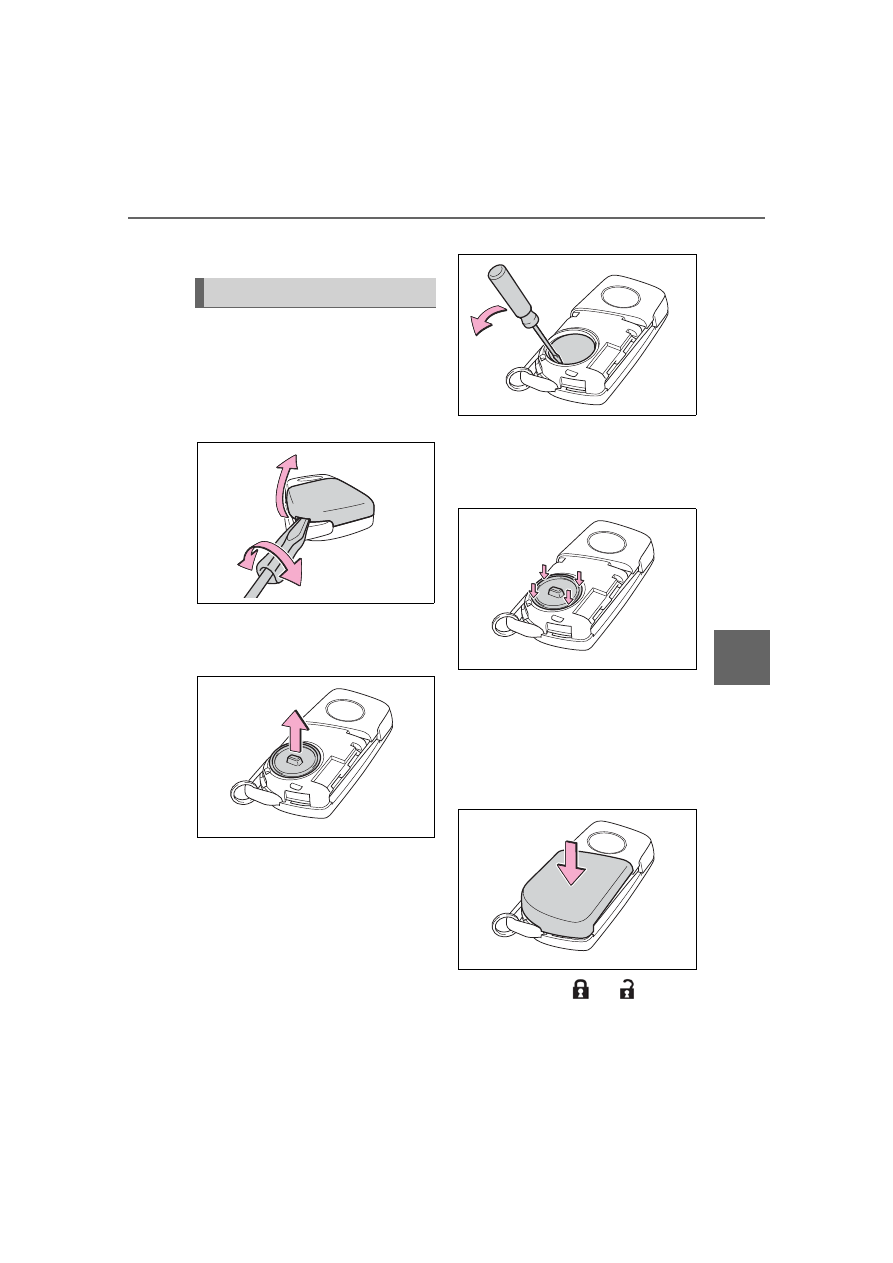

Vehicles without a smart key
system

1

Remove the key cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

2

Remove the battery cover.

If the battery cover is difficult to

remove, lift the edge to remove it.

3

Remove the depleted battery
using a small flathead screw-
driver.

Insert a new battery with the “+” ter-

minal facing up.

4

Install the battery cover with
the tab facing up.

Push the entire edge of the battery

cover into the key.

5

Install the key cover.

Align the key cover with the key

and then press it straight into the

key.
Make sure that the key cover is

securely installed without any gaps

between it and the key.

6

Operate the

 or

 switch

and check that the doors can
be locked/unlocked.

Replacing the battery

352

6-3. Do-it-yourself maintenance

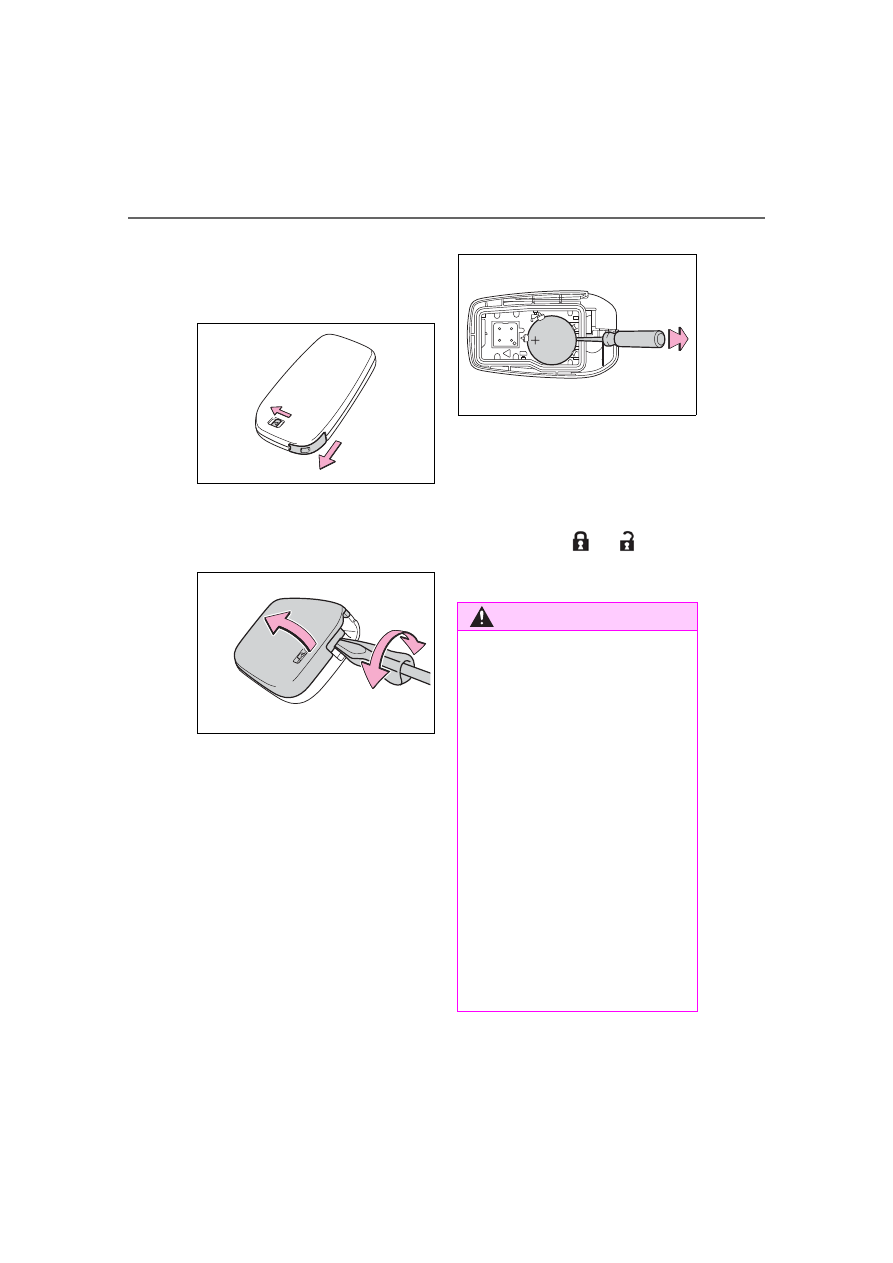

Vehicles with a smart key sys-
tem

1

Release the lock and remove
the mechanical key.

2

Remove the key cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

3

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
Insert a new battery with the “+” ter-

minal facing up.

4

When installing the key cover
and mechanical key, install
by conducting step

2

 and

step

1

 with the directions

reversed.

5

Operate the

 or

 switch

and check that the doors can
be locked/unlocked.

WARNING

Battery precautions

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

Do not swallow the battery.

Doing so may cause chemical

burns.

A coin battery or button battery

is used in the key. If a battery is

swallowed, it may cause severe

chemical burns in as little as 2

hours and may result in death or

serious injury.

Keep away new and removed

batteries from children.

If the cover cannot be firmly

closed, stop using the key and

stow the key in the place where

children cannot reach, and then

contact your Toyota dealer.

353

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

WARNING

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

To prevent battery explosion

or leakage of flammable liq-

uid or gas

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

Do not burn, break or cut a bat-

tery.

NOTICE

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

Always work with dry hands.

Moisture may cause the battery

to rust.

Do not touch or move any other

component inside the remote

control.

Do not bend either of the battery

terminals.

When removing the battery

cover (vehicles without a

smart key system)

Do not forcibly remove the battery

cover, otherwise it may be dam-

aged.

If the battery cover is difficult to

remove, lift the edge to remove it.















Content      ..     19      20      21      22     ..
