Toyota Corolla Hybrid (2023 year). Manual in english - page 15

241

4-5. Using the driving support systems

ing

Press the cancel switch or
driving assist switch to cancel
control.

Control will also be canceled if the

brake pedal is depressed.

(If the vehicle has been stopped by

system control, depressing the

brake pedal will not cancel control.)

Press the “RES” switch to
resume control.

Each time the switch is pressed, the vehicle-to-vehicle distance set-
ting will change as follows:

If a preceding vehicle is detected, the preceding vehicle mark will be dis-
played.

The actual vehicle-to-vehicle distance varies in accordance with the vehicle
speed. Also, when the vehicle is stopped by system control, it will be
stopped at a certain distance from the preceding vehicle, depending on the
situation, regardless of the setting.

■

Operating conditions

●

The shift lever is in D.

●

The desired set speed can be set

when the vehicle speed is approx-

imately 20 mph (30 km/h) or more.

• If the vehicle speed is set while

driving at below approximately 20

mph (30 km/h), the set vehicle

speed will be approximately 20

mph (30 km/h).

• If the vehicle speed is set while

driving at a speed that exceeds

the system's upper limit, the set

vehicle speed will be the system's

upper limit.

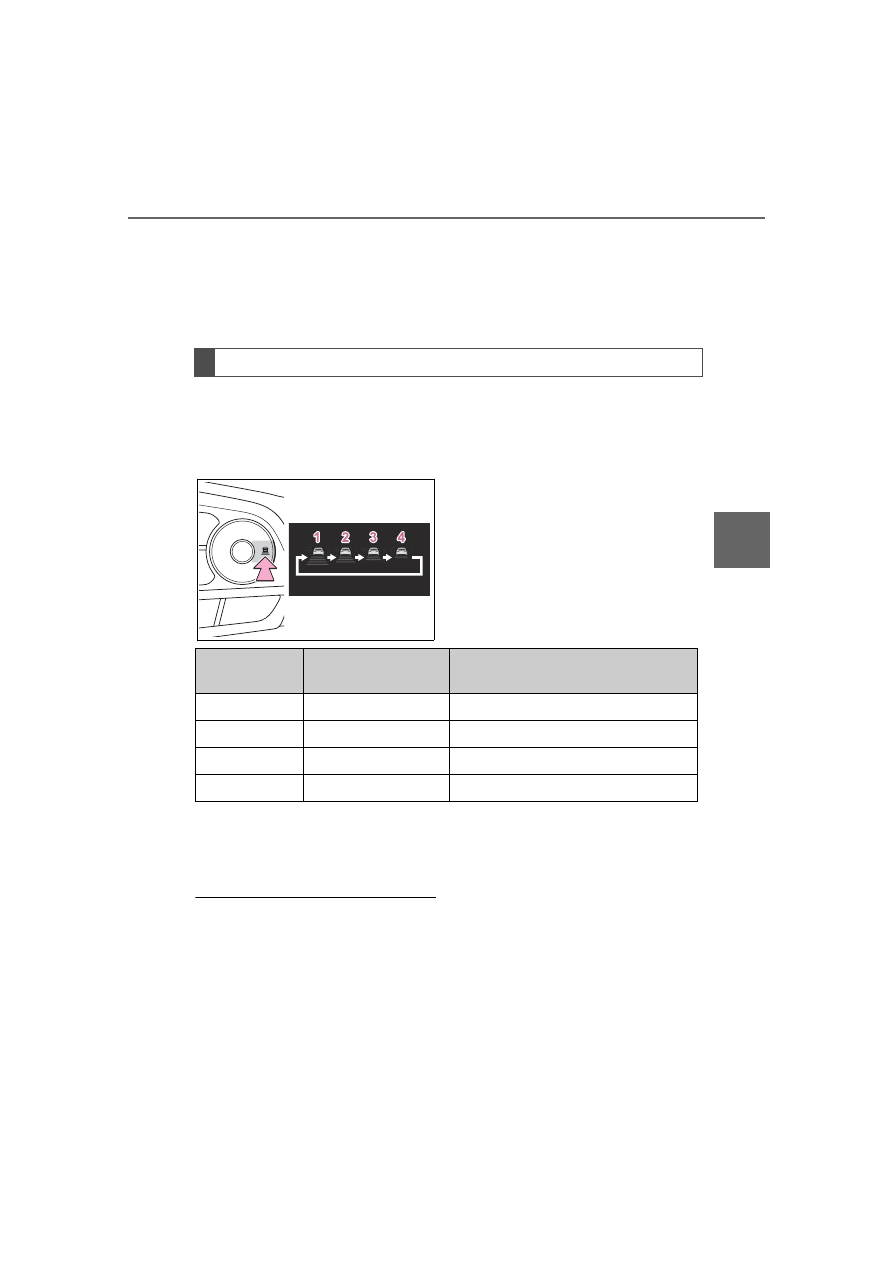

Changing the vehicle-to-vehicle distance

Illustration

Number

Vehicle-to-vehicle

distance

Approximate Distance (Vehicle

Speed: 60 mph [100 km/h])

Extra long

Approximately 200 ft. (60 m)

Long

Approximately 145 ft. (45 m)

Medium

Approximately 100 ft. (30 m)

Short

Approximately 85 ft. (25 m)

242

4-5. Using the driving support systems

■

Accelerating after setting the

vehicle speed

As with normal driving, acceleration

can be performed by depressing the

accelerator pedal. After accelerat-

ing, the vehicle will return to the set

vehicle speed. However, while in

vehicle-to-vehicle distance control

mode, the vehicle speed may

decrease to below the set vehicle

speed in order to maintain the dis-

tance from the preceding vehicle.

■

When the vehicle is stopped by

system control during follow-up

cruising

●

When the “+RES” switch is

pressed while the vehicle is

stopped by system control, if the

preceding vehicle starts off within

approximately 3 seconds, fol-

low-up cruising will resume.

●

If the preceding vehicle starts off

within approximately 3 seconds of

the vehicle being stopped by sys-

tem control, follow-up cruising will

resume.

■

Automatic cancellation of vehi-

cle-to-vehicle distance control

mode

In the following situations, vehi-

cle-to-vehicle distance control mode

will be canceled automatically:

●

When the brake control or output

restriction control of a driving sup-

port system operates

(For example: Pre-Collision Sys-

tem, drive-start control)

●

When the parking brake has been

operated

●

When the vehicle is stopped by

system control on a steep incline

●

When any of the following are

detected while the vehicle is

stopped by system control:

• The driver’s seat belt is unfas-

tened

• The driver’s door is opened

• Approximately 3 minutes have

elapsed since the vehicle was

stopped

The parking brake may be actived

automatically.

●

Situations in which some or all of

the functions of the system cannot

operate:



P.206

■

Dynamic radar cruise control

system warning messages and

buzzers

For safe use:



P.201

■

Preceding vehicles that the sen-

sor may not detect correctly

In the following situations, depend-

ing on the conditions, if the system

cannot provide sufficient decelera-

tion or acceleration is necessary,

operate the brake pedal or accelera-

tor pedal.
As the sensor may not be able to

correctly detect these types of vehi-

cles, the approach warning

(



P.243) may not operate.

●

When a vehicle cuts in front of

your vehicle or changes lanes

away from your vehicle extremely

slowly or quickly

●

When changing lanes

●

When a preceding vehicle is driv-

ing at a low speed

●

When a vehicle is stopped in the

same lane as the vehicle

●

When a motorcycle is traveling in

the same lane as the vehicle

■

Conditions under which the

system may not operate cor-

rectly

In the following situations, operate

the brake pedal (or accelerator

pedal, depending on the situation)

as necessary.
As the sensor may not be able to

correctly detect a vehicle, the sys-

tem may not operate properly.

●

When a preceding vehicle brakes

suddenly

●

When changing lanes at low

speeds, such as in a traffic jam

243

4-5. Using the driving support systems

ing

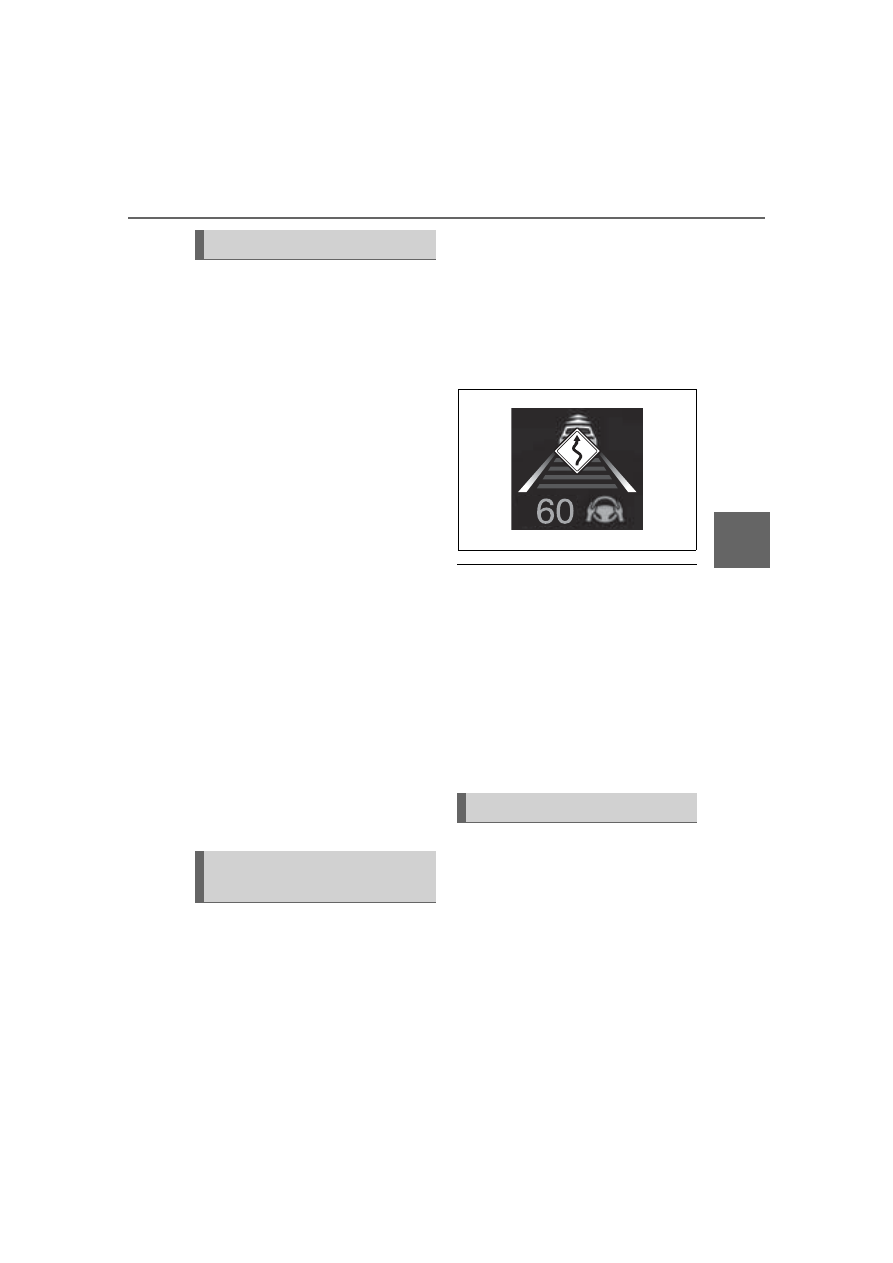

In situations where the vehicle
approaches a preceding vehicle
and the system cannot provide
sufficient deceleration, such as
if a vehicle cuts in front of the
vehicle, a warning display will
flash and a buzzer will sound to
alert the driver. Depress the
brake pedal to ensure appropri-
ate vehicle-to-vehicle distance.

■

Warnings may not occur
when

In the following situations, the
warning may not operate even
though the vehicle-to-vehicle
distance is short.



When the preceding vehicle is
traveling at the same speed
or faster than your vehicle



When the preceding vehicle is
traveling at an extremely low
speed



Immediately after the vehicle
speed has been set



When the accelerator pedal is
depressed

When a curve is detected, the
vehicle speed will begin being
reduced. When the curve ends,
the vehicle speed reduction will
end.

Depending on the situation, the

vehicle speed will then return to the
set vehicle speed.
In situations where vehicle-to-vehi-
cle distance control needs to oper-
ate, such as when a preceding
vehicle cuts in front of your vehicle,
the curve speed reduction function
will be canceled.

■

Situations in which the curve

speed reduction function may

not operate

In situations such as the following,

the curve speed reduction function

may not operate:

●

When the vehicle is being driven

around a gentle curve

●

When the accelerator pedal is

being depressed

●

When the vehicle is being driven

around an extremely short curve

If your vehicle is being driven at
approximately 50 mph (80 km/h)
or more and a lane change to
the passing lane is performed,
when the turn signal lever is
operated and the lane is
changed, the vehicle will accel-
erate up to the set speed to
assist in overtaking.

The system’s recognition of which

Approach warning

Curve speed reduction
function

Support for lane change

244

4-5. Using the driving support systems

lane is the passing lane may be
based solely on the location of the
steering wheel in the vehicle
(left-hand drive/right-hand drive). If
the vehicle is driven in a location
where the passing lane is on the
opposite side of that where the
vehicle was originally sold, the
vehicle may accelerate when the
turn signal lever is operated away
from the passing lane. (e.g. The
vehicle was manufactured for a
right-hand traffic location, but is
being driven in a left-hand traffic
location. The vehicle may acceler-
ate when the turn signal lever is
operated to the right.)
If your vehicle is being driven at
approximately 50 mph (80 km/h) or
more and the lane is changed to
that with a vehicle traveling slower
than your vehicle, when the turn
signal lever is operated the vehicle
will gradually decelerate to assist in
changing lanes.



The settings of Dynamic radar
cruise control can be changed
through customize settings.
(



P.442)

Changing Dynamic radar
cruise control settings

Cruise control

The vehicle can be driven at
a set speed even if the
accelerator pedal is not
depressed.

Use the cruise control only
on highways and express-
ways.

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver.

Therefore, do not overly rely on

this system. The driver is solely

responsible for paying attention

to the vehicle’s surroundings

and driving safely.

●

Set the speed appropriately

according to the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for confirm-

ing the set speed.

■

Situations in which cruise

control should not be used

Do not use the cruise control in

the following situations. As the

system will not be able to provide

appropriate control, using it may

lead to an accident resulting in

death or serious injury.

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as

those covered with rain, ice or

snow

●

On steep downhills, or where

there are sudden changes

between sharp up and down

gradients

245

4-5. Using the driving support systems

ing

■

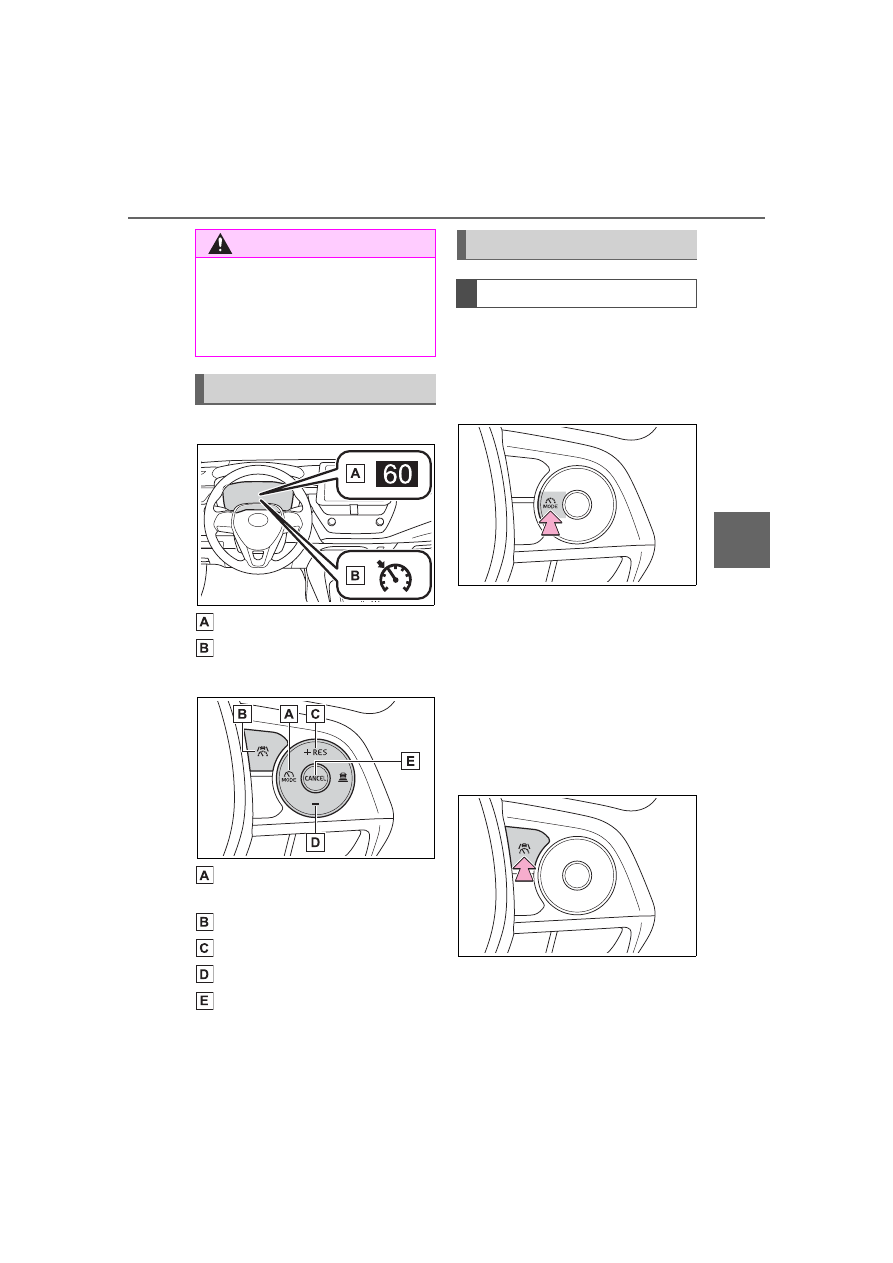

Meter display

Set vehicle speed
Cruise control indicator

■

Switches

Driving assist mode select
switch
Driving assist switch
“+” switch / “RES” switch
“-” switch
Cancel switch

Press the driving assist mode
select switch to select cruise
control.

The cruise control indicator will illu-

minate.

Using the accelerator pedal,
accelerate to the desired
vehicle speed (approxi-
mately 20 mph [30 km/h] or
more), and press the driving
assist switch to set the set
vehicle speed.

The vehicle speed at the moment

the switch is released will be the set

vehicle speed.

WARNING

Vehicle speed may exceed the set

speed when driving down a steep

hill.

●

When it is necessary to disable

the system:



P.201

System Components

Using the cruise control

Setting the vehicle speed

246

4-5. Using the driving support systems

■

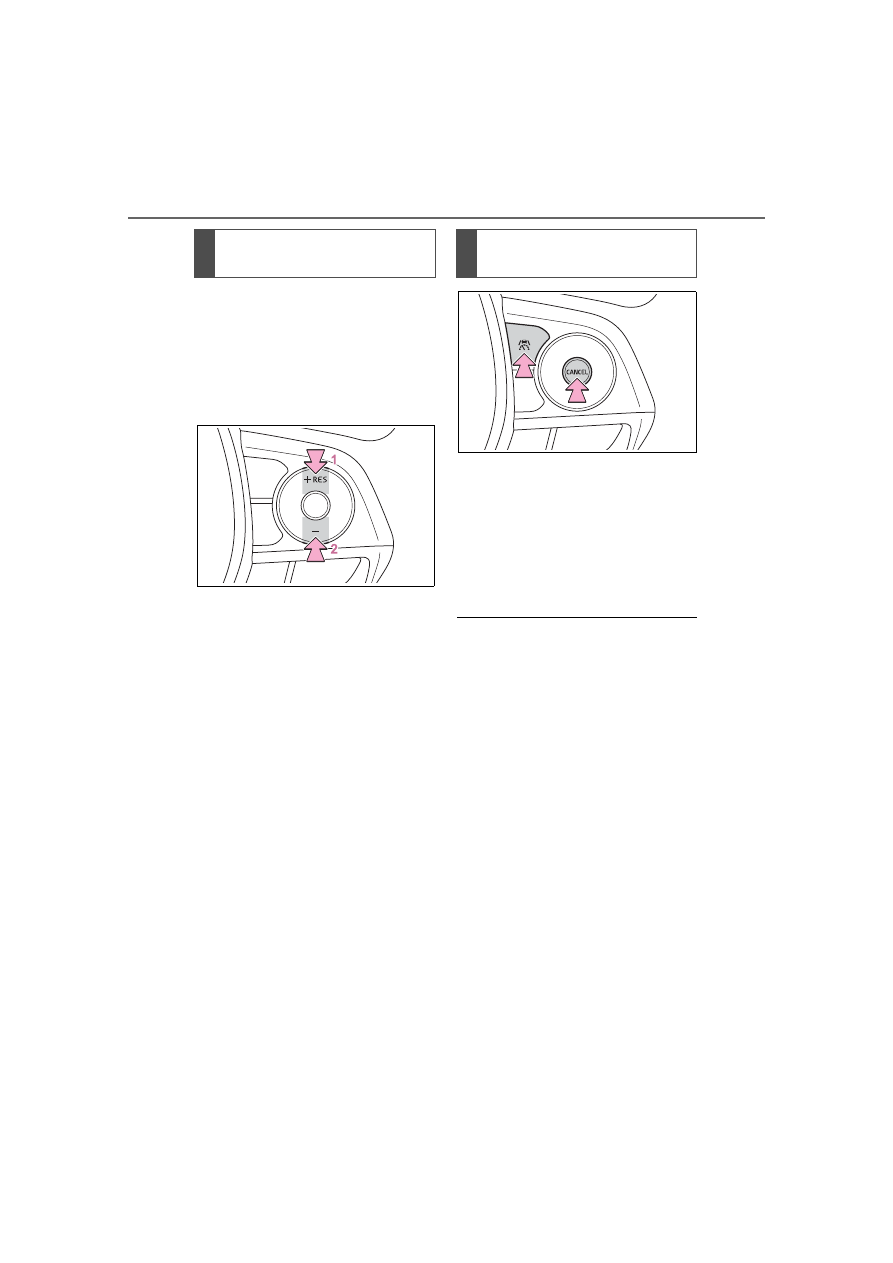

Adjusting the set vehicle
speed using the switches

To change the set vehicle
speed, press the “+” or “-” switch
until the desired speed is dis-
played.

Increase set vehicle speed

Decrease set vehicle speed

The set vehicle speed will
increase or decrease as follows:

Fine adjustment: By 1 mph (1.6
km/h) or 1 km/h (0.6 mph) each
time the switch is pressed
Large adjustment: Increases con-
tinuously while the switch is
pressed and held

■

Increasing the set vehicle
speed using the accelerator
pedal

Depress the accelerator
pedal to accelerate the vehi-
cle to the desired vehicle
speed.

Press the “+” switch.

Press the cancel switch or
driving assist switch to cancel
control.

Control will also be canceled if the
brake pedal is depressed.

Press the “RES” switch to
resume control.

■

Automatic cancellation of the

cruise control

In the following situations, the cruise

control will be canceled automati-

cally:

●

When the vehicle speed drops

approximately 10 mph (16 km/h)

or more below the set vehicle

speed

●

When the vehicle speed drops

below approximately 20 mph (30

km/h)

●

When the brake control or output

restriction control of a driving sup-

port system operates (For exam-

ple: PCS, drive-start control)

●

When the parking brake has been

operated

●

Situations in which some or all of

the functions of the system cannot

operate:



P.206

Adjusting the set vehicle
speed

Canceling/resuming con-
trol

247

4-5. Using the driving support systems

ing

Operation of this system is sep-
arated into 4 control states.

Emergency Driving

Stop System

The emergency driving stop
system is a system which
automatically decelerates
and stops the vehicle within
its lane if the driver
becomes unable to continue
driving the vehicle, such as
if they have suffered a medi-
cal emergency, etc.

During LTA (Lane Tracing
Assist) control, if the sys-
tem does not detect driving
operations, such as if the
driver is not holding the
steering wheel, and deter-
mines the driver is not
responsive, the vehicle will
be decelerated and stopped
within its current lane to
help avoid a collision or
reduce the impact of a colli-
sion.

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver. Pay

careful attention to the sur-

rounding conditions in order to

ensure safe driving. The emer-

gency driving stop system is

designed to provide support in

an emergency where it is diffi-

cult for the driver to continue

driving, such as if they have had

a medical emergency. It is not

designed to support driving

while drowsy or in poor physical

health, or inattentive driving.

●

Although the emergency driv-

ing stop system is designed to

decelerate the vehicle within its

lane to help avoid or help

reduce the impact of a collision

if the system determines that it

is difficult for the driver to con-

tinue driving, its effectiveness

may change according to vari-

ous conditions. Therefore, it

may not always be able to

achieve the same level of per-

formance. Also, if the operating

conditions are not met, this

function will not operate.

●

After the emergency driving

stop system operates, if driving

becomes possible again, imme-

diately begin driving again or, if

necessary, park the vehicle on

the shoulder of the road and set

a warning reflector and flare to

warn other drivers of your

stopped vehicle.

●

After this system operates, pas-

sengers should attend to the

driver as necessary and take

appropriate hazard prevention

measures, such as moving to a

place where safety can be

ensured, such as the shoulder

of the road or behind a guard-

rail.

●

This system detects the condi-

tion of the driver through the

operation of the steering wheel.

This system may operate if the

driver is aware but intentionally

and continuously does not oper-

ate the vehicle. Also, the system

may not operate if it cannot

determine that the driver is not

responsive, such as if they are

leaning on the steering wheel.

Summary of the system

248

4-5. Using the driving support systems

Through control state “warning
phase 1” and “warning phase 2”,
the system determines if the
driver is aware and responsive
while outputting a warning and
controlling the vehicle speed. If
the system determines the
driver is not responsive, it will
operate in control state “deceler-
ation stop phase” and “stop hold
phase” and decelerate and stop
the vehicle. It will then operate
continuously in “stop hold
phase”.

■

Operating conditions

This system operates when all of

the following conditions are met:

●

When the LTA is on

●

When the vehicle speed is

approximately 30 mph (50 km/h)

or more

■

Operation cancelation condi-

tions

In the following situations, system

operation will be canceled:

●

When LTA control has been can-

celed (the LTA switch has been

pressed, etc.)

●

When the dynamic radar cruise

control has been canceled

●

When driver operations are

detected (the steering wheel is

held, the brake pedal, accelerator

pedal, parking brake, hazard light

switch, or turn signal lever is oper-

ated)

●

When the driving assist switch is

pressed while in the stop and hold

phase

●

When the power switch has been

turned from ON to off

●

Situations in which some or all of

the functions of the system cannot

operate:



P.206

■

LTA control when operation is

canceled

When emergency driving stop sys-

tem operation is canceled, LTA con-

trol may also be canceled.

If driving operations are not
detected after the hands off
steering wheel warning oper-
ates, a buzzer will sound inter-
mittently and a message will be
displayed to warn the driver, and
the system will judge if the driver
is responsive or not. If driving
operations, such as holding the
steering wheel, are not per-
formed within a certain amount
of time, the system will enter
warning phase 2.

After entering warning phase 2,
a buzzer will sound in short
intervals and a message will be
displayed to warn the driver, and
the vehicle will slowly deceler-
ate. If driving operations, such
as holding the steering wheel,
are not performed within a cer-
tain amount of time, the system
will determine that the driver is
not responsive and enter the
deceleration stop phase.

The audio system will be muted
until the driver becomes respon-
sive.
When the vehicle is decelerating,

Warning phase 1

Warning phase 2

249

4-5. Using the driving support systems

ing

the brake lights may illuminate,
depending on the road conditions,
etc.

After entering the deceleration
stop phase, a buzzer will sound
continuously and a message will
be displayed to warn the driver,
and the vehicle will slowly decel-
erate and stop. After the vehicle
stops, the system will enter the
stop and hold phase.

After the vehicle is stopped, the
parking brake will be applied
automatically. After entering the
stop and hold phase, the buzzer
will continue sounding continu-
ously, the emergency flashers
(hazard lights) will flash to warn
other drivers of the emergency.

: If equipped

Deceleration stop phase

Stop hold phase

BSM (Blind Spot Moni-

tor)

The Blind Spot Monitor is a
system that uses rear side
radar sensors installed on
the inner side of the rear
bumper on the left and right
side to assist the driver in
confirming safety when
changing lanes.

WARNING

■

Cautions regarding the use of

the system

●

The driver is solely responsible

for safe driving. Always drive

safely, taking care to observe

your surroundings.

●

The Blind Spot Monitor is a sup-

plementary function which alerts

the driver that a vehicle is in a

blind spot of the outside rear

view mirrors or is approaching

rapidly from behind into a blind

spot. Do not overly rely on the

Blind Spot Monitor. As the func-

tion cannot judge if it is safe to

change lanes, over reliance

could lead to an accident result-

ing in death or serious injury. As

the system may not function

correctly under certain condi-

tions, the driver’s own visual

confirmation of safety is neces-

sary.

250

4-5. Using the driving support systems

Meter control switches

Turning the Blind Spot Monitor
on/off.

Outside rear view mirror indi-
cators

When a vehicle is detected in a
blind spot of the outside rear view
mirrors or approaching rapidly from
behind into a blind spot, the outside
rear view mirror indicator on the
detected side will illuminate. If the
turn signal lever is operated toward
the detected side, the outside rear
view mirror indicator flashes.

Driving assist information
indicator

Illuminates when the Blind Spot
Monitor is turned off. At this time,
“Blind Spot Monitor OFF” will be
displayed on the multi-information
display.

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Customization

Some functions can be customized.

(



P.442)

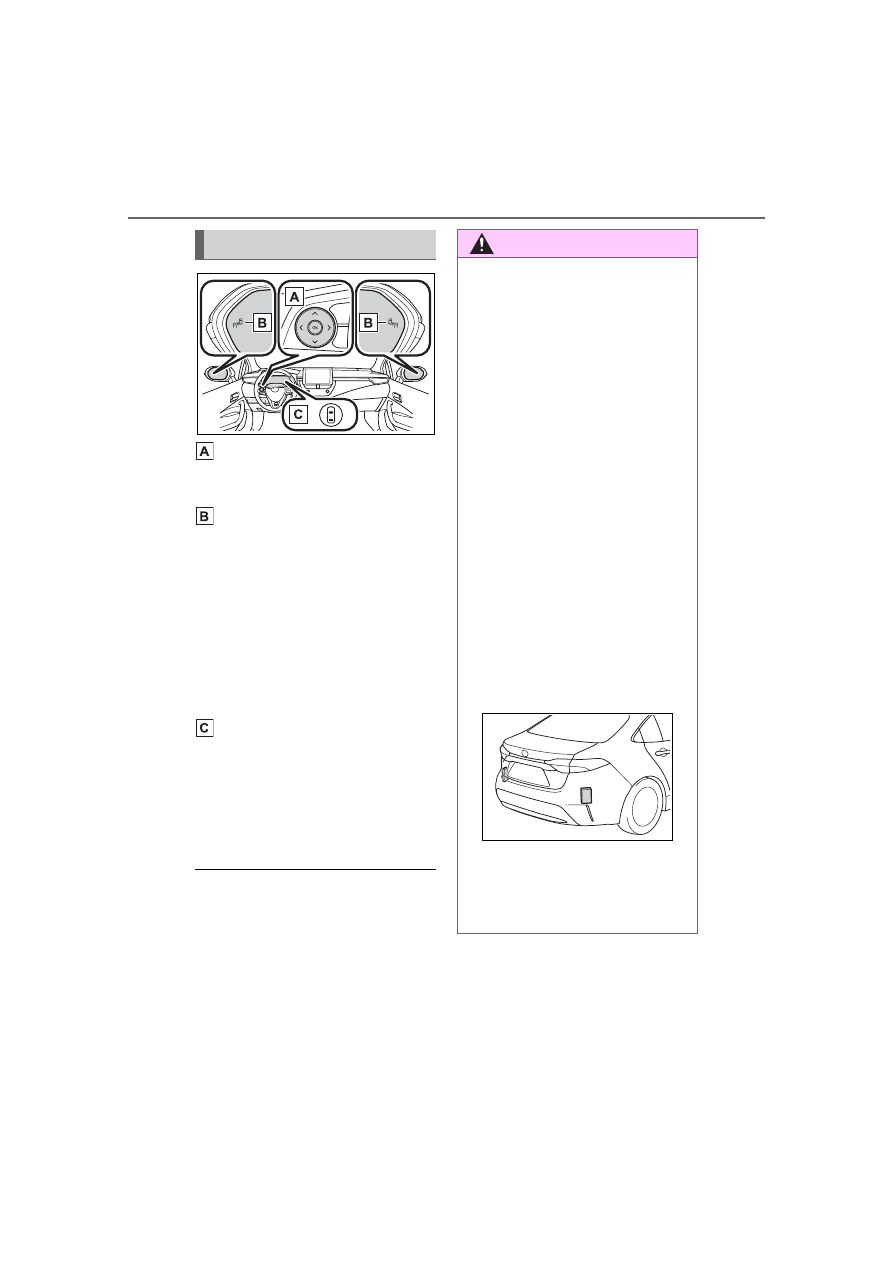

System components

WARNING

■

To ensure the system can

operate properly

Blind Spot Monitor sensors are

installed behind the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

operate correctly.

●

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding area
on the rear bumper is dirty or cov-
ered with snow, the Blind Spot
Monitor may not operate and a
warning message will be dis-
played. In this situation, clear off
the dirt or snow and drive the
vehicle with the operation condi-
tions of the BSM function
(



P.252) satisfied for approxi-

mately 10 minutes. If the warning
message does not disappear,
have the vehicle inspected by
your Toyota dealer.

●

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc. to

a sensor or its surrounding area

on the rear bumper.

251

4-5. Using the driving support systems

ing

The Blind Spot Monitor can be
enabled/disabled on

(4.2-inch display) or

(7-inch

display) of the multi-information
display. (



P.442)

When the Blind Spot Monitor
function is off, the driving assist
information indicator (



P.94)

will illuminate. At this time,
"Blind Spot Monitor OFF" will be
displayed on the multi-informa-
tion display.
Each time the power switch is
turned to ON, the Blind Spot
Monitor is enabled.

■

Objects that can be detected while driving

The Blind Spot Monitor uses rear side radar sensors to detect the fol-
lowing vehicles traveling in adjacent lanes and advises the driver of
the presence of such vehicles via the indicators on the outside rear
view mirrors.

WARNING

●

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have

your vehicle inspected by your

Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

●

Do not disassemble the sensor.

●

Do not modify the sensor or sur-

rounding area on the rear

bumper.

●

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your Toyota

dealer.

●

Do not paint the rear bumper

any color other than an official

Toyota color.

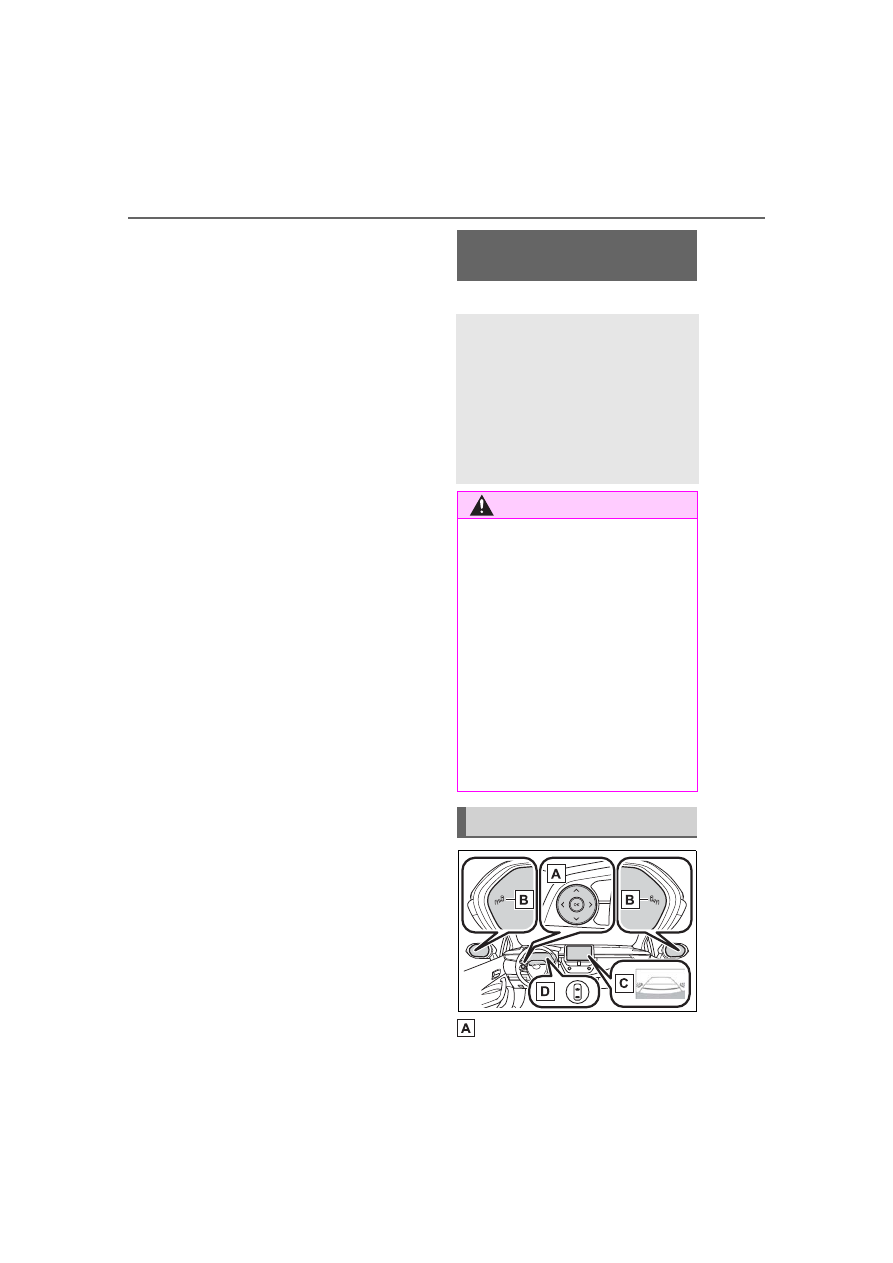

Turning the Blind Spot
Monitor on/off

Blind Spot Monitor operation

252

4-5. Using the driving support systems

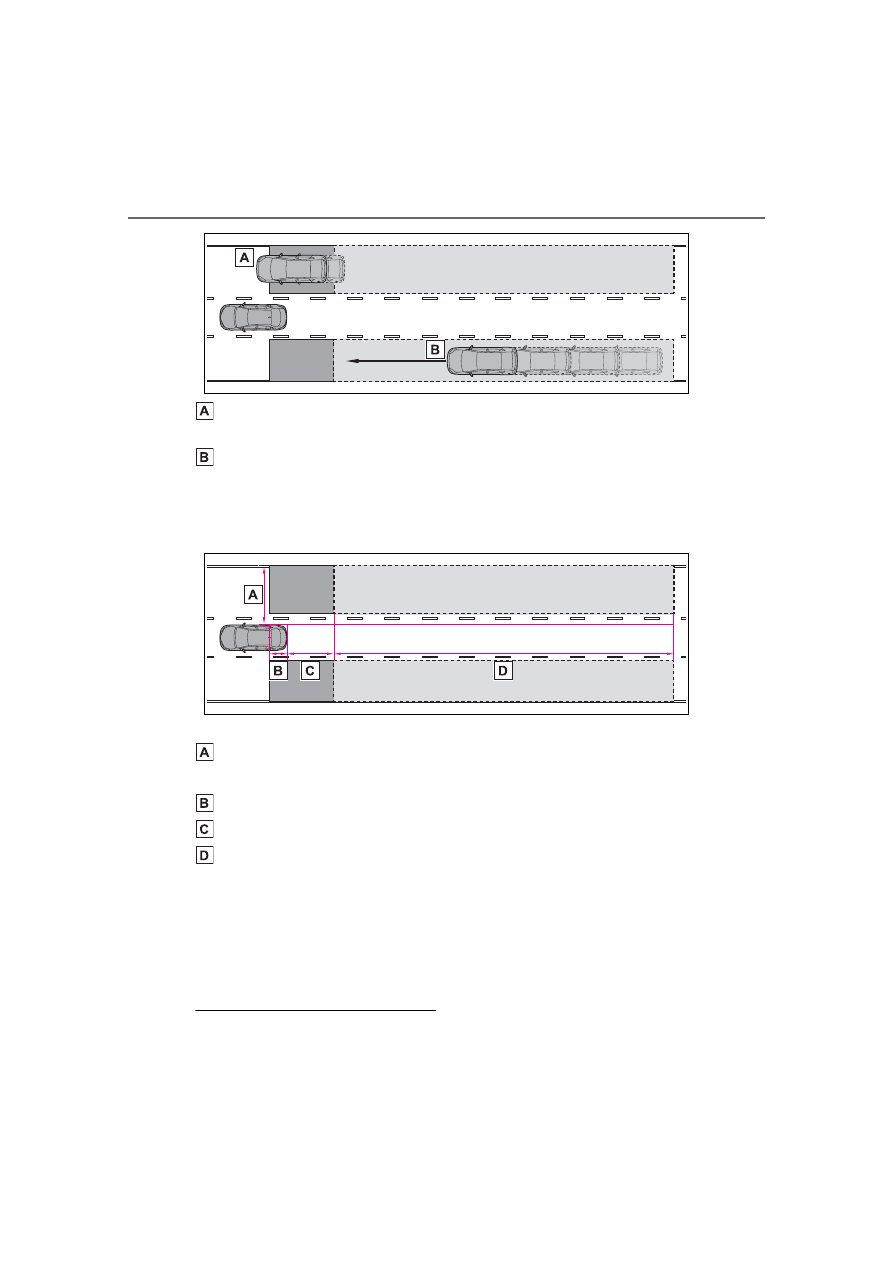

Vehicles that are traveling in areas that are not visible using the
outside rear view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that
are not visible using the outside rear view mirrors (the blind spots)

■

Detection range while driving

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of
the vehicle

Approximately 3.3 ft. (1 m) forward of the rear bumper
Approximately 9.8 ft. (3 m) from the rear bumper
Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear
bumper

:The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

:The greater the difference in speed between your vehicle and the

detected vehicle is, the farther away the vehicle will be detected, causing
the outside rear view mirror indicator to illuminate or flash.

■

The Blind Spot Monitor is oper-

ational when

The Blind Spot Monitor is opera-

253

4-5. Using the driving support systems

ing

tional when all of the following con-

ditions are met:

●

The power switch is in ON.

●

The Blind Spot Monitor is on.

●

The shift lever is in a position

other than R.

●

The vehicle speed is approxi-

mately 7 mph (10 km/h) or more.

■

The Blind Spot Monitor will

detect a vehicle when

The Blind Spot Monitor will detect a

vehicle present in the detection area

in the following situations:

●

A vehicle in an adjacent lane over-

takes your vehicle.

●

You overtake a vehicle in an adja-

cent lane slowly.

●

Another vehicle enters the detec-

tion area when it changes lanes.

■

Situations in which the blind

spot monitor cannot detect

vehicles.

The blind spot monitor cannot

detect the following vehicles and

other objects:

●

Small motorcycles, bicycles,
pedestrians, etc.

●

Vehicles traveling in the opposite

direction

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

●

Following vehicles that are in the
same lane

●

Vehicles traveling 2 lanes away
from your vehicle

●

Vehicles which are being over-
taken rapidly by your vehicle

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Conditions under which the

System may not function cor-

rectly

●

The Blind Spot Monitor may not

detect vehicles correctly in the fol-

lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When the distance between your

vehicle and a following vehicle is

short

• When there is a significant differ-

ence in speed between your vehi-

cle and the vehicle that enters the

detection area

• When the difference in speed

between your vehicle and another

vehicle is changing

• When a vehicle enters a detection

area traveling at about the same

speed as your vehicle

• As your vehicle starts from a stop,

a vehicle remains in the detection

area

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When vehicle lanes are wide, or

when driving on the edge of a

lane, and the vehicle in an adja-

cent lane is far away from your

vehicle

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

• Immediately after the Blind Spot

254

4-5. Using the driving support systems

Monitor is turned on

• When towing with the vehicle

●

Instances of the Blind Spot Moni-

tor unnecessarily detecting a vehi-

cle and/or object may increase in

the following situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.

that enters the detection area is

short

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a

lane, and a vehicle traveling in a

lane other than the adjacent lanes

enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is

short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When towing with the vehicle

: If equipped

Meter control switches

RCTA (Rear Cross Traf-

fic Alert) function

The RCTA function uses the
BSM rear side radar sensors
installed behind the rear
bumper. This function is
intended to assist the driver
in checking areas that are
not easily visible when
backing up.

WARNING

■

Cautions regarding the use of

the system

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings. The RCTA function is

only a supplementary function

which alerts the driver that a vehi-

cle is approaching from the right

or left at the rear of the vehicle. As

the RCTA function may not func-

tion correctly under certain condi-

tions, the driver’s own visual

confirmation of safety is neces-

sary. Over reliance on this func-

tion may lead to an accident

resulting death or serious injury.

System components

255

4-5. Using the driving support systems

ing

Turning the RCTA function on/off.
When the RCTA function is dis-
abled, the RCTA OFF indicator illu-
minates.

Outside rear view mirror indi-
cators

If a vehicle is detected as
approaching from the left or right
behind the vehicle, both outside
rear view mirror indicators will blink
and a buzzer will sound.

Audio system screen

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, the RCTA icon
(



P.256) for the detected side will

be displayed on the audio system
screen. This illustration shows an
example of a vehicle approaching
from both sides of the vehicle.

Driving assist information
indicator

When the RCTA is off, “Rear Cross
Traffic Alert OFF” will be displayed
on the multi-information display.

The RCTA can be enabled/dis-
abled on

(4.2-inch display)

(7-inch display) of the

multi-information display.
(



P.442)

When the RCTA function is off,
the driving assist information
indicator (



P.94) will illuminate.

At this time, "Rear Cross Traffic
Alert OFF" will be displayed on
the multi-information display.
Each time the power switch is
turned to ON, the RCTA is
enabled.

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to

hear over loud noises, such as if the

audio system volume is high.

■

Rear side radar sensors



P.250

■

Operation of the RCTA function

The RCTA function uses rear side radar sensors to detect vehicles
approaching from the right or left at the rear of the vehicle and alerts
the driver of the presence of such vehicles by flashing the outside
rear view mirror indicators and sounding a buzzer.

Turning the RCTA func-
tion on/off

RCTA function

256

4-5. Using the driving support systems

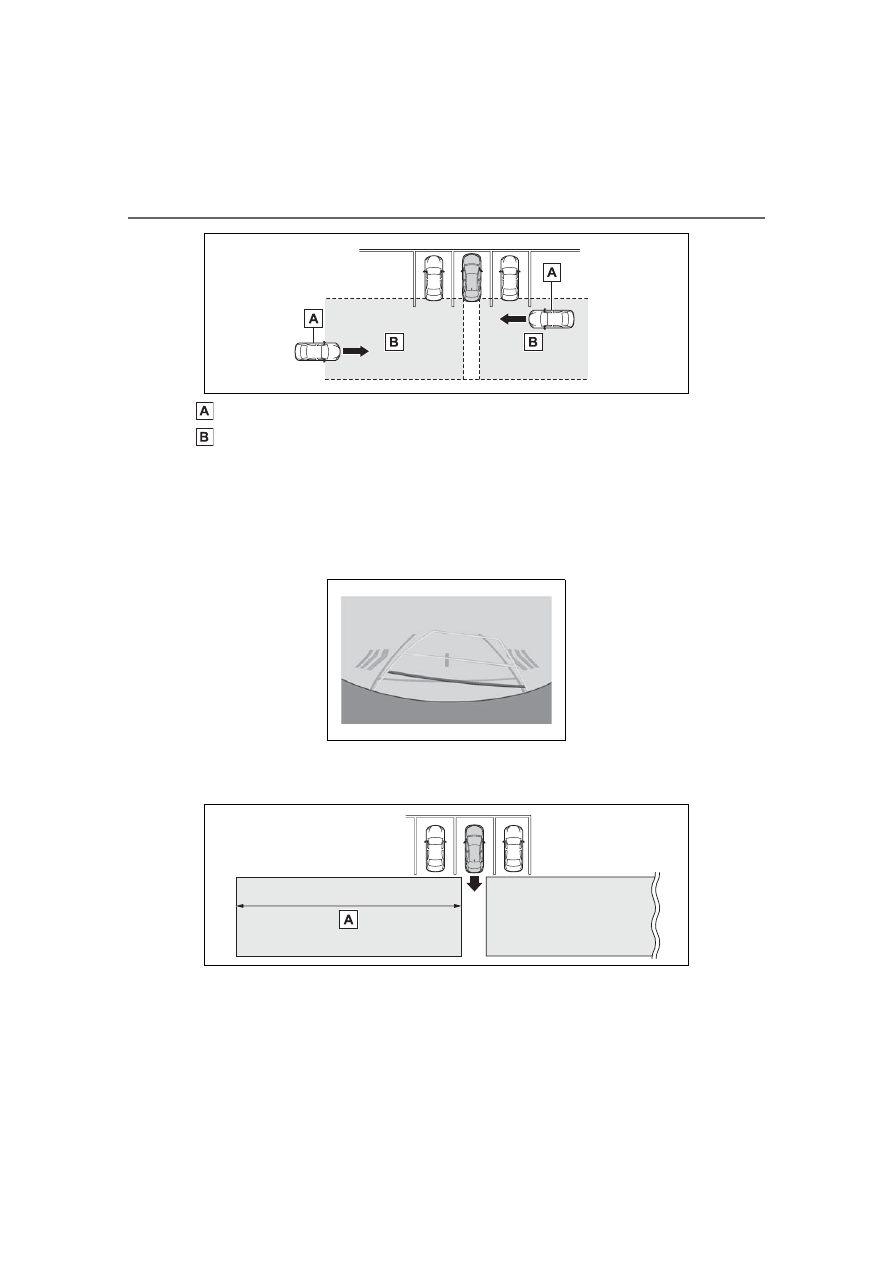

Approaching vehicles
Detection areas of approaching vehicles

■

RCTA icon display

When a vehicle approaching from the right or left at the rear of the
vehicle is detected, the following will be displayed on the audio sys-
tem screen.
Example: Vehicles are approaching from both sides of the vehicle

■

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

The buzzer can alert the driver of faster vehicles approaching from
farther away.
Example:

Content .. 13 14 15 16 ..
